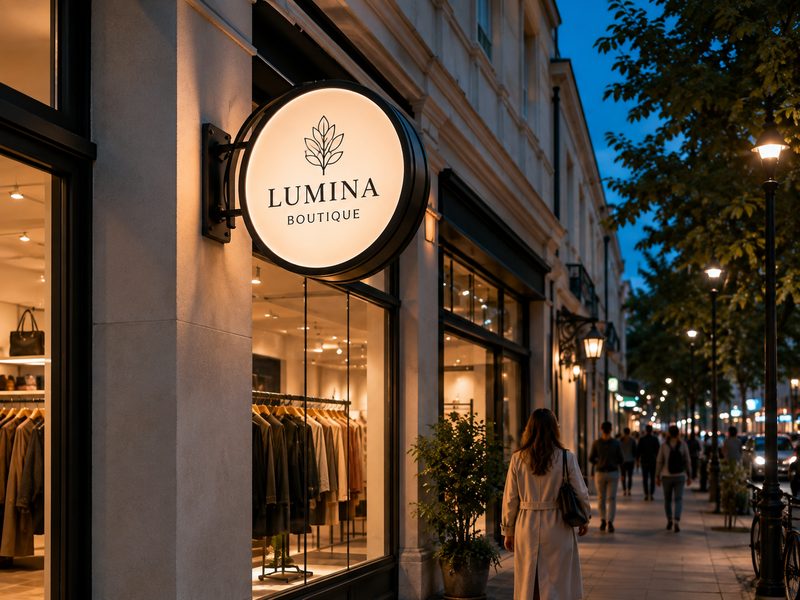

Custom Blade Signs for Commercial Spaces
OEM/ODM blade sign manufacturing for retail, hospitality, mixed-use, and branded environments requiring double-sided visibility, engineered brackets, and export-ready delivery.
- Custom round, square, logo-shaped, illuminated, non-illuminated, and bracket-mounted blade signs built from approved drawings.
- MOQ starts at 1 piece for samples, first-store validation, and specialty projects.
- Standard samples or single units typically require 5–7 days; special shapes, complex brackets, or large constructions typically require 7–15 days after approved files, materials, and payment.
- Illuminated units receive 100% lighting inspection and 72-hour pre-shipment testing before release.
- Manufacturing support includes engineering review, mounting preparation, export packing, and repeat-order file control.
Why Blade Signs Work Across Busy Commercial Spaces
Blade signs project outward from the building face, helping pedestrians approach a storefront from either direction while keeping the brand visible before arrival.
Side-Angle Visibility
A wall sign performs best when the viewer faces the storefront. A blade sign changes the viewing geometry by projecting perpendicular to the façade. The sign enters the pedestrian sightline earlier, which is especially useful on narrow storefronts, dense retail streets, covered walkways, and commercial corridors where neighboring façades compete for attention. Size, projection distance, mounting height, letter scale, and surrounding obstructions should be reviewed together rather than selected independently.
Two-Way Recognition
Double-sided construction gives the same storefront an identification surface for traffic moving in opposite directions. The two faces may use identical artwork, different layouts, or project-specific graphics depending on logo orientation and viewing direction. Frame width, face area, internal lighting space, edge treatment, and bracket position all affect how much usable graphic area remains visible. Engineering should protect both recognition and structural balance instead of treating the second face as a duplicate panel.
Entrance Identification
Blade signs are useful where the storefront entrance is easy to pass before the main wall sign becomes readable. Retail stores, cafés, restaurants, hotels, mixed-use buildings, and internal shopping corridors can use projecting signs to mark an entrance or tenant location. The sign should be coordinated with door position, façade depth, pedestrian clearance, canopy lines, neighboring signs, and local mounting restrictions so visibility improves without creating a poor installation interface or oversized projection.
Blade Signs Across Different Commercial Environments
Different commercial environments place different demands on viewing angle, operating hours, brand expression, weather exposure, mounting conditions, and repeat-production consistency.

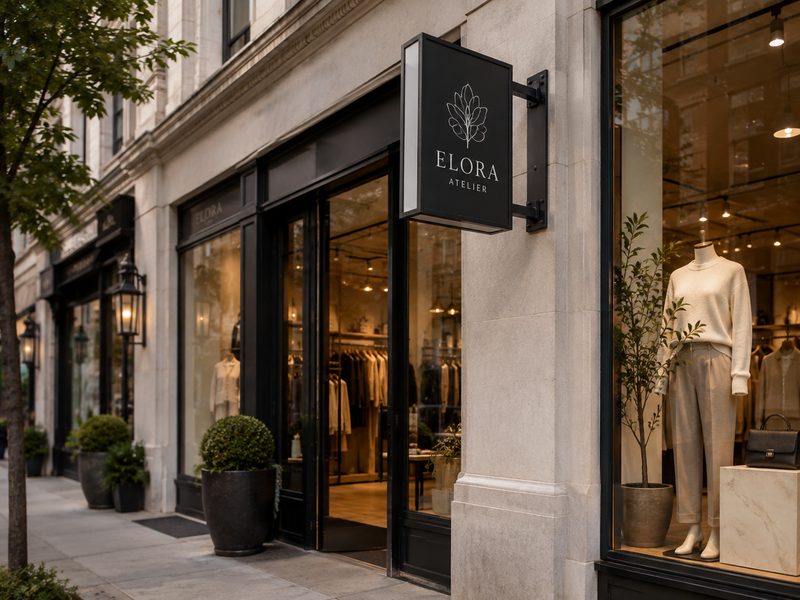

Retail Storefronts
Projecting signs help retail storefronts gain side visibility along shopping streets and mall corridors. Brand teams can specify custom outline, face graphics, frame finish, illumination, and bracket appearance to match a wider storefront identity system. For rollouts, approved dimensions, color references, bracket drawings, electrical specifications, packaging, and store identification can be retained as repeat-production records rather than recreated for every location.

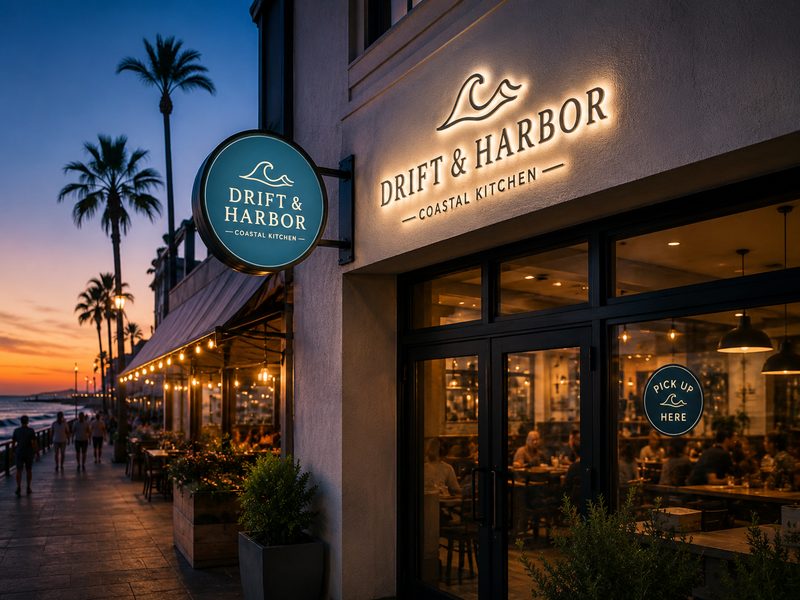

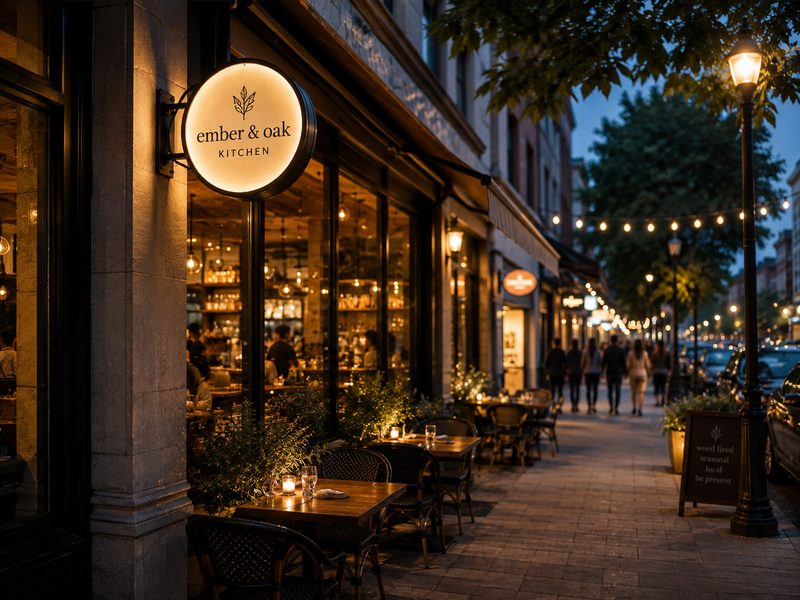

Restaurants and Cafés
Food and beverage locations often need clear identification before pedestrians reach the entrance, especially on dense streets or evening trading routes. Double-sided illuminated blade signs can combine logo recognition with night visibility, while non-illuminated metal options suit daylight-led concepts. Engineering should consider operating hours, façade material, outdoor exposure, service access, power location, moisture conditions near the storefront, and the visual relationship with menu, pickup, or window signage.

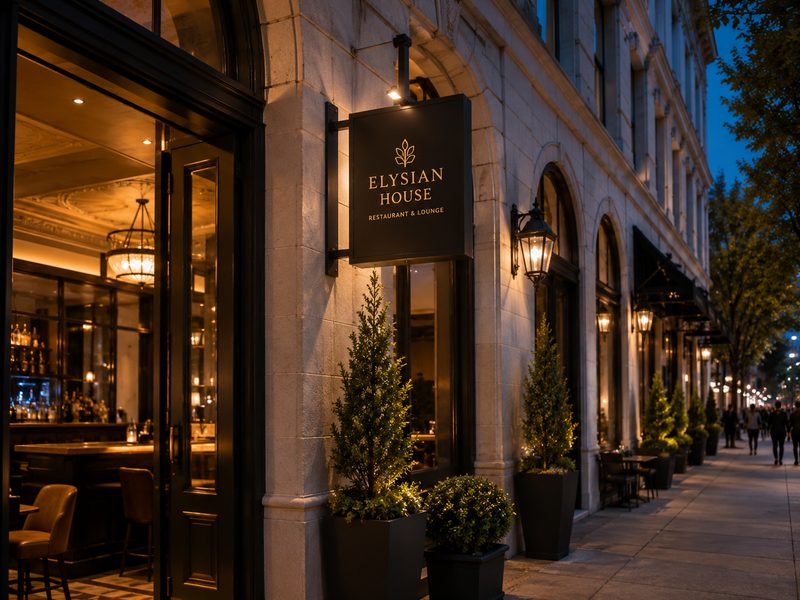

Hotels and Hospitality
Hotels, bars, lounges, and hospitality spaces frequently use blade signs to identify secondary entrances, restaurants, street-facing venues, or branded amenities within a larger property. Close-range finish quality and architectural fit matter as much as visibility. Brushed metal, painted frames, acrylic faces, restrained illumination, and concealed cable routing can be developed around the design language, while mounting details remain coordinated with the host building and local installation team.

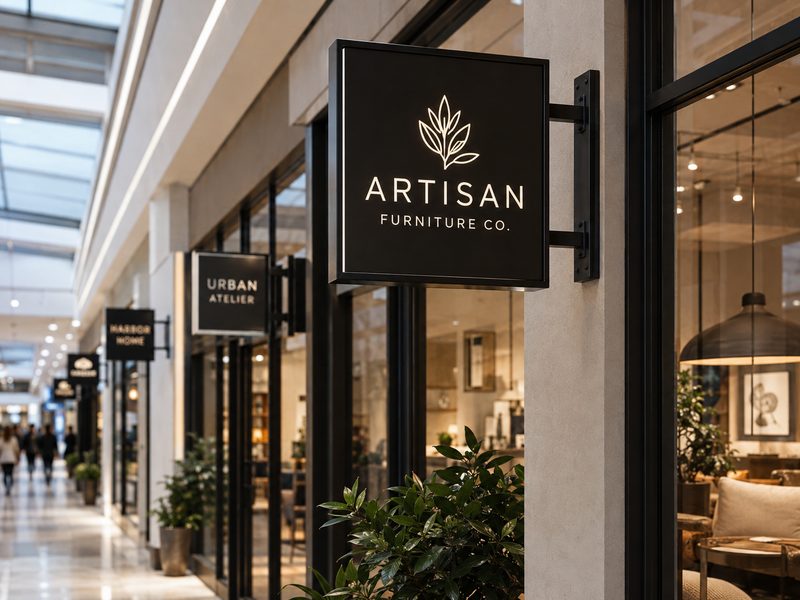

Shopping Centers
Tenant blade signs can organize long pedestrian corridors where front-facing storefront graphics are difficult to read until visitors are directly opposite the unit. A consistent sign family may share overall projection, bracket language, frame depth, electrical rules, and mounting height while allowing individual tenant graphics. Multi-unit programs benefit from numbering, version control, separated accessories, and packing by tenant or zone so installation crews can identify each sign quickly.

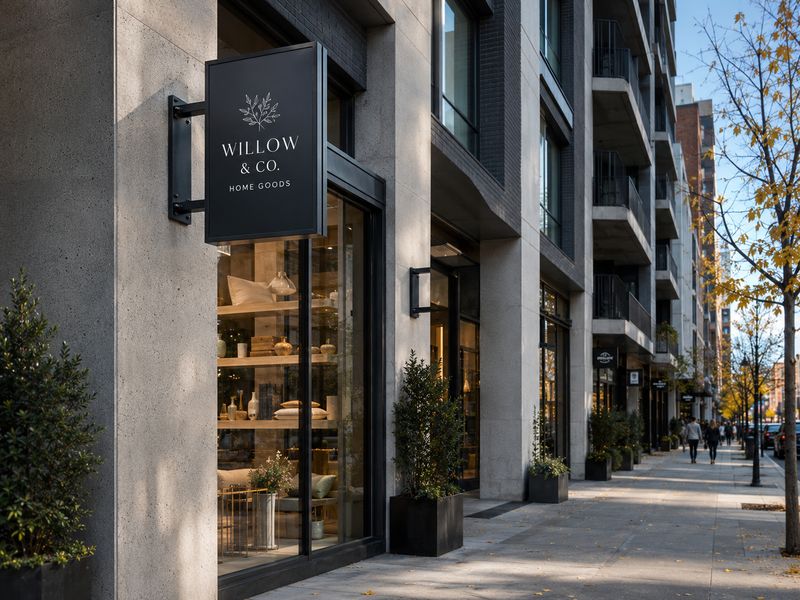

Mixed-Use Buildings
Ground-floor retail beneath offices, residences, or hospitality uses often requires signage that works within architectural restrictions and limited façade zones. Blade signs can provide directional recognition without occupying the full storefront width. Project development should account for the building finish, allowable fixing areas, projection limits, wiring path, maintenance access, wind exposure, and coordination with other exterior signage before the manufacturing drawing is frozen.

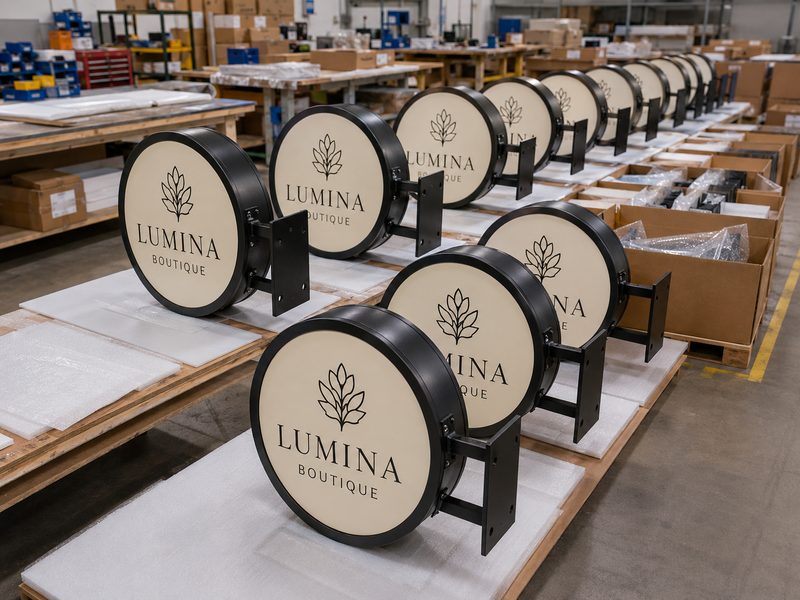

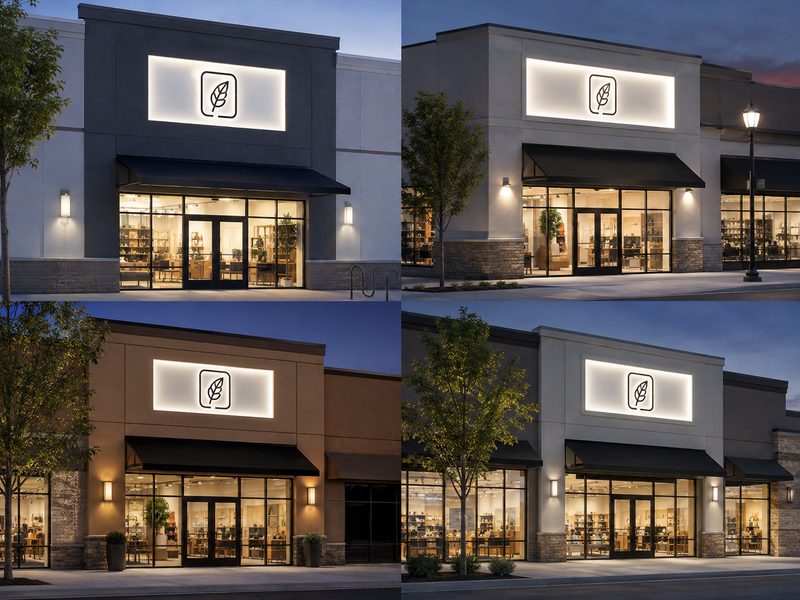

Sign Companies and Rollouts
Sign companies, contractors, and brand rollout teams often need a manufacturing partner rather than a local storefront design service. iduoduo can work from approved logos, drawings, color references, electrical requirements, installation interfaces, and packing instructions, then convert them into repeatable production files. Sampling, first-article review, batch QC, store numbering, export packing, and retained specifications help reduce variation when the same blade sign family is reordered across multiple locations.
Custom Blade Sign Types We Manufacture
Blade sign construction can shift from a simple non-illuminated panel to an engineered double-sided lightbox, depending on brand, building, and visibility requirements.

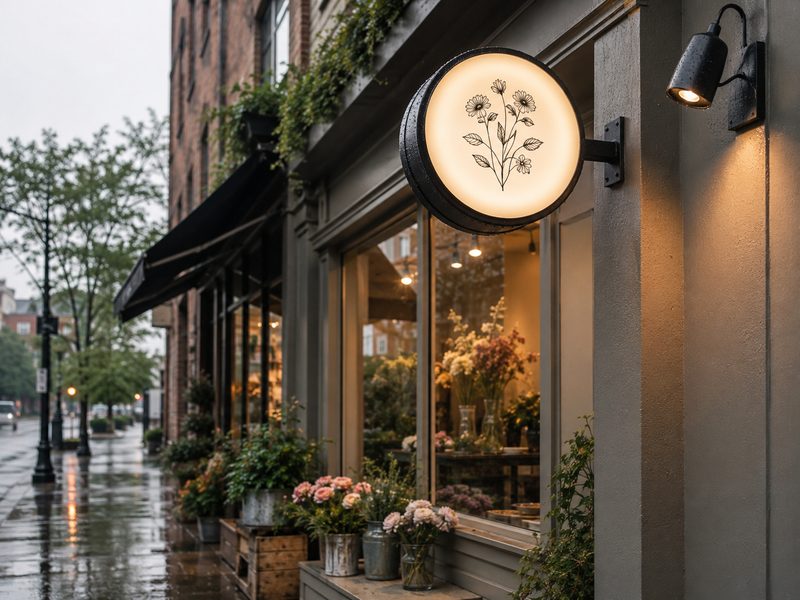

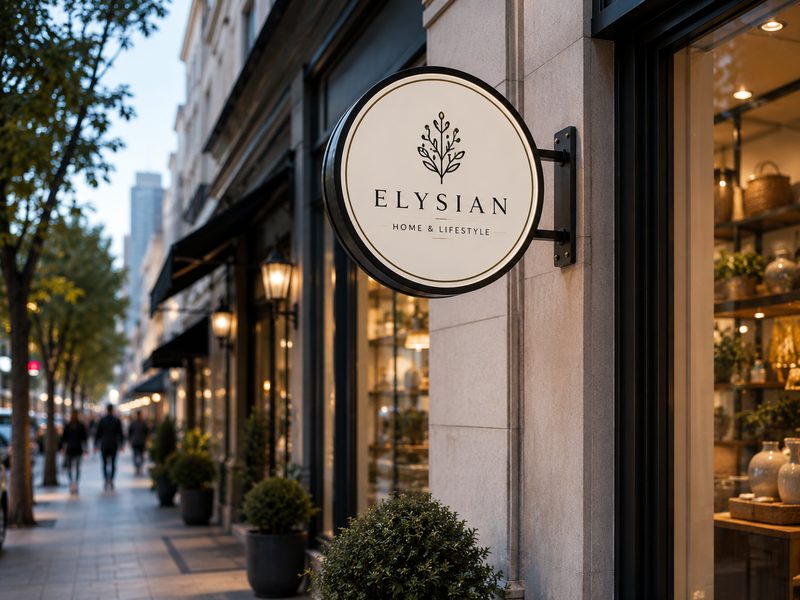

Round Blade Signs
Round blade signs suit brands that want a softer outline and a compact projecting profile. The circular face can carry printed graphics, applied graphics, dimensional details, or illuminated artwork depending on the approved concept. Frame depth, face material, logo scale, bracket position, and edge finish should be developed together so the circle remains visually balanced and mechanically stable when mounted away from the wall.

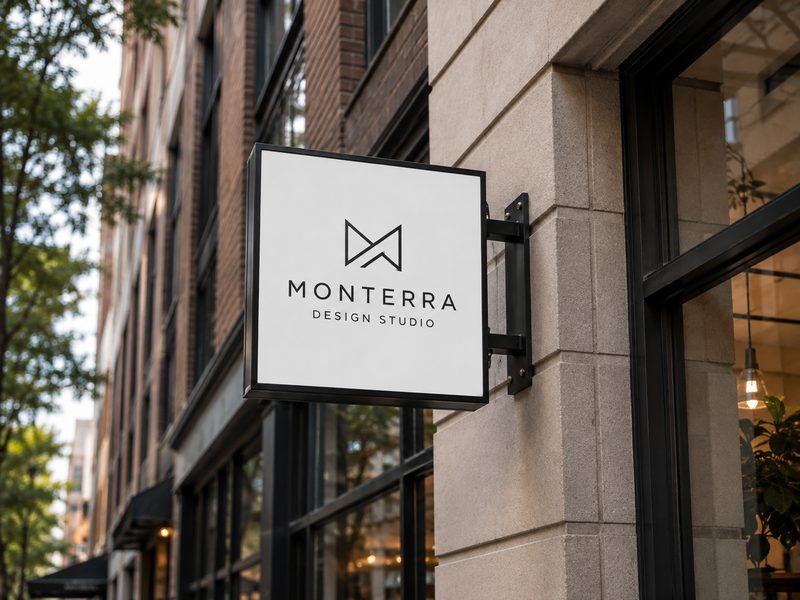

Square Blade Signs
Square and rectangular blade signs provide efficient graphic area and straightforward frame geometry for retail, office, hospitality, and standardized rollout programs. The format works with illuminated or non-illuminated construction and can be adjusted for brand proportions rather than forced into a stock size. Engineering reviews face size, cabinet depth, bracket load path, corner treatment, mounting plate, wiring access, and packaging before production files are released.

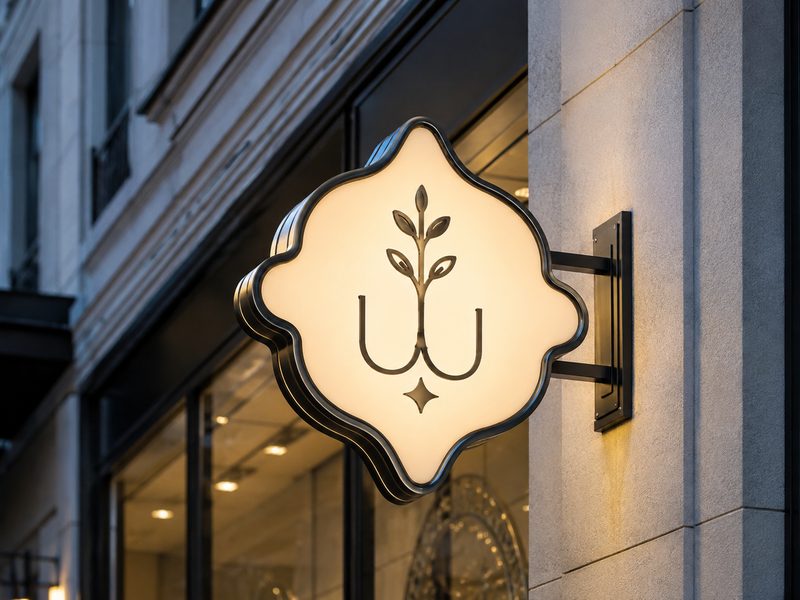

Custom Shape Blade Signs
Logo-shaped blade signs turn a brand outline into the perimeter of the sign rather than placing a logo inside a standard box. Curves, narrow sections, internal cutouts, border widths, edge returns, and bracket attachment zones all need manufacturability review. Complex outlines may require changes to material thickness, internal support, lighting layout, or seam position so the visual silhouette survives fabrication, shipment, and installation without becoming unnecessarily heavy.

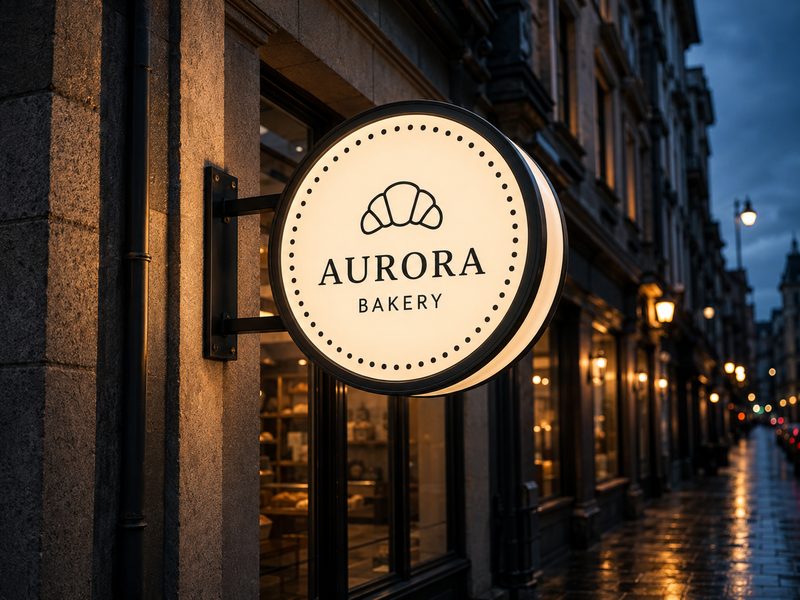

Illuminated Double-Sided Signs
Double-sided illuminated blade signs combine two viewing faces with internal LED, wiring, power, diffusion, service access, sealing, and bracket engineering. The cabinet must provide enough internal depth for controlled light distribution while keeping the exterior proportion suitable for the storefront. LED spacing, face transmission, internal structure, power capacity, cable exit, drainage, and maintenance access should be specified before the approved sample or first article moves into volume production.

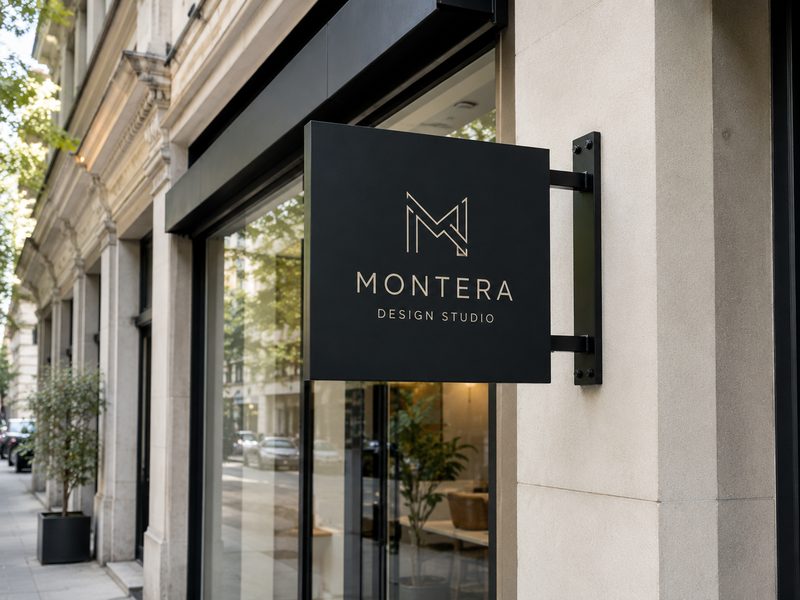

Non-Illuminated Blade Signs
Non-illuminated blade signs remove the internal lighting system but still require disciplined material, finish, bracket, wall-interface, and outdoor-protection decisions. Metal, acrylic, printed, or layered graphic constructions can be developed according to viewing distance and design language. QC focuses on dimensions, material, color, surface, edges, graphics, mounting holes, bracket fit, and packaging rather than lighting or aging tests used for illuminated products.

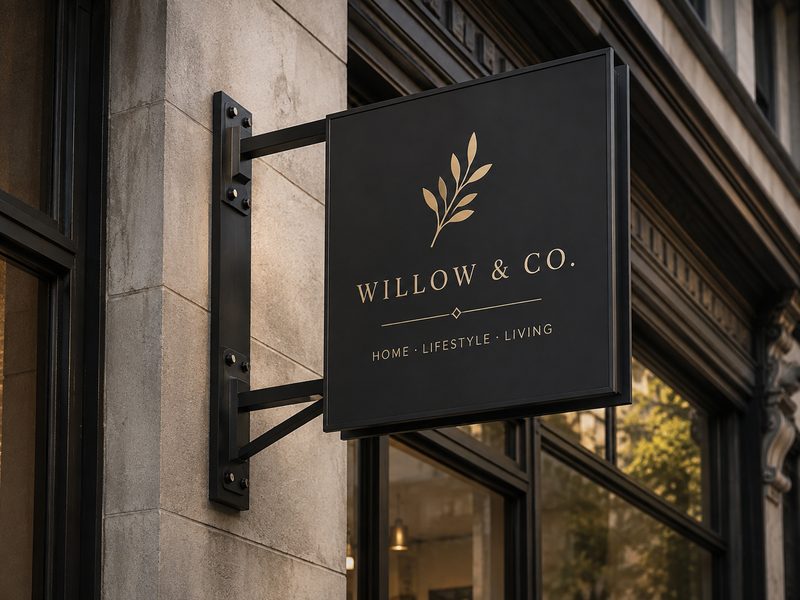

Bracket-Mounted Blade Signs
Bracket-mounted signs place the supporting hardware in full view, making the bracket part of both the structure and the visual design. Fabricated arms, mounting plates, decorative metalwork, or other approved arrangements can be developed around sign weight and façade conditions. Mounting geometry should be frozen with sign size, center of gravity, fixing zones, cable routing, coating system, and installer requirements so the bracket is not treated as an afterthought.
Customize Every Critical Blade Sign Detail
Customization starts with controlled project inputs, not a catalog of fixed options. Each visible feature should connect to a manufacturable structure and installation condition.
Logo and Shape
Vector artwork is reviewed for perimeter complexity, narrow bridges, internal openings, corner radii, and bracket attachment zones before the outline becomes a cabinet or panel. Very fine details may need controlled adjustment to remain manufacturable without weakening the sign.
- Confirm: AI, PDF, SVG, CAD, or approved artwork.
- Freeze: outer contour, logo orientation, clear spaces, and production revision.

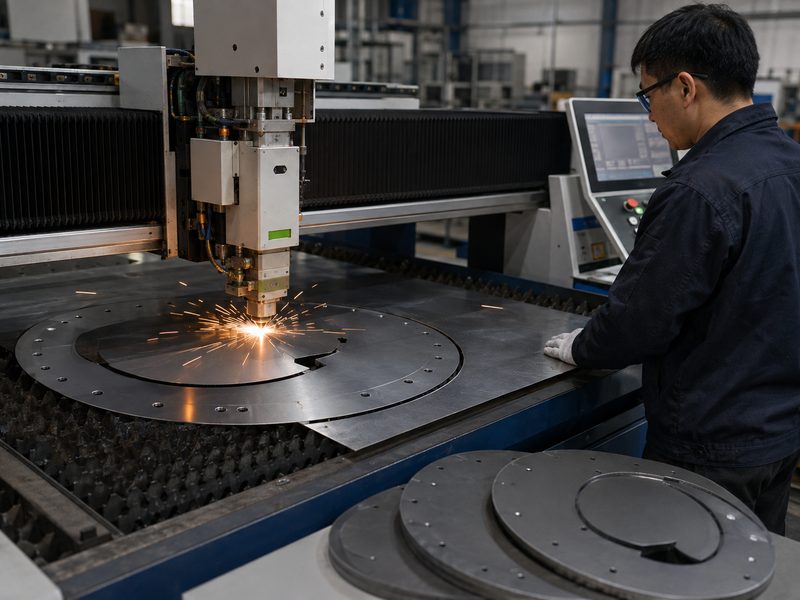

Production geometry is checked again before cutting begins.
Size and Depth
Width, height, projection, and cabinet depth affect visual scale, material stiffness, internal lighting space, weight, shipping volume, and bracket demand. iduoduo does not apply one depth to every blade sign; dimensions are developed around the actual construction and installation environment.
- Confirm: target width and height.
- Review: depth, weight, viewing distance, packaging, and installation clearance.
Final dimensions are tied to the approved drawing and BOM.
Single or Double
Blade signs are commonly specified for two-way viewing, but face requirements still need explicit confirmation. Both sides may use identical graphics, different messages, or directional layouts. Internal structure and bracket placement must preserve usable face area on each side.
- Confirm: single-sided or double-sided display.
- Freeze: artwork orientation, face sequence, frame edge, and viewing direction before production.
Side designation is carried into artwork and packing records.
Brand Color Control
Brand color should be tied to an approved reference rather than a screen screenshot. Depending on construction, color may come from paint, powder coating, printed graphics, vinyl, acrylic, or another approved treatment. Surface gloss and lighting can change perceived color.
- Confirm: Pantone, physical sample, CMYK, RGB, or approved production reference.
- Record: substrate, coating, finish level, and approved sample status.
Repeat orders reference the same approved color record whenever available.
Lighting Configuration
Illuminated blade signs can be developed around white, warm white, colored, or project-specific LED effects when technically appropriate. Lighting decisions also change power, wiring, diffusion, cabinet depth, and service requirements, so light color should not be approved separately from construction.
- Confirm: desired light effect and operating environment.
- Freeze: LED type, color temperature or color, power, wiring, and controller if required.
Bracket and Mounting
The bracket is selected around sign dimensions, weight, center of gravity, wall condition, projection, appearance, and local installation requirements. Decorative styling can be incorporated, but structural function comes first. Final anchors may depend on site verification by local professionals.
- Confirm: wall material, mounting height, fixing zone, and cable route.
- Output: bracket drawing, mounting plate, hole positions, and accessory list.
Installer feedback can be incorporated before the bracket design is frozen.
Cable and Power
Cable exit, power supply location, input voltage, plug or hardwire arrangement, service access, and low-voltage routing should be resolved before fabrication. Hidden wiring is easier to achieve when the storefront and wall information arrive early.
- Confirm: destination country, 110/220V conditions, power location, and installer interface.
- Freeze: cable exit, low-voltage path, power specification, and electrical labels.
Electrical configuration is recorded for production, QC, and later reorders.

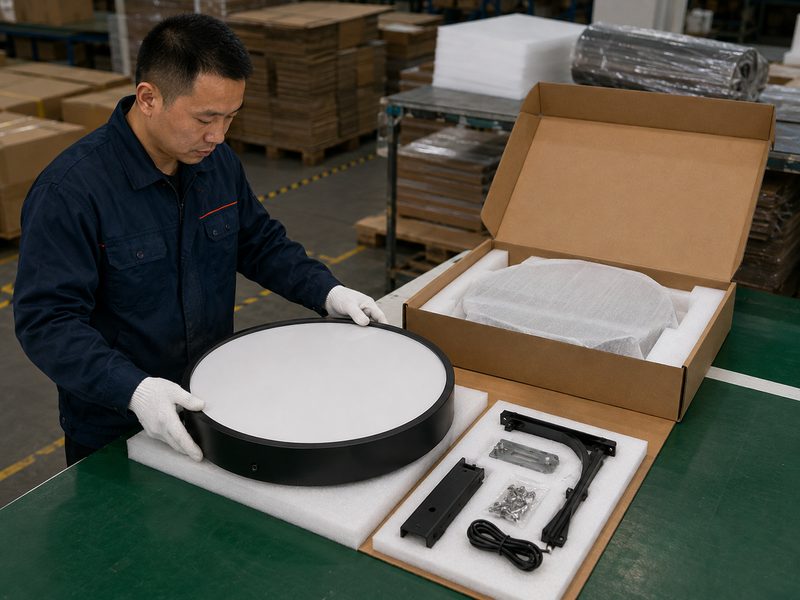

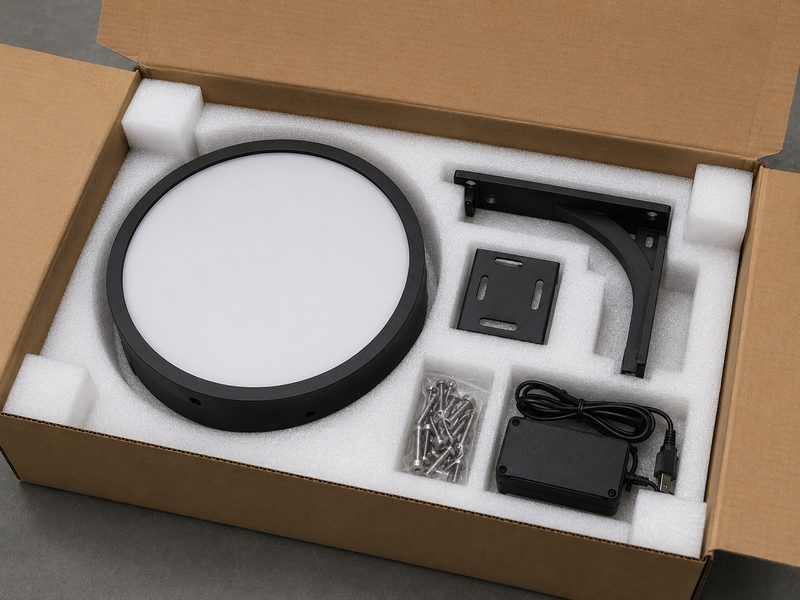

Packing and Identification
Packaging can be configured around one-off samples, large projecting signs, multi-store rollouts, or replacement units. The aim is to restrain the cabinet, protect faces and finishes, separate accessories, and make site identification straightforward.
- Confirm: destination, shipment mode, store sequence, and delivery deadline.
- Prepare: unit labels, accessory bags, bracket protection, carton or crate design, and packing records.
Packing photos can support shipment release and receiving checks.

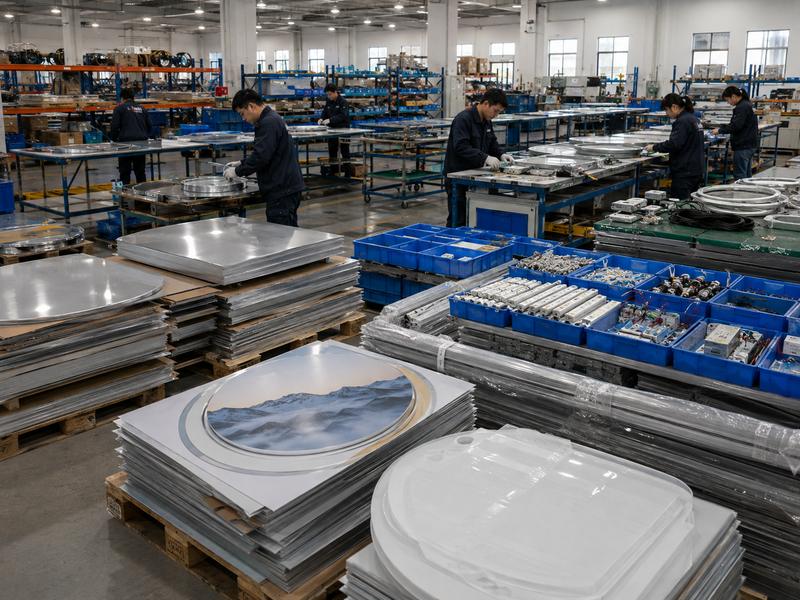

Materials and Finishes for Commercial Blade Signs
Material selection should follow sign size, lighting method, weight, outdoor exposure, finish target, fabrication process, bracket demand, and the approved visual result.
| Component | Available Direction | Key Engineering Review |
|---|---|---|
| Cabinet / Frame | Aluminum profiles, aluminum sheet, stainless steel, galvanized steel, combined metal construction | Size, required stiffness, weight, outdoor exposure, fabrication method, bracket connection |
| Illuminated Face | Opal acrylic, PC, transparent acrylic with graphics, printed or translucent face systems | Light transmission, graphic color, impact exposure, cleaning, replacement, transportation |
| Non-Illuminated Face | Metal, acrylic, printed panel, vinyl or approved layered graphics | Brand appearance, outdoor suitability, flatness, edge finish, fastening and cleaning |
| Graphics | UV printing, printed vinyl, translucent film, approved applied graphics | Artwork resolution, color mode, daylight color, illuminated color, edge protection, repeat consistency |
| Bracket | Fabricated metal bracket and mounting plate | Sign weight, projection, center of gravity, welds, hole positions, box connection, cable entry |
| Visible Metal Finish | Paint, powder coating, brushed or project-approved finish | Brand color, surface direction, gloss or texture, corrosion conditions, batch consistency |
| Electrical Components | LED modules, power supply, wiring, connectors and controller when required | Lighting uniformity, voltage, power capacity, service access, destination conditions |
| Outdoor Protection | Project-specific sealing, drainage, cable-entry protection, coatings and fasteners | Rain, ultraviolet exposure, wind, humidity, corrosion, installation interface |

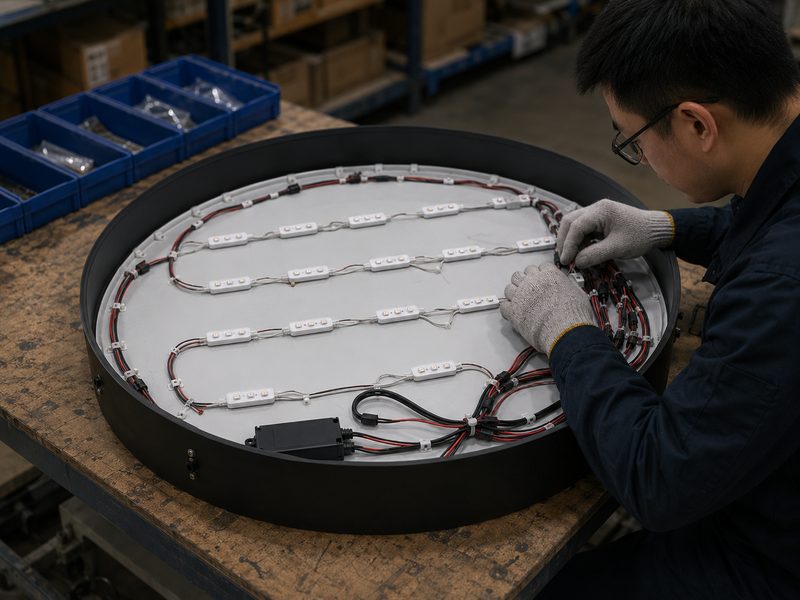

Illumination and Electrical Control for Blade Signs
Illumination is engineered with cabinet depth, face transmission, LED layout, power capacity, wiring, service access, and destination-market electrical conditions considered as one system.

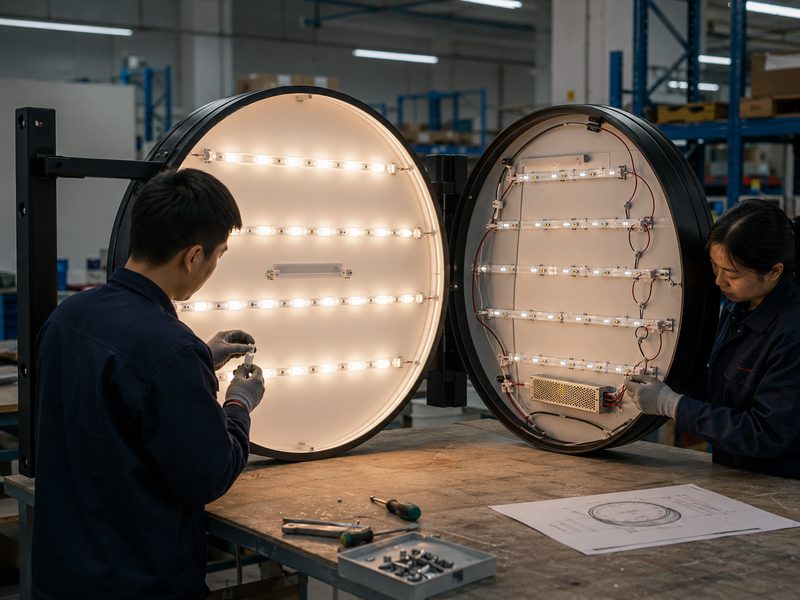

Control Light Across Both Viewing Faces
An illuminated blade sign has two faces sharing the same internal cabinet, so LED position must be developed together with face material, cabinet depth, diffusion, bracket structure, electrical components, and service access. Double-sided construction also requires both faces to be checked individually because a correct result on one side does not automatically prove equal brightness, graphic position, or color on the opposite face.
iduoduo evaluates LED distribution after the sign geometry and face system are defined. Custom outlines create additional design considerations because narrow sections, corners, internal support, bracket attachment, and restricted cabinet areas can affect available LED placement. A rendering can communicate the intended appearance, but the illuminated sample or first article provides stronger evidence when uniformity, brand color, or special geometry is important.

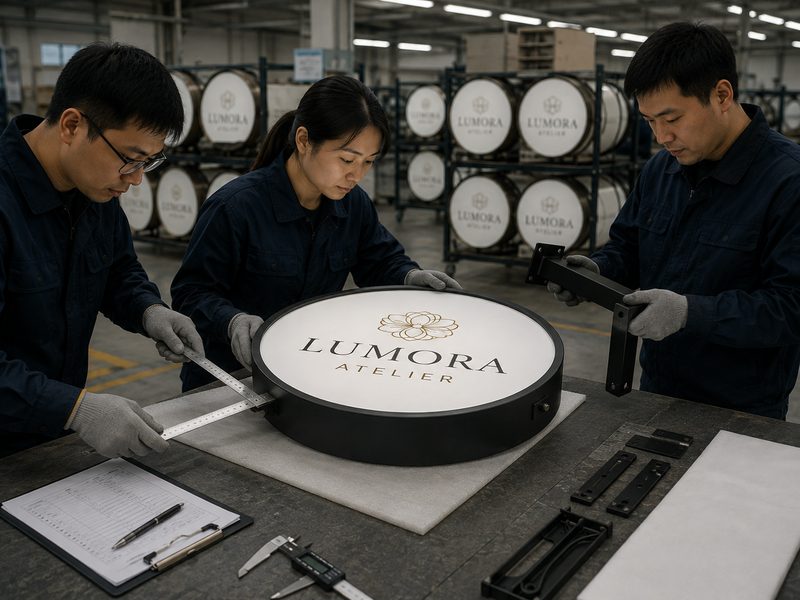

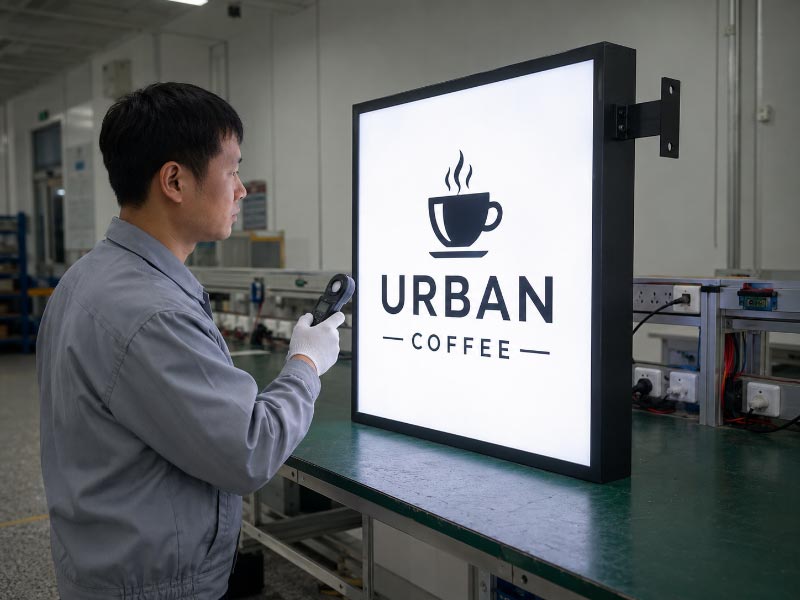

Lighting QC covers overall face brightness, dark areas, hot spots, edges, brightness on both sides, color temperature, graphic color, LED operation, power supply, wiring, and control functions where applicable. Every illuminated Blade Sign then enters the 72-hour pre-shipment testing process.
The purpose of the test is not simply to leave the product switched on. LED, power, connectors, wiring, double-sided brightness, control, heat behavior, and abnormal flicker are reviewed before shipment release. Lighting therefore becomes a documented production and QC system rather than a visual promise made at quotation stage.

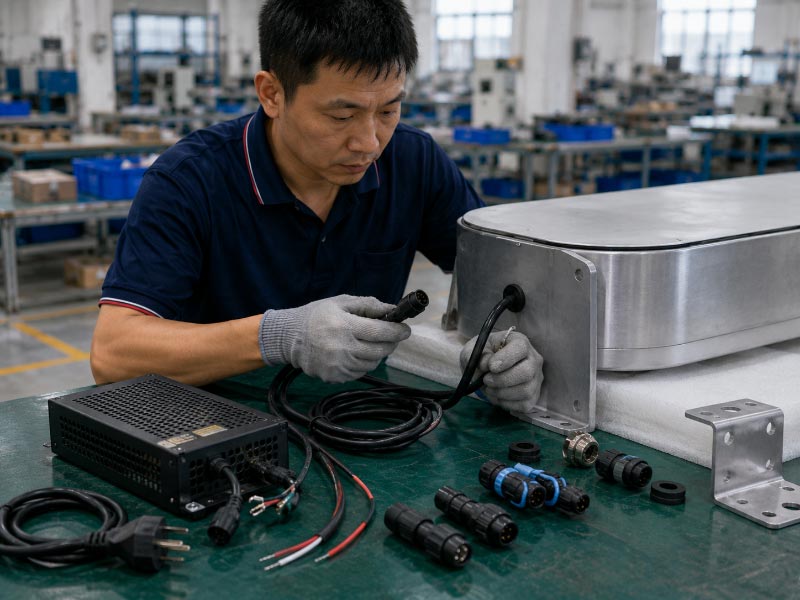

Define Power and Wiring Before Fabrication
Electrical planning begins with the destination market and installation method. Input conditions such as 110V or 220V, power-supply location, plug or hardwire arrangement, cable length, low-voltage routing, branch circuits, cable exit, and service access should be confirmed before the cabinet is released for fabrication. A clean exterior depends on resolving the wiring path early; concealed routing becomes difficult when wall conditions and power position are left until installation day.
Power capacity is matched to the actual LED configuration rather than selected from sign width alone. Power supplies can be packed separately where required, protecting the sign during transport and giving the local installer a defined electrical component set. Projects involving dimming, RGB, RGBW, or other control functions need the controller, wiring arrangement, and access method reflected in the approved electrical information.
Cable exits must also avoid conflict with mounting hardware, internal reinforcement, visible areas, and locations where water may collect. The Blade Sign source material specifically requires concealed wiring to be planned before production and notes that a visible cable channel may become necessary when the site has no prepared power exit.
Local professionals remain responsible for final AC connection and applicable electrical compliance. iduoduo supplies the manufactured low-voltage product system, electrical information, cable exit, power components, and connection guidance needed for coordinated local installation.
Engineering Double-Sided Visibility and Graphic Orientation
Double-sided performance depends on viewing direction, graphic scale, cabinet edge, illumination, and projection geometry—not simply placing the same artwork on two faces.

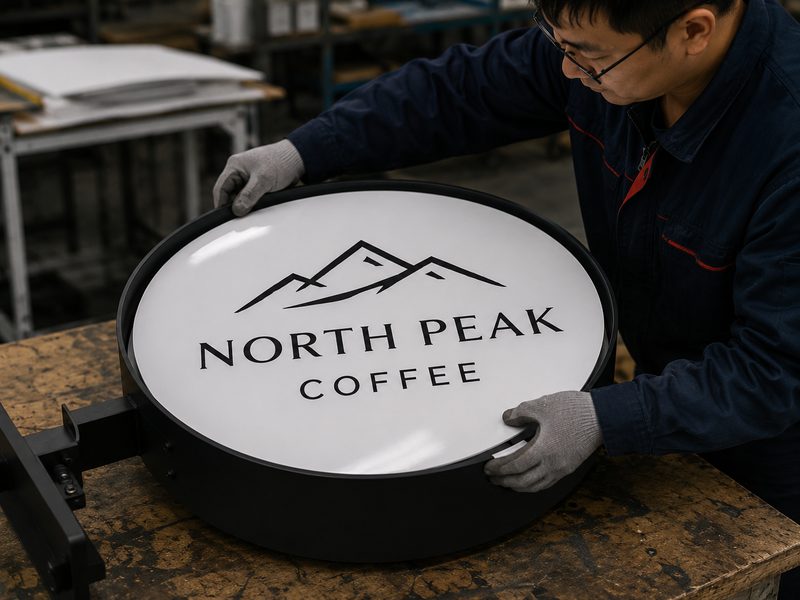

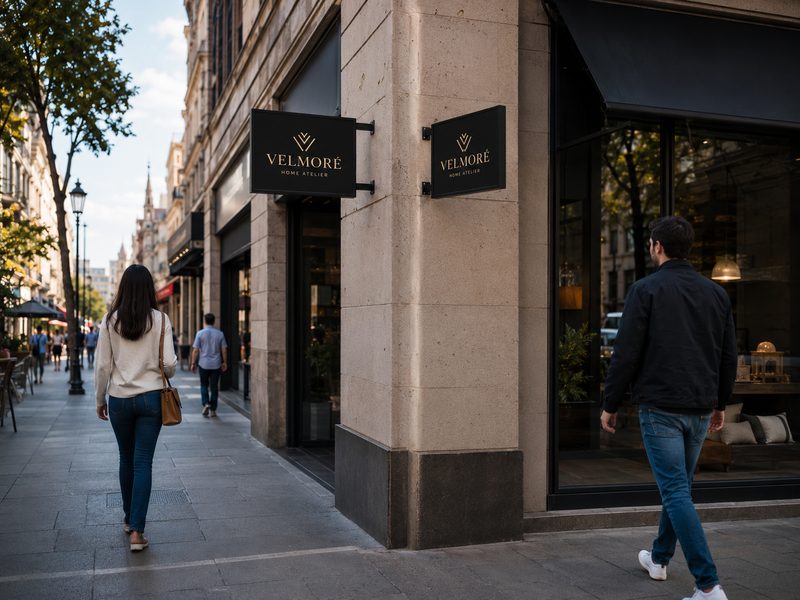

Design Each Face for Its Viewing Direction
Blade Signs are selected when a storefront needs to be recognized from two opposing directions along a street, corridor, or pedestrian path. The first design question is therefore where the sign will be seen from and which side of the product corresponds to each approach.
Artwork for the two faces should be checked separately. The iduoduo Blade Sign standard requires review of logo direction, text direction, dimensions on both faces, color on both faces, brightness on both faces, graphic position, and left-right relationships. Text must not become incorrectly reversed simply because a file is placed on the opposite face. The two sides may use the same information or different information when the project requires it.
The bracket and building connection also consume part of the viewing zone. Storefront photos, elevation drawings, wall dimensions, proposed mounting height, and power position help the design and engineering teams understand how the manufactured sign will interact with the site. The final installation location still needs verification by the local team because neighboring signs, canopies, pedestrian clearances, local projection limits, trees, and building conditions cannot be determined reliably inside the factory.
Once orientation is approved, each side is identified in the drawing and production information so printing, face assembly, QC, packing, and later reproduction all use the same relationship.

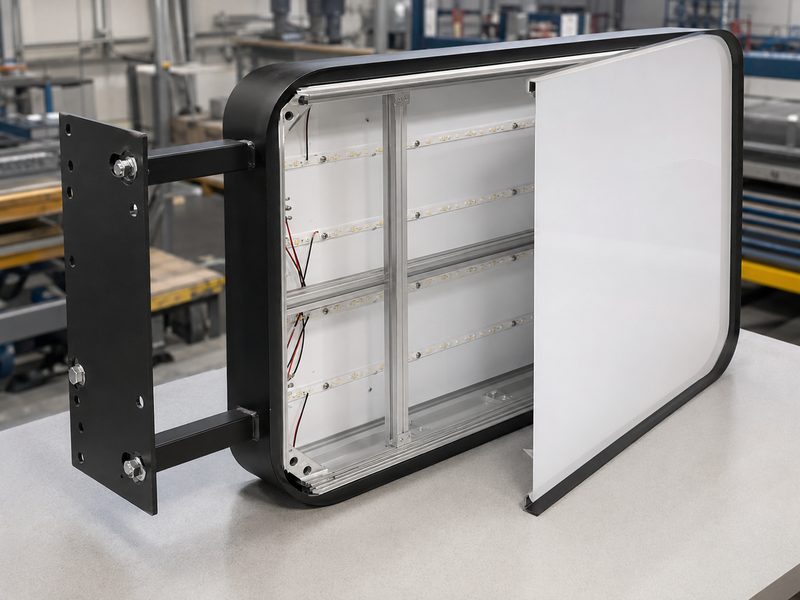

Balance Face Area With Cabinet Engineering
Visible face area cannot be separated from the cabinet around it. Frame width, face retention, bracket connection, internal reinforcement, LED layout, power access, drainage, and cable routing all use physical space. Custom silhouettes create additional constraints at narrow sections or complex contours.
iduoduo supports circular, oval, square, rectangular, logo-contour and other special brand shapes. Special geometry must be evaluated for frame construction, panel forming, LED layout, bracket design, waterproofing, and packing before approval.
Illuminated versions require enough cabinet depth and internal space to produce acceptable optical diffusion while accommodating both faces. Non-illuminated versions remove LED and power components but still require sufficient frame structure, secure face construction, finished edges, and a stable bracket connection.
Daylight and illuminated appearance should also be distinguished during approval. Daylight reveals graphics, paint, face color, surface finish, frame edges, bracket finish, and alignment. Night operation reveals lighting uniformity, double-sided brightness, dark areas, hot spots, color temperature, and electrical behavior.
A physical sample or first article becomes especially useful when the sign uses a custom silhouette, sensitive color, complex bracket, unusual face system, or double-sided illumination. The approved result can then become the production and QC reference for later batches.

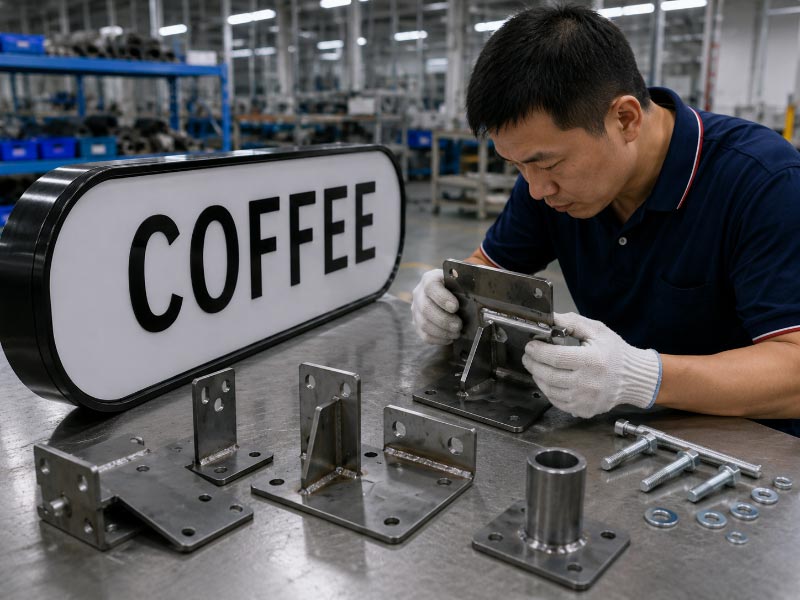

Bracket, Balance, and Wall Connection Engineering
Projecting signs create a lever arm away from the wall, making bracket geometry, sign weight, center of gravity, mounting plate, and local structure central design inputs.
Engineer Sign and Bracket Together
A Blade Sign should not be developed as one product and its bracket added later. iduoduo defines the core Blade Sign engineering system around the double-sided cabinet, bracket, center of gravity, wall connection, concealed wiring, and outdoor protection.
Sign size, material, cabinet depth, face construction, lighting components, and bracket projection affect the completed assembly. Custom shapes may also place more material on one side of the geometric center. Product engineering therefore reviews the relationship among cabinet construction, sign weight, mounting plate, bracket connection, reinforcement, hole positions, cable path, and service access before fabrication.
The bracket must connect reliably to the cabinet structure. Blade Sign bracket QC later checks dimensions, welding, mounting plate, hole positions, surface finish, cabinet connection, cable opening, reinforcement, and accessories. The bracket and cabinet are inspected as one system.
For projects exposed to wind, iduoduo can provide product dimensions, weight, materials, bracket information, mounting plate, hole positions, and manufacturing drawings. Final wind-load calculations, wall anchoring, and local structural sign-off remain with qualified professionals in the project location.
That division allows the factory to engineer a defined manufactured assembly without claiming knowledge of an unverified building structure.

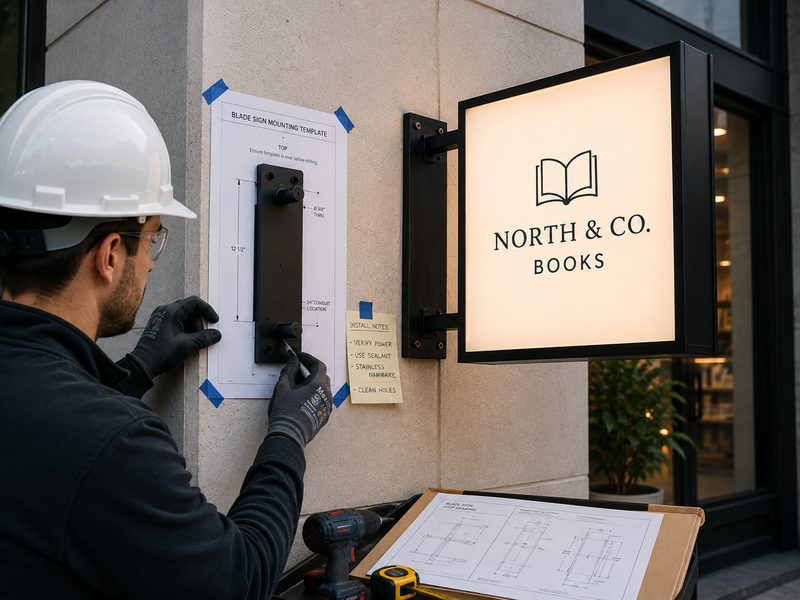

Match the Interface to the Wall
Different wall systems require different anchoring, reinforcement, waterproofing, hole positions, templates, and local construction methods. Concrete, brick, timber, stone, glass, metal panels, aluminum composite panels, EIFS, curtain walls, and lightweight partitions should not be treated as identical substrates.
Before production, the project team should provide available information about wall material, sign location, mounting height, fixing area, façade drawings, power position, and any known building restrictions. iduoduo can then prepare the product-side bracket, mounting plate, hole pattern, cable exit, accessories, and installation template around the approved interface.
For glass and curtain-wall environments, final bearing capacity, drilling, supporting structure, waterproofing, thermal movement, maintenance, and electrical conditions require local professional confirmation. A normal masonry fixing method cannot simply be transferred to a curtain wall.
A 1:1 mounting template is valuable when drilling positions and cable exits need accurate transfer. Multi-store programs should not assume that one template fits every building merely because the visible sign looks identical. The same brand standard may require a different mounting interface when wall construction changes.
Freezing those conditions early reduces field drilling errors, bracket modifications, visible wiring, and avoidable installation delays.

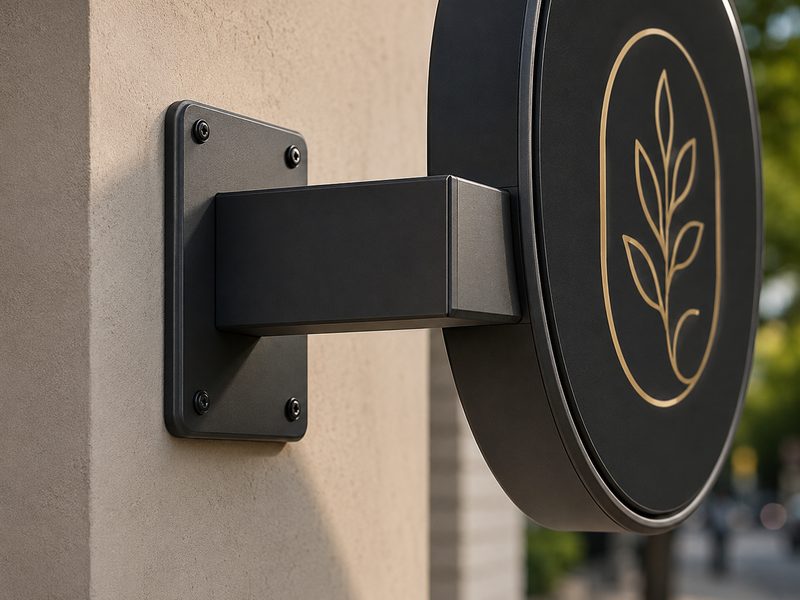

Integrate Bracket Finish and Wiring
A visible bracket is both a fabricated component and part of the storefront appearance. Its coating, surface condition, welded areas, geometry, mounting plate, fasteners, and relationship with the sign body should be considered before the design reaches production.
Illuminated Blade Signs add cable routing to the same component. Concealed wiring requires the wall-side power exit to be identified before manufacturing. Cable routing should avoid mounting hardware, reinforcement, visible areas, and water-collection positions. The bracket therefore cannot be evaluated only by its decorative outline.
Outdoor brackets also interact with weather protection. Coating, welded zones, cable passages, mounting interfaces, fasteners, drainage, and local wall penetrations all contribute to long-term performance. iduoduo can manufacture and inspect the bracket and product-side cable route, while the installer remains responsible for final wall penetration, anchoring, sealing, and site waterproofing.
The final approved drawing should identify sign dimensions, bracket location, mounting plate, hole pattern, cable exit, and relevant product-side details so manufacturing and installation work from one defined interface.
Site crews should document the completed penetration and final seal condition, especially where the installation is repeated across multiple commercial locations.

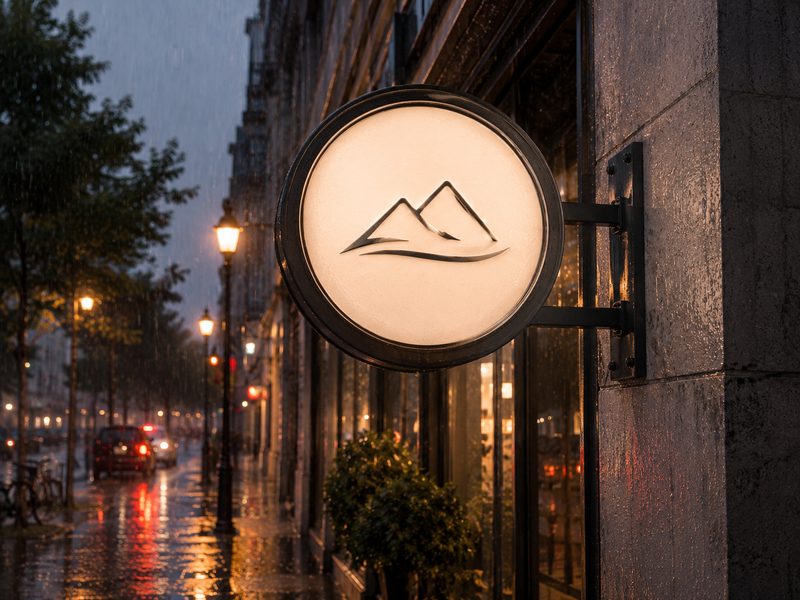

Outdoor Protection for Commercial Blade Signs
Outdoor blade signs require coordinated material, sealing, drainage, fastener, cable, power, coating, and installation decisions based on real exposure rather than one universal rating.
Design Protection Around Real Exposure
Outdoor protection begins with identifying how a Blade Sign will actually be exposed. A covered entrance, an open street corner, a humid region, and a coastal storefront do not share the same rainfall, ultraviolet exposure, temperature variation, wind, dust, humidity, or corrosion conditions.
Outdoor projects need coordinated consideration of rainwater, UV exposure, temperature changes, wind, drainage, corrosion protection, power protection, and sealing. Coastal or highly corrosive environments require additional attention to metal, coatings, fasteners, connectors, power components, and salt exposure.
For illuminated Blade Signs, the protection system includes cabinet structure, face interface, cable openings, connectors, electrical components, sealing, and drainage. Water protection and structural loading must also be considered together. Strong wind can increase pressure on joints, panels, brackets, and sealing, so an electrical IP rating does not prove unlimited storm resistance.
iduoduo can provide IP65, IP67, or IP68 approaches according to the actual product and project requirement. IP68 is available on request and is not the default specification for every Blade Sign.
Non-illuminated products are assessed through materials, surface treatment, weathering, corrosion resistance, and mounting protection rather than receiving an electrical IP label merely because they are installed outside.

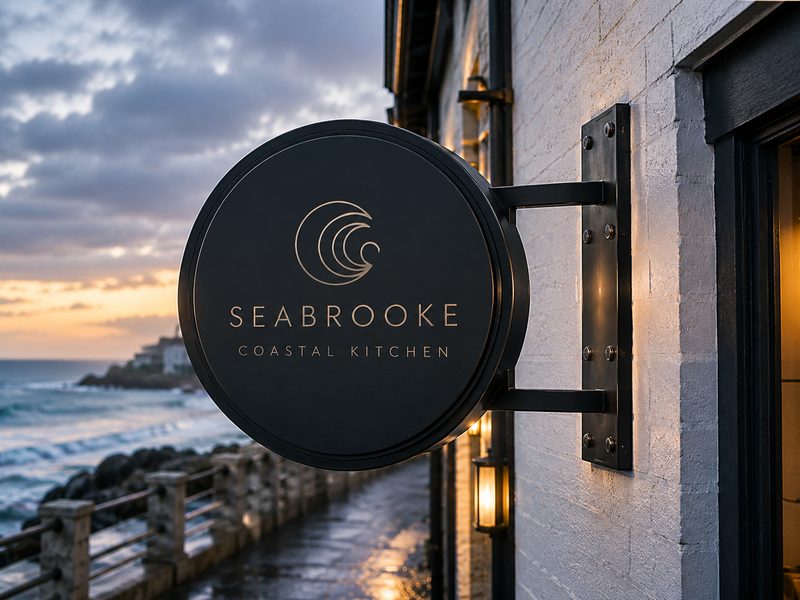

Control Corrosion and Site Interfaces
Corrosion control begins with the approved material and surface system. Aluminum, stainless steel, galvanized steel, coatings, paint, fasteners, welded areas, cable fittings, and mounting components should be selected according to the project environment and fabrication method.

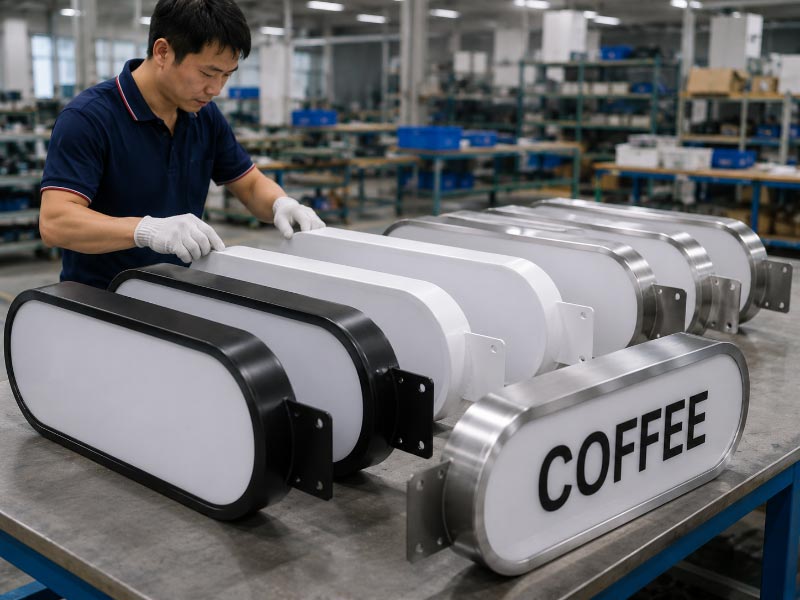

Surface workmanship also matters. Material condition is checked before fabrication, including grade, thickness, flatness, surface direction, rust, dents, scratches, batch, and quantity where relevant. Brushed or mirror metal requires surface direction to be confirmed before cutting.
Finished brackets and sign bodies then need protection during assembly and shipping so scratches, impacts, or loose metal components do not damage exposed surfaces. Blade Sign packing normally separates the sign body, bracket, mounting plate, screws, and power components into layers or zones, specifically preventing the bracket from striking translucent faces.
Weather protection continues after the crate is opened. Local installers remain responsible for substrate condition, anchors, wall penetrations, final waterproof sealing around penetrations, structural confirmation, and local electrical connections.
Product protection and site installation are therefore connected systems. A well-sealed cabinet cannot compensate for an incorrectly sealed wall penetration, just as a strong wall anchor cannot compensate for a poorly fabricated bracket.

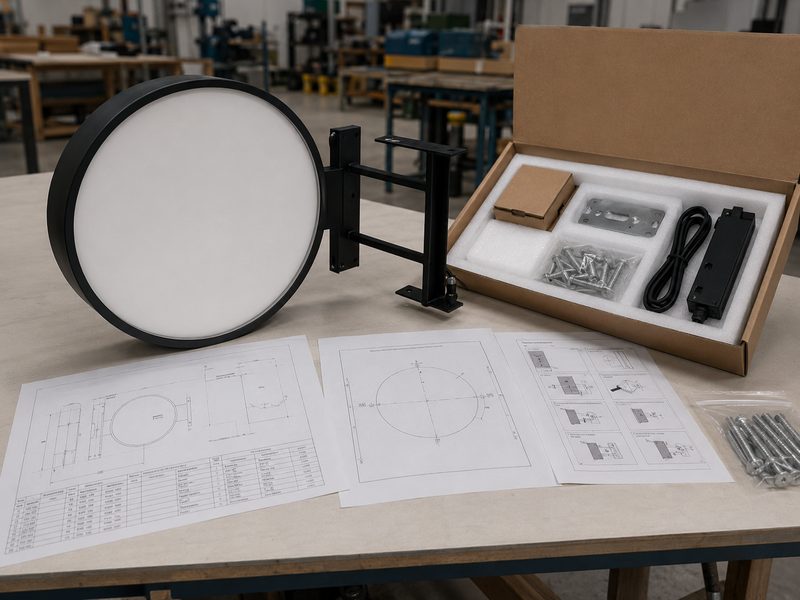

Clear Factory and Local Installation Responsibilities
A global manufacturing partner should define product-side responsibility clearly while leaving site structure, local permits, final electrical work, and installation acceptance with qualified local teams.
iduoduo Manufacturing Scope
iduoduo supports the product from artwork and engineering review through fabrication, testing, packing, and export coordination. Work can include product drawings, material and finish selection, cabinet construction, bracket fabrication, LED and power configuration, cable exit, mounting preparation, templates, accessory packing, QC records, and repeat-order files. The goal is to deliver a defined manufactured assembly with the information a local installer needs, not to blur factory work with jurisdiction-specific site responsibilities.
- Factory outputs: approved production drawings, sign, bracket, accessories, electrical information, packing records.
- Project support: samples, first-article review, remote technical communication, repeat-production control.
Local Professional Scope
Local professionals should verify the building and regulatory conditions that cannot be established reliably from factory information alone. Site survey, wall capacity, structural backing, final anchors, wind-load requirements, high-access work, local sign permits, electrical permits, final AC connection, wall penetrations, waterproofing around penetrations, and inspection acceptance depend on the actual property and jurisdiction. Clear division of responsibility protects the project from false assumptions while still allowing the manufactured sign and bracket to arrive prepared for installation.
- Local verification: substrate, structure, anchors, code, access, final wiring.
- Local execution: installation, sealing, commissioning, permit closeout where required.

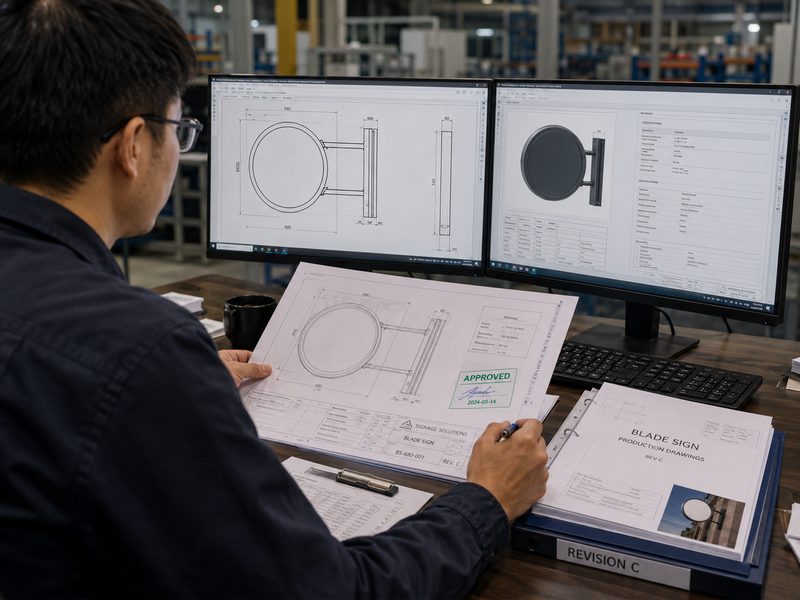

From Brand Files to Approved Production Drawings
A reliable blade sign starts with controlled inputs, engineering review, approved outputs, revision discipline, and a final production release shared by design, manufacturing, QC, packing, and reorders.

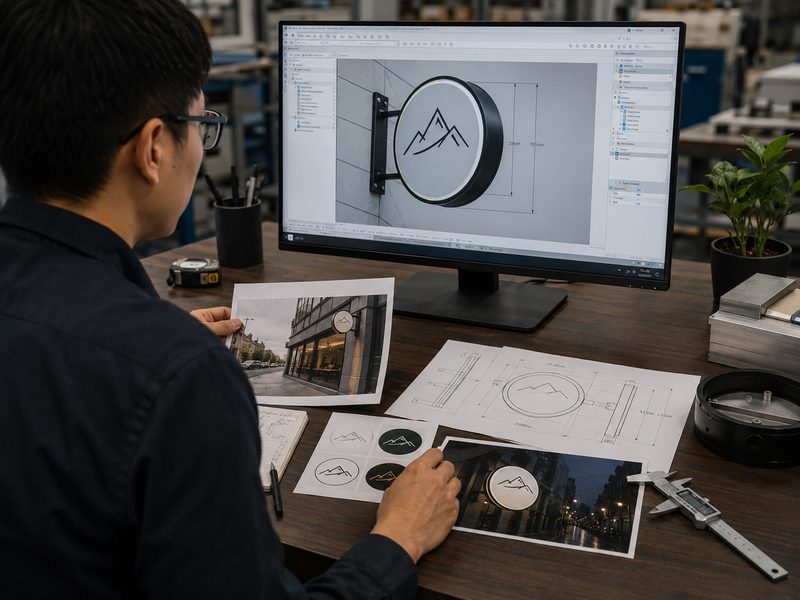

Collect Project Inputs Before Engineering Starts
The project begins by collecting enough information to define what will actually be manufactured. Useful inputs include AI, PDF, SVG, CAD, or other artwork; storefront photographs; wall dimensions; brand guidelines; color references; target sign size; quantity; indoor or outdoor use; viewing direction; lighting preference; destination country; installation wall; power location; and required project date. A reference image can communicate appearance, but it should not be treated as a complete manufacturing specification because hidden structure, material thickness, wiring, and bracket construction may be unknown.
iduoduo’s design team can clean artwork, confirm proportions, identify fonts or converted outlines, organize color references, and prepare visual proposals. Engineering then reviews manufacturability: sign geometry, cabinet depth, material selection, face construction, bracket attachment, lighting space, power, cable exit, service access, drainage, packing, and transport. When inputs are incomplete, missing points should be listed explicitly rather than assumed.
The first output should make decisions visible. Dimensions, face orientation, frame finish, graphic position, bracket geometry, mounting holes, cable exit, electrical notes, and project-specific details belong in the drawing or specification set. The document becomes a communication tool between procurement, design, engineering, production, QC, and the local installer.
A rendering can help visualize appearance, but manufacturing release must be based on approved production information.
Freeze Revisions Before Production Release
Revisions are normal in custom signage, but uncontrolled revisions create expensive errors. A Blade Sign may change after a storefront survey, brand review, landlord comment, permit review, lighting decision, bracket assessment, or sample inspection. Every significant change should therefore update the drawing or specification version instead of remaining only in email, chat, or marked-up screenshots.
A useful approval set records more than front artwork. It can include overall dimensions, cabinet depth, face material, graphics, finish, bracket arrangement, mounting plate, hole pattern, cable exit, LED configuration, power supply, destination voltage, service method, accessory list, and packing notes. Multi-location programs may also include store numbers, SKU references, and location-specific mounting variations.
Before production release, iduoduo can compare final artwork, drawing, BOM, and project notes for consistency. A mismatch between color reference and artwork, or between a bracket drawing and storefront information, should be resolved before cutting begins.
Once approved, the frozen file becomes the basis for first-article inspection, in-process checking, final QC, packing identification, and repeat orders. A later reorder with a new country, wall condition, electrical requirement, or brand revision should reopen the stored file for review rather than copy it automatically.

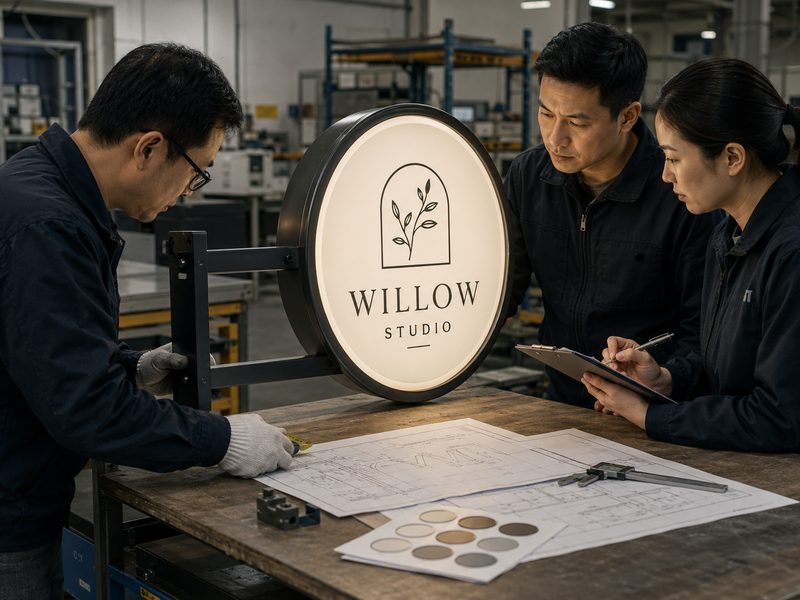

Validate Critical Details With a Sample
Physical validation becomes more valuable as visual sensitivity or engineering complexity increases. A simple non-illuminated rectangular sign may be verified mainly through drawings, materials, finish samples, and dimensional inspection. A custom-shape illuminated Blade Sign with special graphics, a complex bracket, or a sensitive brand color can benefit from a complete sample or first article because the physical product reveals details a rendering cannot prove.
Sample review can cover silhouette, scale, frame depth, face fit, paint or coating, graphic sharpness, color, bracket appearance, weld finishing, cable exit, hardware, lighting uniformity, light color, power arrangement, and packaging. For illuminated products, the sign should be reviewed both unlit and illuminated. Outdoor samples can also confirm the proposed sealing, cable entry, drainage, and exterior hardware arrangement.
Any approved correction should return to the drawing and BOM so the sample does not become a one-off product that cannot be reproduced.

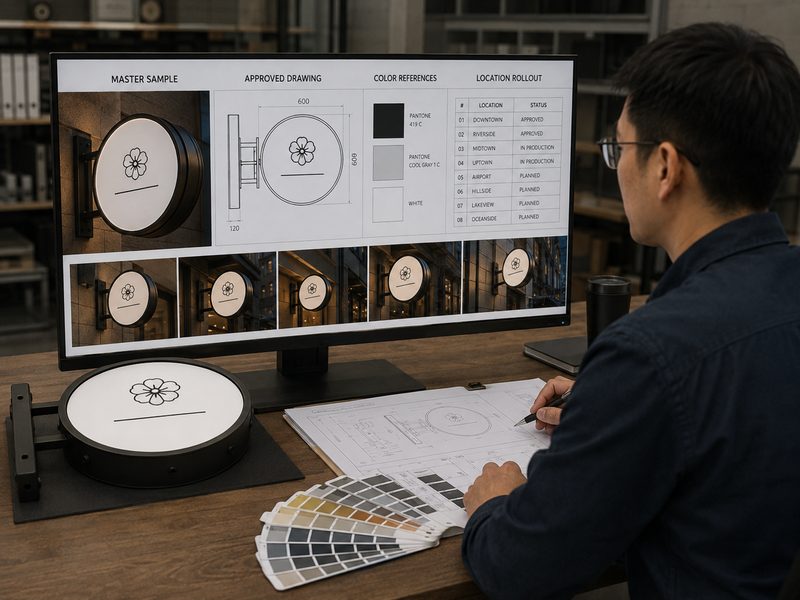

After approval, production can use the sample or first article as a physical reference together with controlled files. QC compares subsequent units against defined dimensions, finish, lighting, bracket, and packing requirements. For multi-store programs, a documented first article becomes the master manufacturing reference while legitimate site variations remain separately controlled.
Sample and Production Timing by Project Complexity
Sampling and production timing should be tied to approved files, material readiness, project complexity, testing, packing, and release conditions rather than treated as a fixed promise.
| Project Stage | Typical Reference | Suitable Use | Key Conditions |
|---|---|---|---|
| MOQ | 1 piece | Sample, first store, test order, specialty project | Complex engineering, tooling, special materials or packaging may be evaluated separately |
| Standard Sample / Single Unit | 5–7 days | Standard Blade Sign construction | Starts after required approvals, materials and payment conditions are completed |
| Special Sample | 7–15 days | Custom shape, complex bracket, larger or special construction | Engineering and material complexity determine final schedule |
| Small Batch | 7–10 days | Approved repeatable production | Final files, BOM, sample or first-article status confirmed |
| Mid-Size Batch | 10–20 days | Multi-SKU or larger commercial orders | Depends on product structure, testing, packing and production schedule |
| Large Project | Project schedule | Rollouts and phased commercial programs | Milestones should cover materials, first article, batches, QC, packing and shipment |
| Illuminated Pre-Shipment Test | 72 hours | Illuminated Blade Signs | Performed before release after assembly and functional checks |
Manufacturing Process Behind Every Blade Sign
Across 5 production bases, 21,000㎡ of manufacturing space, 500+ employees, and 18 production lines, metal, acrylic, lighting, electrical assembly, finishing, inspection, and packing are coordinated.
Material Preparation
Production starts from the approved drawing, BOM, material specification, finish reference, and current revision. Metal sheet, acrylic, graphics, electrical parts, fasteners, and bracket materials are prepared against the same project record. Incoming checks focus on material identity, visible defects, dimensions, and project-specific requirements before fabrication begins. Separating approved material from unverified or nonconforming material reduces the risk of mixing parts between samples, store versions, or parallel orders.
Cutting and CNC
Laser cutting, CNC machining, routing, and other controlled cutting processes create cabinet panels, faces, mounting plates, bracket components, acrylic parts, and custom logo profiles. Cutting files should come from approved production geometry rather than a low-resolution image. Critical dimensions, hole locations, narrow features, internal openings, and mating edges are checked so later bending, welding, face fitting, bracket alignment, and assembly are not forced to compensate for inaccurate early-stage parts.

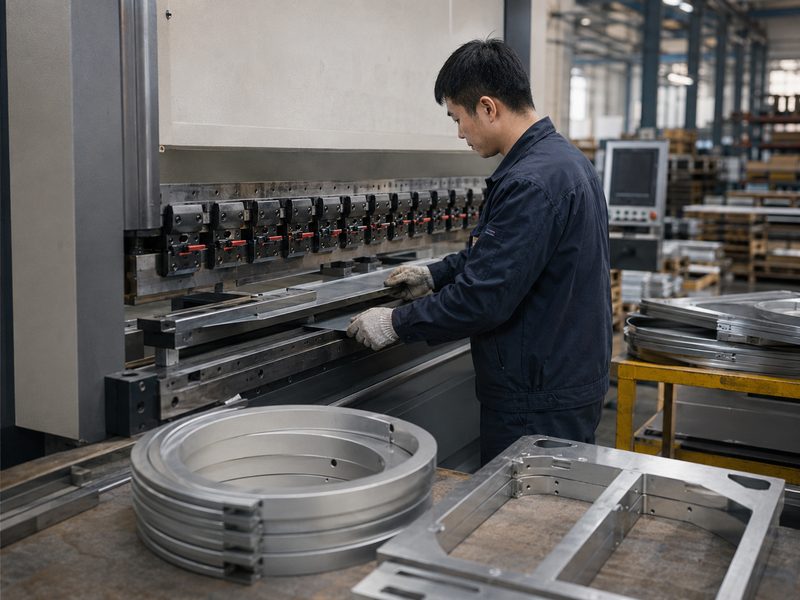

Bending and Forming
Metal returns, cabinet edges, bracket arms, mounting plates, and formed components must hold approved dimensions while remaining suitable for welding and final assembly. Bending sequence matters where tight corners, custom outlines, or multiple adjoining parts are involved. Operators work from controlled drawings and check key angles, depths, clearances, and mating surfaces before parts move forward. Good forming reduces visible distortion and helps the final face, frame, bracket, and service openings align without excessive correction.

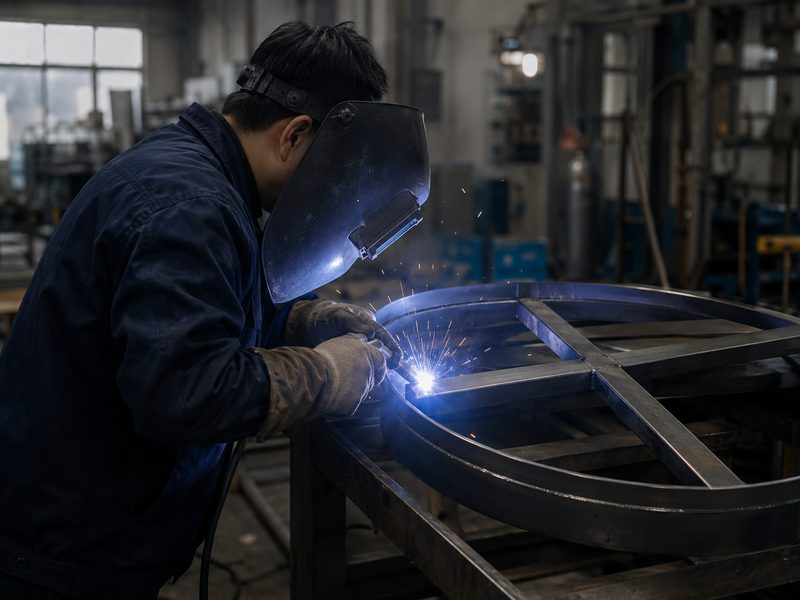

Welding and Grinding
Welded frames and brackets need structural continuity without leaving rough fabrication marks in visible areas. Joint fit, weld location, heat distortion, and finishing sequence are reviewed according to construction. Grinding and surface preparation remove sharp edges, smooth appropriate seams, and prepare metal for the approved finish. Visible craftsmanship matters especially on close-range retail and hospitality signs, but cosmetic finishing never substitutes for a sound connection between bracket, frame, mounting plate, and internal support.
Surface Finishing
Painted, powder-coated, brushed, or other approved surfaces are prepared after fabrication and cleaning. Finish control includes color reference, coverage, gloss or texture where specified, edge treatment, and protection from handling damage. Brackets deserve the same attention as the cabinet because they remain exposed on many Blade Signs. Surface inspection occurs before final packing, and finished components are protected so metal-to-metal contact, loose hardware, or movement in transit does not scratch visible faces or coating.
Face and Graphics
Acrylic, metal, printed, vinyl, or other approved face elements are fitted to the frame according to the project design. Graphic scale, alignment, edge clearance, surface cleanliness, and face orientation are checked on both sides. Double-sided work requires clear side identification so artwork is not reversed or swapped. For custom shapes, the face should follow the approved silhouette cleanly without forcing the frame to hide dimensional errors. Protective films remain where appropriate until later assembly or packing stages.
LED and Wiring
Illuminated Blade Signs move through LED layout, wiring, power matching, cable routing, connection checks, and functional inspection after cabinet and face geometry are established. The internal arrangement should avoid interference with brackets, service points, drainage, and face fit. Wiring is organized for secure connection and serviceability rather than left loose inside the cabinet. Every illuminated finished unit receives a lighting check before the longer pre-shipment test, while non-illuminated signs follow the applicable dimensional and appearance inspection route.
Assembly and Packing
Final assembly brings together frame, faces, graphics, bracket, lighting, wiring, mounting parts, and accessories under the approved project specification. QC verifies critical dimensions, appearance, mounting holes, bracket fit, electrical function where applicable, accessory completeness, and identification. Packing then restrains the sign, protects corners and finished surfaces, and separates heavy or loose components such as brackets, hardware, or power supplies when required. Large or sensitive units can use reinforced packaging or project-specific wooden protection based on shipping conditions.
Quality Control Before Every Blade Sign Ships
Quality control follows approved files and product type, separating illuminated electrical testing from the dimensional, material, finish, mounting, and packing checks required on every blade sign.
Control Quality Throughout Manufacturing
Quality starts before final inspection. Incoming materials, first-article parts, cut components, formed metal, welds, surface finish, faces, graphics, brackets, mounting holes, lighting parts, wiring, and accessories are checked at stages where problems can still be isolated without dismantling a finished sign.
iduoduo has 30+ QC personnel supporting inspection across the manufacturing system. QC can work from Final Artwork, Approved Shop Drawing, BOM, Color Schedule, Finish Schedule, Electrical Specification, Mounting Specification, Golden Sample, Sample Approval, QC Checklist, Packaging Specification, Product Code and Store Code. Inspection should never rely on the product name alone.
A first article establishes whether approved production information creates the intended sign. Key dimensions, frame depth, face fit, bracket geometry, color, surface, artwork orientation, cable exit, and assembly details can be checked before a larger batch advances.
In-process QC focuses on operations that can drift between units, including cutting, holes, bending, welding, surface finish, graphics, LED placement, wiring, and assembly. Nonconforming parts are separated and reworked products receive another inspection.
Final QC brings the product back to the approved standard: dimensions, appearance, face position, graphics, bracket, mounting details, accessories, identification and packing. For multi-store orders, store-code accuracy matters because a correctly manufactured sign sent to the wrong location still creates a field problem.
Test Illuminated and Non-Illuminated Signs Correctly
Illuminated Blade Signs require electrical and functional verification in addition to dimensional and appearance checks. Every illuminated sign receives 100% lighting inspection. Blade Sign lighting QC includes overall face brightness, dark areas, hot spots, edges, brightness on both faces, color temperature, graphic color, LEDs, power, wiring and control.
Illuminated Blade Signs then undergo the 72-hour pre-shipment test. LED, power supply, connectors, wiring, brightness on both sides, control, heating and abnormal flicker are among the inspection points.
Bracket inspection remains independent of the lighting result. QC checks dimensions, welds, mounting plate, hole positions, surface finish, box connection, cable openings, reinforcement, and accessories.
Non-illuminated Blade Signs do not receive LED or 72-hour lighting tests simply for marketing purposes. Their inspection instead emphasizes bracket, material and surface condition, graphics, edges, corrosion protection, mounting features, dimensional accuracy, and packaging.
The standard iduoduo warranty position is 3 years, with after-sales assessment based on the actual product, electrical condition, installation, environment, water ingress, use and other relevant causes.
Multi-Store Rollouts and Controlled Repeat Orders
Multi-store blade sign programs need a master standard, controlled location variations, clear identification, batch inspection, packing discipline, and retained production records for later expansion or replacement.
Build One Master Standard First
A rollout should begin by separating the master sign from legitimate location-specific variations. The master standard can define overall proportions, cabinet depth, face construction, graphics rules, approved colors, LED and power configuration, bracket language, cable-exit logic, QC criteria, and packaging format.
A first-store sample or first article provides a physical reference before a larger release. Once approved, the master should not change casually because undocumented adjustments can accumulate into visible differences across locations.
Location schedules can capture elements that legitimately vary: sign quantity, mounting position, wall type, bracket configuration, cable exit, input voltage, store number, delivery address, required date, or local drawing notes. Each location can receive a controlled identifier carried through drawings, production labels, accessory packs, cartons, and packing lists.
The same identifier lets installers match signs, brackets, templates, power components, and hardware without opening multiple cartons to determine which set belongs to each storefront.
iduoduo operates 5 production bases, 18 production lines, and approximately 15,000 units of regular monthly capacity, with around 5,000 units of additional flexible capacity depending on product type, structure, schedule, testing, and packing requirements.
Large programs are better managed through milestones for material readiness, first article, production batches, QC, testing, packing, and staged shipment rather than one undifferentiated final deadline.
Reorder From Records, Not Memory
Repeat production depends on records. For Blade Sign programs, iduoduo’s documented repeat-order information can include frame drawings, faces, artwork files, colors, LEDs, power supplies, brackets, cable exits, mounting plates, packaging, store identification, and QC standards.
Keeping those items together allows a reorder to begin from an approved baseline instead of rebuilding the product from photographs or an old quotation.
A reorder still requires review. Destination country may change electrical input; another storefront may use a different wall; materials or electrical components may have changed; brand artwork may have a new revision; or local installation conditions may require another bracket or cable exit. Stored specifications therefore become a starting point, not permission to reproduce blindly.
For replacement parts or phased openings, production and shipment records help identify exactly what was supplied previously. Drawings, BOMs, samples, QC information, testing records, photographs, packing information, shipment records, after-sales findings and corrective actions can support later traceability.
The value becomes greater as a program expands. A single attractive sample proves appearance. A controlled production record helps maintain appearance, electrical configuration, bracket geometry, packing and installation interfaces when the same sign family is reproduced months later for another commercial location.
Export Packing and Installation-Ready Delivery
Export delivery is planned around sign dimensions, weight, bracket protection, accessory control, shipment mode, destination, site schedule, and the information local installers need before opening the crate.
Protect Sign, Bracket, and Accessories Separately
Packaging should control movement before it simply adds more material. Blade Signs contain faces, finished edges, projecting brackets, graphics, acrylic parts, electrical components, mounting plates and installation accessories that can be affected by compression, abrasion, impact or loose hardware during international transport.
iduoduo uses individual protection, reinforced cartons, EPE cushioning, edge protection, separated accessory bags, and wooden frames or crates when product size and shipping conditions require them.
Blade Sign packing has an additional documented requirement: the cabinet, bracket, mounting plate, screws, and power supply are normally separated by layers or packing zones. The bracket must not move against the translucent face during transport, and accessories should be clearly numbered.
Multi-location orders can carry store or unit identification on the sign, accessory package, carton and packing record. Packaging therefore supports both transport protection and site organization.
Shipment mode depends on dimensions, volume, weight, quantity, destination and project schedule. Courier has a general reference of about 12 days; sea freight to the United States is approximately 30 days, while sea freight to Europe is approximately 50–60 days. Actual transit varies with sailing or flight schedules, customs, ports, season, weather and inland delivery.
Give Installers a Defined Interface
Installation preparation begins before the product enters its carton. A local installer should receive a clear view of the manufactured interface: sign dimensions, product weight where available, bracket drawing, mounting plate, hole positions, template, cable exit, power information, accessory list, product identification, and relevant connection guidance.
Sending only a finished sign and a photograph transfers unnecessary interpretation work to the jobsite.
For illuminated products, power supplies or controllers may be packed separately according to the approved configuration. Labels help installers identify the correct component set and connection route. For multi-store work, every set should remain traceable to its intended location.
Final site responsibility remains local. Professional installers verify wall conditions, anchors, structural backing, wind requirements, access equipment, wall penetrations, waterproofing around penetrations, final AC connection, permits, and inspection requirements.
iduoduo supports the product side with drawings, templates, mounting preparation, brackets, accessories, wiring information, and remote technical communication.
Installation-ready manufacturing therefore means the product arrives with a defined interface. It does not mean a Shenzhen factory has verified an unseen building or assumed the legal responsibility of the local structural engineer, electrician, installer, or permitting authority.
Site photographs after installation can also become useful feedback for later rollout locations.
Commercial Blade Sign and Rollout Project Cases
Three documented projects show how iduoduo addresses visibility, outdoor exposure, structural details, brand consistency, installation preparation, testing, and repeat-production control in commercial signage programs.
Street-Corner Flower Shop
Region withheld in the project record. The client operated a street-corner flower shop where the existing front-facing sign could only be recognized from directly in front of the storefront. Pedestrians approaching from either side frequently passed the entrance before noticing the brand. The location also experienced frequent rain, making the projecting sign a visibility project and an outdoor engineering project at the same time.
The client was concerned about water entering a double-sided cabinet, loosening at the projecting bracket, moisture around the cable entry, weak recognition during cloudy weather and early evening, and a finished appearance that might resemble a generic convenience-store lightbox rather than a branded retail sign.
iduoduo developed a double-sided round LED Blade Sign with an approximate diameter of 680 mm. The construction used a powder-coated aluminum frame, opal acrylic faces on both sides, UV-printed logo graphics, warm-white LED modules, and an IP65 project solution. Wiring was concealed through the bracket area to keep the storefront cleaner. The bracket, cabinet body, and installation accessories were separated into protected packing layers so the metal support could not strike the acrylic faces during international transport. The illuminated unit completed iduoduo’s 72-hour pre-shipment test before release.
The project created two-direction storefront identification from one projecting sign while addressing the client’s rain-exposure and installation concerns. Within three months, the same client placed an additional order for an indoor brand-wall LED Logo Sign, providing a measurable repeat-purchase result rather than a subjective marketing claim.
Seaside Restaurant Sign System
Region withheld in the project record. The project was for a seaside restaurant requiring a coordinated signage package covering the main storefront, a side-facing projecting sign, and an indoor pickup area. The exterior signs faced salt exposure, humidity, strong sunlight, and regular rain, while all three product families needed to present the same brand color consistently.
Previous signage had shown four recurring problems: fading, water ingress, uneven illumination, and visible color differences between products sourced from different suppliers. Treating the projecting Blade Sign as an isolated item would not solve the wider problem because the façade lettering, side sign, and interior sign all represented the same restaurant brand.
iduoduo managed the order as one coordinated storefront system. Front-Lit Channel Letters were used for the main façade, a Double-Sided Blade Sign handled side-direction recognition, and LED Neon was used in the indoor pickup area. Exterior products followed an IP65 project approach. The manufacturing plan strengthened the aluminum structure and addressed cabinet sealing, cable entries, power supplies, and electrical connectors for the outdoor environment. The same brand blue was checked across all three sign types instead of approving colors independently. Packaging was divided by installation zone, with the main storefront, Blade Sign, and pickup-area components clearly identified. Illuminated products completed 72 hours of pre-shipment testing.
One project coordinated three different signage product families under a common brand-color and outdoor-protection standard. The packaging system also separated the products by their final installation zones, reducing site identification errors. The case demonstrates why iduoduo combines product engineering, electrical control, outdoor protection, QC, and packing rather than manufacturing each sign as an unrelated item.
Six-Store Retail Rollout
Region withheld in the project record. The client was a multi-store retail operator preparing signage replacement across six locations. The documented product was LED Channel Letters rather than Blade Signs, but the manufacturing problem closely matches what large Blade Sign rollouts require: one approved brand standard had to be reproduced across multiple stores without repeated engineering decisions or store-to-store variation.
The previous supplier had delivered inconsistent cabinet depths, different LED brightness between locations, varying mounting-hole positions, inconsistent packing identification, and a reorder process that required specifications to be reconfirmed almost from the beginning. Those problems increased installation uncertainty and made long-term brand standardization difficult.
iduoduo created a controlled production standard covering the font files, letter proportions, cabinet depth, light color, LED layout, mounting-hole positions, Raceway structure, material records, color records, packing numbers, and store numbers. Each set averaged approximately 3,200 mm in overall width, with individual letters measuring about 420–680 mm high. Construction used 304 stainless-steel returns, acrylic faces, 12V LED modules, and Raceway mounting. Each store set was packed independently and labeled with its location number. All illuminated sets completed iduoduo’s 72-hour pre-shipment testing before release.
All six store sets were completed under the unified specification. The client then placed four repeat orders within five months and moved into ongoing annual new-store cooperation. The same control model—master artwork, approved construction, bracket or mounting specification, store coding, batch QC, separated packing, and retained production records—is the manufacturing framework iduoduo uses to support repeatable commercial sign programs rather than treating every reorder as a new product.
Custom Blade Signs Frequently Asked Questions
These answers address the project details most often needed before quotation, sampling, engineering approval, production, packing, international delivery, and local installation planning begin.
Can you manufacture custom-shaped blade signs?
Yes. iduoduo manufactures round, square, custom-shape, illuminated, non-illuminated, and bracket-mounted Blade Signs. Custom outlines are reviewed for narrow sections, internal openings, frame depth, face fit, bracket attachment, lighting space, waterproofing, and packing before production. Complex shapes may require a 7–15 day sample period after approved files, materials, and payment.
Can blade signs be illuminated on both sides?
Yes. Double-sided illuminated Blade Signs are part of iduoduo’s product range. Engineering covers both faces, LED layout, diffusion, frame depth, power, wiring, cable exit, bracket interference, service access, sealing, and drainage. Finished illuminated units receive 100% lighting inspection and 72-hour pre-shipment testing before release.
What materials can be used?
Project materials can include approved metal, acrylic, graphic, and electrical components according to construction. iduoduo works with metals including aluminum, stainless steel, and galvanized steel, while face and graphic choices depend on whether the sign is illuminated, non-illuminated, printed, or layered. Final materials and thicknesses are confirmed against size, structure, environment, fabrication, and mounting requirements.
Can you match our brand colors?
Yes. Color can be controlled from Pantone references, approved physical samples, CMYK or RGB values, paint references, printed graphics, vinyl, acrylic, or other project-specific standards. The final method depends on material and finish. For repeat programs, the approved color reference, finish, artwork version, and production record should be retained so later batches can be checked against the same basis.
What information is needed for a quote?
Send the product type, single- or double-sided requirement, target dimensions, quantity, logo or artwork, face preference, frame color, indoor or outdoor use, lighting requirement, destination voltage, power arrangement, bracket or mounting information, wall type, cable exit, destination country, packing needs, and required project date. Storefront photos or drawings are also useful when the mounting interface is important.
Can we start with one sample?
Yes. MOQ starts at 1 piece, supporting samples and first-store validation. Standard samples or single units are typically 5–7 days. Special shapes, complex brackets, and larger projects are typically 7–15 days after approved files, materials, and payment. The sample can verify dimensions, finish, graphics, lighting, bracket, wiring, mounting preparation, and packaging before larger production.
How is the mounting bracket developed?
Bracket development starts from sign size, product weight, center of gravity, projection, façade information, fixing zone, cable route, and visual requirements. iduoduo can fabricate the product-side bracket, mounting plate, hole pattern, template, and related accessories. Local professionals remain responsible for wall capacity, final anchors, wind-load verification, substrate condition, permits, and installation acceptance.
Can you manufacture outdoor blade signs?
Yes. Outdoor Blade Signs can be developed with project-specific material, coating, sealing, drainage, cable-entry, fastener, electrical, and corrosion considerations. IP65, IP67, or IP68 approaches may be available according to the product and requirement; IP68 is not a default specification for every sign. Coastal or highly exposed projects should identify the environment early so protection can be reviewed before approval.
Can you support multi-store rollouts?
Yes. Repeat programs can use a master approved sign, controlled drawings, BOMs, store identifiers, location schedules, batch QC, separated accessory packs, and retained production records. iduoduo operates five production bases and 18 production lines with approximately 15,000 units of regular monthly capacity, subject to product size, structure, testing, packing, and production schedule.
Do you provide installation drawings?
Yes. iduoduo can provide product drawings, bracket drawings, mounting-hole information, templates, cable-exit details, power information, accessory lists, and remote technical guidance according to the project. Local installers and qualified professionals should verify the wall, anchors, structural capacity, wind requirements, electrical connection, waterproofing around penetrations, high-access work, permits, and local inspection requirements before installation.
Start Your Custom Blade Sign Project
Send your logo, storefront drawing or photo, target Blade Sign size, quantity, single- or double-sided requirement, indoor or outdoor environment, preferred lighting, wall information, destination country, and required project date. iduoduo will review the project as a manufactured sign system rather than quote from appearance alone. The review can cover manufacturability, face and frame construction, material direction, bracket concept, LED and power arrangement, cable exit, mounting preparation, weather protection, sample plan, packing method, and production timing.
For a first-store concept, MOQ starts at 1 piece and the sample can verify visible finish, lighting, bracket, wiring, and installation interface before a larger release. For multi-location programs, send the location schedule and approved brand standards so the master sign and site-specific variations can be separated from the beginning.
- Logo or production artwork
- Target dimensions and quantity
- Single- or double-sided display
- Indoor or outdoor use
- Wall or mounting information
- Lighting and electrical preference
- Destination country
- Required delivery or opening date
