The most expensive sign material is not always the one that looks most luxurious. A mirror-finished metal logo can appear impressive in a sample room yet disappear against dark stone during the day. A bright front-lit sign may be highly visible from across a shopping center but feel too aggressive beside a restrained fashion storefront. Luxury signage works when the material, finish, illumination, wall, architecture, and viewing conditions behave as one visual system.

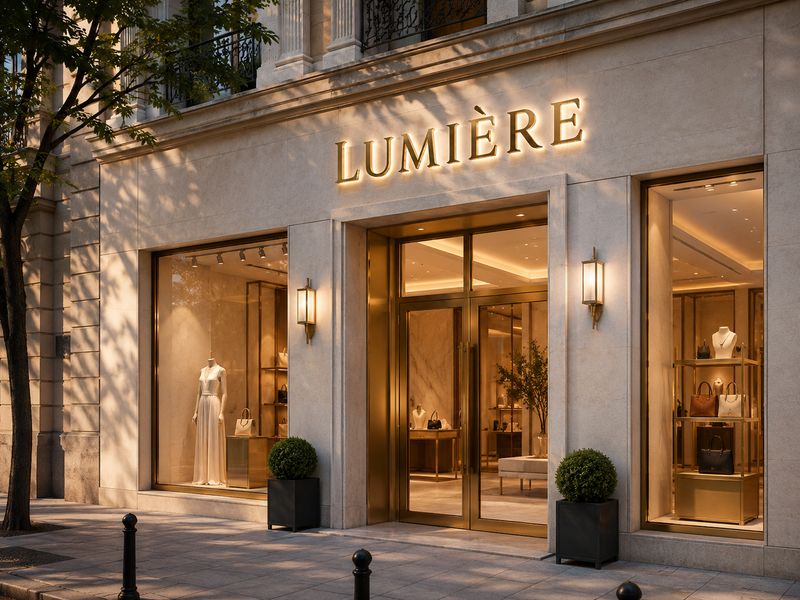

Luxury stores should select sign materials and lighting as one system, not as separate purchases. Start with the brand character, architecture, viewing distance, wall finish, indoor or outdoor exposure, and maintenance access. Then match metal, acrylic, or hybrid construction with halo, front, edge, or external illumination. Approve real samples under day and night conditions before production.

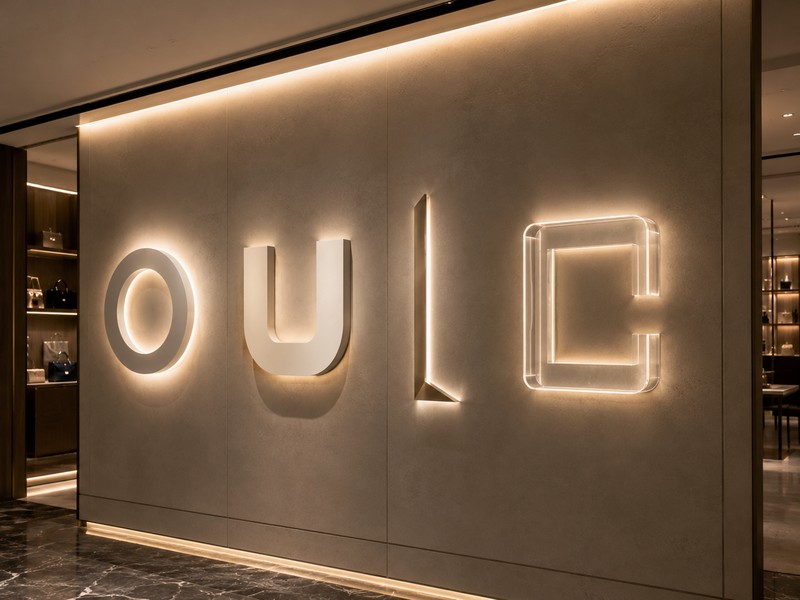

Illumination can improve nighttime visibility and reinforce a store’s physical location, but visibility alone does not create a premium result. Light quality, contrast, glare, surface texture, and consistency matter just as much as brightness.
Imagine a luxury boutique opening night. The marble façade is finished, the display windows are perfect, and the logo uses polished gold letters. Then the sign is switched on. The light is cold, hotspots appear around narrow strokes, and the mirror surface reflects nearby ceiling fixtures. Nothing is technically “broken,” yet the sign feels wrong. The decisions below are designed to prevent exactly that kind of expensive disappointment.

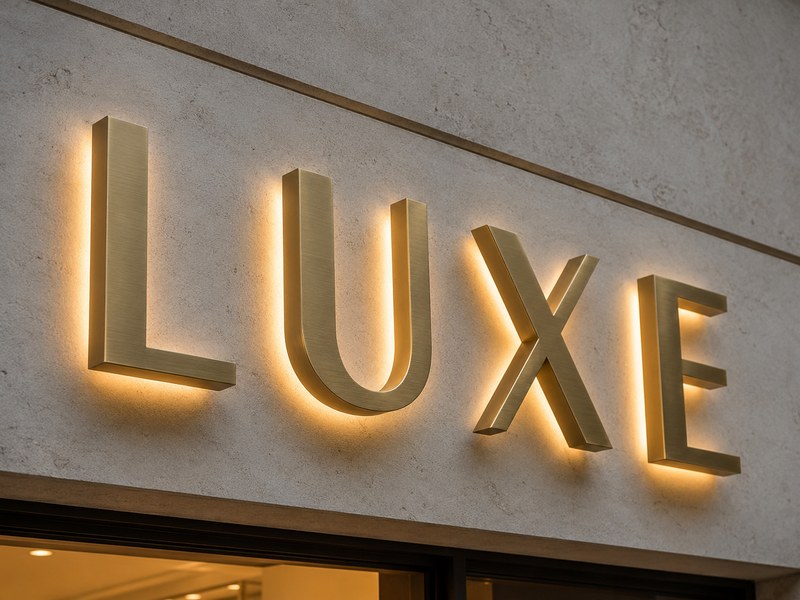

What Makes Luxury Signage Look Premium?
Luxury signage looks premium when every visible and hidden decision feels deliberate. Material price alone does not create a high-end result. Logo scale, letter depth, surface finish, lighting control, edge quality, mounting gaps, cable routing, and the relationship with the storefront all influence how the sign is perceived.
A luxury-store sign is often viewed twice: first from the street in a few seconds, then from close range at the entrance. From a distance, the logo needs enough contrast and proportion to remain recognizable. At close range, visitors notice scratches, uneven brushing, exposed hardware, light leakage, adhesive marks, poor spacing, and inconsistent finishes.
A strong result normally follows six steps:
- Define the intended brand character.
- Review the logo against the real storefront elevation.
- Select a material and finish suited to the architecture.
- Choose lighting according to visibility and atmosphere.
- Resolve mounting, wiring, seams, and maintenance access.
- Approve physical samples before full production.
Premium appearance rarely comes from one dramatic feature. It comes from many small details working together.
How Does Brand Position Shape the Sign?
Luxury is not one visual style. A heritage watch store, contemporary fashion boutique, fine-jewelry showroom, and premium cosmetics shop may all require different materials, proportions, and lighting effects.
Before selecting stainless steel, brass, acrylic, or illumination, define the visual impression in practical terms.
| Brand direction | Visual character | Materials often considered | Lighting approach |
|---|---|---|---|
| Heritage | Warm, crafted, restrained | Brass, bronze, aged metal | Warm halo or external lighting |
| Modern fashion | Clean, thin, architectural | Brushed stainless steel, painted aluminum | Neutral halo or controlled front light |
| Fine jewelry | Precise, reflective, jewel-like | Mirror metal, brass, clear acrylic | Narrow halo or edge lighting |
| Premium cosmetics | Bright, clean, polished | White acrylic, opal acrylic, polished metal | Uniform front light |
| Minimalist luxury | Quiet, spacious, understated | Matte metal, thin dimensional letters | Low-output halo |
| Technology-led luxury | Sharp, controlled, contemporary | Stainless steel, dark metal, clear acrylic | Neutral or cool edge light |
Words such as “elegant” or “premium” are too broad for production planning. More useful directions include:
- Warm and handcrafted
- Quiet and understated
- Precise and architectural
- Bright and gallery-like
- Dark and dramatic
- Decorative and jewel-like
Each direction affects letter thickness, finish reflection, color temperature, spacing, wall gap, and overall scale.
Logo geometry also matters. Fine serif letters, narrow bridges, small counters, and closely spaced symbols may not support the same construction as bold sans-serif lettering. Small adjustments may be necessary for strength, LED placement, mounting studs, or light diffusion, but the recognized proportions of the logo should remain intact.
Which Details Create a Refined Finish?
Luxury signs are often installed near entrances, counters, and display windows, where small defects are easy to see. Close-range quality depends on careful control of both front-facing and side-facing details.
Important inspection points include:
- Clean edges
- Smooth corners
- Flat faces
- Uniform letter depth
- Consistent brushing direction
- Even paint coverage
- Accurate color matching
- Polished acrylic edges
- Controlled seams
- Concealed screws
- Hidden cables
- Equal wall gaps
- Clean adhesive joints
- No unintended light leakage
Brushed metal requires a clearly defined grain direction. If one letter has a vertical grain while the remaining letters have a horizontal grain, it may appear lighter or darker under the same lighting.
Mirror metal presents different risks. It reveals fingerprints, scratches, welding distortion, ceiling fixtures, neighboring signs, passing people, and shop-window reflections. A sample viewed in a clean room may appear much busier after installation.
Paint approvals should include sheen as well as color. Matte, satin, semi-gloss, and gloss finishes can look completely different even when the same color code is used.
| Finish item | What should be confirmed |
|---|---|
| Base material | Stainless steel, aluminum, brass, acrylic, or mixed construction |
| Finish type | Brushed, mirror, matte, satin, painted, plated, or coated |
| Grain direction | Horizontal, vertical, radial, or logo-specific |
| Color reference | Pantone, RAL, physical sample, or project code |
| Gloss level | Matte, satin, semi-gloss, or gloss |
| Edge treatment | Polished, painted, brushed, beveled, or concealed |
| Protective treatment | Clear coat, protective film, or anti-fingerprint coating |
| Approval sample | Material chip, finish panel, full letter, or complete prototype |
Inspection should include front, side, lower, upper, and angled views. Side returns, rear acrylic, mounting studs, wire exits, and wall gaps can become visible when a sign is installed above eye level.
How Do Scale and Proportion Affect Perception?
Luxury signage usually benefits from controlled proportions and generous surrounding space. A logo filling almost the entire fascia may feel aggressive. A logo with insufficient size or contrast may lose authority.
The following ranges can support early design discussions. They are starting points rather than universal rules.
| Normal viewing distance | Letter-height starting range | Typical location |
|---|---|---|
| 1–3 m | 40–120 mm | Reception, interior logo wall, display area |
| 3–8 m | 120–300 mm | Boutique entrance, mall storefront |
| 8–20 m | 300–600 mm | Street-facing retail façade |
| 20–40 m | 600–1,200 mm | Large commercial elevation |
| Over 40 m | Site-specific | High-level façade or roadside location |
Letter height is only one factor. Fine strokes may disappear even when the overall logo is large. Tight spacing may cause letters to merge at night. Excessive return depth can make delicate lettering feel heavy.
Review the following proportions together:
- Logo width compared with fascia width
- Clear space above and below the logo
- Letter height compared with installation height
- Minimum stroke width
- Distance between letters
- Side-return depth
- Halo stand-off distance
- Distance from wall joints
- Alignment with doors and display windows
Small interior dimensional letters may use a depth of approximately 20–50 mm, while larger illuminated letters may require roughly 60–120 mm or more. Final depth depends on stroke width, material thickness, LED layout, diffuser performance, strength, and installation method.
A shallow profile may look refined but leave too little optical space. A deeper profile may improve illumination and strength but appear bulky from the side. A full-scale side view is often more useful than a front rendering.
What Makes a Luxury Sign Look Cheap?
Most poor results come from avoidable design, fabrication, or installation decisions rather than the base material itself.
| Problem | Visible effect | Better response |
|---|---|---|
| Excessive brightness | The sign overwhelms the storefront | Match output to ambient light and include dimming |
| Visible LED dots | Individual light points show through | Increase optical distance or improve diffusion |
| Uneven halo | Light width changes around letters | Control LED layout, wall gap, and rear diffusion |
| Inaccurate gold finish | Metal looks yellow, orange, or plastic | Approve a physical finish sample |
| Excessive return depth | Fine letters appear bulky | Balance depth with logo geometry |
| Exposed wiring | Installation looks unfinished | Confirm cable exits before production |
| Oversized raceway | Support structure dominates the logo | Integrate size, color, and position |
| Warped faces | Reflections reveal waves | Add reinforcement or revise material thickness |
| Mixed white tones | Letters appear to use different LEDs | Control LED model and production batch |
| Poor letter spacing | Logo proportions feel wrong | Use approved vector artwork and template |
| Too many visual effects | The sign feels promotional | Limit materials, colors, and lighting methods |
| Unsuitable wall | Halo disappears or reflects badly | Test on a comparable background |
Cold white lighting can weaken warm materials. A 6000K source beside brass, beige stone, and a 3000K interior may appear disconnected. Neutral or warm white usually creates a more coherent result in such conditions.
Using several premium treatments at once can also reduce visual quality. Mirror gold faces, illuminated sides, colored halos, decorative backboards, and RGB effects may compete with each other.
A more controlled combination often uses:
- One primary material
- One clearly defined finish
- One lighting method
- One integrated mounting system
Simple construction places greater emphasis on edge quality, alignment, and surface consistency, so fabrication standards become even more important.
How Should the Sign Fit the Architecture?
A luxury sign should appear to belong to the building rather than being attached after the design was completed. Material, depth, color, scale, and illumination should connect with nearby architectural features.
Useful references include:
- Door frames
- Window mullions
- Stone joints
- Metal trims
- Display fixtures
- Shelving
- Handrails
- Ceiling lines
- Wall panels
- Interior lighting
Brushed stainless steel letters may repeat the finish of a door frame. Brass may connect with jewelry cases or decorative trims. Matte black returns may disappear against a dark wall, allowing the face or halo to remain visually dominant.
Wall construction affects both appearance and installation.
| Installation surface | Main concern | Practical response |
|---|---|---|
| Painted wall | Marks and damage during drilling | Accurate template and controlled stand-off |
| Natural stone | Irregular joints and difficult fixing | Coordinate hole locations in advance |

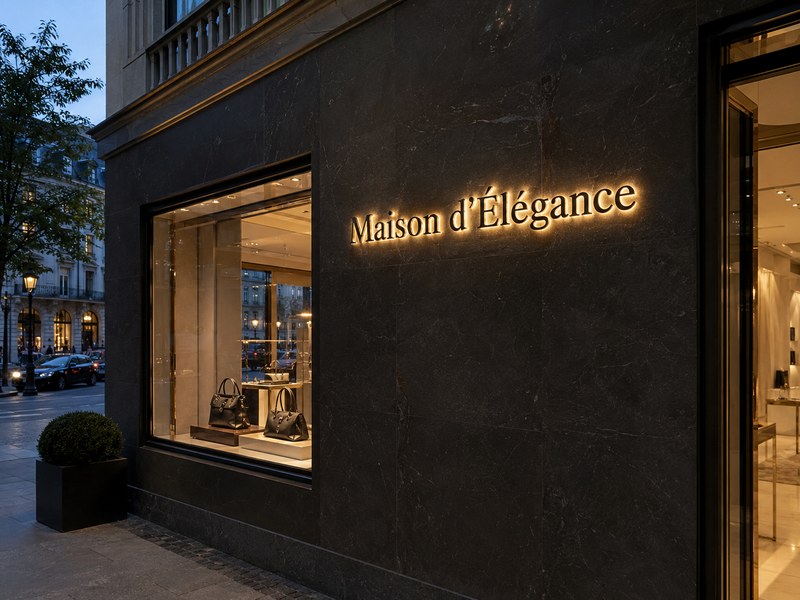

| Polished marble | Strong reflections | Test lighting from several angles |
| Glass | Rear hardware remains visible | Use a backing panel, frame, or planned cable route |
| Metal cladding | Limited structural fixing zones | Locate internal support before production |
| Timber slats | Broken halo and uneven mounting | Add a concealed continuous backer |
| Textured plaster | Irregular reflected light | Test halo lighting on a comparable texture |
| Drywall | Limited load capacity | Add internal reinforcement or reduce weight |
For many halo-lit signs, a wall gap of approximately 20–50 mm can serve as a starting range. Final spacing depends on wall color, texture, LED beam angle, letter size, rear diffuser, and viewing angle.

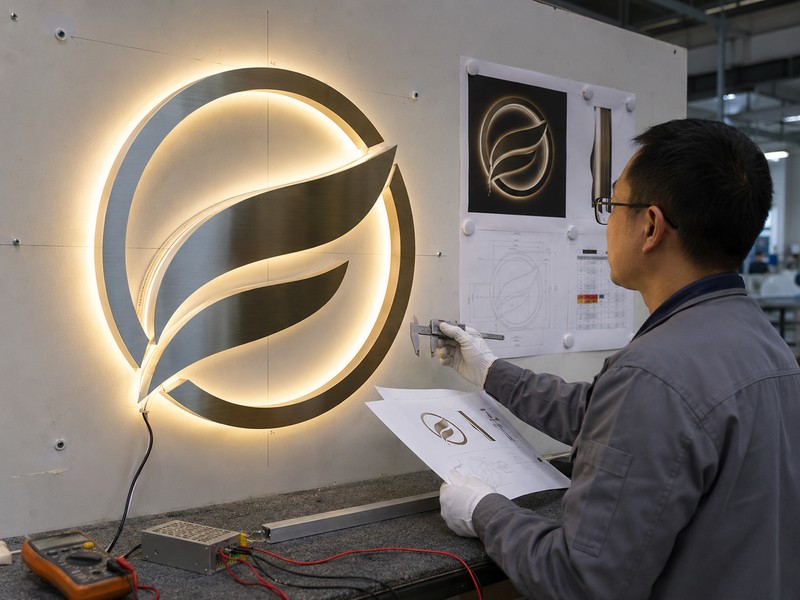

The final approval should show:
- Daytime storefront view
- Nighttime illuminated view
- Front elevation
- Side elevation
- Letter section
- Wall gap
- Mounting method
- Wire exits
- Power-supply location
- Material and finish references
- Relationship with architectural joints
- Maintenance access
A premium result is achieved when the logo, material, light, wall, and installation appear to form one complete design.
Which Sign Materials Suit Luxury Stores?

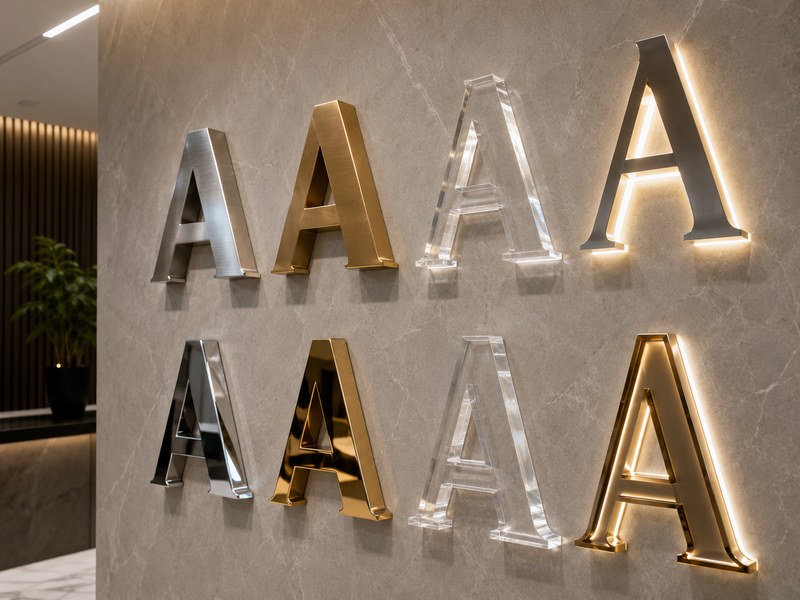

Luxury stores commonly use stainless steel, aluminum, brass, copper, acrylic, or carefully engineered combinations of metal and acrylic. The right material depends on appearance, sign size, lighting method, environmental exposure, wall loading, installation height, maintenance, and transportation.
Material selection should answer six practical questions:
- What should the sign look like when unlit?
- Which areas should illuminate?
- How close will people stand to the sign?
- What weather or cleaning conditions will affect it?
- Can the wall support the proposed weight?
- How will the sign be cleaned, serviced, packed, and replaced?
| Project condition | Strong starting choice | Main reason |
|---|---|---|
| Interior brand wall | Brushed steel, brass, acrylic, or metal-faced letters | High close-range finish quality |
| Mall fashion storefront | Stainless steel or painted aluminum with acrylic | Refined appearance with manageable weight |
| Coastal store | 316 stainless steel or protected aluminum | Better corrosion planning |
| Large high-level logo | Reinforced aluminum or hybrid structure | Lower wall and lifting load |
| Jewelry boutique | Brass, mirror steel, or polished acrylic | Reflective, jewel-like appearance |
| Minimalist reception wall | Thin brushed metal or matte-painted letters | Quiet visual character |
| Front-lit letters | Metal returns with acrylic faces | Structural support and light diffusion |
| Halo-lit logo | Metal face with rear acrylic diffuser | Premium daytime finish and controlled glow |
| Glass storefront | Lightweight acrylic or metal-acrylic structure | Easier wiring and lower weight |
When Is Stainless Steel the Best Choice?
Stainless steel suits individual letters, plaques, entrance logos, reception signs, and halo-lit construction requiring precise edges and a natural metallic finish.
The specification should include grade, thickness, finish, welding treatment, fasteners, and environmental exposure.
| Grade | Suitable use | Main strength | Main limitation |
|---|---|---|---|
| 201 | Selected dry indoor applications | Lower cost | Limited corrosion resistance |
| 304 | General indoor and outdoor commercial signs | Balanced performance and fabrication | Extra review needed near salt or chemicals |
| 316 | Coastal, humid, salt-exposed, or poolside sites | Improved corrosion resistance | Higher cost |
Grade alone does not prevent corrosion. Surface contamination from grinding tools, unsuitable fasteners, trapped water, untreated welds, and poor drainage may still cause staining.
Common finishes include:
| Finish | Visual character | Main concern |
|---|---|---|
| Brushed | Controlled and architectural | Grain direction must match |
| Mirror | Decorative and reflective | Fingerprints, scratches, surrounding reflections |
| Satin | Soft metallic appearance | Gloss consistency |
| Painted | Brand-color control | Paint and sheen approval |
| Gold-coated | Decorative luxury appearance | Coating color and batch consistency |
| Dark coated | Modern and polished | Reflection and coating durability |
Sheet thickness may range from approximately 0.8 mm to 3.0 mm or more, depending on size, flatness, reinforcement, finish, installation, and exposure.
Thicker material is not automatically better. Excess thickness adds weight and cost. Thin unsupported faces may show distortion. Structural folds, returns, and internal reinforcement often matter more than simply increasing sheet thickness.
How Does Aluminum Compare with Stainless Steel?
Aluminum is lighter and often more practical for large letters, high-level signs, frames, backboards, and raceways. Lower weight reduces shipping cost, lifting requirements, and wall loading.
| Decision point | Stainless steel | Aluminum |
|---|---|---|
| Weight | Higher | Lower |
| Natural metallic finish | Strong brushed and mirror options | Often painted or coated |
| Large fabricated letters | Suitable but heavier | Often more practical |
| Shipping | Higher weight | Lower weight |
| Wall loading | Greater | Lower |
| Painted appearance | Excellent | Excellent |
| Raceway construction | Possible | Common |
| High-level installation | More lifting effort | Easier handling |
Painted aluminum can look as refined as painted stainless steel when surface preparation, reinforcement, paint coverage, and gloss are well controlled.
Large flat aluminum panels need adequate thickness or internal stiffening. Thin unsupported sheet may show ripples under grazing light.
A useful selection rule is:
- Use stainless steel when a natural metallic surface is central to the design.
- Use aluminum when weight, size, paint color, shipping, or installation efficiency is more important.
- Use mixed construction when a stainless-steel appearance is required without full stainless-steel weight.
Is Acrylic Suitable for Premium Signage?
Acrylic can produce highly refined results when optical quality, thickness, edge treatment, color, and illumination are properly controlled.
| Acrylic type | Appearance | Suitable use |
|---|---|---|
| Clear | Transparent with polished edges | Layered logos, spacers, edge lighting |
| Opal | White and translucent | Front-lit faces, rear diffusers |
| Frosted | Soft and low reflection | Interior logo panels |
| Colored | Material color visible when unlit | Brand-color lettering |
| Black | Glossy or matte | Non-illuminated letters and layered logos |
| Mirror | Lightweight reflective surface | Selected interior details |
| Diffuser | Designed to spread light | Illuminated faces |
| Thick cast acrylic | Substantial polished depth | Premium solid letters |
Thickness changes both appearance and lighting behavior. Thin sheet may work as a diffuser face. Thick cast acrylic creates visible depth and polished edges but increases weight, machining time, and packing requirements.
Common acrylic problems include:
| Problem | Cause | Prevention |
|---|---|---|
| Scratches | Poor handling or cleaning | Keep protective film during production |
| Cracked corners | Sharp geometry or tight fasteners | Add suitable radii and controlled fixing |
| Cloudy edges | Inadequate polishing | Approve edge quality |
| LED dots | Insufficient optical depth | Revise LED distance and diffuser |
| Warping | Heat or unsupported spans | Add support and expansion allowance |
| Glue marks | Visible bonding | Use concealed joints |
| Day/night color difference | Interaction between material and LEDs | Approve lit and unlit samples |
Brand-color approval should cover both daytime and nighttime states. A painted acrylic face, colored acrylic sheet, and illuminated film may all produce different colors even when they reference the same Pantone value.
When Do Metal and Acrylic Work Together?
Metal-acrylic construction allows each material to perform a different function. Metal provides structure and a premium visible surface, while acrylic controls diffusion, edge light, rear glow, or separation.
| Construction | Daytime appearance | Nighttime effect |
|---|---|---|
| Metal face with acrylic rear | Solid metallic logo | Halo glow |
| Metal return with acrylic face | Dimensional metal body | Front illumination |
| Metal face over clear acrylic | Metallic front with transparent depth | Edge or side glow |
| Acrylic face with metal trim | Clean illuminated surface | Controlled frontal light |
| Metal-faced lightweight core | Metal appearance with lower weight | Non-illuminated or optional halo |
| Metal shell with opal diffuser | Refined metal | Even front or rear lighting |
Mixed materials expand, contract, flex, and bond differently. Poorly designed joints may cause separation, cracks, visible glue, light leakage, or water entry.
The production drawing should show:
- Metal and acrylic thickness
- Joint type
- Adhesive or mechanical connection
- Overlap
- Sealing
- Expansion allowance
- Water path
- Service access
A full-size letter or representative section is more useful than separate material chips because it reveals seams, lighting, depth, alignment, and edge quality.
Which Finish Matches the Brand Style?
Finish controls how the sign reacts to daylight, display lighting, fingerprints, dust, rain, and cleaning.
| Surface behavior | Visual result | Suitable direction |
|---|---|---|
| Low reflection | Quiet and restrained | Minimalist fashion |
| Soft directional reflection | Refined and architectural | Hotels and premium retail |
| Mirror reflection | Decorative and jewel-like | Jewelry and watches |
| Texture | Crafted and tactile | Heritage and hospitality |
| High-gloss paint | Clean and saturated | Cosmetics |
| Matte paint | Calm and modern | Fashion and wellness |
| Aged metal | Historic and handcrafted | Heritage brands |
“Gold” may refer to brass, plated steel, coated stainless steel, paint, acrylic, or film. Each option has a different hue, reflection, aging behavior, and maintenance requirement.
| Gold-look option | Main strength | Main concern |
|---|---|---|
| Brass | Authentic material depth | Tarnishing |
| Brushed brass | Controlled warm reflection | Grain consistency |
| Polished brass | Rich mirror effect | Fingerprints and oxidation |
| Coated stainless steel | Stable fabricated base | Coating match |
| Metallic paint | Broad color control | May appear flat |
| Mirror acrylic | Lightweight | Scratching and plastic edges |
| Metallic film | Fast application | Limited close-range quality |
A physical sample should be reviewed next to the actual door frame, wall, stone, timber, and store lighting.
The final finish record should include:
- Base material
- Color
- Gloss
- Texture
- Grain direction
- Coating type
- Protective layer
- Cleaning method
- Repair method
- Approved physical sample
Which Lighting Method Fits Each Sign?
The right lighting method depends on visibility, brand atmosphere, logo geometry, wall reflectance, ambient light, viewing distance, electrical access, and maintenance. Halo lighting creates depth, front lighting improves direct readability, side and edge lighting emphasize form, while external fixtures preserve natural material surfaces.
| Sign condition | Strong starting method | Main benefit | Main risk |
|---|---|---|---|
| Interior logo on light wall | Halo lighting | Soft depth | Weak result on unsuitable walls |
| Street-facing storefront | Front lighting | Direct readability | Excessive brightness |
| Thick acrylic jewelry logo | Edge lighting | Jewel-like contours | Uneven light over long shapes |
| Dimensional metal letters | Side lighting | Emphasizes depth | Visible seams |
| Brass or stone letters | External lighting | Preserves material surface | Glare and shadows |
| Bright mall | Front or front-and-halo | Strong contrast | Overpowering nearby displays |
| Dark corridor | Low-output halo | Refined atmosphere | Harsh result if not dimmed |
| Glass storefront | Edge or framed front light | Less dependence on wall reflection | Visible rear hardware |
When Is Halo Lighting the Best Option?
Halo-lit letters direct light toward the wall, creating a reflected outline around opaque faces. The effect can make letters appear to float.
Halo lighting works well for:
- Fashion boutiques
- Jewelry stores
- Hotels
- Beauty stores
- Reception walls
- Metal-faced logos
- Locations requiring restrained nighttime branding
The wall is part of the optical system.
| Wall surface | Expected result | Practical response |
|---|---|---|
| Light matte wall | Broad, soft halo | Standard full-size sample |
| Light stone | Good reflection with texture | Check veins and joints |
| Dark matte wall | Weaker halo | Adjust output, diffuser, or stand-off |
| Polished marble | Reflections and hotspots | Lower output and test angles |
| Mirror metal | Sharp LED reflections | Add backing or use another method |
| Timber slats | Interrupted halo | Add a continuous concealed backer |
| Glass | Minimal reflected light | Add opaque backing or change method |
| Rough concrete | Irregular glow | Confirm whether texture is acceptable |
A stand-off of approximately 20–50 mm may serve as an early planning range. Final spacing depends on letter size, wall color, LED beam angle, and rear diffuser.
Common defects include:
| Defect | Likely cause | Correction |
|---|---|---|
| LED dots on wall | LEDs too close to surface | Increase diffusion or distance |
| Dark corners | Incomplete LED coverage | Adjust layout |
| Uneven halo width | Inconsistent spacers | Use controlled stand-offs |
| One letter brighter | Circuit or LED imbalance | Balance electrical zones |
| Weak halo | Dark wall | Change output, backing, or method |
| Light leakage | Incomplete sealing | Improve opaque construction |
| Wiring shadows | Cables crossing lit area | Redesign cable routing |
A reliable sample should reproduce the actual face, return, rear acrylic, LED, wall gap, and wall surface.
When Is Front Lighting More Effective?
Front-lit signs direct light through the visible face and generally provide stronger recognition from long distances or in bright surroundings.
Front lighting is useful when:
- The sign faces strong commercial lighting
- The logo is mounted high
- The wall does not support halo reflection
- Brand color must illuminate directly
- Long-distance recognition is important
- The sign remains visible after interior lights are reduced
A luxury front-lit sign needs controlled output and uniform diffusion.
| Optical variable | Poor result at one extreme | Poor result at the other extreme |
|---|---|---|
| LED-to-face distance | Visible dots | Low efficiency without adequate modules |
| LED spacing | Excessive brightness | Bands and dark areas |
| Diffuser opacity | Hotspots | Weak output |
| Letter depth | Poor mixing | Bulky appearance |
| Brightness | Low visibility | Glare |
| Face thickness | Weak structure | Reduced transmission |
Approval should cover:
- Daytime face color
- Nighttime illuminated color
- Normal viewing distance
- Low-light brightness
- Uniformity
- Return finish
- Seams
- Dimming range
Front-and-halo lighting may provide both direct recognition and depth. Separate electrical zones allow the face and rear light to operate at different levels.
How Do Side-Lit and Edge-Lit Signs Differ?
Side-lit signs emit light through letter returns. Edge-lit signs guide light through acrylic and make edges, engravings, or treated areas glow.
| Feature | Side-lit | Edge-lit |
|---|---|---|
| Illuminated area | Letter sides | Acrylic edges or engravings |
| Typical construction | Opaque face with translucent return | Clear or tinted acrylic |
| Visual effect | Dimensional | Jewel-like |
| Main challenge | Even side brightness | Even light travel |
| Best viewing | Front and angled approach | Close and medium distance |
Side lighting requires consistent return width and clean joints. Internal frames, adhesives, screws, and wiring may become visible through translucent areas.
Edge lighting depends heavily on acrylic quality. Scratches and tool marks may become bright lines when illuminated.
| Edge-lighting problem | Cause | Response |
|---|---|---|
| Strong light near LEDs only | Long optical path | Add light-entry points |
| Uneven engraving | Inconsistent engraving depth | Standardize the pattern |
| Scratches glow | Handling damage | Maintain protective film |
| LEDs visible | Poor edge concealment | Add a metal channel |
| Corners too bright | Concentrated reflection | Adjust polishing or LED input |
| Hardware shadows | Fixings interrupt light path | Move mounting points |
Full-size sampling is important because a small acrylic test may not predict the performance of a long logo.
Is External Lighting a Better Choice?
External lighting preserves the natural face of brass, stone, metal, carved letters, and non-illuminated signs. Spotlights, linear grazers, downlights, uplights, and façade fixtures can all be used.
External lighting may be preferable when:
- Natural material appearance is central
- Letters are too thin for internal LEDs
- Local rules restrict internally illuminated signs
- The logo should share the building’s lighting
- Internal access would be difficult
- A carved or textured sign needs visible surface relief
| Fixture approach | Typical effect | Main concern |
|---|---|---|
| Narrow spotlight | Concentrated emphasis | Hotspots |
| Medium beam | Balanced coverage | Beam overlap |
| Wide flood | Broad illumination | Spill light |
| Linear grazer | Strong texture and shadows | Uneven surfaces |
| Recessed downlight | Clean architectural effect | Top-heavy lighting |
| Uplight | Dramatic monument lighting | Glare and water exposure |
| Track lighting | Flexible interior aiming | Visible fixtures |
| Concealed cove | Soft indirect wash | Space requirements |
Beam angle, fixture distance, reflection, shadow direction, color rendering, and maintenance access should be reviewed together.
External lighting may simplify the letters but adds separate fixtures, wiring, aiming, drivers, controls, and maintenance.
Which Color Temperature Feels More Luxurious?
No single color temperature creates luxury. The selected white light should support the sign material, brand palette, wall finish, and surrounding store lighting.
| Starting range | Likely appearance | Suitable settings | Main risk |
|---|---|---|---|
| 2700–3000K | Warm and intimate | Brass, bronze, timber, hospitality | White may appear yellow |
| 3000–3500K | Warm-neutral | Fashion, jewelry, beauty | May feel warm beside cool mall light |
| 3500–4000K | Clean and contemporary | Stainless steel and white interiors | May feel clinical in warm spaces |
| 4000–5000K | Crisp | Selected technical concepts | Risk of harshness |
| Above 5000K | Cool blue-white | Limited applications | Can weaken warm finishes |
Approval should confirm:
- Match with store lighting
- Appearance of metal finishes
- Appearance of white acrylic
- Comfort at night
- Consistency between letters
- Behavior when dimmed
- Repeatability across future stores
Repeat production records should include LED model, nominal color temperature, diffuser, letter depth, module spacing, power supply, wall gap, controller, and approved brightness setting.
How Do Store Conditions Change the Choice?
Store conditions can change material grade, lighting method, sign size, letter depth, waterproofing, mounting, wiring, and maintenance. The same logo may need different construction on plaster, black stone, glass, timber slats, or a coastal façade.
| Store condition | What changes | Typical response |
|---|---|---|
| Indoor reception wall | Close-range finish and glare | Refined edges and lower output |
| Mall storefront | Ambient light and landlord rules | Controlled front or halo lighting |
| Street-facing store | Distance, rain, and traffic light | Larger strokes and outdoor structure |
| Dark stone | Low halo reflection | Modified spacing, output, or lighting method |
| Glass | Visible rear parts | Backing panel or framed sign |
| Coastal site | Salt and humidity | Higher corrosion resistance |
| High-level façade | Weight and service access | Lightweight, segmented construction |
| Historic building | Limited drilling | Discreet mounting and external light |
| Timber slats | Broken halo | Continuous hidden backing |
| Multi-store program | Different walls and light levels | Standard design with controlled variations |
Is the Sign Indoors or Outdoors?
A simple indoor/outdoor label is often insufficient. Exposure may be divided into several practical levels.
| Exposure level | Typical location | Main conditions |
|---|---|---|
| Controlled indoor | Reception or internal corridor | Stable temperature, no rain |
| Sun-exposed indoor | Display window or atrium | UV and heat |
| Sheltered exterior | Recessed entrance | Humidity and wind-driven rain |
| Full exterior | Open façade or blade sign | Rain, sun, wind, temperature change |
| Severe exterior | Coastal or industrial site | Salt, chemicals, condensation |
Indoor signs require close-range finish quality and controlled brightness. Outdoor signs require drainage, protected wiring, corrosion planning, UV resistance, temperature allowance, and service access.
Water protection should cover:
- LED modules
- Power supply
- Cable glands
- Connectors
- Wire exits
- Wall penetrations
- Drainage
- Condensation
- Coatings
- Fasteners
An IP rating applies to a defined product configuration. It does not automatically cover site-made joints, drilled walls, field wiring, or an incorrectly installed power supply.
The site information should clarify:
- Direct rain exposure
- Canopy depth
- Side rain
- Wall water flow
- Coastal distance
- Direct sun
- Power-supply location
- Operating hours
- Maintenance access
- Cleaning practices
How Do Wall Color and Reflectance Affect Light?
Halo lighting depends on reflected light. Wall color, gloss, joints, and texture influence the result.
| Wall condition | Likely result | Response |
|---|---|---|
| White matte plaster | Broad halo | Standard sampling |
| Light stone | Soft glow with texture | Check joints |
| Gray wall | Reduced intensity | Adjust spacing or output |
| Black matte wall | Weak halo | Use stronger optical design |
| Polished marble | Sharp reflections | Lower brightness |
| Mirror metal | Visible LED reflections | Add diffuser backing |
| Clear glass | Minimal halo | Add an opaque reflector |
| Timber slats | Interrupted light | Add continuous backing |
| Rough concrete | Irregular glow | Approve the textured effect |
| Fluted panels | Bright and dark bands | Test a full-size sample |
A proper mock-up should use:
- Actual face material
- Actual letter depth
- Actual rear diffuser
- Intended LED
- Intended color temperature
- Planned wall gap
- Similar wall material
- Normal ambient light
Wall color can also shift perceived color temperature. Warm stone may make a 3000K halo appear more yellow, while blue-gray stone can make neutral white appear cooler.
How Do Viewing Distance and Ambient Light Matter?
Viewing distance affects letter height, stroke width, spacing, depth, and contrast.
| Viewing distance | Letter-height starting range |
|---|---|
| 1–3 m | 40–120 mm |
| 3–8 m | 120–300 mm |
| 8–20 m | 300–600 mm |
| 20–40 m | 600–1,200 mm |
| Over 40 m | Site-specific |
The approach route should be reviewed from:
- Entrance
- Main pedestrian direction
- Opposite pavement
- Vehicle approach
- Escalator or upper floor
- Side angle
- Main directional decision point
Ambient light influences how much output is needed.
| Approximate ambient level | Typical condition | Lighting response |
|---|---|---|
| Under 100 lux | Dim corridor | Low-output halo may be enough |
| 100–300 lux | Quiet retail interior | Halo, edge, or low front light |
| 300–700 lux | Typical mall entrance | Stronger contrast |
| 700–1,500 lux | Bright commercial area | Front or combined lighting |
| Above 1,500 lux | Very bright environment | Site mock-up and measured review |
Excessive brightness may create glare, flattened letter shapes, glass reflections, and competition with window displays. Dimming can help adapt the sign to early evening, normal nighttime, and after-hours conditions.
What Changes in Coastal or Harsh Climates?
Coastal planning must cover the complete assembly, not only the visible metal face.
| Component | Risk | Response |
|---|---|---|
| Metal face | Salt staining | Use suitable grade or coating |
| Aluminum returns | Coating failure at cuts | Protect exposed edges |
| Fasteners | Rust or galvanic corrosion | Use compatible materials |
| Welds | Surface contamination | Clean and finish properly |
| Studs | Hidden corrosion | Specify suitable grade |
| Cable glands | Water entry | Use protected outdoor entries |
| Connectors | Moisture | Use sealed serviceable connections |
| Power supply | Heat and humidity | Place in accessible protection |
| Rear cavities | Trapped water | Provide drainage |
| Wall holes | Water entering building | Seal and slope correctly |
Harsh environments also include:
- High heat
- Strong UV
- Freezing temperatures
- Large temperature changes
- Sand and dust
- Industrial pollution
- Pool chemicals
- Pressure washing
Large acrylic faces need expansion allowance. Dark metal under direct sun may become much hotter than the surrounding air. Power supplies should not be trapped in unventilated cavities.
A useful environmental specification includes:
- Exposure category
- Material grade
- Coating
- Fastener grade
- Cable-entry method
- Drainage path
- Power location
- Connector type
- Maintenance plan
How Do Installation and Maintenance Affect Design?
Installation conditions should influence the sign before fabrication begins.
| Wall type | Main concern | Planning response |
|---|---|---|
| Concrete | Drilling and cable routing | Stud template and sealed holes |
| Brick | Variable strength | Site-confirmed anchors |
| Stone | Cracking and joints | Coordinate hole locations |
| Drywall | Limited load | Reinforcement or lightweight letters |
| Timber | Movement | Expansion allowance |
| Metal cladding | Thin visible skin | Fix to hidden structure |
| ACP | Limited local strength | Internal framing or rail |
| Curtain wall | Waterproofing restrictions | Coordinate with façade contractor |
| Glass | Visible hardware | Backing panel or frame |
| Historic masonry | Preservation | Fewer reversible fixings |
Production drawings should include:
- Dimensions
- Weight
- Mounting studs
- Hole positions
- Stand-off
- Wire exits
- Cable length
- Power grouping
- Backboard or raceway
- Section joints
- Lifting points
- Service panels
Power supplies should remain accessible. Large logos may need to be divided according to freight size, doorway access, lifting equipment, installer capacity, and future replacement.
Maintenance planning should answer:
- Can the sign be reached without closing the store?
- Can one letter be replaced?
- Can a power supply be accessed?
- Can drainage points be inspected?
- Are finish and component records stored?
- Can the surface be cleaned without damage?
- Can salt be removed from coastal signs?
- Are electrical zones separately identified?
What Should Be Confirmed Before Production?
Before production, confirm artwork, dimensions, materials, finishes, lighting, electrical configuration, mounting, environment, packaging, and inspection requirements in one controlled package. Samples should state exactly what has been approved, and production should use one clearly identified revision.
| Approval category | Required information |
|---|---|
| Artwork | Final logo, spacing, color, revision |
| Dimensions | Overall size, depth, stroke width, letter spacing |
| Materials | Type, grade, thickness, backing, diffuser |
| Finish | Color, gloss, texture, grain direction |
| Lighting | Method, LED color, CCT, brightness, control |
| Electrical | Voltage, power supplies, wiring, connectors |
| Mounting | Wall, studs, holes, wire exits, template |
| Environment | Indoor, outdoor, coastal, heat, rain |
| Sample | Approval scope and retained reference |
| Quality | Inspection points and acceptable variation |
| Packaging | Protection, labels, accessories, crate |
| Version | Revision, date, and release status |
Which Brand Files and Drawings Are Required?
Useful source files include:
- AI
- EPS
- SVG
- Editable PDF
- CAD or DWG
- Brand guidelines
- Storefront elevation
- Wall section
- Site photographs
- Physical samples
Raster images can support visual reference but may not define accurate curves or spacing. Redrawn vector artwork should be approved before engineering.
File control should record:
| Item | Information |
|---|---|
| Brand | Official project name |
| Store | City or location code |
| Product | Halo letters, front-lit letters, plaque, or light box |
| Revision | Controlled revision number |
| Date | Issue date |
| Status | Review, sample, or production |
| Approver | Authorized person |
| Change summary | Size, color, lighting, mounting, or another change |
The final drawing should include:
- Front elevation
- Side elevation
- Section
- Rear view
- Electrical layout
- Mounting layout
- Storefront position
- Packaging division
Important dimensions should be written rather than inferred from scale.
Production should not begin while notes such as “color to be confirmed,” “hole location pending,” or “use similar gold” remain unresolved.
How Should Materials and Finishes Be Sampled?
The sample type should match project risk.
| Sample type | What it confirms |
|---|---|
| Material chip | Base material and basic color |
| Painted panel | Color, gloss, and texture |
| Finish panel | Brushing, polish, or coating |
| Lighting sample | LED color and diffusion |
| Full-size section | Layering and letter depth |
| Full-size letter | Fabrication and illumination |
| Complete prototype | Overall appearance and function |
| Golden sample | Production and repeat-order reference |
| First-store installation | Real site performance |
The approval record should separate:
- Material
- Color
- Finish
- Structure
- Lighting
- Mounting
- Packaging
A finish schedule should include:
- Base material
- Finish method
- Color
- Gloss
- Grain direction
- Coating
- Protection
- Cleaning
- Repair method
- Approved sample number
Illuminated brand colors should be reviewed both unlit and lit. Photographs can support records but should not replace direct visual approval because screens, exposure, and white balance can change color.
How Should the Lighting Effect Be Tested?
Lighting tests should examine:
- Color
- Color temperature
- Brightness
- Uniformity
- Halo width
- Hotspots
- Dark zones
- Corner coverage
- Dimming
- Controls
- Power stability
- Wiring
- Temperature
- Wall interaction
| Test variable | Record |
|---|---|
| Lighting method | Front, halo, side, edge, or mixed |
| LED | Manufacturer and model |
| Color | White, single color, RGB, or RGBW |
| CCT | Target and tolerance |
| Voltage | Designed operating voltage |
| Letter depth | Optical space |
| LED spacing | Layout |
| Diffuser | Material and thickness |
| Wall gap | Halo stand-off |
| Wall sample | Color and texture |
| Brightness | Maximum and normal setting |
| Controller | Dimmer, timer, remote, or app |
| Viewing distance | Close, normal, and long distance |
Common defects include:
| Defect | Cause | Response |
|---|---|---|
| LED dots | Insufficient depth | Increase optical distance |
| Dark corners | Poor LED coverage | Revise layout |
| Uneven halo | Inconsistent wall gap | Use controlled spacers |
| Dim letter | Voltage drop | Review wiring |
| Mixed white tones | Different LED batches | Control source |
| Flicker | Incompatible power or control | Test complete system |
| Overheating | Excess load | Review power and ventilation |
| Light leakage | Incomplete sealing | Correct joints |
Testing should cover full output, normal output, reduced output, surrounding lights on, and low ambient light.
What Electrical and Mounting Details Need Approval?
Electrical confirmation should include:
- Destination voltage
- Sign operating voltage
- LED load
- Power-supply model
- Power-supply quantity
- Cable length
- Cable size
- Wire exits
- Circuit grouping
- Connectors
- Dimming
- Controller
- Plug or hardwired connection
- Grounding
- Service access
Three electrical areas should be distinguished:
| Area | Scope |
|---|---|
| Internal sign wiring | Manufactured and tested with the sign |
| Low-voltage connection | Coordinated with installation |
| Building mains connection | Completed locally by qualified personnel |
The mounting schedule should include:
| Mounting item | Confirmation |
|---|---|
| Wall type | Visible surface and hidden structure |
| Weight | Per letter and total |
| Method | Studs, brackets, rail, raceway, or backboard |
| Studs | Diameter, length, material |
| Holes | Position and spacing |
| Stand-off | Distance from wall |
| Template | Full-size pattern |
| Wire exits | Exact coordinates |
| Backboard | Size, depth, color |
| Raceway | Size, finish, access |
| Sections | Joint location |
| Weather sealing | Holes and cable entries |
| Maintenance | Removal and replacement method |
A production-ready installation review should confirm that the packed sign can enter the building, the wall can carry the load, cables align with openings, power supplies remain accessible, and local installers have the correct template and hardware information.
How Do Multiple Stores Maintain Sign Consistency?
A multi-store program should separate fixed brand standards from site-specific details.
| Fixed standard | Site-specific variable |
|---|---|
| Logo proportion | Sign size |
| Font and spacing | Installation height |
| Material grade | Wall structure |
| Finish code | Mounting system |
| Approved color | Wire exit |
| Lighting character | Brightness setting |
| LED color | Power location |
| QC standard | Backboard or raceway |
| Packaging format | Package dimensions |
A controlled rollout sequence may follow:
- Approve the core sign standard.
- Produce material and lighting samples.
- Manufacture a pre-production sample.
- Install and review the first store.
- Record installation changes.
- Freeze the corrected production version.
- Produce a pilot batch.
- Inspect and release wider production.
- Pack and label by store.
- Save records for replacement and repeat orders.
Each store record should include:
- Store code
- Country and city
- Sign type
- Dimensions
- Wall material
- Exposure
- Lighting method
- Brightness setting
- Electrical input
- Mounting
- Wire exits
- Packaging
- Revision
- Inspection result
Repeat orders should verify whether the original LEDs, power supplies, finishes, and materials remain available. Any replacement component should be recorded and approved rather than silently substituted.
How Can You Start a Luxury Store Sign Project?
A useful inquiry does not need to begin with a complete technical specification. You can send Iduoduo your logo, AI, PDF, SVG or CAD file, brand guidelines, storefront photographs, wall dimensions, target sign size, indoor or outdoor location, required quantity, destination country, and examples of the appearance you prefer. A project with only a logo and site photographs can still move forward through design conversion and engineering review.
Iduoduo can help assess whether the project is better suited to stainless steel letters, aluminum channel letters, acrylic logos, halo-lit construction, front lighting, edge lighting, external illumination, or a non-illuminated solution. The review can also cover finish samples, color temperature, brightness, power, wire exits, mounting holes, backboards, raceways, waterproofing, packaging, and transportation. The company supports material samples, lighting samples, complete prototypes, MOQ from one piece, and production documents for single stores or repeat programs.
When requesting a quotation, include the store environment and installation conditions rather than sending the logo alone. That information allows the proposed material and lighting method to solve the real project—not merely produce an attractive factory photograph. After the design, finish, optical effect, electrical details, and mounting interface are confirmed, Iduoduo can prepare the product for manufacturing, testing, export packaging, international delivery, and future repeat orders.
