A gym neon sign can look impressive in a rendering and still disappoint after installation. The phrase may be too long to read from across the training floor, the light may reflect harshly in the mirror, or the power cable may hang across an otherwise clean wall. In commercial gyms, signage has to do more than create atmosphere. It must fit the brand, support the function of the space, remain visible in photos, and work with the mirror, electrical layout, equipment clearance, and installation surface.
The right gym neon sign starts with the purpose and location, followed by the wording, dimensions, color, brightness, backing, power system, and mounting method. Mirror reflection must be considered during design because it affects apparent brightness, visual balance, photography, and cable visibility. Final production should not begin until the drawing, wall conditions, electrical details, and installation plan are confirmed.
Think about two identical signs placed in different gyms. One becomes the backdrop members photograph every day. The other feels too bright, blocks part of the mirror, and is eventually switched off. The difference is rarely the LED neon alone. It is usually the planning that happened before the sign entered production.
What Should a Gym Neon Sign Achieve?

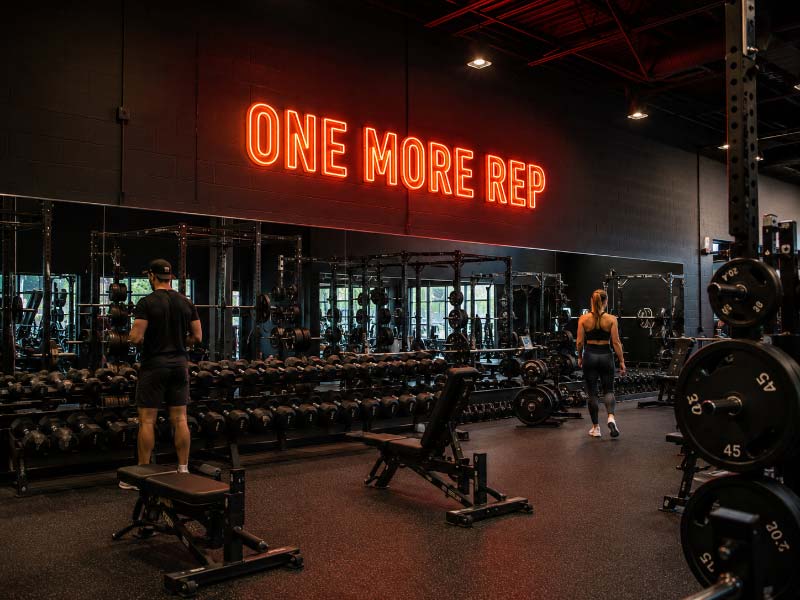

A gym neon sign should identify the space, strengthen the training atmosphere, remain readable from the expected distance, and fit safely around mirrors, equipment, wiring, and daily cleaning. Before choosing a slogan or color, define the sign’s main purpose, viewing position, audience, and installation conditions. A sign that performs one clear job usually works better than a crowded design trying to combine branding, motivation, directions, and social-media messaging.
What Is the Main Purpose of the Sign?
Start by deciding what people should understand or feel within the first two or three seconds of seeing the sign. Most gym signs serve one primary purpose and one supporting purpose.
| Main purpose | Suitable content | Best location | Common mistake |
|---|---|---|---|
| Brand identification | Gym name, logo, brand symbol | Entrance, reception, main training floor | Using a logo too small to recognize |
| Training motivation | Short slogan or coaching phrase | Free-weight, cardio, boxing, functional zone | Choosing a sentence that is too long |
| Area identification | Studio name or training-zone label | Cycling, yoga, recovery, personal training room | Making decorative text more prominent than the area name |
| Photo background | Logo and short phrase | Mirror wall, member photo area, event wall | Installing the sign too low or behind equipment |
| Atmosphere control | Simple words, symbols, colored lighting | Group studio, HIIT room, immersive training room | Using excessive brightness without dimming |
A reception sign should make the gym name easy to recognize. A motivational phrase may add personality, but it should not replace clear brand identification at the main entrance.
A training-zone sign has a different job. Short phrases such as “Stay Strong,” “One More Rep,” or a gym-specific slogan normally work better than long quotations. Fewer words allow larger letters, wider spacing, and better visibility from across the room.
Use the following limits as an early design guide:
- Two to five words for a main motivational sign
- One main message per wall
- One or two colors for permanent branding
- No more than two text sizes in one design
- One obvious focal point, such as the logo or key phrase
- Avoid small dates, hashtags, website addresses, and secondary wording unless required
A simple test can prevent an overworked design: show the artwork for three seconds, then hide it. If the gym name or key phrase cannot be recalled, the layout probably contains too much information.
Which Gym Area Needs the Sign?
The installation area affects size, brightness, wording, backing, mounting, and cable routing. A sign designed for reception may feel too small on a large training floor, while a free-weight slogan may feel aggressive inside a yoga or recovery room.
| Gym area | Typical viewing distance | Suggested content | Lighting requirement | Main site concern |
|---|---|---|---|---|
| Reception | 2–6 m | Logo or gym name | Clear under full room lighting | First sightline and hidden wiring |
| Free-weight zone | 3–8 m | Short, bold slogan | Medium to high visibility | Barbell and equipment clearance |
| Cardio zone | 3–10 m | Horizontal phrase or icon | Stable brightness | Long viewing angle |
| Group studio | 2–6 m | Mood phrase or studio name | Dimming often useful | Lighting changes during classes |
| Yoga or recovery area | 1–4 m | Calm wording or simple logo | Lower brightness | Glare and visual comfort |
| Photo wall | 2–5 m | Logo plus short phrase | Dimmable for cameras | Person-to-sign scale |
| Personal training room | 1–3 m | Compact logo or coaching phrase | Moderate brightness | Limited wall space |
Measure the usable area rather than the full wall. Mirror joints, speakers, ventilation grilles, clocks, televisions, power outlets, doors, and equipment may reduce the available space significantly.
For a centered sign, approximately 40% to 65% of the clear wall width is often a useful starting range. On a 2400 mm-wide mirror bay, a sign around 1000 to 1550 mm wide may create a balanced appearance. Logo shape and text length can move the final size outside that range.
Active training zones need additional checks:
- Maximum barbell height during overhead movements
- Cable-machine arm movement
- Medicine-ball and resistance-band paths
- Distance from movable benches and racks
- Access for cleaning mirrors
- Access for replacing a power supply or controller
- Visibility when equipment is occupied
- Clearance from sprinklers, speakers, and ventilation
A wall may appear open in an interior rendering but become crowded after machines, storage racks, and safety zones are added. Review the sign position using the final equipment layout rather than an empty-room drawing.
How Does the Sign Support Gym Branding?
A neon sign supports branding when its shape, wording, color, and visual tone match the rest of the gym. The sign does not need to repeat the full logo everywhere, but it should feel connected to the brand used on the exterior sign, website, uniforms, membership cards, wall graphics, and social-media pages.
Brand alignment can come from several elements:
- Official logo proportions
- Approved font or a close production-ready version
- Main brand color
- Recognizable icon or symbol
- Existing slogan
- Consistent tone of voice
- Similar letter spacing and layout
- Matching interior materials and finishes
The room style should influence the lighting choice. A premium wellness studio with wood, beige walls, and soft fabrics may suit warm white around 2700K to 3500K. A modern training facility with black ceilings, metal equipment, and cool architectural lighting may suit neutral or cool white around 4000K to 6500K. Saturated red, blue, purple, or pink can create stronger visual energy but may need dimming near mirrors.
| Interior direction | Suitable neon approach | Colors often considered | Design caution |
|---|---|---|---|
| Industrial strength gym | Bold lettering and simple backing | Red, cool white, orange | Avoid thin script fonts |
| Premium fitness club | Clean logo with controlled brightness | Warm white, neutral white | Avoid exposed wires |
| Boutique studio | Soft script or compact icon | Pink, purple, warm white | Check readability from the entrance |
| Boxing or HIIT gym | Short, energetic slogan | Red, orange, white | Do not overload the wall with several phrases |
| Yoga and recovery space | Minimal wording and softer output | Warm white, amber, soft green | Avoid glare at eye level |
| Chain fitness brand | Standardized logo and specifications | Approved brand color | Record every production detail |
Color approval should include more than a screen image. Screens, printed materials, and LED light do not appear identical. Provide Pantone, CMYK, RGB, a physical color sample, or a previous approved sign whenever possible.
For multiple locations, keep a repeatable specification record containing:
- Artwork version
- Overall sign width and height
- Letter height
- Neon color or white color temperature
- Acrylic backing shape and thickness
- Brightness or dimmer setting
- Input voltage and plug
- Power-supply model
- Cable length
- Wire exit position
- Mounting-hole pattern
- Hardware type
- Packaging layout
A saved specification reduces variation between branches. Without it, one location may receive warm white while another receives cool white, or letter spacing may change because the artwork was recreated from a photograph.
Do Members Need a Photo-Friendly Background?

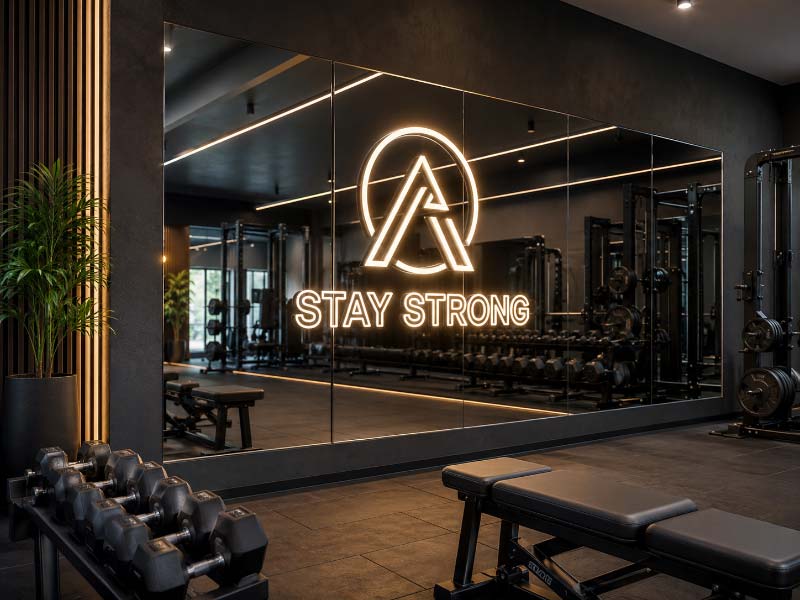

Mirror-wall signs are frequently photographed, even when the original plan focuses only on decoration. Members take progress photos, trainers record exercise demonstrations, and staff produce promotional videos. A sign that looks balanced from close range may become unreadable or overexposed on a phone screen.
Photo-friendly planning should cover four factors: scale, height, brightness, and background control.
| Photo type | Suggested planning focus | Common problem |
|---|---|---|
| Full-body photo | Place the sign above shoulder level | Text hidden behind the person |
| Waist-up photo | Keep the main wording near head height | Sign positioned too high |
| Group photo | Use wider wording with larger letters | People block most of the sign |
| Training video | Maintain readable contrast from several angles | Reflection produces a double image |
| Social-media close-up | Use short wording and clean cable routing | Small letters become overexposed |

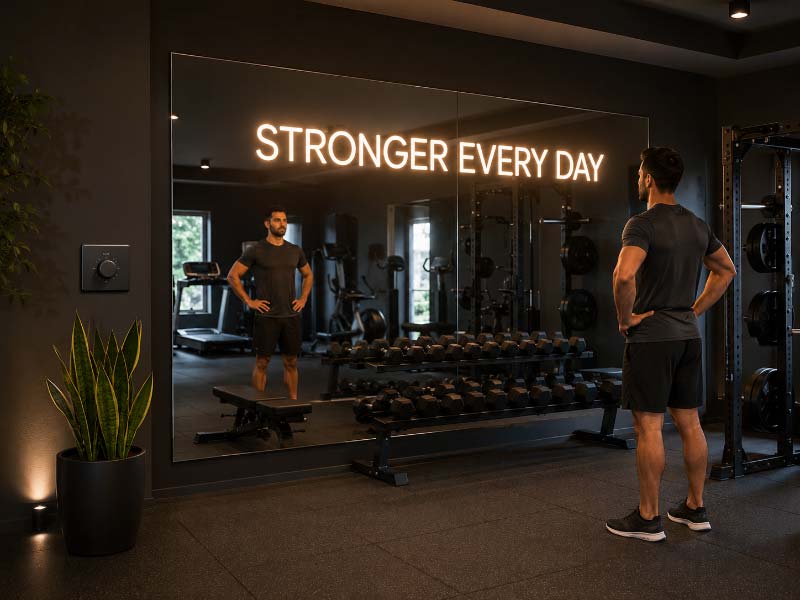

A typical standing eye level may fall around 1500 to 1750 mm above the floor, but the final sign position should reflect the expected camera framing. For many photo walls, the sign center sits above normal head height so the wording remains visible behind one or two people.
Useful starting points include:
- Letter height of approximately 150 to 250 mm for short phrases photographed from 2 to 5 meters
- At least 300 to 500 mm of clear visual space around the main artwork
- A sign width large enough to remain visible behind one person
- A dimmer for mirror walls or low-light studios
- A clean floor area where people can stand without blocking circulation
- No visible power adapter, loose cable, or extension lead in the camera frame
Mirror reflection can create a second bright image behind the neon line. The effect may look attractive from one position and distracting from another. Test the planned location from at least three angles:
- Straight in front of the wall
- Approximately 30 degrees from one side
- From the entrance or main training aisle
Phone cameras often reduce exposure when a bright sign fills the frame, making faces and surrounding finishes appear darker. A dimmer helps staff lower the brightness for photos, filming, evening classes, and events.
The surrounding wall matters as much as the sign. Crowded decals, televisions, mirrors full of reflected equipment, and visible cable channels can weaken the image. A strong photo wall usually combines one clear sign, controlled lighting, enough standing space, and a clean background rather than several competing decorative elements.
Which Neon Sign Design Works Best?
The best gym neon sign uses a clear logo or short phrase, readable letterforms, controlled spacing, and a backing shape suited to the wall. The design should remain recognizable when illuminated, switched off, reflected in a mirror, and photographed from several meters away. A simpler layout usually produces larger letters, cleaner installation, fewer visible wires, and stronger visual impact.
Which Is Better: a Logo or a Motivational Quote?
Choose a logo when recognition is the main goal. Choose a motivational quote when the sign needs to shape the mood of a training area. Both can work together, but one element should remain visually dominant.
A gym logo is usually the stronger choice for:
- Reception desks
- Main entrances
- Membership consultation areas
- Branded photo walls
- Franchise and chain locations
- Areas visible from outside the building
A motivational phrase is usually more suitable for:
- Free-weight areas
- Boxing and functional training zones
- Cycling and group exercise studios
- Personal training rooms
- Stretching and recovery spaces
- Secondary walls where the main logo already appears elsewhere
| Project goal | Recommended sign content | Practical reason |
|---|---|---|
| Make the gym easy to identify | Full logo or gym name | Brand remains visible in person and in photographs |
| Add energy to a training zone | Two-to-five-word phrase | Larger letters and faster reading |
| Create a member photo wall | Logo plus a short slogan | Location and message appear in one frame |
| Label a studio or room | Room name with a small icon | Helps navigation without overcrowding |
| Standardize several locations | Approved logo artwork | Easier to reproduce consistently |
A combined design needs a clear visual order. The logo can occupy around 60% to 75% of the visual area, while the supporting slogan occupies the remaining area. Giving the logo and slogan equal size often makes both feel less important.
A useful structure may be:
- Large gym logo on the first line
- Short slogan on the second line
- One main neon color
- A second color used only for a small icon or keyword
- Consistent alignment across both elements
Avoid combining a full logo, a six-word quote, a social-media handle, a founding date, and several icons on one backing panel. Small secondary details become difficult to manufacture and often disappear from normal viewing distances.
What Words Work for Different Training Areas?
Motivational wording should match the activity, brand personality, and people using the space. A phrase suitable for a powerlifting gym may feel uncomfortable in a rehabilitation studio or family fitness center.
Short wording normally performs best. Two to five words allow more height per letter and make the phrase easier to understand while someone is walking, training, or filming.
| Training area | Suitable tone | Example direction | Wording to avoid |
|---|---|---|---|
| Free-weight zone | Strong and direct | Strength, effort, discipline | Long inspirational sentences |
| HIIT studio | Fast and energetic | Movement, speed, intensity | Calm or overly formal language |
| Boxing gym | Focused and competitive | Courage, focus, persistence | Generic corporate slogans |
| Cycling room | Rhythmic and energetic | Ride, push, move | Text requiring close reading |
| Yoga studio | Calm and positive | Balance, breathe, flow | Aggressive commands |
| Recovery area | Reassuring and quiet | Restore, recover, reset | High-pressure training language |
| Women’s fitness studio | Confident and supportive | Strength, confidence, community | Stereotypical or patronizing phrases |
| Photo wall | Memorable and brand-related | Gym slogan or local phrase | Complex quotations |
Useful wording limits include:
- Two to five words for a main sign
- Around 10 to 18 characters for one-line script text
- Around 15 to 28 characters for a two-line layout
- No more than one punctuation mark unless required
- One main message per sign
- Avoid small subtitles below 60 to 80 mm in letter height
Character count alone does not determine sign width. Wide letters such as M, W, and O occupy more space than I, L, and T. Script fonts also need room for connecting strokes and flourishes.
A phrase should pass three simple tests:
- Can someone read it within two seconds?
- Does it sound natural when spoken aloud?
- Does it still represent the gym three years from now?
Gym-specific language usually carries more value than a phrase found in thousands of other facilities. A coaching principle, local expression, member motto, or established brand statement can make the wall easier to remember.
Before production, confirm exact capitalization and punctuation. “Never Give Up,” “NEVER GIVE UP,” and “never give up” create noticeably different visual styles, even when the wording is identical.
How Should the Font and Line Layout Be Chosen?
The font must look good and remain practical for LED neon fabrication. Very thin strokes, tiny counters, sharp corners, and crowded overlaps can weaken readability or require artwork changes before production.
LED neon flex has a physical width and a minimum practical bending radius. Extremely narrow loops or tight letter gaps may merge visually once illuminated. A font that looks elegant at 100% zoom on a screen may become unclear when viewed from five meters away.
| Font style | Main advantage | Main limitation | Suitable use |
|---|---|---|---|
| Bold sans serif | Strong readability | Can feel less decorative | Large gym floors and brand statements |
| Rounded sans serif | Clean and friendly | Less aggressive visual tone | Boutique studios and reception areas |
| Simple script | Natural neon appearance | Needs enough spacing | Short phrases and photo walls |
| Detailed script | Strong personality | Tight loops may merge | Large signs with few words |
| Condensed font | Fits long wording | Narrow strokes may lose clarity | Limited-width walls |
| Outline or double-line font | Strong visual presence | More LEDs, power, and wiring | Large logos with simple geometry |
Important font checks include:
- Minimum stroke width after scaling
- Space inside letters such as A, B, D, O, P, and R
- Separation between neighboring neon lines
- Sharp corners that may require rounding
- Long unsupported strokes
- Small dots above lowercase i and j
- Crossbars that may become visually crowded
- Script connections between letters
- Legibility when reflected in a mirror
For long phrases, splitting text into two lines can increase letter height without producing an excessively wide sign. The line break should follow natural language rather than dividing words only to fit the panel.
A balanced two-line design often uses:
- Similar overall line widths
- A line-spacing gap of about 15% to 30% of the letter height
- One consistent alignment method
- A larger first line when it contains the key message
- Enough open space around ascenders and descenders
For example, a 1200 mm-wide sign with six words may feel compressed on one line. Dividing the phrase into two three-word lines can produce taller letters and a stronger appearance.
Text alignment also affects mood:
| Alignment | Visual effect | Common use |
|---|---|---|
| Centered | Balanced and formal | Logos, reception walls, photo areas |
| Left aligned | Modern and editorial | Boutique studios and long phrases |
| Staggered | Energetic and informal | HIIT, boxing, youth-oriented gyms |
| Curved | Dynamic and decorative | Circular logos or emblem designs |
| Vertical | Space-saving and distinctive | Narrow mirror sections or columns |
Review the sign at three stages:
- Vector artwork without lighting
- Illuminated rendering
- Scaled wall mockup with people and equipment
A design may look attractive as isolated artwork but feel too small once placed on a 4-meter mirror wall.
Which Backboard Shape Fits the Design?

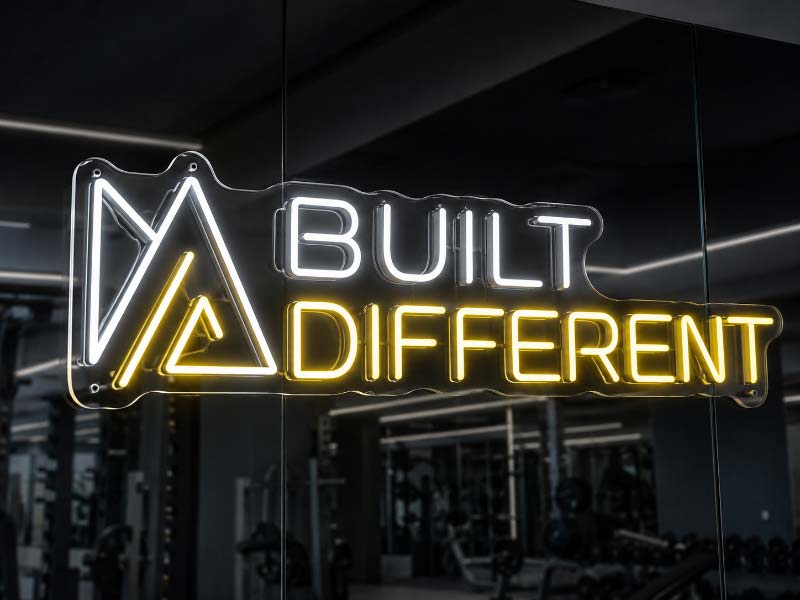

The acrylic backing supports the neon flex, holds the wiring, creates mounting points, and affects how the sign looks during daylight. Backing choice should consider appearance, size, transport, installation time, cleaning, and visible reflections.
| Backing style | Main advantage | Main limitation | Suitable application |
|---|---|---|---|
| Cut-to-shape | Clean outline with less visible acrylic | More detailed cutting and edge work | Logos and short phrases |
| Rectangular panel | Easy to align and install | Panel edges remain visible | Large text and studio feature walls |
| Separate word backing | Less acrylic around the design | More parts and alignment work | Multi-line phrases |
| Individual letter backing | Minimal panel appearance | More wires and mounting points | Premium logo installations |
| Circular or geometric panel | Strong decorative form | May occupy more wall space | Photo walls and brand emblems |
| Printed backing panel | Combines neon with graphics | Artwork can compete with the light | Promotional or themed walls |
Clear acrylic is widely used on mirrors because it preserves the reflective surface around the design. Clear backing is not completely invisible, however. The edges, holes, spacers, wire clips, fingerprints, and reflections may still be seen.
Alternative backing finishes include:
- Frosted acrylic to soften rear details
- Black acrylic for dark industrial interiors
- White acrylic for bright, clean studios
- Colored acrylic matched to the brand
- Printed acrylic for graphic backgrounds
- Mirror acrylic where a reflective panel is required without fixing directly to an existing glass mirror
Cut-to-shape backing should normally extend far enough beyond the neon line to protect the tubing and provide stable mounting points. An extremely narrow edge may crack during transport or installation.
A common planning range is approximately 10 to 30 mm of acrylic around the outer neon path, depending on the artwork, panel thickness, sign size, and fixing method. Complex logos may require wider support around narrow projections.
Large signs may need segmentation. One backing panel wider than 1800 to 2400 mm can become harder to handle, pack, ship, and position over a mirror. The exact limit depends on acrylic thickness, product shape, doorway size, transport method, and installation access.
Segmentation should be planned around natural artwork breaks, such as:
- Separate words
- Logo and slogan divisions
- Letter groups
- Color changes
- Existing mirror joints
- Areas where cables can be connected discreetly
Each backing section should be labeled for installation. A full-size template can show the location of every section, mounting hole, and wire exit.
Before approving the backing, confirm:
- Acrylic color and thickness
- Overall panel dimensions
- Number of backing sections
- Edge shape and finish
- Mounting-hole positions
- Spacer height
- Rear wire route
- Cable exit position
- Connector locations
- Finished product weight
- Cleaning access around the panel
A good backing design should look deliberate rather than purely structural. It should support the neon path without creating a large, distracting sheet of acrylic across the mirror.
How Do You Choose Size, Color, and Brightness?
Choose the sign size from the usable mirror area, wording length, viewing distance, and nearby equipment. Select color from the gym’s brand palette and interior lighting rather than from a screen alone. Brightness should remain comfortable during normal training and adjustable for photography or low-light classes. A scaled wall mockup and dimming control prevent most size and glare problems before production.
How Large Should the Sign Be?
Measure the clear installation area instead of using the full wall width. Mirror joints, television screens, speakers, ventilation grilles, clocks, power outlets, equipment, and maintenance space may reduce the usable area by 20% to 40%.
For a single centered sign, a useful starting range is approximately 40% to 65% of the clear mirror width.
| Clear mirror width | Starting sign-width range | Common application |
|---|---|---|
| 1200 mm | 480–780 mm | Small studio or personal training room |
| 1800 mm | 720–1170 mm | Reception or compact mirror bay |
| 2400 mm | 960–1560 mm | Standard gym feature wall |
| 3000 mm | 1200–1950 mm | Main training area |
| 4000 mm | 1600–2600 mm | Large photo wall or open gym floor |
These figures are planning ranges, not fixed production rules. A wide logo may fill the wall at a smaller percentage, while a short phrase may need more width to feel visually important.
Before confirming the overall size, check:
- Number of words and lines
- Font width and stroke style
- Available height above equipment
- Mirror panel joints
- Position of power outlets
- Camera distance
- Expected standing position
- Door and corridor dimensions for installation
- Maximum package size
- Whether the backing will be produced in one piece or several sections
A sign should not be enlarged simply to fill empty space. Large acrylic backing increases weight, package volume, installation difficulty, and the risk of bending during handling.
For long wording, splitting the text into two lines often gives better results than reducing the letter height. A 1500 mm-wide one-line phrase with seven words may be difficult to read, while a two-line layout can use taller letters and clearer spacing within the same wall area.
A full-size paper template is one of the most useful approval tools. Tape the printed outline onto the mirror and review it from the entrance, training floor, and intended photo position. Wall mockups often reveal scale problems that are not obvious on a laptop screen.
How Does Viewing Distance Affect Letter Size?
Letter height should increase with viewing distance. Small decorative text may look attractive from one meter away but disappear when seen across a busy training floor.
The following ranges work as early planning guidance for clear, short wording:
| Normal viewing distance | Starting letter height | Typical location |
|---|---|---|
| 1–2 m | 75–120 mm | Small studio or close-up photo area |
| 2–4 m | 120–200 mm | Reception, yoga room, mirror bay |
| 4–7 m | 200–300 mm | Free-weight or cardio area |
| 7–10 m | 300–450 mm | Large open gym floor |
| Over 10 m | 450 mm or more | High wall or large commercial facility |
Letter height alone does not guarantee readability. Several design details can make a large sign look unclear:
- Thin script strokes
- Narrow spaces between letters
- Small internal gaps
- Long words with tightly compressed lettering
- Similar letter shapes
- Low contrast between the light and background
- Equipment blocking the lower part of the sign
- Strong mirror reflections
- Viewing from a sharp side angle
Bold sans-serif lettering generally remains readable at a smaller size than detailed script. Script fonts need additional height because loops, joins, and flourishes can merge when illuminated.
For a two-line sign, keep the gap between lines large enough to prevent the light from visually joining. A starting gap of about 15% to 30% of the main letter height often works well. A sign using 200 mm-high letters may therefore need approximately 30 to 60 mm of clear spacing between the lines.
Review the artwork at realistic scale:
- Print the design at full size when possible
- View the mockup from the longest normal sightline
- Check the sign with nearby equipment in place
- Test the main viewing angle and a 30-degree side angle
- Add a person to the wall elevation for scale
- Review both daytime and illuminated views
Which Colors Match the Gym Interior?
The best color normally begins with the gym’s existing brand palette. The final choice should also suit the wall finish, mirror reflection, ceiling lighting, equipment colors, and atmosphere of the training area.
White LED neon is available in several color-temperature ranges:
| White color temperature | Visual character | Suitable gym areas |
|---|---|---|
| 2700K–3200K | Warm, soft, relaxed | Yoga, recovery, premium wellness |
| 3500K–4500K | Balanced and clean | Reception, general fitness, office areas |
| 5000K–6500K | Crisp, cool, energetic | Strength gyms, HIIT, modern studios |
Warm white works well with timber, beige, brass, and softer interior finishes. Cool white fits black ceilings, grey walls, metal equipment, and high-energy spaces. Neutral white is easier to combine with mixed materials and changing room lighting.
Colored neon creates a stronger emotional effect:
| Color | Common visual effect | Points to check |
|---|---|---|
| Red | Strength, urgency, intensity | Can dominate small rooms |
| Orange | Energy and warmth | May shift near warm interior lights |
| Pink | Bold, social, expressive | Check brand suitability |
| Blue | Modern and controlled | Can appear very bright in mirrors |
| Purple | Immersive and premium | Camera color balance may change |
| Green | Health, movement, freshness | Check skin tones in photographs |
| Yellow | High visibility and energy | May feel harsh at full brightness |
For permanent commercial branding, one main color is usually easier to manage than several colors. A second color can highlight a small icon, keyword, or logo element. Three or more colors may make the sign look less unified and increase wiring and control complexity.
Color should be approved using more than an online image. Provide one or more of the following:
- Pantone reference
- CMYK values
- RGB values
- Brand guideline
- Printed sample
- Previous approved sign
- Photograph of the intended interior
- Physical material sample
Pantone, CMYK, and RGB values help communicate the target color, but emitted LED light will not look identical to printed ink. Room lighting, camera settings, mirror reflection, and surrounding materials all affect the final appearance.
How Does Mirror Reflection Affect Brightness?
A mirror does not increase the electrical output of the sign, but it increases the amount of visible light in the scene. Viewers see the illuminated face and a reflected image, making the installation appear brighter and visually denser than the same sign on a painted wall.
Mirror reflection can create several practical issues:
- A second glowing outline appears behind the sign
- Bright white or blue light may feel uncomfortable at close range
- Phone cameras may overexpose the letters
- Faces and room finishes may look darker in photographs
- Rear wiring and mounting spacers may become visible
- Ceiling lights may compete with the sign
- A large backing panel may produce additional reflections
- Uneven spacing from the mirror may create an irregular double image
The distance between the sign and mirror changes the appearance. A small stand-off gap keeps the reflected image close to the neon line. A larger gap creates a more obvious duplicated outline.
The sign should not be specified at maximum brightness simply because a brighter sample looks impressive in a showroom. In a commercial gym, uniform illumination and comfortable viewing are more important than extreme output.
A useful operational starting point may be:
| Operating condition | Suggested starting output |
|---|---|
| Bright daytime reception | 70%–100% |
| Normal training hours | 50%–80% |
| Evening gym lighting | 35%–60% |
| Low-light group class | 20%–45% |
| Photography or video | 25%–60% |
Actual settings depend on sign color, room lighting, sign size, camera exposure, and distance from the mirror. Staff should adjust the level after installation rather than treating one percentage as universal.
Before production, create an illuminated wall rendering showing:
- Sign position
- Approximate stand-off distance
- Mirror reflection
- Ceiling lighting
- Nearby equipment
- Main camera angle
- Visible cable route
- Person standing in front of the wall
Is a Dimmer or RGB Controller Needed?
A dimmer is recommended when the sign is installed on a mirror wall, inside a group studio, near a photo area, or in a room used under several lighting conditions. Fixed brightness may work at reception, but it gives staff no way to reduce glare during evening sessions or photography.
A fixed-color sign with dimming is usually the simplest option for permanent branding.
Advantages include:
- Consistent brand color
- Simple daily operation
- Fewer control settings
- Easier staff training
- Lower risk of displaying unsuitable colors
- Easier replacement and troubleshooting
RGB or RGBW control is more suitable when the gym regularly changes the room atmosphere.
Common applications include:
- Cycling studios
- HIIT rooms
- Event spaces
- Launch nights
- Member celebrations
- Seasonal promotions
- Video production
- Classes synchronized with colored lighting
| Control option | Best use | Main limitation |
|---|---|---|
| Fixed color, no dimmer | Stable reception sign | No brightness adjustment |
| Fixed color with dimmer | Mirror wall and branded interiors | One color only |
| RGB controller | Changing color effects | White may look less natural |
| RGBW controller | Color effects plus dedicated white | More wiring and control complexity |
| App control | Studios with scheduled scenes | Depends on device access and connectivity |
| Wall control | Daily staff operation | Requires planned control location |
| Remote control | Small installations | Remote can be lost or misplaced |
For RGB and RGBW signs, agree on several approved settings before opening the gym:
- Standard brand setting
- Daytime brightness
- Evening brightness
- Photography setting
- Class setting
- Event setting
Unrestricted color changes may weaken brand consistency. A red brand logo shown in green, purple, or flashing rainbow mode may no longer look connected to the gym’s identity.
The controller and power supply also need accessible locations. Avoid sealing them permanently behind a mirror. Confirm:
- Control method
- Controller location
- Maximum operating distance
- Cable length
- Power-supply location
- Ventilation
- Access for replacement
- Input voltage
- Plug or hardwired connection
- Local electrical requirements
The final production drawing should record the sign dimensions, light color, color temperature, brightness control, controller type, cable route, wire exit, and power-supply arrangement. Approving these details together is more reliable than selecting size, color, and brightness as separate decisions.
What Should You Confirm Before Ordering?
Before production, confirm the artwork, dimensions, mirror construction, mounting method, backing, light color, brightness control, voltage, plug, cable route, power-supply position, packaging, delivery deadline, and installation responsibility. Approve a production drawing rather than relying on a quotation image. A few measurements taken before ordering can prevent visible cables, broken mirrors, unreadable lettering, delayed installation, and costly remakes.
What Design and Wall Details Are Required?
A useful quotation begins with accurate artwork and site information. Sending only a logo screenshot and asking for “a medium-size sign” leaves too many details open to interpretation. The manufacturer may estimate a size, but the result may not fit the mirror bay, viewing distance, or available power route.
Provide the best available artwork in one of the following formats:
- AI
- EPS
- SVG
- Editable PDF
- CAD file for an engineered layout
- High-resolution PNG or JPG when no vector file exists
For text-only signs, confirm every written detail before design work begins:
- Exact wording
- Uppercase or lowercase letters
- Font name or font file
- Punctuation
- Line breaks
- Text alignment
- Logo-to-slogan size ratio
- Required trademark or registered symbols
Small wording changes can alter the whole product. “ONE MORE REP” may fit on one line, while “JUST ONE MORE REP” may need two lines or smaller letters. Changing the font after the backing and neon paths are approved can also change overall dimensions, mounting holes, and wire positions.
Site measurements should cover the usable installation area rather than the full room wall.
| Site detail | What to provide | Why it matters |
|---|---|---|
| Clear mirror width | Width between joints, trims, or obstructions | Determines the maximum sign width |
| Clear mirror height | Available height above equipment or furniture | Prevents the sign from sitting too low |
| Mirror panel joints | Joint locations measured from one fixed edge | Keeps holes and hardware away from panel edges |
| Floor-to-sign height | Preferred bottom, center, or top height | Helps with photography and readability |
| Wall substrate | Concrete, brick, stud wall, plywood, tile, or unknown | Affects anchors and load planning |
| Mirror construction | Thickness, tempered status, adhesive or mechanical fixing | Determines whether drilling is possible |
| Equipment position | Distance from racks, benches, cables, and moving parts | Prevents impact and blocked views |
| Power-point location | Distance and direction from the sign | Determines cable length and wire exit |
| Camera position | Main photo or video distance | Helps set letter height and brightness |
Useful site photographs include:
- One straight-on photograph of the full wall
- One photograph from the main entrance
- One photograph from the expected photo position
- One side-angle photograph showing mirror depth and trims
- One image with a tape measure or marked dimensions
- One image showing the nearest outlet or electrical access point
Avoid using wide-angle photos as the only measurement reference. Phone lenses can make a wall appear much wider than it is. Add actual dimensions directly to the image or provide a simple elevation drawing.
For new construction, coordinate the neon sign before ordering the mirror. Early coordination allows the glass contractor to prepare holes, cutouts, backing plates, or cable routes where required. Tempered glass generally cannot be drilled after tempering, so late changes may require a new mirror panel.

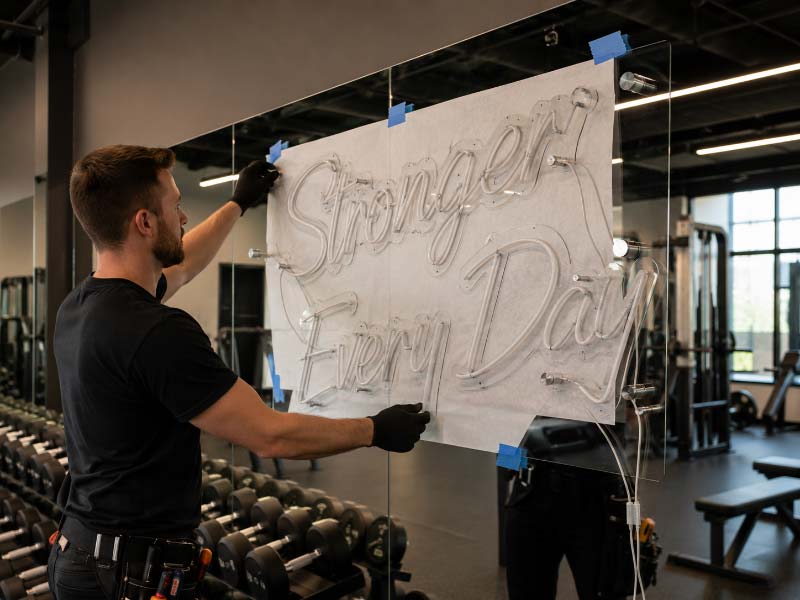

For an existing mirror wall, confirm whether the sign will be fixed:
- Through prepared holes in the mirror
- Through coordinated cutouts to the wall behind
- To a metal or timber frame around the mirror
- From a ceiling support
- To a separate freestanding structure
- Beside the mirror rather than directly over it
- With an adhesive system approved by the glass and adhesive suppliers
The sign manufacturer can provide product weight, backing dimensions, hole locations, and suggested hardware. A local installer or glass specialist should approve the mirror and wall assembly for the actual load.
Before requesting a final quotation, complete the following design checklist:
- Final logo or wording
- Approximate sign width
- Preferred one-line or two-line layout
- Acrylic backing shape
- Clear, frosted, black, white, colored, or printed backing
- Indoor or moisture-prone location
- Mirror dimensions and joints
- Expected viewing distance
- Main camera angle
- Mounting restrictions
- Required installation date
Which Electrical Specifications Must Be Confirmed?
Electrical details should match the destination country, site wiring, operating hours, and control method. A sign can arrive in perfect condition and still be unusable if the plug, voltage, cable length, or power-supply location was never confirmed.
Provide the following information before the power system is selected:
- Destination country
- Input voltage
- Plug type
- Plug-in or hardwired installation
- Outlet location
- Distance from the sign to the outlet
- Desired switch position
- Daily operating hours
- Fixed brightness or dimming
- Fixed color, RGB, or RGBW
- Required electrical certification
- Indoor, damp, or high-humidity environment
Common supply conditions include 110–120V in markets such as the United States and Canada and 220–240V in many European, Asian, and Australian markets. Never select the configuration only from the country name; commercial buildings may have project-specific electrical requirements.
The power supply converts the building input into the low-voltage output required by the LED neon. Its capacity should be calculated from the sign load with reasonable headroom. An undersized supply may overheat, shut down, or create unstable operation. An unnecessarily oversized supply adds cost and may be more difficult to conceal.
Large or multi-section signs may need more than one powered circuit. The approval drawing should show:
- Number of sign sections
- Number of power feeds
- Cable exit from each section
- Connector locations
- Controller position
- Power-supply quantity
- Power-supply location
- Connection method between sections
Cable length needs an actual measurement. A standard lead may be too short when the outlet is inside a ceiling, cabinet, or service room. Excessively long exposed cable is also undesirable on a mirror wall.
Measure the planned cable route rather than the straight-line distance:
- From the sign wire exit to the mirror or wall edge
- Around any trim, frame, or cabinet
- To the controller or dimmer
- From the controller to the power supply
- From the power supply to the outlet
Add a reasonable service loop, but avoid several meters of unused cable hanging behind the installation.
The wire exit should be marked on the production drawing. Common options include:
- Rear-center exit
- Rear exit behind a specific letter
- Bottom-left exit
- Bottom-right exit
- Side exit toward a cabinet
- Separate exits for multiple backing sections
For a mirror installation, a rear exit only works when a prepared wall opening or concealed route is available. Otherwise, a side or bottom exit may be more realistic.
| Control option | Suitable use | Details to confirm |
|---|---|---|
| Fixed color, no dimmer | Reception with stable lighting | Switch position and normal brightness |
| Fixed color with dimmer | Mirror walls and photo areas | Dimmer type and accessible location |
| RGB | Studios with changing colors | Remote, app, or wall control |
| RGBW | Color effects plus a cleaner white mode | Extra wiring and controller capacity |
| Building control | Larger commercial facilities | Interface requirements and electrician approval |
For permanent branding, record a normal operating setting. Staff should know the approved color and approximate brightness rather than changing the sign randomly every day.
The power supply and controller should remain accessible. Avoid sealing electrical parts permanently behind a mirror or inside a wall without a service opening. A reachable cabinet, ceiling access panel, or adjacent service area makes future inspection and replacement far easier.
Before production, approve:
- Input voltage
- Plug or hardwired connection
- Power-supply model and quantity
- Controller type
- Dimming range
- Cable lengths
- Cable colors where visible
- Wire exits
- Connector type
- Electrical certification required by the project
- Responsibility for final site connection
What Mounting Hardware and Templates Are Needed?
The mounting method must be selected before the acrylic backing is cut. Hole positions, spacer locations, backing segmentation, cable exits, and package contents all depend on how the sign will be installed.
Common mounting systems include:
- Metal standoffs
- Screws through the acrylic backing
- Suspension cables
- Chains
- Hidden brackets
- Custom metal frames
- Raceway-style support
- Separate wall rails
- Approved adhesive systems
- Freestanding structures
For mirror walls, do not assume that screws can pass through the glass. Confirm the method with the mirror supplier and local installer before asking the factory to drill the sign backing.
A full-size paper template can reduce installation errors. The template should identify:
- Overall sign outline
- Top and bottom orientation
- Centerline
- Mounting-hole positions
- Hole-to-hole dimensions
- Wire exit
- Section labels
- Distance between separate words
- Recommended installation height
Templates are especially valuable for signs with several backing sections. Without a template, installers may place one word too high, create uneven gaps, or misalign sections against mirror joints. Reflections make small alignment errors more visible.
For separate words or logo elements, label every part clearly:
- A1, A2, A3 for the first line
- B1, B2, B3 for the second line
- L for left
- R for right
- TOP and BOTTOM markings
- Matching cable and connector labels
The hardware list should state what comes from the factory and what the installer must source locally.
| Item | Factory may provide | Local installer normally confirms |
|---|---|---|
| Acrylic backing holes | Yes | Hole suitability for the mirror layout |
| Standoffs | Yes | Correct wall anchors |
| Screws | Yes | Length and substrate compatibility |
| Installation template | Yes | Final site position |
| Suspension cables | When specified | Ceiling load and fixing points |
| Power supply | Yes | Final electrical connection |
| Cable channel | When specified | Route and finish on site |
| Structural frame | Custom option | Attachment to the building |
| Wall anchors | Sometimes | Correct type for the actual substrate |
Generic wall plugs supplied with a sign may not suit every building. Concrete, hollow block, timber studs, plasterboard, tile, and structural steel require different anchors. The local installer should select anchors based on the finished sign weight and the actual substrate.
Request the following before installation day:
- Finished sign weight
- Weight of each separate section
- Overall backing dimensions
- Acrylic thickness
- Standoff depth
- Hole diameter
- Hole-to-hole dimensions
- Cable exit position
- Power-supply dimensions
- Package count
- Largest package size
- Installation template
- Wiring diagram
- Accessory list
Installation access can also affect product design. A 2200 mm-wide one-piece backing may fit the mirror but fail to pass through a narrow staircase or service lift. Measure:
- Entrance-door width
- Corridor width
- Stair turns
- Elevator opening
- Ceiling height
- Available lifting space
- Equipment that cannot be moved
Large signs may need to be divided into natural sections. Suitable divisions often follow separate words, logo elements, color changes, or mirror joints.
How Should a Sample or Drawing Be Approved?
Production should start from a clearly approved file, not from a chat screenshot or an early quotation image. The approval package should contain enough information for design, engineering, production, quality control, and installation teams to work from the same version.
A complete production drawing should show:
- Exact wording and logo
- Overall width and height
- Letter or graphic height
- Backing outline
- Backing thickness and color
- Neon color
- White color temperature where applicable
- Front view
- Side view
- Mounting-hole positions
- Standoff depth
- Wire exit
- Cable length
- Controller
- Power supply
- Plug type
- Number of sections
- Section connection method
- Finished weight where available
Check the drawing in a fixed order rather than looking only at the illuminated rendering.
First, check the wording:
- Spelling
- Capitalization
- Punctuation
- Font
- Line breaks
- Logo proportions
Second, check dimensions:
- Overall size
- Letter height
- Distance between lines
- Clear space around the neon path
- Fit within the measured mirror area
Third, check appearance:
- Neon color
- Daytime backing appearance
- Lit appearance
- Mirror reflection
- Visual hierarchy
- Position relative to people and equipment
Fourth, check installation:
- Mounting holes
- Backing sections
- Wire exits
- Cable route
- Controller access
- Power location
- Template requirements
Fifth, check delivery:
- Production quantity
- Packaging method
- Package labels
- Delivery address
- Required arrival date
Approval should be recorded in writing. A message such as “looks good” can create confusion when several design versions exist. Use a clear statement such as:
“Approved for production: Drawing V4 dated 18 July 2026, overall size 1500 × 620 mm, warm white 3000K, clear cut-to-shape backing, rear-right wire exit, dimmer included.”
For chain gyms or larger quantities, approve one physical sample or one first-location sign before releasing the remaining units. A first article can confirm:
- Actual color
- Letter size
- Brightness
- Backing appearance
- Mirror reflection
- Mounting method
- Cable visibility
- Packaging
- Installation time
A photograph alone may not fully represent color or brightness. Camera exposure, screen settings, and room lighting can change the appearance. When color consistency is critical, compare the physical sample with the approved brand reference.
iduoduo supports MOQ 1 piece, allowing a sample or first-store unit to establish the production standard. Regular samples generally require 5–7 days, while large sizes, special colors, complex structures, RGB or RGBW control, custom power systems, or special packaging may require 7–15 days. Regular production is generally 7–10 days after final approval; medium-volume work may require 10–20 days depending on quantity and complexity.
What Testing, Packaging, and Warranty Are Included?
Ask what will be inspected before shipment and what records can be provided. A sign may light up during a five-minute check but still contain loose connectors, uneven color, incorrect mounting holes, missing hardware, or a power supply unsuitable for the destination.
A practical LED neon inspection should cover:
- Overall dimensions
- Artwork and wording
- Backing shape
- Backing edges
- Surface scratches
- Neon-line placement
- Light color
- White color temperature
- Brightness
- Uniform illumination
- Dark sections
- Hot spots
- Wire connections
- Connector security
- Power-supply stability
- Dimmer or RGB operation
- Cable length
- Wire exit
- Mounting holes
- Accessories
- Labels
- Packaging
Request evidence suitable for the order size:
- Front-view daytime photo
- Front-view illuminated photo
- Close-up photographs
- Brightness-control video
- RGB or RGBW operation video
- Dimension-check photo
- Mounting-hole photo
- Packaging photo
- Sealed-carton photo
- Packing list
iduoduo’s standard wording for illuminated products is 72-Hour Pre-Shipment Testing + 3-Year Warranty. The inspection process includes 100% lighting checks, light-color and uniformity inspection, power and wiring checks, mounting-hole review, accessory checks, and packaging inspection. Warranty assessment considers the LED neon, power supply, controller, voltage, wiring, installation, moisture exposure, operating environment, maintenance, and cause of failure.
Packaging should be planned around acrylic fragility, raised neon lines, package size, and international handling. A small sign may be suitable for a reinforced carton, while a large or irregular sign may need stronger internal support or a wooden frame.
Typical packaging components include:
- Protective film
- EPE foam
- Pearl-cotton padding
- Corner protection
- Reinforced carton
- Shaped inserts
- Separate power-supply compartment
- Labeled accessory bag
- Installation template tube or flat pack
- Wooden frame or plywood crate for large products
- Product and package labels
Accessories should not move freely inside the box. A loose power supply or metal standoff can strike the acrylic during transport.
Confirm the packing list before shipment:
| Package item | Quantity to confirm |
|---|---|
| LED neon sign sections | By approved drawing |
| Power supplies | By circuit count |
| Dimmers or controllers | By sign or zone |
| Remotes | Include spare when agreed |
| Cables and connectors | By wiring diagram |
| Standoffs and screws | By mounting-hole count |
| Installation template | One full set |
| Wiring diagram | Printed or digital |
| Spare accessories | As agreed |
| Package labels | Match project, store, or room |
For multi-location orders, use store numbers, room names, or project codes on the product, accessory bag, carton, and packing list. Clear labeling prevents the correct sign from being sent to the wrong branch or installed in the wrong room.
Delivery planning should include production time, testing, packaging, transit, customs, local delivery, and installation preparation. Do not calculate the deadline from production time alone.
A practical schedule may include:
- Drawing and quotation review
- Sample or first-article production
- Sample shipping and approval
- Material preparation
- Main production
- 72-hour pre-shipment testing
- Packing and booking
- International transport
- Customs clearance
- Local delivery
- Site installation
Reference transit times used by iduoduo are approximately 12 days by express, around 30 days by sea to the United States, and around 50–60 days by sea to Europe. Actual delivery can change because of flight availability, shipping schedules, customs, port conditions, weather, peak seasons, and final-mile transport.
Before paying the balance or approving shipment, confirm:
- Final inspection completed
- Approved photos or video received
- Correct voltage and plug
- Correct dimmer or controller
- All mounting hardware packed
- Template included
- Packages labeled
- Carton count and dimensions
- Gross weight
- Shipping method
- Delivery address
- Contact telephone number
- Import responsibility
- Installation date
- Warranty contact method
The goal is not to create more paperwork. Each confirmed detail removes one common source of delay: a logo that does not fit, a mirror that cannot be drilled, a cable that exits from the wrong side, an inaccessible power supply, missing hardware, or a shipment arriving after the gym’s opening date.
How Should Neon Signs Be Installed on Mirror Walls?
A mirror-wall neon sign should be installed only after the mirror construction, wall substrate, sign weight, mounting points, wire route, and power-supply location have been checked. The safest arrangement usually transfers the load to the wall or an independent support rather than relying on the visible mirror surface alone. Mounting holes, cable exits, spacers, templates, and service access should be planned before production.
Is the Mirror Suitable for Mounting?
A mirror may look like a solid wall surface, but its ability to support a sign depends on how the glass was manufactured and fixed. Some mirrors are bonded directly to a wall, while others sit in channels, clips, frames, or mechanical supports. The visible glass does not reveal whether the assembly can safely carry an added load.
Ask the glass contractor or local installer to identify:
- Mirror thickness
- Tempered or non-tempered glass
- Panel width and height
- Panel-joint locations
- Distance from the mirror edge to any proposed hole
- Adhesive, channel, clip, or frame fixing method
- Wall material behind the mirror
- Available cavity behind the glass
- Existing cable openings
- Maximum load accepted by the mirror assembly
- Whether drilling or cutting is permitted
Tempered glass normally cannot be drilled or cut after tempering. Required openings should therefore be planned before the mirror enters the tempering process. Attempting to drill an installed tempered panel can cause the entire panel to break.
For an existing mirror, avoid assuming that a local installer can simply drill through it. Safer alternatives may include fixing through a previously prepared opening, mounting to a surrounding frame, suspending the sign from an approved overhead structure, or placing the sign beside the mirror.
| Mirror condition | Possible installation direction | Main concern |
|---|---|---|
| New mirror not yet manufactured | Preplan holes, cutouts, cable openings, and backing support | Coordinate sign drawing before glass production |
| Existing mirror with known prepared holes | Use matched mounting points after site verification | Hole positions must match the sign template |
| Existing mirror without holes | Use an independent frame, adjacent wall, or approved non-drill system | Avoid damaging the glass |
| Mirror bonded directly to a wall | Confirm adhesive condition and wall substrate | Added load may affect the full mirror assembly |
| Mirror in metal channels or clips | Review frame capacity and clearances | Do not block clips or maintenance access |
| Multi-panel mirror wall | Keep mounting points away from joints and edges | Uneven panel movement can affect alignment |
| Unknown mirror construction | Stop final mounting design until inspected | Photographs alone are not enough |
The sign factory can provide the finished product weight, overall dimensions, backing thickness, mounting-hole pattern, and suggested fixing arrangement. Final approval of the glass, wall, anchors, and site installation should come from the local glass specialist, installer, or responsible building professional.
A useful site package should include:
- One straight-on wall photograph
- Close-up photographs of mirror edges and joints
- Mirror dimensions
- Distance from the floor to the planned sign position
- Wall construction behind the mirror, when known
- Nearest accessible electrical point
- Equipment layout in front of the wall
- Any drilling or adhesive restrictions from the building owner
Which Mounting Method Is Safer?
No single mounting method works for every mirror wall. The right choice depends on whether the load can reach the structural wall, whether the mirror already has prepared holes, and whether future removal is required.
Mechanical fixing normally provides a clearer load path than an adhesive-only installation. However, screws and standoffs should not pass through glass unless the glass was prepared for those openings and the local installer has approved the arrangement.
| Mounting method | Suitable condition | Advantages | Limits to check |
|---|---|---|---|
| Standoffs through prepared mirror holes | New mirror or predrilled panel | Clean appearance and controlled spacing | Holes must be planned before tempering |
| Fixing through mirror cutouts to the wall | Structural wall available behind glass | Load transfers to the wall | Cutouts, cable path, and anchors need coordination |
| Independent metal frame | Mirror cannot be drilled | Avoids loading the mirror face | Frame must be designed and anchored correctly |
| Ceiling suspension | Suitable ceiling structure and open space | No mirror drilling | Check swing, cable visibility, and ceiling load |
| Surrounding-wall mounting | Space exists above or beside the mirror | Simple maintenance | May change the intended sign position |
| Freestanding support | Temporary studios or rental locations | Removable and reusable | Requires floor space and stability |
| Approved adhesive system | Small, lightweight sign with verified surface compatibility | Fewer visible holes | Adhesive, mirror coating, weight, heat, and removal risk |
Adhesive installation should not be selected only because it looks easy. The following conditions can affect bond performance:
- Mirror-cleaning chemicals
- Silicone or coating residue
- Humidity and condensation
- Dust, chalk, or aerosol products
- Sign weight
- Acrylic flexing
- Temperature changes
- Uneven mirror surfaces
- Long daily operating hours
- Future removal requirements
An adhesive suitable for ordinary glass may still damage mirror backing, protective coatings, acrylic, or painted components. Written compatibility guidance from the adhesive and mirror suppliers is preferable to relying on a general-purpose tape.
For mechanical installation, confirm:
- Number of mounting points
- Finished sign weight
- Load per fixing point
- Hole diameter
- Standoff diameter and depth
- Screw length
- Wall-anchor type
- Distance from mounting holes to acrylic edges
- Mirror opening size
- Installation tolerance
- Whether rubber or soft protective washers are required
The supplied screws or wall plugs may not suit the actual wall. Concrete, brick, plywood, metal framing, hollow plasterboard, stone, and tile all require different fixing methods. Anchor selection remains a site responsibility.
A full-size installation template should be printed at a 1:1 scale. The installer should verify the printed dimensions with a tape measure before drilling. A template can control the sign outline, centerline, mounting holes, section spacing, and wire exit, but it does not replace a final site measurement. iduoduo’s installation records treat wall type, anchor selection, hole positions, template scale, wire exits, and local installation responsibility as connected project details rather than separate decisions.
How Much Space Should Be Left Behind the Sign?
A small gap behind the acrylic backing provides room for standoffs, wires, connectors, and cleaning access. It also prevents the rear components from pressing directly against the mirror.
The appropriate stand-off distance depends on:
- Acrylic thickness
- Backing shape
- Rear wiring arrangement
- Connector thickness
- Mounting hardware
- Sign weight
- Desired mirror reflection
- Cleaning access
- Visibility from side angles
- Number of sign sections
A practical planning range for many acrylic-backed indoor neon signs is approximately 10–30 mm between the backing and mirror. The final distance should follow the actual hardware and rear connection layout rather than a fixed number.
| Stand-off condition | Visual result | Installation concern |
|---|---|---|
| Less than about 10 mm | Reflection stays close to the light path | Wires and connectors may be compressed |
| Around 10–20 mm | Compact appearance with limited rear exposure | Suitable only when rear parts fit comfortably |
| Around 20–30 mm | More room for wires and cleaning | Reflection becomes more noticeable |
| More than about 30 mm | Stronger depth and doubled reflection | Rear hardware may be visible from the side |
Mirror reflection makes uneven spacing easy to notice. If one spacer sits closer to the mirror than another, the sign may appear tilted even when the front face looks level.
Before approving the side profile, check:
- Maximum connector thickness
- Cable bend radius
- Whether wires cross behind the backing
- Whether the cable is pinched by a spacer
- Whether dust can be cleaned from behind the sign
- Whether the acrylic can flex between mounting points
- Whether the rear structure appears in the reflection
- Whether the sign can be removed without disturbing the mirror
Large backing panels may require more mounting points to reduce movement and acrylic flexing. Fixing quantity should follow the finished weight, panel shape, acrylic thickness, and support locations. A long narrow phrase and a compact circular logo should not automatically use the same hole pattern.
Mounting holes should not sit too close to thin acrylic corners or narrow projections. Production drawings should show:
- Overall backing dimensions
- Backing thickness
- Hole diameter
- Hole-center coordinates
- Distance from holes to edges
- Spacer depth
- Sign section labels
- Finished weight
- Rear wire path
Acrylic expansion and normal building movement should also be considered. Overtightening metal fittings directly against acrylic or glass can create stress. Suitable washers, bushings, or spacer components help distribute pressure, but the final arrangement should follow the hardware supplier’s instructions.
How Should Wires and Power Supplies Be Hidden?
Wire planning should begin before the backing is cut. Once the neon paths, mounting holes, and cable exits have been produced, moving a wire to the opposite side may require a new backing panel or visible surface routing.
The cleanest cable path usually follows one of four arrangements:
| Cable route | Suitable condition | Appearance | Main planning point |
|---|---|---|---|
| Rear exit through a prepared opening | New mirror and wall coordination | Nearly concealed | Opening must align with the production drawing |
| Side exit to a nearby cabinet | Existing mirror without rear access | Small visible route | Select left or right exit before production |
| Bottom exit to an outlet below | Outlet located near the floor | Straight vertical cable path | Use a neat channel and avoid equipment |
| Route through a surrounding frame | Mirror has a built frame | Concealed within the structure | Confirm available internal space |
The production drawing should identify the wire exit by measurement, not only by a rough arrow. Useful information includes:
- Distance from the left or right edge
- Distance from the top or bottom edge
- Exit direction
- Cable length
- Cable color
- Connector type
- Number of powered sections
- Controller position
- Power-supply position
Measure the full cable route rather than the shortest straight-line distance. The route may need to travel behind a panel, around a mirror frame, through a cabinet, or up to a ceiling access point.
A simple cable calculation can include:
- Sign exit to the mirror edge
- Mirror edge to the controller
- Controller to the power supply
- Power supply to the building outlet
- An additional 150–300 mm service loop where appropriate
Avoid leaving several meters of unused cable bundled behind the sign. Excess cable creates a visible shadow, collects dust, and makes servicing confusing.
The power supply and controller should remain:
- Dry
- Ventilated
- Accessible
- Protected from impact
- Away from direct cleaning spray
- Away from pooled water
- Clear of high-heat equipment
- Reachable without removing the entire mirror
- Labeled for the correct sign or zone
Suitable locations may include an adjacent cabinet, accessible ceiling space, service panel, reception counter, or protected enclosure. Do not permanently seal the power supply behind the mirror without a service opening.
Large signs may use several low-voltage feeds. In those cases, label each cable and connector:
- Sign section A, B, or C
- Left and right
- Upper and lower line
- Power supply 1 or 2
- Controller output
- Positive and negative polarity where relevant
Low-voltage cable length and wire size affect voltage drop. A power supply positioned far from a large sign may require a revised cable size or circuit arrangement. The factory should know the planned cable length before finalizing the electrical system.
Before connection, verify:
- Building input voltage
- Power-supply input range
- Output voltage
- Plug type or hardwired arrangement
- Dimmer compatibility
- RGB or RGBW controller compatibility
- Cable polarity
- Connector security
- Local electrical requirements
iduoduo’s project records call for confirmation of input voltage, power-supply quantity and location, dimming or control method, inspection access, low-voltage cable length, voltage drop, joints, labels, and the final site connection.
Are Equipment Clearance and Maintenance Access Adequate?
A neon sign can be securely mounted and still be placed in a poor location. Gym equipment moves, members carry weights, cleaners use long-handled tools, and maintenance staff may need ladders. Installation planning should review the full working area rather than the empty wall alone.
Check the movement range of:
- Barbells during overhead presses and Olympic lifts
- Cable-machine arms
- Battle ropes
- Resistance bands
- Medicine balls
- Boxing bags
- Adjustable benches
- Squat-rack attachments
- Cleaning poles
- Mobile storage racks
- Ladders used for ceiling maintenance
The equipment plan should show both the normal position and maximum movement. A cable arm parked beside a wall may extend directly into the sign area during use.
| Site risk | What to review | Possible response |
|---|---|---|
| Barbell contact | Highest movement point | Raise or relocate the sign |
| Cable-arm movement | Full adjustment range | Move the sign outside the equipment envelope |
| Medicine-ball impact | Training direction and rebound area | Avoid mounting on the active wall |
| Mirror cleaning | Reach behind and below the sign | Allow access or use a removable mounting system |
| Power-supply service | Access without removing glass | Use a cabinet or service opening |
| Member circulation | Walking and stretching zones | Keep cables and low components clear |
| Photography | Standing area and camera angle | Avoid equipment blocking the artwork |
| Emergency systems | Sprinklers, alarms, and exit signs | Maintain required clearances |
Mounting height should consider how the mirror is used. Covering the central area may prevent members from checking lifting form. A sign positioned above typical head height or within a less-used mirror section may preserve the mirror’s training function.
Maintenance planning should answer the following questions:
- Can the acrylic face be cleaned without removing the sign?
- Can dust be removed from behind the backing?
- Can a dimmer or controller be reached?
- Can the power supply be replaced?
- Can one sign section be removed without taking down the entire installation?
- Can a connector be inspected?
- Can the main protective film be removed after installation?
- Can the wall be repainted or the mirror replaced later?
- Is there a safe position for a ladder?
- Must equipment be moved before every service visit?
For multi-section signs, use removable connectors in accessible positions where the design permits. Label each section and save the installation drawing. When a sign is reordered or moved to another branch, the mounting-hole pattern, wire exits, spacers, and cable labels become as important as the artwork.
A practical installation package should contain:
- Approved front-view drawing
- Side-view drawing
- Finished product weight
- Section weights where applicable
- Full-size mounting template
- Hole coordinates
- Spacer details
- Wiring diagram
- Power-supply information
- Controller instructions
- Accessory list
- Product-section labels
- Installation photographs or video reference
Before energizing the sign, inspect the installation in a fixed order:
- Confirm that every mounting point is secure.
- Check that the acrylic is not twisted or overtightened.
- Verify even spacing from the mirror.
- Confirm that no cable is pinched.
- Check connectors and cable labels.
- Verify input voltage and power-supply output.
- Test the dimmer or controller.
- Inspect the reflection for visible rear components.
- Check equipment clearance.
- Run the sign and inspect for flicker, dark sections, or abnormal heat.
Installation-hole positions, templates, wire exits, accessories, and sign appearance should also be checked before shipment so the local installer receives components matching the approved drawing.
Are You Planning a Custom Gym Neon Sign?
A useful quotation requires more than the phrase you want illuminated. Send the logo or wording, mirror-wall dimensions, a front-facing site photo, the installation country, preferred color, expected sign width, power-point location, and any available wall or mirror details. For an existing gym, mark nearby equipment and the intended wire route directly on the photo. For a new build, include the interior elevation and mirror drawings before the glass is produced.
iduoduo can evaluate whether the concept should use one backing panel, separate sections, a fixed-color system, dimming, RGB control, a custom wire exit, or a mounting arrangement prepared for the local installer. Regular samples can normally be produced in 5–7 days, while more complex structures, special colors, large sizes, or advanced control systems may require 7–15 days. Regular production is generally 7–10 days after the design and project details are approved.
The goal of the inquiry stage is not to push the design into production as quickly as possible. It is to remove uncertainty before acrylic is cut, neon paths are formed, and mounting holes are made. A clear site package allows iduoduo to prepare a more accurate design, quotation, electrical configuration, production drawing, and packaging plan for the gym project.
