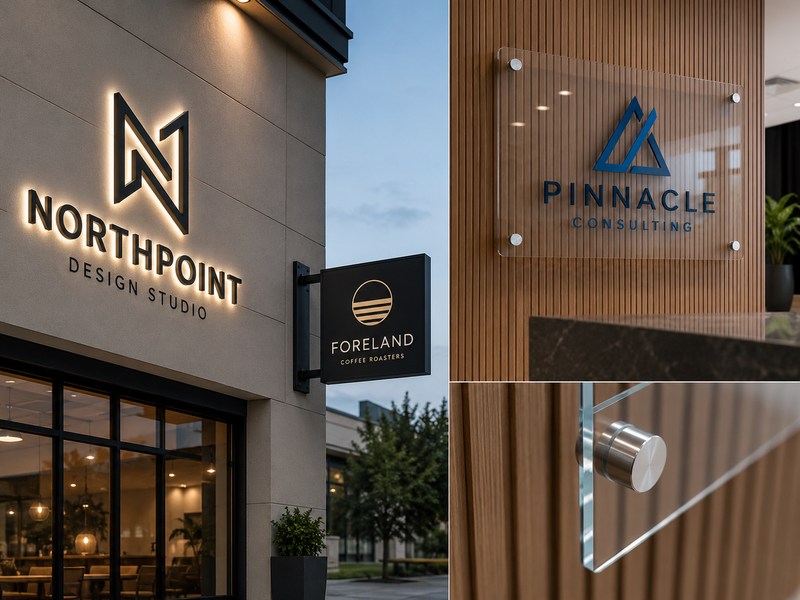

How to Specify Sign Mounting Methods for Custom Signs

A sign can leave the factory looking perfect and still become a difficult installation project if the mounting method was treated as an afterthought. A clean rendering does not show what is behind the wall. It does not tell an installer whether the façade is concrete, hollow brick, EIFS, glass, thin metal panel, drywall, stone veneer, or a finished lobby wall that cannot tolerate dozens of unnecessary holes. It also does not show where the power supply will be serviced, where each wire exits, or whether the mounting hardware can actually reach reliable structure.

To specify a sign mounting method correctly, define the sign type, size and weight, mounting surface, supporting structure, indoor or outdoor exposure, required projection from the wall, wiring route, service access, permitted wall penetrations, and local installation constraints before production. The selected method should then be shown consistently in the approved shop drawing, mounting layout, hole pattern, wire-exit plan, and installation template.

That sounds straightforward until a real project reaches the wall. A 2,000 mm storefront logo that looked simple in an email can quickly become a debate between individual studs, a raceway, a backboard, hidden brackets, or a completely redesigned fixing system. The expensive mistakes usually begin before anyone picks up a drill. They begin when the mounting interface was never fully specified.

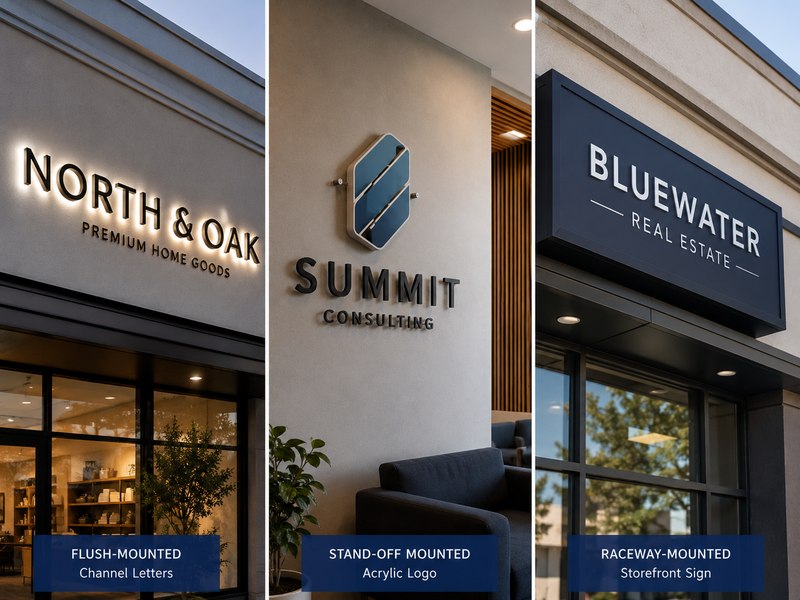

Which Sign Mounting Method Should You Choose?

Choose a mounting method by matching the sign type, total weight, wall structure, required wall gap, wiring route, service access, outdoor exposure, and permitted wall penetrations. Flush and stud mounting suit clean individual-letter installations; stand-off mounting controls projection and halo; raceways simplify wiring and façade work; backboards combine multiple components; brackets or suspension systems are used where signs project from walls or ceilings.

Which Projects Are Best for Flush or Stud Mounting?

Flush mounting and stud mounting are often used when the finished sign needs a clean appearance without a visible supporting panel.

Flush mounting places the sign body close to the wall. It works well for front-lit channel letters, flat panels, light boxes, and some non-illuminated signs when the wall is relatively flat and wiring can be routed through or behind the mounting surface.

Stud mounting uses threaded studs fixed to the rear of individual letters or logo components. It is widely used for metal letters, acrylic letters, dimensional logos, halo-lit letters, and plaques because the fixing points remain largely hidden.

The two methods solve different installation problems:

Item	Flush Mount	Stud Mount
Typical products	Front-lit letters, panels, light boxes	Metal, acrylic, dimensional letters
Wall gap	Minimal	Can be flush or spaced
Visible hardware	Usually limited	Usually hidden
Main site concern	Rear access and wiring	Hole accuracy and wall structure
Template importance	Moderate to high	High
Best use	Clean façade installation	Independent letters and logos

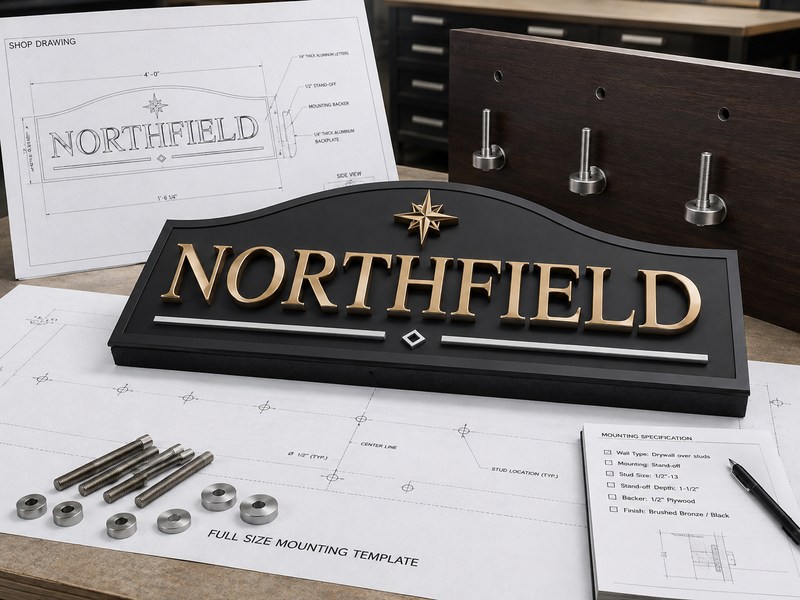

For stud-mounted letters, the project should define more than “stud mount.”

Useful production information includes:

• stud diameter;
• stud length;
• stud quantity;
• stud position;
• hole pattern;
• spacer thickness;
• wall gap;
• mounting tolerance;
• template scale.

A 50 mm stud does not automatically provide 50 mm of usable anchoring. Decorative panels, stone finishes, insulation, cavities, or timber cladding may consume part of that length before the stud reaches a reliable substrate.

The wall also needs to be considered before production. Drywall, hollow brick, thin metal cladding, and decorative stone behave very differently from reinforced concrete.

iduoduo’s installation documentation specifically separates product-side studs and mounting holes from final building anchors. The factory can prepare the stud pattern and installation template, while the local team verifies the wall and selects suitable anchoring for the actual structure.

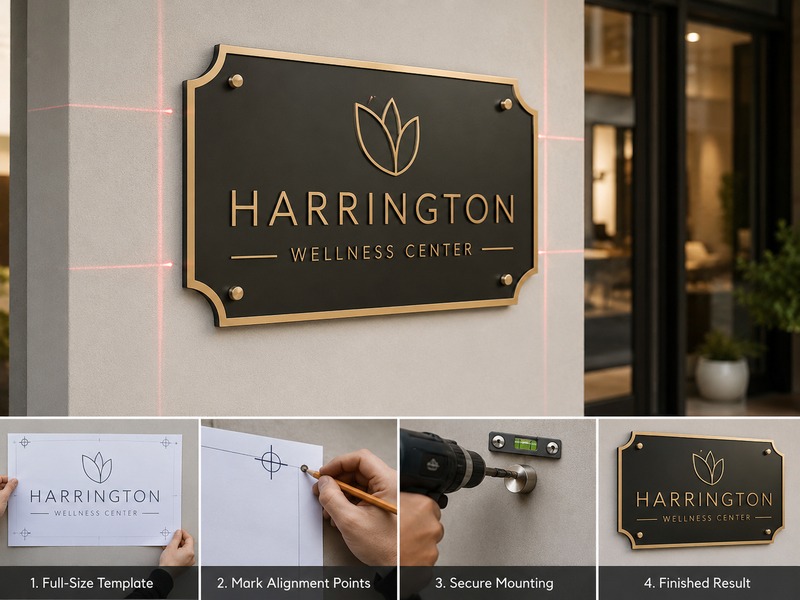

For independent letter sets, the full-size template is particularly important. Ten letters can all be securely fixed and still look wrong if the spacing between them is inconsistent.

Which Projects Need Stand-Off Mounting?

Stand-off mounting is most useful when the sign needs a controlled gap between the product and wall. It is commonly used for halo-lit channel letters, acrylic LED logos, metal letters, plaques, and layered logo systems.

The gap is not only a mounting dimension. For illuminated signs, it directly changes the lighting effect.

iduoduo commonly evaluates halo-lit wall gaps around 20–50 mm, with the final value depending on letter size, LED layout, wall color, and the approved lighting effect.

A practical comparison looks like this:

Approximate Gap	Typical Result
20 mm	Tight, concentrated halo
30 mm	Balanced projection for many medium-size letters
40–50 mm	Wider, softer halo
More than 50 mm	Greater projection and more visible side profile

These figures are working ranges rather than universal rules.

A white matte wall reflects more light than a dark stone wall. Large block letters create a different halo from narrow script letters. LED brightness, letter depth, and ambient lighting also change the visible result.

The stand-off distance should therefore appear on the approved drawing.

Writing “halo mounted” is too vague.

Writing “30 mm stand-off from finished wall” gives the production team and installer a measurable requirement.

The gap also affects mechanical performance.

As projection increases:

• leverage on studs increases;
• side visibility increases;
• wiring becomes harder to hide;
• cleaning access changes;
• shadows become stronger;
• accidental contact becomes more relevant at low mounting heights.

For multi-location projects, spacer length should be standardized. A variation of 10–15 mm between stores can produce visibly different halo patterns even when every letter uses the same LEDs.

When Is Raceway Mounting More Practical?

Raceway mounting becomes more practical when direct mounting would create too many wall penetrations, make wiring difficult, or leave power supplies inaccessible.

A raceway is a metal enclosure that supports several letters and can also contain low-voltage wiring, power supplies, terminals, and serviceable electrical components.

It is especially useful when:

• the façade cannot accept many individual penetrations;
• there is no easy rear access behind each letter;
• the landlord wants fewer holes in the building;
• electrical components need one service location;
• the sign may be removed or replaced later;
• installation time on site needs to be reduced.

Consider a sign with 12 illuminated letters.

Direct mounting may involve multiple stud holes plus individual wire exits distributed across the façade. A raceway can move much of that work onto one fabricated assembly, leaving fewer main building connection points.

The raceway must still be fully specified.

Important information includes:

• overall length;
• height;
• depth;
• material;
• finish;
• mounting-hole locations;
• assembled weight;
• electrical entry;
• power-supply position;
• removable cover;
• drainage;
• wire routing.

iduoduo’s documentation notes that a raceway must account for power supplies, wiring, access covers, wall fixing, waterproofing, drainage, surface color, and product weight.

Visual proportion also matters.

A 100 mm-high raceway behind 600 mm-high letters may be relatively unobtrusive. The same enclosure behind 200 mm letters may become one of the most visible parts of the sign.

Raceway color is therefore often matched as closely as practical to the façade.

Raceways are not simply an “easy installation” option. They are most useful when electrical organization, façade protection, maintenance access, or installation speed justify the additional visible structure.

How Does a Backboard Change Installation?

A backboard combines several letters, logo components, wires, or electrical parts onto one coordinated panel before the assembly reaches the wall.

It is commonly used for reception logos, hotel branding, restaurant signs, retail interiors, glass-adjacent installations, finished timber walls, stone walls, and projects where individual letter installation would require too many penetrations.

Suppose a logo contains:

• 10 separate letters;
• 2 graphic elements;
• 24 studs;
• 6 wire exits.

Mounting every component separately onto marble, timber, or another finished surface creates many opportunities for drilling error.

A backboard moves most of those letter-level interfaces onto the panel. The local installer then focuses on positioning and securing the complete assembly.

Backboards can also help hide:

• low-voltage wiring;
• connectors;
• small power components;
• irregular wall surfaces;
• multiple letter mounting points.

iduoduo identifies several common backboard materials, including acrylic, aluminum, stainless steel, ACP, PVC, wood, painted metal, and composite panels. Backboards can simplify installation, provide structure, conceal wiring, protect the wall, and create a consistent visual background.

Material choice should consider panel size and stiffness.

A small acrylic backboard may remain flat with little reinforcement. A much larger panel may need aluminum, composite construction, thicker material, or rear reinforcement to control flexing.

Before production, confirm:

• overall width and height;
• material;
• thickness;
• edge finish;
• mounting-hole layout;
• total assembly weight;
• rear clearance;
• wire entry;
• service access;
• distance from logo to panel edge.

Backboards solve installation problems well, but they should not become unnecessarily large. If the panel dominates the logo, installation becomes easier while branding becomes weaker.

Which Signs Need Bracket or Hanging Mounting?

Blade signs, projecting signs, suspended retail signs, ceiling signs, exhibition signs, and some double-sided illuminated signs need brackets, cables, rods, chains, tracks, or structural frames rather than conventional flat wall mounting.

The key difference is load direction.

A flat wall-mounted sign mainly transfers load back toward the wall. A projecting sign creates leverage because its weight sits away from the façade. Wind can add another significant force.

For example, a 25 kg sign mounted close to a wall does not act on the building in the same way as a 25 kg blade sign projecting 600 mm outward.

Projecting signs should define:

• sign dimensions;
• total weight;
• projection distance;
• bracket length;
• mounting-plate dimensions;
• bolt-hole pattern;
• material thickness;
• welding;
• electrical route;
• corrosion protection.

iduoduo’s installation reference requires projecting signs to consider bracket direction, mounting plates, wall structure, wind load, center of gravity, welding, bolts, anti-loosening measures, wiring, waterproofing, and access equipment.

Hanging signs require a different set of checks.

Possible suspension systems include:

• steel cable;
• threaded rod;
• chain;
• eye bolt;
• ceiling rail;
• truss clamp.

The project should confirm the number of suspension points, sign weight, suspension length, final height, level, electrical cable routing, and whether movement is acceptable.

Large signs may require additional stabilizing points to limit rotation or swinging.

The manufacturer can provide product weight, brackets, suspension hardware, mounting plates, and fabricated connection points. Final wall capacity, ceiling capacity, anchor selection, wind-load calculations, and structural approval should be verified by qualified local professionals when required.

Choosing the mounting method early allows the sign structure, mounting holes, studs, spacers, raceway, backboard, brackets, wiring, templates, and packaging to be developed as one system instead of being corrected after fabrication.

What Site Conditions Affect Mounting?

Sign mounting is affected by the wall material, structural backing, sign weight, installation height, drilling limits, electrical access, outdoor exposure, and local building requirements. The visible wall finish is only the starting point. Before production, confirm what is behind the surface, where reliable anchors can be installed, where wires will enter, and whether the site can support the planned mounting system safely.

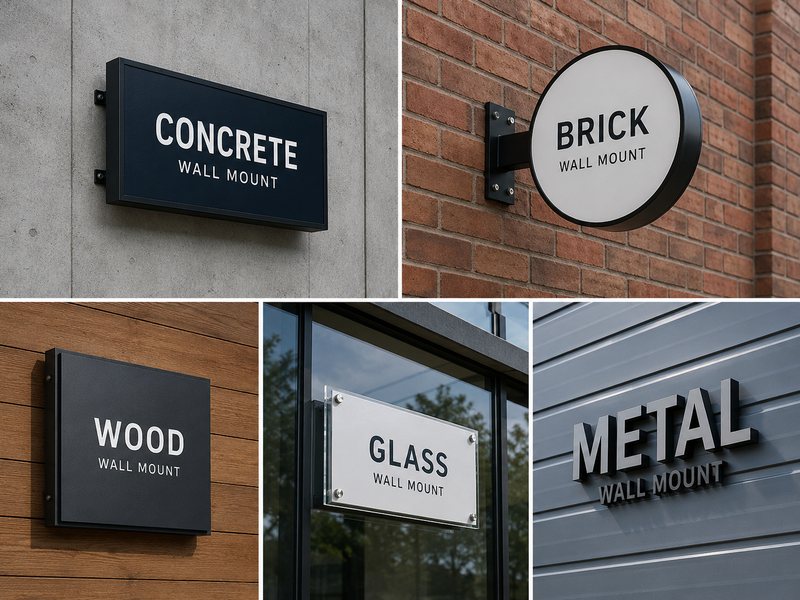

What Wall Surface and Structure Are You Mounting To?

Wall identification should happen before the mounting method is finalized.

A storefront may look like a simple flat wall in a photo, yet the actual construction may include a decorative surface, insulation, an air cavity, waterproof membrane, metal framing, or masonry behind it. The outer finish does not automatically provide structural support.

Common sign-mounting surfaces include:

Wall Type	Main Installation Concern	Typical Mounting Consideration
Concrete	Anchor depth and drilling	Expansion or chemical anchors may be possible
Solid Brick	Brick condition and edge distance	Fix into sound masonry
Hollow Brick	Weak internal structure	Specialized anchoring may be required
Drywall	Limited load capacity	Find studs, backing, or reinforcement
Stone	Cracking and drilling risk	Control hole position and edge distance
Wood Finish	Surface damage	Confirm substrate behind decorative layer
Glass	Drilling restrictions	Adhesive, clamps, frames, or pre-drilled holes
Metal Cladding	Thin face sheet	Reach structural framing behind panel
ACP	Panel strength and cavity	Avoid relying only on thin composite skin
EIFS	Insulation compression	Fix through to reliable substrate
Temporary Wall	Low structural capacity	Lightweight or independent support may be needed

iduoduo’s installation reference distinguishes concrete, brick, drywall, wood finish, stone, glass, metal curtain wall, ACP, EIFS, light partition walls, plant walls, and temporary exhibition structures. It also notes that the visible surface may not be capable of carrying the sign load.

Concrete normally gives installers more anchoring options, but old concrete, thin slabs, embedded services, and edge positions still require checking.

Brick needs closer inspection. Solid brick, hollow brick, facing brick, and old masonry should not be treated as one material. A heavy sign should not rely on loose mortar joints or brittle decorative brick edges.

Drywall is one of the most common causes of incorrect mounting assumptions. Large channel letters or heavy metal logos should not be fixed only into gypsum board. Reliable fixing may need timber backing, metal studs, embedded plates, reinforcement, or a structural wall behind the finish.

For stone, the installer should confirm thickness, backing structure, drill position, edge distance, and crack risk before drilling. Marble, granite, porcelain slab, engineered stone, and stone veneer can behave very differently under local drilling pressure.

How Do Weight and Installation Height Change the Mounting Plan?

Sign weight affects more than the anchor size. It changes handling, hole quantity, stud layout, bracket design, wall suitability, installation equipment, and sometimes the product construction itself.

The project should consider:

• weight of each letter or component;
• total assembled weight;
• raceway or backboard weight;
• bracket weight;
• power supplies and internal components;
• installation height;
• projection from the wall;
• wind exposure for outdoor signs.

A 20 kg reception logo installed 1.8 m above the floor creates a very different installation condition from a 20 kg blade sign mounted 8 m above a storefront.

Projection matters because the load is not acting in the same way.

A wall-mounted sign positioned close to the façade transfers most of its weight near the fixing surface. A projecting sign places the center of gravity farther away from the wall, increasing leverage on the bracket and anchor points.

Installation height adds another practical issue: access.

Signs mounted above ground level may require:

• scissor lift;
• boom lift;
• scaffolding;
• crane;
• temporary support;
• multiple installers.

iduoduo’s installation documentation states that high-level work may require qualified equipment, safety harnesses, work-zone isolation, weather checks, wind assessment, tool fall protection, and local permits.

Weight also influences material selection.

Using thicker steel does not automatically make a sign better. Extra metal can increase shipping cost, handling difficulty, bracket load, and installation time. For high-mounted or lightweight-wall projects, aluminum or engineered hollow construction may be more practical than unnecessarily heavy solid metal.

For large signs, product weight should be included in the manufacturing information so the local installer or structural engineer can evaluate the final building connection.

Can the Wall Be Drilled at the Planned Locations?

Never assume that a wall can be drilled wherever the drawing shows a stud.

Drilling may be restricted by:

• electrical cables;
• water pipes;
• wall framing;
• curtain-wall joints;
• stone joints;
• glass panels;
• embedded steel;
• insulation systems;
• waterproof membranes;
• landlord restrictions.

Before drilling, iduoduo’s installation reference recommends checking hidden wiring, water pipes, studs or framing, curtain-wall structure, stone joints, glass, electrical positions, template locations, stud positions, and anchor depth.

Glass requires special caution.

The installer needs to know whether the glass can be drilled, its thickness, whether it is tempered or laminated, and whether drilling was planned before fabrication. Tempered glass generally cannot be casually drilled on site after tempering.

Metal curtain walls create another common problem. The visible sheet may be thin, while the real structural framing sits behind insulation or a cavity. Fixing only into the decorative sheet can produce a weak installation.

EIFS presents a similar issue.

The finish may include:

• surface coating;
• reinforcement mesh;
• insulation;
• cavity;
• structural substrate.

Heavy signs usually need a fixing system that transfers load through the insulation rather than compressing it. Penetration points also need careful waterproofing.

For finished interiors, drilling limits are often driven by appearance.

Marble, timber veneer, mirror panels, glass, and completed reception walls may have very low tolerance for drilling errors. In these cases, a backboard or shared mounting panel can reduce the number of direct wall penetrations.

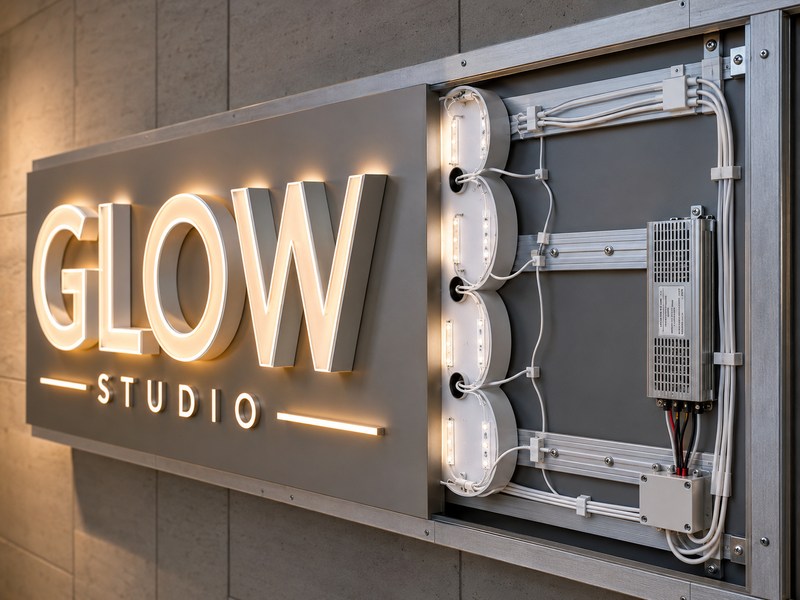

How Do Power and Wire Locations Affect Mounting?

For illuminated signs, the electrical route must be checked before the final mounting layout is approved.

A mounting plan should confirm:

• incoming power location;
• voltage;
• power-supply position;
• wire-exit locations;
• number of low-voltage circuits;
• raceway or backboard space;
• service access;
• controller location;
• wall penetrations.

A letter can be mechanically easy to mount and still become difficult to install if the wire exit does not align with the site power location.

For individual channel letters, several letters may have separate low-voltage wire exits. A raceway can concentrate wiring into one enclosure. A backboard can hide wiring behind one panel. A projecting sign may route wires through the bracket.

iduoduo’s installation documentation requires the site team to check product wire exits, wall power points, raceway wiring, backboard clearance, individual letter wiring, cable length, and service positions.

Power-supply placement also needs to be decided early.

Before production, confirm:

• input voltage;
• number of power supplies;
• wall-side or internal location;
• switch position;
• timer;
• dimming;
• controller;
• maintenance access;
• whether final connection is hardwired.

iduoduo specifies that power supplies should be installed in dry, ventilated, serviceable locations where they are not exposed to standing water, prolonged direct sun, or permanent enclosure without access.

Moving a power point after production can affect wire length, cable grouping, raceway dimensions, hole positions, and even packaging.

A useful rule is simple: if the sign needs electricity, electrical access should be reviewed at the same time as the mounting method.

How Do Outdoor Conditions and Site Rules Affect Mounting?

Outdoor signs need to handle rain, wind, corrosion, thermal movement, drainage, wall penetration, and long-term maintenance.

The mounting system should consider:

• exterior exposure;
• wind;
• rain direction;
• temperature changes;
• corrosion;
• drainage;
• UV exposure;
• wall movement;
• service access;
• local sign regulations.

Wall penetrations are particularly important.

Stud holes, wire holes, raceway fixing holes, backboard holes, bracket holes, and curtain-wall penetrations can all create water-entry paths.

iduoduo’s installation reference requires outdoor penetrations to consider wall type, metal compatibility, cable materials, sealing materials, and the building waterproofing layer.

The sign may be weather-resistant while the building still leaks around a poorly sealed anchor.

Drainage also has to remain functional.

Installers should not:

• block drain holes;
• position drain holes against the wall;
• turn drainage openings upward;
• seal drainage paths with silicone;
• allow wiring to block water outlets.

iduoduo specifically notes that drainage paths must remain open during installation.

Local rules can also change the mounting solution.

Depending on the project, the site may require:

• landlord approval;
• shopping-mall approval;
• sign permit;
• electrical permit;
• building permit;
• historic-district approval;
• structural review;
• high-level work permission.

A landlord may request fewer penetrations, which can favor a raceway or backboard. Another property may prohibit visible raceways and require individual mounting.

iduoduo’s documented installation boundary places final wall verification, anchoring, wind-load calculations, building waterproofing, high-level work, electrical connection, permits, and local acceptance with the appropriate local professionals.

The mounting method should therefore be selected from real site information, not only from the sign drawing.

A wall photo, approximate wall dimensions, material information, installation height, electrical location, and any landlord restrictions can prevent major changes after production starts. For difficult façades, several clear site photos and a simple section drawing often provide more useful engineering information than a long email saying only “wall mounted.”

How Do You Specify Mounting Before Production?

Specify mounting before production by confirming the wall type, mounting method, product weight, hole or stud layout, stand-off distance, raceway or backboard details, wire exits, power location, template, hardware scope, and installation responsibility. These items should appear consistently in the approved RFQ, shop drawing, installation drawing, and final production version so the factory and installer work from the same mounting information.

What Should Be Confirmed in the RFQ?

A mounting specification should start before the quotation is finalized.

The manufacturer needs enough information to understand how the finished sign will connect to the building, not only what the front of the sign should look like.

For channel letters, acrylic logos, light boxes, dimensional letters, and other custom signs, the RFQ should ideally include:

Item	Why It Matters
Sign type	Determines possible mounting systems
Overall size	Affects weight, fixing quantity, and handling
Quantity	Affects template, numbering, and repeat installation
Indoor or outdoor	Changes corrosion, waterproofing, and fixing requirements
Wall material	Influences mounting structure
Supporting structure	Determines whether planned fixing is realistic
Mounting method	Changes rear construction
Raceway / backboard	Affects weight, wiring, and packaging
Stand-off distance	Controls projection and halo effect
Wire exit	Needs to match site power position
Voltage	Affects power and wiring
Power-supply location	Changes cable length and service access
Destination country	May affect electrical and installation requirements
Installation height	Influences handling and structural planning
Project date	Helps coordinate production and site readiness

iduoduo’s channel-letter project documentation includes installation method, raceway or backboard, wire-exit location, wall condition, voltage, destination country, and project timing among the information needed before production.

If the mounting method has not been selected, do not guess.

A more useful RFQ might say:

“1,800 mm-wide halo-lit logo, exterior stone façade, approximately 4 m mounting height, wiring available behind the wall, landlord prefers hidden hardware. Please recommend the product-side mounting arrangement.”

That gives the engineering team enough information to evaluate studs, spacers, backboard options, and wire routing.

A weak RFQ might only say:

“Need wall-mounted logo.”

The price may still be quoted, but the project has not yet defined the installation interface.

What Should the Shop Drawing Show?

The shop drawing should convert the approved sign concept into measurable production information.

For mounting, the drawing should normally show more than the front elevation.

Useful views include:

• front view;
• side view;
• rear view;
• section view;
• mounting layout.

iduoduo’s shop-drawing documentation can include:

• project name;
• product number;
• drawing revision;
• overall dimensions;
• individual letter size;
• product depth;
• material;
• finish;
• lighting method;
• LED;
• power supply;
• mounting holes;
• studs;
• wire exits;
• mounting method;
• quantity;
• project notes.

For installation work, a separate mounting drawing can add:

• centerline;
• hole positions;
• stud positions;
• wire exits;
• raceway;
• backboard;
• brackets;
• product numbers;
• templates;
• installation sequence.

A section view is particularly valuable.

A front view may show a halo-lit letter correctly positioned on a wall, but only the section view can clearly show:

• letter depth;
• rear plate;
• stud;
• spacer;
• wall gap;
• wire exit;
• wall surface.

If a project specifies a 30 mm stand-off, the same value should appear in the section drawing, production file, spacer specification, and template package.

The mounting information should not be spread across several conflicting sources.

A common project risk looks like this:

• PDF drawing says 25 mm stand-off;
• email says 30 mm;
• WhatsApp message says “make it a bit farther from the wall”;
• production uses the old drawing.

The final approved drawing must become the manufacturing reference.

How Should Mounting Holes and Studs Be Specified?

Mounting holes and studs need measurable dimensions.

“Provide mounting holes” is not enough.

For each sign or letter set, the production information may need to define:

• hole quantity;
• hole diameter;
• hole coordinates;
• edge distance;
• stud diameter;
• stud length;
• stud quantity;
• spacer thickness;
• installation tolerance;
• orientation;
• product number.

Hole positions should be designed around the sign construction.

A hole cannot interfere with:

• LED modules;
• wiring;
• drainage;
• internal reinforcement;
• welded joints;
• removable service panels.

Stud length also needs to match the intended installation.

For example:

Wall Condition	Stud Planning Issue
Flat concrete	Direct engagement may be possible
Stone over concrete	Decorative layer adds depth
Timber panel over framing	Stud may need to reach backing
EIFS	Insulation thickness must be considered
Drywall	Structural backing may sit behind cavity
Metal cladding	Face panel may not be the real support

A 60 mm stud may sound long until 25 mm is lost through decorative material and a cavity.

iduoduo’s installation documentation states that stud holes should match stud diameter, stud length, wall condition, adhesive, template, stand-off distance, and installation tolerance. Holes that are too tight increase installation difficulty, while oversized holes can reduce positioning accuracy.

The same logic applies to independent letters.

If a logo is 3,000 mm wide and contains 14 letters, one misplaced hole can shift a letter enough to make the entire wordmark look uneven.

For that reason, hole coordinates should be controlled together with the full-size template.

How Do You Control Templates and Drawing Versions?

Templates only work when they match the final production version.

For independent letters, channel letters, acrylic letters, metal letters, and complex logos, a full-size template can control:

• overall width;
• letter spacing;
• baseline;
• centerline;
• hole positions;
• stud positions;
• wire exits;
• product numbering.

iduoduo uses both paper and rigid templates depending on project requirements. Rigid templates can be useful for repeat installations, multi-store projects, small precision letters, and situations where fast positioning is required.

Before using a template, the installer should verify:

• project name;
• store number;
• revision number;
• print scale;
• left/right orientation;
• total dimensions;
• hole pattern;
• wire exits;
• product numbers.

A simple scale check can prevent major errors.

If the drawing says the logo is 2,400 mm wide, the printed template should measure 2,400 mm at full scale.

Do not assume a PDF printed by a local office is automatically 1:1. Printer settings such as “Fit to Page” can reduce the scale.

Version control becomes even more important when the design changes after sampling.

Suppose the first approved layout had:

• 1,800 mm width;
• 20 mm stand-off;
• six wire exits.

The revised version has:

• 2,000 mm width;
• 30 mm stand-off;
• four wire exits.

The old template must not remain in the installation package.

iduoduo’s documentation specifically notes that old templates should not be used for revised products.

For repeat and chain-store projects, the safest approach is to keep the drawing revision, production file, template, product numbering, and packing identification linked to the same project version.

Which Mounting Hardware Should the Factory Provide?

The hardware package should be defined before packing.

The factory can prepare product-side components that are known from the approved design. Building-side anchors may still need to be selected locally because the actual wall structure is outside factory control.

A practical responsibility split may look like this:

Factory-Prepared Items	Usually Confirmed Locally
Studs	Concrete anchors
Spacers	Chemical anchors
Product-side screws	Hollow-wall anchors
Mounting brackets	Through-bolts
Raceway	Curtain-wall connectors
Backboard	Structural reinforcement
Mounting template	Final anchor depth
Hole layout	Wall waterproofing
Wire exits	Final electrical connection
Product numbering	Structural approval

iduoduo’s installation scope can include installation holes, studs, brackets, raceways, backboards, templates, wire exits, power supplies, controllers, accessories, installation drawings, and remote technical support. Local teams remain responsible for wall verification, anchors, building structure, final electrical work, waterproofing, permits, and acceptance.

Packaging should follow the same mounting plan.

Installation parts should not be mixed loosely inside the crate.

Useful packing practices include:

• individual hardware bags;
• product number labels;
• store number labels;
• bracket identification;
• separate power-supply packing;
• installation sequence labels;
• packing list reference.

For a multi-store project, “Box 1” is less useful than:

“Store 018 – Front Elevation – Channel Letters – Mounting Hardware.”

Good mounting specification ends before production only when the factory can answer five questions clearly:

• How does the product connect to the wall?
• Where are the mounting points?
• Where does the wiring leave the product?
• Which hardware ships with the sign?
• Which final site decisions remain with the installer?

If any answer is still unclear, the mounting specification is not ready for production.

How Do Mounting and Wiring Work Together?

Mounting and wiring should be planned as one system because the mounting method determines where wires exit, how power supplies are accessed, how many wall penetrations are needed, and whether electrical parts remain serviceable. Before production, confirm the mounting structure, wire-exit positions, voltage, power-supply location, cable route, service access, waterproofing, and installation responsibility on the same approved drawing.

How Should Wire Exits Be Specified?

Wire exits should be decided from the rear construction and site power position, not from the front rendering.

For illuminated channel letters, acrylic LED logos, light boxes, blade signs, and LED neon, the wire route changes with the mounting method.

A useful comparison is:

Mounting Method	Typical Wire Route	Main Item to Confirm
Individual Letters	One or more wires through wall behind letters	Wall power location and hole positions
Raceway	Letter wires enter common metal enclosure	Raceway power entry and service cover
Backboard	Wires run behind shared panel	Rear clearance and cable access
Stand-Off Letters	Wires pass through wall or behind spacers	Wire visibility and wall gap
Blade Sign	Wiring may pass through bracket	Bracket cavity and waterproof entry
Light Box	Wiring enters cabinet or rear frame	Service direction and power location

For individual channel letters, every letter may require its own low-voltage exit. A 12-letter wordmark can therefore involve 12 separate wire positions if the design uses one exit per letter.

Moving only one exit after production can create several problems:

• the wall hole no longer aligns with the letter;
• exposed cable may become visible;
• the installer may need to drill a second hole;
• the letter may need to be opened and rewired;
• waterproofing around the original exit may need repair.

The drawing should identify the wire exit in relation to the letter outline and mounting holes.

For example:

• Letter height: 500 mm
• Letter depth: 80 mm
• Stud mount: 4 studs
• Stand-off: 30 mm
• Wire exit: rear lower-center
• Low-voltage lead: 1,000 mm

A specification at that level gives the installer something measurable.

The wire exit should also avoid internal LED modules, reinforcement, welded parts, drainage paths, and removable service parts.

iduoduo’s installation documentation requires the site team to compare product wire exits with wall power points, raceway wiring, backboard clearance, individual letter circuits, low-voltage cable length, and service positions.

For outdoor work, upward-facing cable exits should be avoided where practical because water can follow the cable toward the opening. Cable direction, grommets, waterproof connectors, sealant, strain relief, and a suitable drip path should be considered together.

Where Should Power Supplies Be Located?

Power supplies should be placed where they remain dry, ventilated, electrically suitable, and accessible for future replacement.

The cleanest visual position is not always the best service position.

Common locations include:

• inside a raceway;
• behind an accessible backboard;
• above an accessible ceiling;
• inside a suitable electrical cabinet;
• in a nearby service space;
• inside some larger sign cabinets where the construction allows maintenance.

Avoid placing power supplies in locations that become permanently sealed behind finished walls.

Before production, confirm:

Item	What Needs to Be Known
Input Voltage	110 V, 220 V, or project-specific supply
Output Voltage	Often 12 V or 24 V for low-voltage sign systems
Quantity	One supply or several circuits
Location	Raceway, ceiling, cabinet, wall cavity, service box
Access	How the supply will be replaced
Environment	Indoor, outdoor, heat, moisture
Switching	Manual switch, timer, building control
Dimming	Required or not
Controller	RGB, RGBW, or other control system
Final Connection	Plug connection or local hardwiring

iduoduo’s installation documentation calls for power location to be confirmed before production, including input voltage, quantity of power supplies, wall-side or external location, switch, timer, dimming, control method, service space, and whether the final connection will be hardwired.

Power supplies should be installed where they are not exposed to standing water, prolonged direct sunlight, poor ventilation, or permanent enclosure without access.

For a large channel-letter set, one power supply may not be enough.

A long sign can require several low-voltage circuits because of:

• total LED load;
• voltage drop;
• cable length;
• letter grouping;
• front-lit and halo-lit sections;
• RGB control zones.

If three power supplies are planned, the installation package should identify them clearly.

For example:

• PSU-1: Letters A–D
• PSU-2: Letters E–H
• PSU-3: Logo symbol and halo circuit

Numbering prevents installers from connecting all letters to the wrong circuit or creating unnecessary troubleshooting later.

How Do Raceways and Backboards Simplify Wiring?

Raceways and backboards can reduce the number of visible cables and wall penetrations by organizing multiple letters into one mounting and wiring system.

A raceway is especially useful when individual wiring behind each letter is difficult.

Instead of routing every letter through the building façade, the letters can feed into the metal raceway. Power supplies and wiring connections can then be grouped inside the enclosure.

A practical example:

Direct-mount arrangement:

• 10 illuminated letters
• 10 wire exits
• multiple stud holes per letter
• power supplies located elsewhere
• rear access needed across the entire sign width

Raceway arrangement:

• 10 letters wired into one enclosure
• fewer primary wall penetrations
• power supplies concentrated in one service area
• fewer wall-side wiring points
• easier removal of the complete assembly

Raceway wiring still needs careful planning.

Confirm:

• internal raceway depth;
• cable routing;
• power-supply quantity;
• electrical entry point;
• removable service cover;
• low-voltage connections;
• drainage;
• mounting-hole positions;
• total assembled weight.

iduoduo’s documented raceway requirements include power supplies, wiring, service covers, wall fixing, waterproofing, drainage, finish color, and overall product weight.

A backboard works differently.

The panel can hide wires behind the letters and consolidate them toward one or several electrical exits.

A reception logo may contain:

• 8 illuminated letters;
• 2 logo elements;
• 10 individual rear wires.

Instead of drilling 10 wire holes into a finished timber or stone wall, the wiring can be organized behind one backboard and routed toward one planned electrical area.

The backboard still needs enough rear clearance.

If the panel sits completely flat against the wall, there may be no room for:

• wire connectors;
• cable bends;
• low-voltage leads;
• small drivers;
• service movement.

Rear space should therefore be specified in the section drawing rather than assumed during installation.

How Should Low-Voltage Wiring Be Planned?

Low-voltage wiring should be planned by voltage, cable length, current, circuit grouping, connector type, routing, and maintenance access.

For many illuminated signs, the LED side operates at 12 V or 24 V DC.

The voltage must match the LED system and power supply.

A wiring package should identify:

• positive and negative polarity;
• output voltage;
• wire gauge;
• approximate cable length;
• circuit grouping;
• connectors;
• waterproofing for outdoor connections;
• cable fixing;
• product numbering.

Cable length matters because long low-voltage runs can create voltage drop.

A sign located far from its power supply may need:

• heavier cable;
• multiple circuits;
• shorter power-supply distance;
• redistributed power supplies.

A 24 V system generally tolerates long cable runs better than a comparable 12 V configuration, although actual sizing still depends on current and conductor size.

For large signs, do not treat every letter as one continuous electrical chain.

A better approach may divide the sign into logical groups.

Example:

Circuit	Sign Area	Cable Route
C1	Letters A–D	Left side
C2	Letters E–H	Center
C3	Letters I–L	Right side
C4	Logo symbol	Separate circuit
C5	Halo lighting	Independent dimming circuit

iduoduo’s installation reference states that low-voltage wiring should control 12 V or 24 V matching, polarity, wire size, cable length, voltage drop, connectors, circuit grouping, waterproofing, cable fixing, and numbering.

Numbered wires are particularly useful for large or segmented signs.

A segmented façade sign may arrive in several crates. If every cable is only black or red with no circuit identification, the installer may spend unnecessary time tracing connections.

Simple labels such as:

A1+, A1−
B1+, B1−
HALO-1
RGB-ZONE-2

can make final connection much faster.

How Do You Keep Wiring Serviceable and Weather-Resistant?

A wiring system should remain accessible enough for maintenance while keeping outdoor connections protected from water, heat, mechanical stress, and accidental damage.

Service access should be planned before the wall is closed or the sign is permanently fixed.

For illuminated signs, future service may involve:

• replacing a power supply;
• checking a loose connector;
• repairing a low-voltage cable;
• replacing LED modules;
• replacing an RGB controller;
• checking water entry;
• testing individual circuits.

A raceway should have an accessible service cover.

A light box should have a defined access direction.

A backboard should not permanently trap all connectors unless the panel itself can be removed.

A ceiling-mounted power supply should remain reachable through an access panel.

Maintenance space is especially important because power supplies and control components are replaceable electrical parts. A hidden component is only useful when it can still be reached later.

Outdoor wiring also needs a water-management plan.

Check:

• cable entry direction;
• waterproof connectors;
• grommets;
• strain relief;
• sealant compatibility;
• drip loops;
• junction-box protection;
• drain paths;
• exposed connector position.

iduoduo’s weather-protection documentation specifies that wire entries may need suitable hole size, grommets, waterproof connectors, sealant, drip routing, exit direction, and strain protection.

Outdoor connections should not sit where water can collect.

A waterproof power supply also should not be treated as permission to place it in standing water. The mounting position still needs drainage, ventilation, protected cable entry, and service access.

Wall penetrations deserve equal attention.

Common penetrations include:

• letter wire holes;
• stud holes;
• raceway anchor holes;
• backboard anchor holes;
• bracket holes;
• curtain-wall penetrations.

The sign can remain dry while water enters the building through an incorrectly sealed mounting hole.

iduoduo’s documentation notes that the factory cannot control completed wall penetrations. Local installation teams need to seal electrical holes, stud holes, bracket holes, raceway fixings, backboard fixings, curtain-wall penetrations, and affected waterproofing layers according to the real building condition.

Mounting and wiring are therefore not two separate drawings that happen to meet on installation day.

A strong production package connects:

mounting holes → wire exits → cable routes → power supplies → service access → waterproofing → final installation.

When those points are confirmed before fabrication, the installer receives a sign that is easier to position, connect, test, seal, and maintain instead of having to redesign the electrical route at the wall.

How Do You Avoid Mounting Problems?

Avoid mounting problems by verifying the site before drilling, using the final approved drawing and template, matching anchors to the actual structure, checking alignment before permanent fixing, and documenting the installation before handover. Most costly failures come from wrong wall assumptions, outdated layouts, mismatched hole positions, hidden utilities, poor waterproofing, or electrical routes that were never checked against the real site.

What Should Be Checked Before Any Drilling Starts?

The most important mounting check happens before the first hole is drilled.

A drawing can be correct and the installation can still fail because the wall changed, the electrical feed moved, the storefront dimensions were updated, or the installer is working from an old template.

Before drilling, compare the real site with the approved installation information.

A practical pre-installation check should include:

Check	What to Verify	What Can Go Wrong
Product	Model, size, quantity, condition	Wrong sign installed at wrong location
Drawing	Revision and approval status	Old hole pattern used
Template	Scale, orientation, store number	Letters installed in wrong positions
Wall Size	Width, height, centerline	Logo does not fit or appears off-center
Wall Type	Finish and structure behind	Anchors fixed into weak surface
Hidden Services	Wires, pipes, framing	Drilling damages utilities
Power Position	Feed and service location	Wire exits do not align
Obstacles	Doors, joints, lights, canopies	Sign conflicts with building elements
Access	Lift, scaffold, crane, work zone	Installation cannot be completed safely

iduoduo’s installation documentation requires a final site check covering wall width, wall height, installation center, doors and windows, façade joints, curtain-wall divisions, power, hidden utilities, framing, obstacles, access routes, elevators, high-level equipment, and installation time restrictions.

Do not rely only on measurements taken several weeks earlier.

Construction work may continue while the sign is being manufactured. A ceiling can move 30 mm. A new wall finish can add thickness. A power outlet can shift to avoid another trade. A landlord may change the permitted sign zone.

Independent channel letters are especially sensitive to small dimensional changes.

If a 3,000 mm-wide wordmark was designed around a 3,200 mm available area, losing 100 mm on each side can turn a balanced layout into a crowded installation.

The safest sequence is:

• measure the finished installation area;
• confirm the centerline;
• identify the real supporting structure;
• compare wire exits with the actual power position;
• confirm the approved template fits;
• only then mark drilling locations.

Five minutes of checking can prevent hours of patching, re-drilling, rewiring, and repainting.

How Do You Prevent Template and Hole-Position Errors?

Templates work well only when they match the final production version.

A full-size template can control overall width, letter spacing, centerline, baseline, stud positions, mounting holes, wire exits, and product identification. It removes much of the guesswork from independent-letter installation.

However, a wrong template can create a very precise wrong installation.

Before use, confirm:

• project name;
• location or store number;
• drawing revision;
• template revision;
• overall printed dimensions;
• 1:1 scale;
• left and right orientation;
• top and bottom orientation;
• hole positions;
• wire exits;
• product numbering.

iduoduo’s installation reference states that template checks should include project, store, product version, overall size, orientation, hole layout, wire exits, print scale, product number, and the physical product. Old templates should not be used for revised signs.

Printer scaling is a common problem.

A template designed at 1:1 can be reduced if someone selects “Fit to Page” when printing.

For example:

Approved logo width: 2,400 mm
Printed template width: 2,328 mm
Scale error: 3%

A 3% error may look small on paper, but across a 2.4 m logo it creates a 72 mm dimensional difference.

For a wordmark with ten letters, the installer may only notice the problem after several holes have already been drilled.

Hole tolerance also needs balance.

Holes that are too tight make studs difficult to position. Holes that are too large reduce control over letter placement.

iduoduo’s installation documentation notes that stud holes should account for stud diameter, stud length, wall condition, adhesive, template, stand-off distance, and installation tolerance.

For multi-store programs, keep templates linked to store numbers and product numbers.

A package marked only “LOGO TEMPLATE” is risky.

A label such as:

Store 026
Front Elevation
Logo Set A
Drawing Rev. 04
Template Rev. 04

gives the installer much clearer information.

Which Mounting Errors Come From Anchors and Wall Structure?

Anchor problems usually begin when the visible wall finish is mistaken for the load-bearing structure.

A metal façade panel may only be 2–4 mm thick. Drywall may be 12–15 mm thick. EIFS may include a thick insulation layer. Stone may be decorative veneer rather than structural masonry.

The sign needs to transfer load into something reliable behind the finish.

Common anchor situations include:

Wall Condition	Possible Concern
Concrete	Anchor depth, edge distance, embedded services
Solid Brick	Brick condition and drilling location
Hollow Brick	Low pull-out strength
Drywall	Need for studs or reinforcement
Stone Veneer	Crack risk and weak backing
Metal Cladding	Thin panel may not carry sign load
EIFS	Insulation compression and waterproofing
Timber Finish	Decorative layer may hide framing
Curtain Wall	Specialized connection may be required

The installer should select the final building anchor based on the actual structure.

Possible systems may include expansion anchors, chemical anchors, wall plugs, wood screws, self-tapping screws, through-bolts, cavity anchors, curtain-wall connectors, or engineered brackets.

iduoduo’s documentation makes the responsibility clear: anchor selection depends on wall condition and sign construction, while the final choice belongs to the local installer or structural professional.

Heavy and projecting signs need even more attention.

A 30 kg backboard mounted close to a wall does not create the same force as a 30 kg blade sign projecting 700 mm from the façade.

Projection increases leverage at the fixing point.

Higher installation positions also increase wind exposure and make later correction more expensive.

For large blade signs, large cabinets, rooftop signs, or high-level exterior products, the manufacturer can provide:

• sign dimensions;
• total weight;
• bracket construction;
• mounting plate dimensions;
• mounting-hole pattern;
• material information.

Local structural professionals can then use those details to confirm the final building connection.

A strong bracket does not solve a weak wall.

How Do You Catch Alignment and Wiring Problems Before Final Fixing?

Do not fully tighten, seal, or finish the installation immediately after the first letter appears level.

Mounting should be checked as a complete composition.

For independent letters, verify:

• overall width;
• centerline;
• baseline;
• letter spacing;
• row spacing;
• logo-to-text relationship;
• stand-off distance;
• wire visibility;
• side alignment.

A single letter can be perfectly level while the complete logo still looks wrong.

For a 12-letter storefront sign, a 5 mm spacing error repeated across several letters can become visually obvious from the opposite side of the street.

Use a laser level, template, approved dimensions, and building reference points.

Do not assume floors, ceilings, door frames, stone joints, or façade panels are perfectly level. Existing buildings often contain small construction deviations.

For halo-lit letters, inspect the sign from both the front and side.

A typical approved wall gap may be 20–50 mm depending on the project. If adjacent letters use noticeably different stand-off distances, the halo can vary even when the letters look aligned during the day.

Wiring should also be checked before permanent finishing.

Confirm:

• each letter is connected to the intended circuit;
• positive and negative polarity are correct;
• wire exits align with wall penetrations;
• cables are not pinched behind letters;
• service covers can still open;
• wires do not block drainage;
• power supplies remain accessible.

For large signs with several power supplies, label the circuits.

For example:

PSU-1 → Letters A–D
PSU-2 → Letters E–H
PSU-3 → Logo Symbol
PSU-4 → Halo Circuit

iduoduo’s installation reference recommends checking power supplies, circuits, letter zones, front and rear lighting, and controlled lighting zones where multiple power groups are used.

Complete the visual and electrical check before final sealant and surface repair.

Once holes are sealed, cables are hidden, and the wall is patched, correction becomes slower and more expensive.

What Should Be Checked Before Installation Is Accepted?

Installation should not be considered complete only because the sign is fixed to the wall and turns on.

A proper handover should check the mechanical, visual, electrical, waterproofing, and maintenance condition of the finished sign.

Mechanical checks should include:

• anchors;
• screws;
• studs;
• brackets;
• anti-loosening measures;
• raceway;
• backboard;
• suspension points;
• segmented connections;
• freestanding stability.

Visual checks should include:

• location;
• level;
• vertical alignment;
• letter spacing;
• row spacing;
• logo proportion;
• joint alignment;
• exposed screws;
• adhesive marks;
• scratches;
• protection-film removal.

For illuminated products, check:

• all letters illuminate;
• brightness is consistent;
• color temperature is correct;
• no obvious dark areas or hotspots appear;
• dimming works;
• RGB or RGBW functions operate correctly;
• controllers reconnect correctly after power interruption where relevant.

iduoduo’s installation documentation includes final inspection of position, alignment, spacing, connections, surfaces, wiring, brackets, electrical operation, brightness, color temperature, dimming, and lighting controls.

Outdoor work needs a separate waterproofing check.

Inspect:

• stud holes;
• wire holes;
• raceway fixings;
• backboard fixings;
• bracket penetrations;
• junction boxes;
• electrical entries;
• service covers;
• drain holes;
• sealant;
• cable drip paths.

Drain holes must remain open. They should not be pressed against the wall, turned upward, blocked by wiring, or filled with sealant.

Service access should also remain available.

Power supplies, controllers, raceway covers, removable faces, light-box access panels, and wiring connections should not be permanently buried during finishing.

Installation records are worth keeping.

Useful records include:

Record	Why Keep It
Overall daytime photo	Confirms position and alignment
Night photo	Confirms illumination
Mounting detail photo	Helps future service
Power-supply photo	Shows model and location
Wiring photo	Helps troubleshooting
Waterproofing photo	Records site sealing
Product numbers	Supports replacement parts
Issue notes	Helps distinguish manufacturing and installation problems

iduoduo recommends installation records such as overall photos, close-up site photos, wiring information, power details, waterproofing condition, product numbers, and problem records.

Good mounting control is mostly about stopping small errors before they become permanent ones.

The safest sequence is straightforward:

site check → drawing check → template check → drilling → temporary positioning → alignment check → wiring test → final fixing → waterproofing → lighting test → documentation.

Skipping one step may save a few minutes during installation. Correcting the same mistake after the wall is drilled, sealed, wired, and finished can cost a full return visit.

Ready to Discuss Your Custom Sign Project?

If you are preparing a custom sign project, the most useful starting point is to share the information already available—such as your logo or drawing, overall size, quantity, indoor or outdoor use, wall type, preferred mounting method, wire-exit location, voltage, destination country, and project schedule. iduoduo can review these details before production and help identify the product-side mounting, wiring, and structural points that should be confirmed.

For projects where the mounting method is not yet decided, you can also send storefront photos, wall measurements, installation height, and any landlord or site restrictions. The engineering team can then prepare the relevant shop drawing, mounting layout, holes, studs, raceway or backboard details, wire exits, templates, and accessory requirements for review before manufacturing.

A clear specification at the quotation stage usually makes pricing, production, packing, and installation coordination much easier. If you have a current sign project, send the available files and site information to iduoduo for a practical manufacturing review and quotation.
