How to Specify Sign Voltage and Plug Type for LED Signs

A custom illuminated sign can be perfectly fabricated and still become an installation problem because of one small line in the specification: power. A project may have the correct logo, dimensions, paint color, LED color, mounting holes, and packaging, yet arrive on site with the wrong plug, an unsuitable power supply, insufficient cable length, or a voltage configuration that does not match the building. These errors are especially costly on overseas projects because correcting them may involve a local electrician, replacement components, another shipment, or a delayed store opening.

To specify sign voltage and plug type correctly, confirm the installation country, available AC input voltage and frequency, whether the sign uses 12V or 24V DC internally, the required power-supply capacity, plug-in or hardwired connection, plug standard, grounding, wire exit, cable length, indoor or outdoor location, control system, and any required electrical certification before production begins.

Think about the installer standing on a lift outside a finished storefront. The letters are already mounted, the opening deadline is tomorrow, and only then does someone discover that the electrical connection was assumed rather than approved. A five-minute specification question before production can prevent hours of field modification later. Good electrical specification is therefore not paperwork—it is part of making a custom sign genuinely installation-ready.

What Voltage Does an LED Sign Need?

Most illuminated signs use 110–240V AC from the building and convert it through a power supply to 12V or 24V DC for the LEDs. The correct voltage depends on the LED type, total wattage, cable length, controller, sign size, and power-supply location. Input voltage and LED operating voltage must always be specified separately.

What Is AC Input vs DC Output?

Two voltage values normally appear in an illuminated sign project, and confusing them can lead to the wrong power supply or damaged components.

The first is the AC input voltage available at the installation site. It comes from the building electrical system. Common project inputs include 110V, 120V, 220V, 230V, and 240V AC.

The second is the DC output voltage used by the LEDs after the power supply converts the building electricity. Common LED sign systems use 12V DC or 24V DC. iduoduo documents both levels separately and does not treat “120V sign” and “12V LED system” as the same specification.

Electrical Point	Typical Value	What It Means
Building power	110–120V AC	Common site input in the US and Canada
Building power	220–240V AC	Common site input in many European and other markets
Power supply input	Matches site AC	High-voltage side of the driver
Power supply output	12V DC	Feeds compatible 12V LEDs
Power supply output	24V DC	Feeds compatible 24V LEDs

A useful specification should therefore look like:

Input: 120V AC
LED system: 24V DC
Connection: Hardwired
Power supply: Installed behind raceway
Application: Outdoor channel letters

Writing only “Voltage: 120V” is incomplete because it does not tell the factory what voltage the LED system actually uses.

The same rule applies to a small indoor sign. A wall logo may plug into a 230V outlet while the adapter supplies 12V DC to the LEDs. The outlet voltage and LED voltage remain two separate values.

Getting this distinction right early also makes later troubleshooting easier. If a sign does not illuminate correctly, the installer can verify the site AC input first, then check the power-supply DC output, rather than treating the whole product as one electrical circuit.

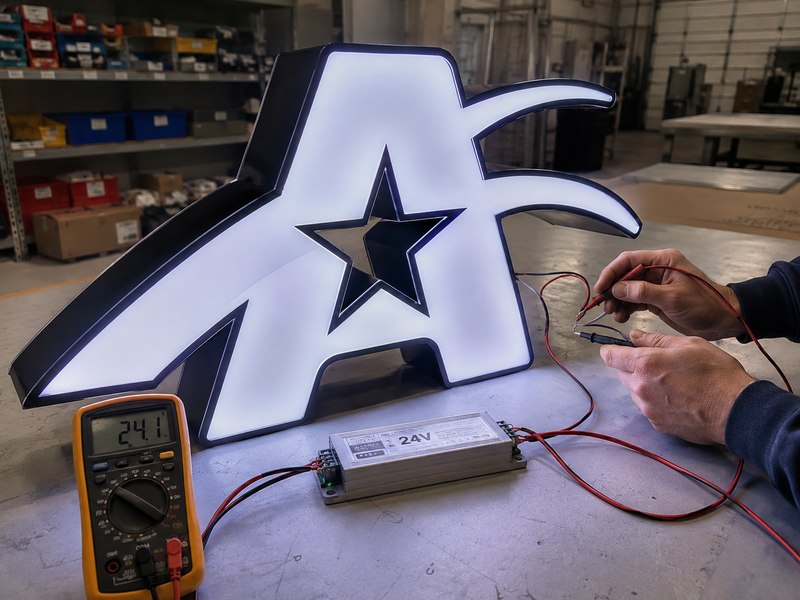

Is 12V or 24V Better?

12V and 24V are both widely used in illuminated signage. The better choice depends on load, wire length, LED specification, and the physical layout of the sign.

iduoduo commonly uses 12V systems for LED neon signs, small channel letters, acrylic LED logos, compact light boxes, and other projects with relatively short low-voltage runs. 24V systems can be useful for longer strips, larger letters, long cable runs, large light boxes, or projects where reducing current helps control voltage drop.

The current difference is easy to see from:

Power = Voltage × Current

For the same wattage, increasing the system voltage reduces current.

Electrical Load	Current at 12V	Current at 24V
60W	5A	2.5A
120W	10A	5A
180W	15A	7.5A
240W	20A	10A
360W	30A	15A

A 240W illuminated sign operating at 12V draws about 20A. At 24V, the same theoretical load draws about 10A.

That difference becomes important when low-voltage wires must travel several meters between the power supply and the sign. Higher current increases voltage drop, places more demand on connectors and terminals, and may require larger conductors.

However, 24V should not be selected simply because the sign is large.

The LED modules, neon flex, controller, dimmer, and power supply must all use the same compatible voltage. A 12V LED load should not be connected to a 24V power supply. A 24V LED connected to a 12V supply may operate poorly or fail to reach its intended brightness. iduoduo’s engineering guidance requires LEDs, power supplies, controllers, and dimmers to remain voltage-matched.

A practical selection usually looks like this:

Project Condition	12V May Be Suitable	24V May Be Suitable
Small reception logo	✓
Short neon sign	✓
Compact light box	✓	✓
Small channel letters	✓	✓
Long LED strip		✓
Large light box		✓
Long low-voltage cable		✓
Large building letters		✓
High-load circuit		✓

The final choice should follow the actual LED system rather than a fixed rule applied to every product.

How Does Cable Length Affect Voltage?

Long low-voltage wiring can cause voltage drop between the power supply and the LEDs.

Voltage drop becomes more serious when:

• the cable is longer;
• the current is higher;
• the conductor is too small;
• too many LEDs share one circuit;
• connectors add resistance;
• the power supply is far from the sign.

In an installed sign, voltage drop often appears as a lighting problem before anyone measures it electrically.

Common symptoms include:

• distant letters appearing dimmer;
• the end of an LED neon run losing brightness;
• uneven brightness across a long logo;
• RGB sections showing slightly different colors;
• white LEDs changing appearance between zones;
• controllers restarting;
• flickering;
• connectors or terminals operating under excessive load.

iduoduo identifies distant LED dimming, RGB color differences, white-light variation, controller instability, and uneven letter brightness as possible signs of excessive voltage drop.

Consider a 12-letter storefront sign stretching 9 meters across a façade.

If one power supply is mounted at the far left and every low-voltage circuit starts from that point, the first letter may sit 1 meter from the power supply while the last letter is several meters farther away. Using one long circuit for the entire sign can create a large difference in cable length and electrical load.

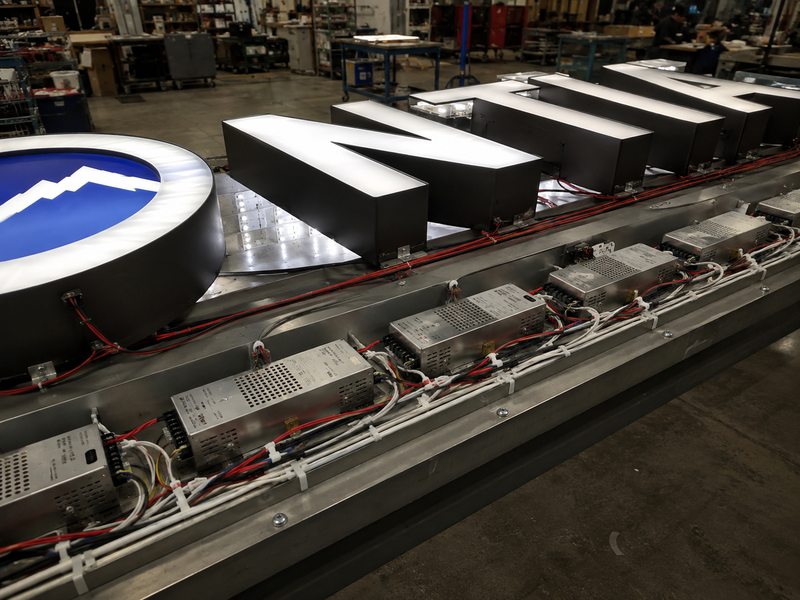

A better electrical layout may divide the letters into several groups.

Circuit	Letters	Approx. Cable Run	Supply Arrangement
Group A	A–C	Short	Power Supply 1
Group B	D–F	Short	Power Supply 1
Group C	G–I	Short	Power Supply 2
Group D	J–L	Short	Power Supply 2

Dividing the load can reduce long cable runs and make future servicing easier.

Other ways to control voltage drop include:

• increasing conductor size;
• moving the power supply closer to the LEDs;
• using more circuit groups;
• reducing load per circuit;
• adding additional feed points;
• avoiding excessively long daisy-chain wiring;
• using 24V where the LED system supports it.

iduoduo’s engineering rules treat voltage, current, wire size, cable length, circuit grouping, and power-supply position as connected variables rather than separate decisions.

Do Different Sign Types Use Different Voltages?

Different sign types often need different electrical layouts because LED quantity, cable distance, product size, control equipment, and power-supply placement vary greatly.

A 500 mm reception logo may use one compact external adapter. A set of large channel letters may use several power supplies and multiple low-voltage circuits. A wide light box may require several power feed points. An RGBW sign adds a controller and additional channels.

Sign Type	Common Electrical Factors
LED Neon Sign	Flex length, adapter, controller, cable exit
Acrylic LED Logo	Compact LEDs, hidden wiring, short cable runs
Channel Letters	Module count, letter spacing, circuit groups
Large Light Box	LED rows, several feed points, service access
RGB Sign	Controller, multiple color channels, power load
RGBW Sign	RGB channels plus independent white channel
Large Building Sign	Long wiring, multiple supplies, maintenance access

A small LED neon sign may work comfortably on 12V because the illuminated path is short and the adapter is close to the product.

Channel letters are more complex. Electrical load varies with letter height, stroke width, internal LED layout, number of modules, number of letters, distance between letters, and the power-supply location.

For example, ten 300 mm-high letters do not have the same electrical requirement as ten 1,200 mm-high letters. The larger set requires more LED modules, more wattage, longer wiring, and potentially more power supplies.

Large light boxes create another pattern. A wide cabinet may contain many LED rows spread over several square meters. Feeding the entire cabinet from one end may create uneven electrical conditions. Several feed points or circuits can provide a more controlled layout.

RGB and RGBW signs also require more planning than static white signs. iduoduo’s documented RGB systems can include compatible LEDs, controllers, matching power supplies, circuit grouping, remote control, or app control.

Before choosing 12V or 24V, four project facts are especially useful:

• total sign dimensions;
• estimated LED load;
• distance from power supply to sign;
• location of each power supply.

Once those values are known, the engineering team can make a more reliable decision about voltage, wiring, circuit grouping, and power-supply quantity.

The aim is not simply to make the sign illuminate during factory testing. The electrical design needs to remain stable after the product is mounted on the real wall, connected to the real building supply, and operated through the actual cable distances planned for the site.

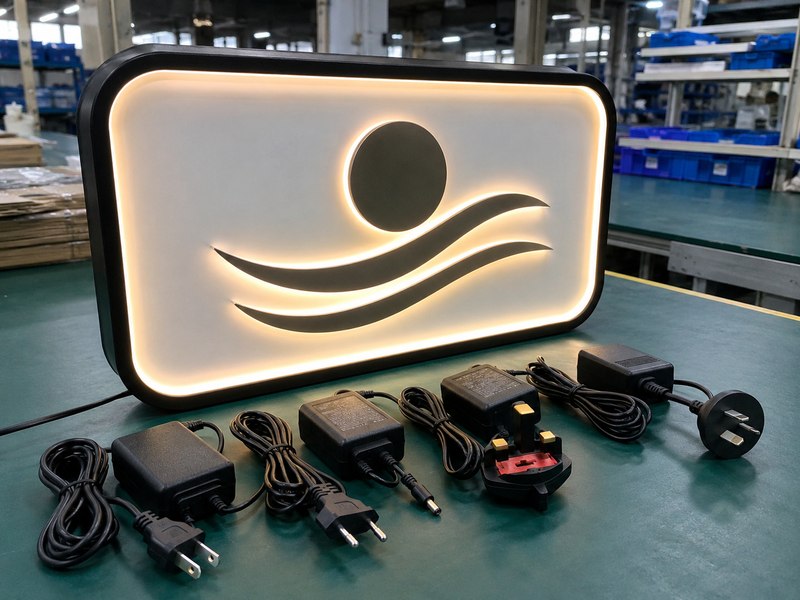

Which Plug Type Should You Specify?

Specify the plug according to the actual installation country, available AC supply, grounding requirement, and whether the sign will be plug-in or hardwired. For international projects, “standard plug” is not enough. The RFQ should state the destination country, site voltage, connection method, and power-supply location so the factory can prepare the correct electrical package before production.

Which Plug Fits the Destination Market?

The plug should be selected for the location where the sign will actually be installed, not where the purchasing office is located.

A sign company in the United States may order signs for a store in the UK. A design agency in Germany may be managing a project in Australia. If the RFQ only shows the company address, the factory may prepare the wrong plug or input configuration.

iduoduo can prepare US, EU, UK, AU, and project-specified plug configurations, together with input versions such as 110V, 120V, 220V, 230V, or 240V depending on the approved project.

A practical specification should include both the market and the electrical information:

Project Market	Typical Input Range to Confirm	Plug Requirement	What to Write in the RFQ
United States	110–120V AC	US plug or hardwired	“120V AC, US plug”
Canada	110–120V AC	US/Canada-compatible plug or hardwired	“120V AC, plug-in”
United Kingdom	220–240V AC	UK plug or hardwired	“230V AC, UK plug”
European market	220–240V AC	EU-market plug or hardwired	State the exact destination country
Australia	220–240V AC	AU plug or hardwired	“230V AC, AU plug”
Project-specific market	Confirm locally	Confirm locally	State country, voltage, and connection

The table should be treated as a project-planning guide, not as permission to skip site confirmation. iduoduo’s engineering records specifically state that input voltage should not be guessed from the purchaser’s company location. The actual installation country and site conditions need to be confirmed.

Avoid vague notes such as:

“EU plug”

“International plug”

“Normal plug”

“220V plug”

Each of these leaves unanswered questions.

A stronger specification is:

“Installation: Paris, France
Site input: 230V AC
Connection: Plug-in
Plug: EU-market plug
Use: Indoor reception logo”

or:

“Installation: Sydney, Australia
Site input: 230V AC
Connection: Hardwired
Plug: Not required
Use: Outdoor channel letters”

The second example is especially important because not every sign needs a plug.

Do You Need Plug-In or Hardwired Power?

The connection method should be confirmed before choosing the plug.

Plug-in signs usually make sense when the power supply is accessible and the product is intended to connect directly to a nearby outlet. Common examples include:

• indoor LED neon signs;
• reception logo signs;
• small acrylic LED logos;
• desktop signs;
• wall-mounted interior signs;
• temporary event signs;
• smaller lighted displays.

Hardwired power is more common when the sign becomes part of the building installation. Typical examples include:

• storefront channel letters;
• outdoor building letters;
• raceway-mounted signs;
• large light boxes;
• cabinet signs;
• permanent façade signs;
• signs where visible power cords are not acceptable.

For a hardwired sign, adding a plug can be unnecessary because the local electrician may connect the power supply directly to the building circuit.

A useful comparison is:

Item	Plug-In Sign	Hardwired Sign
Connection	Wall outlet	Building electrical circuit
Plug required	Yes	Usually no
Power supply	Often external or accessible	Often installed in serviceable location
Typical use	Small indoor signs	Permanent commercial signs
Installation skill	Often simpler	Usually requires local electrical work
Cable planning	Visible or concealed cord	Building-side wiring and junction planning
Service access	Adapter should remain reachable	Power supply should remain reachable

The connection method also changes the manufacturing details.

A plug-in sign may need:

• specified plug type;
• adapter;
• cable length;
• cable exit direction;
• switch or dimmer;
• controller;
• concealed cord route.

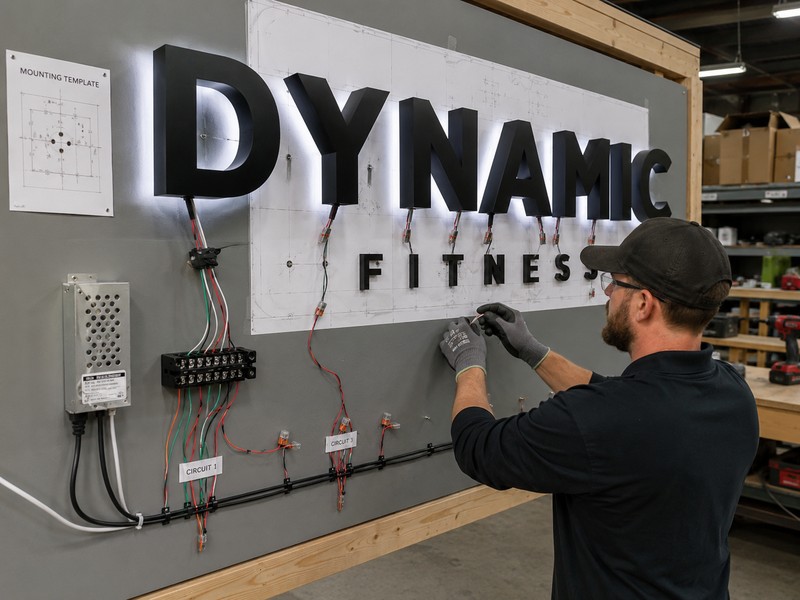

A hardwired sign may need:

• bare-wire termination;
• labelled input wires;
• junction-box coordination;
• power-supply location;
• circuit grouping;
• wiring diagram;
• service access.

For example, writing “US plug” for a large set of exterior channel letters is often less useful than stating:

“120V AC building supply, hardwired connection, power supplies installed inside raceway.”

That tells the engineering team how the sign will actually be installed.

iduoduo supports both plug-in and bare-wire hardwired configurations. Final building wiring, grounding, breaker selection, wall wiring, and local electrical acceptance remain part of the site installation scope.

Are Frequency and Grounding Requirements Different?

Yes. Voltage and plug type are only part of the electrical specification.

For overseas production, the project team should also confirm:

• site frequency;
• grounding requirement;
• power-supply input range;
• whether the plug includes grounding;
• metal enclosure or raceway grounding requirements;
• local electrical rules;
• whether the final connection is plug-in or hardwired.

iduoduo’s electrical guidance for 220–240V markets specifically requires confirmation of power-supply input range, plug, frequency, grounding, local certification, and whether the sign will be hardwired or plugged in.

Grounding becomes especially important when the electrical system includes metal parts such as:

• metal channel-letter returns;
• raceways;
• metal cabinets;
• metal backboards;
• power-supply enclosures.

The final grounding method depends on the power supply, metal structure, installation method, and local electrical requirements. iduoduo does not treat grounding as one universal factory setting because the completed installation also depends on the building electrical system.

A better electrical line in an RFQ is:

“230V AC site input, UK plug, frequency to match local supply, grounded installation.”

For a hardwired project:

“120V AC site input, hardwired, metal raceway, final grounding by local electrician.”

Those statements give the engineering team much more useful information than “120V” or “UK plug” alone.

Before energizing the sign, the installer should verify the actual site voltage against the power-supply label, input range, plug, grounding arrangement, and local electrical requirements. Wrong input voltage can damage the power supply or controller.

How Do You Specify Power for Multi-Country Projects?

Multi-country projects should separate the visual sign standard from the electrical standard.

A chain brand may want every store to use the same:

• logo proportion;
• letter height;
• return depth;
• paint finish;
• LED color;
• color temperature;
• mounting layout;
• packaging format.

The electrical package may still need to change by country.

A simple project matrix can prevent mix-ups:

Store	Country	Site Input	Connection	Plug	Power Supply
Store 01	USA	120V AC	Hardwired	None	US-market input version
Store 02	UK	230V AC	Plug-in	UK	UK-market input version
Store 03	Germany	230V AC	Hardwired	None	EU-market input version
Store 04	Australia	230V AC	Plug-in	AU	AU-market input version

The product may look identical in all four stores, but the cartons should not be treated as electrically identical.

For larger rollouts, each store or SKU should have a controlled electrical record containing:

• destination country;
• input voltage;
• LED output voltage;
• plug type;
• hardwired or plug-in;
• power-supply model;
• power-supply quantity;
• controller type;
• wire exit;
• cable length;
• mounting method;
• store number.

This becomes especially important when one shipment contains signs for several countries.

Imagine 80 reception logos manufactured in one batch:

• 30 for the United States;
• 20 for the UK;
• 20 for EU locations;
• 10 for Australia.

The signs may use the same acrylic, LED color, logo size, and mounting holes, but four different electrical packages may be required.

A useful carton label can therefore identify:

“STORE 018
230V AC
24V DC SYSTEM
UK PLUG
POWER SUPPLY ×1”

That makes warehouse sorting and installation much safer than placing visually identical adapters into unmarked accessory boxes.

Repeat orders also need fresh electrical confirmation. iduoduo may retain drawings, LEDs, power-supply information, installation holes, wire exits, templates, packaging, and QC records for repeat production, but the destination country, voltage, quantity, and installation environment still need to be checked again before manufacturing.

A store opened in the United States last year does not prove that the next order will also be installed in the United States.

For international sign programs, one of the safest RFQ formats is therefore:

Country + Site Voltage + LED Voltage + Plug/Hardwire + Power-Supply Location + Control Type.

For example:

“Manchester, UK / 230V AC / 24V DC LED / hardwired / two power supplies above ceiling / dimmable.”

That one line gives the factory enough information to begin a meaningful electrical review instead of guessing from a generic product drawing.

How Do You Size the Power Supply?

Size a sign power supply from the actual LED wattage, system voltage, circuit length, controller load, installation environment, and power-supply location. Add reasonable operating reserve instead of running the supply continuously at full rated output. Large signs often work better with several smaller power groups than one oversized supply feeding long low-voltage circuits.

How Is Sign Wattage Calculated?

Power-supply sizing starts with the electrical load inside the sign, not the outside dimensions alone.

Two signs that are both 1,500 mm wide can have very different wattage. A thin acrylic logo may use only a short LED strip, while a deep light box of the same width may contain several rows of LED modules. Channel letters add another variable because every letter can use a different number of modules depending on letter height, stroke width, return depth, and internal geometry.

The basic relationship is:

Power (W) = Voltage (V) × Current (A)

If the total LED load is known, current can also be estimated:

Current (A) = Power (W) ÷ Voltage (V)

For example:

LED Load	Current at 12V	Current at 24V
60W	5A	2.5A
120W	10A	5A
180W	15A	7.5A
240W	20A	10A
360W	30A	15A

The table explains why system voltage matters when sizing wiring and power groups. A 240W load on 12V requires about 20A, while the same theoretical load at 24V requires about 10A.

For a real sign, total electrical load normally includes more than one number.

An engineer may need to calculate:

• LED module wattage;
• total module quantity;
• LED strip length;
• neon flex length;
• controller load;
• RGB or RGBW configuration;
• number of illuminated zones;
• cable distance;
• expected voltage drop.

For channel letters, iduoduo sizes power from LED total wattage, letter quantity, cable length, system voltage, control system, indoor or outdoor use, and installation position.

A simple example:

A channel-letter set uses 90 LED modules.

If each module is rated at 0.72W:

90 × 0.72W = 64.8W LED load

The project should not immediately be paired with a 65W power supply. Operating reserve still needs to be considered.

For a light box, the calculation may look different:

8 LED rows × 12 modules per row × 1.2W per module = 115.2W

If two separate lighting zones are used, the engineer may divide the 115.2W load rather than run the entire cabinet from one output circuit.

RGB and RGBW signs also need careful calculation. Their maximum electrical demand can occur when several channels operate simultaneously. The controller and power supply must therefore be matched to the actual LED system rather than sized from a single static color mode.

The important point is simple: do not estimate power-supply size from sign width alone. Calculate the electrical load from the LEDs and control hardware actually being installed.

How Much Power Reserve Is Needed?

A power supply should not be selected so closely to the calculated load that it runs at its maximum rated output throughout normal operation.

iduoduo’s engineering guidance requires reasonable reserve and specifically states that a power supply should not operate continuously at full load.

Suppose the calculated LED load is 96W.

A 100W supply gives only 4W of nominal headroom.

A larger suitable supply may provide more operating margin, depending on:

• the selected power-supply model;
• rated operating conditions;
• ambient temperature;
• enclosure ventilation;
• controller requirements;
• cable losses;
• indoor or outdoor installation;
• manufacturer specifications.

It is tempting to apply one fixed percentage to every project, but sign conditions vary too much for a single rule to cover every case accurately.

Consider two 100W loads.

Project A:

• indoor reception logo;
• air-conditioned lobby;
• power supply in accessible cabinet;
• short 1 m low-voltage run.

Project B:

• outdoor storefront letters;
• power supply inside a raceway;
• summer heat;
• several-meter low-voltage runs;
• multiple letters on one circuit.

The electrical load may be similar, but the operating environment is not.

A practical power review should therefore look at both wattage and installation conditions.

Item	Why It Matters
Total LED wattage	Establishes base load
Power-supply rating	Sets available output
Ambient temperature	Can affect power-supply performance
Enclosure ventilation	Influences operating temperature
Cable length	Adds voltage-drop risk
Controller	Adds compatibility and load requirements
Outdoor use	Changes environmental demands
Service location	Affects cooling and maintenance

Oversizing without thought is not the answer either.

A much larger power supply may:

• cost more;
• occupy more space;
• create installation difficulties;
• require a larger enclosure;
• complicate mounting;
• add unnecessary weight.

The goal is not “the biggest power supply available.”

The goal is enough rated capacity to operate the approved LED system with sensible reserve under the expected installation conditions.

Do Large Signs Need Multiple Power Supplies?

Many large signs are more reliable and easier to install when the electrical load is divided among several power supplies or circuits.

Imagine a set of 18 channel letters installed across a 14 m storefront.

One theoretical approach is to place one very large power supply at one side and run low-voltage wiring across the entire façade.

That may look simple on a parts list, but it can create:

• long low-voltage runs;
• higher current in common conductors;
• larger voltage drop;
• more demanding wire-size requirements;
• harder troubleshooting;
• a wider outage if one supply fails;
• difficult service access.

Dividing the sign into several electrical groups usually gives the engineer more control.

For example:

Power Group	Letters	LED Load	Supply
Group A	A–D	72W	Supply 1
Group B	E–H	78W	Supply 2
Group C	I–M	84W	Supply 3
Group D	N–R	76W	Supply 4

The exact grouping depends on the actual layout, but the principle is useful.

iduoduo groups larger channel-letter systems according to factors such as:

• number of letters;
• wattage per letter;
• power-supply position;
• cable length;
• available building power;
• maintenance access;
• control requirements.

Each branch can then be documented with:

• voltage;
• wattage;
• power-supply reference;
• wire;
• polarity;
• circuit number.

Multiple supplies are also useful for fault isolation.

If one power supply fails in a four-group system, only one section may stop illuminating. The remaining groups can continue operating.

With one supply serving the entire sign, a single failure can turn off every letter.

Service becomes easier as well. Instead of tracing a long mixed circuit, an installer can identify:

“Group C / Supply 3 / Letters I–M.”

Large light boxes can benefit from the same approach. A cabinet several meters wide may be divided into left, center, and right electrical zones so cable runs remain manageable.

RGB or RGBW systems may require even more deliberate grouping because controller output limits and color-channel wiring need to be considered along with LED wattage.

The aim is not to use more power supplies for the sake of adding components. The number should follow the load, physical sign layout, wiring length, service access, and control system.

Where Should the Power Supply Be Installed?

Power-supply position can be just as important as power-supply capacity.

A correctly sized unit mounted in the wrong place can still create installation and maintenance problems.

iduoduo’s installation guidance states that the power supply should be positioned where it is dry or appropriately protected, ventilated, accessible for service, away from standing water and unnecessary long-term heat exposure, and reasonably close to the product while meeting local requirements.

Common locations include:

• inside a raceway;
• behind a removable backboard;
• inside an accessible sign cabinet;
• above an accessible ceiling;
• behind an interior brand wall;
• in a protected electrical service area.

The wrong location might be:

• permanently sealed behind finished stone;
• buried where no access panel exists;
• positioned where water can collect;
• mounted in an excessively hot enclosed cavity;
• placed so far from the LEDs that long low-voltage wiring becomes necessary.

A practical comparison shows how power-supply location changes the electrical layout.

Power-Supply Position	Low-Voltage Run	Common Result
0.5–1 m from sign	Short	Easier voltage control
Several meters away	Medium	Wire size and voltage drop need review
Long remote location	Long	May require larger cable, more circuits, or different voltage

Consider a reception logo requiring 120W.

If the power supply sits 0.5 m behind the wall, the electrical layout is straightforward.

If the same 120W power supply is placed 12 m above the ceiling because the design team wants all equipment hidden in one electrical room, the project changes. Cable size, voltage drop, route, serviceability, and possibly system voltage now require another review.

That is why “Where is the power supply?” should be answered before production, not during installation.

For outdoor channel letters, raceway-mounted installations can simplify power-supply placement because supplies and wiring can be organized within the raceway, provided access, ventilation, water management, and local electrical requirements are handled correctly.

For individual flush-mounted letters, power supplies may be located behind the wall or in another serviceable position. The exact arrangement depends on façade construction and the local installation plan.

For indoor acrylic logos, an external adapter may be suitable when it can remain hidden but accessible.

The same rule applies across all sign types:

A power supply should be close enough to control low-voltage wiring effectively, but accessible enough to be replaced later.

Before production, the RFQ or shop drawing should therefore identify, where known:

• input voltage;
• LED voltage;
• total power load;
• number of power supplies;
• proposed power-supply location;
• indoor or outdoor environment;
• approximate cable length;
• hardwired or plug-in connection;
• controller or dimmer;
• service-access location.

For larger iduoduo projects, these details are reviewed together with LED layout, circuit grouping, wire exit, mounting arrangement, and installation conditions. The objective is not merely to select a driver with enough watts. It is to create a power system that can be manufactured, tested, installed, serviced, and operated without forcing the installation team to redesign the electrical layout on site.

What Should You Confirm Before Production?

Before production, confirm the installation country, site AC voltage, LED system voltage, plug-in or hardwired connection, plug type, power-supply location, wire exit, cable length, mounting method, indoor or outdoor use, controls, grounding, and certification requirements. A complete electrical specification reduces factory guesswork and prevents field changes after the sign reaches the installation site.

What Site Power Details Should You Provide?

The factory needs site information that cannot be calculated from the logo drawing alone.

A useful electrical specification should include:

• installation country;
• available AC input;
• site frequency if relevant;
• plug-in or hardwired connection;
• outlet or junction-box location;
• proposed power-supply position;
• indoor or outdoor installation;
• required certification scope.

For example:

“Outdoor channel letters, Dallas, USA, 120V AC, hardwired, power supplies inside raceway, final connection by local electrician.”

A line like “Voltage: 120V” is much weaker because it leaves the LED voltage, connection method, power-supply position, and installation interface undefined.

iduoduo’s RFQ requirements include voltage, plug type, power-supply position, wire exit, mounting method, waterproof requirement, certification requirement, destination country, and delivery date.

A practical pre-production record can look like:

Item	Example
Country	USA
Site input	120V AC
LED system	24V DC
Connection	Hardwired
Power supply	Inside raceway
Use	Outdoor
Mounting	Raceway
Wire exit	Rear center
Control	On/off only

The installation country matters more than the purchasing office location. A sign company in Canada may order a project for Dubai. A design studio in Germany may be managing a store in the UK. Input voltage and plug type should therefore follow the real installation site, not the billing address. iduoduo’s engineering guidance specifically states that input voltage should be confirmed from the actual market and site conditions rather than assumed.

How Should Wire Exit and Cable Length Be Specified?

Wire exit and cable length are easy to overlook during quotation, but both can create major installation problems.

The wire exit determines where the electrical cable leaves the finished sign. For channel letters, it needs to coordinate with the installation template, wall penetration, raceway, or backboard. For acrylic logos and neon signs, the exit often needs to stay hidden behind the product or leave from a specific edge.

A production drawing should show:

• exit position;
• exit direction;
• cable type;
• approximate cable length;
• positive and negative polarity where relevant;
• connector position;
• power-supply location.

Consider a reception logo mounted on stone.

If the wire exit is placed in the center of the logo but the building power point sits 400 mm to the right, the installer may need to drill another hole through finished stone. A small drawing error can become a visible site modification.

Cable length also affects electrical performance.

Long low-voltage runs can increase voltage drop. iduoduo’s engineering rules specifically consider cable length, current, wire size, circuit grouping, and power-supply position together.

A useful project table is:

Item	Confirm Before Production
Wire exit	Exact location on drawing
Cable length	Approximate required length
Voltage	12V or 24V DC
Wire size	Based on load and distance
Power supply	Distance from sign
Circuit groups	Numbered if multiple
Connector	Type and location

For large channel letters or light boxes, one cable length for the whole sign may be meaningless. Each electrical group may have a different run and should be reviewed separately.

Do RGB, RGBW, or Dimming Systems Change the Setup?

Yes. Color-changing and dimmable signs need a more complete electrical specification than a standard single-color sign.

An RGB system commonly requires:

• compatible RGB LEDs;
• matching voltage;
• controller;
• power supply;
• several control channels;
• remote or app control;
• labelled wiring.

RGBW adds a separate white channel, so the electrical layout becomes more complex again.

A static white sign may have a simple path:

Power Supply → LED

An RGBW sign may look more like:

Power Supply → RGBW Controller → Multiple Color Channels → LEDs

Large systems may also need several power groups.

Sign Type	Typical Electrical Items
Single-color LED	Power supply + LEDs
Dimmable white	Power supply + dimmer + LEDs
RGB	Power supply + RGB controller + LEDs
RGBW	Power supply + RGBW controller + LEDs
Large RGB/RGBW	Multiple supplies + controllers + circuit groups

Controller capacity must be checked against the actual LED load. A controller rated below the connected current can overheat, reset, or fail.

Wire identification is equally important. iduoduo’s electrical guidance allows project-based management of positive, negative, RGB channels, white channels, input, output, grounding, and control wiring.

Before production, the project should state whether the sign needs:

• fixed color;
• dimming;
• RGB;
• RGBW;
• remote control;
• app control;
• zoning;
• synchronized multi-sign control.

iduoduo supports RGB, RGBW, dimming, remote control, app control, zoning, and project-specific systems. Illuminated signs are also checked for control function, brightness, color consistency, hot spots, dark areas, and batch stability during production testing.

Is the Sign Indoor or Outdoor?

Indoor and outdoor signs should not use the same electrical assumptions.

An indoor reception logo may operate in a clean, air-conditioned space with an accessible adapter. An outdoor channel-letter set may face rain, heat, condensation, UV exposure, temperature changes, and water around wall penetrations.

Outdoor projects need more attention to:

• power-supply protection;
• cable entry;
• connector protection;
• drainage;
• sealing;
• service access;
• wall penetration;
• grounding;
• local electrical rules.

Power-supply position is especially important.

iduoduo’s installation guidance states that the power supply should remain dry or appropriately protected, ventilated, accessible for service, away from standing water and excessive long-term heat, and located reasonably close to the product.

A simple comparison:

Condition	Indoor Sign	Outdoor Sign
Rain exposure	Low	Possible
Condensation	Limited	Higher risk
Wall penetration sealing	Often simple	Critical
Power-supply protection	Standard indoor conditions	Environment-specific
Drainage	Rarely needed	Often important
Service access	Usually easier	Must be planned

“Outdoor” should therefore appear in the RFQ before electrical components are selected.

The same applies to waterproofing. Factory waterproof construction does not automatically make the complete installed system waterproof. Cable holes, wall penetrations, junction areas, mounting holes, and site wiring still need proper treatment during installation.

Which Electrical Certification Is Required?

Certification requirements should be confirmed before quotation or engineering approval, not after production.

Depending on the destination and project documents, the electrical package may require:

• UL-related power supplies;
• CE-related components;
• RoHS-related materials or documentation;
• a specified power-supply brand or model;
• project-specific electrical documentation.

iduoduo can configure UL-, CE-, or RoHS-related components where appropriate, but the company’s engineering documentation makes one important distinction: using a certified power supply does not automatically mean the complete custom sign carries the same finished-product certification.

That difference matters on commercial projects.

Certification Question	What Should Be Confirmed
Power supply	Required certification or listing
LED components	Any specified requirement
Wiring	Project or local requirement
Finished sign	Separate approval requirement?
Site installation	Local electrical inspection?
Documentation	What records must be supplied?

Instead of writing:

“Need UL.”

A stronger RFQ is:

“US storefront project. UL-related power supply required. Please confirm whether any finished-sign listing is included or handled separately by the local sign company.”

The same logic applies to CE-related projects.

Electrical compliance often involves several layers: components, the finished product, building wiring, installation method, local inspection, and permit requirements. A factory can control the manufactured sign and supplied electrical package, but it cannot certify hidden building wiring or final site work performed elsewhere.

Before production begins, the project team should know exactly which certification applies to which part of the electrical system. That avoids one of the most expensive late-stage problems in international sign manufacturing: discovering after completion that the selected power supply or documentation does not match the project requirement.

How Do You Prevent Installation Problems?

Prevent installation problems by approving the electrical drawing, voltage, power-supply layout, circuit groups, wire exits, cable lengths, mounting interface, control system, and connection method before production. The factory should test the finished sign against the approved configuration, while the local installation team verifies the building power, wall conditions, grounding, permits, and final electrical connection on site.

What Should Be Shown on the Electrical Drawing?

A useful electrical drawing should answer the questions an installer will have before the sign is lifted onto the wall.

For a small wall logo, the drawing may be simple. For channel letters, large light boxes, RGB signs, or a multi-power-supply system, the drawing should show much more than one voltage number.

At minimum, the electrical information should make the following items clear:

Item	What the Drawing Should Show
Site input	120V, 230V, or other approved AC input
LED voltage	12V DC or 24V DC
Power supplies	Quantity and identification
Power groups	Which letters or zones belong to each supply
Wire exits	Exact position and direction
Cable route	Approximate path where relevant
Polarity	Positive and negative identification
Controls	Dimmer, RGB/RGBW controller, switch
Connection	Plug-in or hardwired
Service point	Where power supplies remain accessible

For example, a 12-letter storefront should not arrive with four power supplies and no indication of which supply feeds which letters.

A clearer drawing might identify:

Power Supply 1 → Letters A–C
Power Supply 2 → Letters D–F
Power Supply 3 → Letters G–I
Power Supply 4 → Letters J–L

Each branch can then carry a circuit number that matches wire labels and installation notes.

iduoduo’s engineering guidance requires larger electrical branches to identify voltage, power, power supply, wire, polarity, and circuit number.

Wire exits also need to coordinate with mounting holes and wall conditions. An electrically correct sign can still become difficult to install if the cable exits directly over:

• a steel beam;
• a stone joint;
• a glass panel;
• hidden plumbing;
• an existing electrical conduit;
• a location with no rear access.

iduoduo’s installation guidance specifically requires the site team to check wall wiring, pipes, framing, façade structure, stone joints, glass, power points, templates, studs, and anchoring conditions before drilling.

For repeat programs, electrical drawings are also valuable records. Instead of relying on memory, a sign company can identify which power supply, cable exit, or circuit layout was used on the previous store and then confirm whether the next location uses the same conditions.

Are UL, CE, or RoHS Components Enough?

Using a certified component does not automatically give the complete custom sign the same certification status.

That distinction needs to be clear before production.

A commercial sign may contain several electrical layers:

• LED modules or neon flex;
• power supplies;
• controllers;
• wires;
• connectors;
• metal enclosure;
• finished sign assembly;
• building circuit;
• grounding;
• final installation.

A power supply may carry a certification or conformity mark, while the finished sign may have a separate approval requirement. iduoduo’s documented engineering position specifically states that certification on supplied components should not be presented as automatic certification of the complete sign.

A useful project checklist is:

Question	Confirm Before Production
Does the power supply need a specified certification?	Yes / No
Is a specific model required?	Yes / No
Are component records required?	Yes / No
Does the finished sign require separate listing or approval?	Confirm locally
Does installation require inspection?	Confirm locally
Who handles permits and final electrical approval?	Assign responsibility

A vague note such as:

“UL required”

can still leave major questions unanswered.

A stronger note is:

“US storefront project. UL-related power supply required. Final sign listing, site wiring, and local inspection to be confirmed by the sign company and installer.”

The same logic applies to CE- or RoHS-related requirements.

The goal is not to add more paperwork. The goal is to avoid discovering after fabrication that the specified power supply, controller, or documentation does not match the project requirement.

Certification questions should therefore be sent with the RFQ or shop-drawing review, not after the cartons are closed.

Who Should Complete Final Site Wiring?

The factory should prepare the product-side electrical system. The local qualified team should complete the building-side electrical work.

iduoduo can prepare:

• LED wiring;
• power supplies;
• controllers;
• low-voltage circuits;
• wire exits;
• labelled cables;
• plug configurations;
• hardwire preparation;
• shop drawings;
• mounting templates;
• installation information.

The local installation team remains responsible for site conditions the factory cannot inspect directly, including:

• final wall measurement;
• hidden wiring;
• wall construction;
• building supply;
• grounding;
• breakers;
• anchoring;
• permits;
• wall penetrations;
• final electrical connection;
• local code requirements;
• installation acceptance.

iduoduo’s installation records explicitly separate factory-prepared interfaces from local responsibilities such as wall confirmation, anchoring, permits, final connection, local rules, and final acceptance.

A practical division of work can look like:

Factory Scope	Local Installation Scope
LED assembly	Building supply verification
Power-supply selection	Breaker and circuit check
Low-voltage wiring	Final AC connection
Circuit labels	Grounding
Wire exits	Wall penetrations
Templates	Anchor selection
Controllers	Permit requirements
Electrical drawings	Final inspection

That division becomes especially important on hardwired signs.

For example, iduoduo may supply a 24V channel-letter system with three power supplies prepared for 120V AC input. The factory can test the supplies and low-voltage system before shipment. The local electrician still needs to verify that the available building circuit is correct before connecting the finished installation.

The same principle applies to outdoor signs. A factory can prepare weather-resistant product construction, but final sealing around wall penetrations and site wiring still depends on the real façade and installation method.

A clear responsibility split reduces arguments later because every party knows which part of the electrical chain it controls.

How Do You Check Voltage Drop Before Installation?

Voltage drop should be reviewed from the planned cable route before the sign is manufactured.

Waiting until the last letters appear dim after installation is too late.

Low-voltage drop becomes more likely when:

• the cable run is long;
• current is high;
• the wire is too small;
• too many LEDs share one branch;
• the power supply is far from the sign;
• several connectors are placed in one long path.

iduoduo identifies the following field symptoms as possible signs of voltage drop:

• distant LEDs becoming dimmer;
• uneven brightness between letters;
• RGB color differences;
• white-light variation;
• controller resets;
• reduced brightness at the end of a large neon run.

The electrical relationship explains why voltage selection matters.

For a theoretical 240W load:

System	Current
12V	20A
24V	10A

At the same wattage, the 24V circuit carries roughly half the current.

Lower current can make long low-voltage runs easier to manage, provided the LEDs, power supply, controller, and dimmer are all designed for 24V.

Before production, the engineer should review:

• total wattage per branch;
• system voltage;
• estimated cable length;
• wire size;
• power-supply position;
• number of circuit groups;
• number of feed points.

When a circuit appears too long or heavily loaded, common corrections include:

• move the power supply closer;
• increase conductor size;
• split the load;
• add power groups;
• add feed points;
• reduce long daisy-chain runs;
• use an appropriate 24V system.

iduoduo’s electrical guidance lists larger wire size, shorter runs, more power groups, closer power-supply placement, lower branch load, additional feeds, and suitable 24V systems among the available ways to control voltage drop.

For a long channel-letter façade, dividing twelve letters into three or four groups may be more practical than feeding every letter from one end of the building.

The important check is not simply “Does the power supply have enough watts?”

The real question is:

“Will the required voltage still reach every LED after the actual cable distance and load are considered?”

What Should Be Approved Before Production?

The final approved specification should remove the assumptions most likely to cause field changes.

For an illuminated sign, the production file should confirm:

• sign dimensions;
• letter or logo layout;
• indoor or outdoor use;
• LED color or color temperature;
• LED system voltage;
• building input requirement;
• plug-in or hardwired connection;
• plug type where required;
• power-supply quantity;
• power-supply position;
• circuit grouping;
• controller or dimmer;
• wire exit;
• cable length where critical;
• mounting method;
• template;
• certification requirement;
• destination country.

A practical approval table might look like:

Item	Approved Specification
Product	Front-lit channel letters
Size	4,800 mm overall width
Use	Outdoor
Input	120V AC
LED system	24V DC
Supplies	3
Connection	Hardwired
Power location	Inside raceway
Control	On/off
Wire exits	Rear
Mounting	Raceway
Market	USA

Once these details are frozen, production and QC can work against one approved standard instead of checking scattered email messages.

Final electrical verification should also happen before shipment.

iduoduo’s quality process includes incoming material inspection, first-article approval, in-process checking, dimensional and appearance inspection, electrical and functional verification, 100% lighting inspection, accessory checking, packaging inspection, reinspection after rework, and traceable product release.

Illuminated signs also undergo 72-hour pre-shipment testing after the 100% lighting inspection.

The test is used to observe:

• LED stability;
• power-supply stability;
• controller operation;
• flickering;
• early component failure;
• color differences;
• local dark areas;
• abnormal heating;
• wiring connections.

If a fault appears, the affected part is repaired or replaced and checked again.

Factory testing cannot predict every site condition, but it removes a major group of avoidable problems before international shipment.

A reliable installation therefore starts well before anyone drills the wall. It starts when voltage, power, wiring, mounting, controls, and responsibilities are converted from assumptions into approved production information.

Need Help Confirming Your Sign’s Electrical Setup?

If you are preparing a custom illuminated sign project, send iduoduo your logo or drawing, target size, quantity, installation country, indoor or outdoor location, available site voltage, preferred plug or hardwired connection, mounting method, and project schedule. If some electrical details are still unknown, they can be reviewed together with the sign structure, LED system, power-supply position, wire exit, and installation conditions before production.

iduoduo manufactures custom LED neon signs, channel letters, light boxes, acrylic LED logos, and other illuminated signage with project-specific 12V or 24V systems, international input configurations, plug options, controllers, and wiring layouts. The goal at quotation stage is to clarify the electrical interface early enough for the sign to be manufactured, tested, shipped, and installed with fewer on-site changes.

For a quotation, share the available project files and the installation information you already have. The engineering team can then identify any missing electrical or mounting details that should be confirmed before a final production specification is approved.
