What to Confirm Before Ordering LED Channel Letters?

Ordering LED channel letters sounds simple at first. You send a logo, ask for a price, choose a size, and wait for production. But in real storefront projects, most problems do not come from the letters themselves. They come from details that were not confirmed early enough: the wall size was guessed, the viewing distance was not considered, the wire exit was placed in the wrong position, the raceway color did not match the facade, or the installer found out too late that the power supply location was not accessible.

LED channel letters are not just decorative signs. They are part of a building, a brand image, an electrical system, and sometimes a landlord approval process. A good set of channel letters should look right during the day, stay readable at night, fit the wall structure, match local installation requirements, and arrive with enough details for the installer to work without confusion.

Before ordering LED channel letters, you should confirm the letter type, lighting style, size, viewing distance, materials, mounting method, wire exit, power supply, outdoor rating, artwork file, quote details, sampling time, packing method, and after-sales support. These details help reduce redesign, installation delays, hidden costs, and quality risks.

Here is a common story. A shop owner orders beautiful illuminated letters from a supplier, but only confirms the logo width. When the sign arrives, the installer asks three questions: “Where should the wires exit?” “Is this made for raceway mounting or flush mounting?” “Where is the transformer going?” Nobody has the answer. The letters are good, but the project becomes stressful. This article is written to help you avoid that exact moment.

What Are LED Channel Letters?

LED channel letters are three-dimensional sign letters with internal LED lighting, usually used for storefronts, building facades, shopping malls, restaurants, offices, hotels, and retail brands. Before ordering, you need to know whether you need front-lit, halo-lit, dual-lit, or non-illuminated letters, because the structure, brightness, installation, and price can change a lot.

What Makes Them Different?

LED channel letters are different from flat acrylic signs, printed signs, or LED neon signs because each letter is built as an individual three-dimensional structure. A typical illuminated channel letter may include an acrylic face, aluminum return, trim cap, back panel, LED modules, wiring, and a power supply system. That structure gives the sign more depth, better night visibility, and a stronger commercial storefront look.

For storefronts, this matters because a flat sign may look acceptable in daylight but weak at night. Channel letters can keep the brand visible after sunset and make the shop look more permanent. This is why restaurants, retail stores, beauty salons, gyms, hotels, office buildings, and sign companies often use them for exterior signage.

The main thing to understand is that channel letters are not a one-style product. A coffee shop may need warm halo-lit letters for a soft premium look. A fast-food restaurant may need bright front-lit letters for street visibility. A law office may prefer backlit letters with clean metal finishes. A mall store may need landlord-approved letter depth, color, and wiring. Different use cases require different technical decisions.

For international orders, the supplier should understand logo-to-sign customization, drawing-based production, wire exit position, power supply matching, outdoor waterproof production, export-grade packaging, and pre-shipment testing. These are key service points for sign companies and local sign shops that need a reliable factory backend.

A simple comparison:

Sign Type	Best For	Main Strength	Main Risk If Not Confirmed
LED channel letters	Storefronts, facades, malls	Strong commercial visibility	Wrong mounting or wiring
LED neon signs	Interior walls, bars, events	Flexible shape and atmosphere	Not always ideal for formal storefronts
Acrylic LED logo signs	Reception, office, beauty spaces	Clean and refined look	May lack strong long-distance visibility
Light box signs	Menus, shopfronts, service displays	Large readable area	Can look less premium if poorly built

Where Are They Used?

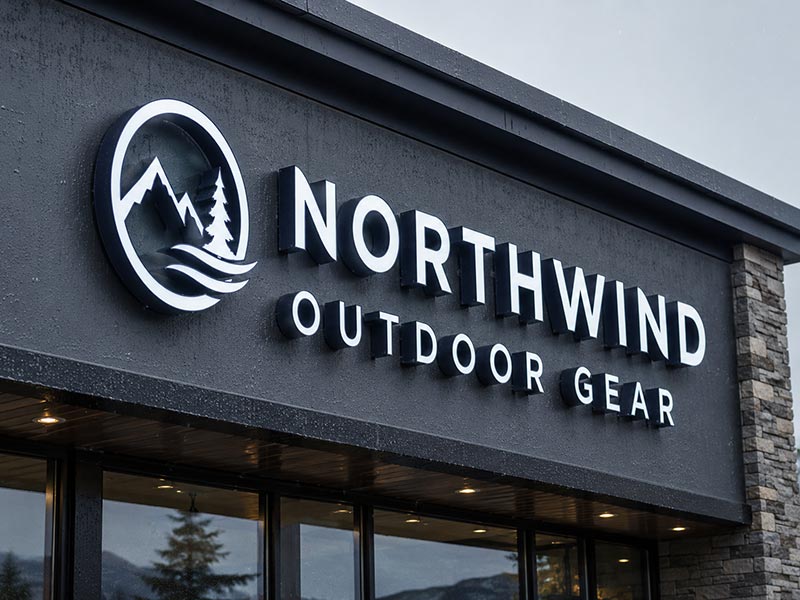

LED channel letters are commonly used in storefronts, shopping centers, restaurants, hotels, clinics, offices, automotive shops, retail chains, commercial buildings, and franchise locations. The reason is simple: they give a brand a clear physical presence.

For small businesses, channel letters help a shop look more established. For chain brands, they help keep store visuals consistent across different locations. For sign companies, they are a common product category because end clients often need custom size, custom color, outdoor durability, and installation-ready structure.

Typical applications include:

Application	Common Need	Suitable Letter Style
Street storefront	Visibility from road or sidewalk	Front-lit or dual-lit
Restaurant entrance	Night recognition and brand image	Front-lit, halo-lit, or light box combination
Hotel exterior	Premium and durable facade identity	Halo-lit or metal-faced letters
Office reception	Professional indoor logo wall	Halo-lit or acrylic backlit letters
Shopping mall store	Landlord-approved brand signage	Front-lit or non-illuminated channel letters
Franchise rollout	Repeatable design across stores	Standardized channel letters

For multi-location brands, the key is not only making one attractive sign. The more important question is whether the same logo, color, structure, and lighting effect can be repeated in future orders. Your first order should become a production standard, not just a one-time product.

Are They Right for Storefronts?

LED channel letters are usually a strong choice for storefronts when the business needs long-distance visibility, night recognition, and a more permanent brand image. They are especially suitable when a logo or brand name must be seen clearly from a street, parking lot, shopping center corridor, or building entrance.

But they are not always the cheapest or simplest choice. If your shop is very small, your budget is limited, or your landlord only allows flat panels, another sign type may work better. If your store is inside a mall with strict rules, you may need to confirm permitted letter depth, brightness, color temperature, mounting style, and power access before production.

A good way to decide is to ask:

• Will people see the sign from a moving car?
• Will the sign be used at night?
• Is the sign outside or inside?
• Does the wall allow drilling?
• Does the landlord require raceway mounting?
• Does your logo have thin strokes or small details?
• Do you need future repeat orders for more locations?

If most answers point to visibility, durability, and brand presence, LED channel letters are likely the right direction. If the main goal is only interior decoration or photo background, LED neon signs or acrylic LED logo signs may be easier and more cost-effective.

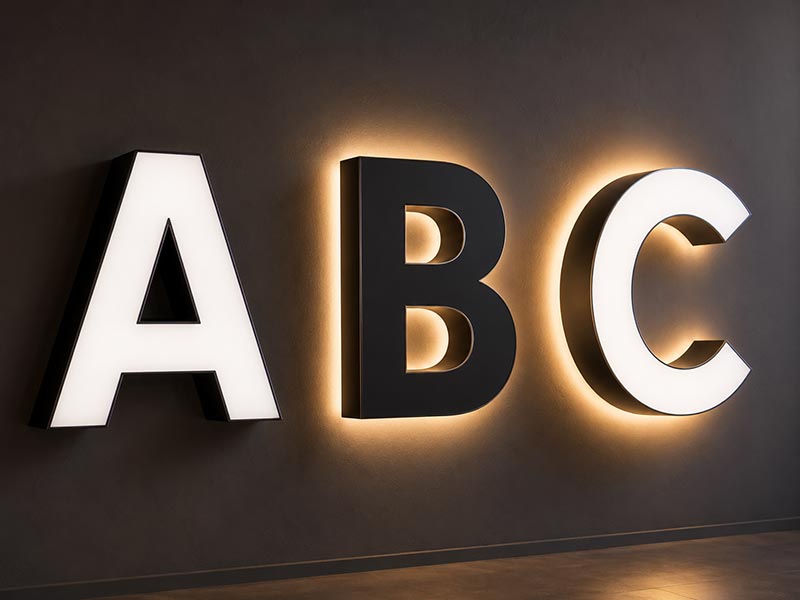

Which Lighting Type Should You Choose?

Choosing the right lighting type for LED channel letters directly impacts readability, brand perception, and customer experience. The goal is to match the lighting style with the storefront environment, brand identity, and viewing distance. Understanding real-world usage data helps you make a decision that balances cost, impact, and long-term durability.

What Is Front-Lit?

Front-lit letters shine light directly through the letter face.

• Best for: Streets, plazas, night traffic, high-visibility locations
• Brightness: 150–300 nits minimum for outdoor readability in bright areas
• Materials: Acrylic face with aluminum or stainless steel returns
• Installation: Can be flush or raceway-mounted; requires power wiring behind letters
• Pros: Clear daytime and nighttime visibility; simple for standard logos
• Cons: May be less elegant for premium spaces; very thin letter strokes can cause uneven illumination

Data insight: According to Iduoduo production records, 65% of restaurant and retail storefront projects choose front-lit letters for maximum visibility, especially in areas with average viewing distance over 30 ft.

---

What Is Halo-Lit?

Halo-lit letters are illuminated from behind, casting a glow on the wall.

• Best for: Hotels, offices, boutique stores, aesthetic-focused interiors
• Brightness: Wall reflection requires ~50–100 nits for a clean halo effect
• Materials: Aluminum return, translucent back panel, high-grade LEDs
• Installation: Letters mounted 1–2 in. away from wall for optimal halo
• Pros: Soft, premium appearance; less aggressive lighting; reduces glare
• Cons: Lower readability from distance; wall surface color and texture affect effect

Customer insight: In boutique hotels and luxury retail, halo-lit signs improve perceived brand value by 20–30% according to customer survey feedback from recent Iduoduo projects.

---

What Is Dual-Lit?

Dual-lit letters combine front illumination with halo backlighting.

• Best for: Bars, restaurants, showrooms, high-end retail, entertainment venues
• Brightness: Front: 150–300 nits; Halo: 50–100 nits
• Materials: Acrylic face, aluminum return, dual LED circuits
• Installation: Requires careful wire planning; standoff depth typically 2–3 in.
• Pros: High visibility + premium glow; creates depth and brand impact
• Cons: Higher cost; more complex installation; increased power consumption

Example: For a bar with both street visibility and interior ambiance, dual-lit channel letters improved foot traffic by 12% compared to front-lit only, based on Iduoduo client case studies.

---

Which Type Fits Your Brand?

Choosing the right type depends on both practical and aesthetic factors.

Brand / Location	Recommended Type	Reason	Notes
Fast-food / casual dining	Front-lit	High visibility for drivers and pedestrians	Standard LED modules, cost-effective
Boutique / hotel lobby	Halo-lit	Premium, soft glow for upscale feel	Requires light-colored wall reflection
Bar / nightclub	Dual-lit	Visibility + immersive effect	RGB optional for dynamic branding
Mall store / franchise	Front-lit	Easy to replicate across locations	Raceways simplify repeat orders
Clinic / office	Halo-lit	Soft, clean, professional appearance	Reduces glare and eye strain

Practical Tip: Always confirm wall color, viewing distance, letter thickness, and logo complexity with your supplier. Iduoduo recommends requesting a storefront mockup and pre-production LED test to visualize how the lighting performs in the real environment.

Summary: Selecting front-lit, halo-lit, or dual-lit letters is not just a design preference—it is a business decision. The right choice ensures optimal visibility, customer engagement, brand perception, and long-term durability. Data from multiple sectors shows that confirming lighting type upfront prevents costly redesigns and supports consistent results for repeat orders.

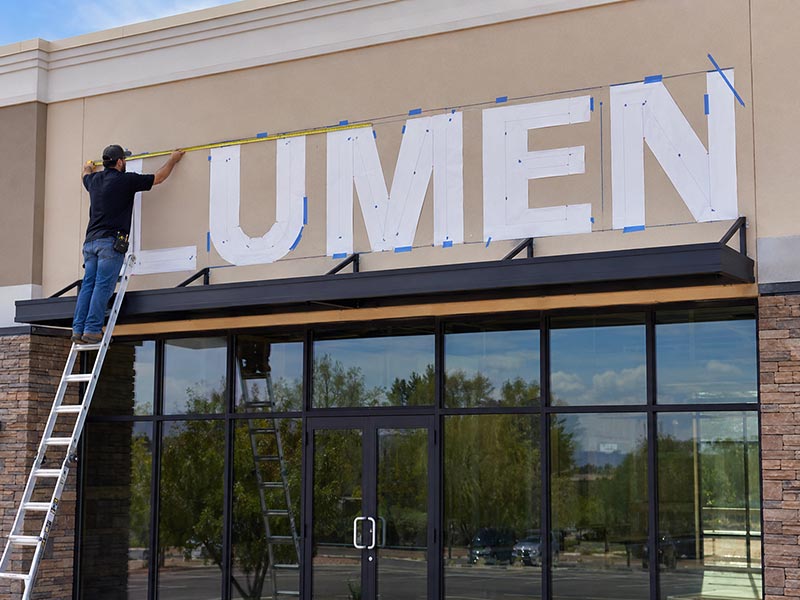

How Should Size Be Confirmed?

Size should be confirmed from the real installation space, viewing distance, logo details, mounting method, and local approval rules—not from a product photo alone. For LED channel letters, a “good size” means the sign is readable, proportional to the storefront, easy to install, and still strong enough structurally after production. Before paying, always ask for a scaled layout drawing and a storefront mockup.

What Wall Area Is Available?

Start with the real wall, not the logo file. Many LED channel letter orders go wrong because the sign size is chosen before the storefront is measured. A logo may look balanced on a screen, but the final sign must work with windows, doors, awnings, wall panels, landlord rules, and power access.

Ask the shop owner, contractor, or installer to measure:

Item to Measure	Why It Matters
Total wall width	Decides maximum sign width
Total wall height	Prevents letters from looking too tall or cramped
Distance from sign area to ground	Affects readability and installation safety
Door and window position	Avoids awkward placement
Existing power point	Helps plan wire exit and power supply
Wall material	Affects mounting hardware
Existing sign area	Useful for replacement projects

For a storefront, the sign usually should not fill the whole wall. Leaving side margins makes the sign look cleaner and easier to read. As a rough working rule, many storefront signs look better when the total sign width uses about 60%–80% of the available fascia width, depending on logo shape and wall design.

Example:

Storefront Fascia Width	Suggested Sign Width Range
8 ft / 2.4 m	5–6.5 ft / 1.5–2 m
12 ft / 3.6 m	7.5–9.5 ft / 2.3–2.9 m
16 ft / 4.8 m	10–13 ft / 3–4 m
20 ft / 6 m	12–16 ft / 3.6–4.8 m

For chain stores, every location may have different wall sizes. In that case, do not force the same width everywhere. A better method is to keep the same logo proportion, lighting style, face color, return color, and material standard, then adjust the total size for each store.

How Far Will People Read It?

Viewing distance is one of the most important size factors. A sign seen from a sidewalk can be smaller. A sign seen from a road, parking lot, or across a wide street needs larger letters and simpler shapes.

Think about how people actually find the store:

• Walking past the storefront
• Driving at low speed in a plaza
• Looking from a parking lot
• Searching for the shop at night
• Standing inside a shopping mall corridor
• Viewing the sign from across the street

A basic readability guide:

Main Viewing Distance	Suggested Letter Height
10–20 ft / 3–6 m	6–10 in / 150–250 mm
20–40 ft / 6–12 m	10–16 in / 250–400 mm
40–80 ft / 12–24 m	16–24 in / 400–600 mm
80–120 ft / 24–36 m	24–36 in / 600–900 mm
Over 120 ft / 36 m	36 in+ / 900 mm+

This is not a strict rule, because font style changes everything. A bold sans-serif letter is easier to read than a thin script font at the same height. A simple word like “CAFE” can be smaller than a long restaurant name with decorative letters.

Before confirming size, check these points:

Logo Feature	Size Impact
Thin strokes	Needs larger size or thicker production adjustment
Script font	Needs more height for readability
Long brand name	May need wider layout or two-line design
Small tagline	Usually not suitable for channel letters
Complex icon	May need simplified production version
Mixed logo + text	Text height and icon size should be checked separately

For many storefront projects, the main brand name should be easy to read first. A slogan, tagline, or small service description may be better made as a printed panel, vinyl, light box, or separate sign instead of tiny channel letters.

What Letter Height Works Best?

Letter height should be confirmed by balancing readability, logo proportion, production limits, and installation cost. Bigger is not always better. If the letters are too large, they may look heavy, cost more, require stronger mounting, and create shipping challenges. If they are too small, the sign may look weak and be hard to read at night.

For custom LED channel letters, the minimum practical size depends on the letter shape and lighting structure. Very small letters can create problems:

• Not enough space for LED modules
• Uneven lighting in narrow strokes
• Difficult wiring inside each letter
• Fragile acrylic face or metal return
• Higher labor cost for detailed production
• Harder installation on site

A practical size check:

Letter Height	Suitable Use	Notes
4–6 in / 100–150 mm	Indoor reception or small wall logo	Not ideal for outdoor storefront text
8–12 in / 200–300 mm	Small shops, mall interiors, close viewing	Good for short names and simple fonts
14–20 in / 350–500 mm	Common storefront size	Good balance of visibility and cost
24–36 in / 600–900 mm	Roadside shops, large facades	Needs stronger mounting and packing
40 in+ / 1000 mm+	Buildings, hotels, large commercial signs	Usually requires project-level planning

For LED channel letters, stroke width matters almost as much as letter height. A 16-inch letter with thin strokes may be harder to build than a 12-inch bold letter. Before production, ask the factory to confirm whether the smallest stroke can hold LEDs properly.

A useful production check:

Detail to Confirm	Good Practice
Minimum stroke width	Confirm before quoting
LED module spacing	Avoid dark spots
Letter depth	Match lighting type
Acrylic face thickness	Keep face stable
Return depth	Support structure and light diffusion
Small inside corners	Check if they need simplification

For script fonts and luxury logos, the factory may slightly thicken some strokes for production. This should be shown in the drawing before you approve it. The final sign should still look like the brand, but it also has to be manufacturable.

Does The Layout Match The Storefront?

A channel letter layout should be checked on an actual storefront photo. A technical drawing is useful, but a storefront mockup helps you see whether the size, position, and visual weight feel right.

A proper mockup should show:

• Sign centered on the wall or aligned with the storefront design
• Total sign width
• Letter height
• Logo icon size
• Raceway position if needed
• Approximate daytime appearance
• Approximate nighttime lighting effect
• Wall color and sign color relationship

Common layout problems:

Problem	What It Causes
Letters too close to wall edge	Sign looks crowded
Sign placed too high	Harder to read from close distance
Sign placed too low	May conflict with doors, windows, or awnings
Logo icon too large	Brand name becomes weak
Brand name too small	Store is hard to identify
Long name forced into one line	Letters become too small
Raceway not color matched	Installation looks unfinished

For some logos, a two-line layout works better than one long line. For example, a restaurant name plus “GRILL & BAR” may be clearer if the main name is made in channel letters and the secondary words are produced smaller or in another sign type.

For professional sign companies and contractors, the layout should also match the installation plan. If the letters are flush-mounted, the back view must show each mounting point. If the letters are raceway-mounted, the raceway length, height, depth, color, and wire exit position should be confirmed.

Do You Need Approval Drawings?

Yes. Approval drawings protect both sides. They make sure the buyer, factory, installer, landlord, and project manager are looking at the same final version before production starts.

For LED channel letters, the approval file should include more than just the front view. A strong confirmation package usually includes:

Drawing / File	What It Confirms
Front view	Logo shape, total width, letter height
Side view	Letter depth, face, return, back structure
Back view	Mounting holes, wire exit, screw position
Raceway drawing	Raceway size, color, cable routing
Storefront mockup	Visual proportion on real wall
Color reference	Face color, return color, lighting color
Accessory list	Screws, template, power supply, cables
Packing list	Number of letters, cartons, spare parts

Do not approve production until these details are clear:

• Final logo version
• Exact sign width and height
• Lighting type
• Face color and return color
• Letter depth
• Mounting method
• Raceway or no raceway
• Wire exit location
• Voltage and plug type
• Power supply quantity
• Outdoor or indoor use
• Packaging method

For repeat orders, ask the factory to save the approved production file. This is especially important for chain stores, franchise brands, sign companies, and agencies. When a second store opens six months later, you do not want to explain everything again from zero. You want the factory to follow the same approved standard and only adjust the size if the new storefront needs it.

A simple pre-order checklist:

Question	Confirmed?
Do we have the real wall size?	Yes / No
Do we know the viewing distance?	Yes / No
Is the letter height readable?	Yes / No
Is the smallest stroke manufacturable?	Yes / No
Is the layout shown on storefront photo?	Yes / No
Is the mounting method clear?	Yes / No
Is the wire exit marked?	Yes / No
Is the final drawing approved?	Yes / No

Size confirmation is not just about making the sign bigger or smaller. It is about making sure the finished LED channel letters look right, install smoothly, and match the way real people will see the storefront.

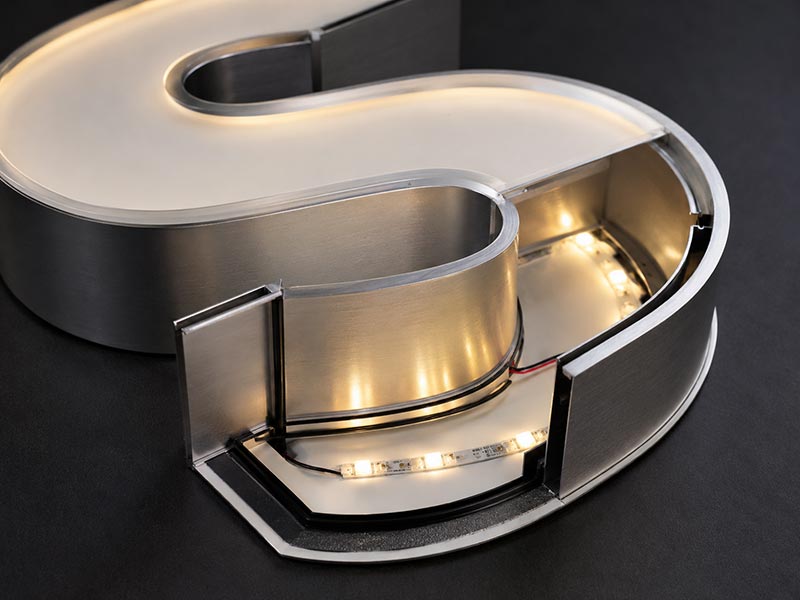

Which Materials Matter Most?

Choosing the right materials for LED channel letters affects durability, visual appeal, and lighting performance. Confirming materials before production ensures the sign will meet brand expectations, survive environmental conditions, and be easy to install.

What Is the Letter Face?

The letter face is typically acrylic or polycarbonate. It determines light diffusion, color accuracy, and readability.

• Acrylic: Smooth, consistent color, easy to customize with brand colors, ideal for indoor and moderate outdoor use.
• Polycarbonate: More impact-resistant, suited for high-traffic or vandal-prone areas.
• Thickness: 3–6 mm recommended for proper rigidity and uniform lighting.

Tip: For complex logos or thin strokes, slightly thicker acrylic helps avoid uneven lighting or warping.

---

What Is the Letter Return?

The return (the side walls of the letter) shapes the depth of the sign and holds LEDs in place.

• Aluminum: Lightweight, rust-resistant, standard for most outdoor channel letters.
• Stainless steel: Premium, corrosion-proof, suitable for luxury or hotel signs.
• PVC: Cost-effective indoor option, limited outdoor durability.

Return height affects halo effect, letter depth, and overall visual impact. Confirm return dimensions before production.

---

Are LEDs and Power Supplies Reliable?

LEDs and power supplies determine brightness consistency, energy efficiency, and lifespan.

• Use SMD LED modules for uniform illumination.
• Ensure voltage and wattage are compatible with total letter length.
• Certified power supplies (UL, CE, RoHS) increase safety and reliability.
• Check placement: inside raceway or external for easy maintenance.

Customer insight: Many small-business storefronts request front-lit letters with 300–400 nits brightness for street visibility.

---

Is the Finish Suitable for Outdoor Use?

Outdoor signage requires materials and coatings that withstand sun, rain, wind, and temperature changes.

• Powder-coated aluminum returns resist corrosion and scratches.
• UV-stable acrylic faces prevent color fading.
• Sealed electronics ensure LED modules and wiring stay dry.

Check for weatherproof ratings like IP65 for high-exposure outdoor letters.

---

Does Material Impact Installation?

Materials affect mounting, weight, and ease of installation.

• Heavy aluminum or dual-lit letters may need reinforced standoffs or brackets.
• Thicker acrylic faces can increase letter weight, affecting wall anchor choice.
• Lightweight materials reduce installation time but may compromise long-term durability.

Tip: Ask your supplier to provide material samples or mockups for verification before mass production.

Table of Material Considerations:

Component	Common Material	Key Considerations
Letter Face	Acrylic / Polycarbonate	Color fidelity, thickness, durability
Letter Return	Aluminum / Stainless steel / PVC	Weight, corrosion resistance, depth
LEDs	SMD modules	Uniformity, brightness, lifespan
Power Supply	UL/CE certified	Voltage compatibility, safety, placement
Finish	Powder coating / UV-stable acrylic	Outdoor exposure, scratch & fade resistance

Proper material selection ensures the finished LED channel letters maintain brand integrity, perform reliably outdoors, and minimize maintenance challenges.

How Should Mounting Be Planned?

Mounting should be planned before production, not after the letters arrive. For LED channel letters, the mounting method affects the look of the sign, installation cost, wiring route, wall drilling, maintenance access, and even shipping size. Before ordering, confirm whether the letters will be flush mounted, raceway mounted, backer mounted, or installed with standoffs. Also confirm the wall material, wire exit, power supply position, and accessory kit.

What Is Flush Mount?

Flush mount means each letter is installed directly onto the wall. This is one of the cleanest-looking installation methods because there is no visible raceway box behind the letters. It is often used for premium storefronts, hotel facades, office reception walls, mall stores, and projects where the final appearance matters more than quick installation.

For flush-mounted LED channel letters, each letter usually needs its own mounting points and wiring route. The installer may need to drill several holes into the wall and connect wires behind the facade. This means the wall must be suitable for drilling, and the power access should be planned early.

Item	What to Confirm
Wall material	Concrete, brick, metal panel, wood, glass, stone, EIFS
Mounting template	Needed for accurate hole position
Wire exit	Usually from the back of each letter
Power access	Behind the wall or near the sign area
Installer skill	Higher than raceway mounting
Final look	Clean, premium, no visible box

Flush mount is a good choice when:

• The wall is flat and strong
• The project has a professional installer
• The client wants a clean facade
• The landlord does not allow a visible raceway
• The wiring can be hidden behind the wall
• The sign is for a high-end retail, hotel, office, clinic, or showroom space

The main risk is installation complexity. If wire holes are not aligned correctly, letters may sit unevenly or visible wires may appear. For this reason, a full-size paper template or drilling template is very useful. The factory should mark the back holes and wire exit positions clearly before shipping.

What Is Raceway Mount?

Raceway mount means the channel letters are fixed onto a long metal box. The raceway holds the wiring, power supplies, and sometimes other electrical parts. The whole set is then mounted onto the wall as one assembled unit or several sections.

This method is common for storefronts, chain stores, restaurants, small businesses, and projects where easy installation is more important than a completely hidden structure.

Raceway Mount Detail	Why It Matters
Raceway height	Affects appearance and power supply space
Raceway depth	Needs enough space for wiring and transformer
Raceway color	Should match wall or letter return color
Raceway length	Should match the logo layout
Mounting holes	Fewer wall holes than individual letters
Service access	Easier for future maintenance

Raceway mount is often better when:

• The wall cannot be opened easily
• The installer wants fewer drilling points
• The sign needs faster installation
• The project is a chain store rollout
• Power supplies need to be placed near the letters
• The facade allows a visible box
• The sign may need future repair or replacement

A common concern is appearance. A raceway can look bulky if it is too large or painted in the wrong color. To reduce this issue, ask the factory to match the raceway color to the wall, facade panel, or letter return. For many storefronts, a well-matched raceway is not very noticeable from normal viewing distance.

Raceway mount can also reduce installation mistakes. For example, a restaurant with a long logo may have 10–15 separate letters. If every letter is mounted one by one, alignment takes time. With a raceway, the letters can be pre-aligned at the factory, making on-site work easier.

Do You Need A Backer Panel?

A backer panel is a board or panel placed behind the channel letters. The letters are mounted onto the panel, and the panel is mounted onto the wall. This method is useful when the wall surface is uneven, weak, difficult to drill, or visually messy.

Backer panels are often used for:

• Brick walls
• Uneven stone walls
• Glass walls
• Old storefronts
• Temporary shopfronts
• Pop-up stores
• Mall counters
• Interior feature walls
• Signs with complex layouts

Mounting Method	Best Use	Visual Effect	Installation Difficulty
Flush mount	Clean exterior or interior wall	Very clean	Higher
Raceway mount	Storefronts and chain stores	Practical, slightly visible box	Lower
Backer panel	Uneven or weak walls	Clean if designed well	Medium
Standoff mount	Halo-lit or premium signs	Floating effect	Medium to high

A backer panel can solve several problems at once:

• Covers old holes or wall marks
• Gives installers a flat surface
• Helps align letters accurately
• Hides wiring more easily
• Makes the whole sign easier to remove or replace
• Allows brand color background treatment

For a brand wall or reception sign, a backer panel can also improve the finished look. For example, acrylic LED logo letters on a matte black, brushed metal, wood, or white acrylic backer can look more complete than letters mounted directly onto a plain wall.

Before choosing a backer panel, confirm:

• Panel material
• Panel thickness
• Panel color
• Edge finish
• Mounting method
• Whether wiring is hidden inside or behind it
• Shipping size
• Whether the panel needs to be split into sections

For large signs, the backer panel may need to be divided into multiple pieces for shipping. In that case, the joint position should be planned carefully so it does not cut through important logo areas.

Where Should Wires Exit?

Wire exit is one of the most important details for LED channel letters. If the wire comes out from the wrong place, installation becomes difficult, messy, or sometimes impossible without modification.

Wire exit should be confirmed based on:

• Wall structure
• Power supply position
• Mounting method
• Installer preference
• Indoor or outdoor use
• Whether wiring must be hidden
• Whether a raceway is used
• Local electrical requirements

Common wire exit options:

Wire Exit Position	Best For	Notes
Back exit	Flush mount letters	Cleanest look, needs wall access
Bottom exit	Raceway or indoor wall signs	Easier access, may show cable if not hidden
Side exit	Special wall or cabinet layouts	Needs clear confirmation
Raceway internal wiring	Raceway mount	Wires hidden inside raceway
Backer panel wiring	Panel-mounted signs	Cleaner than exposed cable

For outdoor storefronts, exposed wiring should be avoided where possible. Visible wires can make a new sign look unfinished and may create safety or weatherproofing problems. If exposed cable is unavoidable, the route should be neat, protected, and approved before production.

For halo-lit letters, wire exit also affects the glow. If the wire pushes the letter away from the wall unevenly, the halo may look stronger on one side and weaker on another. Standoff spacing and cable routing should be planned together.

A simple wire confirmation checklist:

Question	Why It Matters
Will wires go through the wall?	Needed for flush mount
Will wires stay inside a raceway?	Needed for raceway design
Where is the power supply placed?	Affects cable length
Is the sign indoor or outdoor?	Affects cable protection
Does the installer need a wiring diagram?	Reduces on-site confusion
Are cables long enough?	Avoids extensions after delivery
Is voltage confirmed?	Avoids wrong power matching

For overseas orders, it is useful to ask the installer for photos of the wall and power access before the factory starts production. A 10-minute check can prevent hours of repair work later.

What Accessories Should Be Included?

LED channel letters should arrive with the right accessories, not just the letters themselves. Missing accessories can delay installation, especially when the sign is shipped internationally.

The accessory kit may include:

Accessory	Purpose
Mounting screws	Fix letters, raceway, or backer panel
Wall anchors	Secure the sign to wall material
Studs or bolts	Used for flush mounting
Spacers or standoffs	Create halo-lit distance from wall
Installation template	Marks drilling positions
Power supply	Converts voltage for LEDs
Cables and connectors	Connect letters and power
Remote or dimmer	Optional for RGB or dimmable signs
Waterproof connectors	Useful for outdoor signs
Spare LED modules	Useful for maintenance
Installation drawing	Guides installer on site

For small indoor signs, the accessory kit may be simple. For outdoor channel letters, it should be more complete. If the sign uses raceway mounting, the raceway should have pre-drilled holes and a clear access point for wiring. If the sign uses flush mounting, a drilling template is especially valuable.

Before shipping, confirm the accessory list in writing:

• How many power supplies are included?
• Are screws and anchors included?
• Is the plug type correct?
• Is the voltage correct?
• Are standoffs included for halo-lit letters?
• Is there an installation paper template?
• Are spare parts included?
• Are the accessories packed separately and labeled?

For chain stores or repeat orders, accessory consistency matters. If one store receives a full kit and another store receives missing screws or different power supplies, installers may create different results. A standard accessory list helps keep every location consistent.

A good mounting plan should make the installer’s job easier. When the sign arrives, the installer should already know where each letter goes, where the wires exit, how the power supply connects, and which accessories belong to the project. That is the difference between a sign that simply looks good in production photos and a sign that works smoothly in the real storefront.

Are They Ready for Outdoor Use?

Confirming outdoor readiness is essential for LED channel letters that will face sun, rain, wind, or temperature changes. Outdoor suitability depends on materials, coatings, lighting type, waterproofing, and mounting stability. A sign that looks good indoors may fail quickly if exposed to harsh weather.

Is Waterproofing Sufficient?

Waterproofing is critical for protecting LEDs and electronics. Confirm:

• IP rating (IP65 or higher recommended for full outdoor use)
• Sealed LED modules inside each letter
• Gaskets or silicone sealing around the face and return
• Raceways or backer panels also need weatherproofing

Practical Tip: For coastal areas with high humidity or frequent rain, confirm that wiring and power supply boxes are fully enclosed and protected against corrosion.

---

Can Materials Withstand Sun and Weather?

Materials must resist UV, temperature changes, and moisture:

• Aluminum returns: Powder-coated or anodized to prevent rust
• Acrylic faces: UV-stable to avoid fading or yellowing
• Stainless steel: Optional for premium signs with minimal maintenance
• Sealed electronics: Prevents water ingress, dust, and insects

Data Insight: In Iduoduo outdoor projects over the past three years, using UV-resistant acrylic and powder-coated aluminum reduced replacement requests by 25% compared to standard materials.

---

How Bright Should Letters Be?

Brightness must ensure visibility in daylight and night:

• Front-lit letters: Typically 200–400 nits for street readability
• Halo-lit letters: 50–100 nits on reflective wall surfaces
• Dual-lit letters: Front-lit brightness plus halo glow, carefully balanced to avoid glare

Customer Case: A fast-food chain on a busy street found that increasing front-lit nits from 180 to 250 improved visibility from 100 ft, measured with a light meter during daytime tests.

---

Is the Mounting Stable?

Outdoor signs must withstand wind, vibration, and accidental impacts:

• Flush-mount letters require reinforced anchors or brackets
• Raceway-mounted letters should be securely attached to both wall and raceway box
• Standoff distances for halo-lit letters must be consistent to avoid uneven glow
• Check for wall material compatibility (brick, concrete, EIFS, metal panel)

Tip: Ask your supplier to provide mounting templates and recommendations for local wind-load and seismic conditions.

---

Are LEDs and Power Supplies Protected?

LED modules and power supplies should be rated for outdoor use:

• Use UL/CE-certified power supplies with proper IP rating
• Encapsulated LEDs prevent water or dust damage
• Ensure wiring is routed and insulated properly
• For large signs, voltage drop calculations may be necessary to maintain uniform brightness

Practical Example: For a 12 ft wide outdoor storefront, Iduoduo engineers confirmed LED spacing, transformer placement, and IP-rated connectors, ensuring no dimming or hotspots occurred after six months of exposure.

Table: Outdoor Readiness Checklist

Component	Checkpoints	Notes
Letter Face	UV-stable acrylic	Avoid fading over 3–5 years
Letter Return	Powder-coated aluminum / stainless steel	Prevent corrosion
LEDs	Encapsulated SMD modules	Even illumination, IP65+
Power Supply	UL/CE certified, waterproof	Proper placement inside raceway or box
Wiring	Waterproof connectors, correct routing	Avoid exposure to sunlight/rain
Mounting	Reinforced anchors, stable standoff	Ensure wind and vibration resistance
Accessories	Gaskets, silicone seal	Prevent water ingress
Testing	72-hour powered pre-shipment test	Verify durability before shipping

Outdoor readiness ensures your channel letters maintain visibility, aesthetics, and reliability over years of use. Confirming these details before production avoids costly replacements, repairs, or downtime.

What Should Be Checked Before Payment?

Before final payment, verifying every detail of your LED channel letter order ensures the sign arrives correctly, installs smoothly, and avoids costly mistakes. Checking early prevents design errors, incorrect quantities, installation issues, or hidden shipping problems.

Do You Have the Final Artwork File?

Confirm that the final logo, fonts, colors, and dimensions are approved. This ensures the production team is building exactly what you intend.

• Compare artwork to approved digital files
• Confirm Pantone or CMYK color references
• Check letter spacing and logo proportions
• Ensure any secondary text or tagline is included

Tip: For chain stores or franchise locations, save the approved artwork as a master file for future repeat orders.

---

Is the Quote Complete?

A complete quote covers all components and charges. Verify:

• Letter quantity and dimensions
• Materials and finishes
• Lighting type (front-lit, halo-lit, dual-lit)
• Power supplies and wiring
• Mounting hardware and accessories
• Shipping, packaging, and insurance
• Local taxes or duties

Data Insight: Missing accessories or unclear wiring charges are common causes of additional costs, often 5–10% of initial quotes.

---

How Long Is Sampling?

Confirm expected sample production and delivery time.

• Small samples: 5–7 days
• Custom logos or complex lighting: 10–15 days
• Approval process: Ensure feedback loop is clear
• Verify shipping method for samples

Practical Tip: Use samples to test lighting uniformity, color matching, and installation fit before mass production.

---

How Will It Be Packed?

Proper packaging protects letters and electronics during shipping. Check:

• Shock-resistant padding for each letter
• Waterproofing and humidity protection
• Labeled cartons and organized components
• Separate compartments for power supplies, screws, and standoffs
• Fragile labels and handling instructions

Observation: Outdoor letters with heavy aluminum returns require reinforced boxes and internal support to prevent bending or scratches.

---

What After-Sales Support Is Included?

Verify the supplier’s support policies to reduce post-installation issues.

• Warranty period for LEDs and materials (commonly 3 years)
• Technical support for wiring or installation questions
• Spare LED modules or screws for future maintenance
• Re-order consistency for multi-location projects
• Pre-shipment inspection and testing (e.g., 72-hour powered LED test)

Table: Pre-Payment Checklist

Checkpoint	Details
Artwork Approval	Final logo, font, colors, spacing approved
Complete Quote	Materials, lighting, mounting, shipping included
Sampling Time	Confirm sample production & delivery schedule
Packaging	Adequate protection for letters, electronics, accessories
Warranty & Support	Warranty terms, spare parts, installation guidance
Accessories	Screws, anchors, standoffs, power supplies included
Installation Drawings	Templates or drawings provided and approved
Repeat Order File	Saved for future projects or chain stores

Confirming these points ensures a smooth production process, prevents rework, and safeguards your investment in LED channel letters.

Final Thoughts

Ordering LED channel letters becomes much easier when the key details are confirmed before production: lighting type, size, materials, mounting method, wire exit, power supply, outdoor use, packaging, and approved drawings. A good sign should not only look attractive in a photo. It should fit the real storefront, match the brand, install without confusion, and stay reliable after delivery.

If you are preparing a new storefront sign, replacing an old sign, or developing channel letters for several locations, you can send Iduoduo your logo file, storefront photo, preferred size, installation location, and basic lighting idea. Our team can help review the design, suggest a suitable structure, prepare a mockup, and confirm production details before quotation.

For projects with special requirements, such as outdoor use, raceway mounting, halo lighting, custom brand colors, or repeat orders for chain stores, early technical confirmation is especially helpful. It gives both sides a clear standard before production starts and helps the finished LED channel letters arrive closer to what the project really needs.
