An LED light box can look impressive in a product photo and still perform poorly after installation. The real value does not come from illumination alone. It comes from placing the right graphic, frame structure, brightness level, and mounting method where people can actually notice, read, and act on the message.
A retail store may need a bright campaign image visible through a window. A restaurant may need a menu that remains readable above a busy service counter. An airport may need illuminated information that passengers can understand within seconds. A hotel, clinic, office, or trade show booth may need a softer visual effect that supports the surrounding space instead of overwhelming it.
LED light boxes are most useful in commercial locations that need bright, evenly illuminated graphics, reliable visibility under changing ambient light, and a practical way to update menus, advertisements, branding, or directional information. Strong applications include retail stores, restaurants, transport hubs, hotels, offices, clinics, exhibitions, and other high-traffic commercial spaces.
Imagine two identical posters installed ten meters apart in a shopping center. One is mounted directly to a wall. The other is evenly illuminated from behind. At noon, both may look acceptable. At dusk, only one continues attracting attention from the opposite side of the corridor. The difference is not simply brightness. It is whether the display was planned for the location.
Where Are LED Light Boxes Most Useful?
LED light boxes are most useful in places where printed graphics need to remain visible for long hours, compete with surrounding lighting, or be replaced without rebuilding the complete sign. Retail stores, restaurants, transport hubs, hotels, offices, clinics, exhibitions, and event spaces gain the most value when size, brightness, viewing distance, mounting height, and graphic access are planned for the actual location.
Are They Best for Retail Stores?

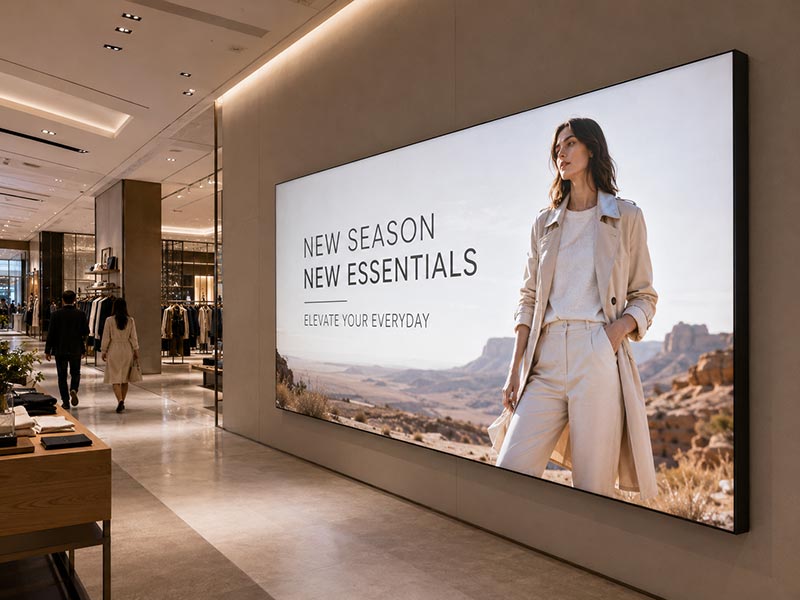

Retail stores are among the most suitable locations because a light box can perform several jobs without occupying valuable display space. It can attract attention through a storefront window, introduce a seasonal campaign near the entrance, support a product category inside the store, or promote add-on items near the checkout.
The installation position should follow the intended viewing route. A window-facing graphic may need to be noticed from 10–25 meters away, while an in-store product panel may only be viewed from 2–5 meters. A graphic designed for close viewing can use more detail. A storefront graphic needs a larger image, fewer words, and a headline that can be understood within several seconds.
For many retail applications, the following dimensions are practical starting points rather than fixed standards:
| Retail Position | Common Display Size | Typical Viewing Distance | Graphic Update |
|---|---|---|---|
| Shop window | 1,200–3,000 mm wide | 8–25 m | Monthly or seasonal |
| Entrance campaign wall | 1,500–4,000 mm wide | 5–15 m | Every 1–3 months |
| Product display area | 600–1,500 mm wide | 2–6 m | Monthly |
| Checkout area | 400–1,000 mm wide | 1–4 m | Weekly or monthly |
| Shopping mall corridor | 1,000–2,500 mm wide | 5–20 m | Campaign-based |
Window installations require special attention. Direct sunlight can reduce the contrast of an ordinary indoor light box. Reflections from the glass may also cover parts of the graphic. A unit placed immediately behind a window may therefore need higher output, stronger graphic contrast, and careful adjustment of the viewing angle.
Acrylic-face and poster light boxes work well for smaller retail displays. SEG fabric light boxes are often more suitable for large campaign walls because the printed fabric is lighter, easier to transport, and simpler to replace than a large rigid face.
For chain-store programs, repeatability matters as much as appearance. Frame dimensions, frame finish, graphic visible area, color temperature, cable exit, mounting holes, and packaging labels should be recorded. Without a fixed specification, replacement units ordered six months later may not match the first stores.
Do Restaurants Need Light Box Menus?
Restaurants need light box menus when customers must read items and prices before reaching the counter. They are especially useful in quick-service restaurants, cafés, bakeries, food courts, cinemas, takeaway shops, dessert stores, and drive-through service areas.
A menu board should shorten ordering time. It should not simply display every available item. When too many products, photographs, prices, and promotional messages are placed on one illuminated surface, the board becomes bright but difficult to use.
A practical menu layout normally gives the largest visual space to:
- Product categories;
- Main item names;
- Prices;
- A limited number of food photographs;
- One or two active promotions.
For a viewing distance of approximately 2–3 meters, important menu text often needs to be at least 25–40 mm high. At 4–6 meters, important item names may need to be 40–70 mm high. Final sizes depend on font style, contrast, lighting, and mounting height, so a full-size print test is more reliable than checking the design on a computer screen.
Menu boards are commonly installed 2.1–3 meters above the floor. At that height, graphic replacement becomes a practical issue. A magnetic face may look clean but can be awkward to remove above cooking equipment. A multi-panel snap-frame system may be easier to update, but the visible frame divisions need to fit the restaurant design.
The update schedule should guide the structure:
| Menu Update Frequency | Suitable Structure |
|---|---|
| Weekly | Individual snap frames or removable poster panels |
| Monthly | Magnetic face or divided acrylic panels |
| Seasonal | SEG fabric or full printed face |
| Rarely changed | Fixed printed acrylic or rigid translucent panel |
The installation environment also matters. Steam, grease, heat, cleaning liquids, and restricted access can shorten service life when the product is designed like a normal office display. Power supplies should remain away from hot equipment, and the frame should allow cleaning without exposing wiring or LEDs.
For multi-location restaurant programs, each menu panel should have a fixed size and position number. Replacement graphics can then be printed and shipped without measuring every store again.
Are They Useful in Airports and Transit Hubs?

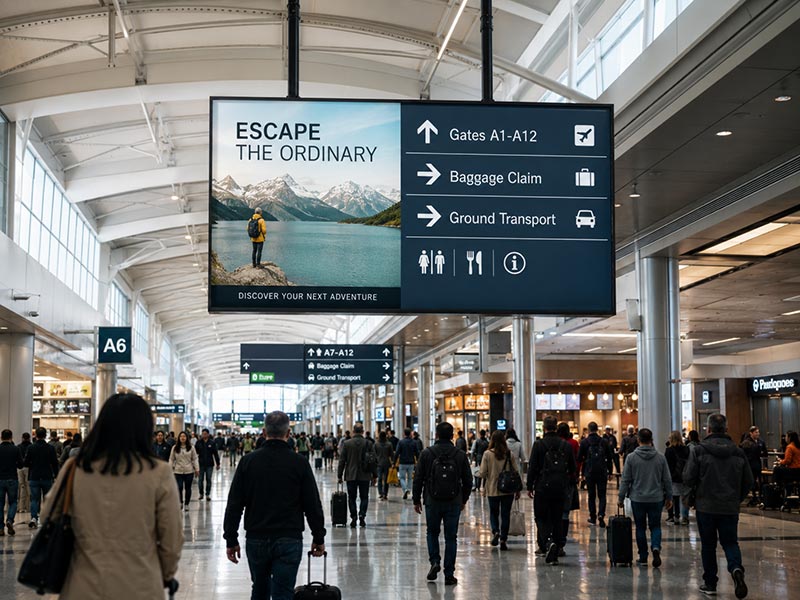

Airports, railway stations, metro stations, ferry terminals, and bus terminals are strong applications because illuminated graphics remain visible in large interiors with mixed lighting. They are commonly used for advertising, terminal maps, retail promotion, ticketing information, service notices, baggage-area graphics, and directional communication.
People moving through transport spaces rarely stop for long. A passenger may see a display for only 3–8 seconds while walking. For that reason, message length is often more important than physical size. A large panel containing several paragraphs will still be difficult to understand.
The graphic should be planned around three questions:
Where will the viewer first see it?
How quickly is the viewer moving?
What decision should be made after reading it?
A wall-mounted panel along a corridor may be seen from 10–30 meters away. A directory near an elevator may be read from 1–3 meters. A suspended double-sided sign may need to communicate from both directions across a wide concourse.
Large transport displays often use SEG fabric because a fabric face can cover a wide area with fewer visible joints. Suspended aluminum light boxes work well above circulation routes, while wall-mounted cabinets suit long corridors and waiting areas.
Transport projects also involve practical restrictions that are less common in ordinary stores:
| Project Detail | Why It Matters |
|---|---|
| Mounting height | Panels must stay clear of people, vehicles, and equipment |
| Fire-related material requirements | Public buildings may require approved materials |
| Service access | Maintenance cannot block passenger movement for long periods |
| Graphic replacement time | Campaign changes may happen overnight |
| Secure fasteners | Public-space products require tamper-resistant fixing |
| Emergency routes | Displays cannot reduce required passage width |
| Power isolation | Maintenance teams need safe electrical access |
A display used for paid advertising can be optimized for brand impact. A display used for wayfinding must prioritize clarity, contrast, and directional accuracy. Mixing both functions on one panel often weakens both.
Do Hotels, Offices, and Clinics Benefit?
Hotels, offices, clinics, dental centers, hospitals, and wellness facilities benefit when the light box supports the interior rather than looking like a bright retail advertisement. Common uses include reception graphics, service information, floor directories, branded artwork, promotional treatments, department maps, and waiting-area displays.
Lighting tone should match the environment. Warm white illumination in the range of approximately 2700–3500K often suits hotel lounges, restaurants, spas, and hospitality reception areas. Neutral white around 4000K is commonly selected for offices, clinics, medical reception areas, and modern commercial interiors. The final choice should also consider wall color, printed graphic color, and surrounding lighting.
Brightness should be controlled carefully. A clinic corridor does not need the same output as a sunlit shop window. Excessive light can make pale graphics look washed out and can create glare in quiet waiting areas. Even illumination and readable contrast are usually more important than maximum output.

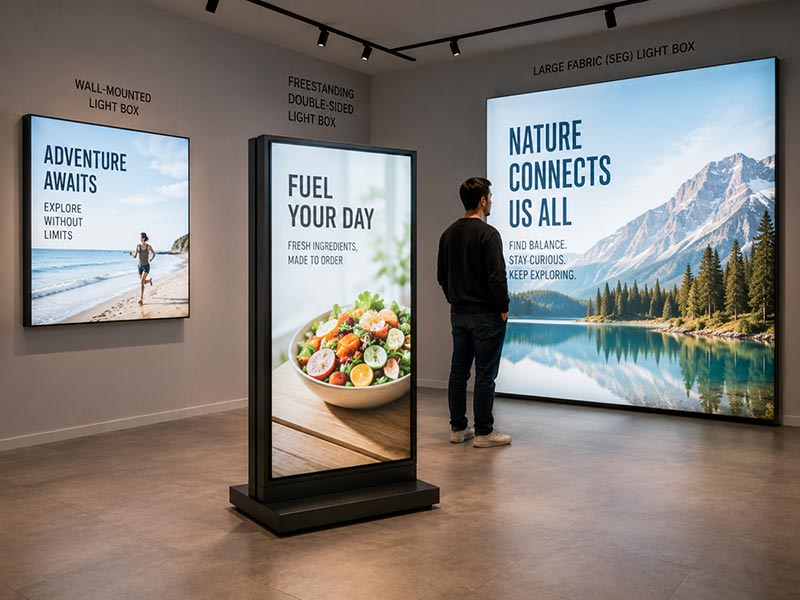

The ideal format depends on the message:
| Space | Suitable Content | Recommended Format |
|---|---|---|
| Hotel lobby | Brand photography or destination imagery | Slim wall-mounted or SEG fabric |
| Office reception | Company story or campaign graphic | Wall-mounted light box |
| Clinic reception | Services and treatment information | Enclosed easy-clean unit |
| Hospital corridor | Department information or maps | Wall-mounted directory |
| Spa or wellness center | Atmosphere and service promotion | Warm-white fabric light box |
| Elevator lobby | Floor directory | Replaceable rigid panel |
Permanent company logos may be better produced as halo-lit letters, metal letters, or acrylic dimensional signs. Light boxes are more suitable when the content includes photographs, gradients, supporting text, or graphics that may change later.

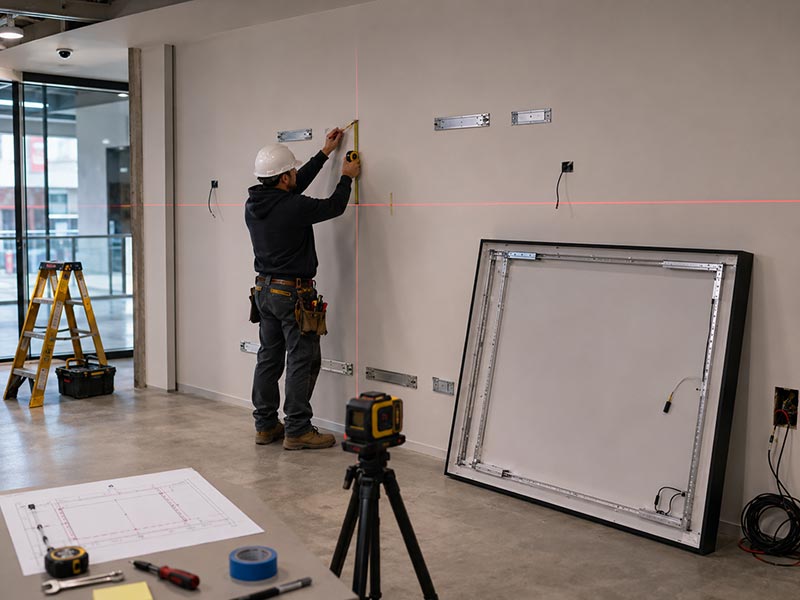

Wiring also needs early planning. Premium interiors normally require concealed cables. The power point should be positioned before the wall finish is completed. When the light box is added after construction, an external cable cover may be required, which can reduce the clean appearance expected in hotels and offices.
Medical locations need surfaces that are easy to wipe and frames without difficult-to-clean gaps. The face-opening method should also prevent staff from accidentally touching electrical parts during graphic replacement.
Are They Effective at Trade Shows?
LED light boxes are highly effective at trade shows because exhibition halls are visually crowded. Ordinary printed banners often disappear beside neighboring booths, while illuminated graphics remain visible from wider aisles and under uneven hall lighting.
Large SEG fabric light boxes are frequently used as booth back walls, product-launch graphics, sponsor displays, entrance towers, and freestanding aisle signs. Common booth graphics range from 2–6 meters wide, while smaller counter or product displays may range from 500–1,500 mm wide.
The main advantage is not only visibility. A reusable aluminum frame can support several events by changing the fabric graphic. This reduces the need to manufacture a new structure for every campaign.
Event projects should be designed around installation time. Many exhibition teams only receive several hours to build the booth. A visually impressive frame that requires complicated wiring, unclear connectors, or special tools may delay the entire stand.
Practical exhibition planning should confirm:
- Maximum packed length allowed by the carrier;
- Frame section size;
- Number of installers available;
- Tools required;
- Power outlet location;
- Cable route;
- Assembly order;
- Graphic installation method;
- Storage method after the event.
A modular frame section of roughly 1–1.5 meters is often easier to pack, lift, and assemble than one oversized structure. Each frame part should be labeled, and matching connectors should be packed together. Power supplies and cables should be placed in separate marked bags.
For repeated international events, packaging becomes part of the product. Reinforced cartons may suit smaller frames. Large or frequently reused systems may need wheeled cases or wooden crates. Spare connectors, mounting hardware, and one clearly printed assembly drawing can prevent expensive delays at the venue.
| Exhibition Requirement | Recommended Planning |
|---|---|
| One-time local event | Simple frame and protective carton |
| Repeated domestic events | Modular frame and reusable case |
| International events | Compact sections, labeled parts, stronger crate |
| Fast booth setup | Tool-light assembly and pre-connected wiring |
| Large graphic wall | SEG fabric with internal support |
| Two-way aisle traffic | Double-sided freestanding light box |
An exhibition light box should therefore be evaluated by four results: how far away it can be seen, how quickly it can be assembled, how safely it can be transported, and whether it can be reused for the next event.
What Do LED Light Boxes Display Best?
LED light boxes display content best when the message depends on strong color, even illumination, fast recognition, or regular graphic replacement. Product photography, promotional posters, restaurant menus, campaign artwork, directories, and selected wayfinding graphics are strong applications. Long paragraphs, live data, detailed technical information, and logos that rely on physical depth usually perform better in other sign formats.
A light box does not improve every graphic automatically. It makes the complete printed surface brighter, so weak contrast, low-resolution photography, crowded layouts, and poor typography also become more noticeable. The artwork, viewing distance, frame size, print material, and illumination level must work together.
A useful rule is to decide what a person should understand within the first three to five seconds. If the answer requires several sentences, the graphic is probably carrying too much information.
| Display Content | Recommended Use | Typical Viewing Distance | Update Frequency |
|---|---|---|---|
| Product photography | Retail, showrooms, exhibitions | 3–15 m | Monthly or seasonal |
| Promotional posters | Stores, cinemas, malls | 2–12 m | Weekly to quarterly |
| Menu boards | Restaurants, cafés, food courts | 2–6 m | Weekly to seasonal |
| Brand campaign graphics | Hotels, offices, retail interiors | 3–20 m | Quarterly or yearly |
| Directories | Offices, hospitals, shopping centers | 1–4 m | When tenants or departments change |
| Wayfinding graphics | Airports, malls, public buildings | 3–20 m | Rarely |
| Live schedules | Transport and event spaces | Varies | Several times per day |
| Long-form text | Museums or information spaces | 0.5–2 m | Rarely |
Are They Good for Promotions?
LED light boxes are especially effective for promotions built around one main product, one strong image, and one short message. Fashion collections, cosmetics, food offers, electronics, travel campaigns, entertainment releases, and seasonal retail promotions often benefit from backlit graphics because the colors remain visible under changing ambient light.
A promotional graphic should be designed for the distance at which people first see it. A poster viewed from 2 meters can include product details and a small amount of supporting text. A storefront campaign viewed from 15 meters needs a larger image, a shorter headline, and fewer competing elements.
The following ranges provide a practical starting point:
| Viewing Distance | Suggested Headline Height | Suggested Message Length |
|---|---|---|
| 1–2 m | 20–35 mm | 10–25 words |
| 3–5 m | 40–70 mm | 6–15 words |
| 6–10 m | 70–120 mm | 4–10 words |
| 10–20 m | 120–220 mm | 3–8 words |
| Over 20 m | 220 mm or more | One short message |
Font style can change the result. Thin serif letters and narrow scripts usually need a larger size than bold sans-serif lettering. Low-contrast combinations, such as pale gray text over a white photograph, remain difficult to read even when brightly illuminated.
Photography also needs enough resolution for the finished size. For close-viewed displays, an effective resolution near 100–150 pixels per inch at final size is often suitable. Large graphics viewed from several meters away may work at approximately 50–100 pixels per inch. Extremely low-resolution files cannot be repaired by increasing print size.
A 1-meter-wide image at 100 pixels per inch requires roughly 3,940 pixels across. A 3-meter-wide wall graphic at 75 pixels per inch requires roughly 8,860 pixels across. Cropping should be considered before final approval because enlarging a small section of a photograph reduces the effective resolution.
Backlit printing can also change color appearance. Light passing through translucent material often makes colors look brighter and less dense than they appear on a monitor. Deep blacks may become gray when the ink coverage is too low. Skin tones, brand colors, food photography, and luxury-product images may need an illuminated print sample before the full order is produced.
For campaigns used across several locations, every file should follow the same visible graphic area, bleed, safe zone, and color reference. A 20 mm frame overlap can hide important text when the designer assumes the complete printed sheet will remain visible.
Do They Work for Menus?
LED light boxes work well for menus because prices, item names, categories, and food photography stay readable across the complete surface. They are most useful in cafés, bakeries, quick-service restaurants, cinemas, food courts, takeaway counters, and service areas where people need to decide before reaching the cashier.
The best menu is not the menu with the most information. Ordering becomes slower when a person must search through many small categories, repeated descriptions, and several competing promotions.
A menu normally needs a clear reading order:
Category name
Item name
Short option or size
Price
Optional photograph
A category heading should be visually stronger than individual item names. Prices should line up consistently or remain close to the correct item. Long ingredient lists are better placed on printed leaflets, websites, or QR-linked pages unless legally required on the main board.
For a menu viewed from around 2–3 meters, main category text often works well at approximately 35–60 mm high, while item names may start around 20–35 mm. At 4–6 meters, category names may need to reach 60–100 mm, with item names around 35–60 mm. Mounting height, font weight, contrast, and surrounding light can change the final requirement.
A full-size paper test should be viewed from the real queue position before printing the final translucent graphic. Checking a menu on a laptop gives no reliable indication of how it will read above a counter.
The graphic replacement method should match the update schedule.
| Menu Change Pattern | Suitable Graphic System | Main Benefit |
|---|---|---|
| Prices change weekly | Individual poster panels | Only one panel needs replacement |
| Promotions change monthly | Snap frame or magnetic cover | Fast access |
| Menu changes seasonally | SEG fabric or full printed face | Clean large-format appearance |
| Menu rarely changes | Printed acrylic panel | Stable and durable |
| Different stores have different prices | Numbered interchangeable sections | Easier location-specific updates |
Panel division needs careful planning. One large face creates a clean appearance, but a small price change may require a complete reprint. Four or six separate panels cost less to update but introduce visible gaps or frame lines.
Food photography should support ordering rather than occupy every available area. One strong image for a best-selling category often works better than ten small photographs. Images should represent the portion, packaging, and presentation accurately. A highly retouched photograph that looks very different from the served product can create complaints rather than sales.
Cleaning and access also affect the display. A menu above cooking equipment may collect grease and dust. Front-opening frames should be easy to wipe, and catches should remain secure after repeated use. Staff should not need to remove electrical parts or reach behind exposed wiring when changing a printed panel.
Are They Suitable for Wayfinding?
LED light boxes are suitable for wayfinding when directional information needs greater visibility in a large, busy, or dimly lit space. Airports, hospitals, shopping centers, hotels, parking areas, office buildings, universities, and exhibition halls may use illuminated directories, maps, arrows, department lists, and entrance guidance.
Brightness alone does not create effective navigation. A sign must appear before a person reaches the point where a decision is required. An arrow placed after a junction is too late, regardless of how well the panel is illuminated.
A wayfinding graphic should answer three questions quickly:
Where am I?
Which direction should I move?
What destination will I reach?
Short destination names are easier to understand than long administrative wording. “Emergency” is usually clearer than “Emergency Medical Treatment Department.” “Level 2” is faster to read than “Proceed to the Second Floor.”
Arrows should use one consistent style throughout the building. Mixing thin arrows, filled arrows, diagonal symbols, and decorative icons creates hesitation. The arrow should also remain separated from nearby destination names so the direction cannot be mistaken for another line.
For walking environments, important directional text may need to be approximately 50–100 mm high at viewing distances of 5–10 meters. Large transport corridors or open concourses may require 100–200 mm lettering or more. Directories viewed at close range can use smaller text, but line spacing and contrast still need careful control.
High contrast is normally more valuable than decorative styling. Dark text on a bright background or light text on a dark background can both work when contrast remains strong. Detailed photographic backgrounds should not sit behind directional text.
Directories need a practical update method. Office tenants, medical departments, shops, and services change over time. Removable strips, separate printed sections, or replaceable graphic panels can avoid rebuilding the full light box.
Wayfinding information should not compete with paid advertising on the same face. A promotion may use emotional imagery and creative layouts. Directional information needs speed, consistency, and certainty. Combining both purposes often leaves the arrow too small and the advertisement too crowded.
Can They Strengthen Brand Displays?
LED light boxes can strengthen brand displays when the visual identity uses photography, gradients, patterns, campaign imagery, product packaging, or full-color backgrounds. Uniform illumination gives the complete surface a controlled appearance and reduces the bright spots and shadows often created by external spotlights.
Retail stores may use a backlit campaign wall behind a new collection. Hotels may show destination photography or lifestyle imagery in a lobby. Offices may display company history, project images, or brand values. Showrooms may use large product photographs to create context around the physical display.
The strongest brand graphics normally focus on one visual idea. A large wall containing several logos, long company history, service lists, social media links, certifications, slogans, and product photographs can feel more like a noticeboard than a brand feature.
Graphic scale should match the architecture. A 600 mm poster can look lost on a 6-meter wall, while a floor-to-ceiling display may overwhelm a small reception area. A useful starting point is to let the main graphic occupy roughly 40–70% of the available feature wall, depending on furniture, doors, sightlines, and surrounding finishes.
Color temperature influences the mood. Warm white illumination around 2700–3500K may suit hospitality, luxury retail, restaurants, spas, and lifestyle imagery. Neutral white around 4000K works well for offices, healthcare spaces, showrooms, and general retail. Cool white around 5000–6500K can make some graphics appear crisp but may feel harsh in warm interiors.
A brand logo does not always need to appear inside a rectangular light box. Individual channel letters, halo-lit letters, metal letters, or acrylic letters may create stronger depth and a more architectural finish. A light box is usually more suitable when the content combines a logo with a background image, campaign message, product photograph, or changeable visual.
For long-term brand programs, several details should be recorded:
- External frame dimensions;
- Visible graphic area;
- Frame finish;
- Lighting color temperature;
- Print material;
- Approved color sample;
- Mounting height;
- Wire exit;
- Graphic file version;
- Packaging label;
- Location number.
A stored specification allows replacement graphics and repeat units to match the original installation, even when another store opens months later.
When Are They Less Suitable?
LED light boxes are less suitable when the message changes several times per day, the main design depends on physical depth, a large amount of text must be read, or power and maintenance access are unavailable.
Digital displays are usually better for flight times, live schedules, queue information, dynamic pricing, rotating videos, and restaurant menus updated many times during the day. A printed light box requires physical graphic replacement, so frequent content changes can create unnecessary labor and printing costs.
Dimensional signs are often better for permanent building names, storefront letters, reception logos, hotel names, and corporate identities. Channel letters provide individual letterforms and strong long-distance recognition. Halo-lit letters create a softer architectural effect. Metal letters provide material depth without relying on printed imagery.
A light box is also a poor choice for long paragraphs. People rarely stand in front of a large illuminated panel to read 200 words. Museums and educational spaces may use illuminated information panels at close range, but body text still needs careful line length, font size, and brightness control.
The following comparison helps identify the more suitable format:
| Project Need | Better Choice |
|---|---|
| Replace a campaign every 1–3 months | LED light box |
| Change information several times per day | Digital display |
| Show a permanent company name | Channel letters or dimensional letters |
| Display full-color photography | LED light box |
| Create a premium metal finish | Metal letters |
| Show video or animation | Digital display |
| Present detailed close-range information | Printed panel with controlled lighting |
| Install where no power is available | Non-illuminated sign |
| Create two-way visibility in an open aisle | Double-sided light box |
| Identify a storefront from long distance | Channel letters or pylon sign |
Maintenance access can also rule out a light box. LEDs and power supplies are generally reliable, but no illuminated product should be treated as permanently inaccessible. A panel installed inside a sealed architectural cavity may require expensive construction work when the graphic or power supply needs replacement.
Outdoor locations with high wind, extreme heat, heavy rain, salt exposure, or direct sun need a structure specifically designed for those conditions. An indoor poster light box should not be moved outdoors simply because the face appears enclosed.
The decision should come from the message, viewing conditions, update frequency, and installation environment. A light box performs best when illumination improves a graphic that already has a clear purpose. It should not be selected only because a glowing rectangle looks impressive in a catalog.
Which Light Box Fits Each Location?
The right light box depends on where it will be installed, how people approach it, how often the graphic changes, how much frame depth is available, and whether the unit must withstand weather. Wall-mounted units suit corridors and feature walls. Double-sided and freestanding models suit open areas. SEG fabric systems suit large graphics. Menu light boxes need quick access. Outdoor cabinets need drainage, sealed wiring, corrosion protection, and secure mounting.
Selecting by appearance alone often creates avoidable problems. A slim frame may look attractive but may not provide enough depth for an evenly lit three-meter graphic. A large rigid acrylic face may produce a clean surface but can be difficult to transport through elevators and narrow corridors. A freestanding unit may attract attention from two directions, yet an undersized base can create a safety risk in a public aisle.
The location should be reviewed before the frame type is confirmed. Useful information includes installation photographs, wall or floor dimensions, viewing direction, ambient lighting, power position, access route, expected update schedule, and maintenance clearance.
| Installation Condition | Suitable Light Box |
|---|---|
| Flat interior wall | Slim wall-mounted or direct-lit wall unit |
| Poster changed frequently | Snap-frame or magnetic-face light box |
| Open aisle with two-way traffic | Double-sided freestanding or suspended unit |
| Large retail campaign wall | SEG fabric light box |
| Restaurant menu above counter | Multi-panel front-opening light box |
| Outdoor storefront wall | Sealed direct-lit cabinet |
| Large outdoor roadside display | Reinforced flexible-face light box |
| Temporary exhibition booth | Modular SEG fabric system |
Which Type Works on Walls?
Wall-mounted light boxes are suitable for retail interiors, hotel corridors, office reception areas, clinics, restaurants, cinemas, shopping centers, and exhibition walls. Most are single-sided because the rear surface is fixed against the wall.
The first choice is usually between edge-lit and direct-lit construction.
An edge-lit unit places LEDs around the perimeter and guides light through an acrylic panel. The structure can be relatively slim, often around 20–50 mm deep for smaller sizes. Edge-lit frames are commonly used for posters, menus, directories, and interior graphics where available wall depth is limited.
A direct-lit unit places LED modules behind the graphic face. Cabinet depth commonly ranges from about 60–150 mm indoors, depending on the display size, diffuser, LED spacing, and required brightness. Direct lighting is often better for larger graphics because light can be distributed across the complete surface more evenly.
| Wall-Mounted Type | Common Depth | Suitable Size Range | Best Use |
|---|---|---|---|
| Edge-lit acrylic | 20–50 mm | Up to about 1,200 × 2,000 mm | Posters, directories, slim interiors |
| Slim direct-lit | 50–90 mm | About 600–2,000 mm wide | Retail graphics and menus |
| Standard direct-lit | 80–150 mm | About 1,000–3,000 mm wide | Large wall campaigns |
| SEG fabric frame | 60–120 mm | About 1,500–6,000 mm wide | Large branding walls |
| Snap-frame unit | 25–70 mm | A4 to about 1,200 × 1,800 mm | Frequently changed posters |
The size ranges are planning references rather than fixed limits. A larger edge-lit display may be possible, but lighting uniformity becomes harder to control as the distance from the edge increases. Direct-lit construction usually offers more flexibility for oversized graphics.
Wall condition should be checked before the mounting system is selected. Concrete and solid masonry can often support direct anchors. Timber or metal stud walls may require fasteners aligned with the studs or an internal reinforcement plate. Decorative stone, glass, slatted walls, and thin wall panels may need a separate subframe.
Large wall units may require a French cleat or interlocking bracket. The upper bracket supports the load, while lower fixing points prevent movement. Direct screw holes may be enough for small poster frames, but they are less convenient when the unit needs regular removal.
The power position should be marked on the production drawing. A cable can exit from the rear, side, top, or bottom. Rear wire exits create the cleanest result when the power point is concealed behind the cabinet. Side or bottom exits may be necessary when the wall is already finished.
Maintenance access should remain possible. Front-opening designs are useful when the light box sits between furniture or inside a recessed area. A rear-service cabinet should not be installed tightly against a permanent wall. Hinges, magnetic covers, snap frames, or removable fabric faces can provide access without removing the complete frame.
For premium interiors, the frame finish should be matched with surrounding materials. Powder-coated black, white, silver, champagne, bronze, or custom color finishes are commonly used. Brushed metal finishes can suit hotel and office interiors, while black or white frames often blend more easily with retail walls.
Which Type Works in Open Areas?
Open areas need a light box that can be seen from one or more directions without relying on a wall. Suitable formats include freestanding units, suspended light boxes, double-sided cabinets, illuminated totems, and portable exhibition frames.
A double-sided unit is useful where people approach from opposite directions. Shopping mall corridors, airport concourses, exhibition aisles, hotel entrances, and reception areas are typical examples. Using one double-sided cabinet may be more efficient than installing two separate single-sided units.
Freestanding units usually require a weighted base, wide feet, or floor anchors. Stability depends on total height, cabinet weight, base width, and the likelihood of accidental contact.
| Freestanding Height | Suggested Base Width | Typical Use |
|---|---|---|
| 1,000–1,400 mm | 350–500 mm | Reception and product displays |
| 1,400–1,800 mm | 450–650 mm | Shopping aisles and events |
| 1,800–2,400 mm | 600–900 mm | Large promotional graphics |
| Over 2,400 mm | Engineered individually | Permanent commercial installations |
The base dimensions are approximate starting points. A narrow, tall cabinet may require floor anchoring even when the base appears heavy. Public environments may also require anti-tip protection.
Power cables need careful routing. A loose cable across an aisle creates a trip risk. Floor outlets, concealed base connections, overhead wiring, or approved cable covers should be planned before installation. Battery power is rarely practical for large LED light boxes expected to operate for long hours.
Suspended light boxes are useful when floor space must remain clear. They can be mounted using steel cables, threaded rods, chains, or engineered brackets. The ceiling structure must be capable of supporting the complete weight. Decorative ceilings, acoustic panels, and suspended ceiling grids are not normally load-bearing.
Double-sided suspended units often range from about 80–200 mm deep, depending on size and illumination method. Internal LEDs need enough space to light both faces evenly. Extremely thin double-sided cabinets may show dark areas or visible internal shadows.
Viewing height also matters. A suspended unit should be high enough to avoid contact but low enough to remain readable. In shopping centers or transport spaces, the bottom edge may be positioned around 2.2–3.5 meters above floor level, depending on local clearance rules and viewing distance.
Portable exhibition units use lighter aluminum profiles and modular parts. Permanent retail or public-space installations may use heavier welded or reinforced frames. A portable unit should not automatically be used as a permanent public fixture, especially in areas with heavy pedestrian traffic.
Which Type Fits Large Graphics?
Large graphics are often best produced as SEG fabric light boxes or flexible-face cabinets. SEG fabric is commonly used indoors, while flexible-face systems are often selected for large outdoor applications.
SEG means silicone edge graphic. A silicone strip is sewn around the edge of the printed fabric and inserted into a channel in the aluminum frame. The tensioned fabric creates a smooth surface without visible screws or clips.
SEG systems are useful for retail feature walls, exhibitions, showrooms, airports, hotel interiors, offices, and large brand displays. Common widths range from about 1.5 meters to more than 6 meters. Larger frames may be divided into sections for production, shipping, and installation.
Rigid acrylic faces become difficult to handle at large sizes. A 3-meter acrylic panel can be heavy, flexible during transport, and difficult to move through doors or elevators. Fabric graphics are lighter and can be packed in a much smaller volume.
| Large Graphic Format | Main Advantage | Main Limitation |
|---|---|---|
| SEG fabric | Lightweight and easy to replace | Fabric tension must be accurate |
| Printed acrylic | Smooth rigid face | Heavy at large sizes |
| Flexible face | Suitable for large outdoor cabinets | Requires tensioning hardware |
| Multiple rigid panels | Easier to transport | Visible panel joints may appear |
| Modular SEG frame | Fits restricted access routes | Assembly must be accurate |
Large frames need internal crossbars to prevent movement and maintain shape. Crossbar spacing depends on profile size, cabinet height, installation orientation, and wall condition. A frame measuring 4 × 2.5 meters may require several vertical and horizontal supports.
Lighting layout should be confirmed before fabrication. Direct-lit SEG frames often use rows of LED modules behind the fabric. Cabinet depth and LED spacing affect uniformity. A shallower cabinet normally requires closer LED spacing or specialized optical modules.
As a broad planning reference, indoor SEG cabinets often use depths around 60–120 mm. Very large displays may use 100–150 mm to provide better diffusion and structural space. Extremely shallow construction can work, but it may raise component cost and increase the risk of visible bright spots.
The graphic file should match the exact visible area. The silicone edge and inserted border are not visible after installation. Important text and logos should remain inside a safe area, often at least 30–80 mm from the frame edge depending on frame size.
Transport access must be checked. A finished 4-meter frame may not fit through a loading door, elevator, or corridor. Modular sections of approximately 1–1.5 meters are often easier to pack and carry. Joints should be positioned so they do not create visible lines or uneven tension.
Fabric also needs proper handling. Folding may create creases in some materials. Rolling usually gives a cleaner result for premium graphics, although it increases package length. Replacement graphics should be labeled with the location, frame size, orientation, and installation date.
Which Type Suits Menu Boards?
Menu light boxes should be selected according to menu size, update frequency, mounting height, cleaning requirements, and the number of panels that need independent replacement.
Snap-frame light boxes are practical for frequent updates. The front frame edges open outward, allowing a printed sheet to be replaced without removing the complete unit. They are suitable for cafés, bakeries, cinemas, food courts, and takeaway shops.
Magnetic-face systems provide a cleaner appearance because fewer visible frame sections appear around the graphic. They work well in modern interiors but can become difficult to open when mounted high above a counter.
Multi-panel systems allow one menu category or price section to be changed without reprinting the full board. A restaurant may use three to six panels, with separate sections for drinks, meals, desserts, and promotions.
| Menu Condition | Recommended Format |
|---|---|
| Weekly price updates | Individual snap-frame panels |
| Monthly promotion changes | Magnetic front-opening panels |
| Seasonal complete menu changes | SEG fabric light box |
| Fixed menu with few updates | Printed acrylic face |
| Different prices by location | Numbered interchangeable panels |
| Large food-court menu | Multi-panel direct-lit system |
Panel dimensions should be standardized where possible. Common poster formats such as A1, A0, 600 × 900 mm, or 700 × 1,000 mm can simplify replacement printing. Custom sizes may fit the wall better but require every new graphic to be printed to the exact specification.
Mounting height affects how easily staff can change the graphic. A board installed 2.5–3 meters above the floor may require a ladder or lifting platform. Front-opening doors should not swing into cooking equipment, menu screens, shelving, or sprinkler systems.
The face material should tolerate regular cleaning. In food-service areas, grease and steam can collect on frames and covers. Smooth acrylic, polycarbonate, coated aluminum, and removable films are generally easier to clean than exposed fabric in high-grease locations.
Color temperature should support food photography and menu readability. Neutral white around 4000K is commonly used because it keeps white backgrounds clear and does not make food appear overly blue. Warm white may suit cafés, bakeries, and hospitality interiors, while very cool light can make some food images look less natural.
Ventilation and heat management also matter. Light boxes positioned above ovens, grills, fryers, or steam equipment should not trap additional heat. Power supplies should be kept away from the hottest area and remain accessible for service.
Restaurant chains should record panel size, frame finish, lighting temperature, print specification, panel numbering, voltage, plug type, and mounting hole position. A documented standard makes it easier to produce matching menu boards for future locations.
Which Type Is Best Outdoors?
Outdoor locations usually require a direct-lit cabinet with a weather-resistant aluminum or stainless-steel frame, UV-resistant face material, outdoor-rated LEDs, protected power supplies, sealed cable entries, drainage, and corrosion-resistant hardware.
Outdoor performance depends on the complete construction, not only an IP rating applied to one component. Rain can enter through face joints, access doors, screw holes, cable exits, and damaged gaskets. Water also needs a controlled path to leave the cabinet.
Common outdoor formats include rigid-face acrylic light boxes, flexible-face cabinets, double-sided projecting signs, pylon-mounted panels, and wall-mounted advertising boxes.
| Outdoor Format | Suitable Size | Common Application |
|---|---|---|
| Rigid acrylic face | Small to medium | Storefront walls and projecting signs |
| Polycarbonate face | Small to medium | Impact-sensitive locations |
| Flexible face | Medium to very large | Shopping centers and roadside advertising |
| Double-sided cabinet | Small to medium | Perpendicular storefront signs |
| Reinforced aluminum cabinet | Medium to large | Building façades |
Acrylic provides good clarity and a smooth surface but can expand with temperature and may crack under impact. Polycarbonate offers stronger impact resistance but can scratch more easily. Flexible-face material works well for wide cabinets because the tensioned surface can cover large areas without heavy rigid panels.
Cabinet depth commonly ranges from about 100–250 mm outdoors. Larger cabinets may need more depth for structural reinforcement, ventilation, and even lighting. Projecting double-sided units also need enough internal space for illumination on both faces.
Wind load must be considered for large wall signs, freestanding cabinets, and projecting light boxes. The fixing method should match the cabinet area, installation height, wall structure, and local wind conditions. A sign measuring 2 × 1 meters mounted perpendicular to a wall experiences much greater wind force than the same sign mounted flat against the façade.
Outdoor metal parts should use suitable powder coating, anodizing, stainless steel, or other corrosion-resistant treatment. Coastal locations may require stronger protection because salt accelerates corrosion.
Drain holes are often placed at the lowest points of the cabinet. They should allow moisture to escape without creating a direct path for wind-driven rain. Gaskets should be compressed evenly, and access doors should include secure latches.
Cable entries should use suitable waterproof glands. Exposed wire joints should not be covered only with ordinary tape. Power supplies may be installed in a protected internal compartment or a separate accessible enclosure.
Thermal management becomes important in direct sun. Dark cabinets absorb more heat than light-colored frames. A sealed box can reach temperatures far above the surrounding air, especially when LEDs and power supplies operate for many hours. Larger units may need ventilation paths, heat-dissipating design, or external power-supply placement.
IP65 is commonly suitable for many outdoor sign structures when the cabinet and installation are designed correctly. IP67 or IP68 configurations may be selected for more demanding projects, with IP68 available on request. A higher rating does not replace correct drainage, mounting, cable sealing, and maintenance.
Service access should remain safe. Front-opening doors are useful when the rear is against a wall. Hinges may need safety cables or support arms. Large faces should not rely on one person holding the panel during maintenance.
An outdoor light box specification should confirm at least the following information:
- Installation city and country;
- Wall-mounted, projecting, freestanding, or suspended position;
- Overall size and cabinet depth;
- Single- or double-sided construction;
- Direct rain and sunlight exposure;
- Expected wind conditions;
- Face material;
- Frame material and surface finish;
- Voltage and power-supply position;
- Cable entry and wire exit;
- Mounting structure;
- Drainage and ventilation;
- Required IP configuration;
- Graphic replacement method;
- Maintenance access;
- Packaging and transport method.
The best outdoor light box is not always the deepest or heaviest cabinet. A suitable product balances lighting uniformity, weather resistance, wind safety, maintenance, graphic replacement, shipping weight, and installation cost.
How Should Placement and Specifications Be Planned?
LED light box planning should start with the installation site rather than a catalogue size. Viewing distance, traffic direction, ambient light, mounting height, graphic update frequency, wall construction, electrical access, and maintenance space all affect the finished product. Confirming these points before production reduces dark areas, unreadable text, exposed wiring, difficult graphic replacement, and installation delays.
A site photograph with dimensions is often more useful than a reference product image. The photograph should show the complete wall or area, nearby doors and furniture, the power position, the direction people approach from, and any objects that may block the view. For exterior locations, add information about sunlight, rain exposure, canopy coverage, wind, and the wall material.
The following details should normally be confirmed before a production drawing is approved:
| Planning Item | Information Needed |
|---|---|
| Available space | Maximum width, height, and depth |
| Viewing position | First viewing point and closest reading point |
| Traffic direction | Front approach, side approach, or two-way traffic |
| Mounting height | Floor to bottom and floor to center of graphic |
| Ambient light | Dim interior, normal interior, bright window, or outdoor |
| Graphic schedule | Weekly, monthly, seasonal, or permanent |
| Power | Voltage, outlet position, switch, and cable route |
| Surface | Concrete, masonry, timber stud, metal stud, glass, or cladding |
| Access | Front, side, top, or rear service access |
| Delivery route | Door, elevator, corridor, and loading restrictions |
How Does Viewing Distance Affect Size?
Viewing distance affects the light box size, headline height, amount of text, image scale, and mounting position. A display read from two meters can carry more information than a panel first seen from twenty meters. Increasing the cabinet size without simplifying the artwork rarely improves readability.
The first viewing distance and the final reading distance should be measured separately. A storefront light box may first attract attention from 20 meters away, but product details may only be read from 3 meters. The design should therefore work at two levels: a large image or headline for distant recognition and supporting information for closer viewing.
The table below provides useful starting points for pedestrian environments. Final dimensions still depend on font style, contrast, traffic speed, mounting height, and surrounding visual clutter.
| Viewing Distance | Recommended Main Letter Height | Recommended Message Length | Typical Use |
|---|---|---|---|
| 0.5–1.5 m | 12–25 mm | 30–80 words | Directories and close information |
| 1.5–3 m | 25–45 mm | 15–40 words | Menus and reception displays |
| 3–5 m | 45–75 mm | 8–20 words | Retail promotions |
| 5–10 m | 75–140 mm | 5–12 words | Mall and corridor displays |
| 10–20 m | 140–250 mm | 3–8 words | Storefront campaigns |
| Over 20 m | 250 mm or more | One short message | Large halls and roadside locations |
Letter height refers to the actual visible height of the uppercase letters, not the font size shown in design software. Narrow fonts, scripts, thin strokes, and low-contrast colors normally need to be larger than bold sans-serif lettering.
A full-size test is one of the simplest ways to avoid mistakes. Print the smallest important text at actual size, attach it to the proposed position, and view it from the expected distance. The full light box does not need to be produced for this test. A paper sample can reveal whether prices, arrows, menu items, or legal information are too small.
Traffic speed also changes the amount of information people can absorb. Someone standing in a clinic waiting area may read a detailed service list. A passenger walking through an airport may only notice a destination, arrow, and distance. A driver passing a storefront has even less time.
| Viewer Movement | Approximate Reading Time | Suitable Content |
|---|---|---|
| Standing | 10–30 seconds | Directories, menus, service information |
| Slow walking | 5–10 seconds | Promotions and short wayfinding |
| Normal walking | 2–5 seconds | One image and one short message |
| Driving slowly | 1–3 seconds | Business name, arrow, or one offer |
| Driving at higher speed | Under 2 seconds | Large name or symbol only |
Mounting height should be considered together with distance. A menu board located 2.7 meters above the floor is viewed at an upward angle, so small text becomes harder to read. A wall graphic positioned too low may be blocked by tables, clothing racks, queues, or parked vehicles.
For close-range information, the center of the important content is often placed around 1.4–1.7 meters above the floor. Large wall graphics may extend higher, but the most important message should remain near the natural line of sight. Suspended displays in public areas need adequate head clearance and should still remain low enough for the intended distance.
The visible graphic area must also be separated from the external frame size. A frame measuring 1,200 × 1,800 mm may cover 15–40 mm around each edge. Text and logos placed too close to the artwork border may disappear behind the frame or silicone edge.
A practical safe area for small and medium graphics is often 30–50 mm inside the visible edge. Large fabric graphics may need 50–100 mm, especially when the artwork includes important logos or text. The exact safe area should be shown on the artwork template supplied by the manufacturer.
How Bright Should It Be?
Brightness should be matched to the surrounding light rather than set as high as possible. A light box in a dim hotel corridor needs less output than a display behind a sunlit storefront window. Excessive brightness can wash out pale colors, create glare, increase power consumption, and make the display uncomfortable to view.
The same light box may look bright at night and weak during the day. For locations with large changes in ambient light, dimming or separate day and night settings can provide a better result than one fixed output.
A practical lighting review should classify the installation area before the LED layout is confirmed:
| Environment | Lighting Condition | Planning Priority |
|---|---|---|
| Hotel corridor | Low ambient light | Soft, even output |
| Office reception | Controlled indoor light | Accurate color and low glare |
| Restaurant menu | Moderate to bright interior | Text clarity and food color |
| Retail interior | Strong display lighting | Enough contrast against spotlights |
| Storefront window | Daylight and reflections | Higher output and bold artwork |
| Outdoor night use | Dark surroundings | Controlled brightness and visibility |
| Outdoor day use | Strong sunlight | High contrast and suitable face material |
Lighting uniformity is usually more important than the highest output rating. Visible LED dots, dark corners, vertical bands, and bright edges can make a premium graphic look poorly manufactured.
Uniformity depends on several connected factors:
- Cabinet depth;
- Distance between LED modules;
- LED lens angle;
- Distance from LEDs to the face;
- Diffuser material;
- Print density;
- Face translucency;
- Internal frame shadows;
- Power supplied to each LED section.
Shallow cabinets require closer LED spacing or specialized optical modules. A standard direct-lit indoor cabinet may use a depth of approximately 60–120 mm. Larger or brighter units may use 100–180 mm. Edge-lit poster frames may be 20–50 mm deep, but edge lighting becomes more difficult to keep uniform as the graphic grows.
The following ranges can be used for early planning rather than final engineering:
| Light Box Construction | Common Depth | Typical Application |
|---|---|---|
| Edge-lit poster frame | 20–50 mm | Small indoor graphics |
| Slim direct-lit cabinet | 50–90 mm | Menus and retail posters |
| Standard direct-lit cabinet | 80–150 mm | Medium and large wall displays |
| SEG fabric light box | 60–120 mm | Large indoor graphics |
| Outdoor rigid-face cabinet | 100–200 mm | Storefront walls |
| Large flexible-face cabinet | 150–300 mm | Large exterior displays |
Print density has a major effect on perceived brightness. A pale graphic passes more light than a design with dark blue or black coverage. A lighting layout that looks even behind white test material may show dark areas behind a heavily printed graphic.
For important campaigns, the lighting test should use the real printed material rather than plain white acrylic or unprinted fabric. Food photography, skin tones, luxury packaging, and brand colors can change noticeably when illuminated.
Color temperature also affects the final appearance:
| Color Temperature | Visual Effect | Common Applications |
|---|---|---|
| 2700–3000K | Warm and soft | Hotels, restaurants, spas |
| 3500K | Warm-neutral | Hospitality and premium retail |
| 4000K | Neutral and clean | Offices, clinics, menus, general retail |
| 5000K | Crisp and bright | Modern retail and commercial displays |
| 6000–6500K | Cool and blue-white | Selected high-impact applications |
Warm light can add yellow or amber tones to white areas. Very cool light can make food, wood, and skin tones look less natural. Neutral white near 4000K is commonly chosen where accurate readability and balanced color are more important than a strong atmospheric effect.
Dimming should be specified before production. Standard non-dimmable power supplies cannot always be connected to a dimmer later. The chosen system may require 0–10V, PWM, DALI, TRIAC, or another control method depending on the project.
For windows and locations with different operating periods, a simple timer may be enough. A restaurant may run full output during lunch and reduce it in the evening. A hotel may use lower output after midnight. An outdoor storefront may operate only from dusk until closing time.
Power consumption should be estimated before the electrician prepares the circuit. Small poster units may use under 50 watts, while large illuminated walls can require several hundred watts. The final load depends on LED density, size, brightness, and whether one or both faces are illuminated.
A preliminary estimate can be made using power per square meter:
| Construction | Early Power Estimate |
|---|---|
| Small edge-lit frame | 20–50 W/m² |
| Indoor direct-lit cabinet | 40–90 W/m² |
| Bright retail or window unit | 70–130 W/m² |
| Double-sided light box | Approximately 1.5–2 times a single face |
| Large outdoor cabinet | Calculated from LED layout |
These ranges are only for early electrical planning. The final wattage should come from the approved LED layout and power-supply schedule.
How Often Will Graphics Change?
Graphic replacement frequency should determine the face-opening method. A graphic changed every week needs a different structure from a permanent brand image expected to stay for three years.
A low initial frame price can become expensive when each update requires tools, several workers, or removal of the complete cabinet. The cost of graphic changes should therefore be considered over the expected service period.
| Graphic Change Frequency | Suitable Access Method |
|---|---|
| Weekly | Snap frame or individual poster panels |
| Monthly | Magnetic cover or front-opening frame |
| Every 2–4 months | SEG fabric or hinged face |
| Once or twice per year | Removable rigid face or SEG fabric |
| Rarely | Fixed rigid face with service access |
Snap frames are practical for smaller posters. The frame edges open from the front, allowing the printed sheet and protective cover to be replaced. They are easy to operate at eye level but may be difficult to handle when installed high above a counter.
Magnetic covers provide a cleaner appearance because the face can be removed without visible screws. Large magnetic acrylic panels can be heavy and flexible, so replacement may require two people.
SEG fabric is practical for large retail and exhibition graphics. The silicone edge is removed from the frame channel, and a new fabric graphic is inserted. Fabric is lightweight, but correct tension and installation order are important to prevent wrinkles.
Hinged doors are useful for outdoor poster boxes, transport displays, and menu boards. Hinges should be located where the door can open without hitting a ceiling, shelf, sprinkler, wall return, or neighboring equipment. Large doors may need gas struts, support arms, or safety cables.
Replacement height should be reviewed before choosing any access method:
| Mounting Height | Replacement Consideration |
|---|---|
| Below 1.8 m | Usually accessible from floor level |
| 1.8–2.5 m | Small ladder may be required |
| 2.5–4 m | Platform ladder or lifting equipment may be needed |
| Over 4 m | Planned maintenance access is essential |
The graphic replacement process should answer several practical questions:
Who will replace the graphic?
Can one person complete the work?
Will tools be required?
Can the face be opened safely at the installed height?
Where will the removed graphic be stored?
Can the LEDs remain protected during replacement?
Can the frame be closed without disturbing the wiring?
Menu boards often benefit from several smaller panels rather than one oversized face. When only one price or category changes, the restaurant can replace one panel instead of reprinting the full menu.
Retail campaigns may use a large single graphic for a cleaner appearance. For chain stores, the visible area and print dimensions should be standardized. Each location should use the same artwork template so replacement graphics fit without trimming on site.
Directories require another approach. Tenant names, departments, and floor information may change independently. Removable strips or separate sections can reduce update cost. Replacing a complete 2-meter graphic because one office name changed is rarely efficient.
Graphic storage also matters for recurring seasonal campaigns. Fabric graphics can be rolled or folded depending on the material. Rolling normally reduces creases but requires a longer package. Rigid posters should be stored flat and protected from scratching.
Each stored graphic should be labeled with:
- Project name;
- Location number;
- Frame size;
- Orientation;
- Installation date;
- Artwork version;
- Visible side;
- Campaign period.
For repeated store programs, production files should be archived with the frame specification. A small change in the visible area or silicone edge size can make a replacement graphic unusable.
How Should Power Be Prepared?
Power preparation should confirm voltage, available circuit capacity, power-supply location, cable route, switching method, plug type, dimming, and responsibility for final connection.
Many installation problems begin when the sign is produced before the electrical point is confirmed. A rear cable exit may be shown in the drawing, but the site outlet may sit 300 mm away. The installer then needs to drill a new hole, add an external cable cover, or move the light box.
The electrical position should be marked using two measurements: horizontal distance from a fixed wall edge and vertical distance from the finished floor. Measuring from movable furniture or temporary panels can lead to errors.
| Electrical Detail | What to Confirm |
|---|---|
| Input voltage | 110V, 220–240V, or another supply |
| Connection | Plug, fused spur, junction box, or hardwired |
| Outlet position | Exact horizontal and vertical location |
| Switch | Local switch, wall switch, timer, or control system |
| Power supply | Internal, external, or remote |
| Wire exit | Rear, top, bottom, left, or right |
| Dimming | Required or not required |
| Certification | Project or market requirements |
| Local electrician | Who completes final connection |
North American projects commonly use 110–120V input. Many European, UK, Australian, Middle Eastern, and Asian projects use 220–240V. Plug shapes, cable standards, and local electrical requirements vary even when the voltage is similar.
The power supply can be placed inside the cabinet, behind the wall, above a ceiling, in a nearby service area, or inside a separate enclosure. Each arrangement has advantages and limitations.
An internal power supply simplifies installation but adds heat inside the cabinet. A remote power supply reduces cabinet heat and depth but requires suitable cable length and accessible placement. A power supply hidden inside a permanently closed wall may be difficult to replace later.
Service access should be planned for the expected life of the sign. LEDs may operate for long periods, but power supplies and controllers can still require inspection or replacement. Access should not require breaking finished walls or removing heavy architectural panels.
Voltage drop should be checked on long low-voltage cable runs. A power supply located far from the light box may cause reduced brightness or uneven output if the cable size is too small. Large displays may require several power supplies distributed across the frame.
As a planning example, a light box with a calculated LED load of 240 watts should not normally use a power supply rated at exactly 240 watts. A safety allowance is needed. A common engineering approach is to operate power supplies below their maximum capacity, often around 75–85%, depending on the component and project conditions.
Using an 80% loading target:
Required power-supply capacity = LED load ÷ 0.80
For a 240-watt LED load:
240 ÷ 0.80 = 300 watts
The project could use one suitable 300-watt supply or several smaller supplies, depending on the wiring layout, service access, and local requirements.
Power supplies should be matched by voltage as well as wattage. A 12V LED system requires a 12V output supply, while a 24V system requires 24V. Mixing the wrong voltage can damage components or cause low output.
Large displays should have a power schedule showing:
- Number of power supplies;
- Wattage of each supply;
- Input and output voltage;
- Position inside or outside the frame;
- LED zones served by each supply;
- Cable route;
- Access method;
- Controller or dimmer position.
Timers can reduce unnecessary operating hours. A retail light box running 14 hours per day instead of 24 hours uses approximately 42% fewer operating hours. Timers also reduce heat exposure and total component usage.
For exterior installations, cable entries need suitable glands and sealed connections. Ordinary indoor connectors and exposed taped joints should not be used where rain or condensation can reach them. Drainage and ventilation should not direct moisture toward electrical components.
Final connection should follow local regulations. A manufacturer can supply the light box, power supplies, plugs, diagrams, and tested wiring, while a qualified local electrician may still be required to connect the product to the building supply.
How Should Mounting Be Checked?
Mounting should be checked against the total product weight, wall or ceiling structure, wind exposure, fixing position, access route, and maintenance method. A suitable bracket on an unsuitable wall is not a safe installation.
The first step is identifying the real supporting material. Decorative wall finishes may hide a different structure behind them. A stone panel may be mounted over metal framing. A plasterboard wall may have studs at fixed intervals. A suspended ceiling grid may look solid but may not support any sign load.
| Surface | Typical Mounting Consideration |
|---|---|
| Concrete | Expansion anchors or chemical anchors |
| Solid masonry | Suitable masonry anchors |
| Hollow block | Specialized anchors or reinforced fixing points |
| Timber stud wall | Fix to studs or added plywood reinforcement |
| Metal stud wall | Reinforcement plate or structural framing |
| Glass | Engineered clamps, stand-offs, or adhesive system |
| Stone cladding | Fix through to the supporting structure |
| Suspended ceiling | Independent support from the building structure |
| Metal façade | Confirm panel thickness and subframe position |
Anchor type, diameter, quantity, and embedment depth should be selected by the installer or structural professional according to the wall and load. One universal screw specification cannot cover every project.
The finished product weight should be shown before installation. A small poster frame may weigh under 10 kg, while a large direct-lit cabinet can weigh 50–150 kg or more. Double-sided outdoor cabinets, rigid acrylic faces, and steel supports can add considerable weight.
Mounting hole locations should avoid internal LED modules, wiring, power supplies, and structural joints. A production drawing should show the hole spacing and distance from each edge.
French cleats are useful for wall-mounted units because the upper bracket supports the weight while lower fixings prevent movement. Keyhole slots suit smaller products. Direct fixing through the rear panel can be secure but may require removal of the graphic and internal lighting parts during installation.
Large frames may need modular construction. The delivery route should be measured before deciding to produce one complete frame.
Important route dimensions include:
- Loading door width and height;
- Elevator door and internal dimensions;
- Stair width and turning space;
- Corridor width;
- Final room entrance;
- Ceiling height;
- Available assembly area.
A 4-meter-wide frame may fit the wall but not enter the building. Dividing it into 1–1.5-meter sections can make transport easier. Joints should be engineered so the assembled frame remains square and the graphic stays smooth.
Recessed installations need precise opening dimensions. The wall opening should include installation tolerance, ventilation where required, and enough space for wiring. A cabinet produced exactly to the nominal opening size may not fit when the construction is slightly uneven.
As a starting point, a recessed frame may need 5–15 mm installation tolerance per side, depending on size, finish, and fitting method. A trim or flange can cover the gap. The exact allowance should be approved before wall construction is completed.
Suspended light boxes require independent structural support. The weight should not be carried by decorative ceiling tiles or a standard ceiling grid. Steel cables, rods, chains, or brackets should connect to a suitable building structure.
Hanging points should be spaced to prevent the frame from bending. Large suspended units may need four or more points rather than two. Cable lengths should be adjustable so the sign can be leveled after installation.
Freestanding units need stability against accidental contact. Base size, cabinet height, center of gravity, and public traffic all matter. Tall narrow units may require floor anchors even when the base is heavy.
Outdoor mounting must consider wind. A cabinet mounted perpendicular to a wall receives far more wind pressure than one mounted flat against it. Projecting signs normally need reinforced brackets and secure connection to the building structure.
Maintenance access should be checked before final placement. A hinged front cannot open when it sits directly below a low ceiling. A side-opening panel cannot work when the cabinet touches another wall. A rear-service product cannot be fixed permanently against a façade.
A practical service allowance may include:
| Access Type | Suggested Clearance |
|---|---|
| Front-opening face | Enough space for full door movement |
| Side service panel | 300–600 mm beside the cabinet |
| Top access | 300 mm or more above the frame |
| Rear service | Sufficient space to remove or reach components |
| Hinged outdoor door | Clear opening area plus safe support |
Final installation drawings should show the external size, mounting holes, bracket type, cable exit, power-supply position, opening direction, product weight, and required clearance.
A strong placement plan does not begin with “How large should the light box be?” It begins with “Who needs to see it, from where, under what lighting, and how will it be installed and maintained?” Once those questions are answered, size, brightness, cabinet depth, wiring, and mounting can be specified with far fewer assumptions.
What Should You Confirm Before Ordering?
Before ordering an LED light box, confirm the installation site, finished size, visible graphic area, frame construction, lighting effect, power arrangement, mounting method, artwork, graphic replacement process, testing standard, packaging, and delivery date. A complete quotation should be based on measured project information, not only a reference photograph and an approximate width.
Many ordering problems begin with a sentence such as, “We need a light box about two meters wide.” Width alone does not show whether the sign is single-sided or double-sided, mounted indoors or outdoors, viewed from two meters or twenty meters, connected to 110V or 220V, or shipped as one piece or several sections.
A useful RFQ should allow the manufacturer to answer five practical questions:
- Can the proposed structure fit the installation area?
- Can the graphic be read from the intended viewing position?
- Can the frame be mounted safely?
- Can the electrical parts be connected and serviced?
- Can the finished product reach the site without damage?
The following information is normally enough for an initial technical review:
| RFQ Item | Information to Provide |
|---|---|
| Application | Retail, restaurant, hotel, clinic, office, exhibition, transport, or outdoor |
| Installation area | Wall, ceiling, floor, window, recess, counter, or freestanding position |
| Size | Width × height × depth |
| Quantity | One unit, sample, multiple locations, or repeat program |
| Viewing | Distance, approach direction, and traffic speed |
| Graphic | Artwork, text, images, colors, and replacement frequency |
| Lighting | Indoor light level, daylight exposure, color temperature, and dimming |
| Electrical | Country, voltage, plug, switch, wire exit, and power-supply position |
| Mounting | Surface material, bracket type, hole position, and installation height |
| Environment | Indoor, sheltered outdoor, or full weather exposure |
| Delivery | Destination, required arrival date, packing limits, and transport method |
What Site Details Are Needed?
Site information determines whether the light box can be manufactured, transported, mounted, powered, and maintained without unexpected work. Clear photographs and measured dimensions are more useful than a product image copied from another project.
Start with photographs of the complete installation area. One close-up image is rarely enough. A practical site-photo set should include:
- A straight front view;
- A wide view showing the surrounding space;
- A side view showing available depth;
- A close-up of the wall, ceiling, floor, or mounting surface;
- A photograph showing the electrical outlet or cable;
- A view of doors, elevators, counters, furniture, pipes, or other obstructions;
- An outdoor view showing canopy coverage, sunlight, rain exposure, and nearby structures.
Place a tape measure, marked dimension, or known object in the photograph whenever possible. Perspective can make a wall appear much larger or smaller than its actual size.
The available area should be measured at more than one point. Walls, recesses, columns, and ceiling openings are not always perfectly square.
For a recessed installation, record:
- Opening width at the top, center, and bottom;
- Opening height on the left, center, and right;
- Available recess depth;
- Distance from the opening to the nearest power point;
- Wall finish thickness;
- Any internal framing or pipes;
- Required finishing trim around the cabinet.
A recess measuring 2,000 mm at the top and 1,985 mm at the bottom cannot safely accept a 2,000 mm-wide cabinet without adjustment. Installation tolerance is normally required. Depending on size and construction, a gap of approximately 5–15 mm per side may be needed, with a trim or flange covering the final joint.
For a surface-mounted light box, measure the clear wall area and mark nearby objects:
| Site Item | Minimum Information |
|---|---|
| Wall width | Clear distance between corners, columns, or furniture |
| Wall height | Finished floor to ceiling or bulkhead |
| Mounting height | Floor to bottom edge and floor to graphic center |
| Side clearance | Space needed for doors or side service panels |
| Top clearance | Space needed for ventilation or top access |
| Front clearance | Space needed to open a hinged face |
| Power position | Horizontal and vertical distance from fixed references |
| Cable route | Concealed, exposed, ceiling-fed, or floor-fed |
Viewing direction should be shown with arrows on a photograph or floor plan. A wall may look suitable from the front but remain almost invisible to people walking parallel to it. Double-sided or projecting construction may be more effective when traffic approaches from two directions.
Viewing distance should include both the first recognition point and the closest reading point. For example:
- First visible from 15 meters;
- Main message read from 8 meters;
- Product details read from 2 meters.
Different distances affect image scale, text height, brightness, and the amount of information that can be included.
Mounting height also changes the graphic design. A menu board installed 2.8 meters above the floor is viewed at an upward angle. Small prices and narrow fonts become harder to read. A directory installed at eye level can carry more information.
The wall or ceiling material must be identified. “Drywall” alone is not enough because the sign may need to attach to timber studs, metal studs, plywood reinforcement, concrete behind the wall, or a separate steel frame.
Common surfaces require different installation planning:
| Surface | Information Needed |
|---|---|
| Concrete | Thickness, anchor area, concealed services |
| Brick or masonry | Solid or hollow construction |
| Timber stud wall | Stud location and spacing |
| Metal stud wall | Stud gauge and reinforcement |
| Glass | Glass thickness and approved fixing method |
| Stone cladding | Supporting structure behind the stone |
| Metal façade | Panel thickness and subframe position |
| Suspended ceiling | Independent structural support above the ceiling |
| Decorative slat wall | Backing material and safe fixing points |
Outdoor site details need more attention because exposure varies greatly between locations. A light box under a deep canopy has different requirements from one installed on an open coastal façade.
Confirm:
- Direct or sheltered rain exposure;
- Hours of direct sunlight;
- Typical summer and winter temperatures;
- Coastal salt exposure;
- Dust or sand conditions;
- Wind exposure;
- Installation height above ground;
- Wall direction;
- Nearby roof drainage;
- Possibility of water running down the wall;
- Local installation or sign-code requirements.
Wind is especially important for projecting and freestanding signs. A cabinet mounted perpendicular to a wall experiences greater force than one mounted flat against the façade. The bracket and building connection may need engineering based on sign area, installation height, local wind conditions, and wall structure.
Transport access should be measured before the frame is finalized. A large light box may fit the wall but fail to pass through the building entrance.
Record:
- Loading-door width and height;
- Elevator-door size;
- Elevator internal dimensions;
- Corridor width;
- Stair width and turning space;
- Final-room doorway;
- Ceiling height;
- Space available for assembly.
A 4-meter frame may need to be divided into 1–1.5-meter sections when access is restricted. Modular joints should be designed before production rather than cut after delivery.
A simple site checklist can prevent most early mistakes:
| Site Check | Confirmed |
|---|---|
| Installation photographs supplied | Yes / No |
| Final wall dimensions measured | Yes / No |
| Viewing distance recorded | Yes / No |
| Traffic direction marked | Yes / No |
| Mounting surface identified | Yes / No |
| Power position measured | Yes / No |
| Maintenance access available | Yes / No |
| Delivery route measured | Yes / No |
| Outdoor exposure explained | Yes / No |
| Required installation date supplied | Yes / No |
Which Product Details Matter?
A light box quotation should clearly define what will be manufactured. Terms such as “LED box,” “backlit sign,” or “fabric display” are too broad for production.
The basic specification should include:
- External width;
- External height;
- Cabinet depth;
- Quantity;
- Single-sided or double-sided structure;
- Frame material;
- Frame finish;
- Graphic face material;
- Visible graphic area;
- Lighting method;
- Color temperature;
- Graphic access method;
- Mounting method;
- Wire exit;
- Power-supply position;
- Indoor or outdoor use.
External size and visible graphic size should be listed separately. A 1,200 × 1,800 mm frame does not necessarily provide a 1,200 × 1,800 mm visible image. Frame borders, snap edges, fabric channels, and door structures cover part of the print.
A clear specification may read:
External size: 1,200 × 1,800 × 80 mm
Visible graphic area: 1,130 × 1,730 mm
Frame border: 35 mm
Graphic type: SEG fabric
Lighting: Direct-lit LED
Color temperature: 4000K
Mounting: Wall-mounted
Wire exit: Rear center
Input: 110V
Quantity: 12 units
Cabinet depth should not be selected only for appearance. Depth affects lighting uniformity, structural strength, wiring space, heat, weight, and shipping volume.
| Construction | Common Depth | Typical Use |
|---|---|---|
| Edge-lit poster frame | 20–50 mm | Small indoor posters |
| Slim direct-lit cabinet | 50–90 mm | Menus and retail displays |
| Standard direct-lit cabinet | 80–150 mm | Medium and large graphics |
| Indoor SEG fabric frame | 60–120 mm | Retail and exhibition walls |
| Outdoor rigid-face box | 100–200 mm | Storefront walls |
| Large flexible-face cabinet | 150–300 mm | Large exterior graphics |
| Double-sided cabinet | 100–250 mm | Open areas and projecting signs |
The final depth depends on size, LED optics, diffuser, brightness requirement, internal support, and whether one or two faces are illuminated.
Frame material and finish should be specific. Aluminum is commonly used because it is lighter and corrosion-resistant. Steel may be used for reinforcement or heavy-duty structures. Stainless steel can suit exposed or premium applications.
Frame finish may include:
- Powder-coated black;
- Powder-coated white;
- Silver anodized aluminum;
- Brushed stainless steel;
- Painted custom color;
- Champagne, bronze, or gold-tone finish;
- Finish matched to Pantone or RAL references.
“Gold” is not a production specification. Gold paint, brushed brass, titanium-coated stainless steel, anodized champagne aluminum, and mirror gold stainless steel have very different appearances and prices.
Graphic face material should match the size, location, replacement schedule, and expected appearance.
| Face Material | Best Use | Main Consideration |
|---|---|---|
| Backlit film | Small indoor poster frames | Easy printing and replacement |
| Printed acrylic | Rigid indoor faces | Heavy at large sizes |
| Polycarbonate | Impact-sensitive areas | Can scratch more easily |
| SEG fabric | Large indoor graphics | Requires accurate tension |
| Flexible face material | Large outdoor cabinets | Needs proper tensioning |
| Magnetic acrylic cover | Frequent indoor changes | Weight increases with size |
For acrylic and polycarbonate faces, thickness may range from approximately 2–5 mm for smaller panels and increase for larger sizes. Exact thickness depends on panel area, frame support, wind, temperature, and impact requirements.
Lighting color should be defined by color temperature rather than “warm” or “cool” alone.
| Color Temperature | Typical Appearance |
|---|---|
| 2700–3000K | Warm, yellow-white |
| 3500K | Warm-neutral |
| 4000K | Neutral white |
| 5000K | Crisp white |
| 6000–6500K | Cool, blue-white |
Around 4000K is often selected for menus, clinics, offices, and general retail. Hospitality spaces may prefer 3000–3500K. Final selection should consider the printed colors and nearby lighting.
Brightness requirements should be explained through the installation environment:
- Dim indoor corridor;
- Normal office lighting;
- Bright retail interior;
- Window-facing display;
- Covered outdoor area;
- Full outdoor daylight;
- Night-only use.
Dimming should be listed when required. Dimming cannot always be added after production without changing the power supply, controller, or wiring.
Graphic replacement should be chosen according to real operating needs.
| Update Frequency | Recommended Access |
|---|---|
| Weekly | Snap frame or separate poster panels |
| Monthly | Magnetic face or front-opening system |
| Seasonal | SEG fabric |
| Once per year | Removable rigid face |
| Rarely changed | Fixed face with service access |
Mounting details should be listed rather than left for later:
- Direct wall fixing;
- French cleat;
- Keyhole slots;
- Concealed bracket;
- Recessed frame;
- Suspension cables;
- Threaded rods;
- Floor base;
- Floor anchors;
- Projecting wall bracket.
Large orders should include a location schedule. Each light box can be assigned a store, room, department, terminal, or booth number.
A useful schedule may include:
| Unit ID | Location | Size | Graphic File | Voltage | Mounting |
|---|---|---|---|---|---|
| LB-01 | Store 101 entrance | 1200 × 1800 mm | G101-V3 | 110V | Wall |
| LB-02 | Store 102 entrance | 1200 × 1800 mm | G102-V2 | 110V | Wall |
| LB-03 | Store 103 counter | 600 × 900 mm | M103-V5 | 110V | Suspended |
A numbered schedule reduces packing mistakes and makes future replacement orders easier.
What Artwork Should Be Supplied?
Artwork should be supplied at the correct final proportion, with enough image resolution, correct colors, bleed, safe margins, and approved text. A logo copied from a website or a low-resolution screenshot is rarely suitable for a large illuminated graphic.
Preferred vector formats include:
- AI;
- EPS;
- Editable PDF;
- SVG;
- CDR when supported.
Vector files are best for logos, text, icons, arrows, and line artwork because they can be enlarged without losing sharpness.
Raster formats such as TIFF, PSD, PNG, and high-quality JPEG can be used for photography. Final suitability depends on pixel dimensions and intended viewing distance.
A practical way to check resolution is:
Effective PPI = Image pixels ÷ Printed size in inches
For example, a photograph 6,000 pixels wide printed at 1,500 mm:
1,500 mm ÷ 25.4 = 59.1 inches
6,000 ÷ 59.1 = approximately 102 PPI
About 102 PPI may be suitable for a large graphic viewed from several meters away.
The following ranges are useful for early review:
| Viewing Condition | Suggested Effective Resolution |
|---|---|
| Close viewing under 1 m | 150–200 PPI |
| Normal viewing at 1–3 m | 100–150 PPI |
| Large graphic at 3–10 m | 60–100 PPI |
| Very large display beyond 10 m | 30–72 PPI |
Higher resolution is not always necessary for distant viewing, but low-resolution images should not be enlarged without checking the final result.
Files should be created at full size whenever practical. Very large graphics may be supplied at 1:2, 1:5, or 1:10 scale, but the scale must be stated clearly.
For example:
Artwork scale: 1:10
Artwork size: 400 × 250 mm
Finished size: 4,000 × 2,500 mm
Effective resolution at finished size: 100 PPI
Bleed allows the print to extend beyond the visible edge. The exact amount depends on the frame and graphic system.
Typical starting points may include:
| Graphic Type | Typical Bleed |
|---|---|
| Poster film | 3–10 mm |
| Printed acrylic | 5–15 mm |
| SEG fabric | Based on silicone and frame profile |
| Flexible face | 50–150 mm or more for tensioning |
| Wrapped graphic | Based on fold and fixing method |
The manufacturer should supply an artwork template showing:
- External print size;
- Visible area;
- Bleed;
- Safe area;
- Frame overlap;
- Panel divisions;
- Silicone-edge allowance;
- Orientation;
- File scale.
Important logos, prices, arrows, and text should remain inside the safe area. For small and medium displays, 30–50 mm from the visible edge is a useful starting point. Large fabric graphics may need 50–100 mm or more.
Text should be converted to outlines before final submission, or the font files should be supplied under the applicable license. Missing fonts can change line breaks, letter width, and spacing.
All spelling, prices, dates, phone numbers, web addresses, and legal text should be approved before printing. Manufacturing teams can identify obvious layout issues, but they cannot confirm whether a menu price or promotional date is commercially correct.
Color references should be provided in a usable format:
- Pantone number;
- RAL number;
- CMYK values;
- RGB values for screen reference;
- Physical sample;
- Approved printed sample;
- Brand-guideline file.
Screen color is not enough for critical approval. Monitors vary, and translucent printing changes after illumination. A backlit print may appear brighter and less dense than the same image on a reflective print.
Dark colors often need special attention. A black background may look gray when illuminated if ink density is too low. Strong double-strike printing can increase density but may reduce light output. The print method should balance color depth and illumination.
For food, cosmetics, skin tones, luxury products, and tightly controlled brand colors, an illuminated proof is valuable. A small proof should use the actual print material, ink method, diffuser, LED color temperature, and expected brightness.
Large graphics may need panel divisions. The file should show where joints will appear. Avoid placing faces, logos, small text, or straight product edges directly across a seam.
For modular frames, artwork sections should use clear names:
Project-Location-Panel-Orientation-Version
Example:
Hotel-Lobby-Panel-01-Left-V3
Hotel-Lobby-Panel-02-Center-V3
Hotel-Lobby-Panel-03-Right-V3
File version control is important. Words such as “final,” “final-new,” and “final-latest” often cause confusion. Use numbered revisions and written approval.
A clear approval record may state:
Approved artwork: V5
Approved size: 2,400 × 1,200 mm
Approved color sample: Sample B
Approved date: June 18, 2026
Approved visible area: 2,330 × 1,130 mm
Production drawings and print artwork should both be approved. The print file controls the visual content. The production drawing controls the cabinet, brackets, wire exit, visible area, and electrical arrangement.
Which Electrical Standards Apply?
Electrical requirements should be confirmed according to the destination country, operating voltage, installation environment, building rules, and connection method. Voltage alone is not enough.
The electrical specification should include:
- Destination country;
- Input voltage;
- Frequency;
- Plug type;
- Hardwired or plug-in connection;
- Power-supply location;
- LED output voltage;
- Total wattage;
- Switching method;
- Dimming method;
- Timer or control system;
- Indoor or outdoor exposure;
- Required certifications;
- Final connection responsibility.
Common input conditions include:
| Market | Common Supply |
|---|---|
| United States and Canada | 110–120V, 60Hz |
| United Kingdom | 220–240V, 50Hz |
| European Union | 220–240V, 50Hz |
| Australia and New Zealand | 220–240V, 50Hz |
| Middle East | Often 220–240V, 50Hz |
| Japan | Commonly 100V, 50/60Hz |
| South Korea | Commonly 220V, 60Hz |
| Singapore | Commonly 230V, 50Hz |
Final requirements should always be checked for the project location because plugs, circuit rules, certification expectations, and installation practices vary.
The connection method should be agreed before the drawing is approved.
Plug-in connections are practical for exhibitions, temporary displays, portable frames, and locations with accessible outlets. Hardwired connections are common for permanent wall, ceiling, and exterior installations.
A hardwired light box may require:
- Building junction box;
- Fused connection;
- Local isolation switch;
- Accessible driver compartment;
- Conduit;
- Cable gland;
- Qualified electrician.
Power-supply position affects appearance and service.
| Power-Supply Position | Advantage | Limitation |
|---|---|---|
| Inside cabinet | Simple installation | Adds heat and requires cabinet access |
| Behind cabinet | Hidden and close to LEDs | Needs wall space and service access |
| Above ceiling | Keeps frame slim | Access panel required |
| Remote service room | Easy centralized service | Voltage drop must be calculated |
| Separate outdoor enclosure | Better environmental protection | Extra box and wiring required |
Low-voltage cable length should be limited or calculated properly. Long runs can create voltage drop, causing reduced brightness or uneven illumination.
Large light boxes may need multiple power supplies. The LED load should not normally equal the maximum power-supply rating. An operating margin helps reduce heat and stress.
Using an 80% loading target:
Required capacity = LED load ÷ 0.80
For a 320-watt LED load:
320 ÷ 0.80 = 400 watts
The project could use one suitable 400-watt supply or several smaller supplies, depending on LED zones, wiring, service access, and applicable standards.
A power schedule for a large display should show:
| Zone | LED Load | Supply Rating | Output Voltage | Location |
|---|---|---|---|---|
| Left section | 120W | 150W | 24V | Inside left frame |
| Center section | 160W | 200W | 24V | Inside center frame |
| Right section | 120W | 150W | 24V | Inside right frame |
Dimming requirements should be raised before production. Different control systems are not automatically interchangeable.
Possible systems include:
- PWM;
- 0–10V;
- DALI;
- TRIAC;
- Remote controller;
- Manual dimmer;
- Building-management control.
A simple wall dimmer cannot always control a standard LED power supply. The correct driver and wiring arrangement must be selected from the start.
Timers and operating schedules can reduce energy use. A display operating 14 hours per day instead of 24 hours reduces operating time by approximately 42%.
The annual operating hours can be calculated:
14 hours × 365 days = 5,110 hours per year
24 hours × 365 days = 8,760 hours per year
For a 300-watt display:
5,110 hours × 0.3 kW = 1,533 kWh per year
8,760 hours × 0.3 kW = 2,628 kWh per year
The difference is 1,095 kWh per year before local electricity pricing is applied.
Outdoor electrical systems require suitable protection. Important points include:
- Outdoor-rated LED modules;
- Suitable power supplies;
- Waterproof cable glands;
- Protected connectors;
- Sealed cable entries;
- Drainage away from electrical parts;
- Accessible isolation;
- Corrosion-resistant hardware;
- Proper grounding where required.
IP65 is suitable for many properly engineered outdoor sign structures. IP67 or IP68 arrangements may be selected for more demanding conditions, with IP68 available on request. An IP rating on one LED module does not make the complete cabinet waterproof. Face joints, doors, glands, drainage, wiring, and installation all affect performance.
Certification requirements should be stated during quotation. Depending on the market and project, requirements may include UL, CE, RoHS, or other local standards. Required documents, labels, listed components, and inspection expectations can affect cost and production planning.
The final building connection should follow local electrical rules. Factory testing does not replace site installation by a qualified electrician where local regulations require one.
How Should Quality and Delivery Be Checked?

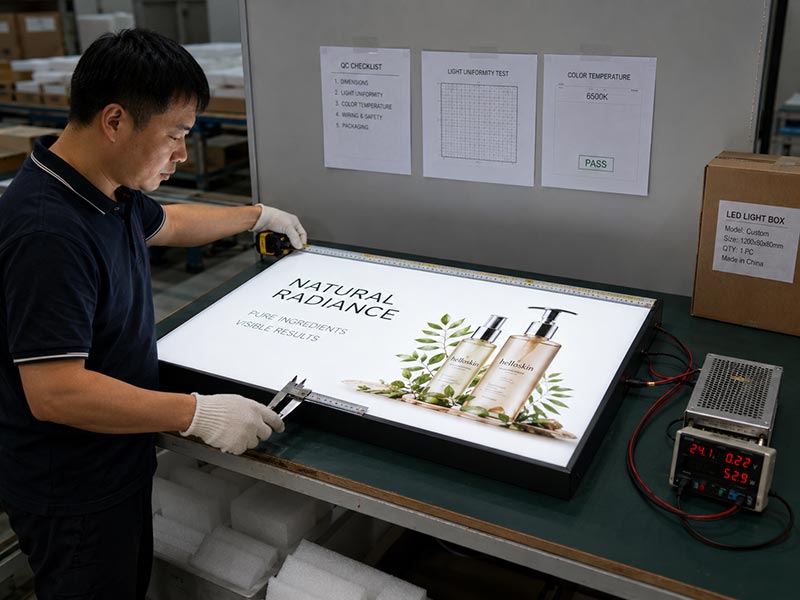

Quality checking should cover appearance, dimensions, graphic fit, lighting, wiring, mounting parts, accessories, packaging, and shipping documents. A light box can illuminate correctly and still fail at the site because the frame is the wrong size, the cable exits from the wrong side, or the brackets are missing.
A practical inspection should follow the approved production drawing and specification.
Dimensional checks should include:
- External width;
- External height;
- Cabinet depth;
- Visible graphic area;
- Frame-border width;
- Mounting-hole spacing;
- Bracket position;
- Wire-exit location;
- Modular-joint position;
- Door-opening clearance.
Typical dimensional tolerances depend on material, size, and construction. A project drawing should state the required tolerance when fit is critical.
As an early reference:
| Item | Typical Review Range |
|---|---|
| Small frame dimensions | Approximately ±1–2 mm |
| Medium cabinet dimensions | Approximately ±2–3 mm |
| Large modular frame | Approximately ±3–5 mm |
| Mounting-hole spacing | Tighter control may be required |
| Recessed installation size | Must match approved site tolerance |
Surface inspection should look for:
- Scratches;
- Dents;
- Uneven powder coating;
- Color variation;
- Sharp edges;
- Open joints;
- Visible weld marks;
- Poor corner alignment;
- Loose fasteners;
- Dirty or marked graphic faces.
Lighting checks should use the final graphic whenever possible. White test material alone may not reveal dark areas behind dense printing.
The inspection should check:
- All LEDs illuminate;
- No dead sections;
- No visible bright spots;
- No dark corners;
- No color-temperature mismatch;
- No flickering;
- Dimming works correctly;
- Controllers respond correctly;
- Both faces match on double-sided units;
- Power supplies operate without abnormal noise or heat.
Photographs should be taken in both illuminated and non-illuminated conditions. A dark-room photograph helps show uniformity, while a normally lit photograph shows the real visual result.
iduoduo applies a 100% lighting test and a 72-hour aging test to illuminated sign products before shipment. Aging tests help reveal early LED failure, unstable wiring, power-supply problems, excessive heat, controller faults, and inconsistent illumination before international transport.
A useful inspection record may include:
| Inspection Item | Result |
|---|---|
| External size | Pass / Fail |
| Visible graphic size | Pass / Fail |
| Frame finish | Pass / Fail |
| Graphic color and fit | Pass / Fail |
| Lighting uniformity | Pass / Fail |
| Color temperature | Pass / Fail |
| Dimming or controller | Pass / Fail |
| Power-supply load | Pass / Fail |
| Wire exit | Pass / Fail |
| Mounting accessories | Pass / Fail |
| Aging test | Pass / Fail |
| Packaging check | Pass / Fail |
Accessories should be checked against a packing list. A complete installation package may include:
- Mounting brackets;
- Screws and anchors when specified;
- Suspension cables or rods;
- Power supplies;
- Plugs;
- Controllers;
- Dimmers;
- Installation templates;
- Graphic-removal tools;
- Spare connectors;
- Wiring diagram;
- Assembly drawing;
- Installation instructions.
Anchors should not be supplied as a universal solution when the final wall material is unknown. The local installer should select suitable anchors for the actual structure.
For multi-unit orders, every product and package should have a clear ID. Labels may include:
- Project name;
- Unit number;
- Store or room number;
- Product size;
- Graphic file;
- Voltage;
- Package number;
- Orientation;
- Installation position.
Example:
Project: Greenfield Retail Rollout
Location: Store 024
Unit: LB-024-A
Size: 1200 × 1800 mm
Voltage: 110V
Package: 1 of 2
Position: Entrance Left
Packaging should match the product size, face material, shipping distance, and handling risk.
Smaller units may use:
- Surface protection film;
- Foam sheets;
- EPE foam;
- Corner protectors;
- Reinforced cartons;
- Separate accessory box.
Large or fragile units may need:
- Thick foam blocks;
- Edge protectors;
- Internal bracing;
- Plywood or wooden crates;
- Moisture protection;
- Shock-sensitive labels;
- Forklift access;
- Upright-handling marks.
Power supplies, metal brackets, and screws should not be loose inside the same package as acrylic or painted surfaces. Accessories should be placed in labeled bags or separate boxes.
Rigid acrylic faces need protection against flexing and impact. SEG fabric graphics should be folded or rolled according to the material. Rolling usually reduces creases but increases package length.
Large modular frames should include an assembly sequence. Each section can be labeled A, B, C, or 1, 2, 3. Matching joints and cables should use the same identification.
Before shipment, confirm the package dimensions and weight. Oversized cargo may face airline, courier, elevator, or site-handling limits.
| Transport Method | Suitable Use | Main Consideration |
|---|---|---|
| Express courier | Small urgent units and samples | Size and dimensional weight |
| Air freight | Time-sensitive commercial orders | Airport handling and crate strength |
| Sea freight | Large frames and bulk orders | Longer transit and moisture protection |
| Door-to-door service | Projects needing simpler coordination | Confirm final access and unloading |
| Local collection | Installer-controlled projects | Vehicle size and loading method |
Production time for custom LED light boxes is generally 7–10 days after artwork, size, materials, lighting, mounting details, and payment are confirmed. Complex outdoor structures, large quantities, special finishes, certification requirements, or modular engineering may require more time.
Production time is not the same as arrival time. The schedule should separate:
- Drawing and artwork approval;
- Material preparation;
- Fabrication;
- Printing;
- Assembly;
- Lighting and aging tests;
- Packing;
- Export handling;
- Transit;
- Customs;
- Local delivery;
- Installation.
A project needed on August 30 should not use August 30 as the factory shipment date. Allow time for customs, site handling, inspection, and possible installation adjustments.
A practical schedule may look like:
| Stage | Planned Time |
|---|---|
| Specification and drawing approval | 2–5 days |
| Production | 7–10 days |
| Lighting and aging test | Included in production plan |
| Packing and export preparation | 1–3 days |
| International transport | Based on route |
| Site buffer | 3–7 days or more |
| Installation | Based on quantity and access |
Other illuminated signs from iduoduo are covered by a 3-year warranty under the confirmed product terms and intended operating conditions. Warranty coverage should be reviewed before ordering, including the covered parts, claim process, required evidence, and exclusions.
Warranty terms normally do not cover problems caused by:
- Incorrect installation;
- Wrong input voltage;
- Unauthorized wiring changes;
- Physical damage;
- Water exposure beyond the approved structure;
- Use outside the intended environment;
- Extreme weather;
- Improper storage;
- Damage during later transport or relocation.
Before approving shipment, request or confirm:
- Final product photographs;
- Illuminated photographs;
- Lighting-test video;
- Size-check photographs;
- Accessory photograph;
- Packaging photograph;
- Package count;
- Package dimensions;
- Gross weight;
- Shipping mark;
- Commercial documents;
- Tracking or transport information.
The best ordering file is not the longest one. It is the file that removes uncertainty about size, graphic, light, power, mounting, access, testing, and delivery. When those points are settled before production, the light box is far more likely to arrive ready for installation rather than ready for correction.
Planning a Custom LED Light Box With iduoduo
A useful quotation starts with the installation conditions rather than a product photo alone. Send the required size, quantity, artwork, installation photographs, viewing distance, indoor or outdoor environment, voltage, mounting method, and preferred delivery date. Information about graphic replacement frequency, available wall depth, and power location will also help define a more suitable structure.
iduoduo can review the project details and prepare a production-ready proposal covering frame type, face material, lighting method, wire exit, mounting points, electrical configuration, and packaging. For large or multi-location projects, drawings and unit labels can be organized by store, room, or installation position to reduce confusion during delivery and installation.
A project can begin with a complete drawing, a logo file, a reference image, or site photographs. Contact iduoduo when the basic requirements are available, and the team can help identify any missing details before pricing or production begins.
