Which Commercial Spaces Need Wayfinding Signs?

A building can look impressive in an architectural rendering and still be frustrating to use. The real test begins when a first-time visitor enters from the parking area, faces three corridors, sees two elevators, and cannot tell whether the appointment is on the second floor or in another wing. At that moment, the problem is no longer interior design. It is wayfinding.

Commercial spaces need wayfinding signs when visitors cannot reliably understand where they are, where they need to go, and which route to follow without asking staff. The strongest need appears in hospitals, offices, shopping centers, hotels, campuses, parking facilities, mixed-use buildings, and any site with multiple entrances, floors, tenants, departments, or decision points.

A small clinic may need only a reception sign, room identification, restroom signs, and one directional panel. A medical campus may require exterior vehicle guidance, building identification, directories, floor maps, suspended directional signs, tactile room signs, and parking-zone markers. Size matters, but complexity matters more. One poorly marked turn can cause more confusion than an entire straight corridor. Imagine arriving ten minutes early for an important meeting, then spending twelve minutes searching for the correct suite. That experience explains why effective wayfinding begins long before a sign is manufactured.

What Are Wayfinding Signs?

Wayfinding signs are a connected group of signs that help people enter a property, understand their location, choose the correct route, follow it, and confirm arrival. A working system may include building identification, directories, directional panels, floor numbers, room signs, restroom signs, parking markers, accessibility symbols, and destination signs. The signs must use consistent names, arrows, colors, room numbers, and placement so the route remains clear from the street or car park to the final door.

What Problems Do Wayfinding Signs Solve?

Wayfinding signs solve problems that appear whenever a visitor has more than one believable route to choose from. The difficulty may occur at a driveway, building entrance, reception area, lift lobby, corridor junction, stair landing, parking level, or group of similar doors.

The problem is not always a lack of signs. Many properties already have signs but still receive frequent direction questions because the signs:

appear after the turn instead of before it;
use small lettering for the viewing distance;
face the wall rather than the direction of travel;
use different names for the same destination;
contain too many destinations on one panel;
are hidden by doors, plants, furniture, vehicles, or crowds;
identify the destination but provide no route to reach it;
use color as the only way to distinguish areas;
fail to confirm that the visitor is still on the correct route.

A common example occurs in multi-tenant offices. The lobby directory may list “Northfield Dental — Level 4,” but the lift panel uses “Medical Suites,” while the fourth-floor corridor sign says “Suite 401–420.” A visitor may technically have all the required information and still feel unsure because the naming changes at every stage.

Wayfinding problems also affect daily operations. Consider a property receiving 200 first-time visitors each day. If 10% ask an employee for directions and each conversation takes two minutes, staff spend about 40 minutes per day giving routine guidance. Over 250 working days, that equals roughly 167 staff hours.

Navigation problem	What visitors experience	Useful sign response
Wrong entrance	Visitors enter a loading or staff area	Exterior entrance identification
Unclear reception route	People stop immediately after entering	Reception direction near the entrance
Confusing lift choice	Visitors select the wrong floor or lift bank	Lift directory and floor destinations
Long corridor uncertainty	People turn back or ask for help	Reassurance sign along the route
Similar room doors	Visitors pass the correct room	Clear room identification
Repetitive parking levels	Drivers forget where they parked	Level, zone, row, and lift markers
Restricted access confusion	Visitors enter staff-only areas	Regulatory and access-control signs

A useful sign does more than fill an empty wall. It removes a specific question at a specific location.

How Do Wayfinding Signs Improve Navigation?

Wayfinding signs improve navigation by dividing a journey into simple steps. Each sign should answer the next question rather than trying to explain the entire property.

A typical office visit may follow five stages:

Arrival: A roadside or parking sign identifies the correct building.
Orientation: A lobby directory shows the company name and floor.
Route selection: Lift or stair information confirms where to go.
Movement: A corridor sign points toward a suite or room range.
Arrival confirmation: A room sign identifies the final destination.

The sequence matters. A clear room sign cannot help a visitor who never finds the correct floor. A detailed lobby directory cannot finish the journey when there is no guidance outside the lift.

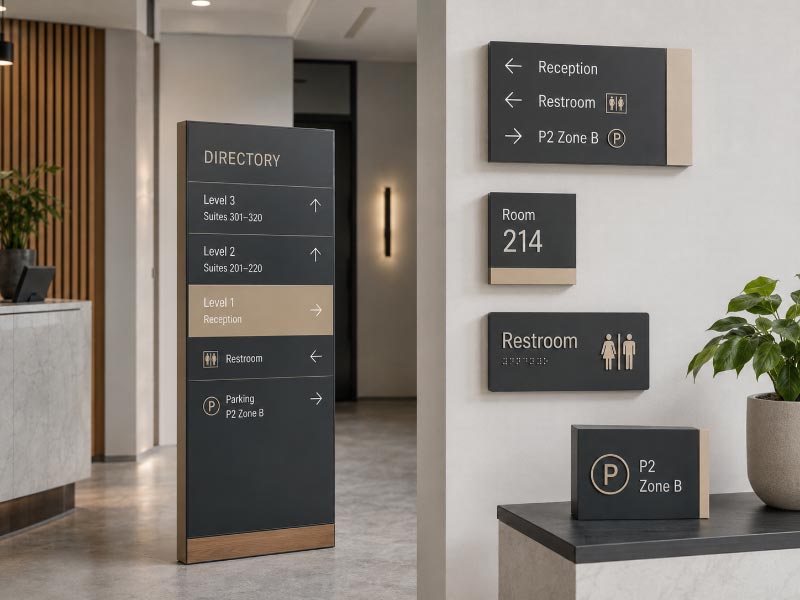

Journey stage	Visitor question	Typical sign
Property approach	Is this the correct site?	Monument or building sign
Parking entry	Where should visitors park?	Vehicle directional sign
Main entrance	Which door should I use?	Entrance identification
Lobby	Which floor or area do I need?	Directory or map
Lift or stair	Which route reaches the destination?	Floor directory
Corridor junction	Which way should I turn?	Directional panel
Long route	Am I still going the right way?	Reassurance sign
Final door	Have I arrived?	Room or suite sign

Readability should match the way the sign is viewed. A pedestrian can stop in front of a directory and read several lines. A driver approaching a ramp needs a much shorter message.

A practical message limit is:

one main instruction for fast vehicle decisions;
two to four destination groups at a corridor junction;
room ranges instead of long lists of individual room numbers;
a full destination list only where people can safely stop and read.

For example, a sign reading “Rooms 201–218 →” is easier to understand while walking than a panel listing eighteen individual room numbers.

Sign timing is equally important. The message must appear early enough for a person to read it, process it, and act without stopping suddenly. At a corridor intersection, the sign should normally be visible before the visitor reaches the turning point. In a parking facility, lane guidance should appear before lane separation, not directly above the final turn.

Good wayfinding does not attract attention for its own sake. People notice the message, make the correct decision, and continue moving.

Are Wayfinding Signs Only for Large Buildings?

Wayfinding signs are not limited to hospitals, airports, shopping centres, or university campuses. A small property may need a structured sign system when it has several entrances, hidden rooms, shared corridors, multiple services, split levels, or public and restricted zones.

A 300-square-metre clinic may be harder to navigate than a 2,000-square-metre open showroom. The clinic may contain reception, consultation rooms, treatment rooms, a laboratory, an accessible restroom, staff storage, and two similar corridors. The showroom may be visible almost entirely from the entrance.

The number of signs should therefore follow route complexity rather than floor area.

A small dental clinic may require:

one exterior building or suite sign;
one entrance sign;
one reception direction;
four to eight treatment-room signs;
one restroom sign;
one staff-only sign;
one exit or egress-related sign;
one accessible-route or accessible-facility sign where required.

A restaurant may need separate guidance for:

main dining;
takeaway collection;
private rooms;
restrooms;
accessible facilities;
delivery access;
staff-only areas;
emergency exits.

A simple site can often work with 5–15 well-positioned signs. A multi-floor office may require 30–100 signs. A hospital or large campus may need hundreds or thousands of individually coded signs. Quantity alone does not indicate quality. A property with 100 poorly placed signs may remain harder to navigate than a property with 12 carefully planned signs.

The following checks help determine whether a smaller commercial space needs better wayfinding:

Check	Warning sign
Can a first-time visitor identify the entrance from parking?	People walk toward service or staff doors
Is reception visible or clearly directed?	Visitors stop immediately after entering
Can people find the restroom without asking?	Staff answer the same question every day
Are room numbers visible from the approach?	Visitors pass the correct room
Are public and restricted zones clearly separated?	Visitors enter work or storage areas
Can people return to the parking area easily?	Guests retrace the entire route
Are exit routes easy to understand?	People hesitate at stairs or corridor junctions

Repeated confusion at two or more stages usually points to a system problem. Adding one arrow may solve a single missing instruction, but unclear naming, weak placement, poor visibility, or an incomplete route often requires several coordinated signs.

What Makes a Wayfinding System Work?

A wayfinding system works when every sign uses the same information rules. The design can change slightly between exterior, interior, wall-mounted, suspended, and tactile signs, but the underlying destination names and navigation logic should remain stable.

Important controls include:

one approved name for every building, department, floor, room, and facility;
one arrow style used consistently;
a predictable room-numbering sequence;
clear separation between public and restricted destinations;
readable character sizes for the expected viewing distance;
strong contrast between text and background;
non-glare finishes where reflections may reduce readability;
sign positions based on the visitor’s approach direction;
confirmation signs after long or complicated routes;
unique sign codes for production, packing, installation, and replacement.

Terminology often causes more trouble than sign materials. A property may use “Ground Floor” on architectural drawings, “Level 1” in the lift, and “Lobby Level” on a directory. Each phrase may be understandable by itself, but the combination creates doubt.

A simple destination-control table can prevent those errors before production begins.

Sign code	Location	Approved wording	Direction	Sign type
L-01	Main lobby	Reception	Straight ahead	Directional
L-02	Main lobby	Northfield Dental — Level 4	Up	Directory
F4-01	Lift exit	Suites 401–420	Right	Directional
F4-12	Suite entrance	Northfield Dental — 412	None	Identification

The sign code also helps during installation. Instead of opening every carton to find “the sign near the fourth-floor lift,” the installer can locate F4-01 on the packing list and match it to the approved location plan.

Future replacements become easier as well. A property manager can order a revised panel by sign code, size, finish, mounting method, and content instead of measuring the sign again from the beginning.

A good wayfinding system is therefore built from three things working together: accurate information, correct placement, and reliable manufacturing. Attractive graphics alone cannot compensate for a wrong room number, an arrow pointing in the wrong direction, or a sign installed where nobody can see it.

Which Spaces Need Wayfinding Signs Most?

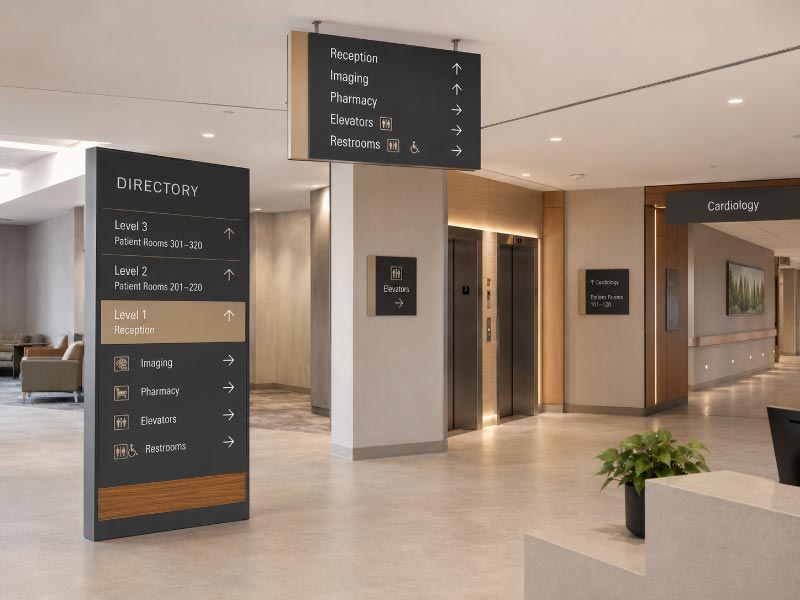

Hospital wayfinding signs directing visitors to departments elevators and reception

Wayfinding signs are most important in places where visitors are unfamiliar with the layout, destinations are spread across several floors or buildings, and a wrong turn causes delay, stress, or safety concerns. Hospitals, office buildings, shopping centers, hotels, campuses, and parking facilities usually have the highest demand. The real trigger is not building size alone, but the number of entrances, destinations, route choices, and first-time visitors.

Space type	Main navigation pressure	Highest-priority sign locations	Typical sign functions
Hospitals and clinics	Stress, time-sensitive appointments, many departments	Parking, entrances, registration, lifts, corridor junctions	Building ID, directories, department directions, room signs
Office buildings	Multiple tenants, floors, meeting rooms, controlled areas	Main entrance, lobby, lift banks, floor exits	Tenant directories, floor IDs, suite directions
Shopping centers	Several entrances, changing tenants, busy pedestrian flow	Parking, entrances, atriums, escalators, corridor intersections	Maps, store directories, amenity directions
Hotels	Unfamiliar guests, room ranges, event areas, amenities	Arrival, reception, lifts, guest floors, conference zones	Room-range signs, amenity directions, room IDs
Campuses	Multiple buildings, exterior routes, long walking distances	Vehicle entrances, parking, paths, building entrances	Campus maps, building markers, pedestrian directions
Parking facilities	Repetitive levels, vehicle decisions, return-route problems	Entry ramps, lane splits, lifts, stairs, payment points	Level IDs, zone markers, clearance and exit signs

Why Do Hospitals Need Wayfinding Signs?

Hospitals, medical centers, and specialist clinics have some of the most demanding navigation conditions. A visitor may arrive worried, late, physically uncomfortable, unfamiliar with medical terminology, or responsible for an elderly person or child. Even a minor route error can result in a missed appointment or entry into a staff-only or clinical area.

A hospital journey often includes several separate stages:

finding the correct campus or building;
selecting visitor, emergency, outpatient, or staff parking;
locating the right entrance;
reaching registration or reception;
choosing a lift, stair, or building wing;
locating a department;
finding a waiting area, treatment room, pharmacy, or laboratory;
returning to the car park or public transport stop.

The sign system should therefore begin outside the building. A large directory in the main lobby cannot correct a wrong decision made at the road entrance.

Department naming needs strict control. “Diagnostic Imaging,” “Medical Imaging,” “Radiology,” and “X-Ray” may refer to related services, but switching between those terms along one route creates uncertainty. The wording on appointment messages, website instructions, car-park signs, lobby directories, and department signs should match.

Common hospital problem	Practical sign response
Several medical buildings share one address	Campus map and building identification
Emergency and outpatient entrances are close together	Large entrance-specific identification
Department names are similar	Approved terminology and clear destination hierarchy
Long routes between wings	Directional and reassurance signs
Patients arrive from different car parks	Parking-to-building route signs
Restricted clinical areas look public	Staff-only and access-control signs
Room numbers are difficult to see	Consistent permanent room identification

Hospitals also require careful separation between general directional information and signs identifying permanent rooms or spaces. For projects subject to accessibility rules, tactile characters, Braille, visual contrast, mounting position, pictograms, and room permanence must be reviewed before production.

A small clinic may use 15–40 signs, while a multi-floor medical building may require hundreds of individually coded signs. The final quantity depends on room count, corridor layout, number of entrances, accessibility requirements, and whether exterior parking guidance is included.

Why Do Offices Need Wayfinding Signs?

Office buildings need structured wayfinding when they contain several tenants, departments, meeting areas, lifts, reception points, or access-controlled zones. The navigation problem often starts before a visitor enters the lobby.

A person may need to determine:

which tower or building contains the company;
whether to use the public entrance or a tenant entrance;
where visitor parking is located;
which reception desk handles the appointment;
which lift bank serves the required floor;
which direction to turn after leaving the lift;
whether a meeting room is inside a suite or in a shared conference area.

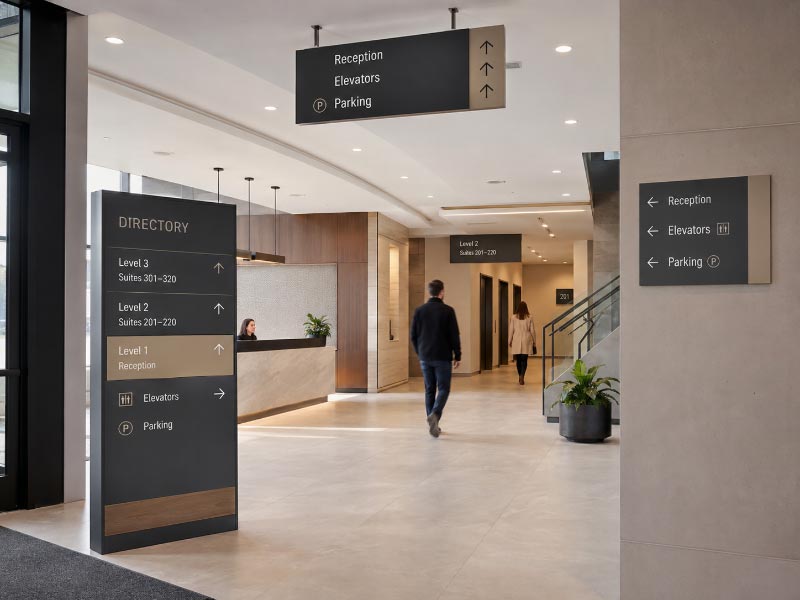

A multi-tenant office building usually needs several layers of information rather than one directory.

Journey stage	Recommended sign
Road or property entrance	Building or tower identification
Car park	Visitor parking and lobby directions
Main entrance	Entrance and reception identification
Lobby	Tenant directory
Lift bank	Floor and tenant information
Floor arrival	Floor number and suite-range direction
Corridor	Directional signs to suites and shared facilities
Final destination	Suite, room, or department identification

Change is a major issue in offices. Tenants relocate, departments are renamed, and shared rooms change function. A fully permanent directory can become outdated after one lease change. Replaceable strips, removable inserts, standardized panels, or concealed fixing systems make updates easier without replacing the entire structure.

Room numbering should follow a predictable pattern. Numbers beginning with “4” should normally be associated with the fourth floor, while room ranges should progress logically along corridors. A sign reading “Suites 401–418” is more useful at a junction than a list of eighteen separate companies.

Meeting-room names also need control. Creative names such as “Tokyo,” “Ocean,” or “Innovation Lab” can support workplace identity, but they should be paired with room numbers where necessary. A delivery driver or maintenance contractor may find “Room 4.12” faster than “The Horizon Room.”

For a medium multi-tenant office building, a wayfinding package may include 30–150 signs, depending on floors, suite count, shared amenities, parking, and room identification. The best measure is not the sign count but whether a visitor can move from the main entrance to a meeting room without asking reception for further directions.

Why Do Shopping Centers Need Wayfinding Signs?

Shopping centers combine high visitor numbers, several entrances, changing tenants, parking circulation, food and leisure zones, and multiple levels. People may enter from underground parking, street entrances, department stores, transit links, or adjoining buildings. Each arrival point creates a different orientation problem.

The most common destinations include:

individual stores;
food courts and restaurants;
restrooms and family rooms;
lifts, escalators, and stairs;
customer service;
accessible facilities;
cinemas and entertainment areas;
parking zones and exits;
taxi, bus, and pickup points.

A shopping-center directory must help visitors understand both location and route. An alphabetical store list answers “Is the store here?” but may not answer “Which way should I walk?” A map, floor reference, zone code, and nearby landmark make the information more useful.

Retail wayfinding layer	Purpose
Parking-zone signs	Help visitors remember where they parked
Entrance identification	Confirms the arrival zone
Main directory	Lists stores, amenities, and floors
“You Are Here” map	Establishes orientation
Overhead directional signs	Remain visible above crowds
Escalator and lift signs	Explain vertical routes
Store-range signs	Group destinations by corridor
Exit and parking-return signs	Complete the return journey

Retail wayfinding competes with storefront graphics, promotional banners, digital screens, seasonal displays, and crowds. The system needs a consistent visual identity so it remains recognizable without overpowering tenant branding. Strong contrast, simple arrows, repeated typography, and stable zone colors usually work better than highly decorative sign designs.

Tenant changes should be expected from the beginning. Directory panels and store lists need replaceable content areas. A rigid panel that requires full replacement every time a shop closes increases maintenance cost and often leads to temporary stickers that weaken the entire system.

Parking return routes are frequently overlooked. Visitors may find a store easily but struggle to locate the same car-park entrance later. Zone names, letters, numbers, symbols, and colors should appear consistently in the mall, lift lobby, parking level, and digital visitor information. Color should support recognition but should not be the only identifying feature.

Why Do Hotels Need Wayfinding Signs?

Hotels need wayfinding because almost every guest is unfamiliar with the property. Guests may arrive tired, carry luggage, attend a conference, search for a room late at night, or move between accommodation, dining, leisure, and event areas.

A typical hotel route includes:

vehicle arrival or drop-off;
parking or valet;
reception;
lift selection;
guest-room floor;
room-range direction;
final room identification;
return route to reception, restaurant, gym, spa, or parking.

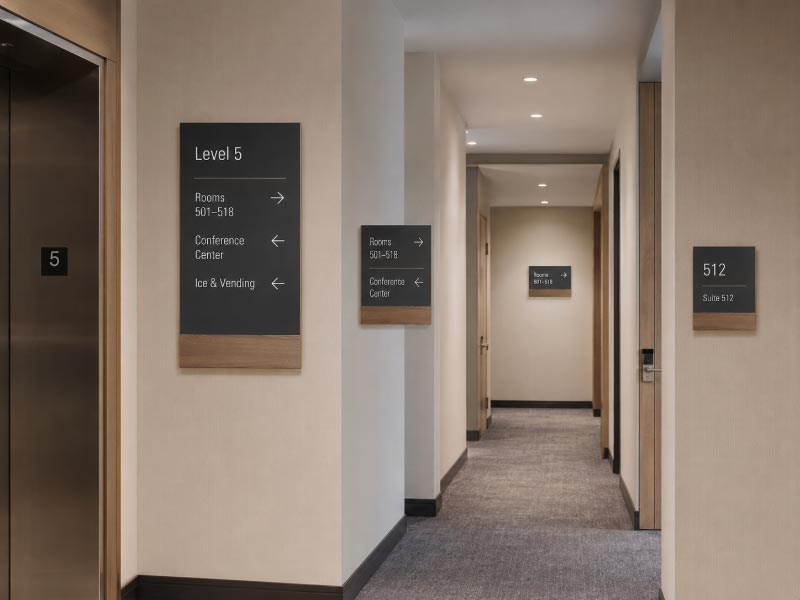

Guest-room numbering must be predictable. The first digit or digits commonly indicate the floor, while the remaining digits identify the room. Long corridors should show room ranges near lifts and major junctions. For example:

Rooms 501–518 ←
Rooms 519–536 →
Suites 540–548 →

That format is easier to process than listing each room separately.

Hotels also serve different groups at the same time. Overnight guests, conference attendees, restaurant visitors, delivery personnel, and staff may enter through different doors and follow different routes. Public signs should direct guests clearly without revealing unnecessary back-of-house access.

Hotel area	Common sign requirement
Arrival canopy	Hotel and entrance identification
Reception lobby	Reception, lifts, dining, events
Lift lobby	Floor directory and guest-room ranges
Guest floor	Floor number and room-range directions
Conference area	Event names, rooms, times, registration
Amenities	Gym, pool, spa, restaurant, restrooms
Back-of-house boundary	Staff-only and service access signs
Guest-room door	Permanent room identification

Conference signage deserves special attention because event names and room assignments may change daily. Permanent base frames with replaceable printed or digital content can support frequent updates. Guest-room numbers, accessible rooms, permanent amenities, and required safety information need more durable treatment.

Lighting conditions also matter. Guest corridors may be deliberately dim, so contrast and character size must be tested under actual lighting rather than only on a computer screen. Glossy metal or acrylic may look premium but can become difficult to read when reflections cross the text.

A small boutique hotel may need 40–100 signs. A large resort with several buildings, restaurants, pools, conference rooms, and parking areas may need several hundred signs across exterior and interior routes.

Why Do Campuses Need Wayfinding Signs?

Campuses are difficult to navigate because the journey usually extends beyond one building. Universities, medical campuses, corporate parks, industrial estates, and mixed-use developments may contain several roads, car parks, pedestrian paths, entrances, courtyards, and connected buildings.

A campus route often follows a hierarchy:

Find the correct campus or district.
Enter through the correct gate.
Select the right parking area.
Locate the correct building.
Identify the correct entrance.
Find the floor, department, or room.
Return to parking or another building.

Skipping one level causes confusion. A visitor may know the final room number but not which building contains it. A sign pointing to “Room 214” is of little value at the campus entrance when several buildings have a second floor.

Campus systems commonly use zones, building codes, street names, landmarks, and color families. The information should be simple enough for first-time visitors while remaining useful for regular users.

Campus location	Useful information
Main gate	Campus name and primary destinations
First road junction	Building zones and parking areas
Car park	Building connections and pedestrian exits
Pedestrian path	Building names and walking directions
Building approach	Large building identification
Entrance lobby	Department and floor directory
Internal junction	Department, room, and amenity directions

“You Are Here” maps need accurate orientation. A map mounted with north at the top may confuse a visitor when the path ahead appears at the bottom of the map. Heads-up orientation, where the top of the map matches the viewer’s forward direction, is often easier to use at pedestrian locations.

Exterior visibility should be checked through different seasons. Trees, parked buses, temporary fencing, snow, and construction equipment can block signs. Night use may require illumination, reflective finishes, or carefully positioned external lighting.

Temporary changes are common on campuses. Construction, events, room changes, and closed entrances can interrupt established routes. The base system should allow temporary information to be added without covering permanent signs with inconsistent paper notices.

Why Do Parking Areas Need Wayfinding Signs?

Parking facilities need wayfinding for two separate journeys: vehicle movement and pedestrian return. The two systems must connect, but they should not use the same amount of information.

Drivers need quick instructions for:

entry and exit;
visitor, staff, tenant, or reserved parking;
accessible spaces;
one-way circulation;
level changes;
clearance limits;
payment points;
loading areas;
building or lobby connections.

Vehicle messages should be short because the driver has limited time to read. A lane sign displaying ten destinations may be impossible to process safely. One to three major choices per decision point is usually more effective.

Driver decision	Better message style
Select an entry lane	Visitors / Deliveries / Staff
Choose a level	Public Parking P2–P4
Approach a height limit	Maximum Height 2.1 m
Select an exit route	Exit / City Center / Highway
Find a building connection	North Lobby / Hotel / Offices

Pedestrians face a different problem after parking. Levels and rows often look almost identical, making the vehicle difficult to find later. A strong location code may combine:

level number;
zone letter;
row number;
color;
simple symbol or landmark.

For example, “P3 – Zone B – Row 12” is more reliable than “Blue Area” alone. The same code should appear on columns, lift lobbies, stair doors, payment tickets, and digital parking instructions.

Signs should also guide pedestrians from the parking space to the correct lift or building entrance. In a mixed-use development, one lift may serve offices while another serves a hotel or shopping center. Clear signs before the pedestrian reaches the lift prevent unnecessary floor changes later.

Return routes need equal attention. Signs inside the building should direct people back to the correct parking level and zone. A visitor who remembers “P2 Orange” should see the same wording near the lift, inside the lift, and after reaching P2.

Large garages may require dozens or hundreds of signs, but repetition must remain controlled. Every level marker, column code, arrow, and exit instruction should follow one approved system. Inconsistent zone names can make a heavily signed garage more confusing than a lightly signed one.

What Signs Does Each Space Need?

Directional directory room identification ADA and parking wayfinding sign types

Each commercial space needs a sign mix based on how people arrive, where routes split, how many destinations exist, and which rooms require permanent identification. Most projects combine five functions: destination identification, directional guidance, directories, accessibility information, and vehicle guidance. A small clinic may need 15–40 signs, while a hotel, office tower, shopping center, or campus may require hundreds of individually coded signs.

Space	Core sign package	Common additions
Clinic	Reception, room IDs, restroom, exit direction	Accessible route, laboratory, pharmacy
Office building	Building ID, tenant directory, floor and suite signs	Meeting rooms, visitor parking, shared amenities
Hotel	Reception, lift directory, room ranges, room IDs	Event rooms, restaurants, spa, parking
Shopping center	Maps, store directories, overhead directions	Family rooms, pickup areas, parking-return signs
Campus	Entrance signs, maps, building IDs, pedestrian directions	Road signs, parking zones, temporary route changes
Parking facility	Entry, level, zone, clearance, exit signs	Payment, lift connections, pedestrian return routes

Which Signs Identify Destinations?

Identification signs confirm arrival. They tell a person that the correct building, floor, department, suite, room, service counter, restroom, lift, stair, or parking zone has been reached.

Directional signs may lead someone through an entire property, but the journey remains incomplete without a clear destination sign. A visitor following signs for “Outpatient Imaging” should see the same name at the department entrance. An office directory listing “Suite 420” should lead to a final door sign displaying “420” clearly from the normal approach.

Common identification signs include:

building names and numbers;
tower and wing markers;
main entrance and secondary entrance signs;
floor numbers;
department names;
suite and room numbers;
reception and information desks;
restrooms and accessible facilities;
meeting rooms and conference rooms;
lifts, stairs, and service areas;
parking levels, zones, and rows;
staff-only and restricted-area signs.

Permanent identification needs stronger content control than temporary notices. A misspelled company name, wrong room number, missing Braille line, or incorrect sign code can delay installation and require remanufacturing.

Identification sign	Typical viewing point	Information priority
Building sign	Road, pavement, car park	Building name or number
Floor identifier	Lift exit or stair landing	Floor number and zone
Department sign	Corridor approach	Approved department name
Suite sign	Corridor or lobby	Suite number and tenant
Room sign	Door approach	Room number and room function
Parking-zone marker	Driving lane and pedestrian route	Level, zone, row, symbol

Room signs should be positioned where approaching visitors can see them before passing the door. Deep wall recesses, open doors, decorative panels, and poor lighting often block small signs.

Naming should remain stable throughout the route. “Finance Department” should not become “Accounts” on a corridor sign and “Financial Services” at the final door unless each term represents a separate destination.

For larger orders, every identification sign should receive a unique code. A practical code may show the building, floor, sign type, and item number:

B1-F2-RM-014: Building 1, Floor 2, room sign 14;
HT-L5-RNG-03: Hotel, Level 5, room-range sign 3;
PK-P3-ZB-08: Parking Level 3, Zone B, sign 8.

Coding helps with drawing approval, production checks, packing, installation, replacement, and future room changes.

Which Signs Provide Directions?

Directional signs tell people where to turn, continue, go up, go down, or change routes. They are most useful before a decision point, where two or more believable paths are available.

Typical locations include:

property entrances;
parking lane splits;
lobby junctions;
lift banks;
stair landings;
corridor intersections;
bridge connections;
outdoor paths;
floor transitions;
building links.

A directional sign should be readable before the person reaches the turn. Mounting it directly above or beyond the junction leaves little time to understand the message.

The amount of information should match the viewing situation. A pedestrian standing in a lobby can read more than a driver approaching a ramp.

Viewing situation	Recommended information load
Road or parking approach	1–3 major destinations
Building entrance	2–5 destination groups
Lobby directory area	Full destination list may be suitable
Corridor intersection	2–4 relevant destinations
Lift exit	Floor destinations and room ranges
Long corridor	One reassurance message

Grouping destinations reduces clutter. Instead of listing rooms 201, 202, 203, 204, and 205 separately, a sign can show:

Rooms 201–218 →

Instead of listing ten individual shops, a shopping center may use:

Fashion Stores ←
Food Court →
Cinema ↑

Directional messages should follow a defined order. One common approach places left-turn destinations first, straight-ahead destinations next, and right-turn destinations last. Another method groups messages by floor or zone. Either system can work when used consistently.

Arrow use must also be controlled. The project team should decide whether an upward arrow means “straight ahead,” “go upstairs,” or both. Using one symbol for two different movements can cause errors around lifts and stairs.

A useful directional-sign review covers:

Is the destination name approved?
Is the arrow pointing in the correct direction?
Can the sign be seen from the approach?
Does the message appear before the turn?
Is the character size suitable for the distance?
Are too many destinations competing on one panel?
Does the next sign continue the same wording?
Is a confirmation sign needed after the turn?

A single reversed arrow can affect an entire floor, so arrow orientation should be checked against the location plan before printing, engraving, cutting, or packing.

Which Signs Display Directories?

Directories show what destinations are available and where they are located. They are usually installed where people have enough space and time to stop, search, and decide.

Common directory types include:

office tenant directories;
hotel floor directories;
hospital department directories;
shopping-center store lists;
campus maps;
building maps;
event directories;
parking level maps;
lift directories;
multi-building site plans.

A directory answers broader questions than a directional sign. It may tell someone which floor contains a business, but additional signs are still needed at the lift exit and corridor junction.

Directory content should follow the way visitors search.

Property	Useful directory order
Office tower	Alphabetical tenant name, suite, floor
Hospital	Department, service, building, floor
Hotel	Amenities, event rooms, guest floors
Shopping center	Store name, category, level, zone
Campus	Building name, code, route, parking
Industrial site	Company, unit, loading area, gate

Office tenants may be easier to locate alphabetically. Hospital departments may work better when grouped by service. Shopping centers often need both alphabetical and category-based lists. Event spaces may need room names, event titles, times, and floors.

Maps need accurate orientation. A “You Are Here” marker should match the actual installation point. When the viewer faces south but the map is arranged with north at the top, left and right may feel reversed. A heads-up map, where the top of the map represents the direction the viewer faces, is often easier for first-time visitors.

Directory size depends on:

number of destinations;
average name length;
number of languages;
viewing distance;
available wall space;
expected update frequency;
map complexity;
required logos or symbols.

A directory containing 80 tenants should not be designed from the same panel size used for 12 tenants. Long company names, bilingual text, and frequent updates need more space.

Changeable systems are valuable where occupants or services change regularly. Options include:

replaceable aluminum strips;
acrylic inserts;
magnetic panels;
printed paper or film inserts;
removable vinyl graphics;
slide-in name plates;
digital directory screens.

The permanent frame, header, finish, and mounting can remain in place while individual names change. A full-panel replacement may still be suitable for stable locations, but flexible content areas usually reduce future maintenance.

Which Signs Support Accessibility?

Accessibility signs help people locate permanent rooms, accessible entrances, restrooms, lifts, routes, facilities, and emergency information. Requirements vary by country, region, building type, and sign function, so final specifications should be approved by the local architect, accessibility consultant, contractor, or authority responsible for compliance.

Accessibility planning may involve:

raised tactile characters;
Braille;
visual characters;
non-glare finishes;
strong light-dark contrast;
accessible symbols;
consistent mounting positions;
suitable clear space near doors;
accessible-route guidance;
accessible toilet identification;
lift and stair information;
emergency egress information.

Not every sign needs the same accessibility treatment. A permanent room sign may follow different requirements from a tenant directory, temporary event notice, advertising panel, or company logo.

Sign category	Typical purpose	Common review points
Permanent room ID	Identifies a fixed room or space	Tactile content, Braille, position, contrast
Directional sign	Guides movement	Visual readability, arrows, contrast
Informational sign	Provides instructions or policies	Character size, wording, placement
Accessible-route sign	Identifies a usable route	Symbol, direction, destination
Restroom sign	Identifies permanent facility	Tactile and visual information
Directory	Lists destinations	Readability, organization, update method

Tactile production needs precise control. Raised characters should have clean edges and consistent height. Braille dots should be correctly formed, evenly spaced, and positioned with the related text. Decorative fonts, narrow strokes, shiny surfaces, and weak contrast can reduce readability even when the sign looks attractive in a rendering.

Door conditions also affect installation. Sign placement may change for:

single doors;
double doors;
sliding doors;
doors without a latch side;
doors opening into narrow corridors;
glass walls;
recessed entrances;
doors close to corners.

Wall material must be confirmed before mounting. Painted drywall, tile, stone, glass, wood, metal partitions, and fabric panels require different adhesives, fixings, or backing plates.

A useful accessibility sign schedule should record:

sign code;
room number;
room name;
tactile wording;
Braille wording;
symbol;
panel size;
character style;
color and contrast;
mounting side;
installation position;
wall material;
quantity.

Manufacturing should begin only after wording, room permanence, Braille translation, sign category, and mounting conditions have been approved.

Which Signs Guide Vehicles?

Vehicle signs guide drivers through entrances, lanes, ramps, parking levels, loading areas, drop-off zones, payment points, and exits. Messages need to be short because drivers read them while moving.

Common vehicle signs include:

property entrance signs;
visitor parking signs;
staff and reserved parking signs;
accessible parking signs;
delivery and loading directions;
hotel drop-off and valet signs;
one-way and no-entry signs;
clearance-height warnings;
speed signs;
level and zone signs;
payment instructions;
exit signs;
destination signs for separate buildings.

Vehicle guidance should begin before a driver enters the wrong lane. A sign at the lane split may be too late, especially where traffic is heavy or lane changes are restricted.

Driver decision	Useful sign message
Select property entrance	Offices / Hotel / Deliveries
Choose parking type	Visitors / Staff / Reserved
Select a level	Public Parking P2–P4
Approach low clearance	Maximum Height 2.1 m
Find a building link	North Lobby / Medical Center
Leave the property	Exit / City Center / Highway

Character size, sign height, illumination, contrast, and viewing distance should reflect vehicle speed. A message that works in a slow underground garage may be too small for an external access road.

Parking signs also need a pedestrian layer. After parking, people need to find:

lifts;
stairs;
payment machines;
building entrances;
hotel or office connections;
accessible routes;
the return path to the same zone.

A memorable parking location uses more than color. A code such as “P3 – Zone B – Row 12” is more dependable than “Blue Zone” alone. The same code should appear on:

driving signs;
wall graphics;
columns;
lift lobbies;
stair doors;
payment tickets;
floor maps;
digital parking information.

Return signs inside the building should use identical wording. A person who parked in “P3 – Zone B” should not later see signs for “Lower Parking – Blue Area.”

Exterior and parking products also require structural and environmental review. Relevant conditions include:

wind exposure;
rain and drainage;
ultraviolet exposure;
vehicle impact risk;
corrosion;
cleaning;
nighttime visibility;
post or wall fixing;
foundation requirements;
local traffic regulations.

How Many Signs Are Usually Needed?

Sign quantity depends on room count, floors, entrances, route complexity, accessibility requirements, parking, and the number of decision points. Floor area alone is not a reliable measure.

Property type	Approximate planning range	Main quantity drivers
Small clinic	15–40 signs	Treatment rooms, restroom, reception
Medium office floor	20–60 signs	Suites, meeting rooms, shared facilities
Multi-floor office	50–250 signs	Tenants, floors, parking, room IDs
Boutique hotel	40–120 signs	Guest rooms, amenities, room ranges
Large hotel or resort	150–600+ signs	Buildings, rooms, events, parking
Shopping center	100–500+ signs	Stores, levels, entrances, parking
School or campus building	80–400+ signs	Classrooms, departments, exterior routes
Hospital building	200–1,000+ signs	Departments, patient rooms, public routes

The figures are early planning ranges rather than quotation quantities. An accurate count requires a sign-location plan and sign schedule.

A reliable schedule normally records:

sign code;
sign type;
location;
approved message;
arrow direction;
quantity;
dimensions;
material;
finish;
mounting;
accessibility treatment;
revision number;
packing zone.

Counting signs before routes and messages are finalized often leads to missing items, duplicate directions, wrong arrows, and late additions. The better order is to map the journeys, mark decision points, define sign functions, approve the wording, and then calculate quantities.

Where Should Wayfinding Signs Be Placed?

Wayfinding signs placed at an elevator exit corridor junction and room entrance

Wayfinding signs should appear before a person must choose a route, immediately after major transitions, along routes where uncertainty may develop, and at the final destination. Priority locations include vehicle entrances, parking areas, building entrances, reception zones, lift and stair lobbies, corridor junctions, floor arrivals, building connections, accessible routes, and room entrances. Placement should follow actual visitor movement rather than available wall space.

Where Should Navigation Begin?

Navigation should begin at the first point where a visitor could make a wrong decision. In many properties, that point is not the lobby. It may be the roadside entrance, driveway split, car-park ramp, pedestrian gate, transit stop, or drop-off area.

Starting the sign plan at reception leaves the earlier part of the journey unsupported. A visitor may already have entered the wrong car park, walked toward a loading entrance, or selected the wrong tower before seeing the first directory.

The planning team should record every common arrival route:

private vehicle;
taxi or rideshare;
public transport;
pedestrian entrance;
bicycle parking;
accessible drop-off;
delivery entrance;
staff entrance;
emergency arrival route.

Each arrival route may need different information. A driver approaching a medical campus needs building and parking guidance. A pedestrian arriving from a railway station may need the building name and entrance direction. A delivery driver may need loading-bay identification rather than reception guidance.

Arrival point	Main visitor question	Recommended sign
Property entrance	Is this the correct site?	Monument or entrance identification
Driveway split	Which road should I take?	Vehicle directional sign
Car-park entrance	Can visitors park here?	Parking identification and restrictions
Drop-off area	Which entrance should I use?	Entrance and reception direction
Pedestrian gate	Which building is mine?	Site map or building direction
Main door	Is this the public entrance?	Entrance identification
Entrance lobby	Where do I go next?	Directory or reception sign

A useful route audit begins outside the property. Walk the site as a first-time visitor and record every moment where one of the following questions appears:

Am I entering the correct property?
Is this entrance public?
Where should I park?
Which building contains the destination?
Where is reception?
Which floor should I choose?
Which corridor should I follow?
Have I arrived?

The sign should be visible before the question turns into hesitation.

A hospital with several buildings may need guidance from the road entrance to the correct parking zone, then from parking to the correct building, and finally from the lobby to the department. An office tower may need only building identification, visitor parking, a lobby directory, and floor guidance. The number of signs changes, but the route should remain continuous.

Digital appointment messages, printed visitor instructions, map links, parking-zone names, and physical signs should use the same destination wording. A message telling someone to enter through “West Lobby” is ineffective when the exterior sign says “Entrance B.”

Where Are the Main Decision Points?

A decision point is a location where two or more believable routes are available. Typical examples include corridor junctions, lift banks, stair lobbies, driveway splits, building connections, and groups of similar doors.

A directional sign should usually be seen before a person reaches the choice. Placement at or beyond the turning point gives too little time to read the message and move safely.

Common decision points include:

T-shaped and four-way corridor intersections;
lift and stair choices;
road and parking-lane splits;
transitions between buildings;
junctions between public and restricted areas;
large lobby exits;
escalator and bridge connections;
paths leading to several campus buildings;
entrances serving different departments or tenants.

A practical placement distance can be estimated from approach speed and reading time. The following figures are starting points for planning, not universal code requirements.

Movement condition	Approximate speed	Useful preview time	Approximate preview distance
Slow pedestrian	1.0 m/s	3–4 seconds	3–4 m
Normal walking	1.3 m/s	3–5 seconds	4–7 m
Busy lobby movement	1.5 m/s	4–5 seconds	6–8 m
Vehicle at 10 km/h	2.8 m/s	4–6 seconds	11–17 m
Vehicle at 20 km/h	5.6 m/s	5–7 seconds	28–39 m
Vehicle at 30 km/h	8.3 m/s	6–8 seconds	50–66 m

For example, a driver moving at 20 km/h travels almost 28 metres in five seconds. A parking direction installed only five metres before a lane split will often appear too late.

At pedestrian junctions, the sign should remain visible even when:

the corridor is busy;
doors are held open;
people are standing nearby;
furniture is added later;
temporary displays are installed;
plants grow taller;
lighting conditions change.

Wall-mounted signs work well where the approach angle is clear. Suspended signs are often better in wide corridors, shopping centers, hospitals, and transport areas because they remain visible above people and furniture. Projecting signs can help where room entrances are difficult to see from the direction of travel.

The message load should also match the decision point.

Location	Practical message load
Vehicle lane split	1–3 major destinations
Building entrance	2–5 destination groups
Lift lobby	Floors, departments, or room ranges
Corridor junction	2–4 relevant destinations
Long straight route	One reassurance message
Main directory area	Full destination list may be suitable

A corridor sign listing twelve destinations may be technically complete but difficult to use while walking. Grouping locations into “Rooms 201–218,” “Conference Center,” or “East Wing” usually produces a faster decision.

Arrow direction must be checked against the installed viewing position. A correct arrow on a drawing can become wrong when a sign is mounted on the opposite wall or approached from another direction. Every arrow should be reviewed using the sign code, location plan, and expected approach.

Where Should Floor Information Appear?

Floor information should appear wherever a person chooses a level, arrives on a level, or needs to confirm a level. A floor number hidden inside a stairwell or placed far from the lift exit does not provide enough orientation.

Important floor-information locations include:

lobby directories;
lift call areas;
inside lifts where appropriate;
stair entrances;
stair landings;
lift exit walls;
the first corridor junction after arrival;
bridge or link-building connections;
parking lift lobbies;
escalator arrival points.

A person leaving a lift should be able to confirm the floor immediately. Walking 15 metres before seeing a floor number creates unnecessary doubt, particularly in hotels, hospitals, and office buildings where many levels have similar finishes.

Floor identification becomes more useful when paired with destination information.

Instead of:

“Level 4”

use:

“Level 4
Finance · Legal · Meeting Rooms 401–418”

The floor number confirms location, while the destination list confirms that the correct level has been selected.

Floor location	Information needed
Main lobby	Tenant, department, or service by floor
Lift call area	Floors served by each lift bank
Lift interior	Floor numbers and major destinations
Lift exit	Large floor number and zone name
Stair landing	Floor number and building or wing
First corridor junction	Department or room-range direction
Parking lift lobby	Parking level, zone, and building connection

Lift banks require special attention in large properties. One lift group may serve floors 1–10, while another serves floors 11–20. A visitor who enters the wrong lift bank may not be able to reach the required floor. Floor ranges and major destinations should therefore appear before lift selection.

Room numbering should support floor orientation. Rooms 401–428 normally suggest Level 4. If the building uses another logic, the directory and floor signs should make it clear.

Hotels often use room ranges near the lift:

Rooms 501–518 ←
Rooms 519–536 →
Suites 540–548 →

Hospitals may use departments and wings:

Cardiology — East Wing →
Imaging — West Wing ←
Pharmacy — Ground Floor ↓

Parking structures should repeat the level and zone at every lift and stair entrance. “P3 — Zone B” should appear outside the lift, inside the lift, at the payment point, and on the return route from the building.

Floor identification should not depend only on color. Use a number, letter, zone name, or symbol alongside color so the information remains clear for people with limited color recognition and in low-light conditions.

Where Are Confirmation Signs Needed?

Confirmation signs reassure people that they are still travelling in the correct direction. They are useful after a turn, along a long corridor, on extended outdoor paths, between connected buildings, and after leaving lifts or stairs.

A route may begin clearly but still fail if no information appears for several minutes. People often slow down, turn around, or ask for help when the destination is not visible and no sign confirms progress.

Confirmation signs are especially useful:

after a major turn;
after leaving a lift or stair;
along corridors longer than 20–30 metres;
on outdoor paths between buildings;
after passing through a lobby or atrium;
inside connecting bridges;
where architectural finishes change;
where the route passes unrelated departments;
near hidden entrances;
before the final destination becomes visible.

The 20–30 metre range is a practical review point for pedestrian routes rather than a fixed rule. Shorter intervals may be needed where sightlines are blocked or the route feels uncertain. Longer intervals may work in straight, open corridors where the destination remains visible.

Route condition	Confirmation message example
Long hospital corridor	Outpatient Imaging Ahead
Campus path	Building C — 120 m
Hotel guest floor	Rooms 520–548 Ahead
Office bridge	Tower B Reception Ahead
Parking return route	P3 Zone B — Lift 2
Shopping-center corridor	Cinema and Food Court Ahead

Confirmation signs should not repeat an entire directory. One destination or destination group is usually enough.

The wording should match earlier signs exactly. If the lobby directory says “Conference Center,” the confirmation sign should not say “Event Suite” unless the names refer to different areas.

A good route often follows the pattern below:

Identify the destination.
Direct the first movement.
Provide guidance at each decision point.
Confirm the route after a major turn or long section.
Identify the final destination.

The final sign must be visible from the approach. A visitor should not need to walk past the room and look backward to read the number.

Room and suite signs are frequently blocked by:

open doors;
deep door recesses;
decorative wall panels;
glass reflections;
poor lighting;
furniture;
wall-mounted equipment.

A location check should be performed using the normal walking direction, not only while standing directly in front of the door.

Where Should Exterior Signs Be Installed?

Exterior signs should be installed where they can be read from the real approach route under normal traffic, weather, lighting, and site conditions. A position that looks clear on a plan may be blocked by trees, parked vehicles, delivery trucks, fencing, or building projections.

Exterior placement should consider:

approach direction;
vehicle or walking speed;
viewing distance;
road curvature;
lane position;
sign angle;
landscaping;
parked vehicles;
daylight and night visibility;
rain, snow, or fog;
maintenance access;
local sign and traffic regulations.

Building identification should face the direction from which people arrive. Centering a sign on the most attractive elevation is not useful when visitors approach from the side and never see it.

Exterior location	Main sign purpose
Road entrance	Confirm property and entrance
Driveway junction	Direct vehicles to buildings or parking
Car-park entrance	Identify parking type and restrictions
Drop-off area	Identify reception or public entrance
Pedestrian path	Direct people between buildings
Building approach	Confirm building name or number
Service road	Direct deliveries and loading traffic
Campus junction	Show zones, buildings, and parking

Sign height should account for likely obstructions. A low monument sign may suit an open roadside site but become hidden where vehicles queue or landscaping grows. A taller post sign may improve visibility but may also require structural review, foundations, and local approval.

Viewing angle matters. A flat sign mounted parallel to the road can be difficult to read until the driver has already passed it. A perpendicular or angled sign may provide a longer viewing period.

Illumination should be considered where the property operates after dark. Options may include:

internally illuminated cabinets;
illuminated channel letters;
external sign lighting;
reflective films;
high-contrast non-illuminated panels;
pathway lighting that supports sign visibility.

Lighting should make the message easier to read without producing glare. Highly reflective metal, glossy acrylic, and strong spotlights can create bright reflections that hide the text.

Exterior signs also need product specifications suited to the environment:

corrosion-resistant metals or coatings;
ultraviolet-resistant graphics;
waterproof construction where required;
sealed or protected electrical connections;
drainage paths;
wind-resistant structures;
tamper-resistant fixings;
impact protection near vehicles;
accessible maintenance points.

Coastal sites may need stronger corrosion protection than indoor car parks. Snowy areas may require higher mounting positions. Areas with strong sunlight may need greater contrast and UV-resistant finishes. Locations exposed to delivery vehicles may require protective bollards or increased setback.

Before production, the final exterior position should be checked through:

site plans;
elevation drawings;
current site photographs;
measured dimensions;
approach-direction photographs;
installation-surface details;
underground-service information;
local structural requirements.

A site survey should record both the sign location and the viewer’s location. Knowing where the panel will be installed is not enough; the designer also needs to know where the person will first see it and how much time is available to read it.

How Should Sign Placement Be Recorded?

Every sign location should be linked to a unique sign code, approved message, arrow direction, mounting method, and installation position. A marked floor plan alone may not provide enough information for manufacturing and installation.

A practical sign-location record includes:

sign code;
building and floor;
room or route location;
sign function;
approved wording;
arrow direction;
viewing direction;
mounting height;
distance from a door or junction;
wall, ceiling, post, or suspended mounting;
wall or ceiling material;
sign size;
accessibility treatment;
electrical requirement;
revision number;
packing zone.

Sign code	Location	Message	Viewing direction	Mounting
L1-DIR-01	Main lobby junction	Lifts / Reception	From entrance	Suspended
L3-DIR-04	Lift exit	Rooms 301–318 →	From lift doors	Wall-mounted
L3-ID-12	Room 312	Meeting Room 312	From east corridor	Door-side wall
PK-P2-08	Parking lane split	Exit / North Lobby	Vehicle approach	Ceiling-mounted
EXT-B2-03	Campus path	Building B — 80 m	From car park	Post-mounted

Installation drawings should show enough detail to prevent interpretation on site. A sign shown only as a dot on a floor plan may still leave unanswered questions about which wall, which side of the door, which direction it faces, and how high it should be installed.

Large projects benefit from packaging signs by installation sequence:

building;
floor;
zone;
corridor;
room group;
exterior area;
installation phase.

The packing label should repeat the sign code used on the location plan. Installers can then match each item without opening every carton or comparing hundreds of similar room signs.

A final site walk after installation should test the complete route. Begin from each major arrival point, follow the signs without using prior knowledge, and record any location where the route becomes uncertain. A sign system should be judged by the journey it creates, not by how complete the sign schedule appears on paper.

How Do You Plan a Wayfinding System?

Chinese sign engineers reviewing a wayfinding plan sign schedule and material samples

A wayfinding system should be planned from real visitor routes rather than from a list of available walls. The work starts with site plans, destination names, entrances, decision points, room data, accessibility rules, viewing conditions, and installation surfaces. The result should be a coordinated sign-location plan and sign schedule covering wording, arrows, quantities, dimensions, materials, mounting, sign codes, approvals, packaging, and future replacement.

What Site Information Is Needed?

A reliable plan needs enough site information to follow a person from the property entrance to the final room. A logo file and a rough sign count are not enough for a hospital, hotel, office building, shopping center, campus, or multi-level parking facility.

The first information package should include:

current site plans and floor plans;
building elevations where exterior signs are required;
room names and room numbers;
department, tenant, or facility lists;
public, staff, delivery, and restricted entrances;
parking areas, drop-off points, loading zones, and accessible routes;
lifts, stairs, escalators, bridges, and connecting corridors;
wall, ceiling, door, glass, post, and floor conditions;
indoor or outdoor use;
expected visitor routes;
operating hours and night-use requirements;
target installation date;
destination country and applicable standards.

Plans should show more than architectural geometry. The sign team also needs to know where people actually arrive and which paths they use.

A useful route audit covers at least five journey types:

First-time visitor from the road or car park.
Pedestrian arriving from public transport.
Person using an accessible entrance or route.
Delivery or service worker.
Employee or regular user moving between internal areas.

A hospital may require separate journeys for emergency, outpatient, inpatient, pharmacy, staff, and deliveries. A hotel may need routes for overnight guests, conference attendees, restaurant visitors, and service staff. An office property may separate visitor parking, tenant access, loading access, and reception.

Required input	What it prevents
Updated floor plans	Signs placed against removed walls or old room layouts
Approved room list	Wrong room names and duplicate numbers
Arrival-route photos	Missing exterior or parking guidance
Door schedule	Incorrect tactile sign position
Wall material details	Adhesive or fixing failure
Ceiling height	Suspended signs mounted too high or too low
Electrical locations	Illuminated signs without suitable power access
Sign regulations	Late redesign after compliance review
Installation sequence	Mixed cartons and wasted site time

Photos should be taken from the viewer’s position, not only from the proposed sign location. A wall may look clear in a close-up photograph while being hidden by an open door from the corridor approach.

Measured dimensions are also important. A photograph cannot reliably confirm:

corridor width;
distance to a junction;
wall recess depth;
door-frame width;
ceiling clearance;
available panel width;
viewing distance;
installation height;
space around switches, alarms, or access panels.

Every destination should be assigned one approved name. A naming register can prevent “Main Reception,” “Front Desk,” and “Visitor Services” from being used for the same place.

Destination code	Approved name	Alternative terms to avoid	Building	Floor
D-001	Main Reception	Front Desk, Visitor Desk	Building A	Ground
D-014	Diagnostic Imaging	X-Ray, Radiology	Building B	Level 2
D-026	Conference Center	Event Suite, Meeting Zone	Tower 1	Level 3
D-041	North Lobby	Entrance B, Side Lobby	Building C	Ground

The information package should be checked before sign quantities are finalized. Counting signs too early often leads to missing routes, repeated messages, wrong arrows, and additional signs after manufacturing has started.

How Should Messages Be Prioritized?

Wayfinding messages should follow the order in which people make decisions. A sign near the property entrance should identify buildings, parking, or major zones. It should not list individual room numbers. Detailed room information belongs closer to the final destination.

A practical hierarchy is:

Site, campus, or property.
Building, tower, or zone.
Parking area or entrance.
Floor or department.
Corridor or room range.
Individual room, suite, or facility.

For example, a visitor looking for Room 428 may need to follow:

Medical Campus
Building B
Visitor Parking P2
Main Lobby
Level 4
Rooms 401–438
Room 428

Showing “Room 428” at the road entrance adds clutter without helping the driver choose a building or parking area.

Messages should be grouped according to the decisions available at each location.

Sign location	Suitable information
Road entrance	Property name and major buildings
Driveway split	Buildings, visitor parking, deliveries
Main lobby	Full tenant or department directory
Lift lobby	Floors, departments, room ranges
Corridor junction	Two to four nearby destinations
Long corridor	One route confirmation
Final door	Room number and permanent room name

The wording should remain short enough to read while moving. Useful limits for early planning include:

1–3 major choices on vehicle signs;
2–4 destination groups at corridor junctions;
4–8 lines on compact directional panels;
room ranges rather than long lists;
complete lists only where people can stop safely.

A sign containing twelve destinations may appear thorough on a drawing but become difficult to scan in a busy corridor. Grouping reduces reading time.

Instead of:

Room 201
Room 202
Room 203
Room 204
Room 205
Room 206

use:

Rooms 201–206 →

Message order should follow one consistent rule. Common methods include:

destinations grouped by arrow direction;
destinations grouped by floor;
destinations grouped by building zone;
destinations grouped by service type;
alphabetical order in directories.

Arrow rules should be documented before artwork begins. The system should define:

whether an upward arrow means straight ahead;
how upstairs and downstairs are shown;
whether arrows appear before or after wording;
how left and right destinations are ordered;
how curved, diagonal, or turnaround routes are represented.

A message-control sheet should record every directional sign.

Sign code	Location	Message	Arrow	Next confirmation
L1-D01	Main lobby	Conference Center	Right	L1-C04
L1-D02	Main lobby	Lifts	Straight	L1-ID08
L3-D06	Lift exit	Rooms 301–318	Left	L3-C09
PK-D12	Parking ramp	North Lobby	Right	PK-ID15

The “next confirmation” field helps identify broken routes. When a directional sign points toward a destination but no later sign confirms the route, the journey may fail even though the first arrow is correct.

Translations should also be planned carefully. Adding a second language may increase line length by 30–100%, depending on the wording. Panel width, character size, spacing, and arrow alignment may all need adjustment.

Pictograms can reduce reading, but they should support words rather than replace unfamiliar destination names. Restrooms, lifts, stairs, parking, information, and accessibility are generally easier to communicate with recognized symbols. Departments, room ranges, and company names still require clear text.

How Do ADA Rules Affect the Signs?

For projects in the United States, accessibility planning begins by identifying the function of every sign. Permanent room identification, directional signs, informational signs, directories, company logos, temporary notices, and changeable occupant names do not all follow the same treatment.

A project team should not apply Braille to every panel without first classifying the signs. Doing so increases cost and may still fail to meet the required rules for permanent identification.

Common sign categories include:

Sign category	Example	Main review area
Permanent room identification	Room 204, restroom, conference room	Tactile text, Braille, visual contrast, mounting
Directional sign	Lifts →, Rooms 201–218 ←	Visual character size, contrast, glare
Informational sign	Check in at reception	Readability and installation position
Directory	Tenant or department list	Organization and visual readability
Temporary sign	Event room change for three days	Duration and local requirements
Company identification	Business name or logo	Branding and local sign rules

Permanent room signs commonly require closer attention to:

raised characters;
Braille;
character form;
spacing;
pictograms;
non-glare surfaces;
light-dark contrast;
mounting height;
latch-side placement;
clear floor space;
door swing.

For U.S. tactile signs, a frequently referenced mounting range places the baseline of the lowest tactile character at no less than 48 inches above the finished floor and the baseline of the highest tactile character at no more than 60 inches. Final positions should still be checked against the current project standard, door type, state requirements, and local interpretation.

Door layouts can change the required sign position. The installer needs to know whether the entrance has:

a single swing door;
double doors;
a sliding door;
no clear latch side;
a recessed doorway;
a glass wall;
a narrow corridor;
nearby controls or equipment.

Braille content must be approved before production. Room numbers, wording, abbreviations, punctuation, capitalization, and translation should not be guessed during manufacturing.

A suitable accessibility schedule may include:

sign code;
room number;
visual wording;
tactile wording;
Braille wording;
pictogram;
panel size;
text height;
contrast;
finish;
mounting side;
mounting height;
wall type;
door type;
approval status.

Decorative typefaces that look suitable in a brand presentation may not work for regulated visual or tactile text. Narrow scripts, italics, extremely condensed letters, weak contrast, and glossy mirrored finishes can reduce readability.

Compliance responsibility should be stated clearly. The sign manufacturer can follow approved drawings, material specifications, Braille files, and mounting details. The local architect, accessibility consultant, contractor, or authority responsible for the project should approve:

sign classification;
required wording;
room permanence;
Braille;
character sizes;
mounting positions;
accessible routes;
symbols;
local amendments.

Approval before sampling is much less costly than correcting hundreds of signs after delivery.

Which Materials and Mounting Methods Work Best?

Materials should be selected according to location, handling, cleaning, expected service life, replacement frequency, sign size, and architectural finish.

Common material options include:

Material	Suitable use	Main considerations
Acrylic	Interior directories, room signs, layered panels	Scratching, glare, edge quality
Aluminum	Interior and exterior panels, suspended signs	Lightweight, corrosion resistance
Stainless steel	Premium architectural signs	Fingerprints, reflections, finish protection
Photopolymer	Tactile and Braille signs	Approved process, surface quality
PVC	Cost-controlled indoor signs	Heat, impact, long-term appearance
Printed film	Maps, directories, changeable information	UV exposure, replacement cycle
Aluminum composite panel	Large flat signs and directories	Edge treatment, exterior suitability
Glass or clear acrylic	Layered office and hotel signs	Contrast, fixing details, reflections

A high-gloss finish may look attractive in a sample but become difficult to read opposite windows or strong lighting. Low-glare surfaces are often more suitable for directories, hospital signs, room signs, and corridor directions.

Material thickness should follow panel size and support method. A small room sign may use a thin acrylic or metal panel, while a large suspended directional sign needs stronger backing, internal framing, or folded returns to remain flat.

Cleaning requirements also affect selection. Medical, hospitality, and public environments may use frequent cleaning products. Printed graphics, adhesives, coatings, and tactile elements should tolerate the expected cleaning routine.

Mounting methods include:

high-strength adhesive;
adhesive tape;
silicone or construction adhesive;
concealed studs;
screws with decorative caps;
stand-off fixings;
wall rails;
slide-in holders;
magnetic systems;
suspended rods or cables;
projecting brackets;
posts and foundations.

The mounting method should match the substrate.

Surface	Common mounting concern
Painted drywall	Surface damage and anchor strength
Glass	Visible adhesive, transparency, rear appearance
Stone or tile	Drilling risk and joint location
Wood	Finish damage and screw selection
Metal partition	Hidden framing and suitable fasteners
Fabric panel	Weak adhesive surface
Exterior masonry	Water entry and corrosion
Ceiling grid	Structural support above the grid

Adhesive-only mounting may suit small lightweight interior panels on smooth surfaces. Mechanical fixing is usually safer for heavy, projecting, suspended, exterior, or frequently handled signs.

Suspended signs require confirmation of:

ceiling structure;
support points;
panel weight;
cable or rod length;
finished ceiling height;
sprinkler and lighting positions;
viewing direction;
maintenance access.

Exterior signs require additional checks for:

wind loading;
rainfall;
drainage;
ultraviolet exposure;
corrosion;
temperature changes;
foundations;
vehicle impact;
electrical access;
local permits.

Installation drawings should show more than the panel dimensions. They should include hole locations, centerlines, spacing, fixing type, wire exits, standoff depth, sign orientation, and mounting height.

Templates can reduce installation errors for repeated room signs, letters, plaques, and directional panels. A full-scale paper or film template may mark:

panel outline;
hole centers;
stud positions;
sign code;
installation level;
left and right orientation.

How Can the System Be Updated Later?

A wayfinding system should be divided into permanent and changeable information before materials are chosen. Building names, floor numbers, room numbers, accessible facilities, and major routes may remain stable. Tenant names, department names, event schedules, opening hours, and staff assignments may change frequently.

Changeable areas can use:

slide-in strips;
magnetic panels;
replaceable acrylic inserts;
paper inserts behind clear covers;
removable vinyl graphics;
interchangeable name plates;
digital directories;
modular rail systems.

Information type	Likely change frequency	Suitable approach
Building identification	10–20 years	Permanent fabricated sign
Floor number	10–20 years	Permanent panel or wall graphic
Permanent room number	5–15 years	Durable tactile sign
Tenant name	1–5 years	Replaceable strip or insert
Meeting-room use	1–3 years	Changeable name plate
Event schedule	Daily or weekly	Printed insert or digital display
Temporary diversion	Days or months	Removable temporary sign
Operating hours	Seasonal	Replaceable film or insert

A fully permanent directory may appear clean at handover but becomes expensive when one tenant changes. A fully changeable system may look temporary in a premium hotel or corporate lobby. The most effective approach often combines a durable architectural frame with replaceable content panels.

Every sign should have a code linked to production records. The records should include:

approved artwork;
exact dimensions;
material;
thickness;
finish;
colors;
font;
mounting;
hole positions;
tactile and Braille files;
installation location;
packing information;
revision date.

A replacement request should identify the sign code rather than rely only on a photograph. For example:

Replace sign T2-L4-DIR-08
Change “Marketing” to “Brand Operations”
Keep size, arrows, finish, mounting, and all other text unchanged

Version control is essential. Common revision stages may include:

Rev A: initial content;
Rev B: room names updated;
Rev C: arrows corrected after site walk;
Rev D: final approved production file.

Only the latest approved revision should enter production. Old artwork should remain archived but clearly marked as superseded.

A complete sign schedule can include an approval column:

Sign code	Current revision	Content approved	Location approved	Production status
L1-DIR-01	Rev C	Yes	Yes	Ready
L2-ID-14	Rev B	Yes	Pending	Hold
EXT-04	Rev D	Yes	Yes	In production
PK-P3-09	Rev A	Pending	Pending	Hold

Future updates should also be considered during installation. A directory panel fixed with permanent adhesive may be difficult to remove without damaging the wall. Concealed screws, magnetic covers, removable inserts, or serviceable frames can make updates faster.

Before final production, the property team should decide:

which information may change within one year;
who will approve future wording;
whether replacement panels can be installed locally;
whether spare blank inserts are needed;
whether source files should be archived;
whether colors and materials can be matched later;
whether sign codes will remain visible or hidden.

Planning for updates does not mean making every sign temporary. It means avoiding full replacement when only one line of information changes.

How Can iduoduo Support Your Wayfinding Sign Project?

A wayfinding project is ready for manufacturing when its routes, sign locations, messages, sign codes, materials, finishes, accessibility details, and mounting methods have been reviewed and approved. Sending only a floor plan is rarely enough, while sending an organized sign schedule allows technical questions to be resolved before production.

iduoduo can review approved architectural sign packages, wayfinding schedules, room lists, drawings, tactile-character requirements, Braille specifications, material standards, finishes, mounting details, quantities, and packing sequences. Production can include unique sign-code control, item-by-item content inspection, replaceable information structures, installation accessories, and packaging arranged by building, floor, zone, or installation sequence. Final regulatory interpretation, Braille approval, installation height, sign location, local approval, and field acceptance should remain with the project’s architect, consultant, contractor, or responsible local team.

To request a custom quotation, send the project drawings or sign schedule together with the destination country, quantity, required completion date, material preference, color standard, wall or ceiling details, and any applicable accessibility specification. iduoduo will evaluate manufacturing feasibility, construction details, content control, mounting preparation, packaging, and production timing before preparing the proposal.
