How Can You Check Whether a Sign Factory Can Handle Complex Logos?

A complex logo can look perfectly simple on a screen and become surprisingly difficult once it has to exist as a physical sign. A thin script stroke may leave almost no room for LEDs or wiring. A tiny opening inside a letter may shrink after metal forming or acrylic machining. Sharp curves can challenge bending accuracy, while small independent pieces may be easy to cut but difficult to mount securely. Even size changes matter: a logo that works at 1,800 mm wide may become impractical when reduced to 600 mm because LEDs, wires, fasteners, and material thickness do not shrink at the same rate. For sign companies, retail brands, contractors, and multi-location projects, the real risk is therefore not whether a factory can produce one attractive sample. The bigger question is whether the factory can identify manufacturing limits before production, explain how difficult details will be built, prove the required processes are available, and reproduce the approved result consistently across the full order.

A sign factory can handle a complex logo when it can review the final-size artwork for manufacturability, identify narrow strokes and difficult geometry, select suitable materials and sign structures, engineer lighting and mounting, provide production drawings, verify uncertain details through samples or first articles, and transfer the approved result into controlled production and QC specifications.

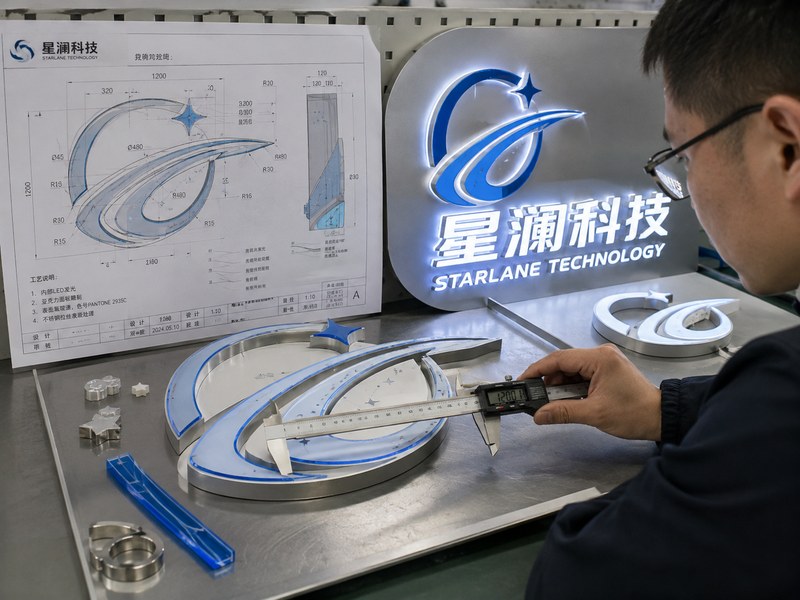

One of the easiest ways to see the difference is to send the same difficult logo to several factories. One may return a price within minutes. Another may simply reply, “No problem.” A stronger engineering team may instead mark a 19 mm script connection, question a small internal opening, ask where the sign will be mounted, and recommend testing one difficult section before bulk production. The third response may contain more questions, but those questions can prevent weeks of rework later. Before approving a factory, it is worth learning exactly what those questions, drawings, samples, production records, and inspection steps should look like.

What Makes a Logo Difficult to Manufacture?

A logo becomes difficult to manufacture when its smallest details leave too little physical space for cutting, bending, welding, acrylic machining, LED placement, wiring, mounting, or structural support. Overall logo size matters, but the narrowest stroke, smallest hole, tightest curve, thinnest connection, number of separate parts, lighting method, and installation location usually determine the real manufacturing difficulty.

A 1,500 mm-wide logo can still be difficult if one script connection is only 12 mm wide. A 500 mm-wide logo may be easy if the artwork uses broad strokes and simple geometry. Manufacturing therefore needs to be evaluated at the final production size, not from how complicated the artwork looks on a screen.

For complex-sign projects, Iduoduo’s documented design review specifically checks stroke width, fragile areas, negative spaces, illumination area, component spacing, and wire concealment before engineering begins.

Which Logo Details Create Production Risk?

The highest-risk areas are usually small local details that disappear in a normal rendering.

Common examples include:

• script connections narrower than the main letter strokes;
• very small counters inside letters such as A, B, P, R, e, and a;
• sharp inside corners;
• thin serif tips;
• isolated dots, stars, punctuation, or small graphic elements;
• narrow gaps between adjacent shapes;
• overlapping layers;
• long unsupported narrow sections;
• complex curves with rapidly changing radii;
• several colors meeting along a very small edge;
• tiny illuminated elements requiring separate wiring.

A useful factory review should not only say whether the logo is “possible.” The difficult areas should be marked directly on the final-size artwork.

For example, imagine a 1,200 mm-wide script logo with most strokes between 55 and 80 mm, but two connecting sections measure only 18 mm. Those two 18 mm sections may control the entire construction because they can limit bending radius, internal LED space, acrylic thickness, wire routing, and structural strength.

The same problem appears with negative spaces. A small hole shown as 20 mm wide in vector artwork may become much smaller after allowances are made for material thickness, internal radii, adhesive, paint, face retention, or other construction details.

A practical review therefore measures the weakest geometry rather than averaging the logo.

Detail to Measure	Why It Matters	Possible Result
Narrowest stroke	Controls fabrication and lighting space	Thicken locally or change construction
Smallest internal opening	May visually close after fabrication	Enlarge opening or alter production method
Tightest inside radius	May exceed bending or machining limits	Modify corner or use another process
Smallest separate part	May be hard to mount safely	Add backing or combine parts
Minimum gap	Parts may visually merge	Increase spacing
Long thin connection	Can bend or break in handling	Add support or change material
Small illuminated section	May not light evenly	Use another lighting method

A good factory should be able to explain which measurement creates the risk and how the proposed solution affects appearance.

How Does Sign Size Affect Fine Details?

Scaling a logo changes more than overall dimensions.

Suppose a brand logo is approved at 1,800 mm wide and later required at 900 mm wide. Every local feature becomes 50% smaller:

• a 60 mm stroke becomes 30 mm;
• a 24 mm counter becomes 12 mm;
• a 20 mm gap becomes 10 mm;
• a 30 mm script connection becomes 15 mm.

The visual proportion remains identical, but manufacturing conditions do not.

Metal thickness does not automatically become half as thick. LED modules do not become half their original size. Wiring still requires physical space. Studs, screws, adhesives, and connectors still need workable dimensions. CNC tools and bending equipment also have real operating limits.

As a result, simply scaling a previously successful sign file can create problems.

Multi-location projects make the issue more obvious. A brand may require:

• 2,400 mm exterior channel letters;
• 1,200 mm entrance signage;
• 700 mm reception wall signage;
• 400 mm service-counter logos.

Using one identical construction for all four sizes can be inefficient or impossible.

The large exterior version may work as fabricated channel letters. The medium version may use a shallower structure. The small interior version may be better produced from machined acrylic or layered metal and acrylic.

The brand appearance can remain consistent while the internal construction changes.

A factory reviewing multiple sizes should therefore provide a manufacturability decision for each size range rather than saying, “The large version worked, so all smaller versions will work.”

Is There a Minimum Stroke Width?

There is no single minimum stroke width that applies to every custom sign.

Minimum workable width depends on:

• product type;
• finished logo size;
• metal or acrylic thickness;
• return depth;
• face construction;
• LED module or LED strip dimensions;
• required diffusion distance;
• wire space;
• indoor or outdoor use;
• bending radius;
• mounting method;
• viewing distance.

For conventional front-lit channel letters, approximately 38 mm, or 1.5 inches, can be used as an early screening reference in some projects, but it should not be treated as a universal production rule.

A narrow acrylic logo, LED neon sign, small precision channel letter, or non-illuminated metal letter can operate under completely different conditions.

The better calculation is:

Visible stroke width
− structural allowance
− face or return allowance
− wiring allowance
− lighting clearance
= usable internal space

If usable space becomes too small, the engineering team must change something.

Possible solutions include:

• increasing the local stroke width;
• increasing the overall logo size;
• changing the letter depth;
• switching from modules to another lighting system;
• changing from conventional channel letters to acrylic construction;
• making a tiny area non-illuminated;
• combining small elements on a backing;
• using printing for extremely fine secondary detail.

An experienced factory should not automatically modify the artwork. Any visible geometry change should be shown on a revised drawing and approved before production.

Iduoduo’s engineering scope includes evaluation of product structure, material thickness, LED layout, power, wiring, mounting holes, wire exits, backboards, waterproofing, packaging, and transportation feasibility.

Which Sign Types Suit Complex Logos?

A complex logo does not always need one construction across every element.

Trying to force every shape into conventional channel letters can create unnecessary cost, weak details, difficult wiring, and poor visual results.

A better approach is to divide the logo according to geometry and viewing conditions.

For example:

Logo Element	Practical Construction Options
Large bold lettering	Front-lit or halo-lit channel letters
Fine script	Acrylic letters, precision small-format letters, LED neon
Detailed icon	Layered acrylic, metal-acrylic assembly
Tiny tagline	Non-illuminated acrylic, metal, printed element
Thin continuous line	LED neon
Close-view interior logo	Acrylic LED logo
Small non-illuminated detail	Acrylic, metal, PVC, printing
Large irregular emblem	Engineered logo cabinet or layered structure

A realistic project might contain a 1,400 mm company name, a 450 mm detailed icon, and a 160 mm tagline.

The company name may work well as channel letters. The icon may perform better as an acrylic-and-metal assembly. The tagline may be too small for individual illuminated letters and could be produced as non-illuminated acrylic or a printed component.

Using three suitable processes can create a more accurate result than forcing all parts into one method.

Material selection also affects complexity. Acrylic LED logo signs are particularly suitable for fine interior logos and close-range viewing because machining, layering, controlled diffusion, and concealed wiring can be combined within one assembly. Iduoduo’s documented acrylic-logo process includes logo engineering, acrylic machining, layered construction, metal backing, LED diffusion, concealed wire exits, stand-off mounting, close-view inspection, and repeat-production file management.

Before approving a factory, ask for one clear answer:

“Which part of our logo is the hardest to manufacture, and how would you build it?”

A factory with real engineering capability should be able to identify the difficult area, explain the production limitation, show the proposed construction, and tell you what would happen if the logo were made larger, smaller, illuminated, non-illuminated, indoor, or outdoor.

A vague answer such as “We can make any logo” provides almost no useful information.

A measured answer—supported by dimensions, drawings, materials, fabrication methods, and a sample plan—provides much stronger evidence that the logo can move from artwork into repeatable production.

How Should a Factory Review a Complex Logo?

A factory should review a complex logo at its final production size and convert the artwork into a controlled manufacturing specification before fabrication starts. The review should cover geometry, materials, structure, lighting, wiring, mounting, environment, packaging, and file version. The goal is simple: identify problems on drawings and samples, not after metal, acrylic, LEDs, and labor have already been committed.

For Iduoduo, manufacturability review is documented as a process connecting logo analysis with material and structure selection, lighting and electrical planning, mounting preparation, shop drawings, sections, BOM control, finish schedules, revision management, and final production approval.

What Files Should the Factory Request?

A complex-logo review should not begin with only a JPG and the question, “How much?”

The factory first needs enough information to reconstruct the actual production conditions. At minimum, project teams should provide the best available logo file and the intended finished dimensions.

Preferred artwork normally includes:

• AI
• SVG
• vector PDF
• EPS
• CAD when technical layouts are involved

Supporting files can include:

• brand guidelines;
• Pantone or other color references;
• storefront drawings;
• wall elevations;
• installation photos;
• architectural drawings;
• previous sign photographs;
• existing production drawings;
• reference samples.

Raster images such as JPG or PNG can still be useful, but they should not automatically become cutting files. If vector artwork is unavailable, the factory may need to rebuild the logo. The rebuilt geometry should then be approved before engineering continues.

Dimensions are equally important.

A logo cannot be evaluated properly from artwork alone because a vector file has no meaningful physical scale until the finished size is defined.

For example, consider the same script logo at three widths:

Finished Logo Width	Narrowest Stroke After Scaling	Likely Review Priority
1,800 mm	54 mm	Lighting and return construction
1,200 mm	36 mm	LED space and tight curves
600 mm	18 mm	Alternative construction may be required

The artwork has not changed, but the manufacturing problem has.

Before preparing a final sign solution, the factory should normally know:

• overall width and height;
• quantity;
• indoor or outdoor use;
• installation height;
• wall material;
• illumination type;
• destination country;
• voltage when illumination is involved;
• preferred mounting method;
• wire-exit requirements;
• delivery deadline.

A professional review becomes more useful when those details are collected before pricing is finalized.

Which Geometry Should Engineers Check?

The engineering team should inspect the logo from the smallest risky detail outward.

Looking only at overall width and height is not enough. Many complex-logo failures begin in a 10–30 mm area that receives almost no attention in the rendering.

The first geometry review should normally identify:

• minimum stroke width;
• smallest internal opening;
• minimum gap between separate parts;
• tightest inside radius;
• smallest independent component;
• longest unsupported thin section;
• narrow script connections;
• sharp serif tips;
• overlapping elements;
• sections with several material layers.

Those measurements should be taken at the real production size.

A practical review can be organized around five questions:

Engineering Question	What Is Being Checked
Can it be cut?	Tool access, contour accuracy, tiny openings
Can it be formed?	Bend radius, return depth, tight curves
Can it stay strong?	Thin bridges, fragile tips, unsupported parts
Can it be illuminated?	Internal space, LEDs, diffusion, wiring
Can it be installed?	Studs, holes, wire exits, component spacing

Negative space deserves particular attention.

Suppose the inner opening of a small “R” measures 22 mm in the artwork. After fabrication allowances are considered, the visible opening could become much smaller. If the opening becomes too tight, paint buildup, acrylic edge treatment, bending radius, or surrounding material can make the letter look heavy or partially closed.

Script logos create another common problem. The main letter body may be 60 mm wide while a connecting stroke falls to 17 mm. The main body may easily accept the proposed construction, but the 17 mm connection controls whether the design can be fabricated consistently.

The purpose of engineering review is therefore not to ask whether 90% of the logo is easy.

The difficult 10% often determines the entire manufacturing method.

How Should Materials and Structure Be Selected?

A factory should select materials after reviewing the logo geometry, size, installation environment, lighting requirement, viewing distance, and shipping conditions.

Material should solve a production problem rather than simply match a standard product catalog.

A complex logo can involve:

• aluminum;
• stainless steel;
• acrylic;
• PVC;
• foam;
• printed components;
• LED modules;
• LED strips;
• Neon Flex;
• mixed metal-acrylic construction.

Different sections of one logo may require different solutions.

For example, a project could include:

• a 1,500 mm illuminated wordmark;
• a 420 mm detailed emblem;
• a 180 mm tagline.

Using fabricated channel letters for all three parts may create unnecessary difficulty.

A more practical structure might be:

Logo Section	Possible Construction	Reason
Main wordmark	Fabricated channel letters	Adequate stroke width and viewing distance
Detailed emblem	Layered acrylic + metal	Better control of small shapes
Small tagline	Non-illuminated acrylic	Cleaner small-size appearance

The engineering team should also evaluate depth.

A deeper channel letter may provide more room for LEDs and diffusion, but additional depth can change the side profile and appearance. A shallower sign may look cleaner indoors but can reduce the available optical space.

Lighting decisions should therefore be made together with structure.

The same principle applies to outdoor products. Material thickness, seams, wire exits, drainage, sealing, mounting points, and access need to be considered before fabrication.

Iduoduo’s documented engineering scope includes structure, materials, LEDs, power, installation, waterproofing, segmentation, and general production feasibility.

A useful sign of engineering competence is the ability to explain why a specific structure was selected.

“We normally make it this way” is weak evidence.

A stronger explanation sounds more like:

“The 24 mm section is too narrow for the proposed conventional channel-letter construction, so we recommend using machined acrylic for that symbol while keeping the larger letters fabricated. The visible logo proportion remains unchanged.”

That answer connects geometry with manufacturing reality.

How Should Logo Changes Be Approved?

Any visible change to the logo should be shown and approved before production.

Complex logos sometimes require small adjustments, such as:

• widening a thin connection;
• enlarging an internal opening;
• increasing spacing;
• simplifying a very sharp corner;
• combining small components;
• changing one section from illuminated to non-illuminated;
• adding a backing plate;
• changing material or depth.

The problem is not the existence of an engineering adjustment.

The real risk is making an adjustment without a controlled approval record.

A practical approval flow can follow:

Original Artwork → Engineering Markup → Revised Artwork → Shop Drawing → Sample or First Article → Approved Production Version

Each stage should clearly identify the file version.

For example:

• V1 — original logo;
• V2 — narrow strokes adjusted;
• V3 — mounting changed;
• V4 — final approved production file.

When project information is scattered across email, WhatsApp, drawings, screenshots, and quotations, revision control becomes essential.

A common failure looks like this:

The original PDF shows black returns.

A WhatsApp message changes them to white.

A later rendering changes the mounting method.

The sample uses a revised logo.

Production receives an older PDF.

Every department may believe it is following instructions, yet the finished sign can still be wrong.

The final approved package should therefore consolidate the information into one production standard.

For a complex illuminated logo, the package may include:

Item	What Should Be Frozen
Artwork	Final logo version
Dimensions	Overall and critical local sizes
Materials	Type and thickness
Finish	Color, paint, plating, texture
Lighting	LED type, color or CCT
Electrical	Voltage, power supply, wiring
Mounting	Holes, studs, backing, template
Wire exits	Location and quantity
Sample	Approved physical reference if used
QC	Critical inspection points
Packaging	Protection and component identification

Iduoduo’s documented sample workflow goes further by transferring approved results into final drawings, BOMs, process standards, mounting specifications, QC checklists, packaging requirements, and frozen production versions.

That transfer is particularly important for repeat production.

A sample may look excellent because one experienced technician spent extra time adjusting it manually. If the adjustment is never recorded in the drawing, BOM, process instructions, or QC standard, the second batch may not match the first.

For a complex-logo project, ask the factory one practical question before approval:

“After we approve the sample, exactly which files and specifications will production use to reproduce it?”

A reliable answer should mention more than the sample itself.

The answer should connect the approved artwork, dimensions, materials, structure, lighting, electrical specifications, mounting, finish, QC requirements, and production version.

That is the difference between reviewing a logo for appearance and reviewing it for manufacturing.

Which Capabilities Prove Complex Logo Manufacturing?

A factory proves complex-logo capability through more than a laser cutter, CNC router, or a wall of finished signs. Strong evidence comes from a complete production chain: engineers can identify difficult geometry, the workshop can execute the required metal and acrylic processes, lighting and wiring can fit inside narrow areas, mounting can be planned before fabrication, and QC can reproduce the approved result across multiple units.

For a difficult logo, ask the factory to explain how one of the hardest elements will move from vector artwork to finished sign. A useful answer should cover cutting, forming, joining, finishing, lighting, wiring, mounting, inspection, and any process limits.

Iduoduo’s documented manufacturing system includes five production bases, 21,000 m² of manufacturing space, more than 500 employees, 18 production lines, and processes including laser cutting, CNC machining, bending, welding, grinding, surface finishing, printing, acrylic fabrication, LED assembly, wiring, first-article inspection, in-process QC, final inspection, 100% lighting inspection, and 72-hour pre-shipment testing.

A useful supplier check can start with the following evidence:

Capability	What to Ask For	Strong Evidence	Weak Evidence
Logo engineering	“Show the difficult areas you found.”	Marked artwork with dimensions	“Any logo is possible.”
CNC / cutting	“How will the smallest openings be cut?”	Process photos and actual tolerances	Machine photo only
Metal forming	“How will the tight curve be bent?”	Similar formed parts and process explanation	General welding photos
Acrylic processing	“How will fine acrylic details be finished?”	Close-up machined edges and layered samples	Finished sign photo from distance
Lighting	“How will the narrow stroke be illuminated?”	LED layout or lighting sample	LED brand name only
Wiring	“Where will wires exit?”	Wiring drawing or marked shop drawing	Decided during assembly
Mounting	“How will small parts be positioned?”	Template, hole plan, studs, backboard	Installer will figure it out
QC	“What is checked before shipment?”	First article, in-process QC, lighting test	Visual check before packing
Repeat production	“How will the second order match?”	Final drawings, BOM, QC files, records	Copy from old photos

Which Fabrication Processes Matter Most?

No single manufacturing process proves a factory can produce a complex logo.

A logo may require six or more manufacturing stages before assembly even begins. A channel-letter logo, for example, can involve cutting the faces and backs, forming returns, welding joints, grinding visible areas, painting or finishing surfaces, installing LEDs, wiring, preparing mounting points, testing, and packing.

For a logo combining metal and acrylic, the process chain becomes even longer.

A typical complex project may involve:

• laser cutting for metal contours;
• CNC machining for acrylic shapes;
• metal bending for returns and curved profiles;
• welding for structural joints;
• grinding and polishing for visible seams;
• paint or other surface finishing;
• acrylic machining and edge finishing;
• bonding between different materials;
• LED installation;
• wire routing and connection;
• power matching;
• drilling and mounting preparation;
• first-article inspection;
• final electrical and appearance inspection.

Iduoduo’s documented production system covers cutting, CNC machining, bending, welding, grinding, surface finishing, printing, acrylic and plastic fabrication, LED assembly, wiring, inspection, testing, and packing rather than relying on one manufacturing method.

The important part is process continuity.

Imagine a 1,400 mm logo with brushed stainless-steel returns, a white acrylic face, several 25–35 mm narrow sections, and one detailed graphic element.

A laser cutter may create the metal parts accurately, but several other questions still remain:

• Can the return be bent around the tight sections?
• Will welding distort the narrow parts?
• Can welded seams be ground without changing the visible contour?
• Will the acrylic face fit the finished metal shell?
• Is there enough space for LEDs and wires?
• Can the smallest element accept a stud or other fixing?
• Will the finish remain consistent across all parts?

One weak process can reduce the value of every process before it.

For supplier evaluation, ask to see work from several production stages rather than only finished signs. A useful set of evidence might contain the original drawing, cut components, formed returns, welded parts, acrylic pieces, LED layout, wiring, illuminated test, and packed product.

Such a sequence gives far more information than twenty attractive project photos.

Factory scale should also be interpreted carefully. More machines do not automatically improve accuracy. Scale becomes useful when different processes can operate under controlled drawings and shared QC requirements.

Iduoduo operates across five production bases and 18 production lines, supporting work from one-off samples through small batches, multiple SKUs, multi-location programs, and repeat production.

For a complex-logo project, production flexibility matters because an order may contain:

• 1 pre-production sample;
• 20 main storefront logos;
• 40 smaller interior logos;
• 60 non-illuminated secondary signs;
• several replacement components.

A factory able to manage different structures under one approved project standard has a stronger capability profile than a workshop focused on one product only.

How Are Tight Curves and Small Parts Made?

Tight curves, narrow tips, small holes, and detached logo elements are among the best places to test real fabrication skill.

Start by choosing the three smallest or most complicated details in the artwork. Ask the factory to explain exactly how each one will be produced.

For a tight metal curve, the answer should address:

• cutting accuracy;
• minimum practical bending radius;
• return material;
• return thickness;
• bending method;
• joint location;
• welding;
• grinding;
• paint or surface finish.

For a very small acrylic component, the answer should address:

• acrylic thickness;
• CNC tool access;
• small internal radius;
• edge finish;
• bonding area;
• strength;
• mounting;
• packing protection.

For a tiny separate logo element, mounting can become more difficult than cutting.

Consider a small diamond-shaped part measuring 28 × 35 mm. CNC cutting may be easy. The real questions are different:

• Is there enough rear surface for a stud?
• Will a stud create stress in the material?
• Is adhesive more suitable?
• Does the part need a common backing?
• How will an installer position it accurately?
• Will it survive international shipping without breaking or disappearing inside the package?

A useful decision table can look like:

Small Detail	Main Risk	Possible Production Solution
Tight metal curve	Return cannot bend cleanly	Change bending method or local structure
Small inside corner	Tool cannot reproduce sharp corner	Controlled radius adjustment
Narrow connection	Weak during handling	Increase local strength or change material
Tiny acrylic part	Breakage	Thicker acrylic or shared backing
Small illuminated shape	No LED/wire space	Alternative illumination or non-lit detail
Tiny detached icon	Difficult installation	Backing plate or grouped mounting
Thin painted section	Finish buildup changes shape	Adjust geometry before finishing

A factory should not hide such limitations.

Production engineering often means saying: “The original artwork works in most areas, but the 18 mm connector and the 12 mm internal opening need another solution.”

Such an answer is more useful than claiming unlimited manufacturing ability.

Complex curves also reveal whether engineering and production communicate well.

An engineer may approve a radius on a drawing, but the workshop still needs a reliable method for producing it repeatedly. If one highly skilled technician manually corrects every part, producing one sample may be possible while producing 100 matching sets becomes difficult.

For larger orders, ask:

• Will the same tooling be used for all units?
• Which dimensions will QC measure?
• Is there a first article before full production?
• How are rejected parts handled?
• Will revised geometry be recorded in the production drawing?

Iduoduo’s quality process includes first-article approval, in-process inspection, dimensional and appearance checks, nonconforming-product control, reinspection after rework, and traceable release records.

Such controls matter more as logo geometry becomes less forgiving.

How Is Lighting Engineered for Narrow Strokes?

A narrow illuminated logo can fail even when fabrication looks perfect.

LEDs need physical space, proper spacing, enough distance from the diffuser, suitable power, wire routes, and sufficient coverage around corners. A narrow stroke often leaves less room for every one of those requirements.

For example, consider a logo containing:

• main strokes around 70 mm wide;
• several secondary strokes around 35 mm;
• two script connections around 20 mm;
• several sharp turns.

Using one identical LED pattern across the whole logo would rarely be the best engineering approach.

Wide sections may accept normal module spacing. Narrow sections may require another LED arrangement. Tight corners may need additional coverage. Extremely narrow connections may need a different construction entirely.

A proper lighting review considers more than LED quantity.

Relevant variables include:

Lighting Variable	Why It Matters
Stroke width	Determines available LED and wiring space
Letter depth	Controls diffusion distance
Face material	Affects light transmission
LED beam angle	Influences coverage
Module spacing	Affects hotspots and dark areas
Corner geometry	Can create uneven illumination
Wall color	Important for halo-lit signs
Stand-off distance	Changes halo spread
LED color / CCT	Affects brand appearance
Power loading	Influences stability
Dimming	May be needed for indoor environments

Iduoduo’s documented optical workflow evaluates logo geometry, stroke width, product depth, diffuser material, LED beam angle, viewing distance, ambient light, wall reflectance, and brand requirements. Illuminated signs receive 100% lighting inspection and 72-hour pre-shipment testing covering brightness, color consistency, hot spots, dark areas, halo quality, corner coverage, control function, and batch stability.

For a narrow logo, ask the factory for an LED layout or illuminated sample when the geometry creates uncertainty.

A useful question is:

“Where is the narrowest illuminated section, and how will you prevent a dark area there?”

A capable engineering team should be able to discuss a specific section rather than giving a general answer such as “We use high-quality LEDs.”

LED brand alone cannot solve poor optical geometry.

Another practical check involves the first article. Turn the product on in a darker environment and inspect it from both normal viewing distance and close range.

Look for:

• dark corners;
• bright spots;
• visible LED dots;
• sudden changes in brightness;
• color-temperature differences;
• weak illumination at narrow tips;
• uneven halo;
• light leaking from unintended joints.

For commercial projects, repeatability matters as much as the first illuminated unit.

Iduoduo can retain information such as LED model, LED color, color temperature, module spacing, product depth, diffuser, stand-off distance, control equipment, test photos, and approved samples for repeat projects. Such records reduce the risk of recreating a previous lighting result from memory.

How Are Wiring and Mounting Planned?

Complex illuminated logos can contain dozens of separate pieces. Every illuminated piece needs power, and every separate piece needs an accurate installation position.

A logo with 18 individual letters, one emblem, and six small graphic components may involve more than 20 separate mounting positions and several wire exits.

If wiring and mounting are left until production is almost finished, site installation can become much harder than necessary.

The engineering review should establish:

• number of separate sign components;
• wire-exit locations;
• electrical grouping;
• power-supply location;
• mounting holes;
• studs;
• screws or anchors;
• raceway or backboard where required;
• stand-off distance;
• installation template;
• component identification;
• wall substrate.

A complex-logo shop drawing should make installation logic understandable before manufacturing begins.

For example, consider a reception-wall logo with 14 individual illuminated letters.

Without planning, 14 separate wire exits may be placed wherever assembly workers find convenient. On site, the installer may discover that several wires conflict with wall studs or cannot be hidden behind the finished surface.

A planned drawing can instead define exact wire exits and electrical grouping before CNC cutting begins.

The same applies to mounting.

Tiny pieces may use studs, adhesive, a common acrylic backing, or another engineered support depending on material and wall conditions. Large sections may require multiple fixing points. Halo-lit parts need controlled stand-off spacing.

Acrylic LED logo signs produced by Iduoduo can include logo engineering, acrylic machining, layered construction, metal backing, LED diffusion, concealed wire exits, stand-off mounting, close-view appearance inspection, testing, packing, and repeat-production file management.

Wall type should be confirmed early.

A mounting method suitable for concrete may not suit glass, stone, timber panels, metal cladding, or lightweight interior partitions.

A useful pre-production mounting checklist can include:

• Wall material confirmed?
• Finished sign weight known?
• Mounting method shown?
• Hole quantity shown?
• Hole spacing shown?
• Stud length confirmed?
• Stand-off distance confirmed?
• Wire exits marked?
• Power-supply access planned?
• Installation template included?
• Small parts identified?
• Hardware packed separately?

For sign companies and installation teams, such details often save more time than a lower unit price.

The final proof of complex-logo capability is not a dramatic factory video or one unusually difficult sample.

It is whether the factory can repeat the entire chain:

Approved Logo → Engineering Drawing → Material Preparation → Cutting → Forming → Joining → Finishing → Lighting → Wiring → Mounting Preparation → First Article → QC → Testing → Packing → Repeat-Order Records

Iduoduo’s documented manufacturing process links final drawings and BOMs with material preparation, CNC machining, bending, welding, surface finishing, acrylic fabrication, LED assembly, wiring, first-article approval, in-process inspection, 100% lighting inspection, 72-hour pre-shipment testing, packing, shipment preparation, and repeat-order records.

When evaluating a factory, one question can reveal a great deal:

“Show us the most difficult part of our logo, explain how you will manufacture it, and show us how production will check the same detail.”

If the answer includes actual dimensions, process choices, drawings, lighting considerations, mounting details, and inspection criteria, the factory is providing evidence.

If the answer is only “No problem, we can make any logo,” there is still very little proof.

How Can You Verify a Factory’s Real Capability?

A sign factory’s real capability should be verified with project-specific evidence, not company introductions alone. Ask for comparable projects, production drawings, process photos or videos, sample records, first-article inspection, QC documents, and repeat-order files. The strongest proof connects the same difficult logo from approved artwork through fabrication, testing, packing, and repeat production.

A large workshop, expensive CNC equipment, or hundreds of project photos can support a supplier assessment, but none proves that a factory can manufacture your particular logo. What matters is whether the factory can show how it handled similar geometry, how engineering decisions were recorded, how the first finished unit was checked, and how the approved result was transferred into production.

A useful way to evaluate evidence is to rank it by strength:

Evidence	Verification Value	What It Actually Proves
Company introduction	Low	General company positioning
Equipment list	Low–Medium	Certain processes may be available
Finished product photos	Medium	Similar products may have been produced
Process photos	Medium–High	Relevant manufacturing stages exist
Shop drawings	High	Engineering is planned before production
Sample / prototype	High	Difficult details can be physically produced
First-article inspection	Very High	Production method can match approved standard
QC checklist + records	Very High	Critical details are inspected systematically
Repeat-order files	Very High	Production can be reproduced later

Iduoduo’s documented quality system includes approved production files, first-article approval, in-process inspection, dimensional and appearance checks, 100% lighting inspection for illuminated products, electrical verification, 72-hour pre-shipment testing, reinspection after rework, and traceable product release.

What Should You Check in Similar Projects?

Similar projects are useful only when the manufacturing difficulty is actually similar.

A common mistake is asking a factory, “Have you made channel letters before?” Almost every established sign factory can show channel letters. The better question is whether the factory has handled the same type of manufacturing challenge found in your logo.

If your logo contains a 20 mm script connection, examples of 100 mm-wide block letters do not prove much. If your project requires polished stainless steel with a complicated emblem, simple acrylic letters are not a useful comparison. If you need 80 sets for different stores, one handcrafted sample is not enough to demonstrate repeat-production control.

Compare at least the following factors:

Comparison Point	Why It Matters
Finished dimensions	Manufacturing difficulty changes with scale
Narrowest stroke	Controls structure and lighting space
Smallest internal opening	Shows ability to handle fine geometry
Material	Metal, acrylic and mixed structures behave differently
Lighting type	Front-lit, halo-lit and acrylic lighting need different engineering
Product depth	Affects LED diffusion and internal space
Surface finish	Polishing, paint and plating have different tolerances
Mounting method	Can determine how small parts are designed
Indoor / outdoor	Changes structural and weather-protection requirements
Order quantity	One prototype does not prove batch consistency

A useful project comparison might look like this:

Your project:

• Overall width: 1,300 mm
• Narrowest stroke: 24 mm
• Stainless-steel return
• Acrylic illuminated face
• 19 independent pieces
• Indoor installation
• 50 sets required

Factory reference project:

• Overall width: 1,200 mm
• Narrowest stroke: 26 mm
• Stainless-steel return
• Acrylic illuminated face
• 16 independent pieces
• Indoor installation
• 40 sets produced

That reference is meaningful because the manufacturing conditions are close.

Compare it with another reference:

• 2,500 mm overall width
• 90 mm minimum stroke
• Aluminum channel letters
• 8 large letters
• One set produced

The second sign may look impressive in a portfolio, but it says much less about the ability to manufacture your smaller, more detailed logo.

Ask for close-up images instead of only wide project shots.

Useful close-ups include:

• narrow script sections;
• tight metal bends;
• small internal counters;
• welded corners;
• polished joints;
• acrylic edges;
• LED arrangement;
• wire exits;
• studs or mounting holes;
• illuminated corners;
• halo around small shapes.

Close-up photographs are harder to hide behind attractive photography.

Also ask what went wrong during the reference project.

That question is surprisingly useful.

A factory with real project experience may say:

“The first sample showed a dark area in the narrow lower stroke, so we changed the LED arrangement before production.”

Or:

“The original 14 mm opening was too small after fabrication, so it was increased to 19 mm and approved before the batch started.”

Such answers demonstrate actual manufacturing experience.

An answer such as “Everything went perfectly” on every complex project provides less useful information.

For multi-store or repeat programs, ask whether the factory can show how the project was repeated.

Useful evidence includes:

• production version number;
• retained drawings;
• color standard;
• LED specification;
• power specification;
• mounting template;
• QC record;
• packaging reference;
• reorder photographs.

Iduoduo’s documented Channel Letter repeat-production records can include final drawings, font information, dimensions, materials, colors, return depth, LEDs, power supplies, mounting holes, wire exits, templates, packaging, and QC records.

That type of documentation is more valuable than a folder containing only finished-product photographs.

Which Drawings Should the Factory Provide?

A rendering proves almost nothing about manufacturing capability.

A rendering tells you how the sign is expected to look from the front. A production drawing should explain how the sign will actually be built.

For a complex logo, drawings should gradually remove uncertainty from the project.

Depending on construction, useful documents may include:

• final artwork;
• dimensioned layout;
• individual component dimensions;
• material specification;
• return depth;
• face and back construction;
• section drawing;
• color and finish schedule;
• LED arrangement;
• power specification;
• wire-exit locations;
• mounting holes;
• studs;
• backing or raceway;
• installation template;
• component numbering.

Not every sign needs every drawing.

A 400 mm non-illuminated acrylic logo may need only a clean dimensioned production drawing and mounting template.

A 3,000 mm illuminated exterior logo with multiple materials may require significantly more documentation.

The key question is:

Can another engineer or production team understand exactly what needs to be made without relying on verbal explanations?

For complex logos, pay particular attention to dimensions around difficult geometry.

A useful drawing should show more than:

Overall width: 1,200 mm

It may also need to identify:

• minimum stroke: 23 mm;
• smallest counter: 18 mm;
• smallest detached part: 32 × 27 mm;
• letter depth: 50 mm;
• stand-off distance: 30 mm;
• mounting stud diameter and position;
• wire exit location.

Such measurements turn subjective discussions into measurable production requirements.

Suppose a logo contains 16 separate elements.

A drawing with component numbers such as L01–L16 makes manufacturing, QC, packing, and installation easier.

For example:

Component	Size	Construction	Mounting
L01	320 × 410 mm	Illuminated acrylic	4 studs
L02	110 × 185 mm	Illuminated acrylic	2 studs
L03	42 × 65 mm	Non-illuminated metal	Shared backing
L04	28 × 34 mm	Non-illuminated acrylic	Adhesive + template

Now the smallest component is no longer an undefined decorative detail. It has an agreed construction and installation method.

Section drawings are particularly useful for illuminated signs.

A section can show:

• face material;
• face thickness;
• return;
• back;
• internal depth;
• LEDs;
• wire path;
• stand-off;
• wall relationship.

Without a section, two factories can quote signs that look identical in the rendering but use very different internal structures.

Also check whether drawing revisions are controlled.

A practical system might use:

• V01 — Initial artwork
• V02 — Engineering adjustment
• V03 — Mounting revised
• V04 — Sample-approved version
• V05 — Released for production

Before placing the order, ask:

“Which revision will the factory floor receive?”

If the answer is unclear, production risk remains.

Iduoduo’s documented engineering process can include shop drawings, sections, electrical and mounting information, BOM control, color and finish schedules, revision management, and final production approval.

A useful drawing package does not exist to create paperwork. It prevents a production worker from making a judgment that should have been made before fabrication.

Do Production Photos and Videos Prove Capability?

Production photos and videos are valuable, but they need to show the right things.

A factory tour video may prove that a workshop exists. It does not necessarily prove that the workshop manufactured the project shown on its website or that the production line can handle your logo.

Ask for evidence connected to the manufacturing process you need.

For a complex channel-letter logo, useful evidence might include:

1. approved drawing at the production stage;
2. cut metal or acrylic parts;
3. return bending;
4. welding;
5. grinding;
6. surface finishing;
7. acrylic fitting;
8. LED placement;
9. wiring;
10. mounting preparation;
11. lighting test;
12. final inspection;
13. packing.

One photo from each stage can tell a much clearer story than a general factory video.

When reviewing metal fabrication, zoom in on:

• bend quality;
• corner shape;
• welded seams;
• visible distortion;
• grinding marks;
• edge alignment.

For acrylic, look at:

• cutting accuracy;
• internal corners;
• edge condition;
• scratches;
• adhesive marks;
• alignment between layers.

For illuminated signs, look at the product both turned off and turned on.

A turned-on image alone can hide poor surface finishing. A daylight image alone cannot show optical problems.

Ask for:

• front view while off;
• close-up while off;
• front view while illuminated;
• angled illuminated view;
• narrow-detail close-up;
• rear wiring view.

Production evidence becomes stronger when a ruler, caliper, drawing, part number, or QC label appears in the image.

For example, a close-up photograph showing a 24.2 mm finished stroke next to a drawing specifying 24 ± 1 mm provides measurable evidence.

A wide-angle photograph of the same sign hanging on a wall does not.

Live video inspection can also be useful for important projects.

A practical 20–30 minute remote factory review can ask the supplier to show:

• the production area;
• the actual project drawing;
• raw materials;
• CNC or laser-cut components;
• bending or welding;
• LED installation;
• QC station;
• lighting-test area;
• packing area.

Do not ask only to “show the factory.”

Ask to see specific processes relevant to the project.

For example:

“Please show how a narrow metal return is bent.”

“Please show how small acrylic components are machined.”

“Please show where illuminated signs are tested.”

“Please show how finished dimensions are checked.”

That approach makes staged factory-tour footage much less useful and real production capability much easier to evaluate.

Iduoduo’s documented production scope includes cutting, CNC machining, bending, welding, grinding, surface finishing, acrylic and plastic fabrication, LED assembly, wiring, first-article inspection, in-process QC, final inspection, testing, and packing across five production bases and 18 production lines.

The important verification point is not whether every process looks impressive.

It is whether the processes needed for your sign actually exist and are controlled.

Should You Request a Sample or First Article?

For a difficult logo, a sample is often the most direct way to verify whether drawings can become a real product.

Sampling is especially useful when a project contains:

• narrow illuminated strokes;
• unusual acrylic machining;
• very small components;
• custom paint;
• plating;
• brushed metal;
• layered materials;
• special halo lighting;
• RGB or RGBW control;
• tight mounting tolerances;
• new construction not previously approved.

A sample should target the uncertainty.

If the only risk is a custom gold finish, producing an entire 2,000 mm logo may be unnecessary. A material or finish sample may answer the question.

If the concern is a 17 mm illuminated script connection, make a 1:1 sample of that section.

If the concern is overall appearance, produce one complete prototype.

A practical sampling ladder can look like:

Project Risk	Useful Validation
Color uncertainty	Color sample
Metal finish	Finish sample
Narrow illumination	1:1 illuminated section
Difficult acrylic layer	Local structural sample
Small complex logo	Complete prototype
100-set program	Pre-production sample + first article
Multi-store rollout	First-store validation

At Iduoduo, documented sampling options include material samples, color samples, lighting samples, full-size sections, complete prototypes, pre-production samples, golden samples, first-store validation, and pilot batches. Approved results can then be transferred into drawings, BOMs, process standards, mounting specifications, QC checklists, packaging requirements, and frozen production versions.

The sample should be inspected against agreed criteria rather than judged with “looks good.”

For a complex illuminated logo, inspection might include:

Check	Example Target
Overall width	1,200 ± specified tolerance
Logo proportion	Matches approved artwork
Narrow stroke	Matches approved revised geometry
Color	Approved Pantone / physical sample
Surface	No obvious scratches or welding marks
Acrylic edge	Clean at normal viewing distance
Illumination	No obvious dark areas or hotspots
Wire exits	Match drawing
Mounting holes	Match template
Power	Correct destination specification
Accessories	Complete
Packing	Small components protected

The next distinction is important:

Sample approval and first-article approval are not the same thing.

A sample may be made by a sample team using special attention, temporary materials, or manual adjustments.

A first article should demonstrate that the real production route can reproduce the approved result using production materials, equipment, drawings, and processes.

For a larger order, a sensible sequence may be:

Artwork Approval → Engineering Approval → Sample → Sample Revision → Golden Sample → Production Files → First Article → First-Article Approval → Remaining Production

Suppose an order contains 120 logo sets.

Finding a 2 mm mounting-position error on the first article is inexpensive compared with discovering it after 120 sets have been packed.

Similarly, discovering a dark area in one first article may require changing only the LED layout for one unit and updating the production file.

Discovering the same defect across 120 sets creates rework, schedule pressure, and additional handling.

A capable factory should therefore treat the first article as a production gate rather than a ceremonial photograph.

Ask what happens if the first article fails.

A controlled process should include:

• problem identification;
• root-cause review;
• correction;
• updated drawing or process if needed;
• reinspection;
• approval before remaining production.

Iduoduo’s documented quality chain includes first-article approval, in-process inspection, nonconforming-product control, reinspection after rework, and traceable product release rather than relying only on final inspection.

The final verification question should therefore be:

“Can you prove not only that you can make one difficult logo, but also that the approved logo can be reproduced through your normal production process?”

That question separates prototype skill from manufacturing capability.

Before approving a factory for a complex-logo project, you should ideally be able to obtain evidence for all five areas below:

Verification Area	Minimum Useful Evidence
Engineering	Marked artwork + shop drawing
Manufacturing	Relevant process photos or video
Physical feasibility	Sample or 1:1 difficult section
Production control	First article + QC criteria
Repeatability	Frozen drawing, BOM, sample and production records

If all five are available and consistent with one another, supplier approval is based on evidence rather than promises.

If the only evidence is a quotation, a factory introduction, and a gallery of finished signs, several important questions are still unanswered.

What Should Be Confirmed Before Factory Approval?

Before approving a sign factory for a complex-logo project, confirm the exact artwork version, finished dimensions, critical geometry, materials, surface finishes, illumination, electrical specifications, mounting method, wire exits, sample standard, QC criteria, packaging, quantity, delivery requirements, and production revision. Every item that can change the finished sign should be written into one approved production package rather than left in emails or chat messages.

The final approval should answer one practical question: if production starts tomorrow, can engineering, production, QC, packing, and installation teams all understand exactly what must be made without guessing?

For complex projects, Iduoduo’s documented workflow can transfer approved sample results into final drawings, BOMs, process standards, mounting specifications, QC checklists, packaging requirements, and frozen production versions.

Which Engineering Red Flags Should You Watch For?

The biggest warning sign is not a factory saying part of the logo is difficult. A factory that identifies a limitation may actually be doing its job.

More serious warning signs appear when important questions are never asked.

For example, a supplier should not give a final production solution for an illuminated complex logo without knowing the finished size. A 2,000 mm-wide logo and a 500 mm-wide version may use the same artwork, but the smaller version can have half or one-quarter of the internal manufacturing space.

Watch carefully for the following situations:

Red Flag	Why It Matters	What a Capable Factory Should Do
Final quote before confirming size	Fine details cannot be evaluated correctly	Request finished dimensions
No vector artwork requested	Geometry may be inaccurate	Request AI, SVG, PDF, EPS or rebuild artwork
No minimum-stroke review	Narrow sections may fail later	Mark risky areas on final-size artwork
No discussion of wall type	Mounting can fail on site	Confirm substrate and installation method
No wire-exit planning	Visible wires or extra wall holes may result	Mark exits on drawing
No drawing before production	Production relies on verbal instructions	Issue an approved shop drawing
Visible logo changes made without approval	Brand proportions may change	Show revisions for approval
“Any logo is possible” with no engineering questions	Manufacturing risk has not been reviewed	Explain limitations and alternatives
Sample differs from production specification	Batch may not match approved sample	Freeze final BOM and production version
QC only happens before packing	Problems may already be built into the product	Use first-article and in-process inspection

One of the easiest supplier checks is to send the same difficult logo to several factories and compare the questions you receive.

A weak response may be:

“Please tell us quantity. We can make it.”

A stronger response may ask:

• What is the final overall width?
• Which parts need illumination?
• Is the installation indoor or outdoor?
• What wall material will the sign be mounted on?
• Are the narrow strokes allowed to be adjusted?
• Is the logo color controlled by Pantone?
• Where can the power supply be located?
• Is a backboard acceptable?
• Does every small element need to be individually mounted?
• Is one sample required before the full order?

Those questions show that someone is thinking about the finished product rather than only the quotation.

Another red flag appears when sales promises are not reflected in production files.

Suppose the quotation says:

• brushed stainless steel;
• warm white illumination;
• 50 mm depth.

Later, the rendering says polished stainless steel.

The shop drawing shows 40 mm depth.

A WhatsApp message changes the lighting to 4000K.

Production receives an older drawing.

No individual mistake may appear serious, but together they create a project with no single approved standard.

Before supplier approval, ask to see how project changes are controlled.

Iduoduo’s documented engineering process includes BOM control, finish schedules, revision management, shop drawings, mounting information, and final production approval, reducing the risk of production teams working from different versions.

How Do You Check Sample Accuracy?

A sample should be checked against measurable requirements, not only by asking whether it looks good.

For a complex logo, inspection should begin with geometry.

Check:

• overall width and height;
• logo proportion;
• smallest strokes;
• internal openings;
• spacing between parts;
• curve accuracy;
• alignment;
• detached components;
• mounting positions.

Suppose the approved drawing specifies:

• Overall width: 1,200 mm
• Overall height: 430 mm
• Narrowest approved stroke: 24 mm
• Minimum internal opening: 18 mm
• Stand-off distance: 30 mm
• Four M4 studs on the main emblem

Those values provide clear inspection points.

A sample inspection table can look like this:

Inspection Item	Approved Requirement	Sample Result	Status
Overall width	1,200 mm	1,201 mm	Pass
Logo height	430 mm	429 mm	Pass
Narrow stroke	24 mm	23.8 mm	Pass
Internal opening	18 mm	17.9 mm	Pass
Stand-off	30 mm	30 mm	Pass
Stud quantity	4	4	Pass

Tolerance values should be agreed according to product type, dimensions, material, process, and installation requirements rather than copied from one universal standard.

After geometry, inspect appearance.

For metal parts, check:

• scratches;
• dents;
• weld marks;
• grinding marks;
• paint coverage;
• plating consistency;
• brushed direction;
• edge alignment.

For acrylic parts, check:

• edge quality;
• scratches;
• chips;
• bonding marks;
• layer alignment;
• face flatness.

For illuminated products, switch the sign on and inspect both close up and from the normal viewing distance.

Look for:

• hotspots;
• dark areas;
• weak corners;
• visible LED dots;
• inconsistent brightness;
• light leakage;
• color-temperature differences;
• uneven halo;
• flicker.

A sign can look good in daylight and still perform poorly at night.

The back of the sample also matters.

Check:

• wire exits;
• wire labels;
• connectors;
• power supply;
• mounting holes;
• studs;
• backing;
• brackets;
• accessories.

Those details determine whether installers can actually use the product.

Packing should also be included in sample approval when the logo contains fragile parts.

A 20 mm-wide acrylic stroke may survive production and fail during international transport. Small detached elements can also be lost or damaged if they are not separately protected and identified.

Iduoduo’s documented sample system can include material samples, color samples, lighting samples, full-size sections, complete prototypes, pre-production samples, golden samples, first-store validation, and pilot batches depending on project risk.

The sample should therefore be treated as an engineering checkpoint, not a sales display piece.

How Is Bulk Production Kept Consistent?

One excellent sample does not prove that 50 or 500 units will match it.

Batch consistency depends on transferring the approved result into controlled production information.

At minimum, the production package should record:

• final artwork;
• finished dimensions;
• material;
• material thickness;
• color;
• surface finish;
• letter depth;
• acrylic specification;
• LED specification;
• power supply;
• wire exits;
• mounting points;
• backing or raceway;
• packaging;
• QC requirements.

For Channel Letter repeat production, Iduoduo’s documented records can include final drawings, fonts, dimensions, materials, colors, return depth, LEDs, power supplies, mounting holes, wire exits, templates, packaging, and QC records.

The first production unit should then be checked before the remaining batch proceeds.

Consider a 100-set order.

If the first production set reveals:

• one mounting hole shifted by 4 mm;
• one narrow corner showing a dark area;
• one small acrylic component too fragile for packing;

the problem can still be corrected before the other 99 sets are completed.

If the same issue is discovered after 100 sets are packed, the result can involve:

• reopening cartons;
• reworking products;
• producing replacement parts;
• repeating QC;
• repacking;
• missing a shipping deadline.

First-article inspection is therefore especially valuable for complicated logos.

A practical production flow can be:

Approved Sample → Final Production Files → Material Preparation → First Article → First-Article Inspection → Correction if Needed → Batch Production → In-Process QC → Final Inspection → Packing

In-process QC should focus on the stages where defects are easiest to prevent.

For example:

Production Stage	Useful Inspection
Material arrival	Material, thickness, color, finish
Cutting	Dimensions, contour, holes
Bending	Radius, depth, shape
Welding	Alignment, distortion, joints
Surface finishing	Color, scratches, consistency
Acrylic fitting	Fit, edge, alignment
LED installation	Position, spacing, wiring
Assembly	Overall dimensions, appearance
Lighting test	Hotspots, dark areas, color
Packing	Accessories, labels, protection

Iduoduo’s documented quality chain includes incoming material inspection, first-article approval, in-process inspection, dimensional and appearance checks, 100% lighting inspection for illuminated products, electrical and functional verification, nonconforming-product control, reinspection after rework, and traceable release records.

For illuminated signs, Iduoduo also documents 72-hour pre-shipment testing after 100% lighting inspection, with checks covering LED stability, power stability, flicker, early failure, color difference, dark areas, abnormal heat, and wiring connections.

Consistency is therefore not created by asking workers to “make the rest like the sample.” It comes from turning the approved sample into measurable production information.

What Should Be Frozen Before Production?

Before production begins, freeze every specification that affects product appearance, performance, installation, or repeat ordering.

A useful final approval package can include the following:

Item	What Must Be Confirmed
Logo file	Final vector version
Overall size	Width and height
Critical details	Narrow strokes, openings, small parts
Materials	Type and thickness
Surface finish	Paint, brushing, polishing, plating
Color	Pantone or approved physical sample
Sign depth	Return or body depth
Illumination	Front-lit, halo-lit, dual-lit, etc.
LED	Color, CCT, control if required
Voltage	Destination-market requirement
Power supply	Model/specification where applicable
Wiring	Groups, connectors, exits
Mounting	Studs, holes, brackets, backing
Template	Scale and layout
Sample	Approved reference
Packaging	Protection and identification
QC	Inspection criteria
Quantity	Final production quantity
Version	Released production revision

The word frozen is important.

Complex projects often continue to change after sampling.

For example:

Original order:

• 30 sets
• 1200 mm wide
• indoor
• 24V lighting
• white returns

After the sample:

• quantity increases to 60 sets;
• two stores require 900 mm signs;
• returns change to black;
• the installation wall changes;
• destination market changes;
• packaging needs store numbers.

Those changes should not be treated as small notes.

Each one can affect production.

A useful change record may look like:

Revision	Change	Effect
V03	Return color changed white → black	Finish schedule updated
V04	Added 900 mm version	New manufacturability review required
V05	Mounting changed	Hole and template drawing updated
V06	Quantity 30 → 60	Production and packing schedule updated

Only the final approved revision should be released to production.

For multi-location programs, the project may contain both fixed and variable specifications.

Fixed brand standards might include:

• logo proportion;
• Pantone color;
• material;
• finish;
• lighting color;
• visual construction.

Variable store information might include:

• overall size;
• mounting holes;
• wall type;
• wire exits;
• packaging number;
• delivery address.

Keeping those two groups separate makes later reorders easier.

Production records also matter after shipment.

If one location needs a replacement letter 18 months later, the factory should ideally be able to identify the original:

• artwork;
• dimension;
• material;
• color;
• LED;
• power;
• mounting;
• packing reference.

Without records, the replacement may need to be recreated from photographs.

A complex-logo project should therefore not receive final factory approval until the following questions can all be answered clearly:

• Which logo version will be produced?
• What is the final size?
• Which details were adjusted?
• Which material and finish are approved?
• How will the sign be illuminated?
• Where will wires exit?
• How will each part be mounted?
• Which sample is the approved reference?
• What will the first article be checked against?
• Which QC points are mandatory?
• How will fragile components be packed?
• Which version will production receive?
• Which records will be retained for repeat orders?

If several answers still depend on “we will decide during production,” factory approval is premature.

A strong supplier approval does not mean every risk has disappeared. It means the important risks have been identified, converted into drawings and specifications, verified through samples or first articles where necessary, and assigned to measurable inspection points before the full order begins.

Ready to Check Your Complex Logo Before Production?

If your logo includes thin strokes, tight curves, small internal openings, mixed materials, unusual lighting, or several size versions, the most useful next step is to review the actual artwork before deciding on construction. A proper review can clarify which parts are straightforward, which details may create production risk, and whether a sample or first article would be worthwhile.

Iduoduo can review your logo together with the target size, quantity, installation location, lighting preference, mounting requirements, and destination market. The goal is not to change the brand unnecessarily, but to determine a practical way to manufacture, light, mount, inspect, and repeat the sign with fewer surprises later.

If you are comparing suppliers or preparing a new project, you can send the logo file and the basic project information for evaluation. From there, the discussion can focus on manufacturability, materials, structure, sample needs, and the production details that matter most before quotation and approval.
