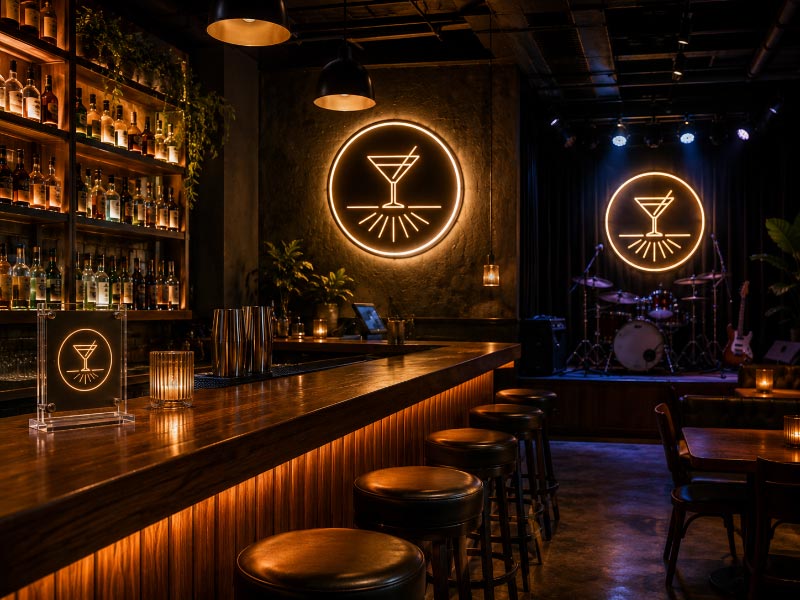

How Do You Choose Counter, Wall, and Stage Signs for a Bar?

A bar sign should not be chosen from a product catalog before anyone studies where it will be seen. A compact sign beside the payment terminal, a logo above the back bar, and a branded sign behind a live band may share the same colors, but they work at completely different distances and under completely different lighting. Treating them as three versions of the same product often creates signs that are attractive in a rendering yet awkward in the actual venue.

Choose each sign by its job and viewing distance. Use compact, easy-to-update signs at the counter; a permanent logo or illuminated focal point on the wall; and a larger, high-contrast, structurally secure sign on the stage. Confirm ambient light, camera exposure, mounting surfaces, power routes, cleaning conditions, installation access, and future content changes before approving materials or dimensions.

The most expensive mistakes are rarely dramatic. The counter sign simply blocks the bartender’s view. The wall logo disappears when the pendant lights are switched on. The stage sign looks bright to the audience but becomes a white blur in every photograph. Each product may be technically functional, yet the overall signage plan still fails. A better project begins by walking through the bar as a guest, bartender, performer, photographer, cleaner, installer, and operator would.

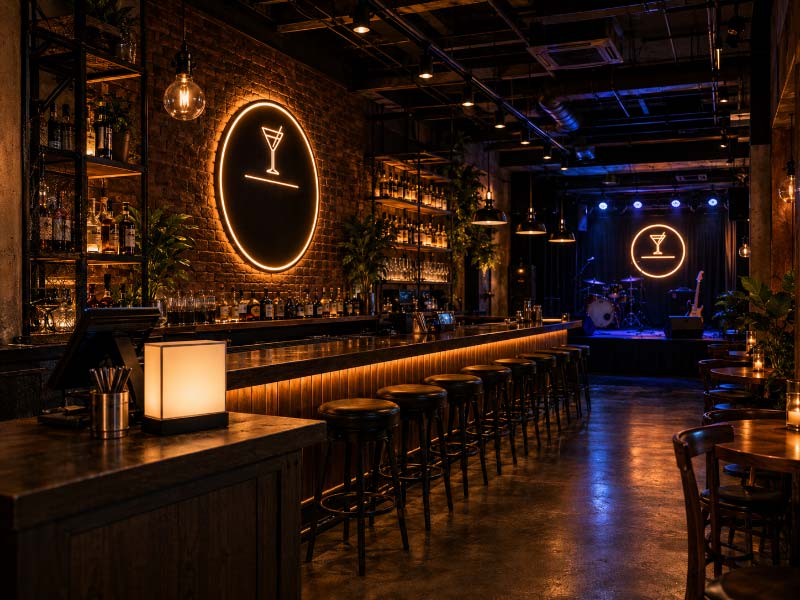

What Should Each Bar Sign Do?

Each sign should solve one clear problem in the bar. Counter signs support ordering, payment, pickup, promotions, and short instructions. Wall signs establish the main brand presence and help organize the interior. Stage signs keep the venue recognizable during performances, events, photography, and video. All three can share the same logo, colors, and visual style, but they should not use the same size, brightness, amount of text, or mounting structure.

What Is the Sign’s Main Purpose?

Define the main job of every sign before choosing materials or requesting a quotation. A sign designed for branding needs a different layout from one used for ordering, wayfinding, or changing promotions.

A counter sign may need to:

• Mark the ordering or pickup point
• Display a QR code menu
• Promote one cocktail or event
• Show payment instructions
• Separate dine-in, takeaway, and collection areas
• Add a small brand element near the service area

A wall sign may need to:

• Present the main bar logo
• Create a focal point behind the counter
• Mark a VIP room, lounge, restroom, or private area
• Form a branded photo background
• Reinforce the interior theme
• Help guests understand different areas of the venue

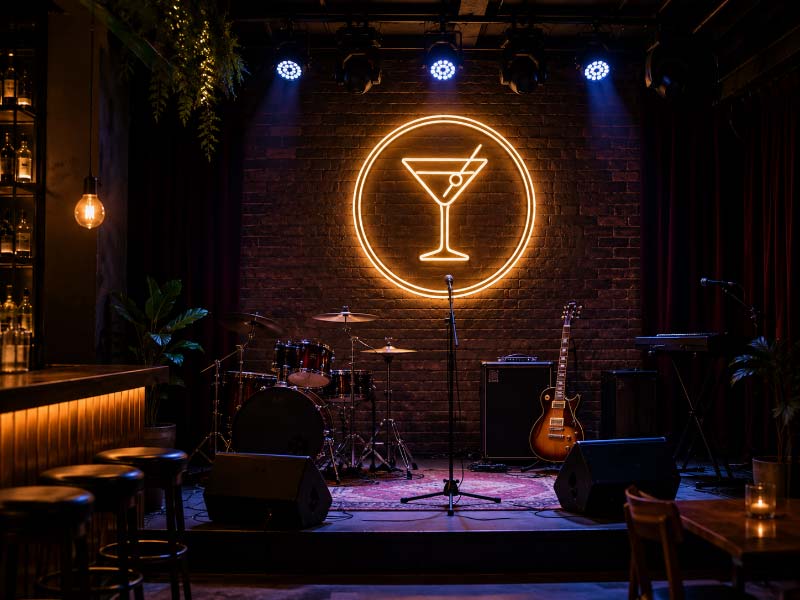

A stage sign may need to:

• Keep the venue name visible behind performers
• Identify the bar in event photographs and video
• Support live music, DJ nights, comedy, or private events
• Display a sponsor or event identity
• Remain recognizable from the rear of the room

One sign should normally have one main purpose and no more than one secondary purpose. A small counter sign should not combine a logo, cocktail menu, social media account, opening hours, five promotions, and a directional arrow. Too much information reduces reading speed and makes the sign difficult to update.

Permanent and changing information should also be separated. A logo may remain in place for several years, while drink prices, happy-hour times, and performer names may change weekly. A fixed logo combined with a slide-in graphic, magnetic panel, replaceable print, or separate menu holder is usually easier to maintain.

Sign Location	Main Purpose	Suitable Content	Content to Avoid
Counter	Support an immediate action	Order Here, Pick Up, QR code, one promotion	Long menus and several offers
Wall	Establish identity and atmosphere	Logo, short slogan, room name	Dense service information
Stage	Provide long-distance recognition	Venue name, logo, event mark	Small text and complex messages

How Far Away Will Guests View It?

Viewing distance affects letter height, line thickness, spacing, contrast, and the amount of information that can be understood quickly. Measure the real sightline from the places where people will actually stand or sit, not only the distance shown on the floor plan.

Counter signs are usually viewed from about 0.6 to 2 metres. At this distance, smaller lettering, QR codes, prices, and short instructions can work, provided the sign is not hidden behind card terminals, menus, bottles, or glassware.

Wall signs are often viewed from 3 to 10 metres. They should use clearer shapes, wider spacing, and less information. A detailed logo that looks sharp on a computer screen may lose fine lines when viewed across a crowded room.

Stage signs may be viewed from 8 to 30 metres or more. They normally need large lettering, a simple silhouette, strong contrast, and very limited wording. Thin script, narrow strokes, and small internal spaces can disappear under stage lighting.

The following ranges can be used during early planning:

Viewing Distance	Suggested Letter Height	Suitable Use
0.6–1.5 m	20–40 mm	Counter instructions, QR signs
1.5–3 m	40–80 mm	Queue signs, pickup signs
3–6 m	100–180 mm	Small wall logos, room labels
6–12 m	180–300 mm	Main wall branding
12–25 m	300–600 mm	Stage logos and venue names

These figures are planning references rather than universal rules. Letter style, contrast, wall color, ambient light, and viewing angle can increase or reduce the required size.

Before production, place a full-size paper outline or taped logo on the wall. Photograph it from:

• The entrance
• The main seating area
• The bar queue
• The farthest table
• The rear of the performance area
• The main camera or photo position

A sign can look correctly sized on a straight elevation but appear too small when viewed from a 30- or 45-degree angle. Full-size testing often prevents expensive resizing after installation.

Is It for Branding, Information, or Events?

Branding, information, and event signs have different service lives and operating requirements. Selecting the category first makes it easier to choose the right construction.

Branding signs are usually permanent. They focus on accurate logo proportions, approved colors, surface finish, and long-term visual consistency. Common options include LED neon, acrylic LED logos, fabricated metal letters, channel letters, halo-lit letters, light boxes, and non-illuminated dimensional logos.

Information signs need fast reading and easy updating. “Order Here,” “Pick Up,” “Private Event,” “Restrooms,” and “Reserved” should use clear letterforms and strong contrast. Decorative script may suit the main logo but is often unsuitable for instructions. Information signs should also avoid reflective surfaces when overhead lighting causes glare.

Event signs may be temporary, seasonal, or moved repeatedly. They may require:

• Split panels for easier transport
• Detachable cables and connectors
• Hanging holes or approved mounting points
• Freestanding frames
• Replaceable graphics
• Protective cases or shaped foam
• Numbered parts for quick assembly
• Storage space between events

The frequency of change should influence the product structure.

Update Frequency	Recommended Structure
Several times per week	Clip frame, magnetic panel, slide-in print
Monthly	Replaceable acrylic or printed face
Seasonally	Screw-fixed panel or removable graphic
Rarely	Permanent dimensional or illuminated sign
Different event every night	Separate event board from permanent venue logo

A common mistake is building changing information into a permanent illuminated product. Replacing a whole light box or acrylic logo whenever drink prices change is expensive and slow. Keep the brand element permanent and place changing content on a separate, accessible panel.

For stage use, also decide whether the sign belongs to the venue or to a specific event. A permanent venue logo can be fixed and wired into the wall. Event branding may need to be installed and removed in less than an hour without damaging the permanent backdrop.

How Does the Bar’s Lighting Affect Visibility?

Bar lighting can change significantly between setup, early service, peak hours, and live events. Sign brightness and surface finish should therefore be approved under the lighting conditions used during normal operation.

Counter signs are viewed at close range. Excessive brightness can cause glare, distract staff, reflect from glassware, and make a nearby QR code difficult to scan. Diffused light, matte faces, and adjustable brightness usually work better than exposed high-output LEDs.

Wall signs need enough contrast to remain visible without becoming the brightest object in the room. Dimming is useful when the venue operates under different lighting levels. A sign may need higher output during afternoon service and lower output late at night.

Warm white light, commonly around 2700K to 3500K, often suits interiors with:

• Timber
• Brass
• Leather
• Warm paint colors
• Vintage furniture
• Intimate cocktail-bar lighting

Neutral or cool white, commonly around 4000K to 6500K, may suit interiors with:

• Concrete
• Stainless steel
• Glass
• White or grey finishes
• Modern architectural lighting
• Cooler brand colors

Color temperature should match the interior and brand rather than follow a fixed rule.

Stage signs require separate checks because cameras respond differently from human eyes. A sign may look comfortable to the audience but appear as a solid white shape in photographs. Brightness should be tested with:

• Normal room lighting
• Full stage lighting
• Colored performance lighting
• Photography
• Video recording
• Projectors or LED stage effects

Surface finish also changes visibility.

Surface Finish	Typical Effect in a Bar
High-gloss acrylic	Strong reflections from spotlights
Mirror stainless steel	Dramatic but prone to glare
Brushed metal	Softer reflection and clearer shape
Matte paint	Controlled appearance under mixed light
Frosted acrylic	Even diffusion and reduced hotspots
Clear acrylic	Visually light, but edges and hardware remain visible

A small material sample placed under the venue’s actual lighting can reveal more than a digital rendering. Check both the daytime finish and illuminated appearance before final approval.

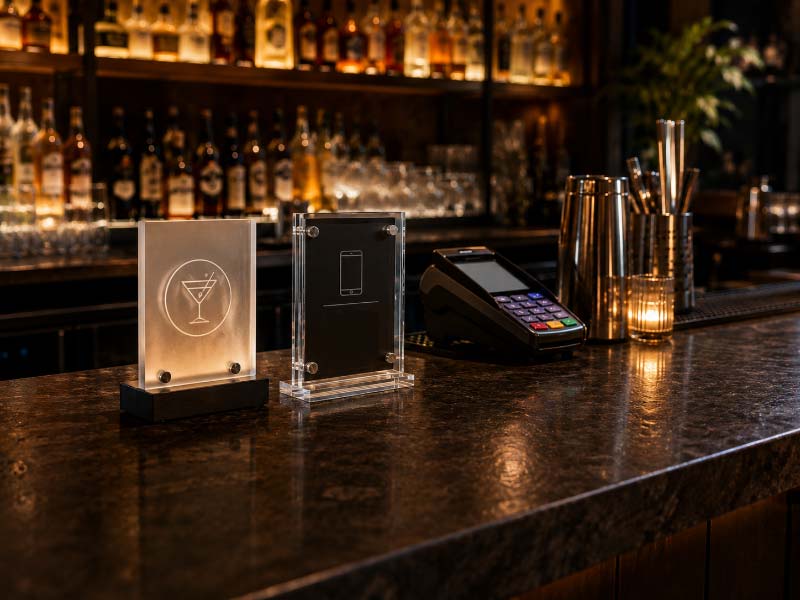

Which Signs Work Best at the Counter?

Counter signs work best when they remain easy to read, stable during busy service, simple to clean, and small enough to preserve working space. Common options include acrylic logo plaques, QR code holders, printed menu inserts, slim light boxes, edge-lit acrylic signs, and compact LED logo signs. Product selection should follow the message, available counter depth, viewing distance, update frequency, spill exposure, power access, and staff workflow.

Which Signs Fit Limited Counter Space?

A bar counter is not an empty display shelf. It may already hold card terminals, receipt printers, menus, glassware, garnish trays, napkins, bottle displays, tip jars, order tickets, and pickup items. A sign that occupies only 300 mm of width can still interfere with service when placed in the wrong area.

Measure the clear working area during operating hours rather than before opening. Staff may need additional space for trays, cocktail tools, takeaway orders, or temporary promotions during peak periods.

For most counter applications, the following sizes provide a useful starting point:

Counter Sign Type	Typical Width	Typical Height	Recommended Counter Depth
Small logo plaque	180–350 mm	100–220 mm	80–150 mm
QR code sign	120–220 mm	180–280 mm	80–130 mm
Ordering sign	200–400 mm	150–300 mm	100–180 mm
Promotional display	250–500 mm	300–500 mm	120–220 mm
Small illuminated logo	250–500 mm	150–350 mm	100–200 mm
Counter light box	300–600 mm	200–450 mm	120–250 mm

A narrow counter may be better served by a wall-mounted sign behind the service point, a suspended sign above the counter, or a slim acrylic panel fixed to the front edge. Moving the sign away from the worktop can preserve valuable preparation space.

Stability matters as much as footprint. A tall, narrow panel with a light base can be knocked over by a tray, sleeve, handbag, or cleaning cloth. For freestanding signs, consider:

• A base width equal to at least 35%–50% of the sign height
• A low center of gravity
• Non-slip pads beneath the base
• Rounded corners near guest-facing edges
• Concealed screws or locked insert panels
• No exposed cable loops around the base
• Enough clearance for wiping underneath

A 400 mm-high sign with a 60 mm-deep base may look elegant in a rendering but may tip easily during service. A shorter panel with a wider or weighted base usually performs better.

The sign should also avoid blocking face-to-face communication. When installed between staff and guests, the top edge should remain below the normal sightline or sit clearly above it. A panel ending directly at face level can make ordering uncomfortable and force people to lean around it.

Are Acrylic Signs or Light Boxes Better?

Acrylic signs are usually better for permanent branding, QR codes, short instructions, and refined close-range displays. Light boxes are stronger when a message needs greater visibility, even illumination, or a replaceable graphic.

Acrylic offers several construction options:

• Clear acrylic with printed graphics
• Frosted acrylic for reduced glare
• Colored acrylic matching the interior
• Layered acrylic logos
• Edge-lit acrylic
• Acrylic panels with metal standoffs
• Slide-in acrylic menu holders
• Shaped acrylic following the logo outline

Acrylic works well at close range because the material can be cut accurately, polished, printed, engraved, or layered. A shaped logo plaque also uses less visual space than a large rectangular panel.

Clear acrylic looks light and modern, but fingerprints, scratches, adhesive marks, and dust are more visible. Frosted or matte surfaces are often easier to maintain in bars with frequent handling. A protective coating or replaceable printed insert can improve durability when cleaning chemicals are used daily.

A counter light box offers stronger visual presence. It can suit:

• Cocktail promotions
• Happy-hour offers
• Featured products
• Event announcements
• Ordering instructions
• Brand graphics that need illumination
• Displays positioned in darker corners

However, a light box requires more depth than a simple acrylic plaque. Internal LED spacing, face diffusion, ventilation, cable routing, and access for graphic replacement all need to be planned.

Requirement	Acrylic Sign	Counter Light Box
Permanent logo	Very suitable	Suitable
QR code	Very suitable	Possible, but glare must be controlled
Frequently changed graphic	Suitable with insert system	Very suitable with removable face
Limited counter depth	Better	Requires more space
Strong visibility in a dark room	Moderate unless illuminated	Strong
Minimal wiring	Non-illuminated option available	Power required
Easy surface cleaning	Good with suitable finish	Good if face is sealed
Detailed printed artwork	Very good	Very good
Low visual weight	Strong advantage	More noticeable and substantial

For QR codes, avoid placing a high-gloss illuminated face directly under overhead spotlights. Reflections can prevent phones from scanning the code. A matte printed insert, non-illuminated acrylic holder, or separately positioned QR panel is often more reliable.

For permanent logos, acrylic usually creates a cleaner and less intrusive counter display. For promotions viewed from a queue, a slim illuminated box may deliver better visibility.

How Large Should a Counter Sign Be?

A counter sign should be large enough to read from the intended position but small enough to avoid blocking service, products, staff movement, and sightlines. Overall width alone is not enough. Letter height, line thickness, message length, viewing angle, and contrast must also be checked.

Typical viewing distances include:

• 0.5–1 m for payment and QR code signs
• 1–2 m for ordering instructions
• 2–4 m for queue and pickup signs
• 3–6 m for signs intended to attract people toward the counter

The following letter heights can support early planning:

Viewing Distance	Suggested Letter Height	Suitable Message
0.5–1 m	15–30 mm	QR instructions, payment details
1–2 m	30–50 mm	Order Here, Pick Up
2–3 m	50–80 mm	Counter identification
3–5 m	80–130 mm	Main ordering or collection point
5–6 m	130–180 mm	Large directional counter sign

Letter height should be increased when the design uses thin script, low contrast, tightly spaced text, or an angled viewing position. Bold sans-serif lettering can often be read at a smaller size than decorative script.

A useful counter sign should normally communicate its main point within two to four seconds. Keep operating instructions short:

• “Order Here”
• “Pick Up”
• “Scan for Menu”
• “Card Only”
• “Private Event”
• “Happy Hour 5–7”

A full cocktail list should not be placed on a small tabletop sign unless guests are expected to stand close and read it for a longer period.

Before approving the size, create a full-scale paper print and place it on the actual counter. Check the sign from guest eye level and from the staff side. Confirm whether it blocks:

• The card terminal
• Bottle labels
• Menu displays
• Staff faces
• The drink handover point
• Security cameras
• Under-counter lighting
• Existing outlets
• Cleaning access

Also check the sign during a simulated busy period. Add trays, glasses, menus, and other objects normally present during service. An apparently generous counter can become crowded quickly.

How Do You Keep Menus and Promotions Flexible?

Menus, prices, performers, event dates, and promotions change much more often than the bar logo. Permanent branding should therefore be separated from changeable information.

A practical counter display can combine:

• A fixed acrylic or metal logo
• A replaceable printed menu
• A magnetic promotional panel
• A slide-in graphic
• A clip frame
• A removable QR code insert
• A dry-erase or chalkboard section
• A digital menu screen, where appropriate
• A small light box with an accessible graphic face

Choose the replacement method according to how often the information changes.

Content Update Frequency	Suitable Construction
Daily	Chalkboard, dry-erase panel, clip frame
Weekly	Slide-in print, magnetic graphic
Monthly	Replaceable acrylic insert or light box face
Seasonally	Screw-fixed printed panel
Rarely	Permanent print, engraved acrylic, dimensional lettering

A bartender should not need to remove the entire sign, disconnect wiring, or use several tools to change a promotion. For regularly updated content, access should be possible from the staff side and should take no more than a few minutes.

When using slide-in graphics, leave enough clearance for the print to move without bending. The panel opening should remain protected from spills, steam, and cleaning liquid. Printed inserts can be laminated or placed behind clear acrylic, but glare should be checked under the actual counter lighting.

For illuminated displays, confirm:

• Whether the face opens from the front, side, or rear
• Whether the sign must be removed to replace the graphic
• Whether staff can reach the opening
• Whether tools are required
• Whether the power must be disconnected
• Whether replacement graphics have a fixed size
• Whether the internal surface is easy to clean

A menu or promotion should also remain editable without changing the permanent brand mark. For example, the upper section can contain a fixed illuminated logo while the lower section accepts A4, A5, or custom-size printed inserts.

QR codes need special care. The code should usually be at least 25–30 mm wide for very close scanning, although 40–60 mm offers more reliable use in a busy environment. Leave a clear white margin around the code, avoid stretching it, and do not place it over strong patterns or illuminated gradients. Test the printed code with several phones before production.

Flexible content systems reduce replacement costs and keep information accurate. A well-planned counter sign can remain in service for years while menus, prices, promotions, and event details are changed independently.

Which Signs Work Best on Bar Walls?

Bar walls are best suited to permanent logo signs, LED neon signs, acrylic LED logos, fabricated metal letters, halo-lit letters, light boxes, and non-illuminated dimensional graphics. The right choice depends on the wall’s role, viewing distance, background finish, available mounting depth, room lighting, electrical access, and maintenance conditions. A strong wall sign should remain recognizable from the main seating area without overpowering the bar, bottle display, artwork, or stage lighting.

Which Sign Creates the Main Brand Focal Point?

The main wall sign should give guests one clear place to look when they enter the room. It normally carries the bar name, logo, or primary symbol rather than a long slogan or detailed service information.

Start by checking the natural viewing path through the venue. A technically empty wall may not be the strongest location. The best focal point is usually visible from several high-value positions:

• The main entrance
• The bar queue
• The largest seating area
• The primary photo position
• The route toward the restrooms
• The stage or entertainment area
• The street-facing window, where relevant

A logo behind the bar is a common choice, but bottle shelving, taps, pendant lights, glass racks, and staff movement can cover part of it. In some venues, a cleaner side wall creates stronger recognition because the full logo remains visible in photographs and from seated positions.

Measure the usable visual area rather than the total wall. For example, a 5-metre-wide wall may contain shelving, artwork, doors, air-conditioning grilles, speakers, or emergency equipment. After removing these restricted zones, only 2.5 to 3 metres may remain suitable for a sign.

For early layout planning, the following proportions are useful:

Wall Condition	Suggested Sign Width
Clean feature wall	45%–70% of the usable wall width
Wall with nearby artwork	35%–55%
Back-bar wall with shelving	25%–45% of the clear central area
Narrow column or vertical panel	50%–75% of the clear width
Photo wall	40%–65%, leaving space around people

These ranges are starting references rather than fixed design rules. A short, bold logo may need less width than a long script name. A detailed emblem may require more space so small internal areas remain visible.

Viewing distance should guide letter height. A wall sign viewed from 3 metres can carry smaller lettering than one viewed from 12 metres.

Main Viewing Distance	Suggested Letter Height
2–4 m	100–180 mm
4–7 m	180–280 mm
7–12 m	280–450 mm
12–18 m	450–700 mm

Thin script, narrow strokes, and low-contrast colors often require larger dimensions. A 200 mm-high bold sans-serif word may read clearly across a room, while a 200 mm-high handwritten script may lose several letters.

The sign should also have enough empty space around it. Crowding a logo between shelving and ceiling trim makes it look smaller and harder to recognize. As a practical starting point, leave clear space equal to at least 10%–20% of the sign’s width around the outer shape. More space may be needed when the wall includes strong patterns, murals, brick joints, or decorative lighting.

Before production, test the proposed size with a full-scale paper outline, taped perimeter, cardboard template, or projected image. Photograph the mockup from the entrance, central tables, farthest seat, and common standing positions. A logo that looks balanced on a straight drawing can appear too small or visually crooked when most guests see it from an angle.

The focal sign should normally remain the strongest branded element in the room. Secondary wall graphics, menu boards, slogans, and directional signs can support it, but they should not compete through equal size, maximum brightness, or several unrelated colors.

Are LED Neon or Logo Signs Better?

LED neon works well for simple lettering, continuous line graphics, slogans, and casual nightlife branding. Acrylic LED logos, fabricated letters, channel letters, and light boxes are better when the artwork contains detailed shapes, solid filled areas, several layers, or strict brand proportions.

LED neon is usually a good fit for:

• Script bar names
• Short phrases
• Simple icons
• Cocktail illustrations
• Music-related graphics
• Photo walls
• Informal or high-energy interiors
• Logos built from clear, continuous strokes

Its main strength is the recognizable linear glow. The sign can appear visually light because the backing may follow the graphic outline or use clear acrylic. LED neon also suits dim interiors where a compact amount of light can create a strong effect.

However, not every logo should be converted into a neon outline. Problems can appear when the artwork contains:

• Very thin strokes
• Tiny internal gaps
• Gradients
• Photographic elements
• Several filled color areas
• Small text below the main logo
• Fine serifs
• Overlapping shapes
• Detailed crests or seals

Simplifying such artwork too much can weaken brand recognition. In those cases, an acrylic LED logo, illuminated light box, printed face, or fabricated letter system usually preserves the design more accurately.

An acrylic LED logo can use layered acrylic, printed graphics, opaque and translucent areas, or internal illumination. It works well for logos that need a cleaner, more polished finish. Broad illuminated areas can also produce softer light than a narrow neon-style line.

Fabricated letters offer greater depth and a more architectural appearance. Front-lit letters create a clearly illuminated face. Halo-lit letters project light onto the wall behind each letter. Non-illuminated metal or acrylic letters rely on the venue’s architectural lighting.

The following comparison helps narrow the choice:

Sign Type	Best For	Typical Visual Effect	Main Point to Confirm
LED neon	Scripts, slogans, simple icons	Continuous linear glow	Minimum stroke size and dimming
Acrylic LED logo	Detailed logos and layered graphics	Clean, even illumination	Panel depth and wire routing
Front-lit letters	Clear names and bold logos	Bright illuminated face	Letter depth and face diffusion
Halo-lit letters	Premium interior branding	Soft light behind each letter	Wall color and stand-off distance
Light box	Detailed graphics and printed artwork	Even illuminated panel	Box depth and face replacement
Metal letters	Architectural or industrial interiors	Solid, premium appearance	Weight and reflected light
Acrylic letters	Modern, clean interiors	Sharp edges and broad color choice	Scratching and fixing method

Brightness should not be treated as a contest. A very bright wall logo can make the room uncomfortable, reduce the visibility of nearby bottle displays, and produce poor photographs. Dimming is often more valuable than maximum output.

A dimmable illuminated sign can be adjusted for:

• Daytime setup
• Early evening service
• Late-night operation
• Photography
• Private events
• Live performances
• Cleaning and maintenance

The daytime appearance also matters. During opening hours with daylight or bright interior lighting, the sign may be viewed while switched off. Backing shape, wire visibility, acrylic edges, metal finish, screw heads, and wall contrast remain visible even when the LEDs are not operating.

Which Materials Suit the Interior Style?

Material should support the room’s architecture, cleaning routine, lighting, and expected service life. Matching a material only to the logo color can produce a sign that looks disconnected from the surrounding bar.

Brushed stainless steel suits modern, premium, industrial, and hospitality interiors. It pairs well with dark timber, stone, glass, and architectural lighting. The brushed grain helps control reflections better than mirror-polished metal, although strong spotlights can still create bright lines across the face.

Mirror stainless steel creates a dramatic appearance but reflects bottles, guests, stage lights, and camera flashes. It works best where reflected movement is intentional and the lighting has been carefully planned.

Painted aluminum is useful for fabricated letters and larger wall logos because it provides good strength without excessive weight. It can be finished in a wide range of colors and is suitable for both illuminated and non-illuminated structures.

Acrylic is often selected for clean, modern bars. Available options include:

• Clear acrylic
• Frosted acrylic
• Opaque colored acrylic
• Translucent acrylic
• Printed acrylic
• Layered acrylic
• Mirror acrylic
• Edge-lit acrylic

Clear acrylic reduces the visual weight of the backing but makes edges, fixing hardware, dust, and fingerprints easier to see. Frosted acrylic hides minor marks more effectively and reduces harsh reflections. Opaque acrylic works well for strong logo colors, while translucent acrylic is commonly used for illuminated faces.

PVC and foam can create lightweight dimensional letters and wall graphics for dry indoor areas. They suit budget-sensitive decorative areas, temporary branding, and larger non-illuminated graphics. Their surface and edge finish usually appear less refined at close range than fabricated metal or polished acrylic, so they are better placed where guests do not inspect the product from a few centimetres away.

Timber can support rustic, craft, country, and vintage bar interiors. Solid wood, veneered panels, or wood-look backing boards can be combined with metal, acrylic, or illuminated lettering. Humidity, cleaning chemicals, warping, and fire requirements should be considered before using untreated timber near drink preparation areas.

The wall surface also affects material and lighting performance.

Wall Surface	Suitable Sign Approach	Common Risk
Smooth painted wall	Most sign types	Paint damage during removal
Dark matte wall	Front-lit or high-contrast signs	Weak halo reflection
White wall	Halo-lit, metal, colored acrylic	Overly bright light spill
Brick	Backboards, stand-offs, front-lit signs	Uneven fixing and broken halo
Timber slats	Backboard-mounted logo	Gaps interrupt the sign shape
Mirror	Suspended or carefully spaced letters	Reflections and visible wiring
Tile	Backboard or planned drilling	Cracking and difficult cable routing
Acoustic panels	Independent support structure	Panel may not support sign weight

Halo-lit signs deserve particular attention. The wall acts as part of the lighting system because the light is projected backward. Smooth, pale, matte surfaces usually create a cleaner halo. Dark timber, black paint, rough brick, and heavily textured walls absorb or break up the light.

Stand-off distance also affects the halo. Too little distance can create a narrow bright edge. Too much distance can make the light spread weakly or expose the mounting hardware. Common indoor stand-off distances may begin around 20–50 mm, depending on letter depth, LED output, wall color, and desired effect. A sample or lighting test is advisable for critical installations.

Material samples should be checked under the venue’s actual lighting. A paint color viewed under office LEDs can look warmer, cooler, darker, or more reflective under amber bar lighting. Review samples beside nearby timber, metal, tile, paint, and bottle shelving whenever possible.

How Should Wall Signs Be Mounted and Wired?

Mounting and wiring should be planned before the sign structure is finalized. Wall material, sign weight, installation height, access, cable route, power supply location, and future maintenance all influence production.

The first step is identifying the wall construction. Common wall types include:

• Plasterboard over timber studs
• Plasterboard over metal studs
• Solid concrete
• Brick
• Timber paneling
• Tile
• Glass
• Mirror
• Metal cladding
• Acoustic wall panels

A fixing method suitable for concrete may fail on plasterboard. Decorative panels may look solid but may not provide structural support. Large or heavy signs may require fixing into studs, masonry, backing plates, or an independent frame.

Common mounting options include:

Mounting Method	Suitable Use	Main Advantage	Main Limitation
Stud mounting	Individual letters and logos	Clean, concealed fixing	Accurate drilling required
Screw-fixed backboard	LED neon and acrylic logos	Faster alignment and wiring	Backboard remains visible
Standoffs	Acrylic panels and plaques	Controlled spacing from wall	Hardware is visible
Raceway	Illuminated letters	Fewer wall penetrations	More visible structure
Hanging points	Temporary or event signs	Easier removal	Needs approved overhead support
Adhesive mounting	Light, non-illuminated graphics	Minimal drilling	Limited by wall finish and weight
Freestanding frame	Walls that cannot be drilled	Independent of wall surface	Requires floor space

Individual letters provide a clean appearance but require precise hole positions and wire exits. A full-size installation template helps the local installer maintain correct letter spacing and alignment.

A backboard simplifies installation because the letters, logo elements, and wiring can be assembled into one unit. It is useful for brick walls, timber slats, rented venues, or projects where drilling many individual holes is undesirable. The backboard can be clear, shaped around the logo, painted to match the wall, or designed as a visible decorative element.

Wiring should be shown on the approved drawing. Important details include:

• Destination voltage
• Power supply specification
• Plug type, where applicable
• Cable exit position
• Cable length
• Wire color
• Dimmer or controller location
• Number of power circuits
• Power supply access
• Concealed or surface-mounted cable route
• Local electrician’s connection point

For a permanent wall installation, the cleanest result usually uses concealed wiring through the wall. Each illuminated letter or logo section may feed through planned cable holes toward a hidden power supply or accessible service area.

Where concealed wiring is not possible, a painted surface conduit, shaped backboard, or raceway can control the cable route. Loose black or white wires dropping toward a socket often weaken the finished appearance, especially on a feature wall.

Power supplies should not be sealed permanently inside an inaccessible wall cavity. They may need replacement during the sign’s service life. Suitable locations can include:

• An accessible ceiling space
• A cabinet behind the bar
• A removable wall panel
• A ventilated service box
• An accessible area behind the backboard
• A nearby electrical cupboard

The distance between the sign and power supply should be confirmed before cable lengths and circuit grouping are finalized. Large logos may require several power feeds rather than one long cable run.

Installation drawings should record:

• Overall sign dimensions
• Individual letter dimensions
• Distance between letters
• Mounting-hole positions
• Cable exit locations
• Backboard or raceway dimensions
• Sign weight
• Power supply location
• Access requirements
• Recommended installation sequence

A full-size drilling template is especially valuable for individual letters. The template must match the final approved production file, including every spacing adjustment and hole position. Using an earlier logo version can create visible alignment errors.

Before production, the project team should confirm who is responsible for wall preparation, structural support, drilling, electrical connection, lifting equipment, and final testing. The sign manufacturer can prepare the sign, mounting points, templates, wiring layout, and accessories, while a qualified local installer should verify the wall condition and complete the final attachment according to local requirements.

Which Signs Work Best for a Stage?

Stage signs work best when they use simple artwork, strong contrast, controlled brightness, secure mounting, and enough scale to remain recognizable from the rear of the venue. Common choices include LED neon, acrylic LED logos, fabricated letters, marquee letters, and non-illuminated dimensional logos. Selection should consider audience distance, stage lighting, cameras, performer movement, mounting access, transport, storage, and how often the sign will be installed or changed.

How Large Should a Stage Sign Be?

Stage sign size should be based on the clear backdrop area and the farthest important viewing position, not the total width of the stage wall. Speakers, curtains, lighting fixtures, drums, video screens, performers, and equipment may cover a large portion of the background once the venue is operating.

Begin by measuring:

• Clear backdrop width and height
• Distance from the sign to the front row
• Distance from the sign to the rear seating area
• Height of drums, speakers, DJ equipment, and performers
• Position of lighting trusses and projection screens
• Main photo and video angles
• Areas that must remain accessible for staff
• Doorways, ventilation, emergency equipment, and curtains

A 4-metre-wide stage does not always have 4 metres of usable sign space. After accounting for speakers and curtains, the clear central area may be only 2.2 to 2.8 metres wide.

For early planning, the sign can occupy approximately 35% to 60% of the clear backdrop width. A compact music bar may need a wider proportion because the stage is viewed at close range. A larger venue may need a physically larger sign but a smaller percentage of the total backdrop so it does not interfere with lighting, projections, or event graphics.

Clear Backdrop Width	Suggested Sign Width	Common Application
2–3 m	1.0–1.8 m	Small bar stage or DJ area
3–5 m	1.5–3.0 m	Live music bar
5–8 m	2.5–4.5 m	Larger entertainment venue
8–12 m	3.5–6.5 m	Event stage or performance hall
Over 12 m	Site-specific	Large venue with truss or modular system

Logo shape changes the required width. A long bar name may need more horizontal space, while a compact symbol can work at a smaller width. Detailed crests, thin script, narrow outlines, and small secondary text usually need to be enlarged more than bold block lettering.

Letter height should be checked against the actual viewing distance.

Viewing Distance	Suggested Letter Height	Suitable Use
3–6 m	120–250 mm	Small stage, DJ booth, close seating
6–10 m	250–400 mm	Medium bar or live music room
10–18 m	400–650 mm	Large bar or event venue
18–30 m	600–1000 mm	Large audience area
Over 30 m	Site-specific	Major stage or high-level installation

These dimensions are planning references rather than fixed rules. Thin script, weak contrast, colored lighting, and angled viewing positions can require larger lettering.

Secondary wording should be limited. A stage sign usually performs best with:

• The venue name
• One short logo
• One recognizable symbol
• A very short slogan
• An event name with a strong visual hierarchy

Small text such as social media handles, addresses, phone numbers, or long slogans becomes unreadable from the audience area and adds unnecessary visual noise.

A stage sign must also work behind people. Performers frequently stand in the center of the stage, so placing the most important part of the logo too low may leave it covered for most of the event. As an early check, place the center of the main logo above average head height when the venue layout allows it.

The following stage elements often block signs:

• Drum kits, commonly 1.2–1.6 m high
• DJ booths, commonly 1.0–1.3 m high
• Speaker cabinets
• Microphone stands
• Music stands
• Stage monitors
• Projection equipment
• Performers wearing hats or raising instruments

A full-size taped outline or projected logo should be tested on the stage before production. Place normal equipment in position and photograph the mockup from the first row, middle seating, rear seating, entrance, and main camera position. A design that appears well proportioned on an empty elevation may look too low or too small during an actual performance.

Which Signs Remain Visible During Performances?

The most visible stage signs use clear silhouettes, strong contrast, controlled brightness, and limited detail. Maximum LED output does not guarantee better visibility. A sign that is too bright may lose detail on camera, while a reflective sign may disappear under moving stage lights.

Stage conditions can change from minute to minute. A venue may use:

• Warm front lighting
• Blue or red wash lighting
• Moving beams
• Spotlights
• Strobe effects
• Projection
• Haze or smoke
• Video screens
• Low ambient light
• Bright event photography lights

Each condition changes the apparent color and contrast of the sign.

A white illuminated logo on a pale curtain may look clear during setup but disappear when the full stage wash is turned on. A polished stainless-steel logo may reflect moving lights so strongly that parts of the name become unreadable. A red logo may lose contrast under red stage lighting.

Contrast should be planned between the sign and the backdrop.

Backdrop Color	Sign Approach	Risk to Avoid
Black or dark grey	White, warm white, bright color, front-lit sign	Weak dark halo
White or pale wall	Dark face, colored face, controlled halo	Excessive light spill
Red or purple curtain	White or contrasting color	Similar colored sign disappearing
Timber wall	Warm white, matte metal, clear outline	Fine details blending into grain
Brick wall	Front-lit sign or backboard	Broken halo and uneven mounting
Video screen backdrop	Non-reflective or removable sign	Visual conflict with screen content
Reflective panel	Matte or diffused face	Glare and duplicated reflections

Brightness control is especially important. A dimmer allows the sign to work during several parts of the evening:

• Setup and cleaning
• Early service
• Full performance lighting
• Photography
• Video recording
• Private events
• Low-light acoustic sessions

A sign that is comfortable at 100% brightness during daylight setup may need to run at 30%–60% during a dark live performance. The required setting depends on sign type, LED output, stage size, background color, and camera exposure.

Photography and video should be treated as separate viewing conditions. Human vision can see details in bright and dark areas at the same time more easily than many cameras. A logo may look clear to the audience but become a featureless white shape in photographs.

Before final approval, test:

• Wide stage photographs
• Close performer photographs
• Phone video
• Professional camera video
• Dark-scene exposure
• Full stage-light exposure
• Colored-light exposure
• Live-stream camera angles

Diffused acrylic faces often perform better on camera than exposed points of intense light. Frosted acrylic, opal acrylic, or properly spaced internal LEDs can reduce hotspots. LED neon also photographs well when brightness is controlled and the tubing follows clear, simple shapes.

Surface finish matters during performances.

Surface Finish	Stage Performance
Matte paint	Stable under changing light
Brushed metal	Moderate reflection with a premium appearance
Mirror metal	Strong reflections and possible glare
Frosted acrylic	Even, soft illuminated appearance
Gloss acrylic	Clear color but visible reflections
Clear acrylic backing	Minimal visual weight, but edges may reflect
Fabric print	Lightweight and non-reflective, but less dimensional

The sign should remain legible when part of it is blocked. A logo with distinctive outer shapes can still be recognized behind performers. A long name made from narrow script may become difficult to identify when two or three letters are covered.

Color-changing RGB or RGBW lighting can support themed events, but it requires discipline. Constantly changing colors may reduce brand consistency and distract from the performance. A fixed brand color with dimming is often more dependable for a permanent venue logo. RGB or RGBW is more useful when the venue regularly changes themes, rents the stage for private events, or coordinates signage with programmed lighting scenes.

Are Neon, Marquee, or Logo Signs Better?

LED neon, marquee letters, and illuminated logo signs create different visual effects and require different amounts of space, power, maintenance, and installation work. The best option should match the logo, stage style, viewing distance, and how often the sign will be moved.

LED neon works well for:

• Script names
• Simple line drawings
• Cocktail symbols
• Music-related icons
• Short slogans
• Nightlife branding
• Photo backgrounds
• Compact stages

Its main advantage is a continuous, recognizable glow. LED neon can be produced on a clear, shaped, or colored acrylic backing. The backing may follow the outline of the artwork to reduce visual weight.

Neon-style construction is less suitable for:

• Logos with large filled areas
• Detailed crests
• Fine serif text
• Small secondary wording
• Gradients
• Photographic artwork
• Complex layered designs
• Artwork with many tiny internal gaps

When a logo contains several solid areas or detailed brand elements, converting it into a simple outline may change its appearance too much.

Marquee letters provide a theatrical look through visible bulbs. They work well for:

• Entertainment venues
• Event stages
• Vintage-style bars
• Large initials
• Seasonal displays
• Wedding or private-event rentals
• Freestanding stage arrangements

Marquee letters have greater physical depth and floor presence than LED neon. They can become part of the stage set rather than merely a wall sign.

Important marquee details include:

• Letter depth
• Base stability
• Bulb spacing
• Bulb protection
• Cable exit position
• Connection between letters
• Storage volume
• Replacement bulb access
• Transport protection
• Whether the letters are wall-mounted or freestanding

Large freestanding letters should not rely on narrow bases when people, cables, equipment, and cleaning staff move around them. Stability must be checked against the real stage environment.

Acrylic LED logo signs work well when accurate logo reproduction is important. They can use:

• Printed faces
• Layered acrylic
• Opaque and illuminated sections
• Front illumination
• Edge illumination
• Hidden LED lighting
• Shaped backboards
• Several brand colors

They are often more suitable than LED neon for detailed graphics, solid shapes, and logos with several visual layers.

Fabricated letters suit permanent stages where the sign needs greater depth and a more architectural appearance. Front-lit letters remain easy to read against dark walls. Halo-lit letters create softer light but require a suitable wall surface behind them.

Sign Type	Best Use	Main Strength	Main Limitation
LED neon	Scripts and simple graphics	Lightweight linear glow	Fine detail may be lost
Marquee letters	Events and theatrical stages	Strong physical presence	Requires storage and floor space
Acrylic LED logo	Detailed brand artwork	Accurate shape and color control	Requires planned wiring
Front-lit letters	Bold venue names	Strong long-distance visibility	Greater depth and weight
Halo-lit letters	Premium permanent stage	Soft architectural glow	Depends on wall reflection
Non-illuminated metal logo	Stage with good lighting	No internal lighting system	Visibility depends on stage lights
Light box	Printed or detailed artwork	Even illuminated face	Rectangular format may feel heavy

The sign’s daytime or switched-off appearance should also be considered. A venue may use the stage during rehearsals, private meetings, or daytime events. The face color, backing shape, visible hardware, and material finish remain important even when illumination is off.

For a permanent venue stage, fabricated letters or an acrylic LED logo often provide the most controlled long-term result. For a casual music bar, LED neon can deliver a stronger nightlife character. For temporary events, freestanding marquee letters or a modular logo panel may be easier to reuse.

How Should It Be Installed and Moved?

A stage sign can be permanently wall-mounted, fixed to a frame, suspended from an approved truss, installed on a modular backboard, or supported by a freestanding structure. Installation should be selected according to sign weight, wall construction, stage vibration, access, removal frequency, and local safety requirements.

Permanent wall mounting suits signs that remain in one location for several years. Common options include:

• Individual studs
• Screw-fixed backboard
• Raceway
• Metal support frame
• Standoffs
• Concealed wall brackets

A backboard can reduce the number of wall penetrations and simplify alignment. It is particularly useful for LED neon, acrylic logos, brick walls, timber slats, and projects where several logo elements need to be installed as one unit.

Individual mounting creates a cleaner architectural appearance but requires accurate drilling and cable routing. A full-size template should match the final approved production file, including all letter spacing, mounting holes, and wire exits.

Suspended installation may be used where the sign hangs from a truss or structural support. The sign should not be suspended from decorative ceiling panels, lightweight curtain tracks, or unverified fixtures. Overhead installations require review by qualified local professionals familiar with the venue and support structure.

A removable sign needs a different design from a permanent sign. Frequent installation can damage acrylic edges, electrical connectors, painted surfaces, and mounting holes unless the structure is designed for repeated handling.

For signs moved between events, consider:

• Splitting the sign into manageable sections
• Numbering every section
• Using plug-and-lock electrical connectors
• Providing clear front and rear labels
• Separating power supplies from the sign body
• Adding protected handles where suitable
• Using reusable mounting brackets
• Avoiding loose exposed wires
• Providing an assembly drawing
• Preparing shaped foam or transport cases
• Recording the packing order

The largest individual section should fit through the venue doors, corridors, lifts, staircases, and loading areas. Measure the transport route before approving a single large panel.

Handling Condition	Recommended Section Size
One-person handling	Usually below 1000–1200 mm, depending on weight
Two-person handling	Commonly 1200–2500 mm
Lift or loading equipment available	Larger sections may be possible
Narrow stairs or doors	Use smaller modular sections
Frequent event transport	Prioritize compact cases and fast connectors

Weight is just as important as size. A lightweight 2-metre acrylic-backed neon sign may be easier to handle than a smaller fabricated metal logo. The total weight and the weight of each section should be shown on the installation documents.

Freestanding stage signs require a stable base and enough clearance from performers, cables, curtains, and audience movement. A frame should not create a trip hazard or block emergency routes. Power cables should be routed along protected paths and secured where staff cannot catch them with shoes, equipment cases, or cleaning tools.

Electrical connections should allow safe installation without exposing fragile joints. For removable signs, use:

• Clearly marked connectors
• Correctly matched male and female plugs
• Protected cable entries
• Strain relief
• Separate power supply compartments
• Cable lengths matched to the stage layout
• Labels showing connection order

Do not rely on staff memory alone. A simple connection diagram can prevent reversed sections, damaged plugs, or incorrect controller setup.

Storage also affects product life. Signs should not be stacked directly against each other or placed face-down on hard floors. Acrylic surfaces need protective film, foam, or fabric layers. Marquee bulbs may need separate protection. Painted metal parts should be kept away from loose hardware.

A reusable packing system can include:

• Foam-cut compartments
• Numbered inner boxes
• Protective sleeves
• Corner guards
• Cable bags
• Hardware bags
• Assembly labels
• Exterior handling marks
• Photographs showing correct repacking

Before production, confirm who will install the sign, who will connect the power, what lifting equipment is available, where the sign will be stored, and how often it will be moved. A sign designed around real handling conditions will last longer and take less time to install at each event.

What Should You Confirm Before Ordering?

Before ordering counter, wall, or stage signs, confirm the final artwork, finished dimensions, quantity, viewing distance, installation surface, indoor or outdoor use, material, finish, lighting color, brightness control, voltage, cable exits, power-supply location, fixing method, destination country, packing method, installation responsibility, and required arrival date. A quotation becomes reliable only when these details are recorded in one approved specification rather than scattered across emails and chat messages.

What Files and Measurements Are Required?

Start with the exact logo or artwork version intended for production. A screenshot from social media may be enough for an early discussion, but it is rarely enough for accurate cutting, letter spacing, color matching, or mounting-hole preparation.

Preferred artwork formats include:

• AI
• EPS
• SVG
• Editable PDF
• CAD files where installation dimensions are involved
• High-resolution PNG or JPG as a visual reference

The artwork should include the correct font, symbol, spacing, capitalization, and any registered trademark marks that must remain. When the original font file is unavailable, convert the text to outlines before sending it. Outlined text prevents the lettering from changing when the file is opened on another computer.

Low-resolution images often hide small problems. Thin strokes may appear thicker on screen than they are in the actual file. Tight gaps inside letters such as “A,” “R,” “B,” or “e” may be too narrow for LED neon, acrylic cutting, or fabricated letter construction. A production review should identify these areas before pricing is finalized.

Brand color information should be supplied in a recognized format:

• Pantone reference
• CMYK values
• RGB values
• RAL paint reference
• Physical paint chip
• Existing approved sign sample
• Brand manual

A physical sample is especially useful when the sign must match existing bar furniture, metalwork, wall paint, tiles, or signs already installed at another location.

Measurements should cover the available installation area, not only the desired sign size. A note saying “make the sign 1200 mm wide” does not explain whether the wall has enough clear space for mounting, wiring, and visual balance.

For a wall sign, provide:

• Overall wall width and height
• Clear usable width and height
• Distance from the floor to the proposed sign center
• Distance from nearby shelving, doors, speakers, lights, and air vents
• Wall material and approximate thickness
• Location of electrical outlets or cable access
• Straight-on wall photo
• Angled photos from the entrance and seating area
• Photo showing the wall during normal bar lighting

For a counter sign, provide:

• Counter width, depth, and height
• Clear area not used for drink preparation
• Location of card terminals, menus, taps, glassware, and pickup space
• Distance from the guest to the sign
• Available power access
• Whether the sign will be freestanding, fixed, or moved daily
• Exposure to spills and cleaning liquids

For a stage sign, provide:

• Clear backdrop width and height
• Stage width and depth
• Height of the stage from the floor
• Position of drums, DJ booths, speakers, screens, and curtains
• Distance to the front row, central seating, and farthest viewing position
• Available hanging points, wall structure, or support frame
• Loading-door, corridor, staircase, and lift dimensions
• Main photography and video angles

Use millimetres for production measurements whenever possible. Avoid mixing inches, centimetres, and millimetres in the same order unless every value is clearly marked.

A simple project-measurement record can prevent later confusion:

Measurement	Example	Why It Matters
Usable wall width	2400 mm	Sets the maximum sign width
Usable wall height	1100 mm	Prevents conflict with shelving
Viewing distance	7 m	Influences letter height
Mounting height	2100 mm to sign center	Controls visibility
Cable opening	80 mm right of center	Controls wire exit
Counter depth	420 mm	Limits base depth
Clear stage backdrop	3200 × 1600 mm	Sets logo scale
Door opening	900 × 2050 mm	Limits shipping section size

After measurements are collected, prepare one marked-up site photo or elevation showing the proposed sign location. A drawing with dimensions is much safer than a text message saying “center it above the bar.”

Which Colors, Brightness, and Finishes Should Be Approved?

Approve the daytime appearance and illuminated appearance separately. The same sign may look like dark red acrylic during the day and bright orange-red when illuminated. A metal face may appear soft under warm bar lighting but highly reflective under white stage lights.

Color approval should identify three different elements where relevant:

1. Face color
   The visible color on the front of the sign when switched off.
2. Return or side color
   The color of the letter sides, cabinet edges, or backboard.
3. Illuminated color
   The light seen when the sign is operating.

For LED neon, confirm the tubing color and the light color. White silicone with colored LEDs can look different when switched off from colored silicone tubing. For fabricated letters, confirm whether the face, returns, trim, and back need the same finish or different finishes.

Common white-light ranges include:

Color Temperature	Visual Character	Common Bar Setting
2200K–2700K	Amber and intimate	Speakeasy, whisky bar, vintage interior
2700K–3500K	Warm white	Cocktail bar, timber and brass interior
3500K–4500K	Neutral white	Contemporary restaurant bar
5000K–6500K	Cool white	Modern, industrial, high-contrast space

Color temperature numbers alone do not guarantee a visual match. LEDs from different batches or manufacturers can show visible differences even when both are labeled 3000K. For multi-location work, keep the approved LED specification and batch requirements in the production record.

Brightness should be considered according to location:

• Counter signs require lower brightness because they are viewed at close range.
• Wall signs need enough output to remain visible through ambient light.
• Stage signs must remain visible without becoming overexposed in photography.
• Photo-wall signs often need a dimmer so faces remain properly exposed.
• Signs near mirrors, polished metal, or glass may require reduced output.

A dimmer is usually worth considering for illuminated bar signs. It allows the venue to adjust output for daytime service, dinner hours, live performances, private events, and photography. Confirm whether control will be:

• In-line manual dimmer
• Wall-mounted dimmer
• Remote control
• App control
• DMX or event-lighting control
• RGB or RGBW controller
• Fixed single-color output

RGB allows red, green, and blue color mixing. RGBW adds a dedicated white channel, which usually produces a cleaner white than mixing RGB at full output. Color-changing systems are useful for themed events, but they add controllers, wiring, setup, and staff training. A fixed brand color is often simpler for a permanent wall logo.

Surface finish affects both maintenance and lighting.

Finish	Visual Result	Practical Consideration
Matte paint	Soft, controlled appearance	Hides small fingerprints
Satin paint	Mild sheen	Easy to clean
High-gloss paint	Strong color and reflection	Shows scratches and glare
Brushed stainless steel	Premium linear texture	Grain direction must be approved
Mirror stainless steel	Dramatic reflections	Reflects guests and stage lights
Frosted acrylic	Soft diffusion	Reduces glare
Clear acrylic	Minimal visual weight	Shows dust, edges, and hardware
Opaque acrylic	Solid color	Good for face-lit graphics
Translucent acrylic	Illuminated color	Must be checked when lit and unlit

Ask for a rendering, close-up material image, finish sample, or physical prototype when the color is important. Approvals should not rely only on a phone screen because display brightness and color settings vary.

Record the approval clearly. “Warm white” is too broad. A better specification would read:

• LED color temperature: 3000K
• Acrylic face: opal white
• Returns: matte black
• Backboard: clear acrylic
• Brightness: dimmable
• Controller: manual in-line dimmer
• Daytime face color: white
• Installation wall: dark green painted plasterboard

The more precise the approval, the lower the chance of a surprise after installation.

How Will Power and Wiring Be Arranged?

Power and wiring should be planned before the sign enters production. Waiting until installation day often leads to visible cables, inaccessible power supplies, extension leads across service areas, or last-minute drilling through finished walls.

Confirm the destination electrical standard first:

• Input voltage
• Frequency
• Plug type
• Required power-supply certification
• Indoor or outdoor location
• Hardwired or plug-in connection
• Local electrician requirements

Common market voltages include 110–120V and 220–240V, but the sign’s low-voltage LED system may operate at 12V or 24V through a suitable power supply. The power supply must match the LED load, destination voltage, installation environment, and required certification.

The power-supply location should be accessible for future replacement. Avoid permanently sealing it inside a wall or ceiling where no service opening exists.

Possible locations include:

• Inside an accessible bar cabinet
• Behind a removable wall panel
• Above an accessible ceiling
• Inside a ventilated raceway
• Behind a serviceable backboard
• In a nearby electrical cupboard
• Inside a protected stage equipment area

For wall signs, confirm whether wires will pass through the wall or run along the surface. Concealed wiring gives a cleaner result, but the installer must know where to drill cable holes before finishing the wall.

For each illuminated component, record:

• Wire exit position
• Wire length
• Wire color
• Number of power feeds
• Connector type
• Controller position
• Dimmer position
• Power-supply position
• Cable route
• Access for maintenance

A sign containing several individual letters may use one wire exit per letter, grouped wiring behind a backboard, or a raceway carrying the electrical system. The correct arrangement depends on the wall, installation access, and desired appearance.

For counter signs, keep wiring away from:

• Sinks
• Drink preparation areas
• Ice bins
• Wet cleaning zones
• Guest handover areas
• Staff walkways
• Hinged cabinet doors

A removable counter sign should have a cable long enough to reach the outlet without tension, but not so long that excess cable collects on the worktop. Detachable low-voltage connectors can make nightly storage easier.

Stage wiring needs stronger protection because equipment cases, instruments, performers, and temporary cables move around the area. Confirm:

• Detachable power connection
• Cable protection
• Strain relief
• Connector labels
• Section connection order
• Controller settings
• Emergency disconnection access
• Route away from performer walkways
• Compatibility with event lighting controls

For modular signs, label each cable and section clearly. “A1 to A1,” “B2 to B2,” or color-coded connections reduce mistakes during repeated setup.

A wiring schedule can be recorded as follows:

Item	Confirmed Specification
Destination input	120V, 60Hz
Sign operating voltage	24V DC
Plug	US plug
Power supply	Accessible inside rear cabinet
Wire exit	Rear center, 150 mm cable
Dimming	Manual in-line dimmer
Controller	Not required
Connection	Plug-in
Installer	Local licensed electrician
Cable route	Concealed through wall

Local electrical connection should be completed by a qualified electrician familiar with the venue and applicable regulations. The manufacturer can prepare the sign, power configuration, wiring layout, and connection information, but site wiring must match local requirements.

Do You Need a Sample Before Production?

A sample is worth ordering when the project includes a new logo construction, an unusual finish, fine lettering, critical color, several illuminated colors, a complex halo effect, special mounting, or a multi-location rollout.

A sample can reveal issues that are difficult to judge from a rendering:

• Letter strokes look too thin
• Light spreads unevenly
• The wall color weakens the halo
• The finish reflects too much stage light
• The logo looks too small at the planned distance
• The dimmer range is unsuitable
• The backing shape is too visible
• Cable exits conflict with installation
• The product is harder to clean than expected
• Packaging does not support repeated event use

The sample should represent the most difficult part of the project. Producing a random easy letter may not prove whether the detailed logo section can be manufactured successfully. For a script logo, sample a letter with the narrowest stroke and tightest curve. For a halo-lit sign, include the actual return depth, stand-off distance, LED layout, and wall-color reference.

There are several sample approaches:

Sample Type	Suitable Use
Full-size complete sign	Single-location flagship project
One complete letter	Channel letter construction and lighting
Difficult logo section	Fine details and narrow strokes
Material sample board	Paint, metal, acrylic, and finish approval
Lighting sample	Color temperature, brightness, and diffusion
Mounting sample	Brackets, studs, standoffs, or backboard
Packaging sample	Reusable event or multi-location system

The approved sample should establish a production standard. Record:

• Material
• Thickness
• Face color
• Return color
• Surface finish
• LED type
• Color temperature
• Brightness setting
• Power supply
• Controller
• Mounting hardware
• Hole positions
• Wire exits
• Packing method

Photographs alone are not enough for some approvals. A photo may change color because of the camera, lighting, and screen. Keep written specifications alongside the visual approval.

For regular structures, iduoduo’s approved production information lists a typical sample period of 5–7 days. Complex structures, special colors, RGB or RGBW controls, unusual waterproofing, custom power arrangements, or special packing may require 7–15 days. Regular production commonly requires 7–10 days after approval, depending on product structure and order conditions.

For larger orders, do not move directly from an unapproved rendering into full production. A safer sequence is:

1. Approve artwork and dimensions.
2. Approve the engineering details.
3. Produce a sample or first article.
4. Test the sample in the venue where possible.
5. Record all required changes.
6. Approve the revised standard.
7. Begin production.
8. Check the first finished production unit.
9. Continue with the remaining quantity.

A small delay at the sample stage can prevent an entire batch from having the wrong color, brightness, hole pattern, or cable exit.

How Will the Signs Be Packed and Installed?

Packing should be designed around the weakest and most exposed parts of the sign. Acrylic faces can scratch or crack. Long metal letters can bend. LED neon can be damaged around tight curves. Projecting studs can puncture nearby parts. Power supplies and mounting hardware can move inside the carton if they are not separated.

Confirm whether the order will ship by courier, air, or sea. Packing requirements differ according to handling, distance, carton size, and product weight.

Common protection methods include:

• Surface protective film
• EPE foam
• Shaped foam inserts
• Corner protection
• Separate inner cartons
• Reinforced outer cartons
• Hardware bags
• Power-supply compartments
• Cable bags
• Wooden frames
• Wooden cases
• Handling labels
• Product-number labels
• Installation-area labels

Counter signs usually need protection against scratching and pressure on the base. Freestanding acrylic signs should not move inside the carton. The base, panel, cable, and adapter may need separate foam compartments.

Wall letters are often packed individually or grouped by word. Letter faces should not rub against mounting studs or hardware. Installation templates should be rolled carefully rather than folded through critical hole positions.

Stage signs require additional planning because they are often large or repeatedly transported. Consider:

• Modular sections
• Reusable flight cases
• Numbered components
• Foam-cut compartments
• Protected electrical connectors
• Separate hardware kits
• Assembly diagrams
• Repacking photographs
• Replacement parts
• Maximum one-person or two-person handling weight

The largest packed section must fit through:

• The venue entrance
• Loading doors
• Corridors
• Lifts
• Staircases
• Backstage access
• Storage-room doors

A 3-metre-wide sign may need to be divided into two or three sections even when it could technically be manufactured as one piece. Dividing the sign can reduce transport cost and make installation easier, but the joint positions should not damage the logo appearance.

Before shipment, request or prepare:

• Packing list
• Product count
• Carton count
• Carton dimensions
• Gross and net weight
• Photos before packing
• Photos after packing
• Accessory list
• Installation drawing
• Full-size template where required
• Wiring diagram
• Assembly instructions
• Product labels

Installation responsibility should be agreed before production. Confirm who provides:

• Wall preparation
• Structural support
• Drilling
• Electrical connection
• Lift or scaffold
• Installer labor
• Final alignment
• Silicone or sealant
• Local permits
• Site testing

The mounting method should match the wall and sign structure. Common arrangements include:

Installation Type	Suitable Product	Main Site Requirement
Stud mounting	Individual letters	Accurate drilling and solid backing
Backboard mounting	Neon and acrylic logos	Fewer fixing points
Raceway mounting	Illuminated letters	Space for visible support box
Standoff mounting	Acrylic panels	Accurate spacing and level surface
Hanging installation	Temporary stage signs	Verified overhead support
Freestanding frame	Event and stage signs	Stable floor area
Adhesive mounting	Lightweight non-lit signs	Clean, suitable wall finish

A full-size installation template should match the final approved production file. Letter spacing, mounting holes, and cable exits must not be based on an older artwork version.

For illuminated signs, iduoduo’s approved manufacturing facts specify 100% lighting inspection and 72-hour pre-shipment testing before dispatch, together with a three-year warranty under the confirmed product, installation, and use conditions.

The final pre-order check should answer five practical questions:

• Will the sign fit the intended space?
• Can the installer mount and wire it without altering the finished product?
• Can staff clean, operate, and maintain it?
• Can the packed product reach the installation area?
• Has every visual and technical detail been approved in writing?

When all five answers are clear, the sign is ready to move from an attractive idea into a product that can be manufactured, delivered, installed, and used as planned.

How Can You Request a Custom Bar Sign Quote?

To request a quotation from iduoduo, send the logo or artwork file, required dimensions, quantity, installation photos, destination country, and intended location—counter, wall, or stage. It also helps to include the preferred material, lighting color, mounting method, power requirements, and project deadline. When some details are still undecided, photographs and basic measurements are usually enough to begin a technical review.

The iduoduo team can assess whether the artwork suits LED neon, acrylic LED logos, fabricated letters, light boxes, marquee letters, or non-illuminated dimensional signs. The review can also cover sign scale, minimum stroke width, brightness, wiring, cable exits, mounting points, packing, and access through doors, lifts, or backstage areas.

Before production, the agreed design, materials, dimensions, lighting, electrical configuration, and installation details should be recorded in one approved specification. This makes the quotation clearer and reduces avoidable changes during manufacturing or installation.
