How Do Serif Fonts Affect Channel Letter Fabrication?

A serif logo can look perfectly balanced in a brand guideline and become surprisingly complicated once it has to be turned into a three-dimensional illuminated sign. On screen, a fine terminal is simply a vector shape. In a channel letter, that same terminal may need a metal return, an acrylic or metal face, internal LED space, wiring clearance, joints, sealant, mounting strength, and enough dimensional stability to survive packing, transport, installation, and years of use. The challenge is not that serif typography is unsuitable for signage. The challenge is that physical fabrication exposes details that digital artwork can ignore.

Serif fonts can be fabricated as channel letters when their narrowest strokes, terminals, counters, curves, letter depth, materials, and lighting system leave enough space for reliable production. Thin hairlines and sharp details may restrict bending, face retention, LED placement, wiring, and light diffusion, so the actual vector artwork should be reviewed for manufacturability rather than approved simply because the font looks suitable on a screen.

That difference becomes especially important for retail, hospitality, fashion, beauty, restaurant, hotel, and corporate brands whose visual identity depends on a distinctive serif wordmark. A fabrication team should not immediately replace a delicate font with a heavy sans-serif just because it is easier to manufacture. The better approach is to understand exactly where the design becomes difficult, preserve the parts that define the brand, and engineer only the details that need physical support. In many successful projects, the difference between a beautiful rendering and a reliable finished sign is found in a few millimeters of stroke width.

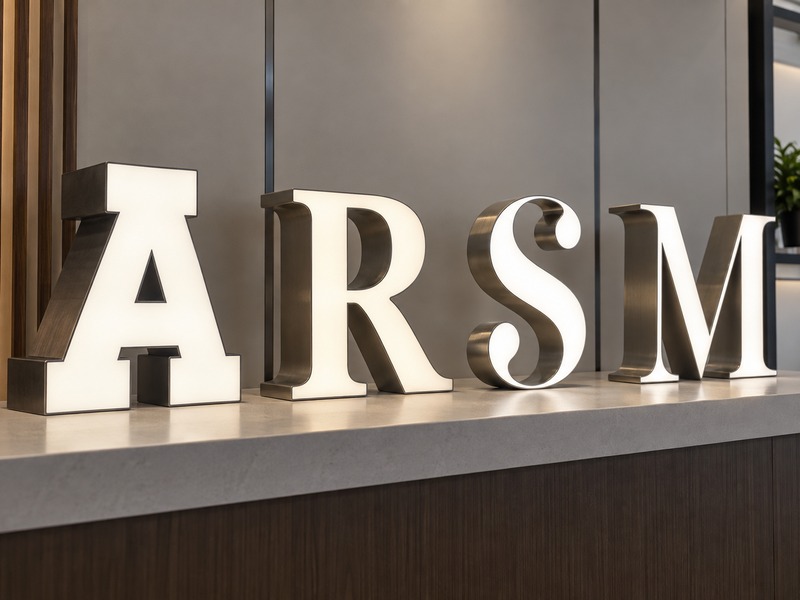

Can Serif Fonts Be Used for Channel Letters?

Yes. Serif fonts can be used for channel letters when the actual letter geometry provides enough room for metal forming, face construction, LEDs, wiring, mounting, and finishing. The word “serif” alone does not determine whether a design is practical. Overall size, narrowest local stroke, counter size, corner radius, letter depth, material, and illumination method are much more useful indicators of fabrication feasibility.

Fabrication-Friendly Serifs

A fabrication-friendly serif usually has substantial main strokes, reasonably open counters, controlled contrast between thick and thin sections, and terminals that do not taper into extremely fragile points. Slab-serif and medium-weight serif designs are often easier to translate into dimensional letters because their visual character comes from solid geometry rather than very fine hairlines. That does not make them automatically suitable, but it gives the engineer more physical room to work with when designing the return, face, back, LED layout, and mounting system.

The most useful first step is to inspect the artwork at the intended finished size. A 600 mm-high letter can appear very large on a storefront drawing, yet one horizontal crossbar or serif terminal may still narrow to a small fraction of the main vertical stem. That local feature may become the limiting point for the entire construction. For this reason, experienced fabricators measure individual critical areas rather than approving a wordmark from the overall letter height alone.

A practical first review normally includes the narrowest stroke, smallest serif terminal, tightest inside radius, smallest counter, shortest return segment, distance between adjacent details, available LED cavity, required letter depth, mounting area, and wire-exit space. If the sign will be reproduced across several stores, repeatability is also considered. A feature that can be corrected manually once may not be appropriate if the same adjustment must be repeated hundreds of times across different production batches.

At iduoduo, Channel Letter development is treated as a complete product-engineering process rather than simply making a flat logo thicker. Font and graphic engineering must work together with the face, metal return, back, LED modules, power system, wiring, mounting structure, weather protection, drainage, packaging, and installation interface. This matters with serif typography because one small change in the visible outline can influence several downstream manufacturing decisions at the same time.

Serif Styles That Need More Engineering

High-contrast serif fonts generally require the closest engineering review. These typefaces may combine broad vertical stems with very thin horizontal strokes, narrow joins, sharply tapered terminals, or small internal details. Such typography works beautifully in magazines, luxury packaging, websites, and printed brand materials because those formats do not need to contain physical light sources or structural components. Once the same design becomes a channel letter, every thin area must be turned into a real part that can be fabricated, illuminated, assembled, packed, and installed.

Characters such as A, B, K, M, N, R, S, W, ampersands, and numerals often reveal the difficulty first. An “R,” for example, may contain a bowl, counter, diagonal leg, narrow connection, and multiple terminals within a single character. An “S” creates continuous curvature and changing widths from top to bottom. A capital “A” may have strong diagonal stems but a comparatively thin crossbar. These are not theoretical typographic concerns; they directly influence how many bends are required, where LEDs can sit, and how the face can be retained.

Scaling the whole sign upward can sometimes solve the problem because every element becomes larger proportionally. However, that solution is not always available. A storefront may have a fixed fascia height, a shopping center may impose sign-band limits, or the logo may need to align with existing architectural features. If only one terminal causes the problem, enlarging the entire sign by 40 or 60 percent can be unnecessary and expensive.

A more controlled approach is often to strengthen only the critical feature. The final adjustment might be just a few millimeters on a small letter or considerably more on a large architectural sign. What matters is that the modification is deliberate, visible on the production drawing, and approved before manufacturing begins. The objective is to retain the recognizable visual character rather than mechanically preserve every mathematical point in the original digital outline.

Serif vs. Sans-Serif

Sans-serif fonts are often easier to fabricate because their stroke widths tend to be more uniform and their terminals usually contain fewer small projections. This can simplify bending, LED placement, face fitting, and repeated production. However, the assumption that sans-serif always means “easy” and serif always means “difficult” is unreliable. An ultra-light condensed sans-serif can be far more restrictive than a bold slab serif with generous counters and substantial terminals.

The more useful comparison is based on geometry. A fabricator looks at the smallest local stroke, stroke variation, internal counter size, corner shape, required letter depth, lighting method, and final scale. Those variables explain why different manufacturers publish different minimum-size requirements. Some conventional production systems work comfortably around 1.5-inch minimum strokes, while other fabricators prefer about 2 inches for standard LED-module construction. Specialized systems may work below those dimensions, but they use different components and should not be treated as equivalent.

For an established brand, manufacturing convenience should not automatically override visual identity. The better question is how much engineering is required to preserve the approved appearance. A strong serif logo may need no modification at all when used at a generous scale. A delicate wordmark may need a sign-specific version with slightly strengthened details. In both cases, the decision should come from the actual drawing and construction system rather than a generic rule about font categories.

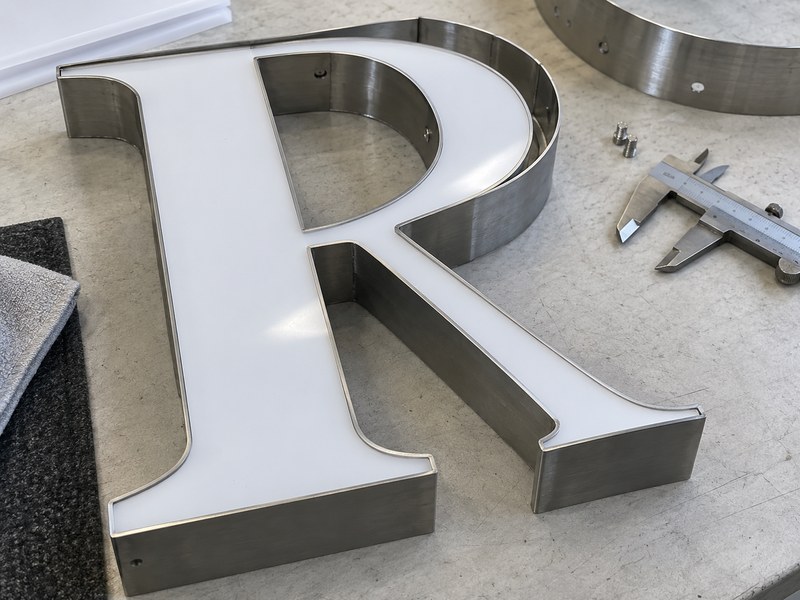

Which Serif Details Cause Fabrication Problems?

The serif details most likely to cause production problems are thin hairlines, narrow terminals, tiny counters, acute corners, tapered connections, and short return sections. These areas can reduce mechanical strength and leave less room for LEDs, wiring, joints, sealing, face retention, and finishing. The narrowest feature often determines whether the design remains practical even when the overall letter is relatively large.

Thin Strokes and Terminals

A serif letter rarely has one consistent stroke width. The visible main stem may be wide and structurally comfortable while a terminal, crossbar, diagonal connection, or curved transition becomes much narrower. This distinction is important because the dimension visible in a vector file is not identical to the usable cavity available after a three-dimensional letter has been built. Material thickness, return geometry, face-retention areas, internal radii, joints, sealant, wiring, and assembly clearance all consume some of the space.

Published fabrication guidelines demonstrate how different manufacturing systems approach this issue. Some conventional suppliers specify about 1.5 inches as a minimum stroke, while others describe approximately 2 inches as the practical space required for their standard LED modules. These numbers are useful as screening references, but they should not be treated as universal standards because module size, letter depth, trim construction, manufacturing equipment, and specialized lighting technology can change what is practical.

Fabrication Reference	Typical Published Figure	Practical Meaning
Conventional channel-letter systems	About 1.5 in minimum stroke	Common screening figure for standard fabricated letters
Some standard LED-module systems	About 2 in minimum stroke	More internal width may be needed for modules and wiring
Typical conventional LED spacing	About 2–3 in between modules	Varies with stroke width, depth, face, and LED beam
Specialized narrow-letter systems	Below conventional limits may be possible	Requires compatible components and engineering review

A narrow serif terminal can also be mechanically vulnerable even when illumination is not the main concern. Thin acrylic projections are more susceptible to cracking during handling, while narrow metal sections can distort more easily during bending, welding, grinding, shipping, or installation. The practical objective is not to make every component unnecessarily heavy, but to ensure that the weakest local feature still has an appropriate margin for the selected material and construction.

For repeat projects, consistency becomes as important as strength. A delicate terminal that requires an operator to reshape it by eye may look acceptable on a single sign but create visible variation across dozens of locations. If a small modification can turn that terminal into a repeatable production feature without changing the brand impression, making the change during engineering is usually safer than relying on individual craftsmanship later.

Counters and Tight Corners

Counters are the enclosed or partially enclosed spaces inside letters, including familiar areas in A, B, D, O, P, and R. Serif fonts can also create additional negative spaces around decorative terminals, diagonal joins, and transitions between thick and thin strokes. These areas may appear generous in a large digital rendering but become noticeably smaller once the return, face, trim, bonding area, or structural edge is introduced.

Small counters can make return bending more difficult and can restrict internal cleaning, LED positioning, wire routing, sealing, and finishing. They may also change the visual weight of the finished letter. If the surrounding construction occupies too much space, a clean open counter in the brand artwork can appear cramped or partially closed in the real sign. Slightly opening the counter during the engineering stage can preserve the intended visual impression better than allowing the physical construction to close it unintentionally.

Tight corners create a different set of limitations. Automated channel-bending machines are capable of producing complicated shapes, but extremely small radii, very short segments, and rapid direction changes can fall outside normal machine behavior. Complex areas may require hand forming, additional joints, or a controlled simplification of the contour. Skilled handwork can produce excellent results, but it adds labor and makes consistency more dependent on templates, drawings, and operator control.

The corner also has to survive finishing. Grinding access becomes more limited in tiny recesses, paint can build differently around compressed areas, and waterproofing can be more difficult where several joints are concentrated close together. These issues become especially important for outdoor letters, where an attractive front view is not enough; the finished construction also needs a practical approach to sealing, drainage, and maintenance.

Tapered Connections

Tapered connections are easy to overlook because they may represent only a small portion of the total logo. A serif tip may become progressively thinner, a diagonal may narrow as it joins a stem, or two large sections of a letter may be connected by a visually delicate bridge. These locations often create more manufacturing risk than their small area would suggest because they can become weak mechanically while also offering almost no usable cavity for lighting and wiring.

A useful engineering habit is to identify every critical minimum rather than measuring one representative stroke. On a letter with a 65 mm main stem, the important dimension may actually be a 28 mm connection between two sections. If that narrow connection must also contain wiring or contribute to the illuminated face, its effect on the final construction can be much greater than its size suggests.

Tapered areas can also amplify dimensional variation. A difference of 2 mm is barely noticeable on a 100 mm-wide stem but represents a much larger percentage of a 20 mm terminal. That is why very fine decorative details can appear inconsistent even when the overall manufacturing tolerance is reasonable. The closer a feature is to the practical process limit, the more visually significant small deviations become.

For this reason, a production-ready serif logo often includes a controlled minimum dimension for critical features. The value should be established for the specific construction rather than copied from another project. Once approved, the same dimension can be preserved through shop drawings, samples, templates, and quality checks so that later orders do not depend on someone reinterpreting the original artwork from scratch.

How Do Stroke Width and Letter Size Matter?

Stroke width determines how much usable physical space exists inside each part of the letter, while letter height controls the overall scale of the typography. They must be reviewed together because a large letter can still contain a narrow serif, crossbar, or connection that limits fabrication. The smallest local feature is often more important than the nominal height printed on the elevation drawing.

Minimum Stroke Width

There is no single minimum stroke width that applies to every channel letter. A responsible specification depends on the return, face-retention method, LED module, wire size, letter depth, materials, machinery, illumination method, and required appearance. Manufacturer guidelines commonly begin around 1.5 inches for conventional fabricated letters, while some standard LED systems prefer closer to 2 inches. Those figures describe particular manufacturing systems rather than an industry-wide physical law.

A useful minimum-stroke review looks at more than whether an LED module physically fits. The engineer also considers whether the module can be positioned correctly, whether wiring can pass through the cavity, whether the face has enough support, whether a return can be formed cleanly, whether the section remains structurally sound, and whether light can reach the end of a terminal without producing a visible hotspot.

The visible stroke dimension can therefore be misleading if it is read directly from a logo without considering the construction. A 40 mm-wide vector stroke does not necessarily create a 40 mm clear internal channel. Returns, bonding surfaces, trim, joint geometry, fasteners, and fabrication radii can reduce the usable space. When the artwork is already close to the manufacturing limit, those deductions become significant.

This is also why quotations based only on a logo image and overall width are less reliable for technically demanding serif work. Supplying the actual vector file, letter height, proposed depth, lighting method, mounting arrangement, and destination environment allows the fabrication team to judge the critical areas before production rather than discover them after materials have already been cut.

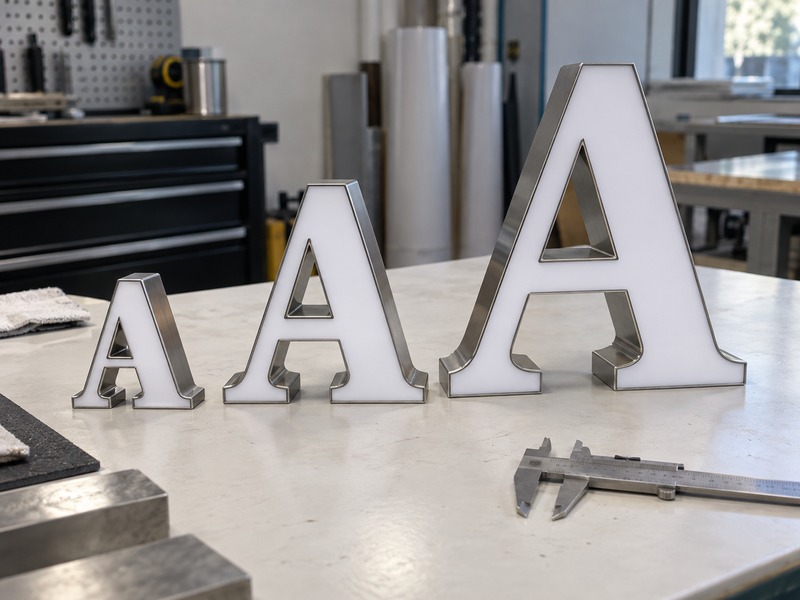

Letter Height and Scaling

Scaling the artwork proportionally increases every feature. If a 12-inch-high letter contains a 0.75-inch hairline, doubling the letter height to 24 inches will theoretically make that hairline approximately 1.5 inches. In some projects, this is the cleanest possible solution because the typeface can remain unchanged and the increased size also improves long-distance visibility.

However, scaling has practical limits. Storefront sign bands, façade proportions, landlord criteria, architectural features, neighboring signage, planning restrictions, transportation, and installation conditions may all limit the final letter height. Making an entire wordmark dramatically larger to solve one narrow crossbar may create a sign that no longer fits the building or may increase weight, packaging volume, and installation cost unnecessarily.

Existing Geometry	New Letter Height	Approximate Scaled Stroke
0.75 in stroke at 12 in height	18 in	1.125 in
0.75 in stroke at 12 in height	24 in	1.50 in
1.00 in stroke at 16 in height	24 in	1.50 in
1.25 in stroke at 20 in height	32 in	2.00 in

The calculation is useful because it quickly shows whether simple enlargement is likely to solve the problem. It does not prove manufacturability. The resulting letter still needs to be checked against the selected return depth, face material, LED module, wiring strategy, mounting details, and illumination expectations. A design that reaches an acceptable stroke dimension may still contain a tight counter or difficult bend elsewhere.

For projects with strict architectural limits, selective adjustment is often more efficient than proportional scaling. If only one terminal falls below the preferred manufacturing width, thickening that feature slightly may preserve both the building proportions and the brand appearance. The change should be evaluated at the actual finished size because a modification that looks substantial on a computer monitor may be almost invisible when viewed from 10 or 20 meters away.

Local Geometry

Two characters in the same word can behave very differently even when they have exactly the same height. A capital “I” may have broad horizontal terminals and a simple central stem. An “O” may require smooth continuous bending and consistent face spacing. An “M” may contain narrow interior valleys, while an “R” combines a counter, bowl, diagonal leg, junction, and multiple changing widths. Each character therefore creates its own manufacturing conditions.

The same applies to logo systems that combine serif text with icons, taglines, registration marks, borders, decorative flourishes, or thin graphic lines. The primary wordmark might be suitable for illuminated channel construction while a 15 mm trademark symbol is far too small for the same method. Trying to force every component into identical construction can reduce visual quality and create unnecessary cost.

Using more than one construction within the same logo is not automatically a compromise. A large primary wordmark may use illuminated channel letters while a fine secondary element uses cut metal, acrylic, printed graphics, or another appropriate process. From normal viewing distance, the complete composition can still appear visually unified while each component uses a manufacturing method suited to its scale.

For multi-location programs, this approach should be documented. When different store sizes require different logo scales, the same detail may cross a fabrication threshold from one location to another. A production file can specify which components remain illuminated, which require local modification, and which switch construction below a certain size. That prevents each new store from repeating the entire engineering discussion.

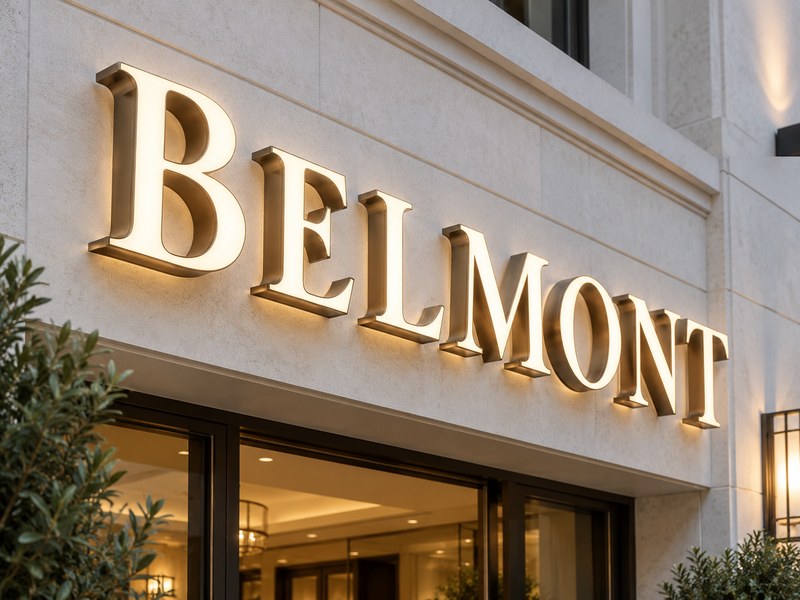

How Do Serifs Affect Fabrication and Lighting?

Serif geometry affects both the physical letter shell and the lighting system inside it. Narrow terminals, changing stroke widths, tight corners, and small counters can add bends while reducing LED and wiring space. If the typography and optical design are handled separately, the result may show dark tips, hotspots, uneven brightness, difficult assembly, or unnecessary electrical complexity.

Return Bending and Face Construction

The return forms the side wall of a channel letter, giving the character its depth. A simple block letter may consist mainly of long straight runs and predictable corners. A serif character can contain many short sections, concave curves, tiny projections, sharp transitions, and closely spaced direction changes. Every one of those features affects the bending sequence and can influence where joints are placed and how easily the letter can be welded, finished, and sealed.

Automated channel bending significantly improves consistency, but complicated characters still have practical limits. Published fabrication examples show conventional aluminum return materials around 0.040–0.063 inch in certain systems and describe complex characters requiring dozens of individual bends. When a radius becomes too tight for automated equipment, hand forming and templates may be necessary. Those examples should be understood as process-specific references rather than specifications for every project.

Face construction introduces another layer. A CNC router or laser can cut a remarkably fine outline, but accurate cutting does not guarantee easy assembly. Thin acrylic projections can be fragile, and very small notches can leave limited space for trim cap or bonding. The face also has to align with the physical return after bending, welding, and finishing, so an extremely complicated contour can magnify small dimensional differences.

This is why an elevation drawing alone is not enough for demanding serif letters. A shop drawing should also show the section, face, return, back, depth, LEDs, wire exit, and mounting method. Seeing the construction in section often reveals problems that are invisible when the project is viewed only as a flat logo.

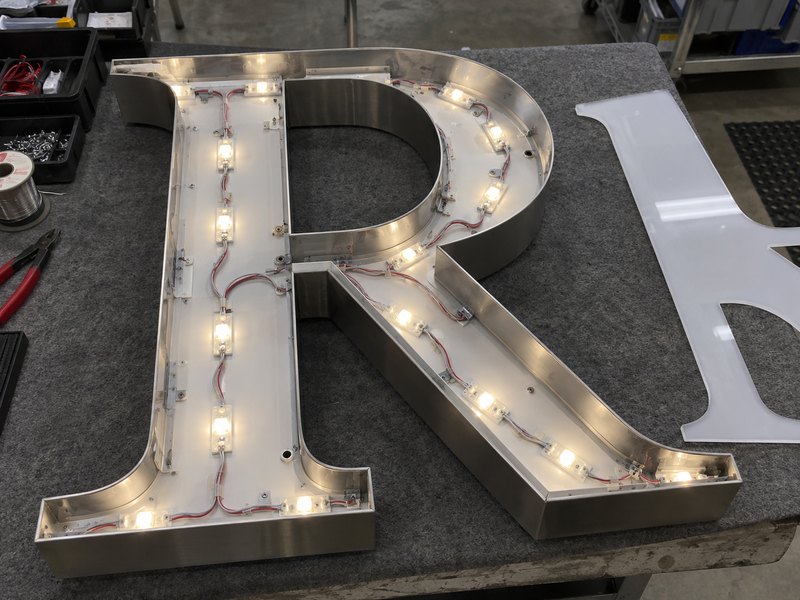

LED Placement

LED modules occupy real physical space. They have circuit boards, lenses, wires, connections, fastening areas, beam angles, and a required distance from the illuminated face. A wide vertical stem may accommodate modules at regular intervals, while a narrow serif terminal may not accept a conventional module at all. The nearest light source may then need to illuminate the terminal indirectly from the larger part of the cavity.

If the nearest module is too far away, the tip can look dark. If another module is forced into a restricted section too close to the face, the opposite problem can appear: a bright hotspot or visible LED pattern. Moving LEDs closer together does not automatically improve the result because it can increase power consumption, heat, wiring density, and local brightness without producing better diffusion.

Conventional fabrication examples often show LED spacing around 2–3 inches, but actual spacing varies considerably with module optics, face material, stroke width, letter depth, internal reflectivity, and the desired brightness. A shallow letter generally gives light less distance to mix before it reaches the face, while a deeper letter provides more optical mixing space but can increase material, weight, and installation requirements.

iduoduo evaluates LED layout according to logo geometry, stroke width, letter depth, diffuser material, LED beam angle, viewing distance, ambient conditions, wall characteristics, and brand requirements. The practical objective is not simply to make every part of the letter bright. It is to create controlled visual consistency across wide stems, thin serifs, curves, corners, and separate characters without using unnecessary LED density.

Lighting Method

Front-lit, halo-lit, front-and-halo-lit, side-lit, and specialized acrylic constructions react differently to serif geometry. Front-lit letters need sufficient internal space for light to spread across a translucent face. A very narrow terminal may be noticeably darker than the main stem or may show the location of an LED if the module is placed too close to the face.

Halo-lit letters create a different optical problem because the light is projected onto the wall behind the letter. Wall color, surface texture, stand-off distance, rear opening, return geometry, and LED position all influence the visible halo. A narrow serif can produce a weak or interrupted glow even when the metal letter itself is fabricated accurately. On dark or highly absorptive wall finishes, this difference can become more visible.

Combination front-and-halo illumination adds both sets of requirements. The letter has to support a front diffusion system while also creating a controlled rear glow. That means more attention to internal space, wire routing, LED zoning, heat, power, and servicing. Complex typography can make this structure crowded, especially in smaller characters or areas with significant stroke contrast.

Serif Condition	Main Risk	Typical Engineering Response
Broad slab serif	Normal forming and LED distribution	Conventional channel construction often works well
Moderate stroke contrast	Local narrow areas	Review LED location and critical strokes
Fine high-contrast serif	Hairlines and thin terminals	Scale, strengthen details, or change construction
Tiny counters	Crowded return and face geometry	Open the counter or increase local scale
Many sharp corners	Bending and repeatability	Review radii and controlled simplification
Very small serif lettering	Insufficient internal cavity	Consider another dimensional-letter system

The most appropriate lighting method is therefore the one that supports both the intended brand appearance and the physical geometry. A designer may prefer front lighting, but if the font contains several narrow sections that cannot be illuminated cleanly at the approved size, another construction may preserve the identity more successfully than forcing the original concept into an unsuitable system.

Testing remains important even after the engineering appears sound. For illuminated products, iduoduo uses 100% lighting inspection and a 72-hour pre-shipment test to observe LED operation, power stability, flicker, color variation, local dark areas, abnormal temperature rise, and wiring connections. These checks are especially useful on serif designs because changing stroke widths make optical defects easier to see.

Do Serif Fonts Increase Cost or Lead Time?

Serif fonts can increase cost or lead time when their actual geometry requires additional engineering, more bends, hand forming, unusual face work, special LED layouts, extra samples, or tighter inspection. The font category itself does not create a surcharge. The additional cost comes from measurable production complexity, labor, materials, approval cycles, and the level of repeatability required.

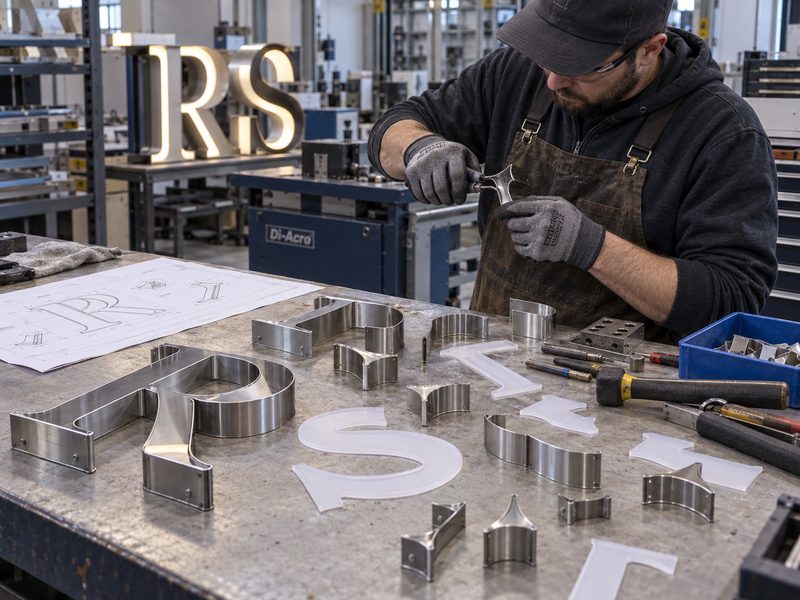

Fabrication Work

Two letters can have the same height and use similar amounts of aluminum and acrylic while requiring very different amounts of labor. A broad, simple character may move quickly through cutting, bending, assembly, and lighting. A high-contrast serif of the same size may contain multiple short returns, acute corners, narrow transitions, small acrylic projections, and difficult LED cavities that require slower work and more checking.

This is why small or intricate channel letters can sometimes cost more per unit of size than larger, simpler letters. Material is only one part of the cost structure. Engineering time, machine setup, manual forming, welding or bonding, finishing, LED installation, testing, rework risk, and packing can all become proportionally larger contributors when the design is compact and complex.

Common production-cost drivers include numerous short return segments, tight internal radii, manual bending, additional joints, difficult grinding access, small face projections, nonstandard LED layouts, complicated wire routing, outdoor sealing, premium finishes, and additional first-article inspection. None of these automatically makes a serif project expensive, but several of them combined can create a noticeably different manufacturing workload from a simple block-letter sign.

Quantity changes the calculation again. A technically difficult terminal may add only a few minutes to a single storefront sign, but the same feature repeated across 50 or 100 locations creates many hours of additional production work. For rollout projects, solving the difficult geometry during the engineering stage often saves more money than trying to reduce individual material specifications later.

Handwork and Repeatability

Hand fabrication remains an important part of custom signage. A skilled craftsperson can form curves, correct small variations, and solve details that automated equipment cannot handle cleanly. The concern is not whether handwork is used; the concern is whether the result can be repeated reliably when the project requires many identical sets or future reorders.

A one-off luxury storefront can justify significant manual refinement because the finished sign may be treated almost like a bespoke object. A chain-store program has a different requirement. If every serif terminal must be interpreted individually by the operator, small differences can appear from store to store. These changes may be subtle in isolation but become obvious when multiple locations are photographed or when a replacement letter is ordered several years later.

Production control turns craftsmanship into repeatable manufacturing. Approved artwork, return specifications, joint locations, material records, LED layouts, reference samples, color standards, QC checkpoints, mounting details, and packaging instructions all reduce the number of decisions that have to be reinvented at the workbench. The more complicated the typography becomes, the more valuable those records become.

For repeat work, iduoduo can preserve final drawings, fonts, dimensions, materials, colors, letter depth, LED specifications, power details, mounting holes, wire exits, templates, packaging requirements, and QC records. These files do not eliminate normal material or component changes over time, but they make it much easier to compare a reorder with the approved original rather than starting from an old photograph.

Design Changes, Cost, and Lead Time

A small artwork modification can sometimes reduce production risk more effectively than changing materials or negotiating individual process costs. If one crossbar is too narrow, locally thickening that crossbar may remove the need for specialized LEDs, difficult hand forming, or repeated manual corrections. If a tiny counter is likely to close visually after fabrication, opening it slightly can improve both production reliability and final appearance.

The useful principle is to change only what creates a measurable problem. Increasing every stroke by 20 percent just because one terminal is difficult can unnecessarily alter the brand. A production-specific correction might involve only a few millimeters at a junction, a slightly larger counter, a softened internal radius, or a shortened decorative point. Each modification should be assessed at the finished scale rather than at extreme zoom on a computer screen.

Lead time is affected by the same logic. A complex font does not automatically add a fixed number of production days. Delays are more likely when manufacturability issues are discovered late, samples have to be rebuilt, unusual components must be sourced, or design approvals cycle repeatedly after fabrication has already started. Moving engineering decisions forward protects the schedule much more effectively than rushing the workshop later.

For planning purposes, iduoduo’s documented Channel Letter workflow typically places regular samples or single custom units around 5–7 days, special-process samples around 7–15 days, regular small batches around 7–10 days, and medium batches around 10–20 days. Large projects require a project-specific production schedule because quantities, SKU complexity, finishes, testing, packaging, and delivery plans can vary considerably. These figures are planning references rather than automatic promises for every design.

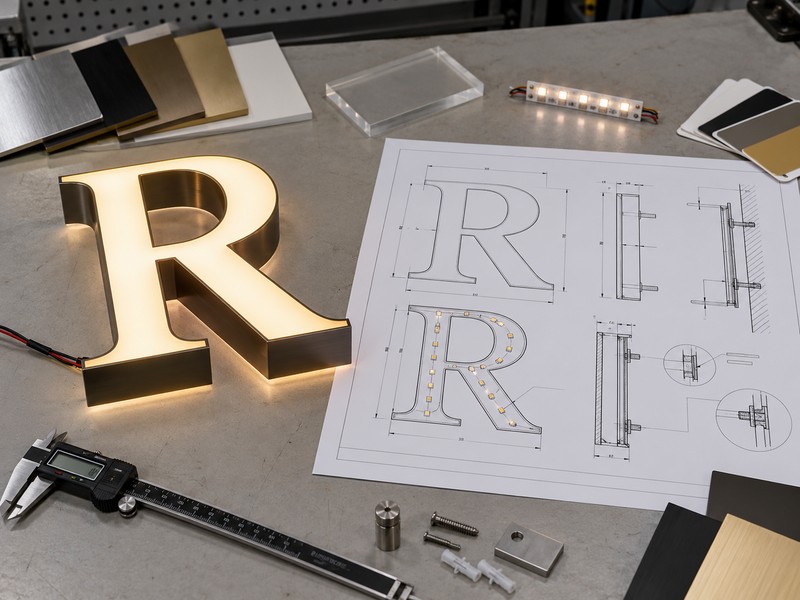

How Are Serif Fonts Made Production-Ready?

A serif design becomes production-ready after the actual artwork has been reviewed against final size, critical strokes, counters, materials, depth, illumination, electrical requirements, mounting, environment, and quantity. Necessary changes are then documented in approved drawings and, where appropriate, validated through a sample or first article. Production should follow this frozen standard instead of relying on informal shop-floor interpretation.

Brand-Preserving Modification

The best modification is usually the smallest one that removes a real physical limitation. A fabrication team should first identify the feature causing the problem and then determine whether it can be solved through construction, scale, lighting, or a local artwork adjustment. The goal is not to turn an elegant serif identity into a generic bold typeface simply because bold letters are easier to manufacture.

Consider a terminal that narrows from 45 mm to 22 mm. If the selected construction cannot illuminate the final 22 mm reliably, several legitimate options exist. The terminal can be widened locally, the taper can be shortened, the whole letter can be enlarged, the terminal can use a different illumination approach, or the entire lettering system can switch to a construction designed for narrower geometry. The best choice depends on what the brand considers visually essential.

Professional typography already uses optical correction rather than strict mathematical equality. Curved letters often extend slightly beyond baseline positions, and certain strokes are adjusted visually so that they appear balanced. Physical signage introduces another layer of optical correction because the viewer sees the finished material, depth, lighting, and installation rather than the original vector path.

For brand-controlled projects, the original artwork and the production artwork should be compared before approval. If a sign-specific adaptation is required, it can be stored as an approved signage master rather than recreated for each new location. This gives future projects a clear starting point and prevents gradual, undocumented changes to the logo.

Engineering Review

A complete engineering review connects typography with the actual product and installation environment. The vector logo is essential because it allows critical dimensions to be measured accurately, but the logo alone is not enough. Overall dimensions, individual letter height, illumination method, face and return materials, letter depth, voltage, LED color or color temperature, mounting method, wall condition, wire exit, waterproofing requirements, destination market, quantity, packaging, and project schedule all influence the final construction.

Shop drawings are particularly important for complicated serif work. A useful drawing can show the front elevation, overall width, individual letter heights, return depth, section, face, return, back, LED system, power arrangement, mounting holes, studs, wire exits, colors, quantity, and any raceway or backboard. Large or technically complex projects may also require segmentation, electrical grouping, installation numbering, or additional sectional details.

The information does more than improve the factory’s drawing set. It prevents different departments from solving the same issue independently. The designer should not assume a lighting solution that the electrical team cannot implement, and the fabrication team should not change a serif to simplify bending without the design team seeing the effect. One approved technical version creates a common reference for design, engineering, production, QC, packaging, and future reorders.

iduoduo’s manufacturing structure includes in-house design, engineering, production, and QC functions, so font feasibility can be reviewed together with structure, materials, LED layout, power, mounting, weather protection, and delivery requirements. The value of this process is not producing more drawings. It is resolving problems before those problems become scrap, rework, inconsistent lighting, or installation surprises.

Files and Samples

Vector artwork is the most useful starting point because it preserves measurable curves and dimensions. AI, EPS, SVG, editable PDF, CAD or DXF files where appropriate, brand guidelines, elevation drawings, section drawings, and existing shop drawings can all improve the accuracy of the review. High-resolution PNG or JPEG files are helpful for visual reference, but they are less reliable for dimensional engineering unless accurate measurements are also provided.

Storefront photographs provide another layer of practical information. A technically perfect letter still has to work on a particular façade, wall, glass surface, cladding system, or interior feature. Photos can reveal nearby architectural elements, available sign-band height, wall color, ambient light, possible wire routes, access limitations, and other conditions that affect the final construction and illumination.

Samples become valuable when the project contains unusual geometry, a premium finish, a new lighting structure, a demanding brand standard, or a substantial rollout quantity. A sample can reveal whether the thin crossbar illuminates evenly, whether the strengthened serif still looks faithful to the original artwork, whether the halo remains continuous, and whether the finish looks clean around the tightest bends.

The approved sample should then become a production standard rather than an isolated object. Its dimensions, materials, finishes, LED layout, mounting details, and successful construction choices should be transferred into drawings, BOMs, process requirements, QC criteria, and packaging instructions. This is what allows a difficult serif sign to move from custom craftsmanship into repeatable manufacturing.

A well-engineered serif channel letter is therefore not the result of removing all complexity. It is the result of understanding which complexity is visually important and which complexity creates avoidable manufacturing risk. That distinction allows brands to keep the character that made them choose serif typography in the first place while giving the production team a structure that can be built, illuminated, shipped, installed, and reproduced with control.

For iduoduo, the most useful starting point for a serif Channel Letter project is the original vector artwork together with the intended dimensions, installation environment, lighting preference, mounting condition, destination market, and quantity. With those inputs available, the discussion becomes much more precise: which details can remain exactly as designed, which need a small production adjustment, and which construction method delivers the closest brand result with the lowest unnecessary manufacturing risk.

Frequently Asked Questions

Can any serif font be made into channel letters?

Most serif fonts can be translated into some form of dimensional signage, but not every serif font can be manufactured as conventional illuminated channel letters at every size. The narrowest strokes, counters, terminals, corner radii, lighting cavity, and structural connections determine whether a particular construction is practical. If the original geometry is too fine, increasing the size, locally adjusting the artwork, changing the illumination method, or using another dimensional-letter construction can often preserve the visual identity.

What is the minimum stroke width for serif channel letters?

There is no universal minimum stroke width because different manufacturers use different return systems, LED modules, depths, face methods, and fabrication equipment. Published conventional examples commonly begin around 1.5 inches, while some standard LED-module systems prefer approximately 2 inches. Specialized technology can work narrower. The safest method is to measure the smallest local stroke in the actual artwork and confirm it against the selected construction rather than applying one number to every project.

Are serif fonts more difficult to fabricate than sans-serif fonts?

Serif fonts are often more complicated because they can include fine terminals, changing stroke widths, small counters, and tight bends. However, the font category itself is not decisive. A bold slab serif may be easier to fabricate than a very thin condensed sans-serif. Actual geometry, letter size, depth, lighting, and construction method are more important. Experienced sign engineering therefore evaluates the vector artwork character by character instead of approving or rejecting a design based only on its type classification.

Can thin serif channel letters be illuminated evenly?

Thin serif details can be illuminated successfully when enough internal space remains for an appropriate LED system and the optical design accounts for letter depth, face diffusion, beam angle, and changing stroke widths. The difficulty appears when a wide stem narrows rapidly into a tip with no room for a conventional module. Simply adding more LEDs can create hotspots. A better solution may involve changing module placement, adjusting depth, strengthening the terminal, or selecting another illumination construction.

Do serif channel letters cost more to manufacture?

They can, but not simply because the font contains serifs. Cost increases when the design requires additional engineering, more bends, manual forming, extra joints, difficult face work, nonstandard LED layouts, premium finishing, sampling, or additional quality inspection. A robust serif with wide strokes may cost little more than a comparable sans-serif design, while a delicate high-contrast wordmark can require substantially more labor. Reviewing the artwork before quotation makes cost differences much easier to explain and control.

Should a brand modify its logo for channel letter fabrication?

A brand should modify its logo only when a specific feature creates a real production, structural, lighting, or repeatability problem. The preferred approach is usually a small local correction rather than changing the entire typeface. Opening one counter, strengthening one hairline, softening one impractical corner, or shortening one fine terminal can make a major manufacturing difference while remaining almost invisible from normal viewing distance. Brand owners should approve the production version before fabrication begins.

What files are best for reviewing a serif Channel Letter project?

Vector files such as AI, EPS, SVG, editable PDF, or appropriate CAD formats are the most useful because engineers can measure the real contours directly. For an accurate review, the file should ideally be accompanied by the intended overall width, letter height, quantity, lighting method, letter depth, colors, indoor or outdoor location, mounting method, wall information, voltage, destination, and project schedule. Storefront photos and architectural drawings are also valuable when installation conditions influence the design.
