Channel Letter Manufacturing Process Step by Step

A finished channel letter often looks deceptively simple. From the street, people see a clean three-dimensional logo, a bright acrylic face, a polished metal edge, or a soft halo spreading across the wall. Inside the factory, however, that finished appearance is the result of many connected decisions involving geometry, materials, metal forming, acrylic fabrication, LED layout, wiring, power supplies, weather protection, mounting, testing, and packaging. A mistake made near the beginning can easily appear much later as uneven illumination, a poorly fitting face, installation difficulties, water entry, or inconsistent replacement letters.

Channel letter manufacturing converts approved artwork into three-dimensional illuminated letters through engineering review, material preparation, cutting, metal return forming, shell fabrication, surface finishing, acrylic processing, LED installation, electrical assembly, weather protection, final assembly, inspection, testing, and packing. The exact workflow changes with front-lit, halo-lit, trimless, raceway-mounted, and other structures, but dependable production always connects visual design with manufacturability, illumination, installation, and long-term service.

That connection is what makes the process worth understanding. A letter can look excellent on a factory table and still become an expensive problem at the jobsite if the wire exit sits behind structural steel, the mounting template uses the wrong revision, or a shallow return creates visible LED points across the face. The following process explains how professional channel letters move from artwork to a finished sign that is not only attractive, but also practical to manufacture, ship, install, illuminate, and reproduce.

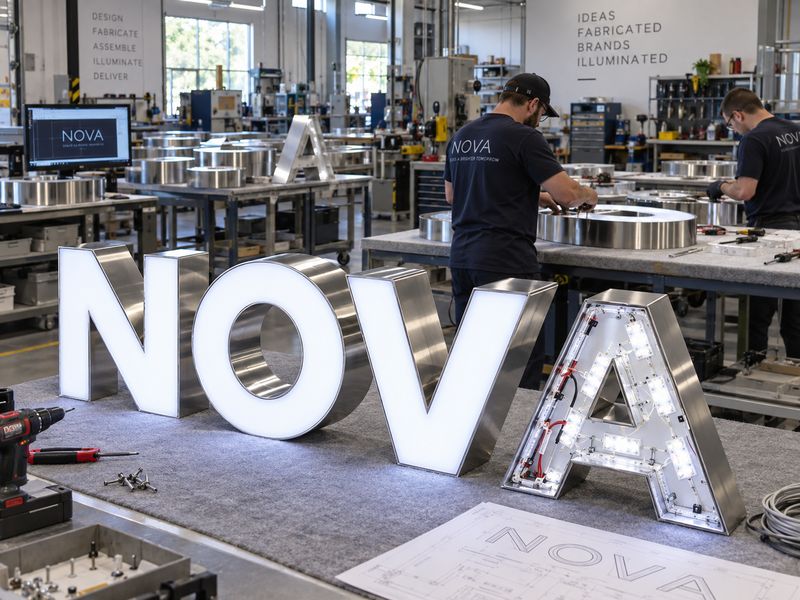

What Is the Channel Letter Manufacturing Process?

The channel letter manufacturing process is the controlled conversion of approved artwork into three-dimensional illuminated letters through engineering, material preparation, metal and acrylic fabrication, LED installation, wiring, weather protection, assembly, inspection, testing, and packaging. Each stage should follow the same approved project information so that dimensions, appearance, illumination, mounting, electrical configuration, and quality remain consistent from drawing approval through final delivery.

From Artwork to a Physical Sign

A channel letter is not a single component with lights placed inside. A typical illuminated letter can contain a front face, metal return, rear panel, LED modules, wiring, connectors, mounting studs or holes, wire exits, sealing details, and drainage provisions. Multiple individually manufactured letters are then positioned according to an approved layout to create the complete store name, brand mark, or logo. The dimensional relationship between these parts directly affects how the sign looks during the day, how it illuminates at night, and how easily it can be installed.

The first manufacturing decision is therefore not which machine will cut the metal. The first question is whether the artwork can become a stable physical product. A thin logo stroke that looks elegant on a screen may not leave enough internal width for LED modules, wiring, fasteners, or face-retention details. A very small enclosed area may become difficult to form and illuminate once the graphic is converted into an actual three-dimensional structure. Experienced engineering identifies these conflicts before material is cut rather than trying to correct them during assembly.

Different channel letter styles also follow different structural logic. Front-lit letters normally use a translucent face and direct most illumination toward the viewer. Halo-lit letters generally use opaque visible surfaces and project light behind the letters onto the mounting wall. Front-and-halo-lit letters must control both directions at the same time. Trim-cap and trimless structures hold the face differently, while raceway and backboard systems introduce additional fabricated components behind the letters. These differences affect metalwork, lighting, wiring, maintenance, mounting, and packing.

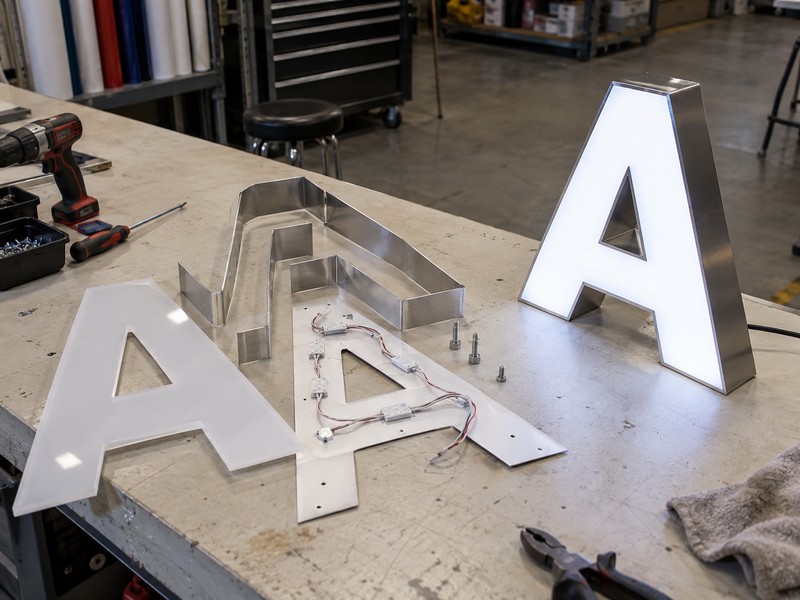

Core Manufacturing Stages

Professional production is easier to understand as a chain of controlled outputs rather than as a collection of unrelated workshop operations. Every stage should produce dimensions, surfaces, components, or records that the next stage can use without guessing. Although several processes may happen in parallel, the important requirement is that every department works from the same approved geometry, material specification, lighting configuration, and project revision.

Stage	Main Work	Main Control Point
Engineering	Artwork, structure, lighting and mounting review	Manufacturability
Material preparation	Metal, acrylic, LEDs, electrical parts	Correct specifications
Cutting	Faces, backs, templates and mounting parts	Shape and dimensions
Return forming	Bending side walls	Depth, curves and corners
Joining	Welding, fastening or bonding	Shell stability
Surface finishing	Grinding, painting, coating or polishing	Appearance and color
LED assembly	Module positioning	Light uniformity
Wiring	Circuit grouping and connections	Electrical stability
Weather protection	Sealing and drainage	Water management
Final assembly	Face, shell, back and hardware	Component fit
QC and testing	Dimensional, lighting and functional checks	Defect detection
Packing	Protection, labeling and accessories	Delivery readiness

The process does not always move through these steps in a perfectly straight line. Acrylic faces may be machined while metal shells are being painted, and electrical components may be prepared while returns are being formed. Controlled manufacturing depends less on whether every operation happens one after another and more on whether every operation follows the same frozen production information. When different departments use different file versions, later assembly becomes a correction exercise rather than a controlled production process.

Where Manufacturing Problems Usually Begin

Many defects discovered at final inspection actually originate much earlier. A face that does not sit correctly may trace back to mismatched cutting geometry. A dark corner may be caused by return depth or LED layout rather than a defective module. A difficult installation may result from an incorrect wire exit or mounting-hole decision made during engineering. Correcting these issues after painting, wiring, or packing is always more expensive than preventing them before fabrication begins.

Experienced factories therefore examine whether the letter can be formed cleanly, whether its internal volume is sufficient for the selected lighting system, whether the face and shell can fit without forcing, whether rainwater and condensation can be managed, and whether the installation interface matches the actual site. The goal is not simply to make the sign illuminate on a production bench. It is to produce a sign that can survive handling, transportation, installation, weather exposure, normal operation, maintenance, and later reproduction.

For commercial projects, this approach also makes supplier evaluation more meaningful. A factory that can explain how design, metalwork, acrylic, LEDs, power, weather protection, mounting, testing, and packing interact is generally providing more useful manufacturing information than one that only shows finished photographs. The appearance of a completed sign matters, but understanding how the factory controls the stages behind that appearance is far more valuable when the project involves multiple locations, repeat orders, outdoor exposure, or tight installation schedules.

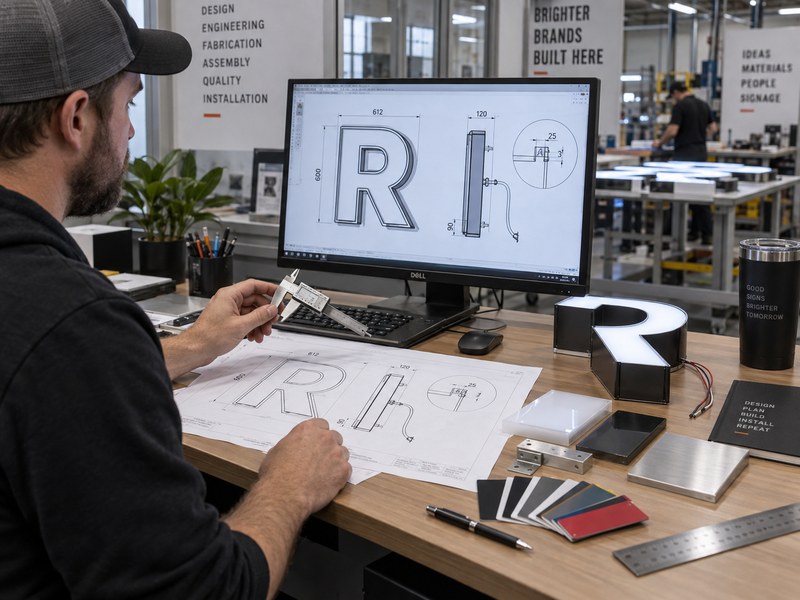

How Does Design Become Production-Ready?

A channel letter design becomes production-ready when visual artwork has been converted into controlled manufacturing information covering dimensions, stroke width, materials, return depth, lighting, electrical configuration, mounting, wire exits, finishes, weather protection, and packaging. Production should begin from approved drawings and specifications rather than from a reference image or informal message because every fabrication stage depends on these decisions remaining clear and consistent.

Artwork and Project Inputs

Vector artwork is generally the most practical production starting point because clean outlines can be transferred into cutting and fabrication data with less interpretation. AI, SVG, CAD, and suitable PDF files can all provide useful geometry, while renderings, storefront photographs, JPG images, sketches, or physical references can help explain the desired appearance when complete production files are not available. A visual reference is useful, but it should not automatically be treated as the final manufacturing drawing.

The artwork also needs project context. The same logo can require very different construction when it is 600 mm wide on an indoor reception wall versus 4,000 mm wide on an exterior storefront. Size affects stroke width, return depth, LED layout, face material, reinforcement, packaging, and installation. Outdoor use introduces weather protection, drainage, corrosion, and power-location questions that may not exist in a controlled indoor environment.

A detailed channel letter review may therefore include the logo or font file, overall dimensions, individual letter height, quantity, lighting method, face color, return color, letter depth, indoor or outdoor use, LED color or color temperature, input voltage, power requirements, mounting method, raceway or backboard needs, wire-exit position, wall construction, waterproof requirement, destination country, packing method, and project date. Collecting these details early makes the quotation and engineering process more reliable because fewer assumptions remain hidden inside the project.

Geometry and Manufacturability

Logo manufacturability is one of the most important areas of engineering review. The objective is not to simplify a brand unnecessarily, but to identify where a two-dimensional visual element conflicts with physical materials, lighting space, bending limits, or installation requirements. Fine strokes, small counters, acute internal angles, narrow gaps, and delicate acrylic bridges all need to be examined before they become production problems.

Stroke width deserves particular attention because it controls the space available for LEDs, wires, connectors, fasteners, and internal maintenance. A narrow letter may technically be cut from metal, yet still be difficult to illuminate evenly. The correct decision may involve increasing the overall size, making a small local adjustment to the artwork, changing the light source, or selecting another channel letter structure that better suits the geometry.

Return depth creates a similar balance. More depth provides greater distance between the LEDs and illuminated face, which can improve light blending in some designs, but it also increases projection, material use, shipping volume, and visual mass. Very shallow letters can create a refined architectural appearance, yet they reduce the space available for light diffusion and may make LED points more visible. There is no single depth that is correct for every project because logo geometry, face material, viewing distance, LED beam angle, and desired appearance all affect the final decision.

Materials, Lighting and Mounting

Material selection should be made together with lighting and installation decisions rather than handled as a separate purchasing task. A translucent acrylic face has to transmit and diffuse light, while an opaque metal face used for halo illumination performs a completely different optical role. The return material needs to support bending, joining, surface finishing, outdoor exposure, and the desired visual quality after installation.

Mounting also influences production earlier than many people expect. Flush-mounted letters require accurate individual holes, studs, or wiring points. Raceway-mounted letters combine multiple characters with a fabricated enclosure that can concentrate wiring and power components. Backboard-mounted systems can simplify alignment or help when the building façade does not suit multiple independent penetrations. The correct choice depends on wall construction, local installation practice, electrical access, appearance, maintenance requirements, and project regulations.

Halo-lit letters introduce another variable because the wall becomes part of the optical system. A light-colored matte wall can reflect the halo very differently from dark stone, glossy metal, heavily textured plaster, or glass. The stand-off distance between the letter and wall also changes the shape and intensity of the halo. For this reason, a halo-lit product should not be designed only around the letter itself. The surface behind it has to be considered as part of the final lighting effect.

Production Approval and Revision Control

A visually attractive rendering is not enough to release a commercial sign into production. The production version should establish dimensions, materials, colors, return depth, illumination direction, mounting points, wire exits, power grouping, backboard or raceway details, and any project-specific installation interfaces. Complex jobs may also require shop drawings, cross sections, electrical information, BOM data, finish schedules, mounting layouts, or sample approvals.

Revision control becomes especially important when changes happen after quotation. A client may reduce the overall width, adjust a color, change the installation wall, or revise the power location. If the latest information is not consolidated into one production version, different departments can easily manufacture different interpretations of the same project. The cutting team may follow one drawing while the wiring team works from another, creating inconsistencies that are difficult to correct later.

A controlled system freezes one approved production version and distributes it to the relevant departments. Material preparation, cutting, return forming, acrylic processing, LED assembly, QC, and packing should all reference that same version. This may sound procedural, but it directly reduces wrong dimensions, incorrect colors, mismatched mounting holes, outdated wire exits, and repeat-order confusion. In long-term or multi-store programs, revision discipline is often as important as the fabrication equipment itself.

How Are Channel Letter Parts Fabricated?

Channel letter parts are fabricated by cutting the approved face and back geometry, forming the metal returns, joining the shell, preparing visible surfaces, and processing acrylic or polycarbonate components. CNC routing, laser cutting, bending, welding, fastening, grinding, painting, polishing, and acrylic fabrication may all be used. The exact combination depends on letter type, size, material, finish, illumination direction, and mounting structure.

Faces and Backs

The face and back establish the basic geometry of each channel letter. Their accuracy affects almost every operation that follows, including return forming, face retention, LED placement, mounting, and final visual alignment. When the face, return, and back originate from different or outdated geometry, workers often have to compensate manually during assembly, which makes repeatability more difficult and can introduce visible gaps or distortion.

Digital cutting technologies such as CNC routing and laser cutting make it possible to reproduce complex outlines efficiently, but machine precision cannot solve a poor engineering decision. A thin stroke remains thin even when cut perfectly. A fragile acrylic bridge remains vulnerable to cracking. A small internal area remains difficult to clean, illuminate, and wire. Correct manufacturing therefore begins by engineering geometry that can be produced successfully rather than relying on equipment to make every shape practical.

Back panels frequently serve several purposes at once. They may close the shell, support LED modules, provide mounting positions, create wire exits, or help manage weather protection. Their material, thickness, hole locations, and flatness need to suit the actual product structure. In front-lit letters, the acrylic face must also coordinate with the return geometry so that retention is secure and the visible edge appears consistent across all characters.

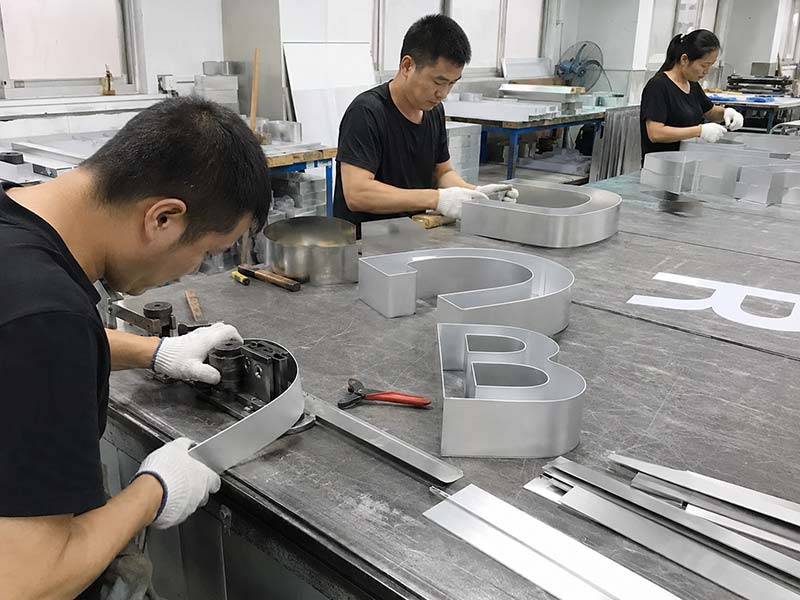

Return Forming and Shell Construction

The return forms the side wall of the channel letter and gives the character its depth. Straight sections are relatively straightforward, while tight curves, small radii, sharp internal corners, and complex logo shapes require greater control. Automated bending equipment can improve efficiency and consistency for suitable geometry, while skilled manual forming remains valuable for special shapes, unusual materials, or small details that do not follow standard bending patterns.

Return forming should control depth, bending angles, corner shape, curve smoothness, seam location, flatness, face alignment, and back alignment. Small dimensional differences can accumulate around a complex letter and become visible when the final face is installed. For multi-letter signs, inconsistent return depth can also create a noticeably uneven appearance when viewed from the side.

Once the return is formed, it must be joined to the relevant back or structural component. Welding, fastening, bonding, or combined methods may be used depending on the materials and design. Excessive welding heat can distort thin metal, while insufficient joining can reduce rigidity. Seam placement also matters because a technically sound joint can still create unnecessary finishing work if it sits in a highly visible location. Outdoor products add another consideration because seams, joints, and fastener positions can influence water management and corrosion resistance.

Surface Finishing

A premium-looking finish begins before the paint or coating is applied. Welding marks, burrs, scratches, uneven seams, sharp edges, and local distortion need to be corrected during grinding and preparation. Surface treatment can improve the appearance of well-made fabrication, but it cannot reliably hide every structural or dimensional defect underneath.

Different finishes reveal different levels of workmanship. Dark high-gloss coatings can show waves and grinding marks clearly, while brushed metal requires a consistent grain direction. Mirror or polished stainless steel makes surface imperfections particularly visible at close viewing distances. Matte and textured coatings may be more forgiving, but they still require clean edges, consistent corners, and controlled color.

Brand color should also be treated carefully. Matching a painted return to a Pantone reference is different from matching an illuminated acrylic face. The same nominal brand color can appear different on metal, acrylic, vinyl, printed graphics, and LED-lit surfaces. For demanding projects, material samples, color samples, illuminated samples, prototypes, or pre-production units provide a more reliable approval basis than relying entirely on screen colors or digital renderings.

Acrylic Face Processing

Acrylic and polycarbonate faces need to be evaluated for thickness, color, light transmission, diffusion, edge quality, surface protection, thermal behavior, and face-retention method. Cutting accuracy is essential, but optical behavior becomes equally important once the LEDs are switched on. A face that looks excellent in daylight may reveal bright spots, dark zones, or color changes after illumination.

Trim-cap letters use a visible retention strip around the perimeter of the face, while trimless structures aim for a cleaner edge without the traditional visible trim. Neither approach is universally better. Trim-cap construction can offer practical maintenance and proven face retention, while trimless designs can support a cleaner contemporary appearance. The right choice depends on brand aesthetics, size, viewing distance, service expectations, exposure, and fabrication details.

The face also needs to survive packing, shipping, installation, and thermal movement after it leaves the factory. This is why simply achieving a tight fit on the production table is not the only goal. The finished component should fit consistently without excessive force and remain stable under realistic handling and environmental conditions. Good acrylic processing combines dimensional accuracy with an understanding of how the material will behave throughout the life of the sign.

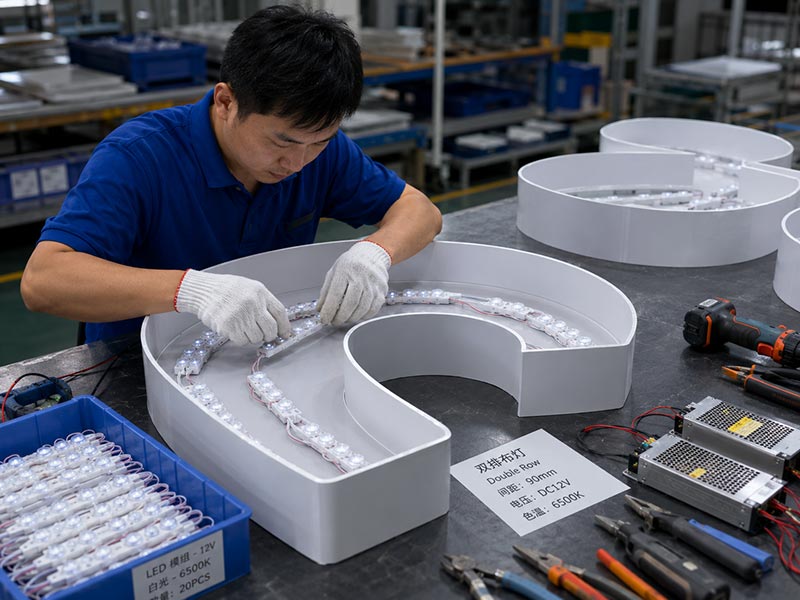

How Are LEDs and Electrical Systems Installed?

LED and electrical systems are installed from an engineered layout based on letter geometry, stroke width, depth, diffuser material, illumination direction, circuit length, voltage, heat, and power load. Modules should be spaced to create even illumination without unnecessary density. Wiring must control voltage drop and remain serviceable, while power supplies need to match total load, destination-market input, installation location, and environmental conditions.

LED Layout and Light Uniformity

A common misconception is that adding more LED modules automatically improves quality. In practice, excessive LED density can increase heat, power consumption, wiring complexity, and cost while creating visible bright points. Spacing that is too wide produces the opposite problem, including dark areas, poor corner coverage, and noticeable brightness variation. The objective is controlled uniformity rather than maximum module quantity.

The correct layout starts with geometry. Narrow strokes may need a single row of modules, while wider characters can require two or more lighting paths. Curves and corners often need additional adjustment because mathematically equal module spacing does not always produce visually equal illumination. The position of each module relative to the face and side wall also matters, especially in shallow letters where the light has less distance to blend.

Lighting Variable	If Too Low or Too Small	If Too High or Too Large
LED density	Dark areas and weak coverage	Heat, cost and hot spots
Letter depth	Visible LED points	Extra weight and material
Module spacing	Unnecessary density when too close	Dark gaps when too wide
Face diffusion	Visible light sources	Reduced output if excessive
Power reserve	Overload or instability	Unnecessary size and cost
Wire size	Voltage drop on long runs	Greater cost and less flexibility

Repeatability benefits from recording the LED model, color, color temperature, module spacing, letter depth, face specification, stand-off distance, and approved lighting result. For multi-location programs, this information is far more useful than asking a later production team to copy the appearance from a photograph. Optical records allow new letters to be produced from controlled settings while still checking whether the latest project size or environment requires adjustments.

Wiring and Voltage Drop

After the modules are positioned, they need to be divided into appropriate electrical circuits. Wiring design should consider total load, module voltage, cable length, conductor size, power-supply location, service access, and the way the sign will be connected on site. A cable route that looks acceptable inside one test letter can perform poorly across a larger sign if voltage drop and circuit length are ignored.

Long runs can reduce the voltage available at the far end of a circuit. Depending on the LED system, this may cause reduced brightness, color differences, RGB inconsistency, flickering, or excessive load on the power system. Possible solutions include increasing conductor size, shortening cable runs, splitting the lighting into more circuits, moving the power supply, adding an additional supply, or selecting a suitable 24V system when the project configuration allows it.

Wire organization also affects maintenance. Cables should not be pinched between components, stretched across sharp metal edges, or buried behind inaccessible parts without reason. Connectors and splices need appropriate protection, particularly in outdoor products. A clean electrical layout makes production inspection easier and gives service technicians a more practical path to diagnose or replace components later without dismantling more of the sign than necessary.

Power Supply Configuration

Power supplies convert the local mains input into the low-voltage output required by the LED system. Their selection should be based on real electrical load, installation conditions, service access, and destination-market requirements rather than simply choosing a unit capable of making the LEDs turn on during a short factory test.

Commercial projects may require input configurations such as 110V, 120V, 220V, 230V, or 240V, while common low-voltage LED systems can operate at 12V or 24V depending on the components selected. Regional plugs, hardwired connections, or project-specific electrical interfaces can also be required. These details should be confirmed before production because they influence the power supply, wiring, accessories, and sometimes the enclosure or raceway.

Location matters as much as electrical capacity. A power supply should not be placed where water can accumulate, heat cannot escape, or routine maintenance requires major disassembly. Raceway-mounted systems often provide a convenient location for electrical components, while other projects may place supplies behind a backboard or inside an accessible building area.

Certification also deserves precise communication. A certified power supply or electrical component does not automatically mean that the complete finished sign carries the same full-product certification. Projects requiring a specific complete-system approval, third-party inspection, or local electrical listing should define those requirements early so that the correct manufacturing and documentation route can be evaluated.

Waterproofing and Drainage

Outdoor channel letters are exposed to rain, humidity, temperature changes, ultraviolet radiation, dust, wind-driven moisture, and condensation. Effective weather protection therefore requires more than applying sealant around the finished shell. Water can enter through face joints, backs, seams, connectors, wire penetrations, mounting holes, power locations, and installation interfaces.

A good outdoor system protects vulnerable electrical components while also considering how small amounts of moisture or condensation can escape. Depending on the design, this can include protected LED modules, sealed connectors, controlled wire exits, face and back sealing, drainage openings, corrosion-resistant hardware, appropriate power positioning, and careful treatment of installation penetrations.

For normal outdoor projects, an IP65-oriented solution may be appropriate, while higher-rain or high-humidity applications can require strengthened IP67-related construction. IP68 should be treated as a project-specific requirement rather than a default claim. The rating needs to be considered together with LED components, connectors, power supplies, wire entries, sealing, structure, and the actual environment.

It is equally important to understand that factory weather protection does not replace correct installation. Building penetrations, external electrical connections, wall sealing, anchoring, and local workmanship remain part of the final outdoor system. A heavily sealed letter can still perform poorly if moisture enters through the installation, while a structure with sensible drainage can often manage normal condensation more effectively than one that simply traps moisture inside.

How Are Channel Letters Assembled and Tested?

Channel letters are assembled by fitting the completed return, back, face, LED system, wiring, weather-protection components, and mounting hardware according to the approved production information. Testing then verifies dimensions, surface quality, light uniformity, electrical function, mounting details, wire exits, and outdoor-protection features. Effective quality control begins during production and continues through final illumination, operating tests, and shipment release.

Final Assembly

Final assembly reveals whether earlier fabrication stages were genuinely controlled. When the face, return, and back have been produced from matching geometry and maintained within appropriate tolerances, they should fit together without excessive force, major gaps, or improvised correction. When they do not fit, simply grinding away material or adding excessive adhesive can conceal the original problem while creating a new one.

During assembly, technicians should check face alignment, rear-panel attachment, LED fixation, wire routing, connector protection, screw positions, mounting holes or studs, wire exits, protective films, and service access. These details affect not only the factory appearance, but also how well the sign survives testing, transport, installation, and future maintenance.

Different channel letter structures require different assembly priorities. Trim-cap products depend on secure and even face retention. Trimless letters require particularly clean edge alignment. Halo-lit letters must maintain the intended rear clearance and light path. Raceway-mounted letters must align correctly with both the individual character geometry and the supporting raceway. The objective is therefore not simply to produce an assembled letter, but to produce a complete system that remains dimensionally stable and practical after it leaves the production area.

In-Process Quality Control

Quality control works best when defects are detected close to the operation that creates them. A wrong acrylic color is easier to correct before assembly. An incorrect return depth should ideally be found before surface finishing. A poor LED layout is far easier to adjust before wiring and face installation. Waiting until the final carton is ready makes every correction more expensive.

A structured QC process can cover incoming materials, first-article approval, dimensional verification, in-process checks, surface finishing, acrylic quality, LED layout, wiring, power supplies, weather protection, mounting interfaces, final appearance, accessory counts, and packaging. If a nonconforming part is identified, it should be isolated, corrected or replaced, and then inspected again rather than simply passed forward because the production schedule is tight.

iduoduo uses more than 30 QC personnel within its broader sign manufacturing system, with inspection points extending from incoming material through production, finished-product checks, 100% lighting inspection for illuminated signs, electrical verification, weather-protection review, packaging checks, reinspection after rework, and final release. The practical value of this structure is not the number of inspection steps alone. It is that quality problems can be traced back to a specific material, drawing, production stage, or component rather than being treated as unexplained final defects.

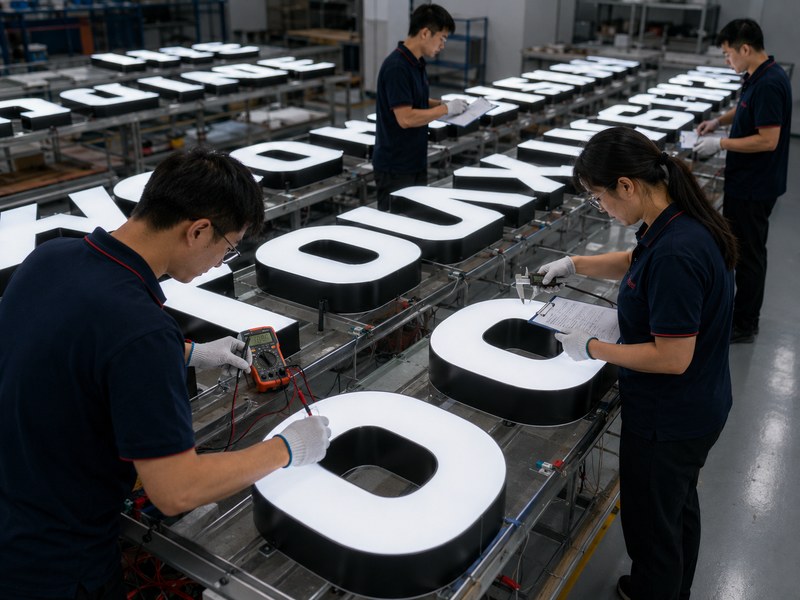

Lighting and Electrical Testing

A channel letter should not pass inspection simply because every LED turns on. Lighting needs to be evaluated as a visual system. The full set should be checked for dark areas, hot spots, exposed LED points, color-temperature differences, irregular corner coverage, inconsistent brightness between letters, halo shape, flicker, and controller function where applicable.

Viewing distance matters during this assessment. Some tiny light variations that are visible from 300 mm disappear completely at normal storefront distance, while other inconsistencies become more noticeable when the entire word or logo is viewed together. A useful inspection therefore considers how the product will actually be seen rather than treating each individual letter as an isolated laboratory sample.

Electrical tests should include power-supply operation, wiring connections, polarity, circuit stability, dimming, RGB or RGBW functions when included, and signs of abnormal temperature. The complete product should also be examined after operating because heat and handling can reveal loose connections, lifting LED modules, or other problems that were not obvious immediately after assembly. For illuminated products, iduoduo applies 100% lighting inspection rather than testing only a small sample from the order.

72-Hour Pre-Shipment Testing

Short power-on tests are useful for finding immediate faults, but they do not always reveal unstable LEDs, weak electrical connections, control problems, or components that fail after several hours of operation. Extended pre-shipment testing gives these early problems more time to appear while the product is still inside the factory.

iduoduo performs a 72-hour pre-shipment operating test after the initial lighting inspection for illuminated signage. The process is used to observe LED stability, power-supply performance, controllers, flicker, early failures, color differences, local dark areas, abnormal temperature rise, and wiring connections. When a problem is found, the relevant part or assembly is repaired or replaced and then checked again before product release.

A 72-hour test should not be interpreted as a promise that the sign can never fail during its entire service life. Real operating life is influenced by input voltage, environmental temperature, rain exposure, installation, ventilation, daily operating hours, cleaning, and maintenance. The value of the test is practical rather than promotional: it increases the chance of identifying early component or connection problems before an international shipment has already reached the installation site.

Mounting information should be checked at the same stage. A perfectly illuminated sign can still delay an opening if mounting studs, wire exits, installation templates, raceway dimensions, or accessories are incorrect. Final QC needs to consider the sign as something that will actually be installed rather than as a product that only needs to look good inside the factory.

How Are Finished Channel Letters Prepared for Delivery?

Finished channel letters are prepared for delivery through final specification checks, mounting and accessory verification, surface protection, cushioning, suitable cartons or crates, clear labeling, and shipment records. For repeat or multi-location programs, approved drawings, dimensions, materials, colors, LED configuration, power, mounting details, packaging standards, and QC references should also be retained so future production can be reproduced with fewer avoidable differences.

Final Checks and Installation Preparation

Before packing, the completed sign should be compared against the approved production information one final time. This verification can include the overall dimensions, individual letter height, return depth, face color, metal finish, LED color or color temperature, illumination consistency, mounting positions, wire exits, raceway or backboard dimensions, installation template, power supplies, controllers, and accessory quantities.

Installation accessories often receive less attention than the letters themselves, even though one missing part can stop a jobsite from completing the installation. Depending on the project, a shipment may include studs, screws, spacers, brackets, mounting plates, installation templates, power supplies, controllers, connecting cables, or other hardware. These components should be identified and packed in a way that local installers can quickly understand.

The final structural anchor still needs to suit the actual wall. Concrete, masonry, structural steel, timber, cladding systems, and other surfaces may require different fastening methods. The factory can prepare accurate sign-side mounting interfaces, but the local installer or contractor should confirm the final wall anchoring according to real site conditions, structural requirements, and local regulations. This division of responsibility reduces the risk of treating one generic fixing system as suitable for every building.

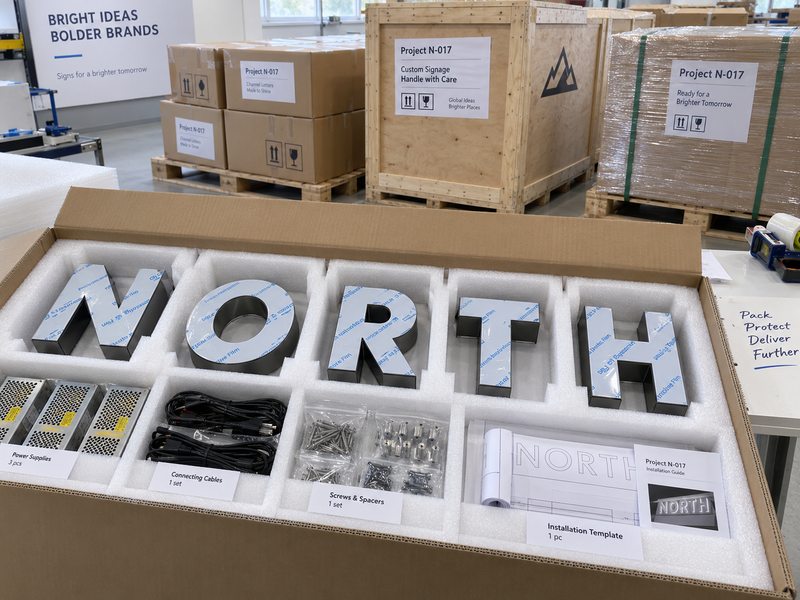

Packing for International Shipping

Channel letters are challenging products to ship because they combine several materials with different vulnerabilities. Metal shells can dent, acrylic faces can scratch or crack, painted surfaces can rub against other components, mounting studs can puncture packaging, and heavy power supplies can damage finished surfaces if they are allowed to move inside the carton.

Packing therefore requires more than placing the sign inside a large box. Visible surfaces may need protective film or soft wrapping. Acrylic and thin edges need cushioning against concentrated pressure. Individual letters should be separated so that they cannot strike one another during transport. Power supplies, controllers, fasteners, and small accessories are safer when they are packed separately and clearly identified rather than placed loose among the finished letters.

Large systems may require reinforced cartons, EPE foam, custom inserts, wooden frames, plywood crates, or pallets depending on size, weight, shipping method, and product structure. Packaging should also consider volumetric freight cost. An unnecessarily oversized backboard can sometimes increase international shipping cost more than expected, while intelligent segmentation and packing can make a large project easier to transport and handle without compromising the finished appearance.

For multi-store programs, external identification becomes especially useful. Cartons can be labeled by store, elevation, sign set, product number, or installation zone so that the receiving team can organize the project without opening every package. Good packaging therefore supports both physical protection and installation efficiency.

Batch Consistency and Repeat Orders

One successful sample proves that a sign can be made correctly once. A controlled manufacturing system needs to prove that the approved standard can be repeated across later units, stores, replacement letters, and future production dates. This requires production records rather than relying on photographs or the memory of individual workers.

Useful repeat-order information includes final drawings, fonts, dimensions, materials, colors, return depth, LED models, LED color, power supplies, mounting holes, wire exits, installation templates, packaging specifications, and QC records. Approved samples, lighting photographs, or test videos can also provide useful visual references when the project requires particularly close consistency.

The purpose of retaining this information is not to copy every previous detail without question. A new store may have a different wall, voltage, installation height, destination country, or environmental exposure. The stronger approach is to preserve the approved brand and production standard while reviewing the conditions that may legitimately require engineering changes.

This becomes particularly valuable for retail, restaurant, hotel, franchise, and other multi-location programs. Store dimensions can vary while the visual identity remains controlled. Proper records allow different sizes to be engineered around the same approved materials, colors, lighting logic, and brand proportions, reducing the need to rebuild every specification from the beginning whenever another location is added.

Production Timing and Capacity

Lead time should be discussed together with product complexity, quantity, materials, surface treatment, testing, packing, and project deadlines rather than presented as one universal number. Channel letters with standard materials and straightforward construction can move through production much faster than large, highly polished, dual-illuminated, weather-resistant systems requiring special electrical or packaging arrangements.

For iduoduo Channel Letter projects, regular samples or individual custom units are generally planned at approximately 5–7 days, while special processes can require around 7–15 days. Regular small-batch production is typically around 7–10 days, and medium-volume work can require approximately 10–20 days. Larger projects need a schedule based on the number of units, structure, material preparation, testing, packing, and delivery plan.

Project Factor	Reference
Channel Letter MOQ	From 1 set or custom unit
Regular sample or single unit	About 5–7 days
Special-process project	About 7–15 days
Regular small batch	About 7–10 days
Medium batch	About 10–20 days
Illuminated product inspection	100% lighting inspection
Pre-shipment operating test	72 hours
Warranty reference	3 years
QC personnel	30+
Production lines	18

The broader iduoduo manufacturing system includes five production bases, approximately 21,000 square meters of manufacturing space, more than 500 employees, and 18 production lines. Regular company-wide capacity is approximately 15,000 units per month, with additional flexible capacity of around 5,000 units depending on product mix and production planning. These numbers should not be interpreted as meaning that 15,000 large Channel Letter sets can be produced every month because product size, LED quantity, metalwork, surface treatment, testing time, and packaging requirements vary significantly.

For commercial projects, the more useful scheduling question is whether engineering approval, material availability, fabrication, finishing, electrical assembly, QC, testing, packaging, and transport can all fit the required project date without removing the controls that protect the finished product. A shorter factory production time is not valuable if it simply pushes unresolved design or installation problems to the jobsite.

A well-made channel letter is ultimately the result of coordination rather than one impressive machine or one skilled operation. Artwork has to become practical geometry, metalwork has to match acrylic components, LEDs have to work with depth and diffusion, power has to match the destination market, weather protection has to reflect the real environment, and mounting has to suit the installation site. When those decisions remain connected throughout production, the finished sign becomes easier to install, more consistent to reproduce, and less likely to create avoidable problems after delivery.

For projects starting from a logo, storefront drawing, architectural file, or reference image, the most useful first step is to define the intended size, quantity, installation environment, lighting effect, mounting method, destination country, and project timing. With those details, iduoduo can review manufacturability, materials, structure, LED configuration, power, mounting, weather protection, packing, and production requirements before the final manufacturing solution is approved.

How are channel letters manufactured step by step?

Channel letters are manufactured by first reviewing the artwork and converting it into production-ready drawings. Metal faces, backs, or returns are then cut and formed, visible surfaces are finished, acrylic components are prepared, and LED modules are arranged inside the letters. Wiring, power supplies, weather protection, and mounting details are added before final assembly. Completed illuminated products are then inspected, operated under test conditions, packed, labeled, and prepared for installation or international shipment.

What materials are commonly used to manufacture channel letters?

Aluminum, stainless steel, acrylic, polycarbonate, LED modules, electrical wire, power supplies, sealants, fasteners, paints, and surface-finishing materials are commonly used. Aluminum is widely chosen for lightweight formed returns, while stainless steel can provide different structural and decorative finishes. Acrylic or polycarbonate is often used for illuminated faces. The best material combination depends on letter size, lighting direction, indoor or outdoor exposure, surface appearance, shipping conditions, maintenance needs, and installation requirements.

How long does it take to manufacture custom channel letters?

Manufacturing time depends on the number of letters, overall size, material, illumination structure, finish, quantity, testing, and packaging requirements. At iduoduo, regular samples or single custom units are generally planned at approximately 5–7 days, while projects involving special materials or more complex structures can require around 7–15 days. Regular small batches may take approximately 7–10 days, with medium-volume projects commonly requiring around 10–20 days before international shipping time is added.

How are LEDs arranged inside channel letters?

LED modules are arranged according to stroke width, letter depth, module beam angle, face material, diffusion, and the shape of each character. Narrow strokes may require a single lighting path, while broad areas can need multiple rows. Module spacing should be close enough to avoid dark areas but not so dense that it creates hot spots, excess heat, unnecessary power consumption, or visible LED points. The completed letters should always be checked while illuminated rather than relying only on theoretical spacing.

Are outdoor channel letters waterproof?

Outdoor channel letters can be engineered for rain and humidity, but weather protection depends on the complete structure rather than one sealant line or one waterproof component. LED modules, connectors, wire exits, faces, backs, power supplies, drainage, corrosion protection, and installation penetrations all need consideration. IP65-oriented construction may suit normal outdoor exposure, while higher-exposure projects can require enhanced solutions. IP ratings do not replace correct installation, building waterproofing, drainage, electrical sealing, and routine maintenance.

What is the difference between front-lit and halo-lit channel letters?

Front-lit channel letters direct most of their light through a translucent front face, creating strong direct visibility from the front. Halo-lit letters normally use an opaque front and allow illumination to escape behind the letter, where it reflects from the wall and creates a surrounding glow. Front-lit products prioritize direct readability, while halo-lit products are often selected for a more architectural effect. Their faces, backs, LED positions, stand-off distances, wiring, and mounting details are therefore manufactured differently.

What information is needed to order custom channel letters?

A useful project brief should include the logo or artwork, target dimensions, quantity, preferred lighting method, face and return colors, indoor or outdoor environment, installation wall, mounting preference, LED color or color temperature, input voltage, destination country, and target project date. Information about raceways, backboards, wire exits, waterproofing, certifications, or special packing should also be provided when relevant. Complete project information allows the manufacturer to evaluate manufacturability, structure, illumination, electrical requirements, installation, price, and realistic production timing before fabrication begins.
