A halo-lit channel letter can look clean and architectural on one wall, then appear weak, uneven, or strangely colored on another—even when the letters, LEDs, power supply, and installation spacing are identical. The reason is simple: the wall is not merely the background. It is part of the optical system.
Halo-lit letters usually have opaque faces and sides. LEDs project light from the rear of each letter toward the mounting surface, and the wall reflects part of that light back toward the viewer. The visible halo is therefore created by the interaction between the letter, the LEDs, the mounting distance, and the wall itself.

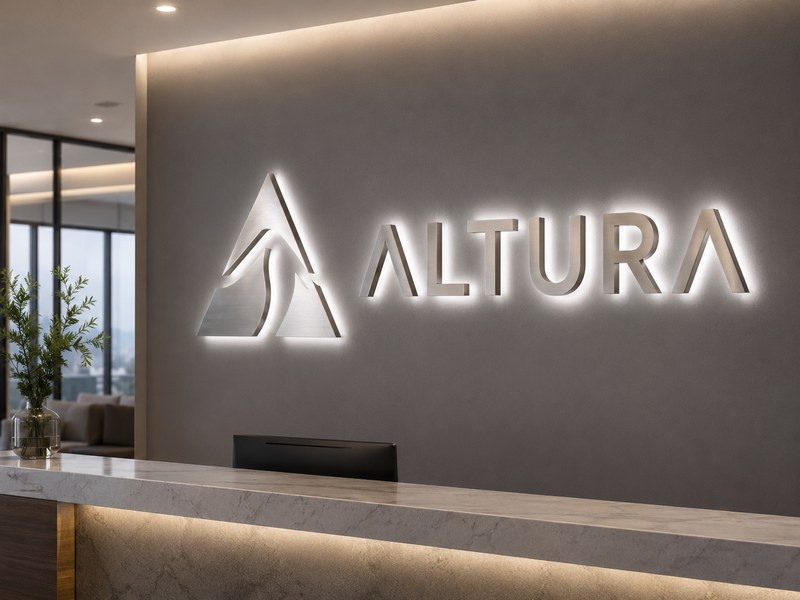

Wall color affects halo-lit channel letters by controlling how much rear-facing light is reflected, absorbed, scattered, or visually tinted. Light walls usually produce brighter, wider halos, while dark walls often create weaker halos but stronger daytime contrast. Surface texture, gloss, ambient lighting, LED color, letter spacing, and standoff distance must also be considered before production.
A dark wall does not automatically make halo lighting unsuitable, and a white wall does not guarantee a good result. A hotel project once changed from pale stone panels to charcoal cladding after the sign drawings had already been approved. The letters still fitted the elevation, but the original lighting plan no longer produced the intended halo. Nothing was “wrong” with the sign—the background conditions had changed. That small detail is exactly where many otherwise well-designed projects begin to drift off course.
What Makes Wall Color Important?
Wall color matters because a halo-lit letter does not create its visible glow by shining directly toward the viewer. LEDs send light toward the mounting surface, and the wall reflects that light around the letter. The wall therefore controls halo brightness, width, color accuracy, edge definition, and nighttime readability. A well-built letter can still look weak or uneven when the background absorbs, redirects, or breaks up the light.

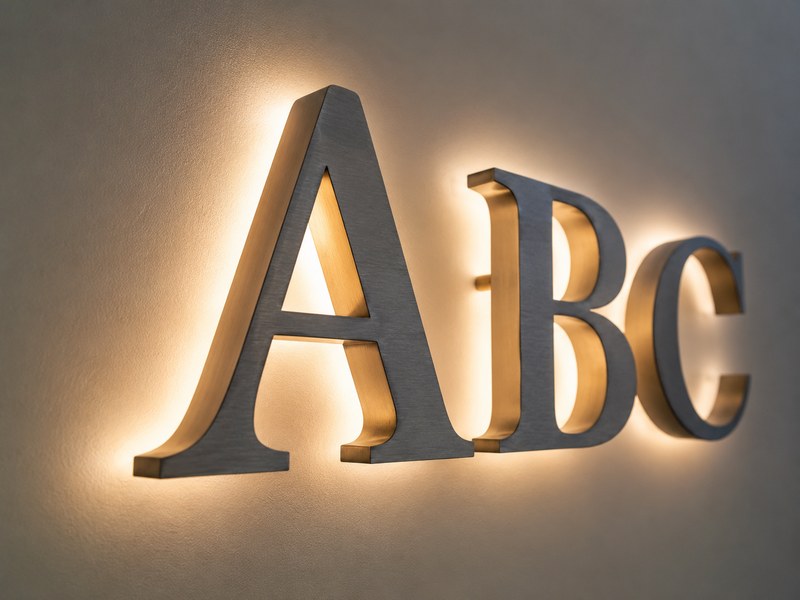

How Does Reflected Light Create the Halo?
A typical halo-lit channel letter contains an opaque metal face, metal returns, internal LED modules, a clear or translucent rear panel, mounting studs or spacers, wiring, and a power supply. The LEDs point toward the back of the letter rather than through the front face.
The lighting path follows four steps:
- LED modules produce light inside the letter.
- Light passes through or around the rear panel.
- The light reaches the wall behind the letter.
- The wall reflects part of the light back toward the viewer.
The visible halo is therefore not generated by the letter alone. The letter produces the light, but the wall makes the halo visible.
For that reason, two identical sets of channel letters can look very different after installation. A set mounted on a smooth, pale wall may produce a broad and even outline. The same set mounted on black brick may produce a narrow glow with dark breaks across the mortar joints.
Iduoduo’s channel-letter engineering records identify the following factors as directly connected to halo performance:
- Font and stroke width
- Letter depth
- LED arrangement
- Letter-to-wall distance
- Wall color
- Wall flatness
- Ambient lighting
- Spacing between letters
A brighter LED does not automatically solve a weak halo. When the wall absorbs much of the light, increasing power may brighten the area directly behind each module without creating a wider, smoother outline. The result can be a bright center, visible LED points, or uneven corners rather than a stronger professional-looking halo.
The main lighting characteristics should be checked separately:
| Lighting characteristic | What should be observed | Common problem |
|---|---|---|
| Halo width | Similar spread around each side | One side looks wider than another |
| Edge definition | Letter shape remains recognizable | Glow spreads into nearby letters |
| Brightness uniformity | No obvious bright or dark sections | LED positions become visible |
| Corner coverage | Corners and curves remain continuous | Sharp corners appear dark |
| Counter clarity | Interior spaces remain open | Small spaces fill with reflected light |
| Color consistency | Halo color remains visually stable | Wall color changes the apparent LED color |
A good halo is not simply “bright.” It should be continuous, controlled, and clearly connected to the letter shape.
Which Wall Properties Control Reflection?
Wall color is only one part of the mounting surface. Paint finish, texture, flatness, material, joints, and cleanliness can all change the result.
A useful site assessment should consider at least six wall conditions.
| Wall condition | Effect on the halo | What may need adjustment |
|---|---|---|
| Pale matte paint | Strong, soft, even reflection | Lower brightness or tighter spacing may be enough |
| Dark matte paint | Reduced halo intensity | LED output, color, or standoff may need review |
| Glossy paint | Directional glare and sharp reflections | Sample testing or a matte backer may help |
| Brick or rough stone | Broken and irregular light spread | Larger standoff or a separate backer may be required |
| Uneven cladding | Different halo widths around one letter | Spacer depth and wall flatness must be checked |
| Glass or polished metal | Reflections may expose wiring or fixings | A secondary mounting panel is often safer |
Color controls how much visible light is absorbed or returned. Finish controls how the returned light spreads.
A matte surface scatters light in many directions. The halo remains visible from a wider range of viewing angles and usually looks softer. A glossy wall may reflect plenty of light, but the reflection can travel in a narrow direction. Someone standing directly in front of the sign may see a strong bright band, while someone approaching from the side sees much less.

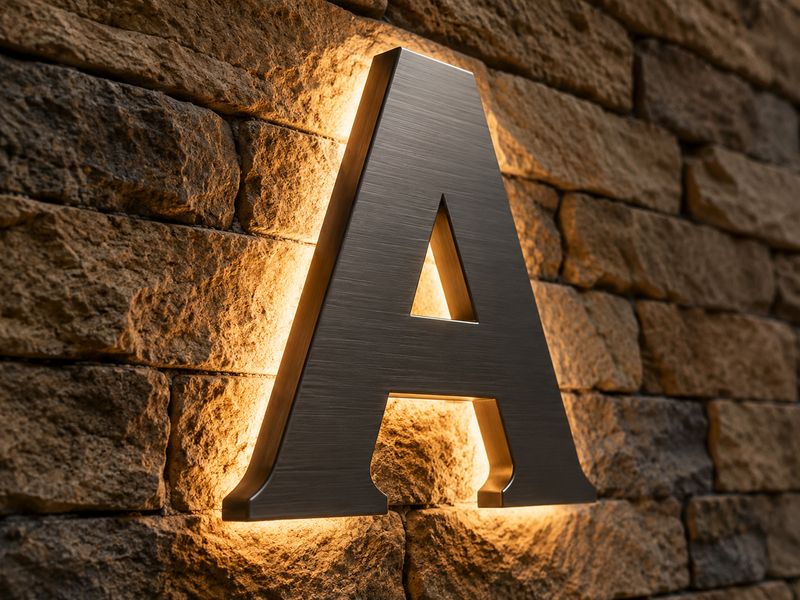

Texture creates another layer of variation. Brick faces, stone grains, mortar joints, stucco peaks, and ribbed cladding do not sit at one uniform distance from the LEDs. Raised areas receive more light. Recessed areas remain darker. A halo can therefore look striped, broken, or patchy even when every LED is working correctly.
Wall flatness is especially important for long words and large logos. A small change in the gap behind one section can alter both brightness and halo width. For example:
- A closer wall area usually creates a tighter, brighter band.
- A recessed wall area usually creates a wider, weaker band.
- A panel joint can create a visible break through the halo.
- A bowed panel may make one side of a letter look stronger than the other.
- Uneven spacers can tilt the letter and change the reflection pattern.

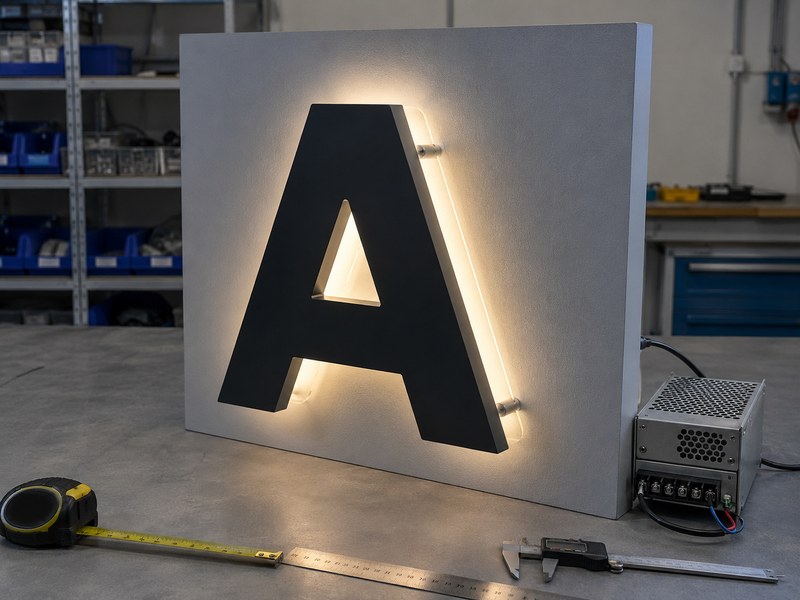

Factory lighting tests confirm the internal LED arrangement and electrical stability, but they cannot reproduce every building surface. Wall photos, close-up texture images, material samples, and accurate installation dimensions reduce the gap between the factory test and the completed sign.
How Does Background Contrast Affect Readability?
Halo-lit letters have two separate readability conditions: unlit daytime visibility and illuminated nighttime visibility.
During the day, recognition depends mainly on the contrast between the letter face and the wall. At night, recognition depends on the letter silhouette, reflected halo, ambient light, and viewing distance.
A color combination that performs well at night may perform poorly during the day. Brushed silver letters on a light gray wall can produce an elegant white halo after dark, yet the letter faces may blend into the background before the LEDs are switched on. White letters on a cream reception wall may have the same problem.
Dark letters on a pale wall usually provide strong daytime contrast, while pale metal letters on a charcoal wall can look clear and premium in daylight. The nighttime result may reverse: the pale wall creates a stronger halo, while the charcoal wall absorbs more rear light.
The four common combinations can be assessed as follows:
| Letter-to-wall relationship | Daytime result | Nighttime result | Main design concern |
|---|---|---|---|
| Dark letters on a light wall | Strong face contrast | Strong reflected halo | Halo may become too broad |
| Light letters on a dark wall | Strong face contrast | Weaker reflected halo | Night output may be insufficient |
| Light letters on a light wall | Low face contrast | Strong halo | Letters may disappear when unlit |
| Dark letters on a dark wall | Low face contrast | Weak halo | Poor recognition during both periods |
Face finish also changes contrast. Brushed metal, mirror stainless steel, painted aluminum, plated gold, and matte black do not react to sunlight or interior lighting in the same way. Mirror stainless steel may reflect the surroundings and appear bright in one direction but dark in another. Brushed metal offers a more stable appearance but can still blend into similarly colored walls.
The required viewing distance should guide the decision. A reception logo viewed from 3–8 meters can use restrained contrast and a narrow decorative halo. A storefront sign viewed from across a road needs clearer letter shapes, stronger separation, and more predictable night visibility.
A practical review should answer four questions:
- Can the complete name be read before the LEDs switch on?
- Can each letter remain separate after the halo is visible?
- Do narrow spaces inside the logo remain open?
- Is the sign still recognizable from the longest expected viewing distance?
If the answer changes significantly between day and night, the face color, return color, LED output, standoff, or lighting structure needs further adjustment.
Do Wall Color and Ambient Light Work Together?
Wall color cannot be judged without considering surrounding light. A dark wall in a softly lit hotel lobby may support a subtle, controlled halo. The same dark wall beside bright ceiling lights, display windows, streetlights, or parking-lot floodlights may make the halo difficult to see.
Ambient light reduces the visible difference between the illuminated area and the rest of the wall. The LEDs may be working at full output, but the halo can still look weak because the background is already brightly lit.
The most demanding viewing period is often not full darkness. It is dusk, early evening, or a brightly illuminated interior. During full darkness, even a relatively low-output halo may appear obvious. During the transition period, the remaining daylight or architectural lighting can overpower the reflected glow.

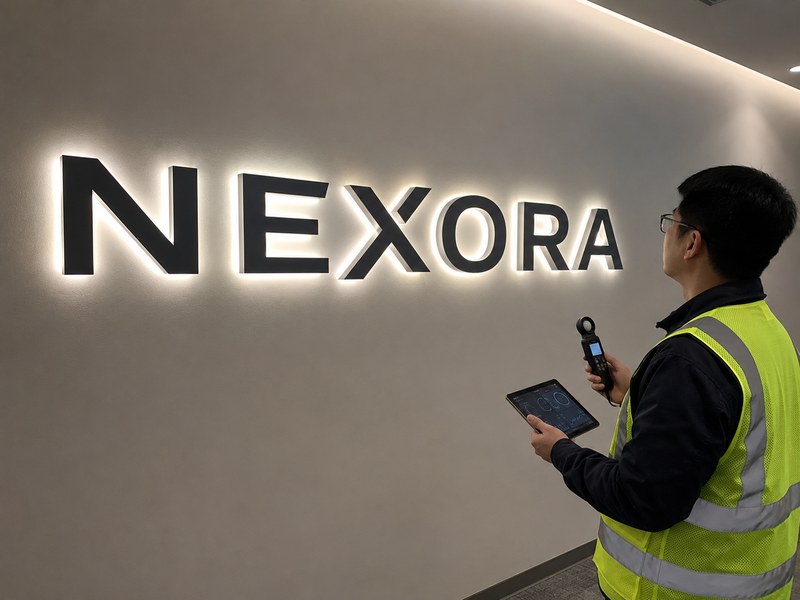

A useful lighting review should include at least three operating conditions:
| Test condition | What it reveals |
|---|---|
| Daytime with LEDs off | Letter-face contrast and physical readability |
| Dusk or normal indoor lighting | Whether ambient light overpowers the halo |
| Full darkness | Halo width, hot spots, overlap, and color shift |
Where dimming is included, testing at several output levels gives a more useful result than checking only 100% brightness. A practical commissioning sequence can compare approximately 25%, 50%, 75%, and full output. The final setting should be selected according to the space rather than automatically left at maximum.
High output is not suitable for every location. Reception areas, hotels, restaurants, medical spaces, and premium retail interiors often need soft, even illumination with low glare. Iduoduo’s engineering process reviews brightness together with indoor or outdoor use, viewing distance, ambient light, background color, LED type, panel material, product depth, photography requirements, and dimming.
Increasing brightness without addressing the background can create new problems:
- The area close to the letter becomes overexposed.
- Small LED points become easier to see.
- Adjacent letter halos merge.
- Reflections appear on glossy materials.
- Cameras record an oversized white glow.
- Electrical load and internal heat increase.
- The intended premium appearance becomes harsh.
Where ambient light is strong, better options may include a lighter local backer, a slightly different LED color, improved letter spacing, a revised standoff distance, or front-and-halo-lit construction. The right response depends on whether the sign must provide long-distance identification, close-range atmosphere, or both.
Wall color is therefore not a decorative detail added after the letter design. It is a working part of the lighting system. The background should be confirmed early enough for the LED arrangement, letter depth, spacing, power configuration, dimming, mounting hardware, and testing standard to be developed around the real installation conditions.
Which Wall Colors Work Best?

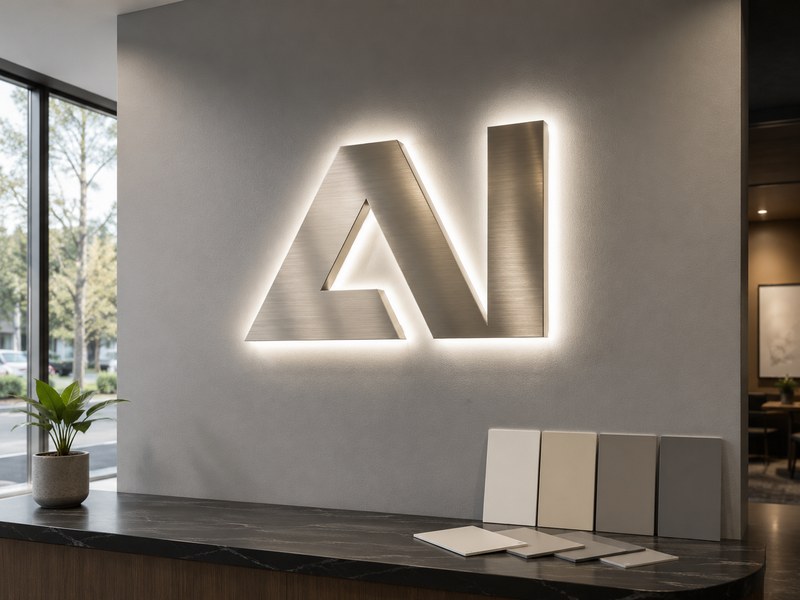

Light neutral walls usually create the brightest and most even halo because they return more rear-facing light toward the viewer. Medium gray walls often provide the best balance between daytime contrast and nighttime glow. Dark walls can still produce a refined result, but LED output, color temperature, standoff distance, letter spacing, and ambient lighting require closer control.
Are Light-Colored Walls Always Better?
White, off-white, cream, beige, and light gray walls are normally the easiest backgrounds for halo-lit channel letters. More of the rear-facing LED light is reflected instead of absorbed, so the halo tends to appear wider, brighter, and more continuous.
Wall reflectance is often expressed through Light Reflectance Value, or LRV. The scale runs from 0 for a surface that reflects almost no visible light to 100 for a theoretical surface reflecting nearly all visible light. Actual paint values should come from the paint manufacturer’s technical data.
The following ranges are useful during early planning:
| Approximate LRV | General wall category | Likely halo behavior |
|---|---|---|
| 80–95 | Bright white | Strong, wide reflection; small lighting differences may be easy to see |
| 60–79 | Off-white and pale neutral | Bright, smooth halo with good optical efficiency |
| 40–59 | Light-to-medium gray or beige | Balanced halo with useful daytime contrast |
| 20–39 | Medium-to-dark colors | Narrower halo; output and spacing need closer review |
| 5–19 | Charcoal, navy, deep brown | Much more light absorption; halo may look restrained |
| Below 5 | Near-black | Limited reflected spread; sample testing is strongly recommended |
LRV helps compare paint colors, but it does not predict the finished sign by itself. A matte wall with an LRV of 60 may produce a more even halo than a glossy wall with an LRV of 75. Texture, ambient light, LED beam angle, wall flatness, and mounting distance remain important.
A pale wall can also create several practical problems:
- A high-output LED layout may produce an oversized glow.
- Halos from closely spaced letters may merge.
- Narrow spaces inside letters can fill with reflected light.
- Small variations in LED spacing may become easier to notice.
- Pale metal or white faces may lose daytime contrast.
- Night photographs may show an overexposed white area instead of a defined outline.
For example, brushed aluminum letters on a light gray office wall may look elegant after dark but almost disappear when switched off. Matte black returns, darker faces, a deeper letter body, or a controlled shadow line may improve daytime visibility without changing the halo color.
Light walls are therefore optically efficient, not automatically perfect. The preferred result is a controlled glow that keeps each letter separate and readable. Maximum reflected brightness is rarely the real goal.
A practical test on a pale wall should check the sign at several output levels rather than only at full brightness. Testing at approximately 25%, 50%, 75%, and 100% output can reveal where the halo becomes smooth without becoming oversized. A compatible dimming system is especially useful for white reception walls, hotels, restaurants, and premium retail interiors.
What Happens on Black or Dark Gray Walls?
Black, charcoal, dark gray, navy, deep green, and dark brown walls absorb more light than pale finishes. The glow usually remains strongest close to the rear edge of the letter and fades more quickly as it moves outward.
The result is often a narrower and more restrained halo. Such an effect can look deliberate and high-end in a hotel lobby, jewelry store, restaurant, corporate reception, or luxury retail space. Problems arise when a soft decorative halo is expected to provide long-distance identification.
Typical dark-wall behavior includes:
| Visible result | Likely reason | Practical response |
|---|---|---|
| Halo is visible only near the letter edge | High light absorption | Review LED output and wall gap |
| Corners appear weaker than straight strokes | Insufficient beam overlap | Refine module placement and letter depth |
| One side looks stronger | Wall is uneven or nearby light interferes | Check wall flatness and ambient lighting |
| Halo disappears at dusk | Background lighting reduces contrast | Review operating brightness or lighting type |
| Metal face is clear by day but weak at night | Strong daytime contrast, limited reflection | Consider front-and-halo illumination |
| Increasing power creates bright points | Output increased without improving diffusion | Adjust layout, optics, or standoff instead |
More LED power is not always the best correction. A dark wall can absorb the outer spread even when the area immediately behind the letter becomes very bright. Adding too much output may increase heat, power demand, glare, and visible hot spots without creating the intended halo width.
Several engineering changes can be considered:
- Refine the LED module spacing instead of simply adding modules.
- Use an LED system with a suitable beam angle.
- Increase the overlap between light beams around corners.
- Adjust the letter-to-wall distance.
- Select a lighter or visually stronger LED color.
- Add dimming so the output can be commissioned on-site.
- Use a lighter local backer behind the letters.
- Change from halo-lit to front-and-halo-lit letters where direct recognition is required.
Dark walls often work well with pale or reflective faces. Brushed stainless steel, champagne gold, white-painted metal, or light bronze can provide strong daytime separation. The face finish should still be tested under real architectural lighting. Mirror stainless steel can appear bright from one angle and unexpectedly dark from another because it reflects the surroundings.
The intended viewing distance also changes the decision. A 300 mm-high reception logo viewed from 3 meters can rely on a narrow decorative glow. A 900 mm-high storefront name viewed across a parking area may need direct face illumination in addition to the halo.
Iduoduo’s halo-lit letter engineering framework treats wall color as one part of a larger optical calculation. Letter depth, LED arrangement, standoff distance, wall flatness, ambient light, and spacing between letters are reviewed together because changing one condition can alter the others.
Do Colored Walls Change the Perceived Halo Color?
A colored wall can change how an LED color appears after reflection. The LEDs may emit a specified white, blue, red, green, or amber light, but the visible halo contains light returned by the mounting surface.
A warm beige wall can make neutral white LEDs look warmer. Blue-gray paint may make cool white LEDs appear colder. Red brick can add a warm or reddish tone to a white halo. Green or blue brand walls may alter the edge of colored lighting, especially where the halo becomes softer and less intense.
The effect is most noticeable with saturated wall colors. A surface absorbs some wavelengths and reflects others, so the final halo may not match the LED sample seen in open air.
The following combinations are common starting points:
| Wall color | LED option to evaluate | Likely visual result | Main risk |
|---|---|---|---|
| White | 3000–6500 K white | Clean and bright | Overly wide or overexposed halo |
| Warm cream or beige | 2700–4000 K white | Soft, warm appearance | Neutral white may appear yellow |
| Cool light gray | 4000–6000 K white | Crisp, modern appearance | Cool white may feel clinical |
| Charcoal or black | 4000–6500 K white | Stronger perceived separation | Halo may remain narrow |
| Natural timber | 2700–3500 K white | Warm hospitality appearance | Timber grain changes reflected color |
| Red or brown brick | 3000–4500 K white | Warm, textured glow | Mortar joints interrupt the halo |
| Blue wall | Neutral or cool white | Cooler brand environment | Blue LEDs may lose edge definition |
| Green wall | Neutral white | More controlled color balance | Colored LEDs may appear muddy |
| Saturated red wall | Neutral or cool white | Strong visual contrast | Red or warm LEDs may blend into the wall |
These are starting directions, not fixed specifications. A 3000 K LED from one supplier may not look identical to another, and paint under architectural lighting can appear different from the same paint under daylight.
Brand-color halos need even more care. RGB and RGBW systems allow color adjustment, but a digital color value does not guarantee the same reflected result on every surface. A blue light setting that looks accurate on a white factory test board may become darker and less saturated on red brick.
For color-sensitive work, the approval process should include:
- The actual LED type or approved equivalent
- LED color temperature or color range
- The intended wall paint code
- Wall finish and texture
- Metal face and return finish
- Planned standoff distance
- Normal architectural lighting
- Photographs of the illuminated sample
- An agreed tolerance for visible color variation
A small paint chip helps confirm the general color direction, but it may not show how a full halo spreads across the finished wall. A larger sample panel or first article gives a more useful result when brand consistency is critical.
Which Combinations Work by Day and Night?
The most suitable color combination must work when the sign is off as well as when it is illuminated. Daytime visibility depends mainly on the contrast between the letter face and the wall. Nighttime visibility depends on the halo, letter silhouette, ambient light, and viewing distance.
A common mistake is approving only a dramatic nighttime rendering. A sign can look excellent in the rendering but become difficult to read during business hours.
The four basic face-and-wall relationships perform differently:
| Letter face and wall | Daytime visibility | Nighttime halo | Typical concern |
|---|---|---|---|
| Dark face on pale wall | Usually strong | Bright and wide | Halo may merge between letters |
| Pale face on dark wall | Usually strong | Softer and narrower | Rear lighting may be too weak |
| Pale face on pale wall | Often weak | Usually bright | Sign disappears when switched off |
| Dark face on dark wall | Often weak | Usually restrained | Low visibility during both periods |
Material finish changes the result further. Matte black remains visually stable under many lighting conditions. Brushed stainless steel changes slightly with viewing angle but usually stays readable. Mirror-polished metal can reflect the wall, sky, trees, lights, vehicles, or people and may appear inconsistent throughout the day.
A practical color review should cover at least four operating periods:
| Operating period | Main question |
|---|---|
| Bright daytime | Can the full name be read with the LEDs off? |
| Late afternoon or dusk | Does remaining daylight overpower the halo? |
| Normal evening operation | Are the halo width and brightness appropriate? |
| Full darkness | Do hot spots, color shifts, or merged halos become visible? |
Useful combinations for common commercial settings include:
| Setting | Wall direction | Letter-face direction | Lighting direction |
|---|---|---|---|
| Office reception | Light or medium gray | Black, bronze, or brushed metal | Neutral or warm white halo |
| Luxury retail | Charcoal or deep neutral | Champagne, brass, or pale metal | Controlled warm or neutral halo |
| Hotel lobby | Stone, timber, beige, or dark neutral | Bronze, gold, or dark painted metal | Warm white with dimming |
| Restaurant | Brick, timber, dark green, or warm neutral | Black, bronze, or pale metal | Warm white; sample textured walls |
| Modern storefront | White, gray, or black cladding | High-contrast painted or metal face | Neutral or cool white |
| Medical or wellness space | White or pale neutral | Medium gray, brushed metal, or soft color | Neutral white at restrained output |
| Long-distance exterior sign | Medium or dark facade | High-contrast face | Consider front-and-halo lighting |
| Branded interior wall | Brand-color paint | Neutral metal face | Test LED color against actual paint |
The ideal wall is not always the lightest wall. Medium gray frequently offers a useful compromise: enough reflectance for a visible halo, enough background contrast for many metal finishes, and less risk of an oversized glow than bright white.
Before production, the final choice should be checked against five practical questions:
- Will the face remain readable when the LEDs are off?
- Will the wall reflect enough light under normal evening conditions?
- Will adjacent halos remain separate?
- Will the wall alter the intended light color?
- Does the sign need atmosphere, long-distance identification, or both?
When one color arrangement cannot satisfy daytime and nighttime requirements, the solution may come from the structure rather than the paint. A contrasting backer, revised face finish, controlled dimming, greater letter spacing, or front-and-halo-lit construction can provide a more reliable result without requiring the entire wall to be repainted.
How Do Finish and Texture Change the Halo?
Wall finish controls how reflected light spreads, while texture controls how evenly the light reaches the surface. Matte, flat walls normally create a softer and more continuous halo. Glossy surfaces can produce glare or visible reflections. Brick, stone, stucco, panel joints, and uneven cladding may interrupt the glow, change its width, or make one part of a letter look brighter than another.
Are Matte Walls Better Than Glossy Walls?
Matte walls are generally more suitable for halo-lit channel letters because they scatter light across a wider range of angles. Instead of reflecting the LED light in one narrow direction, a matte surface spreads the light around the rear edge of each letter. The halo remains visible when someone walks across a lobby, approaches a storefront from the side, or views the sign from below.
Glossy walls behave differently. A polished surface can reflect plenty of light, but the reflection may be concentrated in a limited direction. The sign may look bright from one position and noticeably weaker from another. Gloss can also reveal details normally hidden behind the letters, including LED points, clear back panels, wiring shadows, spacers, studs, and uneven wall gaps.
The finish level often matters as much as the wall color:
| Wall finish | Expected halo behavior | Common concern | Practical direction |
|---|---|---|---|
| Flat paint | Soft, broad diffusion | Surface marks may remain visible | Usually suitable without major optical correction |
| Matte paint | Even halo from many angles | Small wall repairs may show under light | Confirm color and wall flatness |
| Eggshell | Moderate diffusion with slight sheen | Mild directional brightness | Review from front and side angles |
| Satin | Brighter local reflection | Uneven brightness may become visible | Test the planned LED output |
| Semi-gloss | Stronger glare and sharper reflection | LED points or hardware shadows | Consider lower output or greater diffusion |
| High-gloss lacquer | Highly directional reflection | Bright streaks, mirrored details, changing appearance by angle | Physical sample strongly recommended |
| Glass or mirror metal | Reflection rather than a soft halo | Wiring, rear panels, people, and surrounding lights may be visible | Use a controlled secondary backer |
A common mistake is judging a glossy wall from a single front-facing photograph. Mobile-phone cameras automatically adjust exposure, often making the halo look smoother than it appears in person. A photo taken one meter to the left may show a completely different reflection.
For reception areas and retail interiors, the review should include at least three viewing positions:
- Directly in front of the sign
- Approximately 30–45 degrees from the left
- Approximately 30–45 degrees from the right
The sign should also be checked from the normal eye level and from the lowest expected approach angle. A letter mounted high above a reception desk may reflect differently toward someone standing below it than toward a camera placed directly opposite the logo.
Glossy paint does not always require a backer or a different sign type. A controlled result may come from reducing brightness, changing the LED beam angle, increasing diffusion at the rear panel, or revising the standoff distance. The correction should address the reflection pattern rather than simply reducing the total number of LED modules. Removing modules can introduce dark sections around curves and corners.
Matte surfaces are more forgiving, but they still need inspection. Patches of filler, touch-up paint, overspray, fingerprints, and areas polished during cleaning may have a different sheen from the surrounding wall. Once the halo is switched on, those differences can become more noticeable.
How Do Brick, Stone, and Stucco Scatter Light?
Brick, natural stone, split-face block, concrete, and stucco can produce attractive architectural halos, but the glow will follow the physical surface rather than the clean outline shown in a rendering.
A rough wall contains hundreds of small planes facing different directions. Raised areas receive more direct light. Recessed areas receive less. Mortar joints may sit several millimeters behind the brick face, while split stone can project forward by 10, 20, or even more millimeters. Light therefore reaches each area at a different angle and distance.
The relationship becomes easier to understand with a simple example. If a letter is designed with a 40 mm wall gap and the stone varies by 10 mm, the effective distance may change by 25% across a small area. A section projecting forward can receive a tighter and brighter halo, while a recessed section receives a broader and weaker glow.
The following texture ranges are useful for early site review. They are visual planning ranges rather than fixed manufacturing standards.
| Approximate surface variation | Typical examples | Likely effect on the halo |
|---|---|---|
| 0–2 mm | Smooth painted board, fine plaster | Generally even and predictable |
| 3–8 mm | Light stucco, shallow brick texture | Minor changes in brightness and edge shape |
| 9–20 mm | Standard brick joints, uneven stone | Visible breaks, shadows, and changing halo width |
| Over 20 mm | Split-face block, deep stone relief | Strong irregularity; backer or site sample often needed |
Brick walls introduce three separate variables:
- The brick face may reflect one amount of light.
- Mortar may reflect another amount.
- Joints create a changing distance behind the letters.
A white halo on red brick may look warmer because the surface reflects red and brown wavelengths. Gray mortar can cut darker lines through the glow. If a narrow letter stroke sits directly over a deep mortar joint, one side of the halo may appear incomplete.
Natural stone presents similar issues, with additional color variation. A panel containing cream, gray, brown, and black mineral areas may create a visibly different halo around each section of the same letter. Increasing brightness does not remove the variation because the wall continues to return different amounts and colors of light.
Stucco usually scatters light more evenly than split stone, but heavy texture can create hundreds of small highlights and shadows. A soft halo may begin to look grainy at close range. Such a result may be acceptable above an exterior storefront viewed from 15 meters, yet distracting behind a reception desk viewed from 2 meters.
Viewing distance therefore matters:
| Typical viewing distance | Texture visibility |
|---|---|
| 1–3 m | Small shadows, LED patterns, mortar breaks, and wall defects are easy to notice |
| 4–8 m | Minor irregularities begin to blend together |
| 9–15 m | Overall letter shape becomes more important than fine texture |
| Over 15 m | Halo brightness and identification usually matter more than local surface detail |
A greater standoff can help light from adjacent LED modules overlap before reaching a rough wall. It may soften small variations, but it cannot make deep stone or brick behave like a flat panel. A very large gap can also widen the halo until adjacent letters visually merge.
For textured walls, installers should provide:
- A straight-on photo of the complete sign area
- Close-up photos showing the surface relief
- A side photo showing the depth of the texture
- A ruler or known object for scale
- Wall material and joint dimensions
- Night photos with nearby lighting switched on
- Confirmation of where each letter will cross a joint
When a precise, continuous halo is required, a controlled backer often provides a more reliable result than repeated changes to LED quantity.
Do Uneven Walls Create Hot Spots or Dark Areas?
Uneven walls can create both hot spots and dark areas even when every LED module is operating correctly. The problem comes from changes in the letter-to-wall distance.
A letter mounted 45 mm from the wall may produce a balanced halo during a factory test. After installation, one side may sit 35 mm from a bowed panel while the other sits 55 mm from a recessed area. The closer side normally appears brighter and tighter. The farther side appears wider and weaker.
Several site conditions can cause the gap to change:
- Bowed aluminum composite panels
- Uneven plaster or render
- Raised tile edges
- Deep cladding joints
- Stone projections
- Different spacer lengths
- Studs installed at an angle
- Letters tightened unevenly
- Wall sections repaired after measurement
- Cable outlets preventing the letter from sitting squarely
The visible pattern often helps identify the source:
| Visible symptom | Possible wall or installation cause | First check |
|---|---|---|
| One complete side is brighter | Letter is tilted or wall plane changes | Measure the gap on all sides |
| Bright patch behind one corner | Corner sits closer to the wall | Check spacer length and wall projection |
| Dark line through several letters | Cladding or mortar joint crosses the sign | Compare the line with the wall layout |
| Halo width changes gradually | Wall bows inward or outward | Check the wall with a straightedge or laser |
| Similar dark corners on every letter | LED layout or internal geometry | Compare with factory lighting records |
| Only one letter looks different | Mounting, wiring, wall gap, or local surface | Inspect the individual installation |
| Halo changes when viewed from the side | Glossy or directional reflection | Review the sign from several angles |
| Random flickering or changing brightness | Electrical rather than wall-related | Check power, wiring, and connections |
The table is useful because not every dark area is an LED failure. Replacing LED modules will not correct a bowed wall, a deep joint, or a letter installed out of level.
Before drilling, the installation team should check the mounting area with a long straightedge, laser level, or another suitable method. The inspection should cover the full word or logo rather than only the center point. A 2-meter-wide logo can cross several wall panels with different planes.
Spacer control is equally important. Where separate spacers are installed behind individual studs, their finished lengths should match the approved standoff. Compressible washers, excessive sealant, and uneven tightening can alter the final distance. Installers should avoid pulling a letter tightly against an uneven wall merely to make every spacer touch.
A useful commissioning check is to measure the gap at the top, bottom, left, and right of several representative letters. For large letters, additional measurements may be needed around long strokes and curves. A variation of only a few millimeters may be acceptable on a wide, soft halo, while the same variation can be visible on a narrow, sharply defined halo.
Factory testing and site testing serve different purposes. Iduoduo checks illuminated products for brightness, color consistency, hot spots, dark areas, corner coverage, halo quality, and electrical stability. Optical records can include the LED model, module spacing, letter depth, rear panel, standoff, dimming equipment, test photos, and approved sample.
A flat factory test wall verifies the product under controlled conditions. It cannot reproduce a building wall whose texture, gloss, color, or plane differs from the approved information. Final commissioning should therefore compare the installed result with the approved structure while also checking the real wall gap and ambient lighting.
Is a Backer Panel Needed on Difficult Surfaces?
A backer panel is worth considering when the original wall prevents the halo from appearing consistently or makes direct installation unnecessarily difficult. The backer creates a known surface behind the letters, allowing the halo to reflect from a selected color and finish rather than from brick, stone, glass, dark cladding, or an uneven wall.
A backer can solve several problems at the same time:
- Create a smooth, matte reflection surface
- Improve halo brightness on a dark wall
- Reduce color shift from saturated paint or brick
- Cover cladding joints and strong texture
- Keep the wall gap more consistent
- Organize wiring behind one assembly
- Reduce the number of visible wall penetrations
- Help repeat the same appearance across several locations
- Allow preassembly before shipment
- Provide clearer positioning for a complex logo
However, adding a backer changes the sign. Individual floating letters become a larger sign assembly, and the building receives more visual mass. Weight, wind load, drainage, thermal movement, access, packaging volume, and installation equipment may all change.
Common backer options include:
| Backer type | Main advantage | Main limitation |
|---|---|---|
| Painted aluminum panel | Durable, stable, available in matte finishes | Requires suitable reinforcement at larger sizes |
| Aluminum composite panel | Flat and relatively lightweight | Edges and fixings require careful detailing |
| Fabricated metal tray | Can conceal wiring and power components | Adds depth, weight, cost, and wind area |
| Acrylic panel | Clean appearance for interior work | May reflect light, scratch, or show internal details |
| Raceway with extended face | Combines mounting and wiring support | More industrial appearance |
| Local wall insert | Can match the interior or facade design | Requires coordination with the building contractor |
The backer color should be selected for both illumination and daytime appearance. White provides efficient reflection but may create excessive contrast with a dark facade. Medium gray often gives a softer architectural result. A brand color may look attractive during the day but shift the halo after dark.
The backer also needs enough clear area around the letters. If its edge sits too close to the expected halo, the glow may stop abruptly at the panel boundary. As an early layout check, the panel should extend beyond the planned visible halo rather than ending immediately behind the metal returns. The exact margin depends on the standoff, LED beam, output, letter size, and desired glow width.
A backer becomes especially useful in the following conditions:
| Site condition | Backer value |
|---|---|
| Very dark wall | Provides a lighter reflection surface |
| Deep brick or stone | Creates a flatter optical plane |
| Glass wall | Conceals wiring and prevents unwanted reflections |
| Ribbed metal cladding | Avoids repeated bright and dark bands |
| Multiple wall joints | Keeps the halo from breaking at each joint |
| Weak or fragile decorative finish | Reduces direct attachments to the finish |
| Multi-location rollout | Helps standardize color, spacing, wiring, and mounting |
| Renovation with unknown cable routes | Provides space for controlled cable management |
A backer may be unnecessary when the wall is smooth, matte, reasonably reflective, structurally suitable, and compatible with the desired appearance. Adding one without a clear reason can make a refined halo-lit logo look heavier and more like a cabinet sign.
Before approving a backer, the project drawing should confirm:
- Overall panel dimensions
- Panel material and thickness
- Surface color and gloss level
- Letter positions and spacing
- Letter-to-backer distance
- Panel-to-wall construction
- Cable entry and exit points
- Power supply location
- Access for maintenance
- Drainage for exterior installations
- Fixing points and local anchorage
- Sectioning for manufacturing and shipping
- Final packed dimensions and weight
Different walls also require different mounting methods, and factory-supplied hardware cannot replace local verification of substrate strength, material compatibility, and anchor selection.
For a difficult wall, the decision should not be reduced to “add brighter LEDs” or “add a backer.” Start by identifying the actual problem: low reflectance, gloss, texture, unevenness, wiring exposure, weak anchorage, or a combination of several conditions. Once the cause is clear, the letter structure, standoff, lighting, mounting, and backer can be developed as one complete system.
How Should the Letters Be Engineered?
Halo-lit channel letters should be engineered around the actual wall, viewing distance, ambient light, letter geometry, and required visual effect. Standoff distance, LED position, beam angle, letter depth, rear-panel material, power capacity, wiring groups, dimming, and spacing between letters must be coordinated. Changing one item without reviewing the others often creates hot spots, dark corners, merged halos, weak output, or difficult on-site wiring.
How Does Standoff Distance Change the Halo?
Standoff distance is the clear gap between the rear of the letter and the finished wall. It gives rear-facing light room to spread before reaching the mounting surface.
A smaller gap tends to create a tighter, brighter outline close to the edge of the letter. A larger gap generally creates a wider, softer halo. Neither direction is automatically better. The correct gap depends on the letter size, stroke width, wall color, wall texture, LED beam angle, brightness, and spacing between nearby letters.
The following values are useful as mock-up starting points rather than fixed production standards:
| Approximate standoff | Likely visual result | Main risk |
|---|---|---|
| 25–35 mm | Tight, clearly defined halo | LED points and bright edge bands may become visible |
| 35–50 mm | Controlled spread around most letters | Corners and narrow strokes still need checking |
| 50–65 mm | Wider, softer architectural glow | Adjacent halos may begin to overlap |
| 65–75 mm or more | Broad and diffused halo | Lower intensity, blurred outlines, larger projections |
A 40 mm gap may work well for a medium-sized office logo on a smooth light gray wall. The same gap may be too small on rough stone because every projection and recess becomes visible. It may also be too bright on a highly reflective white wall or too weak on charcoal cladding.
Letter size changes the way the gap appears. A 40 mm gap behind a 200 mm-high letter is a major part of the total depth. The same 40 mm gap behind a 1,000 mm-high storefront letter appears much tighter in proportion.
An early proportion check can compare standoff with letter height:
| Letter height | Common visual requirement | What should be checked first |
|---|---|---|
| 150–300 mm | Refined close-range halo | Hot spots, visible studs, narrow counters |
| 300–600 mm | Balanced interior or storefront effect | Corner coverage and letter separation |
| 600–1,000 mm | Stronger exterior visibility | Wall reflectance and ambient lighting |
| Over 1,000 mm | Large facade identification | Output consistency, wiring groups, service access |
These ranges do not replace a lighting test. A narrow script letter and a wide block letter of equal height cannot use the same LED arrangement simply because their outside dimensions match.
Standoff also affects installation tolerances. A drawing may specify a 50 mm gap, but the installed gap can vary when:
- The wall bows inward or outward.
- Stone projections sit behind only part of a letter.
- Spacer lengths are inconsistent.
- Studs enter the wall at an angle.
- Sealant or washers compress unevenly.
- Cable outlets prevent the letter from sitting square.
- Installers tighten one side more than another.
A variation of 5 mm can be visible on a tight halo, especially around small letters. On a broad 60–70 mm halo, the same variation may be less obvious, although it can still change brightness.
The mounting detail should therefore show more than a general “stand off from wall” note. A useful drawing identifies:
- Approved finished standoff
- Spacer diameter and length
- Stud position
- Cable exit
- Rear-panel position
- Wall-side clearance
- Template reference points
- Any letter requiring different hardware
- Any area crossing a wall joint
- Whether the power supply is remote or concealed
A project with several letter sizes may need more than one standoff. Small text may require a tighter gap to preserve its shape, while a large logo symbol may need a wider gap for smoother beam overlap. Using one spacer length across every element is easier for installation but may not produce the best optical result.
Standoff must also be considered together with letter spacing. A wide halo behind tightly spaced letters can fill the gaps and make a word look like one illuminated block. Increasing the space between letters may help, but brand artwork cannot always be altered. Other options include reducing output, changing LED placement, controlling individual zones, or using a tighter gap.
Iduoduo’s channel-letter engineering records identify font, letter depth, LED layout, standoff distance, wall color, wall flatness, ambient light, and spacing between letters as connected halo variables. The structure is not approved by choosing one measurement in isolation.
Which LED Color Suits the Wall?
LED color should be selected after reviewing the wall, letter finish, surrounding architectural lighting, and desired brand atmosphere. A white LED is not visually neutral on every surface because the wall reflects and alters the light before the viewer sees the halo.
Common white-light ranges include:
| LED range | General appearance | Often considered for |
|---|---|---|
| 2700–3000 K | Warm, soft, slightly amber | Hotels, restaurants, timber, bronze, warm stone |
| 3000–3500 K | Warm white with clearer definition | Hospitality, boutiques, reception walls |
| 4000–4500 K | Neutral white | Offices, retail, gray walls, mixed materials |
| 5000–5500 K | Crisp cool white | Modern storefronts, dark cladding, technology brands |
| 6000–6500 K | Strong blue-white appearance | High-contrast exterior work where a cool effect is intended |
These ranges describe the general visual direction. Actual appearance varies by LED bin, brightness, supplier, rear-panel transmission, wall color, camera exposure, and nearby lighting.
Warm white normally works well with:
- Cream and beige paint
- Natural timber
- Warm stone
- Bronze and brass finishes
- Dark green hospitality interiors
- Restaurant and hotel environments
Neutral white is often easier to use with:
- Medium gray walls
- Brushed stainless steel
- White, black, or neutral painted letters
- Office receptions
- Shopping-center interiors
- Mixed warm and cool architectural lighting
Cool white can improve perceived separation on:
- Charcoal walls
- Black cladding
- Cool gray panels
- Blue-gray surfaces
- Modern exterior facades
A high color temperature should not be treated as a universal correction for dark walls. Cool white may appear brighter to the eye, but it can also feel harsh in a warm interior. A restaurant with 2700 K ceiling lighting may look visually inconsistent when a 6500 K sign is installed behind the reception counter.
Colored LEDs need even closer checking. Red, blue, green, amber, RGB, and RGBW lighting can shift after reflection from a saturated wall.
| Wall and LED combination | Likely issue | Better review method |
|---|---|---|
| Blue LED on red brick | Halo may look dull or purple at the edges | Test on a representative brick sample |
| Red LED on red paint | Low visual separation | Compare white, red, and front-and-halo options |
| Green LED on warm timber | Reflected color may look muddy | Review a full-size illuminated sample |
| Blue LED on blue wall | Outer halo may disappear | Use a neutral backer or stronger contrast |
| Warm white on cream wall | May appear more yellow than expected | Compare 3000 K and 4000 K |
| Cool white on blue-gray wall | May appear colder than the LED sample | Check under normal architectural lighting |
RGB systems provide adjustable colors, but digital control values do not guarantee identical reflected colors across different walls. A setting approved on a white test board may look completely different on timber, stone, or dark paint.
RGBW can be more flexible because a dedicated white channel may provide cleaner white light than combining red, green, and blue. It still requires proper controller capacity, wiring groups, voltage planning, and commissioning.
For chain-store work, the approval should record:
- LED manufacturer or approved equivalent
- LED color or color temperature
- Batch or bin information where required
- LED voltage
- Module spacing
- Beam angle
- Rear-panel material
- Letter depth
- Standoff distance
- Wall paint or material reference
- Controller or dimmer
- Approved test photos and video
- Approved sample or first article
The LED should be approved as part of the complete sign and wall combination, not as a loose component viewed on a workbench.
Iduoduo develops LED arrangements according to logo geometry, stroke width, product depth, diffuser material, LED beam angle, viewing distance, ambient light, wall reflectance, and brand requirements. Available lighting includes warm white, neutral white, cool white, single colors, RGB, RGBW, dimming, zoning, and project-specific controls.
How Should Brightness and Dimming Be Set?
Brightness should be planned for the real operating environment rather than set automatically at maximum output. A halo that looks weak in a bright factory may be too strong in a dim restaurant. A setting that looks excellent at midnight may nearly disappear during dusk or under shopping-center lighting.
The most useful question is not “How bright are the LEDs?” It is “How much contrast will the finished halo create against the wall during normal operating hours?”
Three site conditions should be reviewed:
| Operating condition | What should be checked |
|---|---|
| Daytime, LEDs off | Face contrast, finish, letter shape, shadows |
| Dusk or normal interior lighting | Whether ambient light overpowers the halo |
| Full darkness | Hot spots, overlap, color shift, excessive output |
For dimmable projects, a four-level check is practical:
| Output setting | Main purpose |
|---|---|
| 25% | Checks whether a soft halo remains continuous |
| 50% | Useful starting level for many controlled interiors |
| 75% | Checks stronger visibility without full output |
| 100% | Reveals maximum brightness, heat, hot spots, and overlap |
These percentages are commissioning checkpoints, not fixed operating requirements. The final setting may fall between them.
Reducing LED quantity is not the same as reducing brightness. Removing modules can leave dark corners, weak curves, and visible gaps between light sources. A better approach is usually to build a uniform LED layout and control the complete lighting level through a compatible dimmer or controller.
Brightness problems often come from a combination of causes:
| Visible problem | Possible cause | Engineering response |
|---|---|---|
| Halo is weak across every letter | Dark wall, high ambient light, low output | Review wall reflectance, output, LED color, or lighting type |
| Straight sections are bright but corners are dark | Poor beam overlap | Reposition modules around curves and corners |
| Bright dots appear close to the rear edge | Gap too short or modules too close to the back opening | Adjust standoff, LED position, or rear diffusion |
| First letters are bright and distant letters are dim | Voltage drop or wiring length | Recalculate wire size, feed points, and circuit groups |
| Halo looks good at night but disappears at dusk | Ambient light is too strong | Increase controllable output or use front-and-halo lighting |
| Adjacent letters merge into one glow | Output, gap, or spacing is excessive | Reduce dimming level, tighten halo, or revise optical zoning |
| Sign flickers at low dimming levels | Incompatible dimmer, power supply, or controller | Confirm component compatibility |
| Color changes when dimmed | LED or control behavior | Test the complete electrical system before approval |
The electrical plan should be developed alongside the optical plan. A large sign cannot be treated as one long LED run without checking power load, wiring length, voltage drop, connection points, and maintenance access.
The engineering package should confirm:
- 12 V or 24 V LED operation
- Total LED load
- Number and rating of power supplies
- Input voltage for the destination country
- Wire sizes and lengths
- Circuit groups
- Feed points
- Controller or dimmer capacity
- Cable exits
- Connector type
- Indoor or outdoor power-supply location
- Grounding and high-voltage connection responsibilities
- Access for later inspection or replacement
Long low-voltage wire runs can cause voltage drop. The letters farthest from the power supply may appear dimmer or change color under load. Larger signs may need several power feeds or separate groups rather than one feed at one end.
Separate groups are also useful when:
- The logo contains very different letter sizes.
- Front light and halo light require separate control.
- One section needs a lower output.
- RGB or RGBW zones are planned.
- The sign is divided for shipping.
- Maintenance should be possible without switching off the entire sign.
Electrical components should not be selected only by whether they can switch the sign on. They should remain stable during the expected daily operating time and under the intended dimming or control conditions.
Iduoduo’s electrical system planning considers LED load, 12 V or 24 V operation, wiring length, voltage drop, control requirements, installation environment, and destination market. Project records can include power-supply model, wattage, quantity, input voltage, plug, controller, wiring groups, connection drawings, and test results.
Illuminated products receive a 100% lighting inspection followed by a 72-hour pre-shipment test. The inspection covers brightness, color consistency, hot spots, dark areas, halo quality, corner coverage, control functions, flicker, electrical stability, and abnormal temperature rise.
Do Letter Depth and Spacing Affect the Result?
Letter depth determines how much internal space is available for LED placement, wiring, rear-panel construction, heat control, and mechanical strength. Spacing determines whether the individual halos remain separate or merge into an undefined glow.
A deeper letter does not automatically create a better halo. Depth is useful only when the internal components are arranged correctly.
The main effects of depth include:
| Depth-related factor | Why it matters |
|---|---|
| Internal LED position | Changes the angle and spread of rear-facing light |
| Wiring space | Prevents wires from blocking or shadowing the light |
| Rear-panel position | Influences output and diffusion |
| Structural rigidity | Helps large faces and returns remain straight |
| Heat distribution | Provides space around LEDs and wiring |
| Service access | Affects whether parts can be inspected or replaced |
| Overall projection | Changes appearance and may affect local sign limits |
The following depth ranges are common early discussion points, not universal specifications:
| Approximate letter depth | Typical visual use | Main engineering concern |
|---|---|---|
| 40–60 mm | Small interior letters and refined logos | Limited room for LEDs, wiring, and narrow strokes |
| 60–80 mm | Medium reception and retail letters | Balance between structure and optical space |
| 80–120 mm | Larger storefront letters | Weight, LED distribution, and mounting |
| Over 120 mm | Large architectural letters | Structural reinforcement, transport, service, and wind exposure |
The same depth cannot be applied blindly to every font. A wide block letter can accept a deeper return and several LED positions. A narrow script stroke may not provide enough internal room for the same hardware.
Stroke width should be checked before the letter depth is finalized. Narrow areas affect:
- LED module size
- Number of modules that can fit
- Wire routing
- Corner coverage
- Rear-panel width
- Stud locations
- Strength around joins
- Whether the halo stays continuous
The narrowest part of a logo often controls the structure for the whole set. A large symbol may be easy to illuminate, while one small tagline below it creates the real manufacturing limit.
Spacing must be reviewed in three forms:
- Spacing between separate letters
- Spacing inside letter counters
- Spacing between the main logo and secondary text
The expected halo width should be drawn around each element during engineering review. A wordmark may look perfectly spaced in the original vector file yet become crowded after each letter gains a 30–60 mm visible halo.
Common spacing problems include:
| Geometry | Likely lighting problem |
|---|---|
| Tight kerning | Neighboring halos merge |
| Small counters in “A,” “B,” “R,” “e,” or “a” | Interior spaces fill with light |
| Narrow gaps in scripts | Separate strokes look joined |
| Small tagline under a large logo | Large logo halo overwhelms the tagline |
| Thick and thin strokes in one font | Brightness varies across the same letter |
| Closely placed logo symbol and text | The complete arrangement loses separation |
When brand spacing cannot be altered, several optical controls are available:
- Use a tighter standoff.
- Reduce the dimming level.
- Adjust LED placement near crowded edges.
- Create separate lighting zones.
- Use light-blocking details inside the letter.
- Change the rear-panel transmission.
- Reduce output in the large logo while keeping the tagline readable.
- Use front illumination for the smaller text.
- Mount the complete arrangement on a controlled backer.
Letter spacing also affects installation. Small gaps may leave insufficient room for tools, studs, cable exits, and sealant. A visually attractive drawing can become difficult to install when every letter must be wired separately through a hard wall.
The production drawing should therefore show:
- Overall sign width
- Individual letter sizes
- Edge-to-edge spacing
- Baselines and alignment points
- Stud positions
- Cable exits
- Rear clearances
- Standoff
- Letter depth
- Backer or raceway dimensions
- Installation template references
For repeat orders, the saved file should include final artwork, dimensions, materials, colors, letter depth, LED, power supply, installation holes, cable exits, template, packaging, and QC records. Those records help maintain the same structure across later locations while still allowing voltage, wall condition, and destination-market requirements to be rechecked.
When Is Front-and-Halo Lighting Better?
Front-and-halo-lit letters are more suitable when rear-reflected light alone cannot provide enough recognition, or when the sign needs both direct visibility and an architectural glow.
The front face transmits light toward the viewer. Rear-facing LEDs produce a halo on the wall. The two directions solve different problems:
- Front light makes the letter face readable.
- Halo light separates the letter from the background.
- The combination adds depth without relying completely on wall reflectance.
Front-and-halo construction is often considered for:
| Site condition | Why the combined structure helps |
|---|---|
| Dark wall | Direct front light does not depend on wall reflection |
| Long viewing distance | Illuminated faces improve recognition |
| Strong surrounding light | Front output remains more visible than a soft halo |
| Large exterior facade | Face and halo provide two levels of visibility |
| Complex wall texture | Halo may remain decorative while the front carries the message |
| Mixed day and night use | Face color and illumination support different operating periods |
| Premium storefront | Halo adds depth while the front keeps the logo clear |
The combined structure is not simply a standard halo-lit letter with extra LEDs added to the face. It usually requires separate planning for:
- Translucent front face
- Opaque or controlled returns
- Rear light exit
- Front LED placement
- Rear LED placement
- Letter depth
- Internal light separation
- Front and rear brightness balance
- Front and rear LED color
- Power-supply load
- Wiring groups
- Dimming or zoning
- Rear panel
- Standoff
- Waterproofing and drainage
- Service access
Front and rear light should often be placed on separate circuits or control groups. A single brightness setting may make the front too bright while the halo remains weak, or create a strong halo while the face becomes visually overexposed.
A practical commissioning sequence tests the two directions independently:
| Test | What should be confirmed |
|---|---|
| Front light only | Face uniformity, edge definition, dark sections |
| Halo light only | Wall reflection, width, overlap, corner coverage |
| Both at equal output | Whether one direction dominates |
| Front reduced | Whether the halo gains visible depth |
| Halo reduced | Whether the face remains clear without excessive glow |
| Normal ambient light | Real operating balance |
| Full darkness | Glare, overexposure, and merged light |
Different colors can be used at the front and rear, but the combination must be deliberate. White front light with warm white halo is relatively easy to understand. Red front light with blue rear light creates a much stronger visual statement and may not suit every facade. Brand approval should cover both the unlit finish and every planned lighting mode.
Front-and-halo construction adds cost, components, wiring, heat, power demand, and testing time. It should be selected when the site benefits from two lighting functions, not because more illumination sounds safer.
Halo-only letters are often the better choice for:
- Close-range reception walls
- Controlled interior lighting
- Smooth, reflective surfaces
- Hotels and restaurants seeking a restrained effect
- Metal faces where the unlit finish carries the daytime appearance
Front-and-halo letters are often the stronger choice for:
- Exterior storefronts
- Dark or poorly reflective walls
- Long viewing distances
- Busy commercial environments
- Locations where the business name must remain directly illuminated
- Projects requiring separate daytime, evening, and late-night settings
Iduoduo’s records define front-and-halo letters as a more complex structure requiring simultaneous control of front brightness, rear halo, light colors, letter depth, LED distribution, rear construction, power capacity, wiring groups, and standoff distance.
Before production, the engineering approval should bring the complete system together:
| Approval item | Required decision |
|---|---|
| Artwork | Final vector file and version |
| Size | Overall width, height, and individual letters |
| Letter structure | Halo-only or front-and-halo |
| Metal finish | Face and return color or finish |
| Letter depth | Confirmed for geometry and internal components |
| LED system | Type, voltage, color, and layout |
| Rear construction | Clear or translucent panel and light-exit details |
| Standoff | Finished distance from the actual wall |
| Wall condition | Color, finish, texture, flatness, and material |
| Brightness | Fixed output, dimming, or separate zones |
| Electrical system | Load, power supplies, wiring groups, and controls |
| Installation | Studs, holes, cable exits, template, backer, or raceway |
| Environment | Indoor, outdoor, moisture, heat, and ambient light |
| Testing | Lighting standard, sample, photos, video, and 72-hour test |
A reliable halo does not come from a single “standard” depth, LED count, or mounting gap. It comes from matching the letter, light, wall, wiring, and installation as one finished system.
How Is the Final Effect Confirmed?
The final halo is confirmed by combining verified wall information, scaled site photos, approved drawings, a defined lighting standard, and physical testing where appearance carries high risk. Renderings show design intent, but only a sample or first article can verify the interaction among LED color, brightness, standoff, letter depth, surface color, texture, and surrounding light.
What Wall Information Is Needed?
A halo-lit letter cannot be fully evaluated from the logo file alone. The wall forms the reflecting surface, the fixing substrate, and part of the visible sign composition. Missing wall information can affect appearance, structure, wiring, installation time, and quotation accuracy.
The initial site record should cover five areas:
| Information group | Details to provide | Why it matters |
|---|---|---|
| Wall dimensions | Overall width, height, available sign area, obstacles | Confirms sign scale and clearances |
| Surface appearance | Color, paint code, gloss level, texture, panel joints | Affects halo brightness, color, and uniformity |
| Wall construction | Concrete, brick, stone, drywall, glass, metal cladding | Affects anchors, cable routing, and mounting |
| Lighting environment | Daylight, ceiling lights, facade lights, streetlights | Determines visible halo contrast |
| Installation conditions | Height, access, power location, cable route, service space | Affects hardware, template, wiring, and labor |
Wall color should be recorded more accurately than “white,” “gray,” or “black.” A useful color reference can include:
- Paint manufacturer
- Product series
- Color name
- Paint code
- Light Reflectance Value when available
- Matte, eggshell, satin, semi-gloss, or high-gloss finish
- Date of painting
- Whether touch-up painting will occur after installation
- Whether the wall color may change before opening
A paint code alone does not explain the full optical behavior. Two paints with a similar visible color may have different reflectance and gloss. A smooth matte gray wall may produce a more even halo than a lighter high-gloss wall.
For stone, brick, timber, and decorative panels, close-up dimensions are more useful than a general color name. Record:
- Maximum raised projection
- Approximate recess depth
- Mortar-joint width and depth
- Panel-joint width
- Rib spacing on metal cladding
- Grain direction on timber
- Color variation across the installation area
- Whether the surface is sealed, polished, or porous
Surface variation can be compared with the planned standoff. If the proposed wall gap is 40 mm and stone projections vary by 12 mm, the effective gap changes by 30% across the surface. A variation of that size can alter halo width and brightness around the same letter.
Wall flatness should be checked across the complete sign area rather than at one central point. Long words often cross several panels, repair zones, or construction joints. Suitable site tools may include a long straightedge, laser level, measuring tape, depth gauge, or local survey equipment.
The following measurements are especially useful:
| Measurement | Recommended record |
|---|---|
| Overall wall width and height | Millimeters or inches |
| Proposed sign width and height | Final installed dimensions |
| Distance to wall edges | Left, right, top, and bottom |
| Wall-plane variation | Maximum inward and outward deviation |
| Joint positions | Distance from a fixed reference point |
| Electrical outlet position | Horizontal and vertical coordinates |
| Installation height | Finished floor to sign baseline or centerline |
| Viewing distance | Nearest, typical, and longest viewing position |
Nearby objects should also be recorded. Shelves, doors, sprinklers, cameras, ceiling bulkheads, facade trims, downlights, columns, awnings, and landscaping can affect sign placement or cast light and shadows across the halo.
The local project team remains responsible for confirming actual dimensions, wall structure, anchorage, electrical access, permits, installation height, and working conditions. Factory renderings and mounting templates support production and installation, but they do not replace final site measurement.
How Should Site Photos Be Taken?
Good site photos allow the design and engineering teams to understand scale, color, texture, lighting, cable access, and viewing direction. One angled image from a mobile phone is rarely enough.
A useful photo set normally includes eight views:
| Photo | Purpose |
|---|---|
| Full straight-on wall view | Shows the complete installation area |
| Wide environmental view | Shows doors, windows, ceilings, neighboring signs, and traffic paths |
| Left 45-degree view | Reveals projections, depth, and side visibility |
| Right 45-degree view | Confirms the opposite approach angle |
| Close-up surface view | Shows paint finish, brick, stone, joints, or texture |
| Power-location view | Shows outlet, cable entry, or remote power-supply area |
| Daytime lighting view | Records daylight, shadows, and wall color |
| Night or operating-light view | Records architectural lights and ambient brightness |
A straight-on image should be taken with the camera facing the center of the wall. Strong perspective distortion makes logo placement and scale less reliable. The entire usable wall area should remain visible rather than being tightly cropped around the proposed logo.
Include a known measurement in at least one photograph. Suitable references include:
- A measuring tape fixed across the wall
- Two marked points with a confirmed distance
- A printed scale card
- A known wall-panel dimension
- A door or fixture with verified measurements
Avoid using an unverified door width as the only scale reference. Architectural features may differ from standard dimensions.
For textured walls, place a ruler or depth scale against the surface and photograph from the side. A front-facing photo can hide a 10–20 mm stone projection. Side lighting can help reveal relief, joints, and uneven areas.
Wall color should be photographed under normal daylight without strong image filters. Mobile phones may automatically change white balance, exposure, contrast, and saturation. A gray reference card or the actual paint code provides a stronger color record than a photograph alone.
Night photographs should be taken with the normal surrounding lights operating. Switching off every ceiling light or facade light creates an unrealistic condition and can make a weak halo appear stronger than it will during daily operation.
The night photo set should show:
- General ambient lighting
- Nearby illuminated shopfronts
- Ceiling spotlights
- Downlights aimed at the wall
- Window light
- Streetlights
- Parking-area lights
- Existing signs
- Reflections from glass or polished floors
Camera exposure should remain as consistent as possible. Automatic night mode can brighten dark areas, smooth hot spots, and expand the apparent halo. A photograph may therefore help explain the environment but should not be treated as a precise brightness measurement.
For exterior signs, take photos at several relevant periods:
| Time | Information gained |
|---|---|
| Midday | Wall color, shadows, daytime contrast |
| Late afternoon | Low-angle sunlight and facade reflections |
| Dusk | Most difficult period for visible halo contrast |
| Full darkness | Halo width, brightness, and surrounding light competition |
For interior signs, record the normal lighting scene rather than a temporary construction condition. Ceiling lights, display lights, reception lighting, and window blinds should be set as they will be during operation.
File naming also helps prevent confusion. A practical naming structure is:
Multi-location programs should include the store number or site code in every filename. Photos from different locations should not be placed into one folder without clear identification.
Can Renderings Predict the Final Halo?
Renderings are useful for approving proportion, placement, metal finish, general light color, and the intended character of the halo. They cannot accurately reproduce every physical property of the installed wall.
A rendering can help answer questions such as:
- Is the overall sign size suitable for the wall?
- Is the logo centered correctly?
- Are the letters too close to the ceiling or wall edges?
- Does the face finish contrast with the background?
- Does warm or cool white suit the interior?
- Could wide halos merge between closely spaced letters?
- Would a backer panel improve the overall composition?
- Is front-and-halo lighting more suitable than halo-only lighting?
A rendering cannot reliably prove:
- Exact luminous output
- Measured halo width
- Final brightness at dusk
- Reflection from glossy paint
- Light breaks across mortar joints
- Color shift on natural stone
- Visibility from every viewing angle
- Wall-plane variation
- Actual voltage drop
- Final camera appearance
- Installation tolerances
Digital images often make walls perfectly flat and uniformly colored. Real walls contain seams, patches, dust, shadows, texture, gloss variation, repair marks, and uneven mounting planes.
Renderings can also create false confidence when the glow is added as a soft graphic effect. A digital halo may remain equally wide around every stroke, including tight corners and narrow counters. Physical light behaves differently. LED beam overlap, rear openings, wall gaps, adjacent letters, and surface relief change the shape.
A useful rendering package should include more than one image:
| Rendering view | What should be reviewed |
|---|---|
| Daytime front view | Face contrast, scale, spacing, placement |
| Night front view | General halo character and letter separation |
| Day and night side view | Letter depth and wall projection |
| Close-up night view | Corners, counters, and narrow gaps |
| Environmental view | Relationship with nearby lighting and architecture |
| Optional alternate version | LED color, standoff, backer, or lighting-type comparison |
The rendering should be tied to defined technical assumptions. Without those assumptions, later production teams may interpret the visual differently.
Record at least:
- Final artwork version
- Overall dimensions
- Letter depth
- Face and return finish
- Rear-panel material
- LED color or color temperature
- Approximate standoff
- Wall color and finish
- Halo-only or front-and-halo construction
- Dimming or control requirement
- Intended operating environment
A useful approval note may state:
“The night rendering illustrates the intended visual direction. Final halo brightness, spread, and reflected color remain subject to the approved LED system, mounting distance, wall finish, ambient lighting, and installation conditions.”
Such wording does not reduce accountability. It separates design communication from physical testing and prevents a digital image from becoming an undefined lighting specification.
Renderings are strongest when used to compare alternatives under the same simulated conditions. For example, warm white and neutral white can be shown on the same wall, or 40 mm and 60 mm halos can be compared visually. Relative comparison is usually more reliable than treating one rendering as an exact prediction.
Iduoduo’s design and engineering process converts logos, storefront photos, architectural files, wall information, brand standards, and installation requirements into production-ready files through design review, engineering drawings, section drawings, material control, electrical planning, mounting details, revision control, and final production approval.
When Is a Sample or Lighting Test Needed?
A sample is most valuable when one or more project conditions cannot be judged reliably from drawings and renderings. Halo-lit letters on a smooth, pale, matte wall may be relatively predictable. Dark, glossy, colored, textured, curved, or highly visible walls carry greater optical risk.
A physical test should be considered when the project includes:
- Black or near-black walls
- Saturated brand-color walls
- Red brick or mixed-color stone
- Deep stucco or split-face block
- High-gloss lacquer
- Glass or mirror-finished metal
- Very narrow strokes
- Closely spaced letters
- Small internal counters
- Mixed thick and thin strokes
- Warm architectural lighting
- Strict brand-color requirements
- Photography or video requirements
- Luxury retail or hospitality interiors
- A large multi-location rollout
- Separate front and halo lighting
- RGB or RGBW control
Not every sample needs to reproduce the entire sign. The appropriate sample depends on the risk being checked.
| Sample type | Best use |
|---|---|
| Material chip | Metal grade, paint, plating, acrylic, or wall finish |
| Color sample | Pantone direction, paint tone, or LED color |
| Illuminated section | LED spacing, diffusion, depth, and hot spots |
| One representative letter | Halo width, corners, counters, and standoff |
| Logo section | Complex geometry or mixed stroke widths |
| Complete product sample | High-value single sign or strict appearance approval |
| First article | Establishes the production standard before a batch |
| First-store set | Confirms appearance and installation before rollout |
A representative letter should be selected carefully. Choosing the easiest letter may hide the real production risk. The sample should normally include the most difficult geometry, such as:
- The narrowest stroke
- The tightest inner corner
- The smallest counter
- The widest stroke
- A curved section
- A junction where several strokes meet
- A section close to another letter
A useful halo test should reproduce:
- Intended letter depth
- Planned metal construction
- Rear-panel material
- Actual LED type
- Planned LED spacing
- Intended light color
- Proposed standoff
- Representative wall color
- Representative wall texture where possible
- Planned dimmer or controller
- Correct operating voltage
Testing an accurate letter on a white factory board will not fully predict the same letter on charcoal brick. A representative wall panel should be included where the surface creates the main risk.
The test should be photographed at several output levels and viewing positions. A practical record may include:
| Test condition | Record required |
|---|---|
| LEDs off | Face color and daytime contrast |
| 25% output | Continuity at low brightness |
| 50% output | Normal interior starting point |
| 75% output | Stronger operating condition |
| 100% output | Maximum output, hot spots, and overlap |
| Front view | Overall halo shape |
| 30–45° left and right | Directional reflection |
| Close range | LED points, corners, and surface defects |
| Intended viewing distance | Real recognition and separation |
For colored light, record both photographs and written settings. Camera images alone are not reliable color references. The controller value, LED specification, wall sample, and approved viewing condition should be saved.
Sample approval should identify what has been approved and what remains open. For example:
| Approval category | Possible status |
|---|---|
| Letter size and proportion | Approved |
| Brushed finish | Approved |
| LED color temperature | Approved |
| Halo width on sample panel | Approved |
| Final wall anchorage | Local confirmation required |
| Final power location | Pending site verification |
| Packaging | To be confirmed after full-size production |
Iduoduo supports MOQ 1, material samples, color samples, illuminated samples, partial samples, complete samples, first articles, first-store sets, and small pilot runs. Regular samples are generally completed in about 5–7 days, while special materials, tooling, unusual structures, and complex processes generally require about 7–15 days. After approval, the sample standard is transferred into final drawings, BOM records, color and finish specifications, installation details, QC criteria, packaging requirements, and the controlled production version.
What Should Be Approved Before Production?
Production should start from one controlled approval package. Approval scattered across emails, messaging apps, marked-up screenshots, and several drawing versions creates a high risk of using the wrong color, size, LED, hole position, or cable exit.
The approval package should answer five questions:
- What exactly is being manufactured?
- How should it look when switched off?
- How should it perform when illuminated?
- How will it connect to the wall and electrical system?
- Which files form the final production standard?
A complete approval checklist can include:
| Category | Items to approve |
|---|---|
| Artwork | Final vector file, font, logo proportions, spacing, version |
| Dimensions | Overall size, individual letters, depth, backer, standoff |
| Materials | Metal grade, acrylic type, panel thickness, rear construction |
| Finish | Paint code, plating, brushed direction, gloss level, edge treatment |
| Lighting | Halo-only or combined lighting, LED color, brightness, RGB/RGBW |
| Optical layout | LED type, spacing, corner coverage, rear-panel transmission |
| Electrical | Voltage, power supplies, wiring groups, plugs, controller, dimmer |
| Wall conditions | Color, texture, finish, flatness, material, joint positions |
| Mounting | Studs, spacers, holes, cable exits, template, raceway, backer |
| Environment | Indoor or outdoor, moisture, temperature, ambient light |
| Testing | Sample standard, inspection method, photos, video, 72-hour test |
| Packaging | Individual protection, accessories, labels, carton or wooden case |
| Delivery | Quantity, store codes, shipment batches, destination |
| Responsibility | Factory scope, installer scope, local electrical and structural checks |
Every drawing should carry a revision number or date. Older versions should be withdrawn or clearly marked as superseded. The production team, QC team, and packaging team should all work from the same approved version.
A practical approval sequence is:
- Final artwork approval
- Wall and site information review
- Product-structure approval
- Day and night rendering approval
- Shop drawing and section approval
- Material and finish approval
- LED and electrical approval
- Mounting and cable-exit approval
- Sample or first-article approval where required
- Final production release
A shop drawing should show the front view, dimensions, letter spacing, depth, mounting positions, cable exits, and any backer or raceway. A section drawing should show how the face, returns, LEDs, rear panel, spacers, studs, wall, and wiring relate to one another.
For halo-lit letters, the section view is particularly important because the night effect depends on dimensions hidden from the front view. The section should state:
- Letter depth
- Rear opening
- Rear-panel thickness
- LED position
- Wall gap
- Spacer length
- Stud position
- Cable route
- Finished wall surface
- Power connection direction
The lighting standard should be written in observable terms. “Bright halo” is too vague. A stronger approval can state:
- Continuous halo around all approved strokes
- No obvious LED points from the agreed viewing distance
- No dark corners under the approved output
- Interior counters remain visually open
- Adjacent halos remain distinguishable
- LED color matches the approved sample
- Dimming operates without flicker
- Front and rear light remain balanced where both are used
Factory inspection should compare production against the approved files rather than a general product name. Iduoduo’s quality records can use the final artwork, approved shop drawing, BOM, color schedule, finish schedule, electrical specification, mounting specification, golden sample, sample approval, QC checklist, packaging specification, product code, store code, and project-specific requirements. The final production version should confirm drawing revision, approval status, quantity, color, material, mounting, packaging, and destination market.
Illuminated products should then be checked for:
- Correct overall dimensions
- Correct face and return finish
- Correct rear construction
- LED color consistency
- Halo continuity
- Hot spots
- Dark areas
- Corner coverage
- Brightness balance
- Dimming or control functions
- Power-supply stability
- Wiring and connector security
- Cable-exit positions
- Mounting-hole positions
- Accessories
- Packaging
Iduoduo applies a 100% lighting inspection and a 72-hour pre-shipment test to illuminated products. Test photos, test videos, packaging photos, and packaging videos can be recorded for project review.
Factory testing confirms the manufactured product under controlled conditions. Final site commissioning confirms the interaction among the product, wall, installation gap, electrical connection, and ambient lighting.
After installation, the site team should check:
| Site commissioning item | What to confirm |
|---|---|
| Letter position | Matches the approved layout |
| Standoff | Consistent around representative letters |
| Alignment | Baselines, centers, and spacing are correct |
| Wiring | No exposed, loose, or incorrectly grouped cables |
| Power | Correct voltage and stable operation |
| Halo | Continuous under normal surrounding light |
| Dimming | Final operating level is saved or marked |
| Viewing angles | No unexpected glare or hidden dark areas |
| Wall condition | No installation damage or visible patching |
| Service access | Power supplies and connections remain reachable |
The final effect is not confirmed by one attractive night photograph. It is confirmed when the approved letter structure, LED system, wall conditions, mounting distance, electrical plan, production test, and installed result all follow the same recorded standard.
How Can Iduoduo Support Your Halo-Lit Letter Project?
A reliable halo-lit channel letter should be developed from the mounting environment outward. Wall color, finish, texture, ambient lighting, viewing distance, letter spacing, LED color, wiring, standoff, and installation method should be reviewed before the final structure enters production.
To request a practical quotation from Iduoduo, send the vector logo or drawing, required size and quantity, wall photographs, wall dimensions, paint or material reference, indoor or outdoor location, installation height, desired metal finish, preferred LED color, destination country, voltage, and any available mounting details. When information is incomplete, the design and engineering teams can help convert site and brand requirements into a production-ready proposal.
Iduoduo is a Shenzhen-based OEM/ODM custom sign manufacturer established in 2007. Its production system includes five production bases, more than 500 employees, 18 production lines, in-house design and engineering support, and over 30 QC personnel. Illuminated products receive a complete lighting inspection and a 72-hour pre-shipment test, followed by export packaging and a three-year warranty under the confirmed project terms.
The most useful inquiry is not simply, “How much are halo-lit letters?” It is, “How should these letters be built for this wall?” That question gives both sides enough information to control the appearance before the cartons reach the installation site.
