Why Do Large Channel Letters Need Segmented Construction? A Guide to Structure, Shipping, and Installation

A large channel letter may look simple when viewed from the street, but its size changes almost every part of the project. A letter that appears as one clean shape on an architectural rendering may be too large for a standard metal sheet, too wide for a cutting table, too flexible to move safely, too heavy for the planned lifting equipment, or too long to pass through the building’s service entrance. Trying to preserve one-piece construction at any cost can create more risk than value.

Large channel letters need segmented construction when one-piece fabrication would create unacceptable limits in material size, structural stiffness, packing, transport, lifting, access, or installation. Dividing the letter into engineered sections keeps each part manufacturable and manageable while preserving the final outline, lighting, strength, weather protection, and alignment after on-site assembly.

The important word is engineered. Segmentation should not be an improvised saw cut made after production has already begun. Joint locations, internal supports, LED circuits, wire paths, sealing details, lifting points, crate sizes, installation order, and field connections should all be considered before the metal is cut.

Imagine a three-meter-high letter arriving at a downtown project. The truck reaches the building, but the crate cannot turn into the loading area. Even after unpacking, the letter cannot pass through the access opening, and the available crane cannot control it safely in the wind. The letter may have been manufactured perfectly, yet the project still fails at the last hundred meters. A well-planned segmented design prevents that expensive surprise.

What Is Segmented Construction?

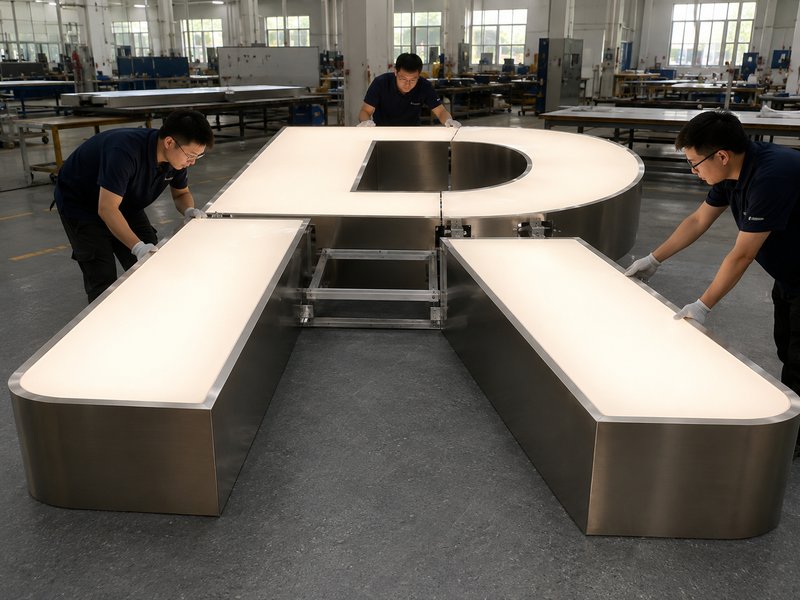

Segmented construction means dividing one oversized channel letter into two or more factory-planned sections so each part can be manufactured, packed, transported, lifted, and installed safely. After assembly, the sections must reproduce one approved letter with continuous contours, aligned faces, stable structural connections, even illumination, protected wiring, and controlled outdoor joints. Segmentation is planned in the shop drawing before production begins.

A segmented letter is not several independent signs placed close together. It is one complete sign temporarily separated into transportable and installable units. The division affects more than the visible face. Metal returns, backs, internal frames, LED circuits, wiring, mounting points, drainage, sealing details, and packing supports may all need separate treatment.

A 3,600 mm-high letter, for example, might be shipped as three sections rather than one 3,600 mm unit. The actual section lengths should not be selected simply by dividing the height into three equal parts. The engineer must also check where the strokes change direction, where reinforcement can be installed, whether the joint will interrupt the light, how large the crate can be, and how the installer will reach the connection.

What Is Actually Divided?

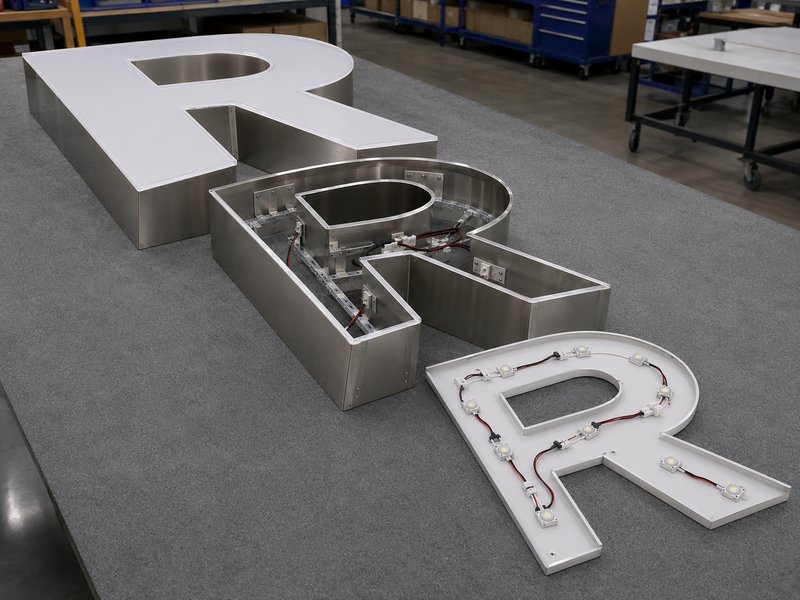

The visible letter face is only one part of a segmented channel letter. A complete letter normally contains a face, metal returns, a back, internal supports, LED modules, wires, mounting hardware, and sometimes a secondary frame or raceway. Each component may use a different division method.

For example, the metal shell may be divided at a natural corner while the acrylic face is divided several millimeters away from the structural joint. Moving the two joint lines apart can prevent one weak line from passing through the entire letter. On another project, the face joint may align with a natural break in the logo, while an internal splice plate extends well beyond the joint to strengthen the shell.

The following table shows what normally needs to be planned:

Letter component	Factory treatment	Work completed on site	Main item to check
Acrylic or polycarbonate face	Cut into numbered sections with controlled edge clearance	Fit into retainers or connect with the approved cover detail	Face alignment, expansion space, visible seam
Metal returns	Formed as separate shells or divided at selected strokes	Bolted or fastened through internal connections	Return depth, color, flushness, joint strength
Back panel	Split with overlapping plates, flanges, or frame connections	Joined before final mounting or after sections reach the wall	Overall shape, water path, mounting accuracy
Internal frame	Fabricated in matching numbered sections	Bolted through splice plates or connection brackets	Load transfer, access to bolts, section rigidity
LED modules	Installed and tested by section	Plugged into labeled circuits	Brightness, color, module spacing near joints
Wiring	Pre-routed with labeled wire exits	Connected through plugs, terminals, or junction boxes	Polarity, voltage drop, weather protection
Mounting system	Holes, studs, rails, or brackets prepared in the factory	Fixed to the wall according to the installation drawing	Hole position, wall condition, installation datum
Waterproof detail	Gaskets, overlaps, sealant zones, glands, and drainage prepared	Final exposed joints sealed after testing	Water entry, trapped moisture, service access

The factory should avoid cutting through important visual areas merely to produce equal-sized sections. A split through the center of a wide illuminated stroke can remain noticeable even when the metal connection is strong. A joint located near a corner, internal opening, stroke transition, or existing logo break usually produces a cleaner result.

Section size should also reflect how the finished parts will be handled. A narrow but very long section may be light enough to lift yet too flexible to control. A shorter section with additional reinforcement may be heavier, but it may remain flatter during transport and safer during installation.

How Are the Sections Joined?

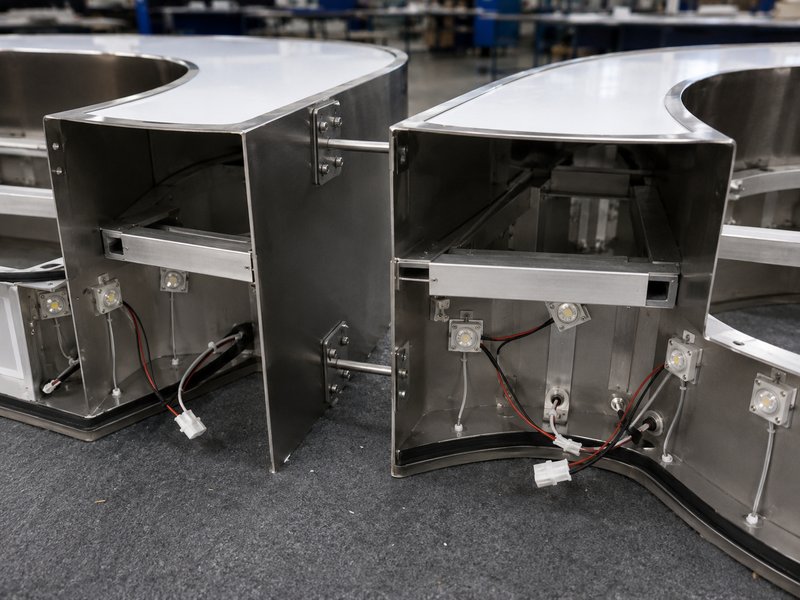

Channel letter sections are normally connected through concealed structural parts rather than through the face alone. Common details include internal splice plates, bolted flanges, steel or aluminum sleeves, locating pins, threaded inserts, gusset plates, overlapping backs, and reinforced mounting frames.

A useful connection performs three jobs:

1. It brings the sections into the correct position.
2. It transfers structural forces across the joint.
3. It keeps the visible face and returns aligned.

Locating features and structural fasteners should not be treated as the same item. A small locating pin can help an installer place two sections correctly, but it may not be designed to carry the operating load. Bolts, plates, frames, or approved brackets should provide the structural connection.

The joint must also remain accessible during installation. A connection hidden behind the acrylic face may require the installer to complete the bolts, wiring, and sealing before closing the face. A rear connection may be easier to service, but only when the wall clearance and mounting arrangement leave enough working space.

For a practical installation, the shop drawing should record:

• Section numbers and orientation
• Joint centerlines
• Connection-plate dimensions
• Bolt size, quantity, and location
• Locating-pin or sleeve positions
• Finished gap between sections
• Internal access points
• Installation order
• Required sealant or gasket areas
• Parts installed in the factory
• Parts installed on site

Factory assembly is an important check. Before final packing, adjoining sections should be fitted together on a level surface or temporary frame. The production team can then measure total height, width, diagonals, stroke alignment, face level, return depth, and joint clearance.

A joint should never require the installer to pull distorted parts together with excessive bolt force. Excessive force may temporarily close the gap but leave stress inside the metal shell, face, welds, or mounting frame.

How Is One Visual Letter Preserved?

The finished letter must look and illuminate like one product, not a row of separately manufactured pieces. Preserving that appearance requires common reference points across every section.

The factory should produce all sections from the same approved vector outline rather than redrawing each part separately. Shared centerlines, registration marks, datum points, and overall dimensions help prevent accumulated errors. Even a small dimensional difference at every joint can create a visible curve or tilt across a large letter.

Four areas deserve particular attention:

• Contour continuity: curved strokes must meet without a flat spot, step, or sudden change in radius.
• Surface continuity: paint color, gloss, brushing direction, and metal texture should remain consistent.
• Face continuity: face sections should sit at the same depth without one section appearing raised or recessed.
• Lighting continuity: LED spacing and distance from the face should remain consistent near every joint.

LED layout often becomes more difficult near structural connections. A wide splice plate may occupy the space normally used for LED modules. Simply removing the modules can create a dark band. Moving the modules too close together can create a bright band or visible hotspots.

The lighting drawing should therefore show module positions on both sides of every joint. Where reinforcement blocks the normal light path, the engineer may adjust the plate shape, change its position, provide a light-reflective surface, or revise module spacing while keeping the electrical load balanced.

Halo-lit channel letters require the same care at the back. A connection plate, stepped back panel, or uneven wall projection can interrupt the reflected halo. The assembled sections should maintain a consistent distance from the mounting surface unless the approved design calls for a different effect.

Nighttime inspection should be completed after the sections are connected in the factory. Checking each piece separately will not reveal a dark line, bright line, color difference, or shadow created by the joint.

A realistic approval should distinguish between close-range inspection and normal viewing distance. A fine seam may remain visible from one meter but become unnoticeable from the street. The project team should agree on the expected result before production rather than using the vague requirement “no visible joint.”

How Are Wiring and Waterproofing Continued?

Each section may contain its own LED circuit, but all circuits must work as one lighting system after installation. Wire routes, connector types, polarity, power-supply groups, and field connections should be fixed before production.

A simple numbered arrangement can prevent many installation errors:

• Letter A, upper section: A-1
• Letter A, middle section: A-2
• Letter A, lower section: A-3
• Positive connector: A-2-P
• Negative connector: A-2-N
• Power circuit: PSU-A-01

The same codes should appear on the wire labels, shop drawing, power schedule, section, hardware bag, and crate list. Color alone should not be the only identification method because several similar wires may enter the same connection area.

Field connectors should be selected according to voltage, current, indoor or outdoor use, and required service access. Outdoor connections may require locking waterproof plugs, enclosed terminal blocks, cable glands, sealed junction boxes, strain relief, or protected wire loops. Loose twisted wires covered only with tape are not suitable for a planned sectional system.

Weather protection should control both water entry and water exit. Applying a thick bead of sealant over the outside seam does not automatically make the letter reliable. Water may also enter through bolts, wire holes, face retainers, rear joints, or mounting points.

A useful outdoor joint may combine:

• Overlapping metal geometry
• Internal or external gaskets
• Compatible exterior sealant
• Protected bolt holes
• Sealed cable entries
• Corrosion protection on cut edges
• Drainage at the installed low point
• Removable access for future servicing

Drain holes should be positioned according to the final installed orientation. A hole located at the lowest point while the letter lies flat in the factory may no longer be the lowest point after the letter is mounted vertically.

Electrical testing should be completed before the final joint is sealed. Otherwise, a wiring fault may require the installer to remove newly applied sealant and reopen the letter.

What Should Arrive With Each Section?

A segmented letter becomes difficult to install when the physical product arrives without matching records. Clear numbering and documentation often save more site time than an extra hour spent making the factory joint look perfect.

Each section should arrive with enough information for the local team to identify, lift, position, connect, test, and seal it correctly.

Required item	Information it should contain
Assembly drawing	Full letter outline, section boundaries, dimensions, and installation order
Connection drawing	Plates, pins, bolts, flanges, access points, and finished joint condition
Wiring diagram	Circuit numbers, polarity, connectors, power supplies, and wire exits
Mounting drawing	Hole positions, rails, studs, brackets, raceway, and wall references
Section label	Letter name, section number, top/bottom direction, and installation position
Hardware bag	Matching section number, fastener quantities, washers, brackets, and spare parts
Packing list	Crate number, section number, gross weight, accessories, and opening direction
Test record	Factory assembly photos, daytime photos, lighting photos, and operating video
Sealing guide	Gasket positions, sealant zones, drainage, and areas that must remain serviceable

Section labels should remain readable after protective film and transport wrapping are removed. Markings placed only on disposable foam are easily lost. A permanent or securely attached temporary label on a non-visible area provides a more reliable reference.

Large sections may also require their individual weight, center of gravity, lifting points, and permitted orientation to be marked. “Do not lift from face” and “open from rear side” are simple instructions, but both can prevent serious damage.

At Iduoduo, large channel-letter segmentation is reviewed together with visual joints, structural connections, LED continuity, wiring, waterproofing, installation numbering, packaging, and field assembly. Illuminated sections can also be checked through factory fitting, 100% lighting inspection, and the established 72-hour pre-shipment test before export packing.

When Do Large Letters Need Segmentation?

Large channel letters need segmentation when one-piece production creates unacceptable limits in cutting, forming, structural stiffness, packing, transportation, site access, lifting, or installation. No single letter height determines the answer. The final decision should be based on the complete route from raw material and factory equipment to the delivery vehicle, building access, lifting equipment, wall connection, wiring, and future maintenance.

Which Letter Sizes Require a Segmentation Review?

Every oversized letter should be reviewed individually. A 2,500 mm-high block letter may remain practical as one piece, while a 1,800 mm-high script letter with long, narrow strokes may need to be divided. Height alone gives an incomplete answer because overall width, stroke shape, return depth, material, internal frame, face type, and installation method all affect handling.

A segmentation review should begin when any main component approaches the usable limit of the planned production or delivery process.

Review point	Information required	Segmentation signal
Raw sheet	Available sheet length and width	Face or back cannot be cut with safe edge allowance
Cutting equipment	Usable cutting-bed area	Letter outline reaches the working boundary
Forming equipment	Maximum workable return length and bending space	Returns cannot be formed or rotated without distortion
Assembly area	Clear floor space and support-table size	Complete shell cannot lie flat or be measured accurately
Paint area	Booth opening and working clearance	Finished shell cannot enter, rotate, or cure safely
Factory doorway	Clear width, height, and turning area	Bare letter cannot pass through without tilting or flexing
Finished crate	External length, width, height, and weight	Crate exceeds vehicle, container, or carrier limits
Site access	Smallest gate, corridor, elevator, or roof opening	Packed or unpacked letter cannot reach the installation area
Lifting plan	Section weight, projected area, rigging, and crane reach	Complete letter cannot be controlled safely at installation height

A practical review usually begins before a component reaches the published maximum capacity of a machine. A cutting table may technically accept a 3,000 mm sheet, for example, but clamps, tool clearance, edge support, nesting margins, and part removal may reduce the safe working size. Using the final few millimeters of machine capacity often leaves no room for production variation.

The same principle applies to building access. A letter measuring 2,390 mm wide should not automatically be approved for a 2,400 mm opening. Protective wrapping, handles, rigging, door hardware, uneven floors, and the need to rotate the part can remove the apparent 10 mm clearance.

A useful early-stage rule is to request an engineering review when one or more conditions apply:

• Any single letter exceeds the usable material or machine size.
• The longest stroke cannot be supported during cutting or assembly.
• The finished letter cannot lie flat in the assembly and inspection area.
• The uncrated letter is close to the factory door or loading limit.
• The crate approaches the selected carrier’s dimensional limit.
• The section cannot pass through the smallest confirmed site opening.
• The installation crew cannot safely control the proposed one-piece unit.
• Joint-free construction would require excessive material thickness or reinforcement.
• A single damaged area would make the complete oversized letter difficult to repair or replace.

No universal “segment above 2,000 mm” or “segment above 3,000 mm” rule should be used across all projects. The same nominal height can produce very different structures.

Consider two 2,400 mm-high letters:

Project	Shape and structure	Likely handling result
Letter I	Straight, narrow, shallow return, simple frame	May remain practical as one piece
Letter S	Wide curves, large face, deep return, multiple internal supports	May twist or require segmentation
Script letter	Long unsupported tail and narrow connecting stroke	High deformation risk despite lower total weight
Letter O	Large projected area with an open center	May be stiff in some directions but difficult to control in wind

The size review should therefore use the actual vector outline and proposed construction, not only the overall height shown on an architectural elevation.

How Do Weight and Shape Affect the Decision?

Weight is important, but the way weight is distributed often matters more. A compact 120 kg section may be easier to lift than a long 70 kg section that bends, rotates, or catches the wind.

The engineering team should calculate or estimate the mass of every major material before approving a one-piece design. Useful reference values include:

Material	Example thickness	Approximate flat-sheet weight
Aluminum	2.0 mm	5.4 kg/m²
Stainless steel	1.2 mm	9.6 kg/m²
Acrylic	3.0 mm	3.5 kg/m²
Acrylic	5.0 mm	5.9 kg/m²

Flat-sheet weight does not equal finished letter weight. Returns, backs, faces, trim, internal frames, LEDs, wiring, fasteners, mounting brackets, sealants, lifting plates, and temporary braces must also be included.

A large stainless steel letter can become substantially heavier than an aluminum letter of similar dimensions. For example, using 1.2 mm stainless steel instead of 2 mm aluminum does not produce a lighter shell simply because the stainless sheet is thinner. Stainless steel has a much higher density.

The following weight records should be prepared before packing:

• Net weight of each section
• Weight of removable faces or covers
• Weight of internal frames
• Weight of mounting rails or raceways
• Gross weight of each crate
• Weight of loose hardware and electrical accessories
• Approximate center of gravity
• Approved lifting points
• Required installation orientation

Gross crate weight and product weight should not be confused. A 150 kg letter may arrive in a crate weighing considerably more after the timber frame, plywood panels, blocking, foam, straps, and pallet base are added.

Shape affects four practical areas.

First, long narrow strokes can deflect even when their total weight is low. A wide horizontal stroke may need temporary transport bracing or division near a natural corner.

Second, irregular logos may have an off-center center of gravity. The part can rotate immediately after leaving the ground unless lifting points and tag-line positions are planned around the real balance point.

Third, broad faces create a larger sail area. A crane capable of carrying the static weight may still struggle to control a wide letter in wind. Installation planning should therefore consider projected area and wind exposure, not only lifting capacity.

Fourth, delicate extensions can be damaged while the heavier main body remains stable. Script tails, serifs, narrow bridges, and isolated decorative shapes may need independent sections or removable transport supports.

Segmentation becomes more likely when one-piece construction causes any of the following:

• Noticeable sag during a controlled factory lift
• Return distortion while the letter is rotated
• Face movement around wide unsupported spans
• Internal frame movement near narrow strokes
• Unbalanced lifting
• Excessive sail area
• Insufficient attachment points for temporary handling
• A section too large for the installer to stabilize before final fastening

Adding reinforcement can solve some problems, but reinforcement is not always the best answer. More metal increases weight, changes the center of gravity, occupies LED space, complicates wiring, raises shipping cost, and places greater demand on the building connection.

A practical comparison should be made between:

1. One larger letter with heavier reinforcement and a larger crate.
2. Two or three smaller sections with controlled structural joints.
3. A frame-mounted sign assembled from several letters and structural elements.
4. A raceway or backer-panel system that distributes mounting loads differently.

The lowest product-piece count does not always produce the lowest total project risk.

Do Material and Equipment Limits Matter?

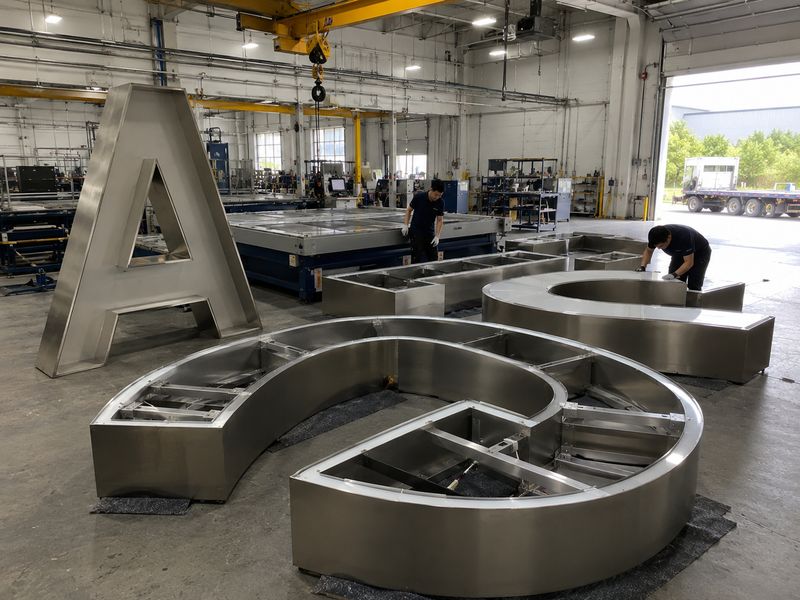

Material and equipment limits often trigger segmentation before the letter reaches the installation site. Channel letters pass through several production stages, and the smallest workable limit across all stages becomes the real one-piece limit.

A letter may fit the laser-cutting bed but still exceed:

• The standard acrylic sheet size
• The metal bending area
• The welding fixture
• The grinding table
• The paint-booth opening
• The drying or curing area
• The LED assembly table
• The lighting-test area
• The factory doorway
• The forklift or loading platform
• The packing frame

For front-lit letters, the face requires particular attention. A large acrylic face can flex during lifting, expand under temperature change, crack near narrow areas, or become difficult to retain evenly. Dividing the metal shell without reviewing the face rarely solves the full problem.

The back panel may have different limits from the face. A back can sometimes use overlapping metal panels or an internal frame, while a face joint must remain visually controlled. As a result, the face, return, and back do not always need to divide along one identical line.

Material yield also matters. A one-piece design may technically fit a special oversized sheet but create high waste, long procurement time, or difficult replacement conditions. A controlled sectional layout may use standard material formats and make future repair more manageable.

The following questions should be answered before selecting an oversized material solely to avoid a joint:

Question	Why it matters
Is the oversized material regularly available?	Special sheets may extend lead time or require a minimum purchase quantity
Can the factory cut and support the full sheet?	Material availability does not prove manufacturing capability
Can the finished part remain flat?	Large faces and backs may bow after cutting or temperature change
Can the surface finish remain consistent?	Large brushed, painted, or plated areas can show variation
Can a replacement be sourced later?	Nonstandard material may complicate future maintenance
Can the part be packed without pressure points?	A large rigid sheet may crack or distort inside an oversized crate
Can the installation team handle it?	One-piece material can move excessively during lifting

Equipment specifications should be verified as usable dimensions rather than nominal dimensions. A laser cutter advertised as 1,500 × 3,000 mm may not provide the full area for every outline. Edge clamps, protective margins, tool paths, extraction zones, and unloading access can reduce practical capacity.

The same care applies to assembly. A completed shell requires enough space for workers to:

• Rotate the letter without hitting walls or equipment
• Reach welds and fasteners
• Check diagonal dimensions
• Fit faces without forced bending
• Install LED modules at consistent spacing
• Route wires without sharp bends
• Dry assemble adjoining sections
• Inspect daytime and nighttime appearance
• Move the product into the packing area

A factory may own large cutting equipment yet lack enough downstream space for reliable one-piece assembly. Segmentation decisions should cover the complete production chain rather than a single machine specification.

Do Doorways, Elevators, and Cranes Affect Segment Size?

Site access frequently sets the final section dimensions. The route should be checked from the unloading point to the final mounting position, including every turn, doorway, floor change, roof opening, platform, and lifting stage.

The site survey should record:

Access point	Measurements and information required
Delivery road	Vehicle length, height, turning radius, loading restrictions
Loading zone	Clear height, unloading area, forklift or crane access
Entrance gate	Clear width and height after hinges, guards, and posts
Corridor	Width, ceiling height, corners, handrails, and temporary obstructions
Elevator	Door width, door height, cabin width, depth, height, and load rating
Stairway	Clear width, landing dimensions, turning space, and overhead clearance
Roof hatch	Clear opening, ladder position, edge protection, and handling space
Scaffold or platform	Deck size, load rating, access opening, and working position
Crane	Capacity at required radius, boom position, rigging, and landing area
Façade	Installation height, wall projection, obstacles, and fixing access

The smallest opening is not always the controlling point. A long rectangular section may pass through a doorway but fail to rotate around the corridor immediately behind it.

For a rectangular section, the face diagonal can be estimated using:

Diagonal = √(length² + width²)

A section measuring 2,400 × 1,200 mm has a face diagonal of approximately 2,683 mm. The number does not prove whether the part can turn through a doorway, but it shows why width and height alone are insufficient. Thickness, wrapping, hand space, corner geometry, and the available swing area must also be checked.

Elevator planning requires more than comparing the letter width with the elevator door. The section may need to enter diagonally, and the cabin must provide enough depth for the rear edge to clear the doorway. Protective packaging is often removed before elevator transport, creating a need for temporary face and return protection.

Crane selection also requires more than the section weight. Rated lifting capacity changes with boom length, operating radius, configuration, and site conditions. The lifting contractor should confirm:

• Crane capacity at the actual working radius
• Rigging and spreader-beam weight
• Section center of gravity
• Number and location of lifting points
• Maximum projected area
• Wind restrictions
• Tag-line positions
• Landing and temporary support points
• Working space for fastening
• Emergency lowering plan

One-piece construction may be possible at ground level but impractical at façade height. A 4,000 mm letter can become difficult to stabilize when installers must reach behind the shell to connect anchors, electrical cables, and joint covers from a narrow platform.

Segmentation should also reflect the installation order. The first section often establishes the main level and centerline. Later sections need enough access for bolts, wiring, sealant, and inspection. A section may be small enough to lift but still too large to allow a worker to reach the internal connection after it meets the wall.

Before production begins, the sign company or installation contractor should confirm:

• Maximum acceptable section dimensions
• Maximum gross section weight
• Approved lifting method
• Site access drawings or photographs
• Mounting-surface information
• Installation datum
• Working-platform limits
• Required joint orientation
• Final wiring connection locations
• Areas requiring future maintenance access

Large channel-letter engineering should connect segmentation with visual joints, structural connections, LED continuity, wiring, waterproofing, installation numbering, packing, lifting, and field assembly. High-level installations also require product weight, wind exposure, lifting points, access equipment, maintenance conditions, and local structural approval to be reviewed together.

The final decision should be made before shop drawings are approved. Waiting until the letter is complete often turns segmentation into a repair operation rather than an engineered construction method. Early review allows joint positions to follow natural strokes, reinforcement to be built into the shell, LED spacing to remain even, electrical connections to be labeled, and crates to match the real delivery route.

How Does Segmentation Reduce Project Risk?

Segmentation reduces project risk by replacing one oversized, difficult-to-control letter with several engineered sections that can be fabricated, measured, tested, packed, moved, lifted, and installed under more predictable conditions. The benefit is not simply a smaller shipping size. A properly planned sectional design reduces deformation, surface damage, lighting faults, lifting instability, site delays, and expensive field rework.

Risk usually increases at every stage as a letter becomes larger:

Project stage	One-piece risk	How segmentation helps
Metal fabrication	Long returns twist; wide backs lose flatness	Smaller shells are easier to fixture and measure
Face production	Large acrylic panels flex or crack	Shorter panels are easier to cut, protect, and install
LED assembly	Workers cannot reach internal areas evenly	Each section can be wired and inspected at bench level
Factory handling	Large letters are hard to rotate or move	Smaller units require less floor space and handling force
Packing	Oversized crates need more bracing and lifting equipment	Individual sections can receive closer internal support
International transport	Long crates face carrier restrictions and higher damage exposure	Package dimensions can match the selected transport route
Site access	Complete letters may not pass through gates or service routes	Sections can be sized around the smallest confirmed opening
Lifting	Wide letters rotate, bend, or catch wind	Smaller projected area improves control during lifting
Installation	Many anchors must align while the full letter is suspended	Sections can be positioned and secured in sequence
Electrical work	Faults are difficult to locate inside a very large shell	Numbered circuits can be tested section by section
Maintenance	One damaged area may require removing the complete letter	A serviceable section may be opened or replaced separately

Segmentation only reduces risk when it is decided during engineering. Cutting a finished letter after a packing or access problem is discovered normally creates new concerns: unplanned seams, damaged finishes, insufficient reinforcement, interrupted LED spacing, exposed wiring, and joints that installers cannot reach.

How Does It Reduce Distortion During Production?

Oversized channel letters are more likely to move during cutting, welding, grinding, lifting, painting, face fitting, and internal assembly. A long return can twist under its own weight. A wide back may develop waves or “oil canning.” Large curved strokes can lose their original radius if they are moved without full support.

Smaller sections are easier to hold against a flat fixture. Workers can check dimensions at several points without climbing across the product or supporting one end by hand. Welding can also be completed in shorter, more controlled sequences.

Common production problems include:

• Curved strokes becoming flatter near the middle
• Returns leaning inward or outward
• Wide back panels developing visible waves
• Weld heat pulling corners out of square
• Narrow strokes bending during rotation
• Face retainers no longer following the approved outline
• Mounting holes moving away from the drawing position
• Joined sections forming a step or angle

A practical dimensional inspection should include more than overall height and width.

Measurement	What it reveals
Overall width and height	Whether the complete letter matches the approved size
Diagonal dimensions	Whether the shell is square or twisted
Stroke width at several points	Whether the outline changed during forming
Return depth	Whether adjoining sections will sit at the same projection
Joint gap	Whether sections can connect without forcing
Face level	Whether one face section will sit higher than another
Mounting-hole spacing	Whether the site template remains accurate
Connection-plate position	Whether bolts and access openings will align

For example, two sections may each pass an individual width and height check but still form a visible angle when connected. Factory fitting is therefore needed wherever space permits. The joined assembly should be checked against the full vector outline, a full-size template, fixed datum lines, or a temporary support frame.

Segmentation also improves access to internal work. LED modules can be placed at consistent distances because production staff can reach the entire back. Wiring can be clipped and protected without crawling into a deep shell. Internal braces can be welded and inspected from workable positions.

A smaller section does not guarantee accuracy. Every additional joint introduces another tolerance. If a five-section letter is allowed to vary by 3 mm at every connection, accumulated error can reach 12 mm between the first and final section. Joint tolerances should therefore be controlled as part of the full assembly rather than judged independently.

The factory should avoid using bolts to pull badly distorted sections into alignment. Heavy tightening may close the visible gap temporarily, but stored stress can remain in the return, weld, face, or frame. The stress may later show as cracked paint, loose fasteners, face movement, or joint separation after temperature changes.

How Does It Protect Faces and Returns in Transit?

Oversized channel letters are difficult to protect because their shape rarely fills a crate evenly. Long empty spans allow movement. Wide faces can flex. Projecting strokes create concentrated pressure points. Forklift handling can twist a large crate even when the product inside is well wrapped.

Segmented construction allows packaging supports to sit closer to the product. Each section can be blocked around reinforced areas rather than supported at only a few distant points.

A good packing plan controls six kinds of movement:

1. Forward and backward movement
2. Side-to-side movement
3. Vertical bouncing
4. Rotation inside the crate
5. Flexing across unsupported spans
6. Contact between finished surfaces and loose parts

Face protection deserves special attention. Acrylic and polycarbonate panels can be damaged by pressure even when the crate shows no external impact. A soft foam sheet placed directly over a wide face may also leave marks if heavy accessories are packed above it.

Useful controls include:

Risk	Packing control
Acrylic scratching	Protective film and clean, non-abrasive liners
Face cracking	No concentrated load over unsupported face areas
Return deformation	Timber or foam blocking near reinforced points
Painted-surface marks	Compatible wrapping with no prolonged hard pressure
Joint damage	Separate guards around plates, pins, and connectors
Wire damage	Connectors secured without tension on the cable
Hardware loss	Numbered bags fixed in a dedicated accessory area
Section movement	Straps, fitted blocks, and anti-rotation supports
Crate mishandling	Weight, center of gravity, opening side, and lifting marks

Segmentation can also reduce the external crate dimensions enough to change the available shipping methods. A one-piece product may require an oversized wooden case, special truck, open-top container, or dedicated airfreight arrangement. Dividing the product may allow standard freight handling, although the additional crates and connection hardware must still be included in the cost comparison.

Shipping cost should not be compared only by product weight. Freight can be charged by actual weight, volumetric weight, container space, crate length, or oversized handling rules. A lighter one-piece letter can cost more to transport than several compact sections.

Packing should also support the installation sequence. When the lower section must be installed first, it should not be buried behind the upper section in the same crate. A practical crate order allows the crew to remove parts in the order shown on the assembly drawing.

Each section should be identified in at least four places:

• On the physical section
• On the protective wrapping
• On the crate
• On the packing list and assembly drawing

Markings such as “Section 1” are not sufficient when a project contains several letters. A clearer code would be “Letter R–Lower–R1” or “Logo 02–Section B.” The same code should appear on the wiring connector and hardware bag.

Iduoduo’s packing records treat segmentation, removable brackets, back-panel dimensions, raceway length, power-supply location, connection method, crate size, local handling, and installation order as related decisions. Products are released for packing only after production completion, drawing verification, appearance inspection, lighting checks, testing, accessory confirmation, and packing-version approval.

How Does It Simplify Lifting and Handling?

Lifting capacity is only one part of safe handling. A crane may be rated for several tonnes, yet a wide 120 kg channel letter can remain difficult to control because of its shape, balance, flexibility, and exposure to wind.

Large letters can act like sails. A broad face creates more wind pressure than a compact structure of the same weight. Irregular logos may rotate as soon as they leave the ground because the center of gravity does not sit below the visual center.

Segmentation reduces the projected area and gives rigging teams more options for controlling each lift. Smaller sections can often be landed, aligned, and temporarily supported before the crane releases the load.

The lifting plan should record:

Item	Information required
Net section weight	Weight of the sign section without the crate
Lift weight	Section, temporary braces, rigging, and spreader equipment
Center of gravity	Actual balance point rather than the geometric center
Lifting points	Reinforced locations designed for the expected load
Rigging angle	Angle affecting force at each lifting point
Projected area	Surface exposed to wind
Orientation	Position permitted during lifting and landing
Tag-line position	Points used to control rotation
Landing point	Temporary support before permanent fastening
Installation radius	Crane capacity at the actual reach

Rigging angle has a direct effect on lifting-point force. As sling legs become flatter, tension rises. A pair of lifting points should not be approved using only the product’s total weight without considering sling geometry and load distribution.

Lifting points should connect to a reinforced frame, back structure, or engineered plate. Thin returns, acrylic faces, trim retainers, and decorative strokes should not carry lifting loads unless specifically designed for the purpose.

Temporary transport braces may also be required. A brace can keep a wide opening square during shipping and lifting, then be removed after the section is fixed. Removable braces should be labeled clearly so installers know when removal is safe.

Smaller sections also reduce manual handling around the site. Installers may still need to rotate a section on a roof, move it from a loading zone to a crane position, or hold it briefly while bolts are started. Section dimensions should reflect those movements, not only the main crane lift.

Too many sections can create the opposite problem. Every added section means more lifts, more field joints, more wiring connections, more sealing, and more time at height. The aim is not to make every part as small as possible. A better aim is to use the fewest sections that remain controllable through production, transport, access, and installation.

A useful comparison can be made before approving the design:

Option	Handling advantage	Added risk
One complete letter	Fewer field joints	Higher lifting and transport difficulty
Two large sections	Limited joint count	Sections may still be difficult to control
Three or four medium sections	Easier access and lifting	More field wiring and sealing
Many small sections	Easy individual handling	High installation time and alignment risk

The preferred arrangement depends on installation height, crane access, platform size, wall condition, weather exposure, and available crew.

How Does It Improve On-Site Installation?

A large one-piece letter often requires several mounting points to align while the product remains suspended. Workers may need to hold the letter away from the wall, locate studs or bolts, connect wiring, check level, and prevent rotation at the same time. Small dimensional differences between the drawing and completed façade can turn a routine installation into hours of adjustment.

Segmentation allows one section to establish the main installation reference. The remaining sections can then be connected in a planned order.

A typical sequence may be:

1. Mark the wall centerline and baseline.
2. Confirm anchor positions against the latest template.
3. Install the main structural section.
4. Check level, projection, and distance from the datum.
5. Fit the adjoining section using locating plates or pins.
6. Install structural bolts without forcing the joint.
7. Connect the numbered LED circuits.
8. Test illumination before closing access points.
9. Complete weather sealing.
10. Fit removable faces, covers, or trim.
11. Inspect alignment in daylight.
12. Inspect lighting after dark.

The first installed section should provide a stable reference. Starting with a small decorative part or narrow script tail may leave no reliable datum for the larger sections.

Connection access must be reviewed before manufacturing. A bolt detail may look simple on a workshop drawing but become impossible to reach once the rear of the letter is 30 mm from the wall. Some connections need to be completed before the section is moved into its final position. Others require removable face access.

The shop drawing should show:

• Installation direction
• First reference section
• Temporary support points
• Bolt access openings
• Wire-connection location
• Required installation gap
• Sealant application area
• Drainage locations
• Parts fitted before lifting
• Parts fitted after structural connection
• Areas that must remain accessible for service

Segmentation can also reduce dependence on perfect site conditions. A smaller section is easier to hold slightly away from an uneven wall while shims or brackets are adjusted. A one-piece letter may bridge several façade panels, cladding joints, or wall irregularities, making alignment more difficult.

Electrical troubleshooting becomes faster when each section has a labeled circuit. If one part does not illuminate, the installer can test the section connector, power group, polarity, voltage, and LED branch without opening the entire letter.

A useful field test sequence includes:

Test stage	What to check
Before lifting	Section illuminates correctly at ground level
After connector assembly	Polarity, voltage, and full section operation
Before sealing	No flicker, dark area, or loose connection
After face installation	No hotspot, shadow, or joint-related dark band
Final night test	Whole letter shows consistent color and brightness

Sealing should occur only after structural and electrical checks pass. Applying sealant too early can hide bolts, connectors, or access panels and make corrections slower.

Weather-exposed joints need a repeatable site process. The installation guide should identify the approved sealant, surface preparation, gasket position, wire gland, overlap direction, and drainage openings. “Seal all joints” is too vague for a large outdoor product.

How Does It Reduce Rework, Delay, and Cost?

The main financial value of segmentation is often seen when comparing controlled factory work with emergency site correction.

Factory labor is performed at ground level with the proper tools, drawings, fixtures, lighting, and inspection space. Site correction may require a crane, lift, road permit, installation crew, electrician, temporary access, weather delay, and return visits.

A single inaccessible connector can hold several installers and a crane on standby. A misaligned joint may require the section to be lowered, unpacked, modified, repainted, and lifted again. A crate that cannot enter the loading area may require an unplanned street-side unpacking operation.

The following cost areas should be considered during the segmentation decision:

• Additional factory engineering
• Joint plates and reinforcement
• Extra connectors and labels
• Factory assembly time
• Additional packing materials
• Number of crates
• Freight volume
• Number of lifts
• Installation hours
• Electrical connection time
• Sealing time
• Equipment rental
• Possible return visits
• Future maintenance access

Segmented construction may increase factory cost while lowering the total installed cost. Avoiding a joint can produce a cheaper factory quotation but a much more expensive delivery and installation plan.

Risk can be compared through a simple project register:

Risk	Probability without segmentation	Possible impact	Planned control
Letter cannot leave the factory	Medium	Rework and schedule delay	Confirm factory access before production
Crate exceeds carrier limit	Medium	Freight change and repacking	Approve packing dimensions with the drawing
Letter cannot reach façade	Medium to high	Site cutting or failed delivery	Verify the complete access route
Shell bends during lifting	Medium	Visible distortion and damaged finish	Reduce span and add planned lifting points
LED dark band at joint	Medium	Rework after installation	Review LED layout around reinforcement
Sections do not align	Medium	Long crane time and field modification	Complete factory dry fit
Water enters the joint	Medium	Electrical failure and corrosion	Use defined sealing and drainage details
Hardware is missing	Low to medium	Installation delay	Numbered bags and packing records
Wiring is connected incorrectly	Medium	Faults or damaged components	Labeled plugs, polarity, and wiring diagrams

The probability ratings should be adjusted for the actual project. A low-rise storefront with direct truck access has a different risk profile from a rooftop installation in a dense city center.

Reliable pre-shipment inspection further reduces field uncertainty. Illuminated signs should be checked for color consistency, brightness, hotspots, dark areas, joint transition, wiring, connector stability, and abnormal heat. Iduoduo records 100% lighting inspection followed by a 72-hour pre-shipment test to identify early LED, power-supply, controller, wiring, flicker, temperature, and color problems before export packing.

Segmentation does not eliminate every installation risk. Local structural loads, façade anchors, mains wiring, crane operations, and permit requirements still need confirmation by qualified local teams. Its value is more practical: each known problem is addressed at the stage where it is easiest and least expensive to control.

How Are Letter Segments Engineered?

Letter segments are engineered as parts of one complete sign rather than as separate smaller letters. Joint positions, internal reinforcement, locating features, fasteners, LED spacing, wiring, sealing, drainage, mounting points, section weights, and installation order must be settled before cutting begins. Every section should fit the approved outline, connect without forced adjustment, illuminate evenly, and remain serviceable after installation.

Where Should Joint Lines Be Placed?

A joint line should follow the letter’s geometry rather than divide the overall height or width into equal portions. Equal sections may simplify a packing calculation, but they can place a seam across the most visible part of the face, through a narrow stroke, or beside an area with no room for reinforcement.

A suitable joint normally satisfies five conditions:

• The seam is difficult to notice from the normal viewing distance.
• Both sides of the joint have enough space for plates, bolts, or an internal frame.
• LED modules can remain close enough to avoid a dark band.
• Installers can reach the fasteners, connectors, and sealant areas.
• The finished sections remain within packing, access, and lifting limits.

Natural breaks in the letter often provide better joint locations.

Possible joint location	Visual result	Structural result	Installation result
Inside a sharp corner	Usually less noticeable	Good space may be available for a gusset	Often easy to align with locating plates
At a stroke transition	Seam follows a natural change in form	Reinforcement must follow both stroke directions	Usually workable when rear access is available
Near an internal opening	Hidden from several viewing angles	Frame may be added around the opening	Fastener access must be checked carefully
Across a wide flat stroke	Often visible in daylight and at night	Easy to reinforce	Simple to connect, but visual risk is higher
Through a narrow stroke	Difficult to finish cleanly	Limited space for bolts and wiring	Higher risk of distortion
Through a tight curve	Can interrupt the curve radius	Connection plates may flatten the curve	Alignment is difficult at height
At the end of a long extension	Can preserve the main letter body	Extension may still require temporary bracing	Useful when the extension is vulnerable in transport

For a front-lit letter, the face joint and the structural joint do not always need to sit on the same line. Moving the face seam away from the main frame connection can prevent one continuous weak line from passing through the face, return, and back.

Acrylic behavior also affects the face seam. A large acrylic panel expands and contracts as temperature changes. The joint detail should allow suitable movement rather than trapping both edges tightly between metal components. Clearance depends on the face material, panel dimensions, expected temperature range, retainer style, and installation environment.

Halo-lit letters need additional rear-side review. A joint plate that projects closer to the wall may interrupt the halo. Two adjoining sections should maintain the same stand-off distance, rear outline, and reflected-light path.

Before approving a joint position, the drawing should be viewed in at least four ways:

1. Front elevation during daytime
2. Illuminated front view at night
3. Rear view showing frames and wiring
4. Installation view showing access to bolts and connectors

A seam that looks acceptable in the front elevation can still block LEDs, create a rear shadow, or become impossible to seal after the letter is mounted.

How Are Large Letters Reinforced?

Reinforcement keeps each section flat during production and transport, carries lifting and installation forces, and transfers loads across the assembled joint. The reinforcement arrangement should follow the letter shape and mounting method rather than rely on one standard frame for every oversized letter.

Common reinforcement parts include:

Reinforcement part	Main purpose	Main design concern
Internal ribs	Reduce movement across wide faces and backs	Ribs should not create LED shadows
Cross braces	Hold long strokes at the approved width	Braces need adequate end connections
Perimeter frames	Maintain the outer contour	Frame weight can become significant
Gusset plates	Strengthen corners and stroke transitions	Plates require room for wiring and tools
Splice plates	Transfer force between sections	Bolt access and edge distance must be checked
Connection sleeves	Align hollow frames or rails	Sleeve fit should not require hammering on site
Lifting plates	Transfer rigging force into the structure	Plates must connect to reinforced members
Mounting plates	Spread force around anchors or studs	Final anchor design depends on the wall and local engineering
Temporary braces	Prevent movement during packing and lifting	Removal stage must be marked clearly

More reinforcement is not automatically safer. An excessively heavy frame can create several new problems:

• Higher crate and freight weight
• Larger crane or lifting-equipment requirements
• Greater force at the building attachment
• Less room for LED modules
• Longer wire routes
• Difficult access to bolts and connectors
• More heat retained inside the shell
• Uneven balance during lifting

The frame should be strong enough for handling and service conditions without turning the letter into an unnecessarily heavy steel structure.

A useful structural review begins with the real load path. Engineers should identify how force moves through the product:

• From the acrylic face or return into the shell
• From the shell into the internal frame
• From one section into the next section
• From the assembled letter into the mounting plate, rail, raceway, or studs
• From the mounting system into the building substrate

A decorative trim, thin return edge, or face retainer should not be expected to transfer the main structural load unless specifically designed for that purpose.

Lifting loads need a separate check. A letter may be stable after installation yet vulnerable while suspended horizontally or at an angle. Lifting points should connect to reinforced areas, and their positions should reflect the real center of gravity.

For example, a logo section may measure 2,500 × 1,800 mm but contain most of its metal and frame on one side. Placing lifting eyes at the geometric quarter points can cause the section to rotate. The factory should complete a controlled trial lift where practical and record the balanced lifting arrangement.

Temporary braces are useful around large openings and long unsupported strokes. A brace can keep an “O,” “C,” or script loop from changing shape during shipment. The installation drawing should state whether the brace is removed:

• Before lifting
• After the section reaches the wall
• After adjoining sections are connected
• After permanent anchors are tightened

Removing a brace too early can allow the section to move before the complete structure becomes stable.

Local structural professionals remain responsible for building loads, anchor selection, wind requirements, façade capacity, and local approvals. The sign factory should provide accurate section weights, overall dimensions, frame details, mounting interfaces, proposed fixing points, and lifting information.

How Are Sections Aligned and Connected?

A reliable connection performs three separate jobs: locating, fastening, and load transfer. One small pin or bolt should not be expected to perform all three without an engineering check.

Locating parts bring the sections into the correct position. Structural fasteners hold the sections together and transfer force. Alignment surfaces keep the faces and returns flush.

Connection feature	Primary function	Common mistake
Locating pin	Establishes repeatable position	Treating a small pin as the main structural fastener
Internal splice plate	Transfers force across the joint	Making the plate too short or too thin
Bolted flange	Provides a removable connection	Placing bolts where installers cannot reach them
Threaded insert	Speeds field fastening	Using inserts in material too thin to hold reliably
Frame sleeve	Aligns adjoining frame members	Allowing excessive play between sleeve and frame
Overlapping back	Controls alignment and water path	Blocking drainage or maintenance access
External cover	Hides or protects the seam	Depending on the cover for structural strength
Adjustable bracket	Allows limited field correction	Leaving so much adjustment that final alignment becomes uncertain

The drawing should establish a main datum for the complete letter. A datum may be the bottom baseline, vertical centerline, mounting rail, raceway center, or a defined corner. Every section is measured from the same reference.

Without a shared datum, small errors can accumulate. Consider a four-section horizontal letter. An alignment error of only 2 mm at each of the three joints can move the final section approximately 6 mm from the intended position. Angular error is more noticeable. A small rotation at the first connection can produce a much larger displacement at the end of a long stroke.

Factory inspection should therefore measure:

• Complete assembled width and height
• Diagonals across the full letter
• Stroke width on both sides of each joint
• Return depth
• Face projection
• Joint opening
• Bolt-hole position
• Mounting-hole position
• Distance between section datums
• Flatness across adjoining sections

The finished gap should be stated on the drawing where appearance depends on it. Terms such as “tight joint” or “minimal seam” are open to interpretation. A controlled dimensional requirement gives production and installation teams a common reference.

Dry fitting is one of the most useful controls. Adjoining sections should be assembled on a flat floor, temporary frame, or level support before final packing. The factory can then check whether:

• Pins enter without forcing
• Bolt holes align
• Faces remain level
• Curves continue smoothly
• Returns remain flush
• Wiring reaches the connection point
• Covers and gaskets fit
• Installers can reach the required fasteners

Bolts should not be used to pull visibly distorted shells together. Forcing the joint may close the seam temporarily while leaving stress in the metal, welds, paint, acrylic, or frame. Temperature change and vibration can later release the stress through paint cracking, loose fasteners, face movement, or an opening joint.

Fasteners should also be controlled as a complete set. The hardware schedule should record:

• Bolt diameter and length
• Material and finish
• Washer type
• Locking method
• Quantity per joint
• Required installation tool
• Access direction
• Spare quantity
• Final tightening or torque instruction where applicable

Hardware bags should carry the same section code shown on the drawing. “Bolts for large letter” is not enough when several letters use different lengths or plate thicknesses.

How Are LEDs Kept Consistent Across Joints?

The illuminated face should not reveal where the letter was divided. Consistent lighting depends on LED model, module spacing, face distance, internal reflectance, power loading, reinforcement position, and acrylic diffusion.

The joint area is often the hardest place to illuminate because structural plates occupy space normally used for modules. Removing LEDs around the plate can produce a dark band. Crowding extra LEDs into the remaining space can produce a bright band or hotspots.

The LED layout should be drawn across the complete assembled letter before being divided into circuits. After the visual layout is approved, the system can be assigned to individual sections.

The following items should remain consistent:

Lighting item	Required control
LED type	Same model and optical pattern across adjoining sections
Light color	Same specified color or color temperature
Production batch	Matching batches where practical for visible adjoining areas
Module spacing	Controlled spacing through the joint zone
Edge distance	Similar distance from LEDs to face edges and seams
Face distance	Equal shell depth and LED-to-face distance
Internal finish	Similar reflective surface on both sides of the joint
Circuit loading	Balanced load without one section operating near its limit
Dimming	Same driver, controller, and control range
Wire voltage	Adequate conductor size and controlled voltage drop

Reinforcement should be reviewed in the lighting layout, not added after the LED drawing is complete. A wide black plate close to the acrylic can cast a visible shadow. Possible corrections include:

• Narrowing or reshaping the plate
• Moving the plate farther from the face
• Adding reflective finishing
• Relocating nearby modules
• Changing module beam angle
• Increasing shell depth
• Using an illuminated joint cover
• Moving the joint to another stroke

A correction should be tested rather than judged only from a drawing. Light behavior changes with the face color, acrylic thickness, diffusion level, return depth, module lens, and internal surface.

Night inspection should be completed with adjoining sections connected. Testing each section separately cannot show whether the joint creates:

• A dark stripe
• A bright stripe
• A hotspot
• Different color temperature
• A shadow from the splice plate
• Unequal brightness caused by voltage drop
• A break in the halo behind the letter

Photographs should be taken from the normal viewing distance as well as close range. A seam or slight brightness change visible from 500 mm may not be noticeable from a 30-meter viewing distance. Approval should reflect the real installation setting.

For large illuminated letters, Iduoduo’s engineering review covers LED layout, power capacity, wiring, wire exits, mounting preparation, waterproofing, packing, and transport feasibility. Illuminated products undergo 100% lighting inspection and a 72-hour pre-shipment test before packing.

How Are Wires Connected Between Sections?

Each section should arrive with a defined electrical role. Installers should not need to open several letter sections and trace unmarked wires at height.

A practical numbering system can connect the product, drawing, wiring schedule, hardware bag, and crate record.

For example:

• Letter R, lower section: R-01
• Letter R, upper section: R-02
• Joint between sections: R-J01
• Positive connector: R-J01-P
• Negative connector: R-J01-N
• Power circuit: R-PSU-01
• Crate containing the section: CR-03

The exact code is less important than consistent use across every record.

Several field-connection methods are available:

Connection method	Suitable use	Items to confirm
Locking plug connector	Fast assembly of low-voltage section circuits	Current rating, polarity, locking, and outdoor rating
Terminal block	Accessible indoor or protected connection area	Enclosure, screw security, labeling, and strain relief
Sealed junction box	Exterior connections or several circuit branches	Gasket, cable entries, drainage, and service access
Prewired harness	Repeated sections or multi-letter systems	Harness length, connector code, and replacement method
Separate home-run wires	Large circuits or long distances	Wire size, voltage drop, conduit route, and identification
Raceway connection	Multiple letters mounted on a common raceway	Internal access, circuit grouping, and mains connection point

Connectors should not hang by the wires. Strain relief should carry mechanical pull so the electrical contact is not supporting the cable weight.

Outdoor wire entries may require glands, bushings, sleeves, sealed plugs, conduit fittings, or protected loops. Wire holes through metal should not leave sharp edges against insulation.

Polarity should be identified by more than wire color. Transport, repairs, supplier differences, and dim lighting on site can make color-only identification unreliable. Labels or keyed connectors reduce mistakes.

Power groups should also remain clear. One oversized letter may use several power supplies even when it appears as one visual element. The wiring diagram should state:

• Which LEDs belong to each circuit
• Which power supply serves each circuit
• Input and output voltage
• Connector location
• Wire size
• Polarity
• Dimming or controller connection
• Required access for replacement
• Maximum planned circuit load
• Final testing points

Power supplies should not be hidden permanently behind a sealed joint unless service access has been planned. A failed power supply should not require removal of an entire oversized letter.

Before the final joint is closed, installers should complete a staged test:

1. Test every section on the ground.
2. Connect adjoining section circuits.
3. Verify polarity and output voltage.
4. Confirm full illumination.
5. Check for flicker and color difference.
6. Close electrical enclosures.
7. Seal weather-exposed entries.
8. Test again after the faces and covers are installed.

How Are Joints Sealed Against Water?

Outdoor protection requires a controlled water path, not merely a thick bead of sealant over the visible seam. Rain can enter through the face edge, return joint, back overlap, fastener hole, wire entry, mounting hole, or an improperly closed service cover.

A reliable joint often combines several controls:

Protection layer	Function
Overlapping metal geometry	Directs water away from the inner joint
Gasket	Provides compression sealing between removable parts
Exterior sealant	Closes exposed seams and fastener areas
Cable gland	Protects wire entry and provides strain relief
Covered fastener	Reduces direct water entry around bolts
Corrosion protection	Protects cut, drilled, or welded metal
Internal barrier	Limits water travel toward LEDs and connectors
Drainage opening	Allows incidental moisture or condensation to leave
Service access	Allows later inspection without destroying the letter

Sealant should not be expected to compensate for poor joint geometry. A wide uncontrolled gap consumes more sealant, cures less evenly, collects dirt, and becomes harder to reopen.

Surface preparation matters. Dust, oil, water, protective-film residue, loose paint, and grinding debris can prevent adhesion. The sealing guide should name the required surface condition and compatible material rather than stating only “apply silicone.”

Drainage should follow the installed orientation. A letter lying face-up in the factory has different low points from the same letter mounted vertically on a façade. Drain holes should remain open after the sections are connected and should not release water onto an unprotected electrical joint.

Completely trapping the cavity can also create problems. Temperature changes may produce condensation even when direct rain entry is limited. A design with no drainage can hold moisture around LEDs, wires, fasteners, and unprotected metal edges.

The joint should answer several practical questions:

• Can rain strike the seam directly?
• Does the overlap face upward or downward?
• Can wind drive water through the gap?
• Are bolt holes inside or outside the sealed zone?
• Can water follow a wire into the cavity?
• Where will condensation collect?
• Can the drainage opening become blocked by sealant?
• Can the joint be reopened for repair?
• Will resealing damage the paint or face?

Electrical testing must be completed before exposed joints receive their final seal. Discovering reversed polarity or a loose connector after sealant has cured adds avoidable labor and may damage the finish during reopening.

Factory records should include close photographs of the unsealed joint, completed wiring, sealed connection, drainage locations, assembled face, and illuminated result. The records give the installation crew a reference and make later fault diagnosis more accurate.

Iduoduo’s documented engineering process links channel-letter structure with LED layout, power matching, wiring, weather protection, drainage, mounting preparation, testing, and export packing rather than treating each item as an isolated production step.

What Should Be Confirmed Before Production?

Before production, the approved file must define the complete letter size, segment boundaries, joint construction, reinforcement, LED circuits, wiring, mounting points, installation order, sealing method, section weights, packing arrangement, and inspection criteria. Production should begin only after drawing revisions, site dimensions, electrical requirements, and field responsibilities have been frozen into one traceable version.

A large segmented letter can be fabricated accurately and still cause trouble at the installation site. A bolt may sit too close to the wall for a wrench. A connector may be hidden behind a closed face. A crate may be too long for the loading area. A drain hole may end up above the true low point. Most failures begin with information that was missing, assumed, or spread across several emails.

Which Shop Drawings Are Required?

The front elevation alone is not enough. It shows how the letter should look but does not explain how the sections are produced, connected, powered, lifted, fixed, sealed, or serviced.

A useful drawing set should answer five practical questions:

1. What is being manufactured?
2. How is every section connected?
3. How is the sign powered?
4. How is it fixed to the building?
5. How will the installation crew put it together?

The following drawing package is normally required for a large segmented channel letter:

Drawing	Information to include	Why it matters
Front elevation	Overall size, letter spacing, section lines, visible seams, baseline and centerline	Confirms the finished appearance
Individual section drawing	Length, width, depth, weight, section code and orientation	Supports fabrication, packing and lifting
Cross-section	Face, return, back, trim, internal depth, LED-to-face distance and wall projection	Confirms the complete construction
Joint detail	Plates, sleeves, flanges, pins, bolts, gaskets, overlaps and access points	Shows how adjoining sections connect
Reinforcement drawing	Ribs, frames, gussets, lifting plates and mounting plates	Controls stiffness and load transfer
LED layout	LED type, spacing, joint-zone arrangement, circuit groups and power loading	Prevents dark or bright bands
Wiring diagram	Polarity, connector codes, wire size, power supplies, junction points and exits	Reduces field wiring mistakes
Mounting drawing	Studs, rails, brackets, raceways, anchor zones and wall references	Connects factory work to the real façade
Installation sequence	First section, lifting order, temporary support and closure order	Prevents access from being blocked
Packing drawing	Crate number, section position, opening direction and accessory location	Supports unloading and installation
Finish schedule	Metal, paint, color reference, gloss, brushing direction and face material	Keeps sections visually consistent
Parts list	Fasteners, connectors, gaskets, sealants, covers and spares	Prevents missing or mixed hardware

The joint drawing should show more than a line through the letter. It should include a cross-section through the actual connection. A note such as “join on site” leaves too much open to interpretation.

At minimum, the joint detail should identify:

• Plate or frame material
• Plate thickness
• Overlap length
• Bolt diameter and quantity
• Bolt access direction
• Locating-pin position
• Finished joint gap
• Face connection
• Back connection
• Wire route
• Connector location
• Gasket position
• Sealant area
• Drainage path
• Removable service cover

Dimensions should be measured from common datums. A baseline, vertical centerline, raceway center, mounting rail, or defined corner can serve as the main reference. Every section should refer back to the same datum rather than being dimensioned only from the neighboring section.

A drawing should also separate three kinds of information:

• Factory-completed work
• Field-completed work
• Work requiring confirmation by the local installer or engineer

For example, the factory may prepare mounting plates and hole locations, while the final anchor type depends on the completed wall, substrate, wind requirement, and local approval. Keeping those responsibilities visible avoids the false assumption that every building condition has already been approved by the sign manufacturer.

How Are Segment Dimensions Approved?

Segment dimensions should be approved against the full route from the factory floor to the final mounting point. Dividing a 4,800 mm letter into two equal 2,400 mm pieces may look logical, yet one piece could still be too wide for an elevator, too long to turn through a corridor, or too flexible for the available lifting method.

Every proposed section should be checked against:

• Raw material size
• Cutting-bed capacity
• Forming and welding space
• Paint-booth access
• Factory doorway
• Crate dimensions
• Truck or container opening
• Delivery-site gate
• Corridor and turning space
• Elevator cabin
• Roof opening
• Crane capacity
• Working-platform size
• Installer reach
• Final connection access

The smallest confirmed limit normally controls the section size. Protective wrapping, crate walls, handles, lifting eyes, rigging, and working clearance must also be included.

A section measuring 2,350 mm should not automatically be approved for a 2,400 mm opening. The remaining 50 mm may disappear once packaging, doorway hardware, uneven floors, and hand clearance are considered.

A practical section-approval sheet may look like the following:

Item	Proposed section	Confirmed limit	Remaining allowance	Status
Factory exit width	2,250 mm	2,600 mm	350 mm	Acceptable
Crate external width	2,420 mm	2,500 mm	80 mm	Review
Site entrance	2,300 mm	2,350 mm	50 mm	Insufficient working allowance
Elevator door	1,900 mm	2,050 mm	150 mm	Check diagonal entry
Lift weight	145 kg	250 kg equipment rating	105 kg	Confirm at actual reach
Platform length	2,600 mm	2,800 mm	200 mm	Acceptable
Rear bolt access	120 mm needed	80 mm available	–40 mm	Revise connection

The equipment rating in the table should not be treated as the final lifting approval. Crane and hoist capacity changes with operating radius, boom position, configuration, rigging weight, and site conditions.

Section weight should be recorded before production. A reliable estimate includes:

• Metal face or shell
• Returns
• Back
• Internal frame
• Acrylic or polycarbonate face
• LED system
• Wiring
• Mounting hardware
• Connection plates
• Lifting plates
• Temporary braces

The weight of the wooden case, pallet, blocking, and packing materials should be recorded separately as gross crate weight.

Example fabrication-control targets can be written into the drawing instead of relying on phrases such as “accurate fit” or “small seam.” The actual values should be agreed according to letter size, material and viewing distance.

Control point	Example project target
Section length and width	Approved drawing dimension with stated tolerance
Return depth difference at joint	No visible step from normal viewing distance
Joint opening	Fixed range stated on the drawing
Face-level difference	Controlled so trim and illumination remain continuous
Mounting-hole position	Compatible with the approved template
Overall assembled width	Checked after factory fitting
Diagonal difference	Recorded to identify twist or out-of-square assembly
Joint-line position	Matches the approved elevation

Values should not be copied blindly from another order. A 1,500 mm indoor letter and a 6,000 mm exterior rooftop letter need different control methods.

How Is the Installation Sequence Planned?

Installation order should be settled before joint plates, wiring exits, access covers, and mounting holes are finalized. Once a section is fixed close to the wall, parts that looked easy to reach on a flat drawing may become inaccessible.

The first installed section normally establishes the main datum. It should be large and stable enough to define the letter’s level, projection, and centerline. Beginning with a small serif, script tail, or decorative extension often leaves no reliable reference for the remaining parts.

A typical sequence may be:

1. Confirm the wall baseline and centerline.
2. Verify mounting points against the final site measurement.
3. Position the main reference section.
4. Check level, height and projection.
5. Install temporary support where required.
6. Lift the adjoining section.
7. Engage locating pins or sleeves.
8. Install structural fasteners.
9. Connect the numbered low-voltage circuits.
10. Test both sections before closing the joint.
11. Install gaskets, covers and final sealant.
12. Confirm drainage remains open.
13. Fit faces or trim components.
14. Complete daytime alignment inspection.
15. Complete final nighttime illumination inspection.

The sequence drawing should show which components are fitted at each stage.

Installation stage	Work completed
Before lifting	Ground-level lighting test, connector check and section inspection
During positioning	Alignment to datum, temporary restraint and joint fit
Before final tightening	Face level, return alignment and full-section geometry
Before sealing	Electrical connection and illumination test
Before closing faces	Bolt, wire, gasket and drainage inspection
After structural completion	Anchor and joint review
After electrical completion	Voltage, polarity, brightness and control test
Final handover	Daytime and nighttime photographs

Access should be drawn from the installer’s point of view. The drawing should identify:

• Required wrench direction
• Minimum tool clearance
• Face-removal direction
• Rear access clearance
• Connector reach
• Sealant-gun access
• Position of temporary supports
• Safe handhold areas
• Areas not suitable for lifting
• Areas kept open until testing is complete

Where a wall gap is only 30–50 mm, rear bolts may be impossible to tighten after the section is placed. A face-access connection, side-access cover, preassembled frame, or revised installation order may be required.

Electrical work should be staged. Every section should illuminate correctly before leaving the ground. Adjoining circuits should be tested again after connection and before final sealing. A final test should follow face and trim installation because a face panel can reveal hotspots, shadows, or a dark joint that was not visible while the letter remained open.

Weather also affects the sequence. Final sealant should not be applied to wet, dusty, oily, or poorly prepared surfaces. Lifting and alignment should not depend on workers holding a broad letter steady in unsuitable wind.

What Installation Guides Should Be Supplied?

A drawing package is useful for technical review, but the installation crew also needs a clear working guide. The guide should show the real product, real section numbers, real connector positions, and actual installation order.

Useful materials include:

• Numbered assembly drawing
• Mounting template
• Full-size hole pattern
• Raceway or mounting-rail drawing
• Joint cross-section
• Wiring schematic
• Power-supply schedule
• Connector map
• Hardware list
• Section-weight list
• Lifting-point drawing
• Crate-opening guide
• Sealing instructions
• Drainage drawing
• Factory assembly photographs
• Ground-level test video
• Full illumination video
• Final packing photographs

A mounting template should show:

• Letter or logo reference
• Top and bottom orientation
• Baseline
• Centerline
• Mounting-hole positions
• Wire-exit positions
• Section boundaries
• Scale confirmation
• Printing or assembly instructions
• Revision number

A template printed in several pieces should include overlap lines and registration marks. A nominal “100% scale” note is not enough when the printer can resize a PDF automatically. A measurable reference box, such as 500 × 500 mm, helps the installation crew confirm printing accuracy before drilling.

The wiring guide should identify every field connection.

Wiring item	Information required
Section circuit	Section and circuit code
Polarity	Positive and negative identification
Connector	Type, position and matching code
Wire	Size, length and insulation requirement
Power supply	Model, output voltage and assigned load
Input	Local input voltage and mains responsibility
Control	Dimming, RGB, RGBW or switching details
Access	Location for future power-supply replacement
Weather protection	Enclosure, gland, plug or junction-box requirement
Testing	Expected output and test points

Color alone should not identify field wiring. Labels, keyed connectors, or matching codes reduce mistakes when several similar cables are present.

The sealing guide should be equally specific. “Apply silicone around the joint” is not enough. It should show:

• Approved sealant type or performance requirement
• Surface preparation
• Gasket location
• Required overlap
• Bolt holes inside the sealed zone
• Wire-gland position
• Sealant-free drainage area
• Service cover
• Curing conditions
• Final visual condition

The installation guide should also make clear which work requires local approval. Building anchors, structural attachment, mains wiring, crane operation, permits, and façade compatibility normally require confirmation by qualified local parties.

How Are Parts Numbered and Packed?

Numbering should connect the physical section with the drawing, wiring, hardware, crate, and installation order. A loose label stating “upper part” is not enough for a project containing several similar letters.

A useful code can include:

• Project number
• Letter or logo reference
• Section position
• Circuit reference
• Crate number

For example:

• Project: NY-2406
• Letter: R
• Lower section: NY-2406-R-01
• Upper section: NY-2406-R-02
• Joint connector: NY-2406-R-J01
• Power circuit: NY-2406-R-PS01
• Hardware bag: NY-2406-R-HW01
• Crate: NY-2406-CR03

The exact format can change, but the same code should appear everywhere.

Location	Required identification
Letter section	Permanent or securely attached section code
Protective wrapping	Visible section code and opening direction
Connector	Matching section and polarity code
Hardware bag	Joint or section code and quantity
Drawing	Same code beside the relevant component
Crate	Project, section, weight and opening side
Packing list	Crate contents and accessory list
Test record	Section code shown in photos or video

Hardware should be divided by joint or section rather than packed in one unmarked box. Each bag should list:

• Bolt type and size
• Quantity
• Washers
• Locking parts
• Brackets
• Gaskets
• Connector covers
• Spare quantity
• Required installation tool

A spare quantity of approximately 5–10% may be useful for common fasteners on complex installations, provided the spare hardware is clearly identified and does not create confusion with the required quantity.

Crate planning should follow the installation sequence. The first section needed on site should be accessible without unloading every other component. Heavy power supplies, mounting rails, and hardware should not rest against acrylic faces or painted returns.

Each crate should show:

• Project reference
• Crate number
• Section codes
• Gross weight
• External dimensions
• Center of gravity where needed
• Forklift entry
• Lifting points
• Opening side
• Top orientation
• Keep-dry instruction
• Do-not-stack instruction where applicable

Large channel letters may require plywood cases, timber frames, pallets, internal support, lifting labels and center-of-gravity marks. Packing should also account for the opening order and how each section will be moved after unpacking.

How Is the Assembled Letter Inspected?

Inspection should cover the complete assembled letter, not only the separate sections. Individual parts may pass inspection while the finished assembly remains twisted, misaligned, unevenly illuminated, or impossible to install.

Factory dry fitting should be completed wherever the available floor and handling conditions allow. For extremely large letters, each critical joint can be fitted on a level support and checked against fixed datums.

The assembled inspection should cover:

Inspection area	What to check
Overall geometry	Total width, total height, diagonals, contour and symmetry
Joint alignment	Gap, face level, return continuity and curve transition
Structure	Frames, splice plates, bolts, welds and lifting points
Mounting	Hole locations, rails, studs, brackets and template match
Finish	Color, gloss, brushing direction, scratches and repair marks
Face	Fit, edge clearance, retainer engagement and expansion allowance
Lighting	Brightness, color, hotspots, dark bands and joint shadows
Electrical	Polarity, connectors, wire protection and power loading
Weather protection	Gaskets, overlaps, sealant zones, wire entries and drainage
Documentation	Section codes, drawing revision, hardware and packing list

The visual inspection should take place in both daylight and darkness. A metal step may be visible during the day but disappear at night. A joint shadow may be invisible during the day and obvious after illumination.

The lighting test should include:

1. Each section tested separately
2. Adjoining sections electrically connected
3. Complete assembly illuminated
4. Joint zone viewed at close range
5. Complete letter viewed from the intended distance
6. Power and connector temperature checked
7. Flicker and color consistency checked
8. Final operation recorded in photographs or video

A joint-related lighting fault often comes from one of four causes:

• Reinforcement blocking the light path
• LED spacing changing near the joint
• Voltage difference between circuits
• Different LED batches or color temperatures

The inspection record should show the rear as well as the front. Useful evidence includes:

• Joint plates before closure
• Bolt installation
• Wire labels
• Connector positions
• Gaskets
• Drain holes
• Mounting points
• Assembled face
• Daytime front view
• Nighttime front view
• Crate supports
• Accessory bags

Illuminated products at Iduoduo are subject to 100% lighting inspection and a 72-hour pre-shipment test. The documented production system also transfers approved drawings, samples and project requirements into bills of materials, process controls, mounting specifications, quality checklists, packing requirements and a frozen production version.

Production approval should be withheld when any critical item remains open. A suitable release record can classify items as follows:

Status	Meaning
Approved	Complete and ready for production
Approved with note	Production may proceed after a documented minor correction
Pending	Information is still required
Rejected	The proposed detail must be redesigned
Site confirmation required	Local measurement or engineering approval remains outstanding

A verbal confirmation in a chat message should not override the approved drawing without a recorded revision. The final production package should carry one revision number and one approval date. Superseded files should be removed from the workshop package so an old section line, color, wire exit, or mounting-hole position cannot return during fabrication.

How Can Iduoduo Support Your Large Channel Letter Project?

Large channel letters should be reviewed as a manufacturing, transport, lifting, electrical, and installation system—not only as an enlarged version of a standard storefront letter. Early engineering decisions usually cost far less than correcting an oversized crate, inaccessible joint, dark lighting band, misaligned face, or unsuitable lifting plan at the job site.

Iduoduo can review your logo, architectural elevation, letter dimensions, installation height, wall construction, access limits, target market, lighting method, and preferred mounting system. The engineering team can then develop a practical section arrangement covering joint placement, internal reinforcement, LED circuits, wire connections, installation numbering, packaging, and field assembly.

For an initial review, provide the vector logo or shop drawing, finished letter height and width, return depth, quantity, indoor or outdoor location, installation elevation, wall material, available crane or access equipment, smallest delivery opening, voltage, required certification, destination country, and target installation date. These details allow the project to be quoted and engineered around real conditions rather than assumptions.
