How Should Power Groups Be Planned for Large Channel Letters? A Practical Guide to Load, Voltage Drop, and Wiring Zones

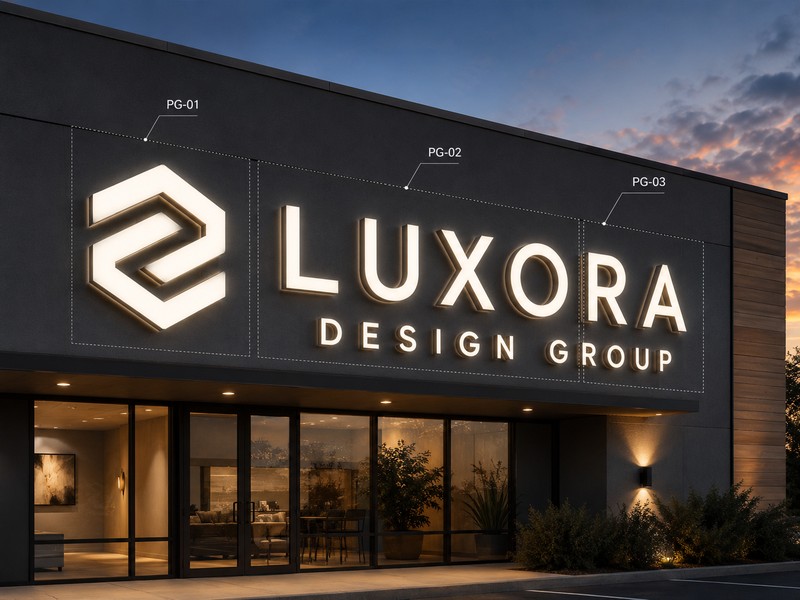

A large channel letter sign may look like one continuous brand name, but electrically it is rarely one simple load. A wide “M” may contain several times more LED modules than a narrow “I.” A front-and-halo-lit logo may draw much more power than adjacent front-lit letters. The last letter may also sit much farther from the power supply than the first. When every letter is connected according to appearance rather than measured load, a sign can pass a quick factory lighting test yet develop dim letters, color differences, flicker, overheated connections, or difficult maintenance after installation.

Power groups for large channel letters should be planned from the actual LED load of each letter, the approved capacity of each power supply, cable length, voltage drop, mounting method, control zones, and service access. Each group should stay within the limits of the selected LED and power-supply system, use practical cable routes, and be clearly shown on a numbered wiring diagram.

The important lesson is that the number of letters does not determine the number of power supplies. The electrical layout does. A nine-letter storefront sign might need three well-balanced groups, five smaller groups, or one unusually large letter supplied through multiple branches. The difference becomes obvious only after the LED layout, wall conditions, cable distances, and power-supply locations are reviewed together. That is where a clean-looking sign drawing turns into an installation-ready electrical package.

What Determines the Power Load?

The electrical load of channel letters comes from the actual LED layout inside every letter, logo, symbol, and illuminated border. Overall sign width and letter quantity can provide a rough early estimate, but neither figure is accurate enough for selecting power supplies or dividing power groups.

A 600 mm-high “I” may use only a small number of LED units, while an “M” at the same height can require three or four times as many. A round logo may need several lighting rows to prevent a dark center. Front-and-halo-lit letters may contain separate front and rear lighting circuits. RGBW letters can draw their highest current when several color channels operate together.

For reliable planning, power demand should be calculated letter by letter after the internal LED arrangement is confirmed. The calculation should include LED quantity, rated wattage, supply voltage, lighting type, wire length, controller load, operating temperature, and a practical power reserve. The final schedule should show both the theoretical load and the planned working load of every power supply.

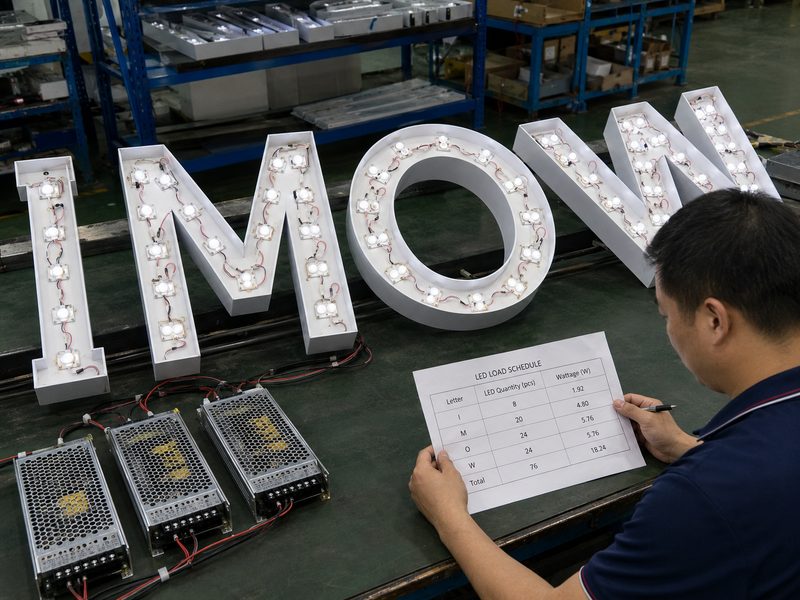

How Is LED Load Calculated?

The first step is to prepare an LED layout for every illuminated element. Each letter should have a confirmed quantity rather than an estimate based only on its height.

The basic calculation is:

Letter load in watts = LED quantity × rated watts per LED unit

For example, consider a front-lit letter fitted with 32 LED units rated at 0.72 W each:

32 × 0.72 W = 23.04 W

The operating current can then be calculated:

Current in amps = total watts ÷ operating voltage

For a 12V system:

23.04 W ÷ 12V = 1.92 A

For a compatible 24V system drawing the same total wattage:

23.04 W ÷ 24V = 0.96 A

The lower current in the 24V example can make long cable routes easier to manage, although every LED, controller, dimmer, connector, and power supply must be designed for 24V operation.

A complete sign calculation should not combine all LED units immediately. Every letter should first be listed separately.

Letter	LED Quantity	Watts per LED	Calculated Load	Current at 12V
C	24	0.72 W	17.28 W	1.44 A
H	30	0.72 W	21.60 W	1.80 A
A	28	0.72 W	20.16 W	1.68 A
N	34	0.72 W	24.48 W	2.04 A
N	34	0.72 W	24.48 W	2.04 A
E	26	0.72 W	18.72 W	1.56 A
L	20	0.72 W	14.40 W	1.20 A
Logo	76	0.72 W	54.72 W	4.56 A
Total	272	—	195.84 W	16.32 A

The total load in the example is 195.84 W, but the power system should not be selected only from the total. The 54.72 W logo has a much higher individual load than the letters and may need its own supply or a separate branch.

LED quantity should come from the production layout. A quick sales estimate may be sufficient for an early budget, but it should not become the final electrical specification. Changes in stroke width, return depth, face material, LED optics, or brightness target can alter the final quantity.

The selected LED manufacturer may also set limits for:

• Maximum LED quantity on one branch
• Maximum current through one connector
• Recommended spacing between LED units
• Minimum distance from the acrylic face
• Approved wire length between sections
• Maximum number of products on one power output

Even when the wattage remains below the supply rating, exceeding one of those limits can lead to uneven brightness or overheated connections.

Which Letters Use More Power?

Letters of equal height rarely use equal power. Electrical demand is more closely related to illuminated area, stroke shape, LED arrangement, and lighting method.

Wide letters such as “M,” “W,” “O,” “G,” and “S” often require more LED units than narrow letters such as “I,” “L,” “T,” or “J.” A logo mark may use more power than several letters combined, especially when it contains broad filled areas or an illuminated border.

The table below shows how 1,000 mm-high letters can produce very different loads. The figures are examples for planning logic; actual values depend on the selected LED and internal layout.

Element	Typical Shape	Example LED Quantity	Example Load at 0.72 W
I	Narrow vertical stroke	14	10.08 W
L	Vertical and short horizontal stroke	20	14.40 W
A	Two diagonal strokes and crossbar	32	23.04 W
O	Full curved perimeter	42	30.24 W
M	Wide multi-stroke letter	50	36.00 W
W	Wide angled strokes	54	38.88 W
Round logo	Broad illuminated area	82	59.04 W

Several design details can increase the load:

• Wider strokes requiring two or three LED rows
• Deep letters with a large illuminated face
• Shallow letters requiring closer LED spacing to reduce visible light points
• Dark or low-transmission acrylic faces requiring more light output
• Front-and-halo lighting using two illuminated directions
• Large enclosed areas where extra LEDs are needed near the center
• Red, blue, or specialty faces with different light transmission
• High installation positions requiring stronger visual output
• Logo shapes with dense curves, corners, or uneven internal spaces

Lighting method also changes the calculation.

Lighting Type	Main Electrical Consideration
Front-lit	Face area, stroke width, acrylic transmission and return depth
Halo-lit	Wall distance, wall color, rear LED position and halo width
Front and halo-lit	Separate front and rear lighting demand
Side-lit	Edge-lighting path, return material and LED direction
RGB	Controller capacity and current on each color channel
RGBW	Combined RGB load plus a separate white channel
Dimmable white	Dimmer rating, startup current and minimum stable output

One common error is dividing power groups by letter count. For example, a ten-letter sign might be divided into two groups of five letters. The first five letters could draw 68 W, while the second five draw 112 W because the second group contains a large “W,” an “O,” and a logo. Equal character count has created unequal electrical demand.

A better approach is to group letters after the individual loads are known.

How Much Capacity Should Remain?

A power supply should not be selected only because its nameplate wattage is slightly higher than the calculated LED load. Real operating conditions can differ from laboratory conditions.

Heat, ventilation, enclosure size, cable loss, input-voltage variation, component tolerance, operating hours, and outdoor temperature can all affect performance. A supply installed inside a ventilated indoor cabinet does not operate under the same conditions as one placed inside a compact outdoor raceway exposed to summer heat.

Many sign projects use a working load below the full nameplate rating. A common engineering target is around 70% to 85%, although the exact percentage should follow the selected power-supply instructions and actual installation conditions.

The following table shows how different loading targets affect usable capacity:

Power-Supply Rating	70% Working Load	80% Working Load	85% Working Load
60 W	42 W	48 W	51 W
100 W	70 W	80 W	85 W
150 W	105 W	120 W	127.5 W
200 W	140 W	160 W	170 W
300 W	210 W	240 W	255 W

Suppose one proposed group has a calculated LED load of 94 W.

A 100 W supply would operate at 94% of its rating. Such a layout may leave little room for temperature derating, cable loss, product tolerance, or later replacement with a slightly higher-wattage LED.

A 150 W supply would operate at approximately 63% of its rating. Electrically, the reserve is generous, but the larger supply may increase cost, enclosure size, and heat concentration.

Another option is to redistribute several letters and create two balanced groups. The correct choice depends on installation space, cable routes, service access, supply approvals, and the number of additional connections introduced.

A practical power schedule can show four separate values:

Item	Example
Power-supply nameplate rating	100 W
Project working limit	80 W
Calculated LED load	73.5 W
Remaining project reserve	6.5 W
Remaining nameplate capacity	26.5 W

The distinction matters. The power supply still has 26.5 W below its nameplate rating, but only 6.5 W remains below the project’s chosen working limit.

Extra capacity should not be used to hide poor calculations. A very large supply connected to long, thin cables can still produce dim letters. A lightly loaded supply in a sealed hot enclosure can still overheat. Reserve capacity is one part of the design, not a replacement for correct wire sizing, ventilation, branch limits, and voltage-drop checks.

Power planning should also consider failure impact. Placing an entire storefront on one large supply may reduce component count, but a single failure could darken the complete sign. Several balanced groups can limit the affected area and simplify fault finding.

Do RGB Systems Change the Load?

RGB and RGBW letters require a more detailed calculation than static white channel letters.

RGB lighting uses three controlled color channels:

• Red
• Green
• Blue

RGBW adds a fourth white channel. The total load changes according to which channels operate together. Pure red may use only the red channel, while white created through RGB may operate red, green, and blue at the same time. RGBW can use the dedicated white channel alone or combine white with the color channels, depending on the controller program.

For planning purposes, the highest permitted simultaneous output should be used rather than the average load during a color-changing sequence.

Consider 20 RGB light units rated as follows:

Channel	Load per Unit	Quantity	Total Channel Load
Red	0.24 W	20	4.8 W
Green	0.24 W	20	4.8 W
Blue	0.24 W	20	4.8 W
Full RGB output	0.72 W	20	14.4 W

The controller must be able to carry both the total 14.4 W and the 4.8 W load on each individual channel. For larger signs, the channel current becomes more important.

At 12V:

4.8 W ÷ 12V = 0.4 A per channel

For 200 identical RGB units:

48 W ÷ 12V = 4 A per channel

The full RGB demand would be:

144 W ÷ 12V = 12 A total

A controller rated for 15 A in total may appear suitable, but it may still be unsuitable if its limit is only 3 A per channel. Total controller capacity and per-channel capacity must both be checked.

Large RGB signs often require signal amplifiers or repeaters. The control signal can remain synchronized while separate power supplies feed different physical zones. Each amplifier and supply should be labeled and shown on the wiring plan.

RGB power planning should confirm:

• LED operating voltage
• Maximum load with all permitted channels active
• Current per color channel
• Total controller capacity
• Per-channel controller capacity
• Amplifier quantity and rating
• Maximum cable distance
• Cable conductor count
• Common-positive or common-negative wiring
• Dimming method
• Control protocol
• Power-restoration behavior
• Synchronization between letter groups

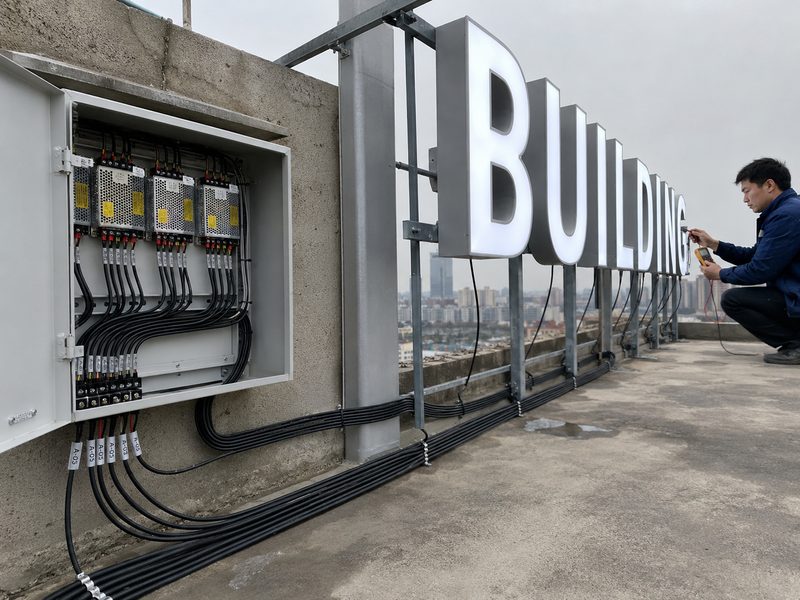

Long cable routes can cause more than lower brightness. Unequal voltage between RGB groups may create visible color differences. One side of a sign may appear warm white while another looks slightly blue or green, even when both receive the same control command.

For wide signs, RGB power and control zones should be planned together. A typical arrangement may look like the following:

Zone	Sign Elements	LED Load	Power Supply	Controller Connection
RGB-01	Letters 1–3	72 W	100 W	Master controller
RGB-02	Letters 4–6	78 W	100 W	Amplifier 1
RGB-03	Letters 7–9	69 W	100 W	Amplifier 2
RGB-04	Main logo	82 W	150 W	Amplifier 3

Every zone should be tested at full red, green, blue, white, mixed colors, low brightness, full brightness, transition mode, and restart. The inspection should check color consistency, flicker, delayed response, controller reset, and differences between the first and last illuminated element.

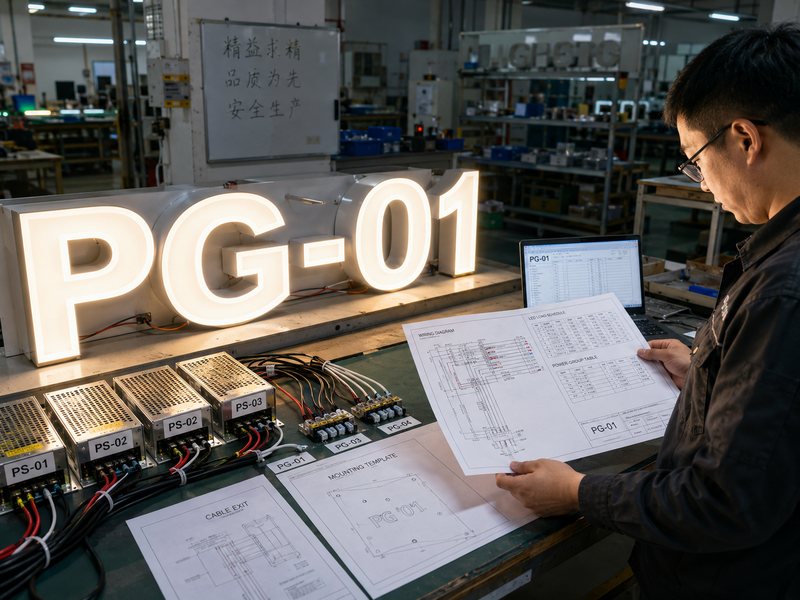

Iduoduo’s engineering scope includes LED arrangement, power capacity, wiring groups, controllers, cable exits, installation interfaces, and pre-shipment lighting tests. Electrical planning should be approved before production rather than completed after the letters have already been assembled.

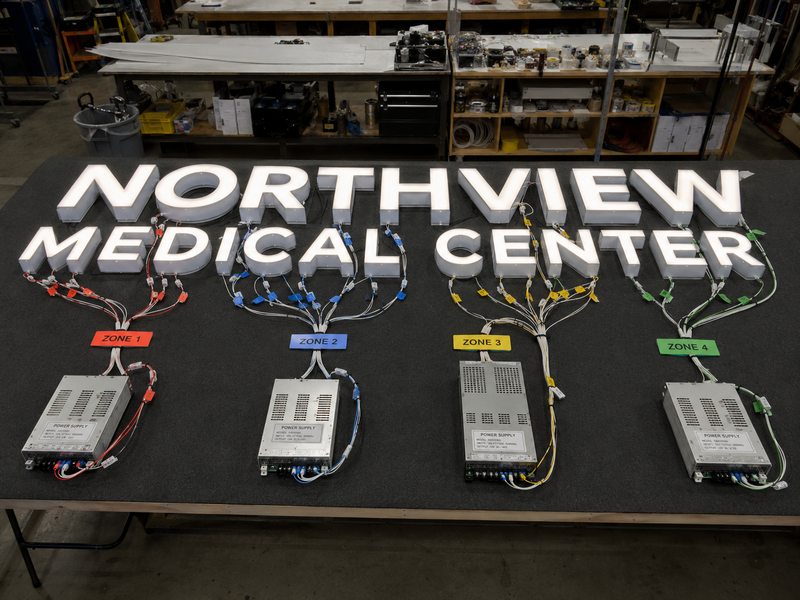

How Should Power Groups Be Divided?

Power groups should be divided according to the measured wattage of each letter, cable distance, power-supply position, installation zones, lighting functions, and future maintenance needs. Equal letter counts rarely produce equal electrical loads. A reliable plan keeps every supply within its approved working range, limits voltage loss, avoids excessively long branches, and clearly identifies which letters belong to each circuit.

Should Groups Follow Letters or Zones?

The simplest approach is to assign complete letters to one power supply. For example, one supply may operate letters A–D, while another operates letters E–H. Such an arrangement is easy to label, test, install, and repair because every letter has one clear electrical source.

Large storefront signs often need a more practical location-based plan. A sign spanning 12 metres may have power access near the left end, centre, and right end. Dividing the sign into three physical zones can shorten cable routes and reduce the amount of low-voltage wiring behind the wall.

The choice normally depends on four questions:

• Where will the power supplies be installed?
• How far is each letter from its assigned supply?
• Can complete letters remain together without exceeding the working load?
• Can every cable route be installed and serviced at the site?

Consider a 10-letter sign with a large circular logo:

Element	Calculated Load	Distance to Left Supply	Distance to Right Supply
Logo	58 W	1.5 m	10.8 m
Letter 1	16 W	2.0 m	10.2 m
Letter 2	19 W	2.8 m	9.4 m
Letter 3	22 W	3.6 m	8.6 m
Letter 4	17 W	4.4 m	7.8 m
Letter 5	28 W	5.2 m	7.0 m
Letter 6	31 W	6.0 m	6.2 m
Letter 7	18 W	6.8 m	5.4 m
Letter 8	24 W	7.6 m	4.6 m
Letter 9	20 W	8.4 m	3.8 m
Letter 10	15 W	9.2 m	3.0 m

Assigning the first five characters to one supply and the remaining five to another may look tidy on paper, but the first group would include the 58 W logo and could become heavily loaded. A better plan may give the logo its own supply, divide the letters into left and right zones, and place another supply near the centre.

A typical arrangement could be:

Power Group	Connected Elements	Total Load	Main Reason
PG-01	Logo	58 W	Large independent load
PG-02	Letters 1–3	57 W	Short left-side routes
PG-03	Letters 4–6	76 W	Central power access
PG-04	Letters 7–10	77 W	Short right-side routes

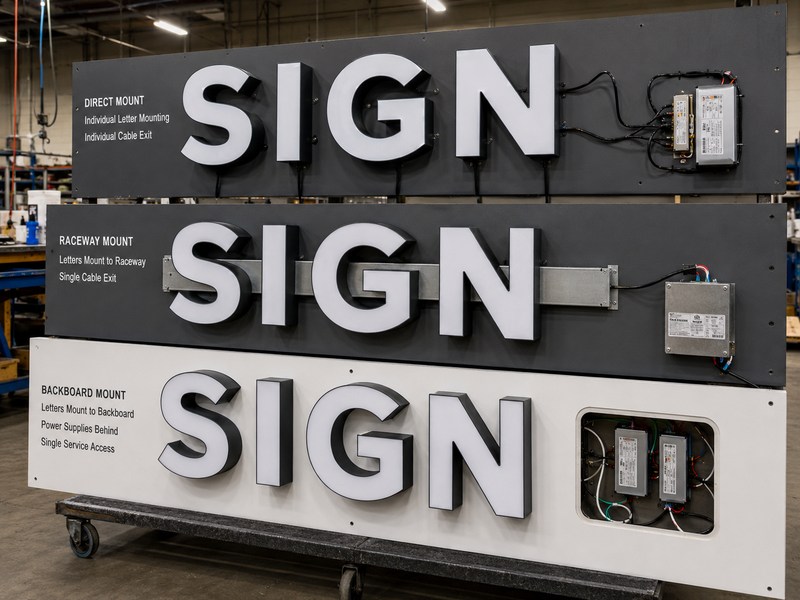

Physical zones become especially important when the letters are individually mounted and each cable passes through a separate wall opening. The power plan should match the mounting template so installers can immediately see where each cable must go.

Raceway-mounted letters follow a different logic. The raceway provides a shared cable path and often contains the supplies. Group boundaries can follow raceway compartments, removable covers, or convenient service positions. A long raceway may still need left, centre, and right electrical sections to avoid carrying high current from one end to the other.

Complete letters should remain within one group whenever practical. Splitting a letter creates more wiring and requires clearer documentation. However, keeping a letter complete should not take priority over safe load limits or acceptable cable distance.

Which Letters Need Separate Power?

A separate power supply is often justified when one letter or logo has a much higher load than the surrounding elements. The decision should come from actual wattage and cable conditions rather than visual size alone.

Separate power is commonly considered for:

• Large circular logos
• Wide “M,” “W,” “O,” “G,” or “S” letters
• Thick block fonts with several LED rows
• Front-and-halo-lit letters
• Large symbols positioned far from the main text
• RGB or RGBW sections with independent control
• Feature letters that must remain separately serviceable
• Structurally segmented letters
• Elements with a different voltage or lighting system

Suppose a sign has eight letters and one logo:

Element	Load
Letter A	18 W
Letter B	21 W
Letter C	16 W
Letter D	24 W
Letter E	20 W
Letter F	19 W
Letter G	23 W
Letter H	17 W
Logo	74 W

The letters total 158 W, while the logo alone uses 74 W. Placing the logo with two letters could produce a group above 110 W. Giving the logo its own supply may create a cleaner layout:

Group	Load	Proposed Supply Rating	Working Percentage
PG-01: Logo	74 W	100 W	74%
PG-02: A–D	79 W	100 W	79%
PG-03: E–H	79 W	100 W	79%

The three groups are not selected because the sign contains nine elements. They are selected because the resulting loads are balanced, easy to identify, and suitable for the proposed supply size.

A letter should also be considered separately when the cable route is unusually long. A 20 W letter located 18 metres from the nearest proposed supply may cause more difficulty than a 40 W letter located 1 metre away. Distance and current need to be considered together.

Different lighting functions may require electrical separation even when they appear in one letter. A front-and-halo-lit logo could have:

• One circuit for the front face
• One circuit for the rear halo
• Separate dimming for each light direction
• Independent white and color-changing sections

Combining every function into one circuit may prevent the site team from adjusting front and rear brightness separately. It may also make fault finding more difficult.

Separate power should not be used without a clear reason. Every additional supply adds cost, enclosure space, heat, connections, labels, and possible service points. The purpose is not to maximize the number of supplies. The purpose is to prevent one unusually demanding element from weakening the rest of the layout.

How Are Group Loads Balanced?

Balanced grouping does not mean every supply must carry exactly the same wattage. The aim is to avoid one supply operating close to its limit while another carries very little, provided cable routes and installation access remain practical.

A useful working process is:

1. Record the calculated load of every letter.
2. Mark large logos and special lighting sections.
3. Select the proposed supply model and working limit.
4. Place the supplies on the installation drawing.
5. Combine nearby letters without exceeding the working limit.
6. Check branch current and cable distance.
7. Move letters between groups where necessary.
8. Review the result for installation and maintenance.

Suppose the selected 100 W supply has a project working ceiling of 80 W. The sign contains the following loads:

Letter	Load
A	15 W
B	28 W
C	17 W
D	31 W
E	13 W
F	25 W
G	18 W
H	29 W
I	10 W
J	22 W

The total load is 208 W. Dividing by an 80 W working ceiling gives:

208 W ÷ 80 W = 2.6

At least three power groups are therefore required.

An early grouping might look like:

Group	Letters	Load
PG-01	A + B + C	60 W
PG-02	D + E + F	69 W
PG-03	G + H + I + J	79 W

Electrically, all three groups remain below 80 W. The last group is more heavily loaded but still acceptable under the chosen project limit. Moving letter J to Group 1 would produce 82 W in Group 1, which would exceed the limit. Mathematical equality is therefore less important than staying within the approved range.

An unbalanced plan may look like:

Group	Load	Percentage of 100 W Supply
PG-01	94 W	94%
PG-02	61 W	61%
PG-03	53 W	53%

The first supply carries almost twice the load of the third. Unless the selected supply is specifically approved for continuous operation at that load under the actual temperature and enclosure conditions, the letters should be redistributed.

A better arrangement could be:

Group	Load	Percentage of 100 W Supply
PG-01	72 W	72%
PG-02	69 W	69%
PG-03	67 W	67%

The exact loads will not always be so close. Cable length may justify a 58 W group beside a 76 W group. For example, moving one distant letter into the lighter group could add 12 metres of cable and create avoidable voltage loss.

A good balance review checks more than watts:

Check	Question
Supply load	Is the planned wattage below the approved working limit?
Output current	Is the current within the supply and connector limits?
LED branch	Does any single branch contain too many LEDs?
Cable route	Is the farthest letter still within the planned distance?
Voltage loss	Will the last letter receive suitable voltage?
Temperature	Does the supply have ventilation and clearance?
Control	Are RGB or dimming zones correctly separated?
Failure range	How many letters go dark if one group fails?
Service	Can the group be isolated and identified easily?

Power grouping should be reviewed after the final LED layout. An estimate prepared from letter heights may change when the production drawing shows additional LED rows, a larger logo area, or separate halo lighting.

Can One Letter Use Multiple Feeds?

A large letter can use more than one feed when a single internal cable path would carry too much current, exceed the approved LED run length, or create a visible brightness difference between the nearest and farthest sections.

Multiple feeds are common in:

• Very wide letters
• Tall letters with several horizontal sections
• Circular logos
• Large block fonts
• Front-and-halo-lit constructions
• Letters with narrow connecting strokes
• Letters assembled from several production sections

Consider a large “W” containing 96 LED units rated at 0.72 W each:

96 × 0.72 W = 69.12 W

At 12V:

69.12 W ÷ 12V = 5.76 A

Connecting all 96 LEDs through one small entry wire and one long internal chain may create unnecessary current concentration. The letter could instead use three branches:

Branch	LED Quantity	Load	Current at 12V
W-A	32	23.04 W	1.92 A
W-B	32	23.04 W	1.92 A
W-C	32	23.04 W	1.92 A
Total	96	69.12 W	5.76 A

All three branches may connect to one correctly selected power supply if the supply, output terminals, conductors, and branch limits permit the arrangement. Dividing the internal load reduces the current carried by each branch and can improve brightness consistency.

A different case occurs when one letter is too large for one supply. The letter may then be divided into two electrically separate sections:

Section	Load	Assigned Supply
Upper half	62 W	PS-01
Lower half	58 W	PS-02

The two sections should not share an uncontrolled electrical connection. Each section needs a clearly identified boundary, separate feed, and matching label on the drawing.

Outputs from separate supplies should not be joined casually. Even supplies with the same voltage label can have small output differences. Connecting them together without an approved parallel design can cause current sharing problems, protection trips, or damage.

A drawing for a split letter should identify:

• Electrical division line
• LED quantity in each section
• Branch labels
• Cable exit positions
• Positive and negative conductors
• Assigned supply
• Supply rating
• Test result for each section
• Complete-letter brightness check

The visual result should remain continuous. The division must not create a brighter upper half, darker lower half, or visible color difference.

A letter with multiple feeds should be tested by disconnecting one feed at a time. The production team can then confirm exactly which area belongs to each branch. Such a test also exposes accidental cross-connections before shipment.

How Many Groups Are Needed?

The required number of groups comes from total load, supply capacity, individual-letter loads, cable distances, branch limits, control zones, and installation access.

A first calculation can be made with:

Initial group count = total LED load ÷ project working load per supply

The result must be rounded upward.

For a sign with a total load of 438 W and a working limit of 80 W per supply:

438 W ÷ 80 W = 5.475

The starting point is six groups.

That figure still needs to be checked against the individual loads. Suppose one large logo uses 96 W. Six 80 W groups cannot accommodate the logo as one complete circuit. Possible solutions include:

• Use a larger approved supply for the logo
• Divide the logo into two electrical sections
• Select another supply family
• Change the LED arrangement
• Use a compatible higher-voltage system
• Place two supplies near the logo while keeping the outputs separate

A practical group-count worksheet may look like:

Planning Item	Result
Total sign load	438 W
Proposed supply rating	100 W
Chosen working ceiling	80 W
Basic calculation	5.475
Rounded starting count	6
Large logo adjustment	+1 dedicated group
Long-distance letter adjustment	+1 remote group
Final group count	8

Eight groups may seem high for one sign, but the extra groups may be justified when the logo is large and several letters are far from the central supply position.

Fewer groups can reduce:

• Power-supply cost
• Enclosure space
• Number of connections
• Cable labels
• Heat sources
• Installation time

More groups can reduce:

• Load per supply
• Cable length
• Voltage loss
• Failure impact
• Current per branch
• Troubleshooting time

Neither the lowest nor the highest group count is automatically best.

The following example compares three possible layouts for a 360 W sign:

Option	Supply Count	Average Load	Likely Advantage	Likely Limitation
Four groups	4	90 W	Fewer components	High working load and larger failure area
Five groups	5	72 W	Balanced load and manageable service	Moderate component count
Six groups	6	60 W	Shorter routes and smaller failure zones	More supplies, wiring and enclosure space

Five groups may be the most practical option when using 100 W supplies with an 80 W project ceiling. Six groups may still be preferable when the sign is very wide. Four groups may only be suitable when the selected supplies, enclosure temperatures, cables, and installation conditions support the higher load.

Group count should be finalized only after confirming:

• Final letter dimensions
• Final LED quantity
• LED wattage
• Supply model
• Working-load target
• Installation voltage
• Supply location
• Cable route
• Raceway or backboard structure
• Wall penetrations
• RGB or dimming requirements
• Outdoor conditions
• Service access
• Local electrical requirements

The approved drawing should include a group schedule rather than showing only the total number of supplies.

Group	Letters	Load	Supply	Cable Exit	Approximate Route	Control
PG-01	Logo upper	48 W	PS-01	CE-01	2.0 m	Static white
PG-02	Logo lower	46 W	PS-02	CE-02	2.2 m	Static white
PG-03	A–C	71 W	PS-03	CE-03	3.5 m	Static white
PG-04	D–F	76 W	PS-04	CE-04	4.1 m	Static white
PG-05	G–I	69 W	PS-05	CE-05	3.8 m	Static white
PG-06	J–L	73 W	PS-06	CE-06	4.6 m	Static white
PG-07	Accent line	55 W	PS-07	CE-07	2.7 m	Dimmable
PG-08	Side symbol	38 W	PS-08	CE-08	9.5 m	Independent

Such a schedule gives the factory, installer, electrician, and maintenance team the same reference. It also allows every group to be checked separately during Iduoduo’s 100% lighting inspection and 72-hour pre-shipment test.

Iduoduo’s engineering records identify letter quantity, individual wattage, supply position, cable length, building provisions, maintenance, and control as the main grouping factors. The same records state that proper grouping can reduce voltage loss, single-circuit overload, failure impact, and maintenance difficulty.

How Do Cable Runs Affect Grouping?

Cable length changes how many letters can share one power group. Longer low-voltage routes increase resistance, voltage loss, connector load, and brightness variation. Grouping should therefore consider the real cable path, current, conductor size, supply voltage, joint count, power-supply position, and distance to the farthest letter—not only the total LED wattage.

What Causes Voltage Drop?

Voltage drop occurs because every conductor has electrical resistance. As current travels from the power supply to the letters and returns through the negative conductor, part of the supply voltage is lost along the route.

The basic relationship is:

Voltage drop increases when cable length increases.

Voltage drop increases when current increases.

Voltage drop decreases when conductor size increases.

A simplified calculation for a two-conductor DC circuit is:

Voltage drop = 2 × one-way cable length × current × cable resistance per metre

The number 2 accounts for both the positive and negative conductors.

For example, consider a 12V power group drawing 5A through a 10-metre one-way cable route. The complete electrical path is approximately 20 metres.

The table below uses approximate copper-conductor resistance at normal room temperature. It is an engineering example rather than a fixed project specification.

Copper Wire	Approximate Resistance	Voltage Drop at 5A over 10m One-Way	Percentage of 12V
18 AWG	0.0209 Ω/m	2.09 V	17.4%
16 AWG	0.0132 Ω/m	1.32 V	11.0%
14 AWG	0.0083 Ω/m	0.83 V	6.9%
12 AWG	0.0052 Ω/m	0.52 V	4.3%

The example shows why a power supply can provide a correct 12V output while the farthest letter receives considerably less. A 17% loss would leave only about 9.9V at the load before connector and temperature effects are considered.

Actual routes are often longer than the distance measured across an elevation drawing. A power supply may sit 6 metres from a letter in a straight line, while the installed cable travels:

• Down from the enclosure
• Across a ceiling or service space
• Around structural framing
• Through a wall
• Up to the letter position
• Through the letter back
• Around the internal LED branches

A 6-metre visual distance can become a 10- or 12-metre electrical route.

Several smaller losses can also combine. A cable may have an acceptable calculated drop, but the completed system may include:

• Terminal blocks
• Wire nuts or crimp connectors
• Waterproof connectors
• Controller terminals
• Amplifiers
• Extension cables
• Wall penetrations
• Internal branch joints
• Repair connections added during installation

Each connection adds a small amount of resistance. A loose, corroded, undersized, or poorly crimped joint can create more trouble than several metres of correctly sized cable.

The first signs of excessive voltage loss may include:

• The farthest letter appearing dimmer
• Unequal brightness between letters
• White light appearing slightly different at the far end
• RGB colors no longer matching
• Flickering during startup
• A controller restarting
• Brightness falling when every letter is switched on
• A connector or cable becoming warm
• The sign working during a short test but becoming unstable after extended operation

Iduoduo’s engineering records identify long cable length, high current, and small conductor size as major causes of voltage loss. The documented effects include dim remote LEDs, RGB color deviation, white-light color change, controller restart, flicker, and inconsistent brightness between letters.
Cable distance can therefore change the power-group boundary. A group carrying only 55W may still need to be divided when one letter sits far from the supply. Meanwhile, a 75W group with short local wiring may perform more reliably.

A useful grouping review should compare load and distance together:

Group	LED Load	One-Way Route to Farthest Letter	Current at 12V	Main Concern
PG-01	72 W	2.5 m	6.0 A	High current, short route
PG-02	54 W	11 m	4.5 A	Long route
PG-03	78 W	3 m	6.5 A	Supply working load
PG-04	36 W	16 m	3.0 A	Very long route
PG-05	61 W	4 m	5.1 A	Moderate conditions

PG-04 has the lowest wattage but may require the most careful cable planning.

Which Wire Size Is Suitable?

Suitable wire size depends on current, voltage, route length, acceptable voltage loss, installation temperature, indoor or outdoor use, cable bundling, connector size, mounting method, and local electrical requirements.

There is no single wire size suitable for every large channel letter sign.

The selection process should begin with four values:

1. Supply voltage
2. Maximum current on the cable
3. One-way route length
4. Acceptable voltage at the farthest load

Current can be calculated from:

Current = watts ÷ voltage

For a 72W group:

System Voltage	Calculated Current
12V	6.0A
24V	3.0A

The 24V arrangement carries half the current for the same delivered wattage, provided the LED units, power supplies, controllers, dimmers, and accessories are all designed for 24V.

Lower current normally reduces:

• Cable voltage loss
• Cable heating
• Stress on connectors
• Stress on controller terminals
• Current passing through branch joints

Wire size should be checked at the branch level as well as the main feed. A 10A supply output may be divided into four branches carrying 2.5A each. The main cable and each branch do not necessarily need the same conductor size, but every section must suit its own current and route.

A practical cable schedule can show:

Cable ID	From	To	Voltage	Load	Current	One-Way Length	Planned Wire
C-01	PS-01	Junction J-01	12V	72 W	6.0A	3 m	Project specified
C-01A	J-01	Letter A	12V	20 W	1.67A	2 m	Project specified
C-01B	J-01	Letter B	12V	24 W	2.00A	2.8 m	Project specified
C-01C	J-01	Letter C	12V	28 W	2.33A	3.5 m	Project specified
C-02	PS-02	Letter D	24V	48 W	2.0A	12 m	Project specified

The drawing does not always need to print a fixed wire size during early quotation. However, the engineering review should at least state the design current, approximate route length, voltage, and whether final conductor selection remains subject to field verification.

Several conditions can require a larger conductor than a simple current table suggests:

• Long remote power-supply routes
• Cables passing through warm roof spaces
• Several loaded cables bundled together
• Outdoor exposure
• High daytime temperature
• RGB or RGBW circuits with several conductors
• Cables enclosed without ventilation
• Frequent full-brightness operation
• High-current logo sections
• Limited voltage tolerance at the LEDs

The cable also needs suitable insulation and environmental protection. A conductor large enough electrically may still be unsuitable if its insulation is not approved for the installation location.

Connector capacity must match the conductor. A large wire forced into a small terminal can produce loose strands, poor contact, or incomplete clamping. An oversized conductor may also be difficult to route through narrow letter strokes or small cable exits.

A better solution may be to divide one large feed into several smaller home runs rather than forcing a very large conductor through the complete sign.

Consider a 120W, 12V group:

120 W ÷ 12V = 10A

Instead of carrying 10A through one long line, the group could be divided into two 60W branches:

Arrangement	Branch Quantity	Current per Branch	Installation Effect
One main branch	1	10A	Higher cable and connector demand
Two equal branches	2	5A	Lower current per route
Three branches	3	About 3.33A	Easier distribution but more connections
Four branches	4	2.5A	Lower branch current and more labels

More branches do not automatically improve the sign. Every extra branch adds a joint, label, cable route, and possible service point. The number should remain practical.

Iduoduo’s electrical framework requires wire size to be selected from current, voltage, cable length, environment, temperature, cable bundling, installation method, and local rules. It also notes that undersized conductors may cause voltage loss, dim remote letters, cable heating, connector problems, and unstable control.

A final conductor schedule should be reviewed by the installation team because the factory does not always control the actual building route. Primary electrical work and final field connections should be completed by qualified local personnel.

Is 12V or 24V Better?

12V and 24V systems can both work well when every component is matched and the cable plan is suitable. The decision should not be based on a general claim that one voltage is always safer, brighter, or more durable.

Iduoduo’s documented position is that 12V is commonly used for standard LED units and small or medium projects, while 24V can be considered for certain long cable routes, large signs, or specific LED systems. The LEDs, power supplies, and controllers must use the same voltage.

The main electrical difference is current.

For the same wattage:

Doubling the voltage reduces the current by approximately half.

Group Load	Current at 12V	Current at 24V
24 W	2A	1A
48 W	4A	2A
72 W	6A	3A
96 W	8A	4A
120 W	10A	5A
180 W	15A	7.5A
240 W	20A	10A

Lower current can be useful for wide storefronts, remote power supplies, large logos, and several letters sharing one cable route.

The next example compares a 60W load installed 10 metres from the supply using approximate 18 AWG copper resistance.

At 12V:

Current = 60W ÷ 12V = 5A

Approximate voltage drop = 2.09V

Percentage loss = 17.4%

At 24V:

Current = 60W ÷ 24V = 2.5A

Approximate voltage drop = 1.05V

Percentage loss = 4.4%

The 24V arrangement has half the absolute voltage loss and about one-quarter of the percentage loss in the simplified example.

The result does not mean 24V automatically solves every long-run problem. The project still needs suitable conductors, correct connectors, reasonable branch lengths, and proper power-supply placement.

A 24V system can become unsuitable when:

• Only 12V LED products are approved for the sign
• Existing replacement stock is based on 12V
• The controller supports only 12V
• Local installers expect a specific product system
• The available certified supply does not suit the project
• Different voltages could be confused during installation
• Mixed 12V and 24V products are not clearly separated

Mixing voltages within one project requires very clear labels. A 12V letter accidentally connected to 24V may be damaged. A 24V letter connected to 12V may fail to illuminate correctly.

Where two voltages are unavoidable, the drawings, cables, enclosures, packing list, and product labels should identify them separately.

Item	Required Marking Example
Power supply	PS-01, 24V DC
Letter	L-04, 24V only
Cable	C-04, 24V positive and negative
Controller	CT-01, 24V RGBW
Packing carton	Zone B, 24V components
Wiring drawing	Separate 12V and 24V sections

Voltage selection should be completed before production because it affects LED selection, power supplies, controllers, wiring, labels, test equipment, and replacement parts.

Where Should Power Supplies Be Placed?

Power supplies should be placed close enough to the assigned letters to control cable loss, while remaining accessible, ventilated, protected, and practical for the building.

Common positions include:

• Inside a raceway
• Behind a backboard
• Inside an accessible indoor service area
• In a separate outdoor-rated enclosure
• Near the left, center, and right sign zones
• Behind removable wall panels
• Inside an approved sign cabinet
• Near roof or parapet access, where permitted

The best location is rarely determined by cable length alone.

A supply mounted immediately behind the letters may provide short low-voltage routes, but it can be difficult to replace after the façade is closed. A supply installed in an indoor service room may be easy to maintain, but long DC runs can reduce voltage at the sign. A raceway centralizes the supplies and wiring, although internal heat and service-cover access must be considered.

Power-supply placement should be reviewed against:

Requirement	Practical Question
Cable length	How far is the farthest assigned letter?
Ventilation	Can heat leave the enclosure?
Service access	Can the supply be removed without taking down the sign?
Weather protection	Can water reach the supply or terminals?
Building access	Can installers reach the location safely?
Primary power	Is approved input power available nearby?
Group layout	Does the location shorten several routes?
Appearance	Will the enclosure or raceway affect the façade?
Noise	Is the supply near an occupied quiet space?
Future replacement	Can a replacement of similar size be fitted?

For a 15-metre storefront sign, one central supply enclosure may create routes of 7–9 metres to both ends. Three smaller supply locations can shorten those routes substantially.

Placement Option	Longest Approximate Route	Main Advantage	Main Limitation
One enclosure at left end	15 m	One service point	Very long route to right side
One central enclosure	7.5 m	Fewer supplies and balanced distance	Central wall access required
Left and right enclosures	4–8 m	Shorter routes	Two service points
Left, center and right zones	2–4 m	Short low-voltage wiring	More supplies and access covers
Raceway supplies behind letters	Often under 2 m	Short branches and factory prewiring	Raceway appearance and heat

Supply placement also affects failure range. One central power system may feed most of the sign, while distributed groups can limit a failure to one area.

Maintenance expectations should be agreed before production. A hotel sign mounted six floors above ground may need supplies located indoors so maintenance does not require exterior lifting equipment. A one-storey retail sign with a removable raceway cover may be serviced easily from a ladder.

The power plan should show:

• Supply identification
• Supply voltage
• Rated wattage
• Assigned letters
• Enclosure position
• Access direction
• Ventilation space
• Cable exits
• Estimated route lengths
• Primary-power connection boundary

Cable grouping should then be adjusted around the approved supply locations. Iduoduo’s Channel Letter engineering records list power-supply position and cable length among the main factors used to divide large signs into separate circuits.

How Are Long Runs Corrected?

Long cable routes can be corrected by changing conductor size, supply location, system voltage, branch arrangement, or group boundaries. The best result often comes from combining several smaller changes rather than relying on one oversized cable.

Iduoduo’s electrical guidance lists the following methods:

• Increase conductor size
• Shorten cable length
• Add power branches
• Move the supply closer
• Use a compatible 24V system
• Add power supplies
• Reduce load per branch
• Use multiple feed points
• Feed an approved long section from both ends
• Use suitable connectors

The correct method depends on the LED product, wiring structure, control system, polarity, weather exposure, and installation plan.
A long run should first be checked with a simple sequence:

1. Confirm the real cable route.
2. Calculate the maximum current.
3. Check the conductor resistance.
4. Estimate voltage at the farthest load.
5. Add connector and temperature considerations.
6. Compare the result with the LED operating requirements.
7. Review whether another supply position is possible.
8. Divide the group where necessary.
9. Test the completed route under full load.

Consider a 12V group drawing 8A through a 12-metre one-way route. Several correction options are available.

Correction	Electrical Effect	Project Impact
Larger conductor	Reduces cable resistance	Larger cable and terminals may be needed
Move supply closer	Shortens the complete circuit	Requires a new service location
Split into two 4A feeds	Reduces current per branch	Adds cable and labels
Add another supply	Creates separate local groups	Adds equipment and enclosure space
Change to approved 24V	Reduces current to about 4A	Every component must match 24V
Feed from both ends	Reduces distance to remote LEDs	Must follow product wiring instructions
Add a center feed	Shortens internal LED paths	Adds a connection point
Reduce group load	Moves some letters to another supply	May improve failure isolation

One common mistake is solving a long route by increasing power-supply output voltage. Raising a nominal 12V supply to compensate for cable loss can expose nearby LEDs to excessive voltage while the far end receives a different level. The correct response is normally to improve the cable and power architecture.

Another mistake is extending one letter-to-letter chain across the entire sign. A long daisy chain places every downstream letter behind the resistance and connection points of the preceding sections.

A home-run or branched arrangement is often easier to control:

Wiring Method	Route	Main Result
Long daisy chain	Supply → A → B → C → D → E	Later letters experience accumulated losses
Separate home runs	Supply → each letter	Better voltage control, more cable
Local junction branches	Supply → junction → nearby letters	Balanced cable use
Distributed supplies	Local supply for each zone	Short routes, more equipment
Center-fed zone	Supply near middle → left and right branches	Shorter maximum distance

Multi-point feeding requires clear polarity and labeling. Different supply outputs should not be connected together unless the selected equipment and approved design explicitly permit parallel operation. Iduoduo’s electrical framework warns against casually joining separate DC outputs and requires feed direction, polarity, branch assignment, control wiring, connectors, weather protection, and labels to be controlled.

Long-run correction should also consider where the voltage is measured. Measuring only at the supply terminals does not prove the letters receive the correct voltage.

Measurements should be taken at:

• Power-supply output
• Main distribution point
• Beginning of the longest branch
• Farthest letter
• End of a large internal LED section
• Controller input
• Controller output under full load

A useful test record may look like:

Test Point	No-Load Voltage	Full-Load Voltage	Difference from Supply	Result
PS-01 output	12.10V	12.02V	—	Stable
Junction J-01	12.08V	11.91V	0.11V	Acceptable for project review
Letter A input	12.07V	11.84V	0.18V	Review complete
Letter D input	12.04V	11.42V	0.60V	Check cable route
Letter G input	12.00V	10.86V	1.16V	Correction required

The words “acceptable” should not be based on one generic percentage alone. The selected LED, controller, cable, enclosure, brightness target, and manufacturer instructions must be reviewed.

Corrective work might include moving Letter G to a nearer supply, installing a separate home run, increasing conductor size, or creating another local group.

The final cable plan should provide enough information for production and installation:

Required Record	Example
Group number	PG-04
Power supply	PS-04, 24V
Assigned letters	G, H and I
Calculated load	74 W
Calculated current	3.08A
Main route	8.5 m one-way
Branch routes	1.5 m, 2.3 m and 3.0 m
Feed arrangement	Local junction with three branches
Cable exits	CE-G, CE-H and CE-I
Polarity	Marked positive and negative
Test point	TP-04 at farthest letter
Full-load result	Recorded before packing

Iduoduo can prepare the letter load schedule, power grouping, cable exits, supply matching, wiring references, and factory test records from the approved project information. Final field routes, conductor approval, primary wiring, grounding, and local electrical compliance still need confirmation by qualified installation personnel.

Which Installation Conditions Change the Plan?

Installation conditions change power grouping because the same set of channel letters can require completely different cable routes, power-supply positions, wall penetrations, control zones, waterproofing methods, and service points. Direct-mounted letters usually need separate cable exits and longer hidden wiring. Raceway-mounted letters allow shorter internal runs but place several power supplies inside one metal enclosure. Outdoor signs require drainage, protected connections, heat control, and weather-resistant access. RGB and RGBW systems add control channels, amplifiers, and synchronization requirements.

A useful power plan should therefore be reviewed together with the wall drawing, mounting template, electrical access, cable path, enclosure position, and maintenance method. Grouping based only on LED wattage may work during factory testing but become impractical after the sign reaches the installation site.

How Does Direct Mounting Affect Wiring?

Direct-mounted channel letters are fixed individually to the wall without a visible raceway or shared backboard. The finished appearance is clean because each letter seems to sit directly on the façade. Electrical planning, however, becomes more demanding because every letter needs a planned cable exit, wall penetration, mounting position, and route to the assigned power supply.

A direct-mounted sign normally involves four separate layouts:

• Letter position layout
• Mounting-hole layout
• Cable-exit layout
• Power-group layout

All four layouts must match. A cable exit shifted by 20 or 30 mm can interfere with a structural member, miss the intended wall cavity, appear outside the letter back, or require an unnecessary field modification.

A large sign may use one cable exit per letter, one exit for several nearby letters, or several exits within a large logo. The correct arrangement depends on letter load, wall type, rear access, cable distance, and local installation practice.

Direct-Mount Detail	Information Required	Effect on Power Grouping
Letter position	Final baseline, spacing and overall width	Determines physical zones
Cable exit	Position behind every letter	Determines branch routes
Mounting studs	Quantity, diameter and position	Limits available cable space
Wall construction	Concrete, brick, cladding, drywall or panel	Determines hidden routing
Rear access	Open cavity, ceiling access or finished wall	Determines supply location
Power location	Indoor room, ceiling, roof or enclosure	Determines home-run length
Installation height	Ground-floor or high façade	Changes maintenance strategy
Weather exposure	Indoor, sheltered or fully outdoor	Changes sealing and connector selection

Direct mounting often favors complete-letter power assignment. One letter connected to one clearly identified branch is easier to install and troubleshoot than a letter fed from several unrelated points. Complete-letter assignment is especially useful where each cable passes through its own wall hole.

Large letters may still need several internal branches. A 2,000 mm-wide “W,” for example, could contain three electrical sections even though only one cable group is shown on the elevation.

Large Letter Section	LED Load	Branch Current at 12V	Cable Exit
Left section	24 W	2.0 A	CE-W1
Center section	30 W	2.5 A	CE-W2
Right section	26 W	2.17 A	CE-W3
Complete letter	80 W	6.67 A	Three exits

The three feeds may return to one approved supply or to separate electrical sections, depending on the selected equipment and route lengths. Every branch should appear on the wiring drawing.

Wall construction can change the grouping after the initial electrical calculation.

A hollow framed wall may allow several cable runs to reach one indoor power location. A reinforced concrete wall may require core drilling at every exit and external conduit or a different mounting system. Metal composite cladding may have a cavity, but the cavity can contain rails, insulation, fire barriers, or drainage channels. Glass walls generally provide little space for hidden power equipment and often require a backboard, decorative panel, or remote cable route.

The table below shows common wall conditions and their likely effect.

Wall Type	Typical Routing Condition	Likely Power-Plan Adjustment
Interior drywall	Accessible cavity may be available	Several letters can share an indoor supply zone
Solid concrete	Limited hidden routing	More precise exits or surface conduit may be needed
Brick or masonry	Drilling and sealing required	Shorter grouped runs can reduce penetrations
Aluminum composite panel	Rear cavity may exist	Confirm rails, seams and drainage channels
Insulated metal panel	Penetrations require careful sealing	Limit holes and coordinate support structure
Glass	Hidden wiring is difficult	Consider backboard or nearby architectural route
Stone cladding	Drilling risk and limited repair options	Final template accuracy becomes critical
Finished interior feature wall	Appearance and access are restricted	Backboard or preassembled system may be safer

One common planning error is selecting a central power location from the front elevation without checking the real route. A power room may appear 5 metres from the sign, while the cable must travel 3 metres upward, 8 metres across a ceiling, 2 metres downward, and another 2 metres through the wall. The actual one-way route becomes 15 metres.

Direct-mounted projects should therefore record route distance rather than straight-line distance.

Another issue is responsibility at the installation site. The factory may supply letters, low-voltage leads, power supplies, templates, and wiring references, but the local installer still needs to confirm:

• Building power availability
• Primary electrical connection
• Wall penetrations
• Conduit
• Grounding
• Fire-stopping
• Waterproof sealing
• Local code
• Final conductor length
• Access for replacement

The final factory drawing should mark the boundary between supplied sign wiring and field electrical work.

A practical direct-mount schedule may look like the following:

Letter	Load	Group	Cable Exit	Estimated Route	Supply Location
L-01	18 W	PG-01	CE-01	3.2 m	Indoor ceiling zone A
L-02	21 W	PG-01	CE-02	3.8 m	Indoor ceiling zone A
L-03	24 W	PG-01	CE-03	4.5 m	Indoor ceiling zone A
L-04	29 W	PG-02	CE-04	5.1 m	Indoor ceiling zone B
L-05	17 W	PG-02	CE-05	4.4 m	Indoor ceiling zone B
Logo	62 W	PG-03	CE-L1 and CE-L2	2.8 m	Dedicated service enclosure

The schedule connects letter load, location, and field route in one place.

Iduoduo’s Channel Letter engineering facts require installation method, Raceway or Backboard needs, cable exits, wall type, voltage, power-supply certification, and outdoor conditions to be confirmed before production. The same records define Channel Letters as individual illuminated units with backs, wiring, installation studs or holes, cable exits, and waterproof or drainage structures.

How Do Raceways Change Grouping?

A raceway is a metal enclosure that supports several channel letters while containing power supplies, wiring, terminals, and service access. Raceway mounting can reduce wall penetrations, shorten low-voltage cable runs, speed up installation, and simplify removal at leased premises.

Raceway mounting changes power grouping because the electrical system becomes concentrated inside one shared enclosure. Letters no longer require long home runs to a distant indoor power room when the supplies are positioned close behind them.

A typical raceway may contain:

• Primary power entry
• Grounding point
• Power supplies
• Low-voltage distribution
• Controllers or dimmers
• Cable branches to each letter
• Terminal blocks or protected connectors
• Removable service cover
• Drainage and weather seals

Iduoduo’s installation documentation describes Raceway Mount as a method that combines letters, power supplies, and wiring in one metal enclosure. The documented benefits include fewer wall holes, centralized wiring, faster installation, easier removal, and suitability for leased buildings. Raceway dimensions, weight, fixing points, power supplies, service covers, waterproofing, cable exits, and finish all need confirmation.

Power groups inside a raceway usually follow one of three arrangements.

Raceway Arrangement	Grouping Method	Best Fit
One short raceway	Supplies grouped near the center	Small or medium signs
Long single raceway	Left, center and right zones	Wide storefront signs
Several raceway sections	One or more groups per section	Large signs, transport limits or segmented façades

For a 12-metre sign, placing every supply at the left end can create unnecessary internal cable length. Distributed locations may provide better results.

Supply Layout	Longest Internal Route	Advantages	Limitations
All supplies at left	Up to 12 m	One concentrated service area	Long runs to right-side letters
All supplies at center	About 6 m	Balanced route length	Heat concentrated in one area
Left and right zones	About 3–6 m	Shorter branch routes	Two service areas
Left, center and right zones	About 2–4 m	Short routes and clear grouping	More internal equipment locations

Raceway grouping must consider heat. Several supplies placed close together can raise internal temperature, especially in dark-colored outdoor enclosures exposed to direct sunlight. Power supplies that operate correctly on an open test bench may run hotter inside a narrow sealed metal box.

A raceway review should include:

• Internal air volume
• Supply spacing
• Ventilation method
• Weather protection
• Maximum expected ambient temperature
• Sun exposure
• Supply mounting direction
• Cable separation
• Service-cover clearance
• Drainage
• Replacement access

The highest-wattage supply should not automatically be placed in the smallest remaining space. Internal layout should allow removal without disconnecting unrelated groups.

A useful internal arrangement might be:

Raceway Zone	Connected Letters	Load	Supply	Access Cover
Zone A	Letters 1–3	71 W	PS-01	Cover A
Zone B	Letters 4–6	76 W	PS-02	Cover B
Zone C	Letters 7–9	69 W	PS-03	Cover C
Zone D	Logo	82 W	PS-04	Cover D

Each cover should correspond to a known electrical zone. A technician opening Cover B should not need to trace cables across the entire raceway to find PS-02.

Raceway size also affects grouping. A shallow raceway may not have enough depth for the preferred supply, terminal clearances, wire bending, and ventilation. Possible corrections include:

• Increasing raceway depth
• Using more smaller supplies
• Moving supplies to another section
• Installing supplies in a separate enclosure
• Reducing the load per group
• Dividing one long raceway into several sections

Transport can influence the electrical division as well. A 12-metre raceway may need to be fabricated and shipped in three sections. Electrical groups often follow those transport sections because every joint needs mechanical alignment and wiring reconnection.

Raceway Section	Physical Length	Electrical Groups	Site Connection
Section 1	4 m	PG-01 and PG-02	Connector set R1
Section 2	4 m	PG-03 and PG-04	Connector sets R1 and R2
Section 3	4 m	PG-05 and PG-06	Connector set R2

Connectors at raceway joints should be clearly labeled, protected, and accessible. Field teams should not have to identify wires by trial and error.

The number of wall fixings also matters. A raceway carries the combined weight of the letters, metal enclosure, supplies, wiring, and internal hardware. Power grouping can affect weight distribution when several heavy supplies are concentrated in one end.

A balanced mechanical layout may distribute equipment across the enclosure rather than placing all electrical parts near the power entry. Structural review remains separate from electrical calculation, but both plans should use the same raceway sections and fixing references.

Raceway-mounted signs often require fewer building penetrations than direct-mounted signs. One primary entry and several structural fixings may replace many individual cable holes. The benefit is strongest when the property owner restricts façade drilling or when the sign may be removed later.

The trade-off is visual. A raceway remains visible behind the letters unless it is recessed or closely matched to the wall color. The final choice should consider appearance, installation time, wall condition, electrical access, maintenance, and lease requirements together.

Are Outdoor Groups Planned Differently?

Outdoor power groups require stricter control of water entry, condensation, drainage, ultraviolet exposure, corrosion, temperature, wind-driven rain, wall penetrations, and service access. An indoor grouping plan cannot be copied directly to an exterior façade without reviewing those conditions.

Outdoor protection is a complete system. A power supply with an outdoor rating does not protect an unsealed terminal, upward-facing cable entry, poorly sealed wall hole, or enclosure with blocked drainage.

An exterior Channel Letter system may include the following water-entry paths:

• Letter face or trim
• Return seams
• Back-panel joints
• Mounting screws
• Cable exits
• Raceway covers
• Enclosure doors
• Wall penetrations
• Connectors
• Drain openings
• Controller boxes

Each path should either prevent water entry or allow controlled drainage without directing water toward live connections.

Iduoduo’s outdoor engineering facts cover LEDs, power supplies, connectors, wire exits, sealing, drainage, metal grades, coatings, fasteners, condensation, thermal expansion, ultraviolet exposure, salt corrosion, wall penetrations, installation direction, and maintenance access. IP65 and IP67 options are available, while IP68 is treated as a project-specific option rather than a default claim.

Outdoor power grouping often changes for five reasons:

1. Power supplies may need to move into protected locations.
2. Group loads may be reduced because of enclosure temperature.
3. Cable routes may become longer to avoid exposed joints.
4. Connections may need separate protected boxes.
5. Maintenance points must remain accessible without opening the entire sign.

A practical environment review may use the following table.

Environment	Main Electrical Risk	Likely Grouping Adjustment
Sheltered exterior	Occasional moisture and temperature changes	Standard outdoor groups with protected connections
Fully exposed façade	Wind-driven rain and direct sun	Shorter groups, suitable enclosures and controlled drainage
Coastal area	Salt corrosion and connector degradation	Corrosion-resistant hardware and fewer exposed joints
High-temperature region	Supply derating and enclosure heat	Lower working loads or more supplies
Cold climate	Seal movement and condensation	Flexible seals and accessible inspection points
High-humidity area	Condensation inside letters and enclosures	Drainage, ventilation strategy and protected terminals
Rooftop sign	Heat, wind and difficult maintenance	Distributed service zones and strong access planning
Near irrigation or washdown	Direct water exposure	Higher protection level and careful cable-entry direction

Temperature can be as important as rain. A dark raceway in direct sun may reach a much higher internal temperature than the surrounding air. When several supplies are installed together, heat from one supply affects nearby equipment.

An illustrative thermal planning comparison is shown below.

Proposed Group	LED Load	Supply Rating	Indoor Loading	Hot Outdoor Review
PG-01	78 W	100 W	78%	May require reduction
PG-02	74 W	100 W	74%	Review enclosure temperature
PG-03	61 W	100 W	61%	More reserve available
PG-04	82 W	150 W	55%	Larger supply and enclosure required

The table does not create a universal outdoor percentage. The selected supply instructions, actual enclosure, mounting direction, and expected temperature determine the final decision.

Outdoor cable entries should normally be positioned to reduce direct water collection. Downward-facing or protected entries are generally easier to seal than upward-facing holes. Drip loops may be required before cables enter an enclosure. Wall penetrations should be sealed in a way compatible with the façade material.

Drain holes should not be blocked by installation adhesive, tape, foam, or the wall surface. A drainage path planned at the factory may become ineffective if the letter is mounted in a different orientation.

Outdoor groups should also be arranged so one water-related fault does not unnecessarily affect the complete sign. A large single circuit can allow one failed connection to darken a wide area. Several controlled zones can limit the affected section and simplify inspection.

More groups create more supplies and joints, however. Extra connections can also become water-entry risks. The correct balance is usually:

• Fewer exposed field joints
• Shorter controlled cable routes
• Accessible protected enclosures
• Clearly separated electrical zones
• Enough supply reserve for the environment
• Documented drainage and entry direction

Coastal projects need additional attention. Salt can attack exposed metal, terminals, screws, and damaged coatings. Power grouping may favor centralized protected enclosures rather than many small exposed connection points.

Outdoor maintenance should be planned before selecting supply locations. A power supply behind a high-mounted letter may require a lift every time it is checked. An indoor enclosure with longer wiring may be more practical when voltage loss can be controlled.

The project file should state:

• Environment category
• Protection requirement
• Supply position
• Connector type
• Cable-entry direction
• Drainage arrangement
• Enclosure access
• Expected temperature
• Coastal or chemical exposure
• Required maintenance method

General wording such as “waterproof outdoor letters” is not enough for a production drawing.

How Should RGB Zones Be Controlled?

RGB and RGBW Channel Letters require coordinated power and signal planning. A color zone defines which letters change together. A power group defines which supply carries the electrical load. Both layouts may overlap, but they should not be treated as the same plan.

An RGB system controls red, green, and blue channels. RGBW adds a separate white channel. Iduoduo’s electrical facts require confirmation of input voltage, output channels, current per channel, total power, common-positive or common-negative arrangement, wiring, remote control, synchronization, and signal amplifiers. Large RGB or RGBW projects may require separate amplifiers, supplies, regional loads, signal lines, and installation positions.

A large color-changing sign can use the following architecture:

• One main controller
• Several signal amplifiers
• One power supply or group of supplies per zone
• Separate four-core or five-core control wiring
• A shared control signal
• Clearly identified local power inputs
• Synchronized startup and color changes

The load should be checked per channel and in total.

Consider one RGB zone with the following maximum demand:

Channel	Maximum Load
Red	28 W
Green	30 W
Blue	29 W
Maximum combined RGB load	87 W

A controller rated for 100 W total may still be unsuitable when its limit is only 20 W per channel. Both ratings matter.

For RGBW:

Channel	Maximum Load
Red	24 W
Green	25 W
Blue	24 W
White	36 W
Maximum possible combined load	109 W

Actual simultaneous operation depends on the programmed modes. The electrical plan should use the highest permitted operating condition rather than an average color sequence.

Large signs often need several zones because one controller output cannot carry the complete current.

Control Zone	Sign Area	Maximum Load	Power Supply	Signal Device
CZ-01	Letters 1–3	78 W	PS-RGB-01	Main controller
CZ-02	Letters 4–6	82 W	PS-RGB-02	Amplifier 1
CZ-03	Letters 7–9	75 W	PS-RGB-03	Amplifier 2
CZ-04	Logo	94 W	PS-RGB-04	Amplifier 3

The zones should receive the same control signal while drawing power locally. Such an arrangement reduces high current through the main controller and shortens local power routes.

Signal distance can cause timing or color problems even when power voltage is correct. Long signal lines may need suitable cable, repeaters, or a different control method. Power wires and signal wires should be identified separately.

Color-zone planning should answer:

• Which letters must always show the same color?
• Can the logo operate separately?
• Is a dedicated white mode required?
• Will animated effects be used?
• Are flashing effects permitted locally?
• Where will the controller be accessed?
• Is remote, app, DMX, or building-system control required?
• What happens after a power interruption?
• Do all zones restore the same scene?
• Can each zone be tested separately?

Iduoduo’s documented RGBW facts note that the system requires matching four-channel lighting, controllers, wiring, connectors, power capacity, app or remote functions, and white-light color temperature. The documents also distinguish RGB white from dedicated white output and note that flashing or dynamic modes may be restricted by local rules.

Control zones should follow the visual plan. A sign reading “NORTH PLAZA” may need every letter synchronized. A logo beside the wording may operate as a separate zone. An accent line may use another channel or a static white supply.

Sign Element	Control Requirement	Recommended Zone
Main wording	Always synchronized	CZ-01 and linked amplifiers
Logo	Independent color option	CZ-02
White halo	Static or separately dimmable	CZ-03
Decorative line	Animated effect	CZ-04

Separate front and halo lighting also requires careful control. A front-and-halo-lit letter may have:

• RGB front with white halo
• White front with RGB halo
• RGB front and RGB halo
• Dimmable white front and fixed halo

Each arrangement creates a different wire count and group structure.

Control drawings should label:

• Controller
• Amplifier
• Supply
• Zone
• Signal input
• Signal output
• Voltage
• Channel order
• Common conductor
• Cable color
• Connector direction
• Letter assignment

A four-channel connector fitted in reverse may not simply fail to light; it can display incorrect colors or damage equipment. Keyed connectors and matching labels reduce the risk.

RGB commissioning should test:

• Full red
• Full green
• Full blue
• Dedicated white
• Mixed white
• Low brightness
• Full brightness
• Slow transitions
• Fast transitions
• Zone synchronization
• Remote or app control
• Power interruption and restart
• Maximum simultaneous load

Every zone should be tested alone and together. A controller may appear stable with one zone but restart when all amplifiers and supplies operate simultaneously.

Where Is Maintenance Access Needed?

Maintenance access is needed wherever a supply, controller, amplifier, connector, branch joint, terminal, fuse, or cable distribution point may require inspection or replacement. Access should be planned around real service work rather than only the appearance of the finished sign.

The following parts commonly require future access:

• Power supplies
• RGB or RGBW controllers
• Signal amplifiers
• Dimmers
• Timers
• Terminal blocks
• Fuses
• Junction boxes
• Waterproof connectors
• Raceway service covers
• Large-letter internal branches
• Main cable entry points

A service point should allow a technician to:

• Open the enclosure safely
• Identify the correct group
• Measure voltage
• Disconnect one circuit
• Remove the failed part
• Install a replacement
• Restore weather sealing
• Close the enclosure without disturbing other groups

A supply hidden behind a finished wall may have an excellent cable distance but poor maintenance value. A supply positioned outdoors next to the letters may be easy to wire but require lifting equipment for every service visit.

Maintenance cost should be considered alongside initial installation cost.

Supply Position	Initial Wiring	Future Access	Typical Service Concern
Inside raceway	Short and simple	Good with removable cover	Heat and weather sealing
Behind backboard	Short	Good if panel is removable	Hidden screws or limited clearance
Indoor ceiling	Longer route	Usually good	Ceiling access and cable distance
Inside finished wall	Hidden appearance	Poor	Wall repair may be needed
Rooftop enclosure	Moderate	Depends on roof access	Safety and weather exposure
Behind individual letter	Very short	Often difficult	Letter removal required
Ground-level service cabinet	Long route	Excellent	Voltage drop and conduit cost

Installation height strongly affects service planning. Iduoduo’s project facts note that high-mounted signs require stronger maintenance planning, along with structural stability, waterproofing, long-distance brightness, lifting, and installation safety.

A ground-floor retail sign may be reachable with a short ladder. A hotel façade sign at the sixth floor may require a boom lift, road closure, safety permits, and several technicians. Moving the supplies indoors can raise the initial wiring cost but reduce future service cost.

Group size also changes maintenance impact.

Grouping Option	Letters Lost During One Supply Failure	Service Complexity
One large group	Entire sign or large section	Simple component count but high visual impact
Two groups	About half the sign	Moderate
Four groups	Smaller letter zones	Easier fault isolation
One supply per letter	One letter	High component count and many service points

One supply per letter is rarely necessary for a large sign. It increases equipment count, heat, wiring, and cost. One supply for the entire sign can create an excessive failure area. A practical layout normally uses several clearly labeled zones.

The following maintenance information should appear on the approved documents:

Record	Example
Group ID	PG-03
Power-supply ID	PS-03
Connected letters	L-07, L-08 and L-09
Supply location	Raceway Zone C
Access method	Remove Cover C with six screws
Input voltage	220–240V AC
Output voltage	24V DC
Planned load	76 W
Test point	TP-03
Replacement clearance	40 mm around supply
Isolation method	Local disconnect or building circuit
Weather seal	Replace cover gasket after service

Labels should remain readable after several years. Printed paper labels inside a humid raceway may fade or detach. Durable cable markers, engraved tags, printed heat-shrink sleeves, or protected labels provide better long-term identification.

Both ends of every main cable should carry the same ID. A maintenance technician should not need to energize unknown wires to identify the group.

Service-cover design also matters. A cover should not require removing letters before it can open. Screws should remain reachable after installation. Gaskets should be replaceable. The opening should be large enough to remove the supply without bending the enclosure.

For backboard-mounted signs, the board can provide excellent access when designed as a removable or hinged assembly. A fixed decorative backboard bonded permanently to a wall may create the opposite result.

Iduoduo’s installation facts distinguish Stud Mount, Stand-Off Mount, Raceway Mount, Backboard Mount, projecting installation, and hanging installation because each method changes structure, cable routing, access, and visual spacing. Stud mounting requires confirmation of stud quantity, diameter, length, welding, template, wall, adhesive, and stand-off distance. Backboards can combine several letters, logos, and wires into one assembly, while still needing adequate structure and flatness.

A final maintenance review should ask:

• Which part fails if one supply stops?
• Can the supply be reached without removing unrelated letters?
• Can the group be isolated safely?
• Are wire labels visible?
• Is there room for test probes?
• Can the controller be reset without opening the complete sign?
• Can a replacement of similar size fit?
• Can the enclosure be resealed?
• Is lifting equipment required?
• Is access available during normal business hours?
• Will the property owner allow future wall opening?
• Does the maintenance plan still work after interior finishing is complete?

The best electrical plan is not only easy to manufacture. It should also be understandable during installation and practical to service years later.

Iduoduo’s engineering scope includes LED arrangement, power matching, wiring, cable exits, installation preparation, Raceway or Backboard construction, waterproofing, drainage, mounting interfaces, 100% lighting inspection, and 72-hour pre-shipment testing. Final site routes, structural approval, primary wiring, grounding, permits, and local electrical compliance remain subject to qualified local review.

What Should Be Confirmed Before Production?

Production should begin only after the electrical layout, power groups, cable exits, installation conditions, control functions, testing requirements, and approved drawings all agree. The production file should identify every letter, its calculated load, assigned supply, wire route, polarity, mounting position, and service point. Any unresolved voltage, wall, access, certification, or control detail should remain open rather than being guessed on the factory floor.

What Should the Wiring Diagram Show?

A wiring diagram should explain how power moves from the selected supply to every illuminated letter, logo, and accent section. It should be detailed enough for engineering, production, quality inspection, packing, installation, and later maintenance to use the same reference.

A visual rendering is not a wiring diagram. A rendering may show the sign shape, color, and lighting effect, but it does not normally show circuit boundaries, current, polarity, cable exits, or supply locations.

Production should not rely on a logo file and an appearance drawing alone. Iduoduo’s production records require the manufacturing task sheet to identify processes, materials, inspection points, special requirements, packing groups, and shipment batches. Large projects also need approved drawing, material, first-article, testing, packing, and shipping dates.

A complete electrical drawing should show the following information.

Drawing Item	Information to Show	Why It Is Needed
Sign elevation	Every letter, logo, symbol and overall spacing	Connects electrical groups to visible parts
Letter ID	L-01, L-02, L-03 or another fixed sequence	Prevents confusion between similar letters
Power-group ID	PG-01, PG-02, PG-03	Identifies which parts share one circuit
Supply ID	PS-01, PS-02, PS-03	Connects the group to a specific supply
LED voltage	12V, 24V or approved project voltage	Prevents incompatible connections
Letter load	Calculated watts and current for each letter	Supports supply sizing and load review
Group load	Total watts and current for each group	Confirms working load
Supply specification	Output voltage, rated power and model	Supports purchasing, testing and replacement
Branch layout	Home runs, local junctions or split feeds	Shows how current is distributed
Polarity	Positive, negative and common conductors	Prevents reversed connections
Cable exit	Exact exit point for each letter or branch	Coordinates factory work with the wall
Route length	Estimated one-way cable distance	Supports voltage-drop review
Conductor plan	Proposed wire size or design current	Supports field verification
Controls	Dimmer, RGB controller, amplifier or timer	Prevents incomplete control wiring
Mounting method	Direct mount, raceway or backboard	Links wiring to installation structure
Service access	Raceway cover, access panel or enclosure	Supports maintenance
Responsibility boundary	Factory low-voltage work and field electrical work	Prevents work-scope disputes

The electrical drawing should use the same letter positions and spacing as the approved sign elevation. An “A” identified as L-04 on the elevation should also be L-04 on the load schedule, mounting template, cable label, packing list, and test record.

A useful drawing package normally contains several related sheets rather than forcing all information onto one crowded page.

Sheet	Main Content
E-01	Sign elevation and letter identification
E-02	LED quantity and load schedule
E-03	Power-group and supply schedule
E-04	Wiring and branch layout
E-05	Cable exits and mounting positions
E-06	Raceway or backboard internal layout
E-07	Controller and RGB wiring
E-08	Installation notes and responsibility boundary

For a direct-mounted sign, the drawing should show every cable exit relative to the letter outline and mounting points. For a raceway-mounted sign, it should show the internal position of supplies, distribution points, removable covers, and wires passing between sections.

Cable exits need particular attention. Iduoduo’s engineering review requires the exit location to be confirmed before production. Options may include lower left, lower right, bottom center, side, rear center, individual letter exits, raceway routing, backboard routing, or several exits for one large element. Exit points should avoid mounting studs, internal reinforcement, wall framing, visible areas, water collection points, and known site obstacles.

An approved power-group drawing may contain a schedule such as:

Group	Connected Elements	Calculated Load	Supply	Voltage	Main Exit	Control
PG-01	L-01 to L-03	71 W	PS-01, 100 W	24V	CE-01	Static white
PG-02	L-04 to L-06	76 W	PS-02, 100 W	24V	CE-02	Static white
PG-03	L-07 to L-09	69 W	PS-03, 100 W	24V	CE-03	Static white
PG-04	Main logo	84 W	PS-04, 150 W	24V	CE-L1 and CE-L2	Dimmable
PG-05	Halo accent	52 W	PS-05, 100 W	24V	CE-H1	Separate dimmer

The schedule should also identify split letters. When one large logo uses two supplies, the electrical boundary must be shown inside the shape.

Logo Section	LED Quantity	Load	Group	Supply
Upper section	68	48.96 W	PG-04A	PS-04A
Lower section	72	51.84 W	PG-04B	PS-04B

The outputs should remain electrically separate unless the selected equipment and approved design permit another arrangement.

Drawing revisions need formal control. A color change may not affect the electrical plan, but a change in letter height, stroke width, lighting type, voltage, or installation position can alter LED quantity, load, cable exits, and supply count.

Every issued drawing should contain:

• Project name
• Drawing number
• Revision number
• Issue date
• Prepared-by record
• Approval status
• Change summary
• Approved file reference
• Production release status

Production should use one clearly marked revision. Older PDFs, screenshots, and chat attachments should not remain active production references.

How Should Groups Be Labeled?

Power groups should be labeled with a system that remains consistent from engineering through installation. Every supply, branch, letter, cable, connector, carton, and test record should point back to the same group number.

A practical label system could use:

• L-01 to L-12 for letters
• LG-01 for a logo
• PG-01 to PG-06 for power groups
• PS-01 to PS-06 for power supplies
• BR-01A and BR-01B for branches
• CE-01 to CE-12 for cable exits
• CT-01 for a controller
• AMP-01 for an RGB amplifier
• RW-A, RW-B and RW-C for raceway sections
• BX-01 for an enclosure

The exact naming format matters less than consistency.

A letter marked L-07 on the engineering drawing should not become “Letter G” on the packing list and “Zone 3” on the cable tag unless the relationship is clearly recorded.

Physical Part	Recommended Label	Example
Letter back	Letter and group	L-07 / PG-03
Power supply	Supply and group	PS-03 / PG-03
Main cable	Cable and group	C-PG03
Branch cable	Group and branch	PG-03-B
Cable exit	Exit and letter	CE-07 / L-07
Controller	Control zone	CT-01 / CZ-01
Raceway section	Section and groups	RW-B / PG-03–04
Carton	Product and installation zone	CTN-05 / L-07–09
Access cover	Service zone	COVER-C / PS-03
Test record	Supply and connected elements	PS-03 / L-07–09

Both ends of a main cable should carry the same identification. Labeling only the supply end leaves the installation team with several unmarked wires behind the letters.

Color coding can support identification, but color alone is not enough. RGB and RGBW products already use conductor colors for red, green, blue, white, common positive, or common negative. Written or printed IDs are still required.

Labels should remain readable during transport and after installation. Suitable methods may include:

• Printed heat-shrink sleeves
• Durable cable markers
• Engraved plates
• Protected adhesive labels
• Printed metal or plastic tags
• Factory-applied product ID labels
• Waterproof labels inside exterior enclosures

Ordinary paper labels can detach in humid enclosures or become unreadable after handling.

Group labels should also support functional testing. During factory inspection, the test team should be able to switch off PS-03 and verify that only L-07, L-08, and L-09 go dark.

A group-isolation record might look like:

Test	Expected Result	Actual Result	Status
Disconnect PS-01	L-01 to L-03 off	L-01 to L-03 off	Pass
Disconnect PS-02	L-04 to L-06 off	L-04 to L-06 off	Pass
Disconnect PS-03	L-07 to L-09 off	L-07 to L-09 off	Pass
Disconnect PS-04	Main logo off	Main logo off	Pass
Disconnect PS-05	Halo accent off	Halo accent off	Pass

Such a test exposes crossed branches, incorrect labels, and accidental connections between groups before packing.

Packing labels should follow the electrical and installation plan. A large project may be packed by:

• Letter sequence
• Power group
• Raceway section
• Installation area
• Store location
• Shipment batch

A practical carton mark could read:

Project: North Plaza

Carton: 06 of 12

Contents: L-07, L-08, L-09

Power Group: PG-03

Power Supply: PS-03 packed in Carton 10

Installation Zone: Right Section

The supply carton should list every related group and accessory. Power supplies, controllers, dimmers, connectors, templates, and mounting hardware should not be packed without corresponding IDs.

For repeat orders, the same label system supports replacement accuracy. Iduoduo’s project records may retain final drawings, dimensions, materials, LED details, supplies, mounting holes, cable exits, templates, packing information, and QC records. The country, voltage, quantity, and installation environment still need reconfirmation for every repeat order.

Which Site Details Must Be Confirmed?

A correct factory electrical plan depends on correct site information. Missing site data can affect the supply model, group count, cable route, mounting holes, cable exits, enclosure position, waterproofing, and installation cost.

At minimum, the following information should be confirmed before production.

Site Detail	Required Information	Possible Effect if Incorrect
Installation country	Country and city	Wrong voltage, plug, certification or documentation
Input voltage	Actual building voltage and frequency	Incompatible power supplies
Electrical certification	UL, CE, RoHS or another agreed requirement	Supply replacement or approval delay
Installation location	Indoor, sheltered outdoor or exposed outdoor	Wrong sealing or enclosure plan
Mounting method	Direct mount, raceway or backboard	Wrong cable exits and hardware
Wall type	Concrete, brick, glass, cladding, drywall or panel	Unusable mounting and cable route
Overall elevation	Final position and installation height	Wrong grouping zones
Power location	Exact or approximate supply position	Incorrect cable length
Cable route	Actual route through the building	Excessive voltage loss
Rear access	Open wall, ceiling, service room or no access	Poor maintenance plan
Primary circuit	Available circuit and connection location	Delayed field work
Control method	Static, dimmable, RGB, RGBW or building control	Missing controllers or wires
Outdoor exposure	Rain, heat, humidity, coastal or washdown	Wrong materials and protection
Maintenance method	Ladder, lift, roof or indoor access	Expensive future service
Landlord rules	Façade holes, visible raceways or access limits	Mounting design rejection
Project date	Required installation and opening date	Production and shipment risk

The project country should be confirmed even when a previous order used the same artwork. A repeat order for another market can require another input voltage, certified supply, plug, cable, warning label, or installation instruction.

Iduoduo’s Channel Letter inquiry list requests the logo or font file, overall dimensions, letter height, quantity, lighting type, face and return colors, return depth, indoor or outdoor use, LED color or color temperature, voltage, power certification, mounting method, raceway or backboard requirement, cable exits, wall condition, protection level, destination country, packing, and project date.

The wall type should be confirmed with more detail than one word. “Concrete wall” may refer to a solid structural wall, concrete block, a concrete wall covered with stone, or a metal-clad wall with concrete behind it. Each condition creates a different drilling and wiring method.

Useful wall information includes:

• Surface material
• Structural material behind the surface
• Wall thickness
• Cavity depth
• Stud or rail positions
• Insulation
• Waterproof membrane
• Fire barrier
• Rear access
• Permitted drilling area
• Restricted cable routes
• Available fixing points

Photos help, but dimensioned drawings or marked site images are more reliable.

Power-supply position needs similar detail. “Power supply indoors” does not show whether it is 2 metres or 20 metres from the sign.

A route record could show:

Route Section	Length
Service enclosure to ceiling	2.0 m
Across ceiling	8.5 m
Down inside wall	2.5 m
Through façade	0.8 m
From penetration to letter	1.2 m
Estimated one-way route	15.0 m

The 15-metre route should be used for cable review, not the 5-metre straight-line distance visible on the elevation.

Where exact details remain unavailable, the production drawing should state the assumptions.

Open Detail	Temporary Assumption	Approval Required From
Final supply room	Within 8 m of sign	Site electrician
Wall cavity	Minimum 75 mm clear space	Contractor
Input voltage	120V AC, 60Hz	Electrical consultant
Exterior exposure	Fully exposed façade	Project manager
Cable entry	Rear center of each letter	Installer
Control location	Indoor service cabinet	Brand team

An assumption should not be converted into a confirmed specification until written approval is received.

Installation responsibility also needs to be clear. Iduoduo’s documented electrical boundary assigns the low-voltage LED system, supply matching, controllers, dimmers, cable exits, internal wiring, polarity, testing, labels, and agreed electrical information to the factory. The local qualified electrician is responsible for building AC input, breakers, distribution, grounding, in-wall wiring, junction boxes, high-voltage connections, supply fixing, local permits, and final acceptance.

Production release should not wait for every minor construction detail, but all information that affects product manufacturing must be confirmed. Cable exits, voltage, supply model, mounting method, wall interface, group boundaries, and control type are not minor details.

How Are Loads Tested?

Load testing should confirm that every group matches the approved calculation and remains electrically stable during extended operation. Switching the sign on for a few minutes does not verify the full system.

Testing should be completed in stages.

First, the production team confirms the physical build:

• Correct LED type
• Correct LED quantity
• Correct operating voltage
• Correct branch arrangement
• Correct supply model
• Correct polarity
• Correct connectors
• Correct controller
• Correct cable exits
• Correct group labels

The calculated schedule should then be compared with the finished sign.

Group	Calculated Load	Calculated Current	Measured Current	Difference	Review
PG-01	71 W	2.96 A at 24V	2.91 A	-1.7%	Pass
PG-02	76 W	3.17 A at 24V	3.22 A	+1.6%	Pass
PG-03	69 W	2.88 A at 24V	3.05 A	+5.9%	Investigate
PG-04	84 W	3.50 A at 24V	3.47 A	-0.9%	Pass

The figures above are illustrative. Acceptable variation depends on the selected LED, measuring method, supply, temperature, and approved project requirements.

A large difference may indicate:

• Incorrect LED quantity
• Wrong LED product
• Incorrect supply voltage
• Cross-connected groups
• Damaged lighting section
• Controller losses
• Wiring resistance
• Measurement error
• Unapproved production change

Voltage should be measured at more than one point.

Test Point	Full-Load Voltage	Purpose
Supply output	24.10V	Confirms supply performance
Distribution point	23.95V	Checks main feed loss
First letter	23.82V	Checks near branch
Farthest letter	23.21V	Checks long-route loss
End of large logo branch	22.96V	Checks internal branch loss

The farthest electrical point may not be the physically farthest letter. A large letter with a long internal path may produce a lower reading than a smaller letter farther along the façade.

Testing should be completed under the highest approved operating load.

For static white signs, the test is normally completed at full brightness.

For RGB or RGBW signs, testing should include:

• Full red
• Full green
• Full blue
• Full white
• Mixed colors
• Maximum permitted combined output
• Low brightness
• Full brightness
• Color transitions
• Zone synchronization
• Controller restart
• Power-restoration behavior

Iduoduo’s RGB and RGBW inspection process includes individual colors, white, mixed colors, color changes, gradients, jump modes, dimming, remote or app control, controllers, power restoration, and synchronization between products.

Every power group should also be isolated separately. Disconnecting one supply should affect only its assigned letters. Any unexpected letter loss or continued illumination should be investigated.

The electrical inspection should record:

• Input voltage
• Supply output voltage
• Group current
• Voltage at the farthest branch
• Controller current where relevant
• Startup behavior
• Flicker
• Noise
• Connector temperature
• Supply temperature
• Cable temperature
• Abnormal smell
• Discoloration
• Material softening
• Control response

Exact temperature limits should follow the selected component instructions and approved engineering requirements. A general “not hot” judgment is not sufficient, but one universal surface-temperature limit should not be applied to every supply or enclosure.

Iduoduo performs 100% lighting inspection before shipment. The documented checks include voltage, power supplies, wiring, LEDs, controllers, dimming, RGB functions, connectors, cable exits, flicker, and abnormal heating.

Illuminated products then undergo a 72-hour pre-shipment test. The test observes:

• LED stability
• Supply stability
• Connectors
• Wiring
• Controllers
• Flicker
• Early failures
• Local abnormalities
• Long-duration operation
• Abnormal temperature rise
• Color stability

Any problem found during testing should be repaired or replaced and then verified again. The sign should not move directly to packing immediately after a fault is corrected.

The post-test inspection should confirm:

• Every letter still illuminates
• No new dark areas appear
• No flicker appears
• Supplies remain stable
• Wires and connectors show no abnormal condition
• Controls operate correctly
• Surfaces remain undamaged
• Labels remain complete
• Accessories match the packing list

Iduoduo records the unified quality commitment as 72-Hour Pre-Shipment Testing + 3-Year Warranty.

How Is Brightness Consistency Checked?

Brightness consistency should be checked within each letter, between letters in the same group, and between different power groups. A sign can pass an electrical load test while still showing dark centers, bright edges, visible LED points, color differences, or weaker output at the far end.

The inspection should separate three types of inconsistency.

Inconsistency Type	Common Cause
Electrical	Voltage loss, branch imbalance, poor connection or supply problem
Optical	LED spacing, return depth, face diffusion or internal obstruction
Site-dependent	Wall color, wall texture, stand-off distance or ambient light

Front-lit letters should be checked for:

• Dark centers
• Bright edges
• Visible LED points
• Uneven corners
• Different brightness between wide and narrow letters
• Face-color differences
• Lower output in distant letters
• Local shadows caused by internal wiring

Halo-lit letters should be checked for:

• Unequal halo width
• Broken halo sections
• Strong hotspots
• Weak lower edges
• Light blocked by mounting studs
• Different stand-off distances
• Uneven rear LED spacing
• Visible cable shadows
• Wall-surface effects

Front-and-halo-lit letters should be checked as two separate lighting systems. Strong front illumination can visually hide a weak halo during a quick test. Front and rear circuits should be tested independently and together.

A practical inspection sequence is:

1. Illuminate one group at a time.
2. Check every letter from the planned viewing distance.
3. Check the same letters from close range.
4. Illuminate all groups together.
5. Compare the first and last letter in every group.
6. Reduce ambient light.
7. Test at full brightness.
8. Test dimming where required.
9. Test every approved RGB color.
10. Record photographs with stable camera settings.

Camera exposure should remain fixed when photographs are used for comparison. Automatic exposure can make a weak group appear as bright as a strong group because the camera adjusts each image separately.

A brightness inspection record can use a simple rating system.

Element	Center	Edge	Color	Group Match	Result
L-01	Even	Even	Correct	Matches PG-01	Pass
L-02	Slight dark area	Even	Correct	Matches PG-01	Adjust
L-03	Even	Bright upper edge	Correct	Matches PG-01	Adjust
L-04	Even	Even	Slightly cooler	Differs from PG-02	Investigate
Logo	Even	Even	Correct	Separate reference	Pass

The term “even” should be judged against the approved sample, production standard, or agreed visual requirement rather than an undefined personal preference.

When a distant letter appears dimmer, the inspection should determine whether the cause is electrical or optical.

A useful diagnostic sequence is:

• Measure supply output voltage.
• Measure voltage at the letter input.
• Compare current with the approved schedule.
• Inspect branch joints.
• Compare LED quantity.
• Check face material and color.
• Check LED spacing.
• Check internal obstructions.
• Exchange the supply or branch temporarily where appropriate.
• Compare the result under the same viewing conditions.

If the input voltage is correct but a letter remains dark, adding a larger supply may not solve the problem. The issue may be LED spacing, face transmission, internal geometry, or a faulty lighting section.

Color consistency is also part of brightness inspection. White LED products should be compared for:

• Color temperature
• Green or pink tint
• Brightness
• Batch variation
• Front-to-halo color difference

RGB and RGBW products should be compared at full red, green, blue, white, and several mixed colors. Voltage loss may appear as color shift before it appears as a major brightness difference.

Halo testing has an additional limitation: factory walls may not match the final installation wall. A white smooth test wall can produce a wider, brighter halo than black stone, dark wood, textured brick, or reflective metal.

Before production, the wall color, finish, and planned stand-off distance should therefore be confirmed where the halo effect is important. Factory testing can verify the letter’s electrical and optical construction, but the final wall still affects the visible result.

Brightness records may include:

• Full-sign daytime photograph
• Full-sign illuminated photograph
• Group-by-group photograph
• Close-up of every letter
• RGB color test video
• Dimming test video
• Measured voltage record
• Current record
• Corrective-action record
• Final approval image

Testing photographs and videos can be supplied with the shipment record. Iduoduo’s documented quality process includes LED brightness, light color, illumination uniformity, supply stability, wiring, connector, appearance, mounting-hole, accessory, and packing inspections.

Which Documents Should Be Supplied?

The supplied document package should allow the installation team to identify every product, connect the correct electrical parts, install the sign in the approved position, and locate a group during future maintenance.

The document package should be agreed before production rather than assembled after packing.

Document	Main Content	Primary Use
Approved artwork	Final logo, font, colors and proportions	Visual control
Sign elevation	Overall dimensions, spacing and letter IDs	Installation layout
Product drawing	Face, return, back and internal structure	Production and approval
LED layout	LED placement and quantity by letter	Load and optical control
Load schedule	Wattage and current by letter and group	Supply selection
Power-group plan	Assigned letters and supply IDs	Wiring and maintenance
Wiring diagram	Polarity, branches, controllers and routes	Electrical installation
Cable-exit drawing	Exact exits and references	Wall preparation
Mounting template	Studs, holes, spacing and alignment	Physical installation
Raceway drawing	Internal parts, covers and fixing points	Raceway installation
Backboard drawing	Board size, cable channels and fixing	Backboard installation
Control diagram	RGB, RGBW, dimming or app connections	Control commissioning
Supply list	Model, voltage, rating and quantity	Installation and replacement
Accessory list	Hardware, connectors and tools supplied	Site preparation
Packing list	Cartons, products and IDs	Receiving and sorting
Test report	Lighting, load, control and stability checks	Quality record
Test photos or video	Visible operation before shipment	Project record
Certification files	Agreed supply or product documents	Local review
Installation guide	Sequence, labels and key cautions	Site work
Maintenance guide	Isolation and replacement references	After-sales service
Revision register	Approved drawing history	Version control

Not every project needs the same document volume. A small indoor sign may require a simplified package, while a large exterior sign with several power groups, raceway sections, and RGB controls needs more detail.

The minimum package should still identify:

• What was manufactured
• Which drawing was approved
• Which supply powers each section
• Where each cable exits
• How the sign is mounted
• Which parts are packed together
• What was tested
• Which work remains for the local installation team

The wiring package should distinguish factory-supplied parts from site-supplied work.

Factory Scope	Local Installation Scope
Low-voltage LED layout	Building AC circuit
Supply matching	Circuit breaker
Product internal wiring	Grounding
Cable exits	In-wall cable route
Controllers and dimmers supplied by agreement	Junction boxes
Polarity and labels	High-voltage connection
Product testing	Permit and inspection
Mounting template	Wall-condition verification
Agreed installation hardware	Final anchor selection
Electrical records	Local code compliance

Such a boundary reduces confusion when a sign reaches the site without a suitable building circuit or when the wall requires another anchor type.

The installation template should match the final production geometry. A template created before the last spacing change can place cable holes and studs in the wrong positions.

Template control should include:

• Drawing number
• Revision
• Scale
• Overall dimension
• Baseline
• Centerline
• Letter outlines
• Stud holes
• Cable exits
• Raceway fixings
• Backboard fixings
• Section joints
• Orientation
• Print or projection instructions

Large paper templates may expand, shrink, fold, or become damaged during transport. Critical overall dimensions should therefore be printed on the template so the installer can verify scale before drilling.

Packing documents should identify where electrical parts are located.

Carton	Contents	Related Group
CTN-01	L-01, L-02 and L-03	PG-01
CTN-02	L-04, L-05 and L-06	PG-02
CTN-03	L-07, L-08 and L-09	PG-03
CTN-04	Main logo sections	PG-04A and PG-04B
CTN-05	PS-01 to PS-03	PG-01 to PG-03
CTN-06	PS-04A, PS-04B and dimmer	Main logo
CTN-07	Templates and mounting hardware	Complete sign

Electrical records can include the LED voltage, supply model, supply power, supply quantity, input voltage, plug, controller, cable, branch arrangement, wiring diagram, test records, and certification files. Iduoduo’s documented project system allows those details to be retained for later service and repeat production.

Production should be released only after the final file set answers the following questions:

• Is the correct artwork approved?
• Are all dimensions final?
• Is every letter identified?
• Is every LED load calculated?
• Is every group below the approved working limit?
• Are the supplies confirmed?
• Are voltage and certification confirmed?
• Are cable exits approved?
• Is the mounting method approved?
• Is the actual wall condition understood?
• Are long cable routes reviewed?
• Are control zones approved?
• Are service points accessible?
• Are outdoor sealing and drainage requirements defined?
• Are labels and packing groups established?
• Is the required testing plan recorded?
• Is one final drawing revision released?

When one of those items remains unresolved, the production file should show it as an open point. Guessing may save one email before production, but it can create incorrect holes, missing supplies, incompatible voltage, long cable runs, or expensive site changes after delivery.

How Can Iduoduo Support Your Channel Letter Project?

A power-group plan becomes more accurate when it is developed alongside the letter structure, LED layout, mounting method, and site conditions. Before requesting a production quotation, prepare the logo or drawing, overall dimensions, letter height, lighting type, quantity, installation country, input voltage, wall construction, mounting method, approximate cable distances, preferred power-supply location, certification needs, and any RGB, RGBW, dimming, or control requirements.

Iduoduo can review the font and letter geometry, calculate LED loads, propose power groups, match power supplies, plan cable exits, coordinate raceway or backboard structures, prepare installation information, and test the completed illuminated sign before shipment. Its documented manufacturing process includes engineering review of LED layout, power capacity, wiring, exits, mounting holes, weather protection, and installation interfaces, followed by 100% lighting inspection and 72-hour pre-shipment testing.

For an initial review, send the available project files even when some site information is still being confirmed. The engineering team can identify which missing details affect the quotation, power grouping, installation preparation, or final performance. That early review is usually far less costly than changing power supplies, cable routes, or wall penetrations after the letters have already been manufactured.
