A commercial sign has only a few seconds to communicate with the people approaching a building. It must remain recognizable in daylight, stand out after sunset, fit the architecture, and guide customers without creating glare or visual confusion. The brightest option is not automatically the best one. A roadside restaurant may need bold front-lit letters, while a hotel entrance may benefit from a restrained halo glow that feels like part of the building rather than an advertisement attached to it.
The best illuminated signs for commercial buildings include front-lit, halo-lit, dual-lit, and side-lit channel letters, LED light boxes, cabinet signs, blade signs, acrylic LED logos, and LED neon signs. The right choice depends on viewing distance, traffic direction, building type, wall material, brand style, weather exposure, electrical access, maintenance needs, and local sign regulations.
The real challenge usually appears after a logo leaves the design screen. Fine lines may be too narrow for LEDs, a beautiful halo may disappear against a dark stone wall, or a large cabinet may be impossible to transport in one piece. Experienced sign planning connects appearance with manufacturing, wiring, installation, maintenance, and delivery. When those decisions are made early, the finished sign is more likely to look correct on opening night rather than becoming an expensive lesson after installation.

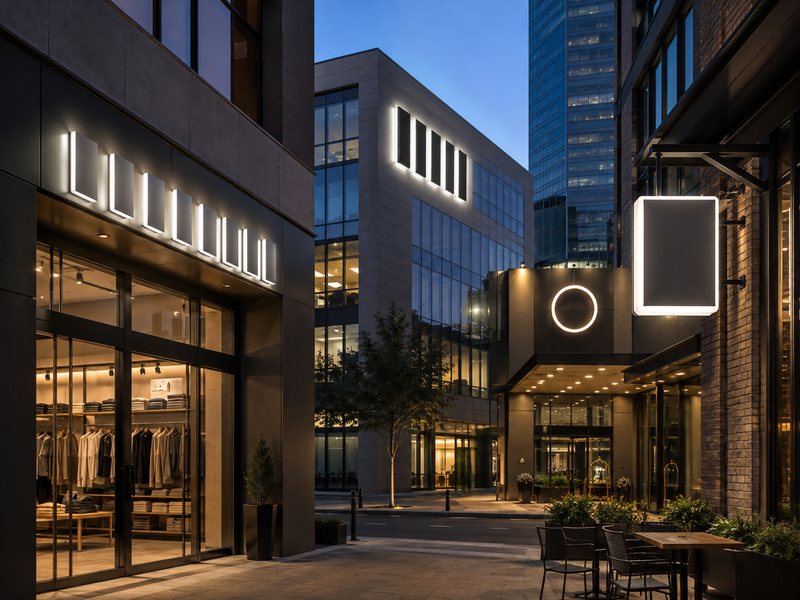

What Are Illuminated Building Signs?
Illuminated building signs are fixed commercial signs that use integrated or external lighting to keep a company name, logo, or message visible in low-light conditions. They include channel letters, light boxes, projecting signs, illuminated logos, and neon-style signs. Their performance depends on light direction, structural depth, viewing distance, electrical design, wall conditions, weather exposure, and installation quality.

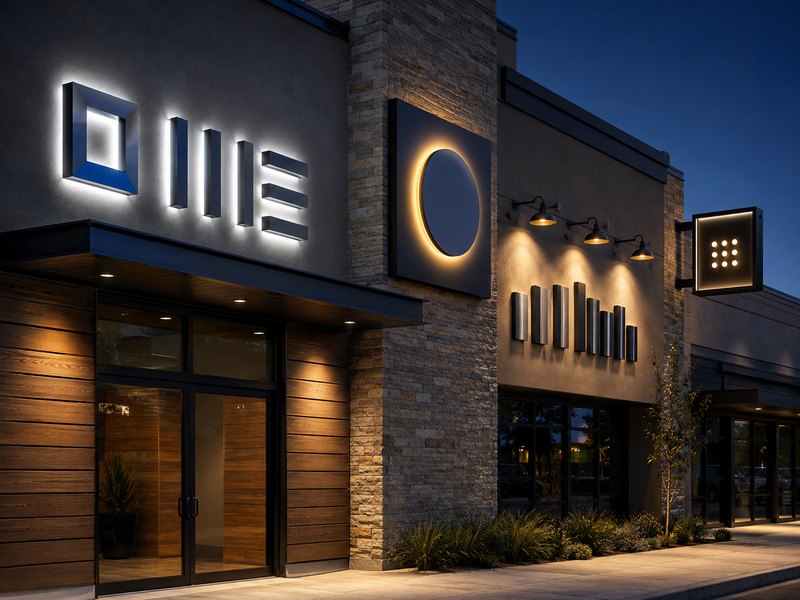

Internal and External Lighting
Internally illuminated signs contain LEDs within the letters, logo body, cabinet, or acrylic structure. Depending on the design, light may pass through the front face, escape through translucent side returns, project backward onto the wall, or combine several directions. Because the light source is built into the product, the manufacturer can plan LED spacing, diffusion distance, power groups, brightness, color temperature, and cable routes before the sign reaches the building.
External illumination uses separate fixtures to light non-illuminated letters, panels, plaques, or architectural structures. Spotlights, gooseneck lamps, and wall washers are common choices. This approach can suit heritage buildings, traditional restaurants, landscaped entrances, and properties where internal lighting is restricted. Its success depends heavily on the position, beam angle, output, and color of the external lamps. Poorly positioned fixtures may create sharp shadows, glare, bright patches, or uneven coverage even when the sign itself is manufactured correctly.
Neither approach is automatically superior. Internal lighting usually creates a cleaner and more self-contained visual system, while external lighting allows the sign body to remain relatively simple. Internal lighting also has limitations. Shallow letter bodies can reveal individual LED points, narrow strokes may not provide enough room for modules, and incorrect spacing can create dark zones. Sign depth, face material, LED output, internal reflectivity, and viewing distance must therefore be considered together.
Static Signs and Digital Displays
A fixed illuminated sign presents a permanent company name, logo, symbol, or message. LEDs provide the light, but the graphic content remains unchanged. A digital LED display creates images directly through a matrix of pixels and uses control cards, processors, software, and communication systems to show changing text, images, or video. These two categories may appear on the same property, but they are designed, manufactured, installed, and serviced in different ways.
This distinction is important when requesting quotations. A custom sign factory may specialize in channel letters, acrylic logos, light boxes, and LED neon without producing digital billboards or electronic message centers. Fixed signs are usually the stronger choice when the primary goal is consistent brand identification. Digital displays are more appropriate when a business needs to update promotions, public information, prices, or event messages regularly.
| Comparison Area | Fixed Illuminated Sign | Digital LED Display |
| Primary function | Permanent brand identification | Changing information or advertising |
| Visual content | Fixed letters, logos, or graphics | Programmable text, images, or video |
| Main components | Sign body, LEDs, wiring, power supplies | Pixel modules, processors, control cards |
| Typical service work | Faces, LEDs, wiring, and power supplies | Modules, software, data systems, and cooling |
| Common locations | Storefronts, hotels, offices, restaurants | Billboards, message centers, stadiums |
A property may use a permanent illuminated building name together with a digital information board, but the specifications should remain separate. Combining the two into one vague product request often results in unclear pricing, incorrect expectations, and responsibility gaps between manufacturers, installers, and software providers.
Visibility After Dark
Illumination adds value by improving contrast between the sign and its background. A well-designed sign remains recognizable without producing excessive glare, losing the shape of the letters, or overpowering the surrounding architecture. Brightness alone does not guarantee readability. Letter height, stroke width, spacing, installation height, approach angle, traffic speed, wall color, and nearby lighting all influence how quickly a person can recognize the message.
The same sign can behave very differently in two locations. A relatively modest output may appear powerful on a dark suburban building, while the same product may seem weak in a brightly illuminated entertainment district. Factory testing confirms that the sign lights correctly, but the site environment determines how the light is perceived. For this reason, project information should include daytime and nighttime photographs whenever possible, especially when the surrounding area contains strong architectural lighting or competing storefronts.
The main viewing position should also be identified. A pedestrian reading a sign from approximately 10 meters away can notice smaller details than a driver approaching from across a parking area or along a road. Signs intended for moving traffic generally need taller letters, stronger strokes, less wording, and cleaner contrast. A detailed logo that looks excellent on a website may require simplification before it becomes effective architectural signage.
When Illumination Is Useful
Illumination is especially useful when a business operates after sunset, faces a road or parking area, competes with neighboring storefronts, or needs to guide visitors across a larger property. Retail stores, restaurants, hotels, clinics, entertainment venues, offices, and service businesses often gain practical value from signs that remain visible during evening hours and poor weather.
Lighting is not necessary for every sign. A reception wall with strong ambient light may only need a subtle edge glow. A historic façade may look better with externally illuminated metal letters. A residential-facing property may need lower output, timers, or dimming to reduce disturbance. Local regulations may also limit sign brightness, operating hours, projection, or color-changing effects.
A useful decision begins with the question the sign must answer. Is it identifying the building from a road, helping pedestrians find an entrance, communicating a premium brand image, or creating atmosphere inside a venue? Once the real task is clear, illumination can be selected as a functional tool rather than added simply because it appears more impressive in a rendering.

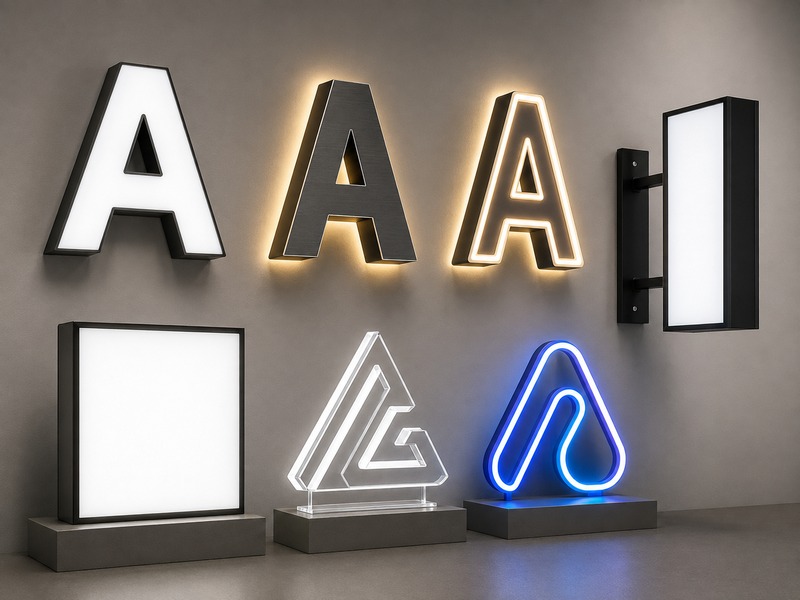

What Types of Illuminated Signs Are Available?
The main illuminated sign categories include front-lit, halo-lit, dual-lit, and side-lit channel letters, LED light boxes, cabinet signs, blade signs, acrylic LED logos, and LED neon signs. Each creates a different lighting effect and solves a different visibility problem. The best choice depends on viewing direction, logo construction, installation location, wall conditions, required durability, and access for future service.
Channel Letter Styles
Channel letters are three-dimensional letters, numbers, or logo shapes manufactured as separate units. A typical construction may include a metal return, front or rear panel, acrylic face, LED modules, internal wiring, mounting studs, cable exits, and power equipment. Their depth, materials, and lighting direction can be adjusted according to the size of the letters, the viewing distance, and the desired architectural effect.
Front-lit letters direct light through a translucent face and are widely used where strong frontal visibility is required. Retail stores, supermarkets, gyms, restaurants, and roadside businesses often choose this construction because the illuminated letter shapes remain clear from a distance. Halo-lit letters use opaque fronts and project light backward onto the wall, creating a softer outline around each letter. They are often selected for hotels, offices, clinics, financial services, and premium storefronts.
Dual-lit letters combine a luminous front face with a rear halo. They create greater visual depth but require separate attention to the balance between front and rear output. If the face is too bright, the halo becomes difficult to see. If the rear lighting is too strong, the edges may appear blurred. Side-lit letters use translucent returns to emphasize letter depth and are most effective where the sides remain visible from close or angled viewpoints.
| Letter Type | Light Direction | Typical Body Depth* | Common Application |
| Front-lit | Through the front face | 60–150 mm | Storefronts and roadside buildings |
| Halo-lit | Back toward the wall | 30–100 mm | Hotels, offices, and premium retail |
| Dual-lit | Front and rear | 60–150 mm | Flagship stores and branded façades |
| Side-lit | Through translucent returns | 40–100 mm | Modern interiors and close-range signs |
*These are common planning ranges rather than fixed manufacturing rules. Final depth depends on letter height, stroke width, LED type, face material, diffusion requirements, mounting conditions, and structural needs.
Light Boxes and Cabinets
A light box is an illuminated enclosure that presents a complete graphic rather than a group of separate letters. The visible face may contain a company name, logo symbol, background color, service description, or printed graphic. Light boxes can be rectangular, circular, custom-shaped, wall-mounted, suspended, freestanding, single-sided, or double-sided.
This structure is useful when the background is part of the identity or when a logo cannot easily be separated into individual channel letters. Pharmacies, convenience stores, service businesses, restaurants, shopping centers, and multi-tenant properties frequently use illuminated cabinets because they provide a clearly defined display area and can accommodate relatively complex graphic layouts.
Internal depth and diffusion are central to performance. A shallow cabinet saves space but leaves less distance for light to spread before reaching the face. This can cause visible LED points or uneven illumination, especially behind white and pale-colored surfaces. Deeper boxes usually provide better light mixing, although they add weight, material, and projection from the wall. LED spacing, face opacity, internal reflectivity, and the distance between the light source and face must be adjusted as one optical system.
Maintenance access should be decided before production. Faces may be removable, hinged, clipped, or retained within a frame. Outdoor cabinets also need appropriate cable entry, drainage, joint treatment, and corrosion-resistant hardware. Large units may need to be divided into sections to meet transportation limits and make local handling safer.
Blade and Projecting Signs
A blade sign projects outward from a wall, normally close to a 90-degree angle. Because the visible faces point along the direction of pedestrian movement, this sign type can be more effective than a large wall sign in narrow shopping streets, commercial corridors, covered walkways, and indoor retail centers.
Restaurants, cafés, boutiques, bars, hotels, salons, and specialty shops often use projecting signs to become visible before a customer reaches the entrance. The sign body may be a double-sided light box, a custom-shaped illuminated cabinet, an acrylic logo, or a small channel-letter assembly. The product format should follow the required viewing distance and the available projection from the façade.
The bracket and wall connection are just as important as the illuminated face. A projecting product creates leverage against the wall, and wind may apply greater loads than it would to a flat-mounted sign. The design process should confirm the overall dimensions, estimated finished weight, projection distance, bracket material, cable route, installation height, wall construction, and local clearance requirements.
The manufacturer can prepare the sign, bracket, cable path, and mounting interface. The local installer should confirm anchors, wall strength, lifting access, and regulatory compliance. These responsibilities should be discussed before production, particularly for signs mounted above pedestrian routes or on older façades.
Acrylic Logos and LED Neon
Acrylic LED logo signs are well suited to detailed graphics, compact logos, reception walls, retail interiors, showrooms, clinics, offices, and exhibition spaces. Acrylic can be cut, engraved, polished, printed, layered, heat-formed, or combined with metal. Depending on the structure, it may produce front illumination, edge lighting, side lighting, backlighting, or several effects within one logo.
This product category is often chosen when traditional channel letters would appear too deep or when a detailed symbol needs a clean close-range finish. The design must still provide sufficient material around narrow areas, internal cutouts, mounting holes, and cable paths. Very thin acrylic sections can crack during production, transport, or installation, particularly when the logo contains long unsupported shapes.
LED neon uses flexible diffusing material arranged along a planned line path. It is popular for handwritten logos, slogans, outlines, window graphics, restaurants, bars, entertainment spaces, and decorative brand features. It creates a continuous line effect but is governed by physical limits such as minimum bending radius, cutting direction, connection position, and available space for hidden wiring.
LED neon should not be treated as a universal replacement for channel letters. Neon-style signs are strong for atmosphere, photography, and close-range visual interest. Channel letters normally provide greater architectural depth, stronger long-distance recognition, and more options for integrated mounting on large commercial façades.

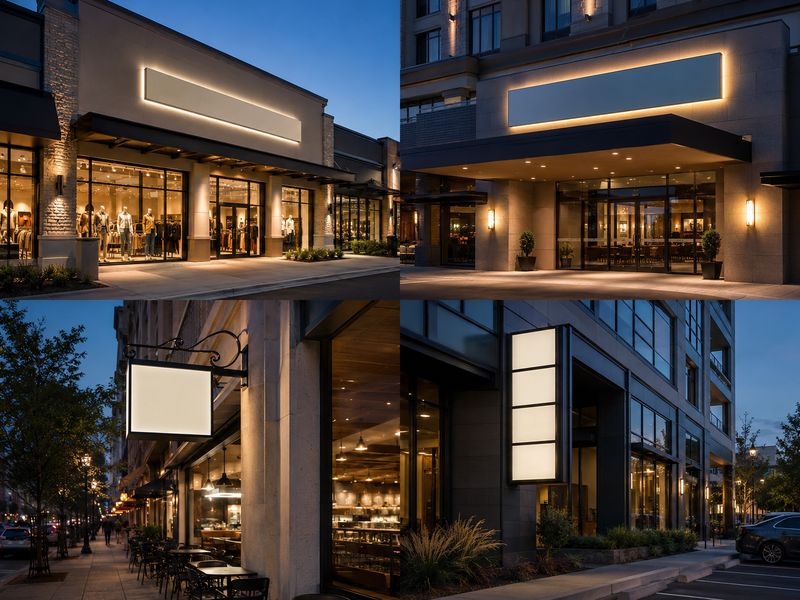

Which Sign Fits Each Building?
The right sign depends on how people approach the property, how long they have to read the message, and what impression the building should create. Retail stores often need strong recognition, hotels may favor restrained architectural lighting, and multi-tenant properties need organized identification. Product selection should begin with the actual viewing condition rather than with a photograph of a sign installed somewhere else.
Retail and Restaurants
Retail stores and restaurants often compete for attention in visually crowded environments. Their signs must work against neighboring storefronts, vehicle lights, street furniture, window displays, and architectural features. Strong output can help, but readable shapes and clear contrast are usually more valuable than maximum brightness.
Front-lit channel letters are a practical primary sign because the illuminated face presents a recognizable outline directly toward approaching customers. Dual-lit letters can add depth to a flagship location, although the wall behind them must be capable of reflecting a visible halo. A very dark, rough, or strongly patterned façade may weaken or distort the rear lighting effect.
A retail or food-service property may combine several products without making them compete. Channel letters can identify the building, a blade sign can attract pedestrians approaching from either direction, a light box can carry a secondary service message, and an interior LED neon feature can create atmosphere. The primary sign should remain visually dominant so customers can understand the brand before noticing supporting messages.
Restaurants also need to consider grease, dust, moisture, cleaning chemicals, and long operating hours. Power supplies and control equipment should be placed where they can be inspected without dismantling large areas of the façade. For chains, approved letter depth, colors, lighting, mounting holes, and cable positions should be documented so the visual standard can be reproduced across stores with different frontage widths.
Offices and Hotels
Office buildings, hotels, clinics, and professional properties often need signs that appear permanent and integrated with the architecture. Halo-lit letters are frequently suitable because the light reflects onto the wall rather than shining directly through the face. The result can feel restrained and refined, particularly when paired with metal finishes, stone walls, timber panels, or carefully detailed entrances.
The wall surface becomes part of the optical design. Smooth, pale surfaces usually produce a cleaner and more even halo than dark, heavily textured, or reflective materials. Deep stone joints, metal cladding seams, and irregular masonry can break the glow into uneven sections. The distance between the letter and wall also matters. A smaller standoff produces a tighter outline, while a greater distance spreads the light more widely but may reduce edge definition.
Interior reception areas may use halo-lit metal letters, layered acrylic logos, edge-lit symbols, or backlit cut-metal forms. Since people often view these products from only a few meters away, excessive brightness may be uncomfortable and may reveal minor hotspots or surface imperfections. Dimming is useful where daylight levels and evening atmosphere vary.
Hotels commonly require a family of coordinated signs, including the exterior building name, entrance sign, reception logo, restaurant identification, room signs, and wayfinding. These products may use different structures, but typography, finish, color, and visual hierarchy should remain connected.
Pedestrian and Roadside Locations
Pedestrians and drivers read signs in different ways. Pedestrians move slowly, approach from several directions, and can notice material details. Drivers have limited time and need larger, simpler forms with strong contrast. The sign should be designed for the most important approach rather than assumed to work equally well from every position.
Blade signs and double-sided light boxes are especially useful in pedestrian areas because their faces point along the direction of travel. Their practical strength comes from orientation rather than size. A modest projecting sign can become visible earlier than a much larger wall sign that sits parallel to the sidewalk.
Roadside signs should use short wording, generous spacing, clear silhouettes, and strong separation from the building. A complicated logo that works on packaging may become unreadable when mounted several meters above ground. Increasing the overall width does not always solve the problem if the strokes remain thin or the wording remains crowded. Enlarging the symbol, simplifying secondary details, or separating the logo from supporting text may create a stronger result.
| Viewing Situation | Main Priority | Useful Sign Features |
| Close pedestrian view | Detail and side visibility | Blade signs, acrylic logos, LED neon |
| Across a parking area | Clear frontal recognition | Front-lit or dual-lit channel letters |
| Road approach | Fast reading and contrast | Large letters and simplified cabinets |
| High installation position | Strong proportions | Wider strokes and reduced detail |
| Interior reception | Finish and visual comfort | Halo-lit, side-lit, or layered acrylic |
| Multiple approach directions | Repeated visibility | Double-sided boxes or projecting signs |
There is no single letter-height formula that replaces a site review. Viewing distance, traffic speed, installation height, contrast, message length, and approach angle all change the result. Greater distances generally require taller letters, stronger strokes, and fewer words, but the full elevation should still be evaluated before production.
Multi-Tenant Properties
Multi-tenant buildings need order, repeatability, and easy updating. Monument signs, pylon structures, illuminated cabinets, and modular tenant panels are common because they allow several businesses to be displayed within one controlled system.
Replaceable tenant faces can reduce the cost of future changes, but the replacement specification must be preserved. A new panel with a different thickness, opacity, printing process, or light-transmission rate may appear much brighter or darker than the surrounding names. Even a technically correct logo can look inconsistent when its illumination differs from the original tenant standard.
Property managers should define the maximum logo area, permitted background colors, illumination method, color temperature, panel material, fastening system, electrical responsibility, and replacement procedure. The main property name should normally retain a stronger visual hierarchy than individual tenants so the structure remains understandable from a distance.
Packaging and labeling become particularly important when several sign sets are delivered together. Products should be identified by building, elevation, tenant, installation zone, or panel position. Clear numbering helps installers match each item to the correct drawing and reduces the risk of opening multiple packages simply to locate one component.
How Do You Compare Sign Performance?
Illuminated signs should be compared through readability, light quality, material durability, electrical design, weather resistance, and maintenance access. Two products may look similar in a rendering but perform differently after installation because of body depth, LED spacing, wall color, cable length, voltage, or outdoor exposure. A reliable comparison considers the complete system rather than judging only the visible face.
Light Quality and Readability
Light quality is not the same as brightness. A well-performing sign has even illumination, clear edges, controlled contrast, and no distracting hotspots or dark zones. The light should support the shape of the letters rather than overwhelm it.
Front-lit letters require enough internal space for LEDs to spread across the face. The necessary depth depends on module output, face material, opacity, stroke width, and letter size. A shallow body may require closer LED spacing or more specialized diffusion. Adding more LEDs without considering heat and power does not automatically improve the result.
Halo-lit letters depend heavily on the wall. Rear spacing controls the spread of the glow, while wall color and texture determine how much light is reflected. A smooth light wall tends to create a cleaner halo than a dark or heavily textured surface. Highly reflective cladding can also produce secondary reflections that make the outline look inconsistent.
Color temperature changes the character of the sign. Warm white, often around 2700–3500 K, can complement hospitality and premium interiors. Neutral white near 4000 K provides a balanced appearance for offices and healthcare. Cooler white options may suit modern retail or technology environments, although the final decision should follow the brand and surrounding architecture.
RGB and RGBW systems add changing colors but also require controllers, more wiring, programming, and commissioning. They are useful when color change supports the venue experience. For permanent building identification, a stable brand color is usually easier to operate, reproduce, and maintain.
Materials and Outdoor Exposure
Commercial illuminated signs combine several materials, including aluminum, stainless steel, acrylic, polycarbonate, silicone light material, LEDs, wires, power supplies, fasteners, adhesives, and sealants. Reliability depends on how those components respond together to weather, heat, vibration, and cleaning.
Aluminum is widely used because it combines relatively low weight with good corrosion resistance. Stainless steel provides strength and premium finishes but may add weight and cost. Acrylic is common for illuminated faces because it transmits and diffuses light, while polycarbonate may be selected where higher impact resistance is required. The correct material depends on the sign size, finish, installation height, environment, and expected maintenance method.
Outdoor exposure includes more than direct rain. A sign may face strong ultraviolet light, daily temperature cycling, high humidity, wind-driven water, salt air, industrial pollution, dust, insects, building movement, and prolonged operating heat. A covered storefront and an exposed coastal façade should not receive identical specifications simply because both are described as outdoor installations.
Weather protection should address cable entries, joints, screws, drain paths, connectors, and the location of power equipment. Applying more sealant is not always a complete solution. If moisture enters, a fully sealed cavity without planned drainage may retain water rather than allow it to escape. Coastal and industrial projects may justify upgraded coatings, stainless fasteners, protected connectors, and shorter maintenance intervals.
Power and Wiring
Electrical reliability begins with accurate load planning. The sign manufacturer should confirm the LED system voltage, calculated wattage, power-supply capacity, circuit grouping, cable length, cable size, controller requirements, and final cable exit position.
Many illuminated sign systems use low-voltage LED circuits, commonly 12 V or 24 V, connected to a power supply that receives the local building input voltage. The actual configuration depends on the LEDs, destination market, sign size, and installation arrangement. Power equipment must be matched to the available input supply and should not be selected simply because it can make the sign light during a short test.
A practical design normally includes operating capacity above the calculated load rather than running every power supply continuously at its maximum rating. The exact margin should follow the component manufacturer’s requirements, ventilation, temperature, and project conditions. Large signs may be divided into several electrical groups to reduce voltage drop and make fault finding easier.
| Electrical Item | Information to Confirm | Practical Reason |
| Building input | Local voltage and frequency | Prevents incompatible power equipment |
| LED output voltage | System requirement, often 12 V or 24 V | Protects LEDs and controllers |
| Calculated load | Total sign wattage | Determines power-supply quantity |
| Cable length | Distance from power to sign | Helps manage voltage drop |
| Circuit groups | Number of independent zones | Supports stable output and servicing |
| Power location | Raceway, cabinet, wall cavity, or service box | Affects access and heat control |
| Cable exit | Position and direction | Prevents visible wiring and site conflicts |
| Controller | Dimmer, RGB, or RGBW requirement | Determines wiring and commissioning needs |
Long low-voltage cable runs can reduce output at the far end of a circuit. Cable length and conductor size should therefore be reviewed during engineering rather than decided after installation. The approved drawing should clearly show cable exits because an incorrectly positioned wire can create visible surface runs or conflict with structural and electrical services inside the wall.

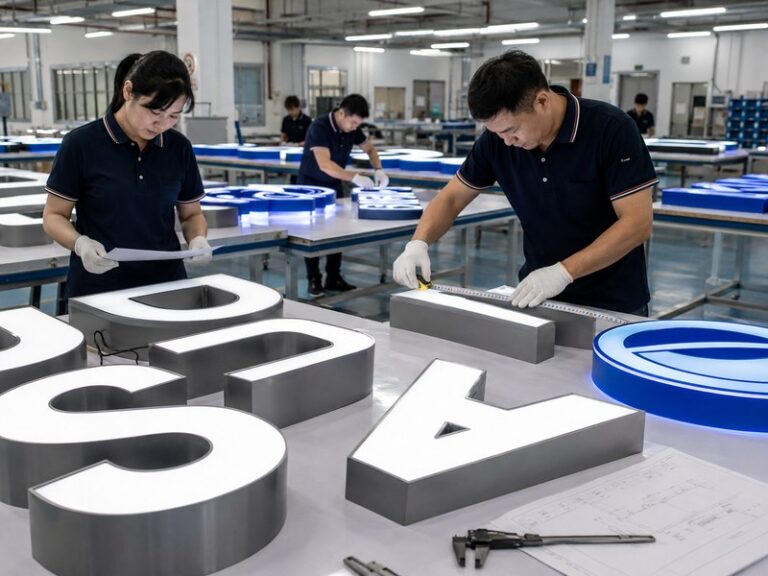

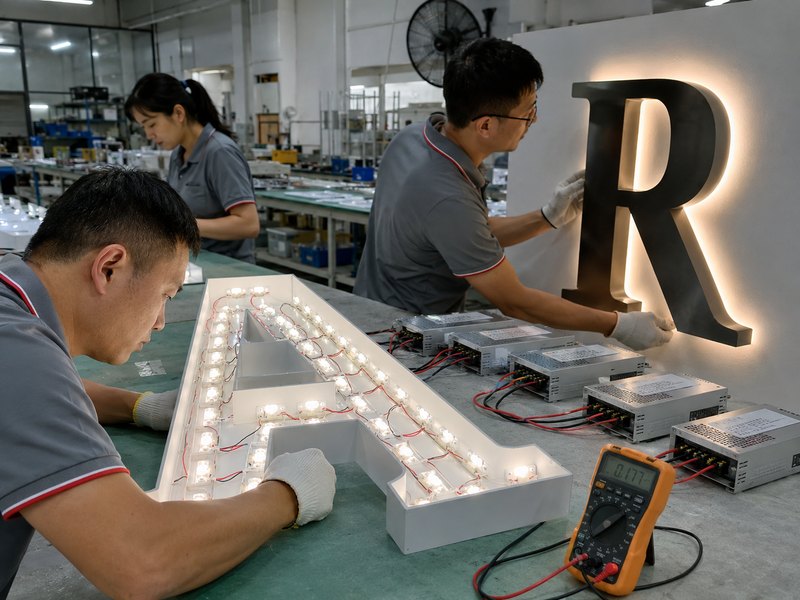

Testing and Serviceability
Testing before shipment is particularly important for international projects because correcting a problem after installation may involve electricians, lifting equipment, travel, and replacement freight. Inspection should cover dimensions, logo proportions, surface finish, color, illumination, wiring, mounting details, accessories, and packaging.
Useful checks include overall size, letter spacing, face fit, paint condition, LED color, light uniformity, hotspots, dark areas, power stability, cable exits, mounting holes, brackets, templates, controllers, plugs, and spare parts. Test photographs or videos are valuable because they allow the project team to compare the physical result with the approved drawing before the product leaves the factory.
A continuous pre-shipment lighting test can expose early LED, power-supply, connector, or controller problems. It cannot guarantee that a component will never fail, but it reduces the risk that an obvious electrical issue travels across the world. At iduoduo, illuminated products undergo 100% lighting inspection and a 72-hour pre-shipment test before packing.
Serviceability should be considered during the design stage. Power supplies, faces, controllers, and important connectors should remain accessible where practical. A visually clean sign that requires major façade removal for a routine component replacement creates unnecessary long-term cost. Maintenance access is not an afterthought; it is part of good product engineering.
What Should You Confirm Before Ordering?
Before ordering, confirm the approved artwork, finished dimensions, quantity, product type, materials, lighting direction, colors, installation surface, mounting method, cable exits, local voltage, outdoor conditions, permit requirements, packaging, and project deadline. Complete information allows the sign to be engineered accurately and reduces changes during production, installation, inspection, and future repeat orders.
Design and Site Information
A logo file is only the starting point of a commercial sign project. The manufacturer also needs to understand how large the sign will be, where it will be installed, how people will approach it, and what environmental conditions it must withstand.
Vector artwork in AI, EPS, SVG, or editable PDF format is preferred because it preserves clean outlines at any scale. Low-resolution images may support an early discussion, but they are not reliable production files. The artwork should be reviewed for narrow strokes, small internal spaces, fragile connections, unsupported shapes, and areas that cannot accommodate the selected lighting system.
The project team should provide overall dimensions, quantity, indoor or outdoor use, a straight building photograph, wall dimensions, wall material, installation height, main viewing position, preferred lighting effect, face and return colors, LED color or color temperature, destination country, available voltage, and required completion date.
A wall photograph is most useful when it is taken close to a straight-on angle and includes a known measurement. Images taken from a sharp perspective may make the proposed sign appear larger or smaller than it will be. For elevated signs, formal building drawings and installation dimensions are more dependable than photographs alone.
Mounting and Local Approval
The mounting method affects appearance, wiring, wall penetrations, maintenance access, and installation time. Common approaches include direct mounting, stud mounting, raceway mounting, backboard mounting, standoff mounting, bracket mounting, and suspended installation.
Direct-mounted letters provide a clean architectural appearance but may require multiple cable penetrations and accurate positioning. Raceway mounting places letters and electrical components on a shared metal enclosure, which can reduce wall penetrations and simplify some installations. A backboard may conceal wiring, create contrast, and provide a common surface for products that cannot be fixed directly to an uneven façade.
The local installer should verify the building substrate. Brick, concrete, metal cladding, stone, glass, timber, and insulated façade systems require different anchors and installation methods. A template can show letter position and hole spacing, but it does not replace local structural assessment.
Local regulations may control sign area, letter height, brightness, projection distance, operating hours, electrical work, anchoring, placement near roads, and the appearance of historic buildings. A manufacturer can prepare drawings, templates, brackets, and mounting interfaces, but local authorities and qualified site professionals determine final compliance. Permit-sensitive projects should complete the approval process before production.
Power and Outdoor Requirements
The destination country and building input voltage should be confirmed before power equipment is selected. Plug type, certification expectations, grounding, cable standards, and electrical connection practices differ between markets. A sign configured for one country should not be assumed to be ready for another without checking the electrical specification.
The project should state whether power supplies will be located inside a cabinet, within a raceway, behind a backboard, inside the building, or in an accessible service box. Power equipment should remain reachable for inspection and replacement. Placing it in a sealed or inaccessible cavity may create avoidable maintenance problems even when the initial installation looks clean.
Outdoor descriptions should be specific. Useful information includes whether the sign is under a canopy, directly exposed to rain, installed near the coast, subject to high humidity, exposed to intense sun, used in extreme heat or cold, affected by snow or ice, or cleaned with chemicals. These details help the manufacturer choose suitable metals, coatings, sealants, connectors, drain arrangements, and power locations.
Terms such as “weatherproof” or “waterproof” are too broad to define a complete construction. A more useful discussion explains the actual exposure, desired maintenance access, and local conditions. Environmental information allows protection measures to be matched to the project instead of relying on a generic specification.
Quotation and Production Checks
A professional quotation should clearly describe the sign structure, dimensions, materials, lighting method, power equipment, controllers, mounting accessories, packaging, testing, and shipping scope. Buyers should be able to understand which items are included and which responsibilities remain with the local installer, electrician, engineer, landlord, or permitting authority.
Before production begins, confirm whether the logo is manufacturable at the required size, whether any strokes must be widened, what body depth is proposed, which face and return materials will be used, how LEDs and power supplies will be grouped, where cables will exit, what mounting hardware is included, whether a paper or rigid template will be provided, and how large products will be divided for transportation.
For multi-location or repeat projects, document control is essential. The approved artwork version, dimensions, finish, color, light temperature, LED layout, mounting holes, cable positions, and packaging labels should be retained. This makes future additions and replacements more consistent and reduces the need to rebuild the specification from old messages.
Commercial clients can also request pre-shipment photographs, lighting videos, packing photographs, and accessory lists. These records provide a useful checkpoint before international dispatch and help local installers identify each component after delivery.
Request a Custom Sign Review
A successful illuminated sign is not simply a bright object attached to a wall. It is a combination of graphic design, material selection, light distribution, electrical planning, mounting preparation, testing, packaging, and local installation. When these areas are reviewed together, the project becomes easier to quote, produce, install, maintain, and repeat.
iduoduo is a Shenzhen-based custom sign manufacturer established in 2007. Its manufacturing system includes five production bases, 21,000 square meters of production space, more than 500 employees, 18 production lines, over 10 designers, more than 20 engineers, and over 30 quality-control personnel. The company manufactures channel letters, LED light boxes, blade signs, acrylic LED logos, LED neon signs, and related commercial signage for international projects.
To request a project review, send your vector logo, required dimensions, quantity, building photographs, wall material, indoor or outdoor conditions, preferred lighting effect, installation method, destination country, voltage, and target completion date. The engineering team can then review minimum strokes, materials, sign depth, lighting structure, power configuration, cable exits, mounting preparation, weather exposure, packaging, and production feasibility before a quotation is finalized.
The purpose of this review is not to push every project toward the most complex or expensive construction. It is to find a practical balance between visibility, architecture, manufacturing, installation, maintenance, and budget so the finished sign performs as expected when it reaches the building.
