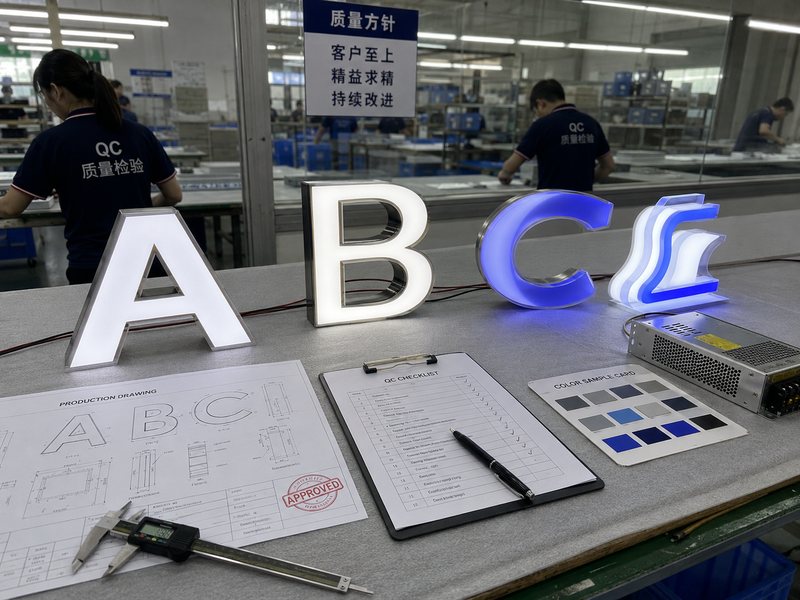

How to Set Quality Responsibilities in a White-Label Sign Agreement

A white-label sign project can look perfectly organized until the first serious quality dispute appears. A sign company may approve the artwork, an overseas factory may engineer and manufacture the product, a local installer may mount it, and the finished sign may carry only the sign company’s identity. When something goes wrong, however, everyone starts looking backward. Was the drawing incomplete? Was the wrong LED used? Was the mounting pattern approved? Did shipping damage the finish? Was the power supply installed incorrectly? Without defined responsibility, a technical problem quickly becomes a commercial argument.

A strong white-label sign agreement should define who owns the specifications, who approves drawings and samples, who performs inspections, what counts as an acceptable product, how production changes are controlled, how defects are investigated, and who pays for corrective action. Quality responsibility should follow documented decisions and measurable acceptance criteria rather than vague promises to supply “good-quality signs.”

The real value of the agreement becomes visible months later. Imagine 120 storefront sign sets have already reached three distribution points when a color inconsistency appears. A weak agreement creates emails, opinions, photographs, blame, and delays. A well-built agreement lets both sides open the approved sample, revision record, material specification, inspection evidence, and production batch information and start solving the problem.

What Quality Responsibilities Should the Agreement Define?

A white-label sign agreement should clearly assign responsibility for project inputs, engineering, approvals, manufacturing, inspection, packaging, installation support, and defect handling. Each critical requirement should identify who provides the information, who verifies it, who approves it, and who is responsible if production does not match the approved standard. Clear ownership reduces disputes and makes quality problems easier to trace and resolve.

Which Duties Belong to the Sign Company?

The sign company should normally control information that comes from the brand, site, architect, installer, property manager, or final project specification. A manufacturer can review whether a requirement is practical, but it cannot reliably correct information it never received.

Typical responsibilities include providing or confirming:

• Approved logo artwork
• Overall sign dimensions
• Brand color requirements
• Store or project identification
• Wall dimensions
• Installation surface
• Indoor or outdoor location
• Viewing distance
• Available voltage
• Cable-entry preference
• Local electrical requirements
• Mounting restrictions
• Required accessories
• Delivery address
• Required completion date
• Site-specific installation conditions

The agreement should make an important distinction between a wrong project input and a manufacturing error.

For example, suppose a wall is actually 2,800 mm wide, but the approved project information states 3,200 mm. If the factory manufactures a 3,000 mm sign exactly according to the approved drawing, the sign may not fit the wall, but the manufacturing process did not create the original dimensional error.

The opposite situation is much clearer. If the approved drawing specifies a 2,500 mm-wide sign and the factory produces 2,620 mm, responsibility sits with manufacturing.

The same principle applies to color.

If a retail brand approves RAL 3020 and later decides it wanted a darker red, the problem comes from approval.

If RAL 3020 was approved but production uses a visibly different finish without written approval, the problem comes from manufacturing.

A useful responsibility check is:

Requirement	Sign Company Should Confirm	Why It Matters
Artwork	Correct logo and spelling	Prevents wrong brand output
Dimensions	Site-compatible size	Prevents fit problems
Color	Approved brand reference	Gives QC a comparison standard
Voltage	Destination electrical supply	Prevents power incompatibility
Installation surface	Wall, glass, metal, stone, etc.	Affects mounting design
Cable location	Preferred exit position	Prevents installation rework
Outdoor exposure	Rain, sun, humidity, salt air	Affects materials and sealing
Store code	Correct location reference	Prevents multi-store packing errors

The sign company should also define who internally has authority to approve production.

On larger projects, the salesperson may manage communication, but final approval may need to come from a project manager, brand manager, architect, engineering team, or installation team.

Without a named approval route, a casual message such as “looks good” can create serious ambiguity later.

Which Duties Belong to the Manufacturer?

The manufacturer should be responsible for everything under direct factory control: engineering review, material conformity, fabrication, assembly, wiring, finishing, inspection, testing, packing, and release against approved production files.

The responsibility starts before fabrication.

A capable sign manufacturer should review whether the proposed construction can actually achieve the required appearance and performance.

For example:

• A narrow script stroke may be too small for the proposed channel letter return.
• A shallow letter depth may create visible LED hot spots.
• A large stainless-steel logo may require stronger mounting hardware.
• A front-lit sign may need a different acrylic thickness at larger sizes.
• A halo-lit letter may need a minimum stand-off distance for an even glow.
• A power supply may need to match 110 V or 220 V depending on destination.
• An outdoor sign may need better cable-entry protection, drainage, or sealing.

The factory should flag foreseeable manufacturing risks before production approval rather than simply manufacture a weak design exactly as submitted.

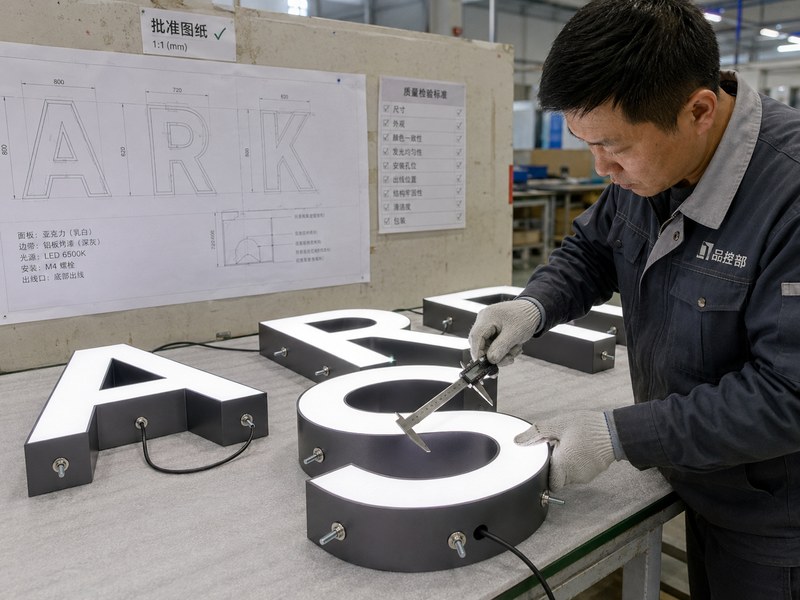

Once production begins, conformity becomes more measurable.

The manufacturer should normally control:

Manufacturing Area	What Should Be Verified
Material	Correct grade, thickness, finish
Dimensions	Match approved drawing
Structure	Depth, backing, returns, reinforcement
Finish	Paint, polishing, brushing, coating
Lighting	LED type, color, brightness, uniformity
Electrical	Power supply, wiring, controller
Mounting	Studs, holes, brackets, templates
Accessories	Correct quantity and specification
Packaging	Protection, labeling, separation
Release	QC and required testing completed

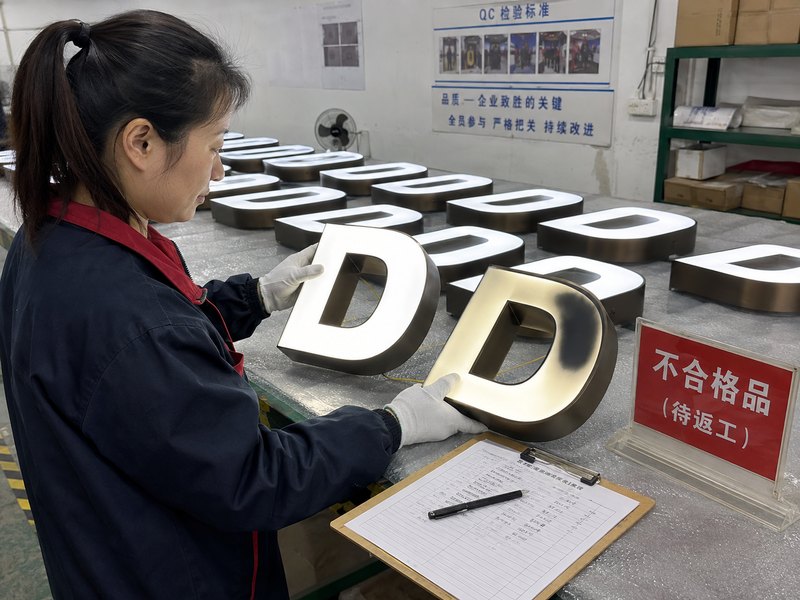

For illuminated signage, individual functionality is not enough.

If 18 letters form one logo, all 18 letters need to work together visually. One letter with a different color temperature or lower brightness can make the complete wall logo appear defective.

Critical visual and electrical checks therefore often require 100% inspection rather than random sampling.

Iduoduo’s documented production control includes incoming material inspection, first-article approval, in-process inspection, dimensional and appearance inspection, 100% lighting inspection for illuminated products, electrical and functional verification, accessory verification, packaging inspection, nonconforming-product control, reinspection after rework, and traceable release records.

Illuminated products also undergo a documented 72-hour pre-shipment test to observe LED stability, power-supply stability, flickering, early failures, color differences, localized dark areas, abnormal heat, controller behavior, and wiring connections.

The agreement should make another distinction that often matters during claims:

The manufacturer is responsible for producing according to the approved standard.

The manufacturer should not automatically become responsible for every field problem merely because it manufactured the sign.

A correctly built sign can still fail because of incorrect installation voltage, damaged field wiring, poor wall sealing, unsuitable anchors, water entering through an installer-made connection, or site conditions never disclosed before production.

Those possibilities should be investigated using evidence rather than assumptions.

Who Has Final Approval Authority?

Final approval authority should be assigned by subject because one person rarely has enough information to approve every aspect of a custom sign project.

A brand manager may understand color but not mounting.

An installer may understand wall conditions but not brand standards.

A manufacturer may understand fabrication but should not unilaterally change the approved logo.

For that reason, approval authority is stronger when divided into clear categories.

Approval Area	Typical Approval Owner
Logo geometry	Sign company / brand team
Spelling	Sign company / brand team
Overall dimensions	Sign company / site team
Material construction	Manufacturer + sign company
Color	Sign company / brand team
Lighting appearance	Sign company / brand team
Electrical design	Manufacturer within confirmed site requirements
Mounting interface	Manufacturer + installer/site team
Sample	Authorized project contact
Packaging branding	Sign company
Bulk production release	Authorized sign company contact
Factory shipment release	Manufacturer QC

A strong agreement should also define what counts as a valid approval.

For practical projects, the record can include:

• Project number
• Drawing number
• Revision number
• Approval date
• Approver name
• Approval status
• Any approval conditions

The most important rule is simple:

Production should follow the latest formally approved production file, not merely the newest file received by email or chat.

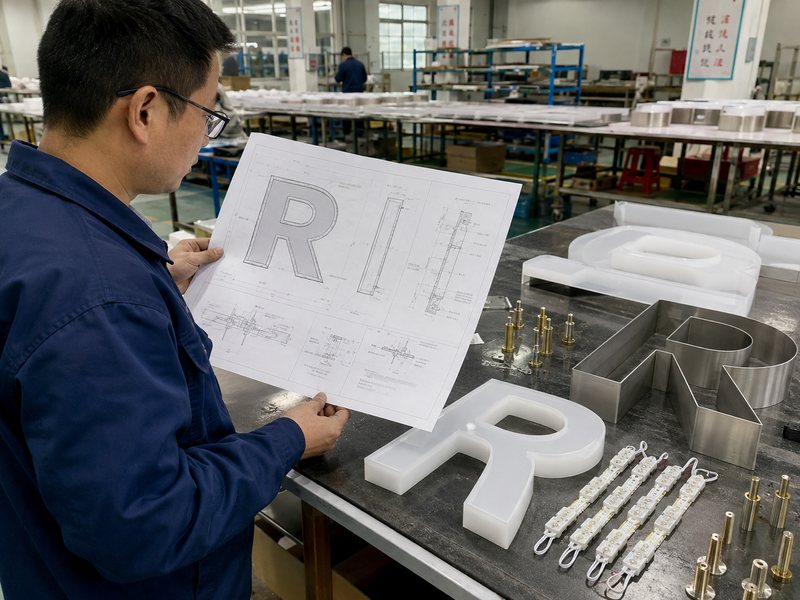

Consider a common situation.

Rev B shows the cable exit in the center.

During a WhatsApp discussion, someone asks whether the cable could move 100 mm to the left.

The factory prepares Rev C showing the proposed change.

If Rev C has not yet been approved, production should not move the cable simply because the idea appeared in conversation.

A version-controlled drawing removes that ambiguity.

Sample approval needs the same discipline.

“Sample approved” is often too broad.

A more useful record identifies what the approval covers:

• Overall appearance
• Dimensions
• Construction depth
• Face color
• Side finish
• LED color
• Lighting uniformity
• Cable exit
• Mounting method
• Packaging method

If only the finish needs revision, the project team should record that rather than rejecting the entire construction.

Approval control becomes especially important on multi-location programs.

A chain rollout may use one master logo but three approved sizes, two mounting systems, and different cable exits across 50 stores.

One generic approval cannot safely control every variation.

A better structure uses one master standard with clearly identified site variants.

How Should Responsibilities Be Documented?

Responsibilities should be documented in a format that project managers, engineers, QC staff, and sales teams can actually use during an order.

A short responsibility matrix is often more practical than several pages of broad wording.

For each critical item, the agreement should show:

• Who provides the requirement
• Who reviews feasibility
• Who prepares the production information
• Who approves it
• Who performs QC
• What evidence proves completion
• What happens if the requirement is not met

A typical responsibility matrix can look like this:

Quality Activity	Sign Company	Manufacturer	Evidence
Logo artwork	Provide / approve	Review manufacturability	Approved artwork
Site dimensions	Provide / verify	Review feasibility	Site or dimension record
Production drawing	Review / approve	Prepare	Approved revision
Material	Approve requirement	Source / verify	BOM / material record
Color	Approve reference	Match production	Sample / color record
First article	Review when required	Produce / inspect	First-article record
Bulk production	Release	Manufacture	Production order
In-process QC	Review if required	Perform	QC checklist
Lighting test	Review evidence	Perform	Photos / test record
Packaging	Define special needs	Execute / inspect	Packing evidence
Store coding	Provide destination mapping	Label / pack	Packing list
Shipment release	Approve if contract requires	Complete factory release	Release record
Installation	Manage locally unless agreed	Provide interface data	Template / instructions
Complaint	Supply field evidence	Trace manufacturing records	Claim file
Rework	Approve where necessary	Perform / reinspect	Rework record
Corrective action	Review	Investigate / execute	CAPA or corrective record

The matrix should connect directly to real project records.

For example, if the agreement says the manufacturer is responsible for mounting-hole position, the approved drawing should actually show the hole positions.

If the agreement says the sign company is responsible for brand color, there should be a usable color reference such as Pantone, RAL, physical chip, approved acrylic sample, or signed Golden Sample.

If the agreement says the factory must prove lighting performance, there should be defined inspection evidence rather than a generic statement saying “QC passed.”

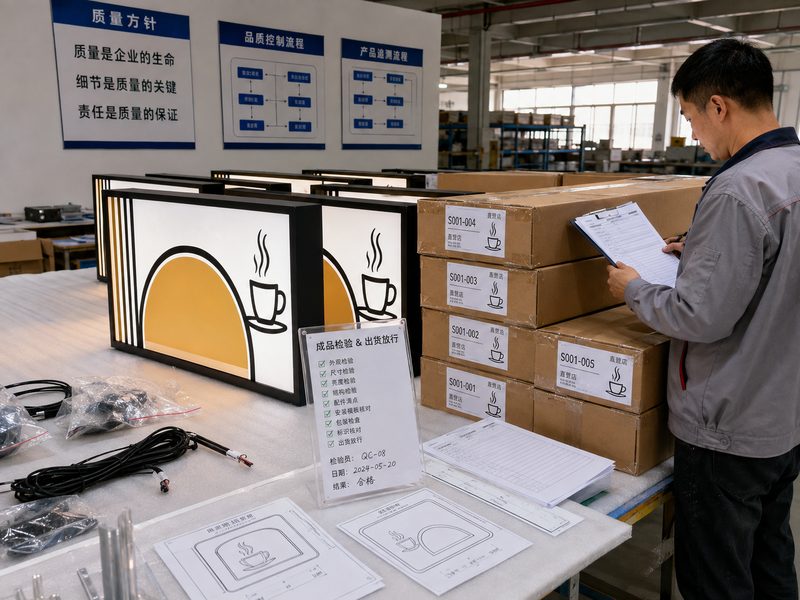

Documentation also becomes important after shipment.

A useful quality file may contain:

• Approved drawings
• BOM
• Approved samples
• Material records
• First-article inspection
• In-process QC
• Final QC
• Lighting photographs
• Test records
• Rework records
• Packing photographs
• Store labels
• Shipment records
• Complaint evidence
• Corrective actions

Iduoduo’s documented quality files can retain drawings, BOM information, samples, materials, QC records, testing, photographs, packaging, shipment information, after-sales records, and corrective actions, allowing later problems to be traced back to the original production record.

Traceability becomes particularly valuable during repeat orders.

Imagine a sign company needs four replacement letters 18 months after the original project.

Without records, the team may need to reconstruct:

Which stainless-steel finish was used?

Which acrylic was approved?

Which LED model was installed?

What color temperature was supplied?

What was the exact return depth?

Where did the cable exit?

Which mounting studs were used?

With controlled production records, those questions can often be answered from the original project file.

A good quality-responsibility agreement therefore does not merely decide who gets blamed after a problem. It creates a usable operating system for approvals, production, inspection, claims, and repeat manufacturing.

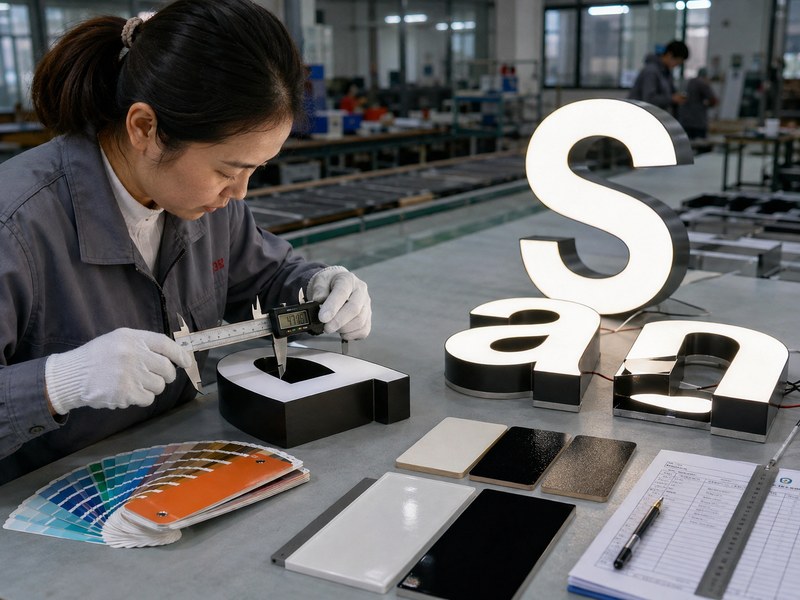

How Should Sign Quality Standards Be Defined?

Sign quality standards should convert visual expectations into measurable production criteria. The agreement should define approved materials, dimensions, colors, finishes, lighting performance, electrical configuration, mounting details, tolerances, samples, inspection methods, and acceptance rules. Standards should vary by sign type and application so both parties can determine whether a finished sign passes inspection without relying on phrases such as “good quality” or “acceptable workmanship.”

What Specifications Must Be Controlled?

A custom sign cannot be controlled reliably by product name alone. “Front-lit channel letters,” “acrylic logo,” or “metal letters” describes only the product family. Two signs carrying the same label can differ substantially in material thickness, structure, illumination, mounting, electrical components, and expected service conditions.

The controlled specification should therefore cover every characteristic capable of changing appearance, fit, operation, installation, or repeat-order consistency.

For illuminated signage, a practical specification file may include:

Specification Area	Details to Control
Overall size	Width, height, letter height, logo proportion
Face	Acrylic type, thickness, color, translucency
Return	Material, depth, thickness, finish
Back	Material, thickness, structure
Lighting	LED model/type, color, color temperature
Optical layout	LED spacing, module position, diffusion distance
Power	Voltage, power supply, loading arrangement
Wiring	Cable type, exit location, connector method
Control	Dimmer, RGB/RGBW controller, remote or app
Mounting	Studs, brackets, holes, stand-off distance
Outdoor use	Sealing, drainage, cable-entry protection
Accessories	Template, hardware, transformers, connectors
Packaging	Surface protection, carton coding, accessory packing

A non-illuminated acrylic or metal sign needs a different control list. LED specifications and electrical tests are irrelevant, while surface quality, polishing, paint, bonding, edge condition, mounting accuracy, and protective packaging become more important.

Color deserves special attention because phrases such as “warm white,” “gold,” “red,” or “brushed silver” are too broad for repeat manufacturing.

A stronger production standard uses references such as:

Pantone or RAL code for painted surfaces;

approved acrylic manufacturer and color code;

physical metal finish sample;

approved LED color temperature;

Golden Sample for appearance;

approved photograph only when a physical reference is impractical.

Even color temperature should not be treated casually. A 3000K illuminated logo beside another batch appearing closer to 4000K can look like two different brand systems when mounted on the same storefront.

Multi-location projects require an additional layer of control. The agreement should separate the master brand standard from store-specific variables.

For example:

Fixed across all locations:
logo proportion, acrylic color, metal finish, LED color temperature, letter depth.

Variable by location:
overall width, mounting-hole position, cable exit, power-supply placement, carton code, delivery address.

That separation makes future revisions much safer.

How Should Samples Set the Standard?

A sample should establish a reference for characteristics that drawings cannot communicate well enough.

Dimensions and hole positions are easy to record numerically. Surface appearance, edge polishing, paint texture, halo brightness, acrylic diffusion, brushed-metal direction, and illuminated color are much harder to judge from a drawing alone.

The agreement should therefore state exactly what a sample approves.

A typical illuminated sign sample may be used to approve:

• Face color
• Return finish
• Letter depth
• Surface workmanship
• Edge quality
• LED color
• Apparent brightness
• Lighting uniformity
• Halo appearance
• Cable exit
• Mounting arrangement
• General assembly quality

The sample should not automatically approve characteristics that were never represented.

For example, a 300 mm sample letter does not automatically prove that a 1,800 mm letter can use the same internal reinforcement or LED layout. Larger sizes may need different structural or optical engineering.

A useful sample record can contain:

Sample Item	Record
Project code	Identifies the program
Product code	Identifies the sign type
Drawing revision	Connects sample to engineering
Material	Records approved construction
Color/finish	Establishes visual reference
LED specification	Controls illuminated appearance
Approval date	Confirms timing
Approval scope	Shows what was accepted
Open issues	Prevents partial approval becoming full approval
Approved by	Identifies decision authority

Golden Samples are particularly useful for repeat orders.

A physical reference can help QC compare later production for paint tone, polished appearance, acrylic color, light output, edge condition, and assembly quality. For programs expected to continue for several years, sample storage conditions and identification should also be controlled. A scratched, faded, or unlabelled sample is a poor reference.

Sample approval should also distinguish between prototype approval and production approval.

Prototype approval may confirm:

“Construction concept is workable.”

Production approval means:

“Manufacture bulk units according to the approved revision and defined quality criteria.”

That distinction prevents an early development sample from accidentally becoming the permanent production standard.

Which Tolerances Should Be Defined?

Tolerance tells the factory how much variation is acceptable before a deviation becomes a defect.

Without tolerances, an agreement may require a sign to “match the drawing” but provide no practical answer when a measurement differs slightly from nominal size.

Not every sign dimension should use the same tolerance.

A variation of 1 mm may be insignificant on a 2,500 mm cabinet. The same 1 mm can be visually obvious on a narrow layered acrylic logo, closely spaced dimensional letters, or a precision mounting pattern.

Tolerance should therefore reflect function.

Key categories include:

Quality Area	Why Tolerance Matters
Overall dimensions	Determines fit on wall or fascia
Letter height	Controls visual consistency
Stroke width	Affects strength and appearance
Return depth	Affects profile and illumination
Letter spacing	Controls logo geometry
Mounting holes	Determines installation fit
Stud position	Must match drilling template
Layer alignment	Important on layered acrylic logos
Paint/finish	Controls visual consistency
Lighting	Controls brightness and color match
Packaging count	Prevents missing components

Critical-to-installation dimensions generally need tighter control than dimensions with little functional effect.

For example, a wall template showing ten mounting studs must correspond with the finished sign. A small accumulated error across multiple studs can make the template unusable even when every individual measurement appears close.

Appearance standards need defined viewing conditions as well.

A minor polishing mark visible only from 100 mm under inspection lighting should not automatically have the same importance as a scratch visible from three meters after installation.

For close-view lobby signage, inspection may be more demanding because people can stand within arm’s reach.

For rooftop letters viewed from 30 meters away, cosmetic criteria may reasonably focus on what remains visible at intended viewing distance while structural, electrical, and weather-resistance requirements remain strict.

Lighting standards also need practical limits.

Rather than writing only “even illumination,” the agreement can identify unacceptable conditions such as:

• Clearly visible dark sections
• One letter noticeably brighter than adjacent letters
• Different color temperature within one sign set
• Strong LED hot spots through the face
• Missing illumination at corners
• Uneven halo around letter edges
• Flickering
• Controller instability

The goal is not to create arbitrary numbers for every visual feature. It is to define enough objective criteria that QC personnel and the sign company evaluate the same finished result.

What Tests Are Required Before Shipment?

Pre-shipment testing should follow the ways a particular sign can realistically fail.

Using the same test checklist for every product creates unnecessary work in some areas and misses important risks in others.

For illuminated channel letters, LED logos, light boxes, or illuminated cabinets, inspection may include:

• 100% lighting check
• LED color consistency
• Brightness comparison
• Dark-area inspection
• Hot-spot inspection
• Power-supply verification
• Wiring inspection
• Controller function
• Dimmer function where applicable
• Cable connection
• Unusual heat
• Flicker
• Extended operating test
• Accessory check

For non-illuminated metal letters, more relevant checks include:

• Overall dimensions
• Letter geometry
• Weld condition
• Grinding quality
• Paint or plating finish
• Scratches
• Edge condition
• Mounting studs
• Hole location
• Adhesive or bonding condition
• Protective film
• Hardware
• Packaging

Outdoor signs need another layer of inspection.

The factory should review areas where water or corrosion can create failure, including:

• Letter seams
• Back panels
• Cable-entry points
• Connectors
• Drainage
• Power-supply placement
• Exposed fasteners
• Coating coverage
• Installation orientation

An IP label alone should not replace structural inspection. Water resistance depends on the complete assembly, including joints, wiring exits, drainage, and how the sign is ultimately installed.

Iduoduo’s documented illuminated-sign process uses 100% lighting inspection followed by a 72-hour pre-shipment test. The operating period is used to observe LED stability, power-supply behavior, flickering, early failure, color differences, local dark areas, abnormal temperature, controller operation, and wiring connections. Units showing problems are repaired or replaced and verified again.

The 72-hour requirement should not be applied blindly to products without illumination. Metal letters, acrylic letters, PVC letters, foam letters, ADA signs, and ordinary plaques do not benefit from a lighting burn-in test unless they include an illuminated system.

For large production runs, inspection should also distinguish between 100% checks and sampling.

Typical 100% checks may include:

critical illumination;

correct logo or spelling;

store code;

major dimensions;

electrical function;

required accessories.

Sampling may be more appropriate for repetitive secondary measurements where the production process is stable and the agreement permits it.

The agreement should specify which characteristics cannot be accepted by sampling.

How Is Final Acceptance Determined?

Final acceptance should be based on agreed evidence, not on the manufacturer simply stating that production is complete.

A practical release process checks whether the product satisfies the approved drawing, applicable sample, QC criteria, testing requirements, accessory list, packaging requirements, quantity, and project identification before shipment.

A useful release sequence is:

Production completed

↓

Nonconforming items isolated

↓

Required rework completed

↓

Reworked items reinspected

↓

Final dimensional and appearance QC passed

↓

Electrical and lighting checks passed where applicable

↓

Required operating test completed

↓

Accessories verified

↓

Packaging inspected

↓

Labels and carton codes confirmed

↓

Shipment release recorded

Iduoduo’s documented release procedure follows the same operating principle: products are released only after production is complete, rework is closed, finished QC has passed, applicable illuminated products complete the 72-hour test, accessories are checked, packaging is confirmed, labels and carton numbers are verified, quantities are confirmed, and shipment records are prepared.

The agreement should also separate three different acceptance points.

Factory acceptance means the product passed the manufacturer’s defined QC process.

Pre-shipment approval means the sign company reviewed required inspection evidence or third-party results before shipment.

Receiving acceptance means the shipment arrived and was checked for quantity, carton condition, visible damage, and major discrepancies.

Those stages should not be mixed together.

For example, a sign may pass factory QC but arrive with a crushed carton. The manufacturing record may show the product was undamaged before packing, while receiving photographs show transport damage.

Likewise, successful receiving inspection does not prove installation has been performed correctly.

For multi-location projects, final acceptance should also verify order allocation.

A shipment of 60 technically perfect signs can still create a serious project failure when six signs, four templates, and several power supplies are assigned to the wrong stores.

Final release records can therefore include:

Release Record	Purpose
Project number	Connects records to order
Product/store code	Prevents location mix-ups
Drawing revision	Confirms production standard
Quantity	Prevents shortages
QC date	Shows inspection timing
Inspector	Provides accountability
Test status	Confirms required test completion
Rework status	Shows defects were closed
Accessories	Confirms complete installation package
Packing status	Confirms protection
Photos/videos	Provides visual evidence
Release status	Authorizes shipment

The strongest acceptance standard is one where a project manager can answer a simple question before the goods leave the factory:

“Can we prove that the signs being shipped are the signs we approved?”

If the answer requires searching through months of email, screenshots, and chat messages, the quality standard is not yet controlled well enough.

How Should Drawings and Changes Be Controlled?

Drawings and production changes should follow one controlled approval path from project input to factory release. Every drawing needs a project number, revision, date, approval status, and authorized approver. Changes affecting dimensions, materials, lighting, structure, mounting, wiring, finish, packaging, or performance should not enter production until reviewed and approved. A clear revision trail prevents outdated files, verbal instructions, and unapproved substitutions from reaching the production floor.

Who Approves Production Drawings?

Production drawings should be approved by the people who actually control the information shown on them.

A salesperson may coordinate the order, but should not automatically approve structural details. A brand manager may approve logo proportions and colors, but may not know whether mounting holes match the wall. An installer may understand fixing points but may not have authority to approve a change to the logo.

Approval works better when responsibilities are separated by subject.

Drawing Area	Typical Approval Responsibility
Logo shape and proportion	Sign company / brand team
Spelling and wording	Sign company
Overall dimensions	Sign company / site team
Letter depth	Manufacturer + sign company
Material construction	Manufacturer + sign company
Paint or finish	Sign company / brand team
LED color	Sign company
Power configuration	Manufacturer within confirmed site requirements
Mounting pattern	Sign company / installer
Cable exit	Sign company / installer
Section drawing	Manufacturer engineering
Packaging requirement	Sign company
Final production release	Authorized project contact

A production drawing should do more than show what a sign looks like from the front.

For an illuminated channel letter project, the drawing set may need to show:

• Overall width and height
• Individual letter dimensions
• Return depth
• Face material and thickness
• Return material
• Back material
• LED arrangement
• Power-supply requirement
• Wire exit
• Stud or mounting-hole position
• Stand-off distance
• Installation template
• Section detail
• Finish reference
• Voltage
• Controller or dimmer where required
• Indoor or outdoor use

The drawing should also show which information is still pending.

For example, a drawing marked:

“Cable exit to be confirmed”

should not be released for production if cable location affects the final construction.

A safer workflow uses clear status labels such as:

For Review

For Revision

Approved with Comments

Approved for Production

Superseded

Only one status should allow manufacturing to begin.

The phrase “looks good” in an email or WhatsApp message should not automatically equal “Approved for Production” unless both parties have already agreed that such wording constitutes formal approval.

A controlled approval record may include:

Project: US-25041
Product: Front-Lit Channel Letters
Drawing: CL-02
Revision: Rev C
Issued: March 8
Approved: March 10
Approved By: Project Manager
Status: Approved for Production

That small amount of structure can prevent major mistakes.

Consider a 42-store rollout where three letter sizes are used.

Rev A may cover the initial concept.

Rev B may change return depth.

Rev C may move the cable exit.

Rev D may modify the mounting pattern for masonry walls.

If production starts from different versions across separate factories or departments, signs can look correct from the front but fail during installation.

The manufacturer should therefore release only one controlled production version to purchasing, fabrication, assembly, QC, and packing.

Iduoduo’s documented engineering workflow includes shop drawings, section drawings, BOM control, color and finish files, revision management, and final production approval so production information remains connected to the approved project requirements.

How Should Sample Approval Work?

Sample approval should identify exactly what has been approved rather than reducing the decision to “pass” or “fail.”

A sample may confirm only part of the final sign.

For example, the first sample may confirm:

• Logo proportion
• Return depth
• Face construction
• LED layout
• Mounting concept

but still require changes to:

• Paint color
• Brightness
• Cable exit
• Power supply
• Packaging

If the approval record simply says “sample rejected,” useful engineering work may be lost.

If it simply says “sample approved,” unresolved details may accidentally move into bulk production.

A better sample record separates approved and pending items.

Sample Characteristic	Status	Action
Overall dimensions	Approved	No change
Letter depth	Approved	No change
Face color	Revise	Match approved sample
LED color	Approved	Maintain
Brightness	Adjust	Reduce output
Cable exit	Revise	Move 80 mm left
Mounting	Approved	Maintain
Packaging	Pending	Submit packing photo

Sample approval should also identify the type of sample.

A project may use several kinds:

Prototype sample

Used to prove whether the structure can be manufactured.

Color sample

Used to approve paint, acrylic, metal finish, or printed color.

Lighting sample

Used to approve LED color, brightness, diffusion, or halo effect.

Golden Sample

Used as the master physical reference for bulk production.

Pre-production sample

Produced using intended materials and production methods before bulk release.

The agreement should specify which sample controls which characteristic.

A photographed prototype should not automatically become the final color standard.

A color chip should not automatically approve lighting uniformity.

A 300 mm sample should not automatically prove the structure of a 2,000 mm letter.

Scale matters.

A small channel letter may illuminate evenly with a certain LED spacing, while a larger letter may require:

• More modules
• Different module spacing
• Greater return depth
• Different diffuser relationship
• Additional reinforcement
• Different power loading

The sample process should therefore distinguish between visual approval and engineering scalability.

For repeat programs, the Golden Sample becomes especially valuable.

A properly controlled Golden Sample can preserve:

• Color
• Finish
• Surface appearance
• Layer relationship
• Letter depth
• Edge quality
• LED color
• Lighting character
• Assembly quality

The sample should carry a clear identity.

A label might show:

Project Code
Product Code
Drawing Revision
Sample Revision
Approval Date
Approver
Material Reference

Without identification, a sample stored for 18 months may become difficult to connect to the correct production version.

Photos and videos should support the sample record, especially for illuminated signs. Lighting evidence can document appearance under consistent conditions before the sample is shipped or stored.

Which Changes Need Written Approval?

Any change capable of affecting appearance, fit, installation, electrical compatibility, durability, packaging, compliance, or repeat-order consistency should require written approval before implementation.

Material substitution is one of the most common areas of risk.

Two materials may look similar on a supplier datasheet but behave differently in a finished sign.

Examples include:

• Different acrylic transmission
• Different stainless-steel grade
• Different aluminum thickness
• Different paint system
• Different LED brand
• Different LED color temperature
• Different power supply
• Different adhesive
• Different waterproof connector
• Different controller
• Different mounting hardware

A factory should not treat “equivalent” as permission.

Suppose the approved LED specification is 3000K.

A replacement LED also sold as 3000K may still appear warmer or cooler when installed beside the original production batch.

For a new one-off sign, the difference may be minor.

For four replacement letters installed beside 26 existing letters, the difference may be immediately visible.

Written approval is therefore particularly important for replacement and repeat orders.

Changes that normally deserve formal review include:

Change	Why Approval Matters
Overall dimensions	Affects fit and appearance
Letter depth	Affects profile and lighting
Acrylic	Affects color and diffusion
Metal grade	Affects strength and corrosion behavior
Surface finish	Affects visual match
LED	Affects color and brightness
Power supply	Affects electrical compatibility
Wiring route	Affects installation
Cable exit	Affects wall preparation
Mounting position	Affects drilling/template
Structural reinforcement	Affects weight and installation
Waterproof design	Affects outdoor durability
Controller	Affects function
Packaging	Affects damage risk
Store allocation	Affects distribution

Not every administrative correction needs full approval.

Changing an internal carton-note format may not affect the product.

Correcting a production sequence may not change the approved specification.

The key question is:

Could the change alter what arrives at the installation site?

If yes, written review is usually justified.

A good change request should show both the old and proposed condition.

For example:

Current:
3 mm opal acrylic face

Proposed:
4 mm opal acrylic face

Reason:
3 mm stock unavailable within required production window

Potential effects:
Higher stiffness
Slight change in light transmission
Additional weight
No change to external dimensions

Required decision:
Approve / Reject / Sample Required

The sign company can then make a commercial decision based on facts instead of discovering the substitution after shipment.

How Are Deviations Approved?

A deviation allows a controlled exception without permanently changing the master specification.

That distinction matters.

A permanent change modifies future production.

A deviation applies only to a defined order, batch, quantity, or time period.

For example, the standard specification may require a certain approved power supply. A temporary supply shortage may lead the factory to propose another model for 20 sets in one urgent order.

If the replacement is approved only for those 20 sets, the master specification should remain unchanged.

A deviation request should record:

• Project number
• Product
• Order quantity
• Affected quantity
• Original specification
• Proposed deviation
• Reason
• Technical difference
• Visual difference
• Installation impact
• Electrical impact
• Durability impact
• Cost impact
• Schedule impact
• Supporting photos or datasheets
• Required approval
• Expiry or affected batch

A practical deviation form could look like:

Item	Detail
Project	Retail Rollout 2026
Product	Back-Lit Logo
Quantity	48 sets
Affected	12 sets
Original	PSU Model A
Proposed	PSU Model B
Reason	Temporary stock shortage
Voltage	Same
Output	Same rated output
Size	12 mm longer
Mounting impact	Requires revised bracket
Appearance impact	None after installation
Approval	Required before production

The project team then has several choices.

Approve the deviation.

Reject it.

Request a sample.

Approve only a limited quantity.

Approve only one shipment.

Delay production until the original material returns.

The most important rule is that silence should not count as approval.

A factory sending:

“We will use another power supply if you do not reply today”

creates unnecessary risk.

A stronger process says production remains on hold for the affected item until written approval is received.

Deviations should also be connected to QC.

If a different component is approved, inspectors need to know about it.

Otherwise, QC may reject a product for correctly following an approved deviation, or worse, approve a different change that was never authorized.

For repeat orders, the deviation record should remain separate from the master standard unless both sides formally decide to make the alternative permanent.

How Should Revisions Be Tracked?

Revision control should connect every production-critical document to the same approved project version.

A drawing change has little value if the BOM, QC checklist, sample reference, installation template, or packing instruction still reflects an older version.

For example:

Rev B changes the cable exit.

The production drawing is updated.

But the drilling template still uses Rev A.

The finished sign may be correct while the installation template is wrong.

A complete revision system should therefore cover more than drawings.

Typical controlled records include:

• Artwork
• Shop drawings
• Section drawings
• BOM
• Material specification
• Color schedule
• LED specification
• Electrical layout
• Mounting template
• Sample record
• QC checklist
• Packing instruction
• Store allocation
• Installation instructions

A useful revision table may look like:

Revision	Date	Change	Affected Records	Status
Rev A	Mar 1	Initial issue	Drawing, BOM	Superseded
Rev B	Mar 4	Return depth 60→80 mm	Drawing, BOM, sample	Superseded
Rev C	Mar 7	Cable exit moved	Drawing, template	Superseded
Rev D	Mar 10	Final approval	All controlled records	Production

Only Rev D should be available to production.

Older versions should remain archived for traceability but clearly marked as superseded.

The factory floor should not contain several printed versions with similar filenames.

File naming also matters.

Weak file control:

Logo-final.pdf
Logo-final2.pdf
Logo-final-new.pdf
Logo-final-newest.pdf

Controlled file structure:

US25041-CL01-RevA
US25041-CL01-RevB
US25041-CL01-RevC
US25041-CL01-RevD-PRODUCTION

The second system is much easier to audit.

Revision history becomes even more valuable for multi-location projects.

Suppose a retail program has 65 stores.

The master logo remains unchanged, but there are:

3 standard widths
2 mounting systems
4 cable-exit arrangements
65 store codes

Creating 65 unrelated drawings makes control difficult.

A better system can use:

Master Brand Standard

Approved Size Variant

Approved Mounting Variant

Store-Specific Code

For example:

Store 034
Master: Logo Rev F
Size: Variant B
Mounting: M2
Cable Exit: C1
Packaging: Store 034

That structure allows the sign company to change one controlled element without rebuilding the entire project.

Revision records also support replacement orders.

Imagine one letter is damaged 20 months after installation.

A proper archive should allow the factory to identify:

• Original drawing revision
• Letter dimensions
• Material
• Return depth
• LED specification
• Color temperature
• Power supply
• Mounting method
• Finish
• Cable exit
• Production batch

Iduoduo’s documented engineering process uses revision management together with BOM control, finish schedules, production drawings, and final production approval. Its quality records can also retain drawings, materials, samples, QC information, testing, packaging, shipment records, and corrective actions for later traceability.
The practical test for drawing control is simple:

If someone orders the same sign eighteen months later, can the factory reproduce the approved construction without asking everyone to search old emails and chat screenshots?

If the answer is yes, revision control is working.

If the answer depends on someone remembering what happened during the original project, the production record is not controlled well enough.

What Happens When Signs Fail Inspection?

When signs fail inspection, the affected units should be isolated immediately and compared with the approved drawing, sample, BOM, and QC criteria. The issue should then be classified by severity and cause, followed by a documented decision to rework, remake, accept under concession, or scrap. Cost responsibility should be based on evidence and root cause, with reinspection required before any corrected product is released.

How Are Defects Classified?

A failed inspection should not begin with the question, “Who is responsible?” It should begin with two simpler questions:

How serious is the problem?

Where did the problem originate?

Those questions need to be handled separately. Severity determines how urgently the product needs to be contained. Cause determines which party or process is responsible for correction.

A practical sign manufacturing system can divide nonconformities into critical, major, and minor defects.

Defect Level	Typical Meaning	Sign Examples	Typical Action
Critical	Safety, electrical, structural, or severe compliance risk	Exposed live wiring, unstable mounting, serious overheating	Stop release and investigate immediately
Major	Product cannot meet approved appearance, function, fit, or installation requirement	Wrong size, wrong color, dark letter, wrong mounting pattern	Rework or remake before shipment
Minor	Limited cosmetic issue that does not materially affect use or agreed appearance	Small mark in hidden area	Assess against agreed visual standard

The classification should depend on the installed result rather than factory convenience.

A scratch hidden on the inside of a cabinet is different from the same scratch across a polished stainless-steel face in a hotel lobby.

A 2 mm dimensional difference may be harmless on one large cabinet but serious when mounting studs need to align with holes already drilled into stone.

A lighting issue also needs context.

If one LED module fails inside a large light box but the face remains evenly illuminated and the electrical design remains safe, the inspection decision may differ from a channel letter where one failed module produces a visible dark area.

Common major defects in custom signage include:

• Wrong overall dimensions
• Incorrect logo proportions
• Misspelled text
• Wrong paint or acrylic color
• Incorrect material thickness
• Visible welding or grinding defects
• Scratched visible surfaces
• Wrong LED color
• Uneven illumination
• Dark spots or hot spots
• Flickering
• Incorrect power supply
• Incorrect cable exit
• Wrong stud positions
• Missing mounting hardware
• Wrong installation template
• Incorrect store code
• Packaging incapable of protecting the finish

Defect origin should then be investigated separately.

Problem Found	Likely Investigation Direction
Finished size differs from approved drawing	Manufacturing
Approved drawing contains wrong site dimension	Project input / approval
LED color differs from approved sample	Manufacturing
Approved 3000K later changed to 4000K	Approval change
Wrong spelling vs approved artwork	Manufacturing
Spelling already wrong in approved artwork	Project input
Studs do not match approved template	Manufacturing
Correct studs do not match actual wall	Site information
Water enters factory-made seam	Manufacturing
Water enters field-made cable connection	Installation
Product is correct but carton is crushed	Logistics investigation
Hardware is missing inside intact carton	Packing / manufacturing

A product should not be automatically labeled defective simply because a field problem exists.

Likewise, a factory should not dismiss every issue after installation as “installer error.”

The approved drawing, photographs, test records, packaging evidence, receiving condition, installation method, voltage, and environment should decide the direction of the investigation.

Who Decides Whether Signs Are Reworked?

The manufacturer should normally propose the technical disposition because it understands how the sign was built. The sign company should approve any rework that could alter visible appearance, performance, service life, mounting, electrical configuration, or an already approved standard.

Not every defect should be repaired.

Some defects can be corrected safely and economically.

Others should trigger complete remanufacture.

Typical examples include:

Defect	Possible Disposition
Small paint blemish before shipment	Refinish and reinspect
Misaligned mounting stud	Replace or reposition stud
Loose internal wiring	Repair and electrical retest
One defective LED module	Replace and repeat lighting test
Incorrect controller	Replace and functional test
Missing accessory	Add and verify packing list
Wrong face acrylic color	Usually remake
Incorrect logo proportion	Remake
Distorted metal letter	Remake if correction affects appearance
Major polished-metal scratch	Refinish or remake depending on severity
Wrong return depth	Usually remake
Wrong overall dimensions	Usually remake

Rework should never mean “make it look acceptable enough to ship.”

The repaired unit still needs to meet the same approved requirement as a correctly manufactured unit.

For example, if a stainless-steel face is scratched during assembly, aggressive repolishing may remove the scratch but create a visibly different grain direction from neighboring letters. Technically, the scratch is gone. Visually, the sign still fails.

A repair can also create a new structural or electrical risk.

Moving a mounting stud may affect rear-surface appearance or strength.

Replacing LEDs may change color consistency if the new modules come from a different batch.

Repainting one letter may create a color or gloss difference from the rest of the set.

For that reason, rework should follow a controlled sequence:

Nonconforming product identified

↓

Product isolated

↓

Cause and affected quantity reviewed

↓

Rework method defined

↓

Approval obtained where required

↓

Rework completed

↓

Affected characteristics reinspected

↓

Relevant functional test repeated

↓

Release status updated

Corrected illuminated signs should return to the appropriate electrical and lighting checks rather than being shipped based on the inspection result recorded before repair.

Iduoduo’s documented quality process includes nonconforming-product isolation, rework, reinspection after rework, and traceable product release. Illuminated products that show problems during pre-shipment testing are repaired or replaced and verified again before release.
For large orders, the first failed unit should also trigger a batch question.

If one of 500 letters has the wrong stud position, was it an isolated assembly error?

Or did the production fixture shift, affecting another 80 units?

Finding the answer before shipment is much cheaper than finding it across 20 installation sites.

Who Pays for Replacement Costs?

Replacement cost should follow verified responsibility rather than the location where the problem was discovered.

A sign may fail at the installation site because of manufacturing, project information, transport, installation, electrical supply, environmental exposure, or misuse. The agreement should define how those causes are investigated before cost is assigned.

A manufacturing defect may reasonably lead to factory-funded rework or replacement.

Examples include:

• Production does not match the approved drawing
• Wrong material used
• Wrong LED specification installed
• Missing components
• Incorrect assembly
• Failed factory workmanship
• Inadequate packaging where agreed packaging was under factory control

A different approach may apply where the factory produced exactly to an approved but incorrect specification.

Examples include:

• Wrong site dimension provided
• Incorrect spelling approved
• Wrong voltage confirmed before production
• Incorrect cable-exit location approved
• Installation method changed after shipment

Shipping damage also needs evidence.

Useful records include:

• Packing photographs before closure
• Carton condition before shipment
• Pallet photographs
• Receiving photographs
• Carrier damage report
• Images of internal protective material
• Images of the damaged sign immediately after opening

Replacement cost is often much larger than the manufacturing cost of the part itself.

Consider a single damaged channel letter:

Cost Item	Example Amount
Replacement letter	$180
Protective packing	$25
Express freight	$165
Local delivery	$60
Installer callout	$250
Lift rental	$400
Total project impact	$1,080

The $180 product has created more than $1,000 of project cost.

For a remote location or urgent retail opening, air freight and installation access can make the difference even larger.

The agreement should therefore address which types of cost are potentially recoverable and which remain outside the supplier’s liability.

It may distinguish:

• Product replacement
• Factory rework
• Replacement packaging
• International freight
• Import charges
• Local transport
• Removal labor
• Reinstallation labor
• Lift or access equipment
• Business interruption
• Delay penalties

Not every factory will accept unlimited downstream liability, nor should a sign company assume every site cost will automatically be reimbursed.

The important point is to establish the rules before a claim occurs.

A clear process might state:

Manufacturing defect confirmed → manufacturer remakes product.

Packaging defect confirmed → manufacturer addresses replacement and agreed shipping responsibility.

Carrier damage confirmed → transport claim follows shipping terms and insurance.

Incorrect site information confirmed → sign company manages replacement cost.

Installation error confirmed → local installation responsibility applies.

Mixed cause → both parties review evidence and agree a proportionate solution.

That structure is far more useful than arguing over a general warranty sentence after a store opening has already been delayed.

How Should Root Causes Be Investigated?

A root-cause investigation should reconstruct the product from approved requirement to field condition.

The fastest investigations usually begin by collecting evidence from both ends at the same time.

The field team should provide enough information for the factory to understand the actual symptom.

Useful evidence includes:

• Overall photograph of the installed sign
• Close-up photograph of the problem
• Illuminated photograph
• Short video
• Product or store code
• Carton number where available
• Power supply label
• Input voltage
• Wiring arrangement
• Controller or dimmer information
• Wall or mounting condition
• Installation photographs
• Date installed
• Hours or months in operation
• Weather exposure for outdoor signs
• Exact quantity affected

“Three letters are not working” is not enough.

A much stronger report would say:

Store 042
Back-lit logo
3 of 16 letters affected
Installed June 14
Issue first observed July 3
Power supply input measured at 119 V
Letters L, O, and G flicker after 20 minutes
No visible water inside letters
Video attached
Power-supply label attached

The factory can then trace its own records.

Relevant production evidence may include:

• Approved drawing
• Drawing revision
• BOM
• LED model
• Power supply
• Production batch
• Wiring record
• First-article inspection
• In-process QC
• Final QC
• Lighting photographs
• 72-hour testing
• Rework history
• Packing photographs
• Shipment date

Iduoduo’s documented after-sales process reviews field evidence such as overall photos, illuminated photos, video, power supply, wiring, wall conditions, installation, dimmer information, operating time, and the location of the issue. Investigation can then consider LEDs, power supplies, wiring, materials, transport, installation, and environmental conditions.

The investigation should not stop at the first visible failure.

For example:

Symptom:
One letter is dark.

Possible causes:
failed LED module;
open wire connection;
failed power supply output;
controller issue;
incorrect field wiring;
moisture;
damaged cable;
overloaded circuit.

“LED failure” should be recorded only after evidence supports it.

The same method applies to water ingress.

The investigation should identify the entry path:

factory seam;

rear cable exit;

connector;

drain hole;

wall penetration;

installer-applied sealant;

power-supply enclosure.

Without identifying the path, replacing the sign may simply reproduce the same problem.

Batch comparison can also reveal whether the issue is isolated.

If 2 out of 200 units show the same failure mode, the team should compare:

production date;

workstation;

component batch;

operator;

LED batch;

power supply;

rework history;

test result.

A repeated pattern often points to process or component causes that a single-unit investigation might miss.

What Corrective Action Is Required?

Corrective action should remove the cause of recurrence, not merely replace the defective sign.

A replacement closes the immediate project problem.

Corrective action closes the manufacturing or process problem that allowed the defect to happen.

A practical corrective-action record can include:

Item	Required Information
Problem	What failed
Affected quantity	Confirmed and potentially affected units
Containment	How remaining products are protected
Root cause	Why the failure occurred
Correction	What is done to affected products
Preventive action	What process is changed
Responsible person	Who owns completion
Due date	When action must close
Verification	Evidence the action worked

Suppose 6 out of 120 channel letters show visible dark sections.

Correction may be:

Replace the affected LED modules and retest the six letters.

Corrective action may be:

Review LED spacing;

check module adhesion;

verify power loading;

inspect all remaining 114 letters;

update the assembly instruction;

add a lighting checkpoint before final sealing;

repeat prolonged operation testing on affected production.

The second set of actions reduces the chance of another six failures.

Containment is especially important when production or shipment is still underway.

Imagine a 75-store retail program divided into three shipments.

Shipment 1 has already left.

Shipment 2 is packed.

Shipment 3 is still in production.

A repeated lighting problem appears in Shipment 1.

The immediate action should not be limited to sending replacement parts to the first stores.

Shipment 2 may need to be held and inspected.

Shipment 3 may need additional process controls.

The affected production batch should be identified.

Already shipped units may need targeted checking depending on the severity.

That is how a quality problem is prevented from becoming a rollout-wide problem.

Corrective action should also be proportional.

One isolated scratch does not require a factory-wide CAPA program.

Repeated electrical failure, dimensional mismatch across a batch, wrong materials, recurring packaging damage, or the same defect appearing after previous correction deserves deeper action.

Useful preventive measures in custom sign manufacturing can include:

• Engineering review before production
• First-article approval
• Golden Sample control
• Batch samples
• Dimensional fixtures
• Mounting jigs
• Power-supply checklists
• Color records
• LED batch records
• Store-code verification
• Packaging validation
• Final shipment checks
• Lessons from previous after-sales cases

Iduoduo’s documented preventive controls include engineering review, first-article checks, Golden Samples, retained batch samples, critical-dimension fixtures, power-supply checklists, store coding, color records, packaging verification, shipment review, and feedback from after-sales cases.

The final verification should answer one practical question:

Did the corrective action actually prevent the same failure from happening again?

If the answer is based only on a meeting note saying “staff were reminded to be careful,” the action is weak.

If the drawing was revised, a fixture was added, inspection criteria were changed, affected inventory was checked, and later production passed verification, the action has evidence behind it.

For a white-label sign relationship, that evidence matters. The sign company carries the finished product into its own market and often under its own brand. A factory that can isolate, investigate, correct, document, and prevent a quality failure is far more valuable than one that can only remake a defective unit after somebody complains.

How Do You Make Quality Responsibilities Enforceable?

Quality responsibilities become enforceable when every important obligation leaves evidence. Approved drawings, sample records, QC reports, test results, packing photos, shipment records, complaint files, and corrective actions should show what was required, who checked it, who approved it, and what happened when a requirement was missed. Clear records turn quality disputes into traceable facts instead of arguments based on memory.

What QC Records Should Be Kept?

QC records should be detailed enough to reconstruct how a sign was approved, manufactured, inspected, packed, and released.

A simple “QC Passed” stamp is rarely enough for custom signage because one order can contain several products, sizes, finishes, lighting systems, mounting methods, and store destinations.

A useful project record should answer:

• Which drawing revision was used?
• Which materials were approved?
• Which sample set the visual standard?
• Which LED and power supply were installed?
• Which dimensions were checked?
• Which defects were found?
• Was rework required?
• Who reinspected the corrected product?
• Which cartons contained which sign sets?
• When was the shipment released?

For a typical illuminated sign project, the quality file can include:

Record	What It Proves
Approved drawing	Correct production version
BOM	Materials and components
Color record	Approved finish or acrylic
Sample approval	Visual reference
First-article report	Production setup was verified
In-process QC	Critical steps were checked
Final inspection	Dimensions and appearance passed
Lighting inspection	All illuminated parts functioned
Electrical check	Power system operated correctly
72-hour test	Early electrical or lighting faults were observed
Rework record	Nonconformities were corrected
Packing photos	Product condition before shipment
Release record	Shipment met release conditions
Complaint record	Field issue and evidence
Corrective action	Root cause and prevention

Records should also be linked to product or project codes.

A chain-store project involving 80 locations should not have one unnamed folder containing hundreds of photos.

A better system might use:

Project: US-26018
Store: 037
Product: Channel Letter Set
Drawing: CL-037 Rev C
QC Record: QC-037
Carton: 037-1 / 037-2

That structure allows someone to find the correct inspection record without opening dozens of files.

Retention period also matters.

Replacement orders, warranty claims, and store expansions often happen long after the original shipment. Keeping records for only a few months creates avoidable risk.

Iduoduo’s documented quality system normally retains project and quality information for approximately two to three years, including drawings, BOM data, samples, materials, QC checklists, testing records, photographs, packaging information, shipment records, after-sales files, and corrective actions.

The most useful record is not necessarily the longest one.

A two-page QC report connected to the correct drawing and photographs may be more useful than a 20-page generic checklist that never identifies the actual product.

How Should Pre-Shipment Evidence Be Shared?

Pre-shipment evidence should help the sign company make a shipping decision.

Random factory photographs are not enough.

Evidence should show the characteristics most likely to create expensive problems after arrival.

For illuminated signs, a practical evidence package may include:

• Front view
• Side view
• Rear construction
• Overall dimensions
• Critical mounting dimensions
• Illuminated front view
• Illuminated close-up
• LED color consistency
• Cable exit
• Power supply
• Controller function
• Accessories
• Installation template
• Packing condition
• Carton labels

For non-illuminated metal or acrylic signs, the evidence should focus more heavily on:

• Surface finish
• Edge condition
• Color
• Dimensions
• Layer alignment
• Stud positions
• Scratches
• Protective film
• Hardware
• Packing protection

Evidence quantity should follow project risk.

A single reception logo does not need the same documentation as a 300-set franchise rollout.

A practical evidence level can be defined as:

Project Type	Suggested Evidence Level
One-off simple sign	Overall photos + key dimensions
Illuminated custom logo	Photos + lighting + electrical evidence
High-finish lobby sign	Close-up finish + sample comparison
Multi-location rollout	Store-coded QC + packing evidence
High-value outdoor signage	Structural, electrical, sealing and packing records
Repeat production	Comparison against approved master standard

The agreement should also distinguish between evidence for information and evidence requiring approval.

If every photograph automatically requires formal approval, shipment can be delayed unnecessarily.

A clearer process may say:

Factory QC release required before packing.

Pre-shipment evidence shared for review.

Shipment approval required only for defined high-risk projects or agreed orders.

Third-party inspection required only where written into the purchase order.

Time limits should be practical.

For example, if pre-shipment approval is required, the agreement can state that the sign company reviews the evidence within one or two business days. Otherwise, completed goods may remain packed in the factory while everyone waits for an unclear approval.

The evidence itself should also be traceable.

A photo named IMG_8921.jpg has very little value later.

A photo named:


is far easier to connect to the correct shipment.

Who Is Responsible for Packaging Damage?

Packaging damage should be investigated by separating factory packing responsibility, carrier responsibility, and receiving responsibility.

The manufacturer should be responsible for packing the sign according to the agreed shipping method and protecting foreseeable high-risk areas.

Common protection points include:

• Acrylic faces
• Polished metal surfaces
• Painted returns
• Projecting studs
• Sharp corners
• LED components
• Power supplies
• Controllers
• Loose hardware
• Templates
• Fragile neon flex sections

Packing should also prevent one component from damaging another.

For example, mounting screws packed loose beside a mirror-polished stainless-steel letter can scratch the face even if the outer carton arrives perfectly intact.

That type of damage points toward packaging rather than transport.

A practical investigation can use the following logic:

Damage Condition	Main Investigation Direction
Outer carton undamaged, product scratched inside	Packaging
Hardware loose inside carton	Packaging
Carton crushed or punctured	Transport
Pallet broken during transit	Transport
Product packed incorrectly against approved method	Manufacturer
Carton opened and repacked locally	Receiving / local handling
Damage found without original packaging	Cause may be difficult to prove

Packing photos are therefore valuable.

Useful photographs can show:

• Product before packing
• Protective film
• Foam placement
• Corner protection
• Accessory separation
• Internal carton arrangement
• Closed carton
• Carton label
• Pallet condition

For multi-location shipments, packaging responsibility also includes allocation accuracy.

A sign can arrive without physical damage and still create a serious project failure if the wrong template, transformer, hardware pack, or sign set is inside the carton.

A store-coded pack may therefore contain:

Store: 041
Sign Set: Main Logo
Template: 041-M
Hardware: 041-H
Power Supply: 041-P
Carton: 1 of 2

Packing mistakes can become expensive very quickly.

If the correct hardware is accidentally shipped to another city, express replacement freight and installer return visits may cost more than the hardware itself.

The agreement should therefore treat packing accuracy as part of quality control, not merely warehouse administration.

How Should Quality Issues Be Escalated?

Quality issues should follow a defined escalation route based on severity, affected quantity, installation impact, safety risk, and recurrence.

A small cosmetic issue on one unused component should not trigger the same response as an electrical problem across 50 installed signs.

A practical escalation structure can look like:

Level	Typical Situation	Required Response
Level 1	Minor isolated issue	Sales/project team handles
Level 2	Major defect or installation delay	QC + engineering involved
Level 3	Repeat defect or multiple affected units	Quality manager + production review
Level 4	Safety, structural, or widespread failure	Senior management + immediate containment

The first report should contain enough information to start an investigation.

Useful information includes:

• Project number
• Store or location
• Product code
• Quantity affected
• Date installed
• Date issue appeared
• Photos
• Video
• Power information
• Installation information
• Packaging condition where relevant
• Immediate project impact

A poor report says:

“Several signs are bad.”

A useful report says:

Project US-26018
Stores 014, 017 and 021
6 channel letters affected
Flickering appears after 15–20 minutes
Input voltage measured at 118–120 V
Same LED batch suspected
Video and power-supply labels attached

The second report gives engineering something to work with.

The agreement can also define response targets.

For example:

Initial acknowledgement: within 1 business day

Preliminary technical assessment: within 2–3 business days where enough evidence is available

Containment decision: immediately for safety or repeat-batch risk

Corrective-action report: according to issue complexity

Those numbers should be agreed according to project needs rather than treated as universal rules.

Escalation should become faster when:

• More locations are affected
• Installation is stopped
• A safety risk exists
• The same defect repeats
• A previous corrective action failed
• Goods from the same batch have not yet shipped

Batch containment is especially important.

Suppose Shipment 1 of a 90-store rollout shows repeated power-supply failures.

Shipment 2 is packed.

Shipment 3 is still in production.

A good escalation process should ask immediately:

Does Shipment 2 contain the same component batch?

Should shipment be held?

Should packed units be retested?

Should Shipment 3 change components?

Are already installed stores at risk?

That is far more useful than treating each store complaint as an unrelated warranty case.

How Are Repeat Orders Kept Consistent?

Repeat orders should be reproduced from controlled production records rather than from memory, old quotations, or phrases such as “same as last time.”

Consistency becomes harder as time passes because materials, component suppliers, LED batches, production teams, and factory schedules can change.

A strong repeat-production file should preserve the characteristics that affect appearance, installation, and function.

For illuminated signage, records may include:

• Drawing revision
• Overall dimensions
• Return depth
• Face material
• Acrylic color
• Metal finish
• LED model
• LED color
• Color temperature
• LED spacing
• Power supply
• Controller
• Cable exit
• Mounting pattern
• Stand-off distance
• Approved sample
• Lighting photos
• Packaging standard

Iduoduo’s documented repeat-order records can retain LED model, LED color, color temperature, module spacing, letter depth, panel specification, stand-off distance, dimmer or controller information, test photographs, lighting videos, and approved sample references.

Repeat production should also identify whether the order is:

Exact repeat

Same construction, same appearance, same approved specification.

Size variant

Same visual standard with different dimensions.

Site variant

Same product with different mounting or cable arrangement.

Replacement part

Must visually and mechanically match an existing installation.

New-generation version

Intentionally updated construction that should not be confused with the original.

Replacement parts require the tightest matching.

Suppose a retail location has 24 front-lit letters installed for 18 months and needs two replacements.

The factory should not simply manufacture two letters using its current preferred LED.

A better check compares:

Original LED model

Original color temperature

Current LED availability

Original brightness

Face material

Return depth

Power configuration

Visible color match

If the original component is no longer available, the manufacturer should report the difference before production.

The same principle applies to finish.

A new brushed stainless-steel letter may appear noticeably different from older letters if the grain direction, surface grade, coating, or metal source changes.

For multi-store rollouts, one master standard should remain connected to every approved size and site variant.

A practical record can look like:

Master Logo: Rev F
Size Variant: B
Mounting Variant: M2
Cable Exit: C1
LED Standard: L3
Packaging Standard: P2
Store: 052

Such coding reduces the risk of someone recreating a sign from scratch for every new store.

Repeat-order consistency should also trigger a review when enough time has passed.

Before producing a repeat order, the factory should check whether:

• Approved materials are still available
• LED model remains available
• Power supply has changed
• Paint or acrylic batch may differ
• Regulatory requirement has changed
• Drawing needs revision
• Original sample remains valid
• Packaging should change for the new route

The goal is not to promise that every material will remain identical forever.

The goal is to make sure any change is visible and approved before it becomes part of the new batch.

A quality responsibility becomes genuinely enforceable when the project can be reconstructed from evidence.

If a replacement is requested two years later, the team should be able to identify what was approved, what was manufactured, what was tested, what was shipped, and what needs to match.

When those records exist, white-label manufacturing becomes easier to manage at scale.

When they do not, every repeat order starts to depend on someone remembering what happened last time.

Are You Building a White-Label Sign Supply Program?

A white-label agreement should do more than protect both parties when something goes wrong. It should make everyday projects easier to approve, manufacture, inspect, ship, install, and reorder. The strongest quality agreements create a visible chain between the original requirement and the finished sign: approved artwork, engineered drawings, defined materials, sample references, manufacturing controls, inspection evidence, testing, packaging, release records, and corrective-action procedures.

Iduoduo is a factory-based OEM/ODM manufacturer of illuminated and non-illuminated custom signage, working from logos, drawings, storefront concepts, architectural files, brand requirements, and installation information to prepare production-ready sign solutions. Its documented QC workflow includes 30+ QC personnel, incoming inspection, first-article approval, in-process inspection, dimensional and appearance checks, 100% lighting inspection for illuminated signage, applicable electrical and outdoor-protection reviews, 72-hour pre-shipment testing, packaging inspection, rework control, and traceable product release.

If your sign company, advertising agency, distributor, retail program, or project team needs a white-label manufacturing partner, send Iduoduo the logo files, drawings, product requirements, quantities, destination, installation information, and any existing quality specifications. The engineering team can review manufacturability, clarify production details, prepare the approval path, and quote the project based on the actual sign construction rather than a generic product category.

For repeat programs, ask for the quality requirements to be defined before the first production order. Doing that work early is usually far less expensive than deciding who was responsible after hundreds of signs have already crossed an ocean.
