How Do You Evaluate a Sign Manufacturer’s QC System?

A polished sample can hide a weak factory.

That is one of the most expensive lessons in custom signage sourcing. A manufacturer may send an excellent prototype, show clean factory photos, mention “strict QC,” and still struggle when one approved sign becomes 50, 300, or 1,000 units. The real question is not whether a factory can make one good sign. It is whether its production system can repeatedly reproduce approved dimensions, materials, colors, lighting, electrical configuration, mounting details, accessories, packaging, and labeling while catching deviations before they reach the installation site.

For sign companies, retail brands, contractors, architects, importers, and multi-location project teams, QC therefore needs to be evaluated as a system rather than a final inspection activity.

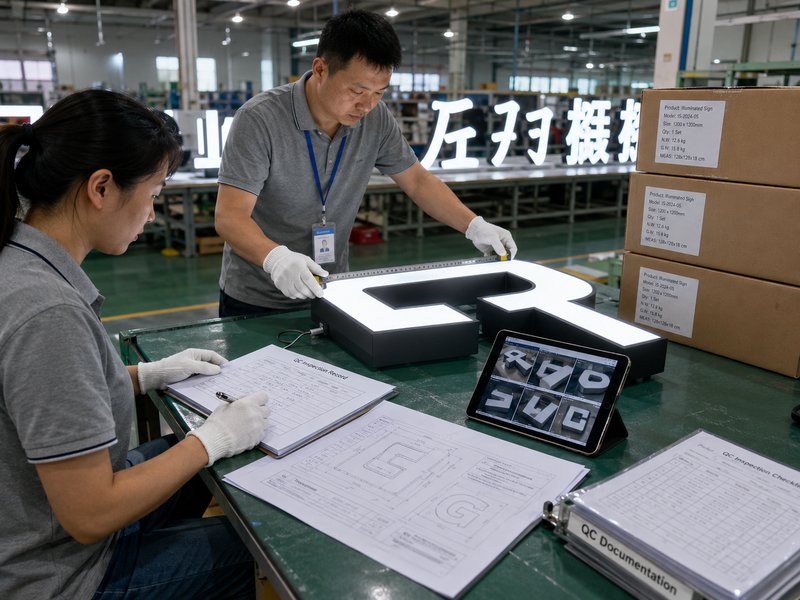

A strong sign manufacturer’s QC system should control approved specifications from incoming materials through first-article approval, in-process inspection, final dimensional and appearance checks, electrical and lighting tests, packaging, nonconforming-product handling, reinspection, and shipment release. The strongest evidence is not a quality slogan or certificate alone, but traceable records showing what was checked, against which standard, by whom, when, and what happened when something failed.

Imagine receiving 120 channel-letter sets for a rollout. Ninety-eight look fine. Twelve have mounting holes based on an old drawing. Six use a different white LED batch. Four boxes are missing power supplies. Every individual defect looks small inside a factory. On site, they become installation delays, airfreight replacements, additional labor, and a very uncomfortable call with the brand team.

A good QC system exists to stop that chain of events before the shipment leaves the factory.

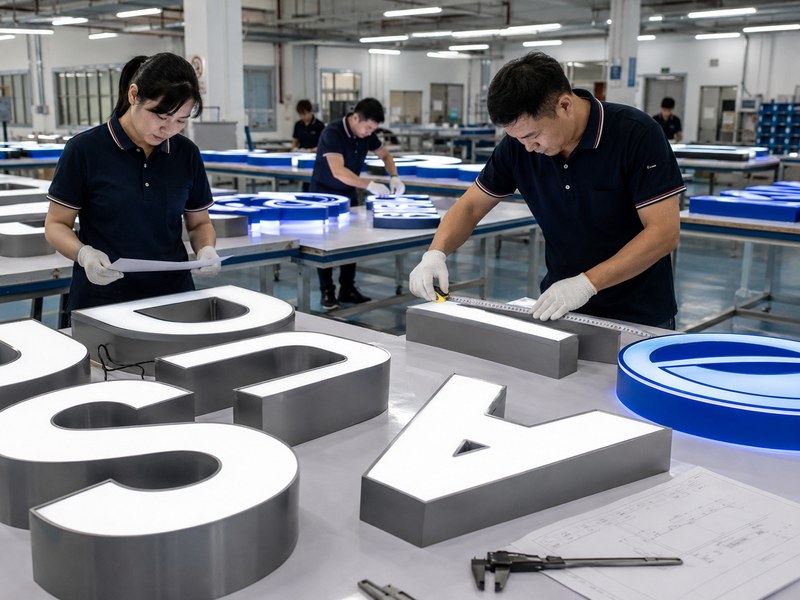

What Defines a Strong Sign QC System?

A strong sign QC system does more than inspect finished products. It controls the project from the approved drawing and material list through fabrication, assembly, testing, packaging, and shipment release. Each important requirement should have a clear reference, an inspection point, an acceptance method, and a record showing the result. For custom signage, the strongest systems prevent errors before they spread across an entire batch.

For procurement teams, sign companies, contractors, and multi-location brands, the practical question is simple: Can the factory repeatedly make the approved sign without changing dimensions, materials, color, lighting, mounting details, or packing from one batch to the next?

At iduoduo, the documented QC chain includes incoming material inspection, first-article approval, in-process inspection, dimensional and appearance checks, 100% lighting inspection for illuminated products, electrical and functional verification, 72-hour pre-shipment testing, accessory verification, packaging inspection, nonconforming-product control, reinspection after rework, and product-release records.

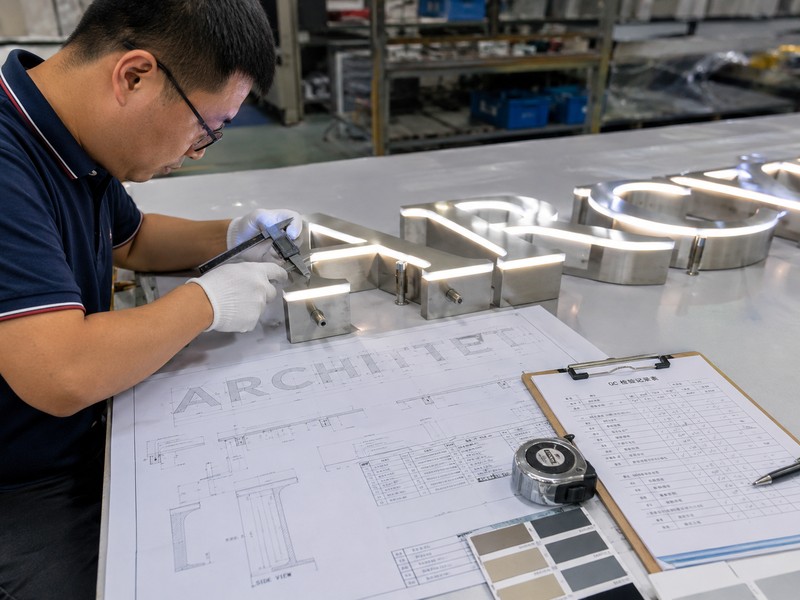

What Standards Define Acceptable Sign Quality?

A QC inspector cannot judge a custom sign against a vague instruction such as “make it look good.” There must be an approved standard.

For most commercial sign projects, QC should work from the latest approved drawing, BOM, color specification, material requirements, sample reference, mounting drawing, electrical configuration, and packing instructions.

Typical control items include:

• overall width and height;
• letter or cabinet depth;
• metal and acrylic thickness;
• stainless steel, aluminum, acrylic, PVC, or foam specification;
• Pantone, CMYK, RGB, paint, or approved physical color sample;
• surface finish such as brushed, polished, painted, plated, or matte;
• LED color or color temperature;
• illumination direction;
• LED layout and brightness consistency;
• power supply model and voltage;
• wire-exit position;
• mounting holes and stud positions;
• raceway or backboard dimensions;
• brackets and installation hardware;
• product quantity;
• store or SKU identification;
• packing method and carton numbering.

Not every project needs the same tolerances.

A 2 mm dimensional difference may have little practical effect on a large freestanding cabinet. The same 2 mm error can create a serious installation problem when mounting holes must align with a drilling template already used on a finished stone façade.

The acceptance standard should therefore distinguish between critical characteristics and ordinary cosmetic characteristics.

Item	Why It Matters	Typical QC Reference
Overall dimensions	Determines visual proportion and installation fit	Approved shop drawing
Mounting holes	Must match wall, template, studs, or brackets	Mounting drawing
Material thickness	Affects rigidity, weight, finish, and structure	BOM / engineering file
Color	Protects brand consistency	Pantone / approved sample
LED color temperature	Prevents visible differences between letters	Lighting specification
Wire exit	Determines whether wiring can be concealed	Electrical / mounting drawing
Accessories	Missing parts can stop installation	Packing checklist
Carton identification	Prevents store or SKU mix-ups	Packing schedule

The most useful question to ask a factory is not, “Do you inspect dimensions?”

Ask:

“Which dimensions are classified as critical for my project, and what approved file will QC use to check them?”

The answer quickly shows whether the factory is working from measurable requirements or personal judgment.

Which Documents Should Control Production?

Custom sign projects often change several times before production.

A logo may begin at 1,500 mm wide and later change to 1,350 mm. The paint color may move from a visual red to a specific Pantone reference. The wire exit may change from the center to the lower-right corner. A wall survey may require mounting-hole positions to be adjusted.

If production uses one revision while QC checks another, both departments can perform their work correctly and still deliver the wrong product.

A reliable system therefore needs one clearly approved production version.

The production package may include:

• final shop drawing;
• BOM;
• material and finish specification;
• electrical configuration;
• mounting drawing;
• installation-hole layout;
• approved sample or Golden Sample;
• special project notes;
• packaging standard;
• latest revision number.

iduoduo’s documented manufacturing process transfers approved sample results into final drawings, BOMs, process standards, mounting specifications, QC checklists, packaging requirements, and frozen production versions for bulk manufacturing.

Revision control becomes especially important in multi-store programs.

For example, a rollout may contain:

• 20 stores with 900 mm logos;
• 15 stores with 1,200 mm logos;
• 8 stores with different cable exits;
• 6 stores using raceways;
• 4 stores requiring special brackets.

All products may look almost identical in photographs. Small differences in hole position, cable exit, voltage configuration, or mounting hardware can still make individual sets unusable at the intended site.

A strong QC system should therefore be able to answer:

Which drawing version was used? Which store does the product belong to? Which packing list belongs to the carton?

How Does First-Article Approval Reduce Risk?

First-article inspection is one of the most effective controls before batch production.

Instead of producing 100 sets and discovering the same error 100 times, the first representative production unit is checked before the same process continues across the order.

For channel letters, a first article may confirm:

• letter dimensions;
• return depth;
• face fit;
• material thickness;
• weld and edge quality;
• paint finish;
• LED arrangement;
• brightness;
• color temperature;
• wire exit;
• mounting-hole position;
• power configuration.

For acrylic logo signs, the focus may shift toward:

• acrylic machining;
• edge quality;
• scratches;
• bonding;
• layered construction;
• light diffusion;
• hidden wiring;
• stand-off mounting.

For non-illuminated architectural signs, first-article approval may focus on:

• dimensions;
• content;
• font;
• color;
• surface;
• engraving or printing;
• braille or tactile elements where applicable;
• mounting hardware.

The first article should not simply be placed on a table and approved because it “looks fine.”

Its measurements, construction, appearance, lighting, mounting interface, and important project details should be compared against the approved production standard.

For large orders, this can prevent one small upstream mistake from becoming a batch-wide problem.

Are QC Responsibilities Clearly Assigned?

A quality system becomes weak when everyone is responsible for quality but nobody owns a specific inspection decision.

Production workers should know what they are expected to make. Engineering should define critical technical requirements. QC should verify whether the result matches the approved standard. When something fails, the process should clearly show who decides whether it is repaired, remade, reinspected, or rejected.

iduoduo has more than 30 QC personnel within its documented manufacturing system. Inspection responsibility covers materials, dimensions, appearance, color, surface treatment, LEDs, power supplies, wiring, mounting holes, accessories, packaging, and shipment-related records.

The important point is not the headcount alone.

A useful QC structure places checks at stages where mistakes can still be corrected without wasting completed work.

For example:

Metal cutting error
→ Check before bending and welding.

Wrong paint color
→ Check before LED installation and final assembly.

Incorrect LED layout
→ Check before the letter is fully closed.

Wrong mounting holes
→ Check before packing.

Missing power supply
→ Check during accessory verification.

Wrong store carton
→ Check before shipment release.

Waiting until the final inspection to find every problem is inefficient because the factory has already invested labor, materials, finishing, assembly, and testing into the product.

A stronger process stops the error earlier.

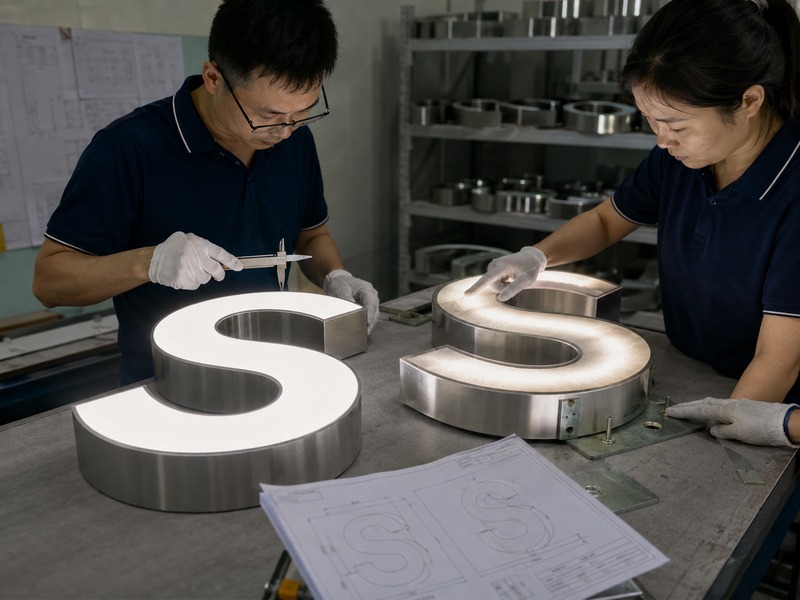

A simple supplier-evaluation test is to ask:

“If a product fails QC, what happens next?”

A credible process should normally include identification or isolation of the failed item, correction or replacement, reinspection, closure of the problem, and release only after the required checks are complete.

The final release should therefore mean more than “production finished.”

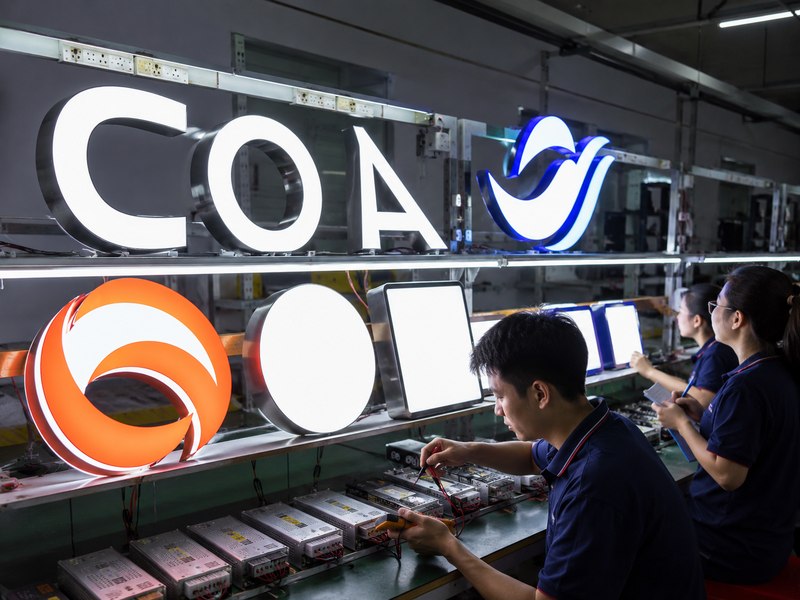

For illuminated products, iduoduo’s documented release logic includes completion of production, closure of rework, final QC approval, completion of the 72-hour test, accessory verification, packaging confirmation, carton and label checks, quantity verification, and preparation of shipment records.

That is the practical difference between checking signs and controlling sign quality.

A factory can find defects.

A strong QC system is designed to prevent repeated defects, identify them before shipment, show how they were handled, and leave enough records to understand the product again when a repeat order or after-sales issue appears months later.

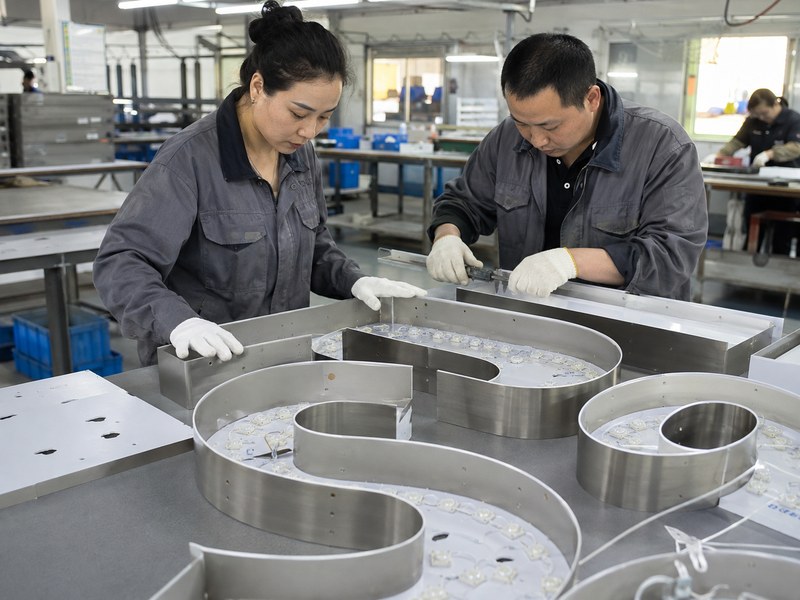

How Is Quality Controlled During Production?

Quality control during sign production should happen before defects become expensive. A reliable factory checks materials when they arrive, verifies the first production piece, inspects critical dimensions and finishes during fabrication, checks mounting and wiring details before assembly is closed, and performs product-specific final inspection before packing. For illuminated signs, electrical and lighting checks are added; for non-illuminated signs, inspection focuses more heavily on dimensions, surface quality, content, edges, mounting, and packing.

At iduoduo, production quality control is not limited to a final visual check. The documented system includes incoming material inspection, first-article approval, in-process inspection, dimensional and appearance inspection, 100% lighting inspection for illuminated products, electrical and functional verification, nonconforming-product control, reinspection after rework, and shipment release records.

For a sign company, contractor, retail rollout team, or importer, the practical goal is simple: find a problem while only one piece is affected—not after the same error has been repeated across 50, 200, or 500 signs.

How Are Incoming Materials Inspected?

Production quality starts before cutting, bending, printing, painting, or LED assembly.

A factory can have skilled workers and still produce inconsistent signs if the incoming materials are wrong. Metal thickness may differ from the approved specification. Acrylic may be the wrong color or grade. LEDs may come from a different batch. Power supplies may have a different output. Paint, films, fasteners, or packaging materials may not match the approved production file.

Incoming inspection should therefore compare delivered materials with the BOM, purchase specification, approved sample, and project requirements.

Typical checks can include:

• stainless steel or aluminum type;
• sheet thickness;
• acrylic type, thickness, and color;
• PVC or foam specification;
• LED model and light color;
• LED batch where consistency matters;
• power supply model;
• input and output requirements;
• controllers;
• wires and connectors;
• fasteners and studs;
• paint or finish reference;
• films and printed materials;
• special installation accessories;
• packaging materials.

The inspection depth depends on project risk.

A one-off indoor acrylic logo does not need the same incoming control as a 300-store channel-letter rollout. For repeat production, even a technically acceptable substitute component may create a visible difference from an earlier batch.

Consider white LEDs. Two LED modules may both be described as “6500K white,” yet visible output can still differ because of binning, diffuser characteristics, module spacing, letter depth, or batch variation. A replacement LED therefore needs more consideration when old and new signs will appear in the same location.

Incoming QC should answer three questions before materials enter production:

1. Is the material the correct type?
2. Does it match the approved project specification?
3. Could a batch or supplier change affect repeat-order consistency?

iduoduo’s production records can include material batches alongside production, QC, test, rework, packing, shipment, photographs, and video records.

That type of traceability becomes valuable when a later issue needs to be linked back to materials rather than guessed from appearance.

Which In-Process QC Checkpoints Matter?

An effective QC system does not wait until a sign is finished.

The best inspection point is usually immediately after a process capable of creating an important defect.

For channel letters, a simplified sequence may look like:

Face and back cutting
→ dimensional check

Metal return forming
→ depth and shape check

Welding
→ joint and distortion check

Grinding
→ edge and surface check

Painting or finishing
→ color and finish check

LED installation
→ layout and spacing check

Wiring
→ polarity and connection check

Assembly
→ fit and construction check

Lighting
→ brightness and uniformity check

Mounting preparation
→ hole, stud, and cable-exit check

Packing
→ accessory and carton check

The value is easy to see.

If a letter shell is dimensionally wrong, finding the error before painting may require replacing one metal component. Finding the same problem after painting, LED installation, wiring, sealing, testing, and packing may require rebuilding almost the entire sign.

The same principle applies to acrylic.

After laser or CNC cutting, acrylic may need to be checked for:

• overall dimensions;
• hole positions;
• small internal cutouts;
• chipped edges;
• heat marks;
• cracks;
• scratches;
• protective film condition;
• color;
• edge quality.

The attached production facts specifically identify acrylic cutting controls such as edge condition, smoke marks, heat cracking, small holes, material color, dimensions, and surface scratching.

The important point is timing.

A scratch found before assembly can often be corrected by replacing one acrylic part. The same scratch discovered after bonding, LED installation, electrical assembly, and packaging creates much more rework.

Production Stage	What QC Should Watch	What Happens If Missed
Material receiving	Material, thickness, color, component model	Entire batch may start with wrong inputs
Cutting / CNC	Dimensions, holes, edges, quantity	Parts may not fit later
Bending / forming	Shape, depth, alignment	Faces and backs may not assemble correctly
Welding	Strength, distortion, visible joints	Rework becomes harder after finishing
Painting / finishing	Color, texture, scratches, coating	Brand inconsistency becomes visible
LED installation	Layout, spacing, orientation	Hot spots or dark areas may appear
Wiring	Connections, grouping, exits	Electrical failure or installation problems
Assembly	Fit, sealing, hardware	Product may fail function or weather protection
Mounting preparation	Holes, studs, brackets, wire exits	Installation may stop on site
Packing	Accessories, labels, protection	Correct product may arrive incomplete

A manufacturer with many production checkpoints is not automatically better. Too many meaningless checks slow production without reducing risk.

Good QC focuses on the characteristics most expensive to correct later.

How Are Dimensions and Finishes Checked?

Dimensional inspection needs to reflect how the sign will actually be installed.

Overall width and height matter, but project failures often come from smaller details:

• letter return depth;
• panel thickness;
• acrylic inset size;
• mounting-hole centers;
• stud spacing;
• bracket positions;
• cable exits;
• raceway dimensions;
• backboard dimensions;
• distances between letters;
• segmented joint positions.

The approved shop drawing should identify the dimensions that affect appearance, assembly, and installation.

For example, imagine a sign installer has already drilled a stone wall using an approved mounting template.

The finished letters may look perfect. If the stud pattern is wrong, the installation crew faces three bad options:

• drill the finished façade again;
• modify the signs on site;
• order replacement parts.

A relatively small production error can therefore create several hours of additional labor, equipment rescheduling, site delays, and international replacement freight.

Surface QC also needs to match viewing distance and product type.

A large outdoor pylon component viewed from 30 meters does not require the same cosmetic standard as a polished stainless-steel reception logo viewed from one meter.

For close-view products, QC should pay more attention to:

• polishing marks;
• grinding lines;
• paint contamination;
• color difference;
• scratches;
• fingerprints trapped under protective layers;
• exposed adhesive;
• acrylic edge quality;
• chipped corners;
• visible welds;
• uneven seams;
• film damage.

For branded rollout projects, one sign can be visually acceptable by itself but still fail when placed beside an earlier batch.

Color and finish control therefore needs a reference.

The reference may be:

• Pantone number;
• approved paint sample;
• physical material sample;
• Golden Sample;
• previous approved production sample;
• approved finish schedule.

The question worth asking a supplier is:

“What reference does your inspector physically compare the finished surface against?”

“QC checks the color” is weak.

“QC compares the batch against the approved Pantone reference and Golden Sample” is much more useful.

How Are Mounting Details Verified?

Mounting preparation is one of the most underestimated parts of sign QC.

A sign is not fully correct if it cannot be installed according to the approved site plan.

The factory should check relevant installation interfaces before packing, including:

• mounting holes;
• hole diameter;
• hole center spacing;
• studs;
• stud length;
• brackets;
• spacers;
• raceways;
• backboards;
• cable exits;
• cable length;
• power-supply location;
• templates;
• installation hardware;
• store-specific mounting kits.

Mounting information can change late in a project.

A wall may change from gypsum board to concrete. A landlord may prohibit drilling in a certain area. A stone façade may require pre-set anchors. A raceway may be introduced because local installers want to reduce wall penetrations.

Once the change is approved, QC needs to inspect production against the new installation configuration.

Otherwise a factory may ship a visually correct sign based on an obsolete mounting arrangement.

For multi-location programs, mounting details should also be linked to the correct store.

A practical example:

Store	Sign Width	Mounting Method	Wire Exit	Packing ID
Store 01	1,800 mm	Individual studs	Center rear	S01
Store 02	2,100 mm	Raceway	Raceway right	S02
Store 03	1,500 mm	Backboard	Lower left	S03
Store 04	1,800 mm	Individual studs	Lower right	S04

All four signs may use the same logo and finish.

Mixing only one mounting version can still stop installation.

For that reason, installation QC should be tied to drawings, sign codes, store numbers, or project identifiers rather than relying on visual recognition.

Are Illuminated and Non-Illuminated Signs Checked Differently?

Yes. Applying one QC checklist to every sign type usually means the checklist is too generic.

Illuminated signs contain additional optical and electrical risks.

A channel letter, LED neon sign, light box, or illuminated acrylic logo may require inspection of:

• LED layout;
• LED color;
• color temperature;
• brightness consistency;
• hot spots;
• dark areas;
• corner illumination;
• halo consistency;
• power supplies;
• wiring;
• connectors;
• controllers;
• dimming;
• RGB or RGBW functions;
• wire exits;
• abnormal temperature;
• electrical stability.

Non-illuminated products do not need LED, power, color-temperature, or 72-hour lighting tests unless the specific product has been designed with illumination.

Instead, inspection may concentrate on:

• material;
• dimensions;
• content;
• spelling;
• logo proportions;
• engraving;
• printing;
• paint;
• polished or brushed surfaces;
• edges;
• flatness;
• tactile details where applicable;
• braille placement where applicable;
• mounting hardware;
• packaging.

The distinction is important because generic factory marketing often lists “72-hour aging test” as though every product receives the same procedure.

Metal letters, PVC letters, foam letters, ordinary plaques, and non-illuminated wayfinding signs do not benefit from sitting powered on for 72 hours because there is nothing to power.

iduoduo’s internal production rules explicitly separate the two groups. Non-illuminated products do not use LED, brightness, dimming, RGB, power-supply, or 72-hour lighting-test criteria unless the sign itself is an illuminated version.

That distinction is a useful sign of technical discipline.

How Should Production Defects Be Handled?

Finding a defect is only half of quality control.

The more important question is what happens next.

A practical production process should prevent a failed part from quietly returning to normal production.

Depending on the problem, the response may include:

• isolation of the defective product;
• identification of the failure;
• repair;
• part replacement;
• remake;
• update of the production instruction;
• reinspection;
• functional retesting;
• closure before shipment release.

Examples make the logic clearer.

If paint color is wrong:

Stop affected pieces → confirm correct color → refinish → inspect surface and color again.

If LED modules produce visible dark areas:

Identify affected letters → adjust or replace modules → illuminate again → verify uniformity.

If mounting holes are wrong:

Compare against approved drawing → rework or remake affected part → measure again → update QC status.

If wiring fails during testing:

Repair connection → check wiring → power on again → return product to the required functional verification process.

Rework should never equal automatic approval.

A repaired item needs another inspection because repair itself can create a second problem.

iduoduo’s documented quality chain includes nonconforming-product control and reinspection after rework before product release.

For procurement teams evaluating a factory remotely, one useful question is:

“Show me how you record a failed inspection and how the product is released after repair.”

The response reveals far more than asking for another factory certificate.

What Should Be Recorded During Production?

Useful QC records do not need to become paperwork for its own sake.

Records should help answer real questions later:

• Which drawing version was produced?
• Which materials were used?
• When was the first article approved?
• Was the product reworked?
• Did illuminated products pass testing?
• Which accessories went into the carton?
• Which store received the sign?
• What happened if a problem appeared after installation?

Depending on project complexity, production records can include:

• approved drawings;
• BOM;
• material batch;
• first-article result;
• QC checklist;
• test records;
• rework records;
• photographs;
• videos;
• packaging information;
• shipment information.

iduoduo’s documented manufacturing records can cover material batches, first articles, QC, testing, rework, packing, shipment, photographs, and video. Historical order information is normally retained for two to three years.

For a single sign, that level of history may never be needed.

For a franchise program, hotel rollout, retail chain, sign company, or long-term replacement program, it becomes extremely useful.

If one replacement letter is required 18 months later, production should ideally start with the original project record—not a screenshot from an old WhatsApp conversation.

A strong production QC system therefore does four jobs at the same time:

It prevents obvious defects from moving forward.

It catches critical errors before they spread across a batch.

It verifies that the finished sign still matches the approved project.

It leaves enough information behind to support installation, troubleshooting, replacements, and repeat production.

That is what production quality control should accomplish in a commercial sign factory.

Which Tests Should Signs Pass Before Shipment?

A finished sign should not be released simply because it looks correct in a photo. Before shipment, the factory should verify the characteristics most likely to create problems after delivery: illumination, electrical stability, dimensions, mounting details, accessories, outdoor construction where applicable, and packaging. Illuminated signs also need powered testing long enough to reveal early failures that a five-minute light-up check may miss.

For illuminated products, iduoduo’s documented pre-shipment process includes 100% lighting inspection followed by a 72-hour pre-shipment test. The test is used to observe LED stability, power-supply stability, controller operation, flicker, early failure, color differences, local dark areas, abnormal temperature rise, and wiring connections. If a problem is found, the affected item is repaired or replaced and verified again.

The important point is not the number “72” by itself. A meaningful pre-shipment test should answer a practical question:

If the sign has a manufacturing, electrical, assembly, mounting, or packing problem, is there a reasonable chance the factory will find it before international freight and site installation begin?

How Are Lighting and Electrical Systems Tested?

A sign can illuminate during a short demonstration and still have a problem.

A loose connection may work while the product is lying flat on a test bench. A weak LED module may not fail immediately. An incorrectly matched power supply may operate at first but become unstable during longer use. Poor LED spacing may only become obvious after the complete sign is assembled and viewed from the intended direction.

For that reason, illuminated signage should be checked as a finished electrical and optical system rather than as a collection of individually purchased components.

Depending on the product, final lighting checks should look at:

• whether every letter, logo element, or light-box section illuminates;
• whether all intended illuminated areas are active;
• visible dark areas;
• hot spots;
• obvious brightness differences;
• LED color consistency;
• color-temperature consistency;
• corner coverage;
• halo uniformity on back-lit letters;
• flicker;
• controller response;
• RGB or RGBW functions where specified;
• dimming functions where specified;
• wiring connections;
• connector security;
• wire-exit position;
• power-supply operation.

Different products require different visual checks.

A front-lit channel letter needs reasonably uniform face illumination. A halo-lit letter should be checked for the quality and continuity of the reflected halo. An acrylic LED logo viewed from close range needs greater attention to small bright points, edge leakage, shadows, and visible internal inconsistencies. A light box requires attention to broader-area brightness and dark bands.

A useful inspection sequence for illuminated signage can look like:

Check	What to Look For	Possible Site Problem if Missed
Initial power-on	Every illuminated section operates	Dead letter or logo section
Brightness check	No major variation between matching parts	Uneven storefront appearance
Color check	Matching LED color / color temperature	Different whites across one logo
Uniformity check	No obvious hot spots or dark areas	Poor nighttime appearance
Wiring check	Secure and correct connections	Intermittent failure
Power check	Correct power configuration	Unstable operation or no power
Controller check	Correct RGB/RGBW/dimming response	Functions unavailable after installation
Wire-exit check	Position matches drawing	Cable cannot be concealed on site

Electrical testing should also match the approved project configuration.

For example, a sign made for a 110 V destination and a sign prepared for a 220 V destination may use different power arrangements. A factory should not assume that because a sign lights successfully on its own test bench, the electrical setup automatically matches the destination requirement.

The power supply, plug, controller, wiring arrangement, and relevant project specification should be checked against the approved order before packing.

What Does a 72-Hour Test Actually Verify?

A 72-hour test is useful because some problems need operating time to appear.

A five-minute lighting check answers:

“Does the sign turn on?”

A longer pre-shipment test begins to answer:

“Does the assembled sign remain stable after operating for an extended period?”

iduoduo’s documented 72-hour process is used to observe:

• LED stability;
• power-supply stability;
• controller operation;
• flicker;
• early component failure;
• color differences;
• localized dark areas;
• abnormal temperature rise;
• wiring connections.

Those are practical failure modes for illuminated custom signage.

The test should not be misunderstood as a lifetime simulation.

Seventy-two hours cannot prove that a sign will operate without failure for several years. Long-term service life is affected by LED quality, power supplies, installation, voltage, heat, water exposure, daily operating hours, environment, maintenance, and other conditions.

The value of the test is narrower and more useful: catching early-stage problems before shipment.

For example:

A power supply operates normally during the first few minutes but becomes unstable after prolonged use.

An LED section begins flickering after heating.

One group of modules shifts visibly in color.

A weak connection becomes intermittent.

A controller resets or responds incorrectly.

A dark area appears after a module starts failing.

Those defects are far cheaper to correct inside the factory than after a sign has traveled thousands of kilometers.

A strong testing process should also include a clear response when failure occurs.

The correct logic is:

Failure found
→ affected unit identified
→ repair or component replacement
→ affected function checked again
→ product returns to the required verification process
→ release only after the problem is closed.

The wrong logic is:

Failure found
→ quick repair
→ immediate packing.

For factory evaluation, ask three questions whenever a supplier promotes an aging or burn-in test:

• What exactly is monitored during the test?
• What happens when a unit fails?
• Is the repaired unit tested again?

Those answers reveal more about the QC system than the advertised number of testing hours.

How Are Outdoor Sign Protections Checked?

Outdoor inspection should focus on the actual construction that helps a sign cope with rain, moisture, corrosion, drainage, wiring exposure, and long-term exterior use.

It is important to keep one boundary clear:

factory construction control and final on-site weather protection are not the same thing.

A factory can inspect the product it manufactured. It cannot fully control how wall penetrations are drilled, how field wiring is connected, whether installers reseal penetrations correctly, where a power supply is placed on site, or whether water collects around the final installation.

For outdoor illuminated signs, inspection may therefore include:

• joints and seams;
• wire-entry treatment;
• wire exits;
• sealing areas;
• drainage provisions;
• enclosure condition;
• exposed electrical connections;
• LED installation;
• power-supply arrangement where included in the product;
• corrosion-sensitive surfaces;
• paint or surface-finish coverage;
• service openings;
• back panels;
• fasteners;
• outdoor mounting components.

Different sign structures create different weather risks.

For a channel letter, attention may be required around cable exits, seams, backs, returns, LED installation, drainage, and mounting interfaces.

For a light box, inspection may need to include the cabinet, panel interface, service access, seams, drainage, internal wiring, and mounting brackets.

For an illuminated blade sign, the bracket, wall-side connection, wiring route, cabinet seams, and double-sided structure may deserve additional attention because the sign projects away from the wall and is more exposed.

The purpose is not to put a waterproof label on every product. The purpose is to examine where water can realistically enter or collect and whether the approved structure has been produced correctly.

Outdoor project teams should also ask whether the quoted waterproof level applies to:

• an individual component;
• an LED module;
• a power supply;
• a manufactured enclosure;
• or the complete installed sign.

Those are different claims.

A technically careful manufacturer should explain the distinction rather than using one IP rating to describe every part of an outdoor sign.

How Are Accessories and Installation Parts Verified?

A finished sign can pass appearance and lighting inspection and still arrive unusable because one small installation item is missing.

Common examples include:

• power supplies;
• controllers;
• transformers;
• cables;
• connectors;
• mounting studs;
• screws;
• anchors;
• spacers;
• brackets;
• templates;
• raceways;
• backboards;
• installation diagrams;
• accessory bags.

The cost of a missing component is rarely limited to the price of the component.

Suppose a power supply worth a relatively small amount is missing from one store shipment. The site may still need to pay for:

• an installer callout;
• another installation appointment;
• project coordination;
• local sourcing;
• express freight;
• store-opening delay.

Accessory control therefore belongs inside QC.

For a multi-store order, simple quantity checking is not enough.

Imagine 30 stores require:

30 sign sets
30 power kits
30 mounting kits
30 templates.

The factory may have all 30 of each item in the warehouse. The project still fails if Store 08 receives Store 13’s mounting template.

A better packing-control structure links accessories to a specific sign or destination:

Packing ID	Sign Set	Power Kit	Mounting Kit	Template	Status
S01	Complete	Complete	Complete	Included	Ready
S02	Complete	Complete	Complete	Included	Ready
S03	Complete	Complete	Complete	Included	Ready
S04	Complete	Complete	Complete	Included	Ready

Store numbers, SKU numbers, product codes, accessory bags, and carton numbers are simple controls, but they greatly reduce confusion during rollout projects.

Before release, QC should be able to verify:

Is every required part present, and is every part packed with the correct sign?

iduoduo’s documented release process includes accessory verification, quantity confirmation, label and carton checks, packaging confirmation, and preparation of shipment records before product release.

How Is Packaging Inspected Before Release?

Packaging should be treated as the final production operation.

The product is not successfully manufactured if it leaves the factory in perfect condition but arrives scratched, bent, cracked, or missing parts.

Custom signage is particularly difficult to pack because products are rarely simple rectangles.

Channel letters have projecting returns and irregular shapes.

Acrylic logos can have thin strokes and fragile corners.

Polished metal surfaces scratch easily.

Light boxes may be large but relatively thin.

Long signs can experience bending stress.

Power supplies and accessories can damage the sign if allowed to move freely inside the same carton.

Packaging inspection should therefore consider both protection and movement inside the box.

Depending on the product, the packing system may include:

• protective surface film;
• EPE foam;
• corner guards;
• reinforced cartons;
• custom internal inserts;
• separated power-supply areas;
• accessory bags;
• wooden frames;
• plywood crates;
• pallets;
• carton labels;
• store labels;
• SKU numbers;
• packing lists.

iduoduo’s documented international-delivery process includes product-specific surface protection, EPE foam, corner guards, reinforced cartons, custom inserts, wooden frames, plywood crates, separated power supplies, accessory kits, store/SKU labels, numbered cartons, packing lists, and packaging inspection.

Packaging QC should check more than whether a box is closed.

Before release, practical questions include:

• Is the product surface protected?
• Can the sign move inside the carton?
• Are thin strokes and corners supported?
• Can metal components rub against painted or acrylic surfaces?
• Are heavy power supplies separated from fragile parts?
• Are installation accessories bagged separately?
• Does the carton number match the packing list?
• Does the store or SKU label match the product?
• Is the packaging version correct for the selected freight method?
• Does a large product need a wooden frame or crate?
• Can installers identify the correct sign without opening every carton?

Packing should also match the shipping method.

A small acrylic logo moving by courier may need a different protection strategy from a large channel-letter set moving by sea freight.

Ocean shipments involve longer transit, repeated handling, consolidation, vibration, stacking, and warehouse transfers. Large or fragile products may therefore require stronger internal support or wooden protection.

However, excessive packaging also has a cost.

A heavy wooden crate may increase:

• gross weight;
• volume;
• freight cost;
• handling difficulty;
• disposal work on site.

The goal is not “maximum packaging.” The goal is appropriate packaging for product shape, fragility, size, weight, destination, and transport method.

What Should Be Completed Before Shipment Release?

The final question is not simply, “Is production complete?”

A stronger question is:

“Has every required QC and shipping condition been closed?”

A practical release gate can include:

Release Item	Required Before Shipment
Production	All required products completed
Dimensional QC	Critical dimensions passed
Appearance QC	Finish and visible defects checked
Lighting QC	100% illuminated units checked where applicable
Electrical QC	Power, wiring and functions verified
72-hour test	Completed for applicable illuminated products
Rework	Any failed items corrected and reinspected
Mounting	Holes, studs, brackets and exits checked
Accessories	Quantity and allocation verified
Packaging	Approved packing method completed
Labels	Store, SKU and carton numbers confirmed
Quantity	Final shipment count verified
Records	Release and shipment information prepared

iduoduo’s documented release requirements state that products are released only after production is complete, rework is closed, final QC has passed, applicable illuminated products have completed the 72-hour test, accessories have been checked, packaging has been confirmed, labels and carton numbers have been checked, quantities have been confirmed, and shipping records are prepared.

That release gate matters because several common sign-project failures happen after the main product is already finished.

Wrong power supply.

Missing mounting hardware.

Old template packed with a revised sign.

Two store cartons swapped.

Correct sign packed without enough surface protection.

Reworked letter packed before it was tested again.

None of those problems is solved by a beautiful final product photo.

A strong pre-shipment testing process therefore checks three things:

Does the sign meet the approved specification?

Does it operate as intended?

Can the correct, complete product reach the installation site in usable condition?

When all three are controlled, pre-shipment QC becomes much more than an inspection step. It becomes the final barrier between a factory-side problem and an expensive site-side problem.

How Do You Verify a Manufacturer’s QC Claims?

A manufacturer’s QC claims should be verified through project-level evidence, not slogans such as “strict quality control,” “100% inspection,” or “ISO-certified factory.” A useful verification process connects four things: the approved requirement, the inspection performed, the result recorded, and the action taken when something failed. Drawings, QC sheets, test records, measurement photos, rework records, packing records, and final-release records provide much stronger evidence than factory brochures.

A practical rule is simple:

If a manufacturer says something is checked, ask what standard is used, who checks it, where the result is recorded, and what happens when the result fails.

For example, “We inspect mounting holes” sounds reassuring. A stronger answer would explain that mounting-hole positions are checked against the approved shop drawing before packing, deviations are reworked, and the corrected product is measured again before release.

That difference matters when a sign is being shipped across an ocean and installed on a finished façade.

iduoduo’s documented quality records can include drawings, BOMs, QC checklists, test information, photographs, packing records, shipment records, after-sales records, and corrective actions. Those records are intended to support traceability rather than relying on memory after production is complete.

Which QC Records Should You Request?

You do not need access to a factory’s entire internal quality system.

A few well-chosen records from a comparable project can reveal whether the QC process is real.

Useful records include:

• approved shop drawing;
• revision-controlled production file;
• BOM;
• first-article inspection record;
• in-process QC checklist;
• dimensional inspection record;
• lighting-test record;
• electrical or functional check;
• 72-hour test record where applicable;
• defect or rework record;
• packaging checklist;
• final-release record.

The record should contain enough information to connect it to a real product or order.

Look for details such as:

Record Item	What You Should See	Why It Matters
Project / product ID	Order, SKU, store, or sign code	Prevents records from being generic
Drawing revision	Version number or approval status	Confirms QC used the correct file
Inspection date	Actual inspection timing	Shows when the check occurred
Inspection item	Dimension, color, LED, mounting, etc.	Shows what was actually checked
Acceptance standard	Drawing, sample, BOM, specification	Prevents subjective inspection
Result	Pass, measurement, issue found	Shows actual inspection outcome
Inspector	QC person or responsible staff	Provides accountability
Rework status	Repair / remake / replacement	Shows how failures were handled
Release status	Approved for packing or shipment	Prevents unfinished work from shipping

A document with nothing more than “QC Passed” and a signature has limited value.

A stronger record may show:

Product: Channel Letter Set A17
Drawing: Rev. V4
Overall width: 1,800 mm
Mounting-hole spacing: checked against V4
LED color: 6500K specification
Wire exit: lower right
Lighting inspection: Pass
72-hour test: Pass
Accessories: Power supply + mounting kit confirmed
Packing ID: Store 17
Release: Approved

That record tells the project team something useful.

It shows not only that inspection occurred, but also what product was inspected and which requirements were relevant.

When evaluating a new factory, ask for anonymized examples from similar products. Confidential brand names can be removed. The production logic should still be visible.

A supplier that cannot show any project-level inspection evidence deserves closer scrutiny.

How Do Photos and Videos Prove Inspection?

Photos and videos are useful when they prove a specific checkpoint.

Random factory photos are weak evidence.

A photograph of several finished channel letters on a workbench proves mainly that channel letters exist in the factory.

A useful QC photograph might show:

• overall dimension being measured;
• letter depth being checked;
• mounting-hole spacing against a drawing;
• acrylic thickness;
• color comparison against an approved sample;
• all letters illuminated together;
• halo-lit letters checked from the front;
• wire-exit position;
• power supplies grouped with the correct set;
• accessories before packing;
• foam protection inside the carton;
• carton label and store number.

The strongest photographs answer a question.

For example:

Did the mounting pattern match the drawing?

A photograph showing only the back of the sign is weak evidence.

A photograph showing the mounting holes, measurement tool, and corresponding approved drawing is much stronger.

Lighting videos are particularly useful for illuminated products.

A short video can reveal:

• dead sections;
• flicker;
• obvious color mismatch;
• RGB controller operation;
• dimming;
• dark corners;
• inconsistent brightness;
• halo continuity;
• whether a complete set illuminates simultaneously.

However, photographs and videos should not replace records.

A video recorded during an inspection does not automatically prove which drawing revision was used, how long the product was tested, whether earlier failures occurred, or whether rework was closed.

The best evidence chain combines both.

Approved requirement
→ inspection record
→ photo or video evidence
→ release decision.

For overseas sourcing, video factory inspections can also help confirm whether production activities are actually being performed. iduoduo supports visual verification of processes including cutting, bending, welding, grinding, painting, acrylic processing, LED assembly, wiring, lighting inspection, 72-hour testing, packing, and warehousing.

A useful request before a large order is:

“Please show me one recent project moving through three stages: production, QC testing, and packing.”

That is much harder to stage than a polished showroom presentation.

What Happens When a Product Fails QC?

A factory that performs meaningful inspection will eventually find failures.

That is normal.

The more useful question is whether the failed product can accidentally continue to packing and shipment.

A practical nonconforming-product process should normally include:

1. identifying the failed product;
2. separating or marking it;
3. recording the issue;
4. deciding whether to repair, replace, or remake it;
5. correcting the problem;
6. reinspecting the affected characteristic;
7. retesting where required;
8. closing the issue before release.

Consider several real production situations.

Paint color is incorrect.

The factory should not simply repaint the visible surface and move the product directly to packing.

The corrected product should be checked again for color, surface quality, contamination, scratches, and other effects introduced during repainting.

One LED section appears darker than the others.

Replacing a module is only the first step.

The complete illuminated area should be checked again to make sure the replacement LED matches surrounding modules in brightness and color.

Mounting holes are 10 mm away from the approved positions.

The correction should be checked against the mounting drawing again. If the repair affects the back plate or finish, those areas also need inspection.

A power supply fails during testing.

The factory should replace the component and verify the relevant electrical function again before release.

A useful factory-audit question is:

“Can you show an example of a product that failed internal QC and what happened afterward?”

A factory with a functioning system may be able to explain:

What failed
→ why it failed
→ what was repaired
→ how it was checked again
→ what was changed to reduce recurrence.

A weak answer often sounds like:

“We just fix it.”

The difference matters because fixing a visible defect and controlling a manufacturing problem are not the same thing.

iduoduo’s documented quality chain includes nonconforming-product control, reinspection after rework, and release records rather than treating repair as automatic acceptance.

How Are Reworked Products Reinspected?

A repaired sign is still a failed sign until it passes inspection again.

Rework creates its own risks.

Examples:

Replacing an acrylic face
may affect fit, alignment, sealing, or surface condition.

Repainting a metal letter
may create color variation, overspray, dust, or scratches.

Replacing LED modules
may create brightness or color-temperature differences.

Repairing wiring
may affect connections, routing, polarity, or controller function.

Moving mounting holes
may affect the back plate, waterproofing, finish, or alignment.

For that reason, the inspection after rework should match the type of repair.

A useful reinspection matrix may look like:

Defect	Rework	What Should Be Checked Again
Wrong paint color	Repaint	Color, finish, scratches, coating quality
LED dark area	Replace / reposition LEDs	Uniformity, color, brightness, wiring
Wrong hole position	Re-machine	Hole location, spacing, back surface
Loose wiring	Reconnect	Electrical function, stability, routing
Scratched acrylic	Replace face	Dimensions, fit, edge, surface
Missing accessory	Add accessory	Quantity, SKU allocation, packing list
Damaged packaging	Repack	Product condition, protection, labels

The reinspection requirement sounds obvious, but it is one of the easiest controls to lose when a factory is rushing toward a shipping deadline.

Imagine 150 illuminated sign sets are scheduled to leave on Friday.

Three fail the lighting test on Thursday.

Production repairs the three sets.

Without a release gate, repaired units may be taken directly to packing because everyone is focused on catching the shipment.

A disciplined system asks:

Have those three units returned to QC?

If the answer is no, repair has occurred, but quality control has not been completed.

The factory should be able to distinguish:

Rework finished.

QC passed.

Shipment released.

Those are three different statuses.

iduoduo’s documented shipment-release process requires rework closure and final QC approval before applicable testing, accessory checks, packaging confirmation, carton checks, quantity confirmation, and final release are completed.

Are Certifications Enough to Prove Quality Control?

No.

Certifications can support supplier evaluation, but they do not replace project-level inspection.

A certificate may tell you that a management system has been audited or that a particular component has been evaluated against a standard.

It does not tell you whether:

• your logo dimensions are correct;
• your current drawing revision reached production;
• the specified metal thickness was used;
• the approved Pantone color was followed;
• mounting holes match the site drawing;
• the LED color is consistent;
• the wire exit is correct;
• every accessory is inside the carton;
• Store 27 received Store 27’s mounting template.

Those details are controlled by the factory’s actual production system.

It is also important to distinguish several different concepts:

Factory or management-system certification.

Component certification.

Power-supply certification.

LED component documentation.

Complete-product certification.

Destination-market compliance.

They are not the same.

For example, using a certified power supply does not automatically mean the complete custom sign is certified as a finished product.

Similarly, an ISO-related management certificate does not prove that one specific channel-letter order passed its dimensional inspection.

Certificates should therefore be treated as one layer of evidence.

A more complete evaluation looks like:

Evidence	What It Can Show	What It Cannot Prove Alone
Factory certificate	Management-system framework	Your order was made correctly
Component certificate	Component-level compliance	Complete sign compliance
Shop drawing	Approved requirements	Product actually matches them
QC record	Inspection occurred	Long-term field performance
Test record	Functional test completed	Correct installation on site
Photos / videos	Visual evidence	Full document control
Release record	Required steps were closed	Every future order will be identical

A reliable factory should be comfortable explaining those boundaries.

Overstating certification is not a sign of strong engineering discipline.

How Does Traceability Support Repeat Orders?

Traceability becomes more valuable after the first order is finished.

Consider a retail brand that orders 40 channel-letter sets in 2026 and needs 12 replacement sets eighteen months later.

The question is not simply:

“Can you make the same sign?”

The factory may need to recover:

• approved drawing;
• exact dimensions;
• material type;
• material thickness;
• paint reference;
• LED model;
• LED color;
• color temperature;
• power supply;
• wire exit;
• mounting holes;
• raceway or backboard;
• packaging specification;
• previous QC issues;
• approved photographs;
• shipping configuration.

Without records, repeat production starts with old emails, screenshots, and memory.

That creates unnecessary uncertainty.

With a traceable project history, the process can begin by comparing the old production standard with current conditions.

Some items may still need reconfirmation.

For example:

The original LED model may no longer be available.

A power-supply supplier may have changed its model.

Paint batches may require new color matching.

The wall construction may be different at a new store.

A destination country may require another power configuration.

Traceability does not mean blindly copying an old order.

It means knowing exactly what was made before so any change can be identified rather than discovered after installation.

iduoduo normally retains order and quality records for two to three years. The documented information can include drawings, BOMs, samples, materials, QC checklists, testing, photographs, packaging, shipment records, after-sales information, and corrective actions.

For multi-store signage, project traceability can also link products to store or SKU numbers.

A simple record may look like:

Project Record	Store 01	Store 02	Store 03
Drawing revision	V5	V5	V6
Width	1,800 mm	1,800 mm	2,100 mm
LED color	6500K	6500K	6500K
Mounting	Studs	Studs	Raceway
Wire exit	Center	Lower right	Raceway
QC status	Passed	Passed	Passed
Test status	Passed	Passed	Passed
Packing ID	S01	S02	S03

Six months later, if Store 03 asks for a replacement letter, the factory does not need to guess which mounting configuration was supplied.

That is where QC records turn into practical project value.

The easiest way to verify a manufacturer’s quality claims is therefore to move every conversation from claims to evidence.

Instead of asking:

“Do you have strict QC?”

Ask:

“Show me the QC checklist for a similar sign.”

Instead of:

“Do you test every sign?”

Ask:

“What exactly is tested, for how long, and where is the result recorded?”

Instead of:

“Can you maintain quality for repeat orders?”

Ask:

“What production and QC information will you keep after my first order?”

Instead of:

“What happens if there is a defect?”

Ask:

“Show me how a failed product is isolated, reworked, reinspected, and released.”

A manufacturer that can answer those questions with drawings, records, measurements, photographs, videos, and traceable project history is giving you something much more useful than a quality promise.

It is showing how the promise is controlled.

What Are the QC Red Flags Before Supplier Approval?

The biggest QC warning signs usually appear before an order is placed. Watch for factories that rely on final inspection, cannot identify the approved production version, use vague acceptance standards, repair defects without reinspection, cannot trace old orders, or treat every sign type with the same QC checklist. A capable manufacturer should explain exactly what is checked, when it is checked, what evidence is recorded, and who can release a shipment.

A useful supplier review should therefore focus less on statements such as “strict quality control” and more on whether the factory can answer practical production questions.

Before approving a sign manufacturer, pay particular attention to the following warning signs:

QC Red Flag	What It May Mean	Practical Risk
Only final inspection is mentioned	Weak process control	Batch-wide defects discovered too late
No controlled drawing revision	Production may use outdated files	Wrong size, holes, colors, or wiring
Vague quality language	No measurable acceptance standard	QC depends on personal judgment
No first-article approval	Full batch may start before verification	Same error repeated dozens of times
One checklist for every sign type	QC is generic rather than product-specific	Important risks may be missed
Rework without reinspection	Repair is treated as automatic approval	Defects or new problems reach shipment
No defect records	Problems cannot be analyzed	Same issue may repeat
No test records	“100% testing” cannot be verified	Electrical problems may go undocumented
Weak carton/SKU control	Packing is not linked to the project	Wrong store receives wrong parts
No historical project files	Poor traceability	Repeat orders must be recreated from memory

One red flag alone does not automatically mean a supplier is unsuitable. Several of them appearing together usually indicate that QC is mainly reactive rather than controlled.

Is Final Inspection the Only QC Step?

“Every product is inspected before shipment” sounds good until you ask what happened during the previous ten production steps.

Final inspection is necessary, but many expensive sign defects originate much earlier.

Consider a batch of 100 channel-letter sets.

If the approved return depth is 80 mm but production uses an outdated file showing 100 mm, all 100 sets may be manufactured consistently. A final inspector working from the same outdated drawing may even mark every set as passed.

The products are consistent.

They are also wrong.

Other examples include:

• incorrect acrylic thickness discovered after assembly;
• wrong mounting-hole layout repeated across a full batch;
• paint color applied to all units before comparison with the approved sample;
• incorrect wire-exit position repeated after the first unit;
• LED spacing copied across every letter before a lighting check;
• wrong store identification added during final packing.

The earlier a defect is found, the lower the correction cost usually becomes.

A practical inspection sequence should therefore include several gates:

Incoming materials
→ First article
→ In-process checks
→ Final product inspection
→ Functional testing
→ Packing check
→ Shipment release

The exact number of inspection points depends on the product.

A simple acrylic plaque does not need the same controls as a large outdoor illuminated cabinet. The warning sign is not “too few forms.” The warning sign is a factory that cannot identify where important risks are controlled before final inspection.

Ask:

“Which characteristics are checked before the product reaches final QC?”

A strong answer may mention material verification, first-piece dimensions, surface finish, LED layout, mounting details, or wiring checks.

A weak answer usually returns to:

“We check everything at the end.”

By the time everything reaches the end, a small production mistake may already have consumed materials, painting, assembly, electrical work, testing time, and labor.

Are Quality Standards Vague or Measurable?

Words such as:

“high quality,”
“good material,”
“perfect color,”
“strong structure,”
“bright LEDs,”
“strict inspection”

are not QC standards.

An inspector needs a reference.

For custom signage, useful references can include:

• approved shop drawing;
• BOM;
• material specification;
• approved Pantone number;
• approved physical color sample;
• Golden Sample;
• LED color-temperature requirement;
• approved electrical configuration;
• mounting drawing;
• packing schedule.

A simple comparison shows the difference.

Vague Requirement	Better Production Standard
Correct size	Match approved drawing Rev. V5
Good red color	Match approved Pantone / approved sample
Strong metal	Approved material and thickness
White LED	Approved LED type and color-temperature range
Correct holes	Match mounting drawing coordinates
Proper accessories	Match SKU-specific packing list
Safe packaging	Match approved packing method

Not every quality standard needs a number.

Surface appearance, for example, may be judged against an approved physical sample rather than a numerical tolerance.

What matters is whether production and QC share the same definition of acceptable.

Imagine two inspectors looking at a painted letter.

Inspector A says the finish is acceptable.

Inspector B says the color is slightly different.

Without a reference, the result becomes personal opinion.

With an approved sample or color standard, the discussion changes from:

“Does it look okay?”

to:

“Does it match the approved reference closely enough?”

That is a much healthier production environment.

A useful supplier question is:

“Show me the document or sample your QC team uses when deciding whether a product passes.”

If no clear reference exists, inspection may depend too heavily on experience, memory, or whoever happens to be checking the product that day.

Does the Factory Lack Revision Control?

Revision control is one of the most important QC checks in custom signage because sign projects change frequently.

A project may begin with:

V1 — initial size.

Then move to:

V2 — revised width.

V3 — new paint color.

V4 — mounting holes changed.

V5 — wire exit moved after site confirmation.

The final sign may look almost identical across all five versions.

Only one version is correct for production.

A weak factory may keep several PDFs in the same folder, send screenshots through messaging apps, print old drawings for workshop use, or rely on a salesperson to explain the latest change verbally.

The danger becomes much greater with multi-store programs.

For example:

Store A uses V5.

Store B uses V5 but has a different wire exit.

Store C uses V6 because the wall changed.

Store D uses the same logo but requires a raceway.

A production team working from visual similarity can easily mix versions.

Before approving a supplier, ask:

• How is the final production version identified?
• Are old revisions removed or clearly marked obsolete?
• Does QC inspect against the same revision used by production?
• How are last-minute changes transferred to the workshop?
• How are store-specific versions separated?

A good system should make the approved version easy to identify and an obsolete version difficult to use accidentally.

The attached project documentation states that approved samples can be transferred into final drawings, BOMs, process standards, mounting specifications, QC checklists, packing requirements, and frozen production versions for batch manufacturing.

That is the level of control worth looking for: approved information becomes a production standard, not a collection of scattered messages.

Are Defects Corrected Without Records?

Do not be alarmed simply because a factory finds defects.

Be more concerned if it claims defects never occur.

Cutting errors, scratches, paint issues, LED failures, wiring faults, incorrect holes, damaged components, and packing mistakes can occur in real manufacturing.

The important question is how the factory responds.

Suppose five channel letters fail internal inspection.

A weak process may look like:

QC notices problem
→ worker fixes it
→ product goes back into the normal flow
→ nobody records anything.

A stronger process looks more like:

Problem identified
→ affected unit separated
→ reason recorded
→ repair/remake completed
→ affected characteristics reinspected
→ result closed
→ release status updated.

For occasional cosmetic problems, a simple record may be enough.

For repeated or project-critical defects, more information is useful.

Examples include:

• wrong hole positions across multiple units;
• repeated LED dark areas;
• incorrect paint batch;
• recurring acrylic cracks;
• multiple power-supply failures;
• carton mislabeling across a rollout.

Without records, production management cannot easily answer:

How many units were affected?

Did the same issue happen last month?

Was one material batch involved?

Was one workstation involved?

Did the correction actually work?

A factory that quietly fixes everything may appear efficient while losing valuable information that could prevent recurrence.

The iduoduo quality records described in the project file can retain QC checklists, test information, photos, packing records, shipment information, after-sales cases, and corrective actions.

For supplier evaluation, ask to see an anonymized example of an internal problem record.

You do not need confidential names.

You want to understand the logic:

Problem
→ Correction
→ Reinspection
→ Closure.

Is Rework Released Without Reinspection?

Repair and approval are not the same thing.

A common QC weakness appears when a product fails inspection, production repairs it, and the repaired item goes directly to packing because the shipping deadline is close.

That creates risk because rework can introduce new defects.

Examples:

Wrong paint color
→ repainting may introduce dust, uneven coating, or scratches.

Dark LED area
→ replacing modules may create another brightness difference.

Wrong mounting holes
→ re-machining may damage the rear surface or protective coating.

Loose wiring
→ reconnecting may solve one contact while changing cable routing.

Scratched acrylic
→ replacing the acrylic may change fit or alignment.

A simple rule should apply:

Any characteristic that failed should be verified again after correction.

Sometimes related characteristics should also be checked.

For instance:

Original Failure	Correction	Reinspection
Wrong paint	Refinish	Color + surface
Dark LED section	LED replacement	Brightness + color + wiring
Wrong hole position	Re-machine	Hole spacing + rear surface
Wiring fault	Reconnect	Electrical function + stability
Acrylic scratch	Replace part	Surface + dimensions + fit
Packing error	Repack	Product condition + labels + accessories

Shipping pressure is where weak systems often break down.

If a container cutoff is Friday and repaired signs finish Thursday afternoon, production may want to send them immediately to packing.

A strong release system asks:

Did QC pass them again?

The attached company facts specify nonconforming-product control, reinspection after rework, and traceable release records as part of the quality chain.

The release logic also requires rework closure and final QC approval before applicable testing, accessory verification, packing confirmation, carton checks, quantity confirmation, and shipment preparation are complete.

Does Every Product Use the Same QC Checklist?

One universal checklist for every sign type is another warning sign.

Channel letters, LED neon signs, light boxes, acrylic logos, metal letters, plaques, and wayfinding signs do not fail in the same ways.

An illuminated channel letter may require checks for:

• LED placement;
• brightness;
• color temperature;
• dark spots;
• wiring;
• power supply;
• mounting holes;
• water-management details.

A non-illuminated stainless-steel letter may instead require more attention to:

• metal thickness;
• welds;
• polishing;
• brushing direction;
• scratches;
• dimensions;
• studs;
• mounting.

A wayfinding sign can add:

• text accuracy;
• room numbers;
• sign codes;
• printed graphics;
• tactile content;
• packaging by floor or location.

When every product receives the same generic “appearance / quantity / packing” checklist, important product-specific risks may never be inspected.

The iduoduo documentation explicitly separates illuminated and non-illuminated QC logic. Non-illuminated products are not described with LED, color-temperature, power-supply, or 72-hour lighting tests unless illumination is actually part of the product.

That distinction is useful when evaluating another manufacturer as well.

Ask:

“How does your QC checklist change between channel letters, light boxes, acrylic letters, and wayfinding signs?”

A technically experienced supplier should be able to answer without giving the same inspection list for every product.

Can Batch Quality Be Traced Later?

A supplier may perform good inspections today but still create problems later if old project information disappears.

Traceability becomes especially important for:

• franchise programs;
• retail rollouts;
• hotel projects;
• replacement letters;
• maintenance;
• expansion to new stores;
• repeat production.

Imagine 60 sign sets are produced in August.

Fourteen months later, three new locations need the same signs.

A weak process begins with:

“Can you send the artwork again?”

Then:

“What metal thickness did we use?”

“Was the white 4000K or 6500K?”

“Where was the wire exit?”

“Did you use studs or a raceway?”

“Do you remember the original packing?”

At that point, repeat production is essentially a new product development process.

A traceable project can instead begin with previous records.

Useful retained information can include:

• drawing revision;
• BOM;
• material;
• paint or finish;
• LED model;
• color temperature;
• power configuration;
• mounting details;
• QC results;
• testing;
• packing;
• shipment history;
• previous corrective actions.

Historical records do not guarantee zero variation.

Materials and component models may change.

The value is knowing what changed.

The attached iduoduo project facts state that order and quality information is normally retained for two to three years and may include drawings, BOMs, samples, materials, QC checklists, tests, photos, packing, shipment, after-sales, and corrective-action records.

That creates a much better starting point for replacements and repeat production.

Which QC Questions Should You Ask Before Ordering?

The most effective supplier review questions are difficult to answer with marketing language.

Instead of asking:

“Do you have good quality?”

Ask specific operational questions.

1. What document controls production after final approval?
2. How do you stop old drawing revisions from reaching production?
3. Which incoming materials are inspected before fabrication?
4. Do you approve the first production piece before continuing a batch?
5. Which dimensions are treated as installation-critical?
6. How are color and surface finish checked?
7. When are mounting holes and wire exits inspected?
8. How does the QC checklist change for illuminated and non-illuminated products?
9. What exactly is checked during your lighting test?
10. What happens when a sign fails QC?
11. Is a repaired sign inspected again?
12. Can you show an anonymized rework record?
13. How are power supplies, mounting parts, and accessories checked?
14. How are store numbers and cartons controlled for rollout orders?
15. Who has authority to approve shipment release?
16. What QC information can be provided before shipment?
17. How long are production and QC records retained?
18. How do you reproduce an order one or two years later?

A manufacturer does not need to provide every confidential internal document during an initial conversation.

However, the answers should be concrete.

Compare these two responses.

“We have 100% QC and very strict quality control.”

versus:

“We check the first production unit against the approved drawing, inspect critical dimensions during fabrication, verify mounting details before packing, test every illuminated unit, isolate failed products, reinspect them after repair, and release shipment only after QC, accessories, packing, labels, and quantity are closed.”

The second response describes a process.

The first describes a promise.

Before supplier approval, the main objective is not to find a factory that claims never to make mistakes.

It is to find a factory where mistakes are harder to repeat, easier to detect, harder to hide, and easier to trace.

That is a much more useful definition of QC reliability for a custom sign project.

How Can Iduoduo Support Your Custom Sign Project?

Evaluating a manufacturer’s QC system is ultimately about reducing uncertainty before money, production time, freight, and installation labor are committed.

Iduoduo is a Shenzhen-based custom sign manufacturer established in 2007. Its documented manufacturing system includes 5 production bases, 18 production lines, 500+ employees, 20+ engineers, and 30+ QC personnel. The product range covers illuminated and non-illuminated custom signage, including channel letters, LED neon signs, light boxes, blade signs, acrylic LED logo signs, metal letters, acrylic letters, PVC and foam letters, ADA signs, wayfinding components, and other commercial signage.

Quality control is integrated into the manufacturing process rather than limited to a final visual inspection. Depending on the product and project requirements, the documented workflow can include approved production files, incoming-material inspection, first-article approval, in-process checks, dimensions, appearance, color, surface finish, mounting details, lighting, electrical and functional checks, accessories, packaging, nonconforming-product control, reinspection after rework, and release records.

For illuminated products, Iduoduo uses 100% lighting inspection and 72-hour pre-shipment testing. The 72-hour process is designed to observe LED and power stability, controllers, flicker, early failure, color differences, localized dark areas, abnormal heat, and wiring connections. Non-illuminated products follow a different inspection logic focused on dimensions, materials, color, surfaces, edges, flatness, mounting details, content where applicable, and packaging.

Project records can also support troubleshooting and repeat production instead of forcing a future order to begin from memory.

If you are evaluating a sign manufacturing partner, you do not need to accept a general statement that “our quality is good.” Send Iduoduo your logo, drawings, specifications, quantities, installation information, destination country, or existing supplier QC requirements.

We can review the manufacturing requirements, identify critical inspection points, confirm the production and testing approach, and prepare a custom quotation for your signage project.

For prototypes, single-store projects, multi-SKU orders, rollout programs, or repeat production, contact Iduoduo to discuss your drawings, QC requirements, sample needs, manufacturing schedule, packaging, and delivery plan.
