A mixed indoor and outdoor signage project rarely fails because one individual sign looks unattractive. The larger problem usually begins when every sign is treated as a separate purchase. The exterior channel letters use one metal finish, the parking signs use a different color family, the lobby logo changes the original proportions, and the room signs introduce another typeface. Each product may be acceptable on its own, yet the completed property feels inconsistent and difficult to navigate.
A cohesive sign system starts with one information hierarchy, one visual language, and a coordinated set of technical standards. Outdoor signs must handle weather, long viewing distances, structural loads, electrical exposure, and nighttime visibility. Indoor signs must support close reading, accessibility, refined finishes, easier cleaning, and occasional content changes. They should not be manufactured in exactly the same way, but they should clearly belong to the same property and brand.
A successful mixed sign system connects exterior identification, vehicle guidance, pedestrian wayfinding, interior orientation, destination signs, accessibility information, and maintenance planning. The design remains visually consistent, while materials, illumination, mounting, and construction change according to each location. The result is a signage program that is easier to understand, manufacture, install, maintain, and expand.
Imagine a visitor arriving at a medical campus during heavy rain. The monument sign is visible, but the parking directions are unclear. After entering the building, the directory uses different names and colors from the outdoor signs. The visitor is not evaluating the thickness of the aluminum or the quality of the acrylic. The visitor is experiencing whether the entire sign system works. That real journey should guide every decision that follows.

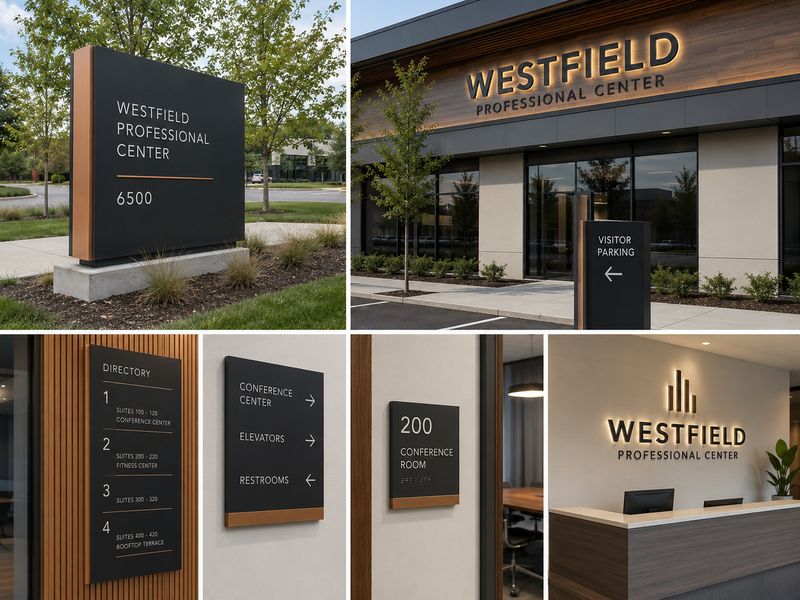

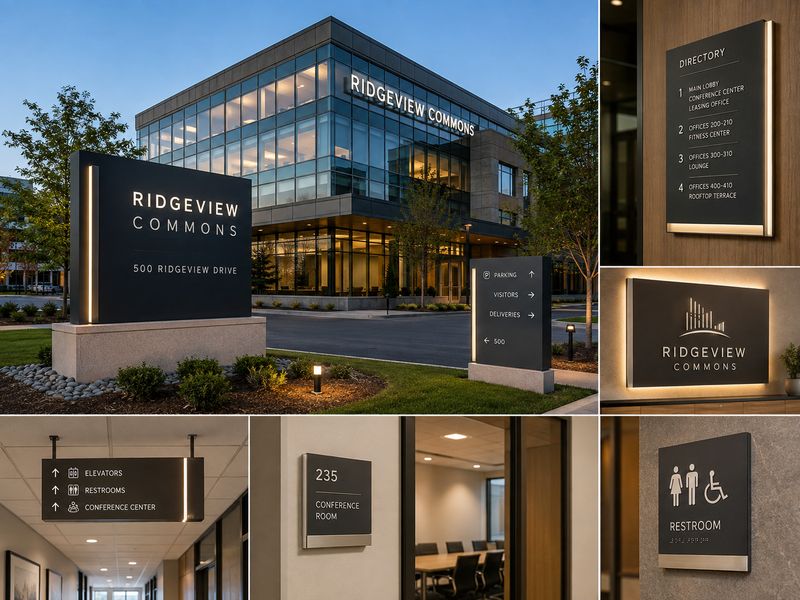

What Is a Mixed Sign System?
A mixed sign system is a coordinated family of exterior and interior signs created for one property, brand, or multi-location program. It uses consistent typography, colors, symbols, terminology, and information hierarchy while adapting materials, lighting, structures, and mounting methods to the practical conditions of each location.
One System, Not Separate Products
A sign system begins with a simple principle: every sign should perform a specific job while still feeling connected to the rest of the property. The exterior monument sign, parking directions, entrance identification, lobby directory, floor markers, room signs, and safety notices should not look as though they were designed and ordered at different times from unrelated suppliers.
Consistency does not mean producing every sign in the same size, material, or construction. A large outdoor channel-letter sign may require aluminum returns, acrylic faces, LED modules, protected wiring, drainage provisions, and weather-resistant electrical components. A nearby interior logo may use thinner stainless-steel letters, polished acrylic, concealed fixings, and lower light output. Their engineering differs, but their proportions, colors, spacing, typography, and overall visual character can remain consistent.
The word “system” also describes the relationship between messages. A visitor should see the same building names, department names, arrows, symbols, and color codes throughout the journey. Using “Main Lobby” outside and “Central Reception” inside for the same destination creates uncertainty. Small inconsistencies become significant when a property includes several entrances, buildings, floors, tenants, or user groups.
A well-managed system therefore includes visible design standards and less visible manufacturing standards. Approved materials, paint references, acrylic codes, LED color temperatures, letter depths, mounting patterns, wiring exits, sign codes, packaging instructions, and revision records should all be documented. These controls make future replacement and expansion much easier.
Projects That Need Coordination
Mixed indoor and outdoor sign systems are common in hotels, hospitals, schools, office campuses, shopping centers, mixed-use developments, industrial parks, apartment communities, restaurants, entertainment venues, and transport-related facilities. However, project size alone does not determine whether a system is necessary.
A single commercial building may need only fifteen or twenty signs, yet visitors could still pass through several decision points: site entrance, parking area, exterior walkway, building entrance, lobby, elevator, corridor, and final room. If those signs use inconsistent names or fail to confirm the route after a turn, people can still become confused.
Larger developments naturally create more complexity. A hospital may have emergency access, outpatient entrances, staff parking, loading zones, restricted areas, and multiple departments. A hotel may require exterior branding, vehicle arrival signs, reception identification, elevator directories, room numbers, conference-room signs, restaurant signs, spa identification, and service-area notices. Each sign has a different purpose, but the entire property must remain understandable.
Multi-location brands face another challenge because the architecture changes while the identity should remain recognizable. One store may have a brick façade, another a glass curtain wall, and another a metal canopy. The sign dimensions, brackets, wiring exits, and mounting hardware may need to change, while logo proportions, color standards, illumination, and visual identity remain controlled.
How People Move Through the Site
The most practical way to plan a mixed sign system is to follow the visitor journey. Instead of beginning with a catalog of available products, begin with the questions people ask while moving through the property. They need to know whether they have reached the correct site, which entrance to use, where to park, which building to enter, where reception is located, and how to reach the final destination.
A sign should appear before the decision point, not after it. A parking arrow installed beyond the turn has little value, even when the sign itself is attractive and well manufactured. Directional information also needs confirmation. After following an arrow toward Building B, the visitor should soon see another sign confirming that Building B remains ahead.
The transition between outdoor and indoor areas deserves particular attention. Outdoor signs are generally read from longer distances and often by people in motion. Indoor signs are read more slowly and at closer range. Messages can become more detailed as the visitor approaches the destination, but the naming system must remain consistent.
| Journey Stage | Common Viewing Condition | Typical Sign Role | Practical Message Approach |
| Road approach | Moving vehicle, long distance | Property identification | Property name and one key direction |
| Site entrance | Slow vehicle or pedestrian | Entrance confirmation | Building or entrance name |
| Parking area | Vehicle decisions | Direction and zone marking | Short destinations with clear arrows |
| Exterior walkway | Walking speed | Pedestrian guidance | Building, entrance, or service names |
| Lobby | Standing or slow movement | Orientation and directory | Destinations grouped by floor or zone |
| Interior corridor | Walking speed | Route confirmation | A few destinations per direction |
| Final destination | Close viewing | Room or department identification | Complete destination name |
The visual transition should also feel natural. Exterior signs may use deeper aluminum structures, larger letters, brighter illumination, and heavier protective coatings. Interior signs may use slimmer profiles, softer lighting, polished finishes, and replaceable information panels. Shared colors, shapes, typography, and symbols provide continuity even when the engineering changes.
Standards Behind the Appearance
A useful sign-system standard covers more than a logo file. It normally defines a repeatable set of decisions involving typefaces, abbreviations, brand colors, functional colors, arrow styles, pictograms, corner shapes, panel proportions, illumination, mounting, numbering, and packaging identification.
These standards reduce interpretation during design, manufacturing, installation, and future replacement. Architects can coordinate sign locations, designers can control appearance, manufacturers can prepare consistent production files, and installers can understand how each product fits into the property.
A working standard may include:
- Primary and secondary typefaces
- Approved capitalization and abbreviations
- Brand and functional color references
- Arrow shape, direction, and placement
- Pictogram and accessibility symbol style
- Logo clear space and minimum proportions
- Preferred metal and acrylic finishes
- Lighting color-temperature range
- Sign-code and location-code structure
- Naming and room-numbering rules
- Mounting and wiring preferences
- Packaging and carton-label conventions
A standard should still allow practical adjustments. A narrow corridor may require a projecting sign where a wall-mounted panel would be difficult to see. A large exterior building sign may need deeper letters than an interior logo. A coastal location may require more corrosion protection than a climate-controlled lobby. The system remains consistent because these adjustments follow documented rules rather than being improvised separately for every sign.

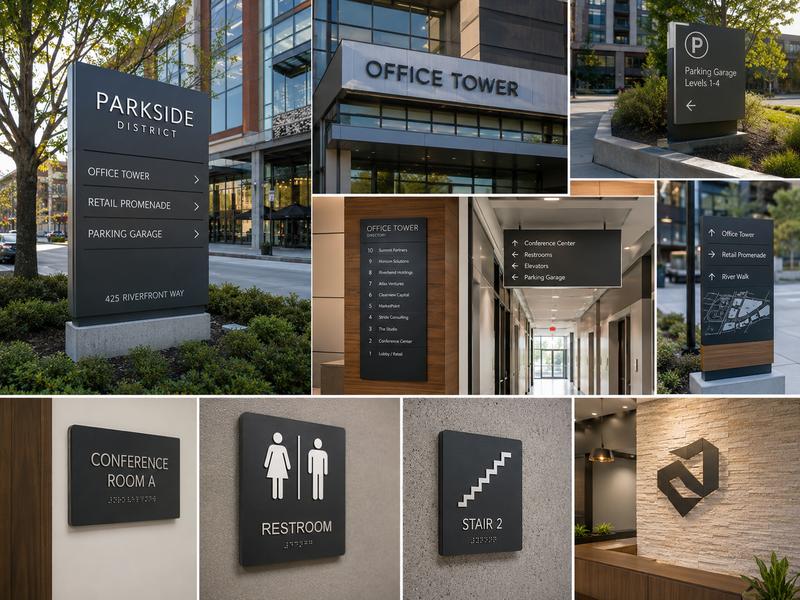

Which Signs Does the Project Need?
A project needs signs that identify the property, guide movement, confirm routes, mark destinations, communicate operating information, and support accessibility. The correct sign list comes from the site plan and visitor journey rather than from choosing products first. Every sign should answer a real question at a specific location.
Identity and Arrival Signs
Primary identification signs establish the property, building, tenant, or brand. These are usually the largest and most visible elements in the system. Typical examples include monument signs, pylon signs, building-mounted channel letters, illuminated logo signs, cabinet signs, blade signs, entrance markers, and dimensional metal letters.
The correct product depends on how people approach the site. A monument sign works well near a road or driveway where a freestanding structure is permitted and landscaping does not block visibility. Building-mounted channel letters are useful when the façade is the main identification surface. A blade sign can improve recognition along pedestrian streets where people approach from the side rather than directly from the front.
Viewing distance, speed, contrast, and surrounding visual competition matter more than sign size alone. Large letters with poor contrast can be harder to read than smaller letters with a clear silhouette. Decorative fonts often lose legibility when viewed from a moving vehicle. As a practical starting reference, many sign professionals allow approximately 25–30 millimetres of clear uppercase letter height for every 3 metres of comfortable reading distance, although typeface, lighting, traffic speed, stroke width, and local requirements can change that relationship.
An arrival sign should not carry every possible message. Its primary job is recognition. Detailed tenant lists, operating information, maps, and secondary destinations generally belong at later locations where visitors can slow down and read safely.
Direction and Confirmation Signs
Directional signs help users choose a route. Confirmation signs reassure them that the route remains correct. These functions are related, but they should not be confused.
A directional sign should appear before an intersection, turn, entrance, or vertical circulation point. It may direct people toward parking, reception, elevators, restrooms, departments, loading areas, or building zones. A confirmation sign should appear after a major turn or transition, particularly when the next decision point is not immediately visible.
Messages should be grouped according to direction. A sign with three left-pointing destinations, two right-pointing destinations, and one straight-ahead destination requires a clear visual order. Arrows should occupy a consistent position, and destination names should not change from one sign to the next.
Too much information slows recognition. Vehicle-oriented signs should use short wording and a limited number of destinations because drivers must make decisions quickly. Interior pedestrian signs can carry more information, but long lists should be divided by building, floor, department, or zone.
Color coding can help in large properties, but it should support written information rather than replace it. A visitor may not remember that blue represents the east wing, and some users may not distinguish colors reliably. The words “East Wing” should remain visible even when blue is used as a secondary cue.
Destination and Support Signs
Destination signs confirm that visitors have reached the correct place. They include room signs, department names, suite numbers, reception signs, tenant identification, restroom signs, elevator labels, conference-room signs, and service-area signs.
These smaller signs often have more daily contact with users than the large exterior identity signs. They are viewed from close range, cleaned frequently, and updated more often. Material selection should therefore consider edge quality, scratch resistance, print durability, cleaning chemicals, replaceable information, and mounting access.
Supporting signs communicate rules and operational information. Examples include opening hours, safety notices, staff-only signs, occupancy information, emergency instructions, loading-zone rules, and facility policies. These signs should fit the broader visual family without weakening mandatory colors, symbols, or safety information.
Accessibility signs require separate attention. Depending on the destination market and installation location, permanent-room identification may require tactile characters, braille, pictograms, specific contrast, regulated mounting positions, and defined character dimensions. These requirements should be confirmed before production because they affect panel thickness, engraving, text spacing, mounting, and inspection.
The smallest signs should not be treated as minor decorative products. Room identification and regulatory signs often have the highest quantity, the greatest daily use, and the strongest connection to accessibility and building operation.
Building the Sign Schedule
A sign schedule turns the design concept into a manageable project. Each sign receives a unique code and a documented set of details. This reduces confusion when dozens or hundreds of signs are being designed, revised, produced, packed, delivered, and installed.
A useful schedule commonly includes the sign code, building, floor, zone, exact location, message, quantity, dimensions, material, finish, lighting method, electrical requirement, mounting method, drawing revision, approval status, and packaging code.
| Sign Family | Common Products | Typical Project Range | Main Approval Points |
| Site identification | Monument and pylon signs | 1.5–6 m overall width | Visibility, structure, permits, illumination |
| Building branding | Channel letters and logo signs | 0.6–8 m overall width | Logo proportion, letter depth, wiring, mounting |
| Exterior direction | Post and wall panels | 400–1800 mm panel height | Arrow position, contrast, weather exposure |
| Interior direction | Wall or suspended signs | 300–1500 mm width | Reading distance, message grouping, support |
| Directories | Freestanding or wall panels | 600–2200 mm height | Update method, text capacity, accessibility |
| Room identification | Acrylic, metal, or ADA signs | 150–400 mm width | Message, tactile detail, installation position |
| Interior branding | Acrylic or metal logo signs | 500–4000 mm width | Finish, lighting, hidden wiring |
These ranges are practical project references rather than universal design limits. Final dimensions depend on architecture, viewing distance, message length, local regulations, structural requirements, and manufacturing methods.
The sign schedule should be updated whenever a message, quantity, finish, or location changes. Production should begin only from an approved revision. Relying on scattered emails or messaging conversations creates a high risk that an old room number, previous color, or outdated hole pattern will enter production.

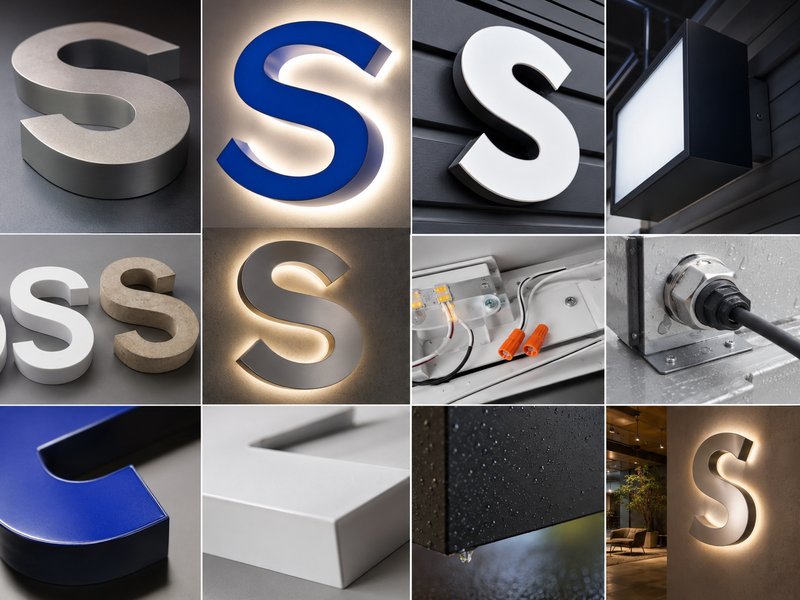

How Should Materials and Lighting Change?
Indoor and outdoor signs should share a visual identity but use different technical solutions. Exterior products require greater attention to weather, corrosion, water management, structure, electrical protection, and service access. Interior signs can use finer profiles, lower brightness, delicate finishes, and easier message replacement where exposure is controlled.
Indoor Material Choices
Interior signs are usually viewed at close range, so edge quality, finish consistency, and installation details become highly visible. Acrylic, aluminum, stainless steel, PVC, foam, printed films, laminates, and layered assemblies are commonly used, but the correct material depends on the visual result, size, cleaning conditions, expected contact, and replacement needs.
Acrylic is suitable for logo panels, dimensional letters, directories, printed signs, and illuminated interior branding. Common project thicknesses range from approximately 3 to 20 millimetres, depending on size, structure, edge exposure, and mounting method. Thin acrylic works well for printed or layered panels, while thicker acrylic can create a polished dimensional effect. Unsupported spans and large cut-outs require careful evaluation because acrylic can flex or crack.
PVC and high-density foam materials are useful for lightweight dimensional letters, wall graphics, and decorative elements. Typical thicknesses may range from 5 to 30 millimetres. They are relatively easy to machine and can reduce wall loads, but their edges and painted surfaces must be finished carefully when viewed from a short distance.
Aluminum and stainless steel provide better dimensional stability and a premium appearance. Brushed, mirror, painted, powder-coated, and plated finishes can be used, although high-gloss surfaces reveal fingerprints, scratches, and fabrication marks more easily. Interior material selection should consider daily cleaning and long-term appearance rather than only the opening-day presentation.
Outdoor Material Choices
Outdoor signs are exposed to ultraviolet light, rain, temperature changes, dust, wind, pollution, and sometimes salt in coastal environments. A material that performs well in an indoor sample may require a different thickness, coating, adhesive, fastener, or joint design outdoors.
Aluminum is widely used for channel-letter returns, light-box frames, panels, and sign cabinets because it provides a useful balance between weight, fabrication, and corrosion resistance. Fabricated sign components commonly use aluminum sheet in the approximate range of 1.0–3.0 millimetres, but larger spans and structural parts may require thicker sections or additional reinforcement.
Stainless steel is selected for dimensional letters, plaques, trims, and premium façades. The appropriate grade, surface finish, welding method, and protection depend on exposure. Coastal and chemically aggressive locations demand more careful material selection than ordinary urban environments.
Outdoor acrylic faces are often manufactured from cast or suitable sign-grade sheet. Face thickness commonly falls around 3–5 millimetres for many channel-letter applications, although size, fastening, wind exposure, thermal movement, and cabinet construction must be checked. Large panels may require retainers, supports, or sectional construction.
Weather resistance does not come from material alone. Water paths, drainage openings, protected electrical joints, ventilation, dissimilar-metal contact, fastener selection, coating preparation, and maintenance access all influence actual performance.
| Component | Common Material Options | Typical Project Range | Main Risk to Review |
| Channel-letter face | Sign-grade acrylic | 3–5 mm | Expansion, fastening, light diffusion |
| Letter return | Aluminum or stainless steel | 1.0–2.0 mm | Flatness, seams, corrosion |
| Interior logo panel | Acrylic | 5–20 mm | Edge finish, cracking, visible adhesive |
| Exterior cabinet panel | Aluminum sheet | 1.5–3.0 mm | Wind pressure, reinforcement, distortion |
| Lightweight interior letters | PVC or foam | 5–30 mm | Edge finish, impact, paint durability |
| Dimensional metal letters | Aluminum or stainless steel | 1–5 mm face, often fabricated | Welding, surface consistency, mounting |
| Light-box face | Acrylic, polycarbonate, or flexible face | Project-specific | Deflection, expansion, graphic uniformity |
These ranges represent common manufacturing references rather than fixed rules. Large, high-mounted, freestanding, or structurally loaded signs need evaluation based on their actual dimensions, wind conditions, mounting height, and installation environment.
Choosing the Lighting Method
Lighting affects much more than nighttime visibility. It influences letter depth, acrylic selection, LED spacing, power capacity, wiring, heat management, surface appearance, installation clearance, and maintenance access. The lighting method should therefore be selected before final dimensions and mounting details are approved.
Front-lit channel letters direct light through an acrylic face. They are widely used for storefronts and building identification because the illuminated letter shape remains clear at night. Internal LED spacing, face diffusion, return depth, and stroke width determine whether the light appears even.
Halo-lit letters project light onto the wall behind the sign. They create a softer architectural effect, but the wall must reflect light effectively. Dark brick, heavily textured stone, glass, and irregular cladding can weaken or distort the halo. Stand-off distances commonly fall around 20–50 millimetres, although letter size, LED output, wall finish, and desired halo width affect the result.
Front-and-halo-lit letters combine direct face illumination and background glow. They create stronger visual depth but require more complex internal separation, wiring, and power management.
Light boxes work well for graphic panels, tenant information, menu signs, and larger illuminated surfaces. The internal cabinet depth must provide enough distance for diffusion. Shallow cabinets need tighter LED layouts or suitable optical components to reduce visible hotspots.
Interior logo signs generally require lower brightness than exterior signs. A sign that looks balanced on a bright factory floor may feel uncomfortable in a reception area with low ambient lighting. Dimming capability can be useful where the final lighting environment is difficult to predict.
Controlling Color and Brightness
Color consistency should be managed separately for daytime materials and nighttime illumination. A painted metal surface, printed vinyl, translucent acrylic face, and illuminated LED output may all target the same brand color while looking different under real conditions.
Pantone references are useful for paint and printing, but they do not fully predict illuminated color. RGB and CMYK values also vary between devices and production methods. For important brand projects, the most reliable process is to review physical paint chips, acrylic samples, printed samples, and illuminated mock-ups.
White-light color temperature is another important decision. Common commercial ranges include 2700–3000 K for warm hospitality interiors, 3500–4000 K for balanced retail and office environments, and 5000–6500 K for cooler, higher-contrast applications. These ranges describe visual character rather than automatic suitability. Surrounding architecture, brand colors, existing lighting, and photography requirements should all be considered.
Brightness is influenced by LED output, spacing, sign depth, acrylic transmission, ambient light, and viewing distance. More LEDs do not always produce a better sign. Excessive density can increase power consumption, heat, visible hotspots, and component count. Insufficient density creates dark areas. A good layout balances uniformity, efficiency, heat control, and serviceability.
How Do Design and Installation Connect?
Design and installation are connected through engineering. A sign is not production-ready until its dimensions, materials, lighting, wall condition, wiring, mounting holes, fasteners, access, transport sections, and service requirements have been considered together. A visual rendering may confirm appearance, but it does not confirm that the sign can be installed safely and efficiently.
Information Needed Before Engineering
A vector logo is only one part of the project. Reliable engineering requires information about the sign, building, electrical system, installation method, destination market, and expected delivery process.
Useful starting files include AI, EPS, SVG, PDF, or CAD artwork; brand guidelines; architectural elevations; sign-location plans; wall photographs; verified dimensions; color references; and the sign schedule. Site photographs should include wide views showing the complete installation area and close views showing the substrate, joints, obstacles, existing wiring, and surrounding finishes.
The project team should confirm:
- Indoor or outdoor use
- Installation height
- Viewing distance
- Wall, ceiling, or ground material
- Available input voltage
- Power-supply location
- Wiring route
- Required electrical components
- Preferred mounting method
- Local installer responsibilities
- Packaging and delivery method
- Required completion date
A photograph without a verified dimension cannot support an accurate production size. A door width, façade grid, tile dimension, or other known reference may help during early visualization, but final dimensions should be confirmed from architectural drawings or site measurements.
Project information should be collected in one approved record. When the dimensions are confirmed by email, the color changes in a messaging app, and the mounting holes appear only in a separate drawing, mistakes become much more likely.
Structural and Electrical Decisions
Engineering converts the approved visual design into a product that can be fabricated, transported, powered, installed, and maintained. For dimensional letters, the review includes stroke width, letter depth, face material, return material, back construction, internal reinforcement, LED layout, wiring groups, power capacity, exit points, and mounting pattern.
Thin strokes can limit LED placement and reduce structural strength. Large letters may require deeper returns to maintain light diffusion and stiffness. Oversized logos may need to be divided into transportable sections, but joints should avoid highly visible areas whenever possible.
Power supplies need enough capacity without excessive oversizing. Many sign projects include an operating margin rather than loading a power supply to its maximum rated output. Voltage drop should be considered when cable runs are long or when many letters share a circuit. Electrical components should also remain accessible for maintenance.
Outdoor construction requires deliberate water management. Completely sealing every cavity is not always the most reliable approach because condensation and minor moisture may still occur. Protected connections, suitable enclosures, controlled drainage, and accessible service points are usually more dependable than relying on sealant alone.
Heat also matters. LEDs, power supplies, and controllers generate heat. Crowded cabinets, dark finishes, direct sunlight, and poor ventilation can raise operating temperatures. Component placement and enclosure design should support practical heat dissipation.
Mounting Methods
Mounting should be selected according to sign weight, shape, electrical needs, wall material, installation height, service access, and local construction practice.
Individual stud mounting creates a clean appearance for metal or acrylic letters. Each letter uses threaded studs or pins aligned with an installation template. Accuracy is critical because small drilling errors can distort spacing or prevent the sign from fitting correctly.
Raceway mounting places letters and wiring on a shared metal enclosure. It reduces the number of wall penetrations and can simplify electrical access, although the raceway remains visible and should be coordinated with the façade color.
Backboards provide a shared mounting surface and can help conceal wiring or compensate for uneven backgrounds. They are useful when a logo includes many small components that would otherwise require extensive drilling.
Suspended signs require secure ceiling attachment and stable support against movement. Blade signs create leverage away from the wall and therefore need appropriate brackets, fasteners, and substrate strength. Freestanding signs may require posts, base plates, concrete foundations, and locally approved structural calculations.
The manufacturer can provide product weights, mounting-hole patterns, installation drawings, templates, and proposed hardware. The local installer should verify the actual substrate, hidden utilities, structural capacity, access equipment, weather conditions, and local safety requirements before drilling or lifting.
Codes and Site Approval
Compliance cannot be treated as one universal factory label. Requirements vary by country, city, property type, sign function, electrical system, building condition, and landlord.
Accessibility regulations may affect tactile letters, braille, character size, contrast, pictograms, clear floor space, and mounting height. Electrical rules may affect power supplies, wire types, disconnects, grounding, enclosures, and connection methods. Exterior signs may require permits, wind-load verification, structural calculations, illumination limits, planning approval, or landlord consent.
These requirements should be identified before final drawings are approved. Late changes can affect panel dimensions, text spacing, material thickness, brackets, electrical layout, price, and production time.
A practical division of responsibility is usually clear. The design team defines the visual and information system. The manufacturer develops product and manufacturing details. The local architect, sign contractor, engineer, electrician, or installer confirms site conditions and regulatory requirements. The project manager controls final approvals and revision status.
This approach is more reliable than claiming that one standard sign construction is automatically compliant in every market. Clear responsibilities protect the design, the manufacturing process, and the installation team.

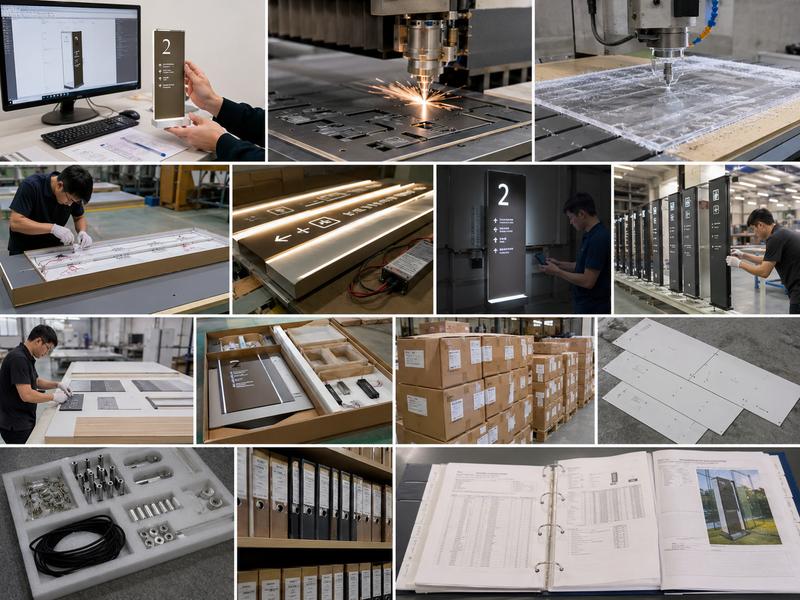

How Is the System Produced and Maintained?
A mixed sign system is produced through controlled drawings, approved samples, product-specific manufacturing, inspection, location-based packaging, and retained project records. Different sign types require different processes, but all components should follow the same approved project standards and revision controls.
Samples and First Articles
Sampling is most valuable when a project involves important brand colors, unfamiliar materials, special lighting, premium finishes, complex mounting, or repeated quantities. A sample does not always need to be a complete full-size sign. Depending on the main risk, it may be a working illuminated prototype, one representative letter, a reduced-scale construction sample, a paint panel, an acrylic lighting test, a tactile sign sample, or the first production article.
Approval should be specific. Dimensions, proportions, surface finish, paint color, illuminated color, brightness, dark areas, visible LED points, seams, edge quality, wiring exits, mounting holes, hardware, and packaging should be reviewed separately.
Standard custom-sign samples may be completed in approximately 5–7 days when materials and structures are straightforward. More complex samples can require around 7–15 days when they involve special finishes, custom components, large structures, RGB or RGBW control, detailed waterproofing, or unusual packaging. Actual timing depends on drawing approval and material availability.
Once approved, the sample should be linked to the production record. The factory should not rely on memory or photographs alone. Material codes, paint references, LED types, power supplies, dimensions, hole positions, wiring exits, and packing details should remain connected to the approved project files.
Production and Quality Control
A mixed project may include channel letters, light boxes, metal logos, acrylic letters, directional panels, plaques, room signs, and accessibility-related products. These products cannot follow one identical manufacturing route.
Channel letters may involve metal cutting, return forming, welding, grinding, painting, acrylic-face preparation, LED installation, wiring, assembly, and lighting tests. Light boxes add frame alignment, diffusion spacing, panel retention, and service access. Non-illuminated letters require close attention to cutting, edges, polishing, paint, flatness, and mounting pins. Tactile signs require precise text, dot formation, spacing, contrast, and location-specific details.
Quality control should follow the actual product specification. Common inspection points include dimensions, quantity, logo proportions, font shape, material thickness, paint, surface finish, acrylic condition, letter depth, welds, joints, LED color, light uniformity, power supplies, controllers, wiring, mounting holes, accessories, and packaging labels.
Illuminated products benefit from complete lighting inspection before packing. A 72-hour pre-shipment lighting test can help expose early LED, wiring, power-supply, or controller problems before international delivery. It cannot guarantee that no component will ever fail, but it is a practical way to reduce early-stage electrical risk.
Non-illuminated products should not be described as receiving lighting or electrical aging tests. Their inspection should focus on dimensions, materials, edges, engraving, printing, finishes, mounting, and packaging.
Packing by Project Location
Packaging has two responsibilities: protecting the product and helping the installation team understand what is inside each carton.
Acrylic faces and polished surfaces need protective film, foam separation, and protection from loose hardware. Projecting letter returns need support against crushing. Large metal components may require reinforced cartons, timber frames, or wooden cases. Power supplies, controllers, cables, templates, screws, and mounting parts should be separated and identified clearly.
For multi-zone projects, each sign should carry a code matching the sign schedule. Carton labels can identify the project, building, floor, zone, sign code, quantity, and accessory package. This reduces the chance that installers open every carton to locate one room sign or receive the correct sign with the wrong hardware.
| Control Item | Recommended Record | Practical Benefit |
| Product identity | Project and sign code | Matches each sign to its installation location |
| Drawing status | Approved revision number | Prevents outdated files entering production |
| Electrical setup | Voltage, power supply, controller | Supports correct connection and replacement |
| Installation | Hole pattern and template code | Reduces drilling and positioning errors |
| Accessories | Hardware and cable checklist | Prevents missing small parts |
| Carton contents | Sign codes and quantities | Speeds receiving and distribution |
| Inspection | Photos, test status, QC record | Supports acceptance and troubleshooting |
| Repeat order | Material and finish references | Improves future production consistency |
Packing by location is especially useful for hotels, hospitals, campuses, and chain-store programs where signs may be delivered in phases or sent to different addresses. Organized packaging can save many hours of sorting and reduce the risk of products being installed in the wrong area.
Maintenance and Future Expansion
Maintenance begins during design, not after a sign stops working. Illuminated signs should provide reasonable access to power supplies, controllers, wiring joints, and removable faces. Exterior enclosures should allow inspection of drainage paths, seals, fasteners, and electrical connections. Interior directories and tenant signs should be designed so that changing one name does not require replacing the entire structure.
Before approving a construction, the project team should ask whether the illuminated face can be removed without damaging the wall, whether the power supply remains accessible, whether tenant information can be replaced independently, whether one damaged letter can be reproduced, and whether material, finish, LED, and mounting references have been recorded.
Project records may include logos, drawings, dimensions, materials, paint colors, acrylic references, lighting specifications, wiring diagrams, mounting-hole positions, packaging details, and inspection photographs. Retaining these files for two or three years can support troubleshooting and repeat orders, although later production should still reconfirm component availability, material batches, color expectations, and current site requirements.
A successful sign system should not become difficult to manage after opening day. It should support replacement, tenant changes, new destinations, additional buildings, and new locations without forcing the client to rebuild every decision from the beginning.
Build a Sign System That Works Beyond Installation Day
The strongest mixed indoor and outdoor sign systems do more than present a consistent appearance. They help people arrive, make decisions, recognize destinations, and move through a property without unnecessary hesitation. They also give designers, contractors, installers, and facility teams a clear set of standards that can be manufactured, checked, installed, maintained, and repeated.
The most important decisions are rarely limited to choosing between aluminum, stainless steel, acrylic, or PVC. The real work involves connecting messages, viewing distances, material exposure, illumination, power, mounting, accessibility, packaging, and future updates. When those decisions are made together, the project becomes easier to manage and less dependent on onsite improvisation.
iduoduo is a Shenzhen-based custom sign manufacturer established in 2007. The manufacturing system includes five production bases, approximately 21,000 square metres of production space, more than 500 employees, 18 production lines, in-house designers, engineers, and quality-control personnel. Product capabilities cover channel letters, LED neon signs, light boxes, blade signs, acrylic LED logo signs, metal letters, acrylic letters, PVC and foam letters, directional signs, plaques, ADA signs, and other illuminated and non-illuminated commercial signage.
Projects can begin with a logo, sign schedule, architectural drawing, storefront photograph, brand manual, or existing product sample. The design and engineering teams can review sign types, materials, lighting, electrical requirements, mounting interfaces, sample development, production, testing, packaging, and international delivery according to the needs of the project.
To request a technical review and quotation, provide the available artwork, sign list, dimensions, quantities, indoor and outdoor locations, installation conditions, destination country, electrical requirements, and expected delivery date. A more complete project brief allows the manufacturing team to recommend a clearer, more practical, and more accurate custom sign solution.
