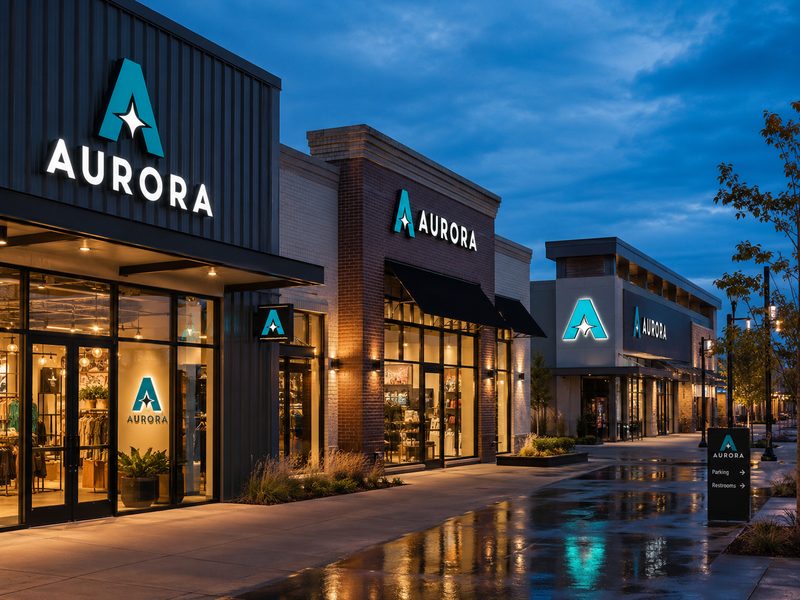

A storefront sign that performs beautifully at one flagship location may become a costly mistake when repeated across twenty, fifty or several hundred sites. The dimensions may not suit every façade, the lighting may look different between batches, the mounting system may conflict with local construction, or installers may receive boxes without clear store numbers and hardware references. Multi-location signage is therefore not simply a matter of choosing the most attractive sign. It is the process of creating a recognizable sign family that can survive real buildings, local rules, changing schedules and repeated production.
The best sign types for multi-location brands are usually channel letters for primary storefront identification, light boxes and blade signs for stronger visibility, interior logo signs for brand reinforcement, and ADA or wayfinding signs for navigation. The strongest program keeps logo proportions, colors and visual character consistent while allowing controlled changes in size, mounting, voltage, weather protection and site-specific engineering.
Imagine a restaurant group preparing twelve openings during the same quarter. The first location has a wide concrete façade, the fourth is inside a shopping center, the eighth occupies a narrow downtown storefront, and the twelfth faces coastal wind and salt exposure. Forcing one identical sign construction onto all twelve sites may look efficient on a spreadsheet, but it creates problems in the field. A well-planned system does something more useful: every store looks unmistakably connected to the same brand, while each sign is engineered for the building that must support it.

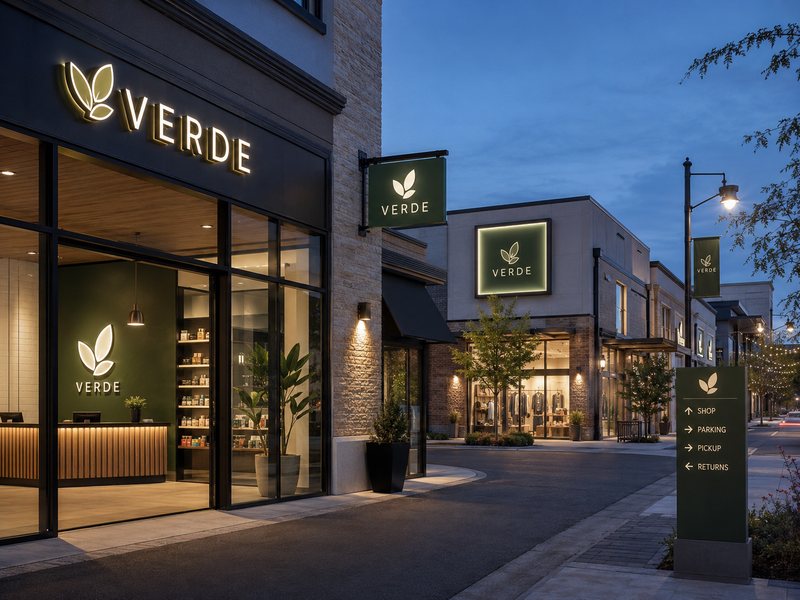

Which Sign Types Work Best Across Locations?
The strongest multi-location sign systems usually combine channel letters, light boxes, blade signs, interior logo signs, and ADA or wayfinding components. Each type handles a different customer need, including long-distance identification, side-angle visibility, interior brand recognition or navigation. Brands should select a coordinated family of products rather than expect one sign construction to perform every task at every property.
| Sign Type | Primary Function | Common Application | Typical Engineering Focus |
| Front-lit channel letters | Strong direct identification | Retail, restaurants, clinics and service stores | Face diffusion, return depth, LED spacing and mounting |
| Halo-lit channel letters | Premium dimensional branding | Hotels, beauty brands, offices and high-end retail | Wall reflection, rear spacing, finish and hidden wiring |
| Light boxes | Complete logos and graphic information | Façades, canopies, tenant panels and menu areas | Cabinet depth, service access, drainage and light uniformity |
| Blade signs | Side-angle pedestrian visibility | Downtown streets, malls and covered walkways | Bracket loading, projection, clearance and double-sided alignment |
| Interior logo signs | Brand reinforcement after entry | Reception desks, lobbies and checkout walls | Scale, finish, glare control and cable concealment |
| ADA and wayfinding signs | Room identification and navigation | Hotels, clinics, offices and large commercial spaces | Readability, tactile requirements, placement and message hierarchy |
Channel Letters for Storefronts
Channel letters remain one of the most dependable primary sign choices for retail chains, restaurants, clinics, hotels and service businesses. Each letter or logo element is manufactured as an individual three-dimensional unit, making it possible to preserve recognizable typography and spacing while adapting the overall sign size to different façades. They also provide clear daytime form and, when illuminated, strong nighttime recognition.
Front-lit channel letters direct light through the face toward the viewer. They are often preferred where long-distance visibility is important, such as roadside retail, shopping centers, supermarkets and restaurants that operate after dark. Letter depths around 80 to 150 millimeters are common for many commercial applications, although the correct construction depends on letter height, minimum stroke width, face material, wind exposure, service access and the required lighting effect.
Halo-lit letters send light toward the wall behind each letter, creating a softer glow around the form. This approach works particularly well for premium retail, hotels, beauty businesses, corporate offices and hospitality environments. The quality of the halo depends heavily on the mounting surface. Smooth, light-colored walls generally reflect a cleaner glow than dark brick, rough stone or highly reflective metal panels.
Front-and-halo-lit letters combine direct face illumination with a rear glow. The result can be visually powerful, but the product requires tighter control of face diffusion, rear spacing, internal wiring and electrical load. Adding more light is not always an improvement. If the front face and rear halo compete with one another, the logo can appear harsh or visually confused rather than more premium.
For a repeatable program, the brand should approve more than the front artwork. The specification should also record letter height, overall logo width, minimum stroke width, return depth, face and side colors, illumination style, light color, power arrangement, mounting method, wire exit and installation template. Without these records, every replacement order becomes a fresh interpretation rather than a controlled reproduction.
Light Boxes and Blade Signs
Light boxes are especially useful when a logo contains several colors, compact lettering or graphic details that would be difficult to separate into individual illuminated letters. They allow the complete identity to appear on one illuminated face and can work well on busy façades where a defined cabinet creates stronger visual separation from the surrounding architecture.
A properly designed light box needs adequate internal space for light distribution. Cabinet depths of approximately 80 to 200 millimeters are common in many commercial projects, but there is no universal depth that suits every size. The correct distance depends on the LED type, module spacing, face material, graphic opacity, cabinet dimensions and required brightness. A cabinet that is too shallow may show visible light points, while excessive spacing between modules can produce dark bands and weak corners.
Service access also matters. A light box that looks clean on the first day may become expensive to maintain if the face, power supplies or internal wiring cannot be reached without removing the entire unit. Outdoor cabinets need considered seams, cable entries, drainage paths and fasteners rather than a vague promise that the product is waterproof.
Blade signs address a different problem. A wall sign can be highly visible when viewed directly from the front but almost disappear to pedestrians walking parallel to the storefront. By projecting perpendicular to the façade, a blade sign gives customers approaching from either direction a clear identifying element before they reach the entrance.
Projections of roughly 450 to 900 millimeters are common for many pedestrian-oriented blade signs, but the allowable size is usually influenced by local rules, mounting height, wind conditions and building structure. The bracket carries the full sign load and receives repeated stress from vibration and weather, so it must be treated as an engineered component rather than decorative hardware.
Interior Logo Signs
Interior signs continue the brand experience after customers enter the building. Common locations include reception walls, hotel lobbies, waiting areas, restaurant interiors, checkout zones and corporate offices. Suitable constructions may include acrylic LED logos, halo-lit metal letters, brushed stainless-steel logos, painted acrylic letters, non-illuminated metal letters or selected LED neon accents.
The brightest sign is not automatically the most effective interior sign. Customers view interior logos from shorter distances, making edge quality, surface finishing, alignment and cable concealment much easier to notice. Excessive illumination can create glare behind a reception desk or reflect badly from glass partitions, polished stone and glossy furniture.
Material choices should match both the brand and the physical environment. Brushed stainless steel can communicate permanence and precision, while painted acrylic offers a cleaner and lighter appearance. Foam or PVC letters may be suitable for large non-illuminated displays where low weight and simple installation matter, although they may not provide the same impact resistance or premium surface character as metal.
The sign should be scaled to the actual wall rather than copied at the same dimensions used outside. A practical layout leaves enough visual space around the logo so that lighting fixtures, furniture, doors and architectural features do not crowd it. For multiple locations, a family of approved sizes is usually more useful than one fixed dimension.
A small store might use a reception logo around 900 millimeters wide, while a flagship space may require a version measuring 2,500 millimeters or more. The overall dimensions can change, but the relationship between the symbol, wordmark, finish and lighting should remain stable enough that the brand is immediately recognizable.
ADA and Wayfinding Signs
ADA and wayfinding signs are part of the functional infrastructure of a commercial space. They help visitors identify permanent rooms, locate entrances, find restrooms, navigate corridors and understand how different areas connect. In clinics, hotels, offices, restaurants and large retail environments, poor navigation can make an otherwise professional location feel disorganized and difficult to use.
Effective wayfinding begins with message hierarchy. Visitors should first understand the major destination, then the direction, and finally the specific room or service. Placing ten lines of equally weighted information on a single panel may satisfy an internal list, but it usually reduces readability. A simpler sign with three clearly organized destinations can guide people more effectively.
ADA-related signs in the United States may require tactile characters, Braille, visual contrast, approved pictograms and specific mounting positions. The exact requirements depend on the sign function and project jurisdiction. A generic online template should not replace confirmation by the project architect, accessibility consultant, local contractor or responsible authority.
The brand can still maintain a recognizable visual system through permitted colors, material families, borders, message formats and arrow styles. However, brand expression must not weaken legibility or accessibility. Navigation signs should work first and decorate second.
Multi-location brands also benefit from modular sign designs. Room names, departments, tenants and service areas may change over time. A replaceable panel, removable insert or standardized face can reduce the cost and disruption of future updates while keeping the main frame and mounting system in service.
How Should Signs Match Each Site?
Signs should match the viewing distance, façade construction, mounting surface, climate, electrical supply, access conditions and local regulations of each site. The visible brand identity can remain consistent while dimensions, depth, fasteners, backing structures, voltage and weather protection change in a controlled way. Standardization works best when it governs decisions rather than pretending every building is identical.
| Site Factor | Information to Confirm | Likely Effect on the Sign | Frequent Project Error |
| Viewing distance | Approach direction, speed and mounting height | Letter height, stroke width and contrast | Keeping detailed artwork too small |
| Wall construction | Brick, concrete, glass, stone or cladding | Fasteners, backing and cable route | Assuming one mounting kit fits all façades |
| Climate | Rain, heat, freezing, UV and salt exposure | Materials, seals, drainage and coatings | Treating one component rating as the whole system rating |
| Electrical supply | Input voltage, power location and wire length | Power supplies, circuits and certification version | Confirming electrical details after production |
| Access conditions | Door size, elevators, cranes and working height | Segmentation, packaging and assembly | Manufacturing one section that cannot reach the site |
| Local requirements | Sign area, projection, illumination and permits | Size, bracket, lighting and mounting | Releasing production before local approval |
Viewing Distance and Readability
A sign must be designed for the conditions in which customers will actually see it. A pedestrian standing three meters from a mall storefront can study details that would disappear for a driver approaching a freestanding building from fifty meters away. Installation height, traffic speed, approach angle and visual clutter all affect the time available for recognition.
A common planning reference is to allow roughly 25 millimeters of letter height for every three meters of comfortable viewing distance. This can be useful during early discussions, but it should not be treated as a final engineering formula. Thin scripts, weak contrast, closely spaced letters and complex logos often require larger dimensions than bold, simple letterforms.
The narrowest stroke can matter as much as the total logo width. Enlarging a sign does not automatically improve legibility if delicate lines remain too thin, internal spaces close up or separate elements merge when viewed from a distance. Engineering teams may need to increase stroke width, simplify tiny details or enlarge the complete mark to protect both readability and manufacturability.
Viewing angle is another frequent source of problems. A façade sign may be clear from the opposite side of a parking lot but partly hidden by a canopy when customers approach from the side. A projecting blade sign, monument panel or secondary directional sign may solve this problem more effectively than simply making the main sign larger.
Nighttime visibility should be reviewed separately from daytime appearance. Illumination that looks balanced during a factory test may feel too bright on a quiet rural road or too weak in a busy district filled with competing lights. The intended environment, operating hours and surrounding brightness should guide the final light output.

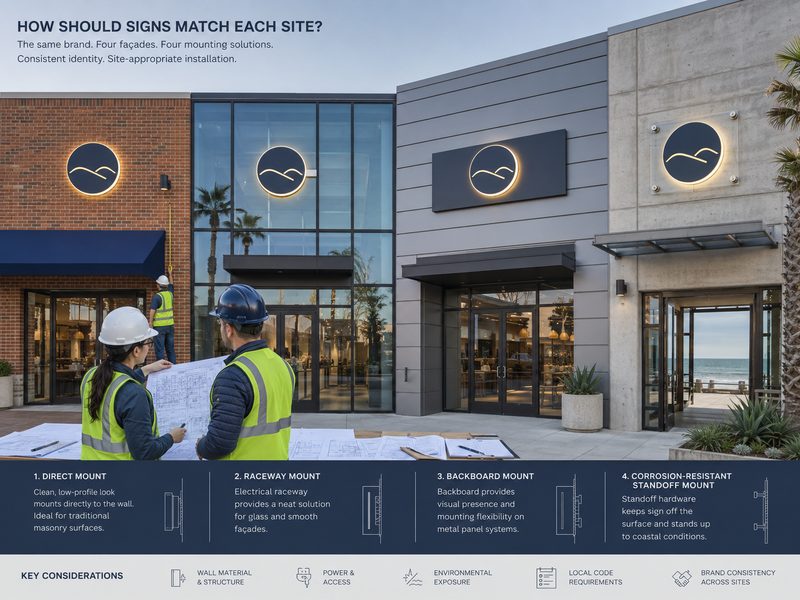

Façades and Mounting Surfaces
The same logo can require completely different mounting methods on brick, reinforced concrete, insulated panels, curtain-wall glass, timber, stone or decorative cladding. Accurate information about the wall should be available before the manufacturer finalizes holes, studs, backing plates, raceways and wire exits.
Direct-mounted channel letters create a clean appearance because each letter is fixed individually to the façade. However, the installer may need multiple drilled holes and individual cable penetrations. This method works best when the wall can accept precise drilling and when electrical access is available behind the mounting surface.
Raceway-mounted letters reduce the number of building penetrations because the letters are attached to a metal enclosure that carries wiring and, in some cases, power supplies. A raceway can simplify installation and maintenance, but it introduces a visible structural element. Its color is often matched to the façade or incorporated deliberately into the approved visual system.
A backboard may create contrast, cover previous fixing marks, bridge façade joints or provide a shared support structure. It can be particularly useful where direct mounting would place letters across several materials or uneven architectural surfaces. The backboard still requires proper drainage, fastening, thermal movement allowances and service access.
Glass installations need special attention because wiring, brackets and rear surfaces may remain visible from inside or outside. The rear of the product may need almost the same finishing care as the front. Cable routes and power-supply locations should be coordinated with the interior fit-out before the sign arrives.
Before production, the project team should provide wall photographs, elevation drawings, dimensions, wall material, cable information, access limitations and installer comments. A drilling template is valuable only when it reflects the final approved product and the actual site conditions.
Indoor and Outdoor Materials
Material selection should reflect the real environment rather than appearance alone. Stainless steel, aluminum, acrylic, PVC, foam and composite panels can all perform well when they are used for suitable applications, but no single material is the correct choice for every sign or location.
Stainless steel provides a premium surface and good structural performance. Grade 304 is commonly selected for many indoor and general outdoor uses, while grade 316 may be preferred for coastal, marine or more corrosive environments. The final decision should consider exposure, finish, cleaning, expected lifespan and available budget rather than relying only on the material name.
Aluminum is lighter than stainless steel and naturally resistant to corrosion. It is widely used for channel-letter returns, light-box frames, backboards and larger structures where weight matters. Painted or powder-coated aluminum can match many brand colors, but outdoor performance still depends on surface preparation, coating thickness and production consistency.
Acrylic is frequently used for illuminated faces, logo panels and dimensional letters. Sign-grade thicknesses from approximately 3 to 20 millimeters are common, depending on the product structure and size. Large acrylic panels require adequate support and allowance for thermal expansion, while illuminated applications must consider transmission, diffusion and nighttime color.
PVC and foam materials can be practical for lightweight, non-illuminated interior letters and displays. They are easy to cut and install, but they may not provide the same impact resistance or premium finish as metal. The decision should match the location rather than treating one material as universally superior.
Outdoor protection depends on the complete assembly. An LED module or power supply with an IP rating does not automatically make the entire installed sign equally protected. Seams, cable entries, drain openings, fasteners, adhesives, wall penetrations and maintenance access all influence real performance. In many outdoor constructions, controlled drainage is more dependable than trying to seal every cavity permanently.
Voltage and Local Requirements
Illuminated signs commonly use low-voltage direct-current lighting internally, often in 12 V or 24 V configurations. A power supply converts the building input to the required output. The input voltage, plug, cable standard, power-supply certification and labeling can differ between destination markets even when the visible sign remains unchanged.
A power supply should not normally operate continuously at its absolute maximum rating. Many experienced sign engineers allow approximately 15% to 20% spare capacity when this aligns with the component manufacturer’s instructions. The appropriate margin depends on ambient temperature, cable length, installation method and actual electrical load.
Long wire runs can create voltage drop, particularly in 12 V systems. A large sign may therefore need several power groups rather than one remotely located supply. Shop drawings should identify expected power consumption, circuit grouping, supply location, wire exits and connection responsibility before production.
Electrical compliance is market-specific. A sign manufactured for the United States may require different components, markings or documentation from a version intended for the European Union, the United Kingdom or Australia. The brand, local sign contractor and manufacturer should confirm these requirements before materials are ordered.
Local sign regulations can also affect overall sign area, projection, mounting height, brightness, animation and operating hours. Landlords and shopping-center management teams may impose additional rules. Production should not begin merely because the logo appearance has been approved.
A practical responsibility split keeps the project clear. The brand controls identity, the manufacturer confirms production feasibility, and the local architect, contractor, engineer or authority confirms building and regulatory conditions. This avoids unrealistic promises that one factory approval automatically satisfies every local requirement.
What Sign Standards Keep Stores Consistent?
A sign standards system should control logo geometry, typography, visible colors, materials, finishes, illumination, structural depth, mounting principles, electrical versions, packaging labels and approval records. It should also define which details may change by location. Consistency comes from documented decisions and approved references, not from asking different teams to make each new order “similar to the previous one.”
| Standard Area | Elements That Usually Stay Fixed | Controlled Site Variations | Useful Approval Evidence |
| Logo | Artwork, proportions, typography and spacing | Overall size | Approved vector file and dimensioned drawing |
| Color | Brand reference and gloss level | Minor process adjustment after sampling | Physical sample or signed color panel |
| Illumination | Lighting style and visual color | Brightness, circuits and power position | Illuminated sample and test photographs |
| Structure | Approved product family and visible character | Internal reinforcement and segmentation | Section drawing and engineering notes |
| Mounting | Approved visual approach | Fasteners, hole positions and cable exit | Site drawing and installer confirmation |
| Packaging | Label format and protection standard | Carton, crate and shipment dimensions | Packing specification and pre-shipment photographs |
Sign Standards Manual
A useful sign standards manual connects visual identity with manufacturing and installation. A traditional logo guide containing only colors, clear space and permitted backgrounds is not enough for a rollout involving illuminated letters, light boxes, interior logos and directional components.
The manual should identify the approved sign families for different applications. It might specify front-lit channel letters for primary street façades, non-illuminated acrylic letters for shopping-center interiors, blade signs for pedestrian streets and tactile signs for permanent rooms. This prevents each location manager or contractor from choosing a completely different product.
Each approved sign family should include front views, side sections, materials, finishes, face and return colors, common depth ranges, lighting method, mounting principles and permitted variations. It should also show how the logo can be resized without altering proportions, closing negative spaces or weakening narrow strokes.
Daytime and nighttime references are both important. A red acrylic face may match the brand color while unlit but shift toward orange or pink after illumination. The standard should therefore consider the combination of face material, paint, printed film, LED color and diffusion rather than approving those elements separately.
The manual should state who approves different types of changes. A change to logo spacing is a brand decision, while moving an internal support may be an engineering decision. Relocating mounting holes may require installer confirmation. Clear responsibility prevents small uncontrolled choices from gradually changing the brand across multiple locations.
The most useful manual is not necessarily the longest. It is a controlled set of instructions that designers, purchasing teams, manufacturers, inspectors and installers can all use without interpreting the same requirement in five different ways.
Details That Must Stay Fixed
The elements most closely connected to customer recognition should remain stable. These typically include logo proportions, letter spacing, typography, symbol-to-wordmark relationships, visible brand colors and the overall lighting character. Customers may never notice that two stores use different internal brackets, but they will notice when a familiar red becomes orange or when the spacing between letters looks wrong.
The master logo should be stored as an approved vector file. Reconstructing artwork from a screenshot, website image or old photograph can introduce changes to curves, corners, line thickness and spacing. Small deviations become much more obvious when a logo is enlarged to several meters across a façade.
Color requirements should be more precise than descriptions such as red, gold or warm white. Paint and printing can be referenced against approved Pantone targets or physical samples. Lighting may be defined with both a descriptive name and a color-temperature range. Warm white often falls around 2,700 to 3,500 K, neutral white around 4,000 to 4,500 K, and cool white around 5,500 to 6,500 K, although the final appearance depends on the face material and environment.
Some professional projects use instrumental color readings such as Delta E to compare samples and production. A result below approximately 2 to 3 may appear visually close in many controlled situations, but measurement method, gloss, texture and illumination can influence the result. Physical approval remains important for sensitive brand colors.
Visible letter depth and finish should also remain within an approved range. One store using shallow matte-black letters and another using deep mirror-finished letters may technically display the same logo, but the resulting brand character will be noticeably different.
Details That May Change
Overall dimensions usually require the greatest flexibility. A logo designed for a ten-meter façade cannot be installed at the same size on a four-meter mall storefront. The standards should explain how the logo scales and may provide several pre-approved size groups for common building conditions.
Mounting methods can also vary. One store may allow direct-mounted letters, while another requires a raceway to limit wall penetrations. A third location may need a backboard to bridge façade joints or cover an uneven surface. These changes can be treated as controlled engineering variations when the visible brand character remains within the approved system.
Letter depth may change within a defined range. Large letters often require additional depth for rigidity and even lighting, while compact interior letters may use a shallower construction. The variation should not become so extreme that the sign family no longer looks related.
Power-supply positions, voltage versions, internal reinforcement and wire exits may also change without affecting the front appearance. Packaging varies according to product dimensions, freight method and site access. A coastal location may need a different material or corrosion-protection version while retaining the same visible color and logo proportions.
Large signs sometimes need to be divided into sections for shipping, elevator access or safe installation. Joint locations should be planned where they are visually discreet and structurally sensible. Segmentation should not be improvised after manufacturing is complete.
A detail being allowed to change does not mean it can change without records. Controlled variation means the project team follows an approved decision method, updates the drawing and confirms the final version before production.
Samples and Production Records
A first article, representative sample or pilot-store package provides a physical reference before a rollout expands. It can verify proportions, materials, finishes, illumination, wire routing, mounting hardware and packaging. This is particularly useful for complex logos, custom colors, unusual coatings and signs that combine several materials.
The sample does not always need to be the full largest storefront set. Depending on risk, the team may approve one representative letter, a logo section, an illuminated face sample, a painted color panel or one complete pilot-store package. The approval method should match the decisions that carry the greatest risk.
A standard custom illuminated sample may often require approximately 5–7 working days after drawings and materials are confirmed. Complex structures, special coatings, RGB controls, custom components or unusual weather-protection requirements may require approximately 7–15 days. The schedule should begin after the necessary approval information is complete.
An approved sample should be supported by production records rather than used alone. Useful records include the vector artwork, dimensioned drawing, material list, finish reference, LED model, light color, power-supply specification, mounting holes, wire exit, installation template and packaging method.
The physical sample communicates surface quality and lighting more clearly than a drawing. The drawing communicates dimensions and internal construction more clearly than the sample. Reliable repetition depends on keeping both types of reference connected.
For future reorders, historical specifications should be checked rather than followed blindly. LED modules, power supplies, acrylic sheets and paint systems may change over time. The manufacturer should compare current materials with the approved record and communicate any meaningful substitution before producing replacements.
How Do Multi-Location Sign Rollouts Stay Controlled?
A controlled rollout uses one approved master standard, individual site records, revision-controlled drawings, first-article approval, batch inspections, store-numbered packaging and planned shipments. Every location should share the same brand rules while maintaining its own dimensions, electrical configuration and mounting information. This structure prevents mixed files, inconsistent finishes, missing accessories and avoidable installation delays.
Drawing and Approval Control
The approved drawing connects the brand concept with the physical product. Each drawing should carry a project number, store number, product code, revision number, date and approval status. When multiple locations are active at the same time, these identifiers prevent one store’s dimensions or electrical details from being applied accidentally to another.
Project information often arrives through email, messaging applications, PDFs, CAD files, cloud folders and video meetings. These channels are useful during development, but production should follow one consolidated approved version. A comment in an old message should never silently replace the current shop drawing.
The final drawing package should normally show overall dimensions, individual letter heights, minimum stroke widths, materials, colors, lighting method, structural depth, power requirements, installation holes, wire exits, backboards, raceways, segmentation and packaging notes.
A revision log becomes especially valuable when changes occur after several stores have entered different production stages. The log should state what changed, who requested it, which locations are affected and whether any materials have already been cut or finished.
Approvals can be divided into logical stages. The brand team approves the visual layout, the installer confirms mounting and cable positions, and the purchasing team approves the commercial scope. Treating every decision as one vague “approved” message makes later responsibility difficult to understand.
Starting production before the required approval may appear to save time, but a late change to color, size or hole position can create much more rework than the time initially saved. A controlled release protects both schedule and cost.
Batch Consistency and Testing
Batch consistency begins before final assembly. Materials, paint references, face colors, LED specifications, power supplies, brackets and packaging labels should be checked against the approved project standard before they enter production.
The first completed product from a batch should receive careful inspection. This first-article check can reveal incorrect dimensions, finish differences, weak light diffusion, hole-position problems or unsuitable wiring before the same error is repeated across dozens of units.
Illuminated signs need both unlit and lit inspection. Daytime checks cover dimensions, surface finish, logo shape, scratches, seams, color and alignment. Lighting checks cover brightness, dark areas, hotspots, leakage, light color and consistency between letters or logo elements.
A practical illuminated-sign inspection normally reviews:
- Overall sign dimensions and individual component dimensions.
- Approved materials, coatings and visible colors.
- Face fit, return depth and edge finishing.
- LED model, spacing and secure attachment.
- Power-supply model, capacity and circuit grouping.
- Wiring condition, connectors and cable exits.
- Light color, brightness and visible uniformity.
- Mounting holes, studs, brackets and templates.
- Accessories, labels, packaging and carton contents.
Providing approximately 15% to 20% spare power-supply capacity is a common engineering practice in many LED sign applications when it follows the component manufacturer’s guidance. The finished system should be tested using the intended operating voltage and control configuration.
A 72-hour pre-shipment lighting test can help expose early faults involving LEDs, power supplies, connectors, wiring or controllers before the product enters international transport. It cannot guarantee that a sign will never experience a problem, but it provides more useful evidence than switching the unit on for only a few minutes before packing.
iduoduo’s documented process includes incoming checks, first-article approval, in-process inspection, dimensional and appearance checks, 100% lighting inspection, electrical verification, outdoor-protection review, 72-hour pre-shipment testing, packaging inspection and a three-year warranty framework.

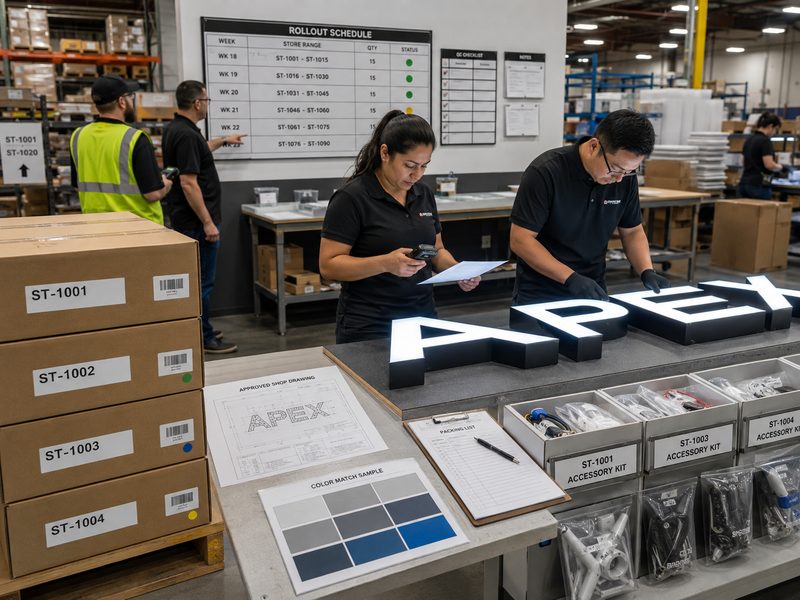

Store-Numbered Packaging
Multi-location packaging has two equal responsibilities: protecting the sign during transport and telling the receiving team exactly where each item belongs. A perfect sign delivered to the wrong store or without its correct power supply is still a failed delivery.
Each carton or crate should display the brand or project code, store number, product number, carton sequence and a clear description of the contents. A label reading “Store 018, Main Façade Letters, Carton 2 of 4” is much more useful than a generic label such as “LED Sign.”
Power supplies, controllers, brackets, screws, spacers, studs, templates and connection diagrams should be packed in separate labeled sections or accessory kits. Heavy power supplies should not move freely inside a box containing acrylic faces or painted metal because they can create severe impact damage during transport.
Store separation becomes especially important when locations share the same logo but use different dimensions. The products may look nearly identical when wrapped, while hole positions, wire lengths, brackets or electrical versions are different. Store and SKU codes allow warehouse teams and installers to identify the correct package without opening every box.
Large products may require reinforced cartons, wooden frames, plywood crates or pallets. Acrylic faces need protection from pressure and scratching, while protruding studs and delicate corners need local reinforcement. Surface protection should also avoid leaving permanent foam marks or pressure impressions on painted and mirror finishes.
A packing list should identify the contents of every package. Photographs taken before the carton or crate is closed can support receiving checks, claims and after-sales diagnosis. Good packaging reduces site confusion and helps installers open products in the correct sequence.
The company’s documented packaging system includes product-specific surface protection, EPE or pearl-cotton cushioning, corner guards, reinforced cartons, custom inserts, wooden frames, plywood crates, separate accessory kits, store labels, SKU labels, numbered cartons and packing records for split or multi-address delivery.
Phased Shipping and Reorders
A multi-location rollout rarely follows one perfect opening schedule. Some stores receive permits early, others face construction delays, and certain locations require urgent replacement signs. Phased shipping allows manufacturing and delivery to follow the actual site sequence rather than holding every finished product until the final location is ready.
The project schedule should connect drawing approval, material preparation, production, testing, packing, freight, customs clearance and planned installation. A store opening date alone is not enough. The team needs to work backward from the installation window and allow time for international transport, regional delivery and unexpected site conditions.
A regular custom-sign production batch may require approximately 7–10 working days after final approval and material readiness. Medium-volume or multi-SKU projects may require around 10–20 working days or more. Special finishes, oversized structures, complex electrical systems and large location counts require a dedicated production schedule.
Small urgent packages may move by courier or air, while larger planned batches are often more economical by sea. A single rollout can use several transport methods when opening priorities justify the extra coordination. The packaging should be designed for the selected transport method rather than using the same box for every route.
Reorders should begin with the historical drawing, bill of materials, color reference, LED specification, power supply, plug, mounting holes, template, packaging and original store number. The manufacturer should then confirm whether the current wall, destination market and material availability remain unchanged.
Historical records reduce the need to restart development, but they do not eliminate review. A component may no longer be available, the building may have been remodeled or the replacement may be going to a different country. Controlled reproduction means matching the original as closely as practical while communicating any necessary changes before production.
How Do You Choose a Sign Manufacturer?
Choose a sign manufacturer by verifying product range, engineering depth, production processes, quality records, electrical knowledge, packaging systems, after-sales procedures and repeat-order control. A dependable supplier should explain how the sign will be designed, manufactured, inspected, packed and reproduced. A low quotation has little value when suppliers are pricing different materials, structures, testing levels or delivery scopes.
| Evaluation Area | Evidence to Request | Positive Indicator | Warning Sign |
| Manufacturing | Factory video, process photos and product range | Visible metal, acrylic, lighting and assembly capability | Only showroom or catalogue images |
| Engineering | Shop drawings, sections and electrical details | Questions about site, wall and installation | Quotation based only on logo width |
| Quality control | Inspection records, test photos and videos | Product-specific inspection stages | One brief final visual check |
| Rollout control | Store labels, revision logs and batch plans | Separate records for each location | Mixed files and informal approvals |
| Packaging | Packing drawings, carton labels and protection details | Product-specific cartons or crates | Loose accessories and generic boxes |
| After-sales | Warranty terms and diagnostic procedure | Evidence-based investigation | Immediate blame without technical review |
| Reorders | Saved drawings, BOM and finish records | Controlled reproduction procedure | Rebuilding products from photographs |

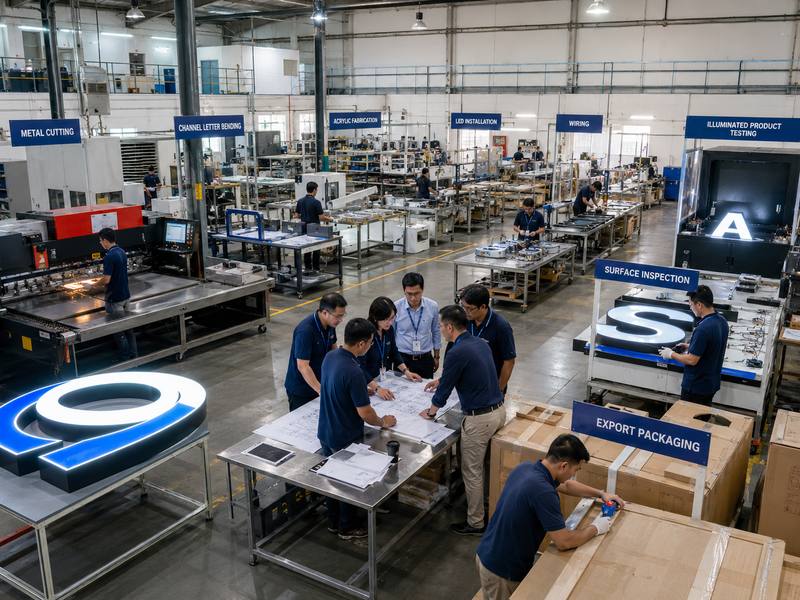

Manufacturing and Engineering Capability
A multi-location program may include channel letters, light boxes, blade signs, interior logos, acrylic letters, metal letters and wayfinding components. A supplier that only manufactures one simple product may outsource the rest, making it harder to coordinate colors, drawings, production schedules and packaging across the complete sign family.
The evaluation should examine how metal is cut, bent, welded, ground and finished; how acrylic is cut, polished, printed and assembled; and how LEDs, power supplies, controls and wiring are selected. The manufacturer should be able to explain how letter depth, face material, module spacing and internal distance influence lighting uniformity.
Capacity should be discussed in relation to product mix rather than only the number of units per month. A compact LED neon sign, a three-meter channel-letter set and a double-sided light box do not consume the same labor, equipment, test time or packaging space.
A capable manufacturer should be able to separate sample production from bulk scheduling, run several SKUs simultaneously and preserve sufficient time for inspection. Production areas should also prevent raw materials, unfinished parts, tested products and packed cartons from becoming mixed.
Designers, engineers and quality personnel should have defined responsibilities. Designers organize artwork, scale and visual layouts. Engineers evaluate structure, materials, illumination, power, wiring, mounting and transport. Quality teams compare production with the approved specification and document the result.
Factory photographs and video tours can help verify that real cutting, bending, welding, acrylic processing, wiring, testing and packing activities are taking place. The strongest evidence connects visible factory processes with an actual project workflow rather than showing only finished samples in a showroom.
iduoduo’s documented manufacturing structure includes five production bases, approximately 21,000 square meters of production space, more than 500 employees, 18 production lines, and dedicated design, engineering and quality teams supporting illuminated and non-illuminated sign projects.
Engineering Records
A professional manufacturer should provide more than a front-view rendering. Useful engineering records may include dimensioned shop drawings, side sections, material descriptions, structural depths, LED layouts, power calculations, circuit groups, installation holes, wire exits, raceway details, backboards and packing plans.
A side section often reveals issues hidden by a visual rendering. It shows whether there is enough internal space for the selected LEDs, whether the face can be serviced, where water might collect and how the sign connects to the wall.
Power records should identify the expected electrical load and selected power-supply capacity. Large signs should show how circuits are divided. Cable length and voltage drop should be considered when supplies cannot be installed close to the product.
Mounting documents should state whether the sign uses studs, screws, brackets, a raceway, a backboard or another interface. The local installer should review these details before manufacturing, especially when the building uses unusual cladding or limited internal access.
For oversized products, the manufacturer should explain how the sign will be divided and reassembled. Joint positions, alignment features, cable connections and installation sequence should be planned before cutting begins rather than left for the installation team to improvise.
Good engineering records also make quality control, after-sales investigation and replacement production easier. They create a technical reference that remains useful after the original salesperson, installer or project manager has moved on.
Quality and Warranty
Quality control should be specific to the sign type. An illuminated channel letter needs electrical and lighting checks that do not apply to a non-illuminated metal logo. An ADA room sign needs checks that are different from those used for a large outdoor light box.
Illuminated-product inspection should cover dimensions, materials, finish, LED model, power supply, wiring, connectors, lighting color, brightness, uniformity and operating stability. Non-illuminated products should be checked for dimensions, flatness, edge quality, printing, coating, color, mounting hardware and packaging.
The supplier should explain whether inspection occurs during production or only after final assembly. Incorrect hole positions, weak welds, poor wiring routes and unsuitable surface preparation are easier to correct before the product is complete.
Useful evidence can include project-linked inspection sheets, dated photographs, lighting videos, packing photographs and release records. General factory videos may show capability, but they do not prove that a specific order was inspected against its approved drawing.
Warranty length should always be considered together with its conditions. Commercial signs may have different coverage depending on product type, indoor or outdoor use, components, installation, voltage, weather exposure and maintenance. A clear warranty explains the covered parts, required evidence and method for arranging replacement components.
A professional after-sales process distinguishes between manufacturing defects, power-supply faults, wiring issues, incorrect voltage, transport damage, water entry and installation errors. The supplier should request photographs, videos, order information and operating details before reaching a conclusion.
The documented iduoduo service framework includes a three-year warranty, initial after-sales response within 24 hours after receiving useful photographs or videos, preliminary assessment within 24–48 hours, small replacement-part arrangements within approximately 3–7 days, and a proposed plan for major issues within 48–72 hours.
Long-Term Rollout Support
Long-term support requires more than producing one successful sample. The supplier must preserve approved standards across new locations, replacement orders, different countries and changing opening schedules.
The factory should retain vector artwork, drawings, material records, colors, LED specifications, power supplies, mounting holes, wire exits, templates, packaging and previous corrective actions. A two- to three-year record-retention period can support many active programs, although longer rollouts may justify a separate archive agreement.
Repeat orders should be compared with previous production rather than released automatically. The manufacturer should confirm whether the original materials and electrical components remain available and explain any substitution that may affect appearance, installation or performance.
Expansion may require store-separated cartons, neutral packaging, private labels, regional warehouse delivery, multi-address shipment or direct delivery to installers. These details should be discussed during quotation because they affect packaging labor, labeling, logistics and project coordination.
A dependable manufacturer should be comfortable explaining that a logo needs a thicker stroke, a special color requires physical sampling, or a rushed deadline would reduce the available test period. Honest technical communication is often a stronger sign of long-term reliability than immediate agreement with every request.
Building a Sign System That Can Grow
The best sign types for multi-location brands are not selected through a single product ranking. They are chosen by matching each sign’s purpose with the way customers approach the site, the way the building supports the product and the way the brand plans to repeat it. Channel letters may carry primary identification, while blade signs improve pedestrian visibility, light boxes support complete graphics, interior logos reinforce the experience, and wayfinding signs keep each location functional.
The strongest programs keep the visible identity stable while allowing controlled engineering changes. Logo proportions, typography, brand colors and visual lighting character should remain recognizable. Dimensions, mounting structures, electrical versions, weather protection, segmentation and packaging may change when the building or destination requires a different solution.
Before requesting a quotation, prepare the vector logo, preferred sign types, approximate dimensions, location list, indoor or outdoor conditions, façade photographs, destination countries, electrical requirements, installation information and target opening dates. Better input allows the manufacturer to identify missing details, compare alternatives and build a quotation around a realistic product rather than assumptions.
iduoduo supports brands, sign companies, advertising agencies, designers, contractors and commercial project teams with channel letters, light boxes, blade signs, acrylic LED logos, metal letters, acrylic letters, PVC and foam letters, ADA signs, wayfinding components, export packaging and repeat-order support. The project can begin from approved drawings, vector files, brand manuals, storefront photographs or preliminary concepts.
Send the available project files and store list to request a site-aware sign review and quotation. The objective is not simply to manufacture the first set of signs, but to establish a practical specification that can be approved, tested, packed, installed and reproduced as the brand continues to open new locations.
