A sign can look almost perfect in a rendering and still become unnecessarily difficult when the installer reaches the wall. The letters may require too many penetrations, the wiring may have nowhere to go, the façade may not provide enough contrast, or the final alignment may depend on several hours of careful measuring from a lift. That is why the choice between individually mounted letters and a backboard sign is not simply an aesthetic preference. It affects engineering, electrical access, installation labor, freight, maintenance, landlord approval, and the long-term appearance of the brand.
Individually mounted letters usually create the cleanest architectural appearance when the wall is flat, visually suitable, structurally reliable, and accessible for wiring. Backboard signs are often more practical when the wall is uneven, visually busy, difficult to penetrate, or unable to conceal electrical components. Neither method is universally better; the right choice depends on site conditions and total installed cost.
A retail project once appeared straightforward: nine illuminated letters on a stone storefront. The brand initially rejected a backboard because it looked less minimal. Then the installer discovered that the stone could not be drilled freely and there was no usable cavity behind it. One small mounting decision suddenly affected the wall, wiring, permit plan, installation schedule, lifting method, and budget. That is the real comparison this guide addresses.

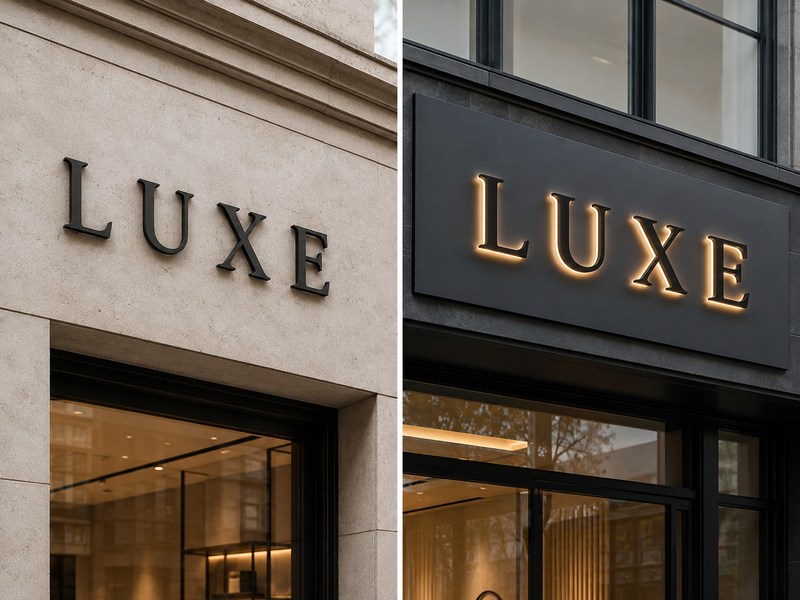

What Are Individually Mounted Letters and Backboard Signs?
Individually mounted letters are installed as separate components directly onto a wall, while backboard signs place the letters and logo on a shared supporting panel before installation. This structural difference changes how the sign is aligned, anchored, wired, packed, serviced, and visually integrated with the building. Both systems can support illuminated and non-illuminated signage.
Individually Mounted Letters
Individually mounted letters are often described as direct-mounted, stud-mounted, pin-mounted, flush-mounted, or separately installed letters. Each letter, number, symbol, and logo element has its own fixing position. Depending on the product, these fixings may include threaded studs, screws, anchors, stand-offs, brackets, adhesive systems, or a combination of mechanical and chemical fastening methods selected for the wall and the weight of the sign.
This method is widely used for stainless steel letters, aluminum letters, acrylic letters, PVC letters, foam letters, front-lit channel letters, halo-lit letters, and mixed-material logos. Non-illuminated letters may require only mechanical fixing points, while illuminated letters also need carefully planned wire exits, electrical grouping, power supplies, and access for future servicing. The mounting system therefore becomes part of both the visual design and the electrical design.
A full-size installation template is normally supplied to control spacing, height, baseline, and component position. A useful template should identify mounting holes, studs, wire exits, letter names, orientation, overall dimensions, and reference points. This becomes especially important when a logo includes small symbols, unusual kerning, script lettering, or several components that must appear as one balanced composition after installation.
Direct mounting works best when the wall is flat, structurally suitable, and accessible from behind. It becomes more difficult when the surface contains deep joints, fragile finishes, waterproof layers, hidden framing, limited drilling zones, or no practical cavity for cables. The cleaner the visual effect, the more accurately the site conditions and mounting details must be confirmed before production.
Backboard Signs
A backboard sign places individual letters, logos, and graphic elements onto a shared panel. The panel may be rectangular, circular, capsule-shaped, contour-cut around the logo, or developed as part of the building design. Common materials include fabricated aluminum, stainless steel, acrylic, aluminum composite material, painted sheet metal, and combinations of metal framing with decorative face panels.
The backboard can create a consistent background color, cover an uneven surface, conceal old installation marks, reduce the number of primary façade fixings, and preserve the approved logo arrangement during installation. It can also provide space for wiring, cable connections, electrical compartments, or power supplies when the building does not offer suitable access behind the wall.
A backboard is not simply an extra sheet placed behind the letters. Its thickness, return depth, internal reinforcement, mounting brackets, finish, drainage, cable entry, service openings, and shipping dimensions all influence performance. Large outdoor panels may require folded edges, welded frames, anti-corrosion treatment, drainage openings, removable covers, and carefully distributed anchors to remain stable and serviceable.
Factory assembly can reduce the amount of letter positioning required on site, but it may increase package size and lifting requirements. A panel that appears simple in a rendering can become difficult to transport if it is three or four meters wide. Large backboards may therefore need segmented construction, numbered joints, alignment plates, removable components, and reinforced export packaging.
Backboards and Raceways
A backboard and a raceway are related mounting structures, but they are not automatically the same product. A backboard is usually a visible design element that supports the letters and creates a controlled background. A raceway is typically a narrower enclosed metal structure used to carry wiring, electrical connections, power supplies, and the mounting points for illuminated letters.
Raceways are common when a landlord or building owner wants to limit wall penetrations. Instead of drilling separate wiring holes for every letter, the letters can be pre-mounted and connected to one electrical enclosure. The raceway is often painted to match the wall so that it becomes less noticeable from normal viewing distances.
Some backboards include a raceway-style cavity, while others are flat decorative panels with cables routed behind them. A request for “letters on a panel” does not explain whether the panel must contain power supplies, whether it needs a removable service cover, how deep it should be, or whether it functions primarily as a visual element or an electrical enclosure.
The distinction should be shown in approved drawings rather than left to terminology. The specification should identify panel dimensions, materials, internal depth, cable routing, service access, electrical location, wall clearance, anchoring method, finish, and any removable or segmented sections required for transport and installation.
| Feature | Individually Mounted Letters | Backboard Signs | Raceway-Mounted Letters |
| Main purpose | Clean direct-to-wall appearance | Visual background and shared support | Concentrated mounting and electrical access |
| Letter alignment | Controlled mainly on site | Mostly controlled in the factory | Mostly controlled in the factory |
| Wall fixings | Distributed across components | Concentrated at panel anchors | Concentrated at raceway anchors |
| Wiring | Usually routed through or behind wall | Can run behind or inside panel | Usually contained inside raceway |
| Wall visibility | Fully visible between letters | Partly or fully covered | Mostly visible around raceway |
| Shipping profile | Separate compact packages possible | May require large crate | Usually long but relatively narrow |
| Service access | Individual components | Depends on panel construction | Often through removable cover |
Illuminated and Non-Illuminated Uses
Both mounting systems can support illuminated and non-illuminated products, but lighting introduces additional optical, electrical, thermal, and maintenance requirements. A non-illuminated metal logo may need only studs, spacers, anchors, and an accurate template. An illuminated logo also requires LED placement, cable grouping, power capacity, wire exits, waterproof connections, and an accessible electrical plan.
A non-illuminated backboard may mainly improve contrast or cover a difficult wall. An illuminated backboard may need an internal cavity, ventilation, drainage, access covers, protected cable entries, and space for power components. A shallow panel originally selected for appearance may not provide enough room for electrical equipment or safe cable bending.
Halo-lit letters require special attention because the wall or panel becomes part of the optical system. The color, texture, reflectivity, flatness, and distance behind the letters all influence the halo. A structure that works for front-lit letters may not produce the same result for halo illumination, even when the external dimensions appear similar.
The most reliable projects define the product type, wall condition, mounting structure, lighting method, electrical arrangement, installation interface, and service access before final pricing. When these decisions are postponed until after production, changes become more expensive and may affect the appearance that was originally approved.

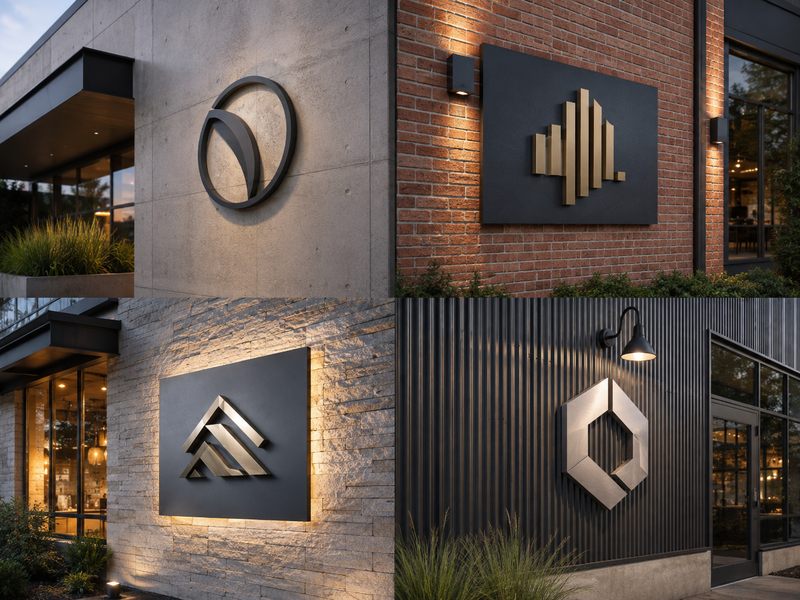

Which Option Looks Better on Different Walls?
Individually mounted letters usually look best on clean, flat, visually attractive walls where the architecture should remain visible. Backboard signs are often more effective on busy, uneven, low-contrast, or restricted surfaces. The better option depends on wall color, texture, lighting, logo shape, viewing distance, surrounding architecture, and the level of control required across multiple locations.
Smooth Architectural Walls
A flat architectural wall gives individually mounted letters the best opportunity to perform visually. Smooth concrete, stone panels, finished plaster, timber cladding, metal panels, and carefully designed reception walls can become part of the sign presentation rather than merely functioning as a background. The space between letters remains open, allowing the material and architecture to support the brand identity.
This approach is frequently selected for premium retail stores, hotels, offices, clinics, restaurants, and corporate interiors because it feels lighter and more integrated with the building. Stainless steel letters can reflect surrounding materials, while halo-lit letters can create a controlled glow without the visual boundary of a large sign panel.
The wall should still be evaluated from realistic viewing distances. A surface that appears elegant in a close photograph may contain strong joints, reflections, shadows, or color variations that interrupt the logo from across a street or parking area. Natural stone is a common example because its grain and panel joints may reduce the visibility of narrow letter strokes.
Direct mounting also exposes every installation error. Uneven spacing, a tilted baseline, inconsistent projection, visible cables, or poorly positioned fixings are easier to notice when there is no panel to visually organize the sign. The cleanest concept therefore requires the strongest coordination between design, engineering, manufacturing, and local installation.
Busy or Uneven Walls
Backboard signs become valuable when the wall competes with the logo. Brick patterns, stone joints, timber grain, corrugated metal, tiles, windows, vents, seams, old holes, patch repairs, and decorative wall systems can reduce readability. A controlled panel creates one clear visual area and separates the brand from the surrounding surface.
A backboard can also compensate for an uneven mounting plane. When individual letters follow a rough wall, some components may sit farther forward than others. This can create inconsistent daytime shadows and irregular halo lighting at night. A reinforced panel establishes a flatter and more predictable surface for positioning the letters.
The panel color should be selected for contrast rather than personal preference alone. White letters may disappear on pale concrete, while black letters may lose definition on dark cladding. A contrasting panel can improve legibility without changing the approved logo colors. Matte finishes are often easier to read than highly reflective finishes in strong daylight or under spotlights.
The backboard should still feel connected to the building. A generic rectangle that is too large, too thick, or poorly aligned with architectural lines can make the sign appear temporary. Better results come from controlled margins, suitable panel depth, coordinated finishes, carefully positioned joints, and proportions that reflect the storefront rather than merely enclosing the logo.
Day and Night Appearance
A commercial sign should be reviewed as two related designs: one during the day and another after illumination. Materials, colors, and wall surfaces can behave very differently in these conditions. A metal letter that appears dark in daylight may create a bright halo at night, while a white acrylic face that reads clearly during the day may become too intense if LED output is not controlled.
Halo-lit letters are particularly dependent on the mounting surface. A smooth, light-colored, matte wall generally reflects light more evenly than rough brick, dark stone, glossy tile, or deeply textured timber. On dark surfaces, more light may be absorbed. On glossy surfaces, bright reflections or visible LED patterns may appear if the stand-off distance is too small.
Halo-lit letters are often positioned approximately 20–50 mm away from the reflecting surface, although the final distance depends on letter depth, stroke width, LED output, wall color, desired halo width, and viewing distance. Greater spacing can spread the glow, but it also increases projection and may expose more hardware from side angles.
A backboard provides a controlled reflective surface, which can help brands achieve a more consistent night appearance across different stores. However, the panel edge may become visible around the halo if its shape is too tight. Daytime and nighttime renderings should therefore be reviewed together before the mounting method is confirmed.
| Wall Condition | Individually Mounted Letters | Backboard Signs | Main Concern |
| Smooth, light wall | Usually highly suitable | Optional | Clean wire exits and accurate spacing |
| Dark wall | Strong with light faces or finishes | Useful for dark letters | Daytime contrast |
| Rough brick | Possible but installation-intensive | Often more practical | Anchoring and halo consistency |
| Natural stone | Visually attractive but sensitive | Useful where drilling is restricted | Joints and surface damage |
| Corrugated metal | Difficult without substructure | Usually more controlled | Uneven mounting plane |
| Glass wall | Requires specialist support | Often paired with frame or panel | Cable concealment |
| Timber slats | May interrupt readability | Creates stable visual field | Reliable structural backing |
| Existing sign marks | Does not hide damage | Can cover affected area | Panel proportions |
Brand Consistency
A single flagship store can be adapted carefully to one building, but consistency becomes harder when the same sign must appear across many locations. Each wall may have different colors, cladding systems, electrical access, drilling restrictions, and architectural proportions. A mounting system should preserve the brand while allowing practical adjustments for each site.
Backboards can standardize letter spacing, background color, cable routing, and logo proportions. The factory completes more of the alignment before shipment, reducing the amount of interpretation left to local installers. This is useful for retail, restaurant, hotel, clinic, and franchise projects with repeated store openings.
The system should not force every location to use an identical panel size. A backboard that looks balanced on a wide storefront may overwhelm a narrow unit. More effective standards define minimum margins, approved proportions, letter depth, panel finish, lighting color, and acceptable dimensional variations.
Individually mounted systems can also be standardized through full-size templates, fixed stud patterns, numbered components, stored artwork, wiring diagrams, approved stand-off distances, and repeatable packaging. The difference is that more of the final visual result still depends on the accuracy and experience of the site team.

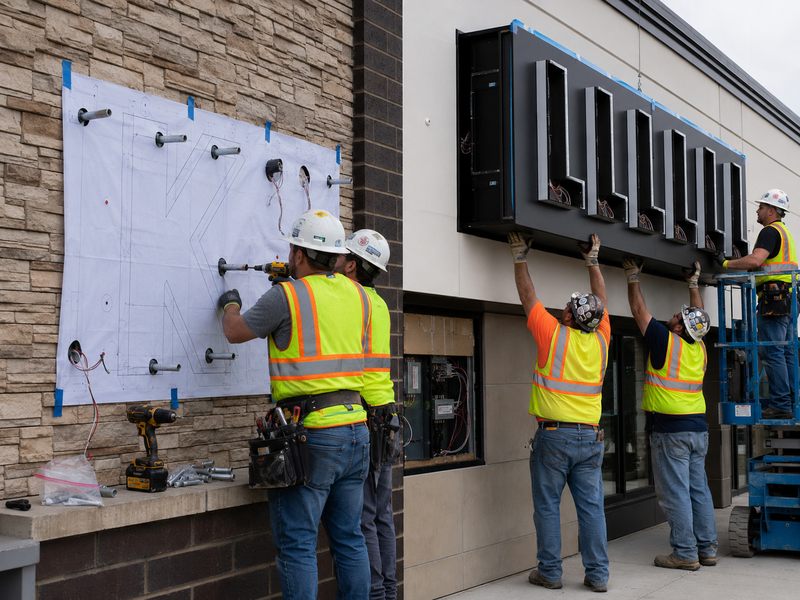

How Do Installation and Wiring Differ?
Individually mounted letters require more on-site positioning, drilling, and separate electrical planning. Backboard signs move more alignment and wiring work into the factory, but they create larger assemblies that may need stronger anchors, additional handling, and lifting equipment. The correct method depends on the wall structure, power location, service access, installer experience, and permitted penetrations.
Fixing Points and Wall Penetrations
Direct-mounted signs distribute fixing points across the entire logo. A small acrylic letter may use two studs, while a large fabricated channel letter may require several fixing positions based on its dimensions, depth, weight, wind exposure, and wall structure. Illuminated letters may add separate wire penetrations or grouped cable exits.
A ten-letter logo can easily require twenty to forty mechanical fixing points before electrical openings are included. This is manageable when the wall contains suitable plywood backing, structural framing, or accessible masonry. It becomes more complicated on tiles, natural stone, insulated cladding, waterproof façades, glass systems, or walls containing hidden services.
Backboard signs usually reduce the number of primary wall attachment points because the individual letters are fixed to the panel. However, each panel anchor may carry a larger combined load. The backboard must transfer the weight of the letters, frame, electrical components, and panel itself safely into the building structure.
Fewer holes do not automatically mean a safer installation. Anchor type, embedment depth, edge distance, wall strength, corrosion resistance, spacing, and wind exposure remain important. The local installer or engineer should verify the site structure, particularly for large outdoor signs or elevated installations.
Alignment and Templates
Direct mounting depends heavily on the accuracy of the installation template. A useful template reproduces the approved logo at full scale and shows overall dimensions, baselines, component positions, fixing holes, wire exits, orientation, and reference measurements. Large signs may require several numbered template sections with overlap marks.
Templates reduce site measuring but do not eliminate installation judgment. Paper can stretch, fold, tear, or move in wind. Building lines may not be level, and wall joints may force minor changes to the proposed drilling positions. The installer should establish independent reference lines before transferring holes from the template.
Complex logos require additional control. Small internal pieces, script lettering, closely spaced components, and separate icons can easily be rotated or positioned incorrectly. Clear numbering, orientation marks, packaging labels, and installation photographs help reduce these risks.
Backboards transfer more of the alignment work to the factory. Letter spacing, baseline, logo proportions, and wire routing can be checked before shipment. The installer positions one assembly or several coordinated panel sections instead of aligning every component independently, although larger assemblies require more handling and lifting planning.
Wiring and Power Supplies
Illuminated direct-mounted letters often route low-voltage cables through the wall to power supplies placed inside the building, above a ceiling, in a service area, or within another accessible enclosure. This can create a clean exterior because the wires and electrical equipment remain hidden behind the façade.
The arrangement must be coordinated before production. The manufacturer needs to understand the input voltage, intended power-supply position, approximate cable length, circuit grouping, wire-exit locations, and the role of the local electrician. Long low-voltage cable runs can create voltage drop, while inaccessible power supplies make future maintenance unnecessarily difficult.
Many LED sign systems use 12 V or 24 V DC output, although the correct voltage depends on the LED modules, product structure, cable length, and approved electrical system. The power supply receives the local mains input and should include appropriate capacity margin rather than operating continuously at its maximum rated load.
Backboards and raceways can consolidate wiring and reduce separate wall penetrations. This is useful when there is no accessible cavity behind the wall. The enclosed structure must still address heat, cable protection, service covers, drainage, waterproof entries, and safe access to power supplies and connections.
| Electrical Item | Direct Mounting | Backboard or Raceway |
| Low-voltage exits | Usually one or more per letter group | Can often be consolidated |
| Power-supply position | Commonly inside building | May be inside panel, raceway, or building |
| Exterior appearance | Very clean when concealed | Panel or raceway remains visible |
| Service access | Depends on indoor access | Can use removable covers |
| Cable length | May be longer | Often shorter within assembly |
| Heat management | Usually separated from letters | Important inside enclosure |
| Waterproofing | Multiple entries may need sealing | Fewer entries but more panel joints |
| Site coordination | Strongly dependent on wall access | More preparation completed in factory |
Service and Local Requirements
A sign should be designed for the day when a power supply, LED group, cable, connector, or controller requires attention. Serviceability is often overlooked because the immediate priority is completing the installation before a store opening. A product that cannot be accessed without damaging the wall may create avoidable costs later.
Direct-mounted letters can usually be removed individually, but the electrical components may be distributed across several areas. If circuit diagrams and cable records are unavailable, diagnosing a fault can take longer than replacing the affected component. Accessible power supplies and labeled circuits make future service much easier.
Backboards and raceways can centralize electrical components when they include removable covers, organized wiring, sufficient working space, and accessible fasteners. A permanently sealed panel may be more difficult to maintain than direct-mounted letters, even though the installation initially appears simpler.
Local requirements can determine the mounting method. Landlords may require raceways to limit drilling, while historic buildings may restrict visible alterations. Shopping centers may control working hours, access equipment, and electrical connections. The product drawings should therefore be reviewed alongside local structural, electrical, permit, and property-management requirements.

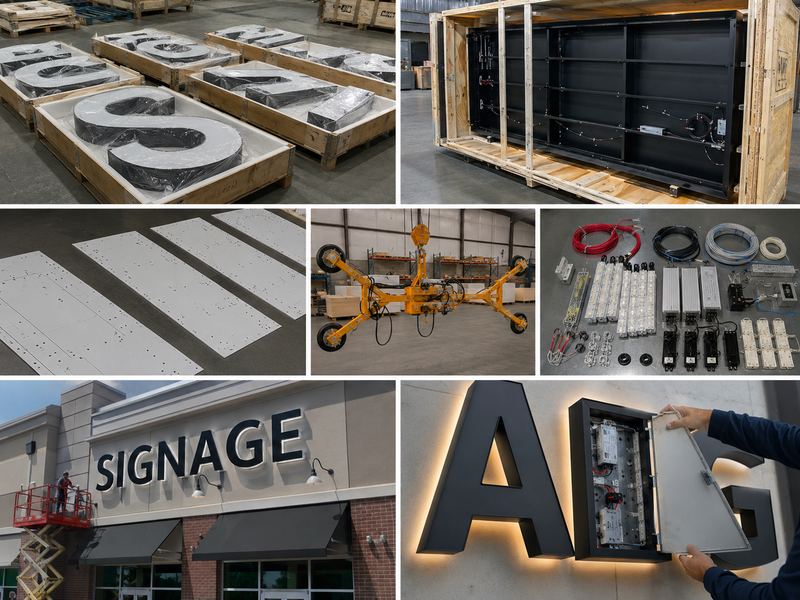

Which Option Costs Less Over Time?
Direct-mounted letters may cost less to manufacture and ship because they do not require a large supporting panel, but site labor can be higher. Backboard signs add material, fabrication, packaging, and freight costs, yet may reduce installation time and wall work. Total cost should include manufacturing, shipping, labor, equipment, electrical work, maintenance, and future restoration.
Manufacturing Cost
The manufacturing cost of direct-mounted letters is mainly influenced by material, size, depth, lighting method, surface finish, mounting hardware, and electrical configuration. Removing the backboard can reduce metal or acrylic consumption, cutting, welding, painting area, internal reinforcement, and factory assembly work.
The saving is not always substantial. A complex direct-mounted logo may require many custom brackets, additional cable preparation, carefully numbered components, detailed drilling templates, and more inspection time. Script lettering and logos with many small pieces can be particularly labor-intensive even without a supporting panel.
Backboard signs add a second manufactured structure. A simple flat panel costs less than a deep fabricated cabinet containing reinforcement, removable covers, power supplies, drainage, and protected cable routes. Surface finish also matters because brushed stainless steel, mirror finishes, metallic coatings, and multi-color panels require more handling and protection than standard painted aluminum.
Panel area increases quickly as dimensions grow. If both width and height are doubled, the surface area becomes approximately four times larger. Large panels may also need thicker materials, folded edges, internal frames, or segmented construction to control bending, vibration, and visible distortion.
Installation Labor
Installation cost can reverse the apparent advantage of a lower factory price. Individually mounted letters require positioning, drilling, cleaning, fastening, leveling, cable routing, and electrical connection for multiple components. This work becomes more expensive when performed at height or during restricted operating hours.
Lift rental, scaffolding, traffic control, security access, overtime, electrician fees, and façade protection can cost more than the difference between the two manufacturing options. A sign with many separate pieces may also require a larger installation window than a pre-assembled panel.
A backboard can reduce positioning work because the logo layout is already complete. The installer mainly confirms the assembly location, installs the primary anchors, lifts the panel, completes electrical connections, and checks final alignment. This can be valuable for shopping centers, hotel entrances, elevated façades, and projects with limited night-time access.
The panel may still require more people or stronger lifting equipment. A long assembly can be awkward even when its weight is moderate, particularly in wind. Installation savings are greatest when the panel dimensions, lifting points, anchors, cable entry, and access route have all been checked before production.
Freight and Packaging
Individually mounted letters often pack more efficiently because separate components can be arranged in layers or divided among several cartons. Templates, power supplies, cables, studs, controllers, and accessories can be placed in labeled compartments. This usually reduces the largest package dimension.
Backboards occupy more volume and may require wooden frames, plywood crates, pallets, or oversize handling. International freight is often influenced by package volume and maximum dimensions rather than actual product weight alone. A lightweight three-meter panel may cost more to transport than a heavier set of compact letters.
Segmenting a large backboard can reduce freight dimensions, but the joints require careful planning. Poorly positioned seams may become visible, interfere with lighting, trap water, weaken the structure, or make site alignment difficult. Each panel section should be numbered and supplied with joining details.
Packaging must protect both the surface and projecting letters. Painted, polished, brushed, or mirror finishes can be scratched by movement during transport. Shaped EPE foam, corner protection, protective film, internal supports, separate accessory boxes, and reinforced outer packaging are often needed for international delivery.
| Cost Area | Individually Mounted Letters | Backboard Signs |
| Letter production | Similar for equivalent specifications | Similar for equivalent specifications |
| Additional panel | Not required | Required |
| Factory assembly | Lower on simple projects | Higher due to panel assembly |
| Site layout labor | Usually higher | Usually lower |
| Wall drilling | More distributed points | Fewer primary points |
| Packaging volume | Usually lower | Usually higher |
| Oversize freight risk | Lower | Higher on large panels |
| Handling | More small components | Fewer but larger assemblies |
| Wall repair after removal | Often more holes | Usually fewer concentrated areas |
| Electrical access | Depends on building | Can be centralized |
Maintenance and Future Changes
Lifecycle cost includes service, replacement, wall repair, relocation, and possible rebranding. A damaged direct-mounted letter can often be removed and replaced without disturbing the rest of the sign. This is useful for long names, repeated store programs, and products that may require occasional component replacement.
The electrical system may be more distributed, however. If cable maps and circuit records were not preserved, tracing a fault can take longer. Accessible power supplies, clearly grouped wiring, labeled connections, and stored production drawings reduce future service time.
Backboards can centralize power supplies and connections. A removable cover may allow technicians to inspect several circuits from one location. This benefit disappears if the panel is permanently sealed, mounted too close to the wall, or designed without sufficient working space.
Brand changes should also be considered. Direct-mounted letters may leave many holes requiring filling, sealing, refinishing, or stone repair. A backboard may leave fewer anchor points and can sometimes cover previous marks. However, a tightly shaped panel may become unusable after the logo changes, while separate letters can be replaced without rebuilding the entire supporting structure.
How Do You Choose the Right Mounting Method?
Choose individually mounted letters when the wall is flat, attractive, structurally suitable, and accessible for concealed wiring. Choose a backboard when the project needs stronger contrast, fewer primary penetrations, factory-controlled alignment, external wiring concealment, or coverage of an uneven surface. The final decision should follow a review of the wall, power, installation, shipping, maintenance, and local requirements.
Wall and Site Review
The wall should be evaluated before the final sign structure is approved. A front-facing photograph helps the manufacturer understand the general appearance, but it rarely provides enough information about the construction, fixing zones, cable access, joints, or hidden conditions behind the surface.
The project team should confirm the wall material, approximate thickness, finish, structural backing, joint locations, waterproofing system, and access behind the installation area. Wide photographs should also show nearby doors, windows, canopies, vents, lighting fixtures, wall seams, and architectural lines that may influence positioning.
Indoor drywall may contain plywood reinforcement, metal studs, timber studs, or no usable backing. Brick walls may have weak mortar joints or hollow sections. Stone façades may consist of thin decorative panels rather than solid blocks. Metal cladding may conceal insulation and secondary framing that cannot be identified from an exterior image.
Power access should be reviewed at the same time. A visually ideal position may be too far from an accessible electrical point. Changing cable routes or adding a raceway after production can affect appearance, cost, and delivery. The available lifting equipment and installation route should also be confirmed before the assembly dimensions are finalized.
Project Priorities
Each project has a different primary concern. Some prioritize the cleanest possible appearance, while others prioritize limited drilling, fast installation, compact freight, simple servicing, landlord compliance, or consistent reproduction across many stores. The selection becomes clearer when these priorities are ranked rather than treated as equally important.
A flagship hotel entrance may accept more installation work to achieve direct-mounted halo letters on stone. A leased retail unit may select a backboard because the landlord limits penetrations. A multi-location restaurant program may use a raceway because local installers need a repeatable electrical interface.
An office reception logo may use direct-mounted acrylic letters because the wall already includes plywood reinforcement and no illumination is required. A storefront with corrugated metal may need a reinforced panel to create a flat plane. The most appropriate method depends on which site problems must be solved and which compromises the project can accept.
A mounting system does not need to win every category. It needs to protect the visual result while keeping installation, electrical access, maintenance, packaging, and future replacement within reasonable limits.
Decision Matrix
The matrix below can help project teams identify the mounting method that better matches their priorities. A score of three indicates strong suitability, two indicates conditional suitability, and one indicates that additional engineering or site work is likely. These scores support early planning but do not replace structural or electrical review.
| Project Priority | Individually Mounted Letters | Backboard Signs |
| Minimal architectural appearance | 3 | 2 |
| Preserve visible wall finish | 3 | 1 |
| Improve contrast on busy wall | 1 | 3 |
| Reduce primary penetrations | 1 | 3 |
| Conceal wiring without rear access | 1 | 3 |
| Factory-control logo spacing | 2 | 3 |
| Minimize packed volume | 3 | 1 |
| Replace one letter independently | 3 | 2 |
| Cover previous fixing marks | 1 | 3 |
| Standardize multiple locations | 2 | 3 |
| Avoid one large assembly | 3 | 1 |
| Centralize electrical components | 1 | 3 |
Hybrid systems are also possible. Letters can be installed on several concealed sub-panels instead of one large visible board. A narrow raceway can be painted to match the wall. A complex logo icon can use a small backboard while the main lettering remains individually mounted.
Large backboards can be divided into aligned sections for shipping, while non-illuminated letters and illuminated symbols can use different fixing structures within the same visual design. The best solution often combines methods rather than forcing the entire sign into one standard category.
Manufacturer Information
A reliable quotation requires more than a logo file and an estimated width. The manufacturer should receive enough information to evaluate the product, wall interface, electrical system, packaging, and installation conditions together.
Useful project information includes:
- Vector logo files in AI, EPS, SVG, PDF, or CAD format
- Required overall width or individual letter height
- Front-facing and wide-angle wall photographs
- Wall material and approximate thickness
- Indoor or outdoor application
- Installation height
- Front-lit, halo-lit, dual-lit, or non-illuminated preference
- Available input voltage
- Planned power-supply position
- Maximum permitted wall penetrations
- Preferred wire-exit location
- Backboard or raceway restrictions
- Destination country
- Required delivery date
- Number of locations
- Local installer comments
- Maximum package or access dimensions
The engineering review should confirm minimum stroke width, letter depth, material thickness, LED layout, power capacity, mounting studs, fixing holes, wire exits, panel reinforcement, service access, template format, section joints, accessories, and packaging. These details are easier to correct in drawings than after the sign reaches another country.
For illuminated products, pre-shipment control should include complete lighting inspection, checks for dark areas or visible hotspots, wiring verification, power-supply testing, appearance inspection, accessory checks, and extended operation before packing. Templates, cables, fixings, power components, and installation accessories should match the approved production drawings.
Request a Mounting Review for Your Sign
The choice between individually mounted letters and a backboard sign should begin with the real wall, not only the logo. A clean direct-mounted design can be the right answer for one location and the wrong answer for another. The same is true of a backboard, which can solve difficult installation problems but add unnecessary visual weight when the wall is already suitable.
iduoduo is a Shenzhen-based custom sign manufacturer established in 2007. Its project support covers logo evaluation, dimensional letters, channel letter structures, backboards, raceways, mounting holes, wire exits, power planning, installation templates, export packaging, and international delivery for illuminated and non-illuminated commercial signage.
The manufacturing system includes five production bases, approximately 21,000 square meters of production space, more than 500 employees, 18 production lines, 10+ designers, 20+ engineers, and 30+ quality-control personnel. Illuminated signs receive full lighting inspection and 72-hour pre-shipment testing, supported by a three-year warranty policy for confirmed project conditions.
To request an evaluation, send your vector logo, required sign dimensions, wall photographs, wall material, lighting preference, voltage, destination, installation height, and any restrictions on drilling or wiring. The engineering team can then compare direct mounting, a decorative backboard, a raceway, or a combined system based on appearance, installation efficiency, shipping practicality, maintenance access, and total project cost.
A good mounting decision should make the sign easier to manufacture, ship, install, maintain, and reproduce. More importantly, it should allow the finished sign to look as convincing on the real building as it did in the approved rendering.
