How to Measure a Storefront for Channel Letters: A Practical Site Survey Guide

A storefront can look simple from the sidewalk: one wall, one logo, one obvious place for a sign. In production, however, a few inches can decide whether a channel letter set looks balanced, fits the permitted sign area, clears an architectural joint, lines up with the electrical feed, and arrives ready for installation. Measuring only the total storefront width often creates more questions than it answers. What matters is the usable sign area and how that area relates to the logo, wall construction, viewing distance, mounting method, wiring path, and surrounding architecture.

To measure a storefront for channel letters, record the usable fascia width and height, reference dimensions around doors and architectural features, the proposed sign centerline, mounting height, wall material, electrical access, obstacles, and clear storefront photos. Preliminary dimensions may support pricing and layout, but fabrication dimensions should be field-verified before production.

The practical difference appears later. A logo may fit perfectly in a computer rendering yet collide with a vertical wall joint in the field. A raceway may be designed wider than the usable fascia. Individual letters may require wire exits exactly where structural steel or inaccessible cavities are located. Good measurement is therefore not paperwork before the “real” sign project. It is the point where a storefront photograph begins becoming an installable product.

What Should You Measure on a Storefront?

Measure the usable sign area, not only the overall storefront width. Record fascia width and height, tenant boundaries, columns, doors, windows, wall joints, canopies, lighting fixtures, mounting height, and nearby obstructions. Every critical dimension should reference a fixed building feature so the channel-letter layout can be checked accurately for size, position, mounting, wiring, and final fabrication.

Which Dimensions Define the Signable Area?

The signable area is the clear portion of the facade where the complete channel-letter set can realistically fit. It is often much smaller than the total storefront frontage.

For example, a retail unit may measure 288 inches wide from lease line to lease line, but decorative columns may reduce the clear fascia to 228 inches. A 48-inch-high fascia may also contain a 6-inch trim band, leaving only 42 inches of practical vertical space before margins are considered.

Record these dimensions separately:

Measurement	Example	Why It Matters
Total storefront width	288 in	Establishes overall scale
Clear sign width	228 in	Limits complete logo width
Fascia height	48 in	Limits maximum sign height
Left obstruction	14 in	Reduces usable space
Right obstruction	10 in	Affects centering
Sign centerline	114 in	Controls final positioning

Do not measure only the text portion of a logo. Include symbols, registered marks, taglines, ascenders, descenders, and other elements that extend beyond the main letter line.

A useful survey should allow a designer to draw a clear rectangle around the actual installation area and know where its four boundaries are located on the building.

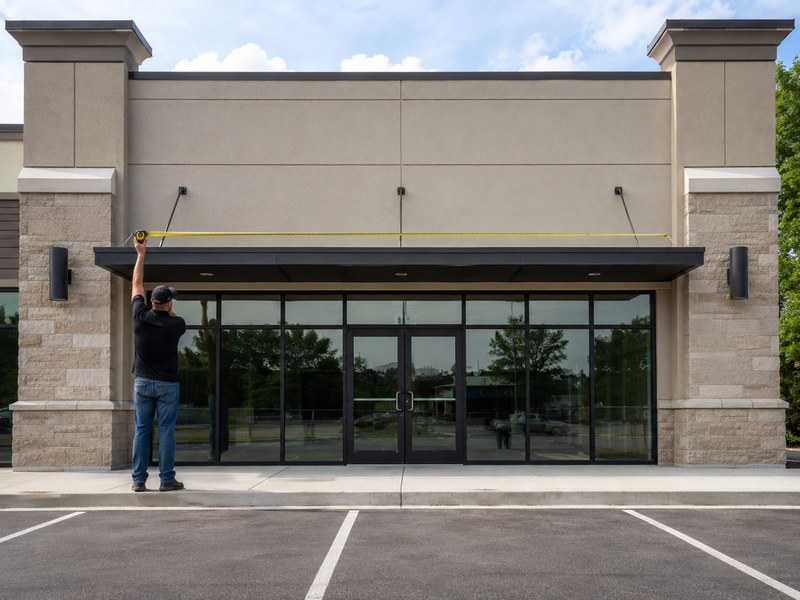

How Do You Measure Fascia Width and Height?

Measure fascia dimensions between permanent architectural reference points that can be identified later on photographs or drawings.

For horizontal measurements, good reference points include:

• inside face of one column to inside face of another;
• tenant boundary to tenant boundary;
• wall corner to storefront mullion;
• panel edge to panel edge;
• entrance centerline to each side of the sign area.

For vertical measurements, record distances such as:

• bottom of fascia to top of fascia;
• window head to upper trim;
• canopy top to cornice;
• grade to bottom of sign area;
• grade to proposed sign centerline.

If the fascia is wide, measure its height at the left, center, and right. A nominal 48-inch fascia may measure 48 inches at one end, 47.25 inches in the center, and 46.75 inches at the opposite end because of slope, construction tolerance, trim, or later renovations.

Always write the unit beside the number. Use either inches or millimeters consistently throughout one survey. A mark reading “224” can easily create confusion; “224 in” or “5689 mm” cannot.

For quotation and engineering, Iduoduo uses overall dimensions, letter height, mounting method, wall condition, wire exits, and other installation information as part of the Channel Letter project data.

Which Architectural Features Need Measurements?

Measure architectural features that can interfere with letter placement, drilling, wiring, raceways, backboards, or installer access.

The most common problem areas are:

• vertical panel seams;
• horizontal wall joints;
• raised decorative ribs;
• stone or brick relief;
• expansion joints;
• gutters and downspouts;
• exterior lighting;
• security cameras;
• vents;
• awnings;
• canopies;
• existing conduits;
• previous sign holes.

Do not simply photograph an obstruction. Locate it with dimensions.

A practical method is to record each feature from two known references:

Feature	Horizontal Location	Vertical Location	Possible Effect
Panel seam	72 in from left edge	Full fascia height	May cross letter backs
Wall light	166 in from left edge	18 in above fascia bottom	May conflict with letters
Downspout	8 in from right edge	Full height	Reduces clear width
Camera	34 in from left edge	38 in above fascia bottom	May block logo placement
Canopy	Full frontage	30 in below fascia	May restrict installation access

A wall joint running through one channel letter can affect mounting studs or wire exits. An exterior light positioned inside the planned logo area can force the entire sign to move.

A few accurate coordinates are much more useful than a note saying, “There are some obstacles on the wall.”

Do Doors, Windows, and Columns Matter?

Yes. Doors, windows, and columns help determine both the visual center of the sign and the practical limits of installation.

The geometric center of a facade is not always the correct center for the channel letters. In a shopping center, the sign may need to align with:

• the tenant bay;
• the main entrance;
• the space between structural columns;
• the landlord-defined sign band;
• the storefront glazing system.

For example, consider a 240-inch-wide sign area. The mathematical center is 120 inches. If the entrance centerline sits at 132 inches because of an asymmetric storefront layout, a sign centered at 120 inches may appear visibly shifted when viewed from the parking lot.

Useful measurements include:

• door width;
• entrance centerline;
• distance from entrance centerline to left sign boundary;
• distance from entrance centerline to right sign boundary;
• column width;
• clear distance between columns;
• window-bay width;
• mullion position.

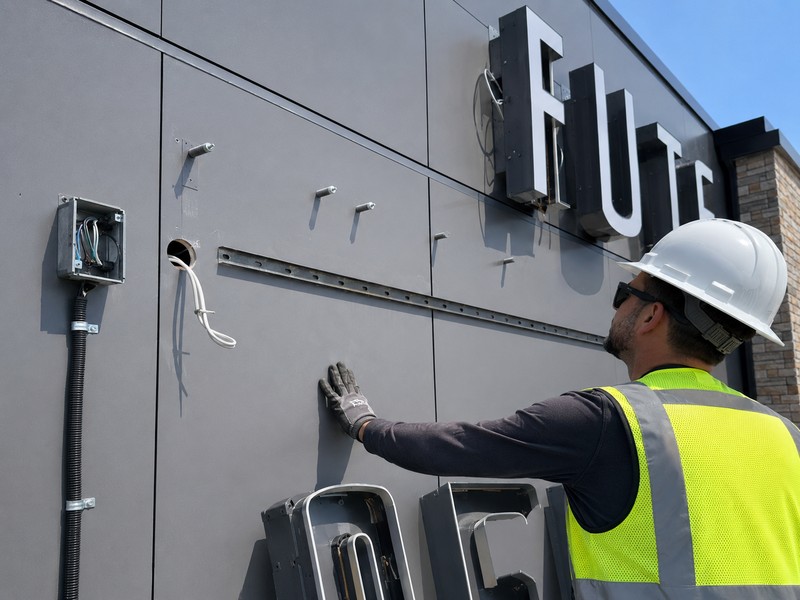

Windows also matter behind the installation surface. Direct-mounted illuminated letters may require individual wire penetrations through the facade. Behind the proposed sign area there may be glass, shelving, finished ceilings, structural framing, or areas with no practical access.

Whenever possible, photograph the interior side of the proposed mounting area. A clear exterior wall does not automatically mean there is clear access behind it.

Which Clearances Should You Record?

Record the distance between the proposed sign area and anything that could restrict letter size, drilling, installation, or final appearance.

Important clearances include:

• fascia edge to letter set;
• building corner to sign;
• column to sign;
• window head to sign;
• roofline to sign;
• canopy to sign;
• awning to sign;
• exterior light to sign;
• neighboring sign to sign;
• panel joint to letter back;
• expansion joint to mounting point.

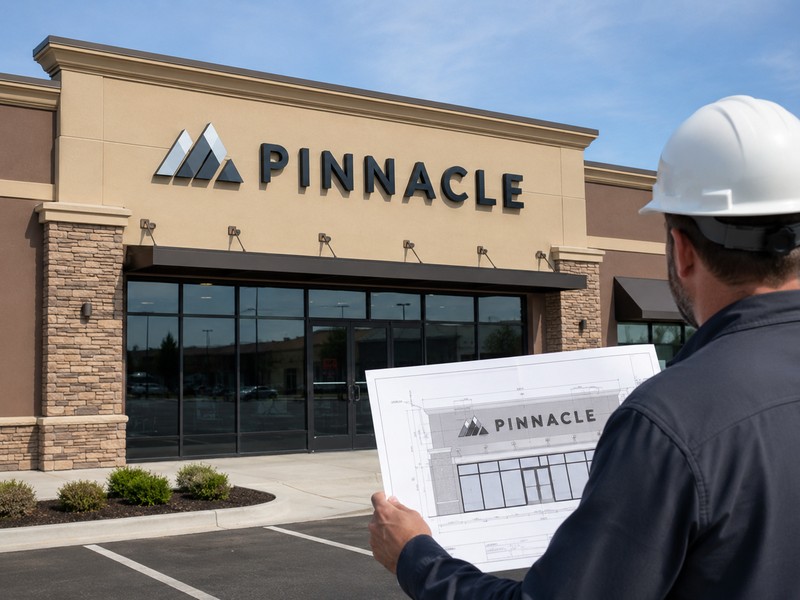

A fascia that measures 48 inches high does not mean a 46-inch-tall logo should automatically be used.

For example:

48-inch fascia height
− 5-inch top clearance
− 5-inch bottom clearance
= 38 inches of practical logo height

If the logo includes an icon extending 6 inches above the main letters, the letters themselves may need to be closer to 30–32 inches high.

Horizontal clearance works the same way. A 216-inch clear fascia with 12 inches reserved on each side leaves approximately 192 inches for the complete sign:

216 in − 12 in − 12 in = 192 in

These margins are not universal rules. Landlord criteria, architectural proportions, logo shape, installation hardware, and local sign requirements may call for different spacing.

Clearance should also account for installation work. A letter positioned extremely close to a raised panel seam may fit visually but leave inadequate space for drilling, studs, electrical penetrations, sealing, or future service.

Measure the complete outer envelope of the logo rather than only the baseline text. The objective is not to fill every available inch of wall; it is to create enough room for the sign to look balanced and for the installer to mount, wire, align, and service it without improvising on site.

How Do You Measure a Storefront Accurately?

Measure from fixed architectural reference points, use more than one dimension to cross-check the facade, and record every critical number directly on photos or drawings. A tape measure works for accessible areas, while a laser meter is useful for wide or elevated fascia. Preliminary measurements can support layout and pricing, but dimensions controlling sign size, mounting holes, raceways, and wire exits should be field-verified before fabrication.

Which Measuring Tools Should You Use?

Most storefront surveys do not require complicated equipment. The important part is choosing a tool that matches the distance, height, and level of accuracy required.

For an ordinary single-story storefront, a practical measurement kit usually includes:

Tool	Best Use	Typical Practical Range
25–30 ft tape measure	Doors, columns, windows, short fascia sections	1–25 ft
50–100 ft tape measure	Long tenant frontage	10–100 ft
Laser distance meter	Elevated fascia and long spans	Often 2–100+ ft
Laser level	Horizontal alignment references	Across sign area
Spirit level	Checking local surface level	Short sections
Phone/camera	Storefront and detail photos	Full site record
Measuring pole	Elevated reference dimensions	Low-to-medium facade heights
Clipboard/tablet	Recording dimensions and notes	Full survey

A tape measure is usually the most reliable tool when both ends of the measurement can be physically reached. For example, measuring a 36-inch entrance, a 68-inch window bay, or a 12-foot distance between columns is straightforward with a tape.

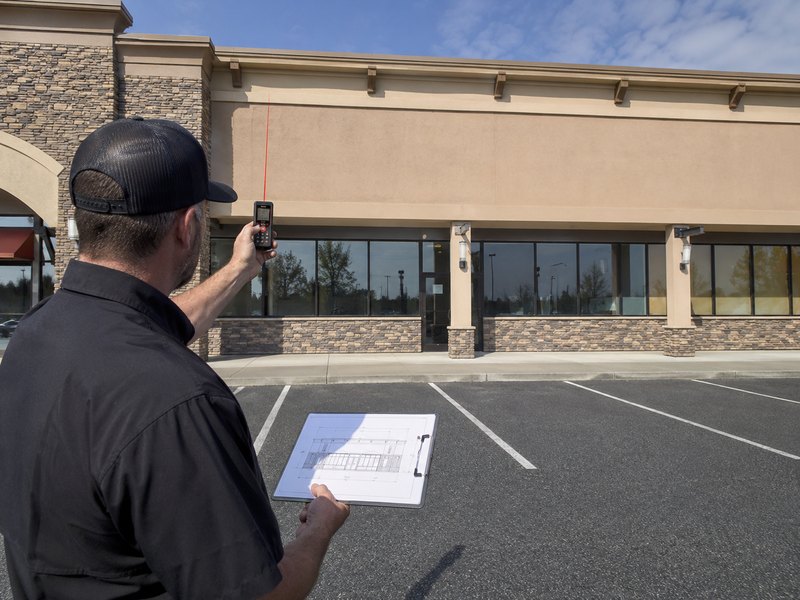

A laser meter becomes useful when the fascia is 15–30 feet above grade or when the storefront spans 30–60 feet. It reduces the need to stretch a long tape across pedestrian areas or climb just to obtain preliminary dimensions.

However, laser readings should not be accepted blindly. Highly reflective glass, angled metal panels, dark surfaces, or obstructions can produce questionable readings. Take important measurements two or three times.

A useful field check might look like:

First reading: 214.75 in
Second reading: 214.68 in
Third reading: 214.71 in

Those readings are consistent.

If the readings are:

214.8 in
219.4 in
211.7 in

the measurement method or reference surface needs to be checked again.

For international projects, use one unit system throughout the survey. Do not mix dimensions such as “15 ft 6 in,” “820 mm,” and “42 inches” on the same drawing unless both imperial and metric values are deliberately provided.

For Channel Letter engineering, Iduoduo reviews dimensions together with installation method, wall conditions, wire exits, raceway or backboard requirements, and other production inputs, so measurement records should be clear enough to support more than visual layout alone.

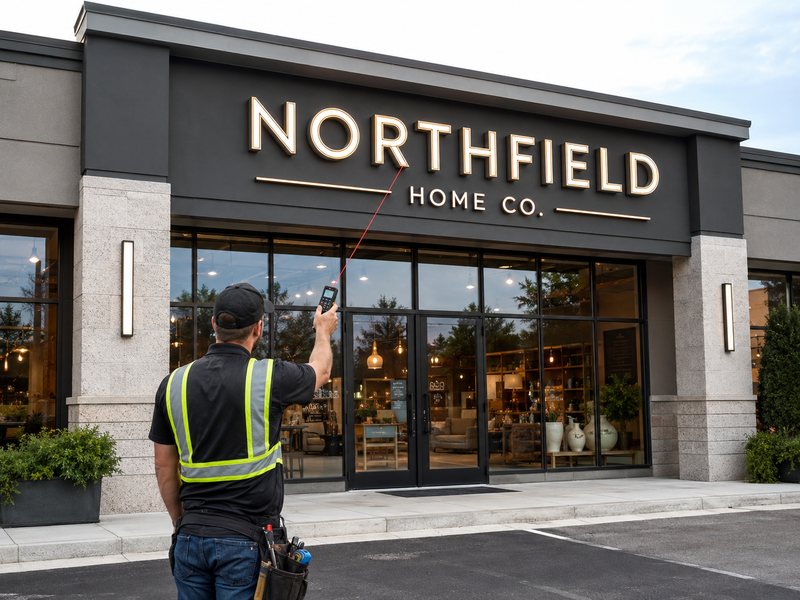

How Do You Measure from Ground Level?

Ground-level measurement is often enough for preliminary design when the storefront is one or two stories high and the important architectural references are visible.

Start with dimensions that can be measured directly from the ground:

• total tenant frontage;
• door width;
• window width;
• column spacing;
• distance between storefront mullions;
• width between building corners;
• canopy height;
• distance from grade to known facade features.

These measurements create reference points for checking elevated dimensions.

For example, suppose the storefront has:

Door width: 72 in
Left window bay: 96 in
Right window bay: 96 in
Two mullions: 4 in each
Two side columns: 18 in each

The total calculated frontage is:

72 + 96 + 96 + 8 + 36 = 308 in

If a laser reading gives 309 inches between the outer column faces, the numbers are close enough to investigate minor trim or measurement differences. If the laser gives 336 inches, something has probably been measured from different reference points.

For elevated fascia, stand as close to perpendicular to the wall as practical when using a laser. Extreme angles increase the chance of measuring a diagonal distance rather than the true vertical or horizontal dimension.

Do not rely on sidewalk paving lines or parking-space widths as primary references. They may appear aligned with the building while actually running at an angle.

Record mounting height separately from fascia height.

For example:

Grade to bottom of fascia: 12 ft 8 in
Fascia height: 3 ft 10 in
Grade to top of fascia: 16 ft 6 in

Those three numbers should agree mathematically:

12 ft 8 in + 3 ft 10 in = 16 ft 6 in

Cross-checks such as this help catch transcription errors before the measurements leave the site.

For a sign located 25–40 feet above grade, on an irregular facade, or behind a canopy, ground-level measurements may be good enough for a preliminary layout but not for final fabrication. Higher installations also make small errors more expensive because lift access and field modifications cost more than they do on a low storefront.

Can Storefront Photos Provide Scale?

Yes, but only when a photo contains at least one reliable known dimension and the camera angle is suitable.

A photograph by itself has no trustworthy physical scale. A storefront can look 18 feet wide or 25 feet wide depending on lens choice, distance, cropping, and perspective.

For preliminary design, a photo becomes much more useful when one known measurement is added.

For example:

Known clear width between columns = 216 in
Measured width on drawing/photo = 1,080 pixels

Approximate scale:

216 ÷ 1,080 = 0.20 in per pixel

If the proposed logo occupies 760 pixels in the same plane, its approximate width would be:

760 × 0.20 = 152 in

That calculation can support an early mockup.

It should not automatically control production.

Photo scaling works best when:

• the camera faces the facade almost straight on;
• the entire sign area is visible;
• the reference dimension and proposed sign are on the same wall plane;
• the image has not been heavily distorted;
• the reference measurement is verified;
• the photo is high enough resolution to identify edges clearly.

Photo scaling becomes less reliable when the image is taken from a sharp side angle.

Imagine a storefront photographed at roughly 45 degrees. The side of the fascia farther from the camera will appear shorter than the near side. Scaling from one dimension can then produce significant errors across the full width.

A practical photo set should include:

• one straight-on storefront image;
• one wider contextual image;
• one left-angle image;
• one right-angle image;
• close-ups of mounting surfaces;
• close-ups of panel seams and obstructions;
• interior photos behind the sign area when accessible.

Photos are excellent for explaining context. Measurements are better for controlling fabrication. Use both.

How Do You Mark Dimensions on Photos?

A good marked-up photograph should be understandable by someone who was never at the site.

Do not place a collection of unlabeled numbers across a storefront image. Every dimension should have a start point, end point, and unit.

A practical storefront photo may include:

• total frontage width;
• usable fascia width;
• fascia height;
• distance between columns;
• door centerline;
• left and right clearance;
• mounting height;
• location of major panel seams;
• position of exterior lights;
• approximate electrical access.

For example:

Mark	Measurement
A	Total tenant frontage: 286 in
B	Clear fascia width: 224 in
C	Fascia height: 46 in
D	Door centerline to left boundary: 108 in
E	Door centerline to right boundary: 116 in
F	Grade to fascia bottom: 154 in
G	Panel seam from left boundary: 71 in

Using letters such as A, B, C, and D is useful when the image becomes crowded. A small reference table beside the photo can hold the full measurement instead of placing long text directly over the building.

Use arrows or dimension lines that clearly touch the measured features.

Poor notation:

“224”

Better notation:

“Clear fascia width = 224 in”

Also distinguish approximate dimensions from verified dimensions.

For example:

Approx. fascia width: 224 in — verify before production
Verified fascia width: 222.75 in — field checked 08/26/2026

If several people are involved in one project, add a revision date or file version:

Store 018 – Site Survey – Rev B – 2026-08-26

Version control becomes especially important when the first survey is later corrected. Production should not receive one image showing 224 inches and another drawing showing 222.75 inches without knowing which value is final.

For multi-store programs, use the same measurement template for every location. It makes differences easier to spot and reduces missing information.

Which Measurements Need Field Verification?

Not every early measurement needs fabrication-level accuracy. The important distinction is whether a dimension affects only preliminary layout or physically controls the finished sign.

Preliminary dimensions are often sufficient for:

• budget quotation;
• early sign-size discussion;
• approximate storefront mockup;
• landlord presentation;
• comparing direct mount and raceway concepts;
• preliminary freight planning.

Field-verified dimensions become much more important for:

Item	Why Verification Matters
Overall final sign width	Prevents sign from exceeding available fascia
Final sign height	Prevents interference with trim or roofline
Raceway length	Fabricated to a fixed physical size
Backboard dimensions	Must match wall and sign layout
Stud pattern	Determines drilling positions
Wire exits	Must align with site wiring plan
Column spacing	Controls available sign area
Panel seams	May affect anchors and penetrations
Wall penetrations	Difficult to correct after production
Sign centerline	Controls final visual alignment

A useful project may begin with:

“Approximate clear width: 220 in.”

After the local installer completes the survey, the final result may become:

“Verified clear width: 217.5 in.”

A 2.5-inch difference may sound minor, but it can matter if the original sign layout already uses 215 inches of width.

The risk increases with direct-mounted channel letters because individual letter positions, mounting studs, and wire exits may all relate to the final layout.

Raceway-mounted letters reduce some site penetrations, but the raceway itself still requires a reliable overall dimension and mounting plan.

Before production, verify at minimum:

• usable fascia width;
• usable fascia height;
• final sign centerline;
• overall approved sign dimensions;
• wall construction information available to the project team;
• mounting method;
• electrical access;
• major obstructions;
• raceway or backboard dimensions if used;
• wire-exit requirements;
• mounting-hole or stud-pattern requirements.

Iduoduo’s professional sign-company workflow specifically uses overall size, letter height, shop drawings, elevation drawings, mounting method, stud pattern, wire exit, raceway/backboard, voltage, installation conditions, and destination information to improve quotation and engineering accuracy.

A practical rule works well:

Use approximate measurements to decide what might work.
Use verified measurements to decide what will be manufactured.

The difference becomes especially important once metal cutting, acrylic processing, drilling patterns, wiring layouts, or custom raceways have started. Correcting a drawing before production is simple. Correcting a finished channel-letter set at the installation site usually is not.

How Do Measurements Set Channel Letter Size?

Storefront measurements define the maximum space available, but the final channel-letter size should also account for viewing distance, logo proportions, stroke width, margins, mounting method, and sign regulations. A useful sizing process starts with the verified signable area, scales the complete logo proportionally, checks whether individual strokes can be manufactured, then confirms the proposed size against landlord and local sign requirements.

How Does Frontage Affect Letter Height?

Storefront frontage gives the designer the available horizontal space, but it does not directly determine letter height. Letter height comes from the relationship between the complete logo width, usable fascia height, brand proportions, and the clear margins around the sign.

A practical calculation starts with the usable sign area rather than total storefront width.

Example:

Usable fascia width: 216 in
Usable fascia height: 48 in
Desired left clearance: 12 in
Desired right clearance: 12 in

Maximum working width:

216 − 12 − 12 = 192 in

If the original logo artwork has a width-to-height ratio of 5.3:1, scaling it to 192 inches wide gives:

192 ÷ 5.3 = approximately 36.2 in high

The first realistic layout would therefore be approximately:

192 in wide × 36 in high

That does not mean the final letters must be 36 inches tall. The calculation only tells the project team what happens when the logo is scaled proportionally to the available width.

A second check should compare the result with the fascia height:

48 in fascia
− 6 in top margin
− 6 in bottom margin
= 36 in usable logo height

In the example above, horizontal and vertical limits happen to produce almost the same maximum size. On many storefronts, one direction becomes the limiting factor much earlier.

Consider another storefront:

Item	Dimension
Usable fascia width	300 in
Usable fascia height	36 in
Left/right clearance	12 in each
Top/bottom clearance	5 in each

The available width is 276 inches, but the available height is only 26 inches. A long fascia does not justify a very tall letter set when the vertical sign band is shallow.

Storefront scale also affects how a sign feels architecturally. A 24-inch letter set may look substantial on a 12-foot storefront and noticeably undersized on a 40-foot storefront.

For multi-store projects, avoid forcing every location to use the same physical letter height. A better approach is to preserve:

• logo proportions;
• relative spacing;
• color;
• construction;
• illumination;
• mounting appearance;

while allowing overall dimensions to change with each storefront.

Iduoduo’s Channel Letter quotation process treats both overall dimensions and individual letter height as separate project inputs because each affects manufacturing and final layout.

How Does Viewing Distance Affect Size?

A channel letter can fit perfectly on the wall and still be too small for the distance from which people actually see it.

Measure or estimate the main viewing distance before finalizing letter height. The relevant distance is usually not the distance from the sidewalk directly below the sign. It is the distance where someone first needs to recognize the storefront.

Typical viewing conditions may include:

• pedestrians 20–50 ft from the storefront;
• vehicles passing 60–150 ft away;
• parking-lot traffic 100–250 ft away;
• large commercial buildings viewed from several hundred feet.

Viewing angle also matters.

A 24-inch letter viewed straight ahead from 70 feet is different from the same letter viewed from 70 feet away at a sharp side angle. Long channel-letter sets become visually compressed as the viewing angle becomes more acute.

For practical planning, record:

Site Condition	What to Check
Main approach direction	Where the sign first becomes visible
Typical viewing distance	Approximate distance to road, sidewalk, or parking lane
Vehicle speed	Whether recognition must happen quickly
Parking obstruction	Cars, trees, landscaping, canopies
Viewing angle	Straight-on or side approach
Neighboring signs	Level of visual competition
Day/night use	Whether illuminated recognition is important

Do not choose letter height from an online readability chart alone.

A chart can provide a starting point, but real storefronts include visual clutter, neighboring signs, landscaping, parked vehicles, different fonts, logo symbols, contrast differences, and changing daylight.

A narrow sans-serif “I” and a wide “M” with the same nominal height do not present the same visible area. Thin scripts are harder to recognize at distance than bold block letters of the same height.

For illuminated signs, visibility also depends on:

• face color;
• LED brightness;
• ambient lighting;
• wall color;
• halo contrast;
• letter depth;
• stroke width.

Iduoduo’s engineering reference treats viewing distance, stroke width, letter depth, diffuser material, ambient light, wall reflectance, and logo geometry as related factors when planning illuminated signage.

The practical sequence is:

measure the available wall → identify the real viewing distance → scale the logo → test whether the proposed height still gives the storefront enough visual presence.

How Do Logo Proportions Affect Sign Width?

The complete logo determines sign width more than the number of letters does.

Two brands may each have eight characters but require completely different overall dimensions because one uses narrow condensed lettering while the other uses wide capitals, an icon, and generous letter spacing.

Always size from the original vector artwork when available.

Consider three logos using approximately 30-inch-high main letters:

Logo Type	Approximate Result
Short 4-letter wordmark	May fit within 90–120 in
Medium 8-letter wordmark	May require 150–210 in
Long name + icon	May exceed 240 in

These are layout examples, not fixed production rules. Font geometry can change the result dramatically.

The safest method is to scale the complete vector artwork proportionally inside the measured signable area.

Do not independently stretch:

• the wordmark;
• the icon;
• the tagline;
• letter spacing;
• symbol-to-text ratio.

For example, assume a logo consists of:

Main wordmark: 168 in wide × 30 in high
Icon: 32 in wide × 32 in high
Gap between icon and text: 8 in

Total sign width becomes approximately:

32 + 8 + 168 = 208 in

Quoting the project as “30-inch letters” does not reveal that the complete sign requires more than 17 feet of horizontal space.

Secondary text creates another common problem.

A logo may contain:

Main letters: 30 in high
Tagline after proportional scaling: 4 in high

The 30-inch main letters may be straightforward to manufacture, while the 4-inch secondary letters may contain strokes too narrow for the intended channel-letter construction.

At that point, possible project decisions include:

• increasing the complete logo size;
• changing the construction of the tagline;
• producing the tagline as another sign type;
• removing the tagline if brand guidelines allow;
• changing the logo arrangement with brand approval.

The correct decision should happen during artwork and engineering review, not after metal fabrication starts.

Iduoduo’s project workflow includes Logo and font evaluation, proportion review, minimum-stroke assessment, structure, LED layout, installation holes, and wire exits before production.

Are the Letter Strokes Large Enough?

Letter height alone is not enough to confirm that a channel letter can be manufactured properly. The narrowest stroke may become the real production limit.

A 24-inch-tall bold capital letter may have a 4-inch-wide stroke and provide plenty of room for LED modules, wiring, fasteners, and light diffusion.

A 24-inch-tall script letter may narrow to less than 1 inch in several locations.

Both are described as “24-inch letters,” but they are very different manufacturing problems.

During engineering review, pay attention to:

• minimum stroke width;
• narrow internal channels;
• counters inside letters such as A, B, D, O, P, and R;
• sharp inside corners;
• thin serif details;
• closely spaced parallel strokes;
• narrow connections between logo elements;
• very small secondary text.

Stroke width affects more than whether metal can be bent.

For illuminated channel letters, it can influence:

Engineering Area	Effect of Narrow Strokes
LED placement	Less room for modules
Light diffusion	Greater risk of bright spots or dark areas
Wiring	Less internal routing space
Fasteners	Fewer practical mounting positions
Letter return	Harder forming around tight geometry
Acrylic face	Small sections become more fragile
Weather sealing	Tight corners become harder to seal
Service	Less access for later repair

Suppose a logo is initially proposed at 18 inches high and contains a narrow diagonal stroke that scales to only 0.65 inch.

If the logo is enlarged to 24 inches, the same proportional stroke becomes:

0.65 × 24 ÷ 18 = approximately 0.87 inch

At 30 inches:

0.65 × 30 ÷ 18 = approximately 1.08 inches

Increasing overall size can therefore improve manufacturability without changing the logo design.

However, there is no single universal minimum stroke width for every channel letter. The workable limit depends on:

• front-lit, halo-lit, or dual-lit construction;
• letter depth;
• face material;
• LED module size;
• return material;
• wiring;
• structural requirements;
• logo geometry.

That is why the actual artwork should be reviewed at the proposed physical size.

Iduoduo defines LED Channel Letters as an engineered system involving font and graphic engineering, faces, returns, backs, LED modules, power supplies, wiring, mounting structure, weather protection, packaging, and installation interfaces—not simply a flat logo made thicker.

Do Sign Codes Limit the Size?

Yes. The physical wall may allow a larger channel-letter set than the landlord or local sign regulations permit.

Before treating the measured fascia as the final allowable sign area, check whether the project is subject to:

• municipal sign ordinances;
• shopping-center sign criteria;
• landlord design standards;
• lease restrictions;
• historic-district requirements;
• illuminated-sign restrictions;
• electrical requirements;
• permitted mounting zones.

A common mistake is to calculate sign size from the empty wall first and look at the sign criteria later.

A more reliable order is:

1. Measure the storefront.
2. Define the usable architectural sign area.
3. Check landlord sign criteria.
4. Check applicable local sign requirements.
5. Prepare the preliminary sign layout.
6. Submit for approval where required.
7. Field-verify the approved dimensions.
8. Release the final production drawing.

For example:

Measured clear fascia: 240 in × 48 in

A preliminary layout might use:

210 in × 36 in

But if a property guideline allows a maximum sign width of 180 inches in the assigned tenant band, the 210-inch proposal cannot be treated as the production size simply because it physically fits.

The final engineering drawing should use the approved dimensions.

Storefront measurements and sign-code limits therefore answer two different questions:

Physical measurement asks:

“How much space exists?”

Sign criteria ask:

“How much of that space may be used?”

Both answers are needed before fabrication.

For projects outside China, local permit, electrical, structural, and installation requirements should be confirmed by the local sign company, installer, property manager, architect, or other responsible project party. Iduoduo’s project records specifically treat target market, mounting method, installation conditions, electrical requirements, and local permits as project-specific items rather than assuming one configuration applies in every country.

A storefront can therefore have enough room for 36-inch letters while the approved project ends up using 28-inch letters. That is not a measurement failure. It is the normal result of combining real facade dimensions with logo geometry, viewing conditions, manufacturability, and site rules.

Which Site Conditions Affect Installation?

Channel-letter installation depends on the real facade, not only the approved artwork. Before fabrication, record wall material, rear access, electrical location, mounting method, panel joints, awnings, obstructions, and installation height. These conditions affect studs, wire exits, raceways, backboards, power placement, sealing, access equipment, and whether the finished letters can be installed without drilling new holes or modifying parts on site.

What Wall Material Is Behind the Sign?

The visible surface of a storefront does not always tell you what the installer will actually be fastening into.

A facade may look like a smooth painted wall but could be:

• concrete;
• brick;
• stucco;
• EIFS;
• aluminum composite panel;
• metal cladding;
• corrugated metal;
• stone;
• wood;
• glass;
• framed wall with an exterior skin.

The mounting approach can change substantially between these surfaces.

For example, a stud location prepared for solid concrete is not automatically suitable for a thin aluminum composite panel. A decorative stone facade may require a different penetration strategy than brick. EIFS may appear solid from the outside while having insulation and a structural substrate farther behind the surface.

A useful site record should separate the visible finish from the likely structural backing.

Item to Record	Example
Exterior finish	Aluminum composite panel
Panel thickness	If known
Substrate behind panel	Steel framing / masonry / unknown
Wall cavity	Accessible / inaccessible / unknown
Surface condition	Flat / ribbed / uneven
Existing backing	Plywood / steel / unknown
Installer confirmation	Required before production

If the backing structure is unknown, mark it as unknown rather than guessing.

A note such as:

“Exterior surface appears to be ACM; internal structural backing to be verified by local installer”

is much safer than:

“Metal wall.”

Wall flatness also matters. Channel-letter backs are fabricated as flat parts, but stone joints, corrugated siding, raised ribs, or heavily textured stucco can prevent the letter from sitting evenly.

For a ribbed metal facade, record:

• rib spacing;
• rib projection;
• rib width;
• intended letter position relative to ribs.

If ribs are spaced every 12 inches and project 1.5 inches from the wall, several letters may cross high and low points. A spacer, backboard, raceway, or another mounting arrangement may be more practical than forcing each letter directly against the uneven facade.

Iduoduo’s engineering process treats wall condition, mounting structure, installation holes, wire exits, backboards, raceways, and installation method as connected project inputs rather than isolated details.

The most useful wall information answers three questions:

• What surface will the finished sign touch?
• What material will actually carry the fasteners?
• Can the installer reach or verify the structure behind it?

Those answers should be known before mounting patterns are finalized.

Is There Access Behind the Facade?

Rear access can determine whether individually mounted letters are simple to install or difficult to wire and service.

The proposed sign area may have:

• open interior wall access;
• a removable ceiling;
• a finished drywall ceiling;
• shelving against the wall;
• a storage room;
• HVAC equipment;
• structural framing;
• glass;
• an inaccessible cavity.

An exterior photo cannot show any of these conditions.

If individual illuminated letters use separate wire penetrations, the installer needs to know where those wires will emerge inside the building.

For a 10-letter sign, direct mounting may involve several electrical penetrations depending on the wiring plan. If the interior behind the sign is an open service area, routing those wires may be straightforward. If the same wall backs onto a finished ceiling with no access panel, installation can become much slower.

When site access allows, photograph:

• the interior side of the proposed sign wall;
• the ceiling directly behind it;
• nearby electrical equipment;
• visible framing;
• existing conduit;
• access panels;
• areas blocked by shelves or fixtures.

A practical site note might read:

“Rear access available above suspended ceiling. Approx. 30 in clear service space behind fascia.”

or:

“No rear access. Interior side is finished drywall with built-in cabinetry.”

Those two conditions can lead to very different mounting decisions.

Rear access also affects maintenance.

A power supply placed behind a sealed wall may work on installation day but become difficult to reach later. A more serviceable location may require a longer low-voltage run or a different raceway layout.

For each sign area, record:

Access Question	Site Answer
Can the rear of the wall be reached?	Yes / No
Is the ceiling removable?	Yes / No
Is there a service cavity?	Yes / No
Is the area blocked?	Yes / No
Can wiring be routed inside?	Yes / No / Unknown
Can power supplies remain accessible?	Yes / No / To be confirmed

The goal is not to design the building from a storefront survey. It is to identify conditions that can change the sign structure before manufacturing begins.

Where Is the Electrical Power Located?

For illuminated channel letters, “power available” is not enough information.

Record where the building power is located relative to the proposed sign and where the installer expects the power supply to be placed.

Useful measurements include:

• horizontal distance from power location to sign center;
• vertical distance from power location to sign area;
• distance to an accessible service point;
• approximate wire-routing path;
• whether conduit already exists.

For example:

Electrical Item	Site Information
Building input	120 V
Existing junction box	48 in right of sign center
Junction-box height	11 ft 6 in above grade
Proposed sign bottom	13 ft 2 in above grade
Rear access	Above suspended ceiling
Raceway required	No
Final connection	By local electrician

The voltage, final connection, certification requirements, and building-side electrical work should be confirmed for the destination market.

Do not assume the power supply must sit immediately behind every letter.

Depending on the project, power supplies may be positioned:

• inside the building;
• above a ceiling;
• inside a raceway;
• behind a backboard;
• within an accessible service area.

The location must allow practical wiring and future servicing.

Long wire runs should also be identified early. A power supply 3 feet from a letter set is not the same situation as one located 30 feet away. Cable length, grouping, routing, voltage drop, local electrical requirements, and service access may affect the final electrical arrangement.

Iduoduo’s Channel Letter engineering includes power matching, wiring, wire exits, voltage, power-supply requirements, installation interfaces, and mounting preparation.

The site survey should therefore show enough information for the engineering team to understand:

“Where does power start, where do the letters sit, and how is the connection expected to travel between them?”

Which Mounting Method Fits the Wall?

The main mounting choice should be made after the wall, wiring, landlord criteria, and installation access are understood.

Common options include:

• individually mounted letters;
• raceway-mounted letters;
• letters mounted to a backboard or panel.

Individually mounted letters usually provide the cleanest appearance because the letters sit separately on the facade.

However, direct mounting may require:

• multiple stud holes;
• multiple wire penetrations;
• accurate drilling templates;
• sufficient rear access;
• a wall capable of accepting the intended fasteners.

A raceway groups the letters onto one fabricated structure. In many projects it can reduce the number of building penetrations and simplify electrical distribution.

A backboard may be useful where:

• the facade is uneven;
• visual contrast is weak;
• direct drilling is restricted;
• several letters need one controlled mounting surface;
• existing facade conditions make individual positioning difficult.

A simple comparison can help during the survey:

Condition	Direct Mount	Raceway	Backboard
Clean flat facade	Strong option	Possible	Possible
Limited rear access	More difficult	Often easier	Often easier
Many wire penetrations restricted	Less suitable	More suitable	Depends on design
Uneven wall	Difficult	Better	Better
Clean individual-letter look required	Best	More visible	More visible
Electrical grouping needed	More complex	Convenient	Can be integrated

The table is not a universal selection rule. Local installation practice, structural requirements, landlord criteria, and facade conditions still control the final decision.

Before production, confirm:

• mounting type;
• stud size if specified;
• stud length if specified;
• spacer or stand-off requirement;
• wire-exit location;
• raceway dimensions if used;
• backboard dimensions if used;
• installer-specific mounting requirements.

Iduoduo’s professional sign-company workflow specifically accepts mounting method, stud pattern, wire exit, raceway/backboard, wall and drawing information because the manufacturing result needs to match the installer’s field method.

A beautiful sign that arrives with the wrong mounting interface is not installation-ready.

Are Awnings or Wall Joints in the Way?

Small facade details often create the largest installation surprises.

Common conflicts include:

• awnings;
• canopies;
• panel joints;
• expansion joints;
• decorative ribs;
• light fixtures;
• cameras;
• vents;
• downspouts;
• conduit;
• existing holes;
• neighboring signs.

Record the position of each relevant obstacle instead of relying on the photograph alone.

A useful method is to measure every obstruction from a common origin, such as the left edge and bottom edge of the usable sign area.

Example:

Obstruction	X Position	Y Position	Size
Vertical panel joint	64 in	Full height	0.5 in
Wall light	158 in	21 in	8 × 12 in
Camera	34 in	39 in	6 × 5 in
Downspout	211 in	Full height	4 in wide
Canopy top	Full width	10 in below sign band	—

With these coordinates, the engineering drawing can show whether:

• a stud falls on a panel seam;
• a wire exit crosses an expansion joint;
• a logo icon overlaps a light fixture;
• the raceway needs to stop before a downspout;
• installation equipment can physically reach the sign area.

Expansion joints deserve particular attention. They exist to accommodate building movement. A sign layout should not casually bridge or penetrate one without the local project team confirming the correct treatment.

Canopies and awnings create another type of problem: access.

A channel-letter set may fit comfortably above a canopy while leaving very little room for a lift basket, drill, installer, wiring work, or future maintenance.

Measure:

• canopy projection from the wall;
• vertical distance from canopy top to sign area;
• canopy width;
• whether access is possible from above or below.

For example, a canopy projecting 72 inches from the facade can make a sign 14 feet above grade much harder to reach than the height alone suggests.

The best time to discover that problem is during the survey—not when the lift arrives.

How Does Mounting Height Affect Installation?

Mounting height affects installation equipment, labor, alignment, electrical access, service planning, and sometimes how the sign should be packaged or divided.

Always record at least:

• grade to bottom of sign area;
• grade to top of sign area;
• approximate sign centerline;
• highest point of the complete logo;
• major access restrictions below the sign.

Example:

Grade to fascia bottom: 14 ft 2 in
Fascia height: 4 ft 0 in
Grade to fascia top: 18 ft 2 in
Proposed sign bottom: 14 ft 8 in
Proposed sign top: 17 ft 7 in

A sign in this range may be reachable with common lift equipment depending on site access.

Move the same sign to 38 feet above grade and several project conditions change.

Higher installations may require:

• larger boom lifts;
• bucket trucks;
• traffic control;
• longer setup time;
• larger working clearance;
• more careful alignment planning;
• longer electrical routes;
• stricter site-access scheduling.

The relationship between height and complexity is not linear.

A 30-foot installation is not simply “twice as difficult” as a 15-foot installation. Site access may make the difference much larger.

Record ground conditions too.

A lift may have trouble reaching the facade if the area below the sign contains:

• stairs;
• landscaping;
• parking barriers;
• narrow sidewalks;
• loading zones;
• sloped pavement;
• permanent canopies.

For example:

Site Condition	Installation Effect
Sign bottom at 10 ft	Ladder or small lift may be possible
Sign bottom at 20 ft	Lift often needed
Sign bottom at 35+ ft	Larger access equipment likely
6-ft canopy below sign	May require longer boom reach
Landscaping against wall	Reduces equipment positioning
Narrow pedestrian zone	May require access scheduling

These ranges are planning examples rather than equipment rules. The installer should determine the actual access method for the site.

Mounting height also increases the importance of accurate patterns. If a 12-foot-wide letter set is mounted 30 feet above grade, shifting the complete pattern because one obstacle was missed can require significantly more time and equipment than correcting the same issue on a low storefront.

For large or difficult installations, include installation height on the drawings sent for engineering rather than treating it as a detail that can be discussed later.

Iduoduo’s engineering team evaluates product size, installation height, wall material, installation method, wire exits, structural configuration, and packaging or transportation feasibility as part of turning artwork into production-ready signage.

The most useful site survey does not try to solve every installation question itself. It gives the local installer and manufacturer enough verified information to solve those questions before the finished letters arrive at the storefront.

What Should You Send Before Production?

Before production, send the final logo file, verified sign dimensions, storefront photos, wall information, mounting method, wire-exit requirements, power details, quantity, destination, and approved drawing. Preliminary information can support pricing and layout, but fabrication should begin only after the dimensions and installation interfaces affecting fit, drilling, wiring, raceways, or backboards have been confirmed.

Which Storefront Photos Should You Provide?

Storefront photos should help the design and engineering team understand the building almost as if they were standing in front of it.

One cropped photo of the fascia is rarely enough. It may show the empty sign area but hide the entrance centerline, tenant boundaries, canopy projection, wall joints, neighboring signs, power access, or the wall conditions behind the proposed letters.

A useful photo package normally includes:

Photo	What It Should Show	Why It Matters
Straight-on storefront	Entire tenant frontage	Used for layout and centering
Wide building view	Storefront plus surrounding facade	Shows architectural context
Left-angle view	Side relationship of sign area	Reveals depth and obstructions
Right-angle view	Opposite side condition	Checks access and projections
Fascia close-up	Wall surface and joints	Helps review mounting conditions
Obstruction close-up	Lights, vents, seams, cameras	Helps avoid conflicts
Interior wall photo	Area behind proposed sign	Helps with wire routing
Electrical photo	Junction box, conduit, service point	Supports power planning
Existing sign area	Old holes or removed signage	May affect new mounting

The straight-on photo is usually the most important for initial artwork scaling. Stand far enough back to capture the complete storefront and keep the camera approximately perpendicular to the wall.

Avoid using only:

• screenshots from Google Street View;
• heavily compressed messaging-app images;
• night photos where wall details disappear;
• photos taken from extreme side angles;
• images with parked trucks covering the storefront;
• close-ups with no building reference.

When a dimension is important, place it directly on the corresponding image.

For example:

“Clear fascia width = 222.75 in”

is more useful than sending the number in a separate message with no reference to where it was measured.

For projects with several stores, name every image clearly:


A consistent naming system becomes especially useful when 10, 20, or 100 storefronts are being reviewed at the same time.

Iduoduo can begin project development from logo files, storefront photographs, wall dimensions, drawings, and installation requirements, so photographs should support the dimensional information rather than replace it.

Which Measurements Are Needed for a Quote?

A quotation becomes more reliable when the information defines the actual product rather than only the appearance.

At minimum, send:

• overall sign width;
• overall sign height;
• individual letter height if already known;
• quantity;
• indoor or outdoor location;
• lighting type;
• return depth if specified;
• mounting method;
• wall type;
• destination country;
• required project date.

For a more complete Channel Letter quotation, add:

Information	Example	Why It Changes the Quote
Vector artwork	AI / PDF / SVG	Defines exact geometry
Overall size	196 × 32 in	Controls material usage
Letter height	28 in	Helps determine construction
Quantity	3 sets	Changes production planning
Lighting	Front-lit	Defines face and LED system
Face color	White acrylic	Affects material selection
Return color	Pantone / painted finish	Affects finishing
Return depth	5 in	Changes metal and packing volume
Installation	Direct mount	Affects studs and wire exits
Wall	ACM over framing	Affects mounting preparation
Raceway	None / required	Changes structure and dimensions
Wire exits	Per letter / grouped	Changes backs and wiring
Voltage	120 V	Affects power configuration
Environment	Outdoor	Affects weather protection
Destination	California, USA	Affects electrical and packing review
Required date	Nov. 15	Affects production and shipping plan

Iduoduo’s Channel Letter inquiry standard includes logo or font files, overall size, individual letter height, quantity, lighting method, face and return colors, return depth, indoor/outdoor use, LED color or CCT, voltage, power requirements, mounting method, raceway or backboard, wire exits, wall conditions, destination, packaging, and project date.

Professional sign companies may also provide:

• shop drawings;
• elevation drawings;
• section drawings;
• stud patterns;
• installer notes;
• local electrical requirements;
• certification requirements;
• approved landlord drawings.

More information does not automatically mean a better quotation if several versions conflict.

One accurate drawing is better than three drawings with different dimensions.

Before sending an RFQ, check whether the overall width shown in the elevation matches the width written in the email. If the drawing says 192 inches and the message says 198 inches, clarify the final number before pricing.

Is an Estimate Enough for Initial Design?

Yes. Approximate dimensions are often enough for a preliminary mockup, budget quotation, or early size discussion.

For example:

Approximate usable fascia: 220 in wide × 44 in high
Estimated sign target: about 190 in wide
Storefront photo: available
Final site survey: pending

That is enough information to test whether the logo is likely to fit and whether the project appears suitable for 24-inch, 28-inch, or 30-inch letters.

The important part is labeling estimated numbers clearly.

Use wording such as:

“Approximate dimension — for quotation only.”

or:

“Preliminary size — field verification required before fabrication.”

Do not allow an estimate to become a production dimension simply because it appears on an early drawing.

A practical project can use three dimensional stages:

Stage	Example	Purpose
Estimate	Approx. 220 in fascia	Budget and concept
Survey	217.75 in verified	Engineering
Approved sign	192 × 31.5 in	Production

The difference between 220 inches and 217.75 inches may have little effect on early pricing.

The same 2.25-inch difference can become important if the proposed raceway is already designed to use almost the entire available width.

Estimates are particularly useful when:

• a new store has not opened yet;
• a landlord drawing is available but the final site survey is pending;
• a brand team needs a budget before hiring the installer;
• several locations need preliminary pricing;
• overseas manufacturing is being evaluated before site work begins.

The correct sequence is:

estimate → preliminary layout → site verification → approved drawing → production.

That sequence keeps the project moving without pretending early information is final.

When Is a Final Site Survey Required?

A final site survey becomes important whenever an incorrect dimension could cause the finished letters, raceway, backboard, studs, or wire exits to miss the actual building conditions.

Final verification is especially important for:

• direct-mounted channel letters;
• large signs;
• high installations;
• narrow fascia;
• irregular facades;
• ACM panel systems;
• stone or textured walls;
• multi-tenant shopping centers;
• raceway-mounted signs;
• backboard systems;
• installations with limited rear access;
• projects with strict landlord criteria;
• signs located near expansion joints;
• installations where electrical penetrations are tightly controlled.

A final survey should confirm more than overall width and height.

At minimum, verify:

Final Survey Item	Why It Matters
Clear fascia width	Confirms complete sign fit
Clear fascia height	Confirms vertical fit
Sign centerline	Controls positioning
Column locations	Defines usable area
Panel joints	Affect studs and wire exits
Wall material	Affects attachment preparation
Rear access	Affects wiring
Electrical point	Affects power route
Mounting height	Affects installation access
Canopies/awnings	Affect equipment reach
Raceway limits	Affect fabricated size
Major obstructions	Prevent field conflicts

Suppose an early drawing uses a 204-inch-wide sign.

The final field survey finds:

Clear fascia: 208 in
Panel joint: 18 in from right edge
Required right clearance: 8 in

The sign technically fits by width, but the panel joint may run directly behind the final letter or mounting point.

Without the survey, the problem would not appear until installation.

Final site verification is also valuable when architectural drawings are available. Construction often differs slightly from design drawings because of field changes, finish thickness, tenant modifications, trim, or equipment added later.

Use architectural drawings for planning.

Use verified site conditions to control fabrication.

How Are Mounting Holes and Wire Exits Confirmed?

Mounting holes and wire exits should be based on the approved sign layout and installation method.

They should not be added as generic holes at convenient locations during production.

For individually mounted letters, the back of each letter may require:

• mounting studs;
• screw holes;
• spacers;
• wire exits;
• drain provisions where applicable;
• alignment references.

The exact layout depends on letter geometry.

A wide “W” may require a different stud arrangement from a narrow “I.” A large circular logo may need several mounting points distributed around the perimeter.

The installer may also have preferred requirements.

Before final engineering, confirm:

• stud diameter;
• stud length;
• number of mounting points;
• spacer depth;
• wire-exit diameter;
• wire-exit position;
• wire length;
• wiring direction;
• template requirement.

For example:

Item	Confirmed Requirement
Mounting	Direct mount
Stud diameter	1/4 in
Stud length	3 in
Stand-off	1/2 in
Wire exit	One per letter
Wire length	24 in
Template	Full-size paper pattern

Values shown above are project examples, not universal specifications.

Raceway-mounted letters require another set of confirmations:

• raceway overall width;
• raceway height;
• raceway depth;
• letter positions;
• mounting-hole locations;
• power-entry location;
• service access;
• wall attachment points.

A raceway designed to 194 inches should not be produced from a storefront measurement that is still marked “approximately 196 inches.”

Backboards require similar checks because the board itself becomes a large fabricated component tied directly to the available wall area.

Iduoduo’s professional sign-company project information includes mounting method, stud pattern, wire exit, raceway/backboard, overall size, and installation requirements.

The safest workflow is:

approved sign layout
→ installer confirms mounting approach
→ engineering prepares stud and wire layout
→ project team approves installation interface
→ production begins.

What Should Be Verified Before Fabrication?

Before fabrication starts, compare the final drawing against the latest site information one last time.

A practical production-release checklist should cover five groups of information.

First, artwork:

• correct logo version;
• correct font;
• correct proportions;
• correct letter spacing;
• correct icon position;
• correct tagline;
• approved colors.

Second, dimensions:

• overall width;
• overall height;
• individual letter height;
• return depth;
• raceway dimensions;
• backboard dimensions;
• clearances.

Third, installation:

• wall type;
• mounting method;
• stud pattern;
• wire exits;
• stand-off distance;
• installation height;
• template requirement;
• known site obstructions.

Fourth, electrical:

• lighting type;
• LED color or CCT;
• voltage;
• power-supply requirement;
• wire grouping;
• power location;
• certification requirement where specified.

Fifth, delivery:

• quantity;
• destination;
• packaging requirement;
• project deadline;
• store identification for multi-location projects.

A final release sheet can look like:

Production Item	Status
Logo file	Approved
Overall size	192 × 31.5 in
Letter height	28 in
Lighting	Front-lit
Return depth	5 in
Wall	ACM
Mounting	Direct
Stud pattern	Approved
Wire exits	Approved
Voltage	120 V
Storefront dimensions	Field verified
Drawing revision	Rev C
Production release	Approved

The last line matters.

“Production release: approved” should correspond to one specific drawing revision.

Avoid situations where:

• sales has Rev A;
• the installer has Rev B;
• engineering has Rev C;
• production receives an old PDF from the first email.

Iduoduo’s project workflow treats final approved files and specifications as the production basis rather than scattered information from different messages. Project records can include dimensions, materials, colors, installation requirements, wire exits, mounting details, revisions, and approval status.

For repeat or multi-store orders, keep the approved production record for each location separately.

Store 001 may use:

192-inch sign width
direct mounting
120 V

Store 002 may use:

174-inch sign width
raceway mounting
120 V

Store 003 may use:

206-inch sign width
direct mounting
different stud pattern

The artwork can remain the same while installation information changes by location.

A Channel Letter order is ready for production when the factory no longer has to guess about the product dimensions, artwork, mounting interface, electrical configuration, or destination requirements.

If any item still carries words such as “approximate,” “probably,” “similar to photo,” or “installer will decide later,” identify whether it affects fabrication. If it does, resolve it before metal cutting, acrylic processing, drilling, wiring, or raceway fabrication begins.

Are Your Storefront Measurements Ready for a Channel Letter Quote?

If you already have a storefront photo, logo file, approximate fascia dimensions, and project location, that is usually enough to begin a preliminary Channel Letter review. Iduoduo can use the available information to check overall proportions, likely letter size, lighting type, wall conditions, mounting method, and whether more site data should be confirmed before a production drawing is prepared.

For a more accurate quotation, send the vector logo, target size or verified storefront dimensions, quantity, preferred lighting, wall type, installation method, destination country, and required project date. If the local installer already has an elevation drawing, stud pattern, wire-exit requirement, raceway detail, or backboard specification, those files can be reviewed together with the artwork so the manufacturing plan matches the installation conditions.

Not every inquiry needs to begin with a complete engineering package. A clear storefront photo and a few reliable dimensions can be a practical starting point. From there, the remaining production details can be identified before fabrication rather than being left for the installer to solve after the finished Channel Letters arrive.
