How to Request a Sign Quote Using Only a Storefront Photo

A storefront sign project often starts long before anyone has a finished shop drawing. A restaurant operator may send a phone photo of an empty fascia. A sign company may receive a logo and one elevation image from its account manager. An agency may need a budget before the landlord, architect, installer, and electrical contractor have finalized every detail. Waiting for a perfect drawing package can slow the project before anyone even knows whether the proposed sign is financially realistic.

A storefront photo can be enough to begin a sign quotation when it clearly shows the proposed sign area and is supported by basic project information. A manufacturer can use it to assess visual scale, likely sign type, approximate proportions, wall conditions, installation constraints, and engineering questions. Exact fabrication dimensions, mounting points, wiring, electrical requirements, and structural interfaces still require verification before production.

The important word is begin. A good photo-based quotation does not pretend that an image contains information it cannot prove. Instead, it turns visible conditions into a workable preliminary specification, identifies assumptions, and shows exactly what must be confirmed next.

Think of a storefront photo as the first page of the engineering file, not the last. Used properly, one ordinary phone photo can move a project surprisingly far—from “we need a sign somewhere here” to a structured quotation that a project team can actually discuss, compare, revise, and approve.

Is a Storefront Photo Enough for a Quote?

Yes. A clear storefront photo can usually support a preliminary sign quote when the sign area, logo, approximate size, quantity, location, and basic lighting requirement are available. The photo helps establish product type, proportions, visible wall conditions, and likely installation constraints. Exact fabrication dimensions, mounting points, wire exits, electrical details, and hidden wall structure still require confirmation before production.

What Can a Sign Manufacturer Learn From a Photo?

A storefront photo gives the factory important site context that cannot be understood from a logo file alone. It helps determine how the proposed sign relates to the building, whether the available area is suitable for the logo, and which construction methods are worth considering before detailed drawings are prepared.

From a clear straight-on photo, an experienced sign team can usually evaluate:

• approximate sign location and available fascia area;
• relationship between logo width and storefront width;
• visible wall finish such as brick, stone, ACP, metal panel, glass, or painted surface;
• nearby windows, columns, awnings, wall joints, lights, cameras, pipes, or existing signs;
• likely viewing distance and visual scale;
• whether individual letters, a raceway, backboard, cabinet, light box, or dimensional logo may fit better;
• whether the logo has narrow strokes, small gaps, or complex shapes that could affect fabrication;
• whether visible conditions suggest front-lit, halo-lit, front-and-halo-lit, or non-illuminated construction.

A photo is especially useful when the proposed sign is still being sized. For example, a 2,000 mm-wide logo may look balanced on a 6,000 mm fascia but crowded on a 2,500 mm fascia. The product dimensions alone do not tell the full story.

The photo also helps the manufacturer identify the next questions. A stone wall may trigger questions about mounting substrate. A deep canopy may affect installation access. A visible raceway may raise the possibility of reuse. A narrow fascia may require smaller letters or a different sign construction.

Iduoduo accepts storefront photographs, logos, measurements, installation requirements, and destination-market specifications as project inputs, then develops them through manufacturability review, shop drawings, mounting drawings, electrical planning, BOM control, and final production approval.

Which Details Can Only Be Estimated?

The main limitation of a storefront photo is scale.

A phone image records perspective, not verified dimensions. If the camera is positioned below the façade, off-center, or close to the building, the apparent width and height of the sign area can differ from the real dimensions. Wide-angle lenses can increase the error further near the edges of the image.

For early pricing, the manufacturer can estimate proportions more reliably when at least one real measurement is available.

For example:

Known storefront opening width: 1,000 mm
Photo ratio between sign area and opening: approximately 3.6:1
Estimated sign area width: approximately 3,600 mm

That estimate is useful for comparing a 2,000 mm sign with a 2,800 mm sign and for calculating an initial material and lighting budget. It is not a fabrication dimension.

Detail	Photo Only	Photo + Known Dimension	Final Verification Needed
Proposed sign position	Reliable	Reliable	Yes
Logo-to-wall proportion	Reliable	Reliable	Yes
Approximate sign width	Rough	Much better	Yes
Approximate letter height	Rough	Much better	Yes
Visible wall finish	Usually identifiable	Usually identifiable	Yes
Wall thickness	Unknown	Unknown	Yes
Hidden fixing substrate	Unknown	Unknown	Yes
Stud locations	Unknown	Unknown	Yes
Wire exits	Unknown	Unknown	Yes
Power supply location	Usually unknown	Usually unknown	Yes
Exact production dimensions	Not reliable	Still preliminary	Yes

A useful production rule is:

If a dimension controls where metal or acrylic is cut, where a hole is drilled, where a stud is welded, or where a wire exits, it should be confirmed by measurement or approved drawing rather than taken from photo scaling.

Even a 5–10% sizing difference can become important on a large storefront sign. A preliminary 2,000 mm-wide sign that later becomes 2,200 mm wide has 10% more overall width, but the effect on material, LED quantity, power grouping, packing size, and freight may not increase in a simple straight line.

Is a Photo-Based Quote Final or Preliminary?

A quote based mainly on a storefront photo should normally be treated as preliminary.

That does not mean the quotation should be vague. A useful preliminary quote should clearly state what has already been priced and which details remain open.

For example:

Quote Item	Current Basis
Product	Front-lit channel letters
Overall width	Approx. 2,400 mm
Letter height	Approx. 450–550 mm
Quantity	1 set
Use	Outdoor storefront
Face	Translucent acrylic
Returns	Painted metal
Lighting	LED modules
Mounting	Individual mounting
Raceway	Not included unless confirmed
Voltage	Pending destination requirement
Wire exits	Pending installer confirmation
Final shop drawing	Required before production

A quotation written in this format is much easier to compare with another supplier because the construction basis is visible.

The price can change significantly when any of the following changes:

• overall size;
• letter depth;
• sign type;
• illuminated versus non-illuminated construction;
• acrylic or metal specification;
• raceway or backboard requirement;
• quantity;
• outdoor protection requirement;
• voltage or power configuration;
• packaging size;
• destination;
• production deadline.

Some missing details have little effect on the first price but are critical for installation. Wire exit position is a good example. Moving a wire exit by 50 mm may not materially change manufacturing cost, but a wrong exit can create extra drilling or exposed wiring on site.

For channel letter projects, Iduoduo’s quotation information may include logo files, dimensions, letter height, quantity, lighting, face and return colors, depth, indoor or outdoor use, voltage, mounting method, raceway or backboard, wire exits, wall conditions, destination, packaging, and project timing.

A strong preliminary quote therefore separates information into three groups:

• Confirmed: already supplied and accepted.
• Estimated: sufficient for initial pricing but still needs measurement.
• Pending: not required for the first budget, but required before production.

That makes later price revisions easier to understand.

When Is a Storefront Photo Not Enough?

A storefront photo is not enough when hidden site conditions can materially change the sign structure, mounting, wiring, or installation interface.

The most common cases include:

• large channel letters installed several meters above ground;
• heavy cabinet signs;
• large backboards or raceways;
• stone-clad façades;
• glass curtain walls;
• uneven masonry;
• unknown wall cavities;
• existing steel supports intended for reuse;
• concealed electrical routes;
• restricted drilling locations;
• historic or protected façades;
• signs spanning several wall materials;
• projects requiring structural calculations;
• landlord-controlled storefront systems;
• large signs that may need segmentation for shipping or installation.

A photo showing stone, for example, confirms only the visible surface. It does not reveal whether the fixing substrate behind it is concrete, block, steel framing, cavity wall construction, or another system.

The building-side fixing method should therefore be confirmed by the local installer, contractor, architect, property team, or structural professional where required.

The factory can then prepare the sign-side interface around verified information, including:

• mounting studs;
• hole pattern;
• installation template;
• backboard;
• raceway;
• wire exits;
• power grouping;
• section details;
• product segmentation.

Electrical conditions create similar limits. A photograph may show where a sign will be installed but usually cannot confirm where the power supply can be serviced, where primary power is available, or where wires may legally and practically pass through the wall.

The same principle applies to final manufacturing dimensions.

The storefront photo starts the project, but the production team should eventually work from controlled documentation. At Iduoduo, final production and QC can reference approved shop drawings, BOMs, electrical specifications, mounting specifications, sample approvals, and the final production version rather than relying on the original storefront image alone.

A photo is enough when the goal is to understand the project, establish an initial construction, and obtain a workable budget.

It stops being enough when the next decision involves cutting, drilling, wiring, mounting, or approving the sign for production.

What Should Your Storefront Photo Show?

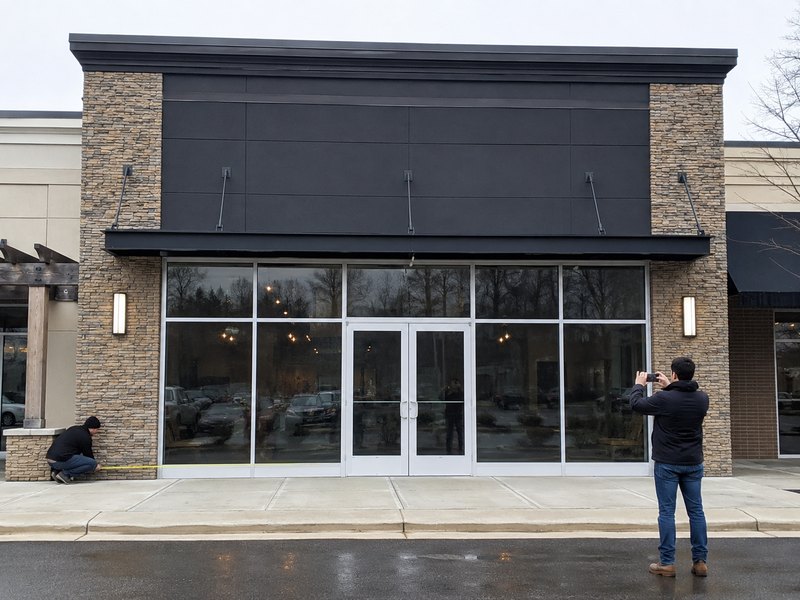

A useful storefront photo should show the complete sign area, nearby architectural features, visible wall surface, entrances, windows, columns, awnings, existing signs, and enough surrounding space to understand scale. A straight-on wide photo should be the primary image. Side views, close-ups, and at least one known measurement can then help the manufacturer estimate sign size, mounting conditions, and quotation scope more accurately.

How Should You Photograph the Full Storefront?

Start with one wide photograph that shows the entire storefront rather than only the empty area where the sign will go.

The factory needs to understand how the sign relates to the building. A tightly cropped image of a 1-meter-wide wall section may look clear, but it removes the surrounding information needed to judge proportion, visual balance, installation restrictions, and approximate scale.

For a typical retail storefront, the primary photograph should include as many of the following as possible:

• full fascia width;
• entrance doors;
• storefront windows;
• columns or structural divisions;
• neighboring wall sections;
• awnings or canopies;
• existing signs;
• wall joints;
• lighting fixtures;
• visible electrical boxes;
• cameras or speakers;
• downpipes;
• projecting trims;
• adjacent tenant signs.

Stand far enough away that the complete storefront fits naturally inside the frame. Avoid using extreme digital zoom because it reduces detail. If possible, hold the phone approximately level and position yourself near the centerline of the storefront.

Camera position matters because perspective can affect dimensional judgment.

For example, consider a 4,000 mm-wide fascia photographed from three different positions:

Camera Position	Effect on Image	Usefulness for Quote
Centered, straight-on	Minimal perspective distortion	Best
30–45° side angle	Width appears compressed	Useful as secondary view
Very close, wide-angle	Edge distortion increases	Poor for scaling
Strong upward angle	Upper wall appears narrower	Limited for dimensions
Distant centered view	Good overall proportion	Very useful

A photo taken from 2–3 meters away may be too close for a wide storefront. Moving back to 6–10 meters, where site conditions allow, often gives a more useful elevation-style image.

Do not worry about producing architectural photography. The objective is simple: someone who has never visited the site should be able to look at the photo and understand where the sign will go.

For early project review, Iduoduo can accept storefront photographs together with logos, drawings, measurements, installation requirements, and other project information, then develop those inputs through design and engineering review.

Which Photo Angles Help With Quoting?

One straight-on photograph should be the starting point, but three to five well-chosen images usually provide a much clearer picture of the installation area.

A useful photo set can include:

1. One wide straight-on view
2. One view from the left
3. One view from the right
4. One close-up of the sign surface
5. One close-up of existing wiring or mounting conditions, if visible

Each angle answers a different question.

The straight-on image is best for overall proportions.

A left or right angle reveals depth. It may show whether the fascia projects from the building, whether an awning sits below the sign area, whether a raceway already exists, or whether architectural trim will interfere with letter depth.

For example, a front photograph may suggest that 100 mm-deep channel letters will fit easily. A side photograph might reveal a canopy only 60 mm below the proposed sign position. That information could affect letter depth, mounting height, or the entire layout.

For replacement projects, photograph the existing sign from both the front and side before removal.

Useful close-ups include:

• existing mounting studs;
• bolt locations;
• raceways;
• backboards;
• cable exits;
• conduit;
• electrical boxes;
• wall penetrations;
• sign cabinet edges;
• visible brackets.

When installation height is significant, include one wider image showing the storefront from ground level.

A sign mounted 2.5 meters above grade presents a very different handling situation from one installed 10 meters above the pavement. The manufacturing quote may not include local installation, but height can still affect segmentation, handling, wiring, packaging, and how easily sections can be aligned.

A practical photo set usually looks like this:

Photo	Main Purpose
Front wide view	Size and visual proportion
Left angle	Depth and obstacles
Right angle	Depth and installation context
Wall close-up	Surface and fixing clues
Existing sign close-up	Reuse or replacement details

Five purposeful photos are usually more useful than twenty nearly identical images.

What Should Be Visible Around the Sign Area?

Do not photograph only the exact rectangle where the sign will sit.

Include surrounding architecture because many installation problems occur just outside the planned sign footprint.

A sign may technically fit inside the available area but still conflict with a wall joint, light fixture, canopy, drainpipe, security camera, or neighboring sign.

The factory should ideally be able to see:

• at least 300–600 mm of wall around the planned sign area where possible;
• nearby wall joints;
• changes in cladding material;
• window and door edges;
• structural columns;
• architectural recesses;
• lighting fixtures;
• pipes or drainage;
• existing cable routes;
• awnings;
• canopies;
• ventilation outlets;
• projecting decorative elements.

The required surrounding area depends on sign size.

For a 600 mm-wide interior logo, 200–300 mm of surrounding wall may be enough to understand context.

For a 4,000 mm storefront channel-letter set, the photograph should ideally show the complete fascia and major architectural features around it.

Clearances deserve particular attention.

Imagine a logo set with an estimated overall width of 2,800 mm and a visible installation area of approximately 3,000 mm. That leaves only about 100 mm on each side.

On a rendering, the sign may appear to fit.

On site, small measurement differences, wall irregularities, installation tolerances, or mounting hardware could make the layout too tight.

A more comfortable installation may require reducing the sign width to 2,600–2,700 mm, depending on the architecture.

The same principle applies vertically.

If letters sit very close to the top or bottom of a fascia, installers may have limited room to drill, position templates, route wires, or handle the letters.

Photographs should therefore help answer not only:

“Can the sign fit here?”

They should also help answer:

“Can the sign be manufactured, positioned, wired, and installed without unnecessary difficulty?”

Visible wall material also matters, but surface appearance should not be confused with structural information.

A photo may clearly show stone cladding. It does not prove whether concrete, steel framing, blockwork, insulation, or a cavity sits behind the stone.

The photograph helps identify what needs further confirmation. It does not replace local verification of hidden building conditions.

Do You Need a Reference Measurement?

Yes. One accurate reference measurement can greatly improve the usefulness of a storefront photo.

Without a known dimension, the factory can judge visual proportion but cannot reliably convert pixels into millimeters or inches.

The best reference measurements come from the same wall plane as the proposed sign.

Good examples include:

• full usable fascia width;
• distance between two columns;
• width of a storefront opening;
• width between two wall joints;
• height of the proposed sign area;
• existing sign width;
• measured wall panel width.

Suppose the distance between two visible columns is confirmed as 3,600 mm.

The proposed logo occupies approximately 70% of that width in the mockup.

A reasonable preliminary sign width becomes:

3,600 mm × 0.70 = approximately 2,520 mm.

That gives the manufacturer a much stronger basis for initial material, LED, power, packaging, and freight calculations.

Without the 3,600 mm reference, the same logo might visually appear anywhere from 2,200 mm to 2,800 mm depending on lens position and perspective.

The difference is commercially meaningful.

Estimated Sign Width	Difference From 2,500 mm Basis
2,250 mm	-10%
2,375 mm	-5%
2,500 mm	Reference
2,625 mm	+5%
2,750 mm	+10%

A 10% increase in overall width does not always create exactly a 10% increase in price. Larger dimensions can change sheet utilization, LED count, power grouping, packaging length, dimensional freight, or whether the sign needs to be divided into sections.

For that reason, measuring the largest available sign area is usually more useful than measuring a random object nearby.

Avoid relying on assumed dimensions such as:

“the door should be about 900 mm wide”

or:

“those bricks are probably standard size.”

Doors, bricks, tiles, windows, façade panels, and architectural modules vary between buildings and countries.

If a measurement cannot be taken safely, do not climb, lean over edges, or access restricted areas just to obtain one. Provide the photographs and state clearly which dimensions remain unknown.

A local installer or site survey can confirm them later.

The purpose of a reference measurement is to improve the preliminary quote, not to bypass final site verification.

Before production, dimensions that control cutting, mounting holes, studs, raceways, backboards, or wire exits should still be transferred into approved project drawings. Iduoduo’s engineering process ultimately converts storefront photographs and measurements into controlled production information covering structure, mounting, electrical planning, drawings, BOMs, and final approval.

What Information Should You Send With the Photo?

Send the storefront photo with your logo, approximate sign size, quantity, indoor or outdoor use, preferred lighting, installation city and country, wall information, and required date. If some specifications are unknown, mark them as “to be confirmed” rather than guessing. A manufacturer can then separate confirmed information from assumptions and build a preliminary quote without waiting for a complete shop drawing package.

Do You Need a Vector Logo File?

A vector logo is the best file for a custom sign quote, but it is not mandatory for the first inquiry.

AI, EPS, SVG, CAD, or vector PDF files allow the design team to measure stroke widths, check letter spacing, identify small openings, preserve exact logo proportions, and prepare fabrication drawings without tracing a low-resolution image.

That matters because sign production depends on geometry.

A thin 6 mm stroke shown in a logo may not be manufacturable in the same way as a 40 mm stroke. Small counters inside letters such as “A,” “R,” “B,” or “e” may need adjustment when converted into illuminated channel letters or acrylic logo elements. Tight gaps between logo shapes can also affect routing, bending, LED placement, and mounting.

For the first quote, however, send the best artwork currently available.

Useful formats include:

• AI
• EPS
• SVG
• Vector PDF
• DXF or CAD files
• High-resolution PNG
• High-resolution JPG
• Clear logo screenshot
• Brand guideline file

If only a JPG or PNG is available, state whether the logo is final.

A quotation can usually begin from raster artwork, but final fabrication should use an approved production file rather than a logo copied directly from a storefront image.

Iduoduo’s normal project inputs can include AI, PDF, SVG, CAD, reference images, storefront photographs, wall dimensions, and brand requirements. Those inputs are then converted into quote-ready concepts, drawings, structures, and installation interfaces.

For repeat store programs, keeping one approved master logo file is especially important. Different branches may have different wall dimensions, but the logo geometry should not change because one location supplied a compressed image and another supplied a vector file.

Which Measurements Are Most Helpful?

The most useful measurement is usually the maximum available sign area.

If the full sign size is already decided, send the overall width and height. If not, measure the usable fascia or wall area so the manufacturer can recommend a practical sign size.

Useful measurements include:

Measurement	Why It Matters
Maximum sign width	Sets the main design limit
Maximum sign height	Prevents conflict with fascia edges
Existing sign width	Helps with replacement projects
Existing sign height	Useful for visual comparison
Distance between columns	Good scaling reference
Fascia width	Helps determine logo proportion
Fascia height	Helps determine letter height
Mounting height	Affects installation planning
Available cable entry area	Helps plan wire exits
Existing raceway size	Useful if reuse is being considered

For channel letters, overall width and individual letter height are particularly useful because they influence return depth, face size, LED layout, power requirements, packaging, and freight.

Iduoduo’s channel letter RFQ information can include overall dimensions, individual letter height, quantity, lighting type, face color, return color, depth, installation method, wall condition, raceway or backboard, wire exit, destination, and project date.

Do not delay the quote because every measurement is unavailable.

A practical hierarchy is:

1. Confirmed overall sign size
2. Confirmed available wall area
3. One reliable reference measurement
4. Approximate desired width
5. No measurement yet

Each level can still support a conversation, but quotation confidence decreases as the information becomes less precise.

Avoid giving guessed numbers as if they were measured.

“Approx. 2,000 mm based on visual estimate” is useful.

“2,000 mm confirmed” means something very different to the engineering team.

What Sign Details Should You Already Know?

You do not need to prepare a complete engineering specification before requesting a quote.

You should, however, provide enough information to explain the visual result and operating environment.

The most useful early-stage details are:

• Illuminated or non-illuminated
• Front-lit, halo-lit, front-and-halo-lit, or unsure
• Individual letters or one complete panel
• Indoor or outdoor
• Preferred face color
• Preferred return color
• Approximate depth if already specified
• Quantity
• New installation or replacement
• Raceway or individual mounting if already known
• Brand color requirements
• Required delivery date

If you do not know the technical product name, describe what you want to see.

For example:

“White letters during the day, illuminated white through the face at night.”

That statement is more useful than selecting “halo-lit” when the desired effect is actually front illumination.

Likewise:

“Metal letters with a soft glow on the wall behind them.”

gives the engineer a clear starting point for evaluating halo-lit construction.

A complete specification may eventually contain far more information. For a professional channel letter project, Iduoduo may need to confirm logo, dimensions, quantity, lighting, face and return colors, depth, indoor or outdoor use, LED color or CCT, voltage, power, mounting, raceway or backboard, wire exit, wall type, packaging, destination, and project date.

The first inquiry does not need every item.

The objective is to identify which unknowns can change the quotation and which can safely wait until engineering.

Which Location and Installation Details Matter?

Always provide the installation city and country.

A storefront sign is not designed only around its logo and dimensions. Destination affects electrical configuration, voltage, plug type, power supply requirements, certification needs, packaging, shipping method, and outdoor exposure.

For example, two visually identical signs may require different preparation if one ships to California and another to Dubai.

Location can affect:

• input voltage;
• power supply selection;
• plug configuration;
• certification requirements;
• outdoor protection;
• heat exposure;
• rainfall exposure;
• packaging method;
• shipping route;
• delivery time.

Installation information is equally important.

If possible, state the visible wall type:

• concrete;
• brick;
• stone;
• aluminum composite panel;
• metal cladding;
• glass;
• timber;
• drywall;
• unknown.

If uncertain, send a close-up photo instead of guessing.

Also explain who will install the sign.

A local sign company may already know the required stud pattern, raceway size, wire exits, and electrical arrangement. A retail project team with no installer selected may need the factory to leave more of those points open during the first quotation.

Professional sign companies often provide much more detailed installation information, including elevation drawings, sections, mounting methods, stud patterns, wire exits, raceways or backboards, voltage, power supply requirements, certification, and delivery dates.

For an early inquiry, the information can be much simpler.

A useful installation note may look like:

“Outdoor storefront, brick façade, individual letters preferred, local sign company will install, power available behind fascia.”

That one sentence already removes several major uncertainties.

What If Most Specifications Are Unknown?

Send the inquiry anyway.

A project can begin with only a small amount of reliable information if the missing items are clearly identified.

For example:

Storefront photo
Logo: attached PNG
Approximate sign width: 2,400 mm
Quantity: 1 set
Use: outdoor
Lighting: illuminated, type not decided
Location: Chicago, USA
Wall: appears to be brick
Installation: local installer
Required delivery: November
Other details: to be confirmed

That is enough for a manufacturer to begin asking focused questions.

A useful way to organize incomplete project information is:

Status	Example
Confirmed	Quantity: 1 set
Confirmed	Outdoor storefront
Confirmed	Destination: USA
Estimated	Approx. width: 2,400 mm
Preferred	White illumination
Unknown	Letter depth
Unknown	Raceway requirement
Pending installer	Wire exit
Pending site check	Wall substrate
Pending approval	Final artwork

This approach is far better than filling missing fields with guesses.

Some unknowns affect price immediately.

Overall size, quantity, sign construction, lighting, material, and destination can materially change the quotation.

Other unknowns may have little influence on the first budget but must be solved before production.

Wire exit position is a good example. Moving a cable exit may barely affect manufacturing cost, but a wrong position can create unnecessary drilling, visible wiring, or rework during installation.

The manufacturer should therefore distinguish between information needed for pricing and information needed for fabrication.

Iduoduo’s project process is built around that transition. Storefront photographs, measurements, installation requirements, and brand files can enter the project first, while later engineering converts them into shop drawings, electrical details, mounting information, BOMs, revision-controlled files, and final production approval.

You do not need to know everything before requesting a quote.

You do need to make clear what is measured, what is estimated, what is preferred, and what is still unknown.

How Is a Quote Built From a Storefront Photo?

A storefront-photo quote is built by turning visible site conditions and supplied project information into a provisional sign specification. The manufacturer identifies a suitable sign type, estimates size, reviews materials and lighting, checks likely mounting and wiring needs, and prices the project around clearly stated assumptions. As verified measurements and engineering details arrive, the preliminary specification is updated until it is accurate enough for production approval.

How Is the Sign Type Selected?

The sign type should be selected from the job the storefront needs to perform, not simply from the first reference image sent with the inquiry.

A manufacturer normally starts by looking at four things together:

• the logo geometry;
• the available wall or fascia area;
• the required visual effect;
• the installation environment.

A wide restaurant fascia with simple bold letters may suit front-lit channel letters. A premium fashion storefront may benefit from halo-lit metal letters. A narrow installation area with limited drilling access may be easier to manage with a raceway or backboard. A logo containing very fine strokes may not translate well into conventional channel letters at a small overall size and may require an acrylic or alternative construction.

The logo itself often determines what is practical.

For example, consider a logo containing:

• 12 mm-wide strokes;
• several 8–10 mm internal gaps;
• a small icon only 90 mm high;
• thin script lettering.

At a small storefront size, the engineering team may find insufficient space for standard channel-letter returns, LED modules, wiring, or stable acrylic faces. Increasing the sign size may solve the problem. If the available fascia does not allow that, another sign construction may be more appropriate.

The storefront photo then adds site context.

Visible Condition	Possible Effect on Sign Selection
Flat, open fascia	Individual letters are easier to consider
Uneven stone wall	Backboard or stand-off solution may help
Limited wall penetrations	Raceway may simplify site work
Dark wall	Halo illumination may produce strong contrast
Highly reflective wall	Halo distance and brightness need closer review
Narrow fascia	Letter height and depth may need reduction
Large viewing distance	Larger letters and stronger visual contrast may be needed
Fine logo detail	Acrylic logo or another construction may be more suitable

The manufacturer should not force every storefront into one preferred product category.

At Iduoduo, product selection is part of the engineering process that converts logos, storefront photographs, measurements, installation requirements, and destination-market information into production-ready signage. The process includes manufacturability review, material and structure selection, lighting and electrical planning, mounting preparation, shop drawings, and final production approval.

A useful first quote should therefore explain what construction has been assumed and why.

How Is Sign Size Estimated From the Photo?

Sign size is normally estimated by comparing the proposed logo with visible architectural references and any known measurements supplied with the storefront photo.

If the full fascia width is known, sizing becomes relatively straightforward.

Suppose:

Available fascia width: 4,200 mm
Desired side clearance: 500 mm each side
Maximum practical sign width: about 3,200 mm

That already gives the designer a realistic range.

Another method uses a confirmed reference dimension visible in the same plane as the proposed sign.

For example:

Known distance between columns: 3,600 mm
Logo occupies approximately 72% of that span in the mockup

Estimated logo width:

3,600 × 0.72 = 2,592 mm

For quoting purposes, the project might initially be priced at approximately 2,600 mm overall width.

A few percentage points can matter.

Estimated Width	Difference From 2,600 mm
2,340 mm	-10%
2,470 mm	-5%
2,600 mm	Reference
2,730 mm	+5%
2,860 mm	+10%

The effect on price is not always proportional.

A 10% increase in sign width can affect:

• acrylic sheet utilization;
• metal return length;
• number of LED modules;
• number of power groups;
• backboard or raceway length;
• packaging dimensions;
• dimensional shipping weight;
• whether one-piece construction is still practical.

For large signs, crossing a packaging or material threshold can create a bigger cost change than the dimensional percentage suggests.

The manufacturer should therefore distinguish between:

Estimated size for quotation
Verified size for drawing
Approved size for fabrication

Photo scaling is useful for early design and cost planning. It should not be the final source of dimensions used for cutting metal, routing acrylic, drilling holes, welding studs, or locating wire exits.

Can AI Estimate Sign Dimensions From a Photo?

AI-assisted image analysis can help with early sizing, perspective correction, visual mockups, and proportion comparisons, but it should not replace verified measurements for fabrication.

The biggest limitation is simple: a photo does not automatically contain real-world scale.

If the image shows a fascia but provides no confirmed dimension, an AI system may identify edges and estimate proportions very accurately while still having no reliable way to know whether the wall is 2,800 mm or 4,000 mm wide.

A precise-looking result can still be based on a weak assumption.

AI becomes more useful when the image contains a reliable reference.

For example:

Confirmed panel width: 1,200 mm
Detected sign area: approximately 2.8 panel widths

Estimated sign area:

1,200 × 2.8 = 3,360 mm

That number is useful for concept work and preliminary pricing.

It should still be verified before production.

AI can be useful for:

• correcting obvious perspective;
• comparing logo-to-fascia proportions;
• generating several visual size options;
• identifying architectural boundaries;
• creating storefront mockups;
• estimating relative dimensions from a known reference.

AI should not be treated as final authority for:

• hidden substrate;
• anchor location;
• wall thickness;
• internal framing;
• concealed electrical routes;
• actual load-bearing conditions;
• exact stud position;
• final wire exits.

A practical workflow is:

→ known reference dimension
→ AI/design-assisted scaling
→ preliminary mockup
→ preliminary quote
→ field verification
→ engineering drawing
→ final production approval

The value of AI is speed.

The value of engineering verification is preventing a visually convincing estimate from becoming an incorrect physical product.

How Are Materials and Lighting Evaluated?

Once approximate size and sign type are established, the manufacturer can begin building the material and lighting specification behind the price.

For front-lit channel letters, the quotation may need to consider:

• face material;
• face thickness;
• metal return material;
• return depth;
• back construction;
• paint or finish;
• LED type;
• LED quantity;
• power supplies;
• wiring;
• mounting hardware;
• outdoor protection.

For halo-lit letters, additional attention goes to:

• rear light opening;
• stand-off distance;
• wall reflectance;
• back construction;
• light spread;
• shadow quality;
• visible hardware.

For acrylic LED logo signs, the cost structure may shift toward:

• acrylic thickness;
• layered acrylic construction;
• edge machining;
• diffusion;
• metal backing;
• hidden wiring;
• stand-off mounting.

Two signs with the same overall width can therefore have very different prices.

Consider two 2,400 mm-wide logo sets:

Specification	Option A	Option B
Construction	Non-illuminated metal letters	Front-lit channel letters
Face	Metal	Translucent acrylic
Returns	Metal	Metal
LED	None	Required
Power supplies	None	Required
Internal wiring	None	Required
Electrical testing	None	Required
Packaging complexity	Moderate	Higher

The outside dimension is identical, but the manufacturing work is not.

Lighting also cannot be priced purely from total sign width.

LED layout depends on:

• letter depth;
• stroke width;
• face material;
• diffuser behavior;
• LED beam angle;
• internal space;
• required brightness;
• viewing distance.

A 500 mm-high letter with a 100 mm stroke is not electrically equivalent to a 500 mm-high letter with a 40 mm stroke.

Iduoduo’s engineering facts specifically treat LED layout, power matching, wiring, mounting, waterproofing, and production feasibility as separate engineering considerations rather than assuming one standard illuminated-sign configuration.

A serious quote should therefore show enough material and lighting information to explain what is actually being manufactured.

How Are Mounting and Wiring Considered?

Mounting and wiring should enter the quotation before production drawings are finalized because both can change the product configuration.

The first question is how the sign will connect to the building.

Common options include:

• individual stud mounting;
• through-bolt mounting;
• raceway mounting;
• backboard mounting;
• stand-off mounting;
• cabinet brackets;
• project-specific fixing systems.

The storefront photo can suggest which arrangement may be suitable, but hidden wall construction must still be verified locally.

For example, a photograph may show an ACP façade. The visible panel could be only a thin finish layer over steel framing, masonry, insulation, or another system. The factory should not select final anchors based only on surface appearance.

Instead, the local installation team can confirm the building-side condition while the manufacturer prepares the sign-side interface.

That interface may include:

Factory-Side Detail	Why It Matters
Stud locations	Determines drilling pattern
Mounting holes	Controls alignment
Template	Speeds positioning
Raceway	Groups letters and wiring
Backboard	Provides common mounting surface
Wire exits	Must align with site route
Power grouping	Controls cable organization
Sections	Clarify depth and wall relationship

Wire exits deserve more attention than their cost suggests.

Changing one cable position may add almost nothing to factory cost, yet an incorrect exit can create significant site work.

Imagine the building has a prepared cable penetration at X = 1,150 mm from the left edge of the logo, while the manufactured letter set exits at X = 1,350 mm.

The difference is only 200 mm.

On site, that may mean:

• drilling another penetration;
• opening the wall;
• adding visible conduit;
• extending low-voltage wiring;
• patching the original opening.

The quotation stage does not need every final hole coordinate, but it should identify whether mounting and wire exits are already known or still pending.

For professional sign-company projects, Iduoduo can work from information such as elevation drawings, section drawings, mounting methods, stud patterns, wire exits, raceways or backboards, voltage, power requirements, packaging, destination, and delivery date.

Which Assumptions Should Be Shown in the Quote?

Any assumption capable of materially changing price, construction, or installation should appear in the quotation.

A good photo-based quote should not hide uncertainty behind one total price.

At minimum, the quote should identify the basis used for:

• product type;
• approximate overall size;
• quantity;
• materials;
• letter depth;
• illumination;
• face and return colors;
• indoor or outdoor use;
• voltage;
• mounting method;
• raceway or backboard;
• wire exits;
• packaging;
• destination;
• production timing.

A practical quotation can divide information into three categories.

Status	Meaning	Example
Confirmed	Supplied and accepted	Quantity: 3 sets
Estimated	Used for current pricing	Overall width: approx. 2,600 mm
Pending	Needed later	Final stud pattern

For example:

Product: Front-lit channel letters
Overall width: Approx. 2,600 mm
Quantity: 1 set
Face: White acrylic
Returns: Black painted metal
Depth: 100 mm assumed
LED: White
Installation: Outdoor
Mounting: Individual mounting assumed
Raceway: Not included
Wire exits: Pending installer confirmation
Destination: USA
Final size: Pending field verification
Production: Subject to approved shop drawing

That quote is far more useful than:

“2.6 m LED sign — USD XXXX.”

The more transparent version allows project teams to compare like-for-like quotations.

If another factory quotes the same logo at a lower price, the comparison can check whether it includes:

• the same depth;
• the same materials;
• power supplies;
• raceway;
• mounting templates;
• outdoor preparation;
• packaging;
• equivalent electrical configuration.

Price differences often come from specification differences rather than manufacturing efficiency alone.

The quote should also make clear which changes may require repricing.

High-impact changes usually include:

• overall size;
• quantity;
• sign type;
• illuminated versus non-illuminated construction;
• material;
• depth;
• raceway or backboard;
• destination;
• packaging;
• rush production.

Lower-cost changes can still be critical to installation:

• stud location;
• hole pattern;
• wire exit;
• labeling;
• template layout.

The strongest quotation process therefore does two jobs at once.

It gives a usable budget.

It also creates a record of what the budget is based on.

At Iduoduo, the photo and initial quote are only the beginning of the information chain. Final production can move forward through approved shop drawings, BOMs, electrical specifications, mounting specifications, QC requirements, and controlled production versions.

The clearer the assumptions are at quotation stage, the fewer surprises appear after engineering starts.

What Must Be Confirmed Before Production?

Before production, the final sign size, logo geometry, materials, colors, illumination, voltage, mounting method, wire exits, wall conditions, quantity, and approved drawings should all be confirmed. A storefront photo can support the quote, but fabrication should begin only from a controlled production version. Any dimension affecting cutting, drilling, welding, wiring, or mounting should no longer remain an estimate.

Do You Need a Site Survey Before Fabrication?

A site survey is strongly recommended whenever building conditions can affect the finished sign, particularly for permanent exterior signage, large channel letters, raceway systems, backboards, cabinet signs, or projects installed several meters above ground.

The survey does not always need to be performed by the manufacturer. For overseas manufacturing projects, the local sign company, installer, contractor, property team, architect, or qualified site technician can collect the required information and send it to the factory.

The purpose is not to produce a large report. It is to confirm the conditions that cannot be proven from a storefront photograph.

A useful site survey should normally verify:

• actual available sign width and height;
• installation height above ground;
• wall or façade finish;
• likely structural fixing substrate;
• existing sign dimensions;
• existing raceway or backboard dimensions;
• usable electrical entry points;
• nearby wall joints or architectural obstacles;
• access restrictions;
• landlord or property requirements;
• whether existing holes, supports, wiring, or conduit will be reused.

The amount of site information needed should match the project risk.

Project Type	Typical Survey Requirement
Small indoor acrylic logo	Basic wall dimensions often sufficient
Non-illuminated metal letters	Dimensions + mounting surface
Small storefront channel letters	Dimensions + wall + wiring position
Large exterior channel letters	Full site and installation review
Raceway-mounted letters	Raceway location + fixing conditions
Large cabinet sign	Structural and mounting review
High-rise building letters	Detailed engineering/site coordination
Existing-sign replacement	Existing dimensions + mounting + wiring

A 1,200 mm reception logo installed at eye level on drywall does not carry the same site risk as a 6,000 mm channel-letter set mounted 12 meters above a stone-clad façade.

For higher-risk projects, the survey should close the gap between what is visible in the photo and what the factory needs to manufacture correctly.

A common mistake is performing the survey only after production begins.

If field dimensions change after metal has already been cut or mounting studs welded, the correction may require rebuilding parts rather than simply revising a drawing.

It is therefore better to treat the site survey as a production gate:

Preliminary quote
→ site verification
→ drawing revision
→ final approval
→ production

Which Dimensions Must Be Verified?

Any dimension controlling manufacturing or installation should be verified before production.

The exact list depends on the product, but the most important dimensions usually include:

• overall sign width;
• overall sign height;
• individual letter or logo height;
• spacing between letters;
• raceway length and height;
• backboard dimensions;
• stand-off distance;
• mounting-hole spacing;
• stud positions;
• wire-exit positions;
• clearances from wall edges;
• clearances from doors, windows, canopies, and architectural features.

The difference between a design dimension and a fabrication dimension is important.

A rendering may show a logo approximately 2,500 mm wide because that proportion looks good on the storefront. The shop drawing should eventually state whether the approved width is 2,480 mm, 2,500 mm, or 2,520 mm.

Once manufacturing starts, “approximately 2.5 meters” is no longer precise enough.

A useful way to classify dimensions is:

Dimension	Quote Stage	Production Stage
Overall width	Approximate acceptable	Must be confirmed
Overall height	Approximate acceptable	Must be confirmed
Letter height	Estimate acceptable	Must be confirmed
Letter spacing	Visual estimate	Drawing-controlled
Stud location	Usually pending	Must be confirmed
Wire exit	Usually pending	Must be confirmed
Raceway size	Estimated if needed	Must be confirmed
Backboard size	Estimated if needed	Must be confirmed
Wall clearance	Approximate	Must be confirmed where critical

Even small errors can create installation problems.

Suppose a 3,000 mm letter set is designed with only 75 mm clearance between the outer letters and nearby columns.

A 30 mm field-measurement error on each side could reduce the actual available clearance to only 45 mm.

The sign may technically still fit, but installers would have far less room for positioning, drilling, cable routing, and alignment.

Replacement projects require extra care.

Do not assume that the old sign dimensions are automatically correct for the new sign. Verify both:

• the actual available mounting area;
• the existing sign dimensions.

Those two numbers are often different.

The production rule should remain simple:

If the dimension determines where material is cut, where a hole is drilled, where a stud is welded, or where a cable exits, it should be shown on an approved drawing.

How Are Wall and Mounting Conditions Confirmed?

The visible wall finish should be identified first, but the final mounting method cannot be based on surface appearance alone.

A photograph may show:

• brick;
• concrete;
• stone;
• aluminum composite panel;
• metal cladding;
• timber;
• drywall;
• glass.

The visible finish does not always reveal the load-bearing structure behind it.

For example, stone cladding may be installed over:

• concrete;
• masonry;
• steel framing;
• mechanical stone anchors;
• insulation;
• a cavity wall system.

The factory should therefore separate two questions:

What is visible on the surface?

What will actually support the sign?

The second question should be confirmed locally where the sign weight, height, structure, or building condition makes it necessary.

Once the mounting approach is known, the manufacturer can prepare the sign-side interface.

That may include:

Factory Detail	Site Function
Stud pattern	Defines drilling positions
Mounting holes	Controls fastening points
Paper/template pattern	Helps position letters
Raceway	Combines mounting and wiring
Backboard	Provides a common mounting base
Stand-offs	Controls distance from wall
Brackets	Supports larger assemblies
Section drawing	Shows wall-to-sign relationship

For individually mounted channel letters, stud spacing should be based on the approved letter construction rather than chosen randomly during installation.

For raceway-mounted letters, the relationship between letter positions, raceway size, fixing points, cable access, and wall structure should be confirmed before fabrication.

For halo-lit letters, stand-off distance also influences the lighting effect.

A 15 mm stand-off and a 50 mm stand-off can produce noticeably different halo spread, even when the LED system is identical.

Mounting therefore affects both installation and appearance.

Iduoduo’s engineering workflow includes mounting preparation, shop drawings, sections, BOM control, and final production approval so that installation details are transferred from discussion into controlled manufacturing information.

How Are Power and Wire Exits Confirmed?

Illuminated signage should not enter production with an undefined electrical interface.

At minimum, the project should confirm:

• destination country;
• supply voltage;
• power supply requirement;
• lighting color or CCT;
• power supply location;
• wire-exit position;
• whether wiring passes through the wall, raceway, or backboard;
• whether power supplies must remain accessible for maintenance;
• whether letters will be divided into multiple power groups.

For a small sign, one or two power groups may be enough.

For a large letter set, several groups may be required to control voltage drop, wiring length, maintenance, and installation practicality.

The exact grouping depends on LED load, sign geometry, wire length, power supply rating, and the approved electrical design rather than one fixed rule.

Wire exits should be shown on the production drawing wherever site alignment matters.

Consider a storefront with a prepared wall penetration at 1,250 mm from the left edge of the sign.

If the manufactured cable exits at 1,500 mm, the difference is only 250 mm on paper.

On site, it can create:

• another drilled penetration;
• an exposed cable route;
• added conduit;
• wall patching;
• extra installer time;
• possible waterproofing work.

The cost of changing the wire exit during manufacturing may be negligible.

The cost of discovering the mismatch during installation may not be.

Power supply location deserves similar attention.

A power supply should not be placed somewhere that becomes inaccessible once the sign is mounted unless the system is specifically designed for that arrangement.

For future maintenance, the project should consider:

• how the power supply can be reached;
• whether a letter face or back must be removed;
• whether a raceway provides access;
• whether the power supply sits indoors;
• whether replacement can be completed without dismantling large portions of the sign.

For professional channel-letter projects, Iduoduo’s RFQ information can include voltage, power requirements, mounting method, raceway or backboard, wire exits, wall conditions, and destination-market requirements.

Electrical planning at drawing stage is usually far cheaper than electrical improvisation at installation stage.

How Does a Preliminary Quote Become a Final Drawing?

A preliminary quote becomes a final drawing by replacing assumptions with confirmed project data.

The first quotation may begin with:

Storefront photo
Logo file
Approximate width
Quantity
Preferred lighting
Destination
Basic mounting idea

At that point, several variables may still be estimated.

As the project moves forward, each variable should be confirmed and transferred into controlled project documents.

A typical progression is:

Stage	Main Output
Initial inquiry	Photo + logo + project notes
Preliminary review	Product recommendation
Preliminary quote	Price based on stated assumptions
Site confirmation	Verified dimensions and conditions
Design revision	Corrected visual layout
Engineering review	Structure, electrical, mounting
Shop drawing	Production dimensions and details
Final approval	Frozen production version

The final drawing may include:

• overall dimensions;
• letter dimensions;
• construction section;
• material specification;
• face and return colors;
• letter depth;
• illumination type;
• LED or lighting information;
• voltage;
• power grouping;
• wire exits;
• mounting holes or studs;
• raceway or backboard dimensions;
• installation spacing;
• project notes.

Complex projects may also require a BOM, finish schedule, electrical drawing, mounting drawing, or separate installation reference.

Revision control becomes critical once several people are involved.

Imagine the following sequence:

V1: 2,400 mm sign width
V2: 2,600 mm sign width
V3: color changed from white to Pantone-matched red
V4: mounting changed from individual studs to raceway

Production should not rely on screenshots or scattered WhatsApp messages showing different versions.

The factory needs one final approved version.

Iduoduo’s quality-control system can reference Final Artwork, Approved Shop Drawing, BOM, Color Schedule, Finish Schedule, Electrical Specification, Mounting Specification, Sample Approval, and QC Checklist.

The goal of a final drawing is therefore not to create more paperwork.

It is to make sure design, engineering, production, QC, packaging, and installation are all working from the same specification.

What Should You Approve Before Production Starts?

Before authorizing production, review the drawing as if the sign were already installed.

Do not approve only the overall appearance.

Check every item capable of creating a manufacturing, installation, or repeat-order problem.

A useful production-approval checklist includes:

Item	What to Check
Logo	Correct shape and proportions
Spelling	Every letter and number
Overall size	Final approved dimensions
Letter height	Matches site and viewing needs
Material	Correct acrylic, metal, PVC, etc.
Face color	Correct brand color
Return color	Correct finish
Depth	Matches approved construction
Lighting	Front, halo, dual-lit, or non-lit
CCT/color	Correct illumination
Voltage	Correct for destination
Power supplies	Correct quantity/configuration
Mounting	Correct system
Stud/hole pattern	Matches installation plan
Wire exits	Correct positions
Raceway/backboard	Correct size and finish
Quantity	Correct number of sets
Packaging	Suitable for product and destination

For multi-location programs, also check:

• store code;
• store-specific dimensions;
• quantity per location;
• voltage by country;
• mounting differences;
• packaging labels;
• delivery addresses;
• revision number.

A sign that looks correct in the rendering can still be wrong if the hole pattern belongs to an earlier version or the wire exit is on the wrong side.

Samples or first articles can also be used when the risk justifies them.

A sample may confirm:

• paint color;
• acrylic color;
• surface finish;
• illumination;
• letter depth;
• LED appearance;
• mounting detail;
• packaging method.

Iduoduo supports material samples, lighting samples, pre-production samples, golden samples, first-article approval, first-store validation, and pilot production where appropriate. Approved results can then be transferred into final drawings, BOMs, mounting specifications, QC requirements, and frozen production versions.

Once approval is complete, production should be judged against the frozen version rather than memory, chat history, or an early rendering.

Iduoduo’s QC process can verify whether the finished product matches the approved drawing, material, quantity, color, illumination, voltage, mounting holes, wire exits, accessories, packaging, and project identification before release.

A storefront photo can start the quote.

A verified drawing should start the factory.

Ready to Request a Custom Sign Quote?

If you already have a storefront photo, logo, approximate size, quantity, destination, and preferred sign style, that is usually enough to begin a preliminary review with Iduoduo. The first step is simply to organize the information you already know and mark any uncertain details clearly, rather than waiting until every technical specification has been finalized.

Iduoduo can review storefront photos, artwork, measurements, installation requirements, and other early project information, then help convert them into a more complete sign specification covering product type, materials, lighting, mounting, wiring, and production drawings. If dimensions or installation details are still missing, they can be identified during the review and confirmed before fabrication.

For an initial quotation, you can send your storefront photo, logo, target size or reference measurement, quantity, installation country, and required date. That gives the engineering team enough context to evaluate the project and tell you what still needs to be confirmed before production.
