How to Specify Sign Width, Height and Depth for Custom Signs

A sign can be perfectly designed, beautifully illuminated, and still arrive on site with the wrong dimensions. The problem is rarely that someone forgot to provide a number. More often, different people are using the same number to mean different things. A “2400 mm sign” might refer to the overall logo width, the width of the main lettering, the backboard, or even the available wall space. Height can mean total layout height or individual letter height. Depth may describe a channel letter return, cabinet body, acrylic thickness, or total projection from the wall. Those differences affect more than appearance. They can change material usage, LED layout, mounting positions, packaging size, freight cost, and whether the finished sign fits the façade at all. For sign companies, contractors, brand teams, and project managers, accurate W × H × D specifications are therefore not just drawing details. They are one of the earliest controls against quotation errors, production changes, installation delays, and costly remakes.

To specify sign width, height and depth correctly, define the overall width and height of the complete approved layout, then identify the exact meaning of depth for the selected sign type. Record important dimensions such as letter height, backboard or raceway size, stand-off distance, and mounting interfaces separately. Final production dimensions should be confirmed on one approved shop drawing before fabrication begins.

Consider a storefront project where the approved logo is 3000 mm wide. The factory prepares the letters, but the installer later discovers that the 3000 mm dimension referred only to the text and did not include the icon beside it. The actual assembly is now too wide for the fascia. Nothing was “measured incorrectly”—the measurement itself was never clearly defined. The sections below show how to prevent that problem by separating overall size, component dimensions, product depth, site limits, and final production approval before metal, acrylic, LEDs, and mounting templates are committed.

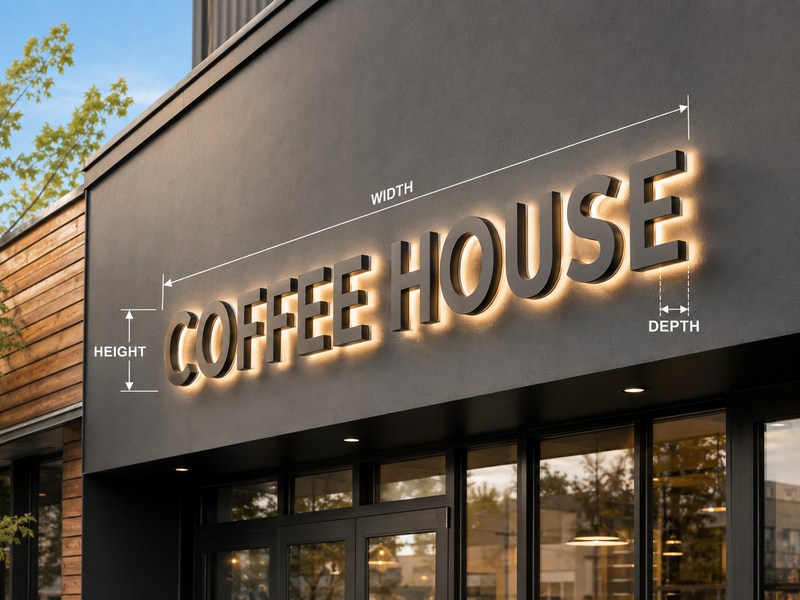

What Do Sign Width, Height and Depth Mean?

Sign width is the maximum horizontal span, height is the maximum vertical span, and depth is the front-to-back dimension of the manufactured sign body. For custom signage, each number should identify its exact reference, such as overall logo width, letter height, return depth or cabinet depth. Backboards, raceways and wall stand-offs should be listed separately to prevent quotation, fabrication and installation errors.

What Is Overall Sign Width?

Overall sign width is the maximum horizontal distance from the leftmost finished point of the sign to the rightmost finished point. It normally includes every visible element in the approved layout, including letters, symbols, icons and decorative shapes.

A common mistake is providing the width of the lettering while forgetting a logo mark beside it.

For example, a storefront logo contains:

• Symbol width: 380 mm
• Gap between symbol and letters: 120 mm
• Lettering width: 2,100 mm

The finished overall width becomes:

380 + 120 + 2,100 = 2,600 mm

If an RFQ only states “sign width: 2,100 mm,” the manufacturer may scale the complete artwork to 2,100 mm instead of keeping the lettering itself at 2,100 mm. The finished sign could therefore be about 500 mm narrower than intended.

Overall width becomes especially important when a sign must fit:

• between architectural columns
• within a storefront fascia
• above a fixed entrance
• inside a landlord-defined sign zone
• on an existing backboard
• within a recessed wall area

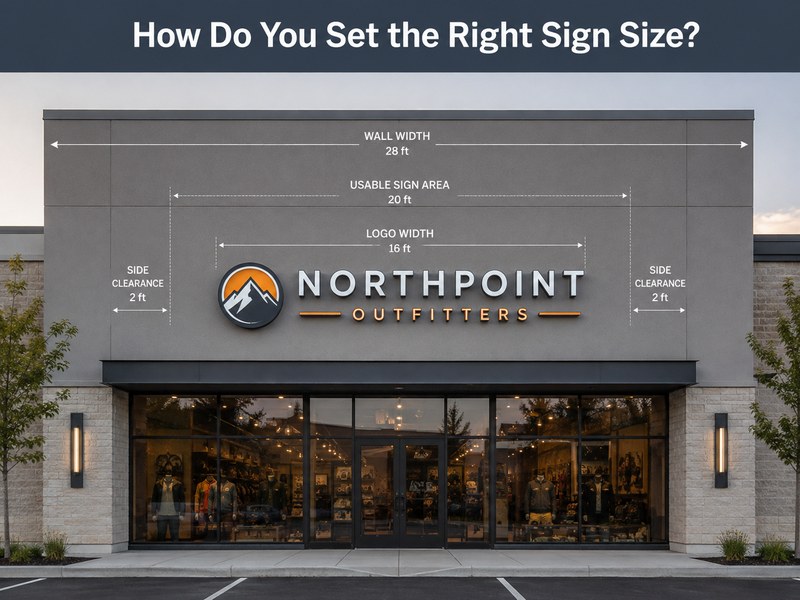

When space is limited, record the wall dimension and sign dimension separately.

Measurement	Example
Total fascia width	4,200 mm
Usable installation width	3,600 mm
Overall logo width	2,800 mm
Backboard width	3,100 mm

A 2,800 mm logo and a 3,100 mm backboard are not the same specification.

Multi-line designs need the same treatment. If the upper line measures 2,500 mm wide and the lower line measures 1,800 mm, overall width remains 2,500 mm unless another graphic extends further.

For irregular logos, imagine a rectangle drawn around the complete artwork. The maximum left-to-right distance of that rectangle is the overall width.

Vector artwork such as AI, EPS, SVG or production-ready PDF is preferable because the exact logo geometry can be scaled without estimating dimensions from a photograph.

What Is Overall Sign Height?

Overall sign height is the maximum vertical distance from the highest finished point of the complete sign layout to the lowest finished point. It should not automatically be treated as letter height.

A sign can contain 500 mm-high letters while having an overall height of 800 mm or more.

For example:

Element	Height / Space
Upper logo symbol	120 mm
Main letters	500 mm
Gap to tagline	70 mm
Tagline	130 mm
Approximate overall height	820 mm

In such a project, writing “height: 500 mm” creates uncertainty. A designer may understand 500 mm as the primary letter height, while production may interpret it as the maximum height of the complete logo.

A clearer specification is:

Overall logo height: 820 mm
Primary letter height: 500 mm
Tagline letter height: 130 mm

Overall height becomes particularly important for logos containing:

• two or three lines of text
• icons above lettering
• script fonts with high ascenders
• letters such as g, j, p, q or y with descenders
• circular or shield-shaped graphics
• registered marks
• taglines
• decorative strokes

Letter height should still be recorded separately because fabrication feasibility often depends on the individual characters rather than only the outer dimensions.

For illuminated channel letters, a 500 mm letter with a 100 mm stroke is a very different production condition from a 500 mm letter containing 35 mm strokes. Narrow strokes leave less room for LEDs, wiring, bends and internal structure.

For close-view acrylic or metal logos, small letters may also create thin bridges, tight internal corners or fragile details.

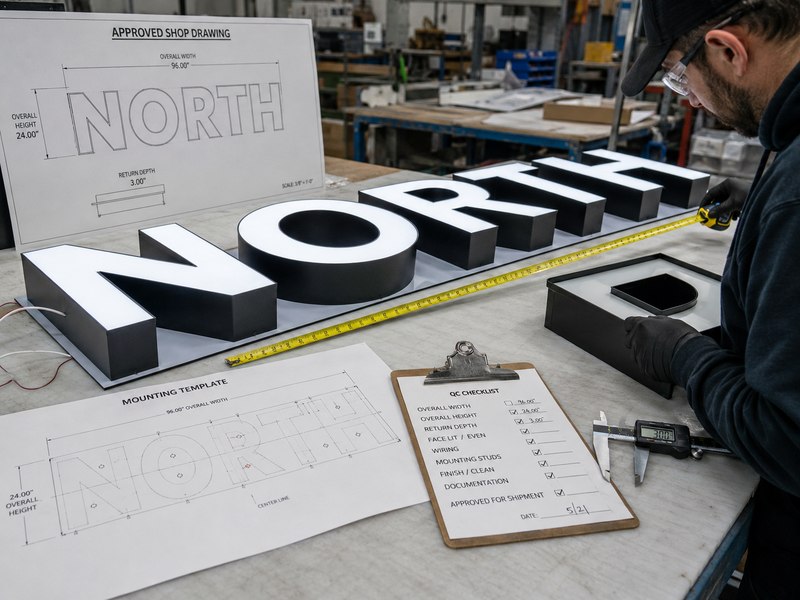

Iduoduo’s dimensional QC does not rely only on one overall measurement. Inspection can include total width, total height, individual elements, logo proportion, letter spacing, layer alignment, hole positions, backing and templates.

A useful drawing therefore separates overall height, main letter height and any smaller secondary elements whenever those dimensions affect production.

What Does Sign Depth Measure?

Sign depth is the front-to-back dimension of the manufactured sign body. The exact meaning depends on the sign type, so a specification should name the component instead of using only the word “depth.”

For common custom signs:

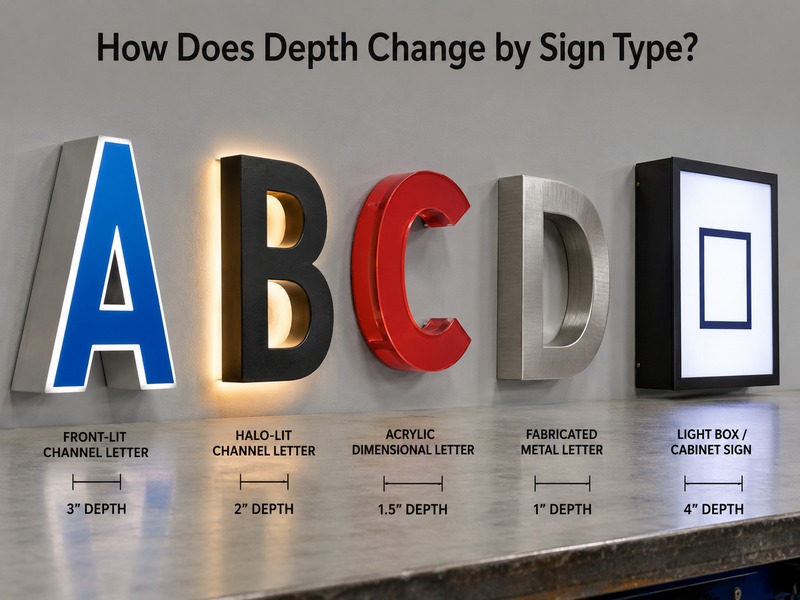

Sign Type	Depth Usually Refers To
Front-lit channel letters	Letter return depth
Halo-lit channel letters	Letter body depth
Front and halo-lit letters	Letter return depth
Light boxes	Cabinet depth
Built-up metal letters	Fabricated body depth
Solid acrylic letters	Material or finished letter thickness
Layered acrylic logos	Combined layer thickness
Raceway-mounted letters	Letter depth and raceway depth separately

A channel letter might therefore be specified as:

Overall width: 2,400 mm
Overall height: 650 mm
Letter return depth: 100 mm

A light box of the same width and height could instead be:

Overall width: 2,400 mm
Overall height: 650 mm
Cabinet depth: 150 mm

Both signs have the same front dimensions but completely different structures.

Depth also affects illuminated sign performance.

Inside a front-lit channel letter, space is required for:

• LED modules
• wiring
• connectors
• light distribution
• face clearance
• assembly access

A shallow letter body can reduce the distance between LEDs and the illuminated face. Depending on stroke width, LED layout and diffuser material, insufficient space may increase the risk of visible hot spots or uneven illumination.

Iduoduo’s engineering review considers letter depth together with material structure, LED layout, light spacing, diffusion space, wiring, backing and installation conditions rather than treating depth as an isolated cosmetic parameter.

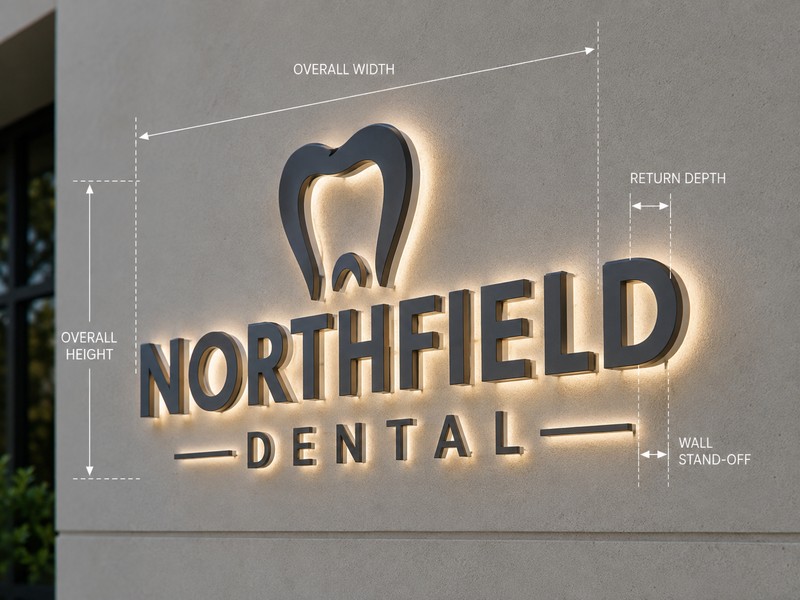

Depth should also be separated from wall stand-off.

For example, a halo-lit letter may have:

Item	Dimension
Letter body depth	50 mm
Wall stand-off	25 mm
Approximate total projection	75 mm

Writing only “depth: 75 mm” can create a major misunderstanding.

The factory may manufacture a 75 mm-deep letter and then add another 25 mm stand-off, producing an approximate 100 mm projection instead of the intended 75 mm.

For halo-lit signs, wall distance also affects the appearance of the glow. Iduoduo records letter depth and wall distance separately because both can influence optical performance.

Which Dimension Order Should You Use?

The clearest order for three-dimensional sign dimensions is:

W × H × D

For example:

2400 × 650 × 100 mm

The order should stay consistent across RFQs, drawings, quotation sheets and production files.

Even so, three numbers alone are not always safe enough for custom manufacturing.

Compare:

2400 × 650 × 100 mm

with:

Overall Width: 2400 mm
Overall Height: 650 mm
Channel Letter Return Depth: 100 mm

The second version removes much more uncertainty.

Projects with backboards, raceways or stand-offs need additional dimensions:

Item	Specification
Overall logo	2400 W × 650 H mm
Primary letters	500 H mm
Letter return	100 D mm
Backboard	2750 W × 800 H × 30 D mm
Wall stand-off	25 mm

Units should remain consistent whenever possible.

For international custom sign projects, millimeters are often easier to use for production because small differences are immediately visible. If architectural plans are supplied in feet and inches, the final production drawing should show the confirmed converted dimensions.

Some useful conversions are:

Metric	Imperial Approximation
25 mm	0.98 in
50 mm	1.97 in
75 mm	2.95 in
100 mm	3.94 in
150 mm	5.91 in
300 mm	11.81 in
600 mm	23.62 in
1200 mm	47.24 in
2400 mm	94.49 in

Avoid relying on measurements taken manually from a PDF or screenshot unless the drawing contains a confirmed scale and reference dimension.

For example, a PDF displayed at 80% or printed with “fit to page” can no longer be measured reliably with a ruler.

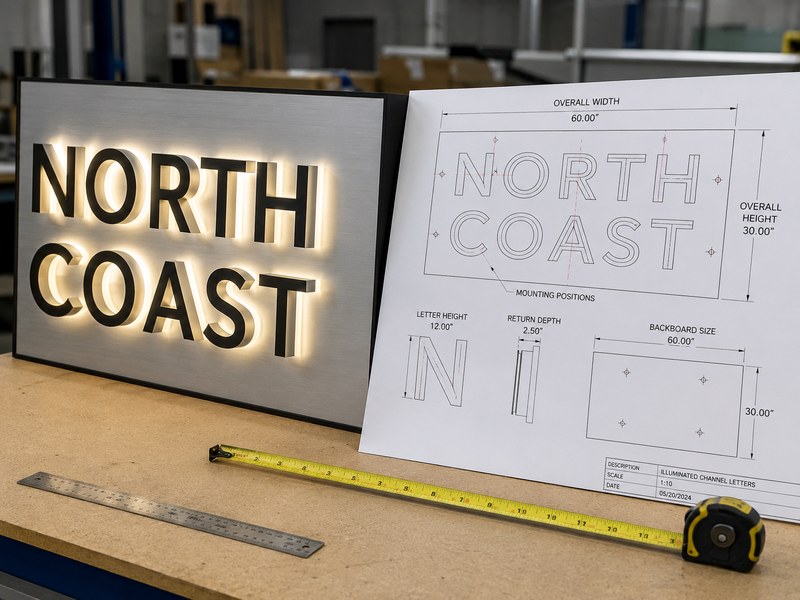

Before production, the dimensional drawing should clearly answer:

• What is the finished overall width?
• What is the finished overall height?
• What is the main letter height?
• What does the stated depth refer to?
• Is there a separate backboard or raceway?
• Is a wall stand-off required?
• Are all dimensions shown in the same unit?
• Has the final drawing revision been approved?

For channel letter projects, Iduoduo’s shop drawing records can include dimensions, letter height, overall width, return depth, sections, backing, mounting holes, wire exits and installation method.

Once every number has a clear physical reference, W × H × D stops being a rough size note and becomes a usable fabrication specification.

Which Sign Dimensions Should You Provide?

For a custom sign, provide the overall width and height first, then add any dimensions that control fabrication or installation, such as letter height, return depth, backboard size, raceway size, spacing and wall stand-off. For quotation, approximate dimensions may be enough. Before production, all critical dimensions should appear on one approved drawing so the factory and installer work from the same values.

Do You Need Overall Size or Letter Height?

In most commercial sign projects, overall size and letter height answer different questions, so providing both is safer.

Overall size tells the manufacturer how much physical space the finished layout occupies. Letter height tells the engineering team how large the primary characters are and whether the strokes, internal spaces, LED layout and mounting structure are practical.

For example, two logos may both be 3000 mm wide:

Project	Overall Width	Main Letter Height	Minimum Stroke
Wide corporate wordmark	3000 mm	420 mm	65 mm
Compact block logo	3000 mm	720 mm	140 mm

The same 3000 mm width produces very different manufacturing conditions.

A useful project specification may therefore read:

• Overall logo width: 3000 mm
• Overall logo height: 680 mm
• Main capital letter height: 520 mm
• Tagline height: 120 mm
• Return depth: 100 mm

If the logo proportions are fixed, one target dimension can be enough to start design work. For example:

Target overall width: 2400 mm
Height: scale proportionally from approved artwork

That is normally sufficient for an initial rendering or quotation.

Before fabrication, however, the calculated height should be converted into a confirmed number on the shop drawing.

Letter height becomes particularly important when the design contains:

• narrow strokes
• small counters inside letters
• script fonts
• small secondary text
• thin logo lines
• internally illuminated letters

Iduoduo’s shop drawing records for channel letters can include both overall width and letter height because the two measurements control different parts of engineering and production.

How Do You Measure a Multi-Line Sign?

A multi-line sign should be measured in two layers: first measure the complete layout, then record the critical dimensions of each line.

Consider a storefront sign arranged as:

COFFEE HOUSE
ROASTERY & BAKERY

Suppose the first line is 2600 mm wide and 500 mm high, while the second line is 1700 mm wide and 150 mm high.

If the vertical gap between the two lines is 100 mm, the basic layout may be approximately:

Measurement	Dimension
Overall width	2600 mm
Main line height	500 mm
Secondary line height	150 mm
Line spacing	100 mm
Overall height	750 mm

Overall width is controlled by the widest line.

Overall height includes both lines plus the spacing between them.

Do not simply write:

Sign size: 2600 × 500 mm

That would describe only the main line and could cause the lower line to be overlooked when checking wall space, backboard size or packaging.

A better specification is:

Overall layout: 2600 W × 750 H mm
Main letters: 500 H mm
Secondary letters: 150 H mm
Vertical line spacing: 100 mm

Multi-line layouts also require attention to alignment.

The secondary line may be:

• centered under the main line
• left aligned
• right aligned
• aligned with a specific letter
• separated into several text groups

When alignment matters, dimensions should not rely only on visual judgment from a rendering. The shop drawing should show the approved relationship between lines.

Small secondary letters deserve separate review because scaling the main logo up or down may push a tagline below a practical fabrication size even when the overall sign still looks acceptable on screen.

How Are Irregular Logos Measured?

Irregular logos should normally be measured from the maximum outer boundaries of the complete approved artwork.

Imagine placing an invisible rectangle around the logo. The farthest left and right points determine overall width. The highest and lowest points determine overall height.

For example, a logo may contain:

• circular icon: 620 mm high
• text: 480 mm high
• symbol extending 180 mm above the text
• underline extending 120 mm beyond the lettering

The lettering dimensions alone do not describe the finished sign.

A practical drawing might show:

Item	Dimension
Overall logo width	2850 mm
Overall logo height	720 mm
Letter height	480 mm
Icon height	620 mm
Underline projection	120 mm

Irregular logos often contain areas that need separate dimensions even when the overall size is known.

Examples include:

• a long tail on a script letter
• an oversized initial
• a crown above the name
• a circular badge beside text
• a trademark symbol
• a lower underline or swoosh
• detached graphic elements

Vector artwork is especially useful for these projects because the manufacturer can scale the complete geometry without guessing from a storefront photograph.

When a logo contains detached components, also confirm whether their spacing is fixed.

For example:

Logo symbol to text gap: 140 mm
Letter-to-letter spacing: per approved artwork

Changing those gaps can alter the brand appearance even if the overall width remains unchanged.

For production, Iduoduo’s dimensional QC can include overall width, overall height, individual components, logo proportion and spacing rather than checking only one outside dimension.

Do Backboards and Raceways Count?

Backboards and raceways should be measured separately from the visible logo unless the project specification clearly states that the quoted overall size includes them.

A channel letter installation can have several different widths at the same time.

For example:

Component	Width
Visible letter layout	2500 mm
Raceway	2650 mm
Decorative backboard	2900 mm
Available fascia	3600 mm

If the RFQ simply says:

Sign width: 2500 mm

the factory may reasonably assume the complete assembly is 2500 mm wide.

But if the 2500 mm measurement refers only to the letters, the actual installed product may occupy 2900 mm once the backboard is added.

That difference affects:

• material consumption
• mounting positions
• packaging size
• shipping volume
• installation clearance
• wall coverage

Height should be handled in the same way.

A logo may be 600 mm high while the backboard is 850 mm high.

For raceway-mounted channel letters, record at least:

• overall letter layout width
• overall letter layout height
• raceway width
• raceway height
• raceway depth

For backboard-mounted signs, also record:

• backboard width
• backboard height
• backboard thickness or depth
• logo position on the backboard

A useful specification may look like:

Letters: 2500 W × 600 H × 100 D mm
Backboard: 2900 W × 850 H × 40 D mm

That is much clearer than combining all dimensions into one number.

Iduoduo’s engineering review treats backboards, raceways, mounting holes, wire exits and installation structure as separate project elements because they affect both fabrication and installation.

Which Dimensions Matter for an RFQ?

An RFQ does not need every production dimension on day one, but it should contain enough information for the manufacturer to understand the real scale of the project.

For most custom signs, the minimum useful dimensional package is:

Information	Recommended for RFQ	Required Before Production
Target overall width	Yes	Yes
Target overall height	Preferable	Yes
Main letter height	Helpful	If relevant
Product depth	Helpful	Yes
Available wall size	Highly useful	Site-critical projects
Backboard/raceway size	If known	Yes
Wall stand-off	If relevant	Yes
Mounting-hole positions	No	Yes
Wire-exit positions	No	Yes
Exact spacing	Artwork may be enough	Yes
Installation clearance	If constrained	Yes

A practical early RFQ could be as simple as:

Product: Front-lit channel letters
Logo width: Approx. 2800 mm
Height: Scale proportionally
Location: Outdoor storefront
Available fascia: 3600 W × 1100 H mm
Quantity: 5 sets
Installation: Individual letters
Artwork: AI file attached

That is enough to begin engineering review and establish a realistic quotation basis.

A weaker request would be:

“Please quote the attached logo, 3 meters.”

The factory still does not know:

• whether 3 meters means width or height
• whether the icon is included
• whether the sign is illuminated
• whether a backing structure is required
• whether the 3-meter size fits the available wall
• what depth is expected

For production release, the RFQ dimensions should be converted into a controlled drawing.

A final production specification might contain:

Overall logo: 2800 W × 640 H mm
Main letter height: 510 mm
Return depth: 100 mm
Mounting: Individual stud mount
Stand-off: 0 mm
Wire exits: Shown on approved drawing
Quantity: 5 sets

The distinction between quotation dimensions and production dimensions is important.

Approximate dimensions are useful for:

• budget comparison
• concept development
• preliminary freight estimates
• early project discussion

Final dimensions are required for:

• cutting
• bending
• face production
• LED layout
• backboard fabrication
• mounting templates
• hole positions
• packaging
• installation

Iduoduo’s documented workflow converts logos, storefront photographs, measurements and installation requirements into shop drawings, sections, mounting drawings and frozen production files before manufacturing.

A strong RFQ therefore does not need to solve every engineering detail. It needs to provide enough reliable dimensions to establish scale, then allow the approved shop drawing to become the final dimensional reference.

How Do You Set the Right Sign Size?

The right sign size comes from the usable installation area, viewing distance, logo proportions, letter geometry and mounting conditions—not from wall width alone. Start with a reliable site dimension, scale the approved artwork proportionally, then check letter height, minimum strokes, clearances and installation height. The final size should fit the space, remain readable and still be practical to manufacture, ship and install.

How Does Wall Width Affect Sign Size?

Wall width establishes the maximum physical space available, but it should not automatically become the finished sign width.

A storefront may have a 5000 mm-wide fascia, yet the usable sign zone may be much smaller because of columns, expansion joints, lights, architectural borders, neighboring tenant areas or landlord requirements.

A useful site measurement separates three different numbers:

Measurement	Example
Total fascia width	5000 mm
Usable sign zone	4200 mm
Proposed logo width	3200 mm

The 5000 mm dimension describes the building.

The 4200 mm dimension describes the area where a sign can realistically sit.

The 3200 mm dimension describes the proposed finished logo.

Confusing those three measurements is a common reason signs appear oversized on renderings or fail to fit once mounting hardware and edge clearances are considered.

For a simple storefront, measure more than just overall wall width. Useful site dimensions include:

• fascia width
• fascia height
• distance between columns
• distance from sign zone to roofline
• distance to doors or windows
• existing electrical outlet position
• wall joints or panel seams
• nearby lights, cameras or vents
• available mounting area

For example, a 4200 mm-wide usable fascia does not necessarily justify a 4000 mm-wide logo.

A more balanced layout might use:

Usable width: 4200 mm
Logo width: 3000–3300 mm
Remaining side clearance: 450–600 mm per side

The exact margin depends on the logo, architecture and viewing conditions. A wide horizontal wordmark may need more breathing space than a compact square logo.

Available height should be checked at the same time.

Suppose the fascia is:

4200 W × 1000 H mm

A logo scaled to 3500 mm wide might become 875 mm high if its ratio is 4:1. That leaves only 62.5 mm above and below when centered—possibly too little once mounting tolerances, trim and architectural joints are considered.

Reducing the logo to 3000 mm gives:

3000 ÷ 4 = 750 mm high

That leaves approximately:

1000 − 750 = 250 mm total vertical clearance

or around:

125 mm above + 125 mm below

The smaller version may fit the façade more comfortably without materially reducing recognition.

For replacement projects or recessed sign areas, field dimensions become even more important because the product may need to fit an existing opening rather than simply sit on an open wall.

Iduoduo’s engineering review considers product size together with installation height, wall material, viewing distance, mounting conditions, transport and maintenance instead of judging dimensions from artwork alone.

How Does Viewing Distance Affect Letter Height?

Letter height should increase as the primary viewing distance increases, but there is no single letter-height formula that works for every storefront.

A 200 mm-high letter may work well behind a reception desk viewed from several meters away. The same letter could be difficult to recognize on a building façade viewed from across a parking lot.

The first step is to identify the main viewing condition.

For example:

Sign Location	Approx. Main Viewing Distance	Practical Size Concern
Reception wall	2–8 m	Detail and finish
Retail storefront	10–30 m	Letter recognition
Shopping center façade	30–80 m	Larger primary letters
Large exterior building	80 m+	Scale, contrast and structure

These ranges are not fixed manufacturing rules. They are useful starting points for comparing different project conditions.

Viewing distance is only one variable.

Letter readability also changes with:

• font style
• stroke width
• letter spacing
• uppercase vs lowercase
• color contrast
• illumination
• background color
• surrounding visual clutter
• viewing angle
• vehicle speed

Consider two 500 mm-high letters.

The first uses a bold sans-serif typeface with a 110 mm main stroke.

The second uses a thin script font with a 35 mm stroke.

Both have the same letter height, but the bold version will usually remain visually stronger at distance and is also easier to fabricate as an illuminated letter.

That means letter height alone is not enough.

A useful sign-size review should record both:

Primary letter height: 500 mm
Minimum critical stroke: 35 mm

The relationship becomes especially important for illuminated channel letters and LED logo signs. Very narrow strokes may leave limited space for LED modules, wiring or light diffusion even when the total letter height appears large.

For distant exterior signs, increasing overall size may improve visibility, but enlargement has practical limits.

A larger sign may require:

• deeper construction
• more LED modules
• additional power
• larger mounting hardware
• segmentation
• larger packaging
• lifting equipment
• more complex installation

So the goal is not simply “make the letters as large as possible.”

The goal is to find a size that remains recognizable at the intended distance while still fitting the façade and remaining practical to manufacture and install.

How Do You Keep Logo Proportions Correct?

Use approved vector artwork as the dimensional reference and normally control the size by one dimension—either width or height—while allowing the other dimension to scale automatically.

Suppose an approved logo measures proportionally:

Width: 1200 units
Height: 300 units

Its aspect ratio is:

1200 ÷ 300 = 4:1

If the target finished width is 2800 mm:

2800 ÷ 4 = 700 mm

The correct proportional size is therefore:

2800 W × 700 H mm

If someone changes the height to 800 mm while keeping the width at 2800 mm, the artwork is no longer proportional.

Original ratio:

2800 ÷ 700 = 4.00

Stretched ratio:

2800 ÷ 800 = 3.50

That 12.5% proportional change may be immediately noticeable in a familiar brand mark.

A more practical approval process is:

• use the final AI, EPS, SVG or vector PDF
• select one controlling dimension
• scale the other dimension proportionally
• check the resulting overall size against the wall
• review small strokes and internal gaps
• confirm any engineering changes separately

Do not resize individual logo elements independently just to fill more wall space.

For example, enlarging the icon by 15% while leaving the text unchanged may make the composition fit the fascia better, but it also creates a different logo.

If a different proportion is needed, first check whether the brand has an approved alternative version, such as:

• horizontal logo
• stacked logo
• icon-only version
• compact lockup
• vertical lockup

Using an approved alternate layout is generally safer than deforming the primary logo.

Production feasibility can still require small engineering changes.

A logo scaled down from 3000 mm to 1200 mm might contain:

• 18 mm strokes
• 12 mm internal gaps
• very small registered marks
• sharp acrylic tips

The overall proportions may be mathematically correct, yet certain details may no longer be suitable for the selected material or lighting system.

Any necessary adjustment should therefore be identified as an engineering modification rather than silently changing the artwork.

Iduoduo’s design process includes logo proportion checks, font confirmation and manufacturability review before engineering and production.

Can One Dimension Determine the Other?

Yes, if the approved artwork has a fixed aspect ratio.

For many RFQs, one reliable dimension is enough to calculate the second dimension.

Suppose a logo has an aspect ratio of:

3.2:1

If the target width is:

2400 mm

the calculated height is:

2400 ÷ 3.2 = 750 mm

The proposed overall size becomes:

2400 W × 750 H mm

The same calculation works in reverse.

If the maximum allowable height is 600 mm:

600 × 3.2 = 1920 mm

The proportional width becomes:

1920 mm

This is useful when one site dimension is fixed.

For example:

Available wall height: 900 mm
Desired top clearance: 100 mm
Desired bottom clearance: 100 mm

Maximum logo height:

900 − 100 − 100 = 700 mm

If the logo ratio is 4.5:1:

700 × 4.5 = 3150 mm

The proportional maximum logo size becomes:

3150 W × 700 H mm

That calculation helps determine whether the resulting width also fits the wall.

Known Value	Formula	Result
Width 2400 mm, ratio 4:1	2400 ÷ 4	Height 600 mm
Height 700 mm, ratio 4:1	700 × 4	Width 2800 mm
Width 3000 mm, ratio 3.75:1	3000 ÷ 3.75	Height 800 mm
Height 500 mm, ratio 3.2:1	500 × 3.2	Width 1600 mm

This approach is useful for early quotations when only one target size is known.

For example:

Target width: approximately 3000 mm
Height: proportional to approved AI artwork

The manufacturer can calculate the proposed height and prepare a drawing.

However, one overall dimension cannot determine every production dimension.

It does not automatically establish:

• letter depth
• wall stand-off
• backboard size
• raceway size
• mounting-hole spacing
• wire exits
• structural thickness

Those values depend on the product structure and installation conditions.

A single dimension can therefore establish graphic scale, but it cannot replace the engineering drawing.

How Does Installation Height Affect Size?

Installation height changes both visual scale and practical construction requirements.

A sign installed 1.5 meters above the floor inside a reception area is viewed very differently from a storefront sign mounted 6 meters above ground.

Consider three examples:

Installation	Approx. Mounting Height	Main Concern
Reception logo	1.5–2.5 m	Fine detail and finish
Storefront fascia	3–6 m	Readability and access
Large building sign	10 m+	Scale, structure and installation

A low interior logo can be inspected from close range.

Small defects such as acrylic edge marks, glue residue, uneven spacing or visible wiring may be easy to notice. The sign does not necessarily need to be very large, but fabrication quality becomes more visible.

A sign mounted high on an exterior building has different priorities.

From ground level, a 300 mm letter at 12 meters high may appear much smaller than expected on a computer rendering. Increasing letter height can improve visual presence, but larger dimensions also affect:

• letter weight
• return depth
• wind exposure
• mounting structure
• electrical grouping
• cable routing
• lifting method
• package size
• transportation
• future maintenance

For example, a logo originally proposed at:

3000 W × 700 H mm

may look appropriate at a 3-meter storefront installation.

At a much higher façade position, the project team might evaluate:

4500 W × 1050 H mm

The graphic has increased by 50%.

If the product area scales proportionally, the front-facing area changes from approximately:

3.0 × 0.7 = 2.1 m²

to:

4.5 × 1.05 = 4.725 m²

That is more than double the frontal area, even though each linear dimension increased only 50%.

Manufacturing, structure, LED quantity, packaging and installation may therefore change much more than expected.

Large signs can also reach transportation limits. A very wide backboard or oversized letter may require segmentation even if one-piece manufacturing is technically possible.

Installation height should therefore be confirmed early, especially for large exterior signs.

Useful information includes:

• finished mounting height
• primary viewing distance
• wall material
• available access
• crane or lift availability
• individual letter or backboard mounting
• existing power location
• future service access

Iduoduo’s engineering team evaluates product size together with installation height, wall conditions, viewing distance, transport and maintenance requirements because these factors directly affect whether a proposed sign can move from artwork to practical installation.

How Does Depth Change by Sign Type?

Sign depth changes with construction. Channel letters use return depth, light boxes use cabinet depth, solid acrylic letters use material thickness, and built-up metal letters use fabricated body depth. Halo-lit products also need a separate wall stand-off. Depth should be selected together with sign size, stroke width, lighting, mounting and service space rather than copied from another project.

How Deep Are Channel Letters?

For channel letters, depth normally refers to the return depth—the distance from the front face toward the back of the fabricated letter body.

A channel letter should not be specified only as:

600 mm high

A more useful production specification is:

Letter height: 600 mm
Return depth: 100 mm

Those two numbers describe different parts of the letter.

Return depth affects several practical areas:

• available space for LED modules
• distance between LEDs and the illuminated face
• wiring space
• internal connectors
• face fixing
• structural rigidity
• side appearance
• packing volume
• total wall projection

Iduoduo’s engineering review treats letter depth together with material structure, LED arrangement, light spacing, diffusion space, wiring, backing and installation conditions.

Two letters with the same height may therefore need different depth decisions.

Consider an illustrative comparison:

Letter Design	Letter Height	Minimum Stroke	Engineering Concern
Bold block letter	600 mm	130 mm	More internal LED space
Medium sans-serif	600 mm	80 mm	Moderate internal space
Narrow logo letter	600 mm	45 mm	Limited LED and wiring space

A 600 mm-high block letter may offer plenty of room inside the return. A 600 mm-high narrow logo can have much tighter internal channels even though both have the same outside height.

Depth also changes with lighting type.

For front-lit channel letters, the return must provide enough internal space for the LED system and face illumination.

For halo-lit letters, the letter body and the space behind the letter both influence the finished effect.

For front-and-halo-lit letters, the structure must support both front illumination and reflected rear illumination, so the letter body cannot be treated in exactly the same way as a simple front-lit letter.

Iduoduo’s channel-letter engineering documentation specifically records letter height, overall width, return depth, section details, back structure, LEDs, power, mounting holes, wire exits and installation method.

For an RFQ, a practical note can be:

Target return depth: 100 mm, final depth subject to engineering review

That gives the intended visual profile without forcing the factory to use a depth that may not suit the artwork.

For production, the approved section drawing should show the final return dimension.

What Depth Do Light Boxes Need?

For a light box, depth normally means the cabinet depth.

Unlike individual channel letters, a light box is a complete enclosure containing the frame, face, internal lighting, wiring and often a service structure. The cabinet depth therefore affects both appearance and internal layout.

A light box specification might read:

Overall size: 2400 W × 900 H mm
Cabinet depth: 150 mm

The 150 mm figure describes the complete front-to-back cabinet body, not only the metal frame thickness.

Cabinet depth can influence:

• frame construction
• LED-to-face distance
• light diffusion
• wiring space
• power-supply position
• internal reinforcement
• maintenance access
• total wall projection
• packaging size

Iduoduo’s internal manufacturing facts note that light boxes require attention to the cabinet frame, face, diffusion, LED spacing, internal space and maintenance structure.

The right depth also depends on the type of light box.

A small indoor acrylic logo box has very different requirements from a large outdoor cabinet sign.

For example:

Project	Overall Size	Depth Question
Indoor logo box	1000 × 500 mm	Can the cabinet remain visually slim while lighting stays even?
Storefront cabinet	2400 × 900 mm	Is there enough space for lighting and frame structure?
Large exterior cabinet	5000 × 1800 mm	Does depth support structure, service and segmentation?

These figures illustrate why cabinet depth should be reviewed together with overall size.

A very shallow cabinet may look cleaner from the side, but reducing depth can reduce the available distance between the LED source and the illuminated surface. That may make even diffusion harder to achieve.

On a larger cabinet, depth may also be needed for reinforcement and service access.

The mounting method matters too.

A cabinet installed directly against a wall has a different total projection from one mounted on brackets or a stand-off structure.

A clear drawing should therefore separate:

Cabinet depth
Mounting bracket depth
Total installed projection

For large light boxes, shipping also becomes part of the depth decision. Increasing cabinet depth increases package volume even when the front dimensions stay unchanged.

For example, compare two illustrative packages:

2400 × 900 × 120 mm

and

2400 × 900 × 200 mm

The second cabinet has the same front area but significantly greater transport volume.

Depth should therefore be decided as part of the full light-box structure rather than chosen only for appearance.

How Is Acrylic Letter Depth Specified?

Acrylic letter depth depends on whether the product is a solid-cut letter, layered acrylic logo or illuminated acrylic construction.

For a simple flat-cut acrylic letter, depth may simply mean material thickness.

A specification might read:

Acrylic letter thickness: 20 mm

That is clear because the finished letter body is made from the material itself.

A layered logo can be more complicated.

For example, a finished construction could include:

Layer	Illustrative Thickness
Front acrylic	5 mm
Diffusion layer	10 mm
Spacer structure	15 mm
Metal backing	2 mm
Wall stand-off	20 mm

In a construction like this, writing only:

Depth: 20 mm

would not tell production which layer the number refers to.

A better specification identifies each relevant part separately.

For close-view acrylic logo signs, thickness also changes the way the edge looks.

A 5 mm acrylic letter and a 20 mm acrylic letter can share exactly the same front outline while appearing completely different from the side.

Thicker material can create:

• stronger three-dimensional presence
• more visible edge area
• greater weight
• deeper routing or machining requirements
• different mounting requirements

Illuminated acrylic signs add another layer of complexity because depth may influence light travel and diffusion.

Iduoduo’s acrylic LED logo sign documentation treats thickness, layers, metal backing, lighting method, LED layout, wall distance, mounting holes, wire exits and power as separate drawing items.

The same product family also uses dimensional QC covering total width, total height, individual elements, logo proportion, spacing, layer alignment, hole positions, backing and templates.

That matters because a layered acrylic sign can be correct from the front while still having incorrect layer alignment or finished thickness.

For an RFQ, use wording such as:

Solid acrylic letter, target thickness 20 mm

or:

Layered illuminated acrylic logo, final depth to follow approved section drawing

That gives the factory a clear starting point without reducing a multi-layer product to one ambiguous number.

How Is Metal Letter Depth Specified?

Metal letters need different depth language depending on whether they are flat-cut or built-up.

A flat stainless-steel or aluminum letter may be cut directly from sheet material. In that case, the important dimension is usually material thickness.

For example:

Stainless-steel letter thickness: 3 mm

A built-up metal letter is different. It has a front, side return and often a back structure, creating a three-dimensional body.

In that case, the correct term is normally:

Fabricated body depth

or

Return depth

An illustrative specification might read:

Overall height: 500 mm
Fabricated metal body depth: 40 mm
Wall stand-off: 20 mm

The finished front face is therefore approximately 60 mm away from the wall before allowing for mounting hardware or site tolerance.

Flat and fabricated metal letters should never be grouped under the same vague note such as:

Metal letters, 40 mm thick

For a flat-cut product, 40 mm could imply an extremely thick solid section.

For a fabricated product, 40 mm could describe a perfectly reasonable hollow body.

The wording changes the manufacturing interpretation.

Metal-letter depth also affects:

• visual side profile
• weight
• bending requirements
• welding
• surface finishing
• mounting hardware
• wall projection
• packaging protection

Iduoduo’s manufacturing documentation notes that channel letters, metal letters, light boxes and some blade signs require metal bending and return forming, with control points including body depth, bending angles, curves, corners, joints, front/back alignment and installation surfaces.

Different letter heights, stroke widths and lighting methods can therefore require different body structures.

A practical comparison looks like:

Metal Sign Type	Dimension to Specify
Flat-cut stainless letter	Sheet/material thickness
Flat-cut aluminum letter	Sheet/material thickness
Built-up stainless letter	Fabricated body depth
Built-up aluminum letter	Fabricated body depth
Halo-lit metal letter	Body depth + stand-off
Metal letter on backboard	Letter depth + backboard depth

If the sign is being installed in a narrow corridor, shallow reception area or close to doors, total projection may also need to be checked.

In those cases, the section drawing should show the entire assembly from the wall outward rather than only the metal letter body.

Is Depth the Same as Stand-Off Distance?

No. Depth describes the sign body; stand-off describes the gap between the sign and the wall.

They are separate dimensions and should stay separate on drawings, quotations and installation instructions.

A halo-lit letter may have:

Letter body depth: 50 mm
Wall stand-off: 25 mm

The approximate front projection becomes:

50 + 25 = 75 mm

That is very different from specifying:

Letter depth: 75 mm

If production interprets 75 mm as body depth and the installer then adds another 25 mm stand-off, the finished projection becomes approximately:

75 + 25 = 100 mm

The sign is now 25 mm further from the wall than intended.

A simple table prevents that problem:

Dimension	Example	What It Controls
Letter body depth	50 mm	Fabricated sign body
Wall stand-off	25 mm	Gap behind letter
Approx. total projection	75 mm	Finished wall projection

Stand-off also affects halo illumination.

The LEDs send light toward the wall, and the wall reflects the light around the letter.

The final glow can change with:

• stand-off distance
• wall color
• wall texture
• letter body depth
• LED position
• surrounding ambient light

A smooth light-colored wall may reflect a halo differently from dark stone, textured brick or uneven cladding.

That is why a halo-lit sign should not be approved only from the front elevation.

A side or section drawing is useful because it can show:

• letter body depth
• acrylic or back structure
• LED location
• mounting studs
• spacer length
• wall stand-off
• wire exit
• finished wall surface

Iduoduo’s optical records treat letter depth and wall distance as separate project variables, together with LED type, color, spacing and approved lighting references.

The same distinction is useful even for non-illuminated dimensional letters.

For example:

Acrylic thickness: 20 mm
Stand-off: 15 mm

and

Acrylic thickness: 20 mm
Flush mounted: 0 mm stand-off

use the same letter body but produce very different installed appearances.

Before approving a sign depth, check five separate questions:

• What part of the sign does the depth measurement refer to?
• Is there a separate wall stand-off?
• Does the lighting system need internal diffusion space?
• Does the depth affect mounting or maintenance access?
• What will the total installed projection be?

Once those values are separated, depth becomes much easier to quote, draw, manufacture and install correctly.

How Do You Confirm Dimensions Before Production?

Confirm sign dimensions by separating preliminary RFQ sizes from final production dimensions, checking site-critical measurements, and placing all approved values on one controlled shop drawing. Overall size, letter height, depth, mounting positions, backboards, raceways, wire exits and other installation interfaces should be reviewed before fabrication. Production should follow the final approved drawing revision rather than dimensions scattered across emails, messages or earlier quotations.

Which Measurements Are Enough for a Quote?

A quotation does not always require every mounting hole and wire exit to be finalized. It does, however, need enough dimensional information to establish the real scale, construction and likely material usage of the sign.

For many custom sign projects, the following information is enough to begin a meaningful quotation:

RFQ Information	Example	Why It Matters
Target overall width	3000 mm	Establishes product scale
Target overall height	720 mm	Confirms logo proportion
Main letter height	550 mm	Helps evaluate fabrication
Target depth	100 mm	Affects structure and lighting
Quantity	8 sets	Affects production planning
Available wall area	3800 × 1100 mm	Checks physical fit
Installation location	Outdoor storefront	Changes construction review
Mounting method	Individual letters	Affects backing and hardware

If only one finished dimension is known, a vector logo can often be scaled proportionally for the first quotation.

For example:

Target overall width: 3000 mm
Height: proportional to approved AI artwork

If the logo ratio is 4.2:1:

3000 ÷ 4.2 = approximately 714 mm

A quotation can therefore be based on approximately:

3000 W × 714 H mm

That is usually enough to estimate material, lighting, packaging and production complexity.

A quotation becomes less reliable when the request contains only vague scale information such as:

“About three meters.”

Several questions remain unanswered:

• Does 3 m refer to overall width or letter height?
• Does the dimension include the symbol?
• Is there a backboard?
• Is depth already fixed?
• Is the sign mounted indoors or outdoors?
• Does the wall actually allow 3 m?

For early budgeting, approximate dimensions are acceptable if they are clearly marked as approximate.

For example:

Quotation basis: 3000 W × approximately 714 H × 100 D mm

The important distinction is that quotation dimensions should not automatically become production dimensions.

A change from 3000 mm to 3600 mm width is a 20% increase in linear scale, but the impact on material, LED quantity, weight, package size and freight can be greater than 20%.

Likewise, changing return depth from 80 mm to 120 mm after quotation may change metal usage, optical spacing and package volume even when the front dimensions remain unchanged.

Iduoduo’s project workflow starts from logos, drawings, storefront photographs and measurements, then converts approved information into shop drawings, sections, mounting drawings and controlled production files.

What Should a Shop Drawing Show?

A shop drawing should convert visual artwork into dimensions that production and installation teams can actually use.

A rendering shows how the sign should look.

A shop drawing should show how large it is, how deep it is, how it is constructed and how it connects to the installation surface.

For channel letters, Iduoduo’s documented shop drawing items can include:

• front view
• overall dimensions
• letter height
• overall width
• return depth
• section view
• face material
• return material
• backing
• LED arrangement
• power
• mounting holes
• wire exits
• installation method
• color
• quantity

Complex projects can also include segmentation, raceways and electrical grouping.

A practical dimensional section might look like:

Drawing Item	Approved Value
Overall logo width	3200 mm
Overall logo height	760 mm
Main letter height	580 mm
Return depth	100 mm
Wall stand-off	25 mm
Backboard	None
Mounting	Individual stud mount
Quantity	6 sets

The drawing should also remove ambiguity around related dimensions.

For example, if the sign uses a backboard:

Logo layout: 2800 W × 650 H mm
Backboard: 3200 W × 900 H × 40 D mm

If it uses a raceway:

Letter layout: 2800 W mm
Raceway width: 3000 mm
Raceway depth: 120 mm

Those are separate fabrication items and should not be hidden under one “overall size.”

Side and section views become particularly important when depth affects the product.

A front elevation may show a perfect 3000 × 700 mm logo while giving no indication whether the letters are:

30 mm deep
60 mm deep
100 mm deep

or whether they sit:

flush to wall
20 mm off wall
30 mm off wall

The section drawing resolves those differences.

Mounting dimensions should also be tied to the final product geometry. Hole locations, stud positions, wire exits and templates should be generated from the approved layout rather than guessed later at installation.

How Accurate Do Dimensions Need to Be?

Not every sign dimension requires the same level of accuracy.

A preliminary logo width used for budgeting can tolerate more uncertainty than a mounting hole that must align with a finished stone wall.

A useful way to manage dimensions is to separate them into three categories:

Dimension Type	Example	Required Control
Concept dimension	Target logo width	Approximate during early design
Product dimension	Final overall width and height	Approved before fabrication
Site interface dimension	Holes, recesses, mounting points	Must match site conditions closely

For example:

Target width: approximately 3000 mm

may be acceptable during quotation.

Before cutting begins, however, the approved production drawing should show a specific value such as:

Overall width: 3025 mm

Production can then inspect the finished sign against that drawing.

Iduoduo’s dimensional QC can include:

• total width
• total height
• individual letters
• graphic proportions
• letter spacing
• layer alignment
• hole positions
• backing
• templates

Mounting and replacement projects need even more care.

Suppose a new cabinet face must fit an existing frame measuring:

2400 × 900 mm

An error of 20 or 30 mm may prevent the panel from fitting.

By contrast, a freestanding logo on a large open wall may tolerate a few millimeters of overall layout variation without creating installation trouble.

Accuracy should therefore be linked to the consequence of an error.

Higher-risk dimensions include:

• recessed sign openings
• existing cabinet faces
• replacement letters
• fixed mounting holes
• pre-drilled stone or glass
• electrical exit points
• raceway attachment points
• panel joints
• signs installed between columns

Another important distinction is between manufacturing tolerance and incorrect project information.

A factory may hold dimensions within an agreed manufacturing tolerance, but that does not solve a problem if the original site measurement was wrong by 50 mm.

The measurement chain should therefore be:

Site measurement → approved drawing → production → QC

Each stage confirms a different part of dimensional accuracy.

When Should Site Dimensions Be Rechecked?

Site dimensions should be rechecked whenever the finished sign depends on a physical condition that may have changed or where a small error could prevent installation.

A storefront photograph taken early in a project is useful for context, but it should not replace final field measurements when the product must fit a defined space.

Site dimensions deserve another check before production in situations such as:

• replacement signs
• recessed cabinets
• letters aligned to existing holes
• signs installed between fixed columns
• raceways connected to existing power locations
• backboards fitted within a limited fascia
• signs mounted on finished stone or glass
• projects where cladding work is still underway
• signs connected to architectural panel joints

Construction conditions can move during a project.

For example:

Initial fascia width: 3600 mm

After new cladding is installed:

Finished usable width: 3520 mm

The difference is only:

80 mm

But a sign designed at 3500 mm wide would now leave only 10 mm clearance on each side.

A 3300 mm-wide layout might still fit safely, while the original 3500 mm design may no longer be practical.

Wall build-up can also change projection.

Suppose the original architectural drawing showed:

Wall surface to structure: 100 mm

After insulation, cladding and mounting rails are completed, the finished build-up becomes:

145 mm

Wire lengths, stud lengths or mounting hardware may need to change.

For large exterior projects, rechecking should happen before production files are frozen.

A practical sequence is:

Initial measurement → quotation → design → site recheck → shop drawing → approval → production

Local installers are especially important for measurements related to the building itself.

Iduoduo’s installation documentation distinguishes factory-produced sign information from site responsibilities. Local professional teams handle final site measurement, wall confirmation, structural anchoring, wall openings, local installation conditions and final connection work.

That division helps prevent a manufacturer from being asked to guarantee dimensions of a wall it has never physically measured.

Who Should Approve Final Dimensions?

Final dimensions should be approved by the person or project team authorized to release the sign for production.

Depending on the project, approval may come from:

• a sign company
• brand project manager
• advertising agency
• architect
• contractor
• installer
• procurement team
• authorized project representative

The most important issue is not the title of the approver.

The important issue is that one final version must control production.

Consider the following sequence:

Monday email: Overall width 2800 mm

Wednesday message: Increase to 3000 mm

Friday PDF: Drawing still shows 2800 mm

Monday approval message: Looks good, proceed

Production now has two different width values.

A safer version-control process records:

Item	Final Record
Drawing number	CL-2026-018
Revision	Rev. C
Overall width	3000 mm
Overall height	685 mm
Return depth	100 mm
Approval date	Recorded
Production status	Released

Older drawings should no longer be used once Rev. C becomes the approved production version.

The same control should apply to:

• color
• material
• depth
• mounting
• hole positions
• wire exits
• backboard
• electrical details
• packaging requirements

Iduoduo’s documented workflow uses approved drawings, BOMs, mounting specifications, QC checklists and frozen production versions to transfer confirmed project information into manufacturing.

Approved samples can also become part of the production reference. For repeat or multi-store projects, the approved sample, drawing and specification help establish a stable standard before larger quantities are produced.

The practical rule is simple:

Do not release production because several separate messages appear to agree.

Release production when one approved file contains the dimensions and specifications the factory is expected to manufacture.

For large or repeat projects, that discipline can prevent:

• cutting the wrong size
• producing the wrong return depth
• incorrect backboards
• misplaced mounting holes
• incorrect wire exits
• inconsistent store-to-store layouts
• rework before shipment
• site delays after delivery

Dimension confirmation is therefore complete only when the site information, shop drawing and approved production version all point to the same numbers.

Ready to Confirm Your Custom Sign Dimensions?

If you already have a logo, drawing, target width, wall size, or preliminary W × H × D dimensions, you can send them to Iduoduo for review. The engineering team can check whether the proposed size, depth, spacing, mounting approach, and installation conditions are practical for the selected sign type before production files are finalized.

If some dimensions are still uncertain, you do not need to complete every engineering detail first. A vector logo, storefront photo, available installation area, quantity, and intended sign type are often enough to begin. Iduoduo can help convert those inputs into a clearer quotation basis and shop drawing, then confirm the final dimensions before fabrication.

For channel letters, acrylic LED logo signs, light boxes, metal letters, dimensional letters, and other custom commercial signage, send the available project information to Iduoduo for a dimension review and project-specific quotation.
