The biggest difficulty in manufacturing a large sign is rarely the visible logo. Trouble usually begins in the parts that customers do not see on the original rendering: the structural frame that cannot pass through a loading entrance, the cabinet that exceeds a practical shipping size, the letter section that is too heavy for the planned lifting equipment, or the electrical component that becomes inaccessible after installation. Modular design brings these issues into the project before metal is cut, acrylic is formed, or LEDs are wired.
Modular design is changing large sign manufacturing by dividing a complete sign into engineered sections that can be manufactured, tested, packed, transported, installed, serviced, and replaced in a controlled way. Each module uses planned structural joints, alignment references, electrical connections, installation points, and service access, allowing more critical work to be completed and verified inside the factory.
This does not mean that every large sign should be divided into as many sections as possible. Each new connection adds another seam, fastener, cable, seal, dimensional tolerance, and inspection point. Poorly planned modular construction can create more trouble than it removes. The real improvement comes from selecting the right module boundaries and making every section part of one coordinated system. When this is done well, a rooftop logo can arrive in numbered crates, connect through prepared joints, align without improvised drilling, and illuminate correctly soon after the final electrical checks.
What Is Modular Design in Large Sign Manufacturing?
Modular sign design divides a large sign into planned sections that can function independently during production and reconnect accurately during installation. Each section has defined dimensions, structural connections, alignment references, electrical interfaces, and identification. The purpose is not simply to make an oversized sign smaller. It is to make manufacturing, testing, freight, installation, maintenance, and future replacement easier to control.
Which Sign Parts Can Become Modules?
A large commercial sign is usually a combination of several systems rather than one solid object. The visible face may include fabricated letters, acrylic panels, metal cabinets, printed graphics, or decorative surfaces. Behind that appearance are structural frames, LED groups, wiring, power supplies, controllers, mounting rails, brackets, raceways, backboards, fasteners, drainage points, and service covers. Any of these elements can become a module when separating it provides a clear manufacturing or project benefit.
Channel letters naturally lend themselves to modular construction because individual letters are already separate products. Oversized letters can be divided into upper and lower sections, left and right sections, or several internal frame zones when their completed dimensions exceed available material, machine, freight, or lifting limits. Large script logos need more careful division because visible letter connections can interrupt the flow of the design. Their module boundaries are usually placed around natural changes in shape, narrow transitions, or areas that can be structurally reinforced without creating an obvious seam.
Long light boxes may use separate cabinet bays, removable face panels, LED zones, power groups, and maintenance covers. A large rooftop logo may use several connected aluminum or steel frames with separately packed illuminated faces. A pylon or monument sign may include a supporting structure, cabinet sections, tenant panels, lighting assemblies, and removable access doors. Electrical equipment can also be modularized so that one LED zone, power supply, or controller can be inspected without dismantling the complete sign.
The number of modules should remain practical. Each additional section introduces more bolts, locating points, connectors, seals, labels, drawings, packaging materials, and inspection work. A mature engineering approach does not divide components simply because separation is possible. It uses the smallest number of modules needed to solve actual manufacturing, transport, installation, or maintenance problems.
| Sign Component | Practical Module Form | Typical Control Point | Main Project Benefit |
| Channel letters | Individual letters or divided letter bodies | Baseline, spacing and cable exits | Easier lifting and accurate placement |
| Oversized logo | Numbered structural and face sections | Joint location and surface alignment | Controlled transport and assembly |
| Long light box | Cabinet bays and removable face panels | Cabinet straightness and light continuity | Easier shipping and service access |
| LED lighting | Independent illumination zones | Color, brightness and circuit identity | Faster testing and fault isolation |
| Power system | Separate service enclosures | Load assignment and accessibility | Easier inspection and replacement |
| Mounting system | Rails, raceways or backboards | Hole pattern and reference position | Faster site layout and alignment |
| Graphic surface | Replaceable panels or tenant inserts | Color, print position and fastening | Simpler branding or information updates |
How Is Modularity Different from Segmentation?
Segmentation means dividing a product into smaller physical pieces. Modular design includes segmentation, but it also determines how those pieces will align, connect, operate, remain weather-resistant, and receive maintenance. A sign can be cut into three parts for shipping and still be poorly prepared for field assembly. The installer may need to drill new holes, weld supporting plates, extend wires, modify faces, repair paint, or adjust visible gaps after the product reaches the site.
A true modular sign is designed around its interfaces before fabrication begins. Structural joints are positioned intentionally and reinforced according to the material, weight, access, and expected loading. Locating holes, reference edges, alignment plates, or internal sleeves help the installation team place adjoining sections correctly. Electrical circuits are separated and labeled so the installer knows which wire, connector, controller, and power supply belong to each section. Service panels and fastening points remain accessible after the completed sign is mounted.
The difference becomes especially important when installation takes place high above the ground. Factory workers have measuring tools, fixtures, lighting controls, lifting equipment, spare materials, and direct access to the engineering team. Installers working from a crane, scaffold, or aerial platform have far fewer options. A small dimensional error that takes twenty minutes to correct in the factory can consume several hours when it is discovered on a façade with limited access.
A segmented product solves a size problem. A modular system solves a wider group of manufacturing, logistics, installation, and service problems. It treats every divided section as part of one documented product rather than as a piece that the local contractor must interpret and complete.
Which Large Signs Benefit Most?
Modular construction is most useful when a sign becomes difficult to manufacture, handle, transport, install, or maintain as one complete unit. Large channel letters, rooftop logos, façade signs, long cabinet signs, pylon sign components, blade signs, oversized light boxes, stadium signage, airport signage, exhibition structures, and multi-part storefront systems are common applications. However, physical size alone does not determine whether modular construction is worthwhile.
A six-meter cabinet installed at ground level with easy truck access may present fewer challenges than a three-meter logo that must pass through a narrow shopping-center corridor before being lifted above an active entrance. Installation height, doorway dimensions, loading access, lifting capacity, surface conditions, permitted working hours, and future maintenance access can be more important than the overall sign width.
Multi-location programs also benefit from modular thinking, even when each individual sign is not exceptionally large. A retail or hospitality brand can establish common letter depths, lighting specifications, wiring colors, mounting rails, power locations, face-retention methods, packaging labels, and service access. The external dimensions may change to fit each building, while the hidden manufacturing and installation logic remains familiar to production teams and local contractors.
One-piece construction remains suitable for smaller indoor logos, lightweight wall signs, compact light boxes, sculptural forms, and continuous premium surfaces that would be visually weakened by a seam. Modularity is valuable when it removes a measurable project constraint. It should not be treated as a fashionable feature added without examining the sign’s complete route from manufacturing to long-term use.
What Problems Is Modular Design Solving?
Transportation is one of the clearest reasons to use modular design. Large signs may exceed practical material sizes, crate dimensions, freight limits, loading-door openings, container access, local road restrictions, or unloading capacity. Planned sections allow the product to move through these restrictions without cutting a finished sign shortly before shipment. Each section can also receive its own internal support, reducing the bending risk associated with long, unsupported structures.
Installation uncertainty is another major problem. On-site cutting, drilling, welding, rewiring, grinding, and repainting are slower and harder to control than the same work completed in the factory. When module joints, holes, brackets, cable exits, and connectors are prepared in advance, installers can focus on positioning, fastening, connection, sealing, and commissioning instead of rebuilding unfinished parts at height.
Maintenance becomes more manageable when lighting, power, faces, controllers, and access covers are separated into identifiable service zones. A complete cabinet may remain structurally sound even when one LED group or power supply requires attention. Modular access can reduce the amount of sign that must be dismantled and limit disruption around the building.
Modular systems also support repeatability. Multi-site projects need consistent colors, materials, lighting, depths, mounting methods, installation documents, and packaging identification. A controlled modular structure makes it easier to connect each product to drawings, inspection records, photos, and replacement information. The result is not merely a sign that has been divided into pieces, but a project that remains understandable across design, production, logistics, installation, and service.
How Does Modular Design Change Sign Engineering?
Modular design expands sign engineering beyond the visible shape. Engineers must determine module boundaries, structural load paths, connection details, dimensional tolerances, wiring groups, power locations, sealing, drainage, mounting points, lifting conditions, and installation order before production begins. The engineering package must explain both the completed appearance and the practical steps required to manufacture, move, assemble, operate, and maintain the sign.
How Are Module Boundaries Selected?
The best division point is rarely chosen from one dimension alone. Engineers need to balance visual continuity, structural strength, raw-material availability, machine capacity, packing size, lifting weight, wiring routes, maintenance access, and the installation sequence. A seam that is convenient for freight may interrupt an illuminated face. A joint that looks visually clean may fall in a structurally weak area or create an electrical connection that cannot be reached after assembly.
Visual analysis normally begins with the logo geometry and expected viewing distance. Natural letter gaps, changes in stroke direction, cabinet frame lines, graphic transitions, and concealed return areas often provide suitable division points. Wide uninterrupted illuminated surfaces require greater care because even a small height difference or light leak can become noticeable after dark. When a visible joint cannot be avoided, its location, gap, finish, and repetition should appear deliberate.
Structural analysis considers how the module is lifted, connected, mounted, and exposed during service. Large exterior signs may require information for local wind-load, anchor, and building-attachment review. The manufacturer can engineer the fabricated sign structure and provide weights, dimensions, bracket locations, and mounting interfaces, while licensed local professionals may still need to confirm anchors and building suitability according to local requirements.
Electrical layout also influences the division. A module should ideally form a logical lighting or wiring zone that can be tested independently. Engineers examine operating voltage, cable length, circuit grouping, connector location, controller placement, and possible voltage drop. Freight and access information should be confirmed at the same stage because a section that fits a workshop may still fail to pass through the final loading corridor or installation route.
Which Interfaces Need Standardization?
The interface is the point where the success or failure of modular construction becomes visible. Structural interfaces transfer weight and movement between adjoining sections. Visual interfaces control gaps, baseline, face alignment, and surface continuity. Electrical interfaces control voltage, polarity, circuit identity, lighting behavior, and serviceability. Environmental interfaces control water entry, drainage, condensation, corrosion, and long-term access.
Structural connections may use bolted plates, reinforced flanges, internal sleeves, locating pins, brackets, rails, or backboards. The correct choice depends on the material, section weight, load direction, installation access, and whether the connection must remain removable. Fasteners need enough working space for tools, and critical bolts should not become trapped behind permanently installed faces or inaccessible building surfaces.
Visual interfaces need shared reference points. Datum edges, centerlines, locating holes, temporary fixtures, or adjustment slots can prevent cumulative error across multiple sections. A sign made from five individually acceptable modules may still appear crooked when each section is measured from the previous one rather than from a common origin.
Electrical interfaces benefit from consistent wire colors, connector pairs, circuit labels, voltage identification, power-group numbering, and accessible test points. Outdoor connectors also need protection from mechanical strain and environmental exposure. Sealing should not depend solely on adding more sealant. The design must consider joint direction, cable penetrations, drainage paths, service covers, thermal movement, and how the installer can inspect the completed connection.
Standardization should improve control without forcing every project into one rigid construction. Hidden mounting and electrical details may remain consistent across a program, while depth, materials, reinforcement, and joint positions adapt to the actual sign and building.
How Do Shop Drawings Support Modular Signs?

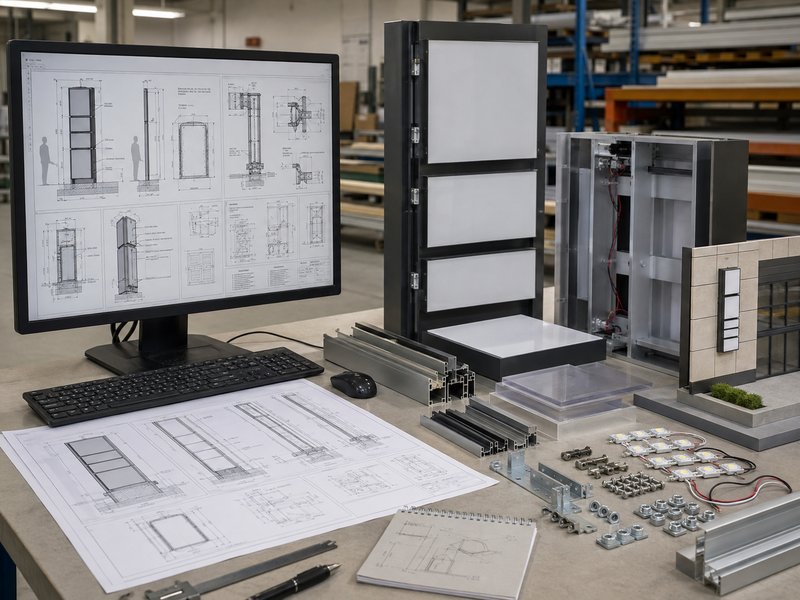

A rendering can communicate the intended appearance, but it cannot provide enough information to manufacture and install a modular sign. Shop drawings translate visual design into dimensions, materials, construction depths, module boundaries, joints, mounting interfaces, cable exits, lighting zones, service access, and assembly order. They also create a shared reference for the customer, manufacturer, contractor, electrician, and installation team.
The overall elevation should show the complete sign, orientation, finished size, letter spacing, logo proportions, and module numbering. Cross-sections should explain the relationship between faces, returns, frames, LEDs, wiring, backing materials, raceways, and mounting surfaces. Joint details should identify plates, fasteners, sleeves, locating points, seam gaps, and access direction. Electrical drawings should connect every lighting zone to the correct power supply or controller.
Installation drawings need to reflect real field conditions rather than showing only an ideal front view. Hole positions, bracket spacing, cable exits, wall references, raceway dimensions, lifting direction, opening order, seal locations, and service clearance may all affect whether the sign can be installed without modification.
| Drawing or Record | Essential Information | Main Risk Controlled |
| Overall elevation | Finished dimensions, spacing, orientation and module IDs | Incorrect visual scale or layout |
| Cross-sections | Depth, materials, internal structure and lighting space | Misunderstood construction |
| Joint details | Plates, fasteners, reinforcement and alignment points | Weak or misaligned connections |
| Electrical plan | LED zones, connectors, power groups and cable routes | Incorrect wiring or inconsistent lighting |
| Mounting plan | Holes, rails, backboards, anchors and reference lines | Excessive field drilling or adjustment |
| Service detail | Removable faces, covers and component access | Difficult future maintenance |
| Packing plan | Crate allocation, accessory groups and opening sequence | Mixed parts or installation delays |
| Revision record | Approved file version and change history | Production from outdated information |
Revision control deserves as much attention as drawing detail. Project information may arrive through email, instant messaging, video meetings, CAD files, and marked-up PDFs. Production should follow one final approved version rather than a collection of separate comments. When the drawing revision, bill of materials, module labels, and inspection records share the same project reference, errors become easier to prevent and investigate.
How Do BOMs Control Modular Production?
A bill of materials connects engineering decisions to the actual components used in the factory. In a modular project, the BOM should show not only the total materials required for the complete sign but also which materials, electrical parts, fasteners, and finishes belong to each module. Two sections may look nearly identical from the front while using different brackets, cable exits, power loads, or face dimensions.
A useful BOM can identify metal grade, sheet thickness, acrylic type, translucent color, LED model, color temperature, operating voltage, power-supply rating, controller type, wire specification, connector model, fastener grade, paint reference, powder-coating code, sealant, gasket, bracket, label, protective film, and packing material. The exact level of detail should match the complexity and replacement risk of the project.
Module-level control supports parallel manufacturing. The metal team, acrylic team, electrical team, surface-finishing team, assembly team, and packing team can work from the same approved structure. When a material or component changes, the impact can be traced to the affected modules rather than being discovered during final assembly.
BOM records are also useful for later service and repeat orders. They reduce the need to reconstruct every technical decision from photographs or memory. However, historical information does not guarantee perfect future matching. LED batches, acrylic colors, paints, power supplies, and supplier models can change over time. Replacement production should therefore confirm availability, color, electrical compatibility, dimensions, and installation conditions before work begins.
How Are Modular Signs Manufactured and Tested?
Modular signs can move through structural fabrication, face production, surface finishing, LED assembly, wiring, and mounting-component production in parallel. This can improve project flow, but it also increases the importance of file control, common reference points, trial fitting, labeling, and final-system verification. Every module must pass its own inspection while also fitting and operating correctly as part of the completed sign.
How Do Modules Change Production Flow?

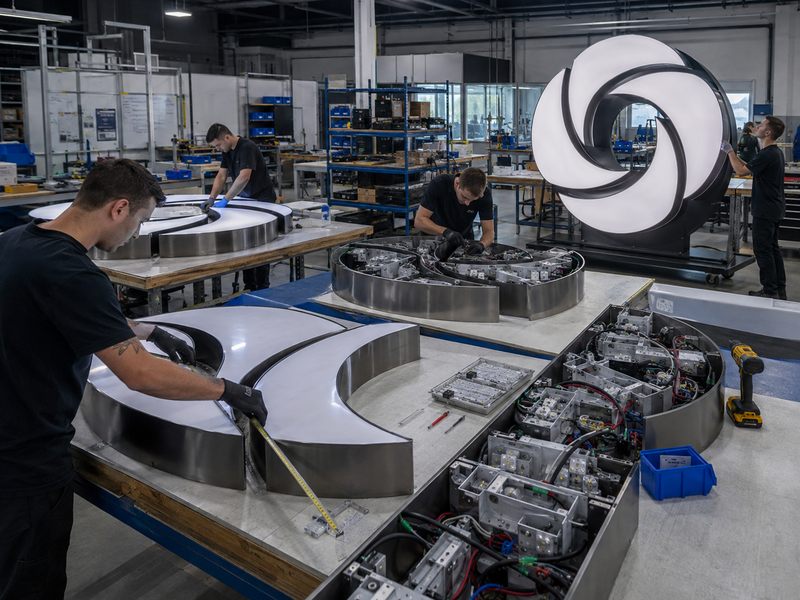

Traditional sign production is often described as a linear process: cut materials, fabricate the structure, apply finishes, install lighting, connect wiring, test the product, and pack it. Modular production allows several of these activities to overlap. Structural sections may be fabricated while faces are cut. Mounting rails and brackets can be produced while LED groups and wiring harnesses are prepared. Power enclosures can be assembled while coated parts complete drying or curing.
Parallel production can shorten inactive time, but it creates a greater need for coordination. A change in cabinet depth may affect face dimensions, reinforcement, LED spacing, wire length, bracket positions, service clearance, crate size, and installation drawings. If one department works from an outdated file, the problem may remain hidden until several completed sections are brought together.
A controlled workflow normally begins with an approved engineering release. Module-specific files are issued with consistent references, and raw materials are assigned according to the BOM. Structural parts are cut, bent, welded, reinforced, ground, and prepared for finishing. Faces, retainers, backing panels, rails, brackets, and templates are produced in parallel. After finishing, LEDs, wires, connectors, controllers, and power components are installed according to the assigned electrical zones.

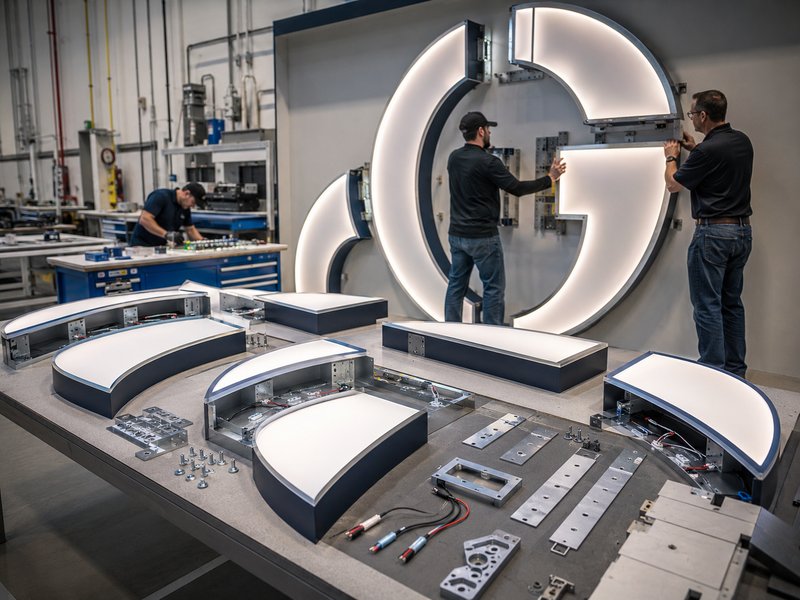

Modules are then measured and trial-fitted before final packing. Adjacent sections need to be checked together because individual dimensional compliance does not automatically guarantee complete alignment. Where practical, the entire sign is assembled and illuminated before being separated for shipment. The goal is not merely faster production. It is to make every stage measurable and prevent separately accurate parts from becoming an inaccurate complete product.
How Are Tolerances and Alignment Controlled?
Large signs magnify small dimensional differences. A minor deviation in one letter or cabinet section may seem harmless on its own, but repeated variation can create an uneven baseline, stepped face panels, inconsistent seam gaps, or mounting holes that no longer match the planned site layout. The longer the sign and the greater the number of modules, the more important it becomes to prevent accumulated error.
Alignment begins with shared references. Engineers may define a project centerline, a bottom baseline, datum edges, locating holes, pins, alignment plates, temporary fixtures, or assembly jigs. Each module should be measured from the same design origin rather than from the edge of the previous section. This approach prevents small local variations from multiplying across the complete sign.

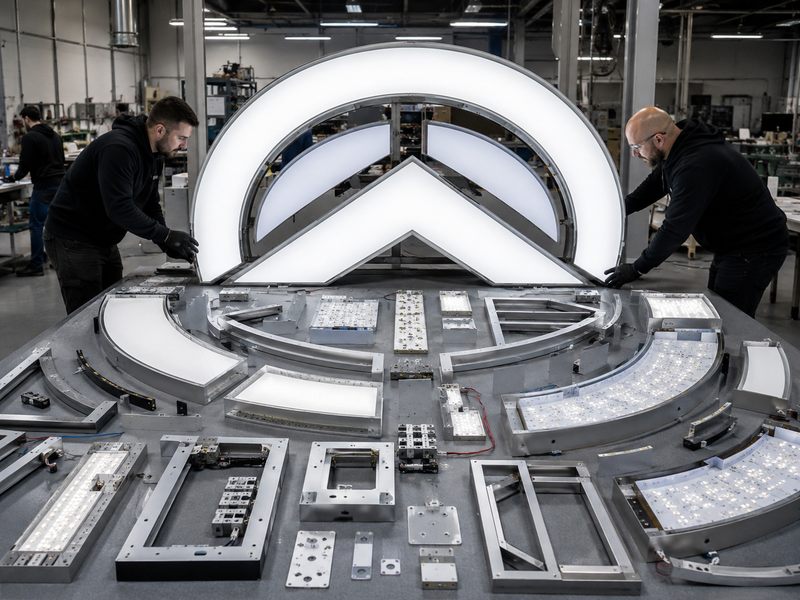

Trial fitting should take place when correction is still practical. Structural modules are often checked before final surface finishing so that plates, sleeves, holes, and edges can be adjusted without damaging completed paint, powder coating, polished metal, or acrylic. A second check after finishing confirms that coatings, gaskets, retainers, face panels, and final hardware have not changed the fit.
Quality inspection should include overall width, height, depth, diagonal dimensions, joint gap, surface level, baseline, letter spacing, hole pattern, bracket position, cable-exit location, face-panel clearance, service-cover access, and visual continuity from the expected viewing distance. The narrowest theoretical tolerance is not always the most useful one. A reliable sign allows controlled field adjustment while protecting its appearance, strength, and electrical function.
How Are Lighting and Wiring Tested?
Illuminated modules need to operate correctly both individually and as one connected system. A section can pass an individual lighting test and still create a visible problem after assembly. LED spacing may change near a joint, the end of a long cable run may receive lower voltage, or two adjacent sections may use different color-temperature batches. Complete-system testing reveals these relationships more clearly than isolated module checks.
Each lighting zone should be inspected for LED operation, color, brightness, dark areas, hotspots, edge falloff, and continuity across adjoining sections. Electrical checks should confirm operating voltage, polarity, wire routing, connector pairing, cable protection, circuit identity, controller response, power grouping, and component access. RGB or RGBW projects also need coordinated control testing to confirm that neighboring modules respond consistently.
Power supplies should be selected according to actual system load, thermal conditions, operating environment, and the component manufacturer’s guidance. Running equipment continuously at its absolute nameplate maximum is generally avoided in careful engineering practice. Long low-voltage cable routes require particular attention because voltage drop can affect brightness, color behavior, or system stability.
At iduoduo, illuminated products receive 100% lighting inspection and 72-hour pre-shipment testing. The purpose of extended operation is not to claim that an electrical component can never fail. It is to identify early LED, power, controller, connector, or wiring problems before the sign enters international transport. Factory photos and videos also provide a useful comparison if the installed result later differs from the approved test appearance.
| Inspection Stage | Main Checks | Useful Evidence | Problem Found Before Shipment |
| Structural inspection | Dimensions, joints, welds, reinforcement and mounting points | Measurement sheet and photos | Poor fit or weak connection |
| Trial assembly | Alignment, seam gaps, baseline and access | Full or partial assembly photos | Accumulated dimensional error |
| Lighting inspection | LED operation, color, hotspots and dark zones | Day and illuminated photos | Uneven or inconsistent light |
| Electrical inspection | Voltage, polarity, connectors, controllers and power groups | Wiring checklist and test video | Incorrect circuit or unstable operation |
| Service check | Face removal, cover access and component reach | Access photos | Components trapped after installation |
| Packing inspection | Module IDs, accessories, protection and crate contents | Packing list, photos and video | Missing or mixed installation parts |
How Is Quality Traced Across Modules?
Traceability connects every section to its approved drawing, materials, electrical zone, inspection record, accessory pack, and shipping crate. Without consistent identification, a well-manufactured modular sign can become difficult to manage as soon as it is disassembled. Similar-looking modules may use different mounting brackets, cable exits, face sizes, or power assignments, making visual identification unreliable.
Each module should carry a practical reference that remains understandable during production, testing, packing, warehousing, and installation. The same code should appear on shop drawings, wiring diagrams, inspection forms, accessory bags, crate labels, and installation instructions. Multi-location projects can add a store number, elevation, or installation area so that products for similar sites are not mixed during distribution.
Quality records may include the approved drawing revision, material specification, dimensional inspection, surface and color check, lighting test, electrical check, joint trial-fit result, assembly photographs, accessory checklist, crate allocation, and final shipping list. These records are particularly valuable when a project is delivered in stages or when replacement parts are requested after installation.
Documentation should remain useful rather than ceremonial. A large quantity of forms adds little value if workers cannot connect them to the actual product. The best traceability system answers practical questions quickly: Which drawing produced this module? Which power supply belongs to it? Which crate contains its fasteners? Which inspection confirmed its lighting? Which store or elevation receives it? A clear answer to those questions reduces confusion throughout the project.
How Does Modularity Change Shipping and Installation?

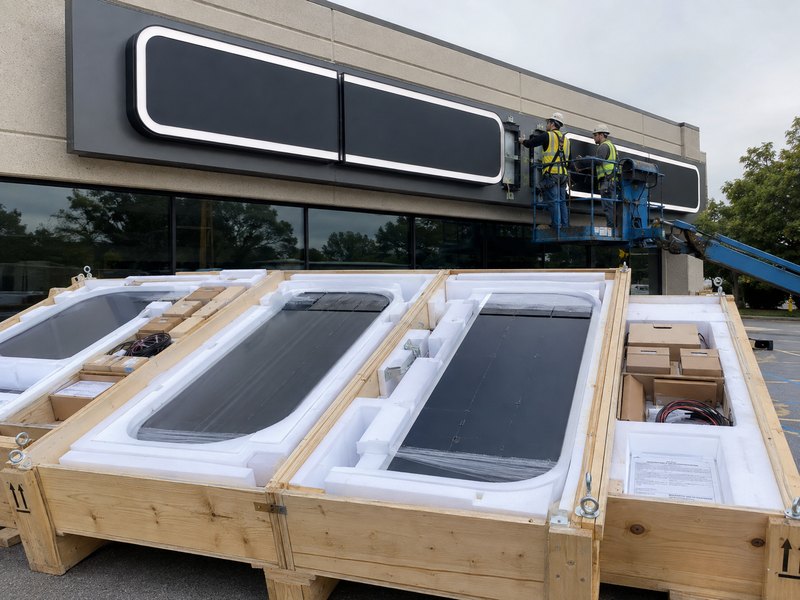

Modularity allows large signs to be packed around freight, unloading, access, and lifting constraints instead of forcing the project to move as one oversized object. Numbered sections can pass through smaller openings and be lifted in a controlled sequence. The advantage depends on protective packing, accurate labels, complete installation documents, and factory-prepared connections that minimize cutting, drilling, welding, rewiring, and adjustment at the site.
How Do Modules Reduce Transport Limits?
Freight planning is influenced by more than the total product weight. The completed sign must pass through the factory, packing area, loading vehicle, port or airport system, destination unloading area, site entrance, corridors, elevators, stairs, scaffolding, and final lifting route. A product that is easy to fabricate as one piece may still be commercially or physically impractical to move through this complete chain.
Long structures also experience handling risk. Even when the total weight is moderate, an unsupported frame can bend or twist when lifted from the wrong point. Breaking the sign into shorter reinforced sections can make loading and lifting more predictable. Each module can receive shaped foam, internal braces, edge protection, or a dedicated crate support that matches its weight and geometry.
The engineering team should confirm practical crate and access limits before production begins. Common sheet materials may be stocked in formats around 1,220 × 2,440 millimeters, although larger sheets and different regional standards are available. Material size should not be treated as the only module limit because forming equipment, coating lines, transport vehicles, site doors, and lifting capacity may be more restrictive.
Modular packing can reduce oversized-freight exposure, but it does not automatically reduce total logistics cost. More modules may require more crates, protective materials, labels, connectors, fasteners, and handling labor. The correct comparison includes freight, unloading, crane or aerial-platform time, site labor, damage risk, and installation duration rather than focusing only on the factory packing price.
| Transport Question | One-Piece Concern | Modular Response | Information to Confirm |
| Can the sign fit the selected route? | Oversize freight or blocked access | Planned section and crate dimensions | Vehicle, container and site openings |
| Can the site unload it safely? | Large crane or forklift requirement | Smaller controlled lifts | Weight per module and lifting points |
| Can it pass through the building? | Doorway, corridor or elevator conflict | Sequential movement of sections | Complete delivery-route survey |
| Can long surfaces remain straight? | Bending or twisting during handling | Shorter reinforced modules | Support positions and crate design |
| Can installation follow delivery order? | Parts opened in the wrong sequence | Numbered crate and module plan | Assembly and opening sequence |
| Can accessories remain organized? | Mixed bolts, wires and power units | Module-specific accessory packs | Hardware and circuit allocation |
How Are Modules Packed and Identified?
Modular packaging has two jobs. It must protect the product from movement, compression, impact, abrasion, moisture exposure, and component loss, and it must help the receiving team understand how the sign is organized. A crate should not be filled only according to available space. Its contents should reflect how the sections will be removed, moved, connected, and installed.
Useful labels may include the project number, store or location code, sign elevation, module number, left-right orientation, top-bottom direction, matching joint reference, circuit number, connector reference, accessory-bag number, crate number, weight, lifting position, and opening sequence. These references should match the shop drawings and installation package rather than creating a separate packing language.
Acrylic faces need protection from scratching, concentrated pressure, and flexing. Painted, powder-coated, polished, or plated metal surfaces need separation so they cannot rub during vibration. Projecting letters and narrow logo strokes may require shaped foam or internal support. Heavy or oversized products may need wooden frames or crates rather than standard cartons. Power supplies, controllers, cables, templates, and installation hardware should be isolated from finished surfaces.
Packing photographs and videos give both the manufacturer and customer a reference. They record the condition of the product before dispatch, show where accessories are located, and help explain the original arrangement if customs, a warehouse, or a contractor opens the crate before final installation. Iduoduo’s documented packaging system includes individual protection, reinforced cartons, EPE foam, corner protection, separated accessory areas, and wooden frames or crates for large products, with the goal of reducing long-distance transport risk rather than making an unrealistic promise of zero damage.
Which Installation Documents Are Needed?
Installers need more than a front elevation. They must understand how the complete sign attaches to the building, how the modules connect to each other, which cables and power groups belong together, where sealing is required, and which parts must remain accessible. Missing installation information often turns a prepared product into an improvised site project.
A complete package may include the overall elevation, module plan, mounting template, bracket or rail layout, hole positions, cable exits, raceway or backboard details, wiring diagram, power-supply allocation, connector references, hardware list, joint details, assembly sequence, service-panel locations, drainage notes, and final commissioning checklist. The complexity of the package should match the sign; a small indoor logo does not need the same documentation as a multi-section rooftop system.
Product labels and drawings must use the same references. When the drawing identifies Module C2, that code should appear on the physical section, its cable group, its hardware pack, and the crate containing it. Contractors should not need to guess which similar-looking component belongs on the left or right side of a building.
Responsibility boundaries also need to remain clear. The manufacturer can provide product dimensions, section weights, mounting features, electrical requirements, connection details, and installation guidance. Local professionals still need to verify building structure, anchor selection, wall condition, incoming power, permits, working access, and compliance with local codes. Site photographs and measured dimensions should be reviewed before engineering whenever possible because architectural drawings do not always reflect the completed building.
How Are Modules Assembled On-Site?
A successful installation begins before the first crate is opened. The site team confirms access, lifting equipment, reference lines, mounting surfaces, anchor positions, electrical supply, weather conditions, work-zone restrictions, and the planned module sequence. The opening order should match the installation order so that finished sections are not moved repeatedly around an active site.
The first structural section usually establishes the baseline and orientation for the rest of the sign. It should be positioned carefully and secured provisionally until adjoining modules confirm the overall line. Connection plates, sleeves, locating holes, or rails are then used to bring the sections together. Final tightening takes place after the installer verifies spacing, alignment, face level, and access to hidden fasteners.
Electrical circuits should be connected according to labels rather than wire appearance. Similar wires may belong to different zones, power supplies, dimmers, or RGB controllers. Each module should be tested after connection and before access panels or faces make the wiring difficult to reach. Outdoor work may also include joint sealing, cable-entry protection, drainage checks, corrosion protection, and inspection of wall penetrations.
The completed sign should be reviewed in daylight and when illuminated. Daylight shows seams, spacing, surface variation, cabinet straightness, and letter alignment. Night testing shows dark sections, light leakage, inconsistent color, hotspots, and brightness changes around module joints. Modular design reduces field work only when the factory preparation, documentation, and dimensional control are complete.
Is Modular Design Better Over the Sign Life Cycle?
Modular design can improve lifecycle value when it allows damaged, outdated, or failed components to be accessed and replaced without removing the complete sign. It can also support repeat production and multi-site consistency. These benefits must be balanced against additional engineering, joints, fasteners, connectors, sealing requirements, and the possibility that future replacement parts may not perfectly match the original materials or lighting.
How Does Modularity Affect Project Cost?
A modular sign may require more work before production. Engineers need to develop connections, alignment references, wiring zones, module numbers, service access, trial-fitting procedures, packing plans, and installation documents. Additional plates, fasteners, connectors, labels, seals, and crates may also increase the initial manufacturing cost. A comparison based only on the factory product price can therefore make modular construction appear unnecessarily expensive.
A more useful comparison considers the total installed and maintained cost. Oversized freight, special vehicles, unloading equipment, crane time, aerial-platform rental, restricted working hours, field welding, electrical troubleshooting, surface repair, store disruption, and future service can cost more than the factory preparation needed to avoid them. The value of modularity increases when the sign is difficult to reach, located in an active commercial area, shipped internationally, or expected to remain in service for many years.
A removable face may add fabrication time but allow LEDs to be serviced without taking down a cabinet. A standardized mounting rail may cost more than simple studs but reduce layout work across multiple stores. Labeled wiring zones require extra preparation but can shorten troubleshooting. These are not automatic savings, and they should not be presented as universal percentages. Their value depends on the sign size, installation height, labor conditions, freight route, access equipment, and expected maintenance.
Smaller indoor signs with easy access may gain little financial benefit from extensive modular engineering. The decision should be based on where cost and risk occur throughout the project rather than on the assumption that modular construction is always cheaper or always more expensive.
How Are Repairs and Upgrades Simplified?

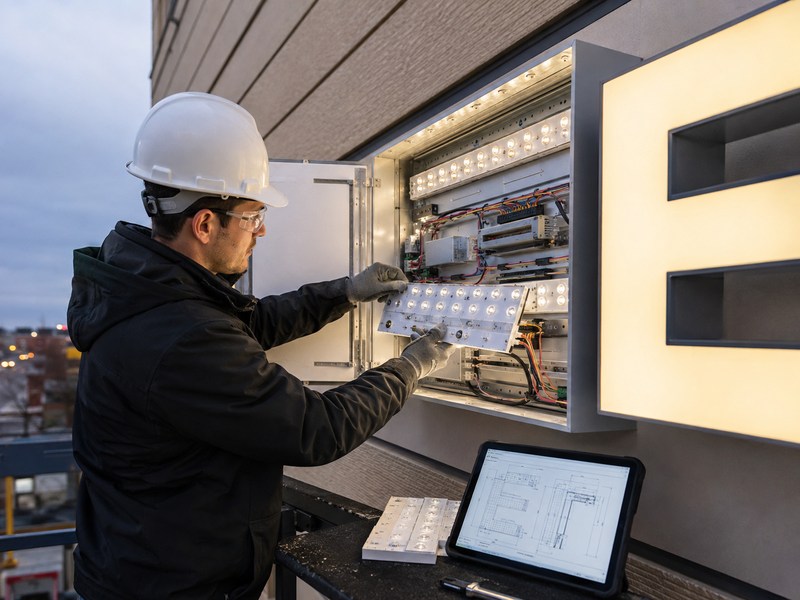

Many sign problems affect one component rather than the whole product. A cabinet frame can remain sound while one power supply fails. A channel letter can retain its structure while one LED group loses brightness. A face panel can be damaged by impact without affecting the mounting system. Modular access allows technicians to isolate these issues instead of dismantling sections that are still working correctly.
Service-friendly construction may include removable or hinged faces, accessible power enclosures, numbered LED zones, replaceable wiring harnesses, defined connectors, standard fasteners, separate controllers, removable cabinet sections, and documented access panels. The design should give technicians enough room to use tools and inspect connections. An access cover has little value if it is trapped against the building or blocked by another module after installation.
Modularity can also support planned visual changes. Retailers may update logos, tenant information, color standards, campaign graphics, or wayfinding panels while keeping the supporting structure. Replacing one controlled component generally uses less material and requires less site work than replacing the complete sign. For difficult installations, selected spare faces, power supplies, LED modules, or controllers may be ordered with the original project to reduce future compatibility risk.
Original records remain important because materials and electrical components change over time. Iduoduo retains project information for approximately two to three years to support troubleshooting and repeat production, but dimensions, colors, raw materials, LEDs, power supplies, installation conditions, and destination-market requirements still need to be reconfirmed before a replacement is manufactured.
Which Risks Can Modular Connections Create?
Every module boundary creates another point that must be engineered, produced, inspected, installed, and maintained correctly. Structural connections can loosen or concentrate stress. Face sections can become misaligned. Seams can remain visible in daylight or leak light after dark. Cable penetrations and cabinet joints can admit water. Connectors can be reversed, strained, exposed to moisture, or left inaccessible behind finished surfaces.
Dimensional error can accumulate across several sections. A small variation repeated through a long façade sign may shift the final letter position, move mounting holes away from the template, or create uneven gaps. Different materials may also expand and contract at different rates, making thermal movement an important consideration for long exterior signs. Dissimilar metals, exposed fasteners, retained water, and damaged coatings can increase corrosion risk.
Lighting continuity creates another challenge. LED spacing near module joints needs careful control, and adjoining sections should use compatible color and brightness specifications. An individual module may look correct during isolated testing while appearing darker or brighter once placed beside another section. Full or representative trial assembly helps reveal these relationships.
These risks do not make modular construction unreliable. They show that the module interface cannot be treated as a minor packing detail. The number of sections should remain practical, and each structural, visual, electrical, and environmental connection should have a clear purpose. A simple system with well-controlled joints is usually more reliable than a heavily divided product created only to reduce crate size.
When Is One-Piece Construction Better?
One-piece construction is often the better choice when the product can be manufactured, packed, transported, installed, and maintained without creating significant difficulty. Smaller indoor logos, lightweight wall signs, compact illuminated cabinets, and products installed at ground level may not justify additional joints, connectors, seals, labels, and assembly work.
Continuous visual surfaces can also favor one-piece fabrication. Mirror-polished metal, high-gloss coatings, uninterrupted acrylic faces, smooth script logos, and sculptural shapes may reveal a connection even when the structural workmanship is good. If the complete product fits practical material, freight, access, and lifting limits, preserving a continuous surface may matter more than making the sign easier to separate later.
One-piece construction reduces the number of fasteners, cable connectors, seam locations, alignment operations, sealing points, module labels, and on-site assembly steps. Its simplicity can improve reliability when the complete product remains manageable. However, choosing one-piece construction without confirming the delivery route can create serious problems. A sign that fits the truck may not fit through the building, and a product that reaches the site may exceed the available lifting equipment.
The decision should follow the complete project path. One-piece construction is better when simplicity remains practical from material preparation through future service. Modular construction is better when controlled interfaces remove greater risks in production, freight, installation, maintenance, or multi-site replication.
Planning a Large Modular Sign Project
A modular sign should arrive as a controlled installation package rather than as a collection of oversized parts that local contractors must reinterpret. Early project information allows the engineering team to decide whether the sign should remain one piece, use simple transport segmentation, or become a fully modular system with planned structural, electrical, installation, and service interfaces.
Before requesting an accurate proposal, prepare the logo or artwork, overall dimensions, expected viewing distance, installation photographs, wall measurements, building drawings where available, indoor or outdoor conditions, preferred materials, finish references, lighting style, operating voltage, mounting surface, installation height, access equipment, destination country, quantity, schedule, and any known freight or crate restrictions.
For outdoor projects, include information about exposure, rainfall, temperature, coastal conditions, wall penetrations, drainage, maintenance access, and local structural requirements. For multi-location programs, identify which visual and construction standards must remain consistent and which details may adapt to each building. Clear information at the beginning reduces the number of assumptions that must be corrected after production begins.
Iduoduo is a Shenzhen-based custom sign manufacturer established in 2007, supported by five production bases, approximately 21,000 square meters of manufacturing space, more than 500 employees, 18 production lines, over 10 designers, more than 20 engineers, and more than 30 quality-control personnel. Its product range includes channel letters, light boxes, blade signs, acrylic LED logo signs, LED neon signs, metal letters, acrylic letters, PVC letters, foam letters, and other illuminated and non-illuminated commercial signage.
The value of this manufacturing structure is not the size of the factory alone. Modular sign projects need design interpretation, structural review, material coordination, lighting engineering, electrical grouping, production control, trial assembly, testing, export packaging, installation support, and service records to work as one connected process. Illuminated products receive 100% lighting inspection and 72-hour pre-shipment testing, supported by a three-year warranty under the confirmed project terms.
Send the project team your logo, dimensions, quantities, installation conditions, destination, and required delivery schedule. The first engineering review can identify practical module boundaries, transport constraints, mounting interfaces, lighting zones, service access, and the information still needed before a production-ready quotation is completed.
