A commercial space can contain a reception logo, storefront letters, room identification signs, directional signs, menu light boxes, wall graphics, safety notices, and promotional displays. Each sign may have a different job, size, material, and viewing distance. The problem begins when every sign is designed as a separate product. Even well-made signs can look unrelated when the fonts, colors, depths, finishes, lighting, icon styles, and installation details were decided independently.
Multiple signs stay visually consistent when they share a controlled design language. The sign family should use coordinated typography, colors, shapes, materials, lighting, spacing, and mounting details. Sizes and information layouts may change according to function, but the repeated visual rules should remain recognizable throughout the space.
The goal is not to make every sign identical. A large illuminated reception logo should not look exactly like a small restroom sign. Consistency means that someone can walk from the entrance to the reception desk, corridor, service counter, and final destination without feeling that the visual identity changes from one area to the next.
Imagine entering a hotel where the exterior letters are warm white, the reception logo is blue, the directional signs use a third typeface, and the room signs have polished gold frames that appear nowhere else. None of the signs may be poorly made, yet the space still feels unfinished. A coordinated sign system prevents that expensive result before production starts.

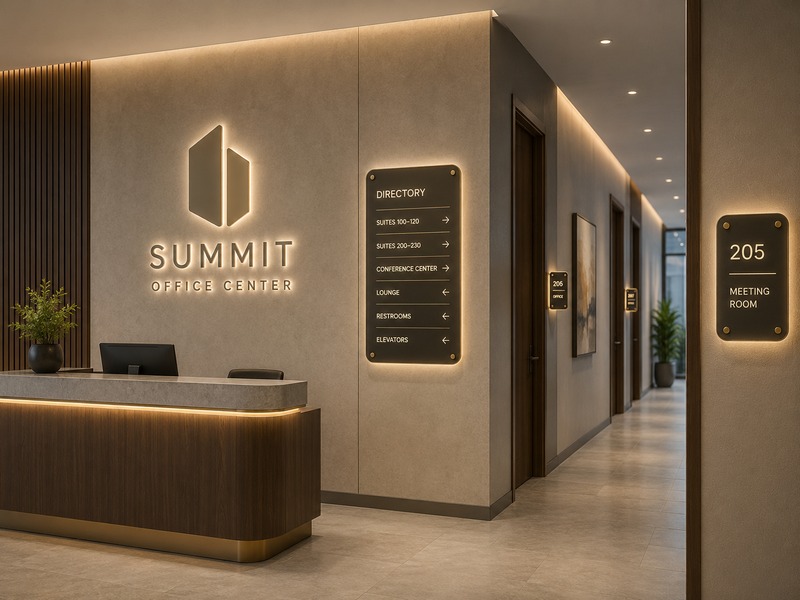

What Is a Consistent Sign System?
A consistent sign system is a coordinated group of signs that follows the same visual and production rules. Fonts, colors, icons, materials, lighting, spacing, finishes, and mounting details should remain controlled, while sign size and information layout can change according to location, reading distance, and function.

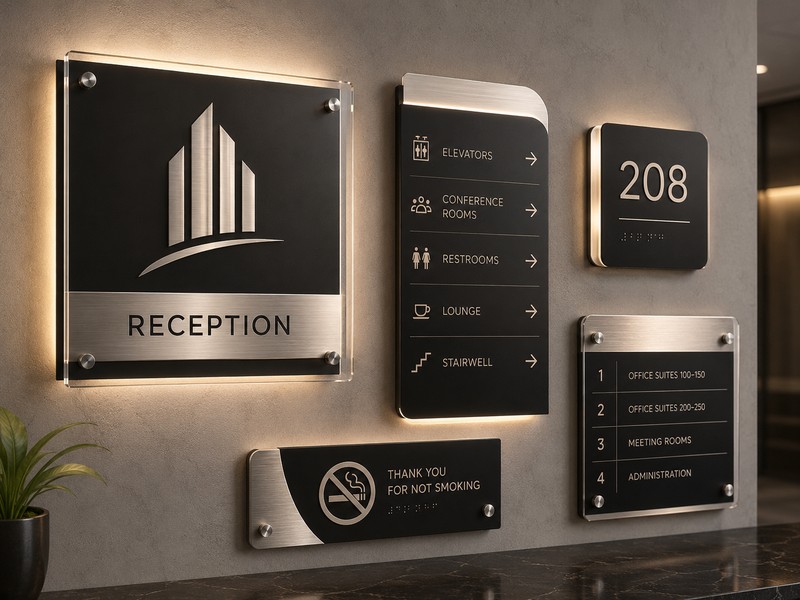

What Is a Sign Family?
A sign family includes every permanent sign people see while moving through one commercial space. Common sign types include:
- Exterior building signs
- Storefront channel letters
- Entrance signs
- Reception logos
- Directories
- Directional signs
- Department signs
- Room identification signs
- Counter signs
- Menu light boxes
- Safety signs
- Accessible room signs
- Wall graphics
- Promotional displays
These products do not need identical dimensions or construction. A 3,000 mm-wide illuminated reception logo and a 200 mm-wide room plaque perform different jobs. Making both products with the same depth, lighting, and letter size would be impractical.
A strong sign family instead keeps several recognizable features consistent. The two signs may use the same supporting typeface, metal finish, brand color, corner treatment, letter proportions, or mounting appearance. Visitors may not consciously identify every repeated detail, but they will usually notice when the signs feel unrelated.
A practical sign family often contains four levels:
| Sign Level | Typical Products | Main Purpose | Common Viewing Distance |
|---|---|---|---|
| Primary | Building sign, storefront letters, entrance logo | Identify the business or destination | 15–100 m |
| Secondary | Reception sign, directory, major directional sign | Confirm arrival and guide movement | 3–15 m |
| Tertiary | Room sign, counter sign, department plaque | Identify nearby locations | 0.5–3 m |
| Regulatory | Exit, fire, safety, accessibility signs | Communicate required information | Depends on local code |
The visual relationship between these levels should be planned before production begins. Otherwise, the exterior sign may use one shade of blue, the reception sign another, and the room signs a third. Each product may pass individual inspection while the completed space still looks fragmented.

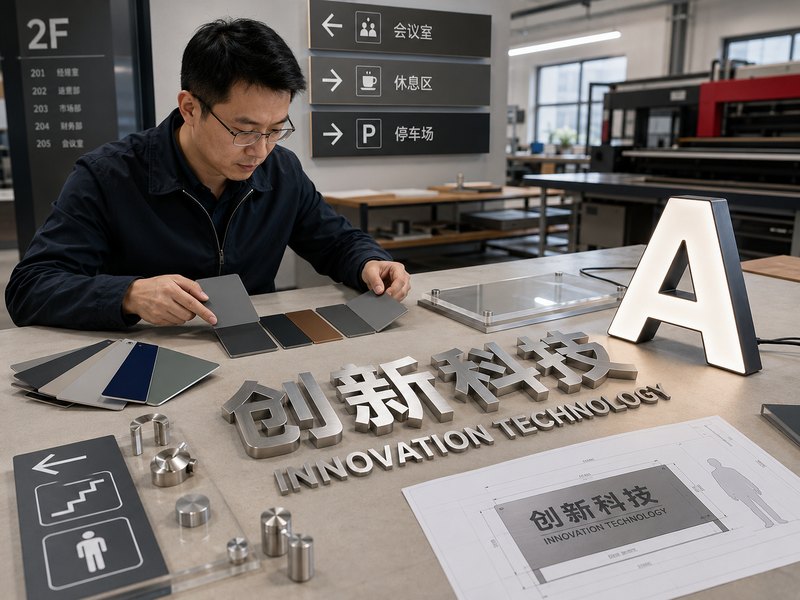

Which Elements Should Repeat?
Visual consistency is usually created through six to ten controlled elements. Repeating every feature is unnecessary, but repeating too few makes the relationship difficult to recognize.
The most important elements are:
| Element | What Should Be Controlled | What May Change |
|---|---|---|
| Logo artwork | Shape, proportions, clear space, approved version | Overall size |
| Typography | Font family, weight, capitalization, spacing rules | Font size |
| Brand colors | Pantone, RAL, paint code, acrylic code, LED color | Reproduction method |
| Icon style | Stroke weight, corner style, proportions | Individual symbol |
| Layout | Alignment, margins, arrow area, text hierarchy | Number of lines |
| Material palette | Approved metals, acrylics, paint finishes | Material thickness |
| Edge shape | Square, rounded, beveled, or custom profile | Overall dimensions |
| Illumination | Color temperature, lighting direction, diffusion standard | Brightness by location |
| Mounting appearance | Hidden studs, standoffs, visible caps, raceway finish | Fixing hardware for each wall |
| Surface finish | Matte, satin, brushed, polished, or gloss | Finish used on secondary components |
Typography and color usually create the fastest visual connection. Material and finish provide a second layer of consistency. Mounting and wiring often determine whether the installed result feels carefully planned or improvised.
For example, a corporate office could use the following family:
- Brushed stainless-steel letters at reception
- Satin black directional panels with brushed steel headers
- Clear acrylic room signs with brushed steel standoffs
- Warm-white illumination for the main logo
- One supporting sans-serif font for all functional information
- Left-aligned text with fixed margins
- Matching square icons with rounded internal corners
No two products are identical, yet all products clearly belong to the same office.
Color should be defined with measurable references. Terms such as “dark blue,” “gold,” or “warm white” are not accurate enough for production. A better specification would include:
- Pantone 2965 C for painted parts
- RAL 5004 for powder-coated aluminum
- 3000K LED for warm-white illumination
- Brushed stainless steel, grade 304, satin finish
- Black acrylic with a specified manufacturer code
- Matte clear protective coating where required
Measurable references are especially important when signs are produced in separate batches. A photograph or old quotation rarely provides enough information to reproduce the original appearance accurately.
How Does Consistency Support Wayfinding?
A consistent visual system helps people recognize which signs belong to the same navigation sequence. After reading one directional sign, visitors should understand how to read the next one without learning a new layout.
Consider a hotel with three directional signs between the entrance and conference rooms. The first sign places arrows on the left, the second places arrows on the right, and the third uses small icons without arrows. Even when every message is technically correct, visitors may pause at each decision point.
A more effective system controls:
- Arrow shape
- Arrow position
- Destination terminology
- Font hierarchy
- Text alignment
- Floor or zone colors
- Icon appearance
- Sign height
- Placement before decision points
Terminology should also remain stable. Using “Reception” at the entrance, “Front Desk” in the corridor, and “Guest Services” near the lobby may create uncertainty if all three names refer to the same place.
The same destination name should appear on:
- Directories
- Directional signs
- Elevator signs
- Floor plans
- Room signs
- Digital maps
- Printed visitor information
Consistency can also reduce unnecessary staff interruptions. In offices, clinics, hotels, schools, and shopping centers, poor navigation often causes visitors to stop employees for directions. A clearer sign sequence supports faster movement and reduces congestion around reception areas.
A useful planning rule is to place a directional sign before a decision point rather than after it. Recommended placement depends on walking speed, viewing distance, message length, and surrounding visual distractions. For normal interior corridors, important directional information should usually become readable several meters before the turn.
The following review table helps identify common wayfinding problems:
| Problem | Likely Result | Practical Correction |
|---|---|---|
| Different arrows across signs | Visitors question route meaning | Use one approved arrow set |
| Inconsistent destination names | Visitors think signs indicate different places | Create one terminology list |
| Low contrast | Messages become difficult to read | Increase color and luminance contrast |
| Sign installed after the turn | Visitors overshoot the route | Move the sign before the decision point |
| Too much information | Reading takes too long | Split destinations by route priority |
| Promotional graphics overpower directions | Functional information is overlooked | Strengthen directional hierarchy |
| Different sign heights | Navigation sequence feels disconnected | Define installation heights by sign type |
A sign system should guide movement quietly. People should reach the destination without needing to study every panel.
Do All Signs Need to Look Identical?
No. Identical signs can create a different problem: every message appears equally important.
A building name, emergency exit, restroom sign, menu board, and decorative slogan should not have the same visual weight. Their functions, reading distances, legal requirements, and installation environments are different.
The better approach is controlled variation. Fixed elements remain consistent, while functional elements change.
A typical controlled system may use:
Fixed elements
- One supporting font family
- One icon style
- Two or three approved brand colors
- One metal finish
- One panel corner treatment
- Consistent text margins
- One family of arrows
- One lighting color
Flexible elements
- Sign width and height
- Letter size
- Number of text lines
- Illumination level
- Panel depth
- Installation hardware
- Weather protection
- Message quantity

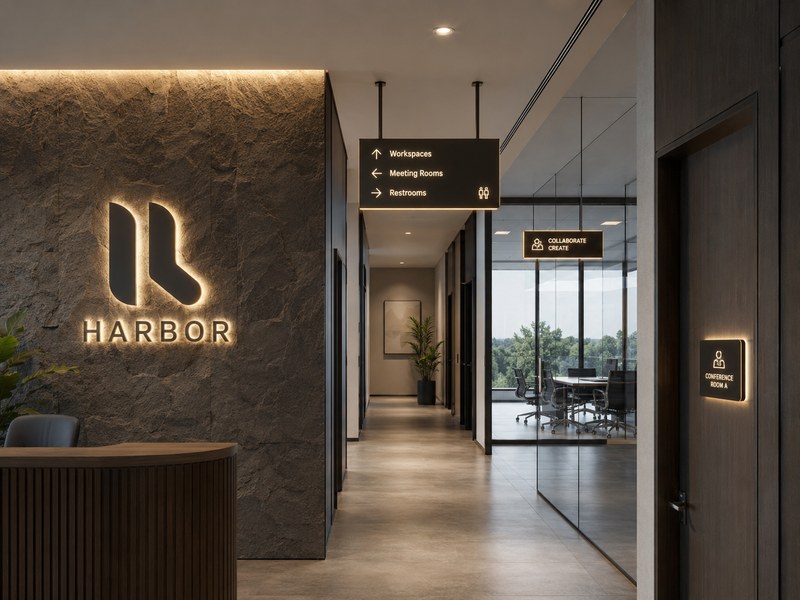

For example, an outdoor storefront sign may require 80–150 mm deep fabricated letters, drainage holes, waterproof wiring, stronger mounting, and higher brightness. An indoor reception logo may use 30–50 mm deep letters with softer halo lighting. A nearby room sign may use a flat acrylic panel without illumination.
All three products can still coordinate through the same face color, letter style, metal return finish, and mounting appearance.
The relationship should remain visible during both daytime and nighttime use. Illuminated signs need to be reviewed in two conditions:
| Review Condition | What to Check |
|---|---|
| Unlit during daytime | Face color, material finish, letter shape, visible wiring |
| Illuminated at night | Color temperature, brightness, hotspots, dark areas |
| Near other signs | Relative brightness and visual priority |
| Against the final wall | Contrast, halo spread, reflections |
| From the normal route | Readability and viewing angle |
A sign can match during daytime but look unrelated after illumination. Two products specified as warm white may appear different when one uses 2700K LEDs and another uses 3500K LEDs. Face material, diffuser thickness, letter depth, wall color, and ambient light can create additional variation.

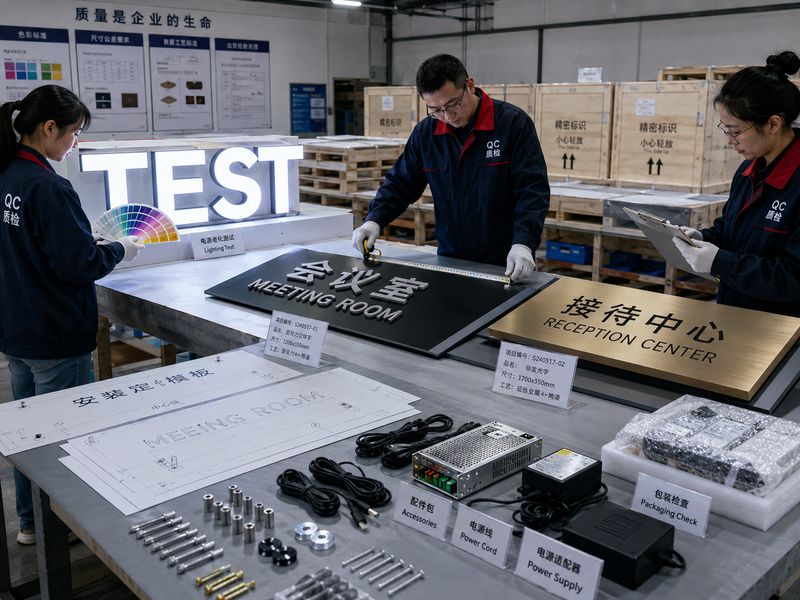

For major sign packages, the project record should include approved LED temperature, brightness level, face material, diffuser method, return depth, and sample photographs. A written record helps prevent visible differences between the first order and later replacements.
The simplest way to evaluate a proposed family is to place the main sign types on one review page at a comparable scale. The group should look connected, while primary, secondary, and tertiary signs remain easy to distinguish. If every sign competes for attention, the hierarchy needs adjustment. If no shared features are visible, the family needs stronger design rules.
Which Signs Should Work Together?
Signs should be planned together when they appear along the same visitor route, share the same brand identity, or support the same operational task. Exterior identification, reception branding, directories, directional signs, room signs, service signs, menu signs, safety signs, and wall graphics should be reviewed as one connected package rather than as separate purchases.

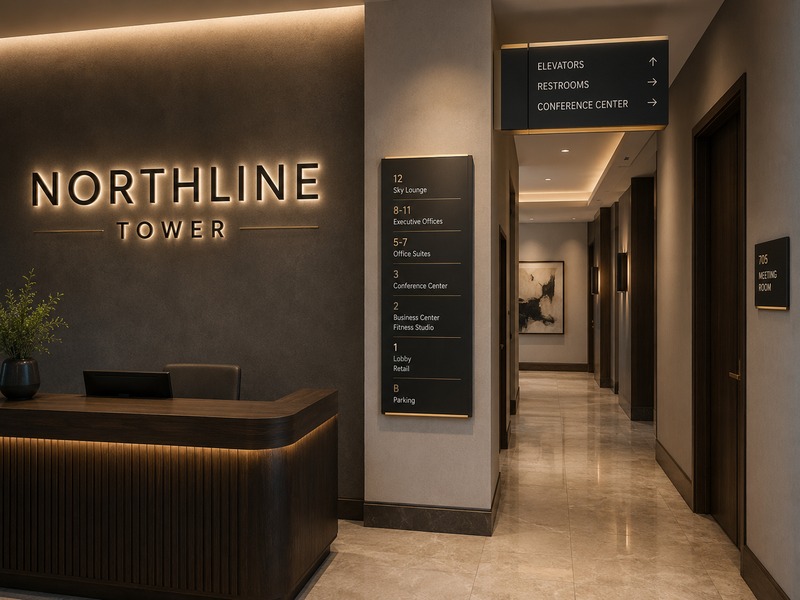

How Should Primary and Secondary Signs Relate?
Primary signs introduce the business, building, or main destination. Secondary signs help people continue from that first point to a reception desk, department, room, service counter, lift, stairway, or exit.
Common primary signs include:
- Building-mounted channel letters
- Storefront signs
- Entrance monuments
- Reception logos
- Main brand walls
- Large lobby directories
Common secondary signs include:
- Corridor directional signs
- Department signs
- Floor directories
- Counter identification signs
- Room plaques
- Lift and stair signs
Primary signs can use stronger materials, deeper construction, illumination, or larger dimensions. Secondary signs normally require simpler construction and faster reading. The relationship comes from repeated visual details rather than identical fabrication.
A hotel, for example, may use 1,800 mm-wide warm-white halo-lit metal letters behind reception. Corridor signs do not need fabricated illuminated letters. They may instead use painted aluminum panels with the same warm metal finish, typeface, text alignment, and corner shape.
A retail store may use front-lit channel letters above the entrance and smaller non-illuminated acrylic signs over fitting rooms and service counters. Consistency can be maintained through:
- The same letter proportions
- One approved typeface
- Matching face colors
- Similar corner treatments
- One family of icons
- Repeated metal finishes
- Consistent spacing around text
- Coordinated lighting color
The table below shows how primary and secondary signs can differ while remaining connected.
| Design Item | Primary Signs | Secondary Signs | Shared Control |
|---|---|---|---|
| Size | Large and highly visible | Smaller and location-specific | Proportional letter style |
| Construction | Fabricated letters, light boxes, layered logos | Flat panels, plaques, printed or cut graphics | Coordinated materials |
| Illumination | Often illuminated | Often non-illuminated | Same white temperature or accent color |
| Message | Brand name or major destination | Directions, rooms, departments | Same terminology and type system |
| Finish | Premium metal, acrylic, paint, or backlighting | Simplified version of the same finish family | Approved finish references |
| Mounting | Hidden studs, rails, raceways, brackets | Standoffs, screws, adhesive, concealed fixings | Coordinated visible hardware |
Primary signs should establish the strongest visual identity. Secondary signs should continue that identity without competing with it.
Which Signs Need Stronger Visual Priority?
Visual priority should follow the order in which people make decisions.
At the entrance, the business name or building identification needs to be visible before decorative graphics. Inside the space, reception, directories, major destinations, and emergency information should be easier to notice than promotional messages or wall decoration.
A practical hierarchy can be divided into five levels.
| Priority | Typical Signs | Main Purpose | Typical Reading Distance |
|---|---|---|---|
| 1 | Building sign, storefront logo, entrance sign | Confirm the destination | 15–100 m |
| 2 | Reception logo, lobby directory, main department sign | Confirm arrival and route | 3–20 m |
| 3 | Corridor direction, service counter, floor identification | Support movement | 2–10 m |
| 4 | Room plaque, door sign, product-area sign | Identify a nearby location | 0.5–3 m |
| 5 | Decorative slogan, photo-wall sign, temporary promotion | Add atmosphere or marketing value | Varies |
Priority can be created through several methods:
- Larger dimensions
- Stronger contrast
- More open space around the sign
- Better placement
- Illumination
- Greater material depth
- Clearer message wording
- Fewer competing graphics nearby
Using all methods at once is rarely necessary.
A reception sign may have stronger visual priority because of its central position and larger size, even when the illumination is soft. A pickup sign in a restaurant may be smaller but need illumination because it competes with menu boards, product displays, queue barriers, and moving people.
Message priority must also be considered. A sign reading “Emergency Exit” or “Reception” should not be visually weaker than a decorative slogan installed beside it.
The following comparison helps identify common hierarchy problems.
| Problem | What People May Experience | Better Approach |
|---|---|---|
| Every sign uses the same size | Important destinations are difficult to identify | Increase scale for major decisions |
| Every sign is illuminated | The space becomes visually noisy | Illuminate only selected signs |
| Promotions are brighter than directions | People overlook functional information | Reduce promotional brightness |
| Too many colors are used | Color loses meaning | Assign colors to specific functions |
| Decorative fonts appear on directions | Messages take longer to read | Use a clear supporting typeface |
| Several signs compete on one wall | Visitors do not know where to look first | Create one primary focal point |
A well-planned system does not make every sign equally noticeable. It makes the correct sign noticeable at the correct moment.
Do Illuminated and Non-Illuminated Signs Match?
Illuminated and non-illuminated signs can work together when their daytime appearance and visual details are coordinated.
A common mistake is to review illuminated signs only when switched on. During operating hours, sunlight or bright interior lighting may make the sign appear mostly as a physical object. Face color, return color, surface finish, letter depth, wiring, and mounting details therefore remain important.
Consider a restaurant with the following signs:
- Front-lit channel letters on the storefront
- Halo-lit logo letters at reception
- Non-illuminated acrylic room signs
- Printed directional panels
- Menu light boxes
- A neon-style photo-wall sign
The products use different lighting methods, but they can still form one family if the project controls:
- Logo proportions
- Typeface
- Main brand colors
- Supporting neutral colors
- LED color temperature
- Panel shapes
- Metal finishes
- Mounting appearance
- Message spacing
White light requires measurable specifications. “Warm white” may refer to several noticeably different colors.
| White-Light Range | General Appearance | Common Applications |
|---|---|---|
| 2700K | Warm and slightly yellow | Restaurants, bars, hotels |
| 3000K | Warm but cleaner | Reception areas, premium retail |
| 3500K | Neutral-warm | Offices, clinics, mixed-use interiors |
| 4000K | Neutral white | Commercial interiors, wayfinding |
| 5000K–6500K | Cool and crisp | Selected exterior or technical settings |
A 2700K halo-lit logo placed beside a 4000K light box may look like two unrelated sign packages, even when both were described as warm white during ordering.
Brightness should also vary by location. A storefront sign competing with street lighting may need more output than a reception logo installed in a controlled interior. Matching does not mean equal brightness. It means coordinated color and appropriate visual weight.
For illuminated signs, review the following conditions before approval:
| Review Condition | What to Check |
|---|---|
| Switched off | Face color, return finish, depth, cable visibility |
| Switched on | Light color, hotspots, dark areas, shadow quality |
| Daylight | Contrast against the façade or window |
| Nighttime | Brightness relative to nearby signs |
| Side view | Visible returns, seams, wiring, and mounting |
| Close view | Edge finish, diffuser quality, surface marks |
The goal is to make illumination look like one controlled part of the sign system rather than a collection of unrelated lighting effects.
How Should Brand and Directional Signs Connect?
Brand signs and directional signs should share a visual language, but they should not perform the same job.
Brand signs communicate identity. They may use a custom logo, decorative lettering, special metal finishes, layered acrylic, halo lighting, or unusual shapes.
Directional signs need fast reading. They depend on clear type, simple arrows, strong contrast, and predictable placement. Repeating a complex logo treatment on every directional sign can reduce clarity and increase production cost without improving navigation.
The better approach is to translate recognizable brand details into practical wayfinding rules.
| Brand Feature | Possible Wayfinding Translation |
|---|---|
| Rounded logo | Rounded panel corners |
| Angular logo | Geometric panel shape or icon style |
| Strong brand color | Header strip, floor code, or destination highlight |
| Premium gold finish | Gold frame, divider, or mounting detail |
| Minimal brand style | More open space and fewer graphic elements |
| Handwritten logo | Use only for identity signs; select a clear supporting font for directions |
| Circular brand symbol | Circular room numbers or zone markers |
Terminology should remain identical throughout the space. One destination should not be given several names unless the names refer to separate functions.
For example:
| Inconsistent Wording | Better Standard |
|---|---|
| Front Desk / Reception / Guest Service | Choose one approved destination name |
| Toilets / Restrooms / Washrooms | Use one term throughout the property |
| Collection / Pickup / Order Collection | Select one term used on every sign |
| Conference Hall / Meeting Area / Event Room | Confirm whether these are the same place |
| Level 1 / First Floor / Ground Floor | Follow one numbering convention |
A terminology list should be approved before artwork begins. It should cover:
- Destination names
- Room names
- Department names
- Floor numbering
- Abbreviations
- Capitalization
- Multilingual translations
- Accessibility wording
- Arrow directions
- Temporary service messages
Directional signs should also be placed as a sequence. A visitor may first see the building sign, then the lobby directory, followed by a corridor direction, a department sign, and finally a room plaque. Every sign in that route should confirm the same destination name and visual pattern.
The table below can be used to review the full sign journey.
| Visitor Stage | Sign Type | Main Question Answered |
|---|---|---|
| Approaching the site | Building or storefront sign | “Have I reached the correct place?” |
| Entering the space | Reception sign or lobby directory | “Where should I go first?” |
| Reaching an intersection | Directional sign | “Which route should I take?” |
| Entering a zone | Department or floor sign | “Am I in the correct area?” |
| Reaching the destination | Room or counter sign | “Is this the correct room or service point?” |
| Leaving the space | Exit or parking direction | “How do I leave or return?” |
When one stage is missing, people may lose confidence even if all other signs are well designed. A strong sign package therefore connects identity, direction, confirmation, and destination signs into one continuous experience.
How Do You Build One Design Language?
One design language is built by turning brand ideas into measurable sign rules. Fonts, colors, icon styles, layouts, materials, lighting, depths, finishes, mounting methods, and wiring details should be recorded before production. Sign sizes may change, but the rules connecting them should remain stable across the entire space.
How Should Typography Stay Consistent?
Typography controls how quickly people recognize a sign family. A reception logo may use custom lettering, but room names, directions, floor numbers, and service information usually need a clear supporting font that can be repeated across many sign sizes.
The project should record more than the font name. “Sans serif” or “similar to Helvetica” is not enough for consistent production. The approved typography specification should include:
- Exact font family
- Font file or licensed alternative
- Font weight
- Uppercase or title case
- Letter spacing
- Line spacing
- Text alignment
- Minimum letter height
- Minimum stroke width
- Rules for numbers and arrows
- Multilingual font pairing
A practical sign package may use three information levels:
| Text Level | Typical Use | Suggested Relationship |
|---|---|---|
| Primary text | Department names, major destinations | Largest size and medium or bold weight |
| Secondary text | Supporting instructions, operating details | 50%–70% of primary text height |
| Reference text | Room numbers, floor codes, small labels | High contrast and fixed position |
Letter height should be based on viewing distance rather than copied from one sign to another. A room plaque viewed from one meter can use much smaller text than a corridor direction read from eight meters.
A starting point for indoor signs is shown below. Final dimensions should still consider lighting, contrast, font shape, and local accessibility requirements.
| Approximate Viewing Distance | Practical Letter Height Range |
|---|---|
| 0.5–1.5 m | 15–30 mm |
| 2–3 m | 30–50 mm |
| 4–6 m | 50–90 mm |
| 7–10 m | 90–140 mm |
| 10–20 m | 140–250 mm |
Manufacturing limits must be checked before approval. Thin lettering may look elegant on screen but become difficult to cut, weld, illuminate, or install.
For fabricated letters, check:
- Minimum stroke width
- Minimum space inside letters
- Small gaps between separate elements
- Return depth
- LED clearance
- Fixing space behind narrow strokes
- Risk of visible hotspots
For flat acrylic or metal letters, check:
- Edge strength
- Risk of warping
- Adhesive surface
- Stud position
- Cleaning resistance
- Visibility against the wall
A good typography system remains readable when scaled and manufacturable when converted into real materials.
How Do You Match Colors Across Materials?
Color matching is more difficult than selecting one Pantone number. Paint, acrylic, printed vinyl, LED neon, illuminated faces, powder coating, and metal finishes reflect or transmit light differently.
A brand blue printed on vinyl may appear darker on painted aluminum. The same color in translucent acrylic may look pale during daytime and brighter when illuminated. Brushed metal can reflect wall colors and surrounding lights, changing its appearance throughout the day.
Each visible material should therefore have its own approved color reference.
| Application | Useful Color Reference |
|---|---|
| Painted aluminum | Pantone, RAL, paint code, or signed sample |
| Powder-coated metal | RAL code and gloss level |
| Printed vinyl | CMYK profile and physical print proof |
| Solid acrylic | Manufacturer and acrylic color code |
| Translucent acrylic | Acrylic code plus illuminated sample |
| LED neon | LED color sample or wavelength reference |
| White illumination | Kelvin temperature |
| Metal finish | Grade, grain, coating, and sheen |
Color temperature should be recorded numerically. Terms such as “warm white” or “cool white” leave too much room for interpretation.
| LED Temperature | Visual Effect | Common Use |
|---|---|---|
| 2700K | Soft yellow-white | Bars, restaurants, hospitality spaces |
| 3000K | Warm and clean | Reception areas, premium retail |
| 3500K | Neutral-warm | Offices, clinics, mixed interiors |
| 4000K | Neutral white | Commercial interiors and wayfinding |
| 5000K | Cool white | Selected exterior and technical spaces |
| 6000K–6500K | Bright blue-white | High-impact applications requiring a cooler appearance |
A project with several illuminated signs should normally use one approved white temperature unless a deliberate difference is required. A 3000K reception logo beside a 6000K directory may make both signs appear incorrectly manufactured.
The approval process should include:
- Brand color reference supplied.
- Material options selected.
- Physical color samples prepared.
- Illuminated samples reviewed where needed.
- Samples checked under typical site lighting.
- Approved references photographed and labeled.
- Final codes recorded in the sign schedule.
- Samples retained for repeat orders.
Color review should happen before bulk production. Correcting a color difference after several signs are finished often requires repainting, replacing faces, or rebuilding illuminated components.
Screens should not be used as the only approval method. Phone cameras, monitors, brightness settings, and image compression can all change the appearance of color. Digital mockups are useful for direction, while physical samples remain more reliable for final approval.
Which Shapes, Icons, and Layouts Should Repeat?
Shapes, icons, and layouts create the visual rhythm connecting signs of different sizes. People often recognize that rhythm before reading the wording.
A sign family may repeat:
- One corner radius
- One border thickness
- One arrow style
- One icon family
- One text alignment
- One numbering format
- One header position
- One spacing system
- One relationship between text and symbols
The same panel shape does not need to be used everywhere. A long corridor sign and a square room plaque may have different proportions. Their corner treatment, margins, icon style, and text alignment can still match.
A practical layout grid should define fixed zones rather than placing text by eye.
| Layout Zone | Information to Control |
|---|---|
| Outer margin | Distance between content and panel edge |
| Arrow zone | Fixed side and minimum width |
| Icon zone | Position, optical size, and spacing |
| Text zone | Alignment and maximum line length |
| Header zone | Color, height, and message type |
| Number zone | Room or floor reference position |
| Divider zone | Line thickness and spacing |
For example, all directional signs may use arrows on the left, destination names in the center, and distance or floor information on the right. Changing the arrow position from one sign to another can slow reading, even when the design looks balanced individually.
Icons need one drawing style. Mixing thin outline icons with heavy filled symbols creates an immediate mismatch.
The icon set should control:
- Stroke thickness
- Rounded or square corners
- Filled or outlined construction
- Internal spacing
- Optical size
- Direction of figures
- Use of circles or frames
- Color treatment
Icons should also remain recognizable at the final production size. Small internal details that look clear on a large design file may disappear when cut from vinyl or printed on a 150 mm room sign.
Arrows require particular attention. One project should not mix several arrow styles taken from different software libraries. The arrow angle, shaft width, head shape, and spacing from text should remain consistent.
When multiple languages are required, the layout should define:
- Which language appears first
- Relative font sizes
- Line spacing
- Alignment
- Translation approval
- Maximum number of lines
- Treatment of long destination names
A stable grid makes future additions easier. New room names or departments can be inserted into an existing structure without creating a new layout each time.
How Should Materials and Finishes Coordinate?
A coordinated sign package normally uses a limited material palette. Too many unrelated metals, plastics, paints, and surface finishes can make a space look like signs were ordered from several suppliers over many years.
Three to five main visible finishes are often enough for one commercial interior.
A typical office package may use:
- Satin black aluminum
- Brushed stainless steel
- Clear acrylic
- Warm-white illumination
- Matte white printed graphics
A hotel package may use:
- Bronze-finished metal
- Warm-white acrylic
- Painted timber backers
- Satin black secondary panels
- 3000K illumination
A retail package may use:
- White acrylic
- Powder-coated aluminum
- One brand-color accent
- Clear acrylic spacers
- Neutral-white illumination
Material decisions should consider use, not only appearance.
| Location or Condition | Material Requirement |
|---|---|
| High-touch room signs | Easy cleaning and scratch resistance |
| Exterior signs | Weather resistance, drainage, and stable coating |
| Reception wall | Refined edge finish and concealed installation |
| Food-service area | Smooth surfaces and easy maintenance |
| Humid area | Corrosion-resistant metal and protected electrical parts |
| Window display | Low weight and neat rear appearance |
| Temporary event | Portable structure and reusable fixings |
| Large wall sign | Adequate rigidity and safe mounting |
Finish should also be specified precisely. “Gold” may mean mirror-polished gold stainless steel, brushed gold stainless steel, painted gold, anodized aluminum, brass, or gold acrylic. These materials differ greatly in cost, reflection, color, weight, and durability.
A complete metal finish specification may include:
- Base material
- Material grade
- Surface direction
- Brushed or polished finish
- Coating type
- Gloss level
- Protective layer
- Edge treatment
- Approved physical sample
Grain direction matters on brushed metal. When several letters or panels are installed together, inconsistent grain direction can become visible under ceiling lights.
Surface sheen should also remain controlled. Combining mirror-polished metal, high-gloss acrylic, matte paint, and satin vinyl in one small area can create excessive reflection. A premium appearance often comes from restraint rather than adding more finishes.
Material samples should be placed side by side during approval. A finish that looks attractive alone may not work beside another approved material.
How Do Mounting and Wiring Affect the Look?
Mounting and wiring can improve or weaken the completed design. Visible screws, uneven projections, exposed cables, mismatched standoffs, and poorly placed power supplies often attract more attention than small differences in typography.
Each sign type should have a defined mounting appearance.
| Sign Type | Common Mounting Method | Visible Detail to Control |
|---|---|---|
| Fabricated letters | Threaded studs or rails | Projection and shadow gap |
| Acrylic panel | Standoffs or concealed fixings | Standoff size and finish |
| Light box | Wall brackets or back frame | Side profile and cable exit |
| Window sign | Chains, cable suspension, or brackets | Rear appearance and cable route |
| Room sign | Screws, adhesive, or concealed plate | Consistent height and spacing |
| Raceway sign | Raceway fixed to wall | Raceway color and proportion |
| Hanging sign | Rods, chains, or ceiling cables | Suspension length and hardware |
Standoffs should not be treated as generic hardware. Their diameter, length, cap shape, and finish affect the appearance of every panel. A project using brushed stainless-steel standoffs should not receive some panels with chrome caps and others with matte aluminum caps.
Projection from the wall should also remain consistent within each sign type. One room sign mounted 10 mm from the wall and another mounted 25 mm away will cast different shadows and appear unrelated.
Illuminated signs require an electrical plan before production. The plan should confirm:
- Input voltage
- Plug type
- Power-supply location
- Wire-exit position
- Cable length
- Cable color
- Dimmer or controller
- Access for maintenance
- Concealment route
- Connection method
Wire exits should be marked on the artwork and installation drawing. A center wire exit may work on one wall but become visible on glass or stone. When possible, wire locations should align with hidden wall conduits or access openings.
Power supplies should remain accessible. Concealing a power supply permanently behind a sealed wall may create expensive maintenance work later. Access panels, ceiling spaces, cabinets, raceways, or removable backer panels may provide a cleaner solution.
Wall construction must be confirmed before the fixing design is finalized.
| Wall Surface | Typical Concern |
|---|---|
| Drywall | Stud location and load distribution |
| Concrete | Drilling depth and anchor type |
| Stone | Risk of cracking and visible holes |
| Glass | Rear appearance and adhesive compatibility |
| Timber panel | Panel thickness and concealed support |
| Metal cladding | Internal frame location and waterproof sealing |
| Tile | Drilling position and edge cracking |
| Fabric wall | Hidden solid backing required |
Installation templates help maintain consistent spacing. Full-size paper templates or rigid drilling templates can show letter positions, hole centers, and wire exits. For complex logos, a numbered mounting pattern reduces installation errors.
The design language is complete only when visual decisions and installation details support one another. Matching fonts and colors cannot compensate for uneven mounting, exposed wiring, or inconsistent hardware. The final impression depends on every visible detail from the sign face to the wall behind it.
How Do You Adapt Signs to the Space?
Signs should be adapted to viewing distance, wall finish, ambient lighting, traffic flow, installation surface, local regulations, and the way people move through the space. Size, brightness, depth, mounting, and message length may change by location, while typography, colors, icons, finishes, and layout rules remain visually connected.
How Do Size and Viewing Distance Change?
Sign dimensions should be based on where people first need to read the message, not only on the amount of empty wall available. A room plaque viewed from one meter requires a different letter size from a directional sign read across a lobby or a storefront sign seen from the road.
Four measurements should be confirmed before sign dimensions are approved:
- Expected viewing distance
- Viewing angle
- Walking or driving speed
- Available reading time
A sign viewed straight ahead is easier to read than one positioned at a sharp side angle. A person standing in a reception area has more reading time than someone walking toward a corridor intersection. Exterior letters seen from a moving vehicle usually need larger text, stronger contrast, and shorter wording.
The table below provides practical starting ranges for commercial interiors. Final dimensions should also consider font style, contrast, lighting, installation height, and local accessibility requirements.
| Viewing Distance | Practical Letter Height | Common Applications |
|---|---|---|
| 0.5–1.5 m | 15–30 mm | Room signs, door plaques, counter labels |
| 2–3 m | 30–50 mm | Reception instructions, small department signs |
| 4–6 m | 50–90 mm | Corridor directions, service-area signs |
| 7–10 m | 90–140 mm | Lobby directories, large interior directions |
| 10–20 m | 140–250 mm | Major interior identification, storefront signs |
| 20–50 m | 250–600 mm | Building signs and large exterior letters |
| 50 m or more | Project-specific engineering | Road-facing and high-level façade signs |
Long messages need more space than short messages. Increasing the panel size is often better than reducing the text until it becomes difficult to read. A directional sign reading “Conference Rooms, Business Center, Restrooms, and East Elevators” may need to be divided into route groups rather than compressed onto one narrow panel.
Viewing distance also affects construction depth. Larger fabricated letters generally need more depth for structural strength, LED layout, light diffusion, and secure mounting. Small room signs can use thinner acrylic, metal, or layered panels.
Typical depth relationships may look like the following:
| Sign Type | Common Depth Range | Main Reason |
|---|---|---|
| Flat room plaque | 3–15 mm | Close-range identification |
| Layered acrylic sign | 10–30 mm | Added depth without full fabrication |
| Interior fabricated letters | 30–80 mm | Lighting space and stronger visual presence |
| Storefront channel letters | 60–150 mm | LED diffusion, structure, and weather protection |
| Large exterior letters | 100–250 mm or more | Structural stability and long-distance visibility |
Oversized signs can be as problematic as undersized signs. A reception logo that occupies nearly the entire wall may overwhelm the desk, ceiling height, and surrounding architecture. A useful starting point is to compare the sign width with the usable wall area rather than the full wall width.
For many reception walls, a logo occupying approximately 40%–70% of the clear wall width provides a balanced result. The correct proportion depends on logo shape, furniture, ceiling height, wall texture, and viewing distance. A wide wordmark may need less wall coverage than a compact symbol.
Before production, place the proposed sign on a scaled elevation and a realistic site photograph. Check the sign from the main approach route, not only from a centered front view.
How Do Wall Color and Lighting Affect Signs?
A sign does not have a fixed appearance independent of its surroundings. Wall color, texture, reflections, daylight, ceiling lights, display lighting, and nearby illuminated products can change contrast, brightness, and perceived color.
The first check is contrast. Dark letters on dark timber may disappear. White acrylic on a pale stone wall may lose its edge definition. Brushed stainless steel may reflect nearby colors and appear darker or warmer than expected.
The wall and sign should be reviewed as one combination.
| Wall Condition | Common Risk | Practical Sign Adjustment |
|---|---|---|
| White or pale wall | White signs lose definition | Add darker returns, shadows, outlines, or a backer panel |
| Dark painted wall | Dark letters disappear | Use lighter faces, metal contrast, or halo illumination |
| Timber wall | Grain competes with small text | Increase contrast and simplify the letterform |
| Textured stone | Uneven halo and difficult mounting | Add a smooth backer panel or increase projection |
| Glass | Visible rear hardware and wiring | Use double-sided finishing or a rear cover |
| Mirror | Reflections multiply light and cables | Reduce brightness and conceal every rear component |
| Patterned wall | Visual noise reduces readability | Use a solid panel behind the message |
| Green wall or plants | Letters become partially hidden | Add projection, a frame, or a stable backing surface |
Surface texture affects halo lighting. Smooth painted walls usually produce a more even glow. Stone, brick, deep timber grooves, and acoustic panels may create broken shadows or uneven light spread.
For halo-lit letters, the distance between the letter back and wall often falls within approximately 10–40 mm. A small gap produces a tighter halo, while a larger gap creates a wider light spread. The correct distance depends on letter size, LED output, wall texture, and desired effect.
Lighting should be evaluated under the actual operating conditions:
- Daylight through windows
- General ceiling lighting
- Spotlights aimed at the wall
- Low-light evening conditions
- Reflections from polished floors or glass
- Nearby displays and digital screens
- Exterior street and parking-lot lighting
A reception logo may appear balanced during the day but become too bright after surrounding lights are dimmed. A window sign may look strong at night but nearly disappear against daylight. Dimming controls can solve part of the problem, especially in restaurants, bars, hotels, gyms, event spaces, and retail interiors where lighting changes during the day.
Color temperature should be coordinated with the interior lighting. A 6000K cool-white logo can look blue beside 2700K ceiling lights. A 3000K sign usually feels more natural in warm hospitality interiors, while 3500K–4000K may fit offices, clinics, and modern retail spaces.
The relationship can be reviewed using the following guide:
| Interior Lighting | Sign Lighting Starting Point |
|---|---|
| 2400K–2700K | 2700K sign lighting |
| 2700K–3200K | 2700K–3000K sign lighting |
| 3200K–3800K | 3000K–3500K sign lighting |
| 3800K–4500K | 3500K–4000K sign lighting |
| 5000K or cooler | 4000K–5000K, depending on the setting |
Exact matching is not always required, but a large difference should be deliberate rather than accidental.
Mockups should show the real wall color and surrounding lights. For important reception, retail, hotel, restaurant, and showroom projects, a physical illuminated letter or material sample offers more reliable approval than a screen image.
Which Details Can Change by Location?
Consistency does not require every sign to use the same size, depth, brightness, waterproof construction, or mounting system. Several technical details should change according to the installation environment.
The following details can usually vary while the sign family remains visually coordinated:
- Overall dimensions
- Letter height
- Panel thickness
- Fabricated letter depth
- Illumination output
- Waterproof construction
- Mounting hardware
- Cable length
- Wire-exit position
- Power-supply location
- Number of destinations
- Arrow direction
- Installation height
Visible design relationships should remain controlled:
- Approved typography
- Brand color references
- Icon family
- Arrow style
- Layout logic
- Metal finish
- Edge shape
- Lighting color
- Surface sheen
- Text hierarchy
An exterior sign may require thicker metal, sealed electrical connections, drainage, stronger anchors, and a deeper return. An indoor version of the same logo may use a lighter structure and softer illumination. Both can still share the same face color, proportions, finish, and letter spacing.
Location-specific changes should be recorded rather than handled informally during production.
| Location | Details Likely to Change | Details That Should Remain Connected |
|---|---|---|
| Exterior façade | Depth, sealing, drainage, anchors, brightness | Logo shape, color, typeface, finish |
| Reception wall | Projection, wiring, brightness, mounting | Brand proportions and material family |
| Glass window | Rear finish, cable route, suspension | Face design and approved colors |
| Corridor | Text size, arrow direction, panel width | Layout grid and icon style |
| Room entrance | Message, tactile features, mounting height | Panel shape and visual hierarchy |
| Food-service counter | Cleaning resistance and message format | Colors and typography |
| Temporary event area | Portable base and reusable hardware | Brand artwork and finish |
| Humid area | Corrosion resistance and sealed components | Visible style and message layout |
Installation surfaces also require different fixing methods. A stud mount suitable for concrete may not work for glass. Adhesive suitable for smooth acrylic may fail on textured stone. Different hardware is acceptable when the visible result remains coordinated.
Acrylic standoffs on one wall and concealed studs on another can still work together when hardware finishes and sign projections are planned. Problems arise when visible fixings are selected at the installation stage without reference to the approved appearance.
Variations should be reviewed at the family level. When one location requires a new solution, compare it with every sign visible nearby. A technically correct bracket can still look out of place beside carefully concealed mounting.
Are ADA and Safety Signs Allowed to Differ?
Accessibility, fire, emergency, electrical, and safety signs may need to follow legal requirements that differ from the brand system. Required contrast, text height, tactile characters, braille, symbols, mounting positions, colors, and clear floor space take priority over decorative preferences.
The exact requirements depend on the country, state, city, building type, and local authority. Project teams should confirm the applicable regulations before artwork and production approval.
Regulated signs may include:
- Accessible room identification
- Restroom signs
- Exit signs
- Fire equipment signs
- Stair identification
- Maximum occupancy signs
- Electrical warning signs
- Emergency instructions
- No-smoking signs
- Hazard and restricted-area signs
- Accessible entrance and route signs
Where regulations allow, accessible and safety signs can still coordinate with the wider sign family through panel shape, frame finish, mounting hardware, supporting typeface, or surrounding material.
For example, an office may use satin black panels with brushed stainless-steel details throughout the interior. Accessible room signs can retain the satin black panel and steel edge while adding the required tactile text, braille, contrast, and mounting height.
The following hierarchy should guide decisions:
| Requirement | Priority |
|---|---|
| Life safety | Highest |
| Accessibility compliance | Highest |
| Legibility and contrast | High |
| Consistent terminology | High |
| Brand appearance | Secondary where regulations apply |
| Decorative styling | Lowest |
A low-contrast luxury color palette should not be forced onto a required room sign when it reduces readability. A decorative script font should not replace clear characters on directional or safety information.
Regulatory signs should be identified early in the sign schedule. Each sign can be marked with the required review path:
- Architect approval
- Accessibility consultant approval
- Fire authority approval
- Electrical review
- Landlord approval
- Local permitting
- Final site inspection
Separating regulated signs from purely branded signs helps avoid late redesigns. It also makes quotation and production planning more accurate because tactile characters, braille, photoluminescent materials, certified electrical parts, or special installation heights may affect cost and lead time.
Consistency should support safe use of the space. A coordinated sign family is successful only when brand appearance, navigation, accessibility, and emergency communication all work together.
How Do You Avoid Visual Clutter?
Visual clutter occurs when too many signs compete within the same field of view, messages are repeated unnecessarily, or decorative elements overpower essential information.
Adding more signs does not always improve navigation. A better result often comes from removing, combining, or relocating signs.
Before adding a sign, ask five questions:
- Does someone need to make a decision at the proposed location?
- Is the same information already visible nearby?
- Can the message be combined with an existing directory or panel?
- Will the sign be visible before the turn or destination?
- Does the sign compete with a more important message?
A sign should normally appear before the decision point. Installing a direction arrow after the corridor intersection forces people to stop, turn back, or ask for help.
Common decision points include:
- Main entrances
- Reception areas
- Lift lobbies
- Stair landings
- Corridor intersections
- Department entrances
- Queue splits
- Pickup and payment areas
- Parking transitions
- Building exits
Each point should provide only the information needed for the next stage of the journey. A lobby directory may list every destination, while a corridor sign should normally show only destinations reached through that route.
Message quantity affects reading time. A panel with ten destinations, three arrows, two languages, and several icons may require too much attention in a busy corridor.
The following limits offer a practical starting point:
| Sign Type | Practical Message Quantity |
|---|---|
| Simple directional sign | 1–4 destinations |
| Major corridor directory | 4–8 destinations |
| Lobby directory | Depends on building size; organize by floor or zone |
| Counter sign | One main action or service |
| Room sign | One room name and required supporting information |
| Temporary promotion | One main offer or message |
When more information is required, use grouping, floors, zones, or separate panels rather than reducing every line to a small size.
Promotional signs need boundaries. A restaurant may have menu boards, pickup signs, offers, wall graphics, neon decoration, and delivery-service notices in one counter area. Without a hierarchy, the order and pickup information becomes difficult to find.
A useful counter-area order may be:
- Business identity
- Ordering information
- Menu
- Payment instructions
- Pickup identification
- Promotions
- Decorative graphics
The following table shows common clutter problems and practical corrections.
| Clutter Problem | Likely Result | Practical Correction |
|---|---|---|
| Repeated arrows for the same destination | People question whether the route changed | Remove unnecessary confirmation signs |
| Several signs on one small wall | No clear focal point | Combine messages into one organized panel |
| Promotions brighter than directions | Functional information is overlooked | Reduce promotional size or brightness |
| Too many brand colors | Color coding becomes meaningless | Limit the active palette |
| Long text on directional signs | People stop in traffic areas | Shorten messages or divide destinations |
| Different sign heights | The route feels disconnected | Set installation-height rules |
| Furniture blocks signs | Messages disappear during operation | Review the furnished floor plan |
| Signs installed too late | People miss turns | Move signs before decision points |
| Temporary notices use random paper formats | The space looks unmanaged | Create an approved temporary-sign template |
Temporary signs should also follow basic rules. Printed notices, queue changes, seasonal messages, and maintenance signs can quickly damage the appearance of a carefully planned interior.
An approved temporary-sign template can control:
- Font
- Color
- Paper or panel size
- Logo position
- Mounting method
- Message hierarchy
- Removal date
Walk-through reviews should be conducted from the perspective of a first-time visitor. Start outside the building and follow the full route to reception, a main destination, restroom, service counter, and exit. Photograph every point where the route becomes unclear or several signs compete.
A successful sign system rarely feels crowded. The signs appear where information is needed, use familiar visual rules, and leave enough open space for important messages to stand out.
How Do You Finalize the Sign Package?
Finalize a sign package by turning every approved design decision into production-ready records. The package should include a sign schedule, final artwork, material and color references, electrical details, mounting drawings, samples, inspection standards, packing instructions, and reorder files. Nothing important should remain as a verbal agreement.
What Should a Sign Schedule Record?
A sign schedule is the main control file connecting design, quotation, production, inspection, packing, and installation. Every sign should have a unique reference code so the same item can be identified on drawings, cartons, installation plans, and inspection photographs.
A useful reference system may look like:
- EXT-01 for an exterior sign
- REC-01 for a reception logo
- DIR-03 for a directional sign
- RM-218 for a room sign
- LB-02 for a light box
- ADA-14 for an accessible room sign
The reference code should remain unchanged throughout the project. Renaming signs halfway through production often causes incorrect labels, missing cartons, duplicated products, or installation mistakes.
The schedule should record enough information for someone unfamiliar with the earlier conversations to understand exactly what must be produced.
| Schedule Field | Information to Record |
|---|---|
| Sign reference | Unique identification code |
| Location | Building, floor, room, wall, storefront, or installation area |
| Sign type | Channel letters, light box, acrylic panel, room sign, directory, or other |
| Final message | Approved spelling, capitalization, punctuation, and language |
| Quantity | Total quantity and quantity by location |
| Width and height | Finished external dimensions |
| Depth | Letter return, cabinet, panel, or spacer depth |
| Materials | Face, return, backing, frame, diffuser, and internal structure |
| Color | Pantone, RAL, paint code, acrylic code, metal finish, or physical sample |
| Lighting | Front-lit, halo-lit, dual-lit, edge-lit, neon-style, or non-illuminated |
| LED specification | Color, Kelvin temperature, voltage, and control method |
| Electrical input | 110V, 220V, or project-specific requirement |
| Power supply | Model, capacity, certification, and installation location |
| Wire exit | Rear, side, bottom, top, or marked drawing position |
| Mounting | Studs, raceway, brackets, standoffs, screws, adhesive, or suspension |
| Wall surface | Concrete, drywall, timber, glass, metal, stone, or tile |
| Accessories | Templates, screws, anchors, cables, dimmers, plugs, or spare parts |
| Approval status | Artwork, sample, material, color, and production approval |
| Packing group | Store, floor, room, installation phase, or shipping destination |
Final wording deserves special attention. One spelling error repeated across 100 room signs becomes an expensive problem. Messages should be approved in a separate text list rather than copied manually from screenshots or marked-up photographs.
For multilingual projects, record:
- Approved translation
- Language order
- Font used for each language
- Relative font sizes
- Line breaks
- Capitalization
- Direction of reading
- Required local characters or symbols
Quantities should be checked against floor plans and room schedules. Do not rely only on the number shown in an early quotation. Construction changes, room renaming, added doors, and revised tenant layouts can affect the final quantity.
A quantity reconciliation table can prevent shortages.
| Sign Type | Drawing Quantity | Site Quantity | Spare Quantity | Final Production Quantity |
|---|---|---|---|---|
| Room signs | 86 | 88 | 4 | 92 |
| Directional signs | 14 | 13 | 1 | 14 |
| Restroom signs | 8 | 8 | 2 | 10 |
| Reception logos | 2 | 2 | 0 | 2 |
| Light boxes | 6 | 6 | 1 | 7 |
Spare quantities are useful for room signs, small directional panels, removable inserts, power supplies, LED controllers, and installation hardware. The appropriate quantity depends on project size, product type, delivery distance, and replacement difficulty.
For large projects, review the schedule at four points:
- Before quotation
- Before sample production
- Before bulk production
- Before packing and shipment
Each review should carry a revision number and date. Old files should be marked clearly as superseded so the production team does not follow an outdated version.
How Do Mockups and Samples Prevent Mismatch?
Mockups help confirm scale, placement, proportion, color relationships, and the way several signs appear together. Samples confirm whether the proposed materials and production methods create the expected real-world result.
Both are needed because a good rendering can still hide manufacturing problems.
A wall mockup should show:
- Actual wall dimensions
- Furniture and fixtures
- Ceiling height
- Nearby doors and windows
- Main viewing position
- Proposed sign size
- Sign-to-wall proportion
- Wire and power-supply location
- Illumination direction
- Surrounding signs
A centered presentation image is not enough. The sign should also be shown from the direction people normally enter the space. A reception logo may look balanced from the front but appear too close to a doorway when viewed from the lobby entrance.
For large logos, storefront signs, directories, and feature walls, place dimensions directly on the elevation. Important clearances include:
- Distance from ceiling
- Distance from floor or desk
- Distance from wall edges
- Distance from doors
- Distance between letters
- Projection from the wall
- Space needed for maintenance access
A full-scale paper print can be useful for reception logos, room signs, and letter spacing. Taping the paper outline to the wall provides a more realistic size check than reviewing the design only on a computer screen.
Physical samples should be selected according to the main project risks.
| Project Risk | Useful Sample |
|---|---|
| Brand color accuracy | Painted metal and acrylic color chips |
| Illuminated face appearance | One illuminated letter or light box section |
| Halo quality | One complete halo-lit letter against a similar wall surface |
| Metal finish | Brushed, polished, satin, or coated metal swatch |
| Small-letter production | Full-size sample of the smallest letters |
| Mounting appearance | Panel corner with approved standoff or fixing |
| Room-sign layout | One complete room sign with final text |
| Multi-layer construction | Cut section showing all material layers |
| Waterproof construction | Sealed corner, cable exit, and drainage detail |
| Replaceable graphics | Working insert or access-door sample |
A sample should use the same production method planned for the order. A printed mockup cannot approve painted aluminum. A solid acrylic chip cannot confirm how translucent acrylic will look when illuminated. A handmade sample may not prove that the same effect can be repeated accurately across a large batch.
The sample record should include:
- Sample reference number
- Date
- Dimensions
- Material codes
- Paint or finish codes
- LED type and color
- Power supply
- Brightness setting
- Photographs switched on and off
- Approval comments
- Required changes
- Final approval date
Comments such as “make it slightly warmer” or “use a better gold” are difficult to reproduce. Revisions should be measurable whenever possible.
A more useful approval comment would be:
- Change LED from 4000K to 3000K
- Reduce letter depth from 80 mm to 60 mm
- Use brushed gold stainless steel instead of mirror gold
- Increase halo projection from 15 mm to 25 mm
- Change paint from RAL 9005 gloss to RAL 9005 satin
- Increase room-number height from 18 mm to 25 mm
Approved samples should be kept until the full order and first reorder are complete. Photographs are useful for records, but physical samples remain more reliable for color, sheen, texture, and illumination.
Which Production Details Need Standardization?
Production details determine whether several signs actually match after installation. Two signs can use the same artwork and still look different because of unequal depths, different acrylic batches, inconsistent LED spacing, changing metal grain, or mismatched hardware.
Each sign type should have a written production standard.
For fabricated letters, standardize:
- Face material and thickness
- Return material and thickness
- Letter depth
- Return color
- Backing material
- Seam location
- Welding method
- Drainage holes
- LED model
- LED spacing
- Diffuser method
- Internal wiring
- Cable exit
- Mounting stud pattern
- Power-supply capacity
For acrylic panels, standardize:
- Acrylic manufacturer and color code
- Panel thickness
- Edge finish
- Corner radius
- Printed or applied graphics
- Standoff diameter
- Standoff projection
- Hole diameter
- Hole position
- Protective film
- Cleaning instructions
For light boxes, standardize:
- Cabinet depth
- Frame profile
- Face type
- Graphic method
- Internal support
- LED layout
- Access method
- Ventilation
- Drainage
- Cable entry
- Bracket design
- Service access
The following control table can be used across a sign package.
| Production Detail | Recommended Control Method |
|---|---|
| Letter depth | Fixed value by sign type |
| Acrylic thickness | Manufacturer code and millimeter thickness |
| Metal thickness | Material grade and gauge |
| Paint | RAL or Pantone reference plus sheen |
| Brushed finish | Grain direction marked on drawings |
| LED color | Approved Kelvin or color sample |
| LED layout | Spacing drawing or internal photograph |
| Power supply | Approved model and capacity |
| Wire exit | Dimensioned position on the rear drawing |
| Cable length | Fixed by installation location |
| Mounting holes | Full-size template or coordinate drawing |
| Standoffs | Diameter, length, cap shape, and finish |
| Adhesive | Approved type for material and wall surface |
| Hardware | Itemized accessory list |
| Labels | Sign reference and installation location |
Metal grain direction is easy to overlook. On brushed stainless-steel letters, one letter with horizontal grain among letters with vertical grain will become visible under directional lighting. Drawings should mark grain direction for every face and panel.
Lighting uniformity also requires fixed internal construction. Signs with the same face color may appear different when one uses wider LED spacing or a shallower cabinet.
A simple illumination standard may include:
- Maximum LED spacing
- Minimum distance between LED and face
- Approved diffuser layer
- Approved face thickness
- Brightness setting
- Power loading limit
- Required test duration
- Acceptable visual variation
Power supplies should not be selected only by total wattage. Allow operating capacity above the calculated LED load rather than running the power supply continuously at its maximum output. The selected unit should also match input voltage, local plug requirements, dimming, access conditions, and relevant project certification requirements.
Mounting templates should be produced from final artwork. A full-size template can show:
- Letter outlines
- Centerlines
- Stud positions
- Wire exits
- Sign reference
- Overall dimensions
- Required spacing
- Installation orientation
For multi-location or phased projects, production files should remain locked after approval. Any change should create a new revision rather than overwriting the earlier file without a record.
How Do You Inspect Color, Light, and Finish?
Inspection should compare finished signs against approved references, not against memory. The inspection team needs the final drawing, sign schedule, approved sample, material codes, and acceptance checklist.
A complete inspection covers five areas:
- Dimensions
- Appearance
- Lighting and electrical performance
- Mounting and accessories
- Packing identification
Dimensional inspection should confirm:
- Overall width and height
- Letter depth
- Panel thickness
- Letter spacing
- Logo proportions
- Mounting-hole positions
- Wire-exit position
- Cable length
- Bracket dimensions
Critical dimensions should have an agreed tolerance. Tolerance depends on sign size, material, production process, and installation method.
The following ranges can serve as practical discussion points rather than universal limits:
| Item | Possible Project Tolerance |
|---|---|
| Small room-sign dimensions | ±1 mm |
| Medium interior panels | ±2 mm |
| Fabricated letter depth | ±1–2 mm |
| Large sign overall size | ±3–5 mm |
| Mounting-hole position | ±1–2 mm |
| Letter spacing | ±1–2 mm |
| Cable length | Minimum length rather than exact length |
Tighter tolerances may be required for signs fitting into prebuilt recesses, frames, stone openings, glass panels, or structural brackets.
Color inspection should include:
- Comparison with approved physical sample
- Consistency between separate components
- Consistency across the full batch
- Appearance under standard room lighting
- Appearance under daylight where relevant
- Appearance when illuminated and switched off
Metal finish inspection should check:
- Grain direction
- Scratches
- Dents
- Fingerprints
- Uneven polishing
- Coating marks
- Edge discoloration
- Visible welds
- Inconsistent sheen
Acrylic inspection should check:
- Surface scratches
- Chips
- Bubbles
- Cloudy areas
- Uneven polishing
- Adhesive marks
- Color variation
- Protective-film condition
Illuminated signs should be tested in a darker area where hotspots and dark zones are easier to see.
Inspect:
- Light uniformity
- LED color consistency
- Brightness consistency
- Dark corners
- Hotspots
- Visible internal shadows
- Light leakage
- Halo shape
- Flicker
- Noise
- Controller response
- Dimming function
For several signs installed in one area, inspect them together whenever possible. A single sign may appear acceptable alone but look warmer, brighter, or dimmer when placed beside the rest of the package.
A photographic inspection record should use consistent conditions:
- Similar camera angle
- Similar distance
- Similar room lighting
- Similar exposure
- One front view
- One side view
- One rear view
- One illuminated view
- One close-up of finish
- One image showing measurements
Avoid relying on automatic camera exposure for comparing brightness. A phone may darken the image of a bright sign and brighten a dim sign, making both appear similar.
Electrical inspection should confirm:
| Electrical Item | Check |
|---|---|
| Input voltage | Matches destination requirement |
| Power supply | Correct model and rating |
| Plug | Correct country or project specification |
| Cable | Correct color, length, and connector |
| Dimming | Full operating range |
| Remote control | Functions and paired correctly |
| Waterproof connection | Sealed where required |
| Grounding | Included where applicable |
| Labeling | Voltage and sign reference marked |
| Test duration | Completed before packing |
All accessories should be counted before packing. A complete sign without the correct screws, brackets, template, controller, or power supply can delay installation as much as a damaged product.
How Do You Keep Future Additions Consistent?
Future additions remain consistent only when the original project information is preserved in a usable form. Saving a final rendering and quotation is not enough.
The project archive should include:
- Editable vector artwork
- Final production artwork
- Font names and files where licensing permits
- Logo-clear-space rules
- Pantone, RAL, acrylic, and paint references
- Physical color samples
- Metal finish samples
- Material suppliers and codes
- LED model and Kelvin temperature
- Power-supply model
- Letter and panel depths
- Mounting drawings
- Full-size templates
- Wire-exit positions
- Hardware specifications
- Inspection photographs
- Packing labels
- Approved revisions
- Replacement history
A clear folder structure reduces errors.
| Folder | Suggested Content |
|---|---|
| 01 Approved Artwork | Final logo and sign layouts |
| 02 Sign Schedule | Current and archived schedules |
| 03 Materials | Material codes and supplier references |
| 04 Colors | Pantone, RAL, paint, acrylic, and LED references |
| 05 Samples | Sample photographs and approval records |
| 06 Production Drawings | Construction and electrical details |
| 07 Installation | Templates, elevations, and mounting instructions |
| 08 Inspection | Measurements, tests, and finished-product photos |
| 09 Packing | Carton lists and sign-location labels |
| 10 Reorders | Dates, quantities, changes, and replacement records |
Each reorder should begin by confirming whether the original material and components are still available. Paint formulas, acrylic colors, LED models, power supplies, and metal coatings may change over time.
When a material is discontinued, do not replace it silently. Prepare the closest available option and compare it with the original approved sample. Review:
- Color under daylight
- Color under interior lighting
- Illuminated appearance
- Surface sheen
- Texture
- Thickness
- Durability
- Compatibility with existing signs
Decide whether the substitution will be used only for one replacement or adopted as the new standard for future production. Record that decision.
Reorder files should also note whether signs will be installed beside older products. A replacement room sign placed directly beside an original sign requires closer matching than a sign installed on another floor or in a separate building.
For illuminated signs, aging may affect color and brightness. A newly produced 3000K sign can appear brighter than a five-year-old sign, even when the specifications match. Where exact side-by-side appearance matters, replacing an entire visible group may create a better result than replacing one item.
A reorder checklist can include:
- Confirm sign reference.
- Confirm current message and location.
- Retrieve original artwork and specification.
- Check whether materials remain available.
- Compare replacement samples where needed.
- Confirm wall and electrical conditions have not changed.
- Record all approved substitutions.
- Inspect the new sign against the archived reference.
- Update the reorder history.
For chain stores, hotels, offices, clinics, restaurants, and retail programs, production records should support different dimensions without changing the visual language. Each new location may have different walls, power conditions, storefront proportions, and local requirements, while the approved typography, colors, materials, lighting, and finish rules remain controlled.
A finalized sign package should make the next order easier than the first. When drawings, samples, production details, inspection records, and installation information are complete, new signs can be quoted and reproduced with less uncertainty, fewer approval cycles, and a lower risk of visible mismatch.
How Can Iduoduo Support a Consistent Sign Package?
A consistent sign package begins with complete project information. When requesting a quotation, provide the floor plan or elevation, sign list, final logo files, approved fonts, Pantone or other color references, wall finishes, approximate viewing distances, indoor or outdoor conditions, installation surfaces, available power, required delivery date, and any landlord or local compliance requirements.
Iduoduo can review the sign family as a connected package rather than treating every item as an isolated product. Available project support includes brand color matching, drawing-based sampling, material and installation suggestions, wire-exit customization, power-supply matching, hidden-wiring planning, sample confirmation, batch consistency control, pre-shipment inspection, store-by-store packing, production-file management, and long-term reorder support.
For an initial assessment, send the sign schedule even if some details are incomplete. Mark confirmed information separately from items that still need recommendations. Iduoduo can then identify possible conflicts between materials, lighting methods, dimensions, mounting conditions, and brand requirements before the project enters production.
The most useful quotation is not only a list of prices. It should make clear how each sign will be designed, produced, checked, packed, installed, and repeated later. A well-documented package gives project teams more control over appearance, deadlines, installation, and future additions—while helping every sign in the space look like it was planned from the beginning.
