Complete Store Sign Package Planning Guide for Retail Stores

A store rarely fails because one sign is missing. Problems usually begin when every sign is treated as a separate purchase. The storefront is designed before the landlord confirms the permitted dimensions. The window sign blocks a product display. The checkout logo uses a different white tone from the exterior letters. Directional signs arrive without room numbers. Power cables exit from the wrong side, and installers discover the issue only after opening the cartons.

A complete sign package prevents those gaps by connecting branding, customer movement, site conditions, production details, installation, and future maintenance before manufacturing starts.

A complete store sign package should cover exterior identification, entrance and window communication, interior branding, navigation, service information, promotional displays, safety or accessibility requirements, mounting, electrical details, packaging, and replacement records. Planning begins with the customer journey and site survey, then moves into specifications, approvals, production, installation, and reorder management.

The goal is not to fill every wall with signage. The goal is to place the smallest effective number of signs where people need recognition, reassurance, direction, or action.

Imagine opening day at 8:00 a.m. The front letters are installed, the window looks clean, every department is easy to find, and the pickup point is visible without staff repeating directions. That smooth opening was not created by one attractive logo. It was created by a coordinated sign package.

What Does a Complete Sign Package Include?

A complete store sign package normally covers five jobs: identifying the store from outside, attracting attention at the window, confirming the brand after entry, guiding people through the space, and communicating information that changes during daily operation. The right package is not the one with the most signs. It is the smallest coordinated set that prevents confusion, supports sales, fits the building, and remains practical to install and maintain.

Before selecting products, list every point where a visitor needs to notice, decide, turn, enter, wait, order, pay, collect, or leave. Each point may need a different sign. A street-facing fashion store may rely heavily on channel letters and window graphics, while a small mall kiosk may need a compact fascia sign, illuminated logo, counter sign, and several removable promotional panels.

The table below gives a practical starting point. Quantities are planning ranges rather than fixed rules.

Sign group	Main purpose	Typical location	Common quantity per store	Usual update cycle
Exterior identification	Help people find and recognize the store	Façade, parapet, entrance, projecting position	1–3	5–10 years
Window communication	Attract attention and explain an offer	Glass storefront, entrance window	1–6 graphic or illuminated elements	Monthly to seasonal
Interior branding	Reinforce identity and improve the space	Reception, checkout wall, feature wall	1–3	3–7 years
Wayfinding	Direct movement and identify areas	Entry, aisle junctions, stairs, fitting rooms	2–20+	When layout changes
Service information	Explain where to order, pay, collect, or wait	Counter, queue, pickup point	2–10	1–3 years
Promotional signage	Present campaigns and product messages	Window, aisle end, counter, display zone	2–15+	Weekly to seasonal
Regulatory and safety signs	Meet local access and safety requirements	Doors, exits, restrooms, restricted areas	Based on code	When regulations or layouts change

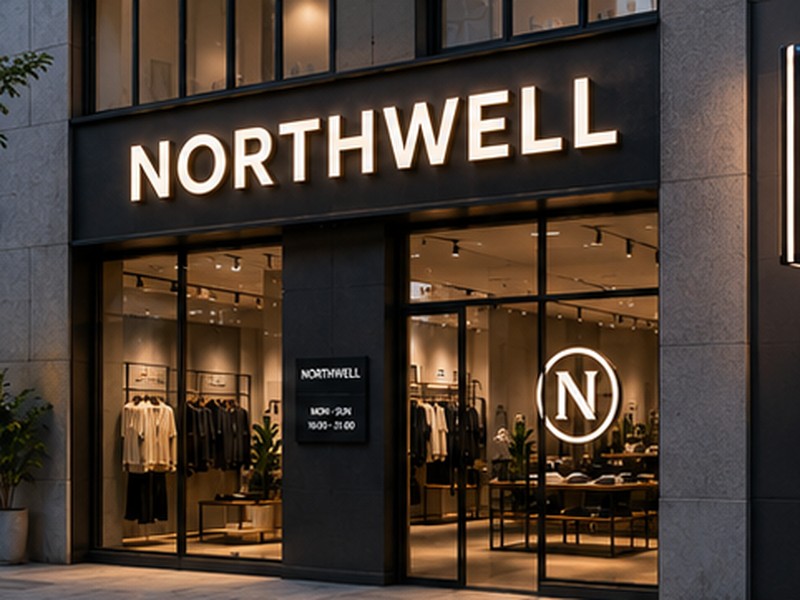

Which Exterior Signs Identify the Store?

The exterior identification group should answer three questions before someone reaches the entrance: What is the store called? What does it sell? Where is the entrance?

Most stores need one primary identity sign. Common options include front-lit channel letters, halo-lit letters, a cabinet sign, an illuminated light box, dimensional metal letters, or an acrylic logo sign. A secondary sign may be needed when the building can be approached from more than one direction, when a canopy blocks the main façade, or when the storefront sits inside a recessed entrance.

A practical exterior package may include:

One main storefront sign centered above the entrance or aligned with the architectural sign band.
One projecting or blade sign where pedestrian traffic approaches from the side.
One entrance logo, door graphic, or opening-hours panel at eye level.
One roadside, pylon, monument, or directory panel when the store is set back from the street.
One rear-entry identification sign when deliveries or parking access use another entrance.

Visibility should be checked from the actual approach route rather than from a straight-on rendering. A sign may look large on an elevation drawing but disappear behind trees, awnings, parked vehicles, adjacent tenant signs, or a deep canopy.

Use the following planning questions before confirming size:

Site condition	Planning question
Fast vehicle traffic	Can the name be read during a three- to five-second viewing window?
Pedestrian shopping street	Is the sign visible from both directions along the sidewalk?
Mall corridor	Does the fascia remain readable among neighboring storefronts?
Recessed entrance	Is a projecting sign or entrance-level sign needed?
Night operation	Are brightness, contrast, and illuminated hours appropriate?
Upper-floor store	Is building-mounted identification allowed and visible from ground level?

Letter height should be based on viewing distance, font width, contrast, and traffic speed. A rough mockup placed over a real site photograph is more useful than selecting a sign width from the logo file alone. Thin scripts, narrow letter spacing, and low-contrast finishes usually require a larger overall sign than simple block lettering.

Exterior signs also need technical decisions early. Confirm the mounting surface, available fixing depth, electrical access, wire exit position, drainage, local wind conditions, waterproof requirement, landlord criteria, and permit limits before production. Iduoduo’s project scope includes storefront signs, channel letters, light boxes, custom mounting arrangements, wire-exit customization, power-supply matching, outdoor production, testing, inspection, and export-grade packing.

Which Window Signs Attract Attention?

Window signage should give people a reason to stop without covering so much glass that the store looks closed. The window usually has three communication layers: brand recognition, a current reason to enter, and practical entrance information.

For many retail spaces, a balanced window package contains one main visual element, one short promotional message, and one small information area. Large windows may support more elements, but every additional message competes for attention.

A useful planning ratio is:

Reserve approximately 50–70% of the visible glass for product display and sightlines.
Use approximately 20–35% for brand or campaign graphics.
Keep approximately 5–15% for opening hours, contact details, entrance instructions, or required notices.

These percentages are not regulations. They are practical starting points for stores where interior visibility matters.

Common window sign options include:

Window sign	Best use	Important detail
Vinyl logo or lettering	Permanent brand identification	Use high-contrast colors and suitable adhesive
Illuminated logo sign	Night visibility and premium presentation	Plan hanging points, cable route, and reflections
LED neon sign	Short message, icon, or social-media feature	Avoid long copy and very fine strokes
Light box	Product category, menu, or campaign image	Allow access for graphic replacement
Poster frame	Frequently changing promotions	Standardize print size across stores
Frosted film	Privacy and subtle branding	Check daylight loss and glass coverage
Opening-hours graphic	Permanent operating information	Place close to the entrance at eye level
Temporary window decal	Sale, launch, or seasonal promotion	Specify clean-removal adhesive

Window messages should be readable in seconds. One strong phrase such as “New Collection,” “Pickup Here,” or “Open Late” usually performs better than a paragraph. Product displays, mannequins, shelves, and lighting already create visual activity, so window signs should support the display rather than fight with it.

Glare is often overlooked. Illuminated signs placed directly behind glass can reflect into the store at night or become difficult to photograph. Before approving the location, test the proposed height with the interior lights on, street lighting visible, and window glass closed. Hanging height, cable color, power location, backboard shape, and viewing angle should be included in the production drawing.

For multi-store programs, separate permanent window branding from replaceable campaign content. Keep the logo position, graphic zone, frame size, and electrical points consistent. Campaign artwork can then change without redesigning the full window package for every launch.

Which Interior Signs Support the Brand?

Interior signs should confirm that visitors have entered the right place and make the store feel finished. One well-planned brand wall often has more value than several small decorative signs spread across unrelated surfaces.

The most common interior brand positions are:

Behind the reception or checkout counter.
On the first wall visible after entry.
At the end of the main customer sightline.
Behind a service desk, consultation area, or product demonstration zone.
On a feature wall designed for photographs.
Inside a fitting-room lobby, waiting area, café counter, or pickup area.

The main interior logo should be sized in relation to the wall, counter, furniture, and camera view. Using the entire available wall is rarely necessary. As a planning range, the logo may occupy approximately 35–65% of the usable wall width. A smaller proportion often suits luxury spaces with more open wall area, while a stronger ratio may work in compact stores where the logo must remain visible behind shelving or staff.

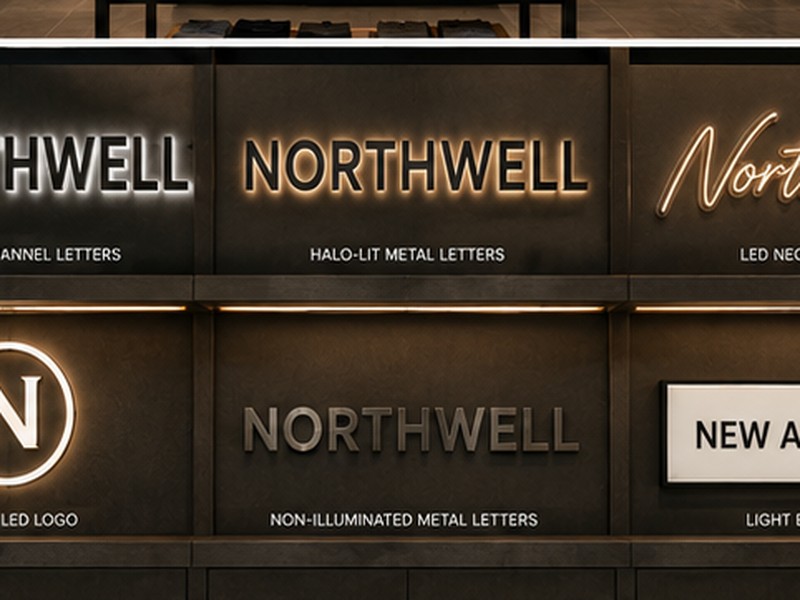

Material and lighting should match the store atmosphere:

Store position	Suitable sign direction
Luxury retail	Brushed metal letters, halo lighting, polished acrylic, subtle warm light
Fashion or cosmetics	Acrylic logo, soft backlighting, refined dimensional letters
Café or dessert shop	LED neon, acrylic logo, menu light box, warm backlit sign
Sports or streetwear	Bold channel letters, edge lighting, RGB accents where appropriate
Clinic or professional service	Clean acrylic or metal logo with soft, even illumination
Technology retail	Crisp front lighting, edge-lit acrylic, cool neutral finishes
Children’s retail	Rounded shapes, clear colors, low-heat illuminated products

Lighting should not create bright dots, dark corners, harsh shadows, or visible wires. Ask for front-view and side-view drawings, backboard shape, sign depth, mounting method, cable exit, power-supply position, and wall color before approval. A logo mounted on dark stone needs a different lighting and spacer arrangement from the same logo mounted on white painted drywall.

Not every interior sign should illuminate. Non-illuminated metal letters, acrylic letters, printed panels, and dimensional graphics often work better where ambient lighting is already strong. Illumination should be reserved for positions where it improves recognition, atmosphere, or photography.

Interior branding also includes functional brand language. Short slogans, product-category headers, brand-story panels, and service names can support the main logo, but they should remain lower in the visual hierarchy. When every wall carries a bright sign, none of them feels important.

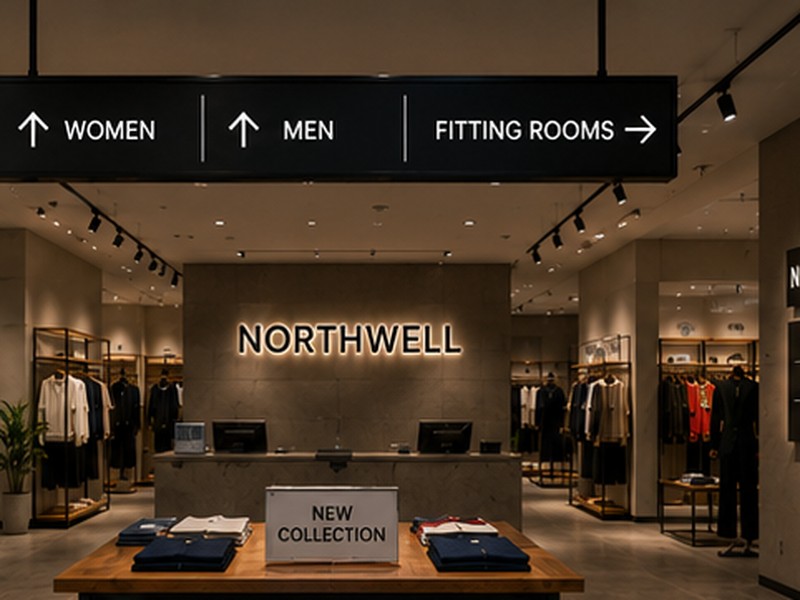

Which Wayfinding Signs Guide Visitors?

Wayfinding begins at the entrance and follows the route a first-time visitor is likely to take. It is not limited to arrows. Area names, aisle markers, fitting-room signs, department headers, checkout identification, pickup signs, restroom signs, and exit information all belong to the same navigation system.

Walk through the store without relying on staff knowledge. Stop at every point where someone may hesitate. Common decision points include:

The entrance.
The first aisle split.
Staircases, elevators, and escalators.
Department transitions.
Fitting rooms.
Consultation or service areas.
Checkout and returns.
Order and pickup counters.
Restrooms.
Emergency exits.
Staff-only doors.
Parking or secondary exits.

A small single-room boutique may need only two to five navigation signs. A 300–800 square meter store may need 8–20. Large-format retail, multi-floor stores, and stores with many service areas can require dozens. The final count should come from a marked floor plan rather than a generic package.

Use a simple sign schedule:

Sign ID	Message	Location	Viewing direction	Mounting	Illumination	Quantity
WF-01	Checkout	Main aisle junction	Front and right approach	Ceiling suspended	No	1
WF-02	Fitting Rooms	Apparel zone	Front approach	Wall mounted	No	2
WF-03	Pickup	Service counter	Entrance approach	Backlit wall sign	Yes	1
WF-04	Restrooms	Rear corridor	Both directions	Projecting sign	No	2

Directional wording should stay short. “Checkout,” “Pickup,” “Returns,” and “Fitting Rooms” are faster to understand than full sentences. Arrows must follow one consistent shape and direction style. Letter case, font, icon style, background color, edge spacing, mounting height, and panel size should also be standardized.

Wayfinding must work with the interior layout. A sign placed after the turning point is too late. A ceiling sign hidden behind shelving is useless. A wall sign may disappear when a queue forms in front of it. Installation heights should be checked against fixtures, merchandising plans, security cameras, sprinklers, lighting tracks, and local accessibility rules.

For stores operating in more than one language, establish a clear order and consistent translation. Avoid shrinking text until both languages become hard to read. Increasing panel size is usually a better choice than reducing letter height.

Which Promotional Signs Need Updating?

Promotional signs communicate information with a shorter lifespan than the main storefront or brand wall. They may announce a product launch, price campaign, seasonal collection, limited-time service, membership offer, menu change, or in-store event.

The first planning decision is not the message. It is how often the message will change.

Update frequency	Recommended format
Daily or weekly	Printed insert, magnetic panel, menu strip, poster frame
Monthly	Replaceable light-box graphic, removable window decal, hanging panel
Seasonal	Window vinyl, campaign light box, freestanding display
One to three years	Dimensional product-category sign, permanent service sign
Rarely	Fixed illuminated brand sign or fabricated wall logo

Do not fabricate permanent illuminated signs for information likely to change every few weeks. Likewise, do not use temporary printed material for a permanent service point such as checkout, pickup, or returns. Matching the construction method to the update cycle reduces replacement cost and keeps the store looking organized.

A practical promotional package may include:

One primary campaign area in the storefront window.
One entrance message.
Two to six product-zone signs.
One checkout or counter offer.
One new-arrival or seasonal feature sign.
One portable sign for events, launches, or queue management.

Promotional areas need fixed boundaries. Decide where campaign graphics may appear and where they may not. Without clear zones, temporary material gradually covers glass, doors, counters, and walls, weakening the permanent brand presentation.

For chain stores, standardize frame sizes, graphic dimensions, hanging methods, file templates, and sign identification codes. A campaign team can then issue one artwork package, while each location orders the correct quantity from its store schedule. Permanent hardware stays in place, and only printed or illuminated inserts change.

The strongest complete package separates signs into three levels:

Permanent identity signs that establish the store name and brand.
Functional signs that guide movement and explain services.
Replaceable signs that support campaigns and daily sales.

Planning those levels together prevents duplicated messages, unnecessary illuminated products, missing wayfinding, awkward wiring, and last-minute printed notices taped to finished surfaces. It also gives the manufacturer a clear production scope: sign type, quantity, size, finish, lighting, mounting, accessories, packaging label, and destination for every item.

How Do You Map Signs to the Store?

Map signs by following the same route a first-time visitor takes: approaching the building, locating the storefront, finding the entrance, understanding the layout, reaching a product or service area, completing payment, and leaving without confusion. Every sign should support a specific action at a specific point. A sign placed too early may be ignored, while one placed after the decision point has already failed.

Start with a floor plan, storefront elevation, site photographs, and a simple walking survey. Mark every approach direction, viewing obstruction, entrance, aisle split, service counter, destination, and exit. The result should be a numbered sign-location plan rather than a general list of products.

A practical mapping file should include:

Field	What to record
Sign ID	Unique code such as EXT-01, WIN-02, or WF-05
Exact location	Façade, entrance glass, aisle junction, checkout wall
Purpose	Identification, navigation, promotion, compliance, branding
Main viewer	Pedestrian, driver, visitor inside the store, delivery staff
Approach direction	Front, left, right, multiple directions
Viewing distance	Estimated nearest and farthest readable distance
Mounting height	Height from the finished floor or ground
Obstructions	Trees, columns, shelves, doors, vehicles, awnings
Lighting condition	Daylight, street lighting, low-light interior, mixed lighting
Mounting surface	Glass, concrete, brick, metal panel, drywall, ceiling
Power requirement	None, concealed wiring, nearby outlet, dedicated circuit
Sign type	Channel letters, light box, acrylic logo, panel, vinyl, blade sign
Quantity	Number required at the same or similar locations

A good map makes fabrication, quotation, installation, and future replacement easier. It also exposes gaps before production begins.

How Do People Approach the Store?

The main storefront view is not always the most important view. A store may be photographed straight on for design approval, while most people actually approach from the left side of a sidewalk, from a parking lot, through a mall corridor, or from an escalator positioned at an angle.

Walk each real approach route and record when the store first becomes visible. Take photographs at several distances rather than only at the entrance. For vehicle-facing stores, repeat the survey from the road or parking entrance. For mall stores, check both directions of corridor traffic and the view from nearby escalators.

Use the following approach categories:

Approach type	Main risk	Sign response
Straight-on pedestrian approach	Sign competes with nearby storefronts	Strong contrast and clear primary identification
Sidewalk approach from both directions	Fascia sign becomes difficult to read at an angle	Add a projecting or blade sign
Parking-lot approach	Vehicles block the lower storefront	Raise identification or add a monument sign
Fast road approach	Reading time is very short	Use shorter wording and larger letters
Mall corridor approach	Repeated tenant signs create visual noise	Use distinctive form, lighting, or material
Recessed entrance	Main sign is hidden until arrival	Add entrance-level or projecting identification
Upper-floor location	Storefront is not visible from ground level	Use directory, lobby, or building-level signs
Corner unit	More than one façade is visible	Decide whether one or two primary signs are needed

The first visible sign should normally identify the store rather than promote a temporary offer. A large “50% Off” message may attract attention, but it cannot replace clear store identification. Brand name, entrance location, and promotional information should have separate jobs.

For side approaches, letter depth and return color matter. A very thin sign may almost disappear when viewed from an angle. A blade sign, projecting light box, or perpendicular panel may provide better results than simply increasing the size of the main fascia sign.

Measure the useful viewing angle as well as the viewing distance. A storefront sign that is readable within a narrow 20-degree angle may perform poorly on a street where most people approach at 45–70 degrees.

Where Are the Main Decision Points?

A decision point is any place where someone must choose where to go or what to do next. Common examples include choosing an entrance, selecting an aisle, locating the checkout, finding a fitting room, deciding where to order, or identifying the pickup counter.

The sign must appear before the decision is made. Place it where visitors naturally look, not where empty wall space happens to be available.

Typical decision points include:

The boundary between the public walkway and the storefront.
Multiple entrance doors.
The first open area after entry.
Intersections between main aisles.
Stairs, elevators, and escalators.
Department or product-zone transitions.
Service, consultation, or waiting areas.
Fitting rooms and restrooms.
Checkout, returns, and pickup counters.
Secondary exits and parking routes.
Staff-only and restricted doors.

A simple decision-point survey can use the following rating system:

Score	Condition	Recommended action
1	Destination is directly visible	A small identifier may be enough
2	Destination is partly visible	Add a clear wall or suspended sign
3	One turn is required	Add directional information before the turn
4	Multiple routes are possible	Use a directory or multi-destination sign
5	Visitors regularly ask staff for help	Rework location, wording, size, or sign sequence

Staff questions are useful evidence. Ask store employees which directions they repeat most often. “Where is checkout?”, “Where do I collect my order?”, and “Are the fitting rooms upstairs?” reveal missing or ineffective signs.

One sign cannot solve every decision. A large entrance directory may introduce the layout, but people still need confirmation signs along the route. A practical sequence may contain:

An overview sign at the entrance.
A directional sign before an aisle junction.
A confirmation sign at the destination.
An identification sign on the service point or room.

Avoid placing an arrow directly at the turn when it cannot be seen in advance. For a 90-degree turn, the sign should usually be visible several steps before the corner. In busy stores, allow enough distance for someone to read the sign without stopping in the main traffic path.

Which Signs Need Distance Visibility?

Not every sign needs to be readable across the store. Large signs should be reserved for early identification, major destinations, and high-level navigation. Smaller signs are suitable for nearby product information, operating hours, room identification, and detailed instructions.

Divide viewing distances into practical zones:

Viewing zone	Approximate distance	Typical sign use
Immediate	Under 1.5 m	Door hours, product details, counter instructions
Near	1.5–4 m	Room names, fitting rooms, small department signs
Medium	4–10 m	Checkout, pickup, category signs, aisle headers
Long	10–30 m	Main interior logo, large department identification
Exterior long range	30 m or more	Storefront letters, roadside or building signs

Letter height is only one part of readability. Font shape, stroke width, spacing, capitalization, color contrast, lighting, and background activity can change the result significantly.

As a practical starting point, simple uppercase or mixed-case lettering may require approximately 25–30 mm of letter height for every 3–4 m of comfortable indoor viewing distance. Exterior signs, fast-moving traffic, decorative fonts, and low contrast usually need larger letters.

The following factors may require increasing the sign size:

Thin script or narrow strokes.
Long store names.
Low contrast between letters and background.
Bright reflections on glass or polished metal.
Cluttered merchandise behind the sign.
Angled rather than direct viewing.
Fast vehicle traffic.
High mounting positions.
Low illumination.
Similar colors used by neighboring stores.

Do not judge distance visibility from a close-up artwork file. Place the design on a scaled site photograph and view it at the intended display size. For important signs, print a full-size paper letter or create a temporary foam-board mockup at the site.

Large lettering does not automatically solve poor placement. A 600 mm letter hidden behind an awning may perform worse than a 300 mm letter installed in a clear sightline. Clear space around the sign often matters as much as the sign itself.

How Do Day and Night Conditions Differ?

Day and night surveys often produce different sign requirements. In daylight, material contrast, shadows, window reflections, and direct sun influence visibility. At night, illumination level, light color, nearby signs, streetlights, interior lighting, and dark backgrounds become more important.

Record conditions during at least two periods whenever the store operates after sunset:

Midday or the brightest operating period.
Evening after surrounding signs and interior lights are on.

For storefronts with strong western sunlight, photographs taken only in the morning may hide serious glare problems. For a light box behind glass, daytime brightness may be sufficient while nighttime reflection creates an unwanted mirror effect.

Compare the following conditions:

Condition	Daytime issue	Nighttime issue
Glass storefront	Reflections reduce contrast	Interior light reflects back into the glass
White façade	Dark letters read clearly	Unlit letters may disappear under weak streetlight
Dark façade	Metal or white letters stand out	Excessive brightness may create glare
Busy commercial street	Color and shape compete with storefront displays	Nearby illuminated signs compete for attention
Interior brand wall	Natural light may wash out illumination	LED hotspots or exposed wiring become more visible
Window light box	Sunlight reduces image contrast	Graphic may become too bright compared with the store
Halo-lit letters	Subtle effect may be weak in full sun	Back glow becomes clear and premium at night

Illuminated signs should be evaluated by brightness balance, not by maximum output. A sign that is much brighter than the surrounding storefront may appear harsh, create complaints, or lose letter definition in photographs.

Dimming can be useful for restaurants, bars, beauty spaces, and late-night stores where the desired brightness changes throughout the day. For chain projects, dimming level, LED color temperature, power supply, and operating schedule should be recorded in the store standard.

Color temperature also changes how materials appear. Warm white light can suit wood, brass, beige interiors, restaurants, and luxury finishes. Neutral or cool white may suit technology, fitness, clinics, or crisp acrylic logos. The choice should follow the environment rather than a universal preference.

Check whether the sign is expected to remain visible when the store is closed. A storefront logo may operate on a timer after closing, while promotional and interior signs may turn off with the main store lighting. Planning separate circuits can prevent every sign from operating on the same schedule.

How Does the Store Type Change the Package?

Store type affects the number, scale, and priority of signs. A small boutique, supermarket, restaurant, mall kiosk, and multi-floor showroom should not use the same package.

A useful starting comparison is shown below:

Store type	Primary needs	Typical package size
Small boutique under 100 m²	Storefront identity, window message, interior logo, checkout sign	4–8 sign elements
Café or dessert shop	Storefront sign, menu display, order and pickup signs, feature wall	6–12
Restaurant	Exterior identity, opening hours, menu, order or host point, restrooms, pickup	8–20
Beauty salon	Storefront sign, reception logo, service-area signs, photo wall	5–12
Mall kiosk	Fascia branding, counter logo, menu or product signs, storage identifier	4–10
Fashion store 100–500 m²	Storefront, window campaign, department signs, fitting rooms, checkout	10–30
Large-format retail	Building sign, department hierarchy, aisle signs, service points, safety signs	30–100+
Multi-floor showroom	Exterior identity, floor directories, vertical circulation, zone signs	20–60+
Pop-up store	Portable identity, window graphics, product signs, easy-removal promotional signs	4–15
Chain store	Standard core package plus site-specific variations	Varies by format

Store size alone does not determine quantity. A small clinic with several treatment rooms may require more identification signs than a larger open-plan furniture showroom. A compact takeaway restaurant may need several service signs because ordering, payment, waiting, and pickup happen at different points.

Classify every sign as either standard or site-specific.

Standard elements may include:

Logo proportions.
Brand colors.
Letter style.
Illumination color.
Material finish.
Menu frame dimensions.
Icons and arrow shapes.
Sign naming system.
Packaging labels.

Site-specific elements may include:

Overall sign size.
Mounting brackets.
Wire exit position.
Quantity.
Viewing direction.
Local language.
Landlord requirements.
Voltage and plug type.
Wind-load needs.
Store number or address.

For multi-location programs, aim for controlled variation rather than forcing one size into every storefront. A logo can preserve the same proportions and finish while being manufactured at several approved widths. For example, a brand may establish small, medium, and large storefront standards instead of producing a new design for every store.

A final sign map should be reviewed by the brand team, store designer, contractor, electrician, manufacturer, and installer where applicable. Each party sees a different risk. The designer checks visual hierarchy, the contractor checks the wall and access, the electrician checks power, the manufacturer checks fabrication limits, and the installer checks fixing points and site conditions.

The map is ready for quotation when every sign has a location, purpose, size range, viewing direction, material direction, lighting requirement, mounting surface, power condition, and quantity. Without those details, quotations may look complete while covering different scopes, making price comparisons unreliable.

What Should You Confirm Before Design?

Before any sign is drawn, confirm the site dimensions, landlord rules, permit limits, mounting surfaces, electrical conditions, installation access, and opening schedule. A complete pre-design check prevents attractive concepts from failing during approval, production, or installation. Every important measurement and site condition should be recorded in photographs, marked drawings, and a written sign schedule rather than discussed only through messages.

Sign design often starts too early. A logo file arrives, a storefront photograph is supplied, and an initial rendering is created before anyone confirms the wall construction, permitted sign area, cable route, or access equipment. The result may look correct on screen but require major changes later.

A reliable project should pass seven checks before the first approval drawing:

Pre-design check	Required information	Risk when missing
Site dimensions	Width, height, depth, clearances, mounting area	Wrong sign size or poor proportions
Building rules	Sign criteria, permitted zones, operating hours	Landlord rejection
Local regulations	Area, projection, illumination, electrical rules	Permit rejection or redesign
Mounting surface	Material, thickness, internal structure, condition	Unsafe or unsuitable fixing
Electrical conditions	Voltage, circuit, cable path, control position	Exposed wires or extra site work
Installation access	Equipment, working height, access restrictions	Delays and unexpected labor costs
Project schedule	Approval, production, shipping, installation dates	Missed opening date

Design should begin only after known conditions are separated from assumptions. Any unconfirmed detail should be marked clearly on the drawing and resolved before production.

Are the Site Measurements Complete?

A useful site survey records more than the overall wall width. It should show every dimension affecting sign size, position, fabrication, wiring, packing, and installation.

For an exterior storefront sign, record:

Total façade width and height.
Width and height of the approved sign band.
Distance from the sign area to doors, windows, canopies, rooflines, and neighboring units.
Wall depth, parapet depth, or fascia depth.
Position of structural joints, seams, columns, and cladding panels.
Available clearance behind the sign.
Existing holes, cables, conduits, transformers, or mounting rails.
Ground-to-sign height.
Distance from the sign to the curb, road, parking area, or opposite building.
Any projection limit beyond the wall surface.

For interior signs, record:

Finished wall width and height.
Counter, cabinet, shelf, screen, or furniture position.
Ceiling height.
Visible wall area after furniture installation.
Wall finish and paint color.
Power outlet position.
Cable concealment route.
Expected camera angle for reception or feature walls.
Door swing, walkway clearance, and nearby lighting fixtures.

Measurements should be taken from finished surfaces whenever possible. Early construction drawings may not reflect final wall finishes, tile thickness, ceiling levels, or built-in furniture. Even a 20–40 mm change can affect a narrow sign band, flush-mounted panel, recessed light box, or logo fitted between architectural features.

Use a measurement tolerance rather than assuming every dimension is exact.

Sign condition	Recommended measurement tolerance
Freestanding sign on an open wall	±10–20 mm may be manageable
Logo fitted between fixed wall features	Confirm within ±3–5 mm
Recessed light box or built-in sign	Confirm within ±2–3 mm
Sign aligned with cladding joints	Confirm joint positions within ±3–5 mm
Multiple letters on a raceway	Confirm total available width within ±5–10 mm
Glass-mounted sign	Confirm glass panel size and edge clearance within ±3 mm
Sign surrounding a door or opening	Use final site measurements only

Photographs should support every important dimension. A measurement written as “2400 mm wall width” is difficult to verify without seeing where the tape begins and ends. Include wide-angle images, close-ups, and tape-measure photographs.

A practical survey package usually contains:

One straight-on photograph of the full installation area.
One photograph from each main approach direction.
Close-ups of the mounting surface.
Photographs of the power location.
A hand sketch or elevation with dimensions.
A floor plan showing sign position.
A short video showing access, obstructions, and surrounding conditions.

Laser measurements are useful for large walls and high positions, but critical fabrication dimensions should be cross-checked. Phone-based measurement applications can help with early planning, but they should not be treated as production measurements for tightly fitted signs.

For multi-store projects, use one survey template across every location. A standard form reduces missing information and makes quotations easier to compare.

Store survey field	Example entry
Store code	US-AZ-014
Sign ID	EXT-01
Installation area	Main storefront fascia
Available width	4280 mm
Available height	920 mm
Ground height	4.6 m
Wall material	Aluminum composite panel
Internal support	Steel frame, position marked
Power	120 V, junction box behind center
Main viewing distance	18–35 m
Access	Scissor lift from parking lane
Restriction	Work allowed before 9:00 a.m.
Survey status	Verified after façade completion

A complete survey should allow another person to understand the site without visiting it. When installers, engineers, and production teams still need to guess, the survey is incomplete.

What Do the Landlord and Codes Allow?

Landlord approval and local permits can affect sign size, color, placement, lighting, projection, and operating hours. Approval rules should be collected before visual concepts are developed.

A shopping center may provide a tenant sign manual containing:

Maximum sign width and height.
Maximum percentage of storefront coverage.
Approved sign zones.
Minimum and maximum letter height.
Permitted sign types.
Approved materials and finishes.
Restrictions on exposed raceways.
Requirements for concealed wiring.
Limits on cabinet signs or illuminated panels.
Rules for blade signs.
Acceptable light colors.
Maximum brightness.
Required operating hours.
Installation and insurance requirements.
Drawing formats needed for approval.

Street-level stores may also require municipal sign permits, electrical permits, structural calculations, or heritage-district approval. Rules vary by location, so an old permit from another store should not be treated as confirmation.

Collect the following documents before design:

Document	Who normally provides it	Why it matters
Tenant sign criteria	Landlord or mall management	Defines permitted sign appearance
Lease sign clause	Property manager or tenant	Confirms responsibilities and restrictions
Local sign ordinance	Municipality or permit consultant	Controls area, height, projection, and lighting
Electrical requirements	Local electrician or authority	Controls wiring, components, and inspection
Building elevation	Architect or contractor	Shows approved façade and dimensions
Structural information	Contractor or engineer	Confirms fixing and load capacity
Brand standards	Brand team	Controls logo, colors, spacing, and finishes
Accessibility requirements	Local consultant or authority	Affects room and directional signs

Approval responsibility should also be clear. The sign manufacturer can prepare drawings and production details, but local permit applications may require a licensed sign contractor, architect, engineer, electrician, or property representative.

Before design, answer five practical questions:

Who reviews the sign concept?
Who submits the permit?
Who pays permit and review fees?
What documents must accompany the submission?
How long does approval normally take?

Approval periods can range from a few working days for a simple landlord review to several weeks for municipal permits or engineering checks. A store opening schedule should not assume immediate approval.

Use an approval tracker:

Approval stage	Responsible party	Target date	Status
Brand artwork approval	Brand team	August 5	Pending
Landlord concept approval	Property manager	August 12	Not submitted
Permit drawing approval	Local authority	September 2	Not submitted
Electrical review	Licensed electrician	September 4	Pending
Production approval	Project manager	September 6	Not started

Do not rely on verbal approval for permanent fabrication. Approved drawings should carry a date, revision number, sign dimensions, colors, materials, lighting method, and approval record.

Changes requested by the landlord or permit office should be added to the master drawing rather than written only in an email. Otherwise, production may use an outdated version.

Which Mounting Surfaces Are Available?

The same logo may need completely different construction depending on whether it is mounted to concrete, brick, drywall, glass, stone, timber, aluminum cladding, or a steel frame.

A mounting surface survey should record:

Surface material.
Surface thickness.
Condition of the finish.
Location of studs, rails, brackets, or structural framing.
Cavity depth behind the surface.
Waterproof membrane position.
Maximum drilling depth.
Hidden utilities.
Permitted fixing type.
Expected sign weight.
Required stand-off distance.

Common surfaces need different planning:

Surface	Main concern	Typical planning response
Concrete	Drilling depth and concealed services	Use suitable anchors and verified drilling zones
Brick	Weak mortar joints or brittle bricks	Fix into sound material and distribute load
Drywall	Limited load capacity	Locate studs or install backing plates
Aluminum composite panel	Thin face material	Connect fixings to the frame behind the panel
Glass	No standard drilling after installation	Use hanging systems, approved adhesive, or existing holes
Stone	Risk of cracking or staining	Confirm drilling method and use suitable spacers
Timber	Movement and weather exposure	Use corrosion-resistant fixings and sealed penetrations
Steel frame	Welding or bolting requirements	Confirm bracket positions before finishing
Tile	Cracking during drilling	Mark joints and use controlled drilling methods
Curtain wall	Restricted penetration	Obtain façade-engineer approval

For heavy signs, large channel letters, projecting light boxes, and outdoor structures, the visible finish is rarely the true support. Fixings must connect to suitable framing or structural material behind the surface.

The wall condition also affects the visual result. Halo-lit letters require a relatively even surface so the rear glow spreads consistently. Deep stone joints, ribbed metal, uneven brick, or textured plaster can create broken shadows. A back panel or raceway may produce a cleaner result.

Before choosing individual mounting or a common backer, compare the site conditions:

Installation method	Advantages	Limitations
Individual letters	Clean architectural appearance	More drilling, wiring, and alignment work
Raceway mounting	Faster installation and fewer wall penetrations	Raceway remains visible
Backer panel	Hides wiring and covers uneven surfaces	Adds visual mass and shipping size
Hanging system	Suitable for windows and temporary spaces	Requires overhead support
Adhesive mounting	Minimal drilling for lightweight signs	Surface preparation and load limits apply
Freestanding base	No wall penetration	Requires floor space and stability planning

A mockup should show not only the front view but also the side profile. Sign depth, stand-off distance, bracket size, cable visibility, and wall texture can change the appearance significantly.

For outdoor signs, every penetration must be planned for water control. Fixing holes, cable exits, and wall penetrations may need seals, grommets, sleeves, drainage space, or weather-resistant cable glands.

Mounting details should be agreed with the installer before production. A manufacturer may supply screws, templates, brackets, rails, chains, spacers, or mounting plates, but the final fixing method must match the actual wall and local construction practice.

Where Are Power and Wire Exits Located?

Electrical planning should begin before the sign shape is approved. A beautiful illuminated sign can lose much of its impact when cables cross the wall, power supplies remain visible, or installers must open finished surfaces to reach a circuit.

Record the following information for every illuminated sign:

Local voltage and frequency.
Available circuit capacity.
Outlet or junction-box position.
Distance from power to sign.
Preferred cable route.
Wire exit position from the sign.
Location of the power supply or transformer.
Indoor or outdoor electrical environment.
Switching method.
Dimming or control requirements.
Operating schedule.
Plug and connector type.
Access for future maintenance.

A sign schedule should separate the sign location from the power-supply location.

Sign ID	Sign voltage	Local input	Wire exit	Power-supply location	Control
EXT-01	12 V DC	120 V AC	Rear center	Inside service cavity	Timer
INT-02	12 V DC	120 V AC	Rear lower right	Cabinet behind reception	Wall switch
WIN-01	24 V DC	120 V AC	Top left	Above ceiling	Smart switch
MEN-03	12 V DC	220 V AC	Rear center	Accessible service panel	Main store circuit

For individual channel letters, the cable pattern must match the wall and installation method. Each letter may have a separate low-voltage cable, or cables may route through a raceway or back panel. Confirm whether the wall can be drilled behind every letter.

For acrylic logo signs or LED neon signs, a single exit point may be sufficient. The location should align with a concealed outlet, cabinet, conduit, or wall cavity.

Avoid placing the wire exit by habit. “Rear center” is not always correct. The center may align with a steel column, glass panel, decorative stone joint, or inaccessible cavity. The exit point should follow the site.

Cable visibility can be reduced through:

Concealed wall conduits.
Back panels.
Raceway systems.
Cable channels painted to match the wall.
Furniture or cabinet routes.
Ceiling suspension cables with integrated power.
Pre-positioned junction boxes.
Rear access panels.

The power supply should remain accessible. Hiding it permanently inside a sealed wall may create a difficult repair later. Good locations include service cabinets, ceiling access panels, removable backers, electrical rooms, or ventilated sign enclosures.

Power-supply heat and ventilation also matter. Avoid placing units in tightly sealed cavities unless the product is designed for that environment. Keep power supplies away from water exposure, high-temperature areas, and locations where merchandise blocks airflow.

For outdoor signs, confirm the required waterproof level and enclosure method. The sign body, cable connections, power supply, wall penetration, and junction box should be considered together. A waterproof sign connected through an unprotected cable joint can still fail.

Dimming and color control should be confirmed before production. Questions include:

Is fixed brightness acceptable?
Is manual dimming required?
Is remote control needed?
Is RGB or RGBW color control required?
Should several signs operate together?
Will the signs connect to a building-management system?
Is a timer or photocell required?

For multi-location stores, voltage, plug type, connector type, cable length, and power-supply model should be listed by destination. Sending one electrical configuration to every country can cause installation delays or require local replacement parts.

How Will Installers Access Each Position?

Installation access affects sign size, sectioning, bracket design, packing, labor, equipment, and timing. A sign that fits the wall may still be impossible to move through the building or lift into position.

Confirm the complete delivery and installation route:

Truck access.
Loading dock or curbside unloading.
Door and corridor dimensions.
Elevator size and weight limit.
Stair dimensions.
Ceiling clearance.
Distance from unloading point to the sign location.
Floor protection requirements.
Working-height restrictions.
Equipment allowed inside the building.
Public-area closure requirements.
Permitted installation hours.
Security or induction requirements.

Large signs should be checked against the narrowest point along the route.

Access point	Measurement needed
Loading door	Clear width and height
Passenger or freight elevator	Door size, cabin size, weight limit
Corridor	Minimum width and turning radius
Staircase	Width, landing size, ceiling clearance
Store entrance	Clear opening after doors are fitted
Ceiling area	Available lifting and rotation space
Exterior work zone	Lift placement and ground condition

If a complete sign cannot pass through the route, the design may need removable sections, split backers, interlocking frames, or on-site assembly.

Working height determines equipment needs:

Installation height	Common access method
Under 2.5 m	Step ladder or small platform
2.5–5 m	Mobile scaffold or scissor lift
5–12 m	Larger scissor lift, boom lift, or scaffold
Above 12 m	Boom lift, crane, suspended access, or specialist system

Actual requirements depend on site conditions and local safety rules. Height alone is not enough. Sloped ground, narrow sidewalks, landscaping, canopies, traffic, overhead cables, and weak flooring may prevent normal equipment use.

For mall installations, management may require:

Work outside trading hours.
Floor and storefront protection.
Low-noise installation periods.
Dust control.
Fire permits for hot work.
Certified lifting equipment.
Insurance documents.
Installer registration.
Security supervision.
Removal of packaging before opening.

These requirements can add several hours or an extra working night to what appears to be a simple installation.

The installation team should receive a package containing:

Approved location drawings.
Full-size mounting templates where appropriate.
Bracket and fixing details.
Wiring diagrams.
Sign identification labels.
Hardware lists.
Packing list by sign ID.
Assembly instructions.
Photographs or renderings of the final position.
Contact details for site coordination.

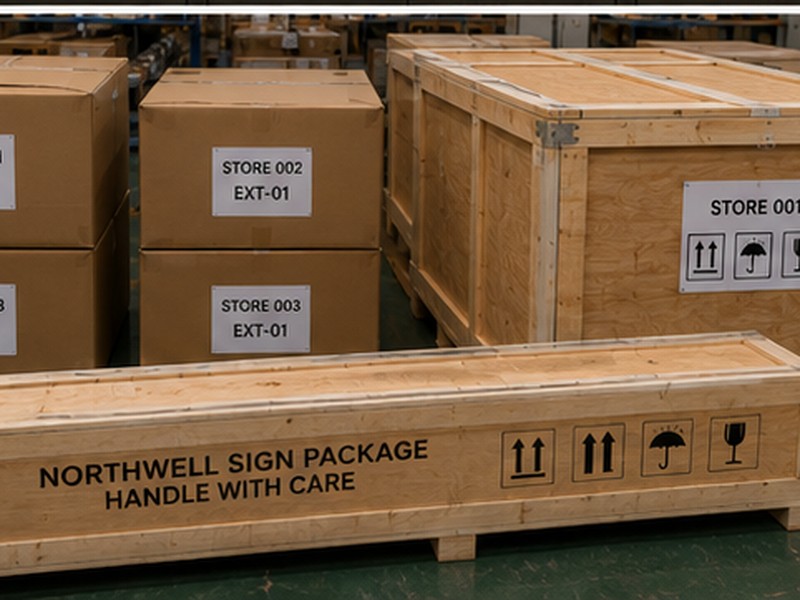

Every carton should match the sign schedule. Labels such as “Store 014 – EXT-01 – Main Storefront” are more useful than a generic carton number. For stores receiving many items, separate hardware kits by sign rather than combining all screws, spacers, cables, and connectors in one box.

Before production approval, hold a final pre-design review using a clear status table:

Item	Confirmed	Action needed
Final site measurements	Yes	None
Landlord criteria	Yes	Add approved finish code
Municipal permit	Pending	Submit revised elevation
Wall structure	Yes	Use steel backing positions shown
Power supply location	No	Electrician to confirm by Friday
Wire exits	Partial	Revise INT-02 exit to lower right
Installation equipment	Yes	8 m scissor lift booked
Access hours	Yes	Installation from 10:00 p.m. to 6:00 a.m.
Opening date	Yes	October 18
Production release	No	Hold until permit approval

A sign package is ready for design only when the information affecting size, appearance, structure, electricity, approval, and installation is either confirmed or clearly marked as pending. That discipline saves more time than rushing into a first rendering and correcting preventable problems later.

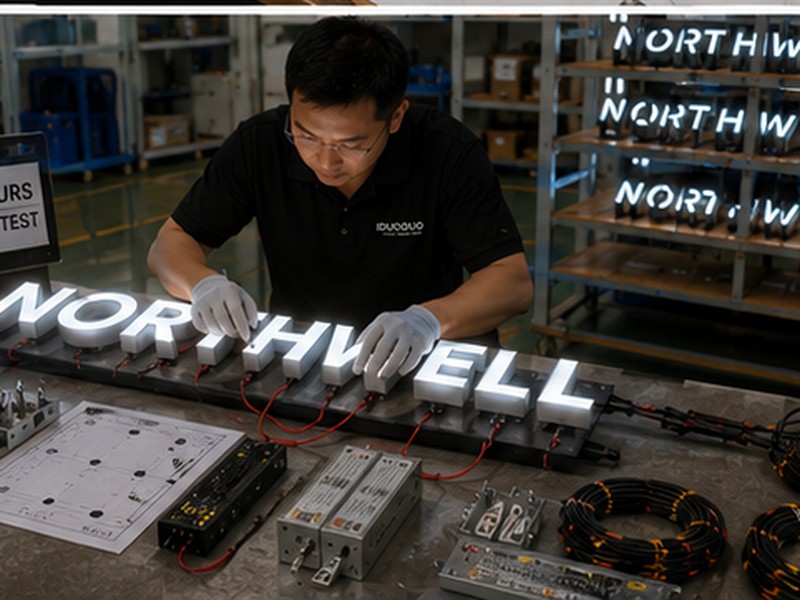

How Do You Choose the Right Specifications?

Choose sign specifications by matching each location with the right material, lighting method, size, finish, mounting system, electrical setup, and expected service life. A storefront sign, window logo, checkout sign, and fitting-room marker should not use the same construction simply because they share one brand identity. Each position has different exposure, viewing distance, maintenance access, and budget priorities.

The specification process should answer practical questions before a quotation is approved:

Will the sign be used indoors or outdoors?
Is it exposed to rain, sun, humidity, dust, salt air, or grease?
How far away must the wording be readable?
Is illumination needed during business hours, after closing, or not at all?
Can wiring and power supplies be concealed?
How often will the message change?
How will the sign be installed and maintained?
Does the finish need to match furniture, wall materials, or other stores?
Is the sign expected to last for one event, one store cycle, or several years?
Can the finished product be packed and transported safely in the required size?

A useful specification sheet should contain more than a product name.

Specification field	Information to confirm
Sign ID	Unique code linked to the floor plan
Sign type	Channel letters, light box, acrylic logo, metal letters, panel, LED neon
Overall size	Width, height, depth, and allowable tolerance
Material	Acrylic, aluminum, stainless steel, galvanized steel, PVC, fabric, vinyl
Surface finish	Painted, brushed, polished, plated, powder-coated, printed
Lighting	Front-lit, halo-lit, front-and-back-lit, side-lit, edge-lit, or non-illuminated
Light color	White temperature, single color, RGB, or RGBW
Brightness control	Fixed, dimmable, timer, remote, or building control
Mounting	Individual, raceway, backer, hanging, adhesive, freestanding
Wire exit	Rear center, rear side, top, bottom, or custom position
Electrical input	Voltage, frequency, plug, power supply, cable length
Environment	Indoor, sheltered outdoor, full outdoor, humid, dusty, coastal
Quantity	Total units and quantity by store
Packaging	Carton, foam protection, plywood case, sign-by-sign labeling
Approval record	Drawing revision, color approval, sample approval, release date

Specifications are ready only when two different factories or installers could read the same sheet and understand the same product.

Which Materials Suit Each Location?

Material selection should follow the installation environment, sign size, appearance, weight, and maintenance plan. The most expensive material is not always the most suitable, and the lowest-cost material may create higher replacement or repair costs later.

Acrylic is widely used for illuminated faces, logo panels, dimensional letters, and indoor wall signs. It offers clean edges, consistent color, and good light transmission. Acrylic works well for reception logos, menu signs, retail brand walls, beauty spaces, cafés, and illuminated channel-letter faces.

However, acrylic should not be selected only by color. Confirm:

Sheet thickness.
Cast or extruded material.
Light transmission.
Surface finish.
Edge quality.
UV exposure.
Heat from nearby lighting or equipment.
Minimum stroke width in narrow logo areas.
Maximum unsupported panel size.

Thin acrylic may flex over a large area. Very narrow acrylic strokes may crack during production, transport, or installation. Large faces may need internal support or sectioning.

Aluminum is commonly used for channel-letter returns, back panels, light-box frames, raceways, and exterior sign bodies. It is relatively light, corrosion resistant, and suitable for international transport.

Aluminum is especially useful when:

Weight must be controlled.
The sign will be installed above a storefront.
Large letters require deep returns.
A painted or powder-coated finish is needed.
The sign must be divided into transportable sections.
Outdoor corrosion resistance is important.

Stainless steel is often chosen for premium metal letters, office logos, hotel signs, luxury retail, and architectural identification. Common surface directions include brushed, mirror polished, painted, or plated finishes.

Stainless steel provides a refined appearance, but several details affect the result:

Brushing direction must remain consistent across every letter.
Mirror finishes show fingerprints, scratches, and surface distortion.
Plated finishes need sample approval because color varies under different light.
Large solid components can become heavy.
Outdoor grades should match the environment.
Coastal locations require stronger corrosion planning than normal indoor spaces.

A basic location guide is shown below.

Location	Common material direction	Main reason
Exterior channel letters	Aluminum returns with acrylic faces	Lower weight and suitable illumination
Exterior halo-lit letters	Metal letters with rear acrylic or LED modules	Durable body and controlled back glow
Reception wall	Acrylic, stainless steel, or aluminum	Clean detail and refined appearance
Window-hung logo	Lightweight acrylic or aluminum	Reduced load on hanging points
Menu light box	Aluminum frame with acrylic or fabric face	Graphic access and even illumination
Temporary promotion	Vinyl, printed board, fabric, or magnetic panel	Easy replacement
Outdoor directional panel	Aluminum panel with outdoor coating	Weather resistance and manageable weight
Interior room sign	Acrylic, metal, or layered laminate	Clear text and easy cleaning
Large backer panel	Aluminum composite panel or framed aluminum	Flat surface and lighter construction
Portable event sign	Acrylic, lightweight aluminum, or PVC	Easier packing and repeated transport

PVC and foam materials can work for indoor dimensional graphics, short-term displays, and budget-sensitive areas. They are generally better for non-illuminated interior use than permanent exterior identification.

Printed vinyl is suitable for windows, temporary promotions, wall graphics, operating hours, and replaceable campaign messages. The correct vinyl type depends on the application:

Permanent or removable adhesive.
Indoor or outdoor use.
Transparent, opaque, frosted, or perforated finish.
Expected removal period.
Surface type.
Sun exposure.
Need for clean removal.
Application from inside or outside the glass.

Glass-mounted graphics should be tested against reflections, tinting, window coatings, and interior visibility. A color that looks strong on a white proof may become weak on dark or reflective glass.

The material decision should also consider cleaning. Restaurant, café, clinic, beauty, and fitness environments may require surfaces that tolerate frequent wiping. Deep grooves, exposed wiring, rough finishes, and narrow gaps can collect dust or grease.

For outdoor signs, do not specify only “waterproof.” Confirm the actual exposure:

Exposure level	Typical condition
Sheltered	Under a deep canopy with limited rain exposure
Normal outdoor	Regular rain and sun exposure
Severe outdoor	Wind-driven rain, heavy storms, or exposed elevation
Humid	Pool, spa, tropical climate, or persistent moisture
Coastal	Salt air and accelerated corrosion risk
Dusty	Industrial, roadside, warehouse, or construction environment

Iduoduo can prepare outdoor products for different waterproof requirements, including IP65, IP67, and IP68 configurations when the project calls for them. The rating should be selected according to the whole installation, including cable joints, power supplies, connectors, drainage, and wall penetrations—not only the sign body.

Which Signs Should Be Illuminated?

Illumination is valuable when it improves recognition, extends visibility after dark, highlights an important service point, or supports the atmosphere of the store. It should not be added automatically to every sign.

The primary storefront identification usually receives the highest lighting priority. A store operating at night, located on a busy commercial street, or surrounded by illuminated neighbors may lose visibility with a non-illuminated main sign.

Interior illumination should be used more selectively. Strong positions include:

Reception walls.
Checkout backgrounds.
Order and pickup counters.
Menu areas.
Main product zones.
Feature walls.
Photo locations.
Lower-light corridors.
Brand logos visible from outside the store.

Room numbers, safety signs, small product labels, short-term promotions, and secondary instructions often perform well without internal lighting.

A simple priority table helps control cost.

Sign position	Illumination priority	Reason
Main storefront logo	High	Primary identification day and night
Projecting blade sign	High for evening trade	Side visibility from the pedestrian route
Entrance logo	Medium	Confirms the correct entrance
Interior brand wall	Medium to high	Brand impression and photography
Checkout or pickup	Medium	Helps people find a key service point
Department header	Low to medium	Depends on store size and ambient lighting
Fitting-room sign	Low	Clear non-illuminated identification is often enough
Promotional message	Low	Content may change too frequently
Safety or regulatory sign	Usually no internal lighting	Must follow local requirements
Temporary event sign	Project dependent	Portability may matter more than brightness

Common illumination methods create different results.

Lighting method	Visible effect	Suitable use
Front-lit	Bright face, strong direct visibility	Storefront names and clear commercial identification
Halo-lit	Light glows behind the letter	Premium offices, hotels, retail, reception walls
Front-and-back-lit	Illuminated face plus rear glow	Stronger depth and layered brand presentation
Side-lit	Light exits through the letter edge or side	Contemporary logos and selected architectural designs
Light box	Full illuminated panel	Menus, product images, directories, and campaign graphics
LED neon	Continuous flexible line effect	Short wording, icons, feature walls, cafés, bars
Edge-lit acrylic	Light travels through acrylic edges or engraving	Refined interior signs and compact displays

Front-lit channel letters normally provide the strongest direct readability. Halo-lit letters create a softer architectural effect but depend heavily on the wall surface and stand-off distance. A dark, even wall usually gives clearer halo illumination than rough stone, heavily textured brick, or a wall with deep joints.

Front-and-back-lit signs can produce a strong result, but they require separate control of the face and rear lighting. Color combinations should be tested to avoid a visually confusing effect.

Side-lit construction should be specified carefully. “Side-lit” means the side or edge is intended to emit light. It is different from a double-sided light box, where only the front and back faces illuminate and the narrow side frame remains non-illuminated.

LED neon works well for short text and simplified graphics. It becomes less effective when:

The logo contains extremely fine details.
Several narrow lines sit very close together.
Long text must be read from a distance.
The sign must match a formal architectural style.
A photographic image is required.
The installation requires a very thin side profile.

Brightness should be matched to the surrounding environment. Maximum brightness is rarely the best setting.

Environment	Practical lighting direction
Bright exterior retail street	Strong, clear illumination with good contrast
Shopping mall	Balanced brightness that does not overpower adjacent tenants
Luxury store	Lower, even brightness with controlled glare
Café or restaurant	Warm or neutral light with optional dimming
Clinic	Clean, soft illumination without harsh hotspots
Gym	Strong contrast; RGB may suit selected feature areas
Bar or entertainment venue	Dimming, RGB, or RGBW may support changing atmospheres
Office reception	Soft halo or evenly illuminated acrylic logo

Lighting color should be confirmed with a physical sample or agreed LED specification. “White” may refer to warm white, neutral white, or cool white. For commercial signs, common planning ranges include:

Light appearance	Approximate color-temperature range
Warm white	2700–3500 K
Neutral white	3500–4500 K
Cool white	5000–6500 K

These ranges are practical references, not mandatory choices. The right value depends on the wall color, store lighting, material finish, and brand palette.

Dimming should be considered when a sign must work in both daylight and evening conditions. A storefront may require higher output at dusk and lower output later at night. Interior logos may need lower brightness during events, photography, or low-light service periods.

Before approving illumination, confirm:

LED color or color temperature.
Brightness level.
Dimming requirement.
Power-supply model.
Control method.
Expected operating hours.
Power-supply access.
Heat ventilation.
Module spacing.
Service method.
Whether spare power supplies or controllers are required.

Illuminated signs should be tested before shipment. For Iduoduo projects, illuminated products can undergo a 72-hour pre-shipment lighting test to identify unstable LEDs, wiring problems, uneven illumination, and power-supply issues before packing.

What Sizes and Viewing Distances Work?

Sign size should be based on reading distance, approach angle, traffic speed, wall proportions, logo shape, and surrounding visual competition. Selecting a width only because it fits the available wall often leads to a sign that is technically large but difficult to read.

Start with the main viewing distance. Then evaluate the smallest important letter, not only the overall logo width.

The table below gives planning ranges for simple lettering under reasonably clear conditions.

Viewing distance	Starting letter-height range
1–2 m	15–30 mm
2–4 m	30–60 mm
4–8 m	60–120 mm
8–15 m	120–250 mm
15–30 m	250–450 mm
30–60 m	450–900 mm
Over 60 m	Site-specific calculation and mockup

These ranges should be increased when the design uses:

Narrow script letters.
Thin strokes.
Lowercase details.
Tight letter spacing.
Low color contrast.
Angled viewing.
High installation positions.
Fast-moving traffic.
Strong sunlight or glare.
Busy façades.
Several words.
Similar-looking neighboring signs.

A short five-letter brand name can often be read at a smaller overall width than a long name containing fifteen letters. Reducing letter spacing to force a long name into the sign band usually damages readability.

Logo symbols also need separate review. A large icon beside very small wording may look balanced in the artwork but fail in the real environment because people see the symbol without being able to read the name.

Use three dimensions when approving size:

Overall width and height.
Height of the smallest important letter.
Thickness of the narrowest illuminated stroke.

The narrowest stroke is especially important for channel letters, acrylic logos, and LED neon. Extremely narrow illuminated areas may not contain enough space for LEDs, wiring, bending, returns, or light diffusion.

Typical minimum details vary by construction, so the manufacturer should review the actual artwork. As a practical early check:

Product type	Detail requiring review
Channel letters	Narrow strokes, tight internal corners, small counters
LED neon	Minimum bend radius, line spacing, sharp corners
Acrylic logo	Thin bridges, unsupported projections, sharp points
Metal letters	Very thin serifs, small welded sections
Light box	Panel size, frame depth, graphic resolution
Halo-lit letters	Stand-off distance and wall texture
Window sign	Hanging strength, cable route, visual balance

Depth also affects appearance and construction.

Sign type	Common planning depth
Flat acrylic letters	3–20 mm
Dimensional non-illuminated letters	10–50 mm
Compact acrylic LED logo	20–60 mm
Channel letters	50–150 mm or more
Light box	60–200 mm or more
Halo-lit metal letters	Depends on letter depth and stand-off

Final depth depends on letter size, LED layout, structure, accessibility, local sign rules, and the desired side appearance.

For an interior logo wall, compare the sign with the usable wall rather than the full architectural wall. Remove space occupied by:

Counters.
Doors.
Shelves.
Screens.
Furniture.
Decorative panels.
Ceiling drops.
Wall lights.
Cameras and sensors.

A common starting range is for the main logo to occupy approximately 35–65% of the usable wall width. Compact stores may need a stronger ratio. Luxury spaces often benefit from more empty space around the sign.

For storefronts, the sign should also respect neighboring architecture. Filling the entire permitted width can make a sign feel crowded. A smaller sign with clear space and strong contrast may be easier to recognize.

Create at least three views before approval:

Straight-on elevation.
Main approach view.
Side-angle view.

For important exterior signs, add a scaled mockup to a real site photograph. The rendering should show surrounding tenant signs, windows, awnings, parked vehicles, and expected viewing height.

For large signs, confirm transport size before finalizing one-piece construction. International shipment, loading doors, elevators, and installation equipment may require the sign to be split.

A divided sign should include:

Hidden or visually controlled joints.
Numbered sections.
Alignment pins or brackets.
Separated electrical connectors.
Assembly drawings.
Section-specific packaging labels.
Full-size mounting templates where needed.

The final size should therefore satisfy four conditions at the same time: readable at the required distance, visually balanced on the building, practical to manufacture, and possible to transport and install.

How Should Colors and Finishes Match?

Color matching should begin with a controlled reference. Screenshots, social-media images, and compressed logo files are not reliable production color standards.

Use one or more of the following:

Pantone code.
RAL code.
CMYK values.
RGB values for screen reference.
Physical painted sample.
Material chip.
Approved product sample.
Existing sign supplied for matching.

Pantone, CMYK, and RGB values do not always produce identical results across paint, vinyl, acrylic, printing, plating, and LED light. A brand color printed on vinyl may not look the same as painted aluminum, translucent acrylic, or illuminated lettering.

The specification should identify the material and viewing condition for each color.

Color item	Example approval method
Painted aluminum return	Pantone reference plus painted metal sample
Acrylic face	Manufacturer color code plus illuminated sample
Printed light-box graphic	Printed proof viewed with the selected light source
Brushed metal	Physical finish sample and brushing direction
Gold plating	Approved plated sample under store lighting
LED white	Confirmed color-temperature range
RGB color	Controller setting or saved color value
Wall graphic	Printed proof on the final vinyl type

Illumination changes color. A red acrylic face may appear darker when unlit and brighter or more orange when illuminated. White acrylic may shift according to the LED color temperature. Printed light-box graphics can lose detail if the light is too strong or the ink density is too low.

Approve color in both states where relevant:

Sign switched off.
Sign switched on.
Daylight condition.
Evening condition.
Front view.
Side view.

Surface finish also affects perceived color.

Finish	Visual effect	Practical concern
Matte	Soft, low reflection	Easier to photograph; may show marks on dark colors
Satin	Moderate reflection	Balanced choice for many retail signs
Gloss	Stronger color and reflection	Can show glare and surface imperfections
Brushed metal	Directional texture	Brushing direction must stay consistent
Mirror polished	High reflection	Shows fingerprints and surrounding objects
Powder-coated	Durable painted finish	Color and texture sample should be approved
Plated	Premium metallic effect	Batch variation and scratches need control
Printed wood or stone effect	Decorative appearance	Pattern scale and repeat must be checked

For multi-store projects, record colors with revision control. Do not rely on notes such as “same blue as last time.” The project file should identify:

Approved color code.
Material supplier.
Paint or acrylic reference.
Finish level.
LED color.
Sample approval date.
Photograph of the approved sample.
Production revision.

Store lighting should also be considered. Warm ambient lighting can make white surfaces appear cream and can change the appearance of silver, gold, blue, and gray finishes. Cool lighting can make warm metallic colors look less rich.

Contrast remains more important than exact color matching for many directional and informational signs. A perfect brand color with weak contrast may be difficult to read.

Use a basic contrast check:

Background	Safer lettering direction
White or light wall	Dark letters, colored letters, or halo-lit metal
Dark wall	White, light metal, illuminated acrylic, or bright painted letters
Busy patterned wall	Add a backer panel or clear background zone
Glass	Use opaque color, backer, or illumination with controlled reflection
Reflective metal	Avoid low-contrast polished lettering
Textured brick or stone	Use stand-off letters, backer, or stronger contrast

Brand consistency does not require every sign to use the same material. A store can use illuminated channel letters outside, vinyl graphics on the window, brushed metal letters inside, and printed directional panels while preserving the same logo proportions, colors, typography, and information hierarchy.

How Do Cost and Durability Compare?

Cost should be evaluated against function, service life, installation, maintenance, shipping, and replacement frequency. Comparing only the factory price can lead to a package that costs less initially but requires more site labor or frequent replacement.

A sign budget normally includes:

Design and technical drawing.
Materials.
Fabrication.
LEDs and electrical parts.
Mounting hardware.
Testing and inspection.
Packaging.
International freight.
Local delivery.
Installation equipment.
Installer labor.
Permits and engineering.
Electrical connection.
Future maintenance.
Replacement graphics or spare parts.

The factory quotation may cover only part of the total installed cost. A sign with a slightly higher production price may reduce installation time, wall penetrations, equipment rental, or future service work.

Compare common sign directions below.

Sign direction	Initial cost	Typical durability	Maintenance	Best use
Printed temporary panel	Low	Short term	Frequent replacement	Campaigns and events
Vinyl graphic	Low	Short to medium term	Replace when worn or outdated	Windows and promotions
Non-illuminated acrylic letters	Low to medium	Medium term indoors	Simple cleaning	Interior branding
Metal letters	Medium	Long term	Low when finish is suitable	Offices, hotels, premium retail
LED neon sign	Medium	Medium term	Electrical access needed	Feature walls and short messages
Acrylic LED logo	Medium	Medium term	Power supply and LEDs serviceable	Interior brand walls
Channel letters	Medium to high	Long-term commercial use	Electrical and face access needed	Storefront identification
Light box	Medium to high	Long frame life; graphics replaceable	Graphic and lighting access	Menus and campaigns
Large engineered exterior sign	High	Long term when correctly specified	Planned inspections	Buildings and roadside identification

Actual service life depends on operating hours, weather, material grade, installation quality, voltage stability, maintenance, and exposure. No useful durability estimate should ignore the environment.

Use different investment levels for different sign functions.

Sign function	Budget priority
Main storefront identity	Highest
Primary interior logo	High
Checkout, order, and pickup identification	Medium to high
Main wayfinding	Medium
Department identification	Medium
Temporary promotion	Low to medium
Short-term event signage	Based on reuse plan
Hidden staff-area signs	Functional, lower-cost construction

Spending heavily on temporary promotions while reducing the quality of the main storefront sign is usually a poor allocation. The primary identification sign is viewed every day and affects whether people can find the store.

Durability should be matched to the expected use period.

Required use period	Suitable planning approach
Several days	Printed, lightweight, temporary installation
Several weeks	Removable vinyl, portable panel, modular display
Six to twelve months	Replaceable graphics with reusable hardware
Three to five years	Commercial materials and serviceable electrical parts
Five years or more	Stronger exterior materials, accessible maintenance, controlled finishes

A replaceable system often provides better long-term value than rebuilding the complete sign. Examples include:

Light boxes with replaceable fabric or acrylic graphics.
Poster frames with standard print sizes.
Menu boards with removable strips.
Magnetic promotional panels.
Reusable hanging systems.
Permanent logo hardware with seasonal inserts.
Standard backers with interchangeable store numbers.

Maintenance access should be designed before fabrication. Ask:

Can the face be removed without taking down the whole sign?
Can the power supply be reached?
Are LED modules replaceable?
Can the graphic be changed from the front?
Is special lifting equipment needed?
Are spare parts available locally?
Can the surface be cleaned safely?
Will removing one component damage the wall finish?

Shipping also affects cost. Large one-piece backers, oversized light boxes, and deep signs may increase freight substantially. Dividing a sign into carefully engineered sections can reduce freight and handling risk, although it may increase production and installation work.

Packaging should match the product:

Product	Practical packaging direction
Small acrylic logo	Foam protection and reinforced carton
Channel letters	Individually protected letters with labeled layout
Long raceway	Rigid support to prevent bending
Large light box	Reinforced carton or plywood case
Fragile acrylic face	Non-contact surface protection
Heavy metal sign	Strong base support and lifting points
Multi-store order	Cartons separated and labeled by store and sign ID

For large or high-value products, plywood cases may be more appropriate than standard cartons. Power supplies, controllers, mounting templates, screws, and accessories should be packed in identified kits rather than loosely combined.

A fair cost comparison should use the same scope.

Comparison item	Supplier A	Supplier B
Sign dimensions	Confirmed	Confirmed
Material thickness	Listed	Not listed
LED type	Listed	General statement only
Power supplies	Included	Not confirmed
Mounting hardware	Included	Excluded
Dimming	Included	Extra
Waterproof construction	Specified	“Outdoor” only
Testing	72-hour test	Not stated
Packaging	Plywood case	Carton
Installation drawing	Included	Not stated
Warranty	Confirmed	Not stated

The lowest number is not a valid comparison when the specifications are different.

Before production, the final specification package should contain:

Approved artwork.
Dimensioned front and side drawings.
Material and thickness list.
Color and finish references.
Lighting method and color.
Electrical input and controls.
Mounting and wire-exit details.
Waterproof requirement.
Quantity by location.
Packaging and labeling requirements.
Inspection standard.
Approved sample or finish reference.
Production revision number.
Required delivery date.

When those details are confirmed, the quotation becomes more accurate, production questions decrease, and the completed package is more likely to fit the store, match the brand, and install without costly changes.

How Do You Finalize the Sign Package?

Finalize a store sign package by confirming the quotation scope, approving production drawings and samples, locking all specifications, completing pre-shipment inspection, assigning packing labels, and preparing installation and reorder records. Production should not begin while dimensions, colors, mounting details, power requirements, quantities, or delivery locations remain unclear.

The final stage is where many avoidable problems appear. A logo may already look correct, but the approved file may not show the cable exit. A quotation may list ten signs without identifying which store receives each one. A light box may pass a lighting test but arrive without a graphic replacement method. A set of channel letters may be packed safely but reach the site without a mounting template.

A complete release package should allow the factory, installer, electrician, contractor, and store team to work from the same information.

Finalization area	Required result
Commercial scope	One clear quotation with inclusions and exclusions
Design approval	Signed or written approval of the latest drawing revision
Technical approval	Confirmed materials, lighting, mounting, wiring, and accessories
Quantity control	Sign count matched to each store and sign ID
Production release	One approved revision marked for manufacturing
Quality control	Inspection records linked to the approved specifications
Packing control	Every carton labeled by store, sign ID, and contents
Installation support	Drawings, templates, wiring diagrams, and hardware lists
Reorder control	Saved files, finish references, supplier codes, and revision history

A sign package is not finished when the products leave the production line. It is finished when every item can be identified, installed, tested, maintained, and reordered without rebuilding the project from memory.

What Should the Quotation Include?

A useful quotation should show exactly what is being supplied, how each sign will be constructed, which accessories are included, how the order will be packed, and which services remain outside the quoted price.

A line such as “custom illuminated logo sign, one set” is not detailed enough for a commercial project. It does not confirm size, depth, materials, lighting color, mounting method, power supply, cable length, packing, or delivery destination.

Each sign should have its own item code.

Sign ID	Location	Product	Size	Quantity
EXT-01	Main storefront	Front-lit channel letters	4,200 × 820 mm	1 set
EXT-02	Sidewalk approach	Double-sided blade light box	650 × 650 × 160 mm	1
WIN-01	Entrance window	Suspended acrylic LED logo	900 × 420 mm	1
INT-01	Checkout wall	Halo-lit metal logo	1,800 × 620 mm	1 set
WF-01	Fitting-room corridor	Non-illuminated directional panel	500 × 180 mm	2
POS-01	Pickup counter	Acrylic service sign	600 × 220 mm	1

The quotation should list at least the following for every fabricated sign:

Sign ID.
Product name.
Installation location.
Overall dimensions.
Sign depth.
Main materials.
Material thickness where important.
Surface finish.
Lighting method.
LED color or color temperature.
Electrical input.
Power supply.
Mounting method.
Wire exit position.
Accessories.
Quantity.
Unit price.
Total price.
Packaging method.

The quotation should also separate project-wide costs.

Cost category	Examples
Design work	Artwork adjustment, technical drawings, renderings
Sampling	Color sample, material sample, full sign sample
Fabrication	Sign bodies, faces, frames, letters, panels
Electrical parts	LEDs, power supplies, controllers, dimmers
Accessories	Brackets, spacers, chains, screws, templates
Testing	Lighting test, waterproof check, function test
Packing	Cartons, foam, reinforced crates, plywood cases
Freight	Express, air, sea, door-to-door delivery
Optional support	Spare parts, extra power supplies, installation video

Do not combine production and freight into one unexplained total. Freight may change when the final sign dimensions, weight, packing volume, shipping method, or destination changes.

The commercial terms should answer practical questions before payment:

Commercial term	Information to confirm
Currency	USD, EUR, GBP, or another agreed currency
Price basis	EXW, FOB, CIF, DDP, or another trade term
Payment schedule	Deposit and balance percentage
Quotation validity	Number of days before price review
Sample cost	Included, charged, or credited after bulk order
Production time	Starts after which approvals and payment
Shipping time	Estimated by shipping method
Tax and duty	Included or excluded
Permit fees	Included or handled locally
Installation	Included, excluded, or supplied by a local installer
Warranty	Period, covered parts, and claim process

Production time should start from a defined release point, such as:

Deposit received.
Final drawing approved.
Color sample approved.
Site dimensions confirmed.
Local permit released.
Power requirements confirmed.

Without a defined starting point, a “10-day lead time” can create confusion. Ten production days after final approval is different from ten calendar days after the first inquiry.

A quotation should state the scope exclusions as clearly as the included work.

Common exclusions may include:

Local permits.
Structural engineering.
Wall reinforcement.
Local electrical wiring.
Lifting equipment.
Installation labor.
Removal of existing signs.
Wall repair after removal.
Customs duty.
Storage after arrival.
On-site final measurements.

Exclusions are not a weakness when they are stated early. Hidden exclusions create disputes.

For multi-store programs, the quotation should separate:

Standard product pricing.
Store-specific adjustments.
One-time tooling or engineering charges.
Sample and approval costs.
Packing by location.
Freight by destination.
Reorder pricing conditions.

A chain-store quote may use a format such as:

Store format	Storefront width	Standard sign package	Estimated quantity
Small	Under 4 m	5–7 sign elements	12 stores
Medium	4–8 m	7–12 sign elements	28 stores
Large	Over 8 m	10–20 sign elements	6 stores

Several approved sizes can be priced as standard options. That approach is more useful than creating a new quote from zero for every location.

Before accepting a low quotation, compare the scope line by line.

Comparison point	Complete quotation	Incomplete quotation
Material grade	Listed	“Metal and acrylic”
Sign depth	Listed	Not stated
LED specification	Listed	“LED included”
Power supply	Brand or rating stated	Not stated
Mounting hardware	Included and listed	Not confirmed
Wire position	Shown on drawing	Not mentioned
Testing	Test type stated	“QC passed”
Packing	Method stated	“Standard packing”
Drawings	Included	Extra or unclear
Warranty	Terms stated	“Quality guaranteed”

Price comparison is only meaningful when the quoted products are built to the same specifications.

Which Drawings and Samples Need Approval?

Approval should cover appearance, construction, installation, and electrical details. A front-view rendering alone is not enough to release a sign for production.

Every drawing should display:

Project name.
Store code.
Sign ID.
Drawing number.
Revision number.
Revision date.
Scale.
Overall dimensions.
Materials.
Finishes.
Lighting method.
Mounting method.
Wire exit.
Power-supply location.
Quantity.
Approval status.

The drawing set normally includes several views.

Drawing type	What it confirms
Site location plan	Where each sign will be installed
Front elevation	Logo layout, size, spacing, and alignment
Side view	Depth, stand-off, backer, bracket, and wall relationship
Section drawing	Internal construction and lighting arrangement
Mounting drawing	Holes, anchors, rails, brackets, and fixing positions
Electrical drawing	Power supply, cable exit, connector, and controls
Artwork drawing	Logo proportions, text, icons, and color references
Packing layout	Sectioning and carton allocation for large signs

The approved front view should show the actual letter spacing and logo proportions. Production should not rely on a visual rendering when exact vector artwork is available.

The side view is especially important for:

Channel letters.
Halo-lit letters.
Raceway-mounted signs.
Backer-panel signs.
Projecting signs.
Hanging window signs.
Deep light boxes.
Signs installed on uneven walls.

The side view should show:

Letter depth.
Back-panel depth.
Stand-off distance.
Bracket position.
Raceway dimensions.
Cable route.
Wall finish.
Visible side color.
Face projection.
Service access.

A sign can look correct from the front while appearing heavy, shallow, or poorly aligned from the side.

The drawing should identify the mounting surface rather than stating only “wall mounted.”

Better notes include:

Mounted to concrete wall with installer-selected anchors.
Fixed through aluminum cladding into the steel frame behind.
Suspended from two approved ceiling points.
Mounted to glass using an agreed hanging frame.
Installed on drywall with backing prepared by the contractor.
Raceway fixed to the structural frame behind the fascia.

Electrical drawings should confirm:

Electrical item	Approval detail
Input	Local voltage and frequency
Output	Required low-voltage output
Power supply	Quantity and rating
Cable exit	Exact location
Cable length	Length supplied with each sign
Plug	Destination-specific plug type
Control	Switch, timer, dimmer, remote, RGB controller
Connection	Plug-in, hardwired, or electrician connection
Access	Power-supply service position
Outdoor protection	Enclosure, gland, connector, and sealing method

Samples are required when a screen image cannot reliably show the final result.

Common approval samples include:

Painted metal chip.
Powder-coated metal chip.
Acrylic color sample.
Translucent acrylic lighting sample.
Brushed metal sample.
Plated gold, bronze, or copper sample.
Printed graphic proof.
LED color-temperature sample.
LED neon color sample.
Full-size letter section.
Complete product sample.

Use the following approval level according to project risk:

Project condition	Recommended sample
One standard indoor logo	Digital drawing and material reference may be enough
New brand color	Physical color sample
Illuminated translucent face	Lit and unlit material sample
Premium metallic finish	Physical finish sample
Complex small logo	Full-size detail sample
Large chain rollout	Complete pre-production sample
New mounting method	Structural or installation prototype
Replaceable light-box graphic	Printed and illuminated proof
RGB or dimming project	Functional controller sample or video test

A full sample is particularly valuable before producing dozens or hundreds of units. It confirms more than appearance. It can expose problems with:

Line thickness.
LED brightness.
Color shift.
Sign depth.
Cable position.
Mounting access.
Packaging.
Assembly time.
Graphic replacement.
Cleaning.
Heat management.

Approval should be linked to a revision number. Avoid comments such as “approved except for the cable” or “use the last color but the new size.” Those instructions can be interpreted differently.

A better approval sequence is:

Revision A issued.
Comments recorded.
Revision B issued with all changes.
Revision B approved in writing.
Revision B marked “Approved for Production.”
Production files locked.
Later changes handled as a new revision.

The approval record should state:

Approver’s name.
Approval date.
Approved drawing revision.
Approved sample code.
Approved quantity.
Any accepted exceptions.

Once production begins, changes may affect cost and delivery time. A change-control table makes the impact visible.

Change	Production impact	Possible result
Logo width increased	New material cutting and LED layout	Added cost and delay
Color changed	New paint or acrylic order	Sample approval repeated
Wire exit moved	Back structure revised	New drawing required
Quantity increased	Material and packing adjustment	Lead time review
Mounting changed	New brackets or raceway	Installation drawing revised
Destination changed	Voltage, plug, and freight review	Electrical and packing changes

A final production release should come from one designated person. When several people send separate instructions, the factory may receive conflicting approvals.

How Is Quality Checked Before Shipping?

Quality inspection should compare finished signs against the approved drawings, not against a general idea of acceptable workmanship. Every sign ID should have measurable checks.

A practical inspection plan covers five areas:

Dimensions.
Appearance.
Lighting and electrical function.
Structure and mounting.
Packing readiness.

Dimension checks may include:

Measurement	Inspection method
Overall width and height	Tape or calibrated measuring tool
Letter height	Measure several representative letters
Sign depth	Caliper or tape
Hole spacing	Compare with the mounting drawing
Backer dimensions	Measure overall size and joint positions
Cable length	Measure supplied length
Wire exit	Compare location with approved drawing
Bracket position	Compare with template or mounting file

A practical tolerance should be agreed according to product type and size. Small acrylic logos, built-in light boxes, and signs aligned to architectural joints need tighter control than large freestanding letters on an open wall.

Appearance inspection should check:

Logo shape.
Letter spacing.
Alignment.
Paint consistency.
Surface scratches.
Acrylic marks.
Weld quality.
Edge finishing.
Visible adhesive.
Brushing direction.
Plating consistency.
Graphic position.
Dust inside illuminated faces.
Color under normal light.

Inspection photographs should include full front views and close-ups. A single distant image cannot confirm surface quality.

Illuminated signs require function testing.

Test item	What to check
Power-on test	Every section lights correctly
Brightness	Output is appropriate and consistent
Uniformity	No dark zones or bright hotspots
Color	LED color matches approval
Flicker	No unstable light or controller issue
Dimming	Full adjustment range works
RGB/RGBW	Presets and control functions work
Cable	No loose connection or damaged insulation
Power supply	Correct rating and stable operation
Heat	No abnormal heat after extended operation

Short power-on testing may miss intermittent faults. Iduoduo illuminated products can undergo a 72-hour pre-shipment test before final packing. Extended operation helps identify unstable LED sections, loose connections, controller faults, uneven lighting, and power-supply problems before international delivery.

A 72-hour test does not replace inspection of the whole electrical system. The correct input voltage, connectors, power supply, controls, cable protection, and outdoor sealing must also be checked.

Outdoor signs may need additional checks:

Cable gland installation.
Connector sealing.
Drainage holes.
Face sealing.
Back-panel sealing.
Fastener corrosion resistance.
Power-supply enclosure.
Water entry risk.
Outdoor cable type.
Surface-coating coverage.

Water testing should follow the agreed product design and exposure requirement. It should not damage components or be used as a vague demonstration without a defined method.

Structural checks should cover:

Frame alignment.
Weld strength and finishing.
Bracket position.
Screw and nut completeness.
Hanging points.
Load-bearing areas.
Section joints.
Assembly accuracy.
Stability of freestanding products.
Sharp edges.

For projecting signs and large exterior products, structural review may require local engineering or installation-site calculations. Factory inspection cannot replace local approval of wall strength, wind load, anchor selection, or building conditions.

Mounting hardware should be counted before packing.

Accessory	Verification
Brackets	Quantity and type
Rails	Length and hole positions
Spacers	Quantity and finish
Screws	Quantity and corrosion resistance
Chains or cables	Length and load direction
Power supplies	Model, quantity, voltage
Controllers	Function and pairing
Remote controls	Quantity and batteries where allowed
Templates	Correct scale and sign ID
Connectors	Quantity and type
Spare parts	Agreed quantity

A practical approach is to place the full accessory kit beside the sign and photograph it before sealing the carton.

For multi-store orders, inspection should also check batch consistency. Compare:

Logo dimensions.
Paint color.
Acrylic color.
LED color.
Brightness.
Letter depth.
Bracket positions.
Cable lengths.
Packaging labels.

One perfect sign and twenty inconsistent signs do not represent a successful rollout.

Inspection records may include:

Measurement sheet.
Photograph list.
Power-on video.
Lighting test record.
Accessory checklist.
Packing checklist.
Non-conformance report.
Repair record.
Final release signature.

A non-conformance should be corrected before packing.

Issue	Required action
Scratch on visible face	Repair or replace part
Wrong LED color	Replace LED components
Hole position incorrect	Correct back structure or remake
Uneven halo	Adjust LED spacing or stand-off
Paint mismatch	Refinish and reinspect
Missing controller	Add and function-test
Incorrect cable exit	Rework before packing
Wrong store label	Correct documentation and carton label

Inspection should end with a clear status:

Passed.
Passed after correction.
Held for review.
Rejected and remade.

Products should not be shipped while important inspection points remain “to be confirmed.”

How Should Each Sign Be Packed?

Packing should be designed around the product, shipping method, handling route, and destination. A sign that survives production can still fail during international transport if faces rub together, letters move inside the carton, a long raceway bends, or accessories strike the finished surface.

Packing should protect against:

Scratches.
Impact.
Compression.
Vibration.
Bending.
Moisture.
Surface abrasion.
Loose accessories.
Incorrect carton routing.
Difficult unpacking.

Different products need different protection.

Product	Packing approach
Small acrylic logo	Surface film, foam separation, reinforced carton
Individual channel letters	Each letter protected and fixed to prevent movement
Large metal letters	Edge protection and rigid internal support
Raceway sign	Long rigid packaging to prevent bending
Light box	Face protection, corner blocks, reinforced frame support
LED neon sign	Protected acrylic backboard and isolated accessories
Plated metal sign	Non-abrasive wrap and no direct foam rubbing
Large backer panel	Rigid face support and controlled stacking
Projecting sign	Bracket and sign body separated where practical
Heavy sign	Plywood case with base support and lifting access

Direct contact between rough foam and polished or plated surfaces may create marks. Soft non-abrasive wrapping should protect delicate finishes.

A carton should not contain loose screws, power supplies, or brackets beside the sign face. Accessories should be packed in separate labeled boxes or fixed compartments.

Every package should use a clear identification system.

A practical carton label may include:

Project name.
Store code.
Destination city.
Sign ID.
Product name.
Carton number.
Carton count.
Net weight.
Gross weight.
Dimensions.
Handling direction.
Fragile marking.
Opening side.
Accessory location.

Example:

Field	Label entry
Project	North Street Retail Rollout
Store	US-AZ-014
Sign ID	EXT-01
Product	Main Storefront Channel Letters
Carton	1 of 3
Contents	Letters A–M
Gross weight	42 kg
Open from	Top
Accessories	Carton 3
Drawing	REV-C

For multi-store projects, packing should be separated by store. Mixing products from several destinations in one unlabeled crate creates sorting work and increases installation errors.

A store-by-store packing list may look like:

Store code	Sign ID	Carton	Contents
US-AZ-014	EXT-01	1	Main letters
US-AZ-014	EXT-01	2	Raceway sections
US-AZ-014	EXT-01	3	Power supplies, template, hardware
US-AZ-014	INT-01	4	Interior logo
US-AZ-014	WF-01	5	Two directional panels

Heavy and oversized products may require plywood cases. A plywood case is often suitable when:

Acrylic faces are large.
The sign is difficult to replace.
Sea freight is used.
Several transfers are expected.
The frame may deform under stacking.
The product contains premium finishes.
The shipment includes heavy metal structures.

Packing size also affects freight cost. A sign can be divided into sections to reduce package volume, but each section adds joints and assembly work.

Sectioning should be approved during design rather than decided after production.

A large sign may be divided by:

Individual letters.
Raceway sections.
Backer-panel sections.
Light-box frame sections.
Removable faces.
Bolt-connected structures.
Plug-connected electrical sections.

Every section should be numbered.

For example:

EXT-01-A.
EXT-01-B.
EXT-01-C.

Assembly marks should remain hidden after installation but easy to identify during unpacking.

Large products may need:

Lifting points.
Forklift space.
Center-of-gravity marking.
“Do not stack” marking.
Upright transport.
Moisture protection.
Corner reinforcement.
Shock indicators for high-value shipments.

Before closing the package, photograph:

The completed sign.
The protected sign.
The accessory kit.
The sign inside the carton or case.
The final sealed package.
The shipping label.

These photographs help confirm what was packed and how the package should be opened.

Unpacking should also be considered. Installers should not need to turn a heavy case upside down or remove sharp nails directly above a fragile acrylic face.

Useful unpacking notes include:

Open from marked side.
Remove accessory box first.
Do not lift by electrical cables.
Keep the protective film until installation is complete.
Use two or four lifting points.
Do not place the sign face-down.
Confirm all parts before discarding the packing.

Spare parts should be labeled separately.

Common spare items include:

Power supply.
LED controller.
Remote.
Connector.
Mounting screw.
Spacer.
Acrylic face.
LED module.
Printed graphic.
Touch-up paint.

The spare-parts quantity should match project size and local access. A one-store project may need one spare power supply. A large rollout may require a calculated percentage stored at a regional warehouse.

What Records Support Installation and Reorders?

Installation and reorder records turn a one-time sign order into a manageable store program. Without organized records, later teams may not know which drawing was approved, which paint was used, where cables exit, or which power supply fits the sign.

The final project folder should include:

Approved artwork.
Approved production drawings.
Site location plan.
Sign schedule.
Material list.
Color and finish references.
Electrical specifications.
Mounting drawings.
Full-size templates.
Packing list.
Inspection report.
Lighting-test record.
Product photographs.
Installation instructions.
Warranty information.
Spare-parts list.
Reorder codes.
Revision history.

Use one naming structure across the files.

Example:

Project-Store-SignID-Document-Revision

Files may be named:

NorthStreet-AZ014-EXT01-Elevation-RevC.pdf
NorthStreet-AZ014-EXT01-Wiring-RevC.pdf
NorthStreet-AZ014-EXT01-Template-RevC.pdf
NorthStreet-AZ014-EXT01-QC-RevC.pdf
NorthStreet-AZ014-EXT01-PackingList-RevC.pdf

A generic name such as final-sign-new-2.pdf becomes difficult to manage after several revisions.

The installation pack should provide enough information for a qualified local installer to prepare the site.

Installation file	Purpose
Location drawing	Shows exact sign position
Dimensioned elevation	Confirms alignment and scale
Mounting template	Transfers hole positions
Bracket drawing	Shows fixing and assembly
Wiring diagram	Shows power and controls
Accessory list	Confirms supplied components
Assembly drawing	Shows how divided sections connect
Product photograph	Helps identify the finished sign
Packing list	Confirms which carton contains each part

Full-size mounting templates are useful for individual letters, acrylic logos, and signs with several mounting points. The template should state the print scale and sign ID.

The installer should verify the template dimensions before drilling. Printer scaling can change a full-size file when “fit to page” is selected.

Installation records should also include site photographs after completion.

Recommended final photographs include:

Straight front view.
Left approach view.
Right approach view.
Night view for illuminated signs.
Close-up of mounting.
Close-up of cable concealment.
Overall store view.
Any access panel or power-supply location.

Those photographs help with later maintenance, warranty discussions, and rollout comparisons.

Reorder records should save the exact manufacturing specification.

Reorder record	Example
Product code	NS-EXT-CHL-03
Approved width	3,600 mm
Letter depth	100 mm
Face material	White translucent acrylic, code A-117
Return finish	Pantone 186 C, satin
LED	Neutral white, approved range
Power supply	Model and output rating
Mounting	Raceway, 120 mm depth
Wire exit	Rear center
Input	120 V, US plug
Packing	Reinforced carton
Drawing	Rev C
Approval sample	SAMPLE-NS-04

Do not record only “red channel letters.” A reorder made several months later may use a different acrylic, paint, LED color, or power supply unless the approved references are saved.

For chain programs, separate the standard specification from the store-specific information.

The standard file controls:

Logo proportions.
Materials.
Color codes.
Letter depth.
Lighting color.
Finish.
LED type.
Standard mounting approach.
Standard hardware.
Inspection requirements.

The store file controls:

Sign size.
Quantity.
Mounting surface.
Wire exit.
Voltage.
Local language.
Store number.
Destination.
Packing label.
Delivery date.

A reorder request can then use a compact schedule.

Store	Standard sign code	Size option	Quantity	Required date
US-NV-021	EXT-CHL-03	Medium	1	November 12
US-CA-054	EXT-CHL-03	Large	1	November 20
UK-LON-008	EXT-CHL-03	Small	1	December 4

Voltage and plug type must still be checked by destination even when the visible sign remains the same.

Revision control is essential. A brand may update a logo, color, slogan, or installation detail. Older stores may still use an earlier sign version.

A revision log should show:

Revision	Date	Change	Applies to
A	March 3	Initial release	Pilot store
B	April 12	Increased letter depth	New stores only
C	June 20	Updated logo spacing	All future orders
D	August 8	New power supply	US locations

Do not overwrite older files without a record. An existing store may need a replacement letter matching the earlier version.

A replacement order should identify whether the request is for:

One letter.
One acrylic face.
One LED section.
One power supply.
One controller.
One graphic.
One mounting bracket.
One complete sign.

Photographs and measurements should be used when the original record is incomplete.

Warranty records should link the claim to:

Order number.
Sign ID.
Store code.
Shipment date.
Installation date.
Problem description.
Photographs.
Video.
Input voltage.
Power-supply status.
Operating hours.
Installation environment.

A useful warranty process first determines whether the problem comes from an LED component, power supply, controller, connection, water entry, physical damage, incorrect local wiring, or installation condition.

Iduoduo supports custom sign production with drawing-based sampling, mounting customization, wire-exit planning, power-supply matching, pre-shipment inspection, export packing, and long-term reorder support. Keeping the approved project file allows later production to follow the same logo, materials, colors, electrical setup, and packing method rather than starting again.

Before releasing the shipment, complete one final package checklist.

Final release item	Status
Quotation matches approved quantity	Confirmed
Latest drawing revision approved	Confirmed
Materials and colors approved	Confirmed
Wire exits and voltage verified	Confirmed
All signs inspected	Confirmed
Lighting test completed	Confirmed
Accessories counted	Confirmed
Cartons labeled by sign ID	Confirmed
Packing photographs saved	Confirmed
Installation files issued	Confirmed
Reorder records archived	Confirmed
Shipping documents prepared	Confirmed

A complete sign package should arrive as an organized installation system, not as a collection of unidentified products. Clear quotations, controlled approvals, measurable inspections, store-specific packing, and saved production records reduce delays during the first installation and make every later reorder faster and more consistent.

How Can You Start Planning Your Store Sign Package?

A complete sign package becomes easier to quote when the store layout, sign locations, approximate sizes, logo files, preferred materials, lighting needs, installation conditions, and opening schedule are available. Even when some details are not final, photographs, floor plans, storefront elevations, and reference images can help identify missing information before production begins.

Iduoduo can review the available project files and prepare a sign-by-sign proposal covering product type, dimensions, finishes, illumination, mounting, electrical requirements, accessories, packing, and delivery. For stores with several locations, the package can also be organized around standard sign codes, approved size options, store-specific packing, and future reorder records.

Send the project information through the Iduoduo contact page to request an initial review and quotation. The first step is simply to establish what each sign needs to do, where it will be installed, and which technical details still need confirmation.
