Not every commercial sign needs to glow. In many offices, hotels, hospitals, retail interiors, schools, and architectural spaces, adding LEDs can make a sign more complicated without making it more effective. A well-made metal letter sign can rely on material, depth, shadow, contrast, and surrounding light to create a stronger impression than a bright illuminated sign. The real question is not whether lighting looks attractive. It is whether lighting solves a genuine visibility problem at the installation site.
Non-illuminated metal letters are best used in well-lit interiors, daytime storefronts, building entrances, reception walls, corporate offices, hotels, schools, hospitals, retail spaces, wayfinding systems, and architectural projects where material quality, durability, clean installation, and brand appearance matter more than nighttime illumination.
Consider two signs installed on the same day. One sits behind a hotel reception desk under carefully positioned ceiling lights. The other faces a road where vehicles pass after midnight. Both may use the same logo, size, and metal finish, yet only one genuinely needs internal lighting. Choosing correctly starts with the site, not the product catalog. The sections below explain where metal letters perform best, where they can underperform, and which details should be confirmed before production begins.
What Are Non-Illuminated Metal Letters?
Non-illuminated metal letters are individual letters, numbers, or logo elements made from stainless steel, aluminum, brass, copper, or coated metal without built-in LEDs. They remain visible through material finish, letter depth, wall contrast, natural light, and surrounding architectural lighting. Common uses include reception logos, office names, hotel branding, storefront lettering, building identification, department signs, and exterior facade signs.

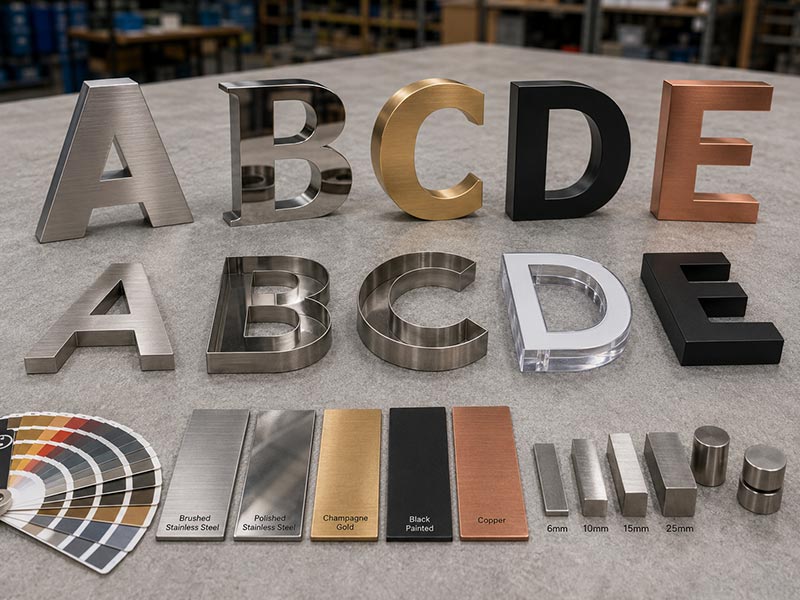

What Structures Are Available?
Non-illuminated metal letters are usually produced as flat-cut letters, fabricated letters, metal-faced letters, or raised letters mounted on spacers. The correct structure depends on letter height, stroke width, wall condition, viewing distance, required depth, and project budget.
Flat-cut letters are cut from a solid metal sheet. Common material thicknesses range from 1 mm to 6 mm. A 1–2 mm letter may suit a small interior company name, while a 3–6 mm letter provides greater rigidity for larger lettering or exterior installation.
Flat-cut letters work well when the required appearance is thin, precise, and understated. Typical uses include:
- Reception wall logos
- Office and department names
- Hotel room-area identification
- Retail interior branding
- Building numbers
- Directional wording
- Small exterior wall lettering
Fabricated letters have a metal face and formed side returns. The hollow construction creates greater depth without using a thick, heavy solid sheet. Common depths range from 20 mm to 100 mm for many commercial projects. Large facade letters may require 120 mm, 150 mm, or deeper returns, depending on letter height and viewing distance.
Fabricated letters are more suitable when the sign must:
- Create a strong shadow on the wall
- Remain visible from a longer distance
- Fill a large facade without looking too thin
- Match architectural cladding or entrance features
- Reduce weight compared with solid thick metal
Metal-faced letters use a metal front attached to acrylic, PVC, foam, or another supporting body. They can reduce weight and cost while preserving a metal appearance from the front. The backing edge remains visible from side angles, so its color and thickness should be confirmed before production.
| Structure | Common thickness or depth | Suitable letter height | Typical application |
|---|---|---|---|
| Flat-cut metal | 1–6 mm | 40–600 mm | Offices, reception walls, directories |
| Fabricated metal | 20–150+ mm | 200–1,500+ mm | Storefronts, hotels, building facades |
| Metal-faced acrylic | 5–30 mm | 100–800 mm | Retail interiors, logo walls |
| Spacer-mounted metal | 10–50 mm stand-off | 80–800 mm | Reception walls, galleries, corporate interiors |
Small details need special attention. Script lettering, narrow serifs, sharp internal corners, and isolated dots can become difficult to cut, polish, weld, or mount. As a practical starting point, visible strokes below approximately 8–10 mm should be reviewed before quotation. Larger exterior letters normally need wider minimum strokes.

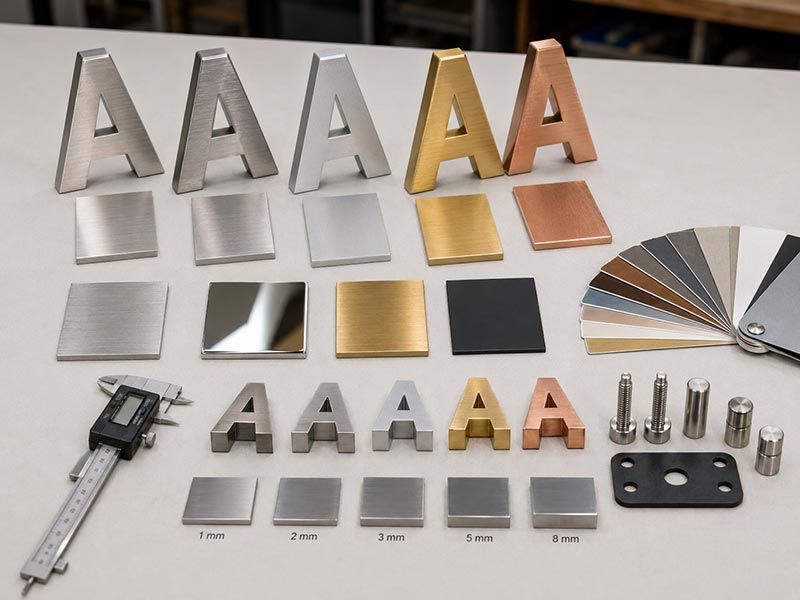

Which Metals and Finishes Work Best?
Stainless steel is the most common choice for commercial metal letters because it offers a clean appearance, good strength, precise fabrication, and several finish options. Grade 304 works well for indoor signs and many general exterior applications. Grade 316 is more suitable for coastal areas, high-salt air, swimming-pool environments, or sites exposed to more aggressive corrosion.
Aluminum weighs less than stainless steel and is often used for large letters, painted lettering, facade signs, and projects where wall load or shipping weight must be controlled. Aluminum needs proper cleaning, pretreatment, primer, and coating preparation to reduce peeling or corrosion around cut edges.
Brass creates a warm gold appearance suited to hotels, restaurants, clubs, premium retail stores, reception areas, and traditional interiors. Uncoated brass gradually darkens and may develop patina. A clear protective coating can slow the change, but the expected appearance and maintenance plan should be agreed before manufacturing.
Copper begins with a reddish-brown appearance and changes over time when exposed to air and moisture. Some architectural projects welcome the developing patina. Other projects require a protective finish to maintain a more consistent color.
| Metal | Best suited to | Main advantage | Important question |
|---|---|---|---|
| 304 stainless steel | Offices, hotels, general exterior signs | Durable and widely available | Is the site near saltwater? |
| 316 stainless steel | Coastal and high-salt environments | Better corrosion resistance | Is the higher cost justified? |
| Aluminum | Large or painted letters | Lightweight and easy to handle | Is the coating system suitable outdoors? |
| Brass | Hotels and premium interiors | Warm, high-end appearance | Is natural tarnishing acceptable? |
| Copper | Heritage and architectural projects | Distinctive natural character | Should patina be allowed or slowed? |
Brushed finishes soften reflections and usually remain easier to read under ceiling lights or daylight. The brushing direction must remain consistent across every letter. One letter with vertical grain beside another with horizontal grain will be immediately noticeable.
Mirror-polished finishes create sharper reflections. They may look attractive in a close-up sample but can reflect windows, people, furniture, vehicles, and light fixtures after installation. Polished letters should be reviewed under lighting conditions similar to the final site.
Painted or powder-coated finishes allow closer matching to brand colors. A Pantone number is helpful, but a physical coating sample provides a more reliable approval. Screen colors vary by monitor, brightness, and file format.
Gold, champagne, bronze, rose gold, and black metallic appearances may be created with plating, titanium coating, paint, or other treatments. Similar color names do not guarantee the same surface appearance. Reflectivity, color tone, exterior suitability, cleaning method, and expected service life should be confirmed.
How Should Size and Depth Be Specified?
Metal letter size should be chosen according to viewing distance, mounting height, font, stroke width, wall scale, and background contrast. Filling a large percentage of the available wall does not automatically improve readability.
A reception logo viewed from 3–5 meters may use letters between 100 mm and 300 mm high. A hotel or commercial storefront viewed from 15–30 meters may need letters between 300 mm and 800 mm high. Elevated facade signs viewed from a road or parking area may require heights of 600 mm to 1,500 mm or more.
| Installation area | Typical letter height | Typical depth | Normal viewing distance |
|---|---|---|---|
| Room or department name | 40–120 mm | 1–10 mm | 1–3 m |
| Reception wall logo | 100–400 mm | 2–50 mm | 3–8 m |
| Retail interior logo | 150–500 mm | 3–60 mm | 4–12 m |
| Storefront lettering | 250–800 mm | 20–100 mm | 10–30 m |
| Building facade name | 500–1,500+ mm | 50–200+ mm | 25–100+ m |
The ranges above are planning references rather than fixed limits. Narrow fonts, thin script logos, low contrast, high mounting positions, and fast-moving traffic normally require larger letters.
Letter depth affects both front and side visibility. A 3 mm flat-cut logo appears restrained and works well in a small office. A 30 mm fabricated letter creates a noticeable shadow without looking heavy. A 100 mm return may suit a large exterior sign but may look excessive on a reception wall.
Spacing should be approved at full scale whenever possible. Letters that look balanced on a computer screen may appear too tight or too widely spaced once enlarged. Large logos should be checked against a scaled wall elevation, including nearby doors, windows, cladding joints, ceiling lines, and furniture.
A production drawing should record:
- Overall logo width and height
- Height of each letter
- Smallest stroke width
- Gap between letters
- Material grade
- Face thickness
- Return depth
- Finish and grain direction
- Mounting-hole locations
- Spacer depth
- Installation template size

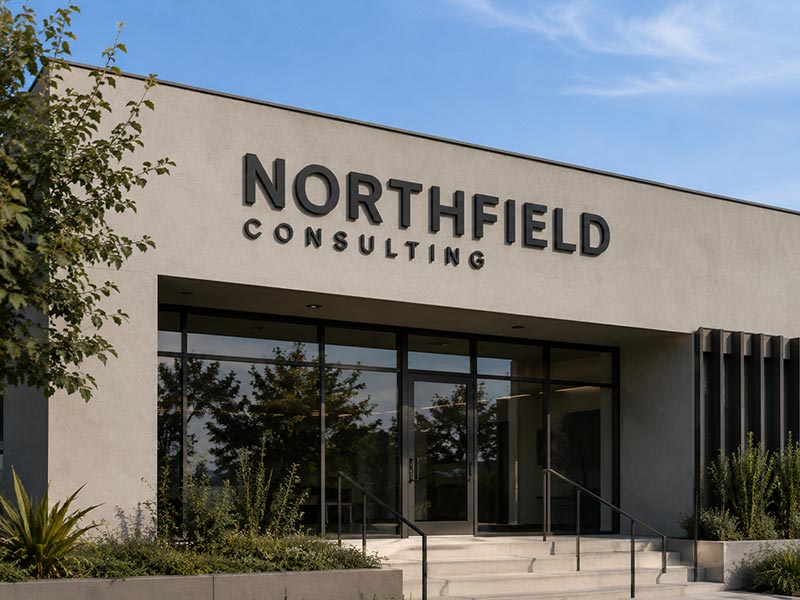

For exterior projects, wind exposure and structural loading may affect material thickness and mounting design. Large letters should not be specified only by visual preference.
How Are Metal Letters Mounted?
Stud mounting is widely used for individual metal letters. Threaded studs are welded or fixed to the rear of each letter, and corresponding holes are drilled into the wall. A full-size installation template helps transfer the correct hole positions and spacing.
Stud lengths often range from approximately 30 mm to 80 mm for common interior projects, although the final length depends on wall construction, anchor type, letter weight, and stand-off requirement. Large exterior letters may need longer studs, expansion anchors, chemical anchors, or custom steel brackets.
Spacer mounting holds the letters away from the wall and creates a natural shadow. A stand-off of 10–30 mm works for many reception logos. Greater spacing may be needed where the wall is uneven or where a stronger floating effect is required.
Direct adhesive mounting may be acceptable for small, lightweight interior letters installed on smooth, stable surfaces. Adhesive-only fixing should not be assumed suitable for heavy letters, rough stone, dusty plaster, damp walls, exterior facades, or overhead installation.
Back panels, rails, concealed frames, and mounting bars may be more practical when:
- The wall cannot accept many individual holes
- The logo contains dozens of small parts
- Fast installation is required
- The wall surface is uneven
- The complete sign may need to be removed later
- Several locations need the same pre-aligned assembly
| Wall surface | Common fixing approach | Main concern |
|---|---|---|
| Concrete | Studs with mechanical or chemical anchors | Drilling depth and hidden services |
| Brick or masonry | Anchors placed in solid material | Weak mortar joints |
| Drywall | Anchors or backing reinforcement | Limited load capacity |
| Stone | Stud mounting with careful drilling | Cracking and visible damage |
| Glass | Bonded letters or pre-mounted panel | Adhesive compatibility |
| Metal cladding | Structural fixing behind the panel | Thin cladding cannot carry heavy loads |
| Timber slats | Hidden frame or long studs | Uneven surface and alignment |
The mounting method must be agreed before production. Letter backs, stud positions, packaging, templates, and accessories are all prepared around the approved fixing method. Changing the installation plan after manufacturing may require rework.
What Should Be Confirmed Before Production?
A reliable quotation needs more than a logo and overall width. Missing installation details often cause the largest delays because material thickness, structure, fixing method, packaging, and labor cannot be calculated accurately.
The project information should include:
- Vector logo file in AI, EPS, PDF, SVG, or CAD format
- Overall width and height
- Quantity
- Indoor or outdoor location
- Wall material and wall thickness
- Installation height
- Main viewing distance
- Metal type and grade
- Flat-cut or fabricated structure
- Material thickness or return depth
- Surface finish
- Paint or Pantone reference
- Brushing direction
- Direct or spacer mounting
- Stud length and anchor requirements
- Installation template requirement
- Delivery country
- Packaging requirements
- Required installation date
A clear wall photograph should show the complete installation area rather than only a close-up of the surface. At least one known measurement should be marked on the image. Door width, wall width, tile size, or ceiling height can provide a useful scale.
For multi-location projects, each set should be identified by store number, elevation, room, building, or installation zone. Packaging labels should match the sign schedule and installation drawings. Small logo parts, punctuation marks, templates, studs, spacers, and anchors should be packed and labeled together.
Before mass production, the approval drawing should lock the following details:
| Approval item | Why it matters |
|---|---|
| Overall dimensions | Prevents incorrect wall coverage |
| Minimum stroke width | Confirms manufacturability |
| Metal grade | Controls appearance and corrosion resistance |
| Finish sample | Reduces color and reflection disputes |
| Return depth | Controls weight and visual proportion |
| Stud layout | Prevents installation conflicts |
| Wall type | Determines suitable anchors |
| Grain direction | Keeps brushed letters visually consistent |
| Packaging labels | Prevents parts from being mixed |
| Reorder reference | Supports consistent future production |
Once the drawing, material, finish, size, mounting details, quantity, and payment are confirmed, production of non-illuminated signs normally takes around 7–10 days at iduoduo. Larger quantities, special coatings, complex welded shapes, large wooden-crate packaging, or revised drawings may require additional time.
Where Do Metal Letters Work Best Indoors?
Indoor metal letters work best in reception areas, offices, headquarters, hotel lobbies, retail stores, schools, hospitals, restaurants, galleries, and public buildings with reliable ambient lighting. They are especially effective where the sign is viewed from 1–15 meters away and the project needs durable materials, precise brand colors, clean wall mounting, and an architectural appearance without visible wiring or electrical maintenance.

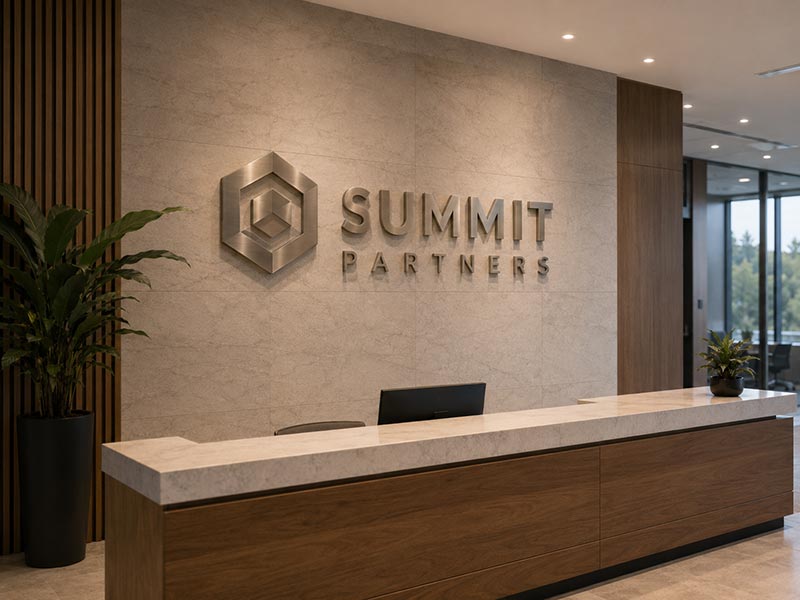

Are Metal Letters Right for Reception Walls?
Reception walls are one of the most suitable locations for non-illuminated metal letters. Visitors usually approach the sign from a controlled direction, the viewing distance is moderate, and ceiling lights or wall washers already provide enough illumination.
A reception logo normally serves two purposes. It confirms the company identity and helps the entrance feel complete. The letters should therefore coordinate with the wall, furniture, ceiling lights, and available space rather than compete with them.
Typical planning ranges include:
| Reception condition | Common planning range |
|---|---|
| Viewing distance | 3–8 m |
| Letter height | 100–400 mm |
| Flat-cut thickness | 2–5 mm |
| Fabricated depth | 20–50 mm |
| Wall stand-off | 10–30 mm |
| Logo width | 800–3,000 mm |
These ranges are not fixed production limits. A narrow script logo may need to be larger than a bold sans-serif logo. A logo installed behind a wide reception desk may also need greater height because visitors cannot approach the wall closely.
Brushed stainless steel works well with painted walls, stone, timber veneer, dark laminate, and concrete. Champagne or brass-colored finishes often suit hotels, real estate offices, beauty clinics, and premium service spaces. Black or painted metal can provide stronger contrast on light walls.
Background contrast should be checked before production. Silver letters may disappear on light gray stone. Polished gold may reflect ceiling lights and appear uneven from different angles. Black letters may lose visibility on smoked glass or dark timber.
A physical finish sample is more reliable than a screen rendering. The sample should be viewed against the actual wall material under warm and cool lighting whenever possible.
Spacer mounting is often selected for reception walls because it creates a natural shadow. A 10–20 mm gap gives a subtle floating effect. A 25–30 mm gap creates a stronger shadow but may collect more dust and make small letters look heavy.
Installation details should be confirmed before the wall is completed:
- Wall material and thickness
- Hidden steel, timber, or plywood reinforcement
- Location of electrical cables and pipes
- Stud positions
- Spacer length
- Drilling restrictions
- Template size
- Access behind the wall
- Final reception desk position
Glass partitions, timber slats, marble, acoustic panels, and hollow drywall require different mounting methods. Heavy fabricated letters should not be attached to weak decorative panels without structural support.
How Do Metal Letters Work in Offices and Headquarters?
Offices and headquarters use metal letters for entrance logos, meeting-room names, department identification, executive areas, brand-history walls, elevator lobbies, and internal directional signs. Most office spaces have stable lighting during working hours, making internal LEDs unnecessary for many locations.
Metal letters are often chosen because they communicate permanence. Printed vinyl may be suitable for temporary information, while a dimensional metal logo appears more appropriate for a long-term corporate entrance or boardroom.
Different office locations need different specifications.
| Office location | Normal viewing distance | Suggested letter height | Common structure |
|---|---|---|---|
| Door or room name | 1–2 m | 30–80 mm | Flat-cut metal |
| Department wall | 2–4 m | 60–150 mm | Flat-cut or metal-faced |
| Reception logo | 3–8 m | 100–400 mm | Flat-cut or fabricated |
| Elevator lobby | 3–10 m | 100–300 mm | Flat-cut or raised metal |
| Large atrium wall | 8–20 m | 300–800 mm | Fabricated metal |
Small office lettering needs careful stroke control. Thin fonts may look refined on a computer screen but become difficult to cut, polish, paint, and mount. A stroke below approximately 6–8 mm should be reviewed closely, especially when the logo includes script lettering, narrow serifs, or small punctuation.
Meeting-room and department signs often need future replacement. Individual letters may be less practical when room names change frequently. A metal panel with replaceable copy, magnetic inserts, or applied text may offer easier updates.
Headquarters projects usually require stronger production control because the logo is often repeated across several floors or buildings. The following details should remain consistent:
- Metal grade
- Finish sample
- Brushing direction
- Paint color
- Letter thickness
- Return depth
- Spacing
- Mounting-hole pattern
- Stand-off distance
- Installation height
Brushed grain should run in the same direction across every letter. Mixed grain directions become noticeable under office lighting, particularly on wide logos.
Open-plan offices may have strong reflections from windows and glass walls. Mirror-polished letters can reflect desks, people, screens, and ceiling fixtures. Satin or brushed finishes usually create a calmer appearance and remain easier to read.
For multi-floor projects, each sign should be labeled by building, floor, room, or elevation. Installation templates and hardware should be packed with the corresponding sign. Clear labels reduce sorting time and lower the risk of installing the wrong logo on the wrong floor.
Which Metal Letters Suit Hotels and Retail Stores?
Hotels and retail stores often use metal letters in areas where visitors view the sign at close or medium range. Material quality, finish consistency, edge treatment, and alignment become more noticeable than they would be on a distant facade.
Hotels commonly install metal letters at:
- Reception desks
- Lobby feature walls
- Restaurant entrances
- Spa entrances
- Conference areas
- Elevator lobbies
- Concierge desks
- Room corridors
- Ballroom entrances
- Interior wayfinding points
Brass, bronze, champagne, brushed stainless steel, and dark coated metal are frequent choices because they coordinate with stone, timber, glass, and warm interior lighting.
Uncoated brass naturally changes color. Fingerprints, cleaning chemicals, moisture, and air exposure can darken the surface. A hotel expecting a bright and uniform gold appearance should approve a protective coating and maintenance method before production.
Retail stores use metal letters for wall logos, counter branding, product-category names, fitting-room signs, mall storefront lettering, and display-zone identification. A store inside a shopping center may not need internal lighting because the mall provides consistent ambient light during opening hours.
The choice between flat-cut and fabricated letters depends largely on wall scale and viewing distance.
- Flat-cut letters suit smaller wall logos and category names.
- Fabricated letters suit wide storefronts and large feature walls.
- Metal-faced acrylic can reduce weight on temporary display systems.
- Spacer-mounted letters create depth without adding an electrical system.
- Painted aluminum works well when an exact brand color matters more than a natural metal finish.
Maintenance should influence the finish choice. Mirror metal shows fingerprints and cleaning marks. Deep spacer-mounted letters collect more dust. Narrow gaps around small logo elements can be difficult for housekeeping teams to reach.
A practical hotel or retail specification should identify:
- Expected cleaning frequency
- Approved cleaning products
- Whether fingerprints are acceptable
- Whether natural patina is acceptable
- Required color consistency
- Exposure to steam or moisture
- Contact with cosmetics, food, or cleaning chemicals
- Whether the sign may be moved during future renovations
Retail walls often change more frequently than office reception walls. A mounting rail or concealed panel may reduce wall damage when a tenant changes branding. Direct stud mounting remains suitable for long-term locations where replacement is unlikely.
Are Metal Letters Suitable for Schools and Hospitals?
Schools and hospitals use non-illuminated metal letters for reception logos, building names, department identification, campus entrances, donor walls, clinic names, and selected wayfinding locations. Durability, readability, cleaning, safe edges, and repeat-order consistency matter more than decorative complexity.
School projects may include several buildings, floors, and activity areas. Metal letters work well for main entrance names, reception logos, library names, auditorium signs, department walls, and permanent campus identification.
Small children and crowded corridors create additional safety concerns. Sharp corners, projecting components, and weak adhesive mounting should be avoided in reachable areas. Letter edges should be smooth, and fixing points should remain secure under normal contact.
Hospitals and clinics need clear visual communication. Decorative fonts can reduce readability, especially for elderly visitors, people with limited vision, or anyone moving through an unfamiliar building under stress.
For department names and directional information, useful planning points include:
| Sign use | Common viewing distance | Practical priority |
|---|---|---|
| Reception logo | 3–8 m | Brand recognition |
| Department name | 2–6 m | Fast identification |
| Corridor destination | 3–10 m | High contrast |
| Building entrance | 10–30 m | Larger letter size |
| Donor or recognition wall | 0.5–2 m | Fine surface quality |
Metal letters alone do not automatically satisfy accessibility requirements. Room signs, permanent space identification, tactile characters, Braille, mounting height, and contrast may be governed by local accessibility standards. Decorative metal logos and compliant room signs should be specified separately.
Cleaning requirements also matter in medical environments. Brushed stainless steel and coated aluminum are often easier to maintain than highly textured or heavily recessed finishes. Cleaning chemicals should be checked against paint, plating, clear coatings, and adhesives.
Large school or hospital projects should use a sign schedule containing:
- Building number
- Floor
- Room or department
- Sign wording
- Dimensions
- Material
- Finish
- Mounting method
- Packaging number
- Installation location
Each carton should match the sign schedule. Small parts, punctuation marks, studs, spacers, and templates should remain grouped with the correct sign. Accurate labeling becomes especially important when one shipment contains dozens or hundreds of items.
Future replacements should also be considered. Retaining approved drawings, finish samples, dimensions, spacing, and mounting records makes it easier to reproduce one damaged letter or add a new department sign later.
What Indoor Details Should Be Confirmed Before Ordering?
An indoor metal-letter quotation should be based on the real installation area rather than the logo file alone. Wall construction, viewing distance, lighting, finish, and mounting access directly affect the final result.
The following information should be prepared:
- Vector logo or text file
- Required overall dimensions
- Quantity
- Wall width and height
- Clear wall photograph
- Main viewing distance
- Installation height
- Wall material
- Preferred metal
- Preferred finish
- Letter thickness or depth
- Direct or spacer mounting
- Required template
- Installation deadline
- Delivery country
A wall photograph should include doors, windows, furniture, ceiling lines, and nearby architectural elements. One known measurement should be marked on the image so the proposed logo can be scaled more accurately.
Lighting should be reviewed at the same time as the metal finish. Warm 2700–3000K lighting can make silver metal appear warmer and brass appear richer. Neutral 3500–4000K lighting usually shows finishes more accurately. Strong spotlights may create glare on polished surfaces, while soft wall lighting works well with brushed metal.
The following table can help narrow the specification:
| Project condition | Recommended direction |
|---|---|
| Light wall with strong ambient light | Dark coated or brushed metal |
| Dark wall | Brushed stainless, brass, or light paint |
| Small logo viewed closely | Flat-cut letters |
| Large feature wall | Fabricated letters |
| Uneven stone or timber slats | Spacers or concealed frame |
| Frequent branding changes | Panel or mounting rail |
| High-touch public area | Smooth, cleanable finish |
| Premium hotel interior | Brass, champagne, bronze, or satin metal |
| Multi-location office project | Standard drawing and labeled packaging |
Before production begins, the approval drawing should show dimensions, material, finish, grain direction, depth, spacing, stud positions, and stand-off distance. Confirming those details early prevents common problems such as weak contrast, excessive depth, drilling conflicts, mismatched finishes, and difficult installation.
Where Do Metal Letters Work Best Outdoors?
Outdoor metal letters work best on daytime storefronts, commercial facades, hotel entrances, office buildings, schools, hospitals, business parks, monuments, campuses, and directional signs where letter size, contrast, metal finish, and surrounding light provide enough visibility. Successful outdoor use depends on viewing distance, climate, wall structure, mounting strength, drainage, corrosion resistance, and nighttime operating needs.
Are Metal Letters Suitable for Storefronts?
Non-illuminated metal letters are a strong storefront choice when the business operates mainly during daylight, the street has reliable public lighting, or the building already uses exterior spotlights. Clinics, professional offices, furniture stores, galleries, schools, showrooms, boutiques, and daytime service businesses often gain little from adding internal LEDs.
A storefront sign should be planned from the normal approach route. A close photograph taken directly in front of the wall does not show how the sign will perform from a pavement, parking area, road, or shopping-center entrance.
The first review should include:
- Main viewing distance
- Direction of pedestrian or vehicle approach
- Mounting height
- Available facade width
- Background color and texture
- Nearby signs and visual competition
- Daytime and evening light
- Canopies, trees, columns, and parked vehicles
- Business operating hours
- Landlord or local sign restrictions
Typical storefront planning ranges include:
| Storefront condition | Common planning range |
|---|---|
| Pedestrian viewing distance | 5–15 m |
| Parking-area viewing distance | 15–40 m |
| Letter height | 250–800 mm |
| Fabricated letter depth | 30–100 mm |
| Flat-cut material thickness | 3–6 mm |
| Stand-off from wall | 15–50 mm |
| Installation height | 2.5–8 m |
The ranges are not fixed limits. Narrow scripts, low-contrast finishes, high mounting positions, and fast vehicle traffic normally require larger letters and wider strokes.
A 300 mm-high bold letter may be readable across a narrow pavement. The same height may be too small on a facade viewed from a 30-meter parking area. Letter width and stroke thickness matter as much as overall height. A thin serif font often loses visibility sooner than a bold sans-serif font.
Background contrast should be checked under real daylight. Common problems include:
- Brushed silver letters disappearing against light gray cladding
- Black letters losing contrast on dark glass
- Gold letters blending into warm timber
- Polished letters reflecting the sky and appearing pale
- White letters becoming difficult to see on sunlit stone
- Narrow letters becoming lost between facade joints
A physical material sample should be held against the facade where possible. A digital rendering cannot accurately show reflection, surface grain, shadow, or the effect of direct sunlight.
Storefront letters may still be visible after dark without internal LEDs when architectural lighting covers the elevation. External spotlights can work well, but the light position must be planned. A light mounted too close above the sign may create strong downward shadows. A fixture placed at a shallow angle may produce glare on polished metal. Several wide-beam fixtures usually provide more even coverage than one narrow spotlight.
The business schedule should guide the final decision. A medical clinic closing at 5 p.m. may not need internal lighting. A restaurant open until midnight probably does. A showroom operating mainly by appointment may rely on facade lighting, while a roadside shop needs stronger evening recognition.
The following comparison helps with early selection:
| Storefront situation | Non-illuminated metal letters | Illuminated letters |
|---|---|---|
| Daytime business | Usually suitable | Often unnecessary |
| Strong exterior spotlights | Suitable | Optional |
| Shopping-center interior frontage | Often suitable | Depends on landlord rules |
| Dark street with weak ambient light | Limited visibility | Usually better |
| Business open late at night | May underperform | Usually better |
| No electrical access near the sign | Easier to install | More difficult |
| Heritage facade | Often preferred | May be restricted |
| Clean architectural appearance required | Strong option | Structure may look heavier |
Mounting strength cannot be judged from the visible wall surface alone. Aluminum composite panels, glass, tiles, stone veneer, timber cladding, brick, and concrete each require different fixing methods. Thin facade panels may need support from the structure behind them rather than direct fixing to the decorative surface.
Before production, the contractor should confirm whether the wall contains steel framing, concrete, masonry, insulation, waterproof membranes, or hidden services. Drilling through a completed waterproof facade without an approved sealing method can create leaks even when the letters themselves are correctly made.
How Do Metal Letters Perform on Building Facades?
Fabricated metal letters are widely used on hotels, office towers, hospitals, schools, factories, warehouses, apartment buildings, shopping centers, and mixed-use developments. Their three-dimensional form creates visible depth and shadow, allowing the sign to read as part of the architecture rather than as a flat graphic attached to a wall.
Large facade letters are usually fabricated rather than cut from thick solid metal. Fabrication creates a face and side return while keeping the structure lighter. A solid metal letter 1,000 mm high would be unnecessarily heavy, while a hollow fabricated letter can achieve greater depth with less material weight.
Typical facade ranges include:
| Facade application | Letter height | Common depth | Approximate viewing distance |
|---|---|---|---|
| Building entrance | 300–700 mm | 30–80 mm | 10–30 m |
| Low-rise commercial facade | 500–1,000 mm | 50–120 mm | 20–60 m |
| Hotel or office elevation | 700–1,500 mm | 80–180 mm | 40–120 m |
| Industrial building name | 800–2,000+ mm | 100–250+ mm | 50–200+ m |
Final dimensions must respond to the actual elevation. A 1,000 mm letter may look large on a drawing but appear small on a ten-story wall. Scaled elevation drawings should show the entire building rather than only the logo area.
Viewing speed also matters. Pedestrians can pause and read smaller lettering. Drivers have only a few seconds. Signs facing a road need simpler fonts, wider strokes, stronger contrast, and greater size than signs facing a pedestrian plaza.
An early visibility review should answer:
- At what distance does the sign first become visible?
- How long does a person have to read it?
- Is the sign viewed straight on or from an angle?
- Does the facade place the letters in shadow?
- Are trees, poles, parked vehicles, or nearby buildings blocking the view?
- Will the sign be read by pedestrians, drivers, or both?
- Does the building need recognition during the day, at night, or both?
Wind loading becomes important as letter size and mounting height increase. Large fabricated letters act as three-dimensional objects exposed to wind pressure and suction. The number, diameter, and position of studs or brackets should reflect letter size, weight, wall type, and local conditions.
A production drawing should show:
- Overall sign size
- Individual letter dimensions
- Face material and thickness
- Return material and depth
- Internal reinforcement where needed
- Number and position of studs
- Bracket details
- Anchor type
- Wall penetration points
- Required stand-off
- Drainage openings
- Installation template or pattern
The decorative cladding should not automatically be treated as the structural wall. Aluminum composite panels, rainscreen systems, insulation boards, and thin metal sheets may not carry large letters safely. Fixings may need to pass through the outer panel and connect to concrete, masonry, steel, or structural framing behind it.
Water management also needs attention. Outdoor letters face wind-driven rain, condensation, dust, and temperature changes. Fabricated letters should avoid enclosed areas where water can remain trapped. Drainage openings may be required at low points, especially on deep letters or horizontal logo elements.
Wall penetrations should be sealed with materials compatible with the facade. An unsuitable sealant can stain stone, fail under ultraviolet exposure, or react with metal. The contractor should select sealing materials according to the local wall system and building requirements.
Thermal expansion matters on long logos and large metal panels. Metal expands and contracts as temperature changes. Rigid fixing across a long span without movement allowance may lead to distortion, loosened fasteners, cracked coatings, or stress around mounting points.
For multi-letter facade signs, installation sequence should be planned before shipment. A large logo may need several templates or a rigid installation pattern because one full-size paper template can be difficult to handle in wind or at height. Numbered letters, marked lifting points, and grouped hardware can save considerable installation time.
Can Metal Letters Be Used for Outdoor Wayfinding?
Metal letters work well for building names, entrance identifiers, campus directions, parking-zone labels, street numbers, monument signs, facility names, and permanent outdoor wayfinding. Schools, hospitals, industrial parks, hotels, residential developments, business campuses, and public buildings often use metal lettering across several locations.
Wayfinding signs must communicate faster than decorative brand signs. A logo can use a distinctive font, but directional information needs simpler letterforms, clear spacing, and strong contrast.
Suitable applications include:
- Main building names
- Entrance and exit identification
- Parking-area names
- Loading-bay numbers
- Campus building codes
- Hospital department entrances
- School building names
- Hotel facility directions
- Industrial zone identification
- Street and property numbers
Individual metal letters are practical when the message is short and permanent. A long directional message with several arrows and destinations may work better as applied metal copy on a panel. Panels keep lines aligned, reduce drilling, and make installation faster.
The right construction depends on how the information will be viewed.
| Wayfinding use | Preferred format | Main reason |
|---|---|---|
| Building name | Individual fabricated letters | Strong architectural presence |
| Entrance number | Flat-cut or fabricated metal | Clear and durable |
| Short directional word | Applied metal letters | Clean appearance |
| Multiple destinations | Metal panel with applied text | Better alignment |
| Parking-zone label | Painted aluminum letters or panel | Lightweight and visible |
| Campus identification | Standardized letters and panels | Easier repeat ordering |
Readability should be checked at the distance where a decision must be made. A driver needs to read a parking-zone sign before reaching the turn. A visitor walking through a campus can read smaller information from a closer position.
Letter size should increase when:
- The sign is mounted high
- The approach speed is faster
- The background is visually busy
- The font has narrow strokes
- Lighting is uneven
- The sign is viewed from an angle
- The wording is long
- Trees or landscaping partly block the view
Contrast is especially important for wayfinding. Brushed silver letters on pale concrete may look refined but provide weak recognition. Dark coated metal, painted aluminum, or a contrasting back panel may work better.
Accessibility rules may apply to permanent room signs, directional systems, and public facilities. Decorative building letters do not automatically meet tactile, Braille, contrast, height, or character requirements. Local architects, sign contractors, and accessibility consultants should verify applicable standards.
Large campuses need organized production records. Each sign should have a unique reference tied to its building, zone, elevation, or installation point. Packaging should match the site schedule.
A practical identification system may include:
- Project name
- Building code
- Floor or exterior zone
- Sign number
- Wording
- Quantity
- Package number
- Template number
- Hardware set
- Installation drawing reference
Without clear labels, installers may open several cartons to locate one sign. Small punctuation marks, arrows, numbers, and mounting accessories are easily mixed when dozens of signs arrive together.
Repeat-order consistency is another major concern. A hospital, school, or property development may add a new building years later. Production records should retain:
- Approved font file
- Letter dimensions
- Spacing
- Metal grade
- Paint or finish reference
- Grain direction
- Letter depth
- Mounting-hole layout
- Panel thickness
- Packaging label format
A photograph alone is not enough for an accurate future reorder. Surface tone, letter depth, and spacing can vary noticeably when original specifications are unavailable.
Which Metals and Finishes Suit Outdoor Conditions?
Outdoor material selection should be based on climate, pollution, salt exposure, ultraviolet light, rainfall, temperature range, cleaning methods, and expected appearance over time. “Outdoor use” is not a complete specification because a sheltered city entrance and a beachfront hotel face very different conditions.
Stainless steel is widely used for exterior letters. Grade 304 suits many general environments, while grade 316 provides better resistance in coastal, marine, high-salt, and some chemically aggressive areas.
A coastal project should not be assessed only by the distance from the water. Wind direction, airborne salt, humidity, cleaning frequency, and shelter can affect exposure. Salt deposits may collect even several kilometers inland in some regions.
Aluminum is useful for large letters because it weighs less than stainless steel. It also accepts painted and powder-coated finishes well when surface preparation is correct. Cut edges, welds, fixing points, and damaged coating areas need careful treatment.
Brass and copper are often chosen for hotels, monuments, heritage properties, restaurants, and luxury developments. Both metals change appearance outdoors unless protected and maintained. Some projects value natural patina; others expect the original color to remain bright.
| Environment | Preferred direction | Main concern |
|---|---|---|
| General urban exterior | 304 stainless steel or coated aluminum | Pollution and cleaning |
| Coastal or high-salt area | 316 stainless steel | Salt deposits and fastener compatibility |
| Large high-level facade | Aluminum or fabricated stainless steel | Weight and wind loading |
| Heritage building | Brass, copper, bronze tone | Patina and maintenance |
| Industrial area | Coated metal or suitable stainless steel | Chemicals and airborne contamination |
| Strong ultraviolet exposure | Exterior-grade coating | Fading and coating breakdown |
| High rainfall | Sealed fixings and drainage | Water collection |
| Freeze-thaw climate | Durable coatings and sealed penetrations | Moisture expansion |
Fasteners should be compatible with the letter material. Contact between different metals in the presence of moisture can increase galvanic corrosion. Stainless letters with unsuitable steel screws, for example, may develop rust staining around fixing points even when the letter face remains unaffected.
Surface finish also affects outdoor appearance.
Brushed stainless steel reduces glare and hides minor marks better than a mirror finish. Grain direction should be consistent, and runoff paths should be considered because dirt can form visible streaks.
Mirror-polished stainless steel reflects the sky, nearby buildings, traffic, and landscaping. The sign may appear much lighter or darker depending on the viewing angle. Large polished letters can also highlight dents and surface distortion.
Painted aluminum or stainless steel supports brand-color matching. The coating system should be rated for exterior use and suitable for local ultraviolet exposure. A Pantone reference identifies the target color, but an approved physical sample remains important.
Dark colors absorb more heat in direct sunlight. Long, thin, dark-painted letters may experience greater temperature change than light-colored letters. Material thickness, internal reinforcement, fixing positions, and movement allowance should reflect the final size and exposure.
Brass, copper, gold-tone, champagne, and bronze finishes need written appearance expectations. The project team should confirm whether natural color change is acceptable and how often the surface will be cleaned or maintained.
Outdoor letters should be inspected periodically for:
- Loose fixings
- Damaged paint
- Rust staining around fasteners
- Water trapped inside fabricated parts
- Cracked sealant
- Dirt buildup
- Salt deposits
- Scratches exposing bare metal
- Movement caused by wind
- Impact damage
Maintenance frequency depends on the environment. A sheltered inland sign may need only routine cleaning. A coastal sign may need fresh-water washing several times a year to remove salt deposits. Cleaning products should be tested on a small hidden area before widespread use.
What Should Be Confirmed Before Outdoor Production?
An accurate outdoor metal-letter quotation requires site information, structural details, finish requirements, and installation planning. A logo file and overall width are not enough for a facade project.
The following details should be prepared:
- Vector artwork
- Overall logo width and height
- Individual letter height
- Quantity
- Installation address
- Indoor or outdoor confirmation
- Main viewing distance
- Mounting height
- Wall material
- Wall section or construction detail
- Climate and coastal exposure
- Preferred metal grade
- Face thickness
- Return depth
- Surface finish
- Paint or color reference
- Direct or spacer mounting
- Stud or bracket requirements
- Anchor type
- Installation template requirement
- External lighting conditions
- Packaging method
- Access equipment
- Required installation date
- Delivery country
Wall photographs should show the entire facade, not only the empty installation area. Useful images include:
- Straight front elevation
- Left and right approach views
- Daytime view
- Evening view
- Close-up of the wall material
- Interior or rear access where available
- Nearby doors, windows, joints, and fixtures
- A marked measurement for scale
A facade drawing is especially useful for large projects. It should show the sign position, building dimensions, cladding joints, structural supports, and any restricted drilling zones.
Before production begins, the approval drawing should record:
| Approval item | Why it matters |
|---|---|
| Overall sign dimensions | Confirms facade coverage |
| Individual letter size | Controls readability |
| Minimum stroke width | Confirms production feasibility |
| Metal grade | Matches the environment |
| Face and return thickness | Controls strength and weight |
| Return depth | Affects proportion and wind exposure |
| Finish sample | Reduces color and reflection disputes |
| Grain direction | Keeps appearance consistent |
| Stud or bracket layout | Supports safe installation |
| Anchor requirements | Matches the wall structure |
| Drainage position | Reduces trapped water |
| Template format | Improves installation accuracy |
| Packaging labels | Prevents site confusion |
Packaging must protect faces, corners, side returns, welded joints, and finishes during international transport. Individual letters should not rub against one another inside the carton or crate.
Smaller letters can be packed in corrugated cartons with shaped foam, EPE, separators, and corner protection. Large fabricated letters may need reinforced cartons or wooden crates. Hardware, studs, spacers, templates, and installation drawings should be placed in clearly marked accessory packages.
Large projects should use item labels linked to the sign schedule. Each letter or logo set can be marked by building, elevation, store, zone, or installation sequence. Packaging photographs taken before shipment help confirm the location of accessories and the order in which crates should be opened.
Production time for non-illuminated signs at iduoduo normally takes around 7–10 days after the artwork, size, material, finish, mounting method, quantity, and payment are confirmed. Special metal grades, large fabricated structures, complex welding, custom coatings, high quantities, and wooden-crate packaging may require additional time.

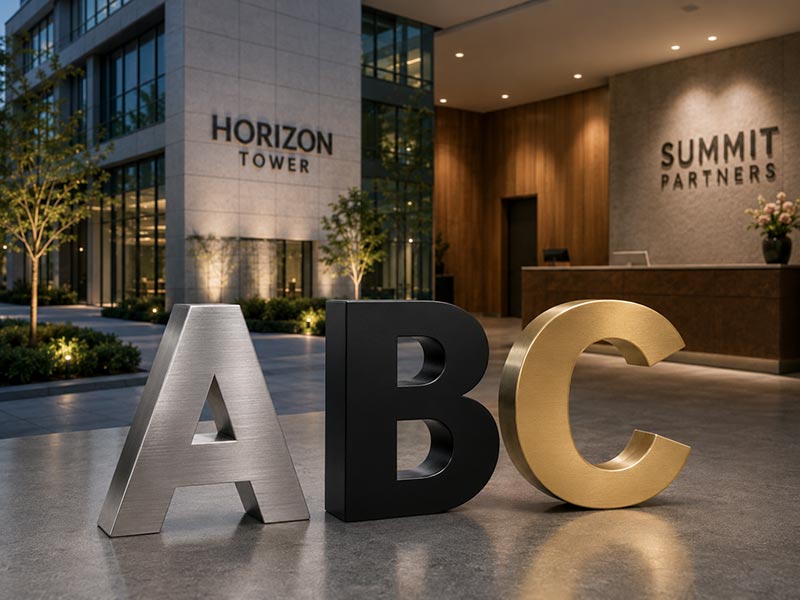

Which Projects Benefit Most from Metal Letters?
Non-illuminated metal letters benefit projects where daytime visibility, material quality, architectural integration, simple maintenance, and long-term consistency matter more than nighttime brightness. Offices, hotels, schools, hospitals, daytime retail stores, corporate campuses, property developments, heritage buildings, and multi-location sign programs often gain the most value because metal letters provide a permanent appearance without wiring, power supplies, or internal lighting components.
Are Metal Letters Better for Daytime Businesses?
Metal letters are especially suitable for businesses that receive most visitors during daylight or operate inside well-lit commercial buildings. Offices, clinics, schools, galleries, furniture showrooms, real estate offices, factories, banks, design studios, and professional service firms often do not need internally illuminated signs.
The first question should be practical: when must the sign be visible?
A medical clinic open from 8:00 a.m. to 5:00 p.m. may receive nearly all visitors while natural light or building lighting is available. Adding LEDs may increase production, electrical, installation, and maintenance costs without improving daily wayfinding. A restaurant open until midnight has a very different visibility requirement.
A useful review includes:
- Opening and closing times
- Seasonal daylight hours
- Main visitor arrival times
- Indoor or outdoor installation
- Available ceiling, facade, or street lighting
- Distance from the main entrance
- Whether visitors already know the location
- Whether the sign must attract passing traffic
- Whether nighttime brand exposure affects revenue
The table below gives an early indication.
| Project type | Typical operating pattern | Non-illuminated metal letters | Main reason |
|---|---|---|---|
| Corporate office | Weekdays, daytime | Strong choice | Stable indoor lighting |
| Dental or medical clinic | Mostly daytime | Strong choice | Clear identification without wiring |
| School or university building | Daytime and early evening | Strong choice | Durable and easy to standardize |
| Furniture showroom | Daytime retail | Strong choice | Large wall space and material-focused design |
| Accounting or law firm | Office hours | Strong choice | Professional, permanent appearance |
| Restaurant open late | Day and night | Conditional | Nighttime visibility may be important |
| Convenience store | Long or 24-hour operation | Usually limited | Illumination often affects recognition |
| Shopping-center store | Mall opening hours | Often suitable | Mall lighting may already be sufficient |
Daytime visibility depends on more than opening hours. A storefront beneath a deep canopy may remain dark at noon. A reception wall beside a large window may receive strong glare. A sign facing west may change appearance during the afternoon as reflections move across the metal.
The sign should therefore be reviewed at the times when most visitors arrive. A morning photograph, afternoon photograph, and evening photograph often reveal more than a polished rendering.
Good daytime performance usually requires:
- Clear contrast between the letters and wall
- Sufficient letter height for the viewing distance
- A font with usable stroke width
- A finish that does not disappear in reflection
- A mounting position outside heavy shadow
- Enough open space around the logo
A common error is selecting silver brushed letters for a pale gray facade because both materials look modern in separate samples. Once installed, the letter edges and faces may blend into the wall. Dark coated metal, polished accents, a contrasting panel, or greater stand-off may solve the issue.
Non-illuminated does not mean unlit. Existing wall washers, entrance lights, mall lighting, landscape lights, or street lighting may provide enough evening visibility. External lighting should be reviewed as part of the site rather than added after installation.
Do Premium Spaces Gain More from Metal Finishes?
Hotels, corporate headquarters, luxury retail stores, private clinics, real estate showrooms, restaurants, clubs, galleries, and high-end residential developments often benefit from metal letters because the material itself contributes to the interior or architectural character.
A premium sign is not created by choosing the most reflective or expensive finish. Proportion, edge quality, spacing, grain direction, depth, mounting, and coordination with surrounding materials often have a greater effect.
Common finish directions include:
| Space | Common finish direction | Visual effect | Detail to confirm |
|---|---|---|---|
| Corporate headquarters | Brushed stainless steel | Controlled and modern | Grain direction |
| Hotel lobby | Champagne, brass, or bronze tone | Warm and refined | Lighting color and coating |
| Luxury retail | Polished or satin metal | Sharp brand presence | Reflections and fingerprints |
| Private clinic | Brushed stainless or coated white | Clean and professional | Cleaning chemicals |
| Restaurant | Brass, copper, or dark coated metal | Warm and atmospheric | Grease, steam, and maintenance |
| Real estate showroom | Gold tone or black metal | Strong visual contrast | Short-term relocation needs |
| Gallery or museum | Satin metal or dark finish | Quiet architectural appearance | Wall protection and removability |
Brushed metal works well in many premium interiors because it softens reflections. The grain should run consistently across all letters. A logo with mixed horizontal and vertical grain can look poorly assembled even when the metal grade is correct.
Mirror-polished metal can create a dramatic effect, but it reflects people, windows, lighting fixtures, furniture, vehicles, and nearby colors. A polished letter may appear silver from one position and dark from another. Large polished faces also reveal dents or uneven fabrication more easily.
Brass and copper need clear appearance expectations. Natural brass may darken. Copper may develop brown, black, or green patina depending on exposure. Some hospitality and heritage projects welcome gradual color change; others expect a stable gold or copper tone.
Before production, the project team should confirm:
- Whether natural tarnishing is acceptable
- Whether a clear protective coating is required
- Which cleaning products will be used
- Whether fingerprints are a concern
- Whether the surface will be touched frequently
- Whether warm or cool lighting will illuminate the sign
- Whether the finish sample has been viewed against the wall
Lighting temperature changes the perceived finish. Warm 2700–3000K lighting can make champagne, brass, and copper appear richer. Neutral 3500–4000K lighting shows stainless steel and painted finishes more accurately. Cool lighting may make warm metallic finishes appear flatter.
Letter depth also affects the premium appearance. A 2–3 mm flat-cut logo can look precise and minimal on a small reception wall. A 20–40 mm fabricated letter creates stronger shadow and presence. A 100 mm-deep letter may suit a large facade but can feel heavy when viewed closely inside a lobby.
The wall must support the visual intention. Fine metal letters installed on uneven stone may require spacers or a concealed mounting system. Letters installed over timber slats may need a hidden rail. Marble and glass demand careful drilling or alternative fixing methods to avoid irreversible damage.
Which Multi-Location Projects Need Metal Letters?
Chain stores, hotel groups, hospitals, schools, corporate campuses, property developments, franchise networks, and commercial building portfolios benefit from metal letters when the same identity must be reproduced across several locations.
The value comes from standardization. A single sign can be judged mainly by appearance. A 50-location program must also control dimensions, material, color, spacing, mounting, packaging, labeling, and repeat-order records.
A practical multi-location specification should contain:
- Approved logo file
- Overall width and height
- Individual letter dimensions
- Minimum stroke width
- Metal grade
- Material thickness
- Fabricated return depth
- Finish code or approved sample
- Brushing direction
- Paint or Pantone reference
- Stud positions
- Spacer length
- Template format
- Hardware specification
- Packaging label format
- Store or location number
Variation between locations may still be necessary. One store may use concrete, another glass, and another aluminum composite cladding. The visible face can remain consistent while the mounting system changes.
The table below shows which details should remain fixed and which may vary.
| Project detail | Usually standardized | May vary by location |
|---|---|---|
| Logo proportions | Yes | No |
| Metal finish | Yes | Rarely |
| Brand color | Yes | No |
| Letter face size | Often | Yes, for different facades |
| Letter depth | Often | Yes |
| Stud pattern | No | Yes |
| Anchor type | No | Yes |
| Installation template | No | Yes |
| Packaging label | Yes | Store number changes |
| Wall-sealing method | No | Yes |
A first-location approval can reduce risk before repeat production. The initial set allows the team to verify:
- Letter scale on the real wall
- Finish under site lighting
- Mounting time
- Template accuracy
- Hardware suitability
- Packaging protection
- Installation instructions
- Photography standards
- Final brand appearance
After approval, production records should be frozen rather than recreated from photographs. A photo cannot confirm metal thickness, grain direction, exact spacing, return depth, stud locations, or coating reference.
Multi-location packaging needs more control than a one-off order. Each carton or crate should show:
- Project name
- Store number
- City or region
- Elevation or wall reference
- Sign type
- Quantity
- Package number
- Template number
- Accessory package number
Letters, punctuation marks, logo symbols, studs, spacers, anchors, and templates should remain grouped by location. Mixing one small logo element between two stores can delay both installations.
Metal letters also support partial replacement. When production drawings and samples are retained, one damaged letter can be reproduced without replacing the entire sign. Accurate records are especially useful when a chain adds new locations several years later.
Do Metal Letters Reduce Installation and Maintenance Work?
Metal letters remove LEDs, power supplies, controllers, wiring, cable exits, timers, and electrical access panels from the sign structure. Fewer components usually mean simpler coordination and fewer electrical service requirements.
The benefit is most noticeable in locations where electrical access is difficult. Examples include finished stone walls, glass partitions, heritage facades, remote buildings, leased offices, and interiors where visible wiring would weaken the design.
Compared with illuminated letters, non-illuminated metal letters avoid several common issues:
- Uneven LED brightness
- Failed LED sections
- Power-supply replacement
- Mismatched replacement color temperature
- Water reaching electrical components
- Visible cable exits
- Inaccessible transformers
- Controller or dimmer faults
- Electrical certification coordination
Installation still requires proper planning. Removing lighting does not make every mounting method safe.
A typical installation review should cover:
- Letter weight
- Wall substrate
- Fixing depth
- Anchor type
- Number of mounting points
- Stud diameter
- Stand-off distance
- Template size
- Access equipment
- Waterproof sealing
- Hidden pipes and cables
| Installation condition | Useful metal-letter approach | Main concern |
|---|---|---|
| Finished reception wall | Stud or spacer mounting | Hidden reinforcement |
| Glass partition | Bonded letters or mounted panel | Adhesive compatibility |
| Stone wall | Stud mounting | Cracking and drilling accuracy |
| Timber slats | Concealed rail or extended studs | Uneven support |
| Exterior cladding | Fixing to structure behind cladding | Thin panels cannot hold heavy letters |
| Rental space | Removable panel or rail | Reducing permanent wall damage |
| Remote site | Pre-aligned frame or template | Limiting installation time |
Maintenance is simpler but not zero. Metal surfaces still collect dust, fingerprints, pollution, salt, and water marks. Coatings can scratch, and fasteners can loosen over time.
A basic maintenance plan may include:
- Interior dusting every 1–3 months
- Fingerprint cleaning as needed
- Exterior visual inspection every 6–12 months
- More frequent washing in coastal areas
- Inspection of anchors and sealant after severe weather
- Immediate repair of coating damage
- Use of non-abrasive cleaning materials
- Testing cleaning products on a hidden area
Mirror-polished letters usually need more frequent cleaning than brushed finishes. Brass and copper may need polishing if the original bright appearance must be maintained. Coastal stainless steel may require fresh-water washing to remove salt deposits.
Maintenance access should be considered during design. A deeply spacer-mounted logo above a reception desk may be difficult to clean. Large letters mounted high on a facade may require lifting equipment for inspection. A lower-maintenance finish can reduce future service costs.
Are Metal Letters Better for Restricted or Sensitive Buildings?
Heritage properties, schools, hospitals, government buildings, office towers, shopping centers, leased premises, and architect-controlled developments may restrict illuminated signs, visible wiring, drilling, brightness, or structural changes.
Non-illuminated metal letters often fit such projects because they can appear integrated with the architecture and avoid electrical components. Approval is not automatic; size, placement, finish, mounting, and wall penetrations may still be regulated.
Heritage buildings may prefer:
- Brass, bronze, copper, or dark metal finishes
- Individually mounted letters
- Smaller sign areas
- External lighting rather than internal LEDs
- Reversible mounting methods
- Fixings aligned with mortar joints
- Limited penetration of historic stone
Leased offices and retail units often need a sign that can be removed later. Direct drilling into stone, glass, or finished timber may create restoration costs. A pre-mounted panel, concealed rail, or limited fixing pattern can make removal easier.
Schools and hospitals have additional concerns. Metal letters used for logos and building names should not be confused with accessibility signs. Permanent room identification, tactile lettering, Braille, contrast, and mounting height may be governed by local standards.
For public or high-traffic spaces, review:
- Sharp edges
- Reachable projections
- Letter security
- Cleaning requirements
- Tamper resistance
- Accessibility rules
- Fire and evacuation routes
- Local sign permissions
- Landlord design manuals
A project may benefit from metal letters when one or more of the following conditions apply:
- Internal lighting is prohibited
- Electrical routing is unavailable
- Visible wiring is unacceptable
- The building has strong ambient lighting
- The sign must match architectural metalwork
- Low maintenance is a priority
- Nighttime advertising is not important
- The wall needs a clean, permanent finish
- The project requires consistent repeat production
- A historic or premium appearance is preferred
Before ordering, written approval should be obtained from the architect, landlord, property manager, contractor, or local authority where required. The manufacturer can provide dimensions, material details, finish samples, drawings, and mounting information, but site-specific compliance must be confirmed locally.
How Do You Choose the Right Metal Letters?
Choose metal letters by matching the metal grade, surface finish, construction, size, depth, and mounting method to the installation site. Start with viewing distance, wall material, indoor or outdoor exposure, available light, local climate, cleaning needs, and installation access. A suitable specification should look correct, remain readable, fit the wall structure, and arrive ready for installation.
Which Metal Should You Choose?
The best metal depends on where the letters will be installed, how large they will be, how much weight the wall can carry, and whether the surface must retain its original appearance outdoors.
Stainless steel is widely used for reception walls, hotel entrances, office buildings, retail stores, schools, hospitals, and exterior facades. It provides clean edges, good rigidity, and several finish options, including brushed, polished, painted, and coated surfaces.
Grade 304 stainless steel is commonly used indoors and in many general outdoor environments. It works well for office logos, reception signs, hotel interiors, sheltered storefronts, and inland building facades.
Grade 316 stainless steel contains more corrosion-resistant alloying elements and is normally considered for:
- Coastal cities
- Beachfront hotels
- Marine environments
- Swimming-pool areas
- High-humidity locations
- Sites exposed to salt spray
- Locations using aggressive cleaning chemicals
Distance from the sea alone is not enough to judge exposure. Wind direction, humidity, shelter, rainfall, and cleaning frequency can move salt deposits several kilometers inland. A hotel 500 meters from the coast generally faces more corrosion risk than an inland office, but an open facade 5 kilometers from the sea may still receive airborne salt.
Aluminum is lighter than stainless steel and suits large fabricated letters, painted letters, facade signs, and projects where shipping weight or wall load must remain lower. Aluminum also accepts paint and powder coating well when the surface is properly prepared.
Large facade letters often favor aluminum because lower weight can simplify handling and installation. A 1,000 mm-high fabricated aluminum letter may be easier to lift and mount than a stainless steel version of the same size.
Aluminum still needs proper production control. Surface cleaning, pretreatment, primer, coating thickness, cut-edge protection, and weld finishing affect outdoor durability. Poor preparation may lead to peeling, oxidation, or visible coating differences around seams.
Brass provides a warm gold appearance and works well in:
- Hotel lobbies
- Restaurants
- Clubs
- Luxury retail stores
- Real estate showrooms
- Heritage interiors
- Premium reception areas
Uncoated brass changes over time. Fingerprints, moisture, air exposure, and cleaning products can darken the surface. Some projects welcome natural aging; others expect the letters to remain bright and uniform.
Copper also changes color. New copper has a reddish-brown tone, which may gradually become darker and eventually develop green patina in certain outdoor environments. Natural color change can suit heritage buildings, restaurants, memorial projects, and architectural developments.
| Metal | Strongest application | Main advantage | Main issue to confirm |
|---|---|---|---|
| 304 stainless steel | Indoor and general exterior signs | Durable and versatile | Suitability for coastal exposure |
| 316 stainless steel | Coastal and high-salt projects | Better corrosion resistance | Higher material cost |
| Aluminum | Large or painted letters | Lightweight | Coating preparation |
| Brass | Hotels and premium interiors | Warm gold appearance | Tarnishing and maintenance |
| Copper | Heritage and architectural signs | Natural character | Patina and color change |
Several practical questions help narrow the selection:
- Will the letters be indoors or outdoors?
- Is the site near the coast?
- Will people touch the letters?
- Will strong cleaning chemicals be used?
- Does the original metal color need to remain unchanged?
- How large and heavy will each letter be?
- Can the wall support the proposed weight?
- Is the sign expected to remain for several years?
- Will replacement letters need to match later?
Metal grade should be written on the approval drawing. “Silver metal” or “gold metal” is not a complete specification. The drawing should state the base metal, grade, thickness, surface treatment, coating, and expected finish.
Which Finish Fits the Site and Brand?
A finish should be selected under lighting conditions similar to the final installation area. Screen renderings show color and shape, but they do not accurately reproduce reflection, brushing grain, fingerprints, glare, or the way metal changes when viewed from different angles.
Brushed stainless steel has a visible directional grain. It creates softer reflections than mirror-polished metal and works well in offices, hotels, clinics, hospitals, schools, corporate headquarters, and modern retail interiors.
The brushing direction should remain consistent across all letters. Vertical grain on one letter and horizontal grain on another becomes obvious under ceiling lights or direct sunlight.
Common brushing directions include:
- Vertical
- Horizontal
- Circular
- Custom directional grain
Vertical grain often works well on tall individual letters. Horizontal grain may suit long wordmarks. The final direction should be shown on the production drawing and approved before fabrication.
Mirror-polished stainless steel produces sharp reflections and a more decorative appearance. It can work well in luxury retail stores, hotel interiors, restaurants, reception areas, and high-end residential developments.
However, mirror finishes reflect:
- Ceiling lights
- Windows
- Vehicles
- Furniture
- People
- Trees
- Nearby signs
- Wall colors
- The sky
A polished exterior letter may appear bright from one direction and nearly black from another. Large polished faces also reveal dents, welding distortion, and uneven surfaces more easily than brushed finishes.
Satin finishes sit between brushed and polished metal. They provide a smooth appearance with lower glare and may be easier to maintain in public areas.
Painted metal is suitable when a brand color matters more than the natural metal appearance. Aluminum and stainless steel can both be painted, but the coating system should match the environment.
A Pantone reference helps identify the target color. A physical sample remains more reliable because the same Pantone number may appear different under:
- Warm interior lighting
- Cool daylight
- Direct sunlight
- Dark surroundings
- Glossy or matte coatings
- Different metal substrates
Powder coating creates a durable colored surface and is commonly used for black, white, gray, bronze, and custom-color letters. Exterior-grade powder coating should be selected for signs exposed to sunlight and rain.
Gold, champagne, rose gold, bronze, and black metallic finishes can be produced through plating, titanium coating, paint, or other treatments. Two suppliers may use the same finish name for noticeably different colors.
Before approving a metallic finish, confirm:
- Base metal
- Coating method
- Gloss level
- Color tone
- Brushing grain
- Indoor or outdoor suitability
- Resistance to cleaning products
- Expected color change
- Repair method after scratching
- Availability for future reorders
| Finish | Best use | Main advantage | Common concern |
|---|---|---|---|
| Brushed metal | Offices, hospitals, hotels | Lower glare and clean appearance | Grain consistency |
| Mirror polished | Luxury interiors and retail | Strong reflective effect | Fingerprints and reflections |
| Satin metal | Public interiors | Refined without strong glare | Matching future batches |
| Painted finish | Brand-color signs | Flexible color matching | Fading and scratching |
| Powder coating | Indoor and outdoor letters | Durable colored surface | Color difference between batches |
| Brass or copper tone | Hospitality and heritage projects | Warm architectural appearance | Tarnishing or patina |
Wall color should be considered at the same time as finish selection. Low contrast is one of the most common reasons a non-illuminated sign performs poorly.
Examples include:
- Silver letters on pale gray stone
- Black letters on dark glass
- Gold letters on warm timber
- White letters on cream walls
- Polished letters reflecting a matching background
A contrast panel, darker finish, larger letter depth, or stronger stand-off shadow can improve readability.
Cleaning also influences finish selection. Mirror metal shows fingerprints quickly. Deep brushed grain can trap dirt. Brass and copper may react to cleaning chemicals. Painted letters can scratch when abrasive pads are used.
For high-touch or high-traffic areas, a smooth satin or brushed finish usually requires less daily attention than mirror-polished metal.
How Large and Deep Should the Letters Be?
Letter size should be based on viewing distance, approach speed, mounting height, font style, stroke width, wall scale, and contrast. Filling the available wall space is not the same as creating readable signage.
A reception logo viewed from 3 meters can use smaller letters than a building name viewed from a 50-meter parking area. A pedestrian can stop and read smaller copy, while a driver may have only two or three seconds.
Typical planning ranges include:
| Application | Typical letter height | Typical depth | Typical viewing distance |
|---|---|---|---|
| Room or department name | 40–120 mm | 1–10 mm | 1–3 m |
| Reception wall logo | 100–400 mm | 2–50 mm | 3–8 m |
| Retail interior logo | 150–500 mm | 3–60 mm | 4–12 m |
| Storefront lettering | 250–800 mm | 20–100 mm | 10–30 m |
| Building facade sign | 500–1,500+ mm | 50–200+ mm | 25–100+ m |
The ranges are starting points rather than fixed rules. Narrow scripts, thin serif fonts, weak contrast, elevated mounting, and fast-moving traffic normally require larger letters.
Stroke width is often more important than overall height. A 400 mm-high letter with a 15 mm stroke may remain difficult to read, while a 250 mm-high bold letter may perform better.
Small strokes can also create production problems. Very narrow sections may distort during cutting, become difficult to weld, or provide insufficient space for studs. As a practical starting point, strokes below 8–10 mm should be reviewed carefully for metal letters.
The following details should be measured from the actual artwork:
- Tallest letter height
- Smallest letter height
- Narrowest stroke
- Smallest internal opening
- Spacing between letters
- Spacing between lines
- Size of dots and punctuation
- Size of separate logo elements
Letter depth changes both appearance and structure.
Flat-cut letters between 1 mm and 6 mm thick create a clean, minimal look. They work well for reception walls, office names, directories, department signs, and smaller exterior copy.
Fabricated letters between 20 mm and 50 mm deep suit many interior feature walls and medium-sized storefront signs. The added depth creates visible side surfaces and stronger shadows.
Fabricated letters between 50 mm and 150 mm deep are common for larger storefronts, hotels, office buildings, schools, and commercial facades.
Very large building letters may need depths above 150 mm to maintain visual proportion and structural rigidity.
| Letter condition | Suggested direction |
|---|---|
| Small interior wording | Flat-cut metal |
| Medium reception logo | Flat-cut or 20–40 mm fabricated |
| Large hotel entrance | 40–80 mm fabricated |
| Storefront sign | 50–100 mm fabricated |
| High-level facade | 80–200+ mm fabricated |
| Uneven wall | Spacer-mounted or framed structure |
| Long-distance viewing | Larger size and wider strokes |
Excessive depth can make small letters look heavy. A 100 mm-deep letter viewed from 2 meters may project too far from the wall. Insufficient depth can make a large facade logo appear flat and weak.
Spacing should be reviewed at full scale. A logo may look balanced on a laptop but appear too tight after enlargement. Installation templates should preserve the approved spacing exactly.
A production drawing should include:
- Overall width and height
- Individual letter dimensions
- Minimum stroke width
- Face thickness
- Return depth
- Spacing
- Metal grade
- Finish
- Grain direction
- Mounting-hole positions
- Stand-off distance
A wall elevation is useful for large signs. It should show doors, windows, cladding joints, ceiling lines, columns, furniture, and surrounding signs. Viewing the logo alone does not show whether the final scale fits the building.
How Should the Letters Be Mounted?
The mounting method should match the wall material, letter weight, installation height, and future maintenance needs. Stud mounting, spacer mounting, adhesive mounting, rails, back panels, and concealed frames are common options.
Stud mounting uses threaded studs attached to the rear of each letter. Holes are drilled into the wall, and the studs are fixed with suitable anchors or adhesive.
Stud mounting works well for:
- Concrete
- Brick
- Masonry
- Reinforced drywall
- Stone
- Timber
- Structural backing behind cladding
Typical stud lengths for interior signs may range from 30 mm to 80 mm. Large exterior letters may need longer studs, stronger anchors, internal reinforcement, or custom brackets.
Stud diameter and quantity should reflect the letter size and weight. A large “M” may need several fixing points, while a small “I” may need only two. Tall narrow letters need enough fixing points to prevent rotation.
Spacer mounting creates a gap between the letter and wall. The gap produces a natural shadow and helps letters remain visible against textured surfaces.
Common interior stand-off distances include:
- 10 mm for a subtle shadow
- 15–20 mm for a clear floating effect
- 25–30 mm for stronger depth
- More than 30 mm for uneven or slatted walls
Greater spacing makes cleaning more difficult and increases leverage on the studs. Deep stand-offs should be engineered rather than chosen only for appearance.
Direct adhesive mounting may suit small, lightweight interior letters. The surface must be clean, smooth, stable, and compatible with the adhesive.
Adhesive-only mounting is usually unsuitable for:
- Heavy fabricated letters
- Rough stone
- Dusty plaster
- Damp walls
- Exterior facades
- Overhead signs
- Weak paint
- Surfaces exposed to large temperature changes
Back panels and mounting rails are useful when the logo has many small pieces, the wall cannot accept many holes, or installation time must remain short.
A pre-mounted structure may be suitable for:
- Timber slat walls
- Glass partitions
- Uneven stone
- Temporary retail spaces
- Exhibition installations
- Multi-location programs
- Signs that may need removal later
| Wall type | Common mounting method | Main concern |
|---|---|---|
| Concrete | Studs with mechanical or chemical anchors | Drilling depth |
| Brick | Studs into solid brick | Avoiding weak mortar joints |
| Drywall | Studs into backing or suitable anchors | Limited load capacity |
| Stone | Stud mounting with careful drilling | Cracking and staining |
| Glass | Bonded letters or pre-mounted panel | Adhesive compatibility |
| Metal cladding | Fixing to structure behind cladding | Thin panels cannot carry heavy loads |
| Timber slats | Concealed rail or extended studs | Uneven support |
| Rental space | Removable panel or limited fixing points | Future wall repair |
A full-size installation template helps position holes and maintain spacing. Small interior logos may use one paper template. Large exterior signs may need several numbered sections, rigid patterns, or CAD coordinates.
The installation package should include:
- Full-size template
- Letter identification marks
- Studs
- Spacers
- Anchors where agreed
- Installation drawing
- Hardware list
- Recommended installation sequence
- Package labels
Wall penetrations on exterior facades need proper sealing. The sealant must suit the wall material, metal, climate, and local building requirements.
Before production, the installer should confirm:
- Wall construction
- Wall thickness
- Hidden structural support
- Restricted drilling zones
- Pipes and cables
- Anchor type
- Access equipment
- Maximum allowable load
- Sealant requirements
- Installation responsibility
Changing the mounting method after production can require new studs, new hole positions, different packaging, or reworked letter backs. Mounting should be approved on the production drawing.
When Are Illuminated Letters the Better Choice?
Illuminated letters are better when nighttime visibility affects store visits, building recognition, safety, navigation, or brand exposure. Non-illuminated metal letters perform well in many settings, but they cannot replace lighting where the site remains dark after sunset.
Illuminated letters are often more suitable for:
- Restaurants open late
- Bars and entertainment venues
- Convenience stores
- Shopping centers
- Hotels receiving guests at night
- Roadside retail
- Fuel stations
- Cinemas
- Twenty-four-hour medical facilities
- Buildings competing with bright surrounding signs
Operating hours provide the first clue. A clinic closing before sunset may not need internal LEDs. A hotel entrance operating all night often does.
Available light also matters. A non-illuminated sign can remain visible after dark when wall washers, canopy lights, streetlights, or landscape lights cover the facade. A sign on an unlit dark wall may disappear completely.
| Project condition | Non-illuminated metal letters | Illuminated letters |
|---|---|---|
| Well-lit reception wall | Strong choice | Often unnecessary |
| Daytime office entrance | Strong choice | Optional |
| Mall interior storefront | Often suitable | Depends on surrounding signs |
| Roadside business open at night | Limited | Strong choice |
| Hotel arrival entrance | Conditional | Often preferred |
| Heritage building | Often preferred | May be restricted |
| No electrical access | Easier | More difficult |
| Nighttime landmark effect | Limited | Strong choice |
| Low-maintenance priority | Strong choice | More components to service |
| Dark facade | Weak without external light | Strong choice |
Local sign rules may also influence the decision. Some landlords, shopping centers, heritage authorities, or planning departments restrict illuminated signs, brightness, operating hours, or visible wiring.
The following questions should be answered before choosing:
- Is the business open after dark?
- Must people find the entrance at night?
- Is external lighting already installed?
- Will nearby illuminated signs overpower the logo?
- Is electrical access available?
- Can power supplies be serviced later?
- Are illuminated signs permitted?
- Does the budget include installation and maintenance?
- Is nighttime brand exposure commercially important?
The decision should compare the real visibility benefit with the added complexity.
Illuminated letters require:
- LED modules
- Wiring
- Power supplies
- Cable exits
- Electrical access
- Waterproofing
- Testing
- Future service planning
Non-illuminated metal letters remove those components and often simplify installation and maintenance. The simpler structure is valuable only when the sign still performs during the hours it matters most.
A useful final review combines five pieces of information:
- Daytime site photograph
- Evening site photograph
- Business operating hours
- Main viewing distance
- Existing light levels
When daytime or ambient-light visibility is sufficient, non-illuminated metal letters often provide a cleaner and more economical result. When nighttime recognition directly affects navigation or revenue, illuminated letters are usually the safer choice.
Request a Custom Metal Letter Solution
If a project requires non-illuminated metal letters, the next step is usually to confirm a few practical details such as wall condition, viewing distance, logo file format, preferred metal, finish direction, and installation method. These factors directly influence structure, thickness, depth, and mounting design, so early clarification helps avoid rework during production.
A simple inquiry is often enough to start. A logo file (AI, PDF, or SVG), a reference photo of the installation wall, and approximate size can already support a preliminary suggestion. From there, material options, finish samples, and mounting methods can be aligned with the actual site conditions rather than assumptions.
For multi-location or long-term signage plans, keeping specifications consistent across different sites can help maintain a unified appearance. Sharing expected quantity, project timeline, and destination country will also make production planning and shipping coordination more accurate for future steps.
