Outdoor sign projects rarely fail because a project team overlooked a fashionable material. They fail because an attractive material was used in the wrong climate, fixed to an unsuitable wall, paired with an incompatible coating, or sealed without enough thought about drainage and temperature movement. For that reason, the most important material trend in 2026 is not one newly invented sheet, metal, or plastic. It is a more complete way of specifying how the entire sign should work.
The leading outdoor sign material trends in 2026 include wider use of lightweight aluminum systems, weatherable composite panels, UV-stabilized plastics, corrosion-resistant metals, replaceable components, and materials with traceable recycled content. The strongest projects match these materials to climate, sign type, structural load, illumination, installation access, maintenance expectations, transportation limits, and planned service life.
A commercial sign is never only a face panel. It may also contain frames, letter returns, acrylic faces, LED modules, wiring, power supplies, fasteners, sealants, mounting plates, coatings, ventilation paths, drainage holes, and service openings. A premium face material cannot compensate for weak connections behind it. At the same time, a familiar material can perform exceptionally well when thickness, reinforcement, surface treatment, spacing, drainage, and fixing details are handled correctly.
Consider two storefront logos installed on the same street. After three summers, one still looks clean and evenly illuminated, while the other has faded edges, stained fasteners, warped faces, and several dark letters. Both quotations may originally have listed “aluminum and acrylic.” The difference was hidden in the engineering decisions that were made before production began.
What Is Changing in Outdoor Sign Materials?
Outdoor sign materials are becoming lighter, easier to repair, more climate-specific, and more thoroughly documented. Instead of asking for one universal outdoor material, experienced project teams now evaluate the full system, including the substrate, coating, lighting, fasteners, joints, drainage, mounting method, maintenance access, packaging, and intended service life.
Are Recycled Metals Becoming Standard?
Recycled aluminum is receiving more attention because it combines practical fabrication performance with a mature recycling system. It is suitable for channel-letter returns, light-box frames, folded trays, raceways, backboards, mounting structures, and many non-illuminated panels. Aluminum can be cut, folded, welded, routed, painted, powder coated, anodized, printed, and transported without the excessive weight associated with some alternative metals.
The word “recycled,” however, should never replace a proper material specification. A serious project still needs to identify the alloy, temper, thickness, surface finish, coating system, fabrication method, and exposure conditions. A recycled aluminum sheet that is too thin for the panel span or poorly supported by the frame may distort sooner than a conventionally sourced sheet that was selected and engineered correctly.
Larger brands and commercial project teams increasingly ask suppliers for clearer supporting evidence. They may request recycled-content declarations, material certificates, supplier records, finish data sheets, or environmental documentation instead of accepting a general “eco-friendly” claim. This change is useful because it separates measurable material improvements from marketing language that cannot be verified.
The more important sustainability question is not simply how much recycled material is present. Project teams should also ask whether the sign can remain in service for a suitable period, whether damaged parts can be replaced, and whether metals, plastics, electronics, and wiring can be separated at the end of use. A long-lasting, repairable sign may create less waste than a lightweight product that must be replaced every few years.
Are Hybrid Systems Replacing Single Materials?
Most durable outdoor signs are already hybrid systems. A typical illuminated channel letter may contain an aluminum return, aluminum back, acrylic or polycarbonate face, LED modules, low-voltage wiring, power supplies, trim, sealants, mounting studs, spacers, and stainless-steel fasteners. Every component performs a different function, which is why asking for the “best material” without defining the sign structure usually produces an incomplete answer.
Hybrid construction allows a manufacturer to balance weight, strength, impact resistance, light diffusion, corrosion protection, visual appearance, and budget. Aluminum reduces weight and supports fabrication. Acrylic creates clean color and even light transmission. Polycarbonate increases impact resistance. Stainless steel provides a premium visible finish or a durable fixing point. Flexible sealants accommodate movement where metals and plastics meet.
The weak point is often the connection between materials. Acrylic fixed too tightly against an aluminum frame may crack as temperatures change. Dissimilar metals may corrode more quickly when moisture is present. Some adhesives bond well to painted aluminum but perform poorly on certain plastics or powder-coated surfaces. A sealant may appear intact while losing adhesion along one edge because the surface was not prepared correctly.
A reliable material specification therefore needs to record the complete material stack. This includes contact surfaces, joint widths, fixing pressure, expansion space, protective washers, electrical separation, drainage routes, access panels, and the maintenance method. The visible material is important, but the hidden connection details often determine whether the sign stays stable outdoors.
| Material Trend | Practical Value | Details to Confirm |
| Recycled aluminum | Reduces reliance on primary metal while remaining recyclable | Alloy, thickness, coating, supporting documents |
| Hybrid construction | Balances weight, optics, strength, and cost | Material compatibility, joints, expansion allowance |
| Modular components | Allows individual parts to be repaired or replaced | Access panels, fasteners, connectors, part numbering |
| UV-stable plastics | Improves outdoor color and clarity retention | Resin grade, thickness, orientation, warranty terms |
| Replaceable lighting | Extends the useful life of the sign body | LED model, wiring groups, driver location, access |
| Durable finishes | Reduces refinishing and cleaning frequency | Pretreatment, coating thickness, exposure category |
Do Modular Designs Reduce Waste?
A modular sign is designed so that damaged, outdated, or failed components can be replaced without remaking the complete product. This approach is especially useful for chain stores, hotels, shopping centers, restaurants, transport environments, campuses, and other sites where signage may remain installed for many years and where maintenance visits can be expensive.
A serviceable light box may use a removable face, accessible LED strips, numbered wiring groups, replaceable power supplies, standard fasteners, and a clear internal layout. Channel letters may be mounted on a raceway or backboard that reduces wall penetrations and makes electrical servicing easier. Large facade signs may be divided into transportable sections with controlled joints that can be assembled safely on site.
Modular construction can reduce waste, freight volume, repair time, and business interruption. A failed power supply can be replaced locally. A cracked acrylic face can be reproduced from saved drawings. A damaged letter can be shipped independently instead of sending an entirely new sign set. For multi-location projects, standardized hole patterns and stored specifications also improve repeat-order consistency.
Modularity still needs discipline. Too many sections can create visible joints, water paths, loose hardware, alignment problems, and longer installation time. Replaceable parts must also remain clearly identifiable. Drawings should record material, size, color, lighting, wiring, connector type, hole pattern, section number, and packing reference so future replacements can match the existing sign.
The best modular products are not divided into the greatest possible number of parts. They are separated only where doing so improves transport, installation, inspection, maintenance, or future replacement.
Are Surface Technologies Improving?
Outdoor surface systems are improving through more stable powder coatings, better ultraviolet-resistant wet paints, higher-performance printed films, anti-graffiti laminates, protective clear coats, improved primers, and sealants that tolerate movement between different materials. These developments matter because visible surface deterioration often appears before the base material itself loses structural strength.
A metal letter may remain structurally sound while its coating begins to chalk or lose gloss. A printed ACM panel may stay flat while the graphic fades. A stainless-steel plaque may remain strong while airborne contamination causes visible staining. Surface technology extends the visual life of a sign, but only when the substrate preparation and application process are controlled.
Cleaning, degreasing, abrasion, chemical pretreatment, primer selection, curing temperature, film thickness, and edge coverage all influence long-term performance. Applying an expensive coating over oily, oxidized, or poorly prepared metal does not create a premium result. Welds, corners, cut edges, and recessed areas deserve particular attention because coating coverage may be thinner or less consistent in these locations.
Project teams should ask how the surface is prepared, how the finish is approved, whether exposed edges receive protection, and which cleaning products are allowed. Approved color and finish samples should be retained for repeat programs. The same Pantone reference can look noticeably different when reproduced on wet paint, powder coating, vinyl, acrylic, printed graphics, and illuminated faces.

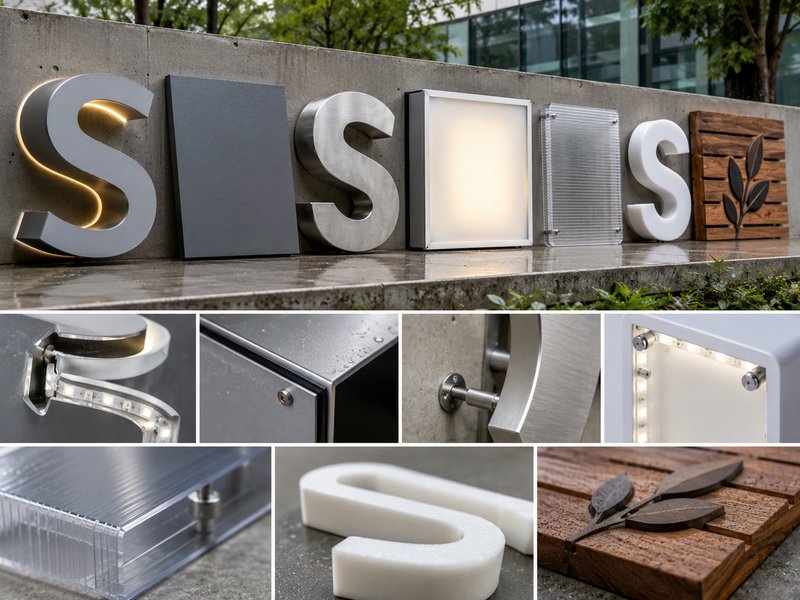

Which Materials Lead Outdoor Projects?
Aluminum, ACM, stainless steel, acrylic, and ultraviolet-stabilized polycarbonate remain leading choices for permanent outdoor signage. PVC, foam, timber, vinyl, and corrugated plastics still have useful roles, particularly in sheltered, decorative, temporary, or cost-sensitive applications. Suitability depends on the sign type, span, exposure, illumination, impact risk, finish, mounting method, and expected service life.
Is Aluminum Still the Default?
Aluminum remains one of the most widely used outdoor sign materials because it provides a practical balance of low weight, corrosion resistance, fabrication flexibility, and finish options. It can be used in fabricated letters, light-box cabinets, folded trays, sign frames, raceways, backboards, mounting plates, directional signs, monument-sign panels, and large exterior branding systems.
Its performance depends on its form, alloy, thickness, support, and finish. Aluminum coil used for channel-letter returns performs a different function from a structural extrusion or a solid panel. A thin sheet may work well when supported by a suitable frame, but the same sheet can distort if it spans a large distance without reinforcement. Corners, folds, welds, mounting points, and large cut-outs can also concentrate stress.
Fabricated letter returns commonly begin around 0.8 to 1.5 millimeters, depending on letter size, depth, metal grade, and fabrication method. Folded trays and exterior panels may begin around 1.5 to 3.0 millimeters, while larger products may require thicker sheet, extruded framing, internal ribs, or structural calculations. These figures are starting references rather than fixed rules.
The surface system is equally important. Powder coating, wet paint, anodizing, printing, or applied films may all be suitable, but outdoor durability depends on pretreatment, coating quality, edge protection, sun exposure, pollution, salt, cleaning methods, and installation details. The word “aluminum” alone does not explain how long the finished sign will remain flat, clean, and secure.
When Is ACM the Better Choice?
Aluminum composite material, commonly called ACM or ACP, is often selected for large flat sign surfaces where low weight and surface flatness are more important than heavy structural strength. It normally consists of two thin aluminum skins bonded to a core and is widely used for printed panels, facade signs, directional signage, backboards, hoarding, folded trays, wayfinding, and raceway covers.
Three-millimeter, four-millimeter, and six-millimeter panels are common in sign production, but total panel thickness does not tell the full story. Aluminum skin thickness, core composition, surface coating, edge treatment, frame spacing, and fixing method can vary considerably between products. Economical panels with very thin skins may dent easily, show fixing marks, or provide less resistance to surface damage.
ACM is particularly useful when a clean and flat appearance is required across a moderate or large area. It can be printed directly, laminated with vinyl, routed and folded into trays, or fixed onto an aluminum frame. It should not automatically be treated as a primary structural material, because the supporting frame and fixing system still carry much of the load.
Open edges may need protection in exposed locations. Large panels also need room for thermal movement. Fasteners should not be overtightened, fixing holes may need appropriate clearance, and supporting frames should keep the panel flat without locking it so rigidly that temperature changes create stress.
Which Projects Need Stainless Steel?
Stainless steel is often used when a project requires a premium metal appearance, strong surface durability, or improved resistance to corrosion. Common applications include dimensional letters, fabricated logos, hotel signs, plaques, architectural identification, office branding, exterior lettering, mounting studs, visible brackets, and exposed fasteners.
Grade selection matters. Type 304 stainless steel is widely used in general commercial and architectural environments. Type 316 or 316L contains molybdenum and usually offers better resistance in coastal, marine-influenced, industrial, or chloride-rich locations. Even 316 stainless steel is not maintenance-free. Salt, pollution, iron contamination, and standing water can still create staining if surfaces are never cleaned.
Visible finishes include brushed, mirror-polished, bead-blasted, painted, plated, titanium-colored, and chemically patinated surfaces. Each has a different maintenance profile. Mirror finishes can look luxurious but reveal fingerprints, fine scratches, water spots, and cleaning marks. Brushed finishes are often more forgiving, although cleaning should follow the grain direction to avoid an uneven appearance.
Fabricated stainless-steel letters often begin around 0.8 to 1.5 millimeters, depending on size and structure. Large letters may need stronger returns, internal reinforcement, or thicker material. Mounting details should prevent water from becoming trapped behind letters, and stainless components should be isolated from incompatible metals where galvanic corrosion is possible.
Are Plastics Still Practical?
Acrylic and polycarbonate remain essential materials because they offer color, light transmission, diffusion, forming flexibility, and relatively low weight. Acrylic is widely used for channel-letter faces, light-box panels, illuminated logos, decorative elements, clear backboards, and non-illuminated dimensional letters. Polycarbonate is more common where impact resistance is a stronger priority.
Acrylic generally provides good clarity, surface hardness, color availability, and optical quality. Sign-grade acrylic can include ultraviolet-stabilized pigments and light-diffusing formulations. Polycarbonate is tougher and more resistant to breakage, but it scratches more easily and may require a protective surface treatment in locations exposed to repeated contact or cleaning.
Both materials expand much more than metal as temperatures change. This difference explains why plastic faces should not be clamped rigidly inside aluminum or stainless-steel frames. Oversized fixing holes, flexible gaskets, controlled edge clearance, rounded internal corners, and compatible sealants help reduce cracking, bowing, and stress around screws.
| Material | Approximate Linear Expansion | Movement Over 2 m With a 40°C Change |
| Aluminum | 23 µm/m·°C | About 1.8 mm |
| Stainless steel | 16–17 µm/m·°C | About 1.3 mm |
| Acrylic | 70–75 µm/m·°C | About 5.6–6.0 mm |
| Polycarbonate | 65–70 µm/m·°C | About 5.2–5.6 mm |
| Rigid PVC | 50–80 µm/m·°C | About 4.0–6.4 mm |
These values are approximate and vary by formulation, color, and manufacturer. Their practical value is showing how different materials move within the same sign. A two-meter acrylic face may move several millimeters more than the surrounding metal cabinet during a large temperature change, so the fixing and sealing method must allow controlled movement.
How Does Climate Change Material Choice?
Climate influences the substrate, finish, fasteners, plastics, wiring, LED modules, power supplies, sealants, joints, mounting frame, and wall connection. A material that performs well beneath a covered storefront may not be suitable for a coastal facade, desert site, freezing climate, polluted industrial area, or high-wind installation.
How Does UV Change Materials?
Ultraviolet radiation can fade pigments, weaken some plastics, chalk coatings, reduce gloss, age adhesives, and change the appearance of translucent faces. Signs installed on sun-facing elevations may experience much more severe exposure than signs protected by canopies, recessed walls, trees, or neighboring buildings.
Ultraviolet performance depends on the complete color and surface system. Resin formulation, pigment quality, ink type, laminate, coating thickness, orientation, surface temperature, and cleaning chemicals all influence visible aging. Dark surfaces can become much hotter than the surrounding air, which increases movement and places more stress on joints, films, plastics, and adhesives.
A professional specification should distinguish structural life from visual life. An aluminum composite panel may remain flat after its printed graphic has noticeably faded. An acrylic face may remain intact while the color no longer meets the brand standard. A painted letter may remain structurally safe even after the surface loses gloss or begins to chalk.
For long-term programs, project teams should record whether color is produced by pigmented acrylic, paint, powder coating, printed ink, vinyl film, or illumination. Daytime and nighttime appearance should be approved separately. A red acrylic face, a printed red film, and red LED illumination can produce significantly different colors when viewed under daylight and after dark.
Which Materials Resist Salt?
Coastal exposure introduces airborne chlorides, high humidity, wind-driven salt, condensation, and repeated wetting and drying. These conditions affect metal surfaces, welds, cut edges, fasteners, electrical connectors, brackets, coatings, and enclosed areas where salt deposits and moisture remain trapped.
Stainless steel grade 316 or 316L is commonly selected for marine-influenced environments because it generally provides better resistance to localized chloride corrosion than grade 304. Aluminum can also perform well when the alloy, pretreatment, coating, fasteners, joints, and drainage are appropriate. Galvanized or painted carbon steel may still be used in some structures, but it requires careful protection at welds, cuts, and fixing points.
The full sign system should reduce direct water entry, protect exposed cuts, isolate dissimilar metals, prevent water traps, and position electrical connections away from likely moisture paths. Stainless-steel fasteners do not automatically solve corrosion if they are installed against an incompatible metal without suitable washers, coatings, or separation.
Coastal signs also need realistic maintenance. Even high-grade stainless steel may show surface staining if salt is allowed to accumulate. Periodic rinsing with fresh water, removal of dirt deposits, inspection of coating damage, and checking drainage points can extend the visual and functional life of the sign.
How Do Heat and Cold Matter?
Outdoor signs experience surface temperatures that can be much higher or lower than the surrounding air. A dark metal face in direct sunlight may become extremely hot, while clear winter nights can cool exposed surfaces quickly. These repeated temperature cycles cause expansion and contraction across metals, plastics, sealants, coatings, adhesives, and mounting structures.
Mixed-material signs require particular care because their components move at different rates. A two-meter acrylic face can move several millimeters during a large temperature change. If it is locked tightly inside an aluminum cabinet, stress may concentrate around screws, corners, cut-outs, or joints. Over time, this can create cracks, distortion, loose seals, or enlarged fixing holes.
Cold climates create additional risks. Water trapped inside a joint may freeze and expand. Old or unsuitable sealants can become less flexible. Snow and ice add weight to projecting structures. Some electrical components may also behave differently during cold starts, especially where condensation forms around connectors or inside power-supply enclosures.
Reliable designs use expansion clearance, flexible gaskets, suitable sealants, slotted holes, rounded internal corners, controlled panel sizes, and drainage at low points. Large signs may need to be divided into sections so movement is distributed across several engineered joints rather than concentrated along one long face.
What Does Wind Change?
Wind affects both the visible sign and the hidden mounting system. Wind pressure increases approximately with the square of wind speed, which means a moderate increase in design wind speed can create a much larger structural load. Large flat panels, blade signs, projecting light boxes, monument faces, and facade cabinets need particular attention.
A simplified estimate for dynamic wind pressure near sea level is 0.613 multiplied by wind speed squared, with wind speed measured in meters per second. At 30 meters per second, the approximate pressure is 552 pascals. At 40 meters per second, it rises to about 981 pascals. At 50 meters per second, it reaches approximately 1,533 pascals.
Actual sign design must also consider building height, terrain exposure, gusts, pressure coefficients, sign shape, projection distance, local codes, and the strength of the wall. Wind requirements influence panel thickness, frame spacing, bracket dimensions, weld length, bolt size, anchor type, and the number and position of fixing points.
The manufacturer should receive the installation height, wall construction, sign projection, local wind criteria, and available fixing locations before finalizing the structure. A strong sign cabinet connected to weak anchors or unsuitable wall material is still an unsafe installation.
| Exposure Condition | Material Priority | Structural Priority | Practical Maintenance |
| Sheltered urban site | Coated aluminum, ACM, acrylic | Basic drainage and protected fasteners | Inspect about once a year |
| Full rain and sunlight | UV-stable plastics and coated metal | Sealed entries with controlled drains | Clean every 6–12 months |
| Coastal location | 316 stainless steel and coated aluminum | Isolated metals and protected joints | Fresh-water rinse every 3–6 months |
| Industrial pollution | Smooth coated metal and compatible plastics | Avoid ledges and contamination traps | Clean every 3–6 months |
| Freeze-thaw climate | Flexible seals and stable panel systems | Drain all low points | Inspect before winter |
| Desert heat | UV-stable faces and heat-resistant finishes | Provide greater movement allowance | Inspect joints and seals annually |
These intervals are general starting points rather than fixed maintenance schedules. Actual frequency should reflect local exposure, building height, cleaning access, appearance standards, traffic, pollution, and the value of the sign to the site.

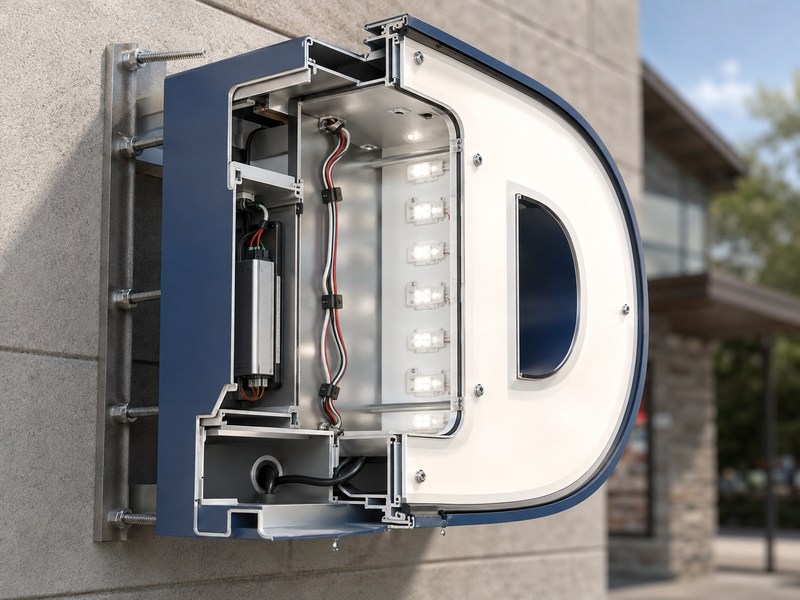

How Do Finishes and Structures Extend Sign Life?
Outdoor sign life depends on the complete assembly rather than the base material alone. Surface preparation, coating quality, edge protection, water management, thermal movement, electrical access, fastener selection, structural support, and installation accuracy often determine whether a sign remains attractive and serviceable or develops avoidable defects.
Which Finish Protects Metal?
There is no single finish that is best for every metal sign. Powder coating is widely used on aluminum and steel because it can provide a consistent, durable surface with good resistance to weathering and abrasion. Architectural powder-coat films often fall around 60 to 100 microns, although the correct thickness depends on the powder chemistry, pretreatment, substrate, edge geometry, and project exposure.
Wet paint remains useful where projects require exact brand colors, limited production quantities, gradients, repairability, or special decorative effects. Multi-layer systems may include a primer, color coat, and clear coat. Anodizing can create a durable architectural aluminum surface, while brushing, mirror polishing, plating, and patination provide distinct visual results with different maintenance requirements.
The finish is only as reliable as the surface beneath it. Oil, oxidation, welding residue, dust, and poor pretreatment can reduce adhesion. Welds, corners, folds, cut edges, and recessed areas deserve particular attention because coating coverage may be thinner or less consistent in these locations.
Finish selection should reflect the environment as well as appearance. Coastal locations need stronger corrosion planning. High-touch signs need surfaces that tolerate frequent cleaning. Mirror finishes require more care than brushed or matte finishes. Dark colors may absorb more heat and can show chalking or fading differently from pale colors.
How Should Water Be Managed?
Weather protection is not achieved by filling every opening with sealant. Durable outdoor construction combines water exclusion, controlled drainage, suitable ventilation, protected electrical components, and accessible service points. Water can enter through service covers, cable holes, seams, fasteners, damaged gaskets, wall penetrations, or installation changes made on site.
Condensation can also form inside a cabinet when temperatures change, even when there is no obvious rain leak. If the structure has no drainage path, a small amount of moisture may remain around wiring, LED modules, metal edges, fasteners, or the lower part of the face panel.
Good water management follows gravity. Upward-facing seams need protection. Cable loops should not direct water toward electrical entries. Drain holes should be positioned at true low points and remain open after installation. Electrical connectors should sit above expected water paths. Sealants should be compatible with the surrounding paint, plastic, metal, and anticipated joint movement.
Installation drawings should show where sealant is required and where it must not obstruct drainage. Site teams also need to protect wall penetrations and cable entries. A factory-designed drainage route cannot work if an installer covers the opening with adhesive or fixes the sign in an orientation different from the approved drawing.
Do IP Ratings Prove Durability?
An IP rating describes resistance to solid objects and water under specific test conditions. It does not prove resistance to ultraviolet exposure, salt spray, thermal cycling, wind load, impact, coating failure, fading, structural fatigue, or incorrect installation.
The stated rating may apply only to one component. An LED module, power supply, connector, controller, enclosure, and assembled sign can each have different protection levels. Installing a highly rated component inside a poorly drained cabinet does not automatically make the complete product equally resistant to outdoor conditions.
Project teams should ask which part was tested, which standard was used, and whether the rating applies to a component or the finished sign. They should also check how cable exits, service panels, connectors, mounting holes, and wall penetrations are protected after installation.
A realistic outdoor assessment combines ingress protection with material grade, coating, joints, drainage, electrical separation, power-supply position, maintenance access, climate, and installation method. The most credible answer is not that every custom product is IP68. It is a project-specific explanation of which components need protection, how water is managed, and which details the installer must preserve on site.
How Is Service Access Built?
Service access should be planned before production rather than added after an LED module or power supply fails. A sign may be installed several meters above the ground, above a busy entrance, behind a facade panel, or in a location that requires a lift, traffic control, or after-hours access. Small improvements in serviceability can therefore save significant time and cost.
Useful features include removable faces, accessible drivers, numbered circuits, replaceable LED groups, standard connectors, documented wiring, captive fasteners, service panels, and mounting systems that allow one letter to be removed without disturbing the entire sign set.
Access details must not weaken weather protection. Service covers need suitable overlap, gaskets, fasteners, and drainage. Removable faces need enough clearance to prevent cracking but should not rattle under wind. External power supplies may be easier to replace, although their location still needs protection and must comply with local electrical rules.
For repeated projects, approved drawings, material records, colors, LED specifications, power details, hole patterns, and packing references should be retained. Good documentation allows a replacement part to be produced without restarting the complete development process.
How Should Project Teams Select Materials?
Outdoor sign materials should be selected after the project team defines the sign type, dimensions, location, environmental exposure, service life, structural load, illumination, wall condition, maintenance access, appearance standard, budget, transport method, and local compliance requirements. Material comparison becomes far more useful when these conditions are documented first.
What Service Life Is Needed?
The required service life should match the commercial purpose of the sign. A six-week event graphic, a two-year leasing panel, a permanent hotel logo, and a national chain-store program should not use the same material and engineering assumptions.
Temporary projects may prioritize speed, low weight, simple installation, and easy disposal. Semi-permanent signage may justify stronger mounting and better ultraviolet protection without requiring a full architectural structure. Long-term storefront and building signs need more attention to coatings, drainage, replaceable lighting, fasteners, service access, and future component availability.
Project teams should separate the service life of the structure from the service life of the visual and electrical layers. A metal cabinet may remain usable for many years while graphics, LED modules, acrylic faces, or power supplies require earlier replacement. Designing these layers separately can extend the total life of the sign and reduce unnecessary remanufacturing.
A realistic durability target is more useful than asking for the longest possible lifespan. Overengineering can increase weight, material use, freight, installation time, and cost without creating equal value. The goal is to match the sign to the real operating period, location, maintenance resources, brand standard, and replacement strategy.
Which Data Belong in an RFQ?
A useful request for quotation should provide enough information for the manufacturer to identify material, structural, electrical, installation, packaging, and transport risks. A logo and an overall width are rarely sufficient for an accurate outdoor proposal.
| RFQ Information | Practical Purpose |
| Sign type and artwork | Defines the basic product and material system |
| Finished dimensions | Influences thickness, lighting, frame, and freight |
| Quantity and SKU count | Affects batching, quality control, and packaging |
| Installation country | Influences climate, voltage, plug, and certification |
| Exact exposure | Separates sheltered, semi-outdoor, and full exposure |
| Mounting surface | Determines studs, brackets, rails, or backboards |
| Installation height | Affects visibility, structure, and service access |
| Brand color reference | Supports paint, print, acrylic, and light approval |
| Illumination requirement | Defines depth, LED layout, diffusion, and power |
| Cable and power location | Determines exits, raceways, and access |
| Wind or coastal conditions | Influences structure, metal grade, and coating |
| Expected service life | Guides material and finish investment |
| Packing and delivery method | Affects segmentation and protective packaging |
| Required installation date | Defines sampling, production, testing, and freight |
Useful files include AI, EPS, SVG, PDF, CAD, storefront elevations, site photographs, Pantone references, wall details, electrical plans, mounting drawings, and local permit information. When a detail is unavailable, it should be identified as an open item instead of being silently assumed.
A complete RFQ does not eliminate engineering review, but it reduces uncertainty and makes competing quotations easier to compare. It also allows the manufacturer to explain where a lower-cost material is suitable and where an upgrade is justified by exposure, structure, maintenance, or installation risk.
How Should Costs Be Compared?
Outdoor sign cost should be evaluated across the project lifecycle instead of only at the factory quotation stage. The lowest unit price may become expensive when the sign requires more installation labor, frequent cleaning, early refinishing, difficult servicing, or premature replacement.
A practical comparison includes manufacturing, packaging, international freight, installation, lifting equipment, electrical connection, routine cleaning, expected repairs, replacement components, removal, and disposal. The cost of business interruption can also matter when a main storefront sign is dark or removed while replacement parts are being produced.
Weight has a direct cost effect. Heavier signs may need stronger brackets, more installers, larger lifting equipment, and more expensive shipping. A large one-piece construction may look simpler in a rendering but can create oversize freight charges and difficult site handling. A segmented structure may reduce transport risk, although it adds joints and installation steps.
Material upgrades should be tied to a clear project risk. Grade 316 stainless steel may be justified near the coast but unnecessary inside a protected shopping center. A premium ultraviolet-resistant film may provide real value on a west-facing facade but little return on a shaded short-term installation. Good value comes from placing the budget where it reduces a specific failure or maintenance risk.
What Should Be Approved?
Production should begin only after the main visual, structural, electrical, installation, and packaging details have been approved. A rendered image may show the overall appearance, but it does not confirm material thickness, letter depth, frame construction, joint positions, hole locations, wiring, power-supply placement, drainage, or packing.
A complete approval package may include artwork, dimensions, scale, materials, thicknesses, colors, surface finish, daytime appearance, illuminated appearance, LED color or color temperature, power supply, voltage, cable exits, mounting method, hole pattern, backboard or raceway, section joints, accessories, and packaging plan.
Samples are useful when color, finish, light diffusion, letter construction, or a material combination is difficult to evaluate digitally. For larger orders or repeated locations, a first article can establish the production standard before the full batch begins. That approved first unit should be supported by drawings and material records rather than serving as the only reference.
Approval records need version numbers and dates. Changes made through email, messaging applications, drawings, and meetings should be consolidated into one final production version. This prevents the approved size from coming from one message, the updated color from another, and an outdated mounting pattern remaining in the production drawing.
Iduoduo is a Shenzhen-based custom sign manufacturer founded in 2007. Its production system includes five manufacturing bases, approximately 21,000 square meters of production space, more than 500 employees, 18 production lines, more than 10 designers, over 20 engineers, and more than 30 quality-control personnel. Its product scope covers illuminated and non-illuminated signage for commercial projects, including channel letters, light boxes, blade signs, acrylic LED logos, metal letters, acrylic letters, PVC letters, foam letters, plaques, and directional signs.
For an outdoor project, the engineering review can cover material combinations, panel thickness, letter depth, LED layout, power capacity, wiring groups, cable exits, mounting holes, raceways, backboards, waterproof construction, drainage, thermal movement, segmentation, packaging, and international delivery. Illuminated products are checked before shipment through visual inspection, electrical verification, 100% lighting inspection, and a 72-hour pre-shipment test.
To receive a practical material and manufacturing proposal, provide the logo or drawings, finished dimensions, quantity, installation country, site photographs, wall type, exposure conditions, mounting method, lighting requirement, target finish, expected service life, and delivery schedule. These details allow the project to be evaluated as a complete outdoor sign system rather than as a single sheet, metal, or plastic.
A reliable outdoor sign should do more than survive the first rain after installation. It should maintain its structure, appearance, illumination, service access, and brand consistency throughout the real conditions of the site. Contact Iduoduo to develop a custom outdoor sign solution matched to your climate, visual standard, installation method, maintenance plan, and long-term operating needs.
