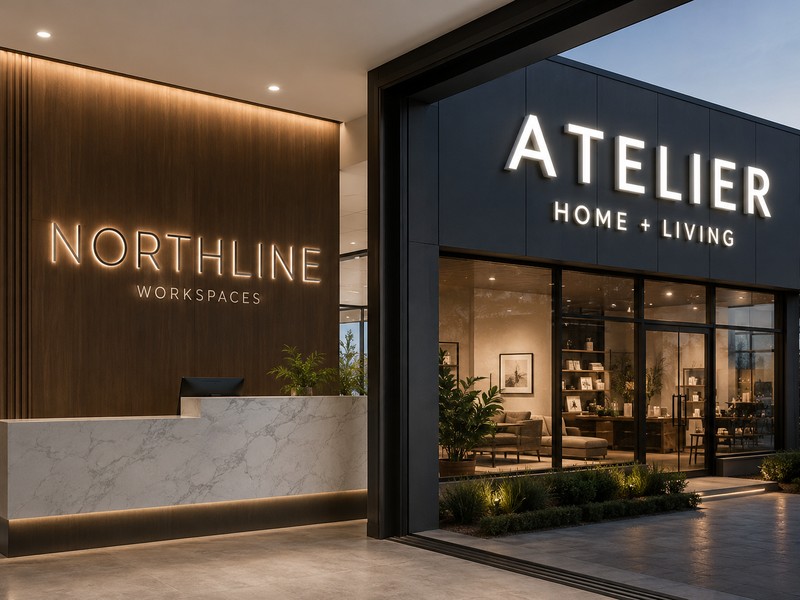

Are Acrylic Channel Letters Better Indoors or Outdoors?

Acrylic channel letters often appear equally convincing in a polished office lobby and on a brightly lit storefront. That visual similarity can be misleading. A letter that performs beautifully on a reception wall may struggle after months of direct sun, driving rain, condensation, temperature changes, or salt-laden coastal air. The real question is not whether acrylic can be used outdoors. It is whether the complete sign has been engineered for the actual environment.

Acrylic channel letters are usually better indoors when the design depends on slim profiles, fine logo details, close viewing, hidden wiring, and a refined finish. They can also work outdoors, but only when exterior-grade acrylic, weather-resistant structural parts, protected LEDs and power supplies, sealed cable entries, drainage, and site-appropriate mounting are engineered as one complete system.

A common mistake is choosing a sign from a product photograph before confirming what “acrylic channel letters” actually means. One supplier may use the term for fully fabricated acrylic letters. Another may mean metal channel letters with acrylic faces. The two can look similar online while behaving very differently on a building.

Imagine receiving a perfect sample for an indoor showroom, approving it, and then installing the same construction above a coastal storefront. Six months later, the appearance may still look acceptable from the street, while moisture, movement, corrosion, or heat has already started affecting the hidden components. Understanding the structure before discussing indoor or outdoor use prevents that story from becoming part of the project.

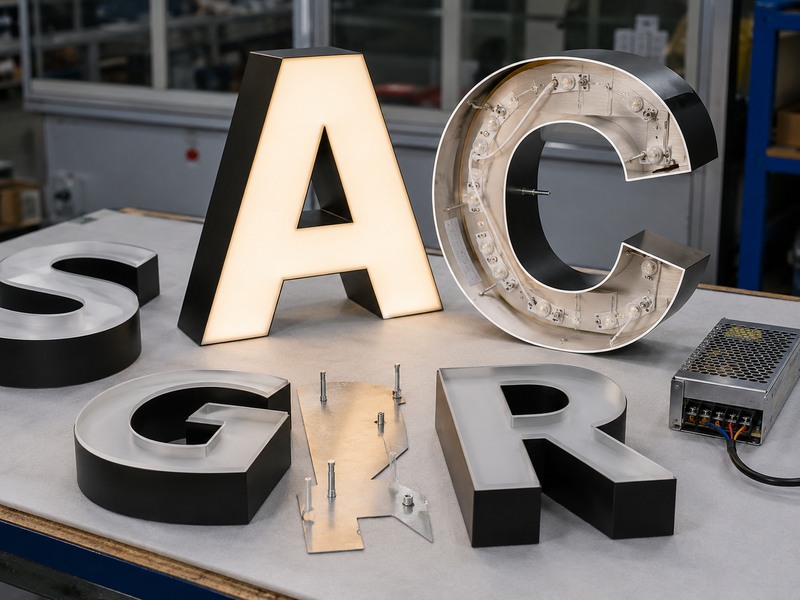

What Are Acrylic Channel Letters?

Acrylic channel letters are three-dimensional letters or logo shapes that use acrylic for the illuminated face, sidewall, body, diffuser, or decorative layer. Each letter is normally built as an individual unit containing a face, return, backing, LEDs, wiring, mounting points, and cable exits. The exact construction must be stated clearly because the term covers several products with very different indoor and outdoor performance.

What Does “Acrylic Channel Letters” Mean?

The name often causes confusion because it does not refer to one standardized construction. In one quotation, “acrylic channel letters” may mean aluminum letters with translucent acrylic faces. In another quotation, it may mean letters fabricated almost entirely from acrylic. Both products can appear similar in a front-view rendering, but their strength, lighting, depth, installation, maintenance, and weather resistance can be very different.

A channel letter sign is normally made as a set of separate letters, numbers, symbols, or logo elements. Every element follows the approved artwork and is installed at a defined position using a mounting template or measured layout. The finished sign width therefore includes the letters, logo elements, and spaces between them rather than one continuous cabinet.

A complete illuminated letter may contain:

A front face
A return or sidewall
A rear panel or letter back
LED modules or LED strips
Internal wiring
A power connection
Cable-exit holes
Mounting studs or fixing holes
Face-retaining parts
Sealed joints
Drainage points for exterior use

The term “acrylic” only explains where acrylic appears in the construction. It does not confirm the metal grade, letter depth, acrylic thickness, LED type, power supply, mounting method, waterproofing, or suitability for a particular site.

A useful quotation should therefore describe the construction in full. “Acrylic channel letters, 1,200 mm wide” gives too little information for an accurate comparison. “Front-lit aluminum channel letters with white translucent acrylic faces, painted returns, internal LED modules, remote power supplies, stud mounting, and exterior drainage” gives a much clearer basis for approval.

Iduoduo defines LED channel letters as a complete sign system involving the face, return, letter body, backing, LEDs, wiring, mounting points, cable exits, waterproofing, and drainage.

Which Parts Can Be Made From Acrylic?

Acrylic can perform several jobs in the same letter. Some parts transmit light, some diffuse it, and others create the daytime color or visible edge finish. Knowing which parts are acrylic helps project teams judge appearance, durability, repair access, and cost.

Acrylic component	Main purpose	Common appearance	Important checks
Front face	Transmits and diffuses LED light	White, colored, translucent or vinyl-covered	Thickness, color, light transmission and face retention
Side return	Produces side lighting or an all-around glow	Clear, frosted, white or colored	Joint quality, scratches, seams and edge brightness
Full letter body	Forms most of the three-dimensional letter	Clean, slim and refined	Bonding, rigidity, heat movement and maintenance access
Rear diffuser	Spreads rear light toward the wall	Clear, frosted or translucent	Wall distance, halo width and hotspot control
Layered logo section	Builds depth and separates colors	Multi-level or multi-color	Alignment, adhesive marks and expansion
Decorative front layer	Creates a premium unlit finish	Printed, painted, mirrored or opaque	Surface durability and edge quality
Light-guide layer	Carries light through the acrylic edge	Edge-lit or internally glowing	Engraving pattern and light distribution
Backboard	Supports several letters as one assembly	Clear, colored or printed panel	Thickness, bending, hole positions and visual impact

For conventional front-lit letters, acrylic normally forms the illuminated face while aluminum or stainless steel forms the return and backing. The metal body protects the LEDs, supports the face, and provides mounting strength. Such construction is widely used for storefronts and larger commercial signs.

For full-acrylic letters, the front and side sections may be fabricated from bonded acrylic pieces or machined from thicker acrylic. Full-acrylic construction can create a clean glow around the edges and is often chosen for reception walls, mall interiors, beauty stores, hotel interiors, clinics, offices, and close-view branding.

Acrylic thickness cannot be selected from overall sign width alone. A large flat face may need more support than a small letter. Narrow strokes may limit the available space for LEDs and fasteners. Dark acrylic may require a different lighting arrangement from white acrylic. Curved logos and sharp internal corners also place different stresses on bonded joints.

The drawing should identify the acrylic color, finish, thickness, visible edge, protective film, surface graphics, and whether a replacement face can be removed without damaging the letter body.

How Do Full-Acrylic Letters Differ From Acrylic-Face Letters?

Full-acrylic letters and acrylic-face channel letters are often grouped together, but they solve different project needs.

An acrylic-face channel letter normally has a metal return and back. Acrylic is used primarily as the illuminated front surface. The metal body provides depth and protects the internal lighting system. The face may be held with a trim cap, a trimless retaining detail, screws, clips, or another engineered system.

A full-acrylic letter uses acrylic for a larger portion of the visible body. The front, side, or complete outer shell may transmit light. The construction can appear lighter, slimmer, and more refined at close range. More exposed acrylic also means greater attention is needed around bonding lines, corners, cable exits, fastening points, heat, and environmental movement.

Project factor	Acrylic-face metal letter	Full-acrylic letter
Main structure	Aluminum or stainless-steel body	Fabricated or machined acrylic body
Typical visual effect	Strong front illumination	Front, edge, side or broader glow
Common viewing distance	Medium to long	Close to medium
Common letter depth	Usually deeper	Often slimmer
Structural strength	Generally higher for large letters	Depends heavily on acrylic thickness and shape
Outdoor suitability	Common when correctly engineered	Better for indoor or sheltered locations in many cases
Face replacement	Often easier	May require more disassembly
Visible joints	Mostly around the face edge	Acrylic seams may remain visible from several angles
Close-view finish	Good	Often cleaner when fabrication is precise
Typical use	Storefronts, façades and large identification signs	Reception logos, mall stores and interior brand walls

Neither construction is automatically better. A 300 mm-high reception logo viewed from two meters away has different requirements from a 1,500 mm-high storefront name mounted above a road. Full-acrylic construction may produce a finer interior appearance, while a metal-bodied letter may provide stronger support and easier servicing for a larger exterior installation.

Project teams should ask for section drawings rather than relying on a front rendering. A section drawing shows the face, return, backing, internal cavity, LED position, wall clearance, mounting studs, wiring, and power arrangement. Small differences in those areas have a direct effect on lighting and installation.

Which Lighting Styles Are Available?

Acrylic channel letters can produce several lighting effects. The correct option depends on how far away the sign must be read, how bright the surrounding space is, how the wall reflects light, and whether the sign is viewed mainly from the front or from several angles.

Lighting style	Where the light appears	Normal construction	Suitable applications
Front-lit	Through the front acrylic face	Translucent face with opaque metal return	Storefronts, restaurants, chain stores and exterior identification
Halo-lit	Behind the letter onto the wall	Opaque face and return with clear or translucent back	Hotels, offices, reception areas and premium retail
Front and halo-lit	Through the face and behind the letter	Translucent front with controlled rear light	High-visibility entrances and premium storefronts
Side-lit	Through the acrylic return	Opaque front with translucent acrylic sides	Interior logos, bars, cosmetic shops and feature walls
Edge-lit	Through or along an acrylic edge	Engraved or machined acrylic light guide	Slim interior signs and decorative logos
Full-body glow	Through several acrylic surfaces	Full-acrylic or multi-layer construction	Close-view interior branding

Front-lit letters usually provide the clearest long-distance recognition. The face acts as a diffuser, turning multiple LED points into a more even illuminated surface. Letter depth, acrylic opacity, LED spacing, internal reflection, and stroke width all affect uniformity. Adding more LEDs without enough diffusion distance may create brighter spots rather than a smoother face.

Halo-lit letters direct light toward the mounting wall. The final halo depends on wall color, wall texture, letter-to-wall spacing, LED position, letter depth, and ambient light. A light matte wall normally spreads the glow more visibly than black stone, dark timber, mirror panels, or heavily textured surfaces.

Front-and-halo letters require balanced output. A very bright face can overpower the rear glow, while excessive rear light can make the letter outline appear soft. Separate lighting circuits or dimming may be useful where front and rear brightness need independent adjustment.

Side-lit letters use translucent acrylic returns as the main illuminated area. The front should normally remain opaque when the goal is a true side-lit effect. Clear drawings are important because some factories use “side-lit” for letters that glow from both the face and edges, leading to a different result from the approved image.

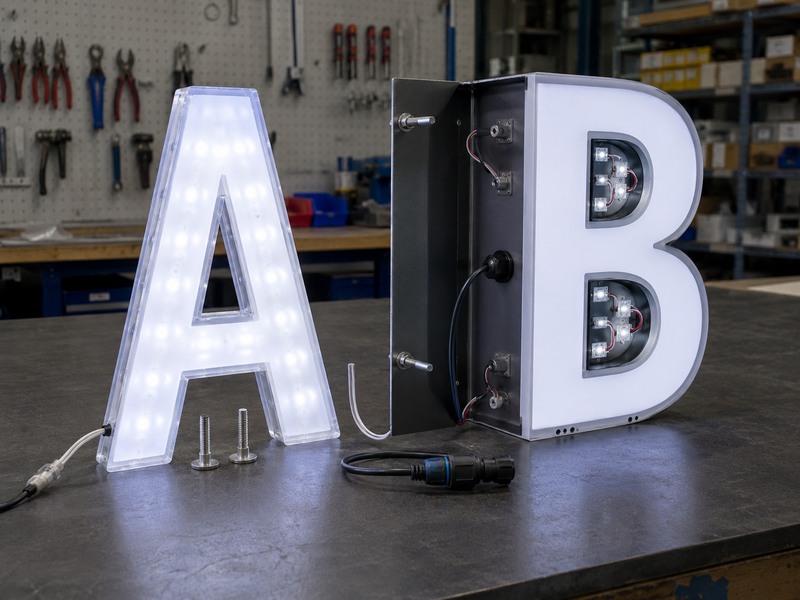

Which Structure Fits Different Project Sizes?

Letter height alone does not determine the construction. Stroke width, logo complexity, mounting height, viewing distance, acrylic color, lighting style, and installation access also matter. The following ranges are practical planning references rather than fixed production rules.

Project type	Common letter height	Common depth range	Main concern
Small reception logo	100–300 mm	20–50 mm	Fine strokes, close-view finish and hidden wiring
Interior brand wall	200–600 mm	30–80 mm	Lighting balance and wall integration
Mall storefront	300–900 mm	50–100 mm	Readability under strong ambient lighting
Street storefront	400–1,200 mm	80–150 mm	Distance, weather protection and mounting
Large building letters	Above 1,000 mm	Project-specific	Wind, segmentation, support and service access

A shallow letter can look elegant, but limited internal space may create visible LED points. A deeper letter gives light more distance to spread, although too much depth can look heavy on a small interior wall. Dark or saturated acrylic often transmits less light than white acrylic, so the LED layout may need adjustment.

Logo detail also sets practical limits. Narrow strokes may not leave enough room for LED modules, wiring, joints, or mounting studs. Small counters inside letters such as “A,” “B,” “P,” and “R” may close visually after fabrication. Fine taglines that look clear in a vector file can become difficult to illuminate evenly at small sizes.

Possible solutions include:

Increasing the overall sign size
Widening selected strokes
Using a thinner acrylic-and-metal structure
Producing the tagline as non-illuminated letters
Mounting small details on a shared backboard
Changing from front lighting to halo lighting
Separating a complex logo into several manufactured parts

A production drawing should show the minimum stroke width, final letter depth, spacing, section detail, mounting points, and any areas modified for manufacturing. Silent changes during production can alter a brand mark, so adjustments should be approved before cutting begins.

Where Are Acrylic Channel Letters Commonly Installed?

Acrylic channel letters appear in both interior and exterior commercial spaces, but the construction should change with the location.

Indoor installations commonly include:

Corporate reception walls
Hotel lobbies
Shopping mall storefronts
Cosmetic and beauty stores
Clinics and medical offices
Restaurants and cafés
Fitness centers
Showrooms
Interior brand walls
Exhibition displays

Interior locations favor clean edges, slim depth, controlled brightness, concealed cables, and close-view surface quality. Fully acrylic letters, layered acrylic logos, side-lit letters, and compact halo-lit letters are common options.

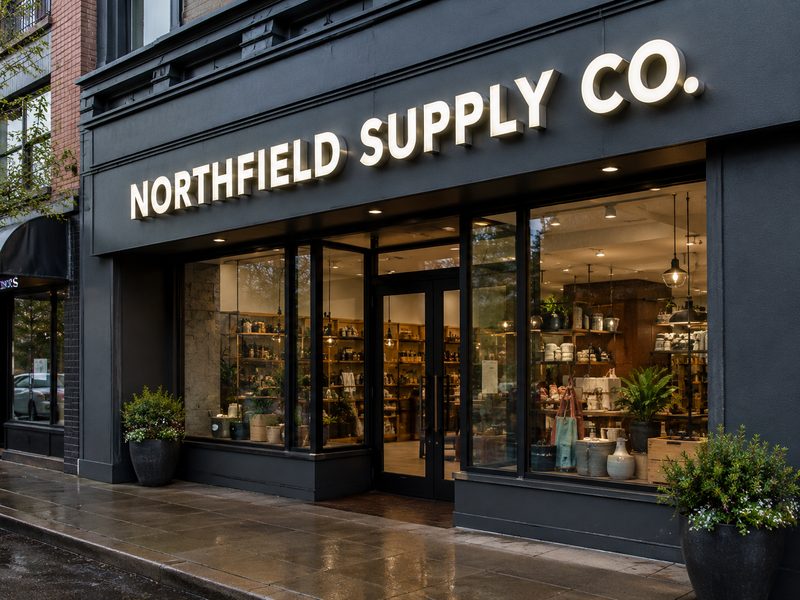

Outdoor and semi-outdoor installations include:

Street-facing storefronts
Restaurant façades
Hotel entrances
Shopping-center exteriors
Office-building entrances
Retail parks
Covered walkways
Fuel or service locations
Building identification walls

Exterior letters usually benefit from a metal body, exterior-grade acrylic face, corrosion-resistant hardware, protected electrical parts, sealed cable entries, drainage points, and stronger mounting. A covered entrance should not automatically receive an indoor structure. Wind-driven rain, humidity, UV exposure, dust, condensation, and temperature changes may still reach the sign.

Acrylic channel letters are mainly used for brand identification rather than detailed information. Their three-dimensional form, defined outline, and controlled illumination make company names and logos easier to recognize from a distance. They are less suitable for frequently changing messages, long menus, or large amounts of directional information.

Iduoduo’s channel letter applications include storefronts, mall stores, chain brands, restaurants, cafés, hotels, offices, gyms, medical and beauty spaces, exterior façades, and interior brand walls.

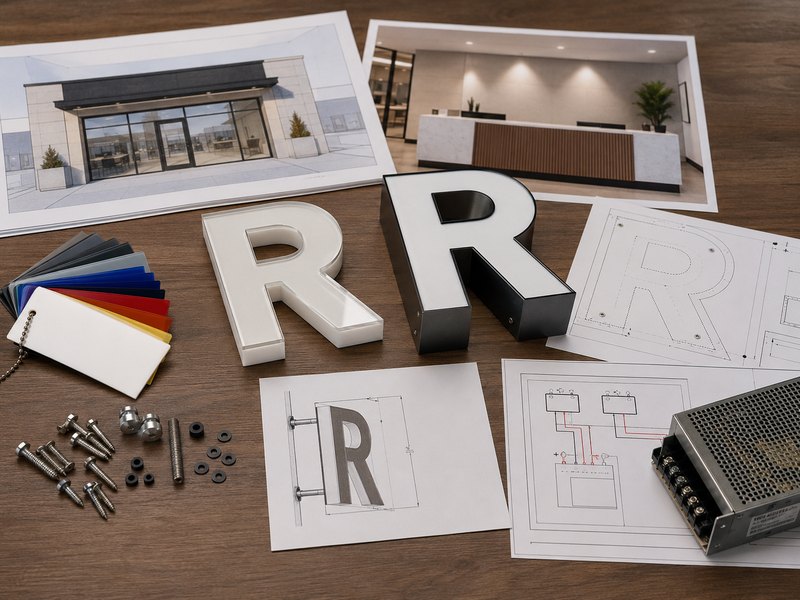

What Should a Quotation Specify?

A usable quotation should make it possible to compare two products line by line. A low price may come from a shallower body, thinner face, lower LED quantity, simpler mounting, indoor-rated electrical parts, or fewer installation accessories. Without a complete specification, price comparison can be misleading.

The quotation should cover at least the following items:

Item	Details to confirm
Overall size	Total sign width, letter height and logo dimensions
Quantity	Number of complete sets and separate elements
Construction	Full acrylic, acrylic-face metal letter or acrylic-metal combination
Face	Material, thickness, color and finish
Return	Acrylic, aluminum or stainless steel; depth and surface finish
Back	Acrylic, PVC, aluminum, stainless steel or another approved material
Lighting	Front, halo, front-and-halo, side or edge lighting
LED	Color, color temperature, brightness and control
Power	Input voltage, output voltage, power-supply location and plug or hardwiring
Mounting	Stud, flush, backboard, raceway or frame mounting
Cable exit	Rear, bottom, side, central or site-specific position
Environment	Indoor, sheltered outdoor or exposed outdoor
Water control	Sealing, cable protection and drainage
Accessories	Template, studs, screws, spacers, cables and connectors
Packaging	Individual packing, power-supply separation and wooden protection where needed
Approval records	Rendering, section drawing, wiring plan and sample where required

A front-view rendering confirms layout and appearance but does not confirm the product structure. Before production, review a side section or exploded drawing showing the face, return, backing, LED placement, wall clearance, cable route, and mounting method.

For multi-store or repeat projects, save the acrylic reference, metal finish, paint code, LED color, letter depth, mounting-hole pattern, cable-exit position, power grouping, and packaging number. A repeat order should reproduce an approved technical standard rather than depend on photographs from an earlier installation.

Are They Better Indoors?

Acrylic channel letters are often better indoors when a project needs slim profiles, fine logo details, controlled brightness, clean edges, and concealed wiring. Indoor environments also reduce exposure to UV, rain, strong temperature changes, and corrosion. Metal-bodied acrylic-face letters remain useful indoors for larger storefronts, while full-acrylic and layered acrylic letters usually suit close-view brand walls and reception areas.

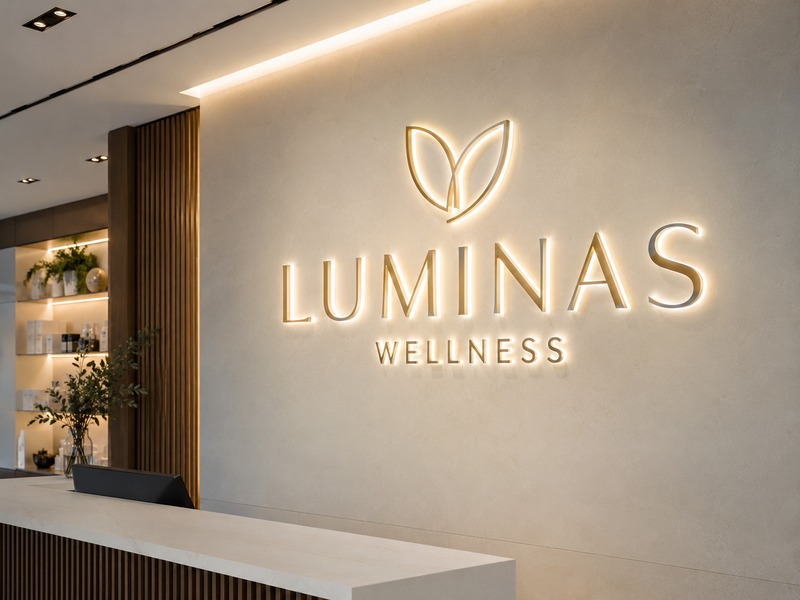

Which Indoor Spaces Suit Them?

Acrylic channel letters perform especially well in spaces where people see the sign from a short or medium distance. At close range, visitors notice edge quality, letter depth, mounting gaps, wire exits, surface scratches, glue marks, and uneven lighting. Acrylic allows the structure to be refined around these details more easily than a deep exterior-style channel letter.

Common indoor locations include:

Corporate reception walls
Shopping mall storefronts
Hotel lobbies and concierge areas
Clinics and medical offices
Cosmetic and beauty stores
Restaurants and cafés
Fitness centers and studios
Showrooms and sales centers
Exhibition booths
Interior entrances
Brand feature walls
Cashier and service counters

The right construction still depends on how the sign will be viewed.

Indoor location	Typical viewing distance	Suitable construction	Main priority
Reception wall	2–8 m	Full-acrylic, halo-lit or layered logo	Fine finish and concealed wiring
Mall storefront	5–20 m	Acrylic-face channel letters	Readability under strong ambient light
Hotel lobby	3–12 m	Halo-lit or front-and-halo-lit letters	Soft light and premium appearance
Clinic or office	2–10 m	Slim front-lit or halo-lit letters	Comfortable brightness
Restaurant interior	2–15 m	Acrylic, metal-acrylic or halo-lit letters	Mood and visibility
Exhibition booth	2–20 m	Lightweight acrylic letters or backboard system	Fast installation and reuse
Retail feature wall	1–6 m	Full-acrylic or side-lit logo	Edge quality and detail

A full-acrylic letter is often suitable for a reception wall because it can be made slimmer and can produce light through the face, side, or edge. A mall storefront may need a deeper acrylic-face metal letter because the sign must remain readable through glass, decorative lighting, window displays, and reflections.

The wall also affects the result. A logo on painted drywall can normally use concealed studs and wiring through the wall. A logo on marble, glass, timber slats, or finished metal panels may require a backboard, pre-positioned cable holes, special spacers, or coordination before the wall is completed.

Indoor suitability should therefore be judged from the space, wall, lighting, and viewing distance rather than from the product name alone.

How Does Ambient Light Affect Them?

Indoor signs often operate in changing light conditions. A reception area may be bright during the day because of large windows and much darker after sunset. A mall storefront may face ceiling lights, window displays, digital screens, reflective flooring, and neighboring signs. The LED output should be chosen for the completed environment, not only for a dark factory test room.

Several factors change perceived brightness:

Distance between LEDs and the acrylic face
Acrylic color and light transmission
Letter depth
LED spacing
Wall color
Wall reflectivity
Nearby lighting
Window exposure
Viewing angle
Front-lit, halo-lit, or side-lit construction

White translucent acrylic normally passes more light than saturated red, blue, green, or black acrylic. A darker face may need closer LED spacing or a higher-output LED system. Increasing LED quantity without enough internal depth can create bright points rather than even illumination.

Halo lighting is especially sensitive to wall conditions.

Wall surface	Expected halo result	Possible adjustment
White matte wall	Broad, visible glow	Normal spacing and moderate brightness
Light-gray wall	Controlled, softer glow	Slightly higher output if needed
Dark painted wall	Weaker halo	More output or greater wall clearance
Textured plaster	Broken or irregular glow	Test wall distance before production
Timber slats	Light may fall into gaps	Consider a backing plate
Polished stone	Strong reflections and hotspots	Reduce brightness or increase diffusion
Glass	Visible wiring and reflection risk	Use a backboard or concealed support
Mirror surface	Light can appear doubled	Lower output and test viewing angles

For many indoor projects, dimming is more useful than maximum brightness. A hotel may want a brighter daytime setting and a softer evening setting. A restaurant may need the sign to remain visible without overpowering table lighting. A clinic may prefer low-glare illumination that feels calm rather than commercial.

Color temperature also changes the atmosphere. Warm white commonly suits restaurants, hotels, beauty spaces, and timber interiors. Neutral white often works well in offices and retail spaces. Cool white can look crisp on modern metal or glass interiors but may feel harsh beside warm decorative lighting.

Daytime appearance and illuminated appearance should be approved separately. A colored acrylic face may match a brand color when unlit but appear lighter, warmer, or less saturated after the LEDs are switched on.

What Sizes and Depths Work Best?

Indoor acrylic channel letters can usually be shallower than exterior letters because they do not need the same level of rain protection, structural reinforcement, or drainage. However, shallow construction only works when the stroke width, LED type, acrylic opacity, and internal light distance allow even illumination.

The ranges below are useful for early planning. Final dimensions should be confirmed from the actual logo and lighting method.

Application	Common letter height	Planning depth	Recommended use
Small reception logo	100–300 mm	20–50 mm	Close-view logos and short brand names
Office brand wall	200–500 mm	30–70 mm	Front-lit, halo-lit or layered logos
Hotel lobby sign	250–700 mm	40–80 mm	Halo-lit or front-and-halo-lit letters
Mall storefront	300–900 mm	50–100 mm	Stronger front illumination
Large indoor entrance	500–1,200 mm	60–120 mm	Long viewing distance and higher visibility
Small illuminated tagline	Below 100 mm	Project-specific	Often better as another construction

A 20–30 mm body can look elegant, but it may not provide enough space for conventional LED modules, wiring, mounting studs, and light diffusion. Narrow letters may show hotspots near each LED. A 50–80 mm body provides more internal space and often produces more even front lighting, but it can look heavy on a small reception wall.

Stroke width is often more important than total letter height. A 500 mm-high letter with very narrow strokes may be harder to illuminate than a 300 mm-high letter with wide, simple strokes.

The following details should be checked before the size is approved:

Minimum illuminated stroke width
Small internal openings in letters
Spacing between separate strokes
Sharp corners and thin extensions
Room for LEDs and wiring
Space for mounting studs
Face retention method
Distance from the letter to the wall
Access for future repair

Small taglines are a common problem. A logo may include a company name large enough for channel-letter construction and a tagline only 20–40 mm high. Trying to illuminate every small tagline letter can lead to weak light, enlarged strokes, blocked counters, or a bulky result.

Practical alternatives include:

Producing the tagline as flat acrylic letters
Using non-illuminated metal letters
Printing the tagline on a backboard
Engraving it into an acrylic panel
Increasing the tagline size
Removing it from the illuminated portion

The correct solution should preserve readability rather than forcing every detail into the same construction.

How Are Wires and Power Hidden?

Indoor channel letters are often installed at eye level, so wiring quality has a major effect on the finished appearance. A well-made logo can still look unfinished when cables hang below the letters, power supplies sit on a counter, or connectors remain visible between logo elements.

Wiring should be planned from the wall outward.

Common arrangements include:

Wiring arrangement	Suitable wall or site	Main advantage	Main limitation
Individual wires through the wall	Hollow drywall with rear access	Cleanest appearance	Requires several drilled holes
Shared cable route behind the wall	New construction or renovation	Organized wiring	Must be planned before the wall closes
Backboard-mounted system	Stone, glass or finished walls	Fewer wall penetrations	Backboard remains visible
Raceway-mounted system	Limited rear access	Easier electrical service	More industrial appearance
Remote power supply above ceiling	Offices, malls and hotels	Power supply remains hidden and accessible	Cable route must be confirmed
Power supply inside service cabinet	Retail and reception areas	Easy replacement	Cabinet location must be nearby

The drawing should identify:

Wire-exit position for every letter
Wire length
Positive and negative connections
Voltage
Number of electrical groups
Power-supply quantity
Power-supply location
Cable route
Connector type
Mounting-hole positions
Letter spacing
Access point for servicing

A full-size installation template is particularly valuable for separate letters. It keeps the logo proportions, letter spacing, mounting holes, and wire holes aligned. Without a template, installers may position the word correctly overall but still create uneven spaces between individual letters.

Power supplies should be hidden but not permanently sealed into an inaccessible wall. Every power supply is a serviceable component. A removable ceiling panel, electrical cabinet, accessible backboard, or nearby service area is better than placing it behind a fixed decorative surface.

Cable length also matters. Very long low-voltage cable runs may cause voltage drop, uneven brightness, or color differences between letters. Larger logos may need several power groups rather than one long circuit. The power-supply load should include an appropriate margin rather than operating continuously at its maximum rated capacity.

For projects using a backboard, the backboard should not be treated only as a way to hide wires. Its size, shape, edge finish, thickness, color, mounting points, and distance from the wall all affect the final appearance.

Do Indoor Signs Need Waterproofing?

Most indoor acrylic channel letters do not need the same waterproof construction as exposed exterior letters. They still need appropriate protection from humidity, cleaning water, condensation, dust, accidental splashes, and unsafe electrical contact.

The real question is not simply “indoor or outdoor.” The room function matters.

Indoor environment	Moisture risk	Recommended attention
Office reception	Low	Protected connections and dust control
Mall storefront	Low to moderate	Condensation and frequent cleaning
Restaurant dining area	Moderate	Grease, humidity and cleaning chemicals
Restaurant kitchen entrance	High	Moisture and grease protection
Spa or beauty space	Moderate to high	Humidity and cleaning water
Swimming facility	High	Humidity, chlorine and corrosion
Entrance vestibule	Moderate	Temperature changes and condensation
Refrigerated area	Moderate to high	Condensation and low temperature
Indoor garden	Moderate to high	Irrigation mist and humidity
Restroom corridor	Moderate	Humidity and cleaning exposure

An office logo installed on an interior drywall wall may only require insulated connections, secure cable routing, strain relief, and a protected power supply. A sign near a spa, swimming pool, kitchen, or frequently cleaned surface may need sealed cable entries, corrosion-resistant hardware, better connector protection, and careful power-supply placement.

Condensation deserves more attention than it normally receives. A sign mounted against glass can heat up during the day and cool quickly after sunset. A logo near automatic doors may experience repeated changes in temperature and humidity. Moisture can form inside the letter even when no rain reaches it.

More sealant is not always a better solution. Completely sealing a letter can trap moisture that enters during installation or forms through condensation. The design should protect electrical parts while allowing unavoidable moisture to escape safely.

Cleaning methods should also be confirmed. Alcohol-based cleaners, aggressive solvents, rough cloths, and abrasive pads can cloud, scratch, or crack acrylic surfaces. Maintenance instructions should normally recommend:

Soft microfiber cloths
Clean water or mild acrylic-safe cleaner
No abrasive pads
No strong solvents
No spraying directly into joints or cable holes
Power isolation before electrical inspection

Indoor use gives acrylic channel letters a more stable working environment, but the construction still needs to match the wall, room conditions, lighting, access, and maintenance plan. A reception logo and a sign beside a swimming pool are both indoors, yet they should not be built to the same specification.

Can They Be Used Outdoors?

Yes. Acrylic channel letters can perform outdoors when the acrylic grade, metal body, LEDs, power supply, cable entries, drainage, coatings, fasteners, and mounting method are specified for the actual exposure. A conventional aluminum or stainless-steel channel letter with an exterior-grade acrylic face is generally more suitable for exposed façades than a slim full-acrylic letter designed for an interior brand wall.

Which Acrylic Grades Resist UV?

Outdoor suitability begins with the acrylic specification. “Acrylic” is a material family, not a complete performance standard. Two sheets can share the same color and thickness while differing in UV stability, light transmission, thickness tolerance, surface quality, fabrication behavior, and long-term color retention.

For illuminated exterior letters, acrylic normally serves as the translucent face. The face is retained by an aluminum or stainless-steel return, which carries most of the structural load and protects the LEDs. Such construction reduces the amount of exposed acrylic compared with a fully acrylic letter.

Full-acrylic letters expose more surfaces and bonded joints to sunlight, heat, rain, and temperature movement. They can still be used in sheltered exterior locations, but the risk increases as letter size, sun exposure, joint length, and temperature range increase.

The material schedule should identify more than a generic phrase such as “white acrylic.”

Acrylic item	What should be specified	Why it matters outdoors
Material type	Exterior-suitable PMMA acrylic	Reduces the risk of early yellowing and surface deterioration
Manufacturing type	Cast or extruded acrylic	Affects machining, bonding, bending and thickness tolerance
Face thickness	Commonly 3–5 mm for many sign faces; larger faces may require 5–8 mm or additional support	Controls stiffness, face movement and retention
Color	Manufacturer color code, physical sample or approved reference	Daylight color may differ from illuminated color
Light transmission	Transparent, translucent, opaque or project-specific	Influences LED quantity, diffusion and nighttime brightness
Surface	Gloss, matte, frosted, textured or film-covered	Changes glare, cleaning and light diffusion
UV requirement	Outdoor exposure confirmed in the material schedule	Prevents indoor-only sheet from being substituted
Batch control	Same material reference for one production batch	Reduces visible color variation across letters
Protective film	Retained through fabrication and removed at the correct stage	Limits scratches during production and installation

Cast acrylic is often preferred for machined, polished, bonded, or heavily fabricated logo parts because it generally performs well during detailed processing. Extruded acrylic is widely used for flat sign faces and thermoformed work where consistent sheet production and cost control are important. Neither type should be approved by name alone. Grade, color, thickness, forming method, and exposure need to be reviewed together.

Color requires special attention. White translucent acrylic usually provides stronger light transmission and easier diffusion than dark red, navy, black, or heavily pigmented sheets. Dark faces may require:

A deeper letter cavity
Closer LED spacing
Higher-output LEDs
A lighter internal coating
Additional diffusion material
A lighting sample before production

A printed Pantone value does not automatically match an illuminated acrylic face. Pantone describes a reflected printed color, while illuminated acrylic is seen through transmitted light. LED color temperature, brightness, face thickness, pigment density, and surrounding light all change the result. Strict brand programs should approve both an unlit material sample and an illuminated sample.

The edge of the acrylic also matters. Exposed polished edges can look excellent indoors but may reveal scratches, dust, sealant lines, and bonded joints outdoors. A metal return with a retained acrylic face normally gives a more controlled exterior finish.

Before approving an outdoor acrylic specification, confirm:

Acrylic manufacturer or approved equivalent
Material code and color reference
Sheet thickness
Daytime appearance
Illuminated appearance
Front surface treatment
Edge treatment
Face-retention method
Replacement method
Maximum unsupported face area
Expected UV and temperature exposure

For repeat store programs, save the acrylic code, thickness, color sample, LED type, LED color, letter depth, and approved lighting photograph. Reordering only from a storefront photograph can produce visible differences even when the general color name remains unchanged.

How Do Heat and Cold Affect Them?

Acrylic expands and contracts more than common sign metals. Large temperature changes can therefore create movement between an acrylic face and an aluminum or stainless-steel letter body. The sign must allow controlled movement rather than holding every component rigidly.

Acrylic typically moves by approximately 0.07 mm per meter for every 1°C change. Aluminum moves by roughly 0.023 mm per meter per 1°C, while stainless steel moves less again. The exact value varies by grade, but the difference is large enough to affect long faces, wide logos, bonded seams, and rigid fasteners.

A simple example shows why allowances matter:

Example	Acrylic movement estimate
Face length	2,000 mm
Temperature change	40°C
Approximate movement rate	0.07 mm/m/°C
Possible dimensional movement	About 5.6 mm

The same 2-meter face may be cool before sunrise and considerably hotter after several hours of direct afternoon sun. A dark acrylic face or dark painted return can reach a higher surface temperature than the surrounding air.

If the face is trapped too tightly, several problems may appear:

Bowing at the center of the face
Cracking near screws or sharp corners
Separation at bonded joints
Face-retaining trim lifting at corners
Stress marks around drilled holes
Gaps opening during cold weather
Water entering after repeated expansion cycles
Acrylic rubbing against the metal return

Outdoor face-retention systems should provide enough support to resist wind while allowing suitable clearance for material movement. Large faces may require internal braces, divided sections, thicker acrylic, shaped returns, or a different sign construction.

Drilled holes need particular care. Holes placed too close to the acrylic edge can crack under stress. Tight screws can clamp the sheet so firmly that no movement remains. Oversized holes, suitable washers, controlled torque, flexible retention, and rounded internal corners can reduce stress concentration.

The LED system is also affected by heat. LEDs, wiring, controllers, and power supplies all generate heat during operation. Internal temperature rises when:

The letter cavity is shallow
LED quantity is excessive
The power supply is enclosed inside the letter
The face receives strong direct sunlight
The return is dark
Air movement is limited
The sign operates for long hours
Dust or moisture affects heat dissipation

More LEDs do not always mean a better sign. Excessive LED density can increase heat and power consumption without improving uniformity. Correct letter depth, reflective internal surfaces, suitable beam angles, and planned spacing usually produce a more balanced result.

Power supplies should not be installed in a sealed, hot, wet, or inaccessible cavity. A protected raceway, service box, interior electrical area, or accessible rear location normally makes replacement and inspection easier. Iduoduo’s technical facts require power placement to consider heat dissipation, standing water, service access, cable length, voltage drop, and circuit grouping.

Cold-weather projects introduce a different group of risks. Water entering a seam can freeze and expand. Some adhesives and sealants become less flexible at low temperatures. Repeated freeze-thaw cycles may gradually enlarge small gaps around joints, screws, cable entries, and mounting penetrations.

Project information should therefore include:

Site condition	Information to provide
Highest expected temperature	Summer air temperature and direct-sun exposure
Lowest expected temperature	Winter temperature and freeze-thaw conditions
Façade direction	North, south, east or west orientation
Face color	Light or dark acrylic and return colors
Daily operating time	Business hours, overnight or continuous operation
Letter size	Longest face dimension and maximum letter height
Mounting height	Street level, canopy, roofline or high-rise façade
Wall ventilation	Open frame, solid wall, raceway or enclosed cabinet

A small sheltered sign in a mild climate may need limited temperature adjustment. A long dark logo on a west-facing wall in a hot region requires much more attention to expansion, LED heat, power placement, and face support.

Do Rain and Humidity Cause Damage?

Rain does not usually damage the acrylic face immediately. Most outdoor failures begin at joints, cables, electrical connections, mounting holes, power supplies, and areas where water becomes trapped.

Water can enter through:

Gaps between the acrylic face and return
Trim-cap joints
Rear-panel seams
Cable-exit holes
Mounting holes
Screws and rivets
Welded corners
Raceway covers
Backboard penetrations
Damaged electrical connectors
Poorly sealed wall holes
Façade leaks behind the sign

A letter may appear properly sealed from the front while remaining open around the rear wire exit. Water can travel along the cable, enter the wall, or collect inside the letter. Wind-driven rain can also move upward or sideways, so protection should not be based only on water falling vertically.

An effective outdoor design uses two methods together:

Limit unnecessary water entry.
Allow incidental moisture and condensation to leave safely.

Trying to seal every opening permanently can create a trapped cavity. Small amounts of moisture may enter during installation, move through a cable, or form as condensation. Without drainage, the water remains near LEDs, connectors, metal surfaces, and the bottom of the letter.

Area	Common failure	Better preparation
Acrylic face	Loose edge or uneven retention	Consistent fit, suitable trim and expansion clearance
Cable exit	Water follows the cable into the letter	Protected entry, drip loop and suitable sealing
Rear seam	Water enters behind the back	Controlled joint and correctly positioned sealant
Bottom of letter	Standing water remains inside	Open, correctly located drain points
LED connector	Corrosion or intermittent lighting	Protected connector positioned away from pooled water
Power supply	Water exposure or overheating	Protected and serviceable installation position
Wall penetration	Water enters the building envelope	Local installer seals the façade penetration
Raceway cover	Water enters around lid joints	Correct cover fit, gasket or agreed sealing method
Mounting screw	Water travels along the fastener	Site-appropriate seal and anchor detail
Drain opening	Sealant or debris blocks drainage	Final inspection after installation

Outdoor channel letters should not rely only on surface silicone. Waterproof performance involves LED parts, connectors, cable entries, letter shells, faces, backs, power supplies, drainage, and site sealing. The complete system may be configured around IP65 or IP67 requirements, while IP68 is available only when requested and separately engineered. IP ratings do not replace correct installation or building-envelope waterproofing.

The ratings should not be treated as interchangeable marketing labels.

Protection level	Practical project use	Important limitation
IP65	Common outdoor rain and dust exposure when the complete configuration is prepared accordingly	Does not mean safe for immersion
IP67	Stronger protection for high-rain, high-humidity or demanding exposure	Installation penetrations still need local sealing
IP68	Specially requested applications with agreed conditions	Not a default specification; design and testing depend on the intended use

A standard storefront exposed to rain is not the same as a pool sign, submerged product, fountain installation, or location subject to standing water. IP68 should never be assumed merely because a sign is going outdoors.

Humidity can create problems even when direct rain is limited. Warm air enters the letter during the day, then cools after sunset. Water vapor may condense on the inside of the face or backing. Coastal humidity, tropical weather, shaded walls, and signs mounted against cool masonry can increase the effect.

A small amount of temporary condensation does not always mean the sign has failed. Persistent water droplets, standing water, corrosion, staining, flickering, or repeated power faults require investigation.

Installation has a major influence on weather performance. A properly made letter can still develop problems when the installer:

Drills an unplanned hole through the backing
Cuts or damages a protected cable
Mounts the letter upside down or at the wrong angle
Blocks drainage with silicone
Places the power supply in an exposed area
Uses unsuitable connectors
Leaves façade holes unsealed
Mixes indoor and outdoor electrical parts
Changes wiring without updating the circuit plan

Shop drawings should show cable exits, drainage positions, mounting holes, raceway orientation, power location, and the intended top and bottom of irregular logo elements.

How Long Do They Last Outdoors?

No fixed number accurately predicts the life of every acrylic channel letter. A sheltered sign operating six hours per night in a mild climate ages differently from a sign facing direct sun, salt air, heavy rain, and 24-hour operation.

Useful life depends on:

Acrylic grade and color
Face thickness and support
Metal type and coating
LED quality and heat control
Power-supply loading
Daily operating hours
Input-voltage stability
UV exposure
Rain and humidity
Temperature range
Salt and airborne pollution
Wall orientation
Installation quality
Cleaning method
Maintenance access

Operating hours alone create a large difference.

Operating schedule	Approximate annual operating time
6 hours per day	2,190 hours
10 hours per day	3,650 hours
12 hours per day	4,380 hours
18 hours per day	6,570 hours
24 hours per day	8,760 hours

A continuously illuminated sign experiences twice the annual LED and power-supply operating time of a sign running 12 hours per day. Timers, photocells, building controls, and sensible operating schedules can reduce unnecessary electrical use and heat exposure.

Iduoduo uses conservative planning references of approximately two years for illuminated outdoor signs and approximately five years for illuminated indoor signs. Non-illuminated acrylic used outdoors may show increasing oxidation, yellowing, brittleness, or appearance changes after roughly two to three years, depending on material grade and exposure. These periods are planning references rather than universal guarantees.

A three-year warranty and expected material life should not be treated as the same measurement. Warranty review considers the LED, power supply, wiring, voltage, installation, water entry, environment, maintenance, transport, operating time, and signs of misuse. Iduoduo’s standard quality statement is 72-hour pre-shipment testing plus a three-year warranty.

Outdoor aging rarely happens to every part at the same rate.

Component	Typical signs of aging	Recommended inspection
Acrylic face	Yellowing, fading, cracks, bowing or surface haze	Compare color and flatness across all letters
Paint or coating	Chalking, bubbling, peeling or edge corrosion	Inspect welds, corners, holes and lower edges
LED system	Dark areas, color shift or uneven output	View the sign from normal distance at night
Power supply	Delayed start, flicker, noise or shutdown	Check loading, heat, voltage and moisture
Connectors	Intermittent operation or corrosion	Inspect protected connection points
Sealant	Cracking, separation or hardening	Check cable entries and façade penetrations
Drainage	Water or dirt inside the letter	Confirm all drain points remain open
Fasteners	Rust, looseness or staining	Inspect anchors, studs, brackets and raceways

Maintenance should normally include gentle cleaning, drain inspection, visible seal inspection, power-supply checks, fastener review, and nighttime lighting inspection. Strong solvents, abrasive pads, pressure washing directly into seams, and uncontrolled drilling can shorten service life.

A maintenance record is especially useful for chain stores. Recording installation date, operating schedule, power-supply location, repair history, replacement parts, and site photographs makes later fault diagnosis faster.

Are Coastal Areas More Demanding?

Coastal locations are more demanding because airborne salt settles on metal, fasteners, electrical connections, seams, and mounting hardware. Salt attracts moisture and accelerates corrosion. Even a sign protected from direct sea spray can receive salt-laden air.

Distance from the shoreline is useful but not enough. Exposure also depends on:

Prevailing wind direction
Building height
Open or sheltered position
Rainfall frequency
Cleaning schedule
Nearby roads or industry
Horizontal ledges where salt collects
Façade orientation
Direct splash or wind-driven mist

The phrase “stainless steel” does not provide a complete coastal specification. Grade, thickness, weld treatment, finish, contamination control, and maintenance all influence corrosion resistance. Stainless steel can still develop staining when unsuitable fasteners are used, welds are poorly treated, or iron particles remain on the surface.

For demanding coastal work, 316 stainless steel may be considered for selected exposed parts, while properly prepared and coated aluminum can also perform well in many sign constructions. The final choice should consider weight, fabrication, appearance, budget, galvanic interaction, mounting system, and expected exposure.

Coastal component	Recommended review
Letter return	Aluminum or suitable stainless-steel grade with approved finish
Backing	Corrosion-resistant construction with controlled drainage
Fasteners	Compatible stainless or approved corrosion-resistant hardware
Welds	Cleaned, finished and protected after fabrication
Paint	Proper surface preparation, primer and exterior coating system
Electrical connectors	Protected from salt, water collection and direct exposure
Power supply	Sheltered, ventilated and accessible
Cable entries	Sealed and positioned to reduce water tracking
Mounting brackets	Checked for material compatibility and corrosion exposure
Cleaning	Fresh-water surface cleaning at an agreed interval

Dissimilar metals need attention. Stainless steel fasteners touching aluminum in a salty, wet environment can create galvanic corrosion when the joint is not isolated or protected. Suitable washers, coatings, sealants, isolation materials, and drainage can help control the risk.

Wind is another coastal concern. A projecting letter, blade sign, backboard, or raceway mounted high on an open façade may receive substantial wind pressure. The factory can prepare studs, brackets, mounting plates, templates, and support details, but the local structural engineer or qualified installer should confirm:

Building substrate
Anchor type
Edge distances
Wind zone
Installation height
Letter projection
Support-frame capacity
Façade waterproofing
Local permit requirements

The final wall anchors should be selected locally according to concrete, brick, stone, cladding, insulated panels, curtain walls, timber framing, or structural steel. Generic screws packed with a sign should not be assumed suitable for every building.

Outdoor inquiries should identify whether the location needs a standard exterior version, a high-rain version, or a coastal version. Iduoduo’s project records distinguish indoor, outdoor, and coastal configurations because the same logo may require different power supplies, connectors, coatings, fasteners, labels, packaging, and mounting preparation for different countries or environments.

Before production, provide the following coastal information:

City and installation address
Approximate distance from the sea
Building height
Installation height
Wall direction
Site photographs
Direct splash or airborne salt exposure
Maximum sign dimensions
Wall material
Mounting preference
Local wind requirement
Expected cleaning schedule
Power-supply location
Required material grade or coating standard

A coastal acrylic channel letter can be visually identical to an inland version while using a very different structure behind the face. The longest-lasting result comes from specifying the hidden parts with the same care as the visible acrylic.

How Do Indoor and Outdoor Builds Differ?

Indoor and outdoor acrylic channel letters may share the same logo, color, and lighting effect, but the hidden construction should not be identical. Indoor builds prioritize slim depth, clean edges, comfortable brightness, and concealed wiring. Outdoor builds need stronger bodies, exterior-grade materials, controlled expansion, protected electrical parts, drainage, corrosion-resistant mounting, and easier access for inspection and repair.

Which Materials Need Upgrading?

An indoor acrylic letter is often designed around appearance. The factory can use a slimmer body, lighter backing, smaller mounting hardware, and less complex sealing because rain, direct UV, strong wind, and large temperature changes are limited.

An exposed outdoor letter must be designed around appearance and environmental pressure. The most common upgrade is changing from a mostly acrylic body to a metal-bodied channel letter with an exterior-grade acrylic face.

A conventional exterior channel letter normally includes:

Translucent acrylic face
Aluminum or stainless-steel return
Aluminum, stainless-steel, or other approved rear panel
Exterior-suitable LED modules
Protected low-voltage wiring
Suitable power supply
Mechanical face-retention system
Sealed cable entry
Drainage points
Corrosion-resistant mounting hardware

A full-acrylic body can still work outside in a sheltered location, but long bonded seams, exposed polished edges, wide faces, dark colors, and large letters increase the risk of movement, cracking, visible joints, or water entry.

The following comparison provides a practical starting point.

Part	Typical indoor build	Typical outdoor build	Reason for the difference
Illuminated face	Translucent acrylic selected mainly for color and diffusion	Exterior-grade, UV-suitable acrylic with controlled face retention	Outdoor faces experience sunlight, wind, heat, and cold
Return	Acrylic, aluminum, stainless steel, or layered construction	Aluminum or stainless steel commonly preferred	Metal provides stronger support and protects internal parts
Rear panel	Acrylic, PVC, aluminum, or other project-suitable material	Corrosion-resistant metal or an approved exterior backing	Rear areas receive moisture and mounting stress
Letter depth	Often 20–80 mm	Often 80–150 mm for conventional exterior letters	Greater depth improves structure, light diffusion, and internal space
Fasteners	Selected mainly for neat appearance and wall compatibility	Corrosion-resistant, exposure-suitable fasteners	Rain and humidity can corrode ordinary hardware
Adhesives	Chosen for acrylic bonding and interior temperature	Exterior-compatible products with movement allowance	Outdoor joints face UV, moisture, and temperature cycles
Coating	Decorative finish	Exterior coating with proper surface preparation	Outdoor paint must resist UV, rain, and corrosion
Mounting support	Light studs, concealed brackets, or a decorative backboard	Stronger studs, raceway, frame, or engineered mounting plate	Wind and façade loads are higher outdoors
Electrical access	Ceiling, service cabinet, or rear wall access	Protected, ventilated, and serviceable location	Outdoor power parts need water and heat protection

The planning depth ranges above are not fixed production standards. Logo shape, stroke width, acrylic transmission, LED beam angle, installation height, wind exposure, and service access may require a different depth.

Material thickness should also be based on the largest unsupported area, not only on the total logo width. A 1,500 mm-wide word made from several narrow letters may place less stress on each face than one 1,500 mm-wide solid logo panel.

Several areas deserve special attention during exterior material selection.

Large flat acrylic faces

A wide face can bow inward or outward when heated by direct sun. Wind also applies pressure to the face. A thicker sheet alone may not solve the problem. Internal support, smaller face sections, deeper returns, or a different retention system may be required.

Dark acrylic and dark metal finishes

Black, navy, dark red, and deep green surfaces can become considerably hotter under sunlight than white or light-colored surfaces. Higher surface temperatures increase material movement and internal LED heat. Dark faces may also transmit less light, so optical planning and temperature planning must be considered together.

Bonded acrylic corners

Clear or glowing acrylic sides often depend on bonded corners. A joint that looks almost invisible in a hotel lobby may become more noticeable after dust, water, UV exposure, and repeated temperature movement. Outdoor use should be decided after reviewing seam length, joint position, letter size, and access for replacement.

Mixed metals

Aluminum returns, stainless-steel fasteners, steel frames, and other metal parts may contact one another. In wet or coastal conditions, incompatible metals can contribute to galvanic corrosion. Isolation washers, protective coatings, suitable sealants, drainage, and correct fastener selection can reduce the risk.

Painted metal edges

Coating problems often begin around laser-cut edges, welds, corners, holes, and folded sections. Proper cleaning, grinding, surface preparation, primer, curing, and final inspection matter more than simply naming the paint color.

A quotation should identify the construction clearly. “Acrylic letters for outdoor use” is not enough. A more useful specification would read:

Front-lit channel letters with exterior-grade translucent acrylic faces, painted aluminum returns and backs, protected LED modules, remote outdoor-suitable power supplies, rear cable exits, lower drainage points, stud mounting, and an installation template.

Such wording allows sign companies, architects, installers, and procurement teams to compare real structures instead of comparing only photographs and total prices.

How Should Water Be Sealed and Drained?

Outdoor waterproofing is not achieved by covering every seam with silicone. A reliable exterior letter combines controlled sealing, protected electrical parts, correctly placed drainage, and site sealing around the building penetrations.

Water can reach the sign from several directions:

Direct rainfall
Wind-driven rain
Water flowing down the façade
Condensation inside the letter
Cleaning water
Snow and ice melt
Water following an electrical cable
Leaks from the wall or roof above
Moisture collecting inside a raceway

The factory should first reduce unnecessary entry points. Cable holes, rear seams, face joints, screws, and connectors need suitable preparation. Incidental moisture should then have a safe route out of the bottom of the letter.

A basic water-management route may look like the following:

Rain reaches the face, return, or rear area.
Face retention and seams limit direct entry.
Cable entries reduce water tracking along the wire.
Electrical connectors remain above likely water-collection areas.
Incidental moisture moves to the lowest internal point.
Drain openings release water instead of trapping it.
The local installer seals the wall penetrations and building interface.

Drain positions must follow the installed orientation. A logo symbol may have several separate low points. A curved shape, slanted letter, or rotated emblem may need more than one drain opening.

Water-control point	Indoor preparation	Outdoor preparation
Face edge	Clean fit and dust control	Secure retention, consistent fit, movement clearance, and suitable sealing
Rear seam	Basic assembly joint	Controlled joint protected from driven rain
Cable exit	Insulated and tidy	Protected entry with sealing and water-tracking control
Electrical connector	Secure connection	Protected connector raised above likely standing water
Bottom of letter	Usually closed or lightly vented	Drainage placed at the true lowest points
Mounting hole	Neat fixing	Water-resistant façade penetration prepared locally
Raceway	Mainly hides wiring	Cover fit, joints, drainage, and service access reviewed
Power supply	Hidden and ventilated	Protected, ventilated, raised, and accessible
Wall interface	Cosmetic finish	Building-envelope sealing by the local installer

Cable routing is one of the most overlooked details. Water can travel along a wire and enter the letter or wall. A cable should not form a direct downward path into an opening. Depending on the construction, a protected entry, downward-facing route, drip loop, cable gland, or sealed sleeve may be used.

The wall opening also belongs to the waterproofing system. The factory can provide wire-exit drawings and mounting templates, but local installers must seal penetrations according to the actual façade.

Different wall systems require different treatment:

Concrete
Brick
Stone cladding
Metal composite panels
Insulated wall panels
Curtain wall
Timber
Stucco
Exterior insulation and finish systems
Existing sign raceways

A perfectly sealed letter does not protect a building when the installer leaves an open wire hole behind it. Factory waterproofing and building-envelope waterproofing should remain separate approval items.

Drainage should not be treated as evidence of poor sealing. Even well-prepared exterior letters can experience condensation. Warm air inside a sun-heated letter cools after sunset, producing moisture on the inner face or back. A controlled drain path prevents small amounts of moisture from remaining around LEDs and electrical connections.

Common installation mistakes include:

Blocking drain holes with sealant
Mounting a letter in the wrong orientation
Drilling new holes without protecting the exposed metal
Re-routing wires through an unapproved area
Leaving connectors at the bottom of the cavity
Placing the power supply where water can collect
Sealing the entire cavity without allowing condensation to escape
Applying excessive silicone across visible acrylic edges
Failing to seal the wall penetration

IP ratings also need careful use. An IP65, IP67, or specially engineered IP68 configuration only describes an agreed level of enclosure protection under stated conditions. It does not automatically cover the wall, anchors, building wiring, field-made joints, or modifications completed during installation.

Iduoduo can prepare IP65, IP67, or requested IP68 configurations according to the project, but IP68 is not a default claim for every exterior sign. Factory protection and site waterproofing must be evaluated separately.

A practical approval package for an outdoor letter should show:

Face-retention detail
Return and backing materials
Rear seams
Cable-exit location
Drain locations
Connector positions
Power-supply location
Raceway or backboard joints
Mounting holes
Local wall-sealing responsibility
Maintenance access

Pictures of a finished front face cannot prove those details. A side section, rear view, and installation drawing provide much more useful information.

Which LEDs and Power Supplies Are Required?

Indoor and outdoor channel letters often use the same low-voltage principle, but the component ratings, wiring protection, heat management, and service location are different.

Most illuminated sign systems operate with 12V or 24V LEDs supplied by a power unit connected to 110V–240V building input. The final arrangement depends on destination country, LED load, cable length, voltage drop, letter size, control system, and installation environment.

Indoor letters usually prioritize:

Low glare
Compact LED size
Shallow-body diffusion
Quiet operation
Hidden power supplies
Easy dimming
Clean cable routing
Comfortable color temperature

Outdoor letters usually prioritize:

Stable brightness at longer viewing distances
Exterior-suitable LED modules
Protected wiring and connectors
Heat resistance
Moisture resistance
Voltage-drop control
Replaceable power supplies
Circuit grouping for large signs
Maintenance access

Electrical item	Indoor build	Outdoor build
LED modules	Selected for shallow depth and comfortable brightness	Selected for output, temperature, moisture, and long cable runs
LED spacing	Focused on eliminating close-view hotspots	Focused on uniformity across larger and deeper faces
Wiring	Concealed behind wall or backboard	Protected from abrasion, moisture, and exposed routing
Connectors	Insulated and accessible	Protected connectors positioned away from collected water
Power supply	Indoor-rated where the location is dry	Outdoor-suitable or installed inside a protected interior location
Circuit grouping	Often one or several compact groups	Larger signs commonly divided into several serviceable groups
Dimming	Frequently useful for interiors	Used when local brightness limits or nighttime control require it
Controller	Hidden in a dry, accessible area	Protected and serviceable with appropriate cable routing
Cable exit	Selected mainly for appearance	Selected for appearance, drainage, and water-tracking control

Letter depth and LED spacing work together. A shallow cavity places the LED closer to the face, increasing the chance of visible dots. A deeper cavity gives the light more distance to spread. Acrylic transmission, internal paint color, module beam angle, stroke width, and LED output also influence the result.

A practical optical review should confirm:

Minimum stroke width
Distance between LEDs and the face
Acrylic transmission
LED spacing
Internal reflective surface
Color temperature
Face color
Required nighttime brightness
Ambient light around the installation
Expected viewing distance

Outdoor brightness should not be increased without limit. Excessive output can create glare, color washout, neighbor complaints, or local code problems. Higher output also increases load and heat.

Power supplies should operate with a reasonable reserve rather than continuously at maximum rated capacity. The exact reserve depends on the component manufacturer, electrical design, ambient temperature, and project requirements. A common planning practice is to avoid loading a power supply to 100% of its rating.

For example:

Calculated LED load	Planning direction
80 W	Do not select an 80 W supply merely because the numbers match
80 W	Review a higher-rated supply with suitable operating margin
180 W total sign load	Consider dividing the sign into two or more serviceable circuits
Long cable route	Review wire gauge, voltage drop, and power-supply location
Separate front and halo lighting	Consider independent circuits or controls

Large signs should often be divided into electrical groups. One failure should not necessarily turn off an entire building name. Grouping also simplifies fault finding.

A 20-letter storefront, for example, might be divided into four or five circuits according to letter position and calculated load. Each circuit should be recorded in a wiring diagram.

Useful documentation includes:

LED system voltage
LED type
LED color or CCT
Power per module
Total LED load
Power-supply model
Power-supply quantity
Input voltage
Plug or hardwire requirement
Circuit grouping
Wire gauge
Cable lengths
Controller or dimmer details
Connection diagram
Component certifications where required

Certified components do not automatically mean the complete sign has a complete-product certification. Local mains wiring, grounding, circuit protection, final connection, inspection, and permits normally remain the responsibility of a qualified local electrician.

Power-supply placement deserves early approval. Several common locations are possible.

Power-supply position	Advantage	Limitation
Inside the building behind the sign	Better protection from weather	Requires wall access and suitable cable routing
Above an accessible ceiling	Hidden and serviceable	Cable distance must be checked
Inside a protected electrical cabinet	Organized and easy to maintain	Cabinet space must be available
Inside a raceway	Keeps parts close to the letters	Heat, drainage, and access need review
Inside a large sign body	Compact arrangement	Can be difficult to cool and replace
Exposed behind the sign	Simple installation	Requires suitable rating and protection

A dry, ventilated, accessible location is generally preferable to a sealed, hot cavity. Hiding a power supply permanently behind a completed wall creates future repair problems.

How Should the Letters Be Mounted?

Indoor mounting is usually selected for appearance and wall protection. Outdoor mounting must also resist wind, vibration, rain, corrosion, and façade movement.

Common methods include flush mounting, stud mounting, backboard mounting, raceway mounting, and frame mounting.

Method	Indoor use	Outdoor use	Main consideration
Flush mounting	Clean appearance on finished walls	Common on façades with planned wire and stud holes	Requires accurate drilling and several wall penetrations
Stud mounting	Useful for individual letters	Common for channel letters	Stud size and wall anchors must suit the substrate
Backboard mounting	Hides wiring on stone, glass, or decorative walls	Reduces individual façade penetrations	Backboard becomes visible and carries wind load
Raceway mounting	Useful where rear access is limited	Common when electrical access needs simplification	Raceway finish, attachment, drainage, and cover access matter
Support-frame mounting	Used for large interior entrance signs	Used for roofs, parapets, façades, and oversized logos	Local structural verification is required

Indoor walls may include drywall, timber panels, marble, glass, metal, or decorative slats. Outdoor walls may include masonry, concrete, stone, composite panels, insulated panels, curtain walls, steel frames, or existing sign supports.

The factory needs the wall information before finalizing holes and accessories. A generic screw set cannot cover every substrate.

For hollow drywall, installers may need hidden reinforcement or plywood backing. For stone, drilling positions should avoid weak edges and visible damage. For glass, individual drilling may not be permitted, making a suspended frame or backboard necessary. For insulated panels, anchors may need to reach the structural support behind the cladding.

Outdoor installation requires more site data:

Wall material and thickness
Available structural support
Installation height
Building elevation
Wind requirement
Letter height and projection
Sign weight
Number and location of fixing points
Electrical access
Waterproofing system
Lift or scaffold access
Local permit requirements

The sign factory can design the product and prepare mounting interfaces, but the local engineer or qualified installer should verify the building structure and anchors. The wall may be weaker than the sign body.

Mounting-hole preparation should be coordinated with the wire exits. A hole placed too close to a cable may damage insulation. A fixing point placed near a narrow acrylic section may create cracking or distortion. Large letters may need internal mounting plates to distribute the load.

A full-size installation template can show:

Outer letter shape
Letter spacing
Stud positions
Wire holes
Orientation
Reference centerline
Overall width and height
Numbering for separate pieces

For large signs, one paper template may stretch, tear, or become difficult to position. A sectional template, rigid pattern, digital coordinate drawing, or laser-projected layout may be more practical.

Wall clearance also changes the construction.

Front-lit letters may sit close to the wall. Halo-lit letters require controlled spacing so light can spread behind them.

Halo wall clearance	Expected effect
Very small gap	Narrow and intense halo; easier to see hardware shadows
Moderate gap	More balanced and even wall glow
Large gap	Wider halo but more visible letter projection
Irregular gap	Uneven halo around different letters

The exact clearance should be tested according to letter depth, LED output, wall color, and surface texture. A dark or textured wall may require a different gap from a smooth white wall.

Outdoor mounting hardware should also allow for inspection and removal. Permanently bonding every letter to the wall may reduce visible fasteners but greatly increase future service cost.

A maintainable installation allows technicians to:

Remove a face
Access LED modules
Trace a circuit
Replace a power supply
Inspect cable entries
Clear drainage
Tighten mounting hardware
Reapply local seals where required

Iduoduo’s project guidance treats service access, mounting, drainage, wiring, power placement, and installation interfaces as part of the original design rather than after-sales additions.

What Testing Should Be Completed?

Indoor and outdoor letters both need dimensional, visual, electrical, and packaging inspections. Outdoor versions require additional attention around water control, corrosion protection, cable routing, face retention, drainage, and mounting parts.

A useful inspection begins before the letters are switched on.

Unlit inspection

Overall dimensions
Individual letter dimensions
Logo proportions
Letter spacing
Acrylic color
Metal finish
Paint quality
Welds and seams
Acrylic scratches
Edge finish
Face retention
Rear-panel fit
Mounting holes
Stud positions
Cable exits
Drain openings
Product numbering

Illuminated inspection

All letters switch on
Brightness is consistent
Color temperature is consistent
No visible LED points from normal distance
No dark corners
No shadow from internal wiring
Front and halo brightness are balanced
Dimming operates correctly
RGB or RGBW controls respond correctly
No flicker
No abnormal sound
No abnormal heat

Electrical inspection

Input voltage matches the destination
Output voltage matches the LED system
Power-supply capacity matches calculated load
Circuit groups match the wiring diagram
Polarity is correct
Cable lengths are sufficient
Connections are secure
Wires are protected from sharp edges
Connectors are positioned correctly
Controllers and dimmers are included
Plugs or hardwire leads match the order

Outdoor-focused inspection

Cable entries are prepared as approved
Drain holes are open
Drain holes are located at the true bottom
Connectors are not placed in likely water-collection areas
Face-retaining details are complete
Exterior coatings cover edges and welded areas
Fasteners match the approved specification
Raceways and backboards fit correctly
Power supplies have the agreed protection
Installation drawings show site-sealing responsibilities

Iduoduo completes 100% lighting inspection and a 72-hour pre-shipment stability test for illuminated signs. The test observes LED operation, power stability, wiring, controllers, dimming, flicker, temperature rise, brightness, and early component faults.

A 72-hour test does not reproduce years of sun, rain, salt, or installation conditions. Its value is detecting early electrical faults before packing and export.

Inspection should be recorded with both daylight and nighttime photographs.

Record	What it proves
Front unlit photograph	Logo shape, color, spacing, and surface quality
Side photograph	Letter depth, return finish, and face-retention detail
Rear photograph	Backs, wiring, cable exits, mounting points, and labels
Illuminated front photograph	Uniformity and color consistency
Normal viewing-distance photograph	Realistic readability and brightness balance
Halo photograph	Wall glow and spacing effect
Test video	Continuous operation, controls, dimming, and color functions
Packing photograph	Letter protection, accessories, and power-supply separation
Carton or crate photograph	Exterior package condition and identification

Lighting photographs should use controlled camera settings where possible. Automatic exposure can make a weak sign look bright or a balanced sign look overexposed. A short video showing the surrounding room or test area often gives a more realistic impression than one heavily exposed close-up.

Packaging differs between indoor and outdoor builds because outdoor letters are often deeper, heavier, and fitted with more metal parts.

Indoor acrylic letters need strong protection against:

Surface scratches
Chipped corners
Cracked thin strokes
Pressure on polished edges
Glue-line damage
Missing spacers or small hardware

Outdoor channel letters need protection against:

Bent returns
Deformed faces
Scratched paint
Broken studs
Crushed cable glands
Impact on drain openings
Loose power supplies
Missing mounting parts
Movement inside large cartons

Large letters may require wooden frames or crates. Power supplies should be separated from acrylic faces so heavy components cannot move against visible surfaces during transport. Accessories should be labeled and packed in dedicated bags.

For a multi-store order, each package should show:

Project number
Store number
Sign number
Letter or logo position
Power-supply group
Accessory list
Installation drawing reference
Carton number
Total carton count

A sign may pass the factory lighting test and still create installation delays when the template, studs, connectors, or correct power supply are missing. Final QC must therefore cover the complete installation package, not only the illuminated letters.

The most reliable indoor and outdoor builds are not created by applying one standard construction to every location. The same logo may need a 35 mm full-acrylic body for an office reception, an 80 mm metal-and-acrylic construction for a mall storefront, and a 120 mm weather-managed aluminum channel letter for an exposed façade. Site conditions should determine the structure before production begins.

Which Use Is Better for Your Project?

Indoor use is usually better for slim, detailed, close-view acrylic letters. Outdoor use is appropriate when the sign is rebuilt around weather exposure, stronger mounting, protected electrical parts, and maintenance access. The right choice depends on location, viewing distance, brightness, wall construction, operating hours, service expectations, and total installed cost—not whether an indoor and outdoor sign look similar in a rendering.

Is the Location Sheltered or Exposed?

Start by classifying the installation area accurately. “Indoor” and “outdoor” are often too broad to guide construction.

An acrylic logo inside a climate-controlled office faces very different conditions from a logo beside automatic entrance doors. A sign under a canopy may avoid vertical rain but still receive sunlight, condensation, dust, humidity, and wind-driven water. A coastal storefront may require corrosion protection even when the letters sit beneath an overhang.

A practical location classification is shown below.

Location class	Typical conditions	Suitable starting construction	Main risks
Controlled indoor	Stable temperature, low humidity, no rain	Full-acrylic, layered acrylic, slim metal-acrylic letter	Scratches, glare, visible wiring
Humid indoor	Kitchens, spas, pools, entrance areas	Acrylic letter with protected wiring and corrosion-resistant hardware	Condensation, cleaning water, humidity
Sheltered exterior	Canopy, arcade, recessed entrance	Metal-acrylic letter or reinforced full-acrylic construction	UV, wind-driven rain, dust, temperature movement
Exposed exterior	Open storefront or building façade	Metal-bodied channel letter with exterior acrylic face	Rain, UV, wind, corrosion, heat, cold
Severe exterior	Coastal, desert, freeze-thaw, high-rise, industrial area	Site-specific metal-bodied construction	Salt, extreme heat, ice, strong wind, pollution

A covered sign should not automatically receive an indoor specification. Before deciding, check whether rain can reach the sign from the side, whether water runs down the façade, and whether the area remains damp after rainfall.

Direct sunlight also matters. A south- or west-facing wall may expose dark acrylic and dark metal returns to several hours of intense heat. The same sign on a shaded north-facing wall may operate at a much lower surface temperature.

Provide the following site information before selecting the build:

Wide photograph of the complete façade or room
Close photograph of the mounting surface
Installation height
Wall direction
Overhang depth
Distance between the sign and roof edge
Nearby doors, windows, vents, or water sources
Local highest and lowest temperatures
Rain, snow, coastal salt, or high-humidity exposure
Wall material and available support
Power-supply location
Normal operating hours

A photo taken directly in front of an empty wall is rarely enough. Side-angle photos reveal projecting columns, uneven cladding, recesses, glass panels, and areas where wiring cannot pass behind the wall.

The mounting surface can change the decision even when the environment remains the same.

Wall surface	Indoor concern	Outdoor concern
Drywall	Hidden support and cable routing	Rarely suitable without structural backing
Concrete	Accurate drilling	Anchors, sealed penetrations, uneven surface
Brick	Joint position and alignment	Water entry, anchor strength, irregular spacing
Stone	Avoid visible damage	Edge cracking, sealing, hidden cavity conditions
Glass	Reflections and visible wiring	Thermal movement and restricted drilling
Metal cladding	Cable concealment	Water path, panel strength, access behind cladding
Insulated panel	Hidden reinforcement	Anchor load and thermal bridge
Timber	Surface marks	Moisture movement, rot, fixing strength

Full-acrylic letters make sense where the visual finish is the main concern and the environment remains stable. Metal-bodied letters with acrylic faces are usually safer where wind, water, UV, large temperature changes, or heavy mounting loads are present.

The decision should follow the harshest realistic condition, not the most convenient location label.

Which Viewing Distance Is Required?

Viewing distance determines letter height, stroke width, spacing, lighting strength, and construction depth. A reception logo viewed from two meters can preserve narrow strokes and subtle side lighting. A storefront sign read from across a road needs larger letters, wider strokes, stronger contrast, and a simpler illuminated pattern.

Use the longest normal viewing distance rather than the distance from the design desk to the screen.

Common viewing positions may include:

Main entrance
Opposite side of a lobby
Shopping mall corridor
Escalator
Parking area
Other side of a street
Vehicle approach
Building entrance road
Adjacent floor or balcony
Angled approach from the left or right

The following ranges are useful for early planning. They are not substitutes for local sign codes, architectural review, or a full-size visibility test.

Normal viewing distance	Early letter-height range	Common use
1–3 m	75–200 mm	Reception logos, counters, close-view branding
3–8 m	150–400 mm	Offices, clinics, restaurants, interior entrances
8–20 m	300–800 mm	Mall storefronts, hotel entrances, indoor atriums
20–50 m	600–1,500 mm	Street storefronts and building entrances
Above 50 m	Site-specific	Large façades, elevated signs, roadside locations

Letter height alone does not guarantee readability. Stroke width, font shape, spacing, color contrast, viewing angle, and background clutter can be more important.

A 500 mm-high serif letter with thin strokes may be harder to read than a 350 mm-high sans-serif letter with broad, open shapes. Script fonts can also lose clarity when several letters connect into one illuminated line.

Check the following logo features:

Minimum stroke width
Small internal openings
Tight spaces between letters
Long thin extensions
Sharp internal corners
Overlapping shapes
Very small taglines
Low contrast against the wall
Similar colors between face and background

Small counters inside letters such as “A,” “B,” “D,” “P,” and “R” may close visually after fabrication. A dark return around a small white face can also make narrow strokes appear thinner during the day.

Taglines often create the greatest difficulty. A main logo may be suitable for illuminated channel letters while the tagline remains too small for internal LEDs, wiring, fixing points, and proper diffusion.

Better solutions include:

Making the tagline larger
Producing it as flat acrylic letters
Using non-illuminated metal letters
Printing it on a backboard
Engraving it into an acrylic panel
Removing it from the illuminated portion
Positioning it where people view the sign more closely

Visibility should be reviewed in context. Place the proposed logo onto an accurate site photograph and show nearby windows, lighting, architectural lines, and competing signs. A clean mockup on a blank background can make a small logo look stronger than it will appear after installation.

For important projects, prepare several scale options rather than one fixed size.

Option	When it helps
Smaller version	Wall space is limited and viewing is close
Standard version	Main brand name must balance with the architecture
Larger version	Long-distance visibility is more important
Simplified version	Fine logo details become unreadable
Split version	Main name and tagline need different construction
Backboard version	Wiring or wall drilling is restricted

A sign should be large enough to read but not so large that it overwhelms the façade or interior. Scale should relate to the wall, viewing distance, architecture, and brand tone.

How Much Brightness Is Needed?

Brightness should make the sign easy to recognize without creating glare, exposed LED points, washed-out colors, uncomfortable reflections, or complaints from neighboring spaces.

Indoor acrylic letters normally need lower output and better diffusion. Outdoor letters normally need more visibility because they compete with street lighting, headlights, nearby storefronts, and longer viewing distances.

The correct output depends on more than the LED model.

Acrylic color and light transmission
Letter depth
Distance between LEDs and face
LED beam angle
LED spacing
Internal surface color
Stroke width
Ambient light
Wall color
Viewing distance
Operating schedule
Front, side, or halo lighting

White translucent acrylic generally transmits more light than dark red, navy, green, or heavily pigmented acrylic. Dark faces may need a deeper cavity or adjusted LED spacing. Simply adding more modules may increase hotspots, temperature, and power consumption without improving the final appearance.

Use the surrounding environment as the brightness reference.

Location	Normal lighting challenge	Practical direction
Quiet office reception	Low ambient light and close viewing	Soft, even output
Clinic or wellness space	Comfortable atmosphere required	Low-glare neutral or warm light
Restaurant or bar	Lighting changes through the day	Dimming often useful
Hotel lobby	Premium finish and reflective materials	Controlled halo and reduced hotspots
Bright mall storefront	Strong ceiling lights and displays	Higher front output and good face contrast
Street storefront	Distance and competing signs	Stronger readability with controlled glare
Residential mixed-use area	Nearby apartments and nighttime restrictions	Dimming, timer, or reduced late-night output
Coastal exterior	Moisture and corrosion matter more than maximum output	Protected components and service access

Halo lighting deserves separate testing. The same letters can create very different results on different walls.

A smooth white wall may produce a broad, visible halo. Dark timber may absorb much of the light. Polished stone can create reflections. Textured plaster can break the glow into irregular patches.

Wall condition	Likely halo result	Possible adjustment
White matte finish	Broad and even	Moderate output
Light-gray matte finish	Soft and controlled	Small brightness increase if needed
Dark painted wall	Weak halo	Higher output or greater wall clearance
Timber slats	Broken lines of light	Use a backing panel
Polished stone	Reflections and bright spots	Reduce output or improve diffusion
Glass	Reflections and visible wires	Add a backboard or concealed frame
Rough masonry	Uneven halo	Test wall distance before production

Front and halo lighting may need separate circuits. Independent dimming allows the front face and rear glow to be balanced after installation. Without separate control, a powerful front face may make the halo almost invisible.

Operating time also affects component use, heat, and maintenance planning.

Daily operating time	Approximate annual operating time
6 hours	2,190 hours
10 hours	3,650 hours
12 hours	4,380 hours
18 hours	6,570 hours
24 hours	8,760 hours

A sign operating continuously accumulates four times the annual operating hours of one used for six hours per day. Timers, photocells, building controls, and dimming can reduce unnecessary power use and internal heat.

Color temperature should match the surroundings rather than being selected from a catalog in isolation.

Light appearance	Common visual effect	Suitable surroundings
Warm white	Soft and inviting	Hotels, restaurants, beauty spaces, timber interiors
Neutral white	Balanced and natural	Offices, retail stores, clinics
Cool white	Crisp and modern	Glass, metal, technology spaces
Single brand color	Strong identity	Storefronts and feature walls
RGB/RGBW	Changeable scenes	Events, entertainment, selected hospitality spaces

Brand color approval should include both daytime and illuminated samples. A colored acrylic face may match a paint reference while unlit but appear lighter or less saturated when illuminated.

Ask for:

Daylight photograph
Illuminated photograph
Normal viewing-distance photograph
Side-angle photograph
Short lighting video
Dimming demonstration where applicable
Front-and-halo balance test
Physical color sample for strict brand programs

Factory camera exposure can make weak lighting appear brighter or make balanced lighting appear overexposed. A video showing the surrounding test area often gives a more realistic impression.

How Do Cost and Maintenance Compare?

Indoor and outdoor signs should be compared by total installed cost rather than factory price alone.

The total cost may include:

Design and engineering
Sample or first article
Acrylic and metal
LED system
Power supplies and controls
Exterior protection
Mounting hardware
Backboard or raceway
Installation template
Packaging
Freight
Import charges
Access equipment
Local electrical work
Wall preparation
Permits
Installation
Future inspection and repair

A lower production price may result from thinner acrylic, shallower returns, fewer LEDs, indoor-rated power components, simple packaging, or the removal of installation accessories. Such savings can disappear when local installers need to add parts or rebuild the mounting system.

Use the following equation when comparing quotations:

Total installed cost = product cost + packaging + freight + import cost + site preparation + electrical work + installation + access equipment + permits + planned maintenance

Indoor acrylic letters often require less weather protection, but close-range appearance may demand more precise finishing. Small scratches, adhesive marks, uneven edges, and exposed cable holes are easier to see indoors.

Outdoor letters generally cost more because they may require:

Metal returns and backs
Exterior coatings
UV-suitable acrylic
Protected LEDs and connectors
Exterior or protected power supplies
Drainage
Stronger studs and brackets
Raceways or support frames
Wooden packing
More installation labor
Lift or scaffold access

The cost difference should be connected to the actual risk.

Cost area	Indoor sign	Outdoor sign
Structure	Slim and light where appropriate	Stronger body and mounting
Acrylic	Chosen mainly for appearance	UV, movement, and exterior exposure reviewed
Electrical protection	Dry-location arrangement	Protected wiring, connectors, and power
Waterproofing	Limited to room conditions	Sealing, drainage, cable entry, wall interface
Packaging	Scratch and edge protection	Greater protection for deeper and heavier letters
Installation	Interior access and decorative-wall care	Anchoring, sealing, height, wind, and equipment
Maintenance	Cleaning and electrical access	Cleaning, drainage, corrosion, seals, fasteners, electrical parts

Maintenance access should be designed before production. A sign that cannot be opened without removing the complete installation may be inexpensive to manufacture and expensive to service.

Useful service features include:

Removable faces
Accessible power supplies
Identified electrical groups
Replaceable LED modules
Clear wire paths
Drain openings that can be inspected
Removable raceway covers
Mounting systems that allow individual letters to be removed
Saved wiring drawings
Labeled replacement components

A practical maintenance schedule may look like the following. Local weather, operating hours, installation height, and lease requirements may justify shorter intervals.

Environment	Visual check	Detailed maintenance review
Controlled indoor	Every 6–12 months	Annually
Restaurant, spa, or humid indoor area	Every 3–6 months	Every 6–12 months
Sheltered exterior	Every 3–6 months	Every 6–12 months
Exposed exterior	Every 3 months	Every 6 months
Coastal or severe exposure	Every 1–3 months	Every 3–6 months

A visual check can include:

Dark letters or uneven brightness
Flicker
Color shift
Face movement
Surface scratches
Loose letters
Visible corrosion
Cracked sealant
Blocked drainage
Water inside the face
Unusual noise from a power supply

Detailed maintenance may include electrical testing, fastener inspection, connector review, cleaning, drain clearing, coating inspection, and checking wall penetrations.

Cleaning methods matter. Acrylic should normally be cleaned with a soft cloth and a mild acrylic-safe solution. Abrasive pads, strong solvents, and pressure washing directly into joints can damage the surface or force water into the sign.

For multi-store programs, record:

Installation date
Sign location
Daily operating schedule
Power-supply position
Circuit groups
Acrylic reference
LED specification
Repair history
Replacement parts
Maintenance photographs

A higher initial cost can be justified when it reduces lift rental, repeat site visits, wall repairs, store closure, and troubleshooting time.

What Should You Confirm Before Production?

Production should not begin from a logo file and overall width alone. A front rendering confirms appearance, but it does not confirm the return, back, LEDs, wiring, drainage, mounting, power position, or installation interface.

A complete inquiry should provide the following information.

Information	What to provide	Risk when missing
Logo file	AI, SVG, EPS, PDF, CAD, or high-resolution artwork	Incorrect font, outline, or proportions
Overall size	Total width and height	Quotation and visibility remain uncertain
Individual letter size	Letter height and minimum stroke	Fine details may not be manufacturable
Quantity	Number of sets and store locations	Production and packing plan may be inaccurate
Environment	Indoor, humid indoor, sheltered exterior, exposed exterior, or coastal	Wrong materials or electrical protection
Site photographs	Wide, close, side, and installation-height views	Mounting conflicts remain hidden
Wall material	Drywall, concrete, brick, glass, stone, cladding, timber, or panel	Incorrect fixing method
Lighting type	Front-lit, halo-lit, side-lit, or combined	Wrong letter construction
Daytime color	Pantone, physical sample, acrylic code, CMYK, or RGB reference	Brand color mismatch
Illuminated color	White CCT, single color, RGB, or RGBW	Nighttime appearance may differ
Letter depth	Required or open to engineering advice	Lighting and structure remain unclear
Input voltage	Destination supply, normally within 110V–240V arrangements	Incorrect power supply
LED voltage	12V or 24V system as engineered	Wiring and power mismatch
Certification	Component or complete-sign requirements	Approval delays
Power location	Behind wall, ceiling, cabinet, raceway, or sign body	Maintenance and cable problems
Wire exit	Rear, bottom, side, or project-specific	Site holes may not align
Mounting method	Studs, flush mount, backboard, raceway, or frame	Installation parts may be unsuitable
Weather protection	IP65, IP67, or separately engineered requirement	Protection level may be misunderstood
Local installer role	Drilling, anchors, wiring, sealing, lift access	Responsibility gaps
Packaging	Carton, reinforced case, wooden frame, or crate	Transport damage risk
Destination	Country, city, postal code, and delivery type	Wrong freight or electrical configuration
Required date	Installation deadline, not only shipping date	Production and logistics may not fit

Iduoduo’s channel-letter quotation records use the same core information: logo, size, quantity, lighting method, face and return colors, depth, indoor or outdoor location, LED color, voltage, certification needs, mounting method, raceway or backboard, wire exit, wall type, waterproofing, destination, packaging, and project date.

Several approvals should be separated rather than combined into one rendering.

Approval document	What it confirms
Front rendering	Layout, proportion, and daytime appearance
Illuminated rendering	Intended lighting effect
Dimension drawing	Overall size and individual letter size
Section drawing	Face, return, back, depth, LEDs, and wall clearance
Rear drawing	Mounting holes, studs, cable exits, and drainage
Wiring diagram	Circuits, power supplies, voltage, and connections
Installation template	Letter positions, holes, and spacing
Material sample	Acrylic, paint, metal finish, and surface
First article	Real construction, color, lighting, and installation details
Packing drawing	Product protection, accessories, and carton arrangement

A section drawing is especially important because two signs can look identical from the front while using different materials, depths, face-retention methods, backs, LED layouts, and power arrangements.

Before approving the drawing, verify:

Total sign dimensions
Individual letter dimensions
Minimum strokes
Acrylic type and thickness
Return material and depth
Back material
Paint or metal finish
Lighting direction
LED color or CCT
Power-supply quantity
Circuit grouping
Cable-exit positions
Stud and mounting-hole positions
Wall clearance
Drainage locations
Raceway or backboard dimensions
Installation accessories
Packing method

For repeat and chain-store orders, save the final drawing, font, dimensions, material, color, return depth, LED type, power supply, mounting holes, cable exits, template, packaging, and QC records. The destination country, voltage, quantity, and installation environment should still be reconfirmed for every order.

A sample is particularly useful when the project includes:

Strict brand colors
Unusual acrylic finishes
Very small strokes
Side-lit construction
Front-and-halo lighting
Dark translucent faces
Mirror metal
Coastal preparation
Custom power or control systems
Large repeat quantities

Iduoduo can produce one custom unit or sample before a wider rollout. Regular samples generally require about 5–7 days, while special structures, colors, controls, waterproofing, or packaging may require about 7–15 days. Illuminated products receive a full lighting inspection and a 72-hour pre-shipment stability test covering LED operation, power stability, flicker, color, dark areas, wiring, and abnormal temperature rise.

The final indoor-or-outdoor decision becomes much easier once the site, scale, lighting, mounting, electrical system, maintenance access, and expected exposure are known. Choosing the environment first allows the acrylic letter to be engineered for the real installation rather than adapted after production.

Plan Acrylic Channel Letters With Iduoduo

The right answer is rarely “indoor only” or “outdoor only.” A slim full-acrylic letter may be ideal for a hotel lobby and unsuitable for an exposed coastal façade. A metal-bodied channel letter with an exterior-grade acrylic face may perform well outdoors while looking unnecessarily deep on a small reception wall. The best construction begins with the site, viewing distance, lighting requirement, mounting condition, and expected service environment.

Iduoduo can review a logo, site photograph, drawing, wall dimensions, reference image, or existing sign sample and convert the information into a production-ready proposal. The engineering review can cover acrylic and metal selection, letter depth, lighting style, LED layout, power configuration, cable exits, mounting holes, waterproofing, drainage, packaging, and installation coordination. The company supports MOQ 1 for samples or single-site projects, with regular samples generally produced in 5–7 days and standard production commonly completed in 7–10 days, subject to size, structure, quantity, material, and testing requirements.

When requesting a quotation, include the logo file, required size, quantity, destination country, indoor or outdoor location, wall photographs, lighting preference, and installation method. Those details allow the proposal to address the real project rather than offering a generic acrylic letter that merely resembles the reference image.
