Return depth may look like a minor dimension on a channel letter drawing, but changing it can alter nearly every important part of the finished sign. A shallow letter may create the slim architectural appearance a designer wants, yet leave too little space for suitable LED placement, wiring, drainage, fastening, or light diffusion. A deeper letter may improve internal working space and three-dimensional visibility, but it can also add material, weight, wall projection, packaging volume, and installation demands.
The right depth is therefore not selected by copying a standard number from an old project. It should be evaluated together with letter height, stroke width, face material, illumination method, mounting system, viewing distance, wall construction, local sign criteria, and transportation conditions.
Channel letter return depth affects the distance between the LEDs and illuminated surfaces, light uniformity, visible side profile, internal component space, structural rigidity, mounting projection, product weight, material use, packaging volume, and installation requirements. The correct depth depends on letter size, stroke width, lighting type, face material, wall conditions, and applicable project restrictions.
A familiar problem often begins after two quotations arrive. One factory proposes a 3-inch return, while another proposes 5 inches for the same logo. Both may look reasonable on a front-view rendering. The difference usually becomes visible only after production—when one version lights evenly and installs cleanly while the other shows bright LED points, crowded wiring, excessive projection, or an appearance the brand team never expected.
What Is Channel Letter Return Depth?
Channel letter return depth is the front-to-back measurement of the letter body formed by its sidewalls. It determines how far the letter projects, how much internal room is available for LEDs and wiring, and how much side profile remains visible from an angle. Return depth must be separated from the rear stand-off, raceway depth, backer-panel depth, and total installed projection.

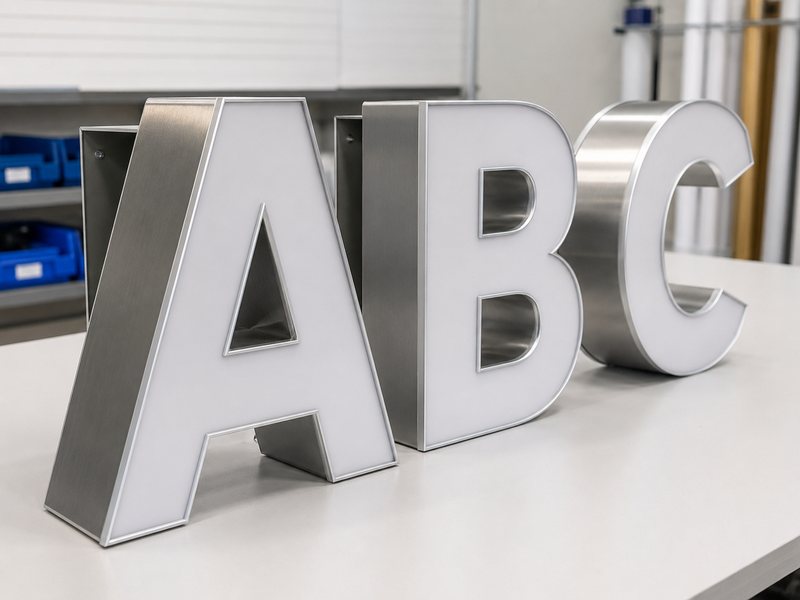

Which Part Is the Return?
The return is the sidewall that follows the outside and inside contours of a channel letter. It connects the front section to the rear section and turns a flat letter shape into a three-dimensional sign.
A typical front-lit channel letter contains several distinct parts:
| Part | Main Function | Common Materials |
|---|---|---|
| Face | Transmits the front light and displays the visible colour | Acrylic or polycarbonate |
| Return | Forms the sidewall and internal cavity | Aluminum or stainless steel |
| Back | Supports the LEDs and closes the rear of the letter | Aluminum, stainless steel or acrylic |
| LEDs | Illuminate the face, wall or both | LED units selected for the letter geometry |
| Face retainer | Holds a removable face in position | Trim cap or metal retaining edge |
| Mounting parts | Connect the letter to the wall, backer or raceway | Studs, screws, brackets or rails |
On a front-lit letter, the illuminated face is normally at the front, LEDs are fixed to the back, and the return creates the distance between them. On a halo-lit letter, the front is usually opaque, while rear-facing LEDs send light toward the wall. On a front-and-halo-lit letter, the body must provide room for both lighting directions.

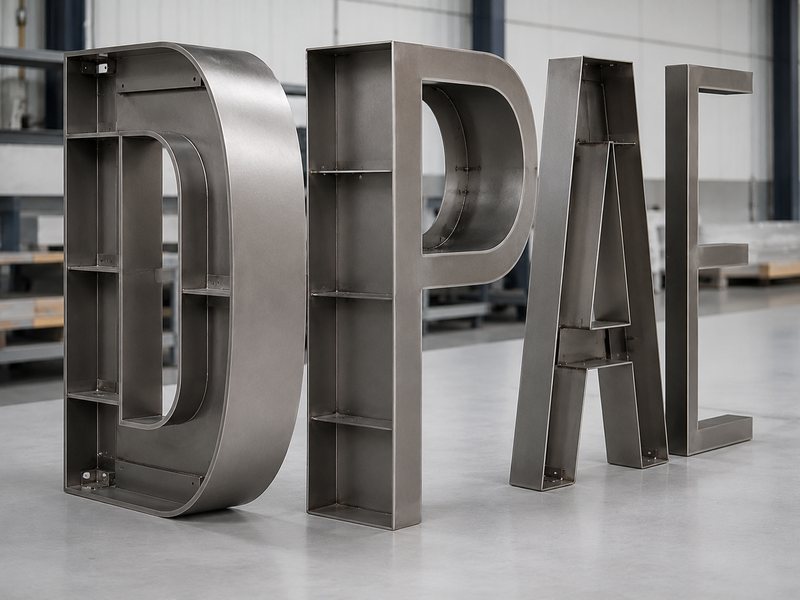

The return is therefore more than decorative metal around a letter. It creates the working space required for:
- LED placement;
- wire routing;
- connectors and circuit branches;
- mounting studs;
- drainage openings;
- face-retention parts;
- internal reinforcement;
- access during assembly and repair.
A letter may look wide enough in the artwork but still have very little usable internal space. A 75 mm stroke does not provide a full 75 mm mounting area because both return walls, bends, seams, retainers, wires, and fasteners occupy part of the width.
This becomes especially important with script fonts, narrow serifs, small counters, thin logo lines, and tightly curved shapes. The smallest usable section often controls the construction—not the overall height of the sign.
How Is Return Depth Measured?
Return depth is normally measured perpendicular to the letter face, from the front plane of the letter body to the rear plane of the body. The shop drawing should show that dimension in a section view rather than relying on a front elevation alone.
For example:
Front face
│
├──────── 100 mm letter body ────────┤
│ │
Rear of letter │
25 mm wall stand-off │
Wall │
In that example:
- letter return depth: 100 mm;
- wall stand-off: 25 mm;
- approximate installed projection: 125 mm, excluding small face-retainer or hardware extensions.
The measurement can become unclear when several layers are involved. Project teams should separate the following figures:
| Drawing Dimension | What It Includes | Why It Must Be Stated |
|---|---|---|
| Return depth | Front-to-back depth of the letter body | Controls internal cavity and side appearance |
| Face projection | Any trim cap or retaining edge extending beyond the body | Changes the final front profile |
| Rear stand-off | Gap between the letter and wall | Controls halo spread and installed projection |
| Raceway depth | Depth of the electrical mounting box | Adds substantial wall projection |
| Backer depth | Thickness of a panel behind the letters | Changes mounting and visual mass |
| Total projection | Frontmost point to finished wall surface | Used for landlord, permit and site review |
A statement such as “100 mm thick letters” is not precise enough. It may refer to the return, total product depth, installed projection, or even the thickness of a solid acrylic letter.
A production drawing should use one unit system throughout. Mixing inches in an architectural elevation with millimetres in a quotation can result in major errors. A 4-inch return is approximately 102 mm, not 100 mm exactly. That 2 mm difference may not affect a single ordinary letter, but unexplained rounding across a controlled multi-store specification can create conflicting documents.

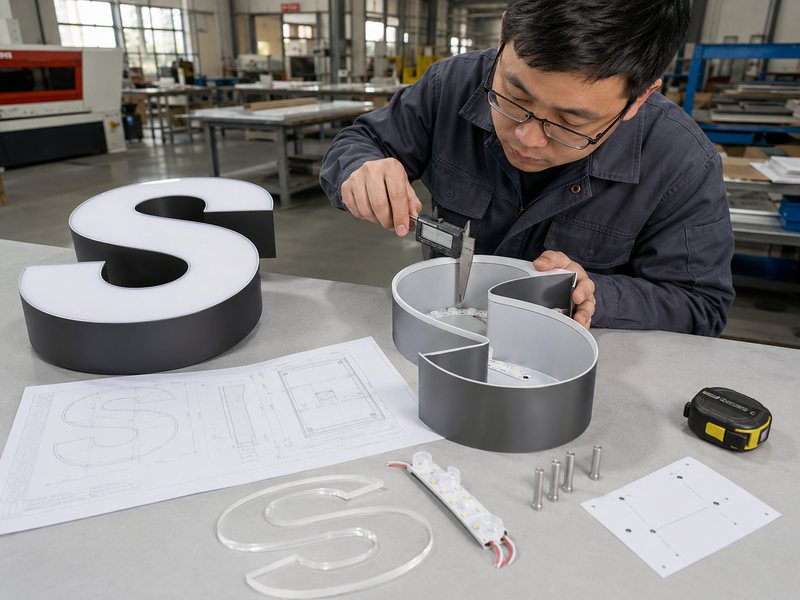

Iduoduo’s Channel Letter shop-drawing process records the front view, overall size, letter height, body depth, cross-section, face, returns, back, LEDs, power, mounting holes, wire exits, installation method, colours, and quantity. Complex projects may also require raceway dimensions, segmentation, and electrical circuit groups.
What Return Depths Are Common?
Commercial channel letters commonly use body depths from approximately 3 to 8 inches, or about 75 to 200 mm. That range is useful for early planning, but it is not a fixed sizing rule.
A practical starting reference is shown below:
| Approximate Depth | Typical Direction | Main Checks Before Approval |
|---|---|---|
| Below 3 in / 75 mm | Slim interior letters or specialised shallow construction | LED size, wiring access, hotspots and face diffusion |
| 3–4 in / 75–100 mm | Compact storefront and interior letters | Minimum strokes, module clearance and brightness |
| 4–6 in / 100–150 mm | Many standard commercial storefront applications | Lighting balance, side profile, weight and mounting |
| 6–8 in / 150–200 mm | Larger exterior letters and stronger architectural profiles | Wind exposure, reinforcement, wall projection and freight |
| Above 8 in / 200 mm | Oversized or project-specific fabrication | Structural review, segmentation, lifting and installation access |
These figures do not mean that every 600 mm-high letter should use the same depth. Letter height is only one input.
Consider three signs with the same 600 mm overall height:
| Letter Form | Likely Engineering Challenge |
|---|---|
| Wide block letter | Large illuminated face requiring even LED coverage |
| Condensed font | Narrow cavity with limited room for LEDs and wiring |
| Script logo | Tight curves, small counters and difficult assembly access |
A 100 mm return may work well for the block letter but be unsuitable for the condensed or script form. The narrow letters may need compact LEDs, adjusted strokes, a different face system, or another construction method.

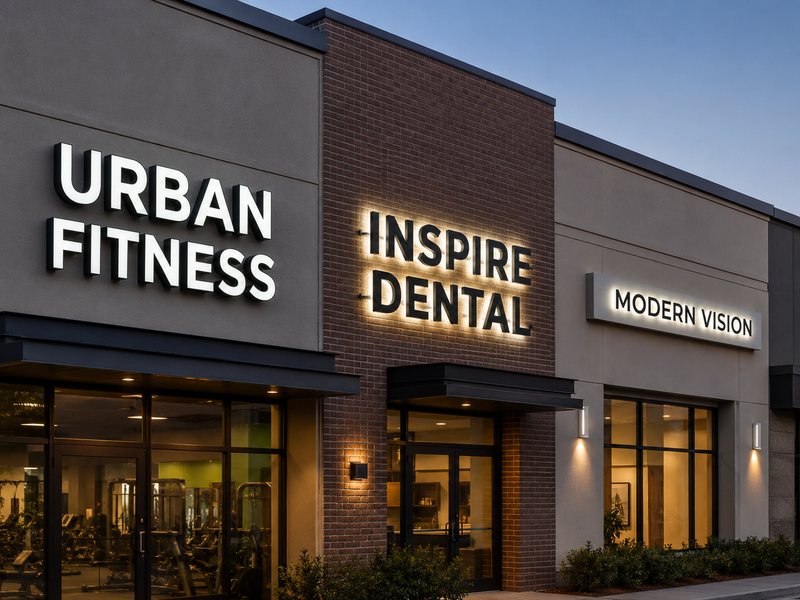

Lighting type also changes the decision. A front-lit letter needs enough optical distance for light to blend across the face. A halo-lit letter must coordinate body depth with the rear diffuser and wall stand-off. A dual-lit letter may need room for separate front-facing and rear-facing lighting paths.
The installation site can override the preferred manufacturing depth. A shopping centre may limit total projection to 150 mm, but a proposed construction could include:
- 100 mm letter body;
- 25 mm stand-off;
- 40 mm backer panel.
The total would reach 165 mm before allowing for retainers or mounting details. Even though the 100 mm return appears acceptable on its own, the complete assembly may exceed the site limit.
Shipping should also be considered. Increasing return depth from 100 mm to 150 mm adds 50% to the body depth. The final carton may not increase by exactly 50% because protective foam and nesting affect the calculation, but a large multi-letter order can require significantly more volumetric space.
Is Return Depth the Same as Letter Thickness?
Return depth and letter thickness are sometimes used interchangeably in informal discussions, but they should not be treated as identical in quotations or production drawings.
“Letter thickness” may refer to several different measurements:
- channel letter body depth;
- total front-to-back product depth;
- overall installed projection;
- acrylic face thickness;
- metal sheet thickness;
- solid acrylic letter thickness;
- depth including a raceway or backer.
For example, the following specification contains four different thickness-related values:
| Item | Example Specification |
|---|---|
| Acrylic face thickness | 3 mm |
| Aluminum return material thickness | 0.8–1.2 mm |
| Letter body depth | 100 mm |
| Total projection with stand-off | 125 mm |
Calling all four measurements “thickness” creates room for mistakes.
The clearest wording is:
- face thickness;
- return material gauge;
- return depth;
- back thickness;
- wall stand-off;
- raceway depth;
- backer-panel depth;
- total installed projection.
Return material thickness also should not be confused with return depth. A letter may have a 100 mm-deep return fabricated from 1 mm aluminum. The 100 mm dimension describes the front-to-back sidewall depth, while 1 mm describes the thickness of the metal sheet.
Before comparing two quotations, confirm that both factories are describing the same dimension. One quotation may list a 125 mm return. Another may list a 100 mm return plus a 25 mm stand-off. Those specifications create a similar overall projection but perform differently because the internal letter cavity is not the same.
For repeat orders and chain-store projects, approved records should include the letter depth, face construction, return material, LED layout, wall gap, mounting holes, wire exits, and packaging method. Iduoduo records letter depth as part of the production and repeat-order specification because changing it can alter lighting, installation, freight volume, and the finished side profile.
How Does Return Depth Affect Lighting?
Return depth controls the distance available for LED light to spread before reaching the illuminated face or wall. It affects LED spacing, hot spots, dark areas, corner coverage, brightness, wiring clearance, and halo width. A deeper letter may improve light blending, but it can also reduce face brightness. The final depth must be coordinated with stroke width, face material, LED beam angle, and illumination type.
How Does Depth Change LED Spacing?
LEDs do not illuminate the face as separate straight columns. Each LED sends light through a beam that becomes wider as it travels away from the source. Even illumination appears when neighbouring beams overlap before they reach the visible face.
In a shallow channel letter, the LEDs sit close to the acrylic. The light has less distance to spread, so individual bright points or rows may become visible. Closer LED spacing, wider-angle lenses, stronger diffusion, or smaller LED units may be needed.
A deeper cavity provides more distance for the beams to overlap. That normally makes light blending easier, particularly across broad strokes and large logo areas. However, excessive depth can reduce the light reaching the face and may require higher-output LEDs or a more reflective interior.
The following ranges are useful as early engineering references rather than fixed production rules:
| Internal Lighting Distance | Likely Lighting Condition | Typical Engineering Response |
|---|---|---|
| Below 60 mm | High risk of visible LED points | Compact LEDs, close spacing, strong diffuser, full-size test |
| 60–90 mm | Suitable for many slim letters with controlled materials | Wide-angle LEDs and letter-specific spacing |
| 90–130 mm | More room for light beams to overlap | Balanced spacing and standard diffusing faces |
| 130–160 mm | Good blending space but possible brightness loss | Review LED output and internal reflectance |
| Above 160 mm | Usually used for large or special structures | Higher output, reflective interior, brightness testing |
These figures describe the distance between the LEDs and the visible illuminated surface, not necessarily the full return depth. The acrylic thickness, rear plate, mounting method, and LED body all reduce the usable optical distance.
LED spacing should also follow the shape of each character. Using one spacing value throughout an entire logo can create uneven results. A broad “O” may need several rows of LEDs, while a narrow “I” may only have room for one centred row. Corners in “M,” “W,” “N,” and script letters may require additional coverage even when the straight sections look acceptable.
A practical LED plan should show:
- LED position inside every letter;
- spacing between adjacent LED units;
- distance from LEDs to the face;
- additional LEDs around corners and wide areas;
- wire routes and connectors;
- circuit divisions;
- expected power load.
Return depth should be approved after reviewing that layout, not before it is prepared.

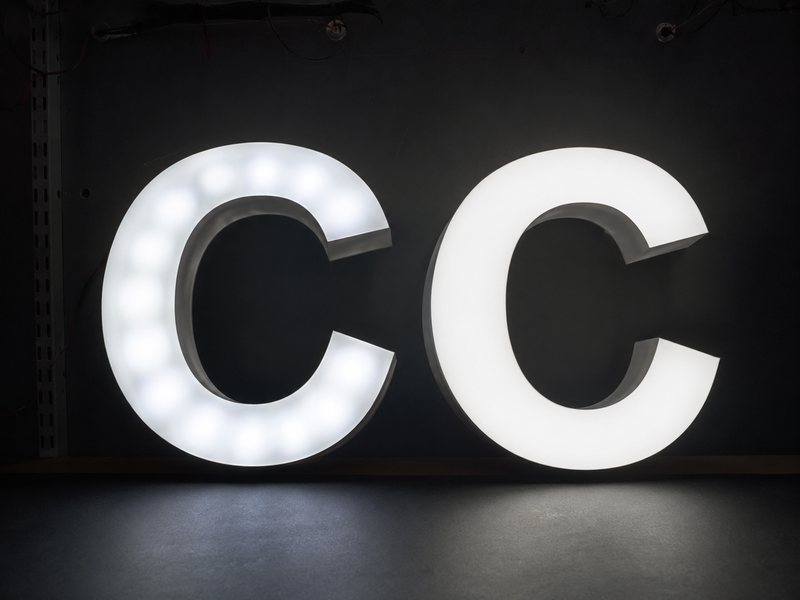

What Causes Hot Spots and Dark Areas?
A hot spot is an area where one LED or a row of LEDs is noticeably brighter than the surrounding face. A dark area is a section receiving too little light. Both problems are easier to see at night, but they can also appear in photographs and reduce consistency across multiple stores.
Return depth contributes to these problems, but it is rarely the only cause.
| Visible Problem | Likely Cause | Practical Correction |
|---|---|---|
| Individual LED dots | LEDs too close to the face | Increase optical distance or use stronger diffusion |
| Bright horizontal or vertical lines | LEDs arranged in visible rows | Stagger the layout or reduce spacing |
| Bright edges | LEDs too close to the returns | Move LEDs inward or change beam direction |
| Dark letter centres | Rows positioned mainly around the perimeter | Add central coverage |
| Dark corners | Light does not reach tight angles | Add small LEDs near corners |
| Dark narrow strokes | LED is too large or off-centre | Use compact LEDs or revise the stroke |
| Uneven letters | Same LED count used for different shapes | Prepare a separate layout for each character |
| One side appears dimmer | Voltage drop or circuit imbalance | Shorten wire runs or divide the circuits |
| Shadows on the face | Wires, studs, braces, or connectors block the light | Reroute internal parts |
| Different white tones | Mixed LED batches or inconsistent current | Control LED specification and batch records |
The hardest areas are often not the largest. Tight internal corners, small punctuation, narrow serifs, and enclosed spaces such as the centre of “A,” “B,” “P,” or “R” can be difficult to illuminate evenly.
Wiring also matters more than many drawings suggest. A connector placed directly above an LED can cast a shadow. A thick wire crossing a shallow cavity may become visible through a light-coloured face. Mounting studs can block light if they are added after the LED plan has already been approved.
For that reason, lighting should be checked after the internal wiring, mounting studs, reinforcement, and drainage parts are in their final positions.
A reliable inspection should include:
| Inspection Condition | What It Reveals |
|---|---|
| Dark-room inspection | Hot spots, dark areas, and colour differences |
| Normal indoor lighting | Whether the sign remains clear during business hours |
| Full brightness | Maximum glare and electrical performance |
| Reduced brightness | Uniformity at the expected operating level |
| Close viewing | LED points and surface defects |
| Intended viewing distance | Overall readability and letter-to-letter consistency |
| Photograph with fixed exposure | Differences hidden by automatic phone-camera adjustment |
Iduoduo’s recorded optical process checks brightness, colour consistency, hot spots, dark areas, corner coverage, halo quality, wiring, and power stability. Illuminated products also receive a complete lighting inspection and a 72-hour pre-shipment test.
How Do Face Materials Affect Light Diffusion?
Return depth cannot be evaluated without knowing the face material. Two letters with the same depth and LED layout may look completely different when one uses white opal acrylic and the other uses dark blue acrylic.
A diffusing face scatters light before it reaches the viewer. Better diffusion can hide LED points, but it usually reduces some visible output. A more transparent face appears brighter but makes the internal LED pattern easier to see.
| Face Condition | Likely Lighting Effect | What Should Be Checked |
|---|---|---|
| White opal acrylic | Strong diffusion and generally even output | Final brightness and colour temperature |
| Light-coloured acrylic | Moderate light transmission | Colour shift after illumination |
| Dark-coloured acrylic | Lower visible output | LED quantity, power, and daytime colour |
| Clear acrylic with translucent film | Performance depends heavily on the film | Film transmission and adhesive consistency |
| Day-and-night face | Different daytime and night appearance | Patchiness, brightness, and colour accuracy |
| Printed translucent face | Ink density can vary across the image | Uniformity behind dark printed areas |
| Multi-layer face | Greater optical distance and absorption | Edge shadows and reduced brightness |
| Perforated or metal-faced design | Light exits through limited openings | LED alignment and opening pattern |
Face colour is especially important. Dark red, blue, green, or black-looking materials can absorb a large portion of the light. Simply adding more LEDs may increase power and heat without fully solving unevenness. Sometimes a greater optical distance, different internal finish, or revised face construction produces a better result.
The colour seen during the day may also change after illumination. A red acrylic face can appear lighter or more orange when lit with the wrong white LED. White LEDs with different colour temperatures can shift the visible brand colour. For colour-sensitive projects, the approval should include both:
- the unlit daytime appearance;
- the illuminated nighttime appearance.
The return interior also affects the face. A white or reflective internal surface redirects more light toward the acrylic. A dark or unfinished interior absorbs more light and can create weak areas near the sides. Adhesive, sealant, exposed metal, and internal dirt can also become visible through pale faces.
Trim cap and trimless construction require separate checks. A trim cap can create a slight darker border around the face. Trimless letters may show more light near the acrylic edge if the LEDs sit too close to the return. The preferred edge appearance should be established before the return depth and LED spacing are frozen.
Do Narrow Strokes Need a Different Depth?
Narrow strokes need special review because the visible stroke width is not the same as the usable internal width. Return walls, face retainers, bends, welds, wires, studs, and sealing space all reduce the area available for lighting.
A useful way to understand the issue is:
Usable internal width = visible stroke width − both sidewall allowances − internal hardware clearance
Consider an illustrative 70 mm visible stroke. If the construction uses approximately 10 mm on each side for returns, face retention, and assembly clearance, only about 50 mm remains inside. A 40 mm-wide LED may technically fit, but there may be little room for wiring, connectors, or correct centring.
| Visible Stroke Condition | Common Risk | Possible Response |
|---|---|---|
| Wide block stroke | Dark centre if LEDs only follow the perimeter | Add central rows |
| Narrow straight stroke | LED does not fit or sits off-centre | Use compact LEDs |
| Tight script curve | Uneven spacing and difficult wiring | Widen selected curves |
| Small enclosed counter | No room for light coverage | Enlarge the opening |
| Sharp internal corner | Dark point at the corner | Add targeted corner lighting |
| Thin serif | Weak structure and no usable cavity | Make it solid or non-illuminated |
| Mixed thick and thin strokes | Different brightness within one logo | Use separate layouts or circuit groups |
A deeper return does not automatically solve a narrow-stroke problem. The cavity becomes deeper, but not wider. The LED may still be too large, and the wire may still block part of the light.
In some cases, making the letter shallower can help because a smaller LED or side-emitting construction can be placed closer to the face. In other cases, the logo needs a slight stroke adjustment. Very small details may be better produced as solid acrylic, routed acrylic, printed graphics, or non-illuminated metal rather than forcing LED lighting into an impractical space.
The smallest stroke should therefore be confirmed before the overall letter depth. Useful information for engineering includes:
- minimum visible stroke width;
- narrowest internal opening;
- smallest serif or line;
- sharpest curve;
- smallest illuminated detail;
- intended face-retention method;
- LED dimensions;
- wiring clearance.
For a large logo with several letter styles, the most difficult character should be sampled first. Testing the easiest block letter may give a false sense of security while the narrow script section remains unresolved.
Is a Deeper Letter Always Brighter?
A deeper letter is not automatically brighter. Greater depth gives light more room to spread, but the light must also travel farther before reaching the face. Some light is absorbed by the sidewalls, back, wires, and internal components along the way.
The result is often a trade-off:
| Depth Change | Possible Benefit | Possible Drawback |
|---|---|---|
| Shallower cavity | More light reaches the face directly | Visible LED points and bright bands |
| Moderate cavity | Better beam overlap and balanced output | Requires correct spacing and face material |
| Deeper cavity | Smoother blending across broad areas | Lower face brightness |
| Excessive depth | More assembly and wiring space | More LEDs, higher power, and greater heat may be needed |
Brightness depends on the full optical and electrical arrangement:
- LED output;
- beam angle;
- number of LEDs;
- distance to the face;
- spacing between LEDs;
- acrylic colour and transmission;
- internal surface reflectance;
- voltage at the first and last LED;
- power-supply loading;
- ambient light;
- viewing distance.
A deeper letter fitted with too few low-output LEDs may look dim even though the face is uniform. A shallow letter with many powerful LEDs may look bright but show obvious points. Neither result represents good lighting.
The target should be useful brightness with even coverage. A sign mounted high on an exterior façade may need stronger output than a reception-wall logo viewed from three metres away. A restaurant operating at night may want warm, controlled light, while a convenience-store façade may require higher visibility under strong surrounding illumination.
Brightness should also be measured across the whole logo rather than judged from the brightest letter. Wide characters may receive more LEDs than narrow ones, creating visible differences. Separate dimming or circuit adjustment can help balance sections with very different geometry.
Before production, the lighting approval should confirm:
| Item | Required Confirmation |
|---|---|
| Return depth | Actual internal optical distance |
| Minimum stroke | Enough room for LEDs and wiring |
| Face material | Colour, thickness, and diffusion |
| LED specification | Output, beam angle, colour, and voltage |
| LED layout | Position and spacing for every letter |
| Internal finish | Reflective or light-absorbing surface |
| Power arrangement | Circuit groups and loading |
| Brightness level | Full output or dimmed operating level |
| Test method | Viewing distance and ambient conditions |
| Approval record | Photos, video, sample, or first article |
Return depth should therefore be treated as one part of the lighting system, not as a shortcut for choosing brightness. The most reliable result comes from checking the real letter geometry, face material, LED arrangement, wiring, and operating environment together.
How Does Depth Affect Appearance and Structure?

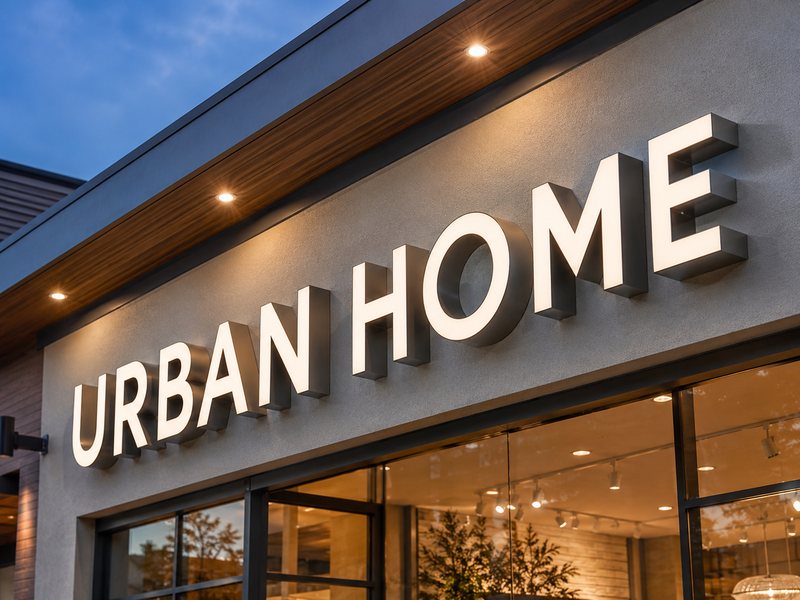

Return depth changes how strongly channel letters project from the façade, how much of the sidewall is visible, and how the sign looks from angled viewing positions. It also affects sidewall area, material use, weight, stiffness, mounting leverage, wind exposure, packaging volume, and lifting requirements. A deeper return can create a stronger architectural profile, but depth alone does not guarantee a stronger letter.
How Does Depth Change the 3D Appearance?
The front view of a channel letter mainly shows its font, size, spacing, face colour, and illumination. Return depth becomes much more noticeable when the sign is viewed from below or approached from either side.
A 600 mm-high letter with a 75 mm return can appear relatively flat against a large storefront. The same letter with a 150 mm return creates a stronger side profile, deeper daylight shadows, and a more substantial architectural presence. Neither option is automatically better. The surrounding building and viewing route decide which proportion feels appropriate.
| Return Direction | Likely Visual Result | Common Application |
|---|---|---|
| Shallow profile | Slim, clean, less dominant | Reception walls, interior retail spaces, close-range signs |
| Medium profile | Balanced face and side visibility | Storefronts, shopping centres, restaurants |
| Deep profile | Strong shadows and pronounced 3D form | Large façades, high-mounted signs, bold architectural branding |
| Very deep profile | Heavy visual mass and high projection | Oversized or purpose-designed exterior signs |
Viewing angle often matters more than a front rendering suggests. Consider a sign installed 5 metres above pavement level. People standing near the storefront see the underside and lower returns more clearly than the front elevation drawing indicates. A deep return can therefore become a major colour and finish area.
Return colour changes the result further:
| Return Finish | Typical Daytime Effect |
|---|---|
| Face-matched colour | Creates a more unified letter body |
| Black return | Adds contrast and visually separates the face from the wall |
| White return | Reduces visual weight on pale façades |
| Brushed stainless steel | Adds reflected light and an architectural metal appearance |
| Painted brand colour | Extends brand colour into angled views |
| Dark return with light face | Makes the face appear thinner and more defined |
Wall colour also affects perceived depth. A black letter on a dark wall may lose much of its side profile, while the same construction on white stone can look far deeper. Strong sunlight produces harder shadows; covered shopping-centre corridors create softer shadows.
A useful approval package should therefore include more than a straight front view. Side-angle renderings, an elevation showing mounting height, and a section showing total projection provide a more honest picture of the finished sign.
Does Depth Affect Letter Rigidity?
Return depth can contribute to rigidity because the return and back create a three-dimensional shell. A deeper shell may resist certain forms of bending better than a very shallow tray, particularly when the face, returns, and back are joined correctly.
Depth is only one part of the structure. Strength also depends on:
- aluminum or stainless-steel grade;
- return material thickness;
- back-panel thickness;
- seam and weld quality;
- letter shape;
- unsupported span;
- internal braces;
- mounting-plate position;
- fastener quantity;
- wall connection.
A 150 mm-deep letter made with thin material, weak seams, and widely spaced fasteners may flex more than a 100 mm-deep letter with an appropriate back, strong joints, and internal reinforcement.
The basic relationships can be understood as follows:
| Structural Factor | What Can Go Wrong |
|---|---|
| Return too shallow for a large face | Face and back may flex during handling |
| Return deep but material too thin | Sidewalls may ripple, twist, or dent |
| Long unsupported stroke | Letter may sag or distort |
| Large flat logo panel | Centre area may flex under wind or transport vibration |
| Few mounting points | Loads become concentrated around individual fasteners |
| Reinforcement placed too late | Braces may interfere with LEDs, wires, or drainage |
| Poor seam construction | Corners may open during transport or installation |
Large characters often need metal ribs, back frames, cross supports, or reinforced mounting plates. Reinforcement should be planned before LED placement and wiring because structural parts can block light or reduce service access.
Iduoduo’s Channel Letter engineering records identify letter size, metal thickness, installation height, wind, transportation, and lifting as factors used to determine internal reinforcement. The same records call for shop drawings to show return depth, cross-sections, face, returns, back, mounting holes, wire exits, and installation method.
Visible flatness should also be checked. Deep glossy returns can show waviness more easily under side lighting. Brushed metal may reveal inconsistent grain direction, while painted returns can expose dents or poor weld finishing. Structural quality and surface quality therefore need to be inspected together.
How Does Letter Size Change the Required Depth?
Letter height is a useful starting point, but it cannot determine return depth alone. Stroke width, perimeter length, unsupported spans, shape, mounting height, and viewing distance all affect the final choice.
Three letters can have the same height but very different construction needs:
| 800 mm-High Shape | Main Issue |
|---|---|
| Wide block “O” | Large face area and several LED rows |
| Condensed “M” | Narrow internal space and difficult corners |
| Long script word | Thin strokes, unsupported curves, and many joints |
| Large rectangular logo | Broad flat surfaces requiring reinforcement |
| Circular emblem | Long perimeter and possible face flex |
| Letter with long horizontal stroke | Sagging risk during handling and installation |
A larger front area does not always mean a deeper return is required. A broad letter may have plenty of internal room for lighting but need a stronger back. A tall condensed letter may need a moderate return because its narrow stroke cannot use a very deep cavity efficiently.
The following ranges can help during initial discussions, but they are not structural specifications:
| Letter Height | Common Depth Discussion Range | Points Requiring Review |
|---|---|---|
| 200–400 mm | 50–100 mm | Small strokes, LED fit, close-range appearance |
| 400–800 mm | 75–150 mm | Lighting distance, rigidity, side profile |
| 800–1,500 mm | 100–200 mm | Back strength, mounting, wind, packaging |
| Above 1,500 mm | Project-specific | Reinforcement, segmentation, lifting, local engineering |
Proportion also matters visually. Return-to-height ratio offers a useful early check:
- 75 mm depth on a 300 mm letter equals 25% of the letter height.
- 100 mm depth on an 800 mm letter equals 12.5%.
- 150 mm depth on a 1,500 mm letter equals 10%.
The 75 mm return may look deep on the 300 mm letter but relatively slim on the 1,500 mm letter. A single standard depth across every sign size can therefore create inconsistent appearance across a chain-store rollout.
Different store elevations may need different overall letter sizes while retaining a controlled visual ratio. Where one fixed production depth is required, side-angle renderings should confirm whether smaller signs become too bulky or larger signs look too flat.
Are Complex Logos Harder to Build at Shallow Depths?
Complex logos are often more difficult to fabricate at shallow depth because the reduced cavity leaves less room for joining, reinforcement, wiring, fastening, sealing, and assembly access.
The hardest part is rarely the overall logo width. Problems usually appear in small details:
- sharp internal corners;
- narrow script strokes;
- small counters inside letters;
- closely spaced logo elements;
- long thin extensions;
- separate dots and punctuation;
- layered shapes;
- tight curves;
- mixed illuminated and non-illuminated sections.
A shallow construction can look attractive in a rendering while becoming difficult on the production table. Workers still need enough access to form and join the return, install electrical parts, route wires, secure studs, apply sealant, and close the back.
| Logo Detail | Possible Structural Problem | Practical Option |
|---|---|---|
| Very thin script line | Weak sidewall and little assembly access | Widen the line or change the construction |
| Small enclosed opening | Difficult welding, cleaning, and lighting | Enlarge the opening |
| Sharp internal point | Metal distortion or weak joint | Slightly soften the hidden internal corner |
| Long narrow extension | Bending during packing or installation | Add reinforcement or split the part |
| Tiny separate element | Easy to lose or misalign | Place on a common backer |
| Mixed stroke widths | Different strength across the same logo | Use more than one construction method |
| Large flat emblem | Face and back flex | Add internal ribs or a rear frame |
A deeper return can provide more working access, but added depth does not fix every problem. A 25 mm-wide stroke remains narrow even when the return increases from 75 to 150 mm. The extra cavity depth may create a taller, harder-to-reach internal space without improving the usable width.
Mixed construction often gives a better result. Large letters can use fabricated metal channel bodies, while tiny details use solid acrylic, routed acrylic, printed graphics, or non-illuminated metal. A common backer can hold small elements at the correct spacing and reduce the number of wall penetrations.
The artwork should be reviewed at full production size. A detail that looks clear on a computer screen may become only 8 or 10 mm wide after scaling to the specified sign size. Minimum strokes, openings, fixing points, and fragile sections should be marked before the return depth is approved.
How Does Depth Affect Weight and Wind Load?
For the same letter perimeter and return material, sidewall area increases almost in direct proportion to return depth.
A simple planning formula is:
Return material area ≈ letter perimeter × return depth
For a letter with a total inside-and-outside perimeter of 8 metres:
| Return Depth | Approximate Sidewall Area |
|---|---|
| 75 mm | 0.60 m² |
| 100 mm | 0.80 m² |
| 150 mm | 1.20 m² |
| 200 mm | 1.60 m² |
Increasing the return from 100 to 150 mm raises the sidewall area by 50%. When the material and gauge remain unchanged, the return-related metal weight also rises by roughly 50%. Total letter weight will increase by a smaller percentage because the face, back, LEDs, and other parts may remain unchanged.
Additional depth can also lead to:
- larger internal braces;
- heavier mounting plates;
- longer studs;
- stronger backs;
- larger cartons;
- more protective foam;
- higher volumetric freight;
- more difficult manual handling.
Wind review is more complicated than simply comparing letter weight. Deeper returns present more side area to wind approaching from an angle. Greater projection can also move the letter’s centre of pressure and centre of mass farther from the wall, increasing leverage on mounting studs, brackets, raceways, and anchors.
| Change | Possible Installation Effect |
|---|---|
| Greater return depth | More side area exposed to angled wind |
| Heavier letter | Higher load during lifting and on fasteners |
| Greater wall projection | More leverage at mounting points |
| High installation position | Greater wind exposure and more difficult access |
| Large unsupported shape | More flexing and vibration |
| Raceway or backer added | Better load distribution but more total weight |
| Fewer wall penetrations | Higher load carried by each fixing point |
A deeper letter does not automatically fail in wind, and a shallow letter is not automatically safe. Final performance depends on façade height, geographic wind conditions, letter area, mounting pattern, anchor type, wall construction, return material, internal reinforcement, and local code.
High-mounted work also changes handling. A letter that can be carried by two people at ground level may require lifting equipment, temporary supports, or planned lifting points several storeys above the street. Large products may need segmentation to fit transport limits and allow safe installation. Joint positions then need to control visible seams, water entry, wiring continuity, and on-site alignment.
Iduoduo’s project records treat product weight, segmentation, lifting points, wind load, high-access equipment, maintenance, and local structural approval as connected parts of high-level installation. The factory can provide product weight, structure, and mounting-interface information, while final anchor calculations and structural approval remain with the qualified local team.
Before approving a deeper return, the project drawing should confirm the letter body depth, total installed projection, estimated weight, reinforcement, mounting-hole pattern, wall type, lifting method, packaging size, and any local structural requirements. A return that looks impressive in the rendering still needs to arrive without distortion and remain securely attached after installation.
Which Project Conditions Determine the Depth?
Return depth should be selected from the complete project rather than letter height alone. The main conditions are illumination type, minimum stroke width, face material, wall stand-off, mounting system, total permitted projection, installation height, wall construction, outdoor exposure, packaging volume, and delivery method. A suitable depth balances light quality, appearance, assembly space, structural performance, installation access, and total project cost.
Which Depth Works for Front-Lit Letters?
Front-lit channel letters send light through a translucent acrylic or polycarbonate face. The return must create enough distance for the LED light to spread across the face without leaving visible dots, bright rows, dark centres, or weak corners.
Many standard storefront letters begin with a planning range of approximately 75–150 mm, or 3–6 inches. The final figure depends more on the internal geometry than the overall letter height.
| Project Condition | Likely Effect on Return Depth |
|---|---|
| Light-coloured opal face | Moderate depth may provide even diffusion |
| Dark red, blue, or green face | More optical distance or stronger LED output may be needed |
| Wide block strokes | More space may be needed for several LED rows |
| Narrow condensed letters | Deeper construction may not help because internal width remains limited |
| Trimless face | Edge brightness and LED-to-face distance need closer control |
| High ambient light | Stronger output may be needed during operating hours |
| Close viewing distance | Hot spots and construction details become easier to notice |
| High-mounted storefront sign | Greater depth may improve visual proportion from below |
A practical early reference is:
| Usable LED-to-Face Distance | Common Result |
|---|---|
| Below 60 mm | High risk of visible LED points |
| 60–90 mm | Possible with compact, wide-angle LEDs and suitable diffusion |
| 90–130 mm | Suitable for many normal commercial letters |
| 130–160 mm | Good blending space, but brightness should be checked |
| Above 160 mm | Usually reserved for larger or special construction |
The usable LED-to-face distance is smaller than the nominal return depth. The back, LED body, face-retaining parts, acrylic thickness, screws, and wiring all occupy space.
For example, a 100 mm return may provide only 85–90 mm of useful optical distance after the back structure and LED height are deducted.
A shallow front-lit letter may still work when it uses:
- compact LED units;
- wide optical lenses;
- closer LED spacing;
- a high-diffusion face;
- a white reflective interior;
- a tested dimming level.
A deeper front-lit letter may improve light blending, but depth should not be increased without checking daytime appearance and wall projection. A 150 mm body can look balanced on a 1,200 mm-high storefront name yet appear bulky on 250 mm-high interior letters.
The most useful approach is to review the widest stroke, narrowest stroke, face colour, viewing distance, and LED layout together. Iduoduo’s documented Channel Letter process treats letter depth, face construction, LED arrangement, power, wiring, mounting, waterproofing, and packaging as connected production specifications rather than separate selections.
How Is Halo-Lit Depth Different?
Halo-lit channel letters usually have an opaque front and opaque sidewalls. LEDs direct light toward the wall through a clear or translucent rear section, producing a glow around the letter.
The visible halo depends on two separate measurements:
- the depth of the letter body;
- the distance between the letter and the finished wall.
Those measurements should never be combined into one vague “letter thickness” figure.
Consider the following example:
| Measurement | Example |
|---|---|
| Letter body depth | 80 mm |
| Wall stand-off | 30 mm |
| Total front projection | Approximately 110 mm |
| Rear acrylic thickness | 3–5 mm |
| Finished wall | Smooth, matte, light-coloured |
The 80 mm body provides space for LEDs, wiring, studs, and rear diffusion. The 30 mm stand-off gives the light room to spread across the wall.
A larger wall gap usually creates a broader halo, but it can also make the light weaker and less defined. A very small gap may create a narrow, harsh outline around the letter. The preferred result depends on whether the project requires a soft architectural glow or a sharp illuminated border.
| Wall Stand-Off Direction | Likely Halo Appearance |
|---|---|
| Under 15 mm | Tight glow with a higher risk of visible bright points |
| 15–25 mm | Controlled, relatively defined halo |
| 25–40 mm | Broader glow for many interior and storefront applications |
| 40–60 mm | Softer and wider halo, subject to wall reflectance |
| Above 60 mm | Light may become weak or irregular without sufficient output |
These ranges are planning references, not universal specifications. Letter size, LED beam angle, wall colour, ambient light, and rear diffuser can change the result.
Wall material has a major influence:
| Wall Surface | Expected Effect |
|---|---|
| White matte paint | Strong and even reflection |
| Light-coloured smooth stone | Good reflection with some natural variation |
| Dark paint | Lower halo brightness |
| Brick | Broken, uneven light pattern |
| Rough concrete | Irregular glow and visible texture |
| Polished metal | Strong reflections and possible glare |
| Glass | Light may pass through or reflect unpredictably |
| Timber slats | Interrupted halo lines |
A rendering on a plain white background may therefore give a misleading impression when the real wall is black brick or reflective stainless steel.
Mounting studs also affect halo quality. Poorly positioned studs, wires, or spacers can cast shadows behind the letter. Spacer length should remain consistent across all fixing points; otherwise, the letter may sit at an angle and produce an uneven glow.
Before approving depth, provide a straight wall photograph, side-angle photograph, wall material, wall colour, expected ambient lighting, letter size, and preferred halo width. Iduoduo’s optical records identify letter depth, LED placement, wall distance, wall reflectance, viewing distance, and ambient light as factors affecting the final illuminated result.
Do Dual-Lit Letters Need More Space?
Front-and-halo-lit channel letters produce light through the front face and toward the wall. The body must support two lighting directions without allowing the two effects to interfere with each other.
A dual-lit letter may require more internal room than a simple front-lit letter because the structure can include:
- translucent front acrylic;
- rear translucent acrylic;
- front-facing LEDs;
- rear-facing LEDs;
- separate wire routes;
- internal light-control surfaces;
- mounting studs and spacers;
- two electrical circuits;
- separate dimming control.
A larger return is often helpful, but increasing depth is not the only solution. The minimum stroke width may remain the limiting factor. A 150 mm-deep body does not create more horizontal room inside a 45 mm-wide stroke.
The lighting plan should answer five practical questions:
| Question | Why It Matters |
|---|---|
| Will one LED system illuminate both directions? | Simpler wiring, but less control over each effect |
| Will front and rear lighting use separate LEDs? | Better control, but more internal space and power are required |
| Will both sides use the same light colour? | Different colours may need separate circuits and testing |
| Can the front and halo brightness be adjusted separately? | The front may overpower the rear glow |
| Is there enough room for studs and wiring? | Hardware can block either lighting path |
A common problem is a very bright front with a weak halo. Adding more rear-facing LEDs may help, but wall colour and stand-off distance should be checked first. Another common problem is uncontrolled light leakage around the sides. Internal partitions, opaque coatings, or revised LED direction may be required.
An illustrative planning comparison is shown below:
| Construction | Internal Complexity | Typical Depth Direction |
|---|---|---|
| Front-lit only | One main lighting path | Moderate |
| Halo-lit only | Rear lighting plus stand-off | Moderate |
| Front and halo-lit | Two lighting paths and more wiring | Moderate to deeper |
| RGB front and white halo | Separate circuits and control | Deeper review often needed |
| Narrow dual-lit script | Very restricted internal space | Alternative construction may be better |
Power-supply loading should also be calculated separately for front and rear circuits. A letter set drawing should show wire groups, power locations, cable exits, dimmers, and control connections. Without clear circuit grouping, installers may be unable to balance the two lighting effects on site.
For chain-store work, the approved depth, front brightness, halo width, wall gap, LED colour, and dimming settings should be recorded. Small unrecorded changes can make later locations look noticeably different from the first store. The Iduoduo Channel Letter specification records depth, LED arrangement, wall distance, power, wiring groups, mounting, and approved lighting references for batch and repeat production.
How Does Mounting Affect the Depth?
Mounting can add more projection than the letter body itself. A quotation listing a 100 mm return does not show how far the completed sign will extend from the wall.
The three common mounting directions are flush mounting, raceway mounting, and backer-panel mounting.
| Mounting Method | Letter Position | Added Projection | Main Benefit |
|---|---|---|---|
| Flush mounted | Individual letters fixed directly to the wall | Usually low | Clean architectural appearance |
| Stand-off mounted | Letters held away from the wall | Approximately 15–60 mm | Required for halo illumination |
| Raceway mounted | Letters fixed to an electrical metal box | Commonly 60–150 mm or project-specific | Fewer wall penetrations and easier wiring |
| Backer mounted | Letters fixed to a larger panel | Depends on panel construction | Simplifies alignment and creates contrast |
A flush-mounted 125 mm front-lit letter may project approximately 125–135 mm after face-retaining details are included. A 100 mm halo-lit letter with a 30 mm stand-off may project around 130 mm. A 100 mm letter mounted on a 90 mm raceway could project close to 190 mm.
The installed projection should therefore be calculated as:
Total projection = face extension + letter body depth + stand-off, raceway, or backer depth
An example comparison:
| Sign Construction | Body Depth | Rear Structure | Approximate Total Projection |
|---|---|---|---|
| Flush-mounted front-lit | 100 mm | 5 mm hardware allowance | 105 mm |
| Halo-lit | 80 mm | 30 mm stand-off | 110 mm |
| Raceway-mounted front-lit | 100 mm | 80 mm raceway | 180 mm |
| Backer-mounted dual-lit | 120 mm | 50 mm backer | 170 mm |
The wall often decides which arrangement is practical.
Concrete or masonry can accept individual studs and wire penetrations when the drilling plan is approved. Metal cladding may have hidden rails, insulation, or waterproof membranes. Glass façades may prohibit individual penetrations. Interior drywall may need concealed framing or a common backer to distribute weight.
Electrical access matters as well. Flush-mounted letters may require one cable penetration for each letter or several grouped penetrations. A raceway can collect wiring and power supplies into a serviceable enclosure, reducing the number of façade penetrations.
Mounting hardware occupies internal space. Stud plates, nuts, wires, and reinforcement can reduce the usable cavity, particularly in shallow letters. Depth should be reviewed after the mounting pattern is designed—not before.
A production-ready mounting package should confirm:
- wall material and thickness;
- body depth;
- total projection;
- mounting-hole locations;
- stud diameter and length;
- wire-exit positions;
- raceway or backer dimensions;
- power-supply location;
- paper or rigid installation template;
- access for future servicing;
- responsibility for local anchors and structural approval.
Iduoduo’s project information checklist asks for the illumination type, return depth, mounting method, raceway or backboard requirement, wire exits, wall construction, destination market, packaging, and project schedule before manufacturing is confirmed.
Do Site Limits, Cost, and Shipping Change the Depth?
Site restrictions can overrule the preferred optical or visual depth. Shopping centres, landlords, architectural manuals, and local authorities may limit total sign projection, letter height, raceway visibility, return colour, mounting penetrations, or illumination type.
A specification reading “maximum projection: 150 mm” normally refers to the complete installed assembly, not only the metal letter body.
For example:
| Component | Proposed Dimension |
|---|---|
| Letter return | 100 mm |
| Halo stand-off | 30 mm |
| Face-retaining extension | 5 mm |
| Mounting tolerance | 5 mm |
| Total projection | 140 mm |
The construction appears to comply with a 150 mm limit, but only 10 mm remains for installation variation. A more conservative body depth may be safer.
The following site information should be collected before depth is frozen:
| Site Condition | Required Check |
|---|---|
| Landlord sign criteria | Maximum projection and approved illumination |
| Local permit rules | Letter size, mounting, electrical and structural requirements |
| Canopy or architectural reveal | Available clearance above, below, or behind the sign |
| Pedestrian area | Head clearance and projection restrictions |
| Narrow service corridor | Access for drilling, wiring, and maintenance |
| Coastal or exposed façade | Corrosion, wind, drainage, and fixing requirements |
| Historic building | Penetration and appearance restrictions |
| Shared retail elevation | Raceway colour and visual alignment |
Return depth also influences production cost. Sidewall material area is approximately proportional to depth.
For the same letter perimeter:
- increasing the return from 100 mm to 125 mm adds about 25% more sidewall area;
- increasing it from 100 mm to 150 mm adds about 50%;
- increasing it from 100 mm to 200 mm doubles the sidewall area.
The full price will not rise at the same percentage because the face, back, LEDs, and design work may remain similar. Cost can still increase through additional metal, forming time, welding, reinforcement, paint, packing foam, and carton volume.
Shipping deserves early attention, especially for overseas orders. Freight companies often charge according to volumetric weight when cartons occupy more space than their actual weight suggests.
A common air-freight calculation is:
Volumetric weight in kilograms = length × width × height in centimetres ÷ 5,000 or 6,000
A carton measuring 120 × 80 × 25 cm has a volume of 240,000 cm³.
- Using a divisor of 5,000: volumetric weight is 48 kg.
- Increasing carton depth to 35 cm raises it to 67.2 kg.
- The 10 cm depth increase adds 40% to the chargeable volume.
Courier formulas and divisors vary, but the example shows why a deeper return can materially affect freight even when the metal weight changes only slightly.
Sea freight is less sensitive to chargeable weight but remains sensitive to cubic volume, crate size, container loading, and oversized handling. Large letters may be nested, packed separately, segmented, or supplied with removable faces to reduce risk and volume. Packing changes must not compromise letter shape or surface protection.
The least expensive return is not always the shallowest one. A shallow body may require more LEDs, stronger diffusion, special components, or extra assembly time. A deeper body may cost more to ship but reduce lighting risk. The best commercial decision compares the complete installed cost:
| Cost Area | What Depth Can Change |
|---|---|
| Fabrication | Metal use, bending, welding, reinforcement |
| Lighting | LED quantity, optical type, wiring, power |
| Finishing | Sidewall surface area and paint coverage |
| Mounting | Stud length, brackets, raceway, anchors |
| Packaging | Carton depth, foam, wooden crate |
| Freight | Volumetric size, oversized charges |
| Installation | Lifting, handling, wall projection and access |
| Maintenance | Internal access and power-supply serviceability |
Depth should be confirmed only after the project team has checked the sign type, logo geometry, wall, mounting, permitted projection, lighting target, packaging plan, and delivery route. A number copied from an earlier sign may save a few minutes during quotation but create unnecessary cost at every later stage.
How Do You Confirm the Final Depth?
Final return depth should be approved only after the letter cross-section, usable LED-to-face distance, minimum stroke, mounting hardware, wall projection, lighting test, packaging plan, and site restrictions have been checked together. The approved value must appear consistently in the quotation, shop drawing, sample record, production file, installation template, and repeat-order archive.
What Should the Shop Drawing Show?
A front elevation can confirm the logo size and letter spacing, but it cannot prove whether the proposed return depth will work. Final approval requires a cross-section showing how the face, return, back, LEDs, wiring, mounting parts, and wall connection fit together.
The drawing should separate the letter body depth from the complete installed projection. A specification such as “100 mm deep” remains unclear when a trim cap, rear spacer, raceway, or backer panel is also present.
A production-ready drawing should include the following information:
| Drawing Item | What Must Be Shown | Why It Affects Final Depth |
|---|---|---|
| Front elevation | Overall width, letter height, spacing and logo proportions | Confirms the sign scale |
| Cross-section | Face, return, back, LEDs and wall position | Shows the real internal construction |
| Return depth | Front-to-back body measurement | Controls cavity space and side profile |
| Face construction | Material, thickness and retaining method | Reduces the usable internal distance |
| Back construction | Material and thickness | Supports LEDs and mounting parts |
| LED position | Height above the back and distance from the face | Determines optical blending |
| Minimum stroke | Narrowest usable internal width | Confirms whether LEDs and wires fit |
| Mounting hardware | Studs, plates, brackets or rails | May occupy internal space |
| Wire exits | Quantity, position and cable direction | Prevents wires from crossing the light path |
| Rear stand-off | Distance between the letter and wall | Controls halo spread |
| Raceway or backer | Width, height and depth | Changes the total projection |
| Total projection | Frontmost point to finished wall | Used for landlord and site approval |
A practical example shows why the nominal return alone is not enough:
| Component | Example Dimension |
|---|---|
| Nominal return depth | 100 mm |
| LED height above the back | 12 mm |
| Face and retaining allowance | 5 mm |
| Approximate LED-to-face distance | 83 mm |
| Rear mounting allowance | 5 mm |
| Approximate total flush projection | 105 mm |
The exact optical distance depends on the construction, but the example shows how a “100 mm letter” may provide substantially less than 100 mm for light to spread.
For halo-lit letters, body depth and wall gap should always be listed separately:
| Measurement | Example |
|---|---|
| Letter body depth | 80 mm |
| Wall stand-off | 30 mm |
| Face or front-edge allowance | 5 mm |
| Approximate total projection | 115 mm |
The drawing should also identify whether measurements are in millimetres or inches. A 4-inch return equals 101.6 mm. Writing 4 inches in one document and 100 mm in another creates a small difference that may become a larger problem across repeat orders, raceways, templates, or fixed façade limits.
Before approval, compare the quotation and drawing line by line. The return depth, face, return material, back, illumination, mounting, wire exits, and quantity should match. Production should follow one dated and approved version rather than details spread across several emails or chat messages.
Which Project Details Should Be Provided?
A factory cannot recommend a reliable depth from a logo image and overall width alone. The narrowest stroke, installation wall, illumination type, face colour, mounting system, and permitted projection may change the result even when the sign size stays the same.
The following information should be supplied before the final depth is selected:
| Project Information | Minimum Detail Required |
|---|---|
| Artwork | AI, EPS, SVG, PDF or dimensioned CAD file |
| Overall size | Complete sign width and height |
| Letter size | Height of the main letters |
| Minimum stroke | Narrowest illuminated section |
| Quantity | Single set, sample, batch or store rollout |
| Illumination | Front-lit, halo-lit, front-and-halo-lit or side-lit |
| Face | Material, thickness and colour |
| Returns | Material, colour and finish |
| Installation | Flush, stand-off, raceway or backer mounted |
| Wall | Concrete, brick, cladding, glass, drywall or another surface |
| Environment | Indoor, sheltered outdoor, exposed outdoor or coastal |
| Power | Input voltage and required certification |
| Wire exits | Rear, side, grouped or individually positioned |
| Site rules | Maximum projection and landlord requirements |
| Delivery | Destination, deadline and transport method |
Minimum stroke deserves early attention. A 1,000 mm-high logo can still contain a 35 mm-wide script line. Making the body 150 mm deep does not widen the 35 mm cavity. The letter may need smaller LEDs, a modified stroke, a different face system, or mixed fabrication.
Wall information is equally important. A depth suitable for flush installation on concrete may not be suitable when the letters must sit on a raceway over insulated metal cladding. The raceway can add 60–150 mm or more to the finished projection, depending on the electrical and structural arrangement.
The site photograph should show more than a close view of the proposed sign area. Useful photographs include:
- a straight elevation of the full wall;
- an angled view from the main approach;
- a close view of the wall surface;
- the area behind or inside the wall where wiring will run;
- nearby canopies, reveals, doors, windows, lights, and architectural obstacles.
For replacement signs, provide the old sign dimensions, hole pattern, wire locations, raceway size, and wall marks where available. Reusing existing penetrations can reduce installation work, but only when the new depth, stud positions, and electrical arrangement match the site.
A complete inquiry record also improves quotation accuracy. Iduoduo’s Channel Letter project checklist includes the logo, overall dimensions, letter height, quantity, illumination, face and return colours, body depth, indoor or outdoor use, LED colour, voltage, power certification, mounting, raceway or backer, wire exits, wall construction, waterproofing, destination, packaging, and project date.
How Should Lighting Performance Be Checked?
Lighting quality cannot be confirmed from a numerical depth alone. A 100 mm return may work well with one face and LED arrangement but show visible points with another. The real construction should be tested under controlled conditions before the depth is released for batch production.
The most useful test is performed on the hardest part of the logo, not the easiest letter. Select the narrowest stroke, broadest illuminated area, tightest corner, darkest face colour, or most complex character.
Lighting inspection should cover the following points:
| Test Point | What to Look For |
|---|---|
| Straight strokes | Visible LED rows or bright bands |
| Wide areas | Dark centres or uneven coverage |
| Narrow strokes | Off-centre light and wiring shadows |
| Internal corners | Dark points |
| Outer edges | Excessive perimeter brightness |
| Letter-to-letter comparison | Different brightness or white tones |
| Face colour | Daytime and illuminated colour shift |
| Full logo | Consistent brightness across all shapes |
| Reduced output | Uniformity at the intended dimming level |
| Extended operation | Power stability, heat and intermittent faults |
Photographs should be taken using a fixed exposure where possible. Automatic phone exposure can make a dim sign appear bright or hide differences between letters. A useful approval set includes:
- the sign switched off in daylight;
- the sign illuminated in normal ambient light;
- the sign illuminated in a dark environment;
- close photographs of narrow and wide strokes;
- a full sign photograph from the intended viewing distance;
- a short video showing start-up and stable operation.
Halo-lit letters should be tested against a surface similar to the installation wall. A sample placed 30 mm from a white matte panel may look even, while the same letter installed on dark brick can produce a weaker and broken halo.
The test setup should record:
| Recorded Value | Example |
|---|---|
| Body depth | 80 mm |
| LED-to-rear distance | As-built measurement |
| Wall stand-off | 30 mm |
| Test wall | White matte panel |
| LED colour | 3000K warm white |
| Input voltage | Project-specific |
| Dimming level | 80% |
| Viewing distance | 3 m and 10 m |
| Test duration | Initial test plus extended operation |
A pass/fail decision should not rely only on whether the sign turns on. Uniformity, light colour, brightness balance, wiring, connections, and power stability all need review. Iduoduo’s illuminated-sign process includes 100% lighting inspection and a 72-hour pre-shipment test, together with checks covering brightness, light colour, uniformity, power, wiring, connectors, mounting holes, accessories, and packaging.
Is a Sample Needed Before Batch Production?
A sample is recommended when an untested depth could create a costly batch problem. Not every project needs a complete full-size sign, but unusual lighting, narrow strokes, dark faces, premium finishes, strict landlord approval, or large quantities justify physical verification.
A sample is particularly useful under the following conditions:
| Project Condition | Recommended Sample |
|---|---|
| Shallow front-lit letters | Full-depth illuminated section |
| Dark or unusual face colour | One complete representative letter |
| Narrow script | Narrowest character or logo section |
| Front-and-halo lighting | Full cross-section with both lighting directions |
| Special metal finish | Return and face corner sample |
| Large exterior letters | Reinforced corner or first complete letter |
| Multi-store rollout | Full first article |
| New mounting arrangement | Letter with studs, wire exits and template |
| Strict packaging limits | One packed production unit |
The sample should represent the greatest risk. For a logo containing large block letters and a small script tagline, testing only the largest block letter does not prove that the script can be manufactured or illuminated evenly.
A first article should confirm more than appearance:
- overall dimensions;
- letter height and spacing;
- return depth;
- face and back materials;
- return colour and finish;
- minimum-stroke construction;
- LED placement;
- light colour and brightness;
- wall stand-off;
- mounting holes and studs;
- wire exits;
- power and connections;
- drainage where required;
- packing method.
The sample should be reviewed in both lit and unlit conditions. A letter can pass the lighting test but fail the daytime appearance because of visible seams, wavy returns, incorrect paint, poor trim alignment, or excessive side projection.
Approval comments should be measurable. “Make it slightly thinner” or “make the halo softer” leaves too much room for interpretation. A useful revision reads:
- reduce body depth from 120 mm to 100 mm;
- maintain a 30 mm wall stand-off;
- move rear-facing LEDs 10 mm inward;
- reduce halo brightness to the approved level;
- keep the return finish matched to the signed colour sample.
Once approved, the sample details should be transferred into the shop drawing, material list, LED layout, power schedule, QC record, mounting template, and packaging instruction. A physical sample without a written production record cannot reliably control later batches.
Iduoduo supports MOQ 1, with regular samples commonly taking approximately 5–7 days and special structures approximately 7–15 days, depending on the materials, finishes, lighting, waterproofing, and packaging involved.
What Should Be Confirmed Before Manufacturing?
The final depth is ready for production only when the optical, structural, installation, electrical, visual, and delivery details agree with one another. Approval of a rendering alone is not enough.
A practical pre-production checklist is shown below:
| Approval Area | Final Confirmation |
|---|---|
| Artwork | Correct logo, font and proportions |
| Dimensions | Overall width, letter height and spacing |
| Minimum strokes | Approved construction for narrow details |
| Body depth | Exact return depth and measurement reference |
| Total projection | Body, stand-off, raceway or backer combined |
| Face | Material, thickness, colour and retention |
| Returns | Material, gauge, colour and finish |
| Back | Material, thickness and access method |
| Lighting | Direction, colour, brightness and layout |
| Power | Voltage, load, certification and location |
| Wiring | Circuit groups, wire exits and cable lengths |
| Mounting | Hole pattern, studs, brackets and template |
| Wall | Material, access and anchor responsibility |
| Weather protection | Sealing, drainage and cable-entry protection |
| Sample | Approved first article or written waiver |
| Packaging | Carton, foam, crate, numbering and accessories |
| Delivery | Quantity, destination, route and deadline |
| File control | Final revision number and approval date |
A useful approval sequence is:
| Stage | Required Output |
|---|---|
| 1. Project review | Missing-information list |
| 2. Preliminary engineering | Recommended return range |
| 3. Cross-section | Actual body and installed projection |
| 4. LED planning | Usable optical distance and spacing |
| 5. Site review | Wall, mounting and projection clearance |
| 6. Sample or first article | Physical verification where required |
| 7. Final revision | Frozen drawing and specifications |
| 8. Production release | Approved manufacturing file |
| 9. Quality inspection | Dimensions, lighting, mounting and finish records |
| 10. Repeat-order archive | Drawing, depth, LEDs, power, template and packaging |
The final drawing should carry a revision number, date, approved depth, and approval status. Any later change to the return can affect LED spacing, wiring, power, mounting studs, overall projection, cartons, and freight. Even a reduction from 125 mm to 100 mm should trigger a review rather than being treated as a simple metal change.
For multi-store work, the master specification should record:
- approved return depth;
- permitted dimensional tolerance;
- face and return materials;
- colour reference;
- LED type and light colour;
- wall stand-off;
- raceway or backer construction;
- mounting-hole pattern;
- wire-exit standard;
- power arrangement;
- packaging and store numbering;
- approved photographs or sample reference.
Repeat production should still confirm the destination country, voltage, quantity, installation environment, and material availability. Historical records reduce variation, but they do not remove the need to check whether the new location differs from the original one.
The safest final depth is not necessarily the deepest, shallowest, or least expensive option. It is the depth that has enough room for the selected construction, produces the approved lighting, stays within the site projection limit, fits the mounting plan, survives packing and transport, and can be reproduced without undocumented adjustments.
How Can You Confirm the Right Return Depth for Your Project?
A reliable quotation starts with more than the overall logo size. Send Iduoduo the artwork, required dimensions, illumination type, installation photos, wall material, mounting preference, destination country, and any limits on total projection. The engineering team can then review return depth together with minimum strokes, face construction, LED spacing, wiring, mounting holes, wall stand-off, and packaging.
Projects can begin from AI, PDF, SVG, CAD, storefront elevations, or a clear logo with wall measurements. Where the proposed depth may create uneven lighting, excessive projection, difficult installation, or unnecessary freight volume, Iduoduo can compare alternative constructions before production. A clear cross-section and approved specification help keep the finished channel letters consistent with the intended appearance, installation conditions, and long-term use.
