Acrylic Face Thickness for Channel Letters Explained

Acrylic face thickness looks like a small specification on a channel letter drawing, yet it can affect almost every visible and practical part of the finished sign. A face that is too light for its unsupported area may flex, lose flatness, move inside its retaining system, or become more vulnerable during transport and installation. A face selected only for strength may become unnecessarily heavy, difficult to fit, expensive to replace, or poorly matched to the intended lighting system.

The confusing part is that two letters with the same height may not need the same face specification. A narrow “I,” a wide “M,” a circular logo, and a large rectangular symbol create very different face areas and edge conditions. Installation height, wind exposure, public access, trim style, LED distance, material color, maintenance method, and transportation route also change the decision.

Acrylic face thickness for channel letters is determined by evaluating letter size, unsupported face area, font geometry, face-retention method, return depth, LED layout, indoor or outdoor exposure, thermal movement, impact risk, transportation, and maintenance. For many small and medium projects, approximately 3–5 mm is a practical starting range, but large, wide, or highly exposed faces require a project-specific engineering review.

A useful question is therefore not, “Is 3 mm or 5 mm better?” The better question is, “What forces, optical demands, and fixing conditions must the face handle after the sign leaves the factory?” Many disappointing signs began with a supplier answering the first question without asking the second.

What Is the Standard Acrylic Face Thickness?

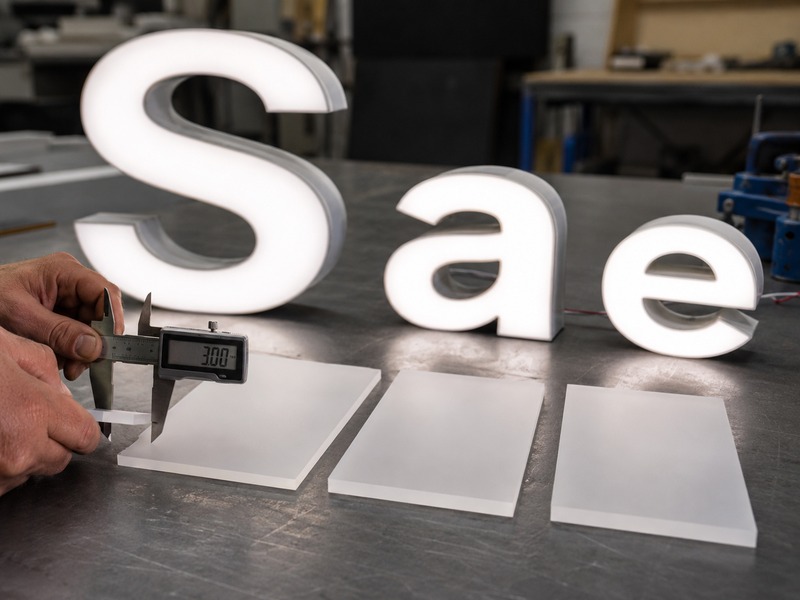

Common 3 mm, 4.5 mm, and 5 mm acrylic face options for channel letters

There is no single standard thickness for every channel letter. Translucent acrylic faces commonly start around 3 mm, 4.5 mm, or 5 mm, depending on the available sheet specification. The final choice must match the letter’s unsupported face area, stroke width, shape, retaining system, return depth, installation environment, lighting arrangement, transport risk, and maintenance method.

A thickness figure should never be read as a complete quality specification. “5 mm acrylic” may sound stronger than “3 mm acrylic,” but it does not confirm the acrylic grade, light transmission, UV resistance, face-retention method, LED spacing, manufacturing tolerance, or suitability for the installation site.

The practical goal is not to select the thickest available sheet. The goal is to use a face that remains flat, fits the return accurately, diffuses LED light evenly, allows controlled thermal movement, survives delivery, and can be serviced after installation.

Nominal face thickness	Approximate imperial size	Common starting conditions	Main reason for selection	Conditions requiring further review
3 mm	0.118 in	Small letters, narrow strokes, indoor signs, limited unsupported areas	Lower weight, easier cutting, practical for compact faces	Wide strokes, outdoor exposure, fragile corners, shallow trim engagement
4.5 mm	0.177 in	Medium commercial letters and many storefront applications	Better rigidity without excessive weight	Large logo blocks, high installation positions, strong wind exposure
5 mm	0.197 in	Medium-to-large letters, broad strokes, more demanding handling	Increased face stiffness and transport resistance	Large unsupported spans, oversized panels, difficult trimless structures
6 mm or above	0.236 in or above	Special structures, large panels, impact-sensitive locations	Greater rigidity or impact-related performance	Weight, trimming, forming, retention, optical transmission and cost

These figures are starting references, not automatic production rules. Final approval should be based on the actual vector artwork and construction drawing. Iduoduo’s engineering process evaluates material thickness together with letter structure, LED layout, face-to-return fit, installation details, waterproofing, packaging, and transport feasibility.

What Thicknesses Are Commonly Used?

For many front-lit channel letters, 3 mm to 5 mm translucent acrylic covers a large portion of normal commercial applications. The range is broad because channel letters are not standardized boxes. Every word, logo, font, return depth, and installation site creates a different combination of loads and visual requirements.

A 3 mm face may work well for a compact indoor logo with narrow strokes and continuous perimeter support. The same material may be unsuitable for a wide outdoor symbol measuring several square feet. Likewise, a 5 mm face may be useful for a broad storefront logo but unnecessarily heavy for a group of small letters installed behind a reception desk.

The following examples show how the same thickness can lead to different decisions:

Example	Likely starting point	Why
250 mm-high indoor letters with 40–60 mm strokes	Around 3 mm	Small face area and controlled indoor conditions
450–700 mm-high storefront letters	Around 4.5–5 mm	Greater area, outdoor handling and stronger perimeter loads
600 mm-high narrow script letters	Project review	Overall height is not large, but thin connections may be fragile
500 mm-high square logo with a broad illuminated center	Project review	Large unsupported center may flex more than narrow letters
Large rooftop or upper-floor channel letters	Engineering review	Wind, installation height and local structural requirements become important
Low-mounted sign in a public area	Acrylic versus polycarbonate review	Impact risk may matter more than face stiffness alone

“Commonly used” should therefore mean “commonly available for evaluation,” not “automatically approved.”

Material type also needs to be named. A practical purchase specification may state:

Sign-grade translucent acrylic;
Cast or extruded acrylic, where relevant;
Nominal face thickness;
Manufacturer color code or approved color reference;
Daytime color;
Illuminated color;
Light-transmission requirement where necessary;
UV suitability for outdoor use;
Surface finish;
Applied translucent film or print;
Trim-cap or trimless retaining structure.

Without those details, two quotations can both list “5 mm acrylic” while describing visibly different products.

Is 3 mm Acrylic Thick Enough?

Three-millimeter acrylic can be suitable, but size alone cannot confirm the decision. The first question is not simply how tall the letter is. The more useful question is how far any part of the face sits from a supported edge.

Consider two signs:

A 600 mm-high letter “I” with a narrow vertical stroke;
A 400 mm-high square icon with a 380 mm-wide illuminated center.

The taller letter may have a smaller unsupported span because both side edges are close together. The shorter square icon has a broad central area, so face movement may be more noticeable. Choosing thickness from height alone would miss the more important structural difference.

Three-millimeter acrylic is more likely to be practical when several conditions occur together:

The letters are relatively small;
Stroke widths are narrow or moderate;
The face has no broad unsupported center;
The perimeter provides continuous and accurate retention;
The sign is installed indoors or in a sheltered location;
Public impact risk is low;
The face can be packed without heavy pressure from other parts;
The design has no fragile projections or very sharp internal corners;
The LED-to-face distance supports even illumination.

Several warning signs should trigger a closer review:

Wide block letters;
Large rectangular logo sections;
Long horizontal strokes;
Large circular or oval faces;
Thin script connections;
Sharp inside corners;
Large internal cutouts;
High outdoor mounting;
Coastal or open-area exposure;
Long international shipping routes;
Trimless construction with limited edge tolerance;
Frequent removal for maintenance.

Packing deserves more attention than it usually receives. A 3 mm face may perform well once fixed to the letter body but still crack during transit if accessories move inside the carton or pressure is placed across an unsupported area. Face thickness, protective film, foam placement, carton structure, part separation, and unpacking instructions all contribute to delivery performance.

Selecting 3 mm only to reduce unit cost can create a false saving. A replacement face may require new production, international freight, local labor, lifting equipment, and another site visit. A small material saving at the factory can become an expensive service issue at the installation site.

Is 5 mm Acrylic Always Better?

Five-millimeter acrylic usually provides more stiffness than 3 mm acrylic of the same type and grade. Greater stiffness can improve face flatness, reduce visible movement, and provide more resistance during handling. Those benefits make 5 mm a practical choice for many medium-sized storefront letters and broad logo sections.

However, thicker does not always mean better.

A thicker face adds weight to the retaining system. Trim cap, screws, clips, adhesives, returns, and backs must carry the added load. If those parts are not designed accordingly, increasing face thickness may simply move the weak point from the acrylic to the edge connection.

Thickness also affects fabrication:

CNC or laser settings may need adjustment;
Tight internal curves can become harder to process cleanly;
Small counters may be more difficult to cut;
Trim profiles must accept the actual sheet dimension;
Trimless edges require accurate face-to-return alignment;
Heat forming may require different temperatures and processing times;
Large faces become heavier during assembly and installation.

Lighting performance may change as well. A thicker translucent face can affect light transmission and diffusion. The result depends on the acrylic formulation, pigment concentration, LED beam angle, LED spacing, return depth, internal surface color, and viewing distance.

A 5 mm dark-blue face may transmit less light than a 3 mm white face. Adding more LED modules is not automatically the correct response. Excessive LED density can increase power consumption, heat, wiring complexity, and visible bright points. A better solution may involve:

A different acrylic formulation;
A wider LED beam angle;
Revised module spacing;
Greater return depth;
Improved internal reflection;
A separate diffuser;
A different face color system;
An illuminated sample before production.

A thicker face should be selected because it solves a defined mechanical or handling requirement. It should not be used as a shortcut for poor return construction, weak edge retention, inaccurate LED spacing, or incomplete project review.

Are Metric and Imperial Sizes Equivalent?

Metric and imperial thicknesses are often presented as direct equivalents, but commercial sheet sizes are normally nominal. A rounded conversion can create confusion when a face must fit a trim profile, recess, screw system, or tightly controlled trimless return.

Metric reference	Mathematical conversion	Common imperial reference
3 mm	0.1181 in	About 0.118 in
4.5 mm	0.1772 in	About 0.177 in
5 mm	0.1969 in	About 0.197 in
6 mm	0.2362 in	About 0.236 in

A drawing marked “3/16 inch” does not always mean the factory will receive a sheet measuring exactly 0.1875 inch. The available sign-grade material may be sold under a nearby nominal specification. Manufacturing tolerances can also vary by material source and production method.

For a loose trim-cap structure, a small difference may be manageable when the trim profile and engagement depth are properly selected. For a trimless structure, even a small difference can affect:

Front-edge alignment;
Adhesive gap;
Mechanical engagement;
Face projection;
Recess depth;
Screw clearance;
Sealing;
Removability;
Batch consistency.

International projects should use one primary measurement system on the approved shop drawing. The secondary unit can appear in parentheses for reference, but production should follow the actual material specification written in the bill of materials.

A clear drawing note may read:

Translucent white sign-grade acrylic face, nominal 4.5 mm thickness, final material subject to approved sample and retaining-profile compatibility.

For repeat store programs, the production record should retain more than the thickness figure. A reliable record normally includes:

Acrylic supplier or approved equivalent;
Material series;
Color code;
Nominal thickness;
Actual approved appearance;
Light-transmission characteristics where required;
LED model and color temperature;
Return depth;
Trim or edge construction;
Approved day photograph;
Approved illuminated photograph.

Such records make later orders easier to compare. Acrylic suppliers, LED models, films, and pigments can change over time, so a repeat order should still be checked against the approved appearance rather than relying only on an old thickness number.

The standard face thickness is therefore not one number. It is a controlled material decision supported by the artwork, letter geometry, retaining structure, lighting design, installation environment, sample approval, and production record.

Which Letter Details Affect Thickness?

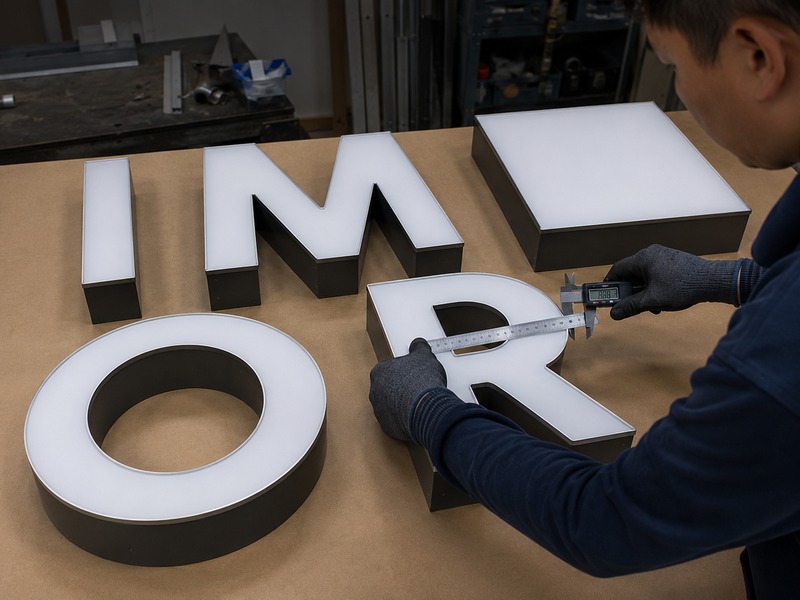

Channel letter shapes, stroke widths, openings, and unsupported spans reviewed for acrylic thickness

Acrylic face thickness is affected by more than overall letter height. Engineers also review stroke width, unsupported span, font geometry, internal openings, corners, narrow connections, perimeter support, and required segmentation. A tall narrow letter may need less face stiffness than a shorter, wide logo panel. The production drawing—not the sign’s overall height alone—should determine the final specification.

Letter detail	What should be measured	Why it affects the face	Possible engineering response
Letter height	Height of each character, not only total sign size	Larger letters often create wider exposed surfaces	Increase thickness, support, or return stability
Stroke width	Narrowest and widest illuminated strokes	Changes face span, LED space, wiring room, and edge support	Adjust thickness, return depth, or local stroke width
Unsupported span	Longest distance between supported edges	Large spans can flex even when the letter is not tall	Use a stiffer face, reinforcement, or segmentation
Internal openings	Counters in A, B, D, O, P, R, and similar forms	Small openings leave narrow acrylic sections around them	Increase radius, widen weak areas, or simplify details
Sharp corners	Inside and outside corner radii	Tight corners concentrate stress during cutting and handling	Add a small radius or change the cutting path
Script connections	Thin links between letters or logo sections	Narrow connections can crack or distort	Thicken selected areas or manufacture as separate pieces
Wide logo panels	Large square, circular, or rectangular areas	Broad centers sit farther from perimeter support	Review deflection, face retention, and internal support
Segmented faces	Number and location of joints	Seams affect appearance, sealing, light uniformity, and service	Move joints to less visible or structurally stronger areas
Edge engagement	Depth of face held by trim or return	Poor engagement allows movement even with thicker acrylic	Revise trim profile, fixing spacing, or face dimensions

How Does Letter Height Affect the Face?

Letter height is a useful starting measurement, but it is not a complete rule for selecting acrylic thickness. As a letter becomes taller, its face usually becomes larger, its return becomes deeper, and the finished unit becomes harder to handle. Outdoor letters installed at greater heights may also face stronger wind exposure and more demanding maintenance conditions.

The problem is that height does not show how the material is distributed.

Consider two simplified examples:

Example	Overall height	Approximate face shape	Likely concern
Narrow capital “I”	800 mm	Long, narrow rectangle	Limited unsupported width
Square logo icon	450 mm	Broad 430 × 430 mm area	Large unsupported center
Script word	500 mm	Several narrow connected strokes	Weak connections and tight curves
Circular symbol	550 mm	Wide curved face	Central flexing and edge fit
Block letter “M”	650 mm	Wide face with internal angles	Broad strokes and difficult corners

The 800 mm letter may have less face movement than the 450 mm logo because its supported side edges are closer together. Selecting a heavier face for the taller letter and a lighter face for the shorter logo, based only on height, could produce the opposite of the intended result.

Height still matters in several practical ways:

Taller letters generally need larger cartons or wooden packaging.
Larger faces are more difficult to lift without bending.
High-mounted signs may require more structural review.
Large units can place greater load on trim, screws, returns, and backs.
Replacement work becomes more expensive when lifting equipment is required.
Long-distance transportation creates more pressure on broad components.

Small letters require equally careful review. Iduoduo’s channel-letter engineering guidance notes that complex illuminated letters below approximately 100–150 mm often require special assessment. At that scale, the main difficulty may not be face stiffness. The limiting factors are often stroke width, return forming, LED module size, wiring space, face fixing, and light diffusion.

When small artwork cannot support a normal channel-letter structure, practical alternatives include enlarging the sign, widening selected strokes, simplifying minor details, using an acrylic LED logo sign, changing to LED neon, or producing non-illuminated metal or acrylic letters.

The correct height question is therefore:

How does each letter’s height combine with its width, stroke geometry, installation position, and supporting edge?

A quotation based only on “letters are 600 mm high” is incomplete. The vector file should be reviewed before face thickness is confirmed.

How Does Stroke Width Affect the Choice?

Stroke width often has a greater effect on channel-letter construction than overall height. It controls the amount of room available for LED modules, wiring, returns, trim, adhesive, and face support. It also determines how far the center of the acrylic sits from a supported edge.

Both narrow and wide strokes create problems, but for different reasons.

Stroke condition	Main face concern	Other production concerns
Very narrow stroke	Fragile face and limited edge engagement	LED modules may not fit; wiring space is restricted
Moderate stroke	Usually easier to balance	Still requires LED and return review
Wide stroke	Large unsupported face area	More LED rows may be needed for uniform lighting
Sudden width change	Uneven stiffness and lighting	Bright and dark regions may appear
Long horizontal stroke	Potential sagging or movement	Packing pressure can damage the center
Narrow curved stroke	Stress around tight radii	Difficult bending, trimming, and LED placement

A narrow illuminated stroke needs enough internal width for several functions at once:

The return must be formed without severe distortion.
The LED module or LED strip must fit inside the letter.
Wiring must pass through the unit without being pinched.
The acrylic face must have enough edge area for secure retention.
Light must spread before reaching the face.
The finished letter must remain strong during packing and installation.

Iduoduo’s engineering records identify several common problems caused by strokes that are too narrow: standard LED modules may not fit, brightness can be insufficient, corners may remain dark, the face may become fragile, the return may deform, and wiring space may be inadequate.

Increasing acrylic thickness does not solve every narrow-stroke problem. A 5 mm face placed on a very narrow letter may be stronger at the front, but it can also become harder to cut around small counters and tight curves. The heavier face still needs a reliable retaining edge, while the internal space remains too narrow for lighting and wiring.

A wide stroke creates the opposite issue. More surface area sits away from the perimeter, so face flatness becomes more important. The lighting layout may need two or more rows of LED modules rather than a single center row. Module spacing, beam angle, return depth, and face diffusion must be checked together. Iduoduo’s manufacturing guidance states that LED layout should be developed from font geometry, stroke width, structure, return depth, and face diffusion rather than from LED quantity alone.

When artwork contains both narrow and wide strokes, one material thickness may still be used, but the structure may need local adjustments. Common solutions include:

Widening only the weakest connections;
Splitting a complex logo into separate illuminated units;
Using different LED layouts in narrow and broad areas;
Increasing edge support around wide sections;
Adding internal support where it will not create a visible shadow;
Revising return depth to improve light mixing;
Producing a sample before approving a full order.

The most useful measurement is not the average stroke width. Engineers should identify the narrowest manufacturable stroke, the widest unsupported stroke, and every sudden transition between them.

How Does Face Area Affect Rigidity?

Acrylic face rigidity depends heavily on unsupported span. The unsupported span is the distance across a face section between retaining edges or structural supports. A broad area can flex even when the total letter is not especially large.

A practical review should identify:

The widest horizontal span;
The tallest vertical span;
The largest square or circular region;
Long areas without nearby perimeter support;
Centers of large counters or logo panels;
Sections likely to receive packing pressure;
Areas exposed to wind after installation.

Total square area alone can be misleading. A logo with one large rectangular block and several small letters may have a modest total area, yet the rectangular section may control the face specification. Each letter or graphic should be evaluated as an individual physical unit.

A simple project comparison illustrates the difference:

Face section	Approximate dimensions	Unsupported behavior
Narrow letter stroke	600 × 70 mm	Supported closely along both long edges
Square logo center	420 × 420 mm	Center is far from every edge
Long horizontal bar	1,000 × 120 mm	Can move along the long central section
Circular face	600 mm diameter	Broad center may flex under pressure
Ring-shaped letter	700 mm outside diameter	Outer and inner edges both affect support

The square and circular areas may require greater stiffness or added support even when their height is lower than the narrow letter.

Face area also affects shipping. Large flat acrylic parts are vulnerable to pressure when:

Foam is placed unevenly;
A power supply is packed against the face;
Accessories move inside the carton;
Several letters are stacked without separation;
A carton is compressed during international freight;
The sign is lifted from one corner during unpacking.

A stronger face may reduce risk, but packaging still needs to support the perimeter and prevent concentrated loads. Iduoduo’s production system treats material thickness, face fit, structure, packaging, and transportation feasibility as linked engineering decisions rather than separate purchasing items.

For large unsupported areas, available responses include:

Selecting a thicker or stiffer face material;
Comparing acrylic with polycarbonate;
Adding internal support without causing visible shadows;
Dividing the face into manageable sections;
Increasing perimeter engagement;
Redesigning the return or back;
Improving packaging support;
Testing a first article before batch production.

The thickest sheet is not always the most efficient response. A well-supported 4.5 mm face may perform better than a poorly retained 6 mm face.

Do Letter Shape and Font Matter?

Font style changes how acrylic behaves during cutting, fitting, shipping, and long-term use. Straight block letters are generally easier to manufacture than scripts with thin links, sharp internal corners, and small enclosed spaces. Brand logos often combine several difficult features in one outline.

The most important areas to inspect include:

Geometry	Typical risk	Practical response
Sharp inside corner	Stress concentration and cracking	Add a small internal radius
Thin script connection	Breakage during handling	Widen locally or separate the letters
Small counter	Difficult cutting and face retention	Enlarge or simplify the opening
Long serif	Fragile projection	Shorten, thicken, or use another construction
Tight curve	Poor return and trim fit	Increase radius or adjust the outline
Narrow bridge	Limited strength around an opening	Increase bridge width
Dense logo detail	No room for LEDs or wiring	Simplify, enlarge, or change product type
Uneven outline	Difficult face-to-return alignment	Use a precise production drawing and first article

Letters such as A, B, D, O, P, Q, and R contain internal openings. Acrylic around those openings can become narrow, especially when the letter is small or the font is bold. A thicker sheet may provide more general rigidity, but it does not automatically protect a narrow bridge around an internal cutout. Edge quality, corner radius, cutting method, and handling remain important.

Script lettering introduces another issue: the visual design may appear to be one continuous word, but manufacturing it as one face can create long, weak connections. Dividing the word into separate units may improve strength and simplify service, although spacing and installation templates must preserve the intended appearance.

Sharp corners should not be copied mechanically from a screen file without production review. A perfectly sharp digital corner can create a stress concentration in acrylic. A small radius may be nearly invisible at normal viewing distance while improving cutting quality and reducing the chance of cracking.

The material also needs enough room for edge engagement. When an internal opening is too small, the trim or return may not fit cleanly around it. Trimless construction is especially sensitive because the front edge exposes inaccuracies more clearly.

Before approving the original font without changes, check whether it allows:

Stable return forming;
Sufficient face-retention area;
Clean internal cutouts;
Adequate LED and wiring space;
Smooth light around corners;
Safe packing and handling;
Consistent reproduction across several sizes.

A professional adjustment should preserve the brand appearance. The goal is not to replace a distinctive font with a generic one. Small changes can often be limited to hidden radii, internal bridges, local stroke widths, or manufacturing separations.

How Do Seams and Segments Change the Design?

Large faces may need segmentation because of sheet size, cutting capacity, transport limits, installation access, or service requirements. Segmentation changes both face thickness and structural planning because every seam becomes a visible and mechanical detail.

A seam can create several risks:

A dark line when the sign is illuminated;
A bright line if two panels overlap incorrectly;
Misalignment along the front surface;
Water entry in outdoor installations;
Expansion conflict between separate panels;
A weak edge during handling;
Visible color difference between material batches;
Difficult face removal during maintenance.

Seam location should be decided during engineering, not after the acrylic has been cut. Better locations include natural breaks in the logo, gaps between letters, color changes, non-illuminated dividers, or areas where an internal support already exists.

Less suitable locations include:

The center of a broad illuminated panel;
A highly visible straight stroke;
A narrow bridge;
A sharp corner;
A section with limited access to rear fixings;
A position where water can collect;
A point where two faces will expand against each other.

Segmentation question	What should be confirmed
Why is the face divided?	Material size, freight, access, service, or structure
Where will the joint appear?	Daytime and illuminated viewing position
How is each edge supported?	Return, frame, divider, clip, screw, or bonded support
Can water reach the joint?	Sealing, overlap, drainage, and orientation
Can one section be replaced?	Fastener access and service procedure
Will both panels match?	Material batch, color, thickness, and light transmission
Can the sections be shipped safely?	Carton size, wooden case, separation, and labeling

Segmentation can improve a project when it is planned well. Smaller faces are easier to cut, pack, lift, replace, and transport. A large sign that would require an oversized wooden case may become easier to ship when divided at natural logo breaks.

Poor segmentation creates the opposite result. A visible central seam, inconsistent face color, or shadow from an internal divider can remain noticeable throughout the sign’s service life.

For multi-location programs, the approved seam plan should be recorded with:

Face material and thickness;
Joint location;
Number of sections;
Section dimensions;
Support construction;
Fastener or adhesive details;
Material batch requirements;
Packing sequence;
Installation labels;
Replacement instructions.

Letter details ultimately determine whether the face behaves as a small supported component or a broad structural panel. Height, stroke width, unsupported span, font geometry, openings, corners, and seams should be reviewed together before acrylic thickness is released for production.

How Do Structure and Lighting Affect Thickness?

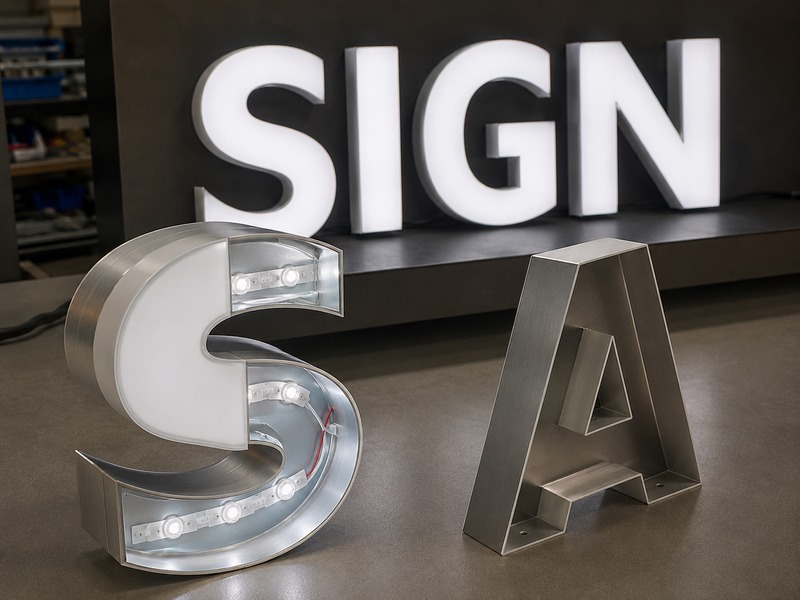

Channel letter face retention, return depth, and LED spacing reviewed together

Acrylic face thickness must match the face-retention method, return construction, LED-to-face distance, light-source layout, face color, and required impact resistance. A thicker panel may improve rigidity, but it cannot correct weak edge retention, an uneven return, poor LED spacing, or insufficient diffusion. The face, letter body, lighting system, and service method should be approved as one construction.

Iduoduo commonly treats approximately 3–5 mm translucent sheet as a starting range for small and medium channel-letter projects. Large faces, exposed outdoor signs, wide strokes, trimless edges, and impact-prone locations require a separate review rather than an automatic thickness increase.

Construction or lighting detail	Effect on face selection	Warning sign	Practical response
Trim-cap retention	Supports the face around its perimeter	Shallow engagement or loose trim	Check actual sheet thickness, trim profile, and fixing spacing
Trimless construction	Requires accurate face-to-return fit	Uneven front edge or adhesive gap	Use tighter fabrication tolerances and a first-article check
Screw-fixed face	Creates local loads around holes	Cracks starting from fasteners	Provide suitable hole clearance and avoid overtightening
Bonded face	Depends on joint width and adhesive compatibility	Edge lifting or visible glue line	Confirm surface preparation, adhesive type, and movement allowance
Shallow return	Reduces light-mixing distance	LED dots or bright centers	Adjust LED type, spacing, diffuser, or face material
Deep return	Improves light mixing but adds size and weight	Weak center brightness	Check LED output, internal reflection, and edge coverage
Dark-colored face	Usually transmits less light	Dim night appearance	Test face material with the intended LED color
Wide face area	Places the center farther from support	Bowing or visible movement	Review thickness, internal support, and retention
High-impact location	Raises breakage risk	Low-mounted or publicly accessible sign	Compare acrylic with polycarbonate
Repeat-store program	Requires the same day and night result	Brightness or color varies by batch	Record face, LED, return depth, spacing, and approved sample

How Is the Face Attached to the Return?

The face-retention method determines how pressure, vibration, handling loads, and thermal movement are transferred from the acrylic into the return. Two letters using the same 5 mm face can perform very differently when one has continuous, accurate perimeter support and the other has loose trim, uneven edges, or poorly spaced fasteners.

A retaining system should do four jobs:

Hold the face securely during normal use;
Maintain an even front surface;
Allow reasonable material movement;
Permit removal or replacement when service access is required.

Face-retention method	Typical appearance	Main control points	How it affects thickness
Trim cap	Visible profile around the face	Engagement depth, trim fit, joint quality, attachment spacing	More forgiving of minor edge variation, but the face still needs adequate stiffness
Trimless	Clean front edge without conventional trim	Face-to-return alignment, adhesive gap, front-edge accuracy, sealing	Often requires tighter dimensional control; extra thickness alone will not fix a poor fit
Screw-fixed	Visible or concealed mechanical fixing	Hole position, washer, screw pressure, edge distance	Thicker acrylic may resist general flexing, but local cracking can still occur around holes
Bonded	Minimal visible hardware	Adhesive compatibility, bonding width, surface preparation	Face thickness must work with the joint design and expected thermal movement
Removable panel	Designed for LED or wiring access	Fastener access, repeatable alignment, seal replacement	Weight and handling become important during maintenance
Recessed face	Face sits within a formed return or frame	Recess depth, corner accuracy, clearance	Actual sheet thickness must match the manufactured recess

Trim-cap construction is widely used for front-lit channel letters because the trim provides a defined edge around the translucent face. The profile must match the actual sheet dimension. A trim intended for one nominal sheet size may not hold another thickness correctly, even when the difference appears small on a drawing.

Poor trim engagement can lead to:

Face movement during wind or vibration;
A visible gap around the perimeter;
Water or dirt entering the letter;
Uneven projection at the front;
Difficulty removing and reinstalling the face;
Local pressure on corners.

Trimless letters create a cleaner edge, often preferred for high-end storefronts, reception areas, and close-view signs. The visual result depends heavily on accurate forming and alignment. A thicker acrylic face can improve stiffness, but it also increases weight and makes a poorly aligned edge more noticeable. The return, face, adhesive joint, and front plane must be produced to tighter tolerances.

Screw-fixed faces need special attention around holes. Acrylic should not be clamped as if it were a metal plate. Excessive screw pressure can create stress around the hole. Temperature movement may then enlarge the crack over time. The drawing should define:

Hole diameter;
Distance from the hole to the acrylic edge;
Washer or spacer arrangement;
Fastener spacing;
Tightening method;
Whether the face must be removable;
Clearance for expansion and contraction.

Bonded faces require equal care. “Glued face” is not a complete specification. The joint depends on the acrylic grade, return material, bonding width, adhesive chemistry, surface preparation, curing condition, and exposure environment. An adhesive suitable for an indoor reception logo may not be the right choice for a large sun-exposed storefront sign.

Before production, the face-retention drawing should show the actual cross-section. A front-view rendering cannot confirm trim engagement, adhesive width, screw clearance, recess depth, or service access.

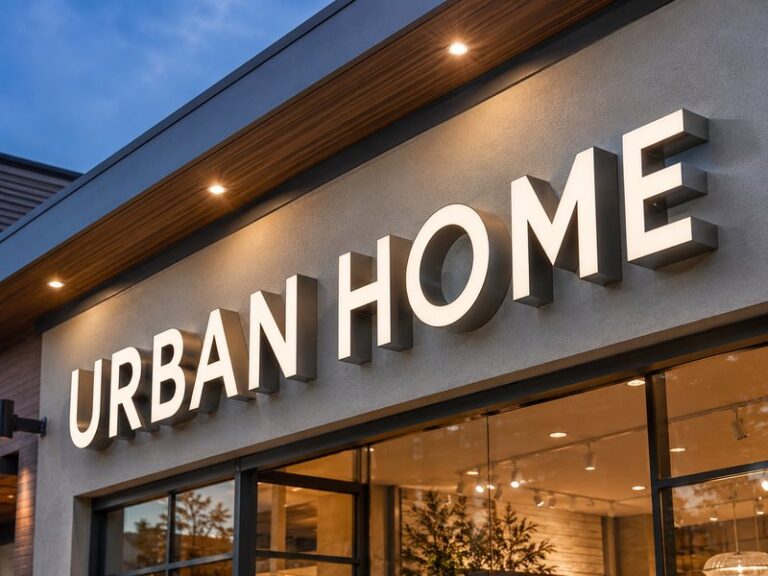

How Does Return Depth Affect the Face?

Return depth does not set acrylic thickness through one fixed formula. It affects lighting distance, sidewall stiffness, finished weight, wind area, wiring space, and face support. A suitable depth gives the LED light enough room to spread before reaching the acrylic while keeping the letter practical to manufacture, pack, install, and maintain.

A shallow letter places the LEDs close to the face. The shorter light path can make individual LED points, bright lines, and dark corners easier to see. Increasing face thickness may improve diffusion in some material combinations, but thickness is only one variable. The more effective solution may involve a different LED beam angle, lower output per light source, closer spacing, a diffuser layer, or a revised return depth.

A deeper return usually gives light more room to mix. However, excessive depth creates other costs:

More metal or acrylic in the sidewall;
Greater letter weight;
Larger packaging volume;
More wind-exposed side area;
Longer fasteners or mounting studs;
More difficult handling at height;
Potentially weaker brightness if the LED output is not adjusted.

The return also supports the face perimeter. A distorted, twisted, or uneven return can prevent the face from sitting flat. A thicker panel may hide minor movement, but it cannot correct a body that is out of square.

The following measurements should be reviewed together:

Measurement	What it controls
Actual return depth	Available optical mixing distance
LED-to-face distance	Visibility of LED points and light spread
Narrowest stroke	Space available for LEDs, wiring, and return forming
Widest stroke	Number of LED rows and central brightness
Face thickness	Rigidity, weight, cutting, and optical behavior
Face transmission	Amount of light passing through the panel
LED beam angle	Coverage before light reaches the face
LED edge distance	Brightness around the perimeter
Internal surface color	Reflection and light loss
Front-face projection	Fit with trim or trimless edge

A practical review should not use one return depth for an entire logo without checking the narrowest and widest sections. A wordmark may contain a 45 mm narrow stroke beside a 220 mm wide symbol. A single central LED row could work in the narrow letter but leave the broad symbol weak around the edges. Adding several LED rows everywhere could make the narrow areas too bright.

Complex logos often need local lighting changes while keeping one visible return depth. The production file may specify:

One LED row in narrow strokes;
Two or more rows in broad areas;
Reduced spacing at corners;
Extra coverage around large counters;
Separate wiring groups for different letter sizes;
Local dimming or resistance balancing where required;
A diffuser for shallow or unusually wide sections.

Return depth also affects service. A very shallow unit may leave little space for connectors and wiring. A very deep unit can be harder to reach once installed. The face should be removable without excessive bending, and the opening should give access to the parts most likely to require service.

How Do LEDs Affect Material Selection?

LED arrangement influences whether a face needs stronger diffusion, higher transmission, a different color formulation, or a revised thickness. The lighting result comes from the combination of LED type, spacing, beam angle, return depth, face material, internal reflection, wiring, voltage, and viewing distance.

More LEDs do not automatically create a better sign. Iduoduo’s manufacturing guidance notes that overly tight spacing can increase heat, power consumption, and visible bright points, while excessive spacing can create dark areas. Shallow returns can reveal LED images, and deeper returns may add weight and material cost.

Visible problem	Likely cause	Why face thickness alone may not solve it	Better items to check
Individual LED dots	LEDs too close to face or narrow beam angle	A thicker face may still transmit concentrated points	Return depth, diffuser, beam angle, spacing
Dark corners	LEDs positioned too far from turns	More face thickness can reduce overall brightness	Corner placement and edge distance
Bright center, dark edges	Central row does not cover the stroke width	Added thickness may make edge loss worse	Add rows or change beam spread
Uneven letters	Same layout used for different stroke widths	One face specification cannot balance poor layouts	Separate layouts by letter geometry
Low brightness	Dark face, weak LEDs, voltage drop, or excessive depth	Reducing thickness may damage rigidity	Face transmission, power, wiring, LED output
Hotspots after filming	Film and acrylic do not diffuse light evenly	A heavier sheet does not guarantee diffusion	Test the complete material stack
Color varies by letter	LED batch, voltage, depth, or face batch differs	Thickness may be identical in every letter	Record LED, face, power, and production batch
Edge shadow	LEDs too far from perimeter or trim blocks light	Greater thickness can broaden the shadow	Edge spacing, trim profile, internal reflection

The same LED layout should not be copied into every character. A capital “I,” a wide “M,” a round “O,” and a large logo icon require different coverage. The engineering drawing should show actual LED positions rather than a generic note such as “install sufficient LEDs.”

Important layout checks include:

Distance between adjacent LEDs;
Distance from LEDs to the face;
Distance from LEDs to the return edge;
Number of rows in broad strokes;
Coverage around corners;
Coverage around internal openings;
Wiring direction and voltage drop;
Power loading per circuit;
Heat concentration;
Access for replacement.

Face thickness can influence light transmission and diffusion, but material formulation often matters more than an extra millimeter. Two white acrylic sheets with the same thickness may not have the same transmission or diffusion. One may look brighter but reveal LED points; another may hide points but reduce overall output.

For unusual colors, shallow returns, strict brand requirements, or large logo areas, a physical illuminated sample is more useful than a digital rendering. The sample should be photographed and reviewed in both daylight and darkness at realistic viewing distances.

Iduoduo records LED type, LED color, color temperature, spacing, letter depth, face material, control equipment, test photographs, illuminated videos, and approved samples for repeat programs. Illuminated products receive a 100% lighting check and a 72-hour pre-shipment test covering stability, color consistency, hotspots, dark areas, corner coverage, and early electrical faults.

Does Face Color Change the Requirement?

Face color can change brightness, light diffusion, daytime appearance, nighttime color, and heat absorption. A white translucent face normally behaves differently from red, blue, black, printed, filmed, or day-and-night material. The same nominal thickness cannot be expected to produce the same illuminated result across every color.

A useful approval separates two questions:

What should the face look like when the sign is off?
What should the face look like when the sign is on?

A face can match a brand color in daylight but shift noticeably under LED lighting. A dark red face may look rich during the day and appear orange or weak at night. A blue face may transmit less light than expected. White acrylic combined with translucent film may produce a closer brand match, but the film can change diffusion, brightness, outdoor life, and surface appearance.

Face system	Daytime advantage	Nighttime concern	What to confirm
White translucent acrylic	Clean appearance and good diffusion	May look too bright without output control	LED color temperature and dimming
Colored translucent acrylic	Color is built into the sheet	Illuminated shade may differ from daytime shade	Material sample under intended LEDs
White acrylic with translucent film	Wider brand-color options	Film can reduce transmission or reveal application defects	Film series, outdoor rating, seams, and sample
Printed translucent face	Supports graphics and gradients	Ink density may create uneven illumination	Print profile, white ink, and backlit sample
Day-and-night face	Dark appearance when off, illuminated when on	Sensitive to material stack and LED layout	Viewing distance, brightness, and uniformity
Dark acrylic	Strong premium daytime look	Often needs more optical planning	Transmission, heat exposure, and sample testing
Clear acrylic with applied graphics	Crisp surface and custom effects	Clear zones can expose internal parts	Masking, diffuser, internal finish, and edge detail

Dark colors may absorb more solar heat in exposed outdoor locations. Greater surface temperature can increase thermal movement and place more stress on rigidly fixed edges. A thicker panel does not eliminate the need for expansion clearance, compatible adhesives, and controlled fastener pressure.

Face color can also affect the selected LED color. Warm-white LEDs behind some red, amber, cream, or gold faces may produce a softer result. Cool-white LEDs may improve apparent brightness behind certain white or blue faces but create an unwanted cold tone in hospitality or luxury interiors.

Pantone, CMYK, RGB, acrylic color codes, paint codes, and LED color temperature describe different systems. A screen preview cannot confirm the final result. Iduoduo’s project guidance recommends approving color through a material sample or illuminated sample, because the same brand color can appear differently on a monitor, printed graphic, painted metal, colored acrylic, and illuminated surface.

For repeat orders, record:

Acrylic manufacturer and color code;
Nominal thickness;
Film or print reference;
LED model;
Color temperature;
Return depth;
Daytime approval image;
Nighttime approval image;
Camera and exposure notes where possible;
Accepted brightness or dimming position.

A color name such as “warm white” or “brand blue” is not enough for a multi-location program.

Is Acrylic or Polycarbonate More Suitable?

Acrylic is suitable for many channel-letter faces because it offers clear surfaces, stable optical performance, broad color availability, and practical cutting and forming. Polycarbonate is worth considering where impact resistance, handling risk, or public exposure carries more weight than surface clarity or material cost.

Iduoduo’s material guidance lists acrylic as a common channel-letter face material and polycarbonate as an option for higher-impact translucent faces and selected outdoor products. The final decision should consider product size, installation height, public contact, weather, transportation, budget, and brand-color requirements.

Comparison point	Acrylic	Polycarbonate
Surface appearance	Often selected for a clean, clear face	Can provide a practical appearance where toughness is more important
Color availability	Wide range of sign-grade colors and finishes	Color and grade options depend on the source
Light transmission	Stable and familiar for many illuminated signs	Must be checked by grade and surface treatment
Impact resistance	Suitable for normal protected installations	Generally preferred where higher impact resistance is required
Scratch sensitivity	Requires protective handling	Also requires surface protection and grade-specific care
Cutting and forming	Commonly processed in sign manufacturing	Processing settings differ and must suit the selected grade
Thermal movement	Requires suitable clearance	Also requires expansion planning, often with different movement behavior
Low public access	Usually a practical option	Often unnecessary unless other risks exist
Publicly accessible area	Needs impact review	Often considered for added toughness
Long-distance transport	Performs well with correct packaging	May reduce breakage risk in demanding handling conditions
Brand-color matching	Strong material and film choices	Color matching should be checked against available grades
Cost	Often more economical for standard faces	Can carry a higher material cost depending on grade
Replacement	Widely familiar to local sign shops	Replacement material availability should be checked locally

Acrylic is often the balanced choice for:

Standard storefront letters;
Indoor retail signs;
Reception logos;
Signs installed above normal public reach;
Projects requiring a specific translucent color;
Shapes needing accurate cutting and polished appearance.

Polycarbonate deserves closer consideration for:

Low-mounted signs in busy public areas;
Transport-intensive exhibition or rollout programs;
Locations exposed to accidental impact;
Large faces where handling damage is a concern;
Sites where replacement access is costly;
Selected outdoor applications requiring greater toughness.

Polycarbonate should not be specified solely because it sounds stronger. The selected grade still needs suitable UV performance, color, light transmission, forming characteristics, thickness, retaining compatibility, and surface protection. A tough face can still fail when holes are poorly placed, fasteners are overtightened, the return is distorted, or thermal movement is blocked.

The most useful material decision follows a simple order:

Confirm face dimensions and largest unsupported span;
Confirm installation height and public access;
Identify expected wind, heat, and impact exposure;
Review the retaining method;
Compare day and night appearance;
Check local replacement availability;
Evaluate shipping and unpacking risk;
Produce an illuminated sample when color or diffusion is uncertain;
Approve the material in the drawing and bill of materials;
Record the accepted construction for repeat production.

A reliable face is not created by thickness alone. The finished result depends on how the material is supported, illuminated, allowed to move, packed, installed, and maintained.

How Do Outdoor Conditions Affect Thickness?

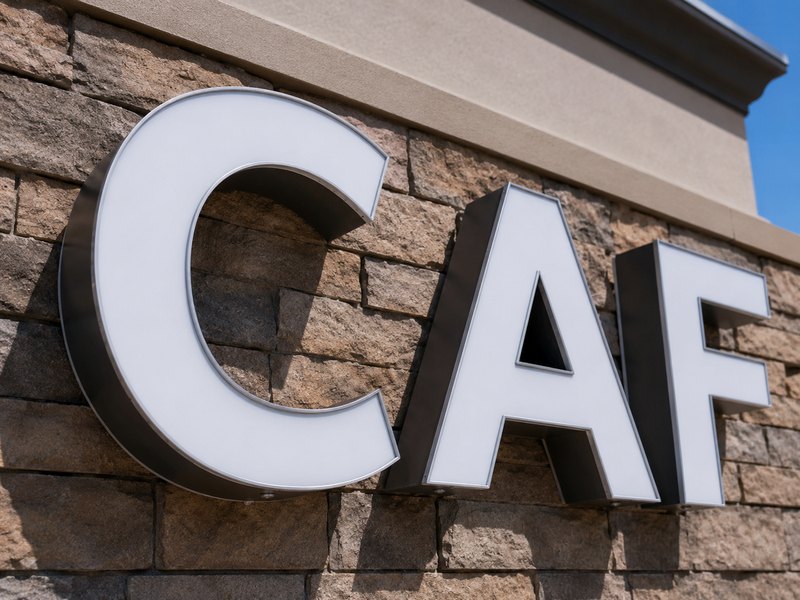

Outdoor channel letters designed for wind, sunlight, rain, and temperature changes

Outdoor exposure affects acrylic face thickness through wind pressure, temperature movement, sunlight, moisture, impact risk, mounting height, and local structural requirements. A thicker face may reduce flexing, but it cannot compensate for weak trim engagement, blocked thermal expansion, poor drainage, unsuitable fasteners, or an under-designed mounting system. Material thickness and the full channel-letter structure must be reviewed together.

Iduoduo commonly uses approximately 3–5 mm translucent face material as a starting range for small and medium channel letters. Larger faces, high-mounted letters, exposed elevations, public-access locations, and projects with substantial temperature variation require a separate engineering review.

Outdoor condition	Information needed before production	Possible effect on the face	Items that may need adjustment
Strong wind exposure	Installation height, building location, face area, local wind criteria	Flexing, edge movement, face release	Thickness, trim engagement, internal support, return, anchoring
Large temperature range	Lowest and highest expected face temperature	Expansion, contraction, stress around holes	Clearance, fixing details, adhesive, trim depth
Direct sunlight	Elevation direction, face color, daily sun exposure	Higher surface temperature, color change, increased movement	Material grade, color system, expansion allowance
Heavy rain	Sign orientation, drainage, joints, wire exits	Water entry around edges or seams	Sealing, drainage, overlap, removable-face details
Coastal environment	Salt exposure, wind, humidity	Corrosion around metal parts and fasteners	Aluminum or stainless selection, coatings, compatible hardware
Public access	Mounting height, pedestrian traffic, loading activity	Accidental impact or vandalism	Impact-modified acrylic, polycarbonate, added protection
Hail or flying debris	Regional weather and sign position	Local cracking or surface damage	Tougher face material, smaller sections, stronger retention
High-rise installation	Elevation, access equipment, replacement method	Higher service cost and difficult face handling	Greater reliability, removable sections, spare-face planning
Long-distance shipping	Carton size, stacking, route, handling method	Cracks, scratches, pressure damage	Face support, separate packing, wooden case
Local permit requirements	Jurisdiction, building type, sign area, mounting	Additional structural or material requirements	Engineer review, permit drawings, anchor calculations

How Does Wind Exposure Affect the Face?

Wind pressure acts across the projected area of the letter face. A wide logo block can receive considerably more total force than a narrow letter, even when both use the same acrylic thickness. The most useful measurement is therefore not only letter height. Engineers need the width, total projected area, largest unsupported span, installation height, building position, and face-retention method.

The relationship between pressure and area is straightforward:

Force = pressure × projected area

The following example uses a hypothetical pressure of 1.0 kPa only to show how face area changes the total force. It is not a design pressure for a real project.

Projected face area	Force at a hypothetical 1.0 kPa	Approximate kilogram-force
0.25 m²	250 N	25.5 kgf
0.50 m²	500 N	51.0 kgf
0.75 m²	750 N	76.5 kgf
1.00 m²	1,000 N	102.0 kgf
1.50 m²	1,500 N	152.9 kgf

Doubling the projected area doubles the total force at the same pressure. A material upgrade may improve face stiffness, but the force still passes through the trim, return, back, mounting studs, raceway, anchors, and building surface. Increasing acrylic from 3 mm to 5 mm without reviewing the remaining parts may simply move the weak point to the retaining edge or mounting connection.

Wind exposure also varies across a building. Letters mounted close to ground level on a sheltered storefront do not experience the same conditions as letters installed:

Near a roof edge;
At a building corner;
Above an open parking area;
On an upper-floor façade;
Beside a coastline;
On an isolated roadside building;
On a projecting canopy;
Between tall buildings where air movement is concentrated.

A face-retention system needs enough engagement to hold the acrylic while allowing for temperature movement. Acrylic-sheet guidance for signs notes that adequate edge engagement helps prevent a face from disengaging under high wind, while tie-backs or supports may be required for larger sign faces. (ACRYLITE®)

For channel letters, useful wind-related checks include:

Is the trim cap continuous around the full face?
How deeply does the acrylic engage with the trim?
Are trim joints positioned away from highly stressed corners?
Is the trim mechanically or chemically secured at suitable intervals?
Does the return remain flat and square after welding or forming?
Is the face supported around internal openings?
Can the face move without leaving the retaining profile?
Will an internal support create a visible shadow after illumination?
Are removable faces secured against vibration?
Can the back and anchors transfer the load to the wall?

A large circular logo deserves particular attention. The center sits far from the supporting edge, while the broad surface receives pressure across the full diameter. A thicker face may be appropriate, but other options can provide better control:

Add a carefully positioned internal support;
Divide the face at a natural graphic break;
Increase edge engagement;
Use a more rigid retaining frame;
Compare acrylic with impact-modified acrylic or polycarbonate;
Reduce the size of each removable face section;
Improve the return and back structure.

Wind requirements are location-specific. In jurisdictions using the International Building Code, Appendix H states that signs must be designed and constructed to withstand wind pressure in accordance with Chapter 16. Local adoption, amendments, wind speed, exposure category, building height, and anchor requirements still need confirmation for the actual site. (ICC Digital Codes)

A factory drawing can show the letter construction, face, trim, return, back, studs, raceway, and proposed mounting points. Final building attachment should be checked by the local sign contractor or qualified engineer when the site requires structural calculations.

How Does Temperature Affect Acrylic?

Acrylic expands when heated and contracts when cooled. The movement is large enough to affect channel-letter faces, especially on long strokes, broad logos, dark colors, and signs exposed to direct sun. Increasing face thickness does not stop thermal movement. A thicker panel can still crack when screws, trim, or adhesive joints prevent the material from moving.

A commonly published coefficient of linear thermal expansion for acrylic is approximately 0.000072 m per meter for each degree Celsius of temperature change. ACRYLITE also notes that acrylic expands approximately three times more than metal and about eight times more than glass. (ACRYLITE®)

The calculation is:

Dimensional movement = face length × temperature change × expansion coefficient

Face length	Temperature change	Approximate total movement
500 mm	30°C	1.08 mm
1,000 mm	40°C	2.88 mm
1,200 mm	50°C	4.32 mm
1,500 mm	50°C	5.40 mm
2,000 mm	60°C	8.64 mm
2,500 mm	60°C	10.80 mm

The figures show total dimensional change across the selected length. They are not automatic cutting clearances. Actual clearance depends on installation temperature, expected maximum and minimum face temperature, edge engagement, fixing method, panel orientation, and material grade.

A 1,500 mm-wide logo face experiencing a 50°C change may move by roughly 5.4 mm across its width. Locking every edge tightly against a rigid metal return can create pressure around corners, screw holes, bonded joints, or narrow bridges. A small crack may begin near a drilled hole and grow after repeated heating and cooling.

Common signs of restricted movement include:

Cracks spreading from screw holes;
Fine crazing near bonded edges;
A face bowing outward on hot days;
Gaps appearing during cold weather;
Trim pulling away at a corner;
Squeaking or movement under pressure;
Distortion near long horizontal strokes;
A removable face becoming difficult to reinstall.

The retaining detail should manage both hot-weather expansion and cold-weather contraction. A face needs enough room to grow, while the retaining profile must still hold enough edge when the panel contracts. ACRYLITE’s sign-fabrication guidance provides different expansion and contraction allowances by face dimension and warns that edge engagement must remain adequate across the full service-temperature range. (ACRYLITE®)

Screw-fixed faces require several practical controls:

Holes should not be placed too close to an acrylic edge.
Hole size should allow the expected movement where the design requires clearance.
Screws should not clamp the acrylic with excessive pressure.
Suitable washers or spacers can distribute local force.
Fastener spacing should avoid creating one rigidly locked section.
Sharp drilled edges should be removed.
Cracked or chipped holes should not enter final assembly.

Bonded faces have a different set of concerns. The adhesive must be compatible with the acrylic and return material, while the joint width and flexibility need to suit the expected movement. Applying more adhesive does not automatically create a better joint. A rigid adhesive line across a long face can concentrate stress as the acrylic and metal move at different rates.

Direct sunlight can produce a larger face-temperature range than air-temperature records suggest. A dark surface may heat differently from a white translucent face, so material color and elevation direction should be included in the review. The relevant question is not simply, “What is the average outdoor temperature?” More useful information includes:

Lowest expected winter temperature;
Highest expected summer air temperature;
Whether the sign receives direct afternoon sun;
Whether the face is black, dark blue, dark red, or another heat-absorbing color;
Whether the letter body is ventilated;
Whether LED heat is trapped close to the face;
Whether the sign operates during the hottest part of the day.

For long chain-store programs, thermal details should remain consistent across drawings. A face that works in a sheltered northern location may need a different edge allowance or material choice for a hot, sun-exposed southern elevation.

Do Sunlight and Weather Change the Choice?

Outdoor material selection should include UV exposure, moisture, heat, pollutants, salt, cleaning, and repeated temperature changes. “Outdoor acrylic” is too vague for a reliable quotation. The production document should name the material type, nominal thickness, color, surface system, film or print, and outdoor-use requirement.

Sign-grade acrylic is available in formulations developed for outdoor signage and light diffusion. Manufacturer data for ACRYLITE LED sign-grade material lists 3.0 mm and 4.5 mm options and states that weathering performance can vary with sunlight, moisture, heat, and environmental pollutants.

A useful material record includes:

Item	What should be written
Base material	Sign-grade translucent acrylic, impact-modified acrylic, or polycarbonate
Nominal thickness	3.0 mm, 4.5 mm, 5.0 mm, or approved project specification
Color	Manufacturer code or approved physical reference
Surface system	Plain sheet, translucent film, print, paint, or day-and-night layer
UV requirement	Indoor or outdoor grade
Day appearance	Approved unlit color and finish
Night appearance	Approved illuminated color and brightness
Batch control	Same production batch where practical
Replacement reference	Supplier, series, color, thickness, and sample record

UV exposure can affect color, surface appearance, printed graphics, and films. A face made from a suitable outdoor-grade sheet may still perform poorly if a decorative film or print is intended only for indoor use. Every visible layer should suit the installation environment.

Weather exposure also involves much more than the acrylic face. Rain can enter through:

Trim joints;
Screw holes;
Face seams;
Wire exits;
Return joints;
Back seams;
Mounting holes;
Improperly sealed raceways.

A thicker face does not prevent water entry through a poorly designed joint. Outdoor channel letters need a controlled path for water management. Depending on the construction, the engineering drawing may include sealing, drainage holes, raised electrical connections, protected wire exits, and serviceable covers.

Drainage should not be treated as evidence of poor waterproofing. Small amounts of condensation or incidental moisture may still enter an outdoor letter. A drain path prevents water from remaining around LED modules, connectors, or the lower edge of the face. Iduoduo’s outdoor-sign guidance treats material, sealing, wire exits, drainage, corrosion control, installation, and maintenance as one protection system.

Coastal installations introduce another layer of risk. Salt spray and persistent humidity may attack metal returns, backs, fasteners, brackets, and electrical connectors. Face thickness may remain unchanged while the project requires:

Suitable stainless steel or coated aluminum;
Corrosion-resistant fasteners;
Compatible primer and paint systems;
Better protection around cut edges;
Sealed electrical connections;
Drainage that does not become blocked;
Additional inspection before shipping.

Dust and pollutants can also affect appearance. A rough, scratched, or chemically damaged face collects dirt more readily than a clean surface. Maintenance instructions should identify suitable cleaning materials. Strong solvents and incompatible cleaners can damage acrylic or create stress crazing, particularly around drilled or bonded areas.

Sunlight can change the apparent color of the face throughout the day. A translucent red selected under indoor lighting may appear different on an exterior wall at noon and again after illumination at night. For strict brand programs, approve three views:

Material under normal daylight;
Material against the actual façade color;
Illuminated sample using the specified LEDs and return depth.

A screen rendering cannot replace those checks.

Is Impact Resistance Important?

Impact resistance becomes important when channel letters are installed within reach, transported over long distances, exposed to hail or debris, or serviced frequently. Increasing standard acrylic thickness improves stiffness, but impact performance depends on material formulation as well as thickness.

Iduoduo’s channel-letter guidance recommends comparing acrylic and polycarbonate according to face size, mounting height, public contact, outdoor exposure, transport, budget, and brand-color requirements.

Locations with higher impact risk include:

Ground-floor storefronts beside busy walkways;
Drive-thru lanes;
Loading docks;
Schools and sports facilities;
Public transport areas;
Entertainment venues;
Parking structures;
Signs near shopping carts or service equipment;
Temporary event installations;
Displays moved between multiple venues.

Impact level	Typical situation	Material and structure review
Low	High-mounted storefront letters with limited access	Standard sign-grade acrylic may be suitable
Moderate	Normal ground-floor retail with controlled access	Review face thickness, trim, packing, and service access
Elevated	Busy public area or frequent maintenance	Compare impact-modified acrylic and polycarbonate
High	Loading, sports, transport, vandalism, or repeated relocation	Tougher face material, smaller panels, stronger retention
Transport-driven	Large export sign with long freight route	Protective packing, face separation, wooden case, replacement plan

Impact-modified acrylic can offer greater toughness than standard acrylic while retaining acrylic-like appearance and rigidity. Polycarbonate products are also available for illuminated and outdoor signage where high impact strength is required. Material grade, UV stabilization, optical appearance, thickness, color availability, and retaining compatibility still need confirmation. (Plaskolite.com)

A tougher face does not remove other failure points. Damage can still occur at:

Sharp internal corners;
Holes placed too near an edge;
Thin script connections;
Poorly supported broad centers;
Weak trim joints;
Over-tightened screws;
Heavy accessories packed against the face.

Transport damage deserves its own review. International shipments may pass through several warehouses and vehicles. A channel-letter face can crack even when the carton shows little external damage. Common causes include concentrated pressure, internal movement, stacking, and unpacking from one unsupported corner.

Practical packing measures include:

Protective film on the face;
Foam that supports the letter body rather than pressing on the center;
Separate compartments for power supplies and hardware;
No loose metal parts inside the letter;
Individual wrapping for each character;
Rigid dividers between stacked letters;
Edge protection around sharp shapes;
Wooden cases for large or fragile units;
Clear carton labels and unpacking instructions.

Service cost should also influence material selection. Replacing a small ground-level face is relatively simple. Replacing a face 15 meters above the ground may require traffic control, lifting equipment, installation labor, and a second visit if the replacement does not fit. A slightly higher material cost can be justified when access is expensive or the sign serves a critical storefront.

For large programs, consider ordering a small quantity of spare faces produced from the same material batch. Spare parts are especially useful for remote locations, unusual colors, printed graphics, or faces requiring special tooling.

Are Local Sign Codes Relevant?

Local codes can affect wind design, permits, materials, electrical construction, sign area, projection, mounting, clearances, and structural documentation. Face thickness should not be approved as an isolated factory decision when the sign requires a permit or engineered attachment.

In the United States, the 2024 International Building Code Appendix H states that signs must be designed and constructed to withstand wind pressure in accordance with Chapter 16. Adoption and amendments vary by state and local jurisdiction, so the current local code and permit requirements must be checked for the installation address. (ICC Digital Codes)

A permit or engineering review may require some or all of the following:

Document or detail	Information normally included
Site elevation	Sign position, height above grade, wall dimensions
Sign dimensions	Overall width, height, depth, and projected area
Material schedule	Face, return, back, raceway, fasteners
Section drawing	Face retention, LED position, back, mounting
Weight	Letter weight, raceway weight, total assembly weight
Mounting pattern	Studs, bolts, brackets, raceway, or backer panel
Wall substrate	Concrete, masonry, steel, wood framing, cladding
Anchor specification	Type, diameter, embedment, spacing
Wind criteria	Wind speed, exposure, height, pressure
Electrical details	Voltage, power supplies, disconnect, grounding
Certifications	Required component or sign-system listings
Installation access	Lift, scaffold, roof access, service clearance

Responsibility is usually shared across several parties.

Party	Typical responsibility
Sign manufacturer	Product construction, material specification, shop drawings, weight, mounting interfaces
Local sign company	Site survey, measurements, wall condition, permit coordination, installation
Structural engineer	Wind and anchor calculations where required
Electrical contractor	Local electrical connection and compliance
Property manager or landlord	Façade approval, landlord criteria, access restrictions
Local authority	Permit review and code enforcement

The factory should not guess the wall structure from a photograph. A rendered concrete wall, lightweight cladding panel, curtain wall, insulated metal panel, and framed parapet require different mounting solutions. Even a suitable face and letter body can fail when anchors are selected for the wrong substrate.

Before releasing an outdoor channel-letter order, the project file should confirm:

Installation address;
Mounting height;
Letter and logo dimensions;
Largest face area;
Wall material and available structure;
Individual mounting, raceway, or backer panel;
Required wind or structural documents;
Acrylic or polycarbonate face;
Nominal face thickness;
Trim-cap, trimless, screw-fixed, or bonded construction;
Temperature range;
Direct-sun exposure;
Public impact risk;
Coastal, high-humidity, or polluted environment;
Power and certification requirements;
Drainage and wire-exit position;
Packing and service plan.

Acrylic thickness is only one line in the final specification. Reliable outdoor channel letters come from matching the face to the climate, geometry, retaining method, letter body, mounting system, and local installation requirements.

How Is the Final Thickness Confirmed?

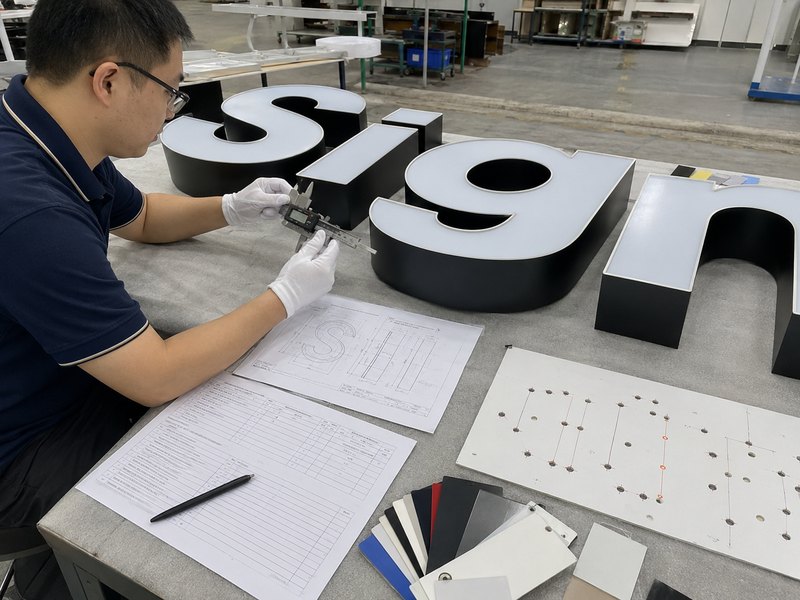

Final acrylic face thickness verified against channel letter drawings and material specifications

Final acrylic face thickness is confirmed through five controls: complete project information, engineering review, approved drawings, material inspection, and first-article verification. The selected value must appear in the shop drawing and bill of materials, then be measured against the actual sheet before cutting. Production should not rely on an email comment, quotation title, or verbal agreement.

Confirmation stage	Main decision	Required record	Production risk controlled
Project input	What conditions must the face withstand?	Site and product information	Wrong thickness chosen from incomplete data
Engineering review	Which thickness and material fit the design?	Engineering recommendation	Oversized span, weak edge, poor lighting
Drawing approval	What exactly has been authorized?	Approved shop drawing	Sales and production specifications differ
Material release	Does the received sheet match the order?	Incoming inspection record	Wrong thickness, color, grade, or batch
First article	Does the full construction work?	First-article inspection	Fit, lighting, flatness, and assembly problems
Batch control	Is every face produced to the same standard?	In-process QC record	Mixed material or inconsistent cutting
Final inspection	Is the completed sign ready to ship?	Final QC checklist	Damage, poor fit, dark areas, missing parts
Repeat order	Can the approved result be reproduced?	Archived BOM and production files	Specification drift between orders

The process used by iduoduo includes final artwork, approved shop drawings, bills of materials, incoming inspection, first-article approval, in-process inspection, final inspection, lighting checks, packaging inspection, and production-version control.

What Project Information Is Required?

A reliable thickness decision starts with the actual letter design and installation conditions. A request reading only “600 mm front-lit channel letters” does not provide enough information. Two 600 mm letters may have completely different face areas, stroke widths, exposure levels, and retaining structures.

The project file should include the following information before engineering approval:

Information	Why it matters
Vector artwork	Shows exact outline, corners, counters, and narrow connections
Overall sign size	Helps estimate handling, packing, and installation conditions
Individual letter height	Establishes the basic scale of each unit
Minimum stroke width	Reveals narrow areas with limited structural and lighting space
Maximum stroke width	Identifies broad areas with a large unsupported span
Largest face section	Often controls rigidity more than total sign width
Face material	Distinguishes acrylic, impact-modified acrylic, and polycarbonate
Face color	Affects light transmission, heat absorption, and appearance
Return depth	Controls LED-to-face distance and perimeter support
Retaining method	Defines how the face transfers load into the letter body
Indoor or outdoor use	Changes weather, UV, temperature, and moisture requirements
Installation height	Influences wind exposure, impact risk, and service cost
Façade direction	Helps estimate direct sun and surface temperature
Site location	Supports local climate and code review
Mounting method	Connects the face decision to the full letter structure
Shipping method	Affects handling and packing risk
Quantity	Determines whether a first article or pilot batch is needed
Replacement access	Influences material choice and removable-face design

The vector file deserves special attention. A PNG or storefront rendering may show the desired appearance, but it rarely shows exact stroke width, internal radii, or fragile connections. Engineering should work from AI, EPS, SVG, PDF vector, or CAD geometry whenever available.

A useful measurement schedule should identify at least:

Overall height and width of every letter;
Narrowest illuminated stroke;
Widest illuminated stroke;
Longest unsupported horizontal span;
Longest unsupported vertical span;
Smallest internal opening;
Narrowest bridge around a counter;
Tightest internal radius;
Largest single removable face;
Distance between each face edge and its retaining support.

Installation photographs also add useful context. A wall photograph can reveal upper-floor placement, open wind exposure, low public access, dark cladding, glass construction, narrow service access, or direct afternoon sun. Such conditions can change the recommended face material even when the artwork remains unchanged.

Project information should be frozen before production begins. A late change from indoor to outdoor use, trim cap to trimless construction, or individual mounting to raceway mounting may require another thickness review. The old recommendation should not automatically carry over to a revised structure.

A complete project-input note can read:

Front-lit channel letters, 650 mm average height, 85–240 mm stroke width, outdoor upper-floor installation, south-facing façade, white translucent acrylic face, aluminum returns, trim-cap construction, 120 mm return depth, individual stud mounting, 110 V input, shipment to Texas, USA.

Such a note gives engineering far more useful information than “650 mm LED letters.”

How Is the Face Reviewed Before Production?

Engineering review converts visual artwork into a physical construction. The selected acrylic thickness should emerge from several related checks rather than a single size chart.

A practical review can follow the sequence below:

Measure every letter and logo section.
Identify the largest unsupported face area.
Mark fragile corners, narrow bridges, and internal openings.
Confirm the face-retention system.
Check the actual trim or recess profile.
Review return depth and LED-to-face distance.
Compare acrylic and polycarbonate where impact risk exists.
Check expected outdoor exposure.
Review shipping and installation handling.
Record the selected material in the drawing and BOM.

The drawing should show more than a front view. A side section is needed to confirm how the acrylic fits the letter body.

Drawing view	Information required
Front elevation	Letter outline, dimensions, spacing, face segmentation
Side section	Face thickness, trim, return, back, LED position
Face detail	Material, color, film, print, and edge construction
Fixing detail	Trim engagement, screws, adhesive, clips, or recess
Electrical layout	LED position, wiring groups, wire exit
Mounting detail	Studs, holes, raceway, backboard, or brackets
Joint detail	Seam position, overlap, divider, or removable section
Packaging detail	Face support and separation for large units

The material note should be specific enough for purchasing and QC. A weak note might read:

White acrylic face.

A more useful note might read:

4.5 mm nominal white translucent sign-grade acrylic, approved color reference, UV-suitable for outdoor use, trim-cap retained, no substitution without engineering approval.

“Nominal” is important because commercial sheet material may have a manufacturer-defined tolerance. The drawing should not assume every sheet measures exactly 4.500 mm. Where fit is sensitive, engineering should confirm the accepted thickness range against the selected trim, recess, or bonding gap.

A production release should answer the following questions:

Is the thickness a nominal value or a minimum value?
Is a supplier tolerance acceptable?
Must one specific material series be used?
Is an equivalent material allowed?
Who approves an equivalent?
Does color need physical-sample approval?
Must all faces come from one material batch?
Is the face removable?
Is the film applied before or after cutting?
Are screw holes oversized for movement?
Is an internal support required?
Is face segmentation permitted?
Which drawing revision controls production?

Thickness should appear in at least three linked records:

Record	Purpose
Approved shop drawing	Shows the agreed construction
Bill of materials	Controls material purchasing and issuance
QC checklist	Gives inspectors a measurable requirement

Using only one record creates avoidable gaps. A drawing may show 4.5 mm, while the purchasing list says only “white acrylic.” A quotation may mention 5 mm, while production receives an older 3 mm drawing. Cross-checking all three records prevents such conflicts.

QC should confirm the final drawing revision, approval status, modification date, product code, material, color, installation method, packaging requirement, and destination before inspection begins. Old drawings should be withdrawn or clearly marked obsolete. Iduoduo’s quality procedure treats final artwork, approved shop drawings, BOMs, color schedules, mounting specifications, approved samples, and packaging specifications as production-control documents.

Do Samples Need to Be Tested?

A full sample is not necessary for every standard channel-letter order. A first article becomes valuable when material, lighting, geometry, or production risk goes beyond a familiar construction.

Sample testing is strongly recommended for:

New face material or a new acrylic supplier;
Dark or low-transmission face colors;
Day-and-night face systems;
Printed or laminated translucent faces;
Trimless letters;
Shallow returns;
Extra-wide strokes;
Large unsupported panels;
Thin script lettering;
Complex internal openings;
High outdoor exposure;
High-impact locations;
Strict brand-color programs;
Large rollout orders;
New trim, adhesive, or fixing methods.

A sample can be a complete letter, one representative logo section, a light box containing the proposed face stack, or a first production unit. The most useful sample represents the hardest part of the design—not necessarily the easiest letter in the word.

For example, a word containing narrow letters and one wide circular logo should use the circular logo as the test piece. A sample made from a narrow “I” may pass easily while revealing nothing about the broad central face controlling the real risk.

A first-article inspection should include:

Check	What should be confirmed
Material	Correct acrylic or PC series
Thickness	Matches the approved nominal specification
Color	Matches the approved physical reference
Outline	Matches the production drawing
Edge quality	No chips, cracks, burns, or rough internal corners
Flatness	No unacceptable bowing before assembly
Face fit	Fits the return without forced bending
Trim engagement	Continuous and secure around the perimeter
Screw detail	Correct holes, washers, and tightening
Adhesive joint	Correct width, alignment, curing, and cleanliness
Day appearance	Correct color, finish, and visible edge
Night appearance	Correct brightness, color, and diffusion
Hotspots	No obvious individual LED points
Dark areas	No weak corners, edges, or internal sections
Removal	Face can be serviced where required
Packing	Face can be protected without central pressure

Iduoduo’s first-article inspection covers drawings, dimensions, materials, thickness, color, finish, lighting, LEDs, power supply, wire exit, mounting holes, accessories, and packaging. Continuous production begins only after the first article passes. When a first article fails, production should pause while the cause, material, equipment parameters, tooling, or process files are corrected.

Sample approval should be documented rather than handled through a vague message such as “looks good.” Useful approval records include:

Sample number;
Drawing revision;
Acrylic supplier and series;
Acrylic color code;
Measured thickness;
LED model;
LED color temperature;
Module spacing;
Return depth;
Trim or fixing type;
Daytime photographs;
Illuminated photographs;
Viewing distance;
Approval date;
Approved deviations;
Name of the approving party.

Photographs should use consistent exposure where possible. Automatic camera settings can make a dim sample look brighter or hide hotspots. Side-by-side photographs of the approval sample and later production are more useful than unrelated images taken with different phones and lighting conditions.

For chain-store or franchise work, a “golden sample” can serve as the physical reference. The sample does not replace drawings and measurements, but it helps production and QC compare color, edge appearance, trim, brightness, and overall finish.

Standard sample timing can also be built into the project plan. Iduoduo’s normal sample period is commonly 5–7 days, while complex structures, special materials, custom colors, or unusual processes may require 7–15 days. Sample approval should occur before the production schedule becomes too compressed to allow correction.

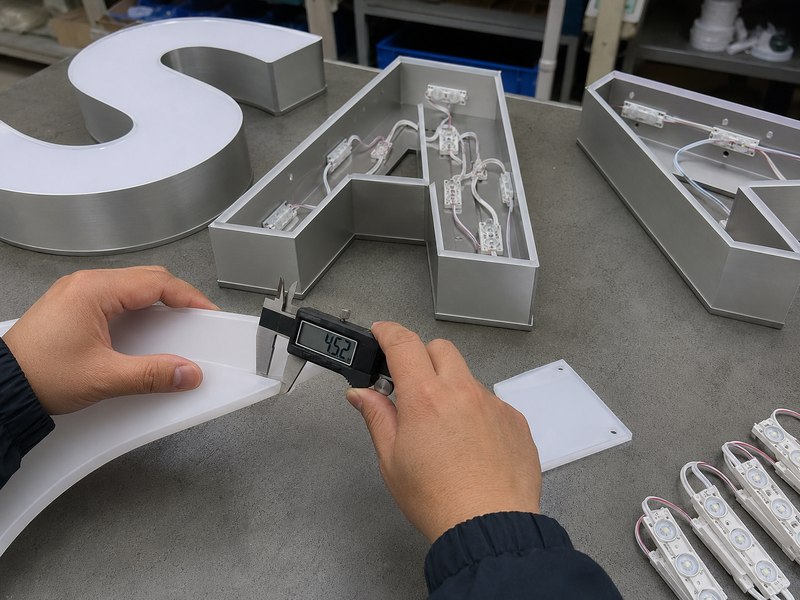

How Is Thickness Checked During Production?

Thickness control begins when the acrylic enters the factory—not after the finished letters are assembled. Incoming inspection should confirm material type, color, transparency, light transmission, thickness, surface, protective film, scratches, bubbles, impurities, warping, quantity, and batch. Faces for one illuminated order should use a consistent material batch where practical to reduce color and transmission variation.

A practical incoming-inspection sequence is:

Match the delivery label to the purchase order.
Match the purchase order to the approved BOM.
Confirm supplier, series, color, and nominal thickness.
Inspect the protective film and sheet surface.
Check sheet flatness before cutting.
Measure thickness at several positions.
Record the material batch.
Separate approved and rejected sheets.
Label approved material with the project code.
Release only approved sheets to cutting.

Thickness should be measured with a suitable calibrated gauge or micrometer. Measurement should avoid damaged edges, protective-film overlaps, labels, and heavily embossed surfaces unless the project specification states otherwise.

For a typical flat sheet, a useful inspection plan can include five points:

Near the top-left area;
Near the top-right area;
Near the bottom-left area;
Near the bottom-right area;
Near the center.

Large sheets, critical trimless work, or suspected material variation may require more points. The acceptance range should follow the approved material data sheet or project-specific tolerance. A factory should not invent a generic tolerance after material arrives.

An inspection record may look like the following:

Measurement point	Recorded value	Acceptance basis	Result
Point 1	4.48 mm	Approved supplier tolerance	Pass
Point 2	4.51 mm	Approved supplier tolerance	Pass
Point 3	4.47 mm	Approved supplier tolerance	Pass
Point 4	4.50 mm	Approved supplier tolerance	Pass
Center	4.49 mm	Approved supplier tolerance	Pass

The numbers above illustrate record format only. Actual limits must come from the selected material specification and approved drawing.

After material approval, thickness control continues through cutting and assembly. Cutting does not change nominal sheet thickness, but poor processing can weaken the face through chipped edges, heat damage, microcracks, sharp internal corners, or holes placed too close to an edge.

The following checkpoints are useful:

Production stage	Main inspection
Nesting	Correct material and batch assigned to the file
Cutting	Correct outline, internal openings, and radius
Drilling	Correct hole diameter and edge distance
Edge finishing	No chips, cracks, burns, or sharp damage
Film application	Correct film, direction, surface preparation
Trial fitting	Face enters the retaining system without force
Trim application	Continuous engagement and clean joints
Bonding	Correct adhesive, joint width, curing, and cleanliness
Assembly	Flat face, correct projection, no trapped debris
Lighting	Uniform brightness, no hotspots or dark areas
Final cleaning	No scratches, fingerprints, adhesive marks, or film damage

Trial fitting is essential. A sheet can meet the thickness requirement and still fail to fit because the trim profile, return outline, recess, or corner radius is wrong. A face requiring heavy force during assembly may remain under stress after installation.

A completed channel letter should be inspected both close up and from a realistic viewing distance. Close inspection reveals scratches, chips, poor trim joints, adhesive marks, and uneven projection. Distance inspection reveals proportion, face flatness, brightness balance, dark areas, and color consistency.

Final channel-letter inspection should cover:

Font and logo proportion;
Overall dimensions;
Face material and color;
Face thickness record;
Return depth;
Trim profile and joints;
Face flatness;
Welding and metal finish;
LED layout;
Illuminated color;
Hotspots and dark areas;
Back panel;
Studs and mounting holes;
Wire exit;
Installation template;
Waterproofing and drainage;
Power supplies and accessories;
Protective packaging.

Iduoduo’s channel-letter final inspection includes the font, return depth, face, trim, welding, surface, LEDs, light color, dark areas, back, studs, wire exit, template, waterproofing, and drainage. Illuminated products also undergo 100% lighting inspection and 72-hour pre-shipment testing before final release.

What Should Be Confirmed in a Quotation?

A quotation should make the proposed face construction clear enough for meaningful comparison. “Acrylic face included” provides almost no technical value. “5 mm face” is also incomplete when material grade, color, fixing method, and lighting arrangement remain undefined.

At minimum, confirm the following items:

Quotation item	Minimum information required
Face material	Acrylic, impact-modified acrylic, PC, or another material
Material grade	Sign-grade, outdoor grade, or approved series
Nominal thickness	3 mm, 4.5 mm, 5 mm, or another approved value
Color	Supplier code, physical sample, or approved reference
Surface treatment	Plain, film, print, paint, or day-and-night finish
Retaining method	Trim cap, trimless, screw-fixed, bonded, or recessed
Return material	Aluminum, stainless steel, acrylic, or combined structure
Return depth	Actual proposed depth
LED system	Model, color, CCT, voltage, and basic layout
Installation use	Indoor or outdoor
Impact requirement	Standard acrylic or tougher material
Segmentation	Number and location of face joints
Sample	Required, optional, or not included
Substitution	Whether equivalent materials are allowed
QC records	Material, first article, lighting, and final inspection
Packaging	Carton, foam support, wooden case, and part separation
Warranty	Coverage period and relevant conditions

A useful quotation note might read:

Front-lit channel letters with 4.5 mm nominal white translucent sign-grade acrylic faces, aluminum returns, trim-cap retention, 120 mm return depth, 12 V LED modules, outdoor construction, individual stud mounting, power supplies packed separately, and production subject to approved shop drawings.

A vague quotation might read:

LED letters, acrylic face, waterproof, complete set.

The second quotation may be cheaper, but the scope cannot be compared fairly because material thickness, return depth, lighting, mounting, waterproofing, power, and packaging remain unknown.

Procurement teams should also ask whether a quoted thickness is:

The originally proposed engineering value;
A fixed contractual requirement;
A nominal commercial sheet size;
The minimum acceptable thickness;
Subject to supplier tolerance;
Subject to substitution;
Measured before or after applied film;
Consistent across every letter;
Different for large logo sections;
Verified in the incoming-material inspection.

Approved substitutions require control. A supplier may need to replace one acrylic series because a color is unavailable or a previous grade has been discontinued. Substitution should not be based only on nominal thickness. The replacement should be compared for:

Light transmission;
Diffusion;
Daytime color;
Illuminated color;
Outdoor suitability;
Impact performance;
sheet tolerance;
Compatibility with trim or adhesive;
Availability for future replacement.

No substitution should enter production until the drawing, BOM, and approval record are updated.

For repeat orders, the project archive should keep:

Final artwork;
Approved shop drawing;
BOM;
Acrylic supplier and series;
Color code;
Nominal thickness;
Material batch where recorded;
LED specification;
Return depth;
Retaining method;
Approved sample photographs;
QC checklist;
Packing method;
Installation template;
Revision history.

Such records reduce repeated explanation and help identify why a later order appears brighter, darker, warmer, flatter, or slightly different in color. Iduoduo keeps project and order records to support repeat production, installation coordination, after-sales review, and replacement parts.

Final thickness is confirmed only when the selected material has passed from engineering recommendation into an approved drawing, an accurate BOM, verified incoming material, a successful first article, controlled production, and final inspection. A number written in a quotation is the beginning of control—not the end.

How Can You Confirm the Right Face Thickness for Your Channel Letters?

Acrylic face thickness should be confirmed from the actual artwork, letter dimensions, stroke widths, return depth, retaining method, lighting arrangement, installation height, and outdoor exposure. A generic size chart can provide a starting point, but the final specification should be based on the largest unsupported face area and the complete channel-letter structure.

For a project review, send Iduoduo the vector logo, required size, quantity, installation photographs, indoor or outdoor location, destination country, preferred face color, mounting method, and any local permit or material requirements. The engineering team can then assess acrylic or polycarbonate options, nominal thickness, LED spacing, face retention, thermal clearance, packaging, and production feasibility.

The quotation and shop drawing can record the proposed face material, thickness, return depth, lighting configuration, mounting details, and approved substitutions before production begins. This provides a clearer basis for comparing specifications and reduces avoidable changes during manufacturing, shipping, and installation.
