How Are Complex Logo Channel Letters Manufactured?

A logo that looks perfectly clean on a screen can become surprisingly difficult when it has to be turned into a physical illuminated sign. Digital artwork can use hairline strokes, tiny openings, sharp points, overlapping colors, and floating details without worrying about metal, acrylic, LED modules, wiring, mounting studs, drainage, or installation access. Channel letter manufacturing has to solve all of those issues at the same time while keeping the finished sign recognizably faithful to the brand.

Complex logo channel letters are manufactured by converting brand artwork into production-ready geometry, reviewing stroke width, negative space, corners, depth, lighting clearance, wiring, mounting, and site conditions, then fabricating the approved design through cutting, return forming, joining, finishing, LED installation, electrical assembly, testing, and packaging. The objective is to preserve brand identity while creating a structure that can be manufactured, installed, serviced, and repeated.

This is the point where experienced engineering matters more than simply owning cutting and bending machines. A narrow stroke may look insignificant in an artwork file but determine whether an LED can fit inside the letter. A small negative space may affect cutting, welding, light diffusion, and cleaning. A mounting hole placed only a few centimeters incorrectly can create hours of extra work on site. The manufacturing process therefore begins long before the first sheet of acrylic or metal reaches a machine.

What Makes a Logo Complex to Fabricate?

A logo becomes complex to fabricate when its geometry leaves limited space for cutting, bending, face fixing, LEDs, wiring, mounting, or light diffusion. Thin strokes, small negative spaces, acute corners, detached details, tight curves, mixed stroke widths, gradients, and overlapping elements all increase engineering difficulty. The real question is not whether the artwork can be cut, but whether every important feature can become a stable, illuminated, installable sign.

Thin Strokes and Negative Space

The overall width of a logo rarely tells the full manufacturing story. A logo may measure 2,000 mm across and still contain a tiny serif, narrow leg, internal opening, or isolated symbol that controls the feasibility of the entire project. These local dimensions determine whether a return can be formed accurately, whether acrylic remains strong enough after cutting, whether LED modules and wires have enough room, and whether mounting hardware can be positioned without interfering with the illuminated area.

For conventional channel letter construction, the minimum usable stroke depends on several variables working together rather than one industry-wide number. The stroke must provide enough space for return forming, LED placement, wire routing, face retention, light diffusion, structural strength, and installation fixing. iduoduo’s engineering standards specifically treat stroke width as a system variable rather than a fixed rule. Complex illuminated characters below approximately 100–150 mm in overall size normally require additional review because internal space decreases quickly as the sign becomes smaller.

Negative space is equally important. The center of an “A,” “P,” “R,” or a stylized icon may appear visually open on screen but become difficult to fabricate after the drawing is translated into real material thickness. If the opening is too small, the metal return may not form cleanly, the acrylic around the opening may become fragile, or the internal area may become inaccessible for LED installation and cleaning.

Logo Geometry	Main Manufacturing Risk	Common Engineering Response
Very narrow stroke	Limited LED and wiring space	Enlarge or locally thicken the stroke
Small internal opening	Difficult cutting and return forming	Increase negative space slightly
Acute corner	Distortion or dark corner	Add a controlled radius
Tiny detached detail	Weak fixing and difficult wiring	Use a shared backboard or hybrid structure
Close letter spacing	Wiring and halo interference	Adjust spacing or mounting method
Fine gradient detail	Poor fit for standard channel construction	Use print, layered acrylic, or another structure

The objective is not to redraw the brand until it becomes easy to manufacture. The better approach is to identify the small number of details that create real production risk and adjust only those elements while preserving the logo’s recognizable proportions and character.

Sharp Corners and Complex Curves

Sharp digital geometry does not behave like physical material. A vector drawing can create an infinitely sharp corner, but aluminum, stainless steel, acrylic, and other fabrication materials have bending, cutting, and structural limits. When a channel return follows a complicated script letter or organic logo symbol, the metal may need many short bends, changing radii, and corrective adjustments before it matches the approved contour smoothly.

Tight corners create several problems at once. Metal can distort while being formed, acrylic can become fragile at a pointed tip, and the narrowest section may not leave enough room for an LED module. Even if the finished part can be assembled, a very tight corner may appear noticeably darker at night because light cannot reach the area evenly. A production engineer therefore needs to examine visual sharpness, physical radius, lighting coverage, and structural strength together rather than treating the corner as a simple drawing feature.

The viewing distance also changes what is acceptable. A reception-wall logo installed at eye level will expose small surface and contour differences much more clearly than a storefront sign mounted several meters above ground. A very small engineered radius may be invisible at normal viewing distance while significantly improving return forming, face strength, and lighting performance. Good fabrication protects the visual intention rather than mechanically reproducing every vector point regardless of how the material behaves.

Gradients and Small Graphic Details

Channel letters are three-dimensional structures, so not every effect used in digital branding should automatically become an individual fabricated letter component. Gradients, transparency, drop shadows, photographic textures, thin outlines, and dozens of small color transitions may look excellent in a brand file while being unsuitable for conventional metal-return construction.

A useful engineering approach is to separate the logo into functional layers. The main wordmark may work as front-lit letters, while a small detailed symbol may be produced as an acrylic illuminated element. A gradient can be reproduced through printed translucent film or UV printing. Fine decorative lines may remain non-illuminated, and multiple tiny pieces may be supported on a common backboard. This approach often preserves the visual identity better than forcing every part of the artwork into an identical construction.

The important decision is to determine which parts of the logo must remain three-dimensional and illuminated for the brand to be immediately recognizable. Once those essential features are identified, secondary effects can be produced by the most appropriate method. iduoduo’s documented engineering process also recognizes that photographs, complex gradients, small negative spaces, and irregular shapes may require alternative structures such as printed signs, acrylic illuminated logos, light boxes, or combined systems rather than standard channel letters alone.

How Is a Complex Logo Engineered for Production?

A complex logo is engineered by converting visual artwork into controlled manufacturing geometry. The process checks vector paths, dimensions, strokes, internal spaces, corners, materials, return depth, LED clearance, wiring, mounting points, colors, and site conditions. The finished production file should remove ambiguity before cutting begins and give design, fabrication, quality-control, and installation teams one approved reference for the same physical product.

Artwork and Vector Preparation

Clean vector artwork is the preferred starting point because manufacturing equipment needs defined contours rather than pixels. AI, EPS, SVG, vector PDF, and suitable CAD files can preserve accurate shapes and scale. Text should normally be converted into outlines, overlapping paths need to be reviewed, and internal counters or holes should be clearly defined before the file becomes part of a production workflow.

Real projects do not always arrive in perfect format. Clients frequently provide PNG or JPG images, storefront photographs, PDF brand books, old sign drawings, screenshots, visual renderings, or even sketches. These materials can still be used, but they first need to be reconstructed into controlled geometry. The important distinction is between a visual reference and a production file. A picture can show what a logo should look like, but it cannot reliably define dimensions, bending radii, face fit, mounting holes, or wiring positions.

The original brand artwork should remain separate from the manufacturing version. This protects the master design while allowing necessary engineering changes to be documented clearly. iduoduo’s own channel letter engineering process accepts files such as AI, PDF, SVG, CAD, PNG, JPG, and hand drawings, but the geometry is reviewed for closed contours, stroke width, corners, internal holes, spacing, LED paths, panel fixing, and structural strength before production.

Manufacturability Review

A manufacturability review follows the logo mentally through every later process. Instead of asking only whether a machine can cut the contour, the engineer considers whether the finished shape can be formed, joined, illuminated, wired, installed, transported, serviced, and reproduced.

A practical review normally checks:

• overall dimensions;
• individual letter or symbol size;
• minimum local stroke;
• minimum negative space;
• acute and curved corners;
• small independent parts;
• return depth;
• face and back materials;
• illumination direction;
• LED clearance;
• wire routing;
• mounting holes and studs;
• wire exits;
• indoor or outdoor use;
• wall construction;
• destination voltage;
• transportation limitations.

A design can pass one test and still fail another. A thin metal shape may be structurally strong but too narrow for a standard LED module. A small illuminated symbol may have enough optical space but nowhere to place a reliable mounting point. A large translucent face may be easy to cut but need additional support because of its area and exposure.

That is why complex channel letters need system-level approval. iduoduo defines channel letters as a combination of logo and font engineering, face construction, metal returns, shell, back, LED modules, power, wiring, mounting, weather protection, drainage, packaging, and site installation interfaces rather than a simple thickened logo.

Shop Drawings and Approval

The shop drawing is the bridge between design approval and physical production. For channel letters, it should show enough information for different workshop departments to build the same product without making independent assumptions. Typical information includes front elevation, overall width, individual character height, return depth, sections, face material, return construction, back panel, lighting method, power arrangement, mounting holes, wire exits, colors, and quantity.

Complex projects often need additional information such as segmentation, raceways, backboards, electrical grouping, and installation details. iduoduo’s channel letter documentation identifies the front view, dimensions, character height, overall width, return depth, section, face, returns, back, LEDs, power, mounting holes, wire exits, mounting method, color, and quantity as key shop-drawing information.

A BOM can then record the physical components behind that drawing, including face material, return material, back panel, LEDs, power supplies, wire, connectors, finish, studs, raceways, accessories, and packaging. This becomes especially useful when a sample is converted into production or when the same logo needs to be reproduced months later.

A controlled approval sequence should preserve the original artwork, document engineering changes, confirm construction, freeze the approved production revision, and then release the job to manufacturing. This avoids one of the most common causes of custom-sign errors: different teams working from different versions of what everyone believes is the “latest” file.

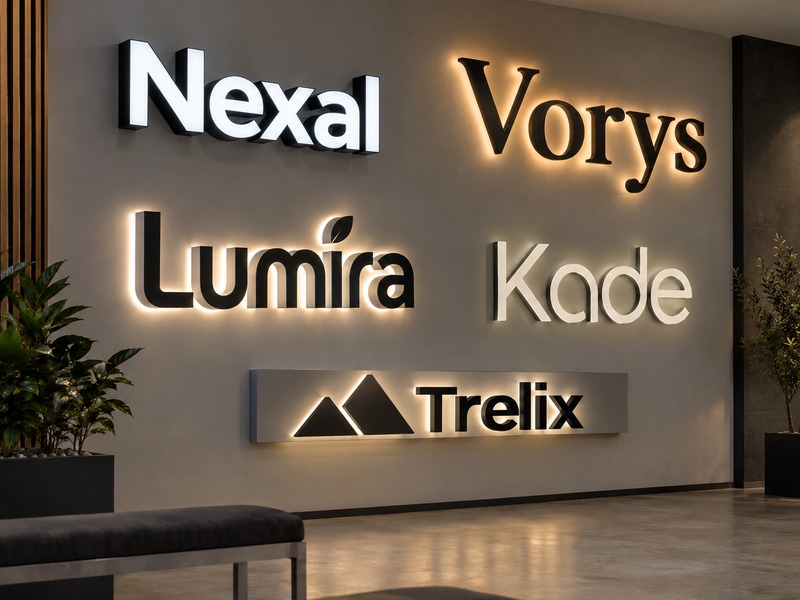

Which Channel Letter Structure Fits the Logo?

The most suitable channel letter structure depends on logo geometry, illumination, viewing distance, internal space, wall conditions, maintenance requirements, and brand appearance. Front-lit, halo-lit, dual-lit, side-lit, trimless, raceway-mounted, and backboard-mounted letters solve different practical problems. Complex logos often perform better when the structure is selected around their most difficult details rather than forcing the entire design into one familiar construction.

Front-Lit and Halo-Lit

Front-lit channel letters remain a practical choice for storefront identification because the illuminated face creates a clear outline and strong nighttime recognition. A typical structure includes a translucent acrylic or PC face, metal return, back panel, internal LED modules, wiring, and mounting components. iduoduo uses front-lit structures for retail stores, restaurants, commercial centers, and other locations where direct visibility is important.

The challenge becomes more obvious when a logo combines wide and narrow areas. A broad section may accept multiple rows of LEDs, while a thin serif or small symbol may have room for only one small module. Applying identical LED spacing throughout the logo can therefore create visible differences in brightness.

Halo-lit channel letters use reflected light instead. Their front and sides are usually opaque, while LEDs project toward the wall and create a glow around the rear edge. The wall becomes part of the optical system, so wall color, wall texture, ambient light, letter spacing, return depth, and stand-off distance all affect the final appearance.

For halo-lit applications, iduoduo commonly works with stand-off distances around 20–50 mm, although the final distance is adjusted according to the wall and desired halo rather than treated as a fixed universal specification.

Trimless and Dual-Lit Construction

Trimless channel letters remove the visible traditional trim cap from the face edge, which can create a cleaner and more contemporary appearance. This style is especially attractive for close-view retail, reception areas, modern storefronts, and premium commercial interiors.

The clean edge requires tighter manufacturing control. The face and return need to fit accurately because there is less visible trim to hide small dimensional variation. Thermal movement, adhesive or mechanical retention, sealing, and future face replacement also need to be considered. iduoduo’s documented trimless construction specifically emphasizes face-to-shell accuracy, clean edges, fixing, thermal movement, outdoor sealing, and close-range appearance.

Front-and-halo illuminated letters add another level of complexity. The engineer must balance direct face light with rear reflected light while controlling total power, LED position, wiring groups, return depth, back material, and wall distance. This can create strong visual depth, but a more complicated lighting system is not automatically better. The chosen effect should support the brand rather than make the logo look visually busy.

Channel Letter Type	Main Strength	Main Engineering Concern
Front-lit	Clear direct nighttime visibility	Narrow strokes and diffusion
Halo-lit	Premium reflected glow	Wall finish and stand-off distance
Front + halo	Visibility plus visual depth	Optical and electrical balance
Side-lit	Distinct illuminated edge	Side material and light control
Trimless	Clean close-view face	Precision fit and sealing
Raceway mounted	Simplified site wiring	Raceway appearance and access

Raceway or Backboard?

Individually mounted letters usually create a clean architectural appearance, but the installation becomes more demanding as the number of separate parts increases. A complex logo can contain many letters, symbols, dots, detached marks, cable exits, and electrical circuits. Each piece needs to be positioned accurately and fixed securely.

A raceway consolidates multiple letters, wiring, and often power supplies into one shared metal enclosure. It can reduce the number of wall penetrations, simplify wiring, and make installation faster on leased properties or retrofit storefronts. The raceway itself still needs to be designed for size, color, weight, service access, weather protection, and wall fixing.

A backboard can serve a similar function while becoming part of the visible design. It is useful for indoor brand walls, finished surfaces that cannot accept many penetrations, complicated logos with small components, and projects where wiring needs to remain hidden. iduoduo’s product system uses flush mounting, raceways, and backboards as distinct solutions depending on the installation conditions.

The cleanest visual solution is not always the most practical installation solution. A flagship façade may justify individually mounted letters, while a tenant improvement project may benefit far more from a properly finished raceway. Good engineering considers what the installer will face on site before the manufacturing drawing is approved.

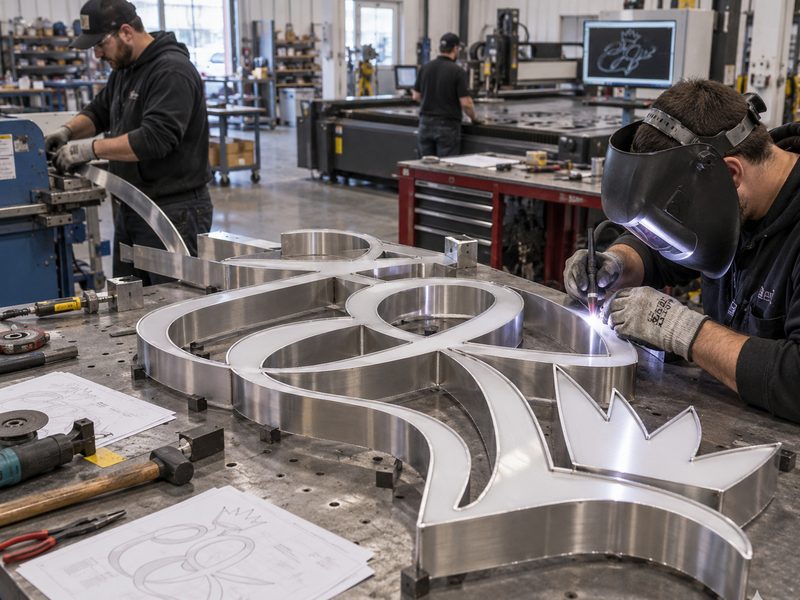

How Are Complex Channel Letters Fabricated?

Complex channel letters are fabricated through a controlled sequence of cutting, return forming, joining, grinding, finishing, LED installation, wiring, face and back assembly, inspection, testing, and packaging. Accuracy needs to be preserved from one operation to the next because an error in the original contour can affect return fit, illumination, mounting, and final logo proportions throughout the rest of production.

Cutting and Material Control

After the production file is approved, the faces, backs, internal openings, mounting parts, and related components can be cut. Acrylic, PC, aluminum, stainless steel, and other materials require different tools and processing methods, so the cutting process must match both the material and the desired finish.

For many small and medium channel letter projects, iduoduo commonly uses translucent face materials around 3–5 mm thick, while large faces and more exposed applications are evaluated separately. Metal returns commonly fall around 0.8–1.5 mm in thickness depending on letter height, depth, material, structure, and installation environment. These figures are engineering reference ranges rather than mandatory specifications for every project.

Cutting inspection should verify far more than the outside silhouette. Internal holes, logo proportions, font geometry, face and back relationship, mounting holes, material orientation, edge quality, and important small details need to be checked at this stage.

A mistake here becomes expensive later. If an internal opening is cut incorrectly, the return can be formed to the wrong contour, the face may no longer match, and the finished logo can drift away from the approved design. Early-stage dimensional control is therefore much more valuable than trying to correct a completed letter by hand.

Return Forming and Joining

Return forming turns flat metal strip into the side wall of the letter. This is often where a complicated logo reveals its real production difficulty. Block lettering may use relatively straightforward bends, while script letters, tight curves, serif details, and irregular symbols can require many short forming actions and careful transitions.

Automatic bending equipment improves repeatability, but skilled judgment still matters. Very small radii, unusual corners, and difficult transition areas may need manual correction. The objective is not simply to make the return touch the face. The finished shell should remain smooth, stable, square, and consistent with the approved contour.

Inspection during this stage should cover return depth, corner geometry, smooth curves, seam location, edge condition, face fit, back fit, and deformation. iduoduo’s production checks give additional attention to small corners and thin strokes on complex fonts because these areas are more likely to reveal forming problems.

Joining and welding then create the finished shell. Heat needs to be controlled because thin material can distort when excessive energy is concentrated in a small section. Grinding follows to remove weld marks, burrs, sharp transitions, and visible irregularities. Mirror, gloss, dark, and premium metallic surfaces make small defects easier to see, so surface preparation becomes particularly important on high-end signs.

Surface Finishing and Assembly

Surface finishing determines much of the daytime appearance of a channel letter. Common options include paint, powder coating, brushed metal, polished metal, mirror finishes, specialty metallic effects, and custom brand colors. A color seen on a monitor does not automatically reproduce identically as paint, acrylic, film, or emitted LED light, so important brand projects often benefit from physical material or finish samples before final production.

Assembly brings together the metal shell, face, back, LEDs, wiring, connectors, mounting structure, and power components. A typical controlled sequence can include:

1. file review;
2. engineering drawing;
3. material preparation;
4. face and back cutting;
5. return forming;
6. welding or joining;
7. grinding;
8. surface finishing;
9. LED layout;
10. wiring;
11. face assembly;
12. back and mounting assembly;
13. lighting inspection;
14. extended electrical testing;
15. appearance QC;
16. accessory inspection;
17. packaging;
18. shipment preparation.

iduoduo’s documented production process follows this same eighteen-stage logic from file assessment through final shipment.

The order matters because each stage should confirm that the previous stage is acceptable. Face mismatch should be caught before final assembly, incorrect holes should be found before packing, and lighting problems should be solved before an international shipment turns a workshop repair into a site problem.

How Is Uniform Lighting Achieved?

Uniform lighting is achieved by balancing LED type, module density, stroke width, return depth, face diffusion, beam angle, wiring, and power. Narrow strokes, broad sections, intersections, curves, and corners frequently require different LED arrangements. Too few modules create dark zones, while excessive density can create hotspots, visible LED points, unnecessary heat, and higher power consumption. Good lighting is designed around the actual logo geometry rather than a fixed spacing rule.

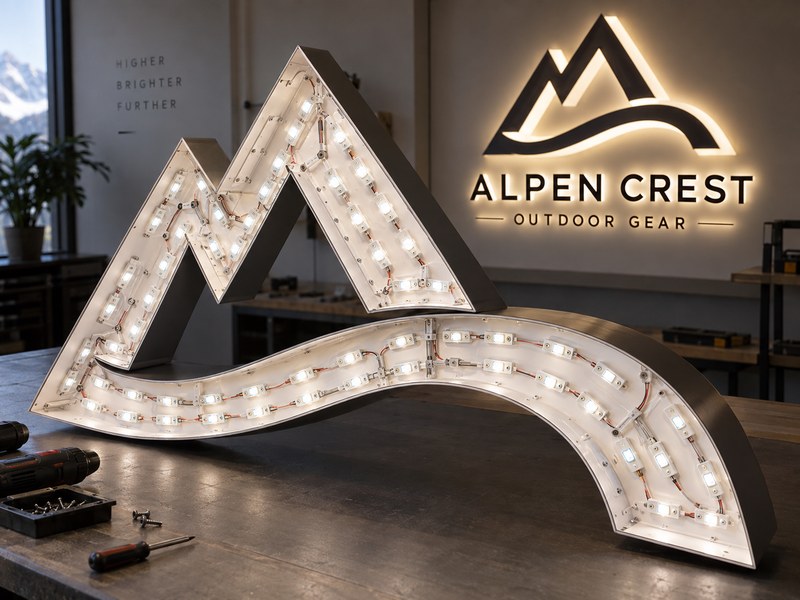

LED Layout and Stroke Width

LED layout should follow the shape of the letter. A broad rectangular section can accept several LED rows, while a narrow leg may accommodate only one row. Tight curves, small tips, and irregular symbols may need a different module size or localized spacing changes.

The engineer needs to consider module dimensions, beam angle, output, power, stroke width, corner geometry, edge distance, return depth, diffuser characteristics, wiring, and heat. iduoduo’s documented LED layout process specifically evaluates font contour, stroke width, corners, return depth, panel transmission, LED beam angle, edge distance, power, wiring, and heat before the modules are placed.

Intersections and corners deserve special attention. A tight corner may become dark because the module cannot enter the narrowest region. A stroke intersection can become excessively bright because light from several modules overlaps. Increasing the total LED count is not always the solution. A better approach may involve redistributing modules, changing the module type in selected areas, reducing density at intersections, or adjusting the internal depth to improve diffusion.

For particularly complex logos, testing the most difficult letter or one representative section can be more informative than immediately manufacturing an entire full-scale set.

Depth, Face, and Diffusion

LED light requires enough distance to spread before it reaches the translucent face. If the return is too shallow, individual LED points, bright spots, and uneven bands can become visible. If the return is unnecessarily deep, material consumption, weight, packaging volume, and cost all increase.

iduoduo commonly engineers return depths including approximately 50, 60, 80, 100, 120, and 150 mm, along with project-specific dimensions. The selected depth depends on letter height, stroke width, lighting method, LED module, diffuser material, brightness, wiring space, architectural proportion, and transportation requirements.

Return Depth	Typical Engineering Context
50–60 mm	Smaller or relatively shallow letters
80–100 mm	Medium-depth illuminated construction
120–150 mm	Larger letters or greater optical space
Custom depth	Complex geometry or special illumination

Face material changes the optical result as much as depth. Acrylic color, transmission, thickness, film, print, and PC construction all affect diffusion. The same LED arrangement can therefore look different behind different faces.

Lighting inspection should check narrow strokes, wide sections, corners, centers, edges, intersections, internal openings, and the relationship between text and graphic symbols. A sign can technically illuminate while still looking visually uneven, which is why actual powered inspection remains essential.

Power and Electrical Balance

Lighting quality depends on a stable electrical system. Channel letters commonly use 12V or 24V DC LED systems, selected according to the LED module, circuit length, scale, and control architecture. The power supply input then needs to match the actual installation market, which may use 110V, 220–240V, or another specified input. The project location should always be confirmed rather than inferred from the client’s headquarters.

Long wire runs can produce voltage drop, which may appear as reduced brightness at the far end of a circuit, color variation, RGB inconsistency, flicker, or unstable operation. Possible responses include larger wire size, shorter circuit length, additional circuits, more power supplies, different power-supply positioning, or an appropriate 24V system.

Outdoor projects need more than sealed LED modules. Connectors, wire exits, faces, backs, shells, power supplies, drainage, and site penetrations all form part of the weather-protection system. A completely sealed enclosure is not always the safest solution because temperature changes can create condensation. Properly designed drainage and ventilation can therefore be just as important as sealant.

A durable outdoor letter manages water, heat, electricity, and maintenance as one system instead of treating weather resistance as a single bead of silicone added at the end of production.

How Are Quality and Installation Controlled?

Quality control verifies the sign from geometry through lighting and installation. Complex channel letters should be checked for dimensions, logo proportions, surfaces, LED performance, power, wiring, mounting holes, wire exits, accessories, templates, and packaging. The installation information needs to match the approved production file, while repeat-order records should preserve the key specifications that allow future signs to reproduce the approved result reliably.

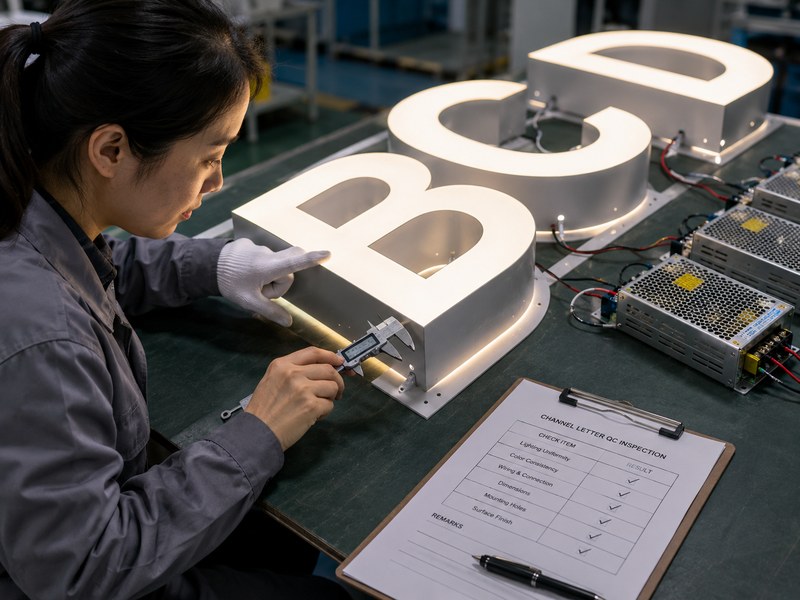

Dimensional and Lighting Inspection

Quality control should begin during production rather than when the finished sign reaches the packing area. At the cutting stage, contours, internal openings, dimensions, faces, backs, holes, and material orientation can be checked. During return forming, the team can inspect depth, curves, corners, seams, face fit, and deformation. After welding and grinding, strength, flatness, burrs, sharp areas, and visible marks can be reviewed.

Surface inspection then adds color, gloss, scratches, coating uniformity, edges, and batch variation. The final appearance check returns to the brand itself by verifying logo proportions, fonts, overall size, face position, return alignment, mounting holes, wire exits, surface finish, and cleanliness. iduoduo’s documented QC process checks these physical details before packing.

Every completed illuminated channel letter set receives a 100% lighting inspection covering letters and logo elements, color, brightness, uniformity, dark areas, hotspots, power, wiring, controls, and front or rear lighting effects where applicable. Illuminated products then undergo 72-hour pre-shipment testing to observe LED stability, power supplies, circuits, connectors, flickering, control systems, abnormal operation, and temperature.

Testing cannot guarantee that an electrical component will never fail, but it can expose many early-stage problems before the product leaves the factory.

Mounting and Site Interface

A precisely fabricated sign can still become difficult to install if the site interface is poorly planned. Channel letters have to work with the actual building surface, which may be concrete, brick, wood, stone, glass, metal cladding, EIFS, curtain wall, or an interior partition. Each surface requires a different fixing and weather-protection approach.

Flush-mounted letters normally need accurately positioned holes, studs or anchors, wire exits, concealed wiring, and a reliable installation template. Raceway systems simplify electrical organization but add their own structural, aesthetic, and access requirements. Backboards can reduce drilling and hide wiring, particularly on finished interior walls or highly fragmented logos.

The installation template should show letter positions, spacing, total width, centerline, drilling points, wire exits, component identification, and segmentation where necessary. iduoduo’s template system also uses store or product identification and orientation information when projects involve multiple sets.

The template remains an installation aid rather than a substitute for site measurement. Local installers should still verify the wall, power location, anchor method, structural conditions, and applicable regulations before drilling. Glass, curtain-wall, elevated, and wind-exposed applications require particular care, and local qualified teams remain responsible for final structural and electrical installation decisions.

Packaging and Repeat Production

Complex channel letters are vulnerable during transport because their shapes rarely behave like standard boxed products. Thin strokes, acrylic faces, sharp tips, polished surfaces, projecting returns, and small detached elements can be damaged when parts move against each other inside a package.

Common protective systems include film, EPE foam, edge protection, independent inner cartons, reinforced outer cartons, wooden frames, and wooden cases. Letters should not directly strike each other during shipping. Power supplies, controllers, studs, screws, cables, and templates also need separate compartments and clear identification so the installation team can match each accessory to the correct sign.

For multi-location programs, packaging becomes part of project control. Boxes may need store numbers, product IDs, installation-area references, accessory lists, and opening sequences rather than a simple product description.

Repeat production then depends on accurate records. iduoduo retains information such as final drawings, font geometry, dimensions, materials, colors, return depth, LEDs, power supplies, mounting holes, wire exits, templates, packaging, and QC records for channel letter repeat orders. Destination, voltage, installation environment, and material availability are still reconfirmed for each new project.

Consistency does not come from remembering approximately how the previous sign looked. It comes from preserving the engineering information that made the previous sign work.

Conclusion

Manufacturing complex logo channel letters is ultimately an exercise in controlled translation. The original artwork needs to become a physical object without losing the proportions, character, and visual cues that make the brand recognizable. Achieving that result requires more than accurate cutting. Stroke width, negative space, corners, return depth, LED distribution, electrical architecture, face construction, mounting, weather protection, packaging, and installation all influence the final outcome.

The strongest projects are usually the ones where these decisions are made before production rather than corrected after problems appear. A difficult stroke can be widened slightly before metal is cut. A small symbol can move to a shared backboard before the installer discovers there is nowhere to place a stud. LED density can be tested before an entire logo develops visible hotspots. Mounting and wire exits can be confirmed before the finished façade creates new restrictions.

iduoduo approaches complex channel letters as a complete manufacturing system covering logo and font engineering, metal fabrication, face and back construction, LED layout, power and wiring, weather protection, drainage, mounting preparation, 100% lighting inspection, 72-hour pre-shipment testing, export packing, repeat-production file control, and a 3-year warranty framework. When those steps are connected properly, even a complicated logo becomes far more predictable from the first engineering drawing to final installation.

Frequently Asked Questions

Can any logo be made into channel letters?

Many logos can be converted into channel letters, but not every detail should automatically be manufactured as an individual illuminated channel. Extremely thin strokes, photographic elements, small gradients, narrow negative spaces, and tiny isolated graphics may require adjustment or another construction method. A manufacturer may combine channel letters with acrylic, printed elements, non-illuminated metal, a light box, or a backboard so the finished sign remains visually faithful without forcing unsuitable details into standard channel letter fabrication.

What is the minimum stroke width for channel letters?

There is no single minimum stroke width that works for every channel letter project. The usable width depends on the letter size, LED module, return depth, material, wiring space, face attachment, bending geometry, and lighting method. A stroke that works for a non-illuminated metal letter may be too narrow for a front-lit LED letter. The safest approach is to evaluate the narrowest parts of the actual logo rather than apply one general number to every font and symbol.

How small can illuminated channel letters be?

Small illuminated letters are possible, but complexity rises quickly as the internal space becomes tighter. iduoduo treats complex illuminated characters below approximately 100–150 mm in overall size as projects requiring additional engineering review. The final feasibility depends on the stroke width, internal openings, LED size, wiring, face retention, return forming, and mounting method. Very small details may be better produced with acrylic illuminated construction, LED neon, or non-illuminated components.

How deep should channel letters be?

Channel letter depth should be selected according to the letter height, stroke width, LED module, face material, illumination type, wiring, and visual proportion rather than by one default specification. iduoduo commonly engineers depths around 50, 60, 80, 100, 120, and 150 mm, while special projects can use other dimensions. A shallow return can reveal individual LED points, while unnecessary depth adds material, weight, cost, and shipping volume.

How do manufacturers prevent hotspots in LED channel letters?

Hotspots are controlled by coordinating LED spacing, module beam angle, return depth, face diffusion, and local logo geometry. Narrow areas, intersections, corners, and broad strokes often need different module arrangements. Placing more LEDs everywhere does not necessarily improve the result because excessive density can create bright spots, heat, and higher power consumption. Actual powered inspection is essential because uniform lighting depends on the interaction of the structure, LEDs, face material, wiring, and assembly rather than on module quantity alone.

Are halo-lit channel letters suitable for complex logos?

Halo-lit construction can work very well for complex logos, particularly when the brand needs an architectural or premium appearance. The front surface remains visually clean while the rear LEDs create reflected light on the wall. The finished halo depends on the wall color, texture, ambient light, letter spacing, LED layout, return depth, and stand-off distance. For many iduoduo projects, approximately 20–50 mm of stand-off is a practical reference range, but the final distance should be adjusted to the site.

What information is needed to quote complex logo channel letters?

A useful quotation normally begins with the logo or font file, overall dimensions, individual letter height, quantity, illumination method, face color, return color, desired depth, indoor or outdoor use, LED color or color temperature, voltage, power-supply requirements, installation method, raceway or backboard requirements, wire-exit position, wall information, weather-protection requirements, destination country, packaging needs, and project timing. Providing these details early makes both pricing and engineering review much more accurate.
