How Are Channel Letter Returns Bent in Sign Manufacturing?

A finished channel letter often looks deceptively simple. From the street, people see a clean three-dimensional letter, a bright acrylic face, or a polished metal logo fixed neatly to a storefront. What they do not see is how much of that finished appearance depends on the return—the sidewall that wraps around the perimeter of each letter. If the return is slightly too long, a curve can flatten. If a corner is over-bent, the font changes. If the return twists, the face and back may no longer fit correctly. These are small manufacturing errors, but on a brand logo they can become immediately visible.

Channel letter returns are generally made by converting the approved letter or logo outline into a physical bending path. A metal strip, usually aluminum and sometimes stainless steel, is fed to calculated lengths, notched or relieved where required, flanged when the construction uses a flange, and then bent through straight sections, corners, arcs, and reverse curves. Modern CNC equipment can automate much of this process, but experienced fabrication and inspection remain important because metal behavior, tight radii, seams, finishes, and physical fit cannot be judged from digital geometry alone.

That is what makes return bending worth understanding. The process is not simply about owning a bending machine. It is about controlling the transition from a clean vector file to a real three-dimensional metal enclosure that still looks like the approved logo after bending, joining, finishing, lighting, assembly, packing, and installation.

What Is a Channel Letter Return?

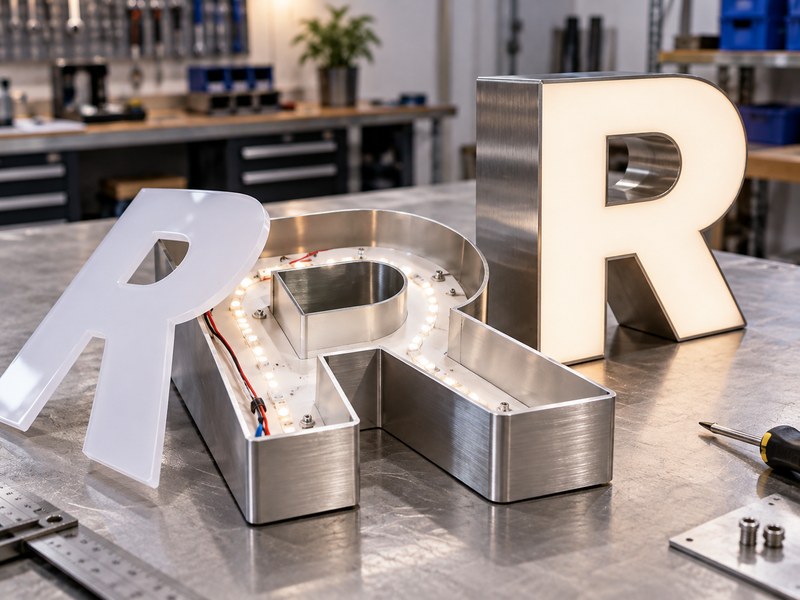

A channel letter return is the vertical sidewall that follows the perimeter of a three-dimensional letter or logo. It creates the depth of the letter and forms part of the enclosure that connects the face, back, lighting cavity, wiring, and mounting structure. Return accuracy affects the shape of the finished letter, face fit, internal LED space, side appearance, assembly efficiency, and consistency across repeated signs.

Role in the Letter Structure

A channel letter is not just a cut acrylic face with LEDs behind it. A typical illuminated letter may include a translucent or opaque face, a metal return, a rear panel or back, LED modules, wiring, mounting hardware, drainage details, and electrical connections. The return is the part that transforms a two-dimensional outline into a three-dimensional enclosure and gives the letter its visible depth when viewed from an angle. iduoduo’s Channel Letter documentation treats the metal return as one of the core construction elements alongside the face, back, LEDs, wiring, mounting points, and weather-protection details.

This is why return quality cannot be separated from the rest of the letter. A return can technically follow the outside perimeter and still create problems later if it is twisted, inconsistent in depth, or poorly aligned. The acrylic face may fit tightly in one area and loosely in another. The back may require excessive pressure to align. A corner may look slightly softer than the approved typeface. On one letter, these errors can seem minor. Across a full storefront word or a multi-location brand rollout, they become much easier to notice.

Return Depth

Return depth is the distance from the front edge of the letter toward the rear. Common commercial channel letters are often produced within a general depth range of roughly 3 to 5 inches, although shallower and deeper structures are also widely used. Several current CNC channel letter bending systems can process material depths up to around 8 inches, while selected heavy-duty machines can handle wider material. These values are useful industry references rather than fixed specifications for every project.

The correct depth depends on more than visual preference. It influences internal LED spacing, the distance between the light source and the face, side projection, material consumption, packaging volume, weight, structural stability, and the overall proportion of the sign. A shallow letter can create a refined profile, but it may leave less room for optical diffusion or wiring. A deeper letter creates more internal space but may increase weight, shipping volume, and the visible side profile.

For a practical project review, return depth should be considered together with letter height, stroke width, face material, lighting method, LED layout, installation position, viewing distance, mounting structure, and indoor or outdoor exposure. Choosing one dimension without considering these other variables often creates unnecessary compromises later in the production process.

Different Letter Types

The return does not perform exactly the same function in every Channel Letter construction. In a conventional front-lit letter, the return usually forms an opaque sidewall around a translucent front face. In a reverse or halo-lit letter, the face and sides may remain opaque while light exits toward the wall from the rear. A front-and-halo-lit letter has to support both forward illumination and rear halo illumination, so its internal arrangement can be more complex.

Trim-cap and trimless letters also require different relationships between the face and return. Side-lit structures may use a translucent side component instead of a fully opaque metal wall. Raceway-mounted, backboard-mounted, and flush-mounted letters add further differences because the rear structure, wiring path, and installation interface are not identical. iduoduo’s confirmed Channel Letter range includes front-lit, halo-lit, front-and-halo-lit, side-lit, trim-cap, trimless, aluminum, stainless-steel, raceway-mounted, backboard-mounted, and flush-mounted constructions.

For that reason, asking only for a “standard return” is rarely enough on a custom commercial project. The return should be defined as part of a complete letter system rather than as an isolated strip of metal.

How Are Channel Letter Returns Bent?

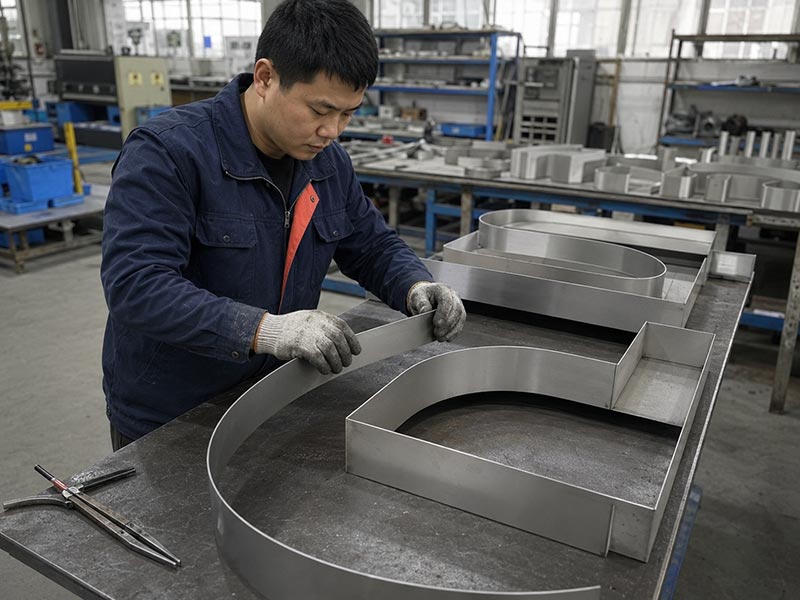

Channel letter returns are bent by converting a digital letter perimeter into a controlled forming path. A metal strip or coil is fed to calculated lengths, notched or relieved where required, flanged when the construction needs it, and progressively formed through straight sections, corners, curves, and reverse bends. The completed return is then checked against the face, back, or approved geometry before final joining and assembly.

From Artwork to Bend Path

Return bending begins with the production file. The approved vector drawing defines the outside and inside contours of every letter and logo component. Fabrication software then interprets those contours and calculates how far the strip must travel between one forming event and the next. Straight sections, sharp corners, arcs, direction changes, and internal curves all need to be translated into instructions that a machine or fabricator can physically reproduce.

File quality has a direct effect on the finished return. A smooth circle created with a small number of controlled vector points is much easier to interpret than a low-resolution image that has been automatically traced into hundreds of tiny segments. Both shapes may look almost identical at normal screen size, but the second file can create unnecessary direction changes during forming. The bending machine follows the actual geometry in the production path, not the visual intention behind a poor file.

Material thickness also has to be considered because the inside and outside of a bend travel different distances. Depending on the machine and production software, compensation values may be used to account for material behavior so the physical return remains closer to the intended perimeter. This becomes particularly important when moving between different gauges, materials, depths, or tight corner conditions.

Notching and Flanging

Notching creates controlled relief in selected parts of the strip so the material can form sharp direction changes without unnecessary buckling or interference. A notch is not simply a cut placed wherever there is a corner. Its position, shape, and direction must correspond to the specific geometry, material, forming method, and machine configuration being used.

Flanging serves a different purpose. A flange creates a narrow formed edge along the strip that can support attachment to another letter component in certain construction systems. Some automatic channel letter machines integrate feeding, notching, flanging, bending, and final cutoff within one coordinated workflow, while other systems perform only part of that sequence. There is therefore no single universal production route for every Channel Letter factory.

Production Stage	Main Purpose	Key Risk to Control
Vector preparation	Define the true production perimeter	Poor nodes, wrong scale, distorted curves
Material feeding	Deliver the required strip length	Feed error, tracking error
Notching	Create controlled bend relief	Wrong location, excessive material removal
Flanging	Form an attachment edge when required	Uneven width, local distortion
Bending	Form straights, curves, and corners	Springback, twisting, over-bending
Cutoff	Complete the required return length	Excess or insufficient length
Fit check	Compare with physical components	Gaps, misalignment, distorted geometry
Joining	Close the return or connect sections	Visible seam, heat distortion, poor alignment

The value of this sequence is not simply production speed. It allows the manufacturing team to separate different sources of error. If a return is wrong, the cause may be in the original vector path, feed distance, notch position, material compensation, bend setting, or final joining. Treating all of these as one undifferentiated “bending” step makes troubleshooting more difficult.

Forming and Closure

Straight sections are relatively simple because the machine mainly controls how much strip is fed before the next bend. Corners require more concentrated directional change. Curves are normally created through many small controlled bends so the metal gradually follows the required radius instead of being folded sharply at one location. Reverse curves require the direction of forming to change within the same continuous strip.

Different letters expose different problems. An O quickly reveals flat spots because the eye expects a continuous curve. An S requires smooth transitions between opposite bending directions. An M or W makes corner quality obvious. A B or R combines straights, curves, internal transitions, and multiple changes in direction within a single character. Complex logos can be even more demanding because they may combine all of these conditions in one perimeter.

When the full path has been formed, the ends of the strip need to meet at a planned seam. That seam should close without forcing the rest of the return out of shape. Depending on material and construction, the joint may be welded, clinched, mechanically connected, bonded, or finished using another approved method. The return is not considered successful simply because it looked correct when it left the bending machine. It still needs to maintain its geometry after closure and continue to fit the face and back correctly.

Which Materials Are Used for Channel Letter Returns?

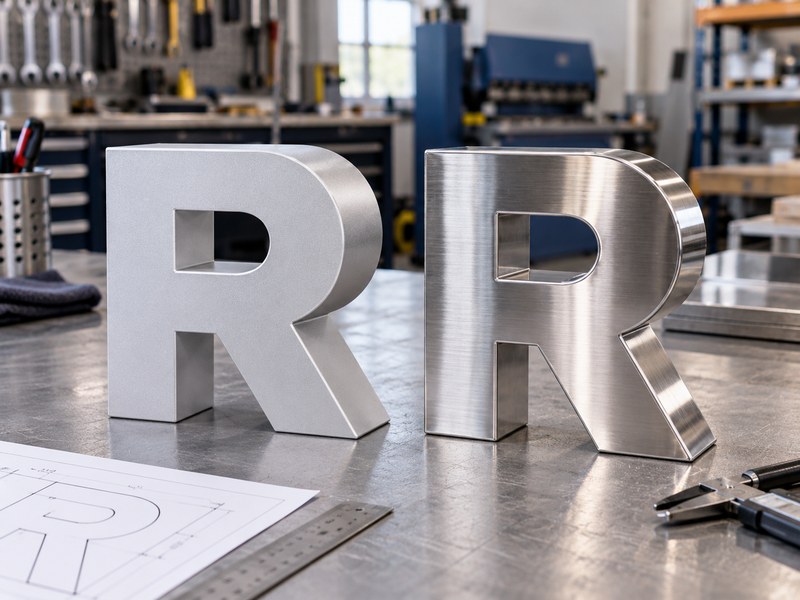

Aluminum is the most widely used material for conventional Channel Letter returns because it combines low weight, corrosion resistance, good formability, and compatibility with paint or powder coating. Stainless steel is commonly used when a visible metallic finish or different structural character is required. Material thickness, temper, surface finish, return depth, letter size, and geometry all affect how easily a return can be formed.

Aluminum Returns

Aluminum coil is widely used because it works efficiently with both manual and automated fabrication. A commonly encountered thickness for conventional returns is around 0.040 inch, approximately 1.0 mm. Heavier 0.063-inch aluminum, approximately 1.6 mm, is also used where a project requires greater stiffness, larger letter construction, or a specific engineering approach. Some systems also process thinner material such as 0.032 inch for lighter-duty applications.

These dimensions are useful references rather than automatic design rules. A 300 mm indoor logo does not need to be engineered in the same way as a 1,500 mm exterior Channel Letter. Letter height, stroke width, wind exposure, return depth, mounting method, face and back structure, internal reinforcement, and project requirements all influence the final material choice.

Aluminum also offers practical finishing flexibility. It can be painted or powder coated to coordinate with a brand color, storefront surface, trim system, raceway, or architectural palette. Because the return is visible from side angles during the day, its color and surface condition matter even when the main visual emphasis is on the illuminated face.

Material Reference	Approx. Metric Equivalent	Common Application
0.032 in aluminum	0.8 mm	Lightweight applications where suitable
0.040 in aluminum	1.0 mm	Common commercial return reference
0.063 in aluminum	1.6 mm	Heavier or project-specific construction
3 in return depth	76 mm	Common shallow commercial reference
5 in return depth	127 mm	Common storefront reference
8 in return depth	203 mm	Within the capacity of several CNC systems

The numbers above should be understood as common fabrication references rather than universal design standards. A project drawing, engineering review, or locally required specification should always take priority over a generic material table.

Stainless and Specialty Metals

Stainless steel is frequently selected when the return itself contributes to the appearance of the finished letter. Brushed, satin, polished, and mirror finishes can give a premium architectural character that is difficult to achieve with ordinary painted aluminum. The material is especially useful for interior branding, hospitality, retail, corporate environments, and projects where the side profile of the letter remains highly visible.

Stainless steel behaves differently during forming. It is generally stiffer than aluminum and can show more springback. Different tooling, machine settings, forming forces, and joining methods may be needed. A CNC bender that processes 1.0 mm aluminum successfully is not automatically suitable for 1.0 mm stainless steel. Equipment capabilities vary, which is why material type should be confirmed before the production method is selected.

Surface protection is also more demanding. A mirror-polished return may be dimensionally accurate but still fail visual inspection if the material is scratched during bending. A brushed finish has a grain direction that needs to remain consistent through cutting, forming, joining, grinding, and final finishing. Copper, brass, galvanized steel, and other materials can also be used for dimensional letters, but each requires project-specific evaluation rather than simple substitution.

Thickness and Depth Selection

Material thickness affects stiffness, forming resistance, weight, and the tendency of the strip to spring back after bending. Return depth affects the height of the sidewall, internal cavity volume, projection from the wall, packaging volume, and the tendency of the strip to twist during forming. These two variables need to be considered together because a deep, narrow, stiff strip behaves differently from a shallow, lighter one.

Very tight geometry can become difficult when the selected material and depth are not appropriate for the scale of the design. Current CNC benders designed for relatively thin aluminum may publish minimum bending radii in the range of roughly 8 to 10 mm under specific conditions. Those figures should not be treated as a universal minimum radius for every Channel Letter because real results depend on the actual machine, material, thickness, temper, depth, tooling, and whether the bend is internal or external.

For a useful engineering review, the most important information includes the vector artwork, overall size, individual letter height, return depth, return material, face material, lighting method, mounting method, indoor or outdoor use, destination market, and installation environment. iduoduo’s Channel Letter inquiry requirements also identify these kinds of specifications as important inputs before production.

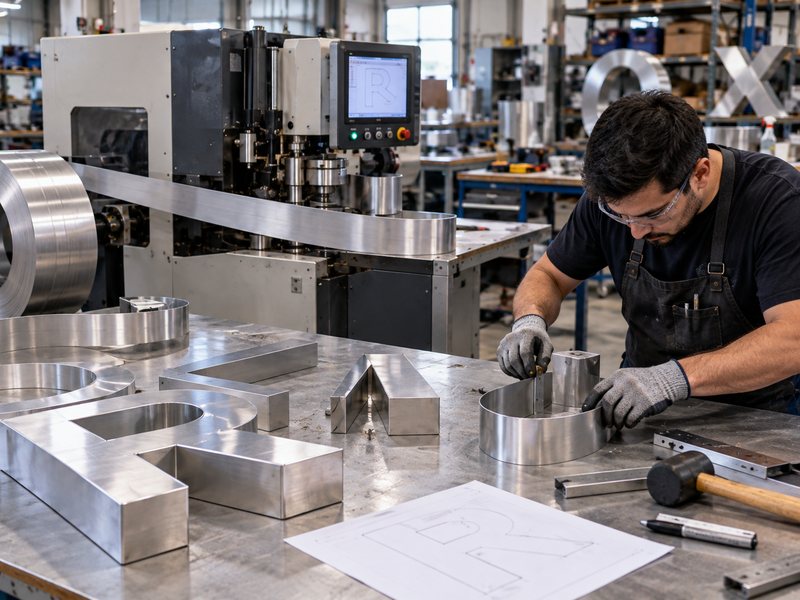

How Do CNC and Manual Bending Differ?

Manual bending relies heavily on measuring, marking, relief cutting, hand forming, brakes, rollers, and operator experience. CNC bending uses digital geometry to control feed length, notch locations, bends, curves, and selected flanging operations. CNC equipment improves repeatability and throughput for repeated letters, while skilled manual work remains valuable for unusual geometry, prototypes, local corrections, seam finishing, and specialty materials.

Manual Forming

Traditional return fabrication requires the operator to translate a pattern into physical measurements. The metal strip is measured, important locations are marked, reliefs are created where needed, and the material is formed around a pattern, back, face, or layout using appropriate tools. Experienced fabricators can produce highly accurate work because they understand how a specific metal reacts to pressure, how much springback to expect, and how a curve changes after a nearby corner is formed.

Manual forming remains useful even in a factory that owns automated equipment. One-off architectural letters, prototypes, repairs, unusually small components, premium visible finishes, and local adjustments often benefit from handwork. A skilled operator can also correct a small issue after a CNC cycle without discarding an otherwise acceptable part.

The weakness of a fully manual approach becomes more visible when the same letter needs to be produced repeatedly. If 50 or 100 identical characters are required, small differences in measuring, corner pressure, curve formation, and seam closure can accumulate. The problem becomes more significant when the same design needs to be reproduced again months later by a different operator.

What CNC Controls

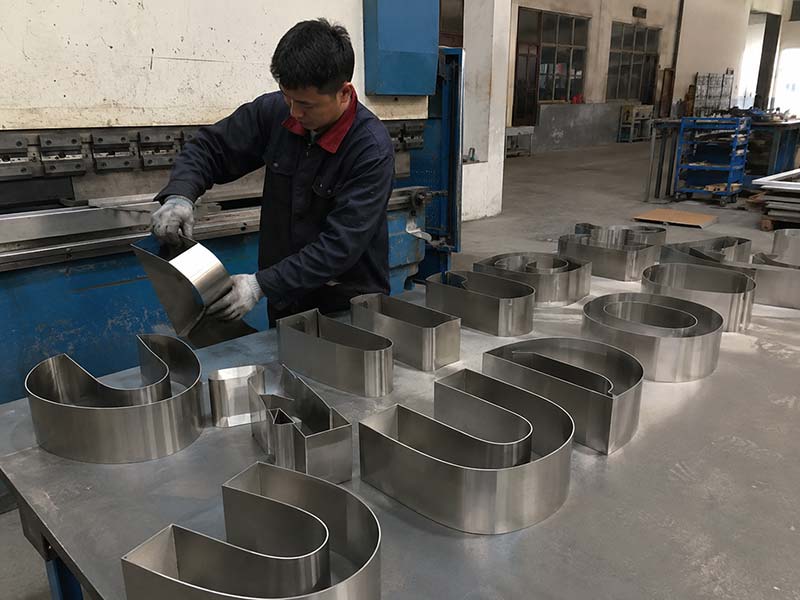

A CNC channel letter bender takes digital geometry and converts it into a repeatable sequence of machine movements. Depending on the equipment, that can include feeding, notching, flanging, bending, arc forming, hole processing, and cutting. The main advantage is not that the machine understands the logo better than a human. It is that it can repeat the same calculated movement many times with less dependence on manual measurement.

Machine capability still varies considerably. Some current systems process only aluminum, while others are designed for aluminum and stainless steel. Several commercial machines can handle return depths around 8 inches, while selected heavy-duty systems are built for wider material. Thickness ranges also vary, with lighter machines focused on thinner coil and more powerful machines capable of working with heavier material.

This is why “CNC bent” is not a complete specification. Two factories can both own automatic benders but have very different practical limits for thickness, depth, stainless steel, small-radius curves, reverse bends, flanging, and specialty finishes. The production file matters just as much because automation can repeat incorrect geometry with the same consistency that it repeats correct geometry.

Where Handwork Still Matters

CNC equipment reduces repetitive measuring and makes routine production more efficient, but experienced fabrication judgment is still needed throughout the process. Metal can spring back slightly differently from the software expectation. A tight internal curve may need correction. A stainless-steel surface may require careful handling. A seam may need to be repositioned because the most convenient manufacturing location would be highly visible on the installed sign.

The most reliable production system therefore combines automation with skilled manual review rather than treating one as a replacement for the other. CNC equipment handles repeatable geometry, feeding, and standard forming efficiently. Fabricators inspect the result, correct local issues when necessary, close joints, finish visible surfaces, and verify whether the physical part actually matches the approved letter.

This combination becomes especially important for repeat commercial projects. Keeping the approved drawing, material, depth, color, mounting information, seam strategy, and QC reference allows future orders to start from a controlled manufacturing record instead of relying on memory. iduoduo’s repeat-order documentation includes final drawings, dimensions, material, colors, return depth, LED configuration, mounting details, templates, packaging information, and QC records.

How Are Curves and Sharp Corners Formed?

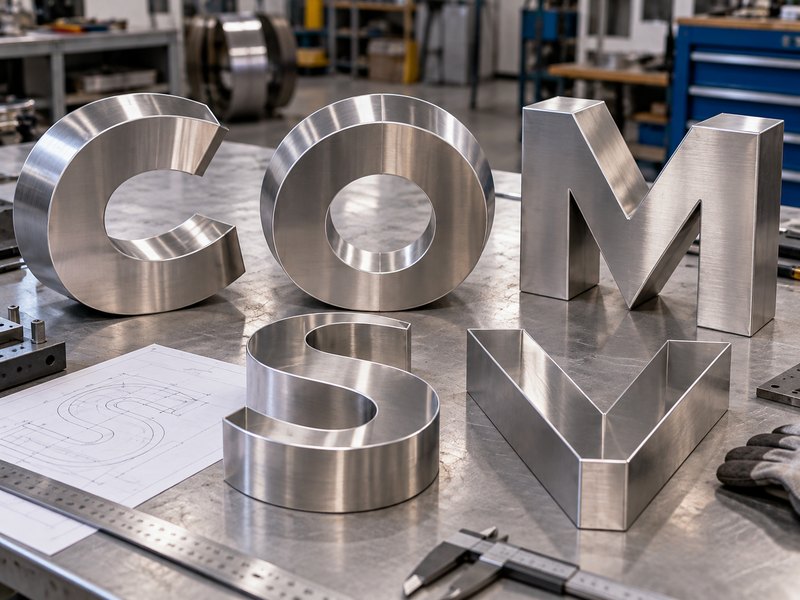

Curves are generally formed through multiple small controlled bends that gradually change the direction of the return, while sharp corners require concentrated directional changes and may use precisely positioned notches or reliefs. The achievable geometry depends on material thickness, return depth, metal hardness, tooling, bend direction, letter scale, and the capabilities of the selected bending method.

Smooth Curves

A smooth curve is easy to draw on a computer but more difficult to reproduce in physical metal. The bending process has to turn a straight strip into an arc while preventing visible faceting, twisting, flattening, or localized buckling. Automated systems usually achieve this through a sequence of small controlled bends rather than one large forming movement.

Large-radius letters such as a broad O are generally easier to form than very small inner curves. The eye is also especially sensitive to defects in circular shapes. A small flat section on the side of an H may go unnoticed because the letter already contains straight geometry. The same flat section on an O immediately interrupts the expected curvature and makes the letter look less refined.

Scale is therefore important. A logo that bends cleanly at 1,200 mm wide may not behave the same way when reduced to 250 mm. The smaller version can contain tighter internal radii, narrower spaces, and sharper transitions even though the artwork has been reduced proportionally. Good engineering considers the smallest required size before assuming one production strategy can simply be scaled across every location.

Tight Corners

Sharp corners create the opposite challenge. Instead of gradually changing direction, the material has to change direction quickly while keeping the visual point of the letter intact. A V, W, M, A, N, or custom symbol can look noticeably different if a corner becomes too soft or rounded compared with the approved logo.

Notching or other relief methods help manage material at selected corner locations so the bend can happen more cleanly. However, an extremely tight corner cannot always be solved by simply cutting a larger notch. Excessive relief can weaken or distort the area, while aggressive forming can damage paint, deform the sidewall, or create a visible change in the surface.

There is therefore no reliable single minimum bend radius for all Channel Letters. One CNC machine may publish an 8 mm minimum radius for a particular aluminum thickness, while another may publish 10 mm under different working conditions. These numbers indicate what those machines are designed to achieve, not what every material and every return can safely reproduce.

Complex Logos and Seams

Complex logos often combine straight sections, convex curves, concave curves, narrow internal openings, pointed terminals, and reverse bends within the same perimeter. This is where the difference between digital geometry and physical manufacturability becomes most obvious. A shape can be mathematically valid but still be impractical to form at the requested scale using the selected material and depth.

Before production, a useful review considers the smallest internal radius, narrowest opening, sharpest point, number of direction changes, return depth, material stiffness, surface finish, seam position, face attachment, back connection, and access for joining or finishing. A small adjustment made at this stage can prevent a much larger problem after material has already been cut and bent.

Seam position is particularly important on premium visible metal. The beginning and end of a return have to meet somewhere, but the most convenient location for production may not be the best location visually. On painted aluminum, a correctly finished seam can often become unobtrusive. On brushed or mirror stainless steel, an exposed joint may remain noticeable even after grinding and polishing. Good fabrication therefore considers how the installed sign will be viewed, not only how quickly the return can be produced.

What Affects Return Bending Accuracy?

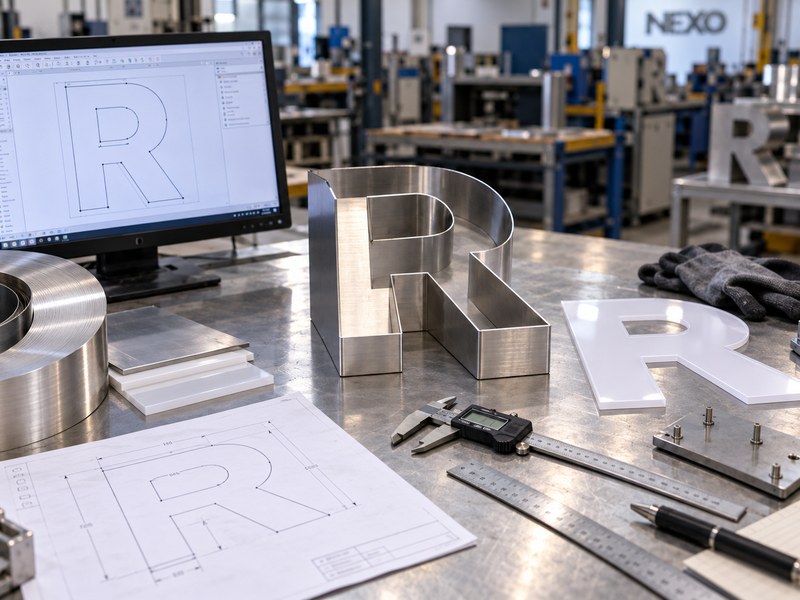

Return bending accuracy depends on vector-file quality, material thickness, return depth, material temper, machine calibration, feed accuracy, bend compensation, tooling condition, seam planning, and operator inspection. Accuracy should be judged by the finished physical relationship between parts, not only by machine coordinates. The return must preserve the intended logo geometry while fitting the face and back without excessive force, visible gaps, or distortion.

File Quality

The bending process can only be as accurate as the geometry that enters production. A useful vector file contains closed paths, correct scale, controlled curves, suitable node counts, and clearly defined internal and external contours. Open paths, overlapping lines, duplicate geometry, accidental short segments, and poor automatic tracing can all create problems once the file is converted into machine movements.

Poor vector data can be particularly misleading because it may look acceptable on screen. A curve made from dozens of small straight segments can appear smooth at normal viewing size, while the bending machine interprets each segment as a direction change. The physical return may then show subtle faceting that becomes obvious under side lighting or when compared with a clean-cut face.

Artwork review is therefore part of production engineering rather than a cosmetic design step. The aim is not to alter a brand identity without approval. If a point, radius, opening, or thin stroke is not practical at the requested scale, the manufacturer should identify the limitation and propose a controlled adjustment before production begins.

Material and Tooling

Digital drawings are mathematically exact, but metal is not. Aluminum can spring back after forming. Stainless steel can require more force and show stronger resistance to bending. Thicker metal can behave differently from thinner coil even when both use the same nominal geometry. A deeper strip can become more sensitive to twisting because its sidewall height creates greater leverage during the forming process.

Tooling condition also influences accuracy. A worn notch tool may change the shape or position of relief cuts. Misaligned guides can cause the strip to track poorly through the machine. Contaminated or rough contact surfaces can scratch pre-finished material. Incorrect material settings can create a return that is consistently too long, too short, or slightly inaccurate around corners.

Visible finishes add another layer of control. A mirror-polished return can be dimensionally perfect yet visually unacceptable if the tooling leaves scratches. A brushed stainless surface can lose consistency if the grain is damaged during forming or grinding. Dimensional accuracy and surface quality therefore need to be treated as parallel requirements.

Face and Back Alignment

The strongest practical test of a return is whether it works with the physical parts it is meant to join. Faces, backs, and returns are often made using different processes. An acrylic face may be laser cut or CNC routed. A metal back may be laser cut, routed, or fabricated by another method. The return is formed from coil. Each operation introduces its own tolerances.

When the three parts come together, those tolerances need to remain compatible. A return that is slightly too long can create a bulge or an awkward seam. A return that is too short may have to be pulled into position, which can distort another part of the letter. An incorrect curve can make the face tight on one side and loose on the other.

This is why iduoduo’s Channel Letter engineering criteria include stable letter forming and accurate fit between the face, shell, and related components rather than relying on machine dimensions alone.

For project teams evaluating a manufacturing partner, one practical question is more revealing than simply asking which brand of bender the factory owns: how does the factory confirm that the return fits the actual face and back before the product moves to later manufacturing stages?

How Is Return Bending Quality Checked?

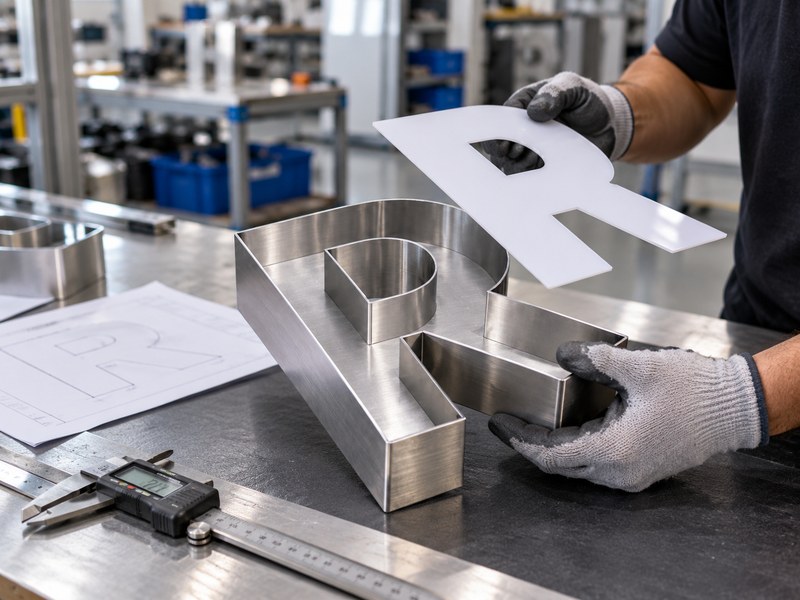

Return bending quality is checked by comparing the formed sidewall with the approved geometry and the physical components it must fit. Inspection normally covers overall size, return depth, straightness, curve smoothness, corner shape, seam location, twisting, surface condition, and alignment with the face and back. On repeat projects, approved first-article information and production records help maintain consistency across later batches.

First-Article Checks

The first completed return in a new project is especially important because it tests the assumptions made during artwork preparation, material selection, machine setup, and engineering review. If the first part shows a flat curve, open corner, incorrect depth, awkward seam, or poor face fit, changes can be made before a full batch is produced.

This is particularly useful when a project introduces a new material, finish, return depth, or unusual letter geometry. A setting that works well for painted 0.040-inch aluminum may not produce the same result on heavier material or a deep brushed-metal return. Testing the first article creates an opportunity to confirm the process before the cost of correction rises.

Practical first-article checks may include overall width and height, critical corners, major radii, return depth, straightness, seam closure, face engagement, back fit, surface appearance, and condition after joining. The objective is not to create unnecessary inspection paperwork. It is to find errors at the least expensive stage of production.

In-Process Inspection

Return quality should not be judged by one final measurement because different defects appear at different times. A bend can be checked immediately after forming. A seam can be reviewed after joining. Flatness can be checked again after welding because heat may cause local distortion. Face and back fit can be verified before LEDs, wiring, and finishing make the part more difficult to correct.

Inspection Point	What to Check	Main Risk if Incorrect
Overall geometry	Width, height, general shape	Distorted brand proportions
Return depth	Consistency around perimeter	Uneven side profile
Straight sections	Waviness and twisting	Poor face or back fit
Curves	Smoothness and flat spots	Visible shape distortion
Corners	Angle and point definition	Changed font appearance
Seam	Position, closure, alignment	Visible joint or distortion
Face fit	Even fit around perimeter	Gaps or excessive stress
Back fit	Alignment and attachment	Assembly or sealing problems
Surface	Scratches, dents, tool marks	Poor visible finish
Batch comparison	Shape and depth consistency	Repeat-order variation

Not every dimension needs to carry the same tolerance. Critical mounting interfaces, visible brand geometry, acrylic engagement, and electrical or assembly features may require tighter control than hidden internal areas. Applying one arbitrary tolerance to every part of every Channel Letter can create unnecessary cost without improving the finished sign.

A better approach is to identify which dimensions affect appearance, assembly, installation, lighting, or project requirements and control them accordingly.

Repeat Production

Producing one good Channel Letter proves that the design can be manufactured. Reproducing the same result across several locations and again months later requires more than a skilled operator. It requires controlled information.

Useful repeat-order records can include the approved vector file, drawing revision, return material, thickness, return depth, finish, face material, back material, seam arrangement, bend settings when relevant, lighting structure, mounting details, packaging method, inspection photographs, and approved sample notes. These records provide a reference when the same logo is reordered for another store or another batch.

The value becomes even greater when a chain uses several sizes of the same logo. A 300 mm letter and a 1,200 mm letter may not use identical engineering, but the visual relationship between font, depth, color, finish, and lighting still needs to remain controlled.

iduoduo’s documented manufacturing quality system includes incoming material inspection, approved production files, first-article confirmation, in-process checks, dimensional and appearance inspection, final inspection, reinspection after rework, and traceable release records. These controls matter because return errors become increasingly expensive as the product moves into welding, finishing, LED installation, wiring, testing, and export packing.

Conclusion

Channel letter return bending is easy to underestimate because the best work becomes almost invisible once the sign is installed. A clean return simply follows the letter, the face fits, the sidewalls remain straight, the curves look natural, and the corners still resemble the original artwork. Achieving that result consistently requires more than feeding a strip of aluminum into a machine.

The process begins with usable vector geometry, then moves through material selection, feed control, notching, flanging where required, bending, seam planning, joining, and physical fit checks. Material thickness and return depth affect how the strip behaves. Tight curves and sharp corners expose the limits of both tooling and material. CNC equipment improves repeatability, but experienced fabrication remains important when actual metal behavior differs from what software predicts.

For commercial projects, the most meaningful quality check is not the brand name of the bending machine. It is whether the finished return still matches the approved letter, fits the actual face and back, maintains consistent depth, and can be reproduced across a complete sign set or future order. That is where a controlled manufacturing process becomes more valuable than an isolated piece of equipment.

For iduoduo, Channel Letter fabrication is treated as part of a broader production system that connects logo and font engineering, metal return fabrication, face and back construction, LED layout, wiring, weather protection, mounting preparation, inspection, testing, and packaging. When these stages are coordinated correctly, the result is not simply a bent metal strip. It is a letter that preserves the intended brand geometry from the production file through to the finished installed sign.

Frequently Asked Questions

What Material Is Most Commonly Used for Channel Letter Returns?

Aluminum is the most common material for conventional Channel Letter returns because it is lightweight, corrosion resistant, relatively easy to bend, and compatible with common sign finishing methods. Around 0.040 inch, or approximately 1.0 mm, is a widely encountered reference thickness, while heavier 0.063-inch aluminum is also used for selected projects. Stainless steel is often chosen when the visible metal surface and architectural appearance are more important.

How Deep Are Channel Letter Returns?

Many commercial Channel Letters use return depths in the general range of about 3 to 5 inches, or approximately 76 to 127 mm, although this is not a fixed standard. Smaller interior letters can be shallower, while larger or specialty signs may use deeper returns. The appropriate depth depends on letter size, stroke width, lighting layout, face material, mounting method, side-profile appearance, and installation requirements.

Can Channel Letter Returns Be Bent by Hand?

Yes. Channel letter returns can be formed manually using patterns, measurements, hand tools, brakes, rollers, and other forming equipment. Experienced fabricators can achieve very good results, particularly for prototypes, one-off letters, repairs, or unusual shapes. CNC bending becomes especially useful when many identical letters are required because it reduces repetitive measuring and makes feed lengths, bend positions, and repeated geometry easier to control.

What Is a CNC Channel Letter Bender?

A CNC channel letter bender is an automated fabrication machine that converts digital letter geometry into controlled metal-forming operations. Depending on the model, it can feed aluminum or stainless-steel strip, create notches, form flanges, produce curves and corners, and cut the material to length. The machine improves repeatability, but correct vector files, material settings, calibration, tooling, seam planning, and physical inspection are still required for accurate results.

How Are Curved Channel Letters Bent Smoothly?

Curved returns are usually formed through a series of small, controlled directional changes rather than one large bend. This allows the metal strip to gradually follow the required radius. Large-radius curves are generally easier than small internal curves, while letters such as O, C, S, B, and G quickly reveal flat spots or uneven forming. Material thickness, return depth, tooling, and the quality of the digital production path all influence the final smoothness.

Does Return Depth Affect Channel Letter Lighting?

Yes. Return depth changes the internal distance available between LED modules and the illuminated face, so it can influence how easily the light spreads before reaching the diffuser. A very shallow letter may provide less optical mixing distance, while a deeper letter provides more internal space but can increase material use, side projection, weight, and shipping volume. Depth should therefore be selected together with LED layout, stroke width, face material, and desired lighting performance.

How Can You Tell If a Channel Letter Return Was Bent Accurately?

An accurately formed return should follow the approved letter shape, maintain consistent depth, produce smooth curves and controlled corners, and fit the actual face and back without excessive force or obvious gaps. The seam should close cleanly, straight sections should not twist or wave, and visible surfaces should remain free from significant dents or tooling damage. On repeated projects, matching the approved first article and production records is also important for batch consistency.
