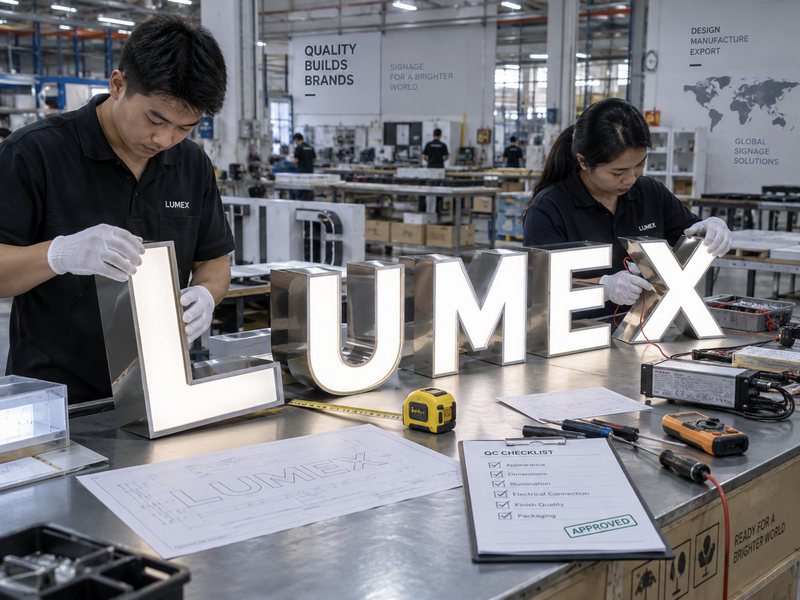

How Do You Inspect Channel Letters Before Shipping?

A finished channel letter can look excellent in a factory photograph and still create an expensive problem when it reaches the installation site. The face may be smooth, the paint may look clean, and every letter may illuminate during a quick test, yet a mounting hole can still be misplaced, a wire exit can be on the wrong side, a power component can be missing, or one section of the sign can become noticeably dimmer after operating for several hours. Once the shipment has crossed borders and reached a finished storefront, even a small manufacturing or packing mistake becomes harder and more expensive to correct. This is why pre-shipment inspection should never be treated as a final cosmetic glance before the cartons are closed.

To inspect channel letters before shipping, compare the finished sign with the final approved production information, then verify dimensions, construction, surface finish, illumination, wiring, power configuration, mounting interfaces, accessories, and packaging. Every illuminated component should operate correctly and consistently. Any defect should be corrected and retested before shipment, with photos, videos, packing records, or other suitable evidence retained for traceability.

The practical value of this process becomes clear when something goes wrong. A loose connector found in the factory may take minutes to replace. The same connector discovered after installation can involve troubleshooting between different time zones, a return visit by the installation crew, access equipment, delayed commissioning, and an unhappy end user. Pre-shipment inspection is therefore not about creating more paperwork. It is about finding problems at the point where they are still easiest to understand, repair, verify, and document.

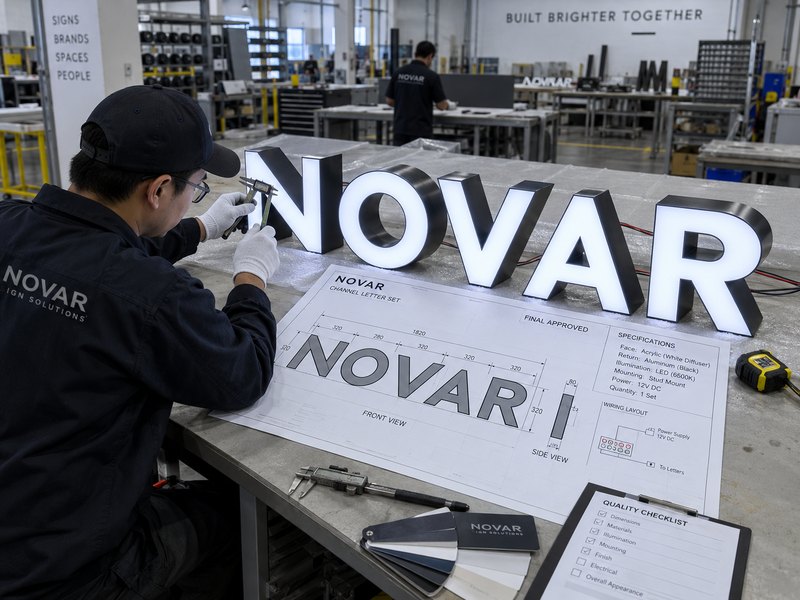

What Should Be Checked Before Inspection?

Before inspecting finished channel letters, QC should confirm the final approved drawing, product specification, dimensions, materials, lighting method, electrical configuration, mounting details, accessories, and packaging requirements. The purpose is to establish one clear acceptance standard before judging the physical product. Without an approved reference, an inspector can identify obvious defects but may still miss an important mismatch between the manufactured sign and the actual project.

Approved Files

A reliable inspection begins with the final approved production information rather than an early quotation drawing, sales rendering, screenshot, or outdated attachment. Channel letter projects often change during development. Overall dimensions may be adjusted after site measurement, the illumination type may change, return depth may be revised, a paint finish may be updated, or the mounting and wire-exit arrangement may be modified to suit the actual wall condition. If those changes are not consolidated into one controlled production reference, the product can be well made and still be wrong.

The QC team should therefore have access to a clearly identified final version that covers the information relevant to manufacturing and installation. Depending on the project, this can include artwork, layout, major dimensions, letter depth, face construction, return material, color, illumination method, electrical requirements, mounting configuration, wire exits, templates, accessories, and packaging instructions. Channel letters are not simply three-dimensional characters. A complete system may combine faces, returns, backs, LED modules, wiring, power components, studs, holes, raceways, backboards, and installation parts.

The most useful rule is straightforward: every important inspection decision should have an approved requirement behind it. If an inspector cannot explain which drawing, specification, approved sample, or project instruction supports a pass-or-fail decision, the criterion is probably too subjective. This discipline protects both sides because it separates manufacturing defects from personal preferences that were never included in the approved production standard.

Order Match

Before looking closely at scratches, joints, or lighting uniformity, confirm that the product on the inspection table is actually the product that was ordered. Check the letter set, quantity, project identification, dimensions, illumination type, face construction, return finish, mounting method, electrical arrangement, and destination requirements. This becomes increasingly important when one order contains several similar sizes or when a rollout uses the same logo across multiple stores with different wall conditions.

Channel letters can include front-lit, halo-lit, front-and-halo-lit, side-lit, trim-cap, trimless, raceway-mounted, backboard-mounted, and flush-mounted constructions. These products may use exactly the same logo while differing substantially in face material, backs, LED position, wall distance, cable routing, power arrangement, and installation hardware. iduoduo’s documented Channel Letter system separates these structures because their engineering and installation requirements are not interchangeable.

A useful first-stage review is shown below. It is intentionally simple because its purpose is to stop a fundamentally incorrect product from moving deeper into QC simply because its workmanship happens to look good.

Inspection Group	What to Confirm	Main Risk if Incorrect
Product identity	Logo, letter set, project, SKU, quantity	Wrong product or location
Dimensions	Overall layout, letter size, depth	Site fit problems
Construction	Face, return, back, mounting type	Wrong structure
Illumination	Front, halo, side, combined lighting	Wrong visual effect
Electrical	Power supply, voltage, controls	Commissioning problems
Installation	Holes, studs, exits, template	Site rework
Packing	Accessories, labels, carton allocation	Missing or mixed components

This first comparison also helps the inspector work more efficiently. Once product identity and basic configuration are confirmed, subsequent dimensional, visual, electrical, and installation checks can be tied to the correct approved version instead of relying on memory or assumptions.

Revision Control

Revision control is one of the least visible parts of custom sign manufacturing, yet it prevents some of the most avoidable mistakes. Project changes may arrive through email, messaging applications, marked-up drawings, photographs, or online meetings. A customer can change the total width in one conversation, revise the color in another, and later move a wire exit after reviewing the installation site. Unless those decisions are incorporated into the final controlled production file, different departments can unknowingly work from different versions.

The safest workflow is to establish one final production reference with a clear project identifier, revision, or approval date. Engineering, production, QC, packing, and shipment documentation should all relate to the same version. If an important dimension, material, electrical arrangement, mounting feature, or packing requirement changes, that change should be reflected in the controlled reference rather than existing only as a message buried in a conversation history.

Repeat orders require the same care. Historical files reduce redevelopment work, but they should not be treated as automatically current. The destination country, power configuration, wall condition, installation method, available component model, raw material, or packing requirement may have changed since the previous order. iduoduo’s documented repeat-production information can include final drawings, materials, colors, letter depth, LED details, power supplies, mounting holes, wire exits, templates, packaging information, and QC records.

Good revision control changes the nature of inspection. Instead of asking whether the product generally looks right, QC can compare a physical result with a specific approved requirement. That produces faster decisions, clearer defect reporting, and much better records when a project is repeated months or years later.

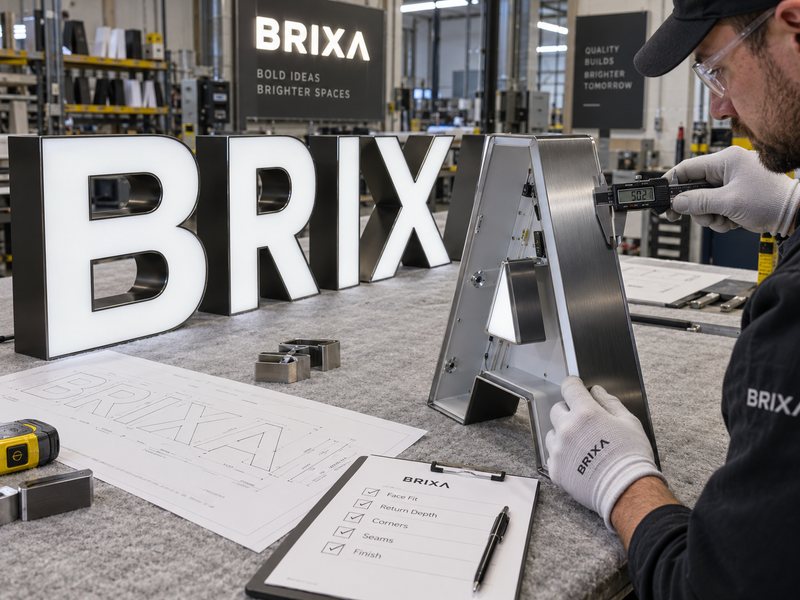

How Do You Inspect Structure and Finish?

Inspect channel letter structure by checking dimensions, geometry, face fit, returns, backs, edges, joints, flatness, surface treatment, and weather-related details against the approved specification. The objective is not only to identify visible cosmetic defects. Structural inspection confirms that each letter has been fabricated accurately enough to assemble, illuminate, install, transport, and remain visually consistent with the rest of the sign set.

Dimensions and Geometry

Dimensional inspection should focus on measurements that affect appearance, assembly, and installation rather than measuring every possible edge simply because it can be measured. Depending on the project, important dimensions may include overall sign width, individual letter height, return depth, major logo proportions, spacing references, raceway dimensions, backboard dimensions, mounting coordinates, and other drawing-controlled features that determine how the sign fits the installation site.

There is no sensible universal tolerance that should automatically be applied to every channel letter. Large exterior metal fabrication, narrow trimless details, acrylic faces, mounting templates, raceways, and small precision logos do not behave identically during manufacturing. The required accuracy should therefore relate to the approved drawing, material, manufacturing process, visual requirement, and installation method. A dimension that directly controls a wall penetration or a mounting template deserves more attention than a non-critical internal measurement.

Relationships between dimensions also matter. Every individual letter may have the correct height while the overall word appears wrong because the spacing has shifted. A raceway may be manufactured to the correct overall length while its fixing pattern does not correspond with the approved installation drawing. Dimensional QC should therefore examine both individual parts and the complete arrangement rather than treating each character as an unrelated component.

When photographs are used to record measurements, the reference points need to be visible. A photograph showing a tape measure somewhere beside a letter has little value if no one can identify where the measurement begins and ends. For complicated logos, it is usually more useful to document the dimensions that control installation, alignment, and brand proportion than to create dozens of measurements that add paperwork without materially reducing project risk.

Faces and Returns

Faces and returns deserve close inspection because they strongly influence both daytime appearance and perceived manufacturing quality. For acrylic or polycarbonate faces, inspect fit, edge condition, surface cleanliness, scratches, chips, cracks, flatness, and consistency from one letter to another. If the product uses trim cap, confirm that the trim is seated consistently around the shape. Trimless designs require even more attention at the face-to-return interface because there is no visible trim element to hide irregular fitting.

Metal returns should be examined for smooth curves, straight sections, consistent depth, clean corners, stable seams, and signs of fabrication distortion. Tight internal corners, narrow strokes, and complex logo transitions often reveal manufacturing quality more clearly than broad simple letters because bending, welding, grinding, and finishing are more difficult in these areas. Backs should also sit correctly, and screws or internal components should not create bulges, interfere with wiring, or obstruct installation hardware.

It is important to judge the assembly as one product. A perfectly cut face installed onto a distorted return still creates a poor finished letter. Likewise, excellent metal fabrication cannot compensate for a scratched or poorly fitted acrylic face. QC should therefore look at component quality and at how those components work together after final assembly.

Viewing conditions also affect the acceptance decision. Large storefront letters seen mainly from street distance do not have the same close-view cosmetic requirements as an interior logo installed behind a reception desk. The right standard is the approved project requirement and intended viewing condition, not an arbitrary expectation that every fabricated surface must look identical under extreme close-up inspection.

Surface Quality

Surface inspection should take place under useful ambient lighting before final packaging. Paint, powder coating, brushed finishes, polished metal, acrylic, trim, and visible back surfaces should be checked for scratches, dents, grinding marks, paint runs, contamination, exposed adhesive, inconsistent sheen, edge damage, fingerprints, and obvious differences between letters that are intended to match.

Reflective and dark glossy finishes generally reveal surface defects more easily than many matte finishes. Brushed stainless steel or similar directional surfaces should also be reviewed for grain consistency where a continuous visual appearance is required. Deep colors can reveal waves or grinding marks under side lighting that may not be obvious from a straight-on photograph, which is why QC photographs should support physical inspection rather than replace it.

The objective is not to reject a sign because a microscopic mark can be found under extreme examination. Fabricated products should be assessed according to intended viewing conditions and the approved quality requirement. A minor hidden internal mark is different from a scratch across the visible face. The key question is whether the defect will be noticeable after normal installation and whether it breaks the visual consistency of the complete set.

Set-level inspection is especially useful. Place the letters together and step back far enough to view them as one sign. A single letter with a different gloss level, paint tone, face color, edge finish, or apparent depth often becomes more obvious when surrounded by matching pieces. If one character immediately attracts attention for the wrong reason, it deserves closer examination before shipment.

Sealing and Drainage

Outdoor channel letters require inspection of weather-related construction according to the specific product design. QC should review relevant seams, cable penetrations, fasteners, backs, joints, sealing points, and drainage features rather than treating outdoor durability as a simple question of whether visible sealant has been applied.

More sealant is not automatically better. Some structures are designed to manage incidental moisture through controlled drainage, and blocking a drain path with excessive sealant can create new problems by allowing water or condensation to remain trapped inside the letter. The correct construction depends on the face and back design, mounting method, electrical layout, orientation, and installation environment.

Wire penetrations deserve particular attention because they combine mechanical, electrical, and weather risks. A cable passing through sheet metal should not rub against a sharp unfinished edge, while exterior penetrations should follow the approved protection method. Fastener locations and seams should also be reviewed for areas where water may collect or enter during normal exposure.

A professional inspection should therefore ask whether the finished letter matches the intended weather-management strategy, not simply whether it “looks waterproof.” Different structures and project environments can require different solutions, and a responsible manufacturer should verify the approved construction rather than applying the same protection claim to every outdoor sign.

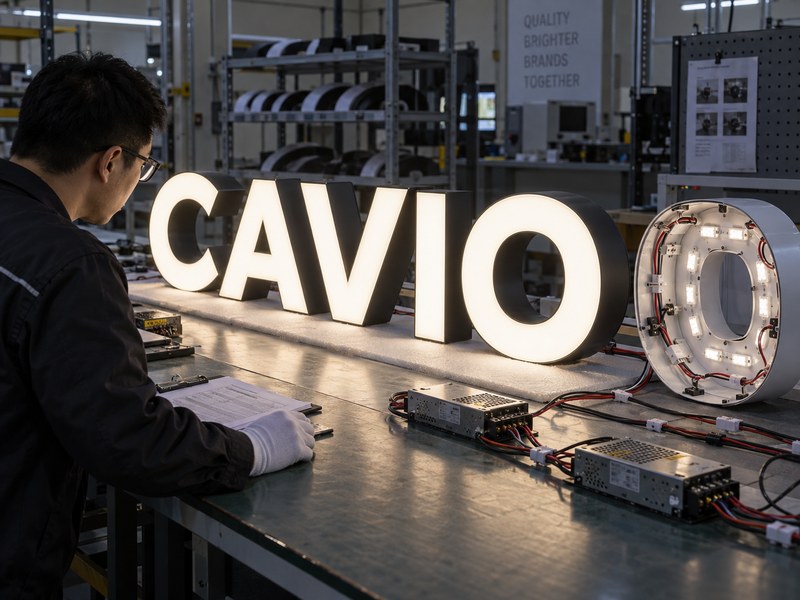

How Do You Test Lighting and Electrical Parts?

Test every illuminated letter using the approved electrical configuration before shipment. QC should verify complete illumination, brightness consistency, color, dark areas, hotspots, flicker, wiring, connectors, power supplies, controllers, and signs of abnormal heating. A short lighting test identifies obvious failures, while longer operation helps expose intermittent connections, unstable components, and early problems that may not appear immediately after power is switched on.

Complete Lighting Test

Every illuminated component should be energized before it is packed. Sample testing may be useful for some standardized manufacturing processes, but it is not a substitute for checking every custom letter that is expected to operate as part of a finished sign set. If a sign contains twelve illuminated letters and only eleven operate correctly, the project cannot be successfully commissioned simply because most of the pieces passed.

Begin by viewing the entire set while illuminated, then move closer to inspect individual characters and logo elements. Narrow strokes, tight corners, small internal spaces, complex shapes, and transitions between lighting zones deserve additional attention because these areas are more difficult to illuminate consistently. A section can technically contain working LEDs while still appearing incomplete or visually weak.

The expected result depends on construction. A front-lit letter should illuminate the intended face area. Halo-lit letters should provide the planned rear-light effect. Front-and-halo-lit letters need both systems to operate correctly, while side-lit products should produce their intended edge illumination without unintended light escaping from other surfaces. Where dimmers, RGB functions, controllers, or separate circuits are part of the approved product, those functions should be tested as well.

iduoduo documents 100% lighting inspection for illuminated signs before extended pre-shipment testing. The practical reason is simple: custom letters can differ in geometry, stroke width, wiring length, internal LED layout, and power demand, so the final complete product remains the most meaningful unit of acceptance.

Light Uniformity

A letter can be fully illuminated and still fail visually. Uniformity inspection should therefore look beyond whether the LEDs switch on and evaluate what the viewer actually sees. Common problems include hotspots, dark bands, dim corners, visible LED points, uneven brightness transitions, color-temperature differences, inconsistent halo coverage, and variations between letters that are intended to appear as one continuous sign.

Lighting conditions during QC influence what can be seen. Very bright workshop lighting can hide weak illumination, while complete darkness can exaggerate minor differences that may not be noticeable under normal use. A controlled lower-light environment generally makes it easier to evaluate whether the face or halo is visually consistent without creating an unrealistic test condition.

Front-lit letters should be viewed from the normal direction and from reasonable side angles because some dark areas or visible LED points become more apparent when the viewing angle changes. Halo-lit letters need a different approach because the perceived glow depends partly on the wall surface and the distance between the letter and wall. The factory can verify consistent rear illumination, but the exact halo at the site will also be influenced by the actual installation surface.

For front-and-halo-lit products, inspect front and rear lighting separately before evaluating the combined appearance. It is possible for the face to look uniform while the rear glow has gaps or uneven coverage. iduoduo’s documented optical checks include brightness, color consistency, hotspots, dark areas, halo quality, corner coverage, control function, and batch stability.

Wiring and Power

Electrical inspection should confirm that the sign is assembled according to the approved system rather than simply demonstrating that it can illuminate on a factory workbench. Inspect cable routing, connection security, polarity where relevant, connectors, controller wiring, power-supply identification, wire exits, and the mechanical protection of cables passing through the structure.

Internal wiring should not be trapped under sharp metal parts, stretched tightly across corners, compressed by backs or faces, or left loose where transportation and handling could create repeated movement. Connectors should be properly seated and organized so that future maintenance is understandable. If the project includes controllers or dimmers, their connection and operation should be reviewed as part of the complete electrical system.

Power components should match the approved requirements for the sign and destination. The relevant factors can include total electrical load, LED system, control arrangement, installation location, and destination-market configuration. Simply choosing a power supply that makes the sign illuminate in the factory does not prove that the system matches the approved project.

This becomes especially important for exported signs because factory test conditions may differ from the final building supply or connection method. The correct approach is to define the electrical configuration during engineering and verify that the finished product follows that configuration before shipment. Lighting, power, wiring, and installation interfaces should be treated as one connected system rather than separate accessories assembled at the end.

72-Hour Testing

A quick lighting test answers the question, “Does it work now?” Extended operation asks a more useful second question: “Does it remain stable after operating for a meaningful period?” iduoduo’s documented process uses a 72-hour pre-shipment test for illuminated products after 100% lighting inspection. Observation points include LED stability, power-supply stability, controller function, flicker, early failures, color differences, local dark areas, abnormal temperature rise, and wiring connections. Problems discovered during testing are repaired or replaced and then verified again.

The purpose of a 72-hour test should not be overstated. It does not prove that an electronic component can never fail during its service life, and it should not be presented as a substitute for correct component selection, engineering, installation, or maintenance. Its value is that some early failures, weak electrical connections, unstable controllers, and intermittent problems are more likely to appear after extended operation than during a brief test.

The following sequence shows how different stages answer different questions rather than duplicating the same check.

Test Stage	Main Verification	Typical Problems Revealed
Initial power-on	Every illuminated component operates	Open circuits, missed connections
Visual lighting check	Brightness, color, uniformity	Hotspots, dark areas, color variation
Functional check	Controllers, dimming, circuits	Control or configuration faults
72-hour operation	Stability over time	Flicker, early failure, unstable power
Post-test inspection	Condition after operation	Loose parts or handling-related issues

Finding a weak connector or unstable component while the sign is still in the factory is far less disruptive than discovering it after international freight, local delivery, installation scheduling, and site commissioning have already taken place.

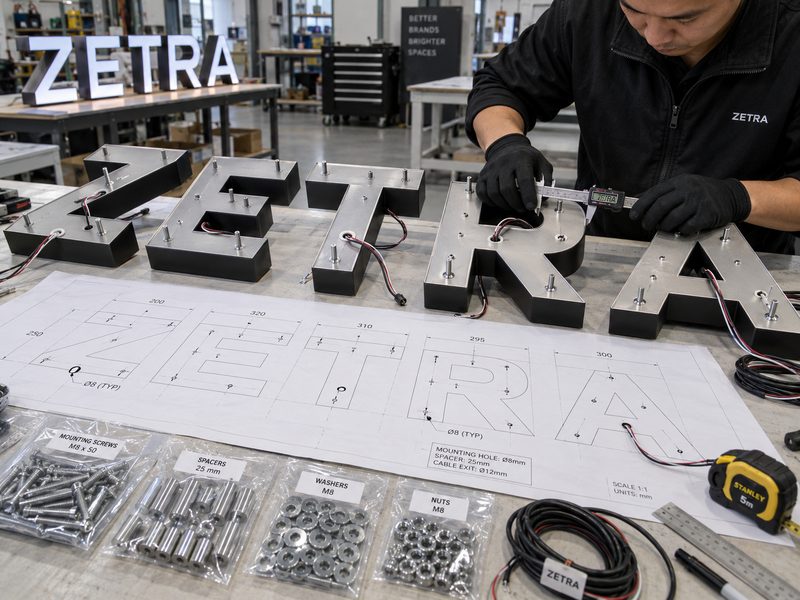

How Do You Check Installation Details?

Check every factory-made feature that the onsite installer will depend on, including mounting holes, studs, wire exits, raceways, backboards, templates, cables, hardware, and identification marks. These items should match the approved installation information. A sign can pass cosmetic and lighting inspection yet still become expensive to install when mounting coordinates or cable positions do not correspond with the actual project requirements.

Mounting Points

Mounting inspection should compare the physical product with the approved installation drawing instead of simply confirming that holes or studs are present. Quantity, location, spacing, orientation, and relevant dimensions should be checked for the features that control installation. Raceway and backboard systems also need their supporting mounting points reviewed because the final installer relies on these components to transfer the entire sign load to the building.

An accurately drilled hole can still be wrong if it is located in the wrong coordinate. This sounds obvious, but it is one of the reasons installation details should be checked against a controlled reference rather than inspected only for workmanship. The same principle applies to studs, brackets, and mounting plates. They can be strongly fabricated and still cause site problems if their position does not match the planned installation interface.

QC should also consider access. A mounting point may match the drawing but become difficult to use if wiring, internal hardware, a power component, or another structural feature blocks the installer from reaching it. Checking this relationship before packing helps prevent the site crew from modifying an otherwise finished product.

For larger or multi-letter sets, looking at the mounting system as one complete layout is particularly useful. This confirms not just the accuracy of individual letters but also whether the complete system can be positioned and installed according to the intended arrangement.

Wire Exits

Wire exits need the same level of attention as mounting features because they connect the factory-made sign with the building’s electrical and installation conditions. QC should check the position, direction, cable condition, required length, and relationship between the wire exit and the mounting plan.

A cable can work perfectly during factory testing and still create a serious field problem when it exits from the wrong location. The installer may need to create an additional wall penetration, extend the cable, expose wiring that was supposed to remain hidden, move the letter, or alter the original installation plan. On finished cladding, stone, tile, glass-related assemblies, or high-quality interior finishes, those changes can be especially disruptive.

Cable protection should also be checked where wiring passes through metal. Sharp unfinished edges can damage insulation during installation or later movement. For outdoor projects, the approved weather-protection method around the cable exit should be present without preventing other designed drainage or service features.

This is why wire exits should not be treated as a purely electrical inspection item. Their electrical function and physical position are equally important. A correctly connected cable in the wrong location is still a manufacturing problem from the installer’s point of view.

Installation Template

When a project includes an installation template, the template should be treated as part of the manufactured deliverable rather than as disposable paperwork. Letter positions, spacing, orientation, mounting references, and wire-exit information shown on the template should correspond with the actual finished products.

One of the more frustrating installation failures occurs when the letters themselves are correct but the template comes from an earlier revision. Installers naturally trust a template because its purpose is to transfer factory geometry to the wall. If it is wrong, several incorrect holes can be drilled before anyone realizes that the physical letters and the template do not match.

Where practical, finished letters can be compared directly with the relevant template before packing. This creates a straightforward visual check of layout and major installation references. It can also be photographed as useful project evidence, particularly when the manufacturing facility and installation team are in different countries.

Multi-location projects require especially clear identification. Similar templates for different store sizes can easily be mixed after they are folded or rolled. Each should carry enough project, location, or size information for the receiving team to identify the correct set without guessing.

Accessories

Installation accessories often represent a small proportion of the sign’s total value, but a missing component can stop an entire installation. Power supplies, controllers, dimmers, studs, screws, spacers, brackets, cables, templates, raceway components, and other project-specific parts should therefore be checked before packing.

The correct accessory set depends on the approved product and installation method. A generic bag of hardware should not automatically be treated as suitable for every project. The parts supplied for a flush-mounted halo-lit logo can differ from those required for a raceway-mounted front-lit sign, even when the visual artwork is similar.

Count loose accessories and organize them logically. Small parts can be separated into identified bags, while heavier electrical or metal components should be restrained so they cannot move into finished sign surfaces during transportation. Multi-location orders benefit from separate accessory sets by store, elevation, or sign group when that information is available.

iduoduo’s documented Channel Letter repeat-production information includes power supplies, mounting holes, wire exits, templates, packaging, and QC records, reflecting how closely installation details are connected with consistent project delivery. A shipment is not truly complete merely because all fabricated letters are present; the installer also needs the agreed components required to turn those letters into a working installed sign.

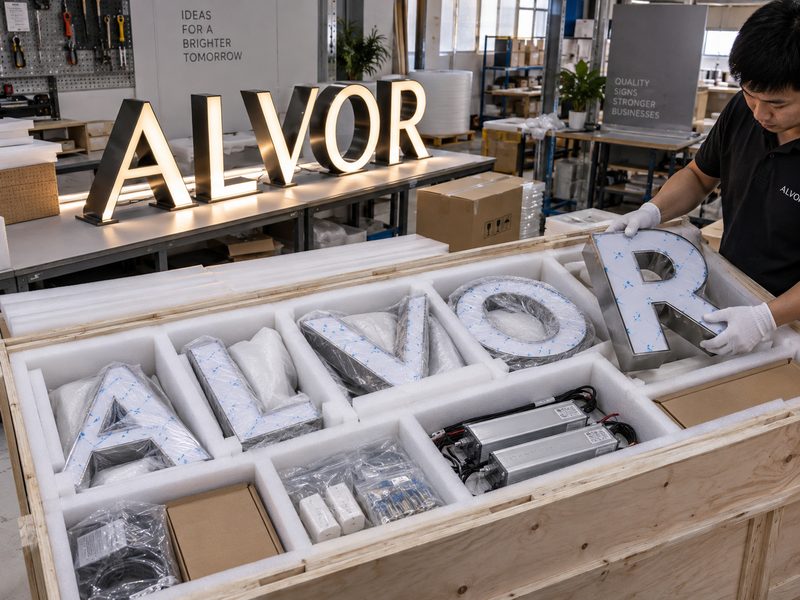

How Do You Inspect Packaging?

Inspect packaging by checking whether each finished letter is protected against scratching, impact, deformation, compression, and movement during transportation. Review cushioning, surface protection, separation, corner protection, carton condition, accessory packing, labels, quantities, and the packing list. The packaging method should reflect the actual geometry, finish, fragility, shipment method, and project organization rather than applying one standard carton to every sign.

Product Protection

Good packaging starts by identifying the weakest areas of the product. Acrylic faces can scratch or crack. Narrow letter strokes can be damaged by concentrated pressure. Metal returns can dent. Painted, polished, or brushed surfaces can rub against neighboring components, while projecting studs and brackets can damage other parts if they are not isolated.

Depending on the product, suitable protection can include surface film, soft wrapping, EPE foam, custom inserts, edge protection, corner guards, reinforced cartons, wooden frames, or plywood crates. The goal is not to make the package look heavy. The goal is to prevent the finished sign from moving, rubbing, bending, or taking concentrated impact during normal handling and long-distance transportation.

Movement inside the carton deserves particular attention. A product can have substantial cushioning around it and still become damaged if there is enough empty space for repeated movement inside the package. Packing inspection should therefore look at restraint as well as padding.

Unpacking also deserves consideration. The installer should not have to push a knife directly against a finished acrylic face or painted return simply to remove packaging. iduoduo’s documented export system can include EPE foam, corner protection, reinforced cartons, custom inserts, wooden frames, plywood crates, and other product-specific protection methods.

Accessory Separation

Loose accessories should not be allowed to move against finished sign surfaces. Power supplies, controllers, brackets, studs, screws, connectors, and other hardware need to be restrained and separated according to their size, weight, and potential to damage the main product.

Heavy electrical components are particularly important because even a relatively compact power supply can become an impact object if it moves freely inside a carton. Small metal parts create different risks: they can scratch faces, lodge between components, or disappear into packing material and later appear to be missing.

Accessory separation also improves the receiving and installation process. Clearly identified hardware bags or boxes allow the installer to find relevant parts quickly instead of searching through multiple layers of foam. For projects containing several locations or sign sets, accessories should be divided according to the agreed store, elevation, SKU, or installation grouping whenever practical.

A simple packing review can ask whether anything can move significantly, whether any hard object can contact a finished surface, and whether the receiving team can identify which accessories belong to which sign. iduoduo’s documented packing system may include separated power supplies, accessory kits, store and SKU labels, numbered cartons, and packing lists.

Labels and Cartons

Carton identification becomes increasingly important as projects become more complex. A single sign sent to one location is relatively easy to understand. A rollout involving multiple stores, logo sizes, electrical configurations, mounting methods, and accessory sets requires a much clearer packaging system.

Depending on project requirements, carton information can include store identification, SKU, sign type, carton number, destination reference, or installation group. The exact coding system matters less than consistency. Every identifier should correspond with the physical contents and the packing list, because a correctly printed label applied to the wrong carton creates more confusion than a missing label.

This organization helps both the factory and the receiving team. It reduces the chance of shipping the wrong set and makes distribution easier after arrival. Installers or warehouse personnel should not have to open every carton simply to discover which location it belongs to.

Carton condition should also be reviewed before dispatch. A package that is already crushed, wet, torn, or structurally weakened before entering international logistics should not be accepted simply because the goods were originally packed correctly. Packaging QC continues until the shipment itself is ready to leave the manufacturing environment.

Packing List

The packing list should be checked against the physical packed goods rather than generated solely from the sales order or production system. Verify the number of sign sets, cartons, electrical components, templates, mounting accessories, and any special project items before final shipment release.

This check becomes particularly useful when components are intentionally separated. A power supply may be packed away from the corresponding letters for protection. Without clear records, the receiving team can incorrectly assume that the component is missing. The same problem occurs when accessories for several stores are distributed across different cartons.

Packing verification should also consider items removed after initial packing. A component may be taken out for additional photography, electrical retesting, repair, or customer confirmation and then accidentally remain outside the carton. Closing the loop between packing, documentation, and final carton count helps catch this type of mistake.

The following record structure is simple enough to use operationally while still giving the receiving team meaningful information.

Packing Record	What to Verify	Practical Benefit
Carton number	Total quantity and sequence	Identifies missing cartons
Product or SKU	Correct sign set	Reduces sorting errors
Store reference	Destination allocation	Supports multi-store projects
Accessories	Hardware and electrical parts	Prevents installation delays
Template	Correct size and version	Reduces drilling mistakes
Power supply	Quantity and specification	Supports commissioning
Packing photos	Condition before dispatch	Creates shipment evidence

A packing list is therefore more than a logistics form. It provides a final quantity-control bridge between production, warehouse handling, international transportation, and the team responsible for receiving and installing the sign.

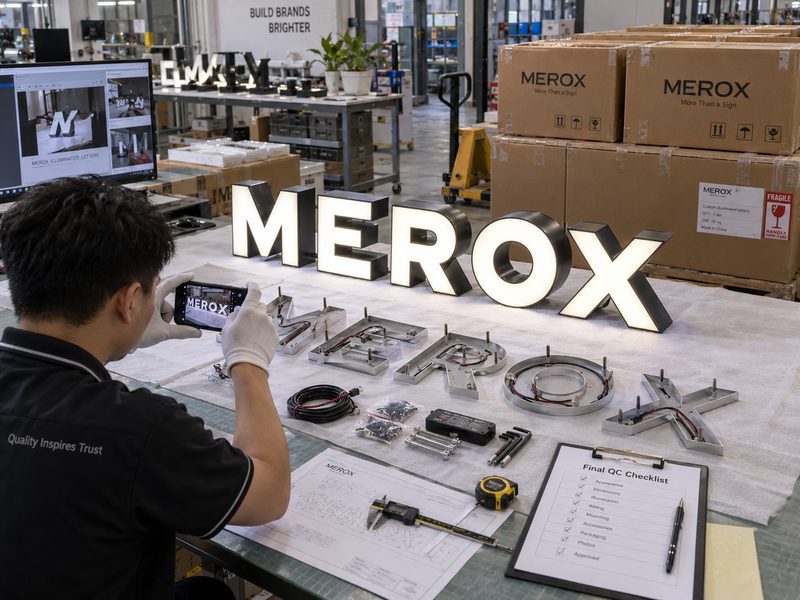

What Evidence Should Approve Shipment?

Shipment approval should be supported by evidence showing that the finished channel letters match the approved project and passed the required checks. Useful records can include product photographs, illumination photographs, dimensional evidence where relevant, operating videos, mounting and wire-exit records, accessory confirmation, test results, and final packing images. Any defect should be corrected and the affected function verified again before release.

Inspection Photos

Good inspection photography should document specific conditions instead of simply producing attractive images of finished signs. Useful views may include the complete sign set, close-up surface condition, faces, returns, backs, mounting points, wire exits, electrical components, accessories, illuminated appearance, labels, and final packaging.

When a photograph is intended to prove a measurement, the reference points should be visible and understandable. A ruler or tape placed somewhere beside a letter does not provide meaningful evidence when the viewer cannot determine where the measurement begins or which drawing dimension it represents.

Organization matters as project size increases. Hundreds of photographs with generic camera filenames become difficult to use during installation support, after-sales analysis, or repeat production. Records are much more useful when they can be associated with the project, store, SKU, carton, or relevant QC stage.

Photography should support physical inspection rather than substitute for it. Exposure, reflections, camera angle, and lighting can hide surface waviness, scratches, or illumination differences. A polished letter can look flawless from one angle and show obvious marks under side lighting. The stronger process is to inspect the product first and use photographs to preserve evidence of the result.

Test Video

Video is particularly useful for illuminated channel letters because it captures operation and change over time in a way that still photographs cannot. A practical test video should show enough context to identify the project and then show the complete set operating before moving through relevant details.

Camera movement should be slow enough to reveal lighting consistency. Where the approved product includes controllers, dimming, RGB or RGBW functions, separate circuits, or switching behavior, the required functions can be demonstrated in the same record. The goal is not to create promotional footage but to show that the product operates as intended before shipment.

When a defect has been repaired, a post-repair video can also demonstrate that the affected function has been checked again. This is especially useful when the person authorizing shipment is in another country and cannot physically inspect the factory product.

iduoduo’s documented optical records can include LED information, light color, color temperature, module spacing, letter depth, face information, test photographs, illumination videos, and approved samples for relevant projects. These records can become valuable again during repeat production or later troubleshooting because they show what the product looked like before it left the factory.

Retesting Failures

A repaired item should not automatically be considered accepted simply because a technician has completed corrective work. The relevant inspection needs to be repeated after the repair. If an LED component is replaced, the letter should be powered and the lighting checked again. If a face is replaced, fit, surface condition, and illuminated appearance should be reviewed. If a mounting feature is corrected, its position should be compared again with the approved installation information.

The scope of retesting should also consider what may have been disturbed during repair. Opening a finished letter to correct wiring can affect cable routing, fasteners, backs, seals, or mounting components. A narrow retest that checks only the replaced part can therefore miss a new problem created during the corrective work.

iduoduo’s documented 72-hour test procedure states that problems discovered during testing are repaired or replaced and then verified again. This creates an important distinction between repair and acceptance. Repair means corrective work has been performed. Acceptance means the product has demonstrated that it meets the relevant requirement after that work.

That second step is what should release a product for final packing. A strong QC process never treats rework as automatically successful simply because the visible defect has disappeared.

Shipment Release

Channel letters should be released only after the project has completed a final review covering product identity, critical dimensions, appearance, illumination, electrical configuration, installation interfaces, accessories, testing, and packaging. The exact record format can vary, but the release decision should answer whether the product is the approved version and whether anything known at the factory could reasonably stop installation or commissioning after delivery.

A practical final release check can be reduced to eight questions:

1. Is this the correct approved product and revision?
2. Do the critical dimensions and layout match?
3. Are faces, returns, backs, materials, colors, and finishes acceptable?
4. Does every illuminated component operate correctly?
5. Are color, brightness, and lighting uniformity acceptable?
6. Do wiring, mounting points, wire exits, templates, and controls match the approved configuration?
7. Are installation accessories and electrical components complete?
8. Has final packaging been checked and documented?

For illuminated iduoduo projects, the documented quality process includes 100% lighting inspection and 72-hour pre-shipment testing, while project information can also cover optical performance, electrical components, mounting interfaces, accessories, and packaging. The documented warranty wording is 72-Hour Pre-Shipment Testing + 3-Year Warranty.

The real value of pre-shipment inspection is not that a factory can produce a long checklist. Its value is that preventable problems are discovered while drawings, technicians, tools, replacement components, packaging materials, and manufacturing equipment are still available in one place. A loose connection, incorrect template, scratched face, or missing accessory is much easier to address before the shipment leaves than after an installation team has already arrived at the site.

For sign companies, brands, contractors, and project teams sourcing custom channel letters internationally, the strongest shipment is therefore not simply one that leaves the factory on schedule. It is one that leaves with enough inspection, testing, and documentation to give the receiving and installation teams a reasonable expectation that the product will arrive as approved, can be identified correctly, and can proceed to installation without unnecessary factory-related rework.

Frequently Asked Questions

What Should Be Included in a Channel Letter Pre-Shipment Inspection?

A complete pre-shipment inspection should cover product identity, approved dimensions, faces, returns, backs, color, finish, illumination, wiring, power components, mounting points, wire exits, accessories, and packaging. The exact checklist should follow the approved project rather than applying the same generic standard to every sign. Illuminated products also need functional lighting checks, while project-specific items such as templates, raceways, controllers, or backboards should be verified before packing.

How Do You Check LED Channel Letters for Lighting Problems?

Power the complete set and inspect every illuminated area rather than testing only a few letters. Look for dark areas, hotspots, visible LED points, color differences, dim corners, flicker, inconsistent halo coverage, and unusual differences between neighboring letters. Lighting should be reviewed under conditions where unevenness can actually be seen. For products with dimming, RGB functions, controllers, or separate lighting circuits, the approved functions should also be operated before shipment.

How Long Should Channel Letters Be Tested Before Shipping?

There is no universal test duration that every manufacturer must use for every product, so the required process should follow the manufacturer’s established QC system and the project specification. iduoduo documents 100% lighting inspection followed by a 72-hour pre-shipment test for illuminated products. The purpose is to provide additional opportunity for early LED, power, controller, flicker, temperature, connection, or local lighting problems to appear before international shipment.

How Do You Know Whether Mounting Holes and Templates Are Correct?

Mounting holes, studs, wire exits, and templates should be compared with the final approved installation information rather than checked only for clean fabrication. The important issue is coordinate accuracy and relationship between components. Where practical, the finished letter set can be compared directly with the installation layout or template before packing. Multi-location projects should also identify templates clearly so that similar sizes cannot be mixed after delivery.

What Packaging Is Best for Shipping Channel Letters Internationally?

Packaging should be designed around the sign’s geometry, finish, weight, fragile areas, and transport method rather than using one universal solution. Common protection can include surface film, soft wrapping, EPE foam, custom inserts, corner protection, reinforced cartons, wooden frames, or plywood crates where appropriate. Electrical components and hardware should be separated so they cannot strike finished surfaces, and the product should be restrained sufficiently to prevent damaging movement inside the package.

What QC Evidence Should a Manufacturer Provide Before Shipment?

Useful evidence can include overall product photographs, close-up finish images, illumination photographs, operating videos, dimensional records where necessary, mounting and wire-exit photographs, accessory confirmation, labels, and final packaging records. The strongest evidence is linked to an actual inspection process rather than produced only for presentation. For remote international projects, these records help the project team understand what was verified before shipment and provide a reference if installation or repeat-order questions arise later.
