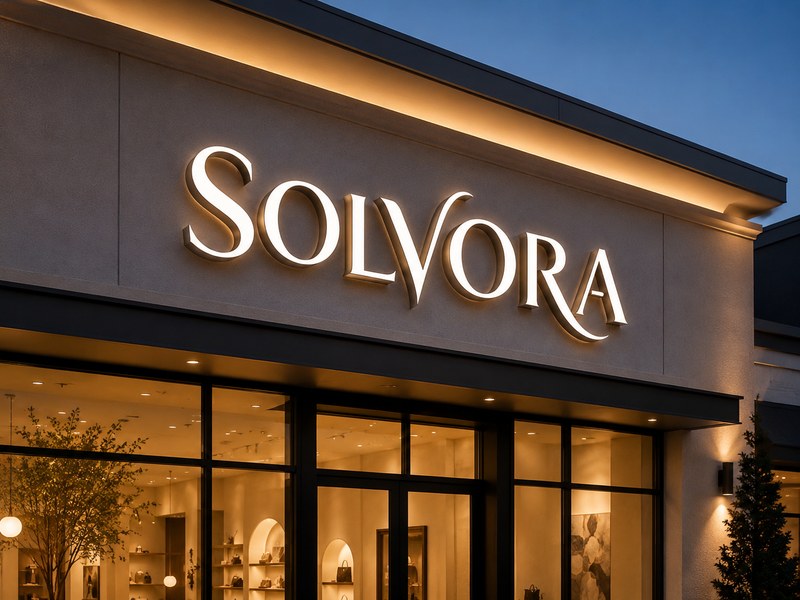

Minimum Stroke Width for Channel Letters: Why It Matters Now

A logo can look perfectly balanced on a laptop and still create serious problems when it becomes a three-dimensional illuminated sign. The problem is often not the total letter height or the overall sign width. It is the narrowest local section inside one letter, symbol, serif, connection, or decorative curve. That small area must accommodate real materials, fabrication tolerances, LED components, wiring, adhesives, drainage, and mounting details.

Minimum stroke width is important because the narrowest part of a channel letter must provide enough usable space for the return, face attachment, LEDs, wiring, sealing, and assembly. When a stroke is too narrow, the letter may become difficult to fabricate, weak at tight sections, unevenly illuminated, costly to service, or impossible to reproduce consistently across a multi-location sign program.

There is no single measurement that works for every channel letter. A workable width depends on the letter structure, lighting method, return depth, face material, LED system, metal-forming process, installation environment, and expected viewing distance. A narrow indoor halo-lit logo may use a completely different solution from a large outdoor front-lit storefront sign.

A common project starts with a designer saying, “Please keep the logo exactly as drawn,” while the fabricator replies, “The thin sections need to be wider.” Both sides may be right. The real task is not choosing design over manufacturing. It is finding the smallest change that protects the brand while making the sign stable, bright, serviceable, and repeatable.

What Is Minimum Stroke Width?

Minimum stroke width is the narrowest distance between two opposite edges of a channel letter or logo after the artwork has been scaled to its final production size. It determines whether the letter has enough space for returns, LEDs, wiring, face attachment, sealing, and assembly. Overall letter height alone cannot confirm whether a design is suitable for production.

What Does Stroke Width Measure?

Stroke width measures the actual thickness of a letterform at a specific point. For channel letters, the important figure is not the average stroke width but the smallest local width found anywhere in the artwork.

For example, a capital letter may be 600 mm high and appear large enough for production. However, one diagonal, serif, crossbar, or curved terminal may narrow to only 18 mm. That 18 mm section becomes the minimum stroke width and may control the construction method for the whole letter.

Measurements should be taken between the finished production outlines, not between font centerlines. Text effects, decorative outlines, shadows, and software stroke settings must first be converted into closed vector shapes.

The following examples show why the narrowest point matters:

Letter or logo feature	Typical issue
Bold vertical stroke	Usually provides enough internal room
Tapered diagonal	Width decreases toward one end
Script connection	May become too weak or too narrow for wiring
Serif tip	Difficult to bend, weld, seal, and illuminate
Small crossbar	Limited space for LED placement
Rounded terminal	LED may not reach the end evenly
Logo intersection	Several returns and wires compete for space
Small symbol or dot	May be too small for standard channel construction

A channel letter does not need the same width everywhere. Wide and narrow areas can coexist, but every narrow section must still be practical to fabricate, illuminate, mount, and reproduce.

How Is It Different from Letter Height?

Letter height measures the vertical size of a character. Stroke width measures the thickness of its individual parts. The two dimensions affect different parts of the project.

Letter height mainly influences:

Viewing distance
Overall sign scale
Wall coverage
Installation height
Permit drawings
Packaging dimensions
Structural load

Minimum stroke width mainly influences:

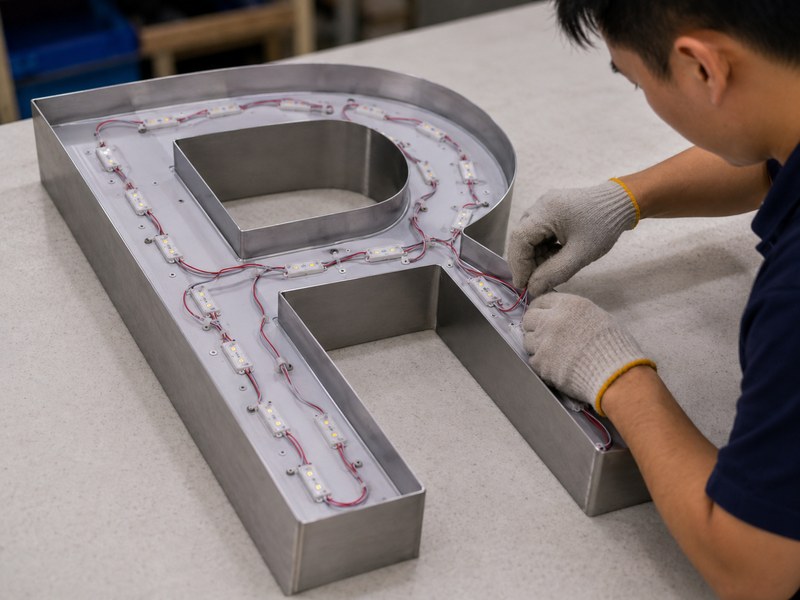

Metal return forming
LED module selection
Wire routing
Face retention
Light distribution
Local strength
Sealing and waterproofing
Production tolerance

Two letters can both be 500 mm high but require completely different fabrication methods.

500 mm-high letter style	Possible narrowest stroke	Production condition
Heavy sans-serif	70–100 mm	Usually suitable for standard channel construction
Regular sans-serif	40–60 mm	Often workable after normal engineering review
Condensed font	25–40 mm	May restrict LED and wiring space
Serif font	15–35 mm at the tips	Local modification may be needed
Script font	10–30 mm at connections	Often requires special construction
Fine-line logo	Below 20 mm	Conventional channel letters may not be suitable

The values above are screening references rather than fixed manufacturing limits. Return depth, lighting method, LED size, face construction, material thickness, and indoor or outdoor use can change the acceptable range.

A common mistake is approving a sign because the letters are “large.” A 1,000 mm-high script letter can still contain a 12 mm connector. The large overall size does not make the narrow connector easier to fabricate.

Which Logo Areas Need Checking?

Every part of the final vector outline should be reviewed. Measuring only one vertical stroke is not enough.

The highest-risk areas usually include:

Narrow script links between letters
Sharp points on serif fonts
Crossbars in letters such as A, H, and e
Diagonals in M, N, V, W, K, and R
Inner curves in a, e, g, and s
Small counters inside A, B, D, O, P, and R
Dots, accents, punctuation, and trademark symbols
Thin outlines surrounding a thicker logo
Decorative flourishes and tapered tails
Intersections where several shapes meet
Narrow spaces between adjacent strokes
Small detached logo elements

Minimum stroke width and minimum negative space should be checked together. A stroke may be wide enough, while the opening beside it is too small.

For example, thickening a letter can solve an LED-space problem but create another problem by closing the inner counter. A small opening in the letter “e” may disappear after adding return thickness, trim cap, paint buildup, or face overlap.

The following measurements are especially useful during artwork review:

Measurement	Why it matters
Narrowest external stroke	Determines available channel width
Smallest internal opening	Prevents counters from closing visually
Narrowest connecting bridge	Identifies weak or fragile areas
Smallest detached component	Shows whether a separate unit can be fabricated
Minimum letter spacing	Affects installation and halo separation
Tightest inside radius	Influences return bending and face fitting
Smallest serif or terminal	Reveals difficult finishing areas
Narrowest illuminated face area	Helps predict hotspots and dark ends

For multi-word signs, every character should be checked. One ampersand, number, logo mark, or lowercase letter can require more engineering work than all the larger characters combined.

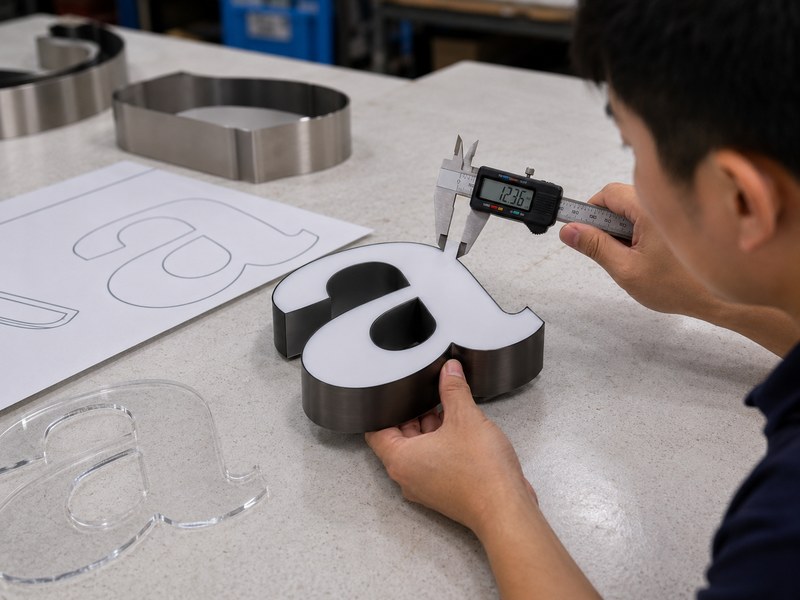

How Is It Checked in Artwork?

Minimum stroke width should be checked in a full-scale vector drawing. Preferred file formats include AI, EPS, SVG, DXF, CAD, or a vector PDF.

Before measurement, the artwork should be prepared correctly:

Convert all text to outlines.
Expand visible strokes into closed shapes.
Remove duplicate paths and overlapping lines.
Join open paths where required.
Confirm the final overall dimensions.
Check whether the logo has been distorted during scaling.
Measure the narrowest part of every letter and symbol.
Mark high-risk sections directly on the drawing.
Record the approved version number and date.

A JPG, PNG, website screenshot, or phone photo is useful for understanding the visual style but is not reliable for final measurement. Raster images may contain perspective distortion, blurred edges, compression, or an unknown scale.

A practical engineering drawing should record the following information:

Drawing item	Example
Overall logo width	2,400 mm
Overall logo height	620 mm
Main letter height	500 mm
Minimum stroke width	32 mm
Smallest internal opening	24 mm
Return depth	80 mm
Face material	3 mm opal acrylic
Return material	0.8 mm aluminum
Lighting	Front-lit LED
Mounting	Individual flush mount
Wire exit	Rear center of each letter
Installation surface	Aluminum composite fascia
Use environment	Outdoor storefront

The minimum stroke should be shown on the approved drawing rather than discussed only in email or chat. A marked drawing reduces misunderstandings between the design team, engineering team, production team, and installation team.

Which Width Should Be Used for Early Planning?

During the concept stage, the following reference ranges can help identify whether a design needs closer review:

Minimum stroke width	Early planning guidance
Below 15 mm	Usually too narrow for standard illuminated channel letters

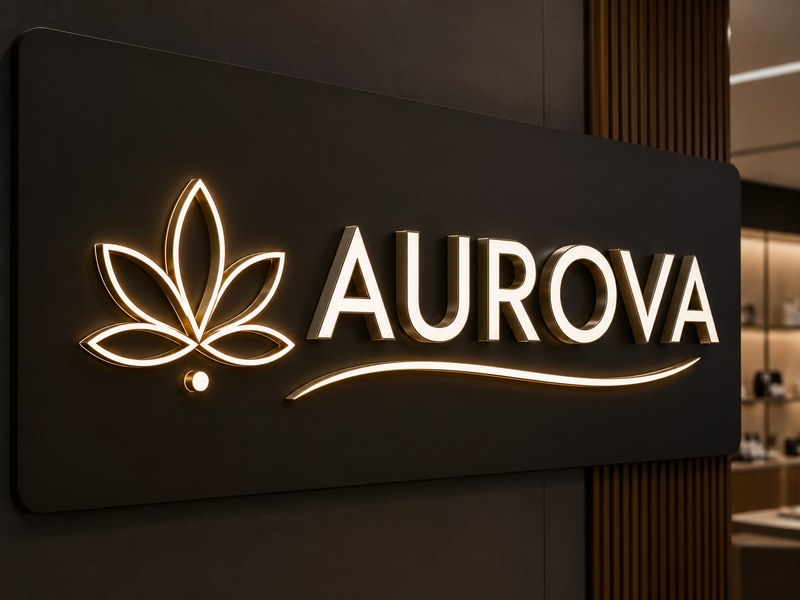

15–20 mm	Often requires acrylic, resin, neon flex, or another special structure
20–25 mm	Possible for selected indoor or compact constructions
25–38 mm	Requires review of LED size, depth, face, and return system
38–50 mm	Practical for many standard front-lit letters
Above 50 mm	Provides more room, but lighting still needs proper calculation

These ranges should not be used as a factory guarantee. A 30 mm straight stroke may be easier than a 40 mm stroke with a sharp taper. A wide face may still have limited internal space after returns, trim cap, bonding edges, and sealant are considered.

For early quotation, the file should include:

Final or estimated sign dimensions
Indoor or outdoor use
Front-lit, halo-lit, or combined lighting
Preferred return depth
Quantity
Installation surface
Destination country
Required voltage
Target completion date

Without those details, a width recommendation can only be preliminary.

What Happens When the Measurement Is Ignored?

Ignoring minimum stroke width often leads to changes after quotation or after production has already started. At that stage, corrections usually cost more and take longer.

Common consequences include:

Problem	What happens in production
LED does not fit	Another LED type or structure must be selected
Wire has no route	Wiring becomes crowded or visible
Face edge is too narrow	Bonding or trim-cap retention becomes unreliable
Tight return cannot be formed	Outline must be simplified
Small counter closes	Letter appearance changes
Connector bends during handling	Reinforcement or redesign is required

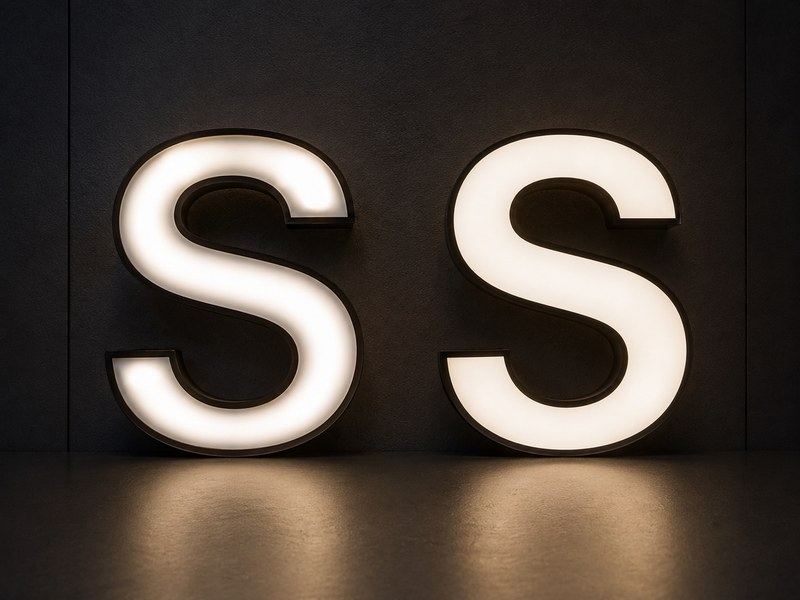

Stroke end appears dark	LED layout or geometry must change
Visible LED dots appear	Depth, diffuser, or module pitch must be revised
Outdoor seal is too narrow	Water protection becomes difficult
Letter cannot be serviced	Repair may require replacing the complete unit

The most expensive outcome is not always a rejected design. A design that can technically be made but cannot be reproduced consistently may create larger problems. The first set may look acceptable, while later batches show different brightness, alignment, edge quality, or color.

For chain-store and repeat-order projects, the approved minimum stroke should become part of the controlled production standard. Future resizing should be checked again because shrinking the artwork also shrinks every stroke, opening, radius, and spacing dimension.

What Should Be Confirmed Before Engineering Approval?

A minimum stroke measurement becomes useful only when it is connected to the real sign structure. Before approval, the factory should confirm:

Final vector artwork
Final sign dimensions
Narrowest stroke location
Smallest internal opening
Product type
Lighting direction
Return depth
Face and return materials
LED format
Wiring route
Power supply arrangement
Mounting method
Wall material
Indoor or outdoor environment
Weather exposure
Destination voltage
Packaging limits
Installation access

The aim is not to make every logo thicker than necessary. The aim is to identify where the design stops being a flat graphic and starts becoming a physical product.

A good engineering review may confirm that the original artwork can be produced without changes. In other cases, only one small connector, serif, or inner opening needs adjustment. When the original proportions cannot be modified, the factory can compare other structures such as solid acrylic letters, halo-lit metal letters, edge-lit acrylic, LED neon, or a backboard-mounted logo system.

Minimum stroke width is therefore not a minor drawing note. It is one of the earliest measurements that connects logo design with materials, lighting, fabrication, installation, and repeat production.

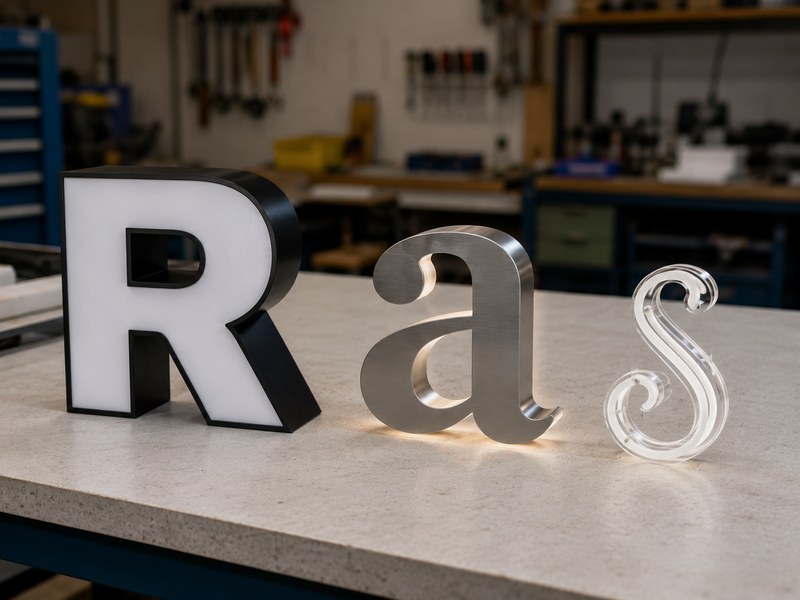

Is There One Minimum Stroke Width?

No single minimum stroke width applies to every channel letter. A practical limit depends on the lighting method, return depth, LED size, face-retention system, metal thickness, letter shape, weather protection, and production method. A 38 mm stroke may work for one front-lit letter but fail in a tight serif, shallow return, RGB system, or front-and-halo-lit structure.

What Width Is Common for Standard Letters?

For conventional front-lit channel letters, approximately 38 mm, or 1.5 inches, is often used as an early planning reference. It is not a universal manufacturing rule. The measurement simply gives many standard LED modules, wires, face edges, returns, and assembly tools a more practical amount of room.

The finished face width is not equal to the usable internal width. Return walls, trim cap, bonding edges, sealant, paint buildup, and internal corner shapes all take up space.

A simple preliminary calculation is:

Usable internal width ≈ finished stroke width − left edge allowance − right edge allowance

For example:

Finished stroke width: 38 mm
Allowance at each edge: 4 mm
Approximate usable width: 30 mm

A 25 mm finished stroke with the same edge allowances leaves only about 17 mm. A compact LED may physically fit, but wiring, connectors, adhesive pads, bending radius, sealing, and service access can still become difficult.

The following ranges are useful for early artwork screening:

Minimum finished stroke	Early production assessment
Below 15 mm	Usually unsuitable for conventional illuminated metal channel letters
15–20 mm	Requires a special structure, compact lighting, or another sign type
20–25 mm	Sometimes possible for selected indoor letters
25–38 mm	Conditional; LED, depth, face, and return system must be reviewed
38–50 mm	Practical for many standard front-lit constructions
Above 50 mm	More working space, although proper LED layout is still required

A straight 30 mm stroke may be easier to produce than a 40 mm tapered serif. The narrowest measurement alone does not show corner radius, access, wire route, or optical behavior.

The following comparison shows why one number should not be used as an automatic approval standard:

Design condition	30 mm stroke	40 mm stroke
Straight sans-serif line	May be workable	Usually easier
Sharp tapered terminal	High-risk area	May still be difficult
Tight script connection	Often fragile	Requires local review
Deep front-lit return	Limited side access	More practical
Shallow letter with compact LED	May be possible	Usually comfortable
Outdoor sealed construction	Often restricted	Better sealing space
Front-and-halo lighting	Usually insufficient	May remain crowded

During quotation, the factory should state whether the proposed figure refers to the visible face, the metal channel, the acrylic insert, or the remaining internal cavity. Using the same phrase for different measurements can create major misunderstandings.

Why Do Factory Limits Differ?

Two factories may review the same logo and provide different minimum-width requirements. The difference often comes from equipment, LED systems, construction methods, worker access, quality standards, and the type of projects normally produced.

A workshop focused on small indoor halo-lit letters may use compact LEDs, routed acrylic backs, thin stainless steel returns, and short wire routes. A factory producing outdoor front-lit letters for chain stores may require wider strokes for trim cap, waterproofing, standard LED modules, serviceability, and repeat production.

Several factors commonly change the quoted limit:

Factory factor	Effect on the minimum stroke
LED module dimensions	Larger modules need a wider cavity
LED beam angle	Narrow beams may require more mixing distance
Return-forming equipment	Tight curves may exceed forming limits
Welding and bonding method	Narrow areas reduce tool access
Face-retention system	Trim cap uses more edge space than some trimless methods
Wire and connector system	RGB or RGBW systems need more wiring room
Waterproofing standard	Sealant, drainage, and protected connections need space
Inspection standard	Strict uniformity standards may require wider strokes
Order quantity	Repeat production needs greater tolerance stability
Repair expectations	Serviceable letters need more internal access

“Can the factory make it?” is not specific enough. A narrow letter might be producible as a one-off sample but unsuitable for 300 store locations.

A better review should answer:

Can every letter be produced from the approved vector outline?
Can the selected LEDs be installed without forcing the wiring?
Will the face light evenly at the required brightness?
Can the letter pass the agreed outdoor sealing requirements?
Can the same appearance be reproduced in later batches?
Can installation holes and wire exits remain in the approved positions?
Can a damaged LED or power connection be serviced?
Can the finished letters survive packing and international transport?

A factory may accept a 24 mm stroke by using a special LED and more manual work. Another factory may set a 38 mm minimum because its standard production system is designed for stable batch output. The lower number does not automatically mean stronger manufacturing capability. It may simply represent a different quality target or construction method.

Published minimums should therefore be treated as screening information. Final approval should come from a dimensioned drawing linked to the proposed structure.

How Does Letter Depth Change the Limit?

Return depth affects light diffusion, LED placement, wire access, heat, assembly, and the distance between the light source and the face. Stroke width and depth must be reviewed together.

A shallow letter has less distance for light to spread. LED dots or bright lines are more likely to appear when the modules sit close to the acrylic face. Compact wide-angle LEDs, closer spacing, stronger diffusion, or another lighting structure may be needed.

A deeper return gives light more distance to mix, but a narrow and deep cavity can be difficult to assemble. Workers may be able to reach downward into the letter but lack enough sideways room to position modules, press adhesive pads, route wires, or inspect connections.

The relationship can be seen in a few simplified examples:

Letter construction	Approximate return depth	Stroke-width concern
Compact indoor halo-lit letter	20–40 mm	Small LEDs and controlled back opening are essential
Shallow front-lit letter	40–60 mm	Hotspots become a major concern
Medium-depth front-lit letter	60–90 mm	Better light mixing, but narrow corners still need review
Conventional deep front-lit letter	90–130 mm	More optical distance; assembly access remains important
Large outdoor channel letter	100–150 mm or more	Wider strokes often support structure, LEDs, and servicing

The ranges are not fixed specifications. Letter size, face material, LED output, beam angle, interior finish, and viewing conditions can change the result.

A useful early check is the ratio between return depth and minimum stroke width:

Example	Return depth	Minimum stroke	Practical concern
A	50 mm	50 mm	Balanced working space for many compact letters
B	80 mm	25 mm	Deep, narrow cavity; difficult assembly and wiring
C	40 mm	25 mm	Shallow cavity; possible hotspot risk
D	100 mm	50 mm	More room for standard outdoor construction
E	120 mm	30 mm	Light may spread, but internal access is restricted

No fixed ratio guarantees success. The table helps identify designs requiring additional review.

Depth also changes the appearance of small letters. A 100 mm-deep return on a 200 mm-high letter may look visually heavy from an angle. Reducing the depth may improve appearance but create a more difficult optical condition. A well-balanced design considers daytime proportions as well as illuminated performance.

Which Letter Types Need More Space?

Different lighting structures use the internal cavity in different ways. A width that works for a single-output halo-lit letter may not work for front-and-halo lighting.

The main channel letter types have different space requirements:

Letter type	Main internal needs	General width pressure
Front-lit	LEDs, wires, back, face-retention edges	Moderate
Halo-lit	LEDs facing the wall, acrylic back, standoffs, wire exits	Moderate, depending on size
Front-and-halo-lit	Two light paths, additional wiring, light separation	High
Side-lit	Edge illumination, layered materials, controlled sidewall	Structure-dependent
Trim-cap front-lit	Trim cap, face overlap, standard LED cavity	Moderate to high
Trimless front-lit	Precise bonding or mechanical face connection	High at narrow edges
RGB/RGBW letter	More conductors, connectors, controller planning	Higher than single-color
Outdoor sealed letter	Sealant, protected joints, drainage, cable glands	Higher than indoor use

Front-lit letters usually need enough face width for LED placement and light diffusion. Narrow terminals may become darker because no module can be positioned close enough to the end.

Halo-lit letters send light toward the wall. Minimum width depends on the acrylic back opening, LED orientation, return shape, and standoff distance. A narrow metal face may be possible when the acrylic back and lighting system are engineered specifically for the shape.

Front-and-halo-lit letters are more demanding. The structure must create forward illumination and a rear halo while controlling two optical paths. Wiring, LED groups, backs, returns, and fastening details compete for limited space. A minimum used for a basic front-lit letter should not be copied into a front-and-halo-lit design.

Trim cap also changes the calculation. A 38 mm visible stroke can lose several millimeters on both sides where the trim cap grips the face. The illuminated area becomes smaller than the original artwork stroke. Narrow counters and small openings can close visually after the trim cap is added.

Trimless construction avoids a visible trim cap but does not remove the need for a secure face connection. Bonding surfaces, acrylic steps, return alignment, and adhesive coverage still require space. Narrow trimless letters often need tighter fabrication tolerances than standard trim-cap letters.

RGB and RGBW lighting adds another complication. A single-color module may use two conductors, while color-changing systems require additional wiring and control connections. Sharp corners and narrow bridges can become crowded even when the LED body fits.

How Do Materials and Face Systems Change the Number?

The same artwork can have different minimum requirements when the materials change.

Acrylic face thickness, metal return thickness, trim-cap width, adhesive area, aluminum channel shape, and internal back construction all reduce or redistribute usable space.

For example:

Finished stroke	Edge system	Approximate edge loss	Remaining central area
50 mm	4 mm per side	8 mm	42 mm
38 mm	4 mm per side	8 mm	30 mm
30 mm	4 mm per side	8 mm	22 mm
25 mm	4 mm per side	8 mm	17 mm
20 mm	4 mm per side	8 mm	12 mm

The calculation is simplified, but it shows why a few millimeters matter. Losing 8 mm from a 50 mm stroke removes 16% of its width. Losing the same 8 mm from a 20 mm stroke removes 40%.

Colored acrylic may also require more LED output than white acrylic. Dark red, blue, or heavily pigmented faces can absorb more light. A narrow cavity may not provide enough room to increase LED density without creating heat or hotspots.

Metal thickness affects forming and welding. Increasing the metal gauge can improve stiffness but make very tight bends harder. Thin material may follow a narrow curve more easily but can deform during finishing, packing, or installation.

The practical limit should therefore be linked to the exact material schedule rather than shown as an isolated number.

How Should Minimum Width Data Be Used?

Minimum-width figures are most useful during three project stages:

Concept screening
Engineering review
Production approval

During concept screening, the design team can compare the narrowest stroke with general reference ranges. A 12 mm line in a proposed outdoor front-lit logo should be flagged immediately. Early detection prevents wasted time preparing renderings and quotations for an unsuitable structure.

During engineering review, the factory should connect the measurement to the actual letter type, depth, LED, face, return, wiring, mounting, and environment.

During production approval, the final measurement should be marked on the approved drawing. The record should include:

Final overall dimensions
Minimum stroke location and value
Smallest internal opening
Letter type and lighting direction
Return depth
Face-retention system
LED model or size category
Wiring and wire-exit arrangement
Indoor or outdoor use
Mounting method
Approved artwork version

When a logo is resized, every measurement must be checked again. A production file approved at 2,000 mm wide may no longer work at 1,000 mm wide.

A quick scaling calculation can show the effect:

Original logo width: 1,600 mm
Current minimum stroke: 24 mm
Desired planning stroke: 36 mm
Scale factor: 36 ÷ 24 = 1.5
Revised logo width: 1,600 × 1.5 = 2,400 mm

The logo must grow by 50% to retain the original proportions while increasing the minimum stroke from 24 mm to 36 mm.

If the wall cannot accommodate 2,400 mm, the practical options are:

Widen only selected narrow areas
Simplify small serifs or connectors
Use a separate small-size logo version
Change from front-lit letters to solid acrylic letters
Use halo-lit metal letters with a routed acrylic back
Convert fine lines to LED neon
Place the complete logo on a backboard or light box
Keep small details non-illuminated

The correct answer is rarely one universal number. The useful answer is a project-specific minimum supported by the final artwork, materials, lighting system, construction method, installation conditions, and expected production quantity.

How Does Stroke Width Affect Production?

Stroke width determines how much usable space remains for metal forming, LED placement, wiring, face attachment, sealing, fastening, and inspection. As the narrowest stroke becomes smaller, normal production tolerances consume a larger share of the available space. Fabrication may still be possible, but labor, component limits, optical risk, breakage risk, and repeat-order variation usually increase.

Can LEDs and Wiring Fit Inside?

The visible stroke shown in a logo file is not the same as the usable cavity inside a finished channel letter. Several structural parts occupy space before an LED or wire is installed.

Depending on the construction, internal width may be reduced by:

Metal returns on both sides
Trim cap or face-retention edges
Acrylic bonding areas
Adhesive and sealant
Internal corner radii
Welded joints
Screw heads or rivets
Back-panel lips
Cable protection
Waterproof connectors
Paint and surface coatings

A 38 mm face stroke, for example, rarely provides a full 38 mm-wide flat area for lighting. A simplified calculation illustrates the difference:

Finished face stroke	Edge allowance per side	Approximate central width
50 mm	4 mm	42 mm
38 mm	4 mm	30 mm
32 mm	4 mm	24 mm
25 mm	4 mm	17 mm
20 mm	4 mm	12 mm

Actual usable space may be even smaller around curves, tapers, welded seams, and tight corners.

An LED can physically fit inside a narrow stroke while still being unsuitable for production. Installation requires room for more than the LED body. The production team also needs space for:

The adhesive pad beneath the LED
Input and output wires
Wire bends
Soldered or crimped joints
Connectors
Cable clips or adhesive fixing
Heat dissipation
Safe clearance from metal edges
Future inspection or repair

A compact LED approximately 12–18 mm wide may appear suitable for a 20 mm channel. In practice, a few millimeters of side clearance may not be enough to position the LED accurately or route the wires without pressure.

Wire bend radius is often overlooked. A cable should not be folded sharply against a metal return merely because the cavity is narrow. Sharp bends and compressed wires can lead to damaged insulation, strained solder joints, loose connections, or intermittent lighting after transport and installation.

The electrical system also changes the required space.

Lighting system	Typical internal demand
Single-color LED	Usually the simplest wiring arrangement
Tunable white	Additional conductors and control requirements
RGB	More conductors, connectors, and controller planning
RGBW	Greater cable volume than single-color systems
Front-and-halo lighting	Separate light groups may require extra wiring
Large letters with multiple circuits	More connections and wire routing points

A narrow section may allow one LED, but the wire cannot always continue through a script connector or tapered leg. In such cases, separate wire exits may be required. More wire exits increase drilling, sealing, installation work, and the chance of connection errors on site.

A production review should therefore answer five practical questions:

Can the selected LED fit in the narrowest section?
Can the LED be positioned in the correct direction?
Can wires pass through the complete letter without being crushed?
Can connections remain protected from sharp edges and water?
Can the electrical system be inspected before the face is closed?

A simple “the LED fits” answer is not enough.

How Does Width Affect Bending and Assembly?

Channel letters are built from flat and formed materials. The return must follow the outside and inside edges of each letter. Wide straight strokes are generally easier to produce. Narrow transitions, sharp points, small radii, and tight internal corners require more control.

The main fabrication steps affected by stroke width include:

Laser or CNC cutting
Return notching
Return bending
Corner forming
Welding or soldering
Grinding
Acrylic face cutting
Trim-cap fitting
Face bonding
LED installation
Wiring
Back attachment
Sealing
Surface finishing

Each step introduces a measurable tolerance. A typical channel letter does not emerge from one machine as a completed unit. Small variations accumulate across several processes.

For example, consider a 25 mm-wide tapered section:

Cutting tolerance may affect the face outline.
Return position may vary slightly during bending.
Welding can pull the metal inward.
Grinding can remove additional material.
Paint adds a small coating layer.
Trim cap occupies part of the face edge.
Sealant reduces available internal access.

A 1 mm variation on a 100 mm stroke represents only 1% of the width. The same 1 mm variation on a 20 mm stroke represents 5%. Narrow designs therefore make normal manufacturing variation more visible and more difficult to control.

Local stroke width	Effect of a 1 mm variation
100 mm	1%
50 mm	2%
38 mm	2.6%
25 mm	4%
20 mm	5%
15 mm	6.7%

Tight inside corners create another difficulty. Metal returns cannot always form a perfectly sharp angle because the material and bending tool require a minimum radius. The face file may show a mathematically sharp point, while the finished return has a small rounded corner.

When the return radius differs from the face outline, several problems can follow:

The face may not seat correctly.
A gap may appear between the return and face.
Trim cap may wrinkle or lift.
Sealant coverage may become uneven.
The corner may look blunt compared with the artwork.
Light may collect or disappear near the point.

Small serif tips are particularly difficult. A serif may measure only 10–15 mm near its end, yet the return still needs to be formed, joined, finished, and connected to the wider part of the letter.

Worker access also matters. A deep letter with a narrow stroke creates a tall, tight cavity. An operator may reach the bottom of the letter but still lack enough sideways space to:

Press LED adhesive firmly
Hold a wire in position
Apply sealant consistently
Tighten a small fastener
Inspect a soldered joint
Clean metal dust before closing the face

Assembly time increases when every step must be performed with narrow tools or tweezers. A small letter can therefore take longer per unit than a larger, simpler letter.

The following production conditions are often associated with narrow strokes:

Production condition	Likely result
Tight outside curve	Slower return forming
Small inside radius	Face-fitting difficulty
Narrow tapered end	Limited LED placement
Deep, narrow cavity	Difficult hand access
Small serif	Higher risk of deformation
Script connector	More careful joining and reinforcement
Multiple close intersections	Crowded wiring and seams
Trim-cap face	Reduced illuminated area
Trimless face	Greater bonding accuracy required

Production feasibility should be assessed on the most difficult local area, not the easiest letter in the set.

A storefront sign may contain twelve letters, but one ampersand or script capital can control the manufacturing method, sample requirement, and lead time for the full order.

Do Thin Strokes Weaken the Letter?

Thin strokes can reduce structural strength, especially where a large part of a letter is connected through a narrow bridge. The risk is not limited to the period after installation. Damage can occur during fabrication, grinding, painting, internal assembly, testing, packing, transport, unpacking, or mounting.

The weakest area is often not the narrowest straight line. It is commonly a transition where force becomes concentrated.

High-risk areas include:

Script connectors
Narrow diagonal joints
Serif roots
Small crossbars
Long tapered tails
Thin links between two large shapes
Small detached accents
Sharp inside corners
Narrow sections near mounting holes

A thin connector may support the weight of a much larger letter section. When the letter is lifted from one side, the narrow bridge can twist. During transport, vibration may repeatedly load the same area. During installation, uneven tightening can pull the letter against a wall and cause distortion.

Material choice changes the result.

Material or construction	Common behavior in narrow areas
Thin aluminum	Lightweight but easier to bend
Stainless steel	Stiffer, though tight forming may be harder
Acrylic face	Can crack near small points or narrow bridges
PVC or foam	May compress or break at fine sections
Routed solid acrylic	Supports some small illuminated forms
Metal face with acrylic back	Can preserve fine halo-lit details
Backboard-mounted logo	Allows the panel to carry part of the load

Increasing metal thickness is not always the best solution. Thicker metal can improve stiffness, but it may become more difficult to form around tiny curves and sharp terminals. It also adds weight and can make welding or finishing more visible on small letters.

Several engineering methods can reduce the risk:

Widen the narrow bridge
Increase the corner radius
Add a hidden metal link
Use a continuous back panel
Add more mounting studs
Move mounting points closer to heavy sections
Divide one complex letter into separate parts
Place small elements on a backboard
Change the small element to non-illuminated construction
Use solid acrylic for fine details
Reinforce packaging around fragile areas

Any hidden bridge or reinforcement should be shown on the approved drawing. Installers need to know where structural parts, wire exits, and mounting points are located.

Mounting-hole placement requires special attention. A hole drilled too close to a narrow edge can remove a significant portion of the remaining material. For example, a 5 mm hole in a 20 mm-wide section consumes 25% of the local width before edge clearance is considered.

Local stroke	Hole diameter	Width occupied
50 mm	5 mm	10%
38 mm	5 mm	13.2%
25 mm	5 mm	20%
20 mm	5 mm	25%
15 mm	5 mm	33.3%

A narrow section should not be selected as a fixing point merely because it is visually convenient. Load should be transferred through stronger parts of the letter.

Packing must also follow the structure. Fine script connectors and long tails should not be left unsupported inside the carton. Protective foam should prevent movement without placing pressure directly on the fragile section. Large or irregular channel letters may need a wooden frame or wooden case.

How Can Narrow Strokes Affect Cost and Lead Time?

Narrow strokes do not always reduce price. Although less metal or acrylic may be used, the project can require more engineering, slower production, special components, additional checking, and a higher chance of revision.

Cost is driven by work and risk, not material area alone.

Cost factor	Why narrow strokes can increase cost
Artwork preparation	More local adjustments and measurement
Engineering review	Structure and lighting need closer assessment
Special LEDs	Compact products may cost more
Return forming	Tight bends require slower processing
Welding and finishing	Small joints need careful handwork
Face production	Narrow points are harder to cut and fit
Wiring	Restricted routes increase labor
Sampling	Optical and structural results may need testing
Quality control	More local checks are required
Rework	Small errors become highly visible
Packaging	Fragile areas require added support
Repeat-order control	Detailed records are needed for consistency

A broad block-letter set may move through production with standard materials and familiar LED spacing. A narrow script logo may require several additional steps:

Vector cleanup
Minimum-stroke mapping
Local geometry adjustment
LED selection
Wire-route planning
Return-forming trial
Face-fitting trial
Lighting test
Packaging test
Final artwork approval

Each added step can affect quotation and delivery.

A realistic comparison may look like the following:

Project type	Engineering effort	Production speed	Sample need	Rework risk
Bold standard letters	Low to moderate	Faster	Sometimes unnecessary	Lower
Mixed bold and narrow strokes	Moderate	Normal to slower	Recommended	Moderate
Fine script letters	High	Slower	Usually recommended	High
Small front-and-halo letters	High	Slower	Strongly recommended	High
Large chain-store order with narrow details	Very high	Controlled batch schedule	First article required	High without approved standards

Lead time can increase for several reasons.

Special components may not be stocked. Compact LEDs, special acrylic, small connectors, or custom electrical parts can require procurement time.

Artwork approval may take longer. A narrow design often involves several revision rounds between the original logo and the production-ready version.

Sampling may be necessary. The first sample may show a dark terminal, visible LED point, weak joint, or closed internal opening. A corrected sample can add several days.

Production speed may be lower. Tight bending, manual wiring, and careful face fitting take longer than standard block letters.

QC may require more time. Narrow sections must be inspected for:

Edge quality
Face alignment
Return deformation
Open joints
Dark areas
Hotspots
Wire pressure
Loose connectors
Sealant coverage
Paint buildup
Fragile transitions

A narrow-stroke project should be reviewed before the final quotation is approved. Otherwise, the price may be based on standard construction while the final artwork requires special LEDs, a different return system, or extensive manual work.

For repeat orders, the first production record should include:

Final vector outline
Minimum stroke values
Approved local adjustments
Material thickness
Return depth
Face system
LED type
LED placement
Wiring groups
Wire-exit locations
Mounting points
Surface finish
Packaging supports
Lighting photos
Inspection results

Stable repeat production depends on more than keeping the same overall width. A later batch should follow the approved geometry, materials, lighting arrangement, electrical layout, and packaging method.

A practical production decision can be summarized as follows:

Condition	Recommended action
Stroke is wide enough for standard construction	Proceed with normal engineering confirmation
LED fits but wiring is crowded	Change LED, wire route, or stroke width
Return cannot follow the original point	Increase radius or simplify the outline
Narrow bridge lacks strength	Widen, reinforce, or support with a backboard
Face cannot be secured reliably	Change face system or letter structure
Light is uneven	Adjust depth, LEDs, spacing, or diffuser
Fine details cannot be reproduced consistently	Use a separate small-size logo version
Production risk remains high	Make a sample before batch production

The most reliable solution is not the narrowest letter a factory can produce once. The better solution is a structure that can be fabricated cleanly, illuminated evenly, tested, packed, installed, and reproduced without depending on repeated manual corrections.

How Should Narrow Strokes Be Resolved?

Narrow strokes should be corrected by changing only the parts that prevent reliable fabrication, illumination, installation, or repeat production. The main options are local thickening, proportional enlargement, detail simplification, another channel letter structure, or a mixed illuminated and non-illuminated solution. The best correction keeps the logo recognizable while creating enough room for materials, LEDs, wiring, sealing, and mounting.

Can the Font Be Thickened?

Thickening the font is often the fastest correction, but adding the same outline to every letter is rarely the best approach. A uniform stroke expansion can change counters, spacing, corners, and the visual weight of the complete wordmark.

A better method is to identify the exact areas below the practical production limit and widen only those sections.

Common local corrections include:

Widening a thin script connector
Increasing the width of a crossbar
Softening a sharp serif tip
Enlarging a narrow diagonal
Opening a tight inside corner
Strengthening a tapered terminal
Increasing the width around a mounting point
Separating two intersecting strokes

For example, a script logo may have a main stroke of 45 mm but a connector of only 16 mm. Expanding the complete logo by 10 mm on every side would make the lettering look heavy. Increasing only the connector from 16 mm to 25 mm may solve the fabrication problem with little visible change from the normal viewing distance.

A useful correction process is:

Scale the vector artwork to the final sign size.
Measure every stroke below the selected production range.
Mark each high-risk area on the drawing.
Separate essential brand features from flexible details.
Adjust only the areas affecting production.
Recheck counters, spacing, and overall balance.
Compare the original and revised outlines at actual size.
Approve the revised production artwork before quotation or sampling.

Local thickening should be checked against the adjacent negative space. Increasing one stroke may make an internal opening too small.

Original condition	Possible correction	Secondary check
Thin script bridge	Widen the bridge locally	Check the curve between letters
Narrow serif tip	Shorten or soften the tip	Maintain the font character
Small crossbar	Increase crossbar thickness	Check the inner opening
Sharp internal corner	Add a small radius	Confirm visual similarity
Narrow terminal	Widen the last section	Check daytime proportions
Thin outline around a logo	Increase outline width	Check spacing from the main shape

The production file should clearly show every approved change. Shop-floor workers should not be expected to make unrecorded adjustments based on visual judgment. Uncontrolled changes become especially risky when later orders are produced by another shift, another production line, or several months after the first shipment.

The amount of thickening should also be judged from the intended viewing distance. A 2–3 mm local change may look obvious when the drawing is enlarged on a screen but may be invisible from 8 or 10 meters away.

A simple viewing review can be useful:

Typical viewing distance	Small local changes likely to remain noticeable
Below 1 m	Very small outline differences may be visible
1–3 m	Edge and spacing changes require careful review
3–8 m	Minor local thickening is often difficult to notice
8–15 m	Overall proportion matters more than fine edge detail
Above 15 m	Legibility and brightness usually outweigh tiny shape differences

These distances are not fixed visual standards. Letter height, contrast, lighting, installation height, and the familiarity of the logo all affect perception.

Where a brand manual prohibits shape changes, the manufacturer should not thicken the design without approval. Enlargement or another construction may be more appropriate.

Should the Sign Be Enlarged?

Enlarging the complete sign is often the cleanest way to increase the minimum stroke without altering the original logo proportions. Every stroke, counter, gap, radius, and detached element grows at the same percentage.

The required enlargement can be estimated with a simple calculation:

Required scale factor = target stroke width ÷ current stroke width

For example:

Current logo width: 1,600 mm
Current minimum stroke: 24 mm
Target planning stroke: 36 mm
Scale factor: 36 ÷ 24 = 1.5
Revised logo width: 1,600 × 1.5 = 2,400 mm

The sign would need to increase from 1,600 mm to 2,400 mm wide, a 50% enlargement.

Additional examples:

Current minimum stroke	Target stroke	Required enlargement
20 mm	30 mm	50%
24 mm	36 mm	50%
25 mm	38 mm	52%
30 mm	38 mm	26.7%
32 mm	40 mm	25%
35 mm	40 mm	14.3%

Enlargement works well when:

The wall has enough clear space
The permitted sign area allows a larger logo
The viewing distance supports a larger scale
The original proportions must remain unchanged
Shipping and installation can handle the larger dimensions
Increased power and weight remain acceptable

It may not work when:

The fascia height is fixed
The sign must fit between architectural features
Local sign rules restrict area or letter height
The installation surface has limited load capacity
The enlarged set becomes difficult to transport
The result becomes visually oversized for the storefront
The increased width creates excessive spacing between mounting points

A larger sign affects more than artwork. It can change:

Metal and acrylic consumption
Return depth selection
LED quantity
Power supply capacity
Wire grouping
Wind exposure
Mounting load
Number of packaging cartons
Crate dimensions
Freight cost
Lifting equipment
Installation time

For example, increasing a logo’s width by 50% also increases its height by 50% when the proportions remain fixed. The face area increases by approximately 125%, not 50%, because area changes in two dimensions.

A simplified comparison:

Logo scale	Relative width	Relative height	Approximate face area
Original	100%	100%	100%
Enlarged by 20%	120%	120%	144%
Enlarged by 30%	130%	130%	169%
Enlarged by 50%	150%	150%	225%

More face area usually means more material, more LEDs, more power, and larger packaging. The quotation should therefore be recalculated after enlargement rather than adjusted only by the percentage increase in width.

A useful decision sequence is:

Calculate the size needed to reach a workable stroke.
Place the enlarged logo on a scaled storefront elevation.
Check the legal sign area and architectural limits.
Recalculate weight, power, mounting, and packing.
Compare the enlarged option with local thickening.
Compare both with an alternative construction.
Approve the option offering the best balance.

Enlargement should not be treated as the automatic answer. A 50% larger sign may solve a 24 mm stroke but create a much more expensive installation problem.

Which Structure Preserves Fine Details?

Where the original design cannot be thickened or enlarged, changing the sign construction may preserve fine lines more successfully than forcing them into a conventional channel letter.

Different structures handle narrow details in different ways:

Design condition	Practical construction option	Main trade-off
Thin continuous script	LED neon flex	Different appearance from metal channel letters
Small illuminated logo	Solid or routed acrylic letters	Limited depth and material choices
Fine halo-lit lettering	Metal face with routed acrylic back	Requires controlled wall spacing
Tiny metal script	Non-illuminated cut metal	No internal illumination
Small detached symbols	Mounted on a shared backboard	Backboard remains visible
Mixed thick and thin details	Hybrid illuminated and non-illuminated sign	More production coordination
Complex small logo	Shaped light box or cabinet	Less individual-letter appearance
Very narrow line elements	Edge-lit acrylic	Best suited to selected indoor applications
Small secondary text	Printed or applied graphics	Different lifespan and surface appearance

LED neon flex can follow narrow curves and continuous script more easily than standard channel letters. It is useful for thin handwriting, decorative lines, and compact indoor graphics. It does not provide the same metal return, acrylic face, or architectural depth as a channel letter.

Solid acrylic letters can preserve smaller forms because illumination can be carried through routed material rather than relying on a large internal metal cavity. The result may be suitable for reception walls, retail interiors, counters, and close-view branding.

Halo-lit metal letters can sometimes retain narrower faces because the LED system sits behind the metal front and projects light toward the wall. The rear acrylic, LED arrangement, standoff distance, and mounting surface must be coordinated carefully.

A backboard is useful when a logo contains many small components. The board can carry the weight, hide wiring, maintain spacing, and reduce the need for every small part to function as a self-supporting channel letter. The visual result is different from individually mounted letters, so the backboard shape, finish, and edge treatment should be shown in the rendering.

Hybrid construction is often the most practical option for complex logos. The main wordmark can be illuminated channel letters while fine lines, trademark marks, taglines, or small symbols are made from painted metal, acrylic, vinyl, or printed graphics.

An example may include:

Main brand name: front-lit channel letters
Fine handwritten line: LED neon
Small tagline: non-illuminated acrylic
Trademark symbol: printed graphic
All parts aligned on a common backboard

A mixed solution should be designed as one sign system rather than several unrelated products. Color, thickness, surface finish, spacing, wire routing, and mounting should be coordinated.

The following questions help determine whether an alternative structure is appropriate:

Is the fine detail part of the main brand identity?
Must every part illuminate?
Will the sign be viewed at close range?
Is the installation indoors or outdoors?
Can a backboard be visible?
Is a halo acceptable instead of face illumination?
Does the wall provide a suitable reflective surface?
Must the sign be removable for maintenance?
Will several store locations use the same construction?
Can replacement parts be produced later?

No structure preserves every feature without compromise. The correct choice depends on which qualities matter most: exact outline, depth, daytime finish, lighting direction, weather resistance, serviceability, or cost.

How Can Brand Proportions Be Maintained?

Brand proportions can be maintained by separating visual identity from production detail. Some features must remain unchanged because they define the logo. Others can be adjusted slightly without affecting recognition.

A practical brand review can classify the artwork into three levels:

Priority level	Typical features	Production approach
Protected	Main silhouette, distinctive letter shape, logo angle	Avoid modification unless formally approved
Adjustable	Minor serifs, small counters, local line thickness	Modify only where necessary
Secondary	Tagline, tiny symbol, decorative detail	Use another structure or remove at small sizes

The protected features often include:

Overall wordmark proportions
Character width
Slant angle
Distinctive curves
Major spacing relationships
Primary symbol shape
Brand color

Adjustable features may include:

Tiny serif tips
Narrow internal notches
Small script links
Tight inside radii
Minor decorative tails
Small letter spacing corrections

Secondary elements often include:

Trademark symbols
Registration marks
Fine taglines
Dates
Small slogans
Detailed line art
Texture inside a symbol

Many brands already use different logo versions for different applications. A website header, product label, mobile icon, exterior sign, and embroidery file may not use the same level of detail.

Channel letters can follow the same logic by preparing separate production versions:

Version	Typical use	Design treatment
Large-format version	Building façade or pylon	Full logo detail may be retained
Medium-format version	Storefront fascia	Minor narrow details may be widened
Small-format version	Interior wall or counter	Simplified details or another structure
Icon version	Compact location or directory	Main symbol only
Non-illuminated version	Fine lettering or tagline	Thin details can be preserved more easily

A single vector file should not be reduced indefinitely. A logo approved at 3,000 mm wide may not remain suitable at 800 mm wide.

Suppose a logo has a 45 mm minimum stroke at 2,000 mm wide. Reducing it to 1,000 mm cuts the stroke to 22.5 mm. Reducing it to 500 mm cuts the same stroke to 11.25 mm.

Logo width	Resulting minimum stroke
2,000 mm	45 mm
1,500 mm	33.75 mm
1,000 mm	22.5 mm
750 mm	16.88 mm
500 mm	11.25 mm

A separate small-size version may be required before the logo reaches the lower widths.

Brand approval should compare:

Original artwork
Production-adjusted artwork
Daytime rendering
Illuminated rendering
Close-view appearance
Intended-distance appearance
Storefront elevation
Sample or first article, where necessary

The adjustment should be reviewed at the actual production scale. An enlarged screen view can exaggerate small changes.

For chain-store work, the approved sign version should be added to the brand sign manual. Records should include:

Final vector outline
Permitted size range
Minimum approved stroke
Protected logo features
Allowed local adjustments
Approved materials
Lighting direction
Return depth
Color reference
Mounting method
Small-size alternative

Such records prevent every new store from repeating the same discussion and reduce variation between suppliers, production batches, and regions.

What Should Be Approved Before Production?

A narrow-stroke channel letter should not move into production based only on a logo file and a visual rendering. The final approval should connect the artwork to the materials, lighting, wiring, mounting, and installation environment.

The following items should be confirmed:

Approval item	Required information
Artwork	Outlined vector file and revision number
Dimensions	Overall width, height, letter height, spacing
Stroke review	Narrowest stroke and its marked location
Negative space	Smallest counters and internal openings
Construction	Front-lit, halo-lit, combined, trim cap, or trimless
Materials	Face, return, back, trim, and thickness
Return depth	Finished letter depth
Lighting	LED type, color, color temperature, and control
Wiring	Circuit groups, connectors, cable route, and exits
Power	Input voltage, power supply quantity, and location
Mounting	Studs, screws, raceway, backboard, or template
Environment	Indoor, outdoor, coastal, sheltered, or exposed
Wall	Concrete, masonry, metal panel, glass, or other surface
Finish	Paint, powder coating, plating, or brushed metal
Testing	Sample, first article, lighting test, or full inspection
Packaging	Carton, foam support, crate, or store-number labeling

The final drawing should mark narrow areas rather than relying on general notes. A note stating “minimum stroke 30 mm” is less useful when no one can see where the 30 mm section occurs.

For complicated lettering, the drawing may use numbered callouts:

Area A: script bridge widened from 18 mm to 26 mm
Area B: inside radius increased from 2 mm to 5 mm
Area C: small serif shortened by 8 mm
Area D: trademark symbol changed to non-illuminated acrylic
Area E: separate wire exit added behind the narrow terminal

The approval process should also define what the rendering represents. Renderings can show appearance, but they do not always show:

Trim-cap width
Return seams
Fastener locations
Wire exits
Back openings
Reinforcement
Drainage holes
Power supplies
Installation templates

A production drawing should cover those details.

A sample is strongly recommended when the project contains:

Strokes below the factory’s normal production range
Fine script lettering
Front-and-halo illumination
Dark or heavily colored acrylic
Small trimless letters
RGB or RGBW lighting
Several tapered terminals
High quantities
Strict brand-color requirements
A new construction not previously produced

The sample does not always need to include the complete sign. A representative letter or difficult logo section can verify the critical conditions while reducing sample cost.

A representative sample should include:

The narrowest stroke
A tight inside corner
A tapered terminal
The approved face material
The intended return depth
The proposed LED system
The correct surface finish
The actual lighting color

Before production, the sample or first article should be checked for:

Face fit
Return shape
Edge quality
Stroke proportions
Internal opening size
Brightness
Hotspots
Dark terminals
Wire routing
Structural stability
Mounting access
Packing protection

For batch or multi-location orders, one approved first article should become the reference for later units. Production records should preserve the drawing, material schedule, LED placement, wiring, mounting, and packaging.

The decision should not be based on the narrowest letter a factory can make once. A suitable solution should be clean enough to produce repeatedly, strong enough to pack and install, open enough for safe wiring, and stable enough to deliver consistent lighting across later orders.

How Should Narrow Strokes Be Resolved?

Narrow strokes should be corrected according to the reason they fail: insufficient LED space, weak connections, difficult return forming, poor light diffusion, limited sealing area, or unstable repeat production. The usual solutions are selective thickening, proportional enlargement, detail simplification, another sign structure, or a mixed illuminated and non-illuminated construction. The smallest workable change normally gives the best balance between brand accuracy, manufacturing reliability, cost, and installation.

Can the Font Be Thickened?

Font thickening is often the first option considered because it keeps the original sign type and avoids changing the overall installation plan. However, expanding every outline by the same amount can make a logo look heavy, close internal openings, reduce letter spacing, and alter distinctive curves.

A production engineer should first locate the actual problem areas. Many logos contain broad main strokes with only one or two narrow sections. Changing the complete wordmark may be unnecessary.

Common areas requiring selective thickening include:

Script connections between letters
Thin diagonals in M, N, V, W, K, and R
Crossbars in A, H, e, and f
Serif tips and serif roots
Tapered stroke endings
Narrow bridges between two large shapes
Fine outlines around a main logo
Small detached dots, accents, and symbols
Areas close to mounting holes or wire exits

Consider a script logo with the following measurements:

Logo area	Original width	Preliminary target	Required change
Main vertical stroke	52 mm	38 mm minimum	No change
Lower curve	44 mm	38 mm minimum	No change
Letter connection	17 mm	26 mm	Add 9 mm locally
Tapered ending	14 mm	22 mm	Add 8 mm locally
Small internal opening	21 mm	18 mm minimum	Protect during thickening

Only two areas require correction. Expanding every edge by 5 mm would increase the broad stroke from 52 mm to approximately 62 mm and could make the logo noticeably heavier. Local editing keeps most of the original artwork untouched.

A practical correction sequence usually follows these steps:

Scale the vector artwork to the final production dimensions.
Convert fonts and visual strokes into closed outlines.
Measure the narrowest section of every letter and symbol.
Mark areas where the proposed structure cannot fit.
Identify nearby counters, gaps, curves, and mounting details.
Widen only the high-risk areas.
Recheck internal openings after each adjustment.
Compare the original and revised files at actual size.
Place both versions on the storefront elevation.
Approve one controlled production file.

Local thickening should follow the natural flow of the letter. A sudden change from 18 mm to 30 mm can create a visible bump. A gradual transition over a longer distance usually looks more intentional.

Correction method	Visual result	Production result
Sudden local expansion	Visible lump or uneven curve	Creates enough space but may look poor
Gradual taper adjustment	Better visual continuity	Provides a smoother return path
Uniform outline expansion	Entire logo becomes heavier	Easy to calculate but may close counters
One-sided expansion	Preserves one important edge	Changes spacing on the expanded side
Two-sided expansion	Keeps the stroke centerline	Affects both outer shape and internal opening

One-sided expansion can be useful when the outer silhouette must remain unchanged. For example, an internal edge can be moved inward or outward depending on which side carries less brand significance. Such changes require visual approval because the letter’s inner opening may become smaller.

The percentage change also matters. Increasing a 15 mm connector to 24 mm is a 60% increase, even though the physical change is only 9 mm. The same 9 mm added to a 50 mm stroke represents an 18% increase.

Original width	Added width	Percentage increase
15 mm	9 mm	60%
20 mm	9 mm	45%
25 mm	9 mm	36%
38 mm	9 mm	23.7%
50 mm	9 mm	18%

Percentage change helps explain why small numerical corrections can look significant in fine lettering.

A revised letter should be checked under three viewing conditions:

Enlarged screen view for edge and curve accuracy
Actual-size print or projection for proportion review
Storefront-scale rendering for normal viewing distance

A 3 mm correction may appear substantial when enlarged on a monitor but become invisible from a viewing distance of 8 meters. Brand teams often make better decisions after seeing both close-up and storefront-scale comparisons.

Internal negative space must be protected during thickening. A narrow counter in the letters A, B, D, O, P, or R may close after the surrounding strokes become wider.

For example:

Measurement	Before correction	After uniform thickening	After controlled correction
Minimum stroke	22 mm	32 mm	30 mm
Smallest counter	24 mm	14 mm	20 mm
Letter spacing	18 mm	8 mm	15 mm

Uniform thickening reaches a wider stroke but leaves only a 14 mm counter and 8 mm letter gap. Controlled correction produces a slightly narrower stroke while preserving more usable negative space.

Small counters can create several problems:

The opening may disappear when viewed from a distance.
Trim cap may occupy much of the visible gap.
Paint buildup can reduce the opening further.
Tight inside returns may be difficult to form.
Cleaning and finishing become harder.
Halo light from neighboring edges may merge.

A logo should not be thickened only until the LED fits. The revised shape must also remain readable during the day and after illumination.

Serifs need separate treatment. A serif tip can often be shortened, widened at the root, or changed from a sharp point to a small radius. Preserving the serif direction and overall length is often more important than preserving a mathematically sharp end.

Script lettering may need structural links hidden behind the face. A hidden bridge can strengthen two connected sections without making the visible face much wider. The bridge must be included in engineering drawings because it affects the back structure, lighting, packaging, and mounting.

Font thickening is generally suitable when:

Only a few local areas are too narrow.
Brand guidelines permit minor production adjustments.
The original sign size fits the wall well.
Standard channel letter construction remains preferred.
Local changes do not close counters or gaps.
The revised shape can be repeated across later orders.

Another solution should be considered when most of the logo is below the workable width, every letter requires major editing, or the revised wordmark no longer resembles the approved brand artwork.

Should the Sign Be Enlarged?

Proportional enlargement increases every stroke, opening, spacing dimension, radius, and detached feature at the same rate. It is often the cleanest option when the original logo geometry cannot be modified.

The scale factor is calculated by dividing the required stroke width by the current minimum stroke width:

Scale factor = required minimum stroke ÷ current minimum stroke

Suppose a logo has the following dimensions:

Overall width: 1,500 mm
Overall height: 420 mm
Minimum stroke: 24 mm
Preferred planning stroke: 36 mm

The required scale factor is:

36 ÷ 24 = 1.5

The enlarged dimensions become:

Revised width: 1,500 × 1.5 = 2,250 mm
Revised height: 420 × 1.5 = 630 mm
Revised minimum stroke: 36 mm

The logo must become 50% larger to retain the original proportions.

Current stroke	Required stroke	Scale factor	Size increase
18 mm	30 mm	1.67	66.7%
20 mm	30 mm	1.50	50%
24 mm	36 mm	1.50	50%
25 mm	38 mm	1.52	52%
28 mm	38 mm	1.36	35.7%
30 mm	38 mm	1.27	26.7%
32 mm	38 mm	1.19	18.8%
35 mm	38 mm	1.09	8.6%

A 10% or 20% enlargement may be easy to absorb within a storefront layout. A 50% enlargement can change the complete project.

Wall dimensions should be checked before recommending enlargement. The sign must fit between architectural limits such as:

Fascia edges
Columns
Windows
Canopies
Expansion joints
Lighting fixtures
Security cameras
Ventilation grilles
Existing cable exits
Building signage zones

A logo may technically fit within the total wall width but still look crowded if only a small margin remains around the edges.

A practical storefront calculation can use the following:

Wall condition	Measurement
Available fascia width	3,000 mm
Proposed original sign width	1,800 mm
Left and right margin	600 mm each
Required enlargement	40%
Enlarged sign width	2,520 mm
Remaining total margin	480 mm
New margin per side	240 mm

The enlarged sign fits physically, but the side margins decrease from 600 mm to 240 mm. The sign may feel oversized even though it stays inside the fascia.

Enlargement also affects sign area. A sign enlarged by 50% in width and height has approximately 2.25 times the original face area.

Linear enlargement	New width	New height	Approximate face area
10%	110%	110%	121%
20%	120%	120%	144%
30%	130%	130%	169%
40%	140%	140%	196%
50%	150%	150%	225%
60%	160%	160%	256%

A 50% enlargement does not mean 50% more material. Face material, back material, illuminated area, and painted surface may increase by approximately 125%.

The return length does not grow at exactly the same rate as face area, but it also increases. More metal, acrylic, LEDs, wiring, packaging, and installation labor may be required.

The following project items should be recalculated:

Item	Possible effect of enlargement
Acrylic face area	Higher material use
Metal return length	More bending and finishing
LED quantity	More illuminated surface
Power capacity	Additional power supplies may be needed
Wiring groups	Larger letters may need separate circuits
Sign weight	Stronger mounting may be required
Wind exposure	Higher outdoor structural load
Packaging	Larger cartons or wooden cases
Freight	Higher volume weight
Installation	More lifting equipment or labor
Permit drawings	Sign area may exceed local limits

Power should not be estimated only from the increase in overall width. LED quantity normally follows illuminated area, stroke geometry, LED spacing, brightness target, and return depth.

Suppose an original sign uses 80 LED units and is enlarged by 30%. The face area increases to approximately 169% of the original. A rough starting estimate may therefore be around 135 LED units rather than 104 units. Final quantity still depends on the letter shape and lighting design.

Large letters may also need additional power supplies. A power system should not be operated at its absolute rated maximum. The electrical plan should include an appropriate safety margin according to the selected components and local requirements.

Shipping can become a major constraint. A 2,400 mm-long single piece may fit a certain carton or airfreight route, while a 3,200 mm-long version may require a wooden case, oversized freight handling, or segmentation.

Enlargement is suitable when:

Logo proportions must remain unchanged.
The wall has enough clear space.
Local sign-area rules allow a larger display.
Packaging and transport remain practical.
Installation equipment can handle the larger size.
Increased power and structural loads remain acceptable.

Selective thickening or another construction may be better when enlargement creates excessive cost, freight, permit, or installation problems.

Which Structure Preserves Fine Details?

Conventional front-lit channel letters are not the only way to create an illuminated logo. Fine artwork can often be retained by selecting a structure that does not require a large hollow cavity inside every narrow line.

The most suitable option depends on:

Minimum stroke width
Final sign size
Indoor or outdoor placement
Viewing distance
Required lighting direction
Preferred daytime appearance
Wall material
Maintenance access
Quantity
Budget
Brand restrictions

The following table provides an early comparison:

Artwork condition	Possible structure	Practical advantage	Main limitation
Fine continuous script	LED neon flex	Follows narrow curves	Different appearance from metal letters
Small illuminated text	Routed solid acrylic	Supports compact construction	Limited depth and outdoor options
Fine halo-lit logo	Metal face with acrylic back	Preserves narrow metal outline	Wall and standoff affect halo
Thin non-illuminated line	Cut metal or acrylic	Retains fine detail	No internal light
Small detached elements	Shared backboard	Maintains alignment and wiring	Backboard remains visible
Thick main logo with fine details	Hybrid construction	Uses the best method for each part	More coordination required
Detailed symbol at small size	Shaped light box	Keeps complete graphic	Loses individual-letter appearance
Thin indoor edge line	Edge-lit acrylic	Clean compact illumination	Best for controlled indoor settings
Small tagline	Printed or cut vinyl	Preserves fine text economically	Different durability and depth

LED neon flex is often suitable for handwriting, continuous lines, narrow curves, and decorative shapes. The lighting appears as a continuous illuminated line rather than a flat acrylic-faced channel letter.

Important checks include:

Minimum bending diameter
Cutting intervals
Side-bend or top-bend construction
Line thickness
Backboard shape
Wire exit
Controller requirements
Indoor or outdoor rating
Installation access

Not every narrow script can be reproduced exactly. Tight loops, sharp reversals, and very small gaps may still need adjustment.

Solid acrylic letters can support fine indoor logos where close viewing makes edge quality important. Light may enter from the back or edge, depending on the construction. Acrylic thickness, engraving depth, LED position, polish quality, and wall spacing affect the result.

Solid acrylic letters are often considered for:

Reception walls
Retail interiors
Hotel counters
Restaurant interiors
Display cabinets
Exhibition graphics
Small office logos

Metal-face halo-lit letters can retain a narrow visible front because illumination is directed toward the wall rather than through a full front acrylic face. The back opening still needs enough space for LEDs, wires, mounting, and standoffs.

Halo performance depends heavily on the mounting surface:

Wall surface	Expected halo behavior
Smooth white wall	Strong, even reflection
Dark wall	Lower visible brightness
Textured stone	Irregular halo edge
Reflective metal	Possible glare or sharp reflections
Glass	Light may pass through or reflect unpredictably
Ribbed panel	Interrupted or uneven halo
Concrete	Depends on color and texture

A 20 mm metal face may look practical in a drawing, but the rear acrylic and LED path may still need a wider hidden structure. Front and rear views should both be shown before approval.

Backboard-mounted logos are useful when many small parts need support. A backboard can:

Carry the mechanical load
Hide wiring
Preserve spacing
Reduce the number of wall penetrations
Simplify installation
Hold small detached details
Protect fragile connections
Support power supplies or wire channels

The backboard may be shaped closely around the logo or designed as a rectangular, oval, capsule, or custom panel. Its visual presence should be evaluated in daylight.

Hybrid construction is often the most effective solution for complex artwork. Different parts can use different production methods while remaining visually coordinated.

An example sign package may use:

Logo element	Construction
Main brand name	Front-lit channel letters
Fine handwritten underline	LED neon flex
Small tagline	Non-illuminated acrylic
Trademark symbol	Printed or applied graphic
Mounting system	Shared shaped backboard
Power and wiring	Hidden behind the backboard

The main wordmark receives strong illumination, while fine details remain readable without forcing every line into an unsuitable channel structure.

A hybrid solution should maintain:

Consistent color
Coordinated thickness
Matching surface finishes
Accurate spacing
Planned wire exits
Common mounting references
Suitable packaging
Replaceable individual parts

A light box may be more practical when a detailed logo contains gradients, thin lines, small text, and many colors. The full graphic can be printed or applied to a single illuminated face. The trade-off is a panel appearance rather than individual dimensional letters.

A structure-selection table can help during early planning:

Minimum stroke	Typical condition	Structures worth comparing
Below 10 mm	Extremely fine detail	Print, vinyl, engraving, non-illuminated metal
10–15 mm	Fine indoor line	Acrylic, edge lighting, LED neon
15–20 mm	Narrow illuminated detail	Solid acrylic, halo-lit acrylic-back letters, LED neon
20–25 mm	Compact lettering	Special channel construction, acrylic, hybrid solution
25–38 mm	Conditional channel letter range	Front-lit, halo-lit, trimless, or alternative structure
Above 38 mm	More standard channel letter range	Conventional structures are more practical

The ranges are planning references rather than guaranteed production limits. Letter depth, shape, LEDs, face system, materials, and environmental requirements still require review.

How Can Brand Proportions Be Maintained?

Brand proportions can be protected by identifying which visual features define recognition and which details can change without weakening the identity.

Not every vector point carries equal importance.

A practical review can divide the logo into three levels:

Level	Typical elements	Recommended treatment
Protected	Main silhouette, distinctive curves, character width, slant	Avoid modification without formal approval
Adjustable	Small serifs, inner notches, script links, local thickness	Modify only where needed
Secondary	Fine tagline, trademark symbol, texture, tiny line art	Use another structure or simplify

Protected features often include:

Overall wordmark width-to-height ratio
Character proportions
Main curve direction
Recognizable letter terminals
Logo symbol silhouette
Slant angle
Major letter spacing
Primary brand color

Adjustable features often include:

Very small serifs
Tight internal radii
Short decorative tails
Fine script connections
Minor spacing around narrow areas
Small internal notches
Hidden rear reinforcement

Secondary features often include:

Registered trademark symbols
Fine taglines
Establishment dates
Small slogans
Decorative line textures
Thin internal patterns
Very small punctuation

A logo does not always need one universal production version. Separate versions can be prepared for different sizes.

Production version	Typical width	Treatment
Large façade version	Above 2,000 mm	More original details can remain
Standard storefront version	1,000–2,000 mm	Minor local thickening may be needed
Small interior version	500–1,000 mm	Simplification or acrylic structure
Compact icon version	Below 500 mm	Main symbol or reduced-detail artwork
Non-illuminated fine-text version	Varies	Thin details can often remain

The exact size ranges vary by artwork and construction, but the principle remains useful: one approved large sign file should not be reduced indefinitely.

Consider a logo approved at 2,400 mm wide with a 48 mm minimum stroke.

Logo width	Scale	Resulting minimum stroke
2,400 mm	100%	48 mm
2,000 mm	83.3%	40 mm
1,800 mm	75%	36 mm
1,500 mm	62.5%	30 mm
1,200 mm	50%	24 mm
900 mm	37.5%	18 mm
600 mm	25%	12 mm

The same artwork moves from a practical channel letter range to a fine-detail range as it becomes smaller. A separate small-format design may be needed below 1,200 mm.

Brand approval should include more than a vector comparison. A useful presentation includes:

Original artwork
Revised production artwork
Overlay showing changed areas
Dimensioned engineering drawing
Daytime rendering
Illuminated rendering
Storefront elevation
Intended viewing distance
Alternative construction comparison
Sample photograph when needed

Overlay drawings are particularly useful. The original outline can be shown as a thin reference line while the revised production outline is shown as a solid shape. Brand teams can see exactly where changes occur.

A change log can record:

Revision	Area	Original value	Revised value	Reason
R1	Script connector	17 mm	25 mm	LED and structural clearance
R1	Inner counter	19 mm	21 mm	Preserve opening after thickening
R2	Serif tip	8 mm	14 mm	Return-forming limit
R2	Letter gap	12 mm	18 mm	Installation and halo separation
R3	Trademark mark	Channel letter	Printed acrylic	Too small for separate illumination

Such records are valuable for multi-location programs. Later stores can use the same approved logic rather than repeating design negotiations.

The sign specification should also define the allowable size range. For example:

Approved without artwork change: 1,800–2,400 mm wide
Requires engineering review: 1,200–1,799 mm wide
Use small-format version: below 1,200 mm wide

Such rules prevent unauthorized shrinking during local storefront adaptation.

Color and surface finish also affect visual proportions. Dark returns may make a narrow letter look slimmer during the day. Bright trim cap may make edges appear wider. Halo light can visually expand a letter beyond its physical outline at night.

Brand review should therefore compare daytime and nighttime appearance separately.

What Should Be Approved Before Production?

Production approval should connect the logo artwork with the finished physical product. Approving only a rendering leaves many manufacturing decisions unresolved.

A complete approval package should identify:

Approval area	Required details
Artwork	Final outlined vector file
Revision control	File number, date, and approval status
Dimensions	Overall size, letter height, spacing
Stroke review	Minimum stroke values and marked locations
Negative space	Smallest counters, openings, and gaps
Construction	Front-lit, halo-lit, combined, trimless, or trim cap
Materials	Face, returns, backs, trim, and thickness
Depth	Finished return depth
Lighting	LED type, color, temperature, and control
Electrical	Voltage, circuits, power supplies, and connectors
Wiring	Internal route and rear wire-exit positions
Mounting	Studs, screws, rails, raceway, or backboard
Environment	Indoor, outdoor, sheltered, coastal, or exposed
Wall	Material, finish, thickness, and accessibility
Waterproofing	Joint sealing, cable protection, and drainage
Testing	Sample, first article, lighting test, and inspection
Packaging	Foam, carton, wooden case, and part labeling

Minimum strokes should be marked directly on the drawing. A general note such as “minimum stroke 30 mm” does not show which part of the artwork controls the measurement.

Callouts may be presented as follows:

A1: Script bridge increased from 18 mm to 26 mm
A2: Inside radius increased from 2 mm to 6 mm
A3: Tapered end shortened by 10 mm
A4: Trademark symbol changed to non-illuminated acrylic
A5: Additional wire exit placed behind the lower curve
A6: Hidden rear bridge added between two large sections

The production drawing should also show details often missing from visual renderings:

Trim-cap width
Return seams
Face overlap
Acrylic steps
Bonding areas
Rear openings
Drain holes
Mounting studs
Wire exits
Cable glands
Power supply locations
Structural bridges
Segmentation lines
Installation template references

A sample is particularly useful when the artwork includes:

Strokes below the normal factory range
Fine script lettering
Sharp tapers
Dark acrylic faces
Small trimless construction
Front-and-halo illumination
RGB or RGBW lighting
Coastal or exposed outdoor installation
High order quantities
Strict brand-color requirements
A new structure without an existing production record

The sample does not always need to include the complete sign. A difficult letter or representative section can verify the main risks.

A useful representative sample may include:

Sample feature	Reason for inclusion
Narrowest stroke	Checks LED and wiring fit
Tight inside corner	Checks forming and face fit
Tapered terminal	Checks dark-end risk
Small counter	Checks visual opening
Approved face material	Checks diffusion and color
Actual return depth	Checks light mixing
Proposed LED system	Checks brightness and hotspots
Actual finish	Checks brand appearance
Mounting point	Checks installation access

Sample approval should record measurable and visual conditions.

Inspection item	Approval question
Dimensions	Does the finished part match the approved drawing?
Shape	Are curves, terminals, and serifs recognizable?
Face fit	Are gaps, lifting, or distortion visible?
Return quality	Are bends and joints clean?
Lighting	Are brightness and color acceptable?
Uniformity	Are hotspots or dark ends visible?
Wiring	Are cables protected and organized?
Strength	Can narrow connections withstand normal handling?
Mounting	Are holes, studs, and wire exits accessible?
Finish	Does color and surface treatment match approval?
Packaging	Are fragile areas supported without pressure?

For large orders, first-article approval should occur before full production. A sensible batch sequence may be:

Engineering drawing approval
Representative sample or first article
Lighting and structural inspection
Packaging trial
Written approval
Controlled batch production
In-process inspection
Final lighting test
Packaging verification
Shipment record

Repeat production should use the approved record rather than relying on memory. The production archive should include:

Final vector file
Engineering drawings
Approved change log
Material specifications
Color references
Return depth
LED layout
Power arrangement
Wiring groups
Wire-exit coordinates
Mounting template
Sample photographs
Lighting photographs
Packaging layout
QC records

The best correction is not the smallest stroke a factory can successfully make once. A reliable solution should survive normal production tolerances, international transport, on-site installation, long operating hours, maintenance, and later reorders without repeated manual redesign.

How Can You Confirm the Right Stroke Width Before Production?

A minimum-stroke review should happen before the final quotation, sample, or production drawing is approved. Send Iduoduo the editable logo file, target sign dimensions, quantity, installation photo, indoor or outdoor location, preferred lighting method, wall material, destination country, and required delivery date. Even when only a JPG or storefront photo is available, the design team can first prepare a workable outline and identify the areas that need closer engineering review.

Iduoduo can compare several practical options, including selective stroke widening, proportional enlargement, a different return depth, compact lighting components, halo-lit construction, routed acrylic, LED neon, or a combined illuminated and non-illuminated solution. The proposal can show where the original artwork creates production limits, what changes are recommended, and how each option affects appearance, lighting, mounting, cost, and lead time.

For fine script, narrow serifs, complex logos, or multi-location programs, a sample or first article may provide more certainty than approving a rendering alone. A clear inquiry allows the stroke width, internal openings, LED layout, wiring, materials, mounting points, and packaging method to be checked together, helping the finished channel letters remain close to the original brand design while staying practical to manufacture, install, and reorder.

What Is Minimum Stroke Width?

What Does Stroke Width Measure?

How Is It Different from Letter Height?

Which Logo Areas Need Checking?

How Is It Checked in Artwork?

Which Width Should Be Used for Early Planning?

What Happens When the Measurement Is Ignored?

What Should Be Confirmed Before Engineering Approval?

Is There One Minimum Stroke Width?

What Width Is Common for Standard Letters?

Why Do Factory Limits Differ?

How Does Letter Depth Change the Limit?

Which Letter Types Need More Space?

How Do Materials and Face Systems Change the Number?

How Should Minimum Width Data Be Used?

How Does Stroke Width Affect Production?

Can LEDs and Wiring Fit Inside?

How Does Width Affect Bending and Assembly?

Do Thin Strokes Weaken the Letter?

How Can Narrow Strokes Affect Cost and Lead Time?

How Should Narrow Strokes Be Resolved?

Can the Font Be Thickened?

Should the Sign Be Enlarged?

Which Structure Preserves Fine Details?

How Can Brand Proportions Be Maintained?

What Should Be Approved Before Production?

How Should Narrow Strokes Be Resolved?

Can the Font Be Thickened?

Should the Sign Be Enlarged?

Which Structure Preserves Fine Details?

How Can Brand Proportions Be Maintained?

What Should Be Approved Before Production?

How Can You Confirm the Right Stroke Width Before Production?

Similar Posts

Iduoduo Tech

Illuminated Signs

Non-illuminated Signs

Resources & Company

Iduoduo Tech
