A sign can look convincing in a digital rendering and still become a poor investment after installation. The letters may be too small for the viewing distance, a cabinet may appear heavier than expected on the facade, or the lighting may reveal hotspots that were invisible on screen. Maintenance access, landlord restrictions, local electrical requirements, and freight dimensions can also change the real cost of a project long after the visual design has been approved.
Channel letters are usually the better choice for businesses that want dimensional branding, architectural integration, and a permanent storefront identity. Light boxes are usually more suitable when a sign must display detailed graphics, multiple lines of information, or a large illuminated surface. The best option depends on the logo, viewing distance, facade, installation method, maintenance plan, local rules, and expected frequency of content changes.
Consider two businesses opening on the same street. One installs individually illuminated letters that appear to belong to the building. The other uses a bright cabinet carrying its name, logo, service category, and supporting message in one unified panel. Both signs may perform well, but they are solving different communication problems. The practical question is not which product is universally better. It is which structure will remain readable, serviceable, visually appropriate, and cost-effective for the specific site over several years of use.

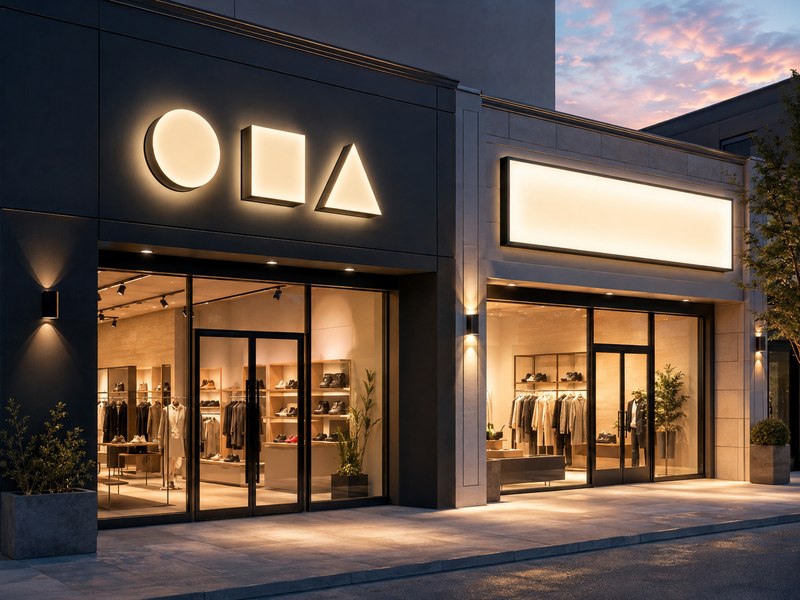

What Are Channel Letters and Light Boxes?
Channel letters are separately fabricated three-dimensional letters, numbers, or logo elements, while light boxes place text and graphics on one illuminated cabinet face. Channel letters emphasize the shape and depth of individual brand elements. Light boxes create a continuous communication surface that can carry more complex artwork, supporting information, and replaceable graphics.
What Are Channel Letters?
Channel letters are individual three-dimensional letters, numbers, symbols, or logo shapes manufactured as separate components. An illuminated channel letter typically includes a translucent or opaque face, a return or sidewall, a rear panel, LED modules, internal wiring, mounting points, and a planned cable exit. The letters are installed according to an approved layout, either directly on the facade, on a shared raceway, or over a larger backboard.
Front-lit channel letters direct illumination through an acrylic or polycarbonate face. They are widely used by retail stores, restaurants, clinics, offices, shopping centers, and service businesses because the letters remain highly visible while preserving the original form of the wordmark. The face color, return color, trim treatment, internal depth, and LED spacing all influence how the sign appears during daylight and after dark.
Halo-lit channel letters use opaque faces and direct light toward the wall behind each letter. This produces a softer outline around the letter rather than a bright illuminated face. The wall becomes part of the optical system, so its color, texture, reflectivity, and distance from the letters affect the final appearance. Smooth, light-colored surfaces normally produce cleaner halos than dark stone, corrugated panels, or heavily textured brick.
Front-and-halo-lit letters combine both effects, while side-lit letters use translucent returns to create illumination around the edges. These options offer more design flexibility, but they also increase the number of optical, structural, and electrical details that must be coordinated. The narrowest stroke, smallest internal opening, letter depth, LED layout, heat control, wiring groups, drainage, and mounting method all need to be evaluated before the design is released for production.
What Is a Light Box Sign?
A light box is a framed cabinet containing internal illumination, wiring, one or more sign faces, and a defined mounting structure. Rather than lighting separate letters, it illuminates a continuous surface. The face may carry printed graphics, translucent film, cut vinyl, routed lettering, dimensional elements, or a combination of several decorative techniques.
Light boxes may be mounted flat against a wall, projected perpendicular to a storefront, suspended from a ceiling, installed on a pole, or integrated into a larger architectural structure. Single-sided cabinets are common on building facades, while double-sided cabinets are often used as blade signs, roadside signs, or suspended signs where customers approach from more than one direction.
The continuous face gives the designer more freedom to use gradients, illustrations, photographs, small supporting text, multiple colors, and complex logos. This makes light boxes useful for restaurants, cinemas, hotels, automotive businesses, medical facilities, transportation spaces, entertainment venues, and commercial properties that need to communicate more than a short name.
The cabinet must still be engineered as a complete product. Its frame must remain flat, the face must resist sagging or distortion, internal reinforcement must not create dark shadows, and the LED system must distribute light evenly. The design also needs a workable service method so that the face, power supply, wiring, and lighting components remain accessible after installation.
Are Light Boxes and Cabinet Signs the Same?
“Light box,” “box sign,” “cabinet sign,” and “illuminated sign cabinet” are often used for closely related products, but the terms do not always describe the same construction. A small indoor menu display and a large outdoor double-sided cabinet may both be called light boxes, even though their materials, frame loads, face systems, waterproofing, and installation requirements are very different.
The term “cabinet sign” usually suggests a more substantial framed structure with internal illumination, a serviceable face, and a permanent mounting system. “Light box” is a broader term that can include slim indoor fabric frames, acrylic logo panels, menu displays, illuminated wall signs, or large exterior cabinets. A blade sign describes the way a sign projects from a building, but many illuminated blade signs use a double-sided light box structure.
Accurate quotation requires a structural description rather than a product name alone. The supplier should know whether the sign is single-sided or double-sided, indoor or outdoor, wall-mounted or projecting, rigid-faced or flexible-faced, permanently printed or designed for future graphic replacement.
A useful specification should confirm:
- Overall width, height, and depth
- Single-sided or double-sided display
- Indoor or outdoor application
- Face material and graphic method
- Wall-mounted, suspended, projected, or freestanding installation
- Front, rear, side, or hinged service access
- Power-supply and cable-exit locations
- One-piece or sectional shipping construction
How Are Their Structures Different?
Channel letters divide the brand into separate physical units. A light box brings the artwork, lighting system, wiring, and structural support together inside one continuous frame. This difference affects manufacturing labor, electrical routing, installation, freight, maintenance, and future brand updates.
| Engineering Point | Channel Letters | Light Boxes |
| Primary structure | Separate letters or logo components | One continuous cabinet |
| Common depth range | Approximately 75–200 mm, depending on size and illumination | Approximately 60–300 mm or more, depending on face area and lighting |
| Display surface | Individual acrylic, polycarbonate, or metal faces | One rigid, flexible, or fabric face |
| LED arrangement | Planned around each stroke and letter shape | Distributed across the cabinet area |
| Wiring | Several letters connected in defined groups | Wiring mainly contained within the cabinet |
| Mounting | Direct mount, raceway, or backboard | Rear frame, brackets, poles, suspension, or projecting arms |
| Graphic complexity | Best for clean words and simplified symbols | Better for detailed graphics and multiple messages |
| Content updates | Usually require new faces or new letters | Face or graphic layer may be replaceable |
| Main freight concern | Protecting many irregular components | Controlling cabinet size and dimensional freight |
| Typical service method | Open individual letters or shared raceway | Remove face or open a service panel |
These depth ranges are useful during early discussion, but they should not be treated as fixed specifications. A shallow channel letter may show visible LED points if the face is too close to the modules. A deeper letter can improve diffusion but may increase material use, weight, wind exposure, and packing volume. Similar tradeoffs apply to light boxes.
Reducing cabinet depth can create a cleaner, more contemporary appearance, but the LEDs, optics, internal spacing, and face material must support shallow illumination. A deeper box may be easier to light evenly, yet it can appear visually heavy and cost more to transport. The best dimensions are determined by the artwork, optical system, structural requirements, service access, and shipping method together.

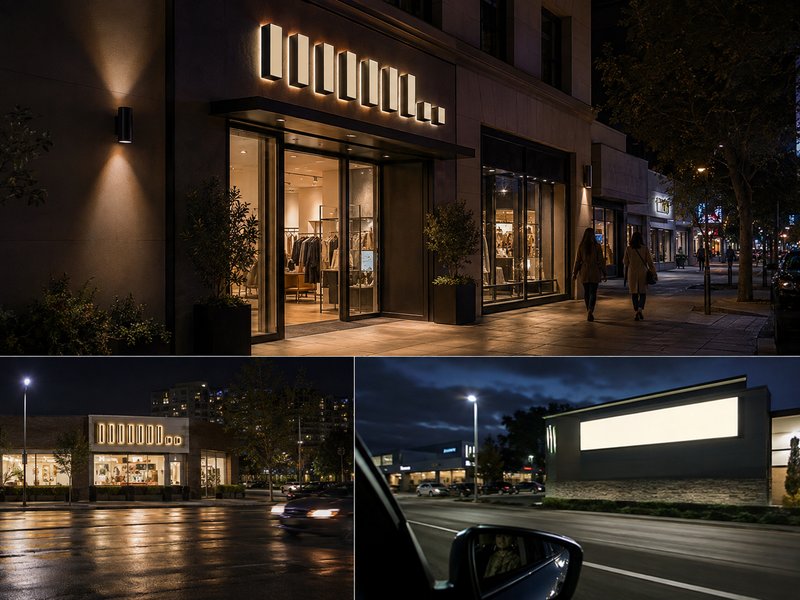

Which Sign Delivers Better Visibility and Branding?
Channel letters generally create stronger dimensional branding, while light boxes provide a larger continuous area for illumination and communication. Channel letters are especially effective for short, clear names and simplified logos. Light boxes are better when detailed graphics or several information levels must remain visible. Readability still depends on contrast, letter size, traffic speed, viewing distance, and installation height.
Which Sign Looks More Premium?
Channel letters often appear more refined because the building remains visible between the letters. The sign feels integrated with the architecture rather than placed on top of it as a separate graphic panel. Metal returns, clean face edges, balanced spacing, controlled depth, concealed wiring, and halo illumination can give a storefront a more permanent and considered appearance.
This style is often suitable for fashion retailers, hotels, clinics, premium restaurants, corporate offices, jewelry stores, and professional service brands. These businesses usually benefit from a sign that communicates stability and quality without relying on a large rectangular background.
However, choosing channel letters does not automatically create a high-quality result. Poor letter spacing, visible cable loops, shallow returns, mismatched paint, inconsistent brightness, oversized raceways, or inaccurate mounting can make an expensive sign appear unfinished. The apparent quality comes from the relationship between fabrication, lighting, finishing, and installation.
Light boxes can also look sophisticated when the cabinet is designed around the brand rather than treated as a generic rectangle. Slim proportions, custom shapes, routed metal faces, dimensional logos, hidden brackets, high-resolution graphics, and controlled edge details can create a strong architectural feature.
The deciding factor is whether the sign structure supports the identity. A minimal luxury wordmark may lose its elegance when placed inside a large illuminated box. A colorful illustrated logo may lose its character when divided into individual letters. The strongest result comes from matching the visual language of the brand with the physical strengths of the product.
Which Is Easier to Read from a Distance?
Channel letters can be highly readable because each letter has a defined silhouette and strong contrast against the building. They perform best when the text is short, the letterforms are clear, and the narrowest strokes remain large enough to be recognized from the intended viewing distance.
Light boxes can attract attention through a larger illuminated field. This makes them effective for roadside businesses, shopping centers, industrial parks, fuel stations, transportation facilities, and commercial streets where several signs compete for attention. The background color can also be designed independently from the facade, which helps when the wall itself offers poor contrast.
Neither format can compensate for an overloaded design. A large bright cabinet containing six lines of small text may be less useful than a simple business name. A decorative channel letter script may become difficult to identify from a moving vehicle, even if the sign is beautifully fabricated.
The figures below are practical planning references rather than universal design rules.
| Viewing Situation | Common Starting Letter Height | Main Design Priority | Product Often Considered |
| Indoor reception or close pedestrian view | 75–200 mm | Fine finish and close-range detail | Halo-lit letters, acrylic letters, slim light boxes |
| Small storefront across a walkway | 200–400 mm | Clear spacing and strong contrast | Front-lit letters or compact light box |
| Street-facing retail facade | 400–750 mm | Readability across a street or from slow traffic | Channel letters or larger cabinet |
| Roadside commercial building | 750–1,500 mm or more | Long-distance identification and simple wording | Large channel letters or cabinet sign |
| High-level building facade | Project-specific | Viewing angle, wind, access, and structural support | Engineered letters or sectional cabinet |
Viewing distance is only one variable. Traffic speed, sign angle, obstructions, background color, surrounding illumination, weather, and local sign restrictions can significantly change the required size. The best design is usually the one that communicates the business name within a brief glance rather than asking the viewer to study several messages.
Which Handles Complex Graphics Better?
Light boxes normally provide more freedom for logos containing gradients, illustrations, photographs, fine patterns, several colors, or supporting text. The entire design can remain on one face, preserving the relationship between the brand name, symbol, background, and secondary information.
This flexibility is valuable for restaurants, entertainment venues, cinemas, service centers, travel businesses, automotive shops, shopping centers, and brands whose identity relies on illustrated elements. The face can also be changed when a menu, tenant, promotion, service category, or campaign changes.
Channel letters work best when the artwork can be separated into stable physical shapes. Broad lettering, simple symbols, and clean logo marks are easier to fabricate, illuminate, mount, and maintain. Narrow decorative lines, tiny internal gaps, and small isolated elements may not provide enough room for LED modules, face-retention systems, wiring, or reliable fixing points.
A mixed sign system often provides a better solution than forcing every visual element into one construction method. The main name can use channel letters, while a detailed icon uses a shaped light box, acrylic LED panel, or printed graphic. Secondary information can be moved to windows, doors, menus, or directional signs.
Experienced sign design is partly about deciding what does not need to be illuminated. The main identity should remain dominant. Additional content should support recognition rather than compete with it simply because the fabrication method allows more elements to be added.

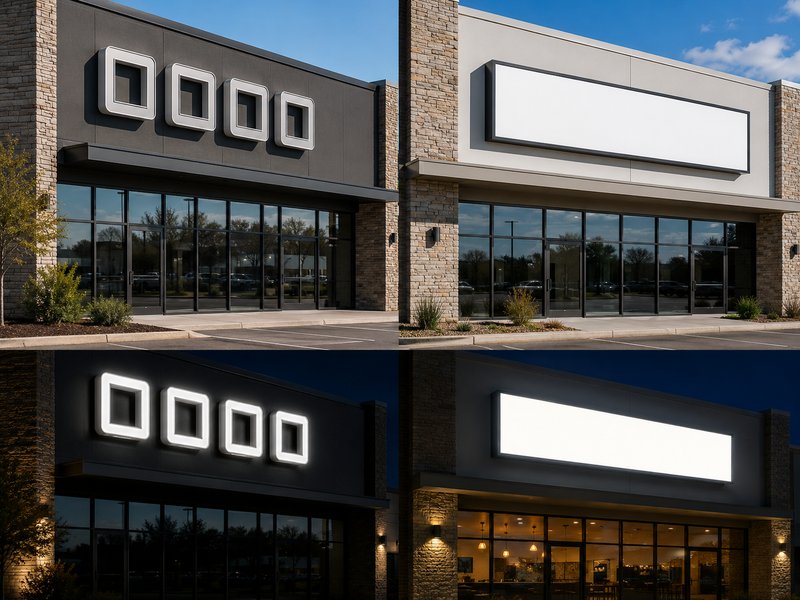

How Do Day and Night Results Differ?
A commercial sign has two visual identities. During the day, it is judged as a physical object made from metal, acrylic, paint, printed graphics, brackets, and architectural surfaces. At night, the optical system becomes the dominant feature.
In daylight, channel letters reveal their depth, return color, surface finish, face quality, edge treatment, spacing, and mounting accuracy. Halo-lit letters may appear quieter when switched off because their faces are commonly opaque. Front-lit letters usually retain stronger daytime color through the acrylic face.
Light boxes create a larger daytime graphic area. Print resolution, panel flatness, color matching, face tension, frame width, seams, glare, and edge alignment become highly visible. A large cabinet can dominate a building even when it is unlit, so its proportions should be evaluated as part of the architecture.
At night, channel letter quality depends on maintaining consistent brightness across different letter shapes. A wide “M,” narrow “I,” round “O,” and small punctuation mark cannot always use identical LED spacing. Light boxes must illuminate a broader area without dark corners, central bright zones, visible module points, or shadows from internal reinforcement.
Common nighttime problems include:
- LED hotspots visible through the face
- Dark edges or narrow letter strokes
- Uneven brightness between letters
- Different color temperatures within one sign
- Internal frame shadows inside a cabinet
- Excessive brightness that reduces readability
- Light leakage around joints and cable holes
- Distorted halos on textured walls
Day-and-night renderings are helpful during approval, but they cannot fully predict optical performance. When light color, diffusion, brand color, or a special finish is important, a sample, illuminated section, or first article provides more reliable evidence before the full project begins.
How Do Cost and Maintenance Compare?
Channel letters often require more individual fabrication because each letter must be cut, formed, illuminated, wired, inspected, and packed separately. Light boxes can be more economical when one cabinet carries the complete design, although large cabinets may create higher frame, face, shipping, and installation costs. Lifetime value depends on access, local labor, graphic changes, replacement parts, and lifting requirements.
What Drives Channel Letter Costs?
A channel letter quotation should not be calculated only from the total width of the sign. Two signs measuring 3,000 mm wide can require very different amounts of labor, material, wiring, and inspection. A short brand name with six large block letters may be simpler than a longer name containing fifteen narrow characters, punctuation, curves, and small internal openings.
Every separate letter requires cutting, bending, welding or joining, finishing, face preparation, LED installation, wiring, testing, and protective packing. The number and shape of the components therefore influence cost as much as the overall size.
The lighting method also changes the construction. Front-lit letters normally use translucent faces and opaque returns. Halo-lit letters need controlled wall spacing and a suitable back-lighting arrangement. Front-and-halo-lit letters must balance two lighting systems. RGB and RGBW configurations add controllers, wiring groups, programming, and longer testing procedures.
Major cost factors include:
- Number of letters and logo components
- Overall dimensions and individual letter heights
- Minimum stroke width and letter depth
- Front-lit, halo-lit, dual-lit, or side-lit illumination
- Aluminum, stainless steel, acrylic, or mixed construction
- Trimmed or trimless face-retention method
- Painted, brushed, polished, plated, or special surface finish
- Pantone or approved sample color matching
- LED type, density, color, and control system
- Raceway, backboard, or direct-mount preparation
- Outdoor sealing, drainage, and corrosion protection
- Installation patterns, studs, brackets, and cable exits
- Export packaging, crates, and dimensional freight
The scope of supply should be compared carefully. One quotation may include power supplies, hardware, installation templates, wiring labels, testing records, and reinforced packing, while another may exclude several of these items. A low initial figure can become more expensive when missing components must be sourced locally under time pressure.
What Drives Light Box Costs?
Light box pricing is strongly influenced by cabinet area, depth, number of illuminated faces, graphic system, frame structure, access method, and mounting arrangement. A small indoor wall box and a large outdoor double-sided projecting cabinet should not be evaluated as variations of the same simple product.
Rigid acrylic or polycarbonate faces are common for small and medium cabinets. Larger signs may require thicker panels, additional support, multiple sections, flexible face material, or tensioned fabric systems. Double-sided cabinets require graphics and lighting control on both sides, along with a frame that remains aligned and resists twisting.
Projecting light boxes require special attention because the bracket supports the cabinet away from the building. The connection must account for leverage, wall structure, center of gravity, wind exposure, cable routing, and installation access. The cabinet may be visually compact while the mounting interface carries much of the engineering responsibility.
Common cost drivers include:
- Cabinet width, height, depth, and shape
- Single-sided or double-sided construction
- Aluminum, steel, or mixed frame materials
- Acrylic, polycarbonate, flex face, or fabric graphics
- Printed film, cut vinyl, routed face, or raised elements
- Permanent or replaceable graphic systems
- Hinged, removable, sliding, or rear service access
- LED density, optics, color, and power requirements
- Internal reinforcement and shadow control
- Outdoor drainage, ventilation, and corrosion protection
- Wall brackets, projecting arms, poles, or suspension systems
- One-piece or sectional construction
- Wooden crates, dimensional freight, and site assembly
A shallow cabinet may use less metal but require more specialized optics to avoid visible LED points. A deeper cabinet may illuminate more easily, yet increase weight, wind area, shipping volume, and visual bulk. A dependable quotation balances optical performance, structure, appearance, installation, and freight rather than reducing one dimension in isolation.
Which Has a Lower Lifetime Cost?
The lower purchase price is not always the lower lifetime cost. A complete comparison should include manufacturing, shipping, installation, electrical work, cleaning, local service labor, access equipment, replacement parts, graphic updates, and eventual removal.
| Lifetime Cost Area | Channel Letters | Light Boxes |
| Initial fabrication | More individual forming, wiring, and inspection | More frame and face area, but centralized construction |
| Installation | Multiple fixing points and cable exits; raceway may simplify work | Larger unit handling and stronger brackets may be required |
| Freight | Irregular components need careful protection | Cabinet volume can create high dimensional freight |
| Electrical service | Fault may be isolated to one letter or wiring group | Centralized access may simplify internal checks |
| Cleaning | More returns, edges, and spaces between letters | Larger flat face with fewer separate components |
| Graphic updates | Usually require new faces or new letters | Existing cabinet may accept a new face or graphic |
| Relocation | Letters may be reused if layout and site conditions remain suitable | Cabinet may be reused if dimensions and mounting remain compatible |
| Major brand change | Often requires substantial remanufacturing | New graphic face may provide a lower-cost update |
Channel letters are often suitable for stable brand identities expected to remain in place for several years. Their dimensional form becomes part of the storefront, and the business is less likely to change the wording frequently.
Light boxes can provide better long-term value when the displayed content changes. Restaurants, tenant directories, service departments, seasonal promotions, and property leasing applications may be able to retain the frame and replace only the face or graphic layer.
The maintenance environment is equally important. Replacing a small component at ground level is very different from completing the same repair several meters above a busy street. Lift rental, road control, landlord approval, safety procedures, and technician time can exceed the value of the electrical component itself.
The most economical sign is the one that matches the expected pattern of use. Permanent identity, frequent graphic changes, difficult access, local labor rates, and future renovation plans should be discussed before the final product is selected.

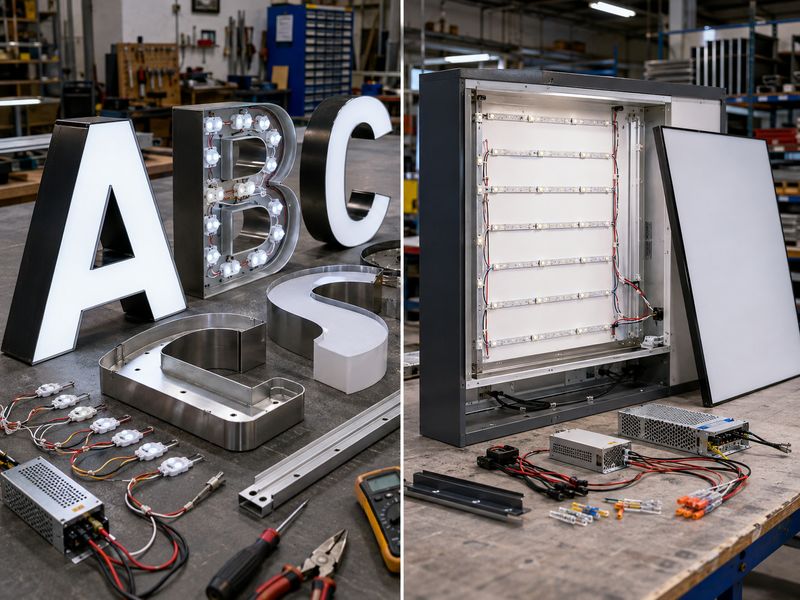

Which Is Easier to Repair or Update?
Channel letters can be practical to troubleshoot because one failed letter may be inspected without dismantling the entire sign. A technician may check the face, LED group, cable connection, mounting point, or power circuit associated with the affected component.
This advantage depends on the original construction. If the wiring is undocumented, the power supplies are hidden in an inaccessible space, or the faces cannot be removed without damaging the finish, the individual letter format offers little practical benefit.
Raceway-mounted letters often simplify service because the electrical connections and power components can be organized within one shared enclosure. Direct-mounted letters create a cleaner appearance but may place wiring and power supplies behind the wall, above a ceiling, or in another area that must remain accessible.
Light boxes centralize the LED system and wiring. A removable face, rear panel, or dedicated service door can provide efficient access to internal parts. However, this only works when the opening direction remains usable after the sign is installed. A cabinet placed too close to a canopy, ceiling, neighboring wall, or structural column may block the intended access route.
Graphic updating is generally easier with a light box. A printed face, fabric graphic, vinyl layer, or tenant panel may be replaced while the cabinet stays in place. Channel letter changes are less flexible because a new name, font, spacing arrangement, or logo usually affects the physical components.
Before production begins, the project team should confirm:
- Where the power supply will be installed
- How the LEDs and wiring will be reached
- Whether the face can be removed after installation
- How the replacement parts will be identified
- Whether drawings and component records will be retained
A serviceable sign is not simply one that can be opened in theory. It must be reachable, diagnosable, repairable, and safely closed again under real site conditions.
How Do Site Conditions Affect the Choice?
Wall construction, available sign space, power access, mounting restrictions, installation height, weather, wind exposure, service clearance, and landlord rules can determine the preferred sign before visual preferences are considered. A well-planned sign is engineered around the actual building and installation method rather than expecting local installers to resolve missing details after delivery.

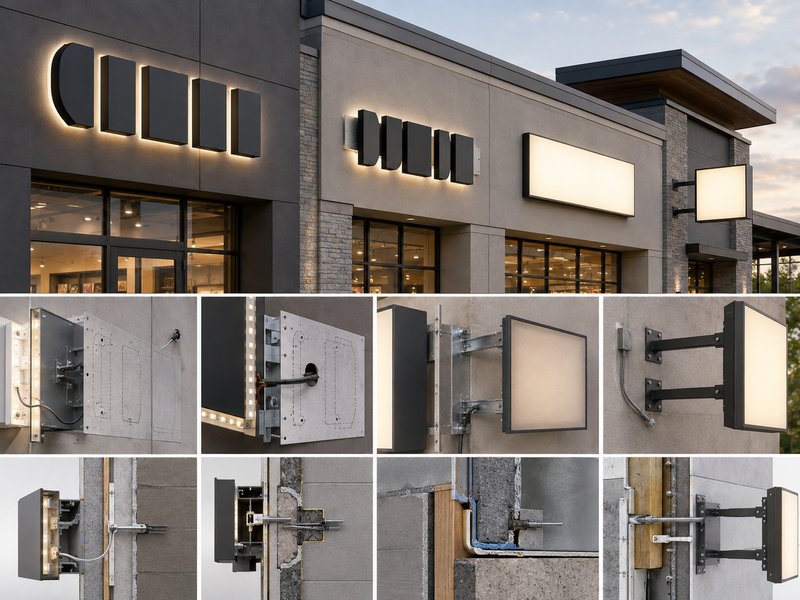

How Are They Mounted and Wired?
Channel letters are commonly direct-mounted, raceway-mounted, or installed over a shared backboard. Direct mounting produces a clean architectural appearance because the building remains visible around every letter. It also requires accurate hole positions, a full-size installation pattern, suitable structural backing, and a workable method for routing cables through the facade.
A raceway is a shared metal enclosure that supports the letters and contains much of the wiring. It may reduce the number of wall penetrations and simplify electrical work. Raceways are useful where access behind the wall is limited, but their width, depth, finish, and position should be coordinated with the architecture.
A backboard may improve visual contrast, cover uneven wall conditions, support wiring, or create a common installation surface. Unlike a narrow raceway, it becomes a larger visible element and should be included in the design approval rather than treated only as technical hardware.
Light boxes are commonly attached using rear frames, rails, brackets, projecting arms, poles, suspension systems, or other structural interfaces. Because the cabinet behaves as one larger object, the installer must consider total weight, lifting points, wind area, bracket spacing, wall capacity, and access for fixing.
Manufacturing and installation drawings should identify:
- Product and component dimensions
- Mounting-hole or bracket positions
- Supplied studs, rails, brackets, and hardware
- Cable exits and cable lengths
- Power-supply locations
- Sign orientation and installation sequence
- Raceway or backboard dimensions
- Sectional joints and on-site assembly points
- Full-size or scaled installation templates
Electrical planning should begin early. Input voltage, output voltage, power reserve, wire length, grounding, local certification requirements, circuit grouping, and remote power locations can all influence the product structure. A sign that works during factory testing can still experience problems if field wiring creates excessive voltage drop or if the local electrical connection differs from the approved system.
Do Landlord and Permit Rules Matter?
Landlord standards and local sign regulations can restrict product type, dimensions, projection, brightness, operating hours, colors, mounting methods, and electrical components. Many shopping centers encourage individual letters and prohibit large rectangular cabinets. Other properties require tenants to reuse existing cabinet frames or follow a predetermined sign-band layout.
Historic districts may restrict internally illuminated signage or require concealed mounting. Blade signs may be limited by maximum projection and minimum clearance above sidewalks. Local authorities may also require electrical details, structural calculations, component certifications, or drawings prepared by licensed professionals.
These conditions should be reviewed before final engineering. Redesigning after materials, pricing, and production drawings have been approved can delay the opening schedule and create unnecessary cost.
Useful project documents include:
- Landlord sign criteria
- Approved sign-zone dimensions
- Building elevations and facade photographs
- Existing sign and electrical information
- Wall or cladding construction details
- Maximum sign projection
- Permitted illumination methods
- Raceway and exposed-wiring restrictions
- Required electrical or product certifications
- Permit drawing requirements
- Local installer comments
The manufacturer can provide product drawings, materials, mounting details, electrical information, and component specifications. The local sign company, landlord, architect, structural engineer, electrician, and permitting authority remain essential because they understand the building and local regulations.
Claims such as “approved everywhere” or “no permit required” should be treated cautiously. Sign rules vary between countries, states, cities, districts, shopping centers, and individual properties. The safest sequence is to confirm the sign zone and property requirements, develop the design, review manufacturability, coordinate installation, and then approve production.
Which Performs Better Outdoors?
Both channel letters and light boxes can perform outdoors when the materials, joints, wiring, drainage, coatings, and mounting systems are selected for the environment. Their risk points are different rather than universally better or worse.
| Outdoor Risk | Channel Letter Consideration | Light Box Consideration |
| Rain entry | Multiple faces, backs, seams, cable exits, and mounting points | Large face perimeter, cabinet joints, service doors, and cable exits |
| Drainage | Each letter may need controlled low-point drainage | Cabinet base must prevent trapped water |
| Wind | Smaller individual areas but many fixing points | Large cabinet face creates greater wind area |
| Corrosion | Returns, welds, backs, fasteners, and studs | Frame, brackets, hinges, fasteners, and internal supports |
| UV exposure | Acrylic faces, paints, trims, and sealants | Printed graphics, films, acrylic, polycarbonate, and flexible faces |
| Thermal movement | Face-to-return fit and seal movement | Large panels and frames experience greater expansion |
| Heat control | Limited internal space around LEDs | Larger enclosed volume may retain heat |
| Maintenance | Distributed components across several letters | Centralized access but larger face-handling requirements |
Outdoor channel letters have many individual shells, faces, backs, cable exits, and mounting points. Water can enter through any poorly controlled joint. Completely sealing every opening is not always the correct response because condensation and incidental moisture may still need a planned drainage route.
Outdoor light boxes face wider structural loads. Large faces may bow, vibrate, expand, or contract. Internal supports must maintain the frame shape without casting visible shadows through the face. Double-sided projecting cabinets create additional leverage on the wall bracket and require careful control of weight distribution.
The actual environment should be described accurately. Coastal salt, high humidity, intense sunlight, freezing temperatures, dust, pollution, heavy rain, and strong wind do not create identical material requirements. “Outdoor use” is too broad to serve as a complete specification.
Installation quality also affects outdoor performance. A well-made sign may still experience water or electrical problems if cable penetrations, anchors, junction boxes, wall seals, and drainage paths are handled poorly at the site.
How Is Service Access Planned?
Service access should be defined during engineering rather than discovered after installation. A cabinet or letter set may appear accessible in a workshop but become difficult to open when installed next to a ceiling, canopy, structural column, neighboring sign, or narrow maintenance platform.
Channel letter access may come through the front face, rear panel, trim, or shared raceway. Halo-lit letters often require controlled wall spacing or removable rear components. Power supplies may be located inside a raceway, behind a backboard, inside the building, above a ceiling, or in a separate electrical enclosure.
Light boxes may use removable faces, hinged panels, slide-out graphics, rear doors, side covers, or dedicated service openings. Large rigid faces may require two technicians or lifting equipment to remove safely. Describing a face as “removable” is not enough unless the surrounding space allows it to be removed after installation.
A practical service plan identifies:
- Direction of access
- Clearance needed to open or remove the face
- Power-supply and controller locations
- LED wiring groups
- Connector type and identification
- Replaceable and permanently bonded parts
- Weather seals that must be restored
- Required tools and lifting equipment
- Safe support for removed panels
- Availability of drawings and replacement specifications
Electrical parts should not be positioned only for factory convenience. The final location must consider heat, moisture, cable length, voltage drop, future replacement, and local maintenance access.
Clear service drawings can reduce long-term costs. They help installers prepare the site correctly, give technicians a logical starting point, and reduce the risk of removing an entire sign to replace a small component.
Which Sign Is Right for Your Project?
Choose channel letters when the brand relies on clean typography, architectural depth, and a stable storefront identity. Choose a light box when detailed graphics, multiple messages, broad illumination, or replaceable content are more important. Many projects benefit from combining both products, provided the hierarchy, colors, lighting, mounting, and maintenance strategy are coordinated from the beginning.
Which Fits Your Logo and Facade?
The selection process should begin with the logo in vector form rather than with a preferred product. Broad strokes, simple shapes, and clear spacing are strong candidates for channel letters. Narrow scripts, gradients, illustrated characters, several lines of text, and fine internal details are usually easier to reproduce on a light box face.
A logo that appears simple at normal screen size may become difficult when converted into a physical illuminated structure. The narrowest stroke, smallest internal opening, tightest spacing, unsupported corner, and thinnest connection between shapes can affect face cutting, return forming, LED placement, strength, mounting, and long-term cleaning.
The facade matters just as much as the artwork. A smooth, light-colored wall can support an even halo. Dark brick, reflective metal, corrugated cladding, or irregular stone may create inconsistent light patterns. A light box can provide its own background and may cover an unattractive surface, but a large cabinet can feel visually heavy on a narrow or highly detailed facade.
The review should include:
- Available sign-zone width and height
- Wall material and structural backing
- Daytime color contrast
- Nighttime background brightness
- Architectural joints and facade lines
- Existing power and cable routes
- Mounting and maintenance clearances
- Distance from canopies, windows, and neighboring signs
- Relationship between the sign and the building proportions
The goal is not to reproduce every digital detail regardless of cost or reliability. The goal is to preserve the features customers recognize while creating a sign that can be manufactured, packed, transported, installed, illuminated, and serviced with controlled risk.
Which Fits Your Viewing Distance?
A sign should be designed for the way customers actually approach the building. A pedestrian sees different details from a driver. A sign mounted above a canopy may be viewed from below. A blade sign may be visible along the sidewalk, while a wall sign may be most visible from across the street.
Channel letters are effective when their size, spacing, and stroke widths remain clear at the intended distance. Their individual outlines create strong recognition, but long business names can force each letter to become too small when the available sign zone is limited.
A light box can use the full face to create a recognizable shape and high-contrast background. It may support a short descriptor in addition to the brand name, but adding too many service lines can quickly reduce readability.
The design should be tested at realistic scale and from realistic angles. The primary message should remain understandable when the artwork is reduced on a screen or placed over a photograph of the actual building. Information that is not essential to immediate identification can be moved to windows, doors, menus, websites, or directional signs.
The main job of most storefront signs is identification. Trying to make one sign perform as a complete advertisement often weakens the one message customers need to recognize first.
Which Works Better for Chain Stores?
Channel letters are often suitable for chain-store programs because the font, face color, return finish, letter depth, LED color, spacing, and mounting logic can be standardized. The brand remains recognizable even when the total sign dimensions are adjusted for different facades.
Standardization does not mean every store receives an identical product. Locations may have different sign zones, wall materials, voltage systems, landlord rules, power locations, viewing distances, and mounting restrictions. A strong brand standard defines which visual and technical details must remain fixed and which can be adapted.
Light boxes work well for chain-store elements that need more information or future graphic changes. Menu boards, pickup zones, pharmacy departments, service counters, roadside identification, and tenant panels may benefit from replaceable faces.
A reliable multi-store program controls:
- Master vector artwork
- Approved proportions and spacing
- Daytime and illuminated colors
- Face, return, frame, and back materials
- Standard depths and finish references
- LED and power specifications
- Mounting-hole and bracket logic
- Raceway and backboard standards
- Store numbers and product codes
- Approved samples or first articles
- Revision histories
- Replacement-part records
- Packing lists and accessory kits
Packaging is part of the program rather than an afterthought. Each store’s letters, power supplies, hardware, templates, drawings, and accessories may need to be grouped and labeled separately. This reduces sorting errors at warehouses and installation sites.
The strongest manufacturing partner is not simply the one that can produce a large quantity. It is the one that can retain approved files, control revisions, separate locations, manage batch consistency, and identify when site conditions require a documented exception.
Can You Use Both Signs Together?
Many commercial projects benefit from using channel letters and light boxes for different functions. The main brand name may need the architectural presence of individual letters, while secondary information may require the graphic flexibility of a cabinet.
A restaurant may use front-and-halo-lit letters for its name and a slim light box for cuisine type or pickup information. A hotel can use halo-lit letters above the entrance and a double-sided blade box for visibility along the street. A retail center may use channel letters on tenant storefronts and illuminated cabinets for directories, parking entrances, or roadside identification.
The combination should follow a clear hierarchy. The primary identity remains dominant, while secondary messages support navigation or explanation without competing through excessive brightness, color, or scale.
A coordinated sign system should align:
- Metal finishes and frame colors
- LED color temperatures
- Daytime brand colors
- Edge and face details
- Mounting heights
- Brightness relationships
- Cable and power locations
- Installation sequences
- Packaging and site labels
Combining products can also solve practical design problems. A long brand name may become too small when fitted into the available facade width, while the main wordmark remains in channel letters and the descriptor moves to a separate cabinet. A detailed logo symbol may be difficult to fabricate individually but can sit beside simple letters as a shaped light box.
Adding more illuminated products does not automatically improve visibility. A focused combination with clear roles is usually more effective than filling every available area with light.
What Should You Send for an Accurate Quote?
A dependable quotation requires enough information to define the product, lighting system, installation interface, electrical configuration, packing, and production schedule. A low-resolution logo and an approximate width may support an early discussion, but they cannot support final engineering or accurate pricing.
For channel letters, provide:
- Vector logo, font file, or approved outlines
- Overall sign width and height
- Individual letter height where available
- Quantity and number of locations
- Preferred front-lit, halo-lit, dual-lit, or side-lit effect
- Face, return, and back colors
- Indoor or outdoor use
- Facade photographs and wall material
- Direct, raceway, or backboard mounting preference
- Cable-exit and power-location information
- Destination country and input voltage
- Certification or landlord requirements
- Required delivery or installation date
For light boxes, also confirm:
- Single-sided or double-sided construction
- Cabinet shape, width, height, and depth
- Rigid, flexible, fabric, or other face type
- Permanent or replaceable graphics
- Wall-mounted, suspended, projecting, or freestanding installation
- Bracket or support requirements
- Front, rear, side, or hinged service access
- One-piece or sectional shipping preference
A useful quotation should explain what is included rather than presenting only one final figure. The scope should identify the materials, lighting method, power supply, mounting preparation, accessories, testing, packaging, and shipping assumptions.
iduoduo is a Shenzhen-based custom sign OEM/ODM manufacturer established in 2007. Its documented manufacturing system includes five production bases, 21,000 square meters of production space, more than 500 employees, 18 production lines, in-house designers, engineers, and quality-control personnel. Its product range includes channel letters, light boxes, LED neon signs, acrylic LED logo signs, and other illuminated and non-illuminated commercial signage.
Standard samples or single custom units are commonly scheduled for approximately 5–7 days, while complex structures, large dimensions, special finishes, unusual mounting systems, or custom electrical configurations may require approximately 7–15 days. Production scheduling depends on final drawings, materials, quantity, testing, packaging, and delivery requirements.
Illuminated products should be evaluated through more than a visual check. Useful pre-shipment evidence includes dimension inspection, finish inspection, color confirmation, LED uniformity checks, power and wiring inspection, installation-hole verification, accessory checking, packing records, 100% lighting inspection, and controlled operation testing.
The documented quality framework includes 72-hour pre-shipment testing and a three-year warranty. Final warranty assessment depends on the product type, installation, voltage, environment, water exposure, maintenance, electrical connections, and the reported cause of any issue.
Send your vector logo, required dimensions, quantity, facade photographs, lighting preference, destination market, mounting conditions, and project date to begin the review. The engineering team can compare channel letter and light box options based on the actual project rather than asking you to choose from appearance alone.
A successful custom sign should not only look right in the approved rendering. It should arrive safely, fit the prepared installation points, connect to the planned electrical system, remain readable from the intended distance, and allow practical service later. A detailed project review before production is the most reliable way to protect both the visual result and the long-term investment.
Contact iduoduo to request a channel letter or light box engineering review, custom design proposal, and detailed manufacturing quotation.
