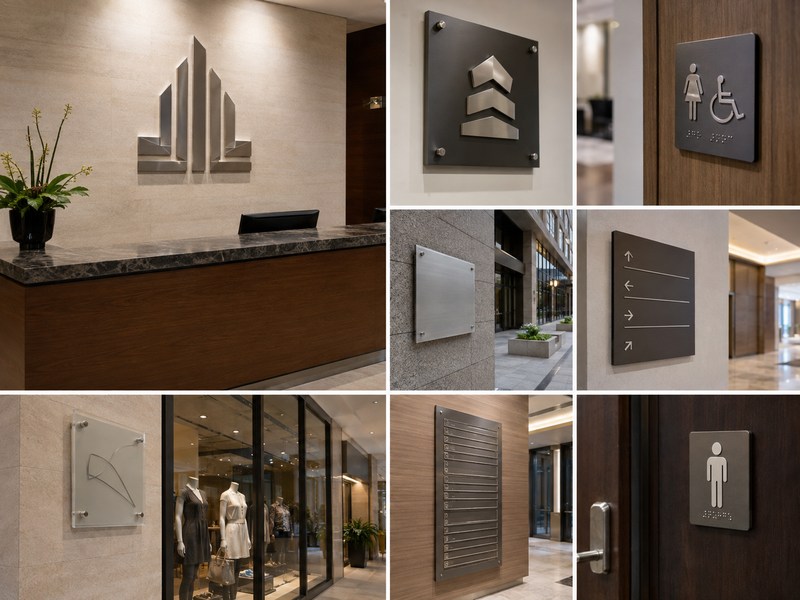

A commercial sign does not need to glow to attract attention, support navigation, or communicate a premium brand image. In offices, hotels, retail stores, clinics, restaurants, mixed-use properties, and corporate buildings, some of the most effective signs depend on material quality, dimensional depth, clear typography, surface finish, color contrast, and precise placement rather than LEDs. This is especially true in well-lit interiors, daylight-focused storefronts, and architectural environments where a restrained appearance is more suitable than a bright electrical display.
Non-illuminated signs for commercial spaces include metal letters, acrylic letters, PVC and foam lettering, cut-out logos, wall panels, plaques, directories, room signs, ADA signs, and wayfinding systems. The best option depends on viewing distance, indoor or outdoor exposure, wall material, brand finish, accessibility requirements, installation method, maintenance expectations, and whether the sign must remain clearly visible after dark.
The right decision should therefore begin with the space and the communication task, not with a material sample or a low unit price. A brushed stainless steel logo may look excellent on a stone reception wall but disappear against a reflective exterior façade. A lightweight foam logo may transform an exhibition backdrop yet perform poorly as a permanent outdoor building sign. Think of the last unfamiliar hotel, hospital, or office you entered. You probably noticed the main logo, but you depended on many quieter signs to reach the right room. That is the real value of a carefully planned non-illuminated sign system.

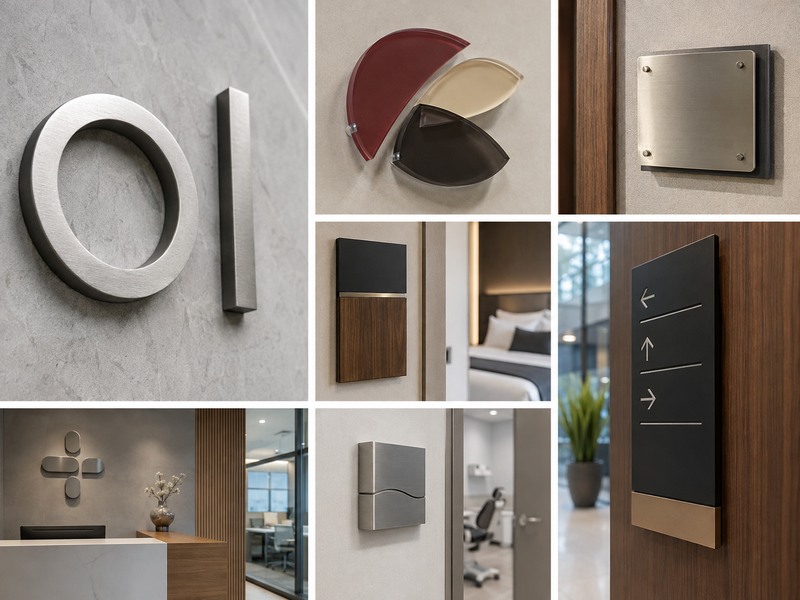

What Are Non-Illuminated Signs?
Non-illuminated signs are commercial signs without built-in LEDs, lamps, power supplies, controllers, or internal electrical wiring. They rely on material, depth, color contrast, typography, surface finish, and placement for visibility. Common examples include metal letters, acrylic logos, plaques, room signs, directories, printed panels, ADA signs, and wayfinding signs used throughout commercial buildings.
How They Create Visibility
A non-illuminated sign does not produce its own light, so every visible detail becomes more important. Letter shape, stroke width, spacing, color contrast, surface reflection, installation height, and background conditions all affect whether the sign can be understood quickly. A design that looks attractive on a computer screen may perform poorly on the actual wall when real lighting, reflections, furniture, doors, and architectural materials are introduced.
A dark gray logo placed on charcoal stone may lose definition, even when the color combination looks sophisticated in a rendering. Mirror-polished metal can reflect windows, ceiling lights, or passing people instead of showing a clean logo shape. Clear acrylic may almost disappear against glass or a pale wall unless a contrasting layer, shadow gap, printed color, or backing panel is introduced. For this reason, material and background should always be evaluated together.
Visibility is usually created through a combination of dimensional depth, controlled contrast, appropriate finishes, clear spacing, and a suitable mounting position. Raised letters can create natural shadows that improve recognition. Matte or brushed surfaces can reduce glare, while a contrasting backboard can separate a logo from a visually complicated wall. Existing architectural lighting may also be enough for interior signs, while exterior signs may need nearby façade lighting or dedicated spotlights.
The sign should be reviewed from the visitor’s real viewing position rather than only from directly in front of the artwork. A reception logo may be viewed from several meters away at an angle. A storefront name may need to be recognized from across a parking area. A corridor directional sign may be approached from only one side. These conditions influence letter height, stroke width, spacing, and sign placement.
How They Differ from Illuminated Signs
The difference between illuminated and non-illuminated signs is broader than the presence or absence of LEDs. Illuminated products require internal space for light sources, wiring, power supplies, cable exits, heat management, access points, and sometimes drainage. Non-illuminated products can often be thinner and visually simpler, but the exposed material and finishing quality are usually examined more closely because there is no lighting effect to distract from minor surface defects.
A non-illuminated sign is not automatically easier to manufacture. A large mirror-finish stainless steel logo can require careful cutting, welding, polishing, protection, and packaging. A layered acrylic logo may contain several precisely aligned parts. A hotel room-sign order may involve hundreds of unique numbers, tactile messages, arrows, and location codes that must be produced, inspected, labeled, and packed without any mixing.
| Project Factor | Non-Illuminated Signs | Illuminated Signs |
| Visibility source | Ambient or external light | Integrated internal light |
| Typical product depth | Approximately 3–100 mm | Often 30–200 mm or more |
| Electrical connection | Normally unnecessary | Required |
| Main quality focus | Dimensions, edges, finish, color, mounting | Finish, lighting, wiring, power, sealing |
| Maintenance focus | Cleaning, coating, fasteners, surface condition | Lighting components plus general maintenance |
| Common use period | Daylight and well-lit interiors | Day and night |
| Typical applications | Lobbies, offices, plaques, directories, wayfinding | Storefronts and late-night commercial venues |
The correct choice depends on how the sign will be used. A restaurant that operates until midnight may need an illuminated exterior identity, while its reception logo, menu area, restroom signs, room labels, and interior directional system may work better as non-illuminated signage. Many commercial projects use both categories rather than forcing one solution into every location.
Where They Work Best
Non-illuminated signs perform especially well in locations where the environment already provides sufficient lighting and where the desired appearance is architectural rather than highly promotional. Corporate reception walls, hotel corridors, office suites, clinics, retail interiors, restaurants, museums, shopping-center directories, and mixed-use buildings all make frequent use of non-electrical signage.
Exterior applications are also common. Metal letters, painted aluminum logos, wall panels, plaques, freestanding property signs, and dimensional lettering can perform well outdoors when the material, coating, fasteners, and mounting method are suitable for the location. The main question is whether the sign needs to remain clearly visible after dark and whether surrounding lighting can support that requirement.
External lighting can sometimes provide nighttime visibility while preserving the solid appearance of a non-illuminated sign. Wall-mounted spotlights, canopy lights, landscape lighting, or architectural wash lighting can illuminate the sign from above or below. The position and beam angle should be evaluated carefully because poor lighting can create harsh shadows, uneven coverage, glare, or reflections that reduce readability.
A sign in a bright shopping center may require no dedicated lighting, while the same sign installed on a dark roadside building may become difficult to see after sunset. The material itself has not changed, but the surrounding environment has. That is why the final choice must consider operating hours, local lighting, façade conditions, and viewer position.
What Their Limits Are
The main limitation is reduced visibility in darkness. A non-illuminated sign depends on daylight, ambient light, or external fixtures. Increasing the material thickness or choosing a more expensive finish does not solve the absence of light. A business that relies heavily on evening traffic should evaluate whether external lighting or an illuminated sign is necessary.
Material limitations also matter. Foam can dent in public areas. Acrylic can scratch, expand, or reveal adhesive through clear surfaces. PVC may warp when oversized panels are too thin or poorly supported. Brass and copper may develop patina. Mirror stainless steel can show fingerprints and reflect unwanted objects. Painted surfaces can fade or chip if the preparation and coating system are unsuitable for the environment.
Individual letters also create installation challenges. Small logo elements may be difficult to mount securely. Fine strokes can break during handling. Large panels may bow without reinforcement. Uneven walls can produce inconsistent shadow gaps. Adhesive mounting may fail on dusty, textured, damp, porous, or contaminated surfaces. A design that ignores these conditions can become expensive to correct after production.
A practical sign does not always use the strongest or most expensive material. It uses a structure that fits the viewing distance, environment, mounting surface, expected service life, and maintenance plan. If a logo contains many small parts, a shaped backboard may be more reliable than separate installation. If a panel is unusually wide, rear stiffeners, thicker material, additional fixing points, or segmentation may be required.

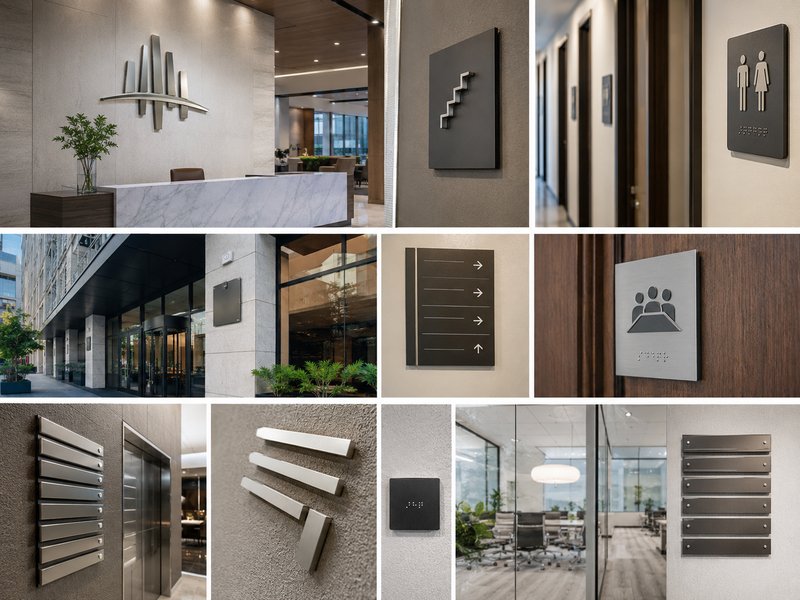

Which Sign Types Suit Commercial Spaces?
The most suitable non-illuminated signs for commercial spaces include dimensional metal letters, acrylic letters, PVC and foam letters, cut-out logos, wall panels, plaques, room signs, directories, ADA signs, and wayfinding signs. Each format serves a different function, so commercial properties usually need several coordinated sign types rather than one product repeated in every location.
Dimensional Letters and Logos
Dimensional letters project from the wall or use sufficient material thickness to create a visible edge. They are widely used for reception logos, building names, storefront identification, department names, feature walls, and corporate branding. Their strength comes from the combination of shape, shadow, finish, and depth rather than from lighting.
Metal letters are often selected when a permanent architectural appearance is required. Common options include flat-cut stainless steel, fabricated aluminum letters, brass lettering, copper details, and metal-faced composite letters. Flat-cut letters can be only a few millimeters thick, while fabricated letters may use returns of 20, 30, 50, 80, or 100 millimeters depending on the desired depth and the scale of the sign.
Acrylic letters provide sharper color control and more transparency options. They can be made from solid-color acrylic, clear acrylic, frosted sheets, layered components, reverse-painted material, or printed surfaces. They perform especially well in interiors where visitors view the sign at close range and notice edge clarity, color consistency, alignment, and mounting details.
PVC and foam provide lighter alternatives. PVC can be painted, printed, laminated, or faced with metal or acrylic. Foam is useful for large event graphics, exhibitions, product launches, retail campaigns, stage sets, and temporary displays where dramatic depth is needed without excessive weight. The material choice should reflect both appearance and physical risk.
| Sign Type | Common Thickness or Depth | Typical Applications | Main Design Concern |
| Flat-cut metal letters | 1–6 mm | Offices, façades, plaques | Edge quality and stroke width |
| Fabricated metal letters | 20–100 mm | Building names, premium interiors | Return alignment and surface consistency |
| Acrylic letters | 3–20 mm per layer | Reception logos, clinics, retail interiors | Scratches, adhesive visibility, edge finish |
| PVC letters | 5–30 mm | Interior branding, department names | Flatness and coating durability |
| Foam letters | 20–200 mm | Events, stages, large interior displays | Impact resistance and support |
| Metal-faced composite letters | 10–50 mm | Premium lightweight wall logos | Bonding and exposed edges |
Thickness should not be selected only for visual impact. Letter height, stroke width, viewing distance, handling, wall structure, and installation method all influence the correct depth. A thin metal letter may be suitable for a small office logo but appear weak on a large stone wall. A deep foam letter may create impressive dimension, yet narrow strokes can still require reinforcement.
Panels, Plaques, and Directories
Panels provide a controlled background for text, logos, arrows, graphics, and information. They are useful when individual elements would be difficult to install, when the wall lacks contrast, or when several messages must remain perfectly aligned. Panels can be rectangular, contour-cut, layered, folded, framed, engraved, printed, or combined with raised components.
Plaques are usually smaller and more formal. They are used for professional offices, company names, addresses, donor recognition, historical information, room identification, safety information, and property details. Metal plaques create a durable architectural appearance, while acrylic plaques allow printed graphics, transparent layers, replaceable inserts, and more color flexibility.
Directories organize several destinations in one location. They may display tenant names, floors, departments, room ranges, maps, or arrows. Their usefulness depends on clear hierarchy, predictable terminology, readable type, sufficient contrast, and an update strategy. A directory should help visitors find information quickly rather than impress them with excessive decoration.
Permanent directories with changing tenant information should normally include replaceable panels, modular strips, magnetic inserts, removable acrylic faces, or concealed fixings. A fully sealed printed panel may be less practical if names and destinations are expected to change. The long-term cost of updating information should be considered during the initial design.
Large panels also need structural review. Thin material can bow between fixing points, particularly when exposed to heat, sunlight, or uneven wall surfaces. Folded edges, thicker sheets, rear reinforcement, additional fasteners, or segmented construction can improve flatness and reduce movement.
ADA and Room Signs
Room signs identify permanent spaces such as offices, hotel rooms, restrooms, meeting rooms, storage areas, exits, and service rooms. They may be small, but they often carry more operational responsibility than large decorative signs. A single incorrect room number or arrow can create confusion for guests, staff, installers, and property managers.
In regulated environments, some signs may require tactile characters, Braille, non-glare surfaces, defined contrast, specific mounting positions, or accessible placement. Requirements vary by country, building type, and sign category, so the approved sign schedule should identify which products are subject to accessibility standards and who is responsible for compliance review.
Room signs may combine raised text, Braille, pictograms, engraved information, printed names, room numbers, changeable inserts, directional arrows, and decorative face layers. The design should remain clear and predictable at close viewing distance. Excessive ornament can reduce readability and make cleaning more difficult.
Consistency is the main manufacturing challenge. A hotel may need hundreds of room signs with the same dimensions, finish, character height, Braille position, mounting holes, and packaging format. Every sign should be linked to a room schedule, floor code, product code, and carton label. Grouping signs by floor or installation sequence can make local work significantly easier.
Room signs should be packed in a way that protects their surfaces while allowing installers to identify them quickly. Mixed numbering, wrong labels, missing components, or inconsistent mounting holes can delay an entire project even when the visual finish is acceptable.
Wayfinding and Directional Signs
Wayfinding signs help visitors move through a building or property. They include entrance identification, building names, directories, floor signs, corridor arrows, restroom signs, accessible-route signs, parking markers, department signs, elevator information, and room identification. A complete system should lead people from one decision point to the next without requiring repeated questions.
A practical wayfinding hierarchy normally begins with site identification, followed by building identification, entrance confirmation, main directory information, floor guidance, corridor decisions, and final room identification. Each sign should answer the next question the visitor is likely to have rather than presenting every possible destination at once.
Arrow consistency is essential. A project should not use several unrelated arrow shapes, line weights, or alignment systems unless there is a clear functional reason. Destination names must also remain consistent. Using “Customer Service,” “Service Desk,” and “Help Center” for the same place creates unnecessary confusion.
A message schedule should be prepared before manufacturing. It should connect every sign code to its location, message, arrow direction, pictogram, dimensions, material, finish, mounting method, quantity, and packaging group. This schedule becomes the main reference for artwork approval, production, inspection, packing, and installation.
The quality of wayfinding is measured by how easily unfamiliar visitors reach their destination. The most useful sign is not necessarily the largest or most decorative. It is the one placed at the correct decision point with clear language, suitable contrast, readable size, and an unambiguous arrow.

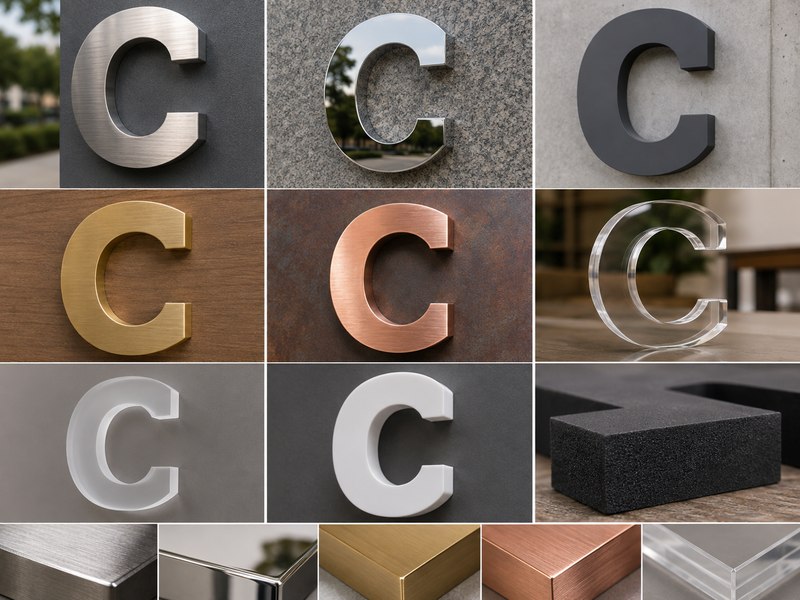

Which Materials Work Best?
The best material depends on location, expected lifespan, visual style, weight, viewing distance, cleaning routine, and installation method. Metal is commonly selected for permanent architectural signage, acrylic for detailed interior branding, PVC for lightweight dimensional graphics, and foam for temporary or large-scale displays. Outdoor suitability must be evaluated across the complete assembly, including coatings, adhesives, fasteners, backing, and wall conditions.
Metal for Long-Term Signs
Metal is often chosen for permanent commercial signage because it provides clean edges, structural stability, controlled finishes, and an architectural appearance. However, the word “metal” is not a complete specification. Stainless steel, aluminum, brass, copper, and galvanized steel have different weights, corrosion behavior, finishing methods, and maintenance needs.
Stainless steel is widely used for office logos, hotel signs, exterior letters, building identification, and plaques. Brushed stainless steel creates a controlled directional texture, while mirror-polished steel creates stronger reflections. Brushing direction must remain consistent across all letters because mixed grain direction becomes obvious after installation, particularly under side lighting.
Aluminum is lighter than stainless steel and suits painted or powder-coated finishes. It is frequently used for large letters, panels, property signs, and façades where total weight must be controlled. Surface cleaning, preparation, priming, and coating quality are important because poor preparation can cause peeling, uneven gloss, or color inconsistency.
Brass and copper create warmer finishes that suit hotels, restaurants, luxury retail spaces, and traditional interiors. These materials can change color over time. Buyers should decide whether natural patina is acceptable or whether a protective coating is required. Clear coatings can delay oxidation but cannot guarantee that frequently touched or exposed surfaces will remain unchanged indefinitely.
| Material | Relative Weight | Common Finishes | Typical Applications | Main Risk |
| Stainless steel | Medium to high | Brushed, mirror, painted, plated | Offices, hotels, exterior letters | Scratches and fingerprints |
| Aluminum | Low | Paint, powder coating, brushed effect | Large letters, panels, façades | Coating preparation |
| Brass | High | Brushed, polished, antique | Luxury interiors and plaques | Tarnishing and patina |
| Copper | High | Polished, brushed, aged | Hospitality and heritage projects | Natural color change |
| Galvanized steel | Medium to high | Painted or coated | Structural panels and frames | Cut-edge corrosion |
| Metal-faced composite | Low to medium | Metal face over PVC or acrylic | Lightweight premium wall logos | Bonding and edge exposure |
The complete assembly should be specified, not only the visible face. Grade, thickness, rear construction, welding method, fasteners, studs, spacers, backing material, and environmental exposure all influence performance. A premium metal face attached to unsuitable backing or installed with poor-quality hardware does not create a durable sign.
Acrylic for Detailed Branding
Acrylic is highly adaptable and works well when a project requires precise color, transparency, polished edges, layering, engraving, or printed graphics. It is frequently used for reception logos, retail walls, clinics, directories, room signs, branded displays, and corporate feature walls.
Common options include clear acrylic, frosted acrylic, solid-color acrylic, translucent sheets, reverse-painted clear acrylic, surface-printed acrylic, layered construction, engraved panels, and metal-faced acrylic. Each option produces a different edge, reflection, depth, and relationship with the wall behind it.
Clear acrylic requires careful planning because the background and mounting system remain visible. Transparent adhesive can still create visible marks or bubbles. Studs may cast shadows. Printed color may appear different depending on the wall behind the sign. Frosted or opaque acrylic can reduce some of these issues, but edge quality and alignment remain important.
Reverse painting places color behind the clear material, protecting the painted surface and creating additional visual depth. The final color should be approved on the actual acrylic thickness because reflections and transparency affect the appearance. A color viewed on a monitor cannot replace a physical production sample.
Layered acrylic can create borders, shadows, raised faces, contrasting colors, and dimensional effects. Alignment tolerances become more visible as more layers are added. A small offset on one letter may be barely noticeable, but the same error repeated across a large logo can make the entire installation look inconsistent.
Outdoor acrylic use should be reviewed according to grade, thickness, color stability, ultraviolet exposure, expansion, temperature changes, and mounting support. Acrylic is widely used outdoors, but not every sheet, color, or structure is equally suitable for long-term exterior exposure.
PVC and Foam for Lightweight Projects
PVC is useful for lightweight dimensional lettering, painted wall logos, layered signage, and composite structures. It can be CNC routed, printed, painted, laminated, drilled, or faced with acrylic or metal. Common thicknesses include 5, 10, 15, 20, and 30 millimeters, while thicker constructions can be created by laminating several layers.
PVC performs well for office wall logos, retail interiors, clinics, exhibitions, department names, directional letters, and temporary commercial installations. Large panels require more caution because thin material can bow when exposed to heat, uneven support, widely spaced fixings, or significant temperature changes.
Foam is lighter and can produce much greater depth. It is commonly used for events, exhibitions, stage sets, product launches, photo areas, temporary retail campaigns, and large interior graphics. Depths of 50, 100, 150, or 200 millimeters can create strong visual impact without the weight of solid plastic or metal.
Foam must be used with realistic expectations. It can dent, chip, compress, or break at narrow points. Freestanding letters may need broad bases, hidden connectors, internal rods, rear braces, or additional weighting. The selected coating must also be compatible with the foam because some solvents can damage the material.
Acrylic or metal faces can improve the appearance and surface resistance of lightweight letters. Protective coatings may reduce minor damage, but they do not turn display foam into structural exterior signage. Projects installed in public areas should consider impact, cleaning, handling, and replacement risk before choosing a lightweight material.
Finishes and Outdoor Performance
A surface finish changes how a sign looks, reflects light, collects fingerprints, ages, and responds to cleaning. Brushed finishes can hide some minor marks but reveal inconsistent grain direction. Mirror finishes create strong reflections and make surface waviness more visible. Matte paint controls glare but may show oils or cleaning marks, while high-gloss paint can make small surface imperfections easier to see.
Common finishes include brushed stainless steel, mirror stainless steel, brushed brass, mirror brass, painted aluminum, powder coating, plated surfaces, matte acrylic, gloss acrylic, frosted acrylic, printed graphics, textured coatings, and protective clear layers. The selection should be connected to the environment rather than based only on a small sample.
Outdoor performance depends on the entire construction. Ultraviolet exposure, rain, humidity, coastal salt, temperature changes, freeze-thaw cycles, wind, industrial pollution, wall moisture, fastener corrosion, adhesive suitability, and cleaning chemicals all affect the result. A stainless steel face can still perform poorly if the screws, backing, adhesive, or coating system are unsuitable.
Design details also influence maintenance. Horizontal ledges can retain water and dirt. Deep recesses may collect debris. Mirror finishes at hand height require frequent cleaning. Pale signs near busy roads may show pollution more quickly. Mounting holes drilled too tightly in acrylic can create stress when the material expands and contracts.
The best outdoor material is the one that fits the actual environment, structural requirement, visual standard, maintenance routine, and budget. Material reputation alone is not enough to confirm long-term suitability.
How Do You Choose the Right Sign?
Choose a non-illuminated sign by defining its purpose, viewing distance, lighting conditions, installation surface, expected lifespan, brand appearance, environmental exposure, and maintenance requirements. Then match those conditions to a suitable sign type, material, thickness, finish, and mounting system. The best sign is not always the most expensive; it is the one that remains readable, stable, installable, and visually appropriate in the real space.
Start with the Sign’s Job
Every sign should have one main purpose. It may identify a business, confirm an entrance, direct visitors, label a room, display tenant information, communicate a regulation, or create a branded interior feature. Problems begin when a single sign is expected to perform too many jobs at once.
A storefront sign filled with a logo, slogan, website, phone number, opening hours, and service list may be impossible to read from a distance. A directional sign containing too many destinations slows decision-making. A reception logo should not also function as a building directory. The clearer the purpose, the easier it is to choose the correct format and hierarchy.
Planning should begin with practical questions. What must the viewer understand? Where will the sign be seen from? Is the visitor walking, driving, or standing still? How quickly must the message be recognized? Does the information change regularly? Must the sign remain visible at night? Will customers touch or pass close to the sign?
The answers determine the structure. A permanent company name may suit dimensional metal letters. A changing tenant directory needs replaceable inserts. A short retail campaign may use printed PVC or foam. A hotel room number may need tactile characters, Braille, controlled contrast, and a defined mounting position.
The design should be tested for unfamiliar visitors rather than only for employees who already know the building. A sign that seems obvious to the project team may be confusing to a guest entering the property for the first time.
Match Scale to Viewing Conditions
Viewing distance is an important starting point for letter size, but it should not be treated as one fixed formula. Readability also depends on typeface, stroke width, contrast, lighting, installation height, viewer speed, spacing, and message length.
A short company name in bold lettering can be read from farther away than a long sentence using the same letter height. Thin script fonts require more size than simple sans-serif fonts. Mirror letters may lose definition against reflective glass. Dark lettering mounted beneath a deep canopy may receive less light than expected.
| Viewing Situation | Approximate Distance | Common Letter Height | Typical Application |
| Close reading | 0.5–2 m | 15–50 mm | Room signs and plaques |
| Interior approach | 2–5 m | 40–120 mm | Reception logos and directories |
| Large interior space | 5–15 m | 100–300 mm | Atriums and retail departments |
| Exterior pedestrian view | 10–30 m | 200–600 mm | Storefronts and entrances |
| Roadside or large-site view | More than 30 m | 400 mm and above | Building names and property signs |
These ranges are useful for early planning rather than final approval. Narrow strokes, low contrast, complex logos, high installation positions, or moving viewers usually require larger letters. Negative space is also important. Internal openings in letters such as A, B, R, and P must remain clear after manufacturing.
Letter spacing can also damage readability. Very tight spacing can cause letters to merge visually from a distance, while excessive spacing may break the word into unrelated shapes. A full-size paper print, wall projection, scaled elevation, or temporary mock-up can reveal proportion problems before production begins.
Select the Mounting Method Early
The mounting method should be confirmed before production because it affects holes, studs, backing, spacers, templates, adhesives, brackets, packaging, and local installation labor. Common methods include adhesive mounting, hidden studs, visible screws, decorative caps, standoffs, backboards, rails, suspended installation, post mounting, and freestanding bases.
Adhesive mounting works for some lightweight interior products, but the wall surface must be compatible. Dusty paint, textured plaster, porous brick, damp walls, contaminated surfaces, and low-energy plastics can reduce bond strength. Adhesive should not be selected only because it avoids drilling.
Hidden stud mounting uses threaded pins fixed to the back of letters. It produces a clean appearance but requires accurate drilling. An installation template helps transfer the hole pattern and letter spacing to the wall. Templates reduce alignment errors but do not replace site checks for hidden services, wall strength, and drilling restrictions.
Standoffs create a controlled shadow gap. The gap can be only a few millimeters or considerably deeper depending on the visual effect. Uneven walls may produce inconsistent gaps unless the mounting system can be adjusted. Backboards can connect several letters and reduce local positioning work, but the backboard becomes part of the design.
The wall material must be confirmed accurately. Concrete, brick, stone, glass, drywall, timber, metal cladding, composite panels, tiles, and fabric walls all require different fixings and installation methods. The manufacturer can prepare the sign interface, while the local installer should confirm the building structure, access equipment, landlord requirements, and site safety.
Compare Cost with Project Risk
The lowest unit price does not always create the lowest total project cost. A sign that arrives without correct mounting holes, a clear template, suitable hardware, product labels, or protective packaging may require expensive local modification.
A complete evaluation should include product price, sampling, artwork preparation, engineering, installation hardware, packaging, freight, customs, local handling, installation labor, access equipment, permits, maintenance, replacement risk, and future repeat-order requirements. These items often matter more than a small difference in factory price.
A lightweight PVC logo may cost less to ship and install than fabricated metal letters. A shaped backboard may increase manufacturing cost but reduce installation time. A stronger exterior coating may increase the initial price but delay repainting. Separate site-specific cartons may add packaging work while preventing expensive sorting errors across many locations.
Material should not be upgraded without a clear reason. Heavy stainless steel may be unnecessary for a short-term event sign, while thin foam may be unsuitable for a permanent high-traffic lobby. The best value comes from matching the material and structure to the real risk.
Clear drawings, suitable materials, approved finishes, realistic tolerances, correct mounting preparation, protected packaging, and defined installation responsibility remove uncertainty. That practical control often creates more value than simply selecting the cheapest material.
What Should You Confirm Before Ordering?
Before ordering, confirm final artwork, dimensions, quantity, sign type, material, thickness, finish, installation location, wall type, mounting method, indoor or outdoor exposure, viewing distance, accessibility requirements, packaging, destination, and project schedule. Multi-location projects should also confirm site codes, product codes, packing groups, installation sequences, and repeat-production records before bulk manufacturing begins.
Artwork and Dimensions
The preferred starting point is an editable vector file such as AI, EPS, SVG, or a production-ready PDF. Vector artwork allows accurate scaling, cutting, stroke measurement, spacing, and hole positioning. A high-resolution image can support discussion, but it may need to be redrawn before production.
Fonts should be converted to outlines or supplied with the approved font files. Otherwise, text may change when opened on another computer. Gradients, shadows, thin outlines, and photographic effects should be identified because they may require printing, layering, painting, or simplification rather than direct cutting.
A manufacturing review should examine minimum stroke width, small internal openings, fragile points, disconnected details, overlapping paths, duplicate lines, unclosed vector shapes, unsupported spans, mounting space, and packaging risk. The purpose is not to alter the brand without permission, but to identify details that may fail during production, transport, or installation.
Dimensions should include overall width, overall height, material thickness, dimensional depth, and the relationship between the sign and the available wall. The stated size should clearly refer to the complete logo, the largest letter, the backing panel, or the installation area.
Wall dimensions should also include nearby doors, screens, furniture, switches, joints, and ceiling lines. A sign may technically fit within the available width but still look crowded or poorly aligned after installation. A scaled elevation or wall mock-up can prevent this problem.
Material and Finish Approval
Material approval should identify the exact material family, thickness, color, finish, and intended environment. A request for “gold metal” is not specific enough because it could refer to polished brass, brushed brass, brass-plated stainless steel, painted aluminum, gold acrylic, or a printed metallic film.
Finish approval can use a Pantone reference, physical color sample, brand manual, painted coupon, printed sample, metal swatch, production prototype, or high-resolution approval photographs. Pantone references are useful, but the same target color can look different on metal, acrylic, PVC, foam, and printed film because gloss, texture, thickness, and surrounding light affect perception.
For brushed metal, the grain direction should be confirmed. For mirror metal, the required reflectivity and protective film should be defined. For layered acrylic, the project should identify which surfaces are glossy, matte, printed, painted, or transparent.
A small sample does not fully represent a large sign. Wide metal panels show more reflection and surface movement. Large painted surfaces make small color differences easier to notice. The approved sample should therefore control material and finish, while the final drawing controls dimensions, construction, and mounting.
Where appearance is critical, physical samples should be viewed near the intended wall material and under similar lighting conditions. A finish that looks warm under showroom lighting may appear cooler next to concrete, glass, or bright daylight.
Site and Installation Details
A complete site package reduces assumptions during design and production. Useful information includes straight-on photographs, angled photographs, wall width and height, installation height, wall material, indoor or outdoor classification, exposure to sunlight or rain, nearby lighting, viewing direction, access restrictions, and the target completion date.
Photographs should include a known measurement. Without scale, a large lobby wall and a small reception wall can appear very similar. Wall material should be identified accurately because concrete, brick, glass, drywall, wood, stone, tile, metal cladding, and composite panels require different anchors and installation methods.
The mounting method should appear on the final drawing. Individual letters need confirmed stud length, spacer depth, hole diameter, and template type. Panels need defined fixing positions, decorative caps, hidden brackets, rear rails, or adhesive areas. Glass installations should consider whether the rear of the sign will remain visible.
Outdoor signs require additional review of water paths, wall penetrations, corrosion-resistant hardware, expansion, sealants, drainage, and surface movement. These concerns still apply even when the sign contains no electrical components.
The local installation team should review the drawings before production when the wall is unusual, the sign is heavy, the position is high, access is restricted, or the building has heritage, structural, or landlord limitations.
Quality, Packaging, and Project Control
Quality inspection for non-illuminated signs should focus on material identity, dimensions, quantity, logo proportion, spelling, numbering, color, surface finish, edge quality, flatness, bonding, welding, mounting preparation, sorting, and packaging. Electrical testing does not apply unless the order also contains illuminated products.
| Inspection Area | Main Checks |
| Material | Correct type, grade, thickness, color and quantity |
| Dimensions | Overall size, letter height, panel size and depth |
| Artwork | Logo proportion, spelling, numbering and arrow direction |
| Surface | Gloss, brushing, printing, scratches, stains and color consistency |
| Edges | Burrs, chips, paint coverage, polish and smoothness |
| Structure | Flatness, bonding, welding, reinforcement and rigidity |
| Mounting | Hole position, studs, spacers, brackets and templates |
| Sorting | Product code, site code, room number and quantity |
| Packaging | Surface film, foam, corner protection, labels and hardware |
Packaging should match the product shape, weight, and finish. Acrylic faces need scratch protection. Mirror metal should remain covered with suitable protective film. Thin letters need support against bending. Fragile details should be immobilized inside the carton rather than allowed to move during transport.
Large signs may require reinforced cartons, wooden frames, crates, separated sections, or labeled components. Heavy metal products should not be packed loosely beside delicate acrylic parts. Installation hardware should be bagged, labeled, and placed where it cannot scratch the finished surface.
Multi-location projects should use product codes, site codes, floor codes, room codes, carton labels, and matching packing lists. Cartons can be grouped by store, floor, installation area, or sequence to reduce sorting and installation time.
Before bulk production, the approved package should include final artwork, drawings, finish references, mounting details, sample approval where required, quantities, packaging instructions, location schedules, and delivery dates. This controlled reference supports production, inspection, installation, replacement, and future repeat orders.
H2 Image Prompt:
A detailed custom sign order approval and quality-control scene showing vector artwork, shop drawings, metal and acrylic finish samples, dimensional measurements, mounting templates, labeled hardware kits, inspection of letter edges, protective films, foam-lined cartons, site-coded packages, and multi-location packing lists, realistic factory environment, no illuminated signs, no text overlay, professional industrial photography, 16:9 landscape.
Choosing a Reliable Manufacturing Partner
A reliable manufacturing partner should do more than cut letters from a file. The supplier should review the logo, material, thickness, finish, installation method, packaging, site conditions, and repeat-order requirements before production begins. Complex commercial projects benefit from coordinated design, engineering, sampling, manufacturing, inspection, export packaging, and delivery support.
A professional review can identify thin strokes, fragile details, weak contrast, unsuitable material choices, oversized panels, difficult mounting conditions, and packaging risks before these issues become expensive. The supplier should also distinguish clearly between non-illuminated and illuminated manufacturing requirements rather than applying irrelevant electrical claims to solid letters, plaques, or wayfinding signs.
For multi-site projects, production records should link approved artwork, dimensions, materials, finishes, mounting holes, templates, product codes, and packaging instructions. These records make future replacement and repeat orders easier, although material and finish availability should still be checked before every new batch.
A well-prepared inquiry should include vector artwork, required dimensions, quantity, indoor or outdoor use, wall photographs, wall material, preferred finish, mounting requirements, destination, and target date. When these details are available, the manufacturer can provide a more accurate recommendation and reduce unnecessary revisions.
iduoduo supports custom metal letters, acrylic letters, PVC letters, foam letters, plaques, cut-out signs, room signs, directional signs, ADA signs, and wayfinding components for commercial spaces. Projects can begin with a logo file, architectural drawing, wall photograph, reference image, or existing sample. Contact the project team with your sign schedule, dimensions, materials, and installation conditions to receive a custom manufacturing review and quotation.
