A restaurant owner may call it a light box, while a sign contractor may describe the same product as an illuminated cabinet. An architect might use the phrase internally illuminated sign enclosure, and a purchasing team may simply ask for an LED box sign. These terms often point toward a similar product, but they do not always describe the same materials, structural depth, face system, mounting method, or maintenance access.
Light boxes and cabinet signs frequently overlap, but they are not always identical. A light box mainly describes an illuminated graphic surface, while a cabinet sign describes the complete enclosure that supports the face, LEDs, wiring, power supplies, mounting points, weather protection, and service access. The correct choice depends on the construction and application, not the name alone.
That distinction becomes important when a sign moves from a design file into production. A slim indoor display may work beautifully behind a retail counter but perform poorly on an exposed roadside structure. A large exterior cabinet may provide excellent durability but create unnecessary weight and cost for a temporary indoor campaign. The most useful comparison is therefore not a competition between two product names. It is a practical review of what the sign must show, where it will be installed, how far away people will view it, and how technicians will maintain it later.
Are Light Boxes and Cabinet Signs the Same?
Light boxes and cabinet signs often belong to the same product family, particularly when both use translucent faces and internal LEDs. The term light box emphasizes the illuminated graphic surface, while cabinet sign emphasizes the complete structural enclosure. A light box can therefore be a cabinet sign, but some cabinets are larger, deeper, more reinforced, and more closely integrated with buildings, poles, monuments, or projecting brackets.
What Is a Light Box Sign?
A light box sign is an enclosure designed to illuminate a translucent graphic from behind. The visible face may contain a company logo, menu, photograph, promotional message, tenant information, directional content, pricing, or several visual elements arranged within one continuous panel. Because the graphic is presented as a full illuminated surface, light boxes can communicate more detailed information than separate dimensional letters.
Common light box faces include acrylic, polycarbonate, flexible vinyl, and tensioned fabric. LEDs are placed behind the face at a controlled distance so light can spread before reaching the graphic. The required distance depends on the LED beam angle, face translucency, print density, internal reflection, and expected brightness. A cabinet that is too shallow may reveal individual LED points, bright bands, or dark corners, even when high-quality LEDs are used.
The term light box covers several very different products. A slim indoor fabric display may be less than 100 millimeters deep, while a large exterior light box may require a deeper frame, internal reinforcement, weather protection, and stronger face retainers. A wall-mounted unit also requires a different structure from a suspended or projecting double-sided sign. For this reason, the product name should always be supported by specifications covering the face, frame, illumination, mounting method, voltage, environment, and graphic replacement system.
What Is a Cabinet Sign?
A cabinet sign is a complete enclosure that supports the sign face, lighting components, electrical system, internal structure, mounting interface, and service access. In many commercial applications, a cabinet sign is internally illuminated and operates in much the same way as a light box. The difference is that the word cabinet draws attention to the full engineered enclosure rather than only to the illuminated display surface.
Cabinet signs are widely used for shopping centers, building identification, schools, clinics, industrial facilities, service stations, restaurants, retail parks, pole signs, and monument structures. These applications often require larger dimensions, stronger framing, weather-resistant materials, mounting plates, removable retainers, internal bracing, and enough space for electrical components to be reached after installation.
The cabinet must remain reasonably straight and stable during production, shipping, lifting, installation, and long-term use. Large faces can place continuous pressure on the frame, especially when wind, heat, and temperature changes are involved. Internal supports may be needed to control deflection, although their positions must be coordinated with the lighting layout so they do not create visible shadows across the face.
A cabinet is therefore more than a metal border around a graphic. It is a structural, optical, electrical, and installation system that needs to work as one finished product.
Why Are the Terms Interchangeable?
The terms are often interchangeable because both products typically contain the same basic elements: an enclosure, a translucent face, internal LEDs, wiring, one or more power supplies, and a method for attaching the finished sign to a wall, bracket, frame, pole, or freestanding structure. Different regions and sign companies simply favor different language.
A restaurant may request an LED light box, while a local contractor may describe the same product as a single-face illuminated cabinet. Architectural drawings may use box sign, sign cabinet, internally illuminated fascia, or illuminated enclosure. None of these terms guarantees a particular aluminum thickness, face material, LED spacing, waterproofing method, cabinet depth, service panel, or mounting structure.
This is why two quotations using the same product name can describe products with very different performance levels. One supplier may include internal reinforcement, outdoor-rated components, labeled wiring, drainage, removable faces, and mounting brackets. Another may quote a lightweight indoor frame with a printed acrylic panel. The headings look similar, but the products are not equal.
| Specification | Questions to Confirm Before Ordering |
| Viewing direction | Is the sign single-sided or double-sided? |
| Installation position | Will it be wall-mounted, suspended, projecting, pole-mounted, or freestanding? |
| Face material | Is the face acrylic, polycarbonate, flexible vinyl, or fabric? |
| Graphic method | Is the artwork printed, vinyl-applied, embossed, routed, or replaceable? |
| Lighting system | What LED type, light color, module spacing, and brightness are required? |
| Cabinet depth | Is there enough distance for even light diffusion? |
| Electrical access | Where will the power supplies, wiring, and connections be serviced? |
| Outdoor protection | How are cable entries, joints, drainage, corrosion, and water paths managed? |
| Installation interface | Are brackets, holes, templates, studs, and cable exits included? |
| Maintenance method | Can the face and electrical parts be reached after installation? |
When Does the Difference Matter?
The distinction matters most when the sign is large, exposed to weather, mounted high above the ground, installed perpendicular to a wall, or expected to remain in service for many years. A small indoor menu display may need only a clear face specification, good illumination, and simple wall mounting. A large exterior cabinet requires much more information before production can begin safely.
A sign installed several meters above a storefront should not be treated like a close-view indoor advertising panel. Its total weight, lifting points, installation access, cabinet joints, electrical routing, bracket connection, face removal method, and local wind exposure all need to be considered. A cabinet that cannot be serviced from the available direction may require complete removal when one power supply eventually fails.
The difference can also matter during local permit review. Authorities may classify a sign according to its illuminated area, projection, mounting position, structural form, or relationship to the building. The supplier’s sales name may not match the terminology used in local regulations, so approval drawings should describe the actual product construction rather than relying on a general category name.
The safest conclusion is that many light boxes are cabinet signs, but the name alone does not prove that a product is suitable for a specific location.
What Are the Key Differences?
The most meaningful differences are found in purpose, cabinet depth, frame strength, face material, lighting arrangement, service access, and mounting method. Light boxes are commonly optimized for evenly illuminated graphics, while cabinet signs are often treated as complete structural enclosures. Since the categories overlap, the practical comparison should focus on how the sign is constructed and how it will perform after installation.

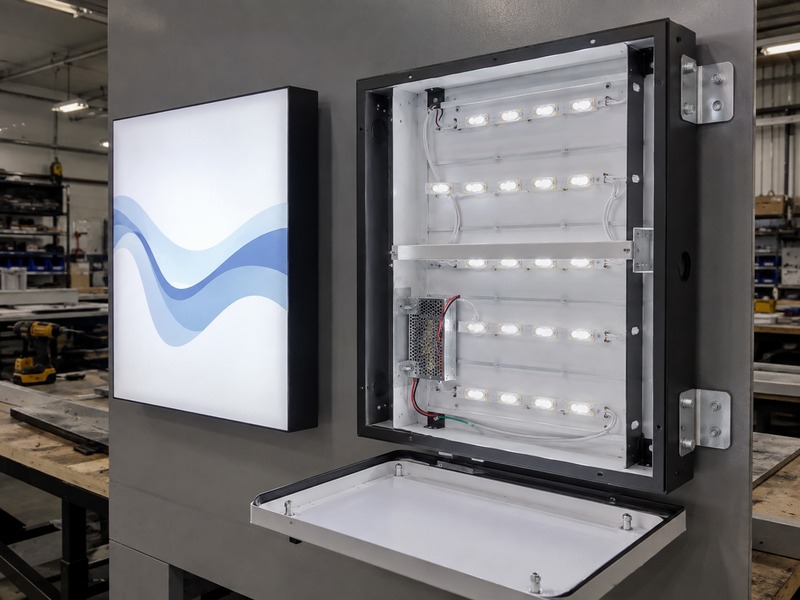

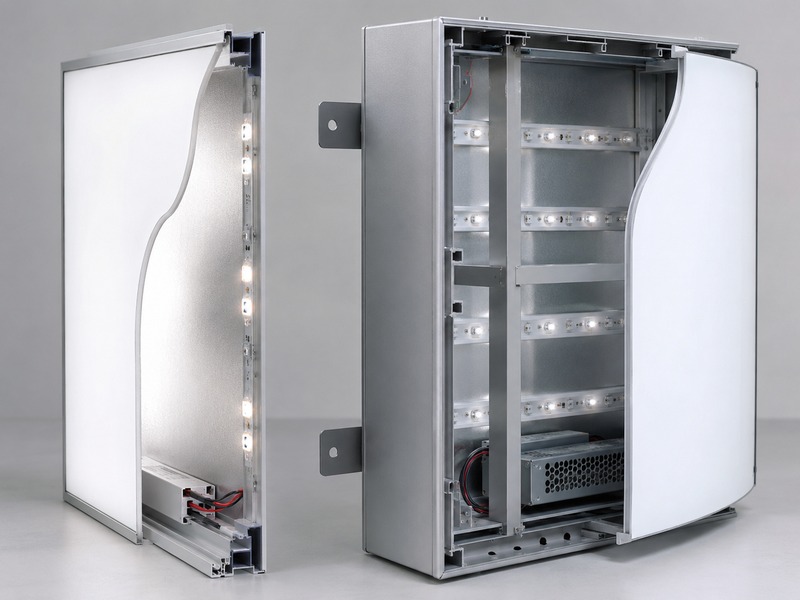

How Do Their Structures Differ?
Indoor light boxes are often designed around a slim aluminum profile, a clean perimeter, a lightweight face, and quick graphic replacement. They may use LED strips or modules, reflective internal surfaces, and fabric or acrylic faces. Their main challenge is creating smooth illumination within a limited depth while maintaining a neat appearance at close viewing distances.
Commercial cabinet signs are more likely to include reinforced corners, internal cross-members, mounting plates, removable face retainers, access panels, divided electrical zones, and drainage openings. These features increase the amount of engineering and fabrication involved, but they can improve stability, installation reliability, and long-term maintenance.
Cabinet depth affects much more than appearance. It controls the distance between the LEDs and the face, the ability of light to spread, the amount of room available for wiring, the temperature around the electrical system, and the visibility of internal components. A shallow enclosure can expose individual LED points, while an unnecessarily deep cabinet may add weight, shipping volume, wind exposure, and material cost.
Slim indoor systems commonly use profiles around 50 to 100 millimeters deep. Many outdoor commercial cabinets fall somewhere around 120 to 300 millimeters, although large double-sided signs or unusual optical systems may require more. These are common working ranges rather than fixed standards. The final depth should be confirmed using the actual LED, face material, graphics, and required brightness.
Which Face Materials Are Used?
Acrylic is one of the most widely recognized face materials for small and medium illuminated signs. It provides a smooth surface, good light transmission, and compatibility with translucent vinyl or printed graphics. However, large acrylic sheets become heavier and more difficult to handle. Thermal expansion, face retention, impact risk, and access for replacement must be considered as the size increases.
Polycarbonate is often chosen where impact resistance is important. It may be suitable for exposed storefronts, public spaces, transport areas, or signs mounted closer to pedestrian traffic. The correct grade, UV protection, thickness, surface quality, and graphic compatibility still need to be specified because not every polycarbonate sheet performs equally outdoors.
Flexible vinyl faces are common on large exterior cabinets because they cover broad areas without the weight of a thick rigid sheet. The graphic is tensioned across the cabinet and secured around the perimeter. Correct tension is essential because a loose face may wrinkle or move, while excessive tension can distort the artwork or overload the retainers.
Fabric graphics are widely used indoors, particularly in retail stores, exhibitions, and architectural displays. Silicone-edge graphics can be inserted into a narrow perimeter channel, producing a clean appearance while allowing campaigns to be replaced without changing the frame.
| Face Material | Common Application | Main Strength | Main Design Concern |
| Acrylic | Small and medium illuminated signs | Smooth finish and clear graphics | Weight, cracking, and thermal expansion |
| Polycarbonate | Exposed commercial environments | Higher impact resistance | UV specification and surface scratching |
| Flexible vinyl | Large exterior cabinets | Lower face weight across large areas | Tension, movement, and retainer strength |
| Fabric graphic | Indoor retail and exhibitions | Fast graphic replacement | Limited suitability for severe weather |
| Translucent vinyl on rigid face | Logos and simple brand graphics | Controlled solid-color appearance | Film seams and batch color consistency |
| Printed translucent graphic | Menus, photographs, and gradients | Supports complex visual content | Different daytime and nighttime colors |
Face material should never be selected separately from the lighting system. A dense dark print transmits much less light than a pale graphic, and this changes the required LED arrangement. A dark-blue background may need more carefully planned illumination than a largely white menu board, even when both signs have the same dimensions.
Are Both Internally Illuminated?
A light box normally includes internal illumination by definition. Cabinet signs are also commonly internally illuminated, especially when used for storefronts, monuments, pylons, or building identification. However, some companies use the cabinet term more broadly, so the quotation and drawing should always state the exact lighting method.
Modern signs commonly use LED modules because they are compact, efficient, and easy to distribute across different shapes. LED strips may be appropriate for slim linear constructions, while modules are frequently used in larger cabinets. The choice depends on cabinet depth, face material, beam angle, graphic density, required brightness, and maintenance access.
Adding more LEDs does not automatically improve the finished sign. Modules that are placed too closely may increase heat, power consumption, and visible bright points. Modules spaced too far apart may create dark bands, weak corners, or inconsistent brightness. Internal braces can also produce shadows if their positions are not coordinated with the LED layout.
Module spacing in standard cabinet projects may sometimes fall within approximately 100 to 250 millimeters, but there is no universal spacing rule. A layout that works in a 200-millimeter-deep cabinet may show obvious LED points in a 70-millimeter-deep box. Final approval should be based on the complete illuminated face, not simply on whether all modules turn on.
How Does Service Access Differ?
Graphic-focused light boxes may use snap frames, removable front panels, tensioned fabric, hinged covers, or lift-out faces. These systems are useful when restaurants, retailers, or exhibition teams need to update artwork regularly. The service priority is often fast graphic replacement rather than access to a large structural enclosure.
Commercial cabinet signs need access to both the face and the electrical system. Common methods include removable face retainers, hinged faces, rear panels, side service covers, lift-off sections, and separate electrical compartments. The correct method depends heavily on where the sign will be installed.
A rear-service cabinet is unsuitable when the rear panel sits directly against a solid wall. A large front-opening acrylic face may be difficult to remove safely after the sign has been mounted several meters above the ground. Projecting and double-sided signs may require side access because neither face can be handled easily in its installed position.
Power supplies should be placed where they can be reached without removing the complete sign. Large cabinets also benefit from labeled wiring zones because a technician can isolate a dark section without tracing every cable. Service access may not affect the first appearance of the sign, but it strongly influences the cost and difficulty of maintaining it later.

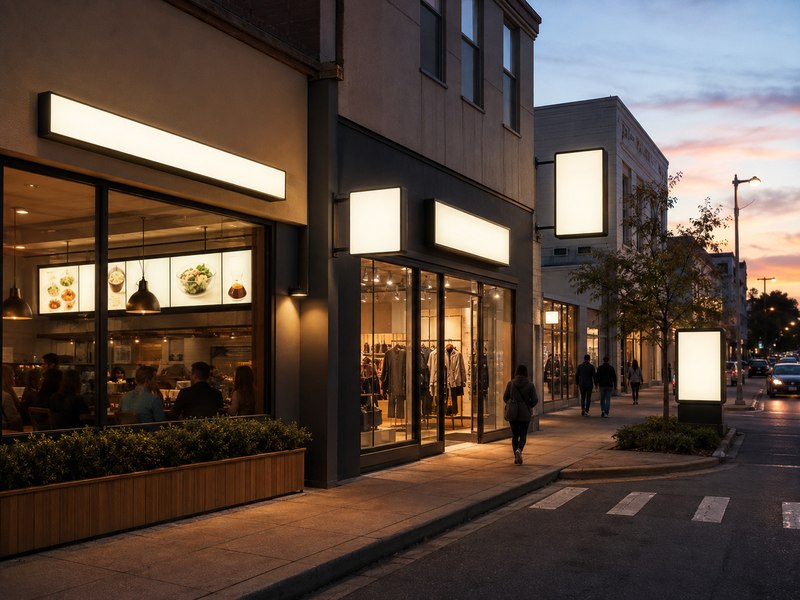

Which Sign Fits Each Application?
Light boxes are generally well suited to menus, photographs, promotional graphics, detailed branding, and displays that change regularly. Cabinet signs are commonly chosen for larger exterior identification, roadside visibility, building integration, and long-term installations. The right option depends on the message, viewing distance, installation position, environmental exposure, number of viewing directions, and maintenance plan.
Which Works for Storefronts and Menus?
A light box is often a practical storefront choice when the sign needs to display more than a simple business name. One illuminated face can combine a logo, photograph, business category, phone number, operating hours, pricing, and promotional information without requiring each element to be manufactured separately.
Restaurants and food-service businesses commonly use light boxes for menu boards because printed panels or fabric graphics can be replaced when products and prices change. Indoor menu systems are usually viewed at close range, which makes print quality, face flatness, graphic alignment, color consistency, and illumination uniformity especially noticeable.
Close-view signs reveal problems that may be less obvious on high-mounted exterior cabinets. Visible LED points, light leakage around the frame, internal dust, crooked graphics, panel gaps, uneven seams, and dark strips can make a functional product appear poorly made. A slim appearance is attractive, but the frame still needs enough optical depth to distribute light evenly.
Exterior storefront light boxes require more robust materials and protection than indoor menu displays. Rain exposure, direct sunlight, wind, face expansion, cable entries, corrosion, wall condition, and replacement access all need review. A printed face described as weather-resistant does not automatically make the enclosure, wiring, power supply, and mounting structure suitable for outdoor use.
Which Works for Buildings and Roadsides?
Cabinet signs are frequently used for building identification because the enclosure can be engineered around the mounting structure, face area, electrical system, and outdoor exposure. They are common on retail parks, schools, clinics, industrial buildings, service stations, warehouses, restaurants, shopping centers, and freestanding roadside structures.
Roadside cabinets need to be understood quickly. Drivers may only have a few seconds to notice and read the message, so larger signs often work better with fewer words, stronger contrast, and a clear visual hierarchy. Adding more information does not necessarily make the sign more useful.
A common early planning approach is to provide roughly 25 to 30 millimeters of letter height for every three meters of comfortable viewing distance. Under that broad guideline, text intended to be read from about 30 meters may need to be approximately 250 to 300 millimeters high or larger. This is not a legal standard because font style, contrast, speed, lighting, and local conditions can change the result, but it is a useful readability check.
Outdoor roadside cabinets must also manage wind pressure, frame deflection, water entry, drainage, UV exposure, temperature changes, face movement, corrosion, lifting access, and future maintenance. The factory can prepare the enclosure and mounting interface, while local engineers or installers may still need to confirm foundations, supporting steel, wall capacity, and local approvals.
Do Single- and Double-Sided Designs Matter?
Single-sided light boxes and cabinets are intended to be viewed primarily from the front. They are commonly installed flat against walls, recessed into architectural panels, or positioned inside stores. The rear surface can be used for brackets, cable exits, access covers, and structural attachment because it does not need to display a graphic.
Double-sided signs are designed for visibility from two directions. They may be suspended from ceilings, mounted perpendicular to a storefront, installed on posts, or incorporated into freestanding structures. These signs are useful on pedestrian streets, shopping corridors, hospital paths, transit areas, and roadside locations where people approach from opposite directions.
A double-sided cabinet is not simply a standard light box with an additional face. It needs balanced lighting on both sides, enough internal space for two illuminated surfaces, carefully positioned supports, stronger retainers, organized wiring, and a mounting system capable of handling increased weight and wind exposure.
Projecting double-sided signs require particular attention because their center of gravity sits away from the wall. The bracket, cabinet frame, connection points, fasteners, supporting wall, and cable route should be reviewed as one system rather than as unrelated components.
| Application | Commonly Suitable Product | Main Design Priority |
| Indoor menu board | Slim light box | Close-view finish and replaceable graphics |
| Retail campaign display | Fabric light box | Fast artwork changes |
| Storefront graphic panel | Acrylic or polycarbonate light box | Even lighting and concealed wiring |
| Large building fascia | Reinforced cabinet sign | Structural stability and service access |
| Pedestrian projecting sign | Double-sided cabinet | Bracket strength and two-way visibility |
| Pylon or monument panel | Exterior cabinet sign | Face retention and outdoor protection |
| Roadside business sign | Large illuminated cabinet | Recognition at speed and distance |
| Shopping-center tenant panel | Replaceable-face cabinet | Standard dimensions and future updates |
Which Handles Complex Graphics Better?
Both light boxes and cabinet signs can handle complex graphics because they use a continuous illuminated face. Photographs, gradients, menus, illustrations, tenant information, multiple colors, and detailed logos can be displayed within one visual surface. This gives them an advantage over separate letters when the artwork contains several connected elements.
The challenge is maintaining color and clarity after illumination. Printed graphics do not always look the same during the day and at night. Light passing through ink, film, acrylic, polycarbonate, or fabric may shift the color balance and reveal differences in print density.
Dark areas absorb more light than pale areas. A panel with large black or navy sections may look dimmer, while white areas on the same face may appear very bright. The artwork, face material, LED output, cabinet depth, and module layout should therefore be planned together rather than approved as separate items.
Physical illuminated samples can be useful when a brand color is critical. Pantone, CMYK, or RGB references provide a daytime target, but they do not fully predict the nighttime appearance of a translucent graphic. The artwork should also be tested at the real viewing distance because fine outlines and small text that look clear on a monitor may disappear after the sign is mounted high above a storefront.
How Do Cost and Maintenance Compare?
Neither light boxes nor cabinet signs are automatically cheaper. Manufacturing cost depends on dimensions, cabinet depth, frame strength, face type, graphic process, LED arrangement, power supplies, weather protection, mounting hardware, packaging, and order quantity. Maintenance cost depends mainly on access, installation height, electrical zoning, component availability, and whether the face can be removed without taking down the complete sign.
What Affects Manufacturing Cost?
Overall dimensions strongly influence cost, but visible face area does not tell the entire story. A two-meter indoor fabric light box is usually much simpler than a double-sided exterior cabinet of the same width fitted with reinforced framing, mounting brackets, multiple electrical zones, weather protection, drainage, and export wooden packing.
Frame material and cabinet depth affect both material use and fabrication time. A deeper or heavily reinforced cabinet requires more aluminum, more cutting, more joining, and often more complex packing. Custom curves, circular frames, irregular shapes, and logo-shaped cabinets also create additional material waste and labor compared with standard rectangular forms.
The face system is another major cost factor. Acrylic and polycarbonate require cutting, edge protection, retention, and careful packaging. Flexible faces require tensioning systems and perimeter retainers. Fabric graphics require compatible frame profiles and accurately sewn silicone edges.
Lighting cost depends on LED type, quantity, color temperature, cabinet depth, brightness target, electrical zoning, power supply specifications, dimming, RGB control, and destination-market requirements. A replaceable-face system may cost more initially because the retainer and access method need to be engineered properly, but it can reduce future replacement costs when the frame and LEDs remain in service.
Shipping should also be considered during design. Deep cabinets and large rigid faces occupy significant volume. Dividing the sign into sections may simplify transportation, although it adds joints, connectors, labeling, and field assembly work.
Which Is Easier to Install?
Small wall-mounted light boxes are generally easier to install than large cabinet signs, provided the wall, electrical supply, fixing points, and cable route have already been prepared. Even a compact sign still needs accurate mounting holes, suitable anchors, concealed wiring, and enough space to connect the power safely.
Large cabinets may require lifting equipment, temporary supports, structural brackets, multiple installers, concealed cable routing, and careful alignment between sections. A projecting cabinet adds greater leverage at the wall, while pole and monument signs involve supporting structures and foundations beyond the sign enclosure itself.
A useful factory-side installation package may include predrilled mounting holes, brackets, studs, joining plates, cable exits, numbered cabinet sections, wiring diagrams, full-size templates, and installation photographs. These details reduce uncertainty but do not replace local site verification.
The installation team should confirm the actual wall material, hidden structure, foundation, available electrical supply, local permits, access equipment, and working space. A factory drawing cannot prove that an existing wall can support the sign or that the specified anchor is suitable for every building.
Weight should be reviewed before fabrication. A sign that is easy to manufacture in one piece may be difficult to lift safely at the site. Sectional construction can solve that problem when the frame joints, graphics, LED zones, and wiring connections are planned in advance.

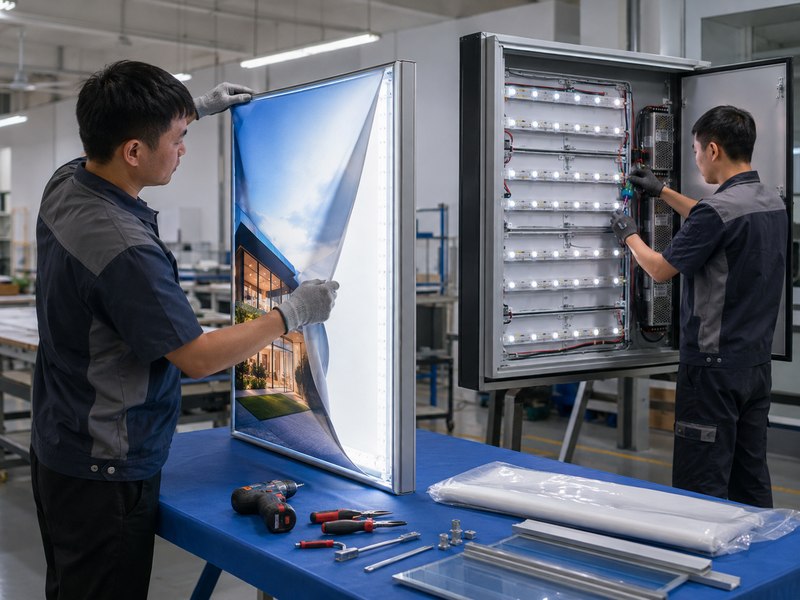

Can the Sign Face Be Replaced?
Many light boxes and cabinet signs can be manufactured with replaceable faces. This is valuable for restaurants, retail campaigns, shopping centers, service stations, exhibitions, and properties where tenants change over time. The cabinet, lighting system, and mounting structure can remain installed while only the graphic surface is replaced.
The replacement method depends on the material. Acrylic and polycarbonate panels may slide into retainers or be held behind removable frame sections. Flexible faces are released from tensioning systems. Fabric graphics are pulled from silicone-edge channels and replaced by hand.
Replacement becomes difficult when it is considered only after manufacturing. The frame needs enough clearance to remove the face, and technicians need a safe direction from which to work. Large rigid panels may require several people or lifting equipment, particularly when the sign is installed above a storefront.
Repeat face orders require more information than the original artwork. Useful records include the visible area, full panel dimensions, material thickness, edge allowance, graphic bleed, retention method, orientation, color references, and cabinet drawing. A replacement graphic may look correct on screen but fail to fit if the physical edge details are different from the original.
How Are Lighting Parts Maintained?
LED systems generally require less routine maintenance than older fluorescent lighting, but modules, power supplies, wiring, connectors, dimmers, and controllers can still fail. A completely dark sign may indicate a building-power problem, failed power supply, disconnected input, or main wiring fault. A single dark section more often suggests a local LED zone, connector, or branch circuit issue.
Large cabinets are easier to troubleshoot when the electrical system is divided into labeled zones. Instead of testing every component, a technician can identify the affected area and prepare the correct replacement part before opening the sign.
Power supplies should be mounted where they can be reached and replaced. They also need suitable ventilation, secure fixing, and clear identification. Wiring should be organized away from sharp metal edges, standing water, moving faces, and areas where maintenance tools may damage the insulation.
| Maintenance Record | Practical Value |
| Electrical diagram | Shows power supply and circuit layout |
| LED model | Helps match output during replacement |
| Color temperature | Prevents mixed shades of white light |
| Power supply specification | Confirms voltage and rated capacity |
| Wiring-zone labels | Speeds up fault diagnosis |
| Access instructions | Reduces unnecessary dismantling |
| Installation photographs | Shows hidden brackets and cable positions |
| Test photographs or videos | Records the pre-shipment condition |
| Face-removal method | Reduces damage during maintenance |
| Component list | Helps technicians prepare parts before site work |
How Do Outdoor Conditions Affect Lifespan?
Outdoor lifespan depends on the complete sign system rather than one waterproof claim. The cabinet, face, seams, cable entries, fasteners, coatings, LEDs, power supplies, drainage, and installation work all influence reliability.
Water may enter through poorly sealed cable holes, damaged retainers, access panels, screw points, joints, or incorrect site installation. Completely sealing every opening is not always the answer because trapped condensation can also damage electrical parts. A practical outdoor design combines controlled sealing, protected cable entries, drainage at low points, suitable ventilation, corrosion-resistant materials, and accessible service covers.
UV exposure can fade printing, weaken vinyl, yellow lower-grade plastics, and reduce the life of some sealants. Coastal air can accelerate corrosion around fasteners and frame connections. Temperature changes may cause faces and frames to expand at different rates, while high daily operating hours add electrical and thermal stress.
The word outdoor is therefore too general for final engineering. A sheltered shopping-center fascia, an exposed rooftop cabinet, and a beachfront roadside sign experience very different conditions. Each location needs its own review of water exposure, wind, corrosion, temperature, maintenance access, and expected operating schedule.
Which Sign Is Right for Your Project?
Choose a light box when the project depends on menus, photographs, complex graphics, indoor presentation, or frequent artwork changes. Choose a more fully engineered cabinet when the sign is large, exterior, projecting, pole-mounted, or expected to remain serviceable for many years. The final decision should follow the artwork, viewing distance, site conditions, mounting surface, electrical system, maintenance direction, and delivery plan.
What Information Should You Confirm?
A reliable quotation requires more than a logo and a target width. The manufacturer needs to understand how the sign will be seen, installed, powered, serviced, packed, and delivered. When these details are missing, two suppliers may price completely different constructions while appearing to quote the same product.
The project information should include the sign dimensions, quantity, single-sided or double-sided design, indoor or outdoor environment, installation height, viewing distance, graphic file, preferred face material, frame finish, light color, input voltage, mounting surface, installation method, cable-exit position, destination country, packing requirements, and target completion date.
Vector files such as AI, PDF, SVG, or CAD generally provide more reliable outlines than low-resolution images. Site photographs, wall measurements, architectural elevations, existing sign pictures, and installation references are also useful because they reveal conditions that may not appear in the artwork.
When some information is unavailable, the quotation should list its assumptions clearly. A precise-looking price based on an unknown wall, unconfirmed voltage, or undefined exterior environment is not truly accurate. Clear assumptions allow the client, manufacturer, and installer to review the same project conditions before production begins.
Which Option Fits Your Graphics?
A continuous illuminated face is usually effective for photographs, menus, gradients, tenant information, illustrations, and multicolor graphics. These designs generally fit light boxes or graphic-faced cabinets because the complete visual can be printed or applied to one panel.
A simple logo may not require a full cabinet. Individual channel letters can provide more depth, shadow, and architectural character. A blade sign may be better when pedestrians approach from two directions, while a fabric light box may be the most practical option when promotional graphics change several times a year.
The artwork must also suit the real viewing distance. Long text, thin lines, narrow fonts, and subtle contrast may look balanced on a computer screen but become difficult to read after installation. A roadside cabinet should not be designed like a printed brochure, and a close-view menu board should not be treated like a high-mounted building sign.
The correct choice follows the communication goal. A light box is useful when the graphic itself is the main feature. A cabinet sign is preferable when enclosure strength, mounting, exposure, and serviceability are central to the project. The best product is the one that presents the message clearly without creating unnecessary structural weight, electrical complexity, or maintenance difficulty.
How Should Installation Affect the Choice?
Installation conditions can change the recommended sign even when the artwork stays the same. A slim indoor light box may perform well on a solid interior wall but be unsuitable for an exterior projecting bracket. A large acrylic panel may produce excellent graphics but become difficult to lift, remove, and service after installation.
Before production, the project team should confirm the wall material, fixing points, electrical location, cable route, mounting height, access equipment, bracket position, allowable projection, surrounding architecture, local wind exposure, maintenance direction, and maximum transport size.
Sectional cabinets require particular planning. Frame joints, face seams, lighting zones, wiring connectors, mounting holes, and graphic alignment must be coordinated. Every section, bracket, power supply, and accessory should be labeled so installers can identify where each component belongs.
Packing should follow the installation sequence. Brackets, bolts, templates, electrical parts, and connection hardware should be separated and labeled rather than mixed randomly in one package. A product is not fully engineered simply because the factory can manufacture it. It must also be practical to pack, ship, lift, align, connect, and maintain at the destination.
When Is Custom Engineering Required?
Custom engineering is necessary when the project moves beyond a standard rectangular indoor light box. Large dimensions, unusual shapes, double-sided cabinets, projecting brackets, pylon integration, coastal exposure, high mounting positions, special control systems, nonstandard voltages, segmented construction, and replaceable exterior faces all require closer review.
The engineering process should cover the frame, internal reinforcement, face retention, LED layout, power supply capacity, wiring zones, cable exits, service panels, drainage, corrosion protection, mounting points, product segmentation, packaging, and installation sequence.
For commercial projects, the strongest specification is not the one that uses the most material or the largest number of LEDs. It is the one that matches the real location, viewing conditions, structural needs, electrical system, maintenance plan, and budget without adding unnecessary weight or complexity.
