A storefront sign can be beautifully manufactured, perfectly illuminated, and completely ineffective at helping customers find the entrance. This usually happens because the sign was selected according to appearance rather than viewing direction. A large wall-mounted sign may look impressive from across a parking area but become almost invisible to pedestrians walking beside the building. A blade sign may catch attention from both ends of a sidewalk but offer too little space for a long company name or detailed logo.
Blade signs are generally better for side-angle visibility and pedestrian-oriented streets, while wall-mounted signs usually perform better for front-facing identification, larger branding, and longer viewing distances. The right option depends on customer approach direction, façade dimensions, viewing distance, wall construction, local sign rules, illumination needs, installation access, and maintenance requirements. Some storefronts benefit from using both.
The comparison becomes more complicated once the real building, local regulations, installation conditions, and long-term maintenance are considered. A small non-illuminated hanging panel and a large double-sided LED cabinet may both be described as blade signs, yet their weight, bracket design, electrical system, packaging, installation equipment, and engineering requirements are completely different.
The useful question is not simply which sign looks more attractive. The useful question is which sign customers can notice from the correct direction, understand quickly, and connect with the correct entrance before they pass it. Once customer movement and site conditions are studied properly, the choice between a blade sign and a wall-mounted sign becomes much easier to justify.

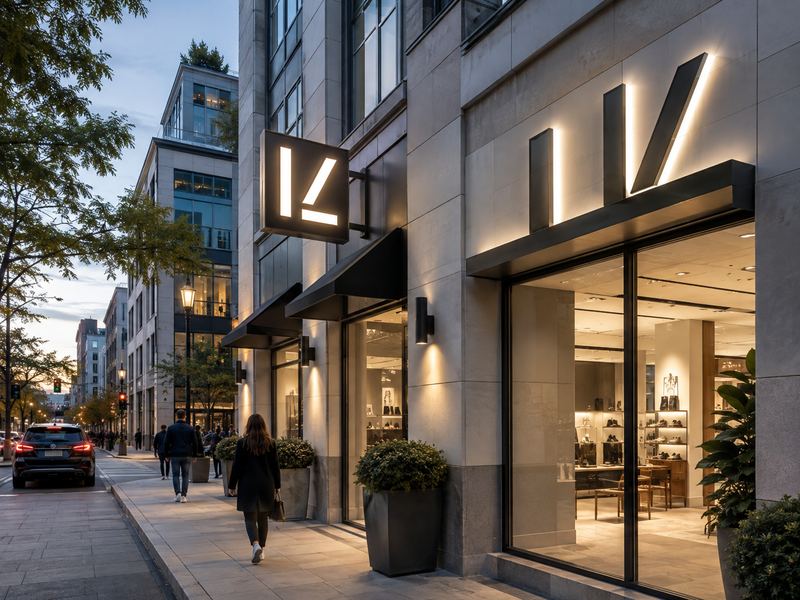

What Are Blade and Wall-Mounted Signs?
Blade signs project outward from a building, usually at a perpendicular angle to the façade, while wall-mounted signs sit parallel or close to the wall. That difference affects viewing direction, available branding space, structural loading, electrical routing, installation methods, permit requirements, and the type of traffic each sign can reach most effectively.
What Is a Blade Sign?
A blade sign is a projecting sign attached to a building by a bracket, wall plate, structural frame, or concealed support. Its face is positioned toward people travelling along the storefront rather than people standing directly in front of it. Most commercial versions use two display faces, allowing the same business name or logo to be seen by customers approaching from opposite directions along a sidewalk, shopping corridor, covered walkway, or narrow commercial street.
Blade signs are frequently used by restaurants, cafés, boutiques, hotels, bars, salons, clinics, and specialty retailers. They are particularly useful where several businesses share the same building line and wall-mounted signs are difficult to read until customers are already beside the entrance. A projecting sign can make the storefront visible earlier and give customers more time to slow down, confirm the location, and enter.
The term describes the sign’s orientation rather than one fixed construction method. A blade sign can be a non-illuminated metal panel, a double-sided acrylic light box, a fabricated aluminium cabinet, a routed logo panel, a round sign, a square sign, or a completely custom-shaped illuminated product. Each format requires a different balance of visual design, internal framing, materials, wiring, waterproofing, weight, bracket strength, and maintenance access.
The design usually performs best when the message remains simple. Customers often view blade signs while moving, so a short business name, recognizable logo, strong contrast, and clear shape are more effective than several lines of small information. A design that appears elegant on a large computer screen may become difficult to recognize when reduced to a compact projecting sign and viewed from twenty or thirty metres away.
What Is a Wall-Mounted Sign?
A wall-mounted sign is installed parallel to, or very close to, the building façade. Its primary face is normally directed toward a road, parking area, plaza, courtyard, or open pedestrian space. Unlike a blade sign, which mainly serves customers moving beside the building, a wall-mounted sign usually provides front-facing identification and creates a stronger visual relationship between the brand and the whole façade.
The category includes many different products, such as individual channel letters, raceway-mounted letters, cabinet signs, flat aluminium panels, acrylic logos, dimensional metal letters, halo-lit letters, plaques, and printed fascia signs. These products may share a similar viewing direction, but they differ greatly in depth, lighting method, wiring, mounting points, service access, weight, fabrication process, and installation time.
Wall-mounted signs normally offer more usable width than blade signs. This makes them suitable for long business names, wide logos, larger letter heights, multiple words, and brands that need to be recognized from a longer distance. A supermarket, medical centre, hotel, showroom, gym, warehouse, or shopping-centre tenant may need customers to identify the building before entering a car park or making a turn.
Installation can still be complex. Individual channel letters may require multiple studs and cable penetrations. Raceway-mounted letters reduce the number of wall penetrations but add a visible support box. Cabinet signs may require rails, backboards, frames, or lifting equipment. Non-illuminated letters may use studs, spacers, concealed fasteners, or combinations of adhesive and mechanical fixing.

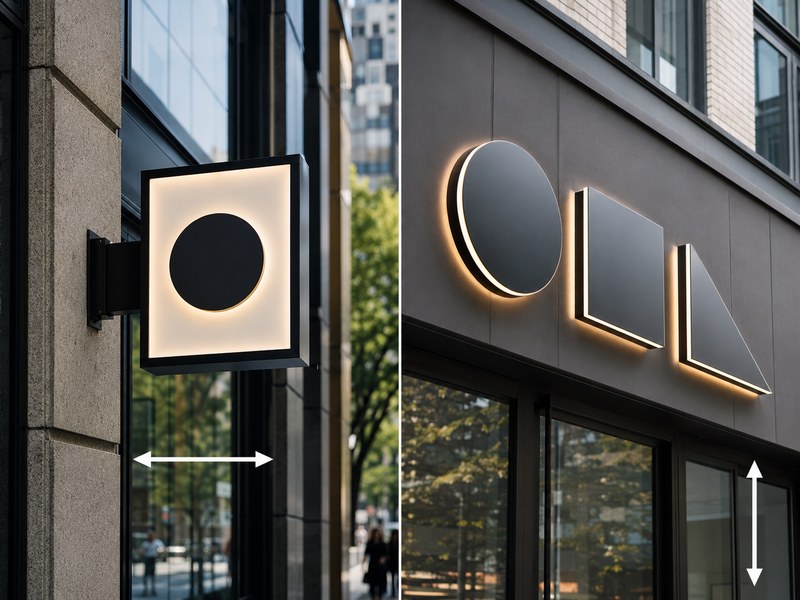

How Do Their Mounting Angles Differ?
The easiest way to understand the difference is to view the storefront from several customer positions. From directly across the street, a wall-mounted sign presents its complete face while a blade sign may show only its narrow edge. From thirty metres down the same sidewalk, the blade sign presents its full face while wall-mounted letters may appear compressed, overlap visually, or disappear behind an awning, column, tree, or neighbouring shopfront.
This difference means the mounting angle should be chosen according to customer movement rather than personal preference. A wall-mounted sign normally performs better when customers approach from the front, when the building faces a parking area, or when a large brand name must be read from a longer distance. A blade sign normally performs better when customers walk parallel to the building, when storefronts sit close together, or when two-direction visibility is necessary.
The angle also changes the way loads are transferred to the building. A wall sign keeps most of its weight close to the façade. A blade sign moves the sign body away from the wall, increasing leverage on the bracket, wall plate, fasteners, and supporting structure. This effect becomes more important as sign weight, sign area, projection distance, installation height, and wind exposure increase.
A visually small change in projection can produce a meaningful engineering change. A deeper cabinet or longer bracket does not only affect appearance; it also changes centre of gravity, packaging size, freight cost, lifting requirements, and the forces acting on the wall connection. These factors should be reviewed before the final drawing is approved.
Are All Wall-Mounted Signs the Same?
Wall-mounted signs may face the same general direction, but they should not be treated as one technical product. A flat aluminium panel, a set of fabricated channel letters, a halo-lit stainless steel logo, and a deep illuminated cabinet have very different manufacturing and installation requirements. Product type affects weight, depth, illumination, access, electrical work, weather resistance, packaging, and local installation labour.
| Sign Type | Typical Depth | Lighting Options | Common Use | Main Installation Concern |
| Flat panel sign | 3–50 mm | External or none | Offices, small retail, directories | Panel flatness and secure edge fixing |
| Dimensional letters | 10–100 mm | None or halo lighting | Hotels, offices, premium retail | Accurate spacing and stud positioning |
| Channel letters | 60–200 mm | Front, halo, or dual lighting | Large retail and commercial façades | Wiring, templates, and service access |
| Raceway letters | 80–250 mm overall | Front or halo lighting | Sites limiting wall penetrations | Raceway appearance and anchor strength |
| Cabinet sign | 100–300 mm | Internal LED lighting | Restaurants, shops, roadside buildings | Frame weight, drainage, and face removal |
These dimensions are common project ranges rather than fixed limits. Small logos may use shallower construction, while large illuminated signs may require greater depth for internal reinforcement, LED diffusion, wiring, drainage, and service access. Material choice also changes the outcome. Aluminium reduces weight and resists corrosion, stainless steel supports premium finishes, while acrylic and polycarbonate provide different combinations of light transmission, impact resistance, colour, and outdoor durability.

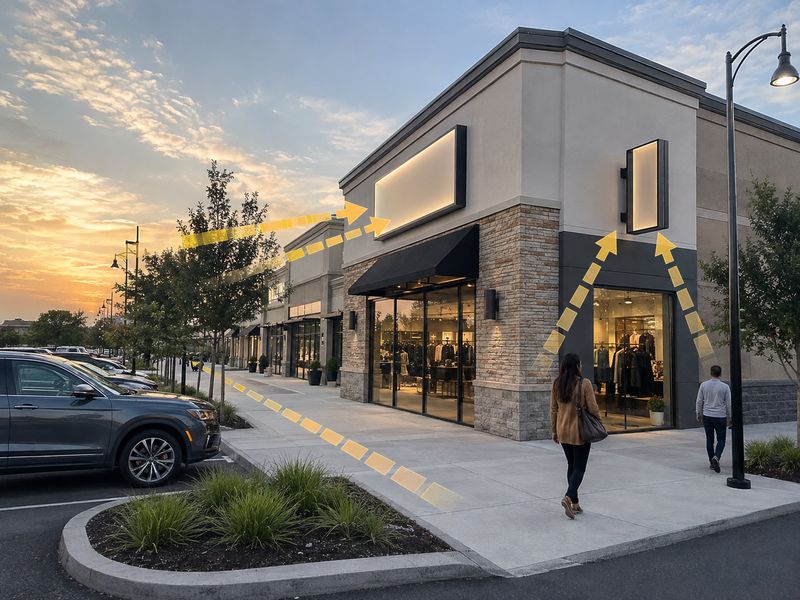

Which Sign Offers Better Visibility?
Blade signs normally provide stronger visibility for customers approaching from either direction along a sidewalk. Wall-mounted signs normally provide stronger visibility from directly in front of a building, across a road, or through a parking area. Effective visibility also depends on letter height, contrast, message length, illumination, mounting height, customer speed, environmental clutter, and the amount of time available to read the sign.
How Do Blade Signs Reach Sidewalk Traffic?
People walking through a retail street rarely turn their heads toward every storefront. They usually look ahead, scan the next section of the street, and make quick decisions about where to stop. A blade sign places the business name or logo directly into that forward viewing zone, which gives the storefront a better chance of being noticed before the customer reaches the door.
This is especially useful where buildings sit directly beside the sidewalk, several stores share the same façade line, awnings cover the upper wall, entrances are recessed, or parked vehicles block lower signs. A double-sided blade sign can support customers approaching from both directions, although each face should be checked independently to make sure logos, arrows, and text orientation remain correct.
Viewing time is limited even for pedestrians. A person walking at approximately four to six kilometres per hour travels around 1.1 to 1.7 metres each second. If the sign becomes clearly visible only ten metres before the entrance, the customer may have roughly six to nine seconds to notice the sign, read it, connect it with the storefront, and decide whether to enter.
That limited viewing time explains why compact projecting signs should not carry excessive information. A short name, strong logo, clear service category, recognizable colour combination, and distinct outline normally communicate faster than small contact details, slogans, product lists, or several lines of text. Secondary information can be moved to windows, menus, directories, or door signage.
How Do Wall Signs Support Distance Viewing?
Wall-mounted signs normally have more width and can support larger letter heights, making them better suited to longer viewing distances. This advantage matters when customers are driving, crossing a road, entering a commercial development, or looking across a wide parking area. A wall-mounted sign can identify the building early enough for customers to make a safe turning or parking decision.
A practical industry planning reference is approximately twenty-five millimetres of letter height for every three metres of viewing distance under clear conditions. This should not be treated as a universal formula. Font style, colour contrast, traffic speed, message length, weather, background clutter, lighting, and viewing angle can require substantially larger letters.
A simple bold name may remain readable at a distance where a thin script logo becomes unclear. Lowercase letters often have smaller internal shapes than capital letters of the same overall height, while tightly spaced characters can merge visually. Wide letter spacing may improve distance recognition but can increase the overall sign width and affect façade proportions.
Wall signs also create a stronger connection between the brand and the building. Large channel letters, illuminated cabinets, or dimensional logos can become part of the architecture rather than functioning only as directional markers. This is useful for shopping centres, hotels, medical facilities, supermarkets, fitness clubs, showrooms, and corporate buildings that need a strong visual identity from an open approach.
Which Works Better for Drivers and Pedestrians?
Traffic speed changes the amount of information a customer can process. Pedestrians can slow down, stop, and look again. Drivers may have only a few seconds to recognize a sign while also watching vehicles, road markings, pedestrians, entrances, and traffic signals. For vehicle-facing signs, recognition must happen before the point where the customer needs to turn.
| Viewing Situation | Approximate Speed | Common First-Notice Range | Stronger Starting Option | Main Design Priority |
| Indoor retail corridor | 3–5 km/h | 5–20 m | Blade sign | Clear logo and two-way recognition |
| Urban sidewalk | 4–6 km/h | 10–40 m | Blade sign | Contrast, simple wording, correct height |
| Retail access road | 15–25 km/h | 30–80 m | Wall-mounted sign | Larger letters and uncluttered layout |
| Urban roadway | 30–50 km/h | 60–150 m | Large wall sign | Early recognition and strong legibility |
| Large parking area | 5–20 km/h | 30–120 m | Wall-mounted sign | Building identity and entrance clarity |
These figures are planning references rather than guaranteed performance distances. A sign against a plain wall may be recognized earlier than a larger sign surrounded by banners, trees, vehicles, streetlights, and competing graphics. The most reliable test is to review the proposed sign from the customer’s actual approach route at realistic speed and viewing height.
Sites serving both pedestrians and drivers frequently need different signs for different stages of arrival. A large wall-mounted sign may identify the building from the road, while a smaller blade sign helps customers locate the correct doorway after parking. One sign does not always need to perform every navigation task.
Do Size and Lighting Change Visibility?
Size affects visibility, but increasing dimensions does not automatically improve communication. A larger sign can remain difficult to read when it uses low contrast, narrow script lettering, excessive information, or an unsuitable mounting angle. The same principle applies to illumination. More brightness does not always create better visibility and may cause glare, blurred letter edges, or uncomfortable contrast at night.
Internally illuminated blade signs should have enough cabinet depth and LED spacing to reduce bright spots and dark areas. The face material must diffuse light while maintaining the approved daytime colour. Internal frames and bracket connections should not cast obvious shadows across the visible surface. Power supplies and service openings should remain accessible without weakening waterproofing.
Wall-mounted signs offer more lighting choices, including front-lit channel letters, halo-lit letters, front-and-halo-lit letters, illuminated cabinets, and external lighting. Halo illumination depends heavily on wall colour, wall texture, letter spacing, and stand-off distance. A smooth light-coloured surface generally reflects a cleaner halo than dark brick, uneven stone, glass, or highly textured cladding.
The sign should be reviewed in four conditions: daytime with the lighting off, nighttime with the lighting on, the main customer approach angle, and the surrounding visual environment. A sign that performs well only in a front-facing nighttime rendering may still fail during the business’s busiest daytime period.

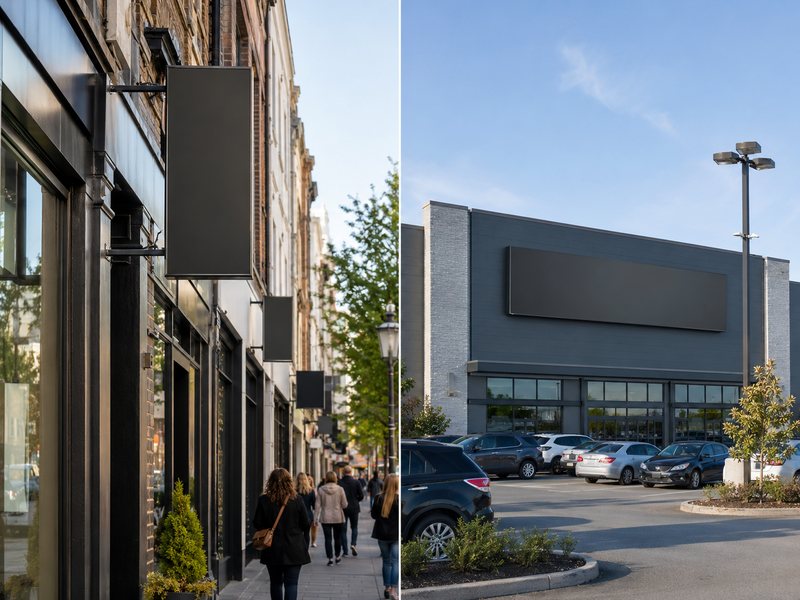

Which Sign Fits Your Location?
Blade signs are usually more suitable for narrow, pedestrian-focused streets where people approach from the side. Wall-mounted signs are usually more suitable for open sites where customers face the building from a road, plaza, or car park. The strongest selection comes from studying real sightlines, obstructions, façade dimensions, customer speed, operating hours, and the point where customers need to identify the entrance.
Which Is Better for Urban Streets?
Urban retail streets often create conditions that favour blade signs. Buildings sit close to the sidewalk, storefronts share a continuous line, and customers travel parallel to the façades. A wall-mounted sign may be clear from across the street but almost invisible to a person walking on the same side until they are already beside the entrance.
Blade signs can help distinguish restaurants, coffee shops, hotels, bars, salons, clinics, fashion stores, and professional services from neighbouring businesses with similar doorways. The sign becomes a visual marker along the customer’s route rather than a decoration that can only be appreciated from directly in front of the shop.
Scale should match the street and the building. A large illuminated cabinet may overwhelm a narrow heritage façade, while a smaller metal panel with cut lettering may look more appropriate. A round illuminated light box may suit a modern café, but internal frame positions, face-retaining systems, LED spacing, and service openings still need to be resolved carefully.
Urban environments also create competition between projecting signs. If several blade signs overlap from the main approach direction, increasing the size of one sign may not improve visibility. Mounting height, projection, spacing from neighbouring signs, awnings, trees, and street furniture should be checked through side-view photographs or visual mock-ups before final dimensions are approved.
Which Is Better for Open Sites?
Wall-mounted signs normally perform better where the façade is visible as a complete surface. Common examples include retail parks, standalone restaurants, hotels, medical buildings, industrial units, supermarkets, gyms, showrooms, and shopping-centre tenants facing large parking areas. Greater viewing distance allows the sign to use larger letters and a wider layout without crowding the message.
A wall sign can create stronger visual ownership of the building. Individual channel letters can align with architectural features, an illuminated cabinet can occupy an established sign band, and dimensional letters can produce a refined appearance for offices or hospitality properties. The sign becomes a landmark that customers can connect with the whole site.
Open sites still contain obstructions. Mature trees, parked vans, delivery vehicles, entrance canopies, columns, neighbouring signs, temporary banners, and future landscaping may block part of the façade. Site assessment should therefore be completed from the actual road entrance and turning points rather than only from an empty parking bay directly in front of the building.
A secondary blade sign can still be useful beneath a covered walkway or near a recessed doorway. In that situation, the main wall sign identifies the building from a distance, while the smaller projecting sign helps customers locate the correct tenant or entrance after they arrive.
How Do Sightlines Affect the Choice?
Sightline evaluation is one of the most valuable steps in sign planning and one of the most frequently overlooked. A front-facing rendering shows how the sign looks on the wall, but it does not show whether customers can see it from the road, sidewalk, parking entrance, or final approach to the doorway.
A useful site study should include photographs from the main pedestrian approach in both directions, the opposite side of the road, the car-park entrance, the nearest intersection, the main vehicle turning point, covered walkways, and the final approach to the entrance. The first point where the business becomes visible should be compared with the point where customers need to make a navigation decision.
Mounting height, building setback, façade angle, road curvature, customer speed, tree cover, awnings, columns, street furniture, adjacent buildings, background colour, and competing signs all influence the sightline. A blade sign mounted too close to an awning may disappear from one direction, while a wall sign mounted too low may be blocked by vehicles.
The sign should become recognizable before the customer reaches the decision point. A sign that becomes visible only after the correct entrance has been passed may look attractive but does not perform its practical function.
Is One Sign Enough?
One sign may be sufficient when the customer approach is simple. A compact shop in a pedestrian arcade may only need a blade sign, while a large showroom facing an open car park may only need wall-mounted channel letters. More complex properties often benefit from a coordinated sign hierarchy rather than forcing one product to perform every task.
A wall-mounted sign can establish the primary building identity, while a blade sign supports side-direction discovery. Window graphics can explain services, a door sign can confirm the entrance, and internal directional signs can continue the customer journey after entry. Each sign communicates less information but performs one purpose more clearly.
The strongest systems do not repeat the same message on every surface. A wall sign may carry the full brand name, the blade sign may use only the logo, the window may show opening hours, and a directional sign may contain a short instruction and arrow. This reduces clutter while making the site easier to understand.
For chain-store projects, the relationship between main and supporting signs should be standardized. Logo proportions, colour references, lighting temperature, cabinet depth, bracket finish, mounting height, installation holes, wiring method, product codes, and packaging labels should be documented so future locations can reproduce the same visual identity with fewer interpretation errors.
How Do Installation and Costs Compare?
Blade signs usually require more structural attention because their weight and surface area project away from the façade, increasing leverage on brackets and anchors. Wall-mounted signs keep their mass closer to the building but may require more mounting points, wiring penetrations, rails, templates, or raceways. Total installed cost depends on structure, access, electrical work, approval, freight, equipment, and maintenance rather than fabrication price alone.

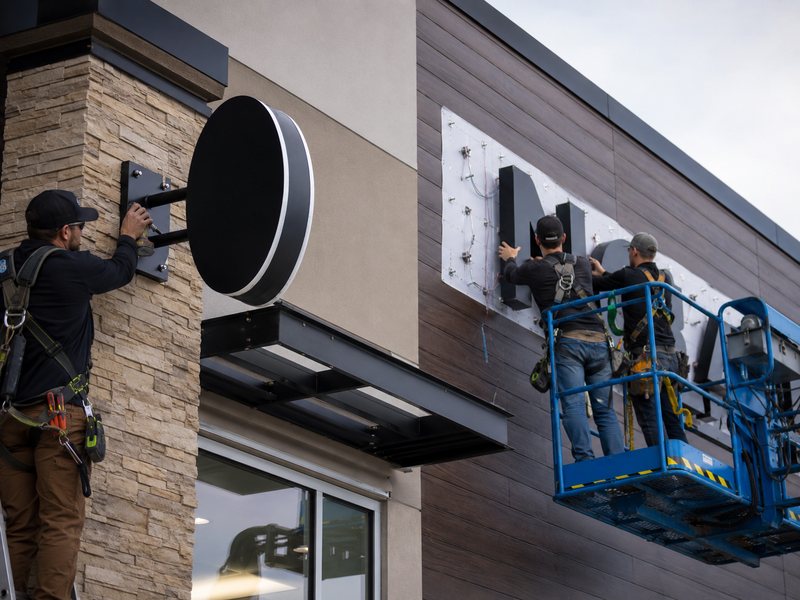

How Do Mounting Systems Differ?
Blade signs normally use a bracket connected to a wall plate, frame, or concealed supporting structure. The system must carry the sign’s weight and resist movement caused by wind, vibration, and repeated loading. The farther the centre of mass sits from the wall, the greater the static leverage placed on the bracket and fastening points.
A simplified static moment can be estimated by multiplying sign weight, gravitational acceleration, and the horizontal distance from the wall. This does not include wind pressure, dynamic loading, bracket weight, material fatigue, safety factors, or local structural requirements, but it demonstrates the importance of projection.
| Sign Weight | Centre of Mass from Wall | Approximate Static Moment | Practical Interpretation |
| 10 kg | 0.40 m | 39 N·m | Small sign, although wall and anchors still need confirmation |
| 20 kg | 0.60 m | 118 N·m | Bracket stiffness and wall plate become more important |
| 35 kg | 0.80 m | 275 N·m | Structural review is strongly advisable |
| 50 kg | 1.00 m | 491 N·m | Significant leverage exists before wind is considered |
The actual connection must match the building. Solid concrete, brick, hollow block, structural steel, stone veneer, metal cladding, and curtain-wall systems require different fastening and reinforcement methods. The sign manufacturer can provide product weight, bracket dimensions, hole positions, and interface drawings, while the local installer or engineer verifies the actual wall and anchor method.
Wall-mounted signs use different systems. Individual letters may attach with studs and spacers, channel letters may mount directly or on a raceway, and cabinets may use rails, backboards, or structural frames. Accurate templates, labelled sections, cable positions, and hardware lists can reduce site drilling and installation errors.
Do Blade Signs Need More Permits?
Blade signs frequently receive closer regulatory review because they project beyond the building wall and may extend above a sidewalk, public access area, or shared property boundary. Local authorities may regulate projection distance, sign-face area, lower-edge clearance, mounting height, illumination, bracket appearance, structural documentation, electrical certification, and historic-district compatibility.
There is no universal permitted dimension. Requirements vary between countries, cities, zoning districts, landlords, shopping centres, and heritage areas. A blade sign that is approved in one location may be too large, too low, too bright, or too far from the façade in another. Existing master sign programmes can also impose rules that are stricter than local municipal requirements.
Wall-mounted signs require approval as well. The allowed area may be calculated according to tenant frontage, façade width, building elevation, zoning, or sign-band dimensions. Some landlords prohibit direct wall penetrations and require raceway mounting even when individual letters would otherwise be allowed.
Approval should therefore happen before manufacturing. Customers should confirm the permitted product type, maximum dimensions, projection, pedestrian clearance, lighting method, structural documents, electrical requirements, and landlord conditions. Producing a sign before these points are confirmed can lead to reduced dimensions, bracket changes, new drawings, repacking, or complete remanufacture.
How Do Wind and Wall Conditions Affect Design?
Wind acts on the visible surface area of a sign, not only on its weight. A lightweight but large double-sided cabinet can produce demanding bracket loads, especially when installed high on a building, near a coastline, on an exposed corner, or in a severe-weather region. Sign-face dimensions, projection, cabinet depth, bracket length, weight, centre of gravity, internal reinforcement, wall plate, and fastener positions all influence structural behaviour.
Wall condition is equally important. Decorative cladding may not be structural. Brick may be a thin veneer rather than a load-bearing wall. Metal panels can conceal insulation and a structural frame. Curtain-wall systems may prohibit standard drilling. The installer must determine what lies behind the visible surface and where the sign can safely transfer load.
Outdoor hardware should be selected for the surrounding environment. Stainless steel fasteners are common, but grade, finish, and compatibility with nearby metals still matter. Dissimilar metals can create corrosion when exposed to moisture. Painted or powder-coated brackets need proper preparation and complete coating around welds, edges, and bolt holes.
Maintenance should be considered at the same time as strength. A face panel that cannot be removed without taking down the entire sign creates unnecessary service difficulty. Drainage routes should not be blocked by wiring or sealant, and power supplies should remain accessible without disturbing major structural connections.
What Drives Installed Cost?
The product quotation is only one part of the final project cost. Blade signs may require a custom bracket, reinforced wall plate, double-sided cabinet, concealed cable route, structural documentation, lifting equipment, traffic management, and more complex packaging. Wall-mounted signs may require multiple letter patterns, numerous wall penetrations, long raceways, sectioned installation, scaffolding, lifting equipment, or façade repairs.
Illuminated products add power supplies, wiring, electrical labour, service access, testing, and future component replacement. A remote power supply may be easier to service but require longer wiring, while an internal power supply may reduce visible wiring but make maintenance more complicated. The appropriate solution depends on access, product size, local electrical practice, and installation conditions.
Freight can also change the comparison. A projecting cabinet may be relatively compact but deep, while a long raceway can become oversized even when lightweight. Large letters may require several cartons or a wooden crate. Brackets are often packed separately to prevent them from scratching or puncturing sign faces during transportation.
A lower fabrication price does not necessarily create a lower installed cost. Approved drawings, labelled wiring, full-size templates, separated hardware, packing photographs, clear installation instructions, and accurate product weights can reduce local labour, site modification, and rework. These project controls often provide more value than a small difference in factory price.
How Do You Choose the Right Sign?
Choose a blade sign when side-direction visibility is the main challenge. Choose a wall-mounted sign when customers face the building and require larger, longer-distance identification. Use both when the property needs a primary brand landmark and a secondary entrance locator. The final decision should follow a sightline review, code check, wall assessment, engineering review, approved drawing, and realistic installed-cost comparison.
What Site Information Should Be Checked?
A reliable recommendation cannot be made from a logo file alone. The same brand may need a compact non-illuminated blade sign on a historic street, large wall-mounted letters at a roadside retail site, or a coordinated combination in a multi-tenant development. Site information determines whether the preferred design can be seen, approved, manufactured, installed, powered, and maintained.
A useful project package should include front, left, and right storefront photographs, a photograph from the main customer approach, wall width, available mounting area, installation height, wall material, indoor or outdoor use, expected viewing distance, pedestrian and vehicle traffic direction, business hours, destination country, input voltage, quantity, required delivery date, and any sign-code or landlord requirements.
Photographs should show enough surrounding area to reveal awnings, neighbouring signs, columns, windows, trees, roads, and parking conditions. A close image of an empty wall is not enough to evaluate visibility. Approximate dimensions can support early concepts, but production drawings and bracket decisions should use verified measurements.
For multi-location projects, each site should be checked individually. A standard sign appearance may still require different bracket lengths, raceways, section joints, cable exits, or mounting patterns because wall construction and available space vary between properties.
Which Design and Materials Fit Your Brand?
Blade signs require disciplined branding because their display area is usually limited. A compact face may not support a long legal company name, slogan, telephone number, website, social media handle, and service list. The stronger solution may use the primary logo symbol on the blade sign and reserve the full name or additional information for the wall sign, window, or entrance.
Wall signs offer more space but still need a clear information hierarchy. The brand name should normally remain dominant. Secondary wording should either be large enough for the intended distance or removed. More available wall area does not automatically mean more information should be added.
Aluminium is widely used for lightweight cabinets, frames, backboards, and outdoor structures. Stainless steel supports premium dimensional letters, durable finishes, and structural parts. Acrylic suits illuminated faces, dimensional logos, and clean interior branding. Polycarbonate may offer greater impact resistance in selected applications, while composite panels, PVC, foam, and printed films suit different indoor, protected, economical, or graphic-focused uses.
Finish samples are valuable when colour accuracy matters. A Pantone reference can guide production, but painted metal, translucent acrylic, printed vinyl, and illuminated faces may not appear identical. Daytime colour and nighttime illuminated colour should be reviewed separately, particularly when brand identity depends on a specific red, blue, green, or warm white appearance.
Which Lighting Method Should You Use?
Lighting should match the business hours, building style, viewing distance, background conditions, maintenance access, and local restrictions. A double-sided blade cabinet often uses internal LED modules behind acrylic or polycarbonate faces. The cabinet needs enough depth for light diffusion, and internal frame positions should avoid creating shadows near brackets, corners, or face retainers.
A non-illuminated blade sign may use external spotlights where permitted. This can suit traditional architecture, premium metal signs, and heritage environments, although the fixtures require their own wiring, aiming, weather protection, and maintenance. Poorly positioned external lights can create glare, shadows, or uneven illumination.
Wall-mounted signs can use front-lit letters, halo-lit letters, front-and-halo-lit letters, illuminated cabinets, or external lighting. Front-lit letters provide direct recognition, halo-lit letters create a softer architectural effect, and dual-lit letters combine strong face visibility with a background glow.
The wall surface has a major influence on halo lighting. Smooth, light-coloured surfaces usually reflect a cleaner glow than dark brick, uneven stone, glass, or textured cladding. Stand-off distance, letter spacing, LED layout, colour temperature, wiring length, power capacity, and service access should all be confirmed during engineering review rather than decided after production begins.
What Should the Drawings Confirm?
An approved drawing should describe how the sign will be manufactured and installed, not only how it looks from the front. For a blade sign, the drawing should confirm overall dimensions, face materials, cabinet depth, bracket dimensions, wall plate, mounting holes, weight, cable exit, power-supply position, service opening, LED colour, drainage, sealing, hardware, and packing separation.
For a wall-mounted sign, the drawing should confirm overall layout, individual letter dimensions, direct mounting or raceway construction, stud positions, cable holes, stand-off distance, section joints, power-supply location, installation template, wiring groups, and maintenance access. The relationship between the drawing and site measurements must be checked before production begins.
| Site Condition | Stronger Starting Choice | Practical Reason |
| Customers walk parallel to the storefront | Blade sign | The full face remains visible during the side approach |
| Customers enter from a large parking area | Wall-mounted sign | Larger front-facing letters support distance recognition |
| Storefront is narrow or recessed | Blade sign | It can identify the entrance before customers reach it |
| Business name is long | Wall-mounted sign | More horizontal area is available for readable lettering |
| Visibility is needed from both street directions | Double-sided blade sign | Each direction receives a complete sign face |
| Building must be identified across a road | Wall-mounted letters or cabinet | Larger scale and front-facing orientation |
| Main brand is visible but the doorway is unclear | Use both | One identifies the property and one marks the entrance |
| Wall construction is unknown | Delay final selection | The supporting structure and anchors need verification |
| Project covers several locations | Standardize both where required | Consistent drawings and production records reduce variation |
The final choice should be based on what customers can see in time, what the building can support, what local authorities can approve, what installers can mount accurately, and what the business can maintain over the coming years. The most visually dramatic option is not always the most effective sign.
