What Affects LED Light Box Cost? A Buyer’s Guide to Pricing Factors

The biggest mistake when comparing LED light box prices is assuming that two boxes with the same outside dimensions are the same product. They may look nearly identical in a quotation, yet one could use a stronger frame, a different face material, denser LED layout, better access for maintenance, outdoor sealing, a custom mounting system, or export-grade packaging. Those differences may not be obvious in a product photo, but they can change both the manufacturing cost and what happens after the sign reaches the installation site.

LED light box cost is mainly affected by size, construction type, frame and face materials, LED layout, electrical specifications, indoor or outdoor requirements, mounting, quantity, packaging, and shipping. A useful quotation should therefore describe the complete specification rather than give only a price per square meter. The more clearly these variables are defined, the easier it is to compare suppliers fairly.

Imagine receiving three quotations for the same storefront light box. One is surprisingly low, one sits in the middle, and one looks expensive. The cheapest supplier has not specified the face thickness, LED configuration, power supply, waterproofing, access method, mounting hardware, or packing method. At that point, you are not really comparing three prices. You are comparing three different levels of information. Understanding what drives cost is how you turn those numbers into a purchasing decision.

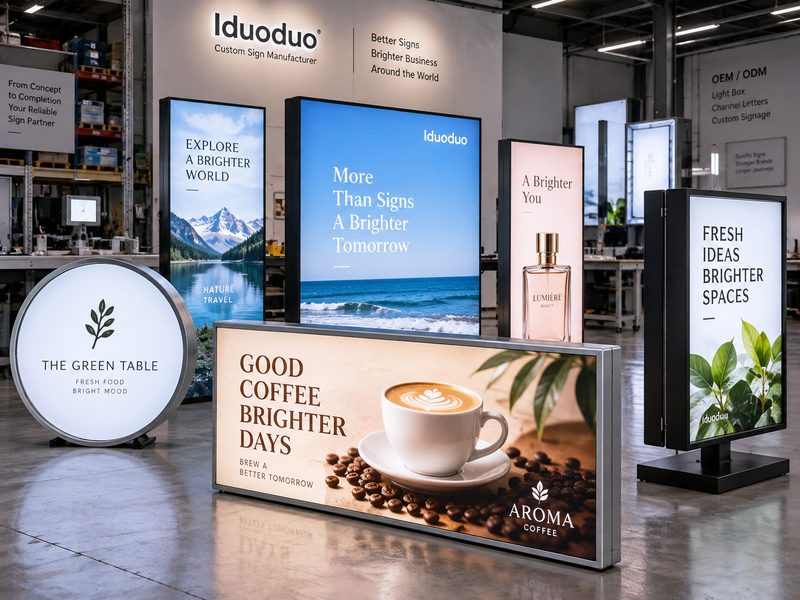

What Determines LED Light Box Cost?

LED light box cost is mainly determined by overall size, light box type, shape, single- or double-sided construction, and order quantity. Each factor changes the amount of aluminum, face material, LED modules, power components, fabrication time, reinforcement, assembly work, testing, and packaging required. A useful quotation should therefore describe the complete construction instead of relying only on width, height, or price per square meter.

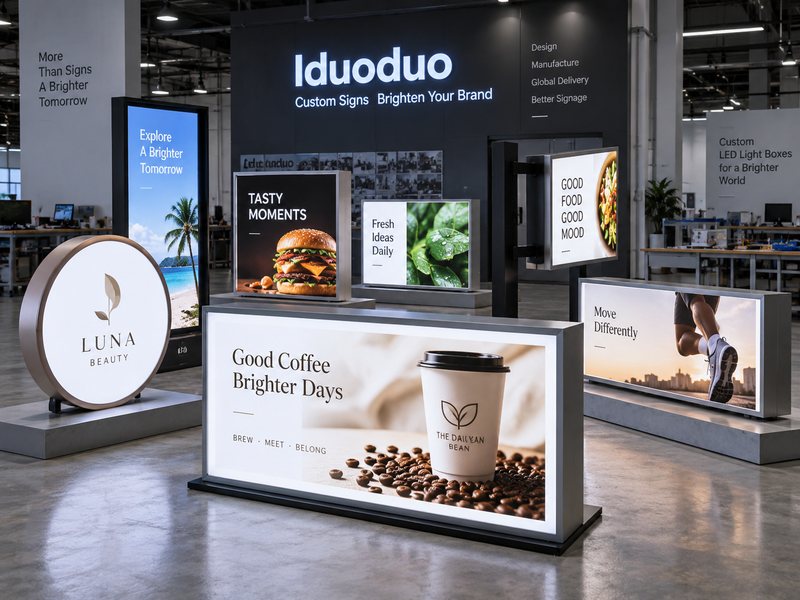

What Does Size Change?

Size changes almost every major cost item inside an LED light box. Width and height determine the visible face area, while depth determines the amount of side-frame material and the working space available for LEDs, wiring, supports, and service access.

The important point is that area increases much faster than a single dimension. For example:

Light Box Size	Face Area	Relative Face Area
600 × 600 mm	0.36 m²	1×
1200 × 600 mm	0.72 m²	2×
1500 × 800 mm	1.20 m²	3.3×
1800 × 900 mm	1.62 m²	4.5×
2400 × 1200 mm	2.88 m²	8×

A 2400 × 1200 mm box does not simply use “twice as much material” as a 1200 × 600 mm box. Its face area is four times larger. More face material is required, the LED layout covers a much larger illuminated area, and the frame may need additional support to remain flat.

Large dimensions can also change handling and shipping. A box may fit normal production and freight limits at one size but require reinforcement, segmentation, stronger packing, or a different shipping method after crossing a practical size limit.

Large light boxes also need closer control of frame flatness and face tension during assembly. Iduoduo lists both as specific manufacturing concerns for larger light boxes.

When requesting a quote, provide all three dimensions whenever possible:

Width × Height × Depth

A quotation based only on “about 2 meters wide” still leaves too many cost variables unresolved.

Which Light Box Types Cost More?

Different LED light box types can have noticeably different costs even when the outside dimensions are similar.

Iduoduo’s light box product family includes single-sided light boxes, double-sided light boxes, menu light boxes, fabric light boxes, acrylic light boxes, cabinet signs, advertising light boxes, and outdoor light boxes. Their shared engineering elements include the frame, graphic, face, diffusion, LED system, service access, and mounting structure.

The construction differences are easier to understand when compared by function:

Light Box Type	Main Cost Drivers
Single-Sided Light Box	One illuminated face, wall mounting, standard frame
Double-Sided Light Box	Two faces, two graphics, lighting on both sides, stronger support
Menu Light Box	Replaceable graphics, easy service access, even illumination
Fabric Light Box	Fabric retention system, frame profile, large-format graphics
Acrylic Light Box	Rigid acrylic face, face support, edge finishing
Outdoor Light Box	Sealing, drainage, corrosion protection, outdoor electrical parts
Cabinet Sign	Larger structure, reinforcement, service access, mounting preparation

A menu light box may cost more than a basic indoor advertising box because the graphic needs to be changed without replacing the complete cabinet. An outdoor cabinet may cost more than an indoor unit because rain protection, drainage, power protection, and corrosion resistance become part of the construction.

A useful comparison therefore needs the product type written clearly on every quotation. “1500 × 600 mm LED light box” is not enough. “1500 × 600 × 120 mm, single-sided, wall-mounted, indoor menu light box with replaceable graphic” gives a much clearer basis for pricing.

How Does Shape Affect Fabrication?

Standard rectangular light boxes are usually more efficient to manufacture because straight frame sections, 90-degree corners, regular face panels, and repeatable LED layouts reduce manual fabrication.

A custom shape can change several production steps at once.

A round, oval, curved, logo-shaped, or irregular light box may require:

• custom CNC or laser cutting;
• additional bending or rolling;
• more welding or frame joining;
• custom face cutting;
• manual fitting;
• special graphic trimming;
• non-standard internal support;
• more complex LED positioning;
• custom brackets;
• specially shaped protective packaging.

Consider a 1000 × 1000 mm square box and a 1000 mm diameter circular box. The circular version has less face area, yet it can still require more fabrication time because straight profiles cannot always be cut and assembled in the same way as a rectangular frame.

Complex logos create another issue. Narrow sections, sharp corners, deep internal cut-outs, or uneven outlines can leave limited space for LEDs and wiring. The visible shape may therefore affect not only metal fabrication but also the optical layout.

Irregular products can also use shipping space less efficiently. A rectangular cabinet normally fits a rectangular carton or crate closely. A projecting shape or delicate corner may need a much larger protective package than the actual illuminated area suggests.

For projects using unusual outlines, send AI, PDF, SVG, CAD, or another clear vector file during the quotation stage. A front-view image alone cannot show all fabrication requirements accurately.

Shape should be chosen for a reason. If a custom outline creates meaningful brand recognition, the additional fabrication may be justified. If the same visual result can be achieved with a standard cabinet and custom printed graphic, the simpler construction can often reduce both manufacturing and packing cost.

Do Single and Double Sides Cost Differently?

Yes. Double-sided LED light boxes normally cost more because two visible illuminated faces must be produced instead of one.

The difference is not limited to adding a second face panel. Depending on the design, double-sided construction can affect:

• second face material;
• second printed graphic;
• LED quantity and layout;
• internal light distribution;
• cabinet depth;
• frame reinforcement;
• electrical load;
• wiring;
• mounting bracket;
• center of gravity;
• packaging size.

A wall-mounted single-sided light box places the illuminated face toward one viewing direction. The rear side can be designed mainly for mounting and service access.

A double-sided projecting light box works differently. People may approach from both directions, so both faces need good graphic quality and even illumination. The box also projects away from the building, meaning the bracket and wall connection become more important.

A practical example is a retail storefront. If a 1600 × 600 mm light box is installed flat against the wall above an entrance, paying for a second illuminated face offers little benefit because the rear face cannot be seen.

If the same sign projects perpendicular to the wall along a pedestrian street, two-sided visibility may be essential.

The decision should therefore start with viewing direction rather than price alone.

Use single-sided construction where the sign is mainly seen from one direction. Use double-sided construction where traffic approaches from both directions and both faces contribute to visibility.

Avoid asking suppliers to quote “LED light box” without specifying the number of active faces. Two quotations may appear to describe the same product while one includes a single face and another includes a full double-sided structure.

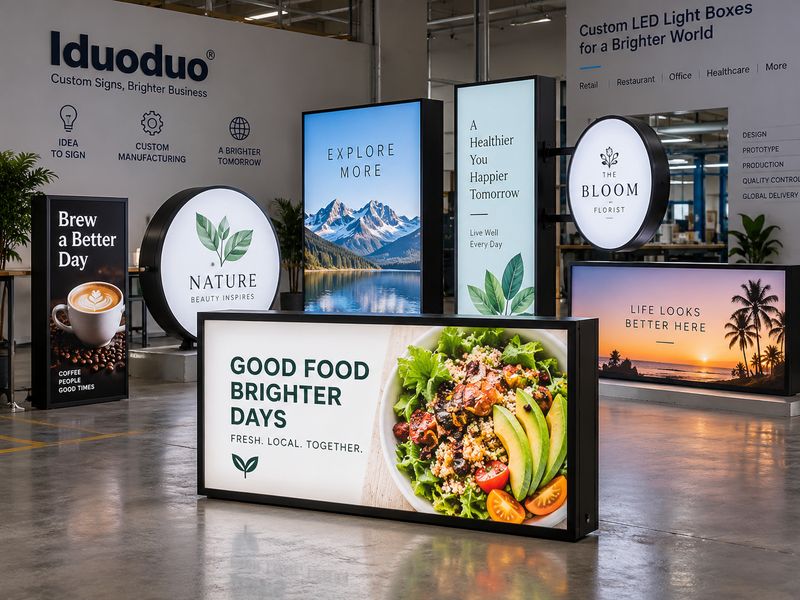

How Does Quantity Affect Unit Cost?

Higher quantity can reduce unit cost, but the savings depend heavily on how much of the order can be repeated without changing the specification.

Ten identical light boxes are easier to produce efficiently than ten boxes with different sizes, graphics, frame colors, mounting methods, voltages, and electrical layouts.

Repeated production can reduce the amount of work required for:

• engineering review;
• drawing preparation;
• material setup;
• frame cutting;
• finish preparation;
• LED layout planning;
• power configuration;
• graphic setup;
• QC reference preparation;
• packaging design.

A useful way to think about quantity is to separate physical quantity from SKU quantity.

Order	Total Units	Different SKUs	Production Complexity
Project A	50	1	Low
Project B	50	5	Moderate
Project C	50	25	High
Project D	50	50	Very High

Project A may use one approved drawing, one frame size, one LED layout, one power configuration, and one packing method for all 50 units.

Project D may require 50 separate drawings, multiple cutting setups, different graphics, different box sizes, and separate packing identification. Both orders contain 50 units, but the production efficiency is completely different.

Chain-store projects usually gain more cost control by standardizing the platform before negotiating unit price. Keep the frame construction, face material, LED, power supply, finish, mounting logic, and packing method consistent wherever possible. Change only the information that genuinely needs to vary, such as store graphics or selected dimensions.

Iduoduo records frame drawings, face specifications, graphic files, colors, LEDs, power supplies, brackets, wire exits, mounting plates, packaging, store numbers, and QC standards for light box repeat orders.

For an accurate quantity quotation, provide more than a total number. A useful order list should show:

Store / SKU number
Size
Quantity
Graphic version
Single or double sided
Indoor or outdoor
Voltage
Mounting method
Destination

Once the repeated and variable parts are separated, unit-cost savings become much easier to calculate and future reorders become easier to manage.

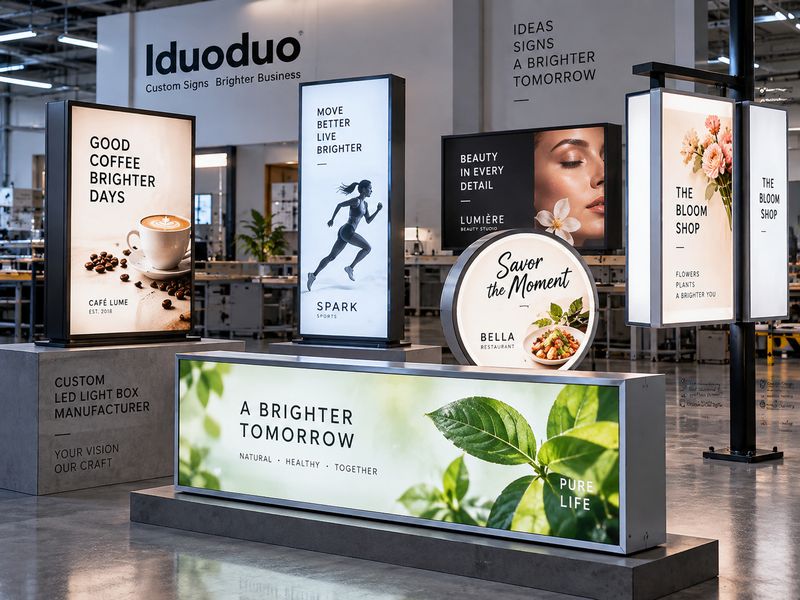

Which Materials Affect Light Box Cost?

Light box material cost is mainly affected by the frame, illuminated face, cabinet depth, graphic system, and surface finish. Material choice also changes fabrication time, product weight, LED diffusion, weather resistance, packing, and shipping. Two light boxes with identical dimensions can therefore have different prices when their aluminum structure, face material, graphic method, coating, or internal construction is different.

How Does Frame Material Affect Price?

The frame is not only the visible border around a light box. It supports the face, LED system, electrical components, service structure, brackets, and mounting points. Frame material therefore affects material cost, fabrication work, finished weight, corrosion resistance, packaging, and freight.

Common metal materials used in commercial signage include aluminum, stainless steel, and galvanized steel. Iduoduo uses metal materials for frames, brackets, dimensional structures, and other sign components according to the installation environment and product structure.

For most quotations, “aluminum frame” is still not enough information. Several additional details can change cost:

• frame profile and construction;
• material thickness;
• cabinet width and height;
• cabinet depth;
• internal reinforcement;
• welded or mechanically assembled joints;
• service-door construction;
• mounting brackets;
• surface treatment;
• indoor or outdoor use.

A 600 × 600 mm indoor menu box and a 2400 × 1200 mm outdoor storefront box should not use the same structural logic simply because both use aluminum. The larger cabinet has much more face area and places greater demands on frame flatness, panel support, handling, and transportation.

Large light boxes need particular attention to frame flatness and face tension during assembly. Iduoduo treats those points as specific production controls rather than checking only the outside dimensions.

Material selection should also reflect the environment. Indoor applications focus more heavily on close-range appearance, material finish, hidden wiring, and glare. Fully outdoor applications add rain, UV exposure, temperature changes, wind, drainage, sealing, and corrosion considerations. Coastal or highly corrosive environments can require extra attention to the metal, coating, fasteners, connectors, and salt exposure.

A useful frame comparison should therefore look like the following:

Frame Item	Why It Changes Cost	What to Confirm
Material	Raw material, weight, corrosion behavior	Aluminum, stainless steel, galvanized steel
Thickness	Material consumption and rigidity	Exact approved specification
Reinforcement	Adds material and fabrication	Required for size and mounting
Brackets	Adds metalwork and welding	Wall, hanging, or projecting
Service access	Adds fabrication and hardware	Front, side, rear, or removable face
Outdoor protection	Adds preparation and coating work	Exposure level and destination
Finish	Adds preparation and QC	Standard or custom color

One common purchasing mistake is comparing quotations where one supplier lists only “aluminum box” while another has included reinforcement, brackets, service panels, and outdoor finishing. The second quotation can look more expensive even though the scope is broader.

Ask for the frame material, depth, finish, mounting structure, and any reinforcement to appear on the approved drawing or specification. Once those items are visible, frame cost becomes much easier to compare.

Which Face Material Should You Choose?

The illuminated face affects appearance during the day, appearance when illuminated, light diffusion, graphic reproduction, weight, impact resistance, replacement method, and packing requirements.

Iduoduo uses acrylic extensively for light box faces and other illuminated products. Acrylic processing can include cutting, engraving, routing, heat bending, drilling, bonding, polishing, frosting, printing, and edge finishing. Important inspection points include thickness, color, light transmission, diffusion, edges, scratches, cracking, thermal movement, and outdoor yellowing risk.

Polycarbonate is another available lightweight sign material, while fabric is used for fabric light boxes. The correct face should therefore be selected according to the application instead of using one face material for every project.

Face System	Common Priority	Cost-Related Considerations
Acrylic face	Rigid illuminated face and clean appearance	Cutting, thickness, support, diffusion, packing
Polycarbonate face	Lightweight or project-specific panel use	Material specification, support, finishing
Fabric face	Large graphics and replaceable displays	Printing, edge system, tension, replacement
Replaceable graphic face	Menus and promotions	Access structure and future graphic changes

Acrylic illustrates why the cheapest sheet price does not necessarily create the lowest finished cost. The face must remain flat, fit the frame correctly, diffuse LED light, reproduce the required color, and survive packing and shipment without scratches or cracks.

Large rigid faces can also need additional support. Increasing the face dimensions without reviewing panel support can create bowing, movement, or uneven appearance. Iduoduo’s light box engineering specifically includes the face, graphic, diffusion, panel support, edges, center illumination, and service access as connected parts of the product.

Fabric light boxes create a different cost structure. Important items include fabric transmission, printing, cabinet depth, LED spacing, graphic tension, edge darkness, daytime color, and illuminated color. A graphic that looks correct on a monitor may appear different after light passes through the printed fabric, so strict brand-color projects may require a lighting sample before bulk production.

For quotation comparison, request at least four face details:

Face material
Face thickness or approved material specification
Graphic method
Whether the graphic is fixed or replaceable

Those four items often explain why two apparently similar light boxes receive different prices.

How Does Frame Depth Change Cost?

Frame depth changes both the amount of cabinet material and the lighting conditions inside the box. A deeper cabinet uses more side-frame material and usually increases finished volume, while an extremely shallow cabinet can make uniform illumination harder to achieve.

The relationship between depth and cost is therefore not simply:

More depth = more expensive.

A more useful relationship is:

Depth → internal light distance → LED spacing → diffusion → power layout → cabinet material → shipping volume

Iduoduo’s light box optical engineering considers cabinet depth together with LED type, LED layout, single- or double-sided construction, graphic material, internal reflection, face support, edge brightness, center brightness, and power zoning. Large light boxes may need lighting divided into zones rather than LEDs positioned only around the perimeter.

Very shallow construction can create several practical problems if the optical design is not adjusted:

• individual LED points may become visible;
• bright areas can appear directly above LEDs;
• dark areas can appear between modules;
• edges and center may not match;
• more LEDs may be needed to compensate for short mixing distance;
• heat and wiring become concentrated in a smaller internal space;
• service access becomes tighter.

A deeper cabinet may give light more distance to mix before reaching the face, but excessive depth adds side material, weight, packaging volume, and projection from the wall.

Iduoduo’s production documentation makes the same connection between depth and light performance: LED spacing that is too dense can increase heat, power use, and visible bright points; spacing that is too wide can produce dark areas; a cabinet that is too shallow can reveal LED points; unnecessary depth adds material and weight.

Double-sided construction makes depth even more important. Both faces need similar brightness, the internal support cannot create visible shadows, brackets and power components should not block the graphic, and enough internal space is required for LEDs, heat management, and maintenance.

When requesting quotations, include the required or preferred depth instead of providing only width and height. If depth has not been decided, provide the installation location, illuminated face type, single- or double-sided requirement, and any space limitation so the structure can be evaluated before pricing.

A 2000 × 800 mm × 60 mm slim box and a 2000 × 800 mm × 150 mm commercial cabinet may look identical from the front, but internally they can require very different lighting and fabrication solutions.

Do Graphics and Printing Add Cost?

Yes. Graphics can affect the initial light box price and the cost of future updates. The price depends on the graphic material, printing process, number of graphic versions, color requirements, face size, and whether the graphic must be permanently installed or replaceable.

A light box designed for a permanent corporate logo has a different cost pattern from a restaurant menu box whose content changes several times per year.

For menu, promotion, seasonal retail, and campaign applications, future graphic replacement should be decided before the cabinet is manufactured. Changing the graphic later is much easier when the frame and face have already been designed for access and replacement.

Iduoduo documents a menu light box project where the requirements included accurate daytime color, even nighttime illumination, readable menu text, replaceable seasonal menus, reduced edge darkness, and protection of the face during packaging. The solution combined cabinet-depth review, zoned LED layout, diffusion, graphic-color inspection, a replaceable graphic structure, panel support, separated power-supply packing, and 72-hour testing. The same project later continued with additional menu boxes and seasonal graphic updates.

For multi-store projects, the number of graphics matters almost as much as the number of boxes.

Consider two 100-unit orders:

Order	Boxes	Graphic Files	Graphic Control
Program A	100	1	One repeated artwork
Program B	100	10	Ten store or campaign versions
Program C	100	100	Every box is different

All three orders contain 100 light boxes, but printing setup, artwork checking, identification, packing, and QC become progressively more complicated.

Color also needs to be controlled at two stages: unlit appearance and illuminated appearance. The two are not automatically identical because light passes through the printed material. Iduoduo records color information through Pantone, CMYK, RGB, paint colors, material colors, LED colors, color temperature, surface gloss, and both illuminated and non-illuminated effects where required.

For quotation purposes, provide:

• final artwork whenever available;
• number of graphic versions;
• required printing method if already specified;
• whether graphics need future replacement;
• brand-color references;
• quantity for each graphic version.

A low light-box price without the graphic scope clearly stated can become misleading once artwork preparation, printing, replacements, or multiple store versions are added later.

Which Finishes Increase Fabrication Cost?

Surface finish changes cost through preparation, coating, curing, masking, polishing, handling, color matching, and inspection. It can also change how much protection the metal receives in outdoor environments.

Powder coating is commonly suitable for aluminum frames, brackets, raceways, light boxes, and outdoor metal structures. The finish is not simply “spray a color onto the box.” Important production checks include surface preparation, curing, edges, inside corners, weld areas, threaded areas, coating thickness, and whether the coating system is appropriate for outdoor use.

Outdoor painted systems can require surface pretreatment, primer, topcoat, suitable curing, and additional protection where needed. UV, rain, salt exposure, temperature changes, adhesion, gloss retention, and color stability all become relevant.

The amount of finishing work usually rises when the project moves away from a standard production finish.

Finish Requirement	Why Cost May Increase
Standard powder-coated color	Normal preparation and coating
Custom brand color	Color matching and separate production setup
Multiple colors	Masking and additional coating stages
High-gloss finish	More visible surface defects and stricter QC
Premium brushed metal	Directional finishing and handling control
Outdoor coating system	Pretreatment and environmental protection
Coastal specification	Greater attention to coating, fasteners, joints, and corrosion

Welds deserve particular attention on outdoor metalwork. Welding changes the local surface condition, so welded areas may require cleaning, grinding, corrosion treatment, primer, coating restoration, sealing, and inspection.

Mixing different metals can also matter in wet or salt-rich environments. Aluminum, stainless steel, ordinary steel, copper, and brass can create galvanic-corrosion risks when unsuitable metals remain in direct contact. Material matching, compatible fasteners, coatings, insulating layers, sealing, and drainage can become part of the finished construction.

Dark colors bring another practical consideration. Black and other dark surfaces absorb more solar heat outdoors, so finish choice is not purely decorative.

For a high-mounted light box seen from across a parking lot, an expensive decorative finish may add little commercial value. For a light box mounted beside a luxury retail entrance at eye level, surface quality can be far more important.

A useful RFQ should therefore state more than “black frame” or “gold frame.” Include the color reference, gloss level when relevant, indoor or outdoor location, expected viewing distance, and any corrosion requirement. When those details are fixed early, finishing cost is easier to price and much less likely to change after sample approval.

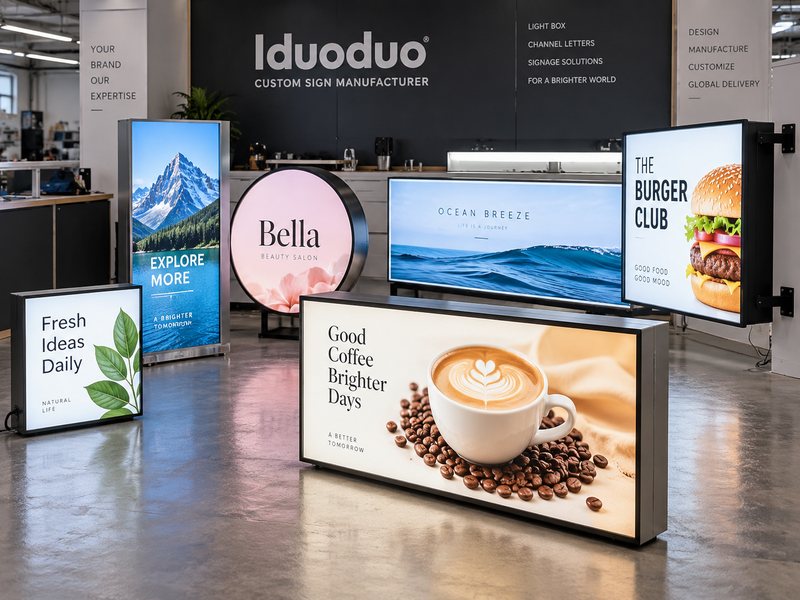

How Do LED and Electrical Specs Affect Cost?

LED and electrical specifications affect cost through LED quantity, module spacing, cabinet depth, target brightness, color requirements, power capacity, wiring, and control functions. A higher component count does not automatically produce a better light box. The correct system needs enough light for the face area, suitable diffusion, stable power, serviceable wiring, and the required control functions without adding components that the project does not need.

How Does LED Layout Affect Price?

LED layout affects cost because it determines the number of modules, total electrical load, wiring quantity, power-supply capacity, installation time, and the amount of testing required before shipment.

A light box should not be priced by LED quantity alone. Module type, beam angle, cabinet depth, face transmission, internal reflection, graphic density, and illuminated area all affect how closely LEDs need to be spaced.

Iduoduo’s light box optical engineering evaluates cabinet depth, LED type, LED layout, single- or double-sided construction, graphic material, internal reflection, panel support, edge illumination, center illumination, and power zoning together. Large light boxes may require several lighting zones rather than simply placing LEDs around the perimeter.

The basic relationship can be understood like this:

LED Layout Condition	Possible Result	Cost Effect
Modules too far apart	Dark areas between LEDs	Lower component cost, higher quality risk
Modules too close	Higher power, heat, visible hot spots	More LEDs and larger power system
Cabinet too shallow	Individual LED points may show	May require denser layout or different optics
Cabinet deeper	More mixing distance	May allow wider spacing, but increases cabinet material
Large illuminated area	More lighting zones	More LEDs, wiring and power distribution
Dense printed graphic	Lower light transmission	May require stronger lighting design

For example, suppose two 2000 × 1000 mm light boxes use the same face material. One has sufficient depth for the LED light to mix before reaching the face. The other is designed as an ultra-slim box. The slim version may require closer LED spacing or a different optical arrangement even though both boxes have exactly 2 m² of illuminated face area.

More LEDs are therefore not automatically an advantage. Iduoduo’s manufacturing guidance specifically notes that excessive LED density can increase heat, power consumption, and visible bright points, while excessive spacing can create dark areas. A shallow cabinet can reveal LED points, while unnecessary depth adds material and weight.

When reviewing a quotation, ask for more than “high-density LED.”

Useful information includes:

LED type
LED layout method
Cabinet depth
Single or double sided
Power-supply quantity
Whether large boxes use separate lighting zones

The finished illuminated face is more important than the raw LED count. A well-engineered layout should produce similar brightness at the center, edges, and corners without unnecessary modules.

Does Brightness Change LED Cost?

Brightness can change LED cost when a project requires more light output, additional modules, higher-capacity power supplies, or a different lighting layout.

The required brightness depends heavily on the installation environment. A menu light box inside a restaurant does not face the same visual conditions as a storefront box installed behind glass or an exterior box surrounded by other illuminated signs.

Several factors influence how bright the finished face appears:

• ambient light around the sign;
• viewing distance;
• face material;
• graphic color;
• graphic ink coverage;
• cabinet depth;
• LED spacing;
• internal reflection;
• operating time;
• whether the box is viewed during the day, at night, or both.

A mostly white translucent graphic allows light to pass differently from a graphic containing large dark areas. Two light boxes using the same LEDs can therefore look noticeably different after the graphics are installed.

Increasing LED quantity simply to make the specification sound stronger can create unnecessary cost. Higher electrical load may also require larger or additional power supplies, more branch wiring, more connectors, and greater attention to internal heat.

On the other hand, reducing LED quantity too aggressively can create visible dark zones, especially around the edges or across large central areas.

Iduoduo checks illuminated products for brightness consistency, hot spots, dark areas, color consistency, and other lighting defects during inspection and pre-shipment testing.

A useful lighting brief should describe the environment instead of using vague phrases such as “very bright.”

For example:

Indoor restaurant menu box
Viewed from 2–5 meters
Low to medium ambient lighting
Long daily operating hours
Soft, even white illumination required

or:

Outdoor storefront light box
Viewed from across the street
High daytime ambient light
Strong nighttime visibility required
No obvious bright spots at close range

Those details give the manufacturer a much better basis for selecting LED density and power than simply requesting “maximum brightness.”

How Does Color Temperature Affect Cost?

Standard white color temperature often has less influence on total light box cost than size, construction, LED quantity, or power configuration. The more important cost issue is whether the project needs standard white light, tightly controlled color consistency, special colors, RGB, RGBW, or adjustable output.

Common white-light requirements include:

Lighting Requirement	Typical Visual Effect	Cost Consideration
Warm white	Softer, warmer appearance	Usually standard if available
Neutral white	Balanced white appearance	Usually standard if available
Cool white	Crisper, cooler appearance	Usually standard if available
Single color	Brand-specific colored light	LED selection required
RGB	Adjustable colors	Controller and additional wiring
RGBW	Color control plus dedicated white	More complex LEDs and control
Dimmable white	Adjustable brightness	Compatible power/control required

Iduoduo supports warm white, neutral white, cool white, single colors, RGB, RGBW, dimming, remote control, app control, zoning, and project-specific control systems.

For most standard white light boxes, the bigger concern is consistency rather than whether the specification says warm or cool white.

Consider a 60-store rollout produced in several batches. If the first shipment uses one white tone and a later shipment appears visibly warmer or cooler, adjacent stores can look inconsistent even though every light box technically “works.”

Color control therefore becomes more important as repeat quantity increases.

The graphic must also be considered. Printed colors can appear different when illuminated because light passes through the face material and ink. Daytime appearance and nighttime illuminated appearance should not be treated as the same color condition.

For projects with strict brand colors, it is useful to define:

LED color or CCT
Graphic color standard
Unlit appearance
Illuminated appearance
Whether a lighting sample is required
Whether later production must match an approved sample

RGB or RGBW should be selected only when color-changing functions are actually required. A retail sign that always operates in white gains little from paying for additional controllers, wiring, and setup merely because color-changing LEDs are available.

Which Power Supply Does the Project Need?

The power supply affects both initial cost and operating reliability. It needs to match the total LED load, input voltage, installation environment, circuit arrangement, control system, and destination-market requirements.

A light box electrical system contains more than a power supply and two wires. Iduoduo’s electrical specification framework includes AC input, power supply, low-voltage output, LEDs, controllers, dimmers, branch circuits, connectors, wiring, plugs, grounding, waterproofing, labels, service access, and the installation interface.

A simple way to understand power sizing is to calculate the connected LED load first.

For illustration:

120 LED modules × 1.5 W per module = 180 W LED load

Choosing a power system rated exactly at the calculated 180 W would leave no operating margin. In practice, the selected power configuration needs reasonable capacity above the working load according to the component specification and engineering requirements.

The example is not a universal design rule; actual module wattage and acceptable loading depend on the selected LED and power-supply specifications.

Insufficient power capacity can contribute to:

• unstable brightness;
• flickering;
• excessive power-supply loading;
• overheating;
• reduced electrical stability;
• weaker illumination at parts of the circuit.

Iduoduo’s electrical guidance also identifies incorrect power configuration as a possible cause of low brightness, flicker, overheating, voltage incompatibility, controller problems, or shortened power-supply life.

Large light boxes may not use one power supply for the entire sign. Power can be divided into several sections so LED circuits are easier to manage and service. The quotation may therefore change when the box moves from one electrical zone to several zones.

Destination voltage must also be confirmed. Iduoduo’s documented options include 110 V and 220–240 V input conditions as well as US, EU, UK, AU, and other plug arrangements where applicable.

When requesting a quote, provide:

Destination country
Site input voltage
Indoor or outdoor installation
Preferred power-supply location
Required certification, if applicable
Wire-exit position
Whether local hardwiring or plug-in connection is planned

Those details help avoid a common and expensive problem: receiving a correctly manufactured light box with an electrical configuration that does not match the installation site.

Do Dimming and Controls Add Cost?

Yes. Dimming, RGB, RGBW, remote control, app control, zoning, and other control functions can add cost because they introduce additional components, wiring, setup, and testing.

A standard fixed-white light box may require only LEDs, power supplies, wiring, and an on/off electrical connection. Once control functions are added, the system can require:

• compatible LED modules;
• dimmers;
• RGB or RGBW controllers;
• receivers;
• remote controls;
• additional wiring channels;
• additional connectors;
• control-power coordination;
• programming or pairing;
• functional testing.

The cost increase depends more on system complexity than on the controller price alone.

For example, one small indoor light box using a single dimmer is relatively simple. A group of large RGBW light boxes divided into several independently controlled zones needs a more involved electrical layout.

Control Requirement	Additional System Needs
Fixed white	Standard LED and power system
Dimmable white	Compatible dimmer and power arrangement
RGB	RGB LEDs, controller and extra wiring
RGBW	RGBW LEDs, controller and additional channels
Remote control	Receiver and remote
App control	Compatible controller and setup
Multiple zones	Separate circuits or control channels

Iduoduo records dimmers, RGB controllers, LED specifications, color information, module spacing, and approved lighting samples for projects where repeatability is important.

Before adding a control feature, define what will actually happen after installation.

If the sign will always run at one white brightness level, fixed-output lighting is usually simpler to operate and maintain.

If the store needs lower brightness at night, dimming has a clear function.

If different campaign colors are part of the brand experience, RGB or RGBW may be justified.

If several sections must operate independently, zoning should be planned before wiring begins.

Control decisions made after production can be expensive because LEDs, wiring, power supplies, and access points may already be fixed. Including the required functions in the RFQ allows the electrical design and quotation to be prepared correctly from the beginning.

Every illuminated Iduoduo sign undergoes a 100% lighting inspection followed by a 72-hour pre-shipment test. The test checks LED stability, power stability, controllers, flicker, early failures, color differences, dark areas, abnormal temperature rise, and wiring connections.

How Do Project Requirements Change Total Cost?

Project requirements change total LED light box cost because the factory price is only one part of the finished installation. Outdoor exposure can require stronger weather protection, mounting can add brackets and structural preparation, large packaging can increase freight volume, and site work may involve electricians, lifting equipment, permits, anchoring, and final waterproofing. A meaningful comparison should separate product cost, delivery cost, and local installation cost.

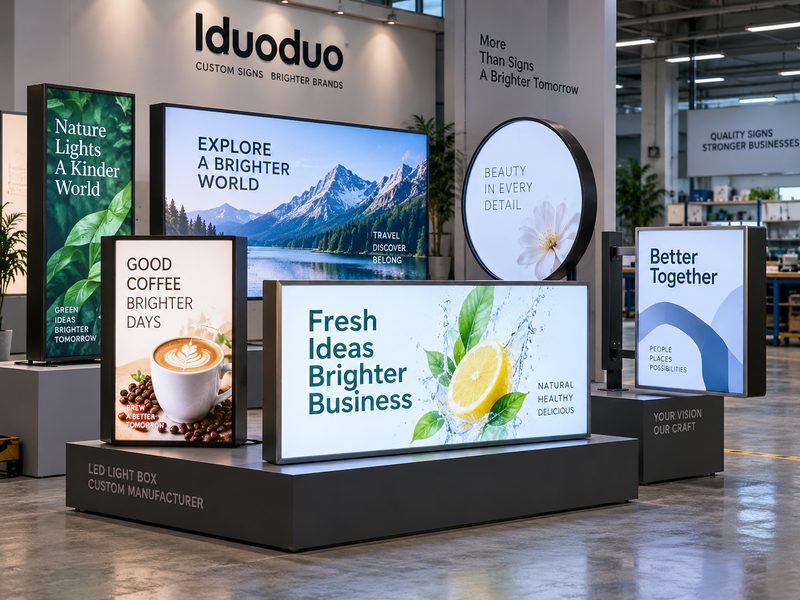

Is an Outdoor Light Box More Expensive?

An outdoor LED light box normally costs more than a comparable indoor version because more parts of the sign have to cope with rain, sunlight, temperature changes, wind, dust, moisture, and corrosion. The price difference is not simply an “outdoor surcharge.” It comes from additional material, fabrication, electrical protection, sealing, drainage, coating, fasteners, and testing requirements.

Indoor applications mainly focus on appearance, smooth illumination, low glare, concealed wiring, and easy maintenance. A fully exposed storefront light box has a longer list of engineering conditions:

• rain entering joints or wire exits;
• UV exposure on faces, graphics, coatings, and sealants;
• temperature expansion and contraction;
• wind acting on the cabinet and mounting points;
• water drainage from the bottom of the box;
• protected power supplies and connections;
• corrosion around fasteners and welded areas;
• condensation inside the enclosure;
• safe access for future maintenance.

Iduoduo separates indoor, semi-outdoor, outdoor, and coastal or high-corrosion environments because each exposure level requires a different material and protection approach. Outdoor installations need consideration of rain, UV, temperature changes, wind, drainage, corrosion protection, power protection, and sealing. Coastal conditions add stronger attention to metals, coatings, fasteners, connectors, power supplies, and salt exposure.

Location therefore matters more than the word “outdoor.”

Compare three installations for the same 1500 × 600 mm light box:

Installation	Exposure	Main Cost Changes
Shopping mall wall	Indoor	Standard cabinet, indoor power arrangement
Storefront under deep canopy	Semi-outdoor	Moisture, dust, protected connections
Fully exposed facade	Outdoor	Sealing, drainage, outdoor electrical protection, corrosion control
Coastal storefront	Outdoor + salt	Enhanced coating, fasteners, joints, connectors, maintenance planning

A project near the sea can require more corrosion protection than the same sign installed inland. A box under a covered entrance may not require the same construction as one installed directly on an exposed roofline.

Height also changes the practical cost. A light box mounted 2.5 meters above a storefront is much easier to inspect and service than one installed several stories above ground. Difficult access can make future maintenance expensive, so service access and power-supply location should be planned before production.

For an accurate quotation, provide the installation city, indoor or outdoor condition, whether the sign is sheltered, approximate installation height, wall type, and any coastal, high-rainfall, high-humidity, snow, or high-temperature conditions.

How Does Waterproofing Affect Cost?

Waterproofing affects cost through materials, electrical components, sealing work, drainage design, wire-entry protection, assembly time, and inspection. A light box designed for ordinary indoor use should not simply be covered with extra silicone and treated as an outdoor product.

Good weather protection has to consider how water behaves around the entire sign.

Typical areas include:

• face and frame joints;
• welded seams;
• removable service panels;
• electrical connectors;
• wire-entry points;
• power-supply locations;
• mounting holes;
• brackets;
• bottom drainage;
• areas where condensation may collect.

The important point is that waterproofing and drainage work together. Completely sealing every opening can sound ideal, but moisture can still appear from condensation or enter during service and installation. If water has no controlled path to escape, it can remain around electrical parts.

Iduoduo’s outdoor engineering guidance states that waterproofing should address LEDs, connectors, wire exits, enclosure parts, power supplies, drainage, and final installation sealing rather than relying only on surface sealant. Its documented protection options distinguish IP65 for regular outdoor projects, stronger IP67 configurations for high-rain or high-humidity conditions, and IP68 options on request depending on the structure and environment. The IP level does not replace site waterproofing.

The cost difference becomes easier to understand by separating protection levels:

Requirement	Typical Situation	Additional Work
Indoor	Dry interior	Basic electrical and cabinet protection
IP65-oriented outdoor design	Normal outdoor exposure	Protected joints, wiring, sealing, drainage
IP67-oriented design	Heavy rain or high humidity	Stronger protection of connections and enclosure details
IP68 option	Special project requirement	Project-specific LED, connector, power, wire-exit, sealing, and structural review

IP ratings should not be used as a shortcut for site analysis. A sign with protected internal components can still fail if an installer leaves an open wall penetration above it. Likewise, a sealed wire exit can still become a problem if water runs directly along the cable into the building.

The RFQ should therefore state both the required IP level and the real installation environment. If no IP requirement has been established, send site photographs and exposure information so the waterproofing approach can be evaluated rather than guessed.

Which Mounting Method Costs More?

Mounting method affects cost because it changes the frame, brackets, mounting plates, hole positions, wire exits, weight distribution, packing, and sometimes the amount of metal fabrication required.

A simple wall-mounted single-sided box generally needs a different mounting system from a double-sided projecting light box. The projecting version extends away from the wall, so the bracket carries both the cabinet weight and forces created by the sign’s projection. Viewing direction also affects structure, lighting, and power placement. Iduoduo identifies projecting mounting as a common arrangement for double-sided light boxes and notes that viewing direction influences structure, brackets, electrical configuration, and LED layout.

Common arrangements can be compared as follows:

Mounting Method	Typical Use	Main Cost Drivers
Flush wall mount	Single-sided storefront box	Mounting holes, rear structure, wire exit
Bracket mount	Projecting double-sided box	Fabricated bracket, mounting plate, reinforcement
Hanging mount	Interior retail or display	Suspension points, hanging hardware, weight control
Freestanding structure	Events or commercial display	Base structure, frame stability, additional packing
Custom architectural mount	Complex facade	Drawings, custom metalwork, interface coordination

Wall material matters as much as the mounting style. Concrete, masonry, steel framing, ACP facade, timber structure, glass, and lightweight interior partitions cannot automatically use the same anchors.

A common site problem occurs when the sign is fabricated before anyone confirms what sits behind the finished wall. Mounting holes arrive in the wrong locations, brackets interfere with cladding joints, or the electrical cable exits on the opposite side from the building power supply. Correcting those issues on site can cost more than preparing the interface correctly at the factory.

Useful pre-production information includes:

Wall photograph
Wall construction
Available fixing area
Light box dimensions and weight requirements
Installation height
Mounting direction
Power-supply location
Wire-entry position
Any existing steel or mounting plate

Iduoduo can prepare installation interfaces with mounting layouts, templates, mounting holes, brackets, wire exits, power components, and accessory kits. Final site measurement, wall assessment, anchoring, structural calculations, wind-load confirmation, and high-level installation remain with the local professional team.

The least expensive mounting method is therefore the one that meets the actual site condition with the fewest unnecessary custom parts—not automatically the smallest bracket.

How Do Packaging and Shipping Affect Cost?

Packaging and shipping can become a major part of total cost because light boxes are often large relative to their weight. International freight is influenced by package dimensions, total volume, weight, destination, transport method, number of cartons, and whether the shipment becomes oversized.

A useful example shows why product dimensions alone are misleading.

Suppose a finished light box measures:

1800 × 800 × 150 mm

Its geometric volume is about 0.216 m³.

After adding protective clearance, face protection, foam, corner guards, accessories, and an external shipping structure, a hypothetical packed size could become:

1950 × 950 × 300 mm

The package would occupy about 0.556 m³—more than 2.5 times the physical volume of the bare cabinet.

The exact packed size depends on the project, but the principle matters: protecting a large illuminated face requires space.

Packaging may need to protect:

• acrylic or other rigid faces from cracking;
• printed graphics from rubbing;
• aluminum frames from bending;
• coated surfaces from scratching;
• corners from impact;
• LEDs and wiring from vibration;
• power supplies from moving inside the box;
• brackets and mounting parts from damaging the face.

Iduoduo uses product-specific protection that can include EPE foam, corner guards, reinforced cartons, custom internal supports, wooden frames, plywood crates, pallets, and separated accessory sections. Store numbers, SKU labels, carton numbers, packing lists, and packaging records can also be used for multi-location shipments.

Shipping method then changes the commercial calculation. Iduoduo supports courier, air freight, and sea freight. Its documented reference timing is approximately 12 days by express, around 30 days by sea to the United States, and roughly 50–60 days by sea to Europe, subject to schedules, customs clearance, ports, seasonal conditions, weather, and local delivery.

A practical comparison might look like:

Shipping Situation	Main Priority	Cost Impact
One sample	Speed	Express often practical
Urgent small order	Delivery date	Air freight may be considered
Large light boxes	Volume	Sea freight often more economical
Multi-store rollout	Distribution control	Numbered cartons and store packing
Oversized unit	Damage and handling	Reinforced packing or segmentation
Multiple addresses	Delivery coordination	Additional sorting and documentation

The cheapest shipping method is not always the lowest project cost. If sea freight saves money but misses a store-opening date, the delay can cost far more than the freight difference. Conversely, sending a large-volume rollout by air only because production started late can turn logistics into an avoidable expense.

Production schedule, packing dimensions, shipment method, and required installation date should therefore be planned together.

Do Installation Requirements Change the Quote?

Yes. Installation requirements can change both the factory quotation and the total site budget. A light box that is easy to manufacture but difficult to install can become expensive after delivery.

Factory scope may include items such as:

• mounting brackets;
• mounting plates;
• mounting holes;
• installation drawings;
• product numbering;
• wire exits;
• power supplies;
• controllers;
• accessory kits;
• service-access preparation;
• remote technical support.

Local site work can include:

• final measurement;
• wall inspection;
• anchors;
• structural calculations;
• wind-load review;
• electrical connection;
• cable routing;
• facade waterproofing;
• lifting equipment;
• scaffolding;
• high-level work;
• permits;
• landlord or mall approval;
• final inspection.

Iduoduo’s installation framework makes that division explicit. The factory prepares shop drawings, mounting layouts, templates, brackets, wire exits, power components, and related interfaces, while local installers, electricians, structural professionals, and project teams remain responsible for site measurement, wall conditions, anchoring, wind loads, final electrical work, building waterproofing, permits, and acceptance.

Permits can also sit outside the sign manufacturing price. Depending on the location, a project may require sign permits, electrical permits, building permits, landlord approval, mall approval, historic-district approval, insurance documentation, high-level work authorization, or final inspection.

A useful total-cost comparison therefore separates the project into three groups:

Cost Group	Examples
Factory Cost	Cabinet, face, LEDs, power, brackets, testing
Delivery Cost	Packing, freight, customs-related logistics
Site Cost	Installation labor, lift, electrician, anchors, permits

Service access should also be considered before installation. Iduoduo recommends maintaining access to power supplies, controllers, removable panels, wiring, drainage, fasteners, and the light box service direction after installation.

A power supply hidden permanently behind a finished wall may make the initial installation look clean, but a future replacement can require opening the wall. A removable service panel may add a small amount of fabrication work while significantly reducing later maintenance labor.

Before requesting the final quotation, provide the installation height, wall material, mounting direction, site photographs, available power location, wire route, access restrictions, and required delivery date. Iduoduo’s own LED light box RFQ checklist includes the bracket, installation wall, wire exit, waterproofing requirement, destination country, packaging, and project date because each can affect the final scope and cost.

A good quote should make clear where the factory scope ends and the site scope begins. Without that separation, a low product price can easily be mistaken for a low total project cost.

How Can Buyers Control LED Light Box Cost?

LED light box cost is easier to control when the specification is complete before pricing, comparable items are quoted on the same basis, unnecessary options are removed, and repeat orders use standardized production files. The largest avoidable expenses often come from late specification changes, too many SKUs, unclear installation details, rushed shipping, and cutting essential lighting, electrical, waterproofing, or testing requirements.

What Information Makes a Quote Accurate?

An accurate quotation starts with enough information to define the physical sign. Asking only for “a 2-meter LED light box” leaves major cost items open: one or two faces, cabinet depth, face material, graphic method, indoor or outdoor construction, LED color, power arrangement, mounting, wire exit, packing, and destination.

Iduoduo’s documented LED light box RFQ information includes 20 core items: product type, single or double sided, dimensions, shape, quantity, logo or graphic, face material, frame color, indoor or outdoor use, light color, voltage, power supply, bracket, wall condition, wire exit, waterproofing, replaceable graphic requirement, destination country, packaging, and project date.

The more of those items are confirmed before quotation, the fewer assumptions have to be built into the price.

RFQ Item	What It Changes in the Quote	Example of Useful Information
Product type	Frame and face construction	Wall-mounted menu light box
Size	Material, LEDs, packing volume	1800 × 800 × 120 mm
Quantity	Setup and repeat-production efficiency	30 identical units
Single / double sided	Faces, graphics, LEDs, structure	Double sided
Face material	Material and diffusion	Opal acrylic
Graphic	Printing and artwork control	6 store versions
Environment	Sealing, coating, electrical protection	Fully exposed outdoor
Light color	LED selection	Warm white
Voltage	Power configuration	110 V input
Mounting	Brackets and hole preparation	Wall bracket
Wall	Mounting interface	Concrete wall
Wire exit	Internal wiring preparation	Rear center
Waterproofing	Seals, connectors, drainage	Outdoor requirement
Destination	Electrical and logistics planning	Phoenix, USA
Required date	Production and freight planning	Installation by November 10

Several fields deserve special attention because changing them after production begins can create rework.

Cabinet dimensions should include width, height, and depth. Mounting should be defined before holes and brackets are produced. Wire-exit position should match the actual power location. Voltage should reflect the site rather than being guessed from the country. Outdoor exposure should describe the real environment instead of simply saying “waterproof.”

Graphic information also affects accuracy. An order of 50 identical boxes with one artwork is different from 50 boxes containing 20 store-specific graphics. Both have the same quantity, but printing, checking, labeling, and packing are more complicated in the second order.

A useful RFQ therefore separates three kinds of information:

Information Group	Confirm Before Quote	Can Sometimes Be Finalized Later
Cost-critical	Size, quantity, sides, structure, environment, mounting	Rarely
Electrical	Voltage, light color, power arrangement	Before electrical production
Visual	Graphic file, exact frame color	Depends on project stage
Logistics	Country, quantity, required date	Before final freight plan
Store control	SKU and store numbers	Before bulk packing

A quotation prepared from complete information may take more effort at the beginning, but it reduces one of the most common causes of cost change: pricing one version and manufacturing another.

How Should Buyers Compare Supplier Quotes?

Supplier quotations should be compared line by line before comparing the total price. Two totals are only meaningful when both represent essentially the same construction and scope.

For example, Supplier A may quote a light box including the cabinet, face, LEDs, power supply, mounting bracket, outdoor sealing, packaging, and accessories. Supplier B may quote only the cabinet, face, and LEDs. Supplier B appears cheaper on the first page, but several required items still have to be added.

A practical comparison sheet can prevent that problem.

Specification	Quote A	Quote B	Quote C
Size and depth	Confirmed	Confirmed	Depth missing
Single / double sided	Double	Double	Double
Face material	Specified	Specified	Not specified
Graphic included	Yes	Yes	Unclear
LED system	Specified	Basic wording	Unclear
Power supply	Included	Included	Extra
Outdoor protection	Included	Unclear	Included
Bracket	Included	Extra	Included
Wire exit	Confirmed	Not shown	Confirmed
Packing	Included	Basic carton	Not stated
Testing	Stated	Not stated	Not stated
Freight	Separate	Included	Separate

The table often explains a large percentage of the apparent price gap before material quality is even discussed.

Technical wording should also be checked carefully. Phrases such as “premium LED,” “high-quality acrylic,” “waterproof,” or “heavy-duty frame” are difficult to compare unless the actual specification is recorded.

A stronger quotation gives enough information to answer practical questions: What face is being supplied? Is the box single or double sided? Is the power supply included? Is the mounting bracket included? What outdoor protection is being provided? How will the graphic be replaced? Is packing included? Which items will arrive separately?

For larger programs, compare documentation as well as hardware. Iduoduo can transfer approved sample results into final drawings, BOMs, mounting specifications, QC checklists, packaging requirements, and frozen production versions for repeat manufacturing.

That matters when a first order becomes a 20-store, 100-store, or multi-year rollout. A supplier able to reproduce an approved specification can reduce the cost created by repeated redesign, inconsistent materials, incorrect graphics, and installation differences.

The final comparison should therefore contain at least four totals: product cost, packing cost, freight cost, and local work not included in the factory quotation. A “cheaper sign” can become the more expensive project once missing brackets, replacement graphics, urgent freight, or on-site modification are added.

Which Specifications Can Be Simplified?

Cost can often be reduced without damaging the finished result, but the useful savings normally come from removing unnecessary complexity rather than removing basic construction quality.

Start with features that do not improve the sign’s real job.

For illustration, consider an indoor wall-mounted light box installed behind a reception desk. If only the front is visible, double-sided construction offers little value. If the frame remains white for its entire service life, RGB control may add components with no practical return. If the graphic never changes, a complex quick-change mechanism may be unnecessary.

The opposite can also be true. A restaurant changing menus every season may spend less over several years with a replaceable graphic system than with a slightly cheaper fixed-face design.

A practical simplification review can look like this:

Specification	Keep When	Simplify When
Double-sided construction	Both traffic directions see the sign	Rear face is against a wall
Custom shape	Shape is important to brand recognition	Printed graphic can create the same visual effect
RGB / RGBW	Color changes are actually required	Sign operates in one fixed white color
Dimming	Day/night brightness needs adjustment	One fixed brightness is sufficient
Premium decorative finish	Frame is viewed at close range	Box is mounted high and frame is barely visible
Multiple box sizes	Site dimensions genuinely vary	One standard size can fit several stores
Unique mounting per location	Walls genuinely differ	Common mounting interface can be standardized
Permanent graphic	Artwork rarely changes	—
Replaceable graphic	Promotions or menus change regularly	Graphic will remain permanent

Cabinet depth should not be reduced only to save aluminum. A very shallow box can require a different LED arrangement to avoid visible hot spots. LED quantity should not be reduced without checking uniformity. Outdoor protection should not be changed simply because a lower-priced indoor construction looks similar in photographs.

Material and structural choices should follow the real environment, mounting condition, transportation, maintenance, and repeat-order needs rather than visual appearance alone. Iduoduo’s material-engineering rules explicitly connect material selection with size, indoor/outdoor exposure, wall condition, mounting, climate, packing, transport, maintenance, and repeat production.

One of the strongest cost-reduction methods for a new chain rollout is therefore to challenge variation. If 40 locations use five different cabinet depths only because different designers prepared the drawings, check whether two standardized depths could cover the same installations. If 20 locations use nearly identical frame colors, determine whether one approved finish can be adopted.

Every removed variation can simplify drawings, material purchasing, production setup, QC, replacement parts, packing, and future reorders.

How Does Bulk Ordering Reduce Unit Cost?

Bulk ordering lowers unit cost most effectively when the order repeats the same approved construction. Quantity alone is not enough.

Consider two illustrative projects, each containing 60 LED light boxes.

Project A uses one size, one frame color, one LED specification, one power system, one mounting method, and six graphic versions.

Project B uses twelve sizes, four frame colors, three cabinet depths, two mounting systems, and 30 graphic versions.

Both projects contain 60 units, but Project A offers much more opportunity for repeated cutting, frame preparation, LED layout, electrical assembly, inspection, and packing.

The difference can be expressed through SKU complexity:

Order Structure	Units	Product SKUs	Graphic Versions	Relative Production Complexity
Standard program	60	1	1	Low
Store graphic program	60	1	6	Low–moderate
Mixed-size program	60	6	12	Moderate
Highly customized rollout	60	30	30	High

The “relative complexity” column is a planning illustration rather than an Iduoduo pricing formula, but it shows why two orders with the same quantity can receive different unit prices.

Standardization should ideally cover frame drawings, face material, LEDs, power supplies, brackets, wire exits, mounting plates, packaging, and QC requirements. Iduoduo records those items, along with store identification, for light box repeat orders.

Sampling can also reduce bulk-order risk before a large production run. Iduoduo supports material samples, color samples, lighting samples, full-size sections, complete prototypes, pre-production samples, golden samples, first-store validation, and pilot batches. Approved results can then be converted into frozen production files.

For a rollout, a practical sequence is often:

1. confirm one representative specification;
2. approve materials, color, lighting, mounting, and packaging;
3. freeze the drawing and BOM;
4. validate the first production unit or first store where needed;
5. release repeated production;
6. change only the approved variable fields, such as graphic or store number.

That sequence does more than improve quality. It avoids paying repeatedly for decisions that should have been made once.

Iduoduo supports LED light boxes from MOQ 1, with regular samples or single units typically around 5–7 days, special shapes or complex structures around 7–15 days, small batches around 7–10 days, and medium batches around 10–20 days according to the documented reference schedule. Larger projects follow a production schedule.

When quantity is known early, production and shipping can also be planned together. That can reduce the risk of finishing a large economical production run only to spend the savings on urgent air freight because the project date was not included in the original plan.

What Should Never Be Cut to Save Cost?

Cost reduction should stop where removing an item creates a meaningful risk of poor illumination, electrical instability, water ingress, installation rework, damage in transit, or expensive maintenance.

Several parts of an LED light box are easy to overlook because they are hidden after installation. The internal LED layout, power supply, wiring, connectors, drainage, mounting points, service access, and packaging do not appear prominently in the finished storefront photograph, but problems in those areas can create the highest correction costs.

Lighting is a good example. Reducing LED modules may save components, but excessive spacing can produce dark areas. Increasing cabinet shallowness to save material can expose individual LED points. A poorly matched power configuration can lead to low brightness, flicker, overheating, controller problems, or reduced power-supply life. Iduoduo’s electrical documentation treats LEDs, power supplies, low-voltage wiring, controls, connectors, grounding, waterproofing, and service access as parts of one electrical system.

Testing is another area where the saving is small compared with the possible downstream cost. Iduoduo performs 100% lighting inspection followed by 72-hour pre-shipment testing on illuminated products. The process checks LED stability, power stability, controllers, flicker, early failures, color differences, dark areas, abnormal temperature rise, and wiring connections.

Quality control also extends beyond final illumination. Iduoduo’s documented process includes incoming material inspection, first-article approval, in-process checks, dimensional and appearance inspection, electrical and functional verification, outdoor-protection review, accessory verification, packaging inspection, reinspection after rework, and traceable release records.

A simple cost-control rule is useful: remove features before removing safeguards.

Remove an unnecessary RGB controller before reducing the required waterproofing. Standardize three nearly identical sizes before reducing frame support. Simplify an invisible decorative finish before changing a power supply merely to save a small component cost. Use one repeatable mounting interface before deleting installation preparation.

Packaging also belongs in the safeguard category for international orders. A face cracked during transport, a bent frame, or missing mounting hardware can wipe out the saving from lighter packaging. The relevant protection level should match the actual product, transport route, and handling risk rather than simply using the cheapest carton available.

The lowest unit price is therefore not always the lowest cost. A more useful target is the lowest repeatable cost for a sign that arrives undamaged, installs without avoidable modification, lights evenly, matches the approved appearance, and can be serviced later. That is where cost control becomes measurable instead of simply becoming cost cutting.

Get an LED Light Box Quote Based on Your Project

LED light box pricing becomes much more useful when it is based on the actual size, construction, lighting, installation, and delivery requirements. If you are planning a storefront sign, menu light box, retail display, or multi-location project, send Iduoduo your artwork, target dimensions, quantity, indoor or outdoor location, single- or double-sided requirement, and destination country.

If some specifications are not yet confirmed, you do not need to finalize every detail before making contact. Iduoduo can review the face material, cabinet depth, LED layout, power supply, mounting method, waterproofing, packaging, and other production details according to the project conditions, then help identify where the specification can be simplified without affecting the required appearance or installation.

A clearer project brief also makes different options easier to compare before production begins. Send your logo, drawings, storefront photos, or available project information through the contact page to discuss a custom LED light box and receive a quotation based on the actual project requirements.
