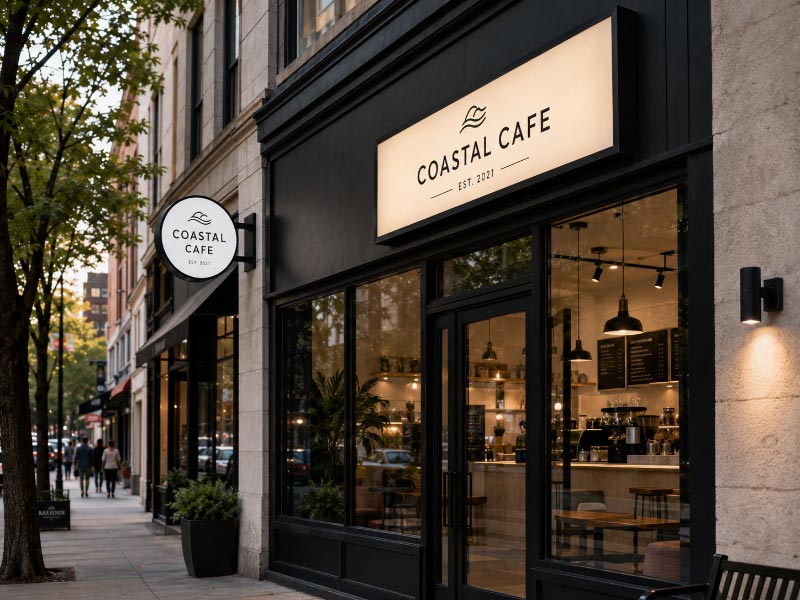

A storefront sign is not just a logo on a wall. It is often the first sales tool a store owns, especially on a street where people are walking fast, cars are passing, and several storefronts are fighting for the same few seconds of attention. A beautiful logo can still fail if it is facing the wrong direction. A bright sign can still underperform if it is too small, mounted too high, or blocked by trees, awnings, columns, neighboring signs, or mall rules. That is why the choice between a blade sign and a wall light box should start with the site, not with the product photo.
A blade sign is usually better when people approach from the side, walk along the storefront, or need a double-sided sign that projects from the building. A wall light box is usually better when the storefront needs a larger front-facing illuminated brand panel, clear logo display, or strong night visibility from the opposite side of the street.
The real decision is rarely “which sign looks cooler?” It is closer to “where will people first notice the store?” Imagine two cafés on the same block. One has a large wall sign, but pedestrians only see it after they pass the door. The other has a smaller blade sign hanging out from the wall, and people notice it half a block earlier. Same street, same product, very different result.

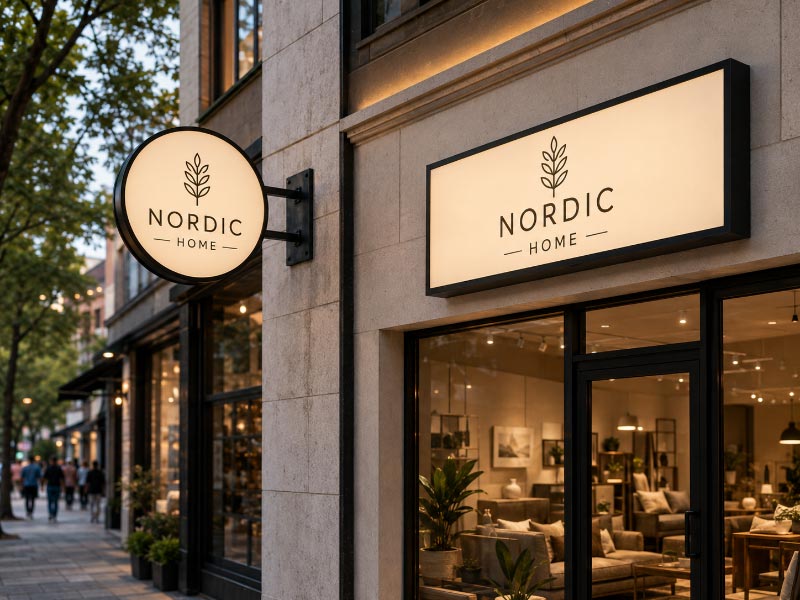

What Is a Blade Sign or a Wall Light Box?
A blade sign is a projecting sign mounted perpendicular to a wall, usually made for side visibility along sidewalks or commercial streets. A wall light box is an illuminated cabinet or panel mounted on the storefront wall for front-facing brand display. One helps people notice the store from the side; the other makes the storefront clear from the front.
What Is a Blade Sign?
A blade sign is fixed to the building façade with a bracket, hanging arm, back plate, or projecting frame. It usually extends outward at a 90-degree angle, so people walking from the left or right can see the sign before reaching the entrance.
For many street shops, a flat front sign only becomes readable when people stand directly in front of the store. A blade sign solves a different problem: early recognition from both sidewalk directions.
Common blade sign formats include:
| Blade Sign Type | Best Use | Typical Structure |
|---|---|---|
| Non-illuminated blade sign | Daytime retail, cafés, boutiques | Metal panel, acrylic panel, wood-style panel, hanging bracket |
| Illuminated blade sign | Evening stores, bars, restaurants, salons | Double-sided light box, LED inside, acrylic or PC faces |
| Custom-shape blade sign | Brand icon, lifestyle store, design-led storefront | Shaped cabinet, painted metal frame, routed face |
| Round blade sign | Cafés, bakeries, barbershops, small retail | Circular cabinet or panel with side bracket |
| Rectangular blade sign | Restaurants, clinics, convenience stores | Straight cabinet, larger logo area, easier layout |
For production, the important parts are not only the visible sign face. The bracket strength, wall plate, screw holes, wire exit, cabinet depth, waterproof sealing, and packing method all affect final installation.
What Is a Wall Light Box?
A wall light box is a front-facing illuminated sign mounted directly on the wall, above the entrance, beside the door, on a shopfront fascia, or on an exterior building wall. It usually has an aluminum or metal cabinet, an acrylic or polycarbonate face, internal LED lighting, and a printed, vinyl, or cut-out logo surface.
A wall light box works well when people view the store from the front, across the street, from a parking lot, or from a shopping center corridor. It gives more visual area than most blade signs, so it can carry a larger logo, store name, service category, or brand color field.
Typical wall light box applications include:
| Location | Why It Works |
|---|---|
| Storefront above entrance | Makes the shop name clear from the front |
| Restaurant façade | Supports night visibility and food-service recognition |
| Clinic or dental office | Gives a clean, professional front sign |
| Gym or fitness studio | Provides larger logo and brand color area |
| Retail chain store | Easy to repeat across multiple locations |
| Shopping mall corridor | Suitable for controlled indoor commercial spaces |
A wall light box can be rectangular, square, round, capsule-shaped, or custom-shaped. Standard boxes are easier to quote and produce, while custom shapes can better match the brand but require more attention to frame structure, LED layout, face cutting, and packaging.
Which Sign Is Easier to Notice from the Street?
A blade sign is easier to notice from the side. A wall light box is easier to notice from the front. The better choice depends on how people approach the store.
If the main traffic moves along the sidewalk, a blade sign often performs better because the sign enters the walking sightline earlier. If the main traffic faces the storefront from a road, plaza, parking lot, or mall corridor, a wall light box usually gives stronger recognition.
| Viewing Situation | Better Option | Reason |
|---|---|---|
| People walk parallel to the storefront | Blade sign | Visible from both sidewalk directions |
| People drive or walk toward the storefront | Wall light box | Larger front-facing brand area |
| Store is hidden between similar shops | Blade sign | Projects beyond the flat building line |
| Store has wide front wall space | Wall light box | Uses façade area more effectively |
| Store needs both entrance cue and brand display | Both | Covers side view and front view together |
For a real project, the sign company or store team should take photos from three positions:
20–50 meters from the left sidewalk approach.
20–50 meters from the right sidewalk approach.
Across the street, parking lot, or corridor.
The photo set quickly shows whether the visibility problem is side recognition, front recognition, or both.

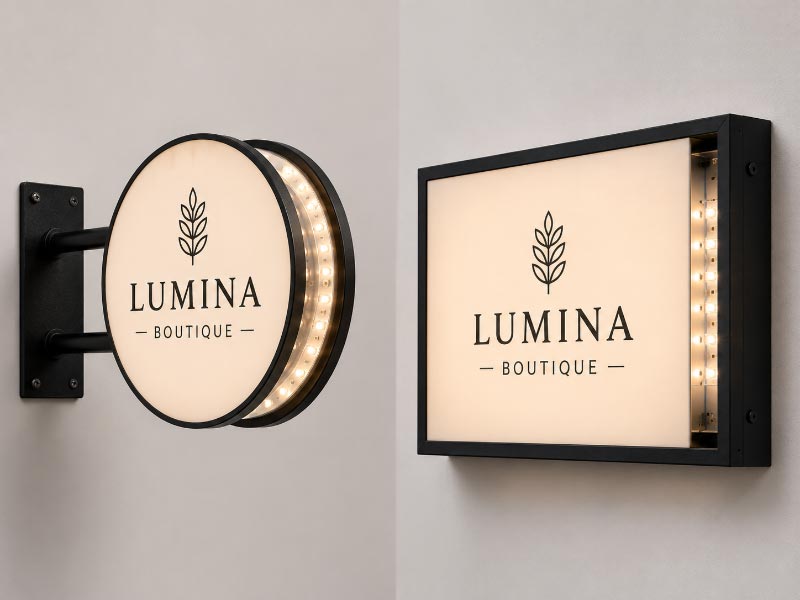

How Are They Installed?
A blade sign normally needs stronger installation planning because it projects outward from the wall. The bracket carries weight away from the façade, so wall strength, screw depth, bracket welding, plate thickness, wind exposure, and installation height must be checked carefully.
A wall light box is usually fixed flat to the wall or mounted on a back frame. It still needs secure fixing points, but the load is closer to the wall surface. For many commercial projects, wall light boxes are easier for landlords and local installers to approve because they do not extend as far into the sidewalk or public space.
Key installation differences include:
| Item | Blade Sign | Wall Light Box |
|---|---|---|
| Main support | Bracket, hanging arm, wall plate | Back frame, cabinet fixing, wall screws |
| Load direction | Pulls outward from wall | Sits closer to wall surface |
| Electrical route | Often through bracket or rear cabinet | Usually rear, side, top, or bottom wire exit |
| Permit concern | Projection distance, clearance height, bracket safety | Sign area, brightness, wall coverage |
| Maintenance access | Face opening, side screws, removable panel | Front face, side frame, back access, depending on design |
| Installer risk | Weak wall, wrong anchors, wind load | Uneven wall, blocked wire exit, poor sealing |
Before production, the project team should confirm wall material, installation height, sign weight limit, wire exit position, power supply location, and local permit rules. A factory can prepare mounting holes and hardware guidance, but final anchoring should match the actual wall inspected by the local installer.

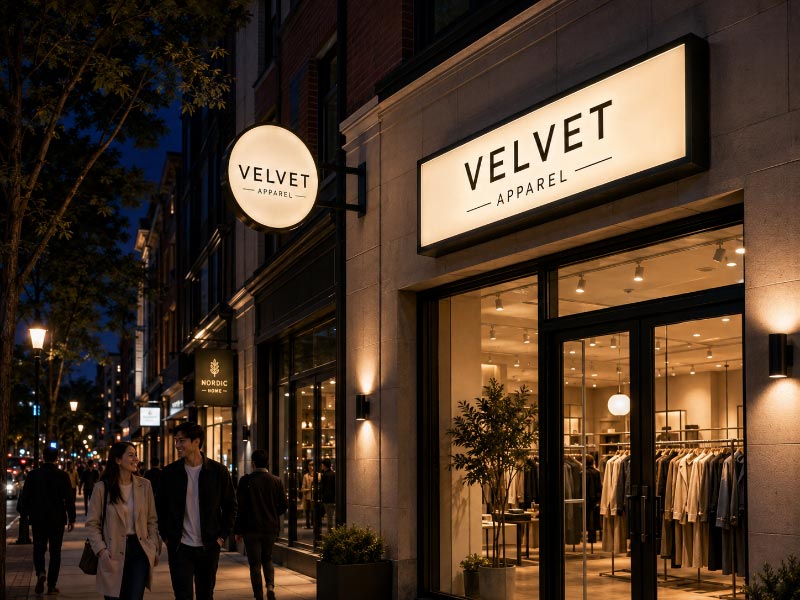

Are Blade Signs and Wall Light Boxes Always Illuminated?
No. Blade signs can be illuminated or non-illuminated. Wall light boxes are usually illuminated, although some projects use a non-lit cabinet-style wall sign for daytime branding. The choice depends on business hours, street lighting, brand style, permit rules, and budget.
For stores open at night, illumination often matters more than size. A small but clean illuminated blade sign can outperform a large non-lit panel on a dark sidewalk. A properly made wall light box can make a storefront easier to find after sunset, especially for restaurants, bars, clinics, gyms, convenience stores, and late-hour retail.
For illuminated signs, confirm these details before ordering:
LED color temperature: common options include warm white, neutral white, cool white, RGB, or brand-color lighting.
Voltage: 110V or 220V based on destination market.
Power supply position: inside cabinet, behind wall, or external accessible box.
Wire exit: rear, side, top, bottom, or through bracket.
Outdoor protection: sealed cabinet, waterproof LED parts, drainage, and protected cable route.
Testing: lighting photos, video check, and pre-shipment aging test.
A sign should not simply be “bright.” It should be readable, even, stable, and suitable for the surrounding lighting environment. Over-bright signs can look cheap, create glare, and cause approval issues.
How Do You Decide Which One Fits Your Project?
Start with the site path, not the product name. A blade sign is stronger when the store needs side visibility. A wall light box is stronger when the store needs front-facing brand display. Many commercial storefronts use both because each sign solves a different visibility problem.
Use a blade sign when:
The storefront is on a walkable street.
People pass from both left and right.
The shop is narrow or easy to miss.
The entrance needs a clear locator.
The brand logo is simple enough for a compact double-sided sign.
Use a wall light box when:
The shop has clear front wall space.
People view the store from across the road, parking area, or mall corridor.
The brand needs a larger illuminated logo.
The store name or service category must be readable from the front.
The landlord does not allow projecting signs.
Use both when:
The storefront needs a main brand sign and a side-view locator.
The store is in a busy commercial street with strong sign competition.
The entrance is not obvious from the sidewalk.
The project is a restaurant, café, boutique, clinic, hotel, salon, or chain store.
For Iduoduo custom production, the most useful project information includes logo file, storefront photos, target size, indoor or outdoor use, quantity, voltage, lighting color, wire exit, installation height, wall material, destination country, and delivery deadline. With those details, the sign can be quoted around the real site instead of a rough product category.
Which Sign Fits Your Storefront?
A blade sign fits storefronts that need to be noticed from the sidewalk, especially when people walk past from both directions. A wall light box fits storefronts that need a larger front-facing brand sign, especially when people view the shop from across the street, a parking lot, or a mall corridor. The right choice depends on approach direction, façade width, night visibility, wall condition, and sign rules.
Which Sign Works Better for Sidewalk Traffic?
A blade sign usually works better when most people move along the storefront instead of facing it directly. On a commercial street, people often walk past many shops in a straight line. A flat wall sign may only become readable when they are already close to the door, while a blade sign can be seen earlier from the left and right.
For sidewalk-heavy locations, a blade sign is useful when:
The entrance is easy to miss in a row of similar shops.
The storefront is narrow, recessed, or partly blocked by columns, trees, awnings, or neighboring signs.
The shop depends on walk-in visits from cafés, restaurants, salons, boutiques, bars, or small retail stores.
The sign needs to work as an entrance marker, not just a brand panel.
The logo or icon can be simplified for quick recognition.
A practical rule is: if a person walking 20–30 meters away from the side cannot quickly find the door, a blade sign should be considered. The sign face does not need to be large, but it should be simple. Short names, icons, round logos, and high-contrast designs perform better than long text.
| Storefront Situation | Why Blade Sign Helps |
|---|---|
| Shop is between many similar stores | Projects beyond the flat storefront line |
| People walk from both directions | Double-sided face improves recognition |
| Front sign is hidden until close range | Side-facing sign appears earlier |
| Entrance is recessed | Acts as a locator near the door |
| Brand icon is simple | Easy to read on a compact sign |
For Iduoduo production, a sidewalk blade sign should be planned with bracket strength, double-sided face layout, cabinet thickness, waterproof sealing, wire exit, and mounting plate details. A good-looking sign can still create installation risk if the bracket and wall fixing are not matched to the real site.
Which Sign Works Better for Front-Facing Traffic?
A wall light box usually works better when people see the storefront from the front. Common examples include shops facing a road, parking lot, plaza, shopping mall corridor, food court walkway, or open commercial square. In these locations, the sign needs to present the brand clearly across a larger visual area.
A wall light box is a strong fit when:
The storefront has enough wall width above the entrance.
The brand name or logo needs to be readable from the opposite side of the road or parking area.
The shop operates in the evening and needs stable illuminated visibility.
The project needs a clean, professional, front-facing brand image.
The landlord prefers signs mounted flat to the wall instead of projecting signs.
Wall light boxes are often used for restaurants, clinics, supermarkets, gyms, chain stores, convenience stores, cafés, and service shops. They give more room for a logo, store name, brand color, service category, or simple graphic. The key is not just size. The face needs enough contrast, clean spacing, and even lighting.
| Front-Facing Need | Wall Light Box Advantage |
|---|---|
| Brand name must be readable from distance | Larger front display area |
| Store faces road or parking lot | Clear direct-view visibility |
| Night business matters | Internal LED lighting supports recognition |
| Logo is wide or horizontal | Better layout space than most blade signs |
| Landlord limits projecting signs | Wall-mounted structure is easier to approve |
A common mistake is placing too much information on the light box face. Phone numbers, slogans, service lists, websites, icons, and long text can make the sign harder to read. For most storefronts, the main light box should carry only the core brand name, logo, or store category. Extra information can be placed on windows, door decals, menu boards, or interior signs.
How Does Storefront Width Affect the Choice?
Storefront width has a direct impact on sign choice. A narrow storefront often needs side visibility. A wide façade often benefits from a larger front-facing sign. The sign should solve the visibility limit of the building, not simply fill empty wall space.
For narrow storefronts, a blade sign often makes the shop easier to find because it creates a visible marker outside the flat wall line. Even a compact blade sign can help a small café, salon, boutique, barber shop, or takeaway store stand out in a crowded row.
For wide storefronts, a wall light box can use the available façade area more effectively. It can balance the storefront, improve nighttime identity, and make the brand look more established.
| Façade Width | Common Visibility Problem | Better Starting Option |
|---|---|---|
| Under 3 m / 10 ft | Easy to miss in a shop row | Blade sign |
| 3–6 m / 10–20 ft | Needs both name display and entrance cue | Wall light box or both |
| 6–10 m / 20–33 ft | Large blank fascia needs brand presence | Wall light box |
| Over 10 m / 33 ft | Brand needs strong main sign and wayfinding | Wall light box plus secondary signs |
Width alone should not decide everything. A narrow store facing a parking lot may still need a front light box. A wide restaurant on a busy walking street may still need a blade sign near the entrance. The better method is to combine façade width with traffic direction.
Before ordering, store teams should provide the storefront width, sign band height, entrance position, neighboring sign positions, and photos from common approach points. With these details, the factory can suggest a sign size that is realistic for production, shipping, and installation.
What Sign Fits Restaurants, Cafés, Retail Stores, and Clinics?
Different storefront types need different visibility behavior. A café may need early sidewalk attention. A clinic may need clear front-facing trust. A restaurant may need both day and night visibility. A retail store may need brand consistency across multiple locations.
| Store Type | Better Option | Reason |
|---|---|---|
| Café | Blade sign or both | People often discover cafés while walking |
| Restaurant | Wall light box or both | Needs strong night visibility and entrance recognition |
| Boutique retail | Blade sign | Compact brand marker works well on walkable streets |
| Chain retail | Wall light box | Easier to standardize across locations |
| Clinic or dental office | Wall light box | Clean front-facing professional image |
| Salon or barbershop | Blade sign | Helps people find a narrow street-level entrance |
| Gym or fitness studio | Wall light box | Larger logo and brand color area |
| Bar or lounge | Blade sign or illuminated wall light box | Night visibility and mood both matter |
| Hotel ground-floor shop | Both | Front brand display plus sidewalk locator |
| Convenience store | Wall light box | Large illuminated face supports quick recognition |
A restaurant on a main road may need a wall light box above the entrance, while a small restaurant in a walkable lane may gain more from a blade sign. A clinic in a medical building may prefer a clean wall light box because trust and clarity matter more than playful street visibility. A boutique may use a custom-shaped blade sign because personality and discovery are part of the brand experience.
For projects with multiple store types or repeat locations, it is useful to build a small sign standard. For example:
Main storefront sign: wall light box, fixed cabinet depth, fixed LED color temperature.
Entrance locator: blade sign, fixed bracket style, simple icon or short logo.
Window support: opening hours, service items, QR code, or seasonal message.
This keeps the storefront clean while still solving several visibility needs.
Are Local Rules and Landlord Limits Important?
Yes. Sign rules can completely change the best option. A blade sign may be ideal for sidewalk visibility, but some locations restrict projection distance, bottom clearance, bracket style, lighting, or total sign area. A wall light box may be easier to approve, but it can still face limits on size, brightness, cabinet thickness, color, or installation height.
Before confirming the sign type, check:
Maximum sign width and height.
Allowed projection distance from wall.
Minimum clearance above sidewalk.
Whether illuminated signs are allowed.
Allowed brightness or lighting hours.
Cabinet thickness limit.
Required color or material rules in shopping centers.
Whether the landlord allows drilling through the façade.
Electrical inspection or permit requirements.
For mall stores and shopping centers, landlord rules may be stricter than city rules. For historical streets, exterior sign shapes, lighting color, and bracket design may need approval. For street-facing shops, the local installer may need to confirm electrical routing and anchoring before production.
| Rule or Site Limit | Possible Impact |
|---|---|
| No projecting signs | Use wall light box or flush-mounted sign |
| Low sidewalk clearance | Blade sign may need smaller size or higher mounting |
| Limited façade drilling | Need adjusted bracket or back frame |
| Brightness restriction | Use lower LED density or diffuser adjustment |
| Cabinet depth limit | Choose slim wall light box or flat sign type |
| Historic district | Use softer lighting, metal finish, or non-lit blade sign |
| Mall design manual | Match approved sign band, colors, and materials |
The safest workflow is to collect rules before final production drawings. A sign can be redesigned on paper quickly, but changing an already produced cabinet, bracket, face, or wire exit can waste time and cost.

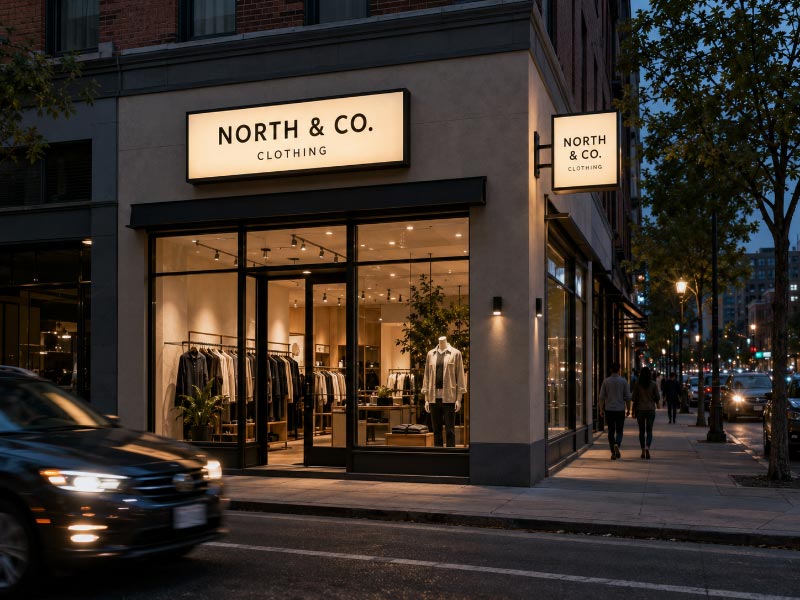

How Do You Choose If Both Signs Look Suitable?
When both signs look suitable, choose based on the first visibility problem. Ask where people fail to notice the store. If they walk past without seeing the entrance, choose a blade sign. If they stand across the street and cannot identify the brand, choose a wall light box. If both problems exist, use both with different roles.
A simple decision process:
Check the main approach direction.
Look at the storefront from 20–50 meters away.
Take photos from left sidewalk, right sidewalk, and front view.
Mark trees, awnings, columns, parked cars, neighboring signs, and bright competing signs.
Decide whether the main problem is side view, front view, night view, or entrance location.
Match one sign to one job.
| Main Problem | Better Choice |
|---|---|
| People pass the door without noticing | Blade sign |
| Storefront looks weak from across the street | Wall light box |
| Logo is too small on the building | Wall light box |
| Store is hidden in a row of shops | Blade sign |
| Night visibility is weak | Illuminated wall light box or illuminated blade sign |
| Entrance is hard to locate | Blade sign near entrance |
| Brand needs a larger premium presence | Wall light box |
| Site has both walking traffic and front traffic | Use both |
When using both, do not repeat too much information. The wall light box can carry the full brand name. The blade sign can carry the icon, short name, or simplified mark. Matching paint color, LED color temperature, acrylic face, and finish makes the storefront look planned instead of crowded.
For Iduoduo custom projects, send logo files, storefront photos, wall dimensions, installation height, indoor or outdoor use, lighting color, voltage, quantity, delivery country, and any landlord rules. These details allow the sign plan to be built around the actual storefront, not only around a product category.
How Do Visibility and Lighting Compare?
Blade signs improve visibility by changing the viewing angle. Wall light boxes improve visibility by creating a larger front-facing illuminated area. A blade sign helps people notice a store while walking along the street. A wall light box helps people recognize the brand from the front, across a road, parking area, plaza, or mall corridor.
What Visibility Problem Does Each Sign Solve?
A blade sign and a wall light box solve different storefront problems. A blade sign is mainly a side-view locator. A wall light box is mainly a front-view brand sign.
A blade sign helps when people miss the entrance because they are walking parallel to the storefront. It extends outward from the building, so the sign appears in the pedestrian’s forward view earlier. A wall light box helps when people are already facing the storefront but need a clearer, brighter, larger sign to identify the brand.
| Visibility Problem | Better Sign | Practical Reason |
|---|---|---|
| People walk past without seeing the entrance | Blade sign | Projects into sidewalk sightline |
| Storefront looks weak from across the road | Wall light box | Larger front-facing illuminated area |
| Shop is hidden between similar façades | Blade sign | Breaks the flat storefront line |
| Brand logo needs strong night display | Wall light box | More space for logo and lighting |
| Store has both sidewalk and front traffic | Both | Covers side view and front view |
| Entrance is recessed or under an awning | Blade sign | Works as a door locator |
| Store faces parking or open plaza | Wall light box | Easier to read from a direct front view |
A simple field check works well: take one photo from the left sidewalk approach, one from the right sidewalk approach, and one from across the street or parking area. If the store disappears in the side photos, a blade sign deserves priority. If the store looks weak in the front photo, a wall light box deserves priority.
Which Sign Works Better at Different Viewing Angles?
A blade sign works better at side angles because the sign face is usually perpendicular to the wall. People walking along the storefront can see the sign from both directions. A wall light box works better when the viewer is in front of the building because the illuminated face is aimed forward.
For sidewalk locations, the key angle is often 30–90 degrees from the storefront. People are not looking straight at the wall. They are walking along the building line, scanning ahead. In that situation, a flat wall sign may appear too late, while a blade sign appears earlier.
For front-facing locations, the key angle is often 0–30 degrees from the storefront. People may be standing across the road, entering from a parking lot, or walking through a mall corridor. A wall light box performs well because it gives a larger readable face.
| Viewing Angle | Blade Sign Performance | Wall Light Box Performance |
|---|---|---|
| Straight front view | Medium | Strong |
| Slight side view | Strong | Medium |
| Walking parallel to storefront | Strong | Weak to medium |
| Across parking lot | Weak to medium | Strong |
| Opposite side of street | Depends on size | Strong if sized correctly |
| Long mall corridor | Strong if projecting is allowed | Strong if corridor faces sign band |
For real storefronts, viewing angle matters more than sign size alone. A large wall light box may still fail if people mostly approach from the side. A small blade sign may perform very well if it sits in the correct walking sightline.
How Does Lighting Area Change Visibility?
A wall light box usually has a larger illuminated face, so it can show a bigger logo, longer store name, or stronger brand color. A blade sign usually has a smaller illuminated area, but it uses position and angle to gain attention.
The lighting area affects what can be shown on the sign face. A wall light box can support a horizontal logo, brand name, service category, and larger color blocks. A blade sign works better with a short name, icon, simple mark, or clean symbol.
| Lighting Factor | Blade Sign | Wall Light Box |
|---|---|---|
| Illuminated area | Usually smaller | Usually larger |
| Best artwork | Icon, short name, simple logo | Full logo, store name, brand panel |
| Face direction | Often double-sided | Usually single front face |
| Night role | Locator and attention cue | Main brand display |
| Common risk | Text too small, uneven lighting on both sides | Hot spots, dark corners, glare |
| Best visual style | Simple, bold, high contrast | Clean layout, balanced spacing, even glow |
Lighting area should match the message. A blade sign should not carry too many words. A wall light box should not become a crowded poster. For fast recognition, the main sign face should usually focus on one main message: brand name, logo, or store type.
For Iduoduo custom production, lighting area also affects LED layout, cabinet depth, face material, power supply size, waterproof structure, and packing method. A larger illuminated face needs more careful internal spacing to avoid bright spots and dark edges.
What Affects Readability During the Day and at Night?
Readability depends on contrast, letter height, face material, lighting evenness, viewing distance, and surrounding brightness. A sign can look attractive in a design file but become hard to read on a real street if the contrast is weak or the text is too thin.
During the day, the main readability factors are color contrast, sunlight reflection, face material, logo shape, and shadow from awnings or trees. At night, LED brightness, diffuser quality, light leakage, color temperature, and ambient lighting become more important.
Practical readability checks:
| Check Item | Good Practice | Common Problem |
|---|---|---|
| Letter thickness | Use strokes visible from target distance | Thin strokes disappear at night |
| Color contrast | Dark-on-light or light-on-dark contrast | Similar colors reduce readability |
| Sign face spacing | Leave clear space around logo | Logo feels crowded near frame |
| LED layout | Keep light even across face | Bright spots and dark corners |
| Face material | Use acrylic or PC suited for lighting | Poor material causes dull or uneven glow |
| Viewing distance | Match size to real approach distance | Sign looks good close-up only |
| Surrounding lights | Plan brightness for local environment | Sign is too dim or too glaring |
A useful test is to print or display the sign layout at a small size and look at it from a distance. If the logo becomes hard to understand, the real sign may also struggle. For blade signs, reduce text. For wall light boxes, increase spacing and simplify the face layout.
Night readability should be checked before shipment. Photos and videos should show the sign from the front, left side, right side, and close-up. For double-sided blade signs, both faces need to be checked because one side may look stronger if LED spacing or face material is not balanced.
Which Lighting Color and Brightness Should You Choose?
Lighting color should match the brand and the location. Warm white feels softer and works well for cafés, bakeries, restaurants, hotels, and lifestyle stores. Neutral white feels clean and balanced. Cool white feels brighter and more modern, often used for clinics, gyms, technology stores, or service brands.
Brightness should not be judged by “the brightest option.” The better goal is comfortable visibility. A sign should be easy to read without glare. In a dark street, too much brightness can look harsh. In a bright commercial area, weak lighting can disappear next to neighboring signs.
| Lighting Choice | Best Use | Notes |
|---|---|---|
| Warm white | Café, bakery, hotel, restaurant, boutique | Softer, more welcoming |
| Neutral white | Retail, office, service store | Balanced and clean |
| Cool white | Clinic, gym, tech, modern storefront | Bright and sharp |
| Brand color LED | Logo-focused storefronts | Needs color check before production |
| RGB / RGBW | Bars, events, entertainment spaces | More control, more wiring details |
| Dimmable setup | Areas with brightness limits | Useful for malls or strict streets |
Key power and lighting details to confirm:
Voltage: 110V or 220V.
Power supply location: inside cabinet, behind wall, or accessible external area.
Wire exit: rear, side, top, bottom, or through bracket.
Outdoor use: waterproof LED parts, sealed cabinet, protected cable route.
Lighting control: fixed light, dimmer, timer, RGB controller, or remote control.
For outdoor signs, stable lighting is often better than complex lighting effects. Simple, even, reliable illumination usually creates a more professional storefront than color effects with poor wiring or inconsistent brightness.
How Should Visibility Be Tested Before Production?
Visibility should be checked before the sign is manufactured, not only after installation. The best method is to test the artwork, size, placement, and lighting plan against real site photos.
A practical pre-production check should include:
Storefront photo with proposed sign position.
Sidewalk approach photo from left and right.
Front-view photo from across the road, parking lot, or corridor.
Logo layout placed onto the site photo.
Estimated sign size marked on the façade.
Power point and wire exit marked clearly.
Mounting height and wall material confirmed.
For a blade sign, also check:
Can people see both faces from the main walking directions?
Is the sign too low, too high, or blocked by awnings?
Does the bracket position match the wall structure?
Will the sign project into a restricted sidewalk area?
Can the wire route pass safely through the bracket or rear cabinet?
For a wall light box, also check:
Is the logo readable from the target distance?
Does the sign fit the sign band or wall area cleanly?
Will nearby lamps, trees, or other signs block the face?
Is the cabinet thickness acceptable for the property rules?
Can the face be opened or serviced after installation?
| Test Stage | What to Check | Why It Matters |
|---|---|---|
| Before quotation | Site photos, size, viewing direction | Avoid wrong sign type |
| Before drawing approval | Logo scale, mounting holes, wire exit | Avoid production changes |
| Before production | Material, lighting, color, cabinet depth | Control final appearance |
| Before shipment | Lighting test, waterproof check, packing photos | Reduce installation risk |
| Before installation | Wall anchors, power, access equipment | Avoid site delays |
For Iduoduo illuminated sign projects, a 72-hour pre-shipment lighting test can help check LED stability, power connection, brightness consistency, flicker, heat, and wiring issues before export. For blade signs and wall light boxes, test photos and videos are especially useful because overseas installation teams need confidence before the sign leaves the factory.
What Should You Check Before Ordering?
Before ordering a blade sign or wall light box, confirm the site, size, mounting method, power setup, materials, permit limits, packing, and delivery schedule. Most sign problems do not come from the product category itself. They come from missing wall photos, wrong wire exit, weak brackets, unclear logo files, unrealistic size, or permit rules checked too late.
What Site Information Should Be Confirmed First?
The quote should start with the real storefront, not only the logo. A blade sign and a wall light box can look similar in a product photo, but the installation site changes the structure, wiring, size, and cost.
Send these site details before quotation:
| Site Detail | Why It Matters |
|---|---|
| Full storefront photo | Shows entrance, façade width, sign band, windows, awnings, columns, and nearby signs |
| Left-side sidewalk view | Helps judge if a blade sign is needed for people walking from one direction |
| Right-side sidewalk view | Shows whether both sides need visibility |
| Front view from road, plaza, or parking lot | Helps judge if a wall light box needs a larger face |
| Wall material | Affects anchors, bracket, back frame, drilling, and installation safety |
| Installation height | Affects readability, permit clearance, and installation equipment |
| Nearby obstructions | Trees, lamps, awnings, power lines, balconies, and other signs may block visibility |
| Indoor or outdoor use | Affects waterproofing, LED parts, power supply, paint finish, and packing |
For a blade sign, side-view photos are especially important. The sign may need to project from the wall, so the wall edge, sidewalk clearance, bracket position, and awning depth must be visible.
For a wall light box, front-view photos matter more. The factory needs to see the usable wall area, façade shape, entrance centerline, and whether the sign will compete with windows, building lights, or other store signs.
A practical photo set should include:
One close-up wall photo.
One full storefront photo.
One photo from 20–50 meters on the left.
One photo from 20–50 meters on the right.
One photo from across the street, parking lot, or corridor.
Which Size and Viewing Distance Should Be Used?
Sign size should be based on viewing distance, not only wall space. A sign can be large but still hard to read if the logo has thin strokes, low contrast, or too many words. A smaller sign with strong contrast and clear spacing can often perform better.
Use these checks before confirming size:
| Viewing Condition | Size Planning Tip |
|---|---|
| 5–10 m close sidewalk view | Compact blade sign or small wall light box can work |
| 10–30 m street or corridor view | Letter height and logo contrast become more important |
| 30–60 m road or parking view | Wall light box usually needs larger face and simpler layout |
| Fast-moving vehicle traffic | Avoid small text, thin strokes, and complex artwork |
| Crowded commercial street | Higher contrast and cleaner shape are more important than extra information |
For blade signs, the face is usually smaller because the sign projects from the wall. The layout should be simple. A logo icon, short brand name, or clear store category works better than long text.
For wall light boxes, the face can be larger, but the artwork should not become crowded. A main storefront sign should usually show:
Brand name.
Logo.
One simple store category if needed.
Strong background contrast.
Enough empty space around the logo.
Avoid placing too much information on the main sign face:
Phone number.
Website URL.
Long slogan.
Service list.
Opening hours.
Multiple icons.
QR code.
These details can go on windows, door decals, menu boards, reception signs, or interior wayfinding signs instead.
How Should Mounting and Wall Structure Be Checked?
Mounting is one of the most important differences between a blade sign and a wall light box. A blade sign creates outward force because it projects from the façade. A wall light box sits closer to the wall, but a large cabinet still needs solid fixing points.
For a blade sign, confirm:
Bracket type: side bracket, top hanging arm, back plate, or custom frame.
Bracket material and thickness.
Wall plate size.
Screw hole position.
Estimated product weight.
Wind exposure.
Projection distance from wall.
Clearance above sidewalk.
Wire route through bracket or cabinet.
For a wall light box, confirm:
Back frame or direct wall fixing.
Cabinet depth.
Mounting hole layout.
Wall screw type.
Face opening method.
Maintenance access.
Rear or side wire exit.
Whether the wall is flat enough for installation.
A simple comparison:
| Item | Blade Sign | Wall Light Box |
|---|---|---|
| Main fixing risk | Bracket strength and wall anchoring | Cabinet support and wall flatness |
| Load direction | Pulls outward from façade | Loads closer to wall |
| Common installation issue | Weak wall, wrong anchors, limited clearance | Wrong wire exit, uneven wall, blocked access |
| Best preparation | Bracket drawing, wall plate drawing, weight info | Mounting template, cabinet drawing, access plan |
| Local installer role | Confirms anchors, wall strength, safe projection | Confirms fixing points, wiring route, sealing |
Wall material must be checked early. Concrete and brick usually allow stronger anchoring than thin cladding or decorative panels. For curtain walls, glass facades, composite panels, or old buildings, the local installer may need reinforcement or an alternative mounting method.
For larger outdoor signs, ask for a basic mounting drawing before production. The drawing should show sign size, bracket position, wall plate, screw holes, wire exit, and installation direction. A few minutes spent checking the drawing can prevent hours of site repair later.
What Power and Lighting Details Are Needed?
Illuminated blade signs and wall light boxes need clear electrical details before production. Many project delays happen because the wire exit, voltage, power supply position, or lighting color was not confirmed early.
Confirm these power details:
| Power Detail | Options to Confirm |
|---|---|
| Voltage | 110V, 220V, or market-specific requirement |
| Power supply position | Inside sign, behind wall, external accessible box |
| Wire exit | Rear, side, top, bottom, or through bracket |
| Cable length | Standard length or project-specific length |
| Plug type | US, EU, UK, AU, or no plug for hardwiring |
| Control method | Fixed light, dimmer, timer, RGB controller, remote |
| Installer connection | Plug-in, hardwired, junction box, or local electrician setup |
For a blade sign, wire routing is often more complex. The cable may need to pass through the bracket, wall plate, or rear cabinet. If the wire exit is wrong, the installer may need to drill the sign or expose the cable, which can affect appearance and waterproofing.
For a wall light box, rear wire exit is common, but not always correct. Some storefronts need side exit, bottom exit, or top exit because the power point is not centered behind the sign. The project team should mark the power location on the storefront photo before production.
Lighting details also need early confirmation:
Warm white for cafés, bakeries, restaurants, hotels, and lifestyle spaces.
Neutral white for retail, offices, service shops, and general storefronts.
Cool white for clinics, gyms, technology stores, and modern commercial spaces.
RGB or RGBW for bars, events, entertainment spaces, and special brand effects.
Brand-color lighting when the logo must match a specific visual system.
Brightness should fit the surroundings. A dark street does not need the same brightness as a busy shopping district. A mall sign may need controlled brightness to meet landlord rules. Over-bright signs can create glare, look cheap, and cause approval problems.
Are Materials, Waterproofing, and Testing Confirmed?
Materials decide appearance, lifespan, outdoor performance, and maintenance. A blade sign or wall light box may use aluminum, stainless steel, acrylic, polycarbonate, PVC, paint finish, vinyl, UV printing, LED modules, power supply, screws, brackets, and sealing parts.
For outdoor illuminated signs, confirm:
Cabinet material.
Face material.
Paint finish.
LED type.
Power supply type.
Waterproof level.
Drainage design.
Sealant position.
Cable protection.
Screw and bracket finish.
For wall light boxes, the face material matters a lot. Acrylic can give a clean illuminated surface, while polycarbonate can be stronger for some outdoor uses. For larger faces, thickness and internal support affect flatness and lighting quality.
For blade signs, the face material and cabinet structure must work on both sides. If one side is brighter than the other, the sign will look uneven after installation. Double-sided illumination needs balanced LED placement and good internal spacing.
Pre-shipment checks should include:
| Test Item | What to Check |
|---|---|
| Lighting test | Brightness, dark corners, hot spots, flicker |
| Face inspection | Scratches, dust, printing quality, color accuracy |
| Structure check | Bracket fit, screw holes, cabinet seams |
| Power check | Voltage, power supply, cable, plug, controller |
| Waterproof check | Sealing, cable exit, drainage, outdoor parts |
| Packing check | Foam, corner protection, carton, crate, labels |
| Photo and video record | Helps overseas teams review before shipping |
For Iduoduo illuminated sign projects, the 72-Hour Pre-Shipment Testing + 3-Year Warranty helps reduce risk before export. Lighting, wiring, power connection, heat, flicker, and assembly stability can be checked before the sign leaves the factory. For overseas projects, test photos and videos are useful because the local installation team can review the sign before arrival.
Which Permit, Packing, and Delivery Details Should Be Checked?
Permit, packing, and delivery can affect the project as much as production. A sign may be well made, but still create problems if it violates local rules, arrives damaged, or misses the installation date.
Permit-related details to confirm:
Maximum sign width and height.
Allowed projection distance from wall.
Minimum clearance above sidewalk.
Allowed cabinet thickness.
Whether illuminated signs are allowed.
Brightness or lighting-hour limits.
Allowed colors and materials.
Landlord design manual.
Electrical inspection requirement.
Historical district or street rules.
Blade signs often face stricter projection rules because they extend from the building. Wall light boxes often face size, brightness, and cabinet-depth rules. In shopping centers, landlord requirements may be more detailed than city rules.
Packing details depend on sign size and structure:
| Sign Type | Packing Focus |
|---|---|
| Small blade sign | Face protection, bracket separation, foam corners |
| Large blade sign | Reinforced carton or wooden crate, bracket protection |
| Small wall light box | Acrylic face protection, cabinet edge protection |
| Large wall light box | Wooden crate, internal support, face anti-scratch film |
| Custom-shaped sign | Extra corner protection and shape-specific foam |
| Multi-location order | Store labels, carton marks, packing list, spare parts |
Delivery details to confirm before payment:
Quantity.
Sample or bulk order.
Required installation date.
Destination country and city.
Shipping method.
Carton or crate size.
Gross weight.
Freight payer.
Customs document needs.
Whether spare parts are included.
Production time and shipping time should be separated. Factory production time only covers design confirmation, material preparation, fabrication, assembly, testing, and packing. Shipping time depends on express, air freight, sea freight, customs, port schedule, local delivery, and peak season.
A strong ordering process should end with a clear approval package:
Final artwork.
Final size.
Material list.
Lighting and voltage details.
Mounting drawing.
Wire exit drawing.
Packing method.
Production schedule.
Testing standard.
Shipping plan.
When these items are confirmed before production, the blade sign or wall light box becomes easier to install, easier to repeat, and much less likely to create unexpected cost on site.
How Should You Choose the Right Option?
Choose a blade sign when people need to notice the store from the sidewalk or both walking directions. Choose a wall light box when the storefront needs a larger front-facing illuminated brand sign. Use both when side visibility and front brand presence are both important. The best choice comes from site photos, viewing distance, wall structure, power setup, and local sign rules.
What Is the Main Visibility Problem?
Start with the real problem outside the store. Many sign mistakes happen because the project starts with a product image instead of a site condition. A blade sign and a wall light box can both look attractive, but they solve different visibility gaps.
A blade sign is often the better answer when people walk past the entrance without noticing it. A wall light box is often the better answer when people can see the building but cannot clearly identify the brand from the front.
| Main Problem | Better Option | Why It Works |
|---|---|---|
| People pass the door too easily | Blade sign | Projects into the sidewalk sightline |
| The storefront looks weak from across the street | Wall light box | Creates a larger illuminated brand area |
| The shop is narrow or hidden between similar stores | Blade sign | Breaks the flat storefront line |
| The store needs a clear night logo | Wall light box | Larger face supports stronger lighting |
| The entrance is recessed under an awning | Blade sign | Works as a visible locator |
| The store faces a parking lot or road | Wall light box | Easier to read from a front view |
| Both side view and front view are weak | Use both | Each sign handles a different direction |
A useful field test is simple:
Take one photo from 20–50 meters on the left sidewalk.
Take one photo from 20–50 meters on the right sidewalk.
Take one photo from across the road, parking lot, plaza, or mall corridor.
Look at the photos without zooming in. If the store disappears in the side photos, a blade sign should be considered. If the storefront looks small, dark, or hard to read in the front photo, a wall light box is likely needed.
Which Sign Matches the Store Type?
Store type matters because different businesses rely on different traffic behavior. A café may depend on impulse visits from people walking nearby. A clinic may need a clean, trustworthy façade. A restaurant may need visibility in both daytime and evening. A chain retail store may need repeatable sign standards across many locations.
| Store Type | Strong Starting Choice | Practical Reason |
|---|---|---|
| Café | Blade sign or both | Many visits come from walking traffic |
| Bakery | Blade sign | Small icon or round sign works well from the sidewalk |
| Restaurant | Wall light box or both | Needs strong front view and night recognition |
| Bar or lounge | Illuminated blade sign or both | Evening visibility and street mood matter |
| Boutique retail | Blade sign | Helps a small storefront stand out in a shopping street |
| Chain retail store | Wall light box | Easier to standardize across locations |
| Clinic or dental office | Wall light box | Clean front-facing image builds trust |
| Gym or fitness studio | Wall light box | Larger logo and brand color improve recognition |
| Salon or barbershop | Blade sign | Helps people locate a narrow entrance |
| Convenience store | Wall light box | Large illuminated face supports quick recognition |
For food and beverage spaces, a blade sign can attract attention earlier, while a wall light box can make the storefront look established after sunset. For medical, fitness, office, and service locations, the wall light box often feels more stable and professional because the sign is read directly from the front.
For design-led stores, a custom-shaped blade sign can become part of the storefront identity. For multi-location rollouts, a wall light box is usually easier to standardize because size, cabinet depth, LED color temperature, face material, logo position, and mounting method can be controlled across different sites.
How Do Budget and Long-Term Use Affect the Choice?
The lowest sign price is not always the lowest project cost. Blade signs and wall light boxes have different cost drivers. A blade sign may use less face area, but the bracket, wall plate, double-sided lighting, and installation safety can raise the real cost. A wall light box may be easier to mount, but a large illuminated face needs good cabinet structure, LED layout, face material, and packing.
| Cost Factor | Blade Sign | Wall Light Box |
|---|---|---|
| Sign body size | Usually smaller | Often larger |
| Structure cost | Bracket and wall plate matter a lot | Cabinet depth and back frame matter |
| Lighting cost | Double-sided lighting is common | Larger LED area may increase cost |
| Installation cost | Can be higher due to projection and bracket | Often simpler, depending on size |
| Permit risk | Higher if projecting over sidewalk | Usually focused on area, brightness, depth |
| Packing cost | Bracket protection and face protection | Large face protection or wooden crate |
| Maintenance | Bracket, cable route, face screws | Face access, power supply, LED replacement |
When budget is tight, do not simply reduce sign quality. Reduce complexity first.
Practical ways to control cost:
Use a standard rectangle or round shape instead of a complex custom outline.
Keep the sign face simple with fewer colors and fewer small details.
Confirm one fixed LED color instead of RGB or RGBW unless color control is needed.
Choose a realistic size based on viewing distance.
Avoid oversized cabinets that increase shipping cost.
Confirm mounting and wire exit before production to avoid rework.
For long-term storefront use, structure and service access are worth paying for. A sign that is hard to open, hard to clean, hard to rewire, or packed poorly can create more cost after delivery than the initial saving.
Are Both Signs Needed for Some Storefronts?
Yes. Many storefronts need both because one sign cannot solve every viewing direction. A wall light box can carry the main brand name on the façade. A blade sign can catch people walking along the street and help them locate the entrance.
Use both when:
The store is on a busy walking street.
The storefront also faces a road, plaza, or parking area.
The entrance is not obvious from the sidewalk.
The brand needs a strong main sign and a quick locator.
The store opens at night and competes with many illuminated signs.
The project is a restaurant, café, boutique, hotel entrance, salon, clinic, bar, or chain retail location.
When using both, each sign should have a clear job. Do not repeat too much information.
| Sign Position | Best Content | Role |
|---|---|---|
| Wall light box above entrance | Full brand name, logo, store category | Main storefront identity |
| Blade sign near entrance | Icon, short name, simplified logo | Sidewalk locator |
| Window graphics | Hours, services, promotion, QR code | Secondary information |
| Door sign | Suite number, opening hours, small logo | Entry confirmation |
| Interior sign | Reception, menu, direction, brand wall | In-store guidance |
A clean combination often works better than one overloaded sign. For example, a restaurant may use a large wall light box with the full name and a smaller blade sign with only the logo icon. A café may use a round blade sign for sidewalk discovery and a slim wall light box above the entrance for night identity.
The key is consistency. Match paint color, LED color temperature, acrylic face tone, frame finish, logo proportions, and mounting height where possible. A storefront with two signs should feel planned, not crowded.
How Should a Final Decision Be Made Before Ordering?
Make the final choice only after checking visibility, sign rules, structure, power, and production details. A good decision should be easy to explain in one sentence: “We need a blade sign because people approach from both sidewalk directions,” or “We need a wall light box because the store needs a larger front-facing illuminated brand sign.”
Use the decision checklist below before approving the order:
| Question | If Yes | Recommended Direction |
|---|---|---|
| Do people mainly walk along the storefront? | Yes | Blade sign |
| Do people mainly view the store from the front? | Yes | Wall light box |
| Is the storefront narrow or hidden? | Yes | Blade sign |
| Is there enough wall space above the entrance? | Yes | Wall light box |
| Does the landlord restrict projecting signs? | Yes | Wall light box or flush-mounted sign |
| Does the store need night recognition? | Yes | Illuminated blade sign, wall light box, or both |
| Does the logo have long text? | Yes | Wall light box may fit better |
| Is the logo a simple icon or short name? | Yes | Blade sign can work well |
| Is the project for several locations? | Yes | Standardize size, materials, lighting, and mounting |
| Is the installation site difficult? | Yes | Confirm structure drawing before production |
Before sending payment or approving production, prepare:
Logo file: AI, PDF, SVG, EPS, or CAD if available.
Storefront photos: left, right, front, close wall view.
Target size: width, height, thickness limit.
Installation height: from ground to bottom or center of sign.
Wall material: concrete, brick, cladding, glass, metal, wood, or other.
Use environment: indoor, outdoor, semi-outdoor.
Lighting: warm white, neutral white, cool white, RGB, RGBW, or brand color.
Voltage: 110V or 220V.
Wire exit: rear, side, bottom, top, or through bracket.
Quantity: sample, single store, or batch order.
Destination country and deadline.
Landlord or permit requirements.
For Iduoduo custom production, the most useful approach is to send the site information early. The team can review whether a blade sign, wall light box, or combined sign plan fits better, then confirm materials, structure, power, mounting holes, wire exit, testing, export packing, and delivery details. This helps the final sign match the real storefront instead of only matching a product photo.
How Can You Start a Blade Sign or Wall Light Box Project with Iduoduo?
Start by sending your logo, storefront photos, target size, sign type preference, installation location, lighting requirement, quantity, destination country, and deadline. Iduoduo can review whether a blade sign, wall light box, or combined sign plan better fits the site, then prepare a custom quotation and production-ready direction.
A good custom sign project begins before the order is placed. If you are a sign company, contractor, designer, retail brand, restaurant group, café owner, hotel project team, or commercial space manager, the most useful first step is to describe the real site problem. Is the store hard to see from the sidewalk? Does the brand need a stronger front-facing night sign? Is the façade narrow? Are there landlord limits? Will the sign be installed outdoors? These answers help prevent the wrong product from being quoted.
Iduoduo can support OEM/ODM custom production for blade signs, wall light boxes, and other commercial signs, with design support, engineering review, sampling, production, lighting inspection, 72-hour pre-shipment testing for illuminated products, export packaging, logistics coordination, and installation guidance. For a faster quote, prepare the logo file, size, quantity, indoor or outdoor use, voltage, mounting photos, and any required delivery date.
