Why Confirm Channel Letter Mounting Holes Before Production?

A channel letter can look perfect in a rendering and still become a difficult installation. The letter height may be correct, the acrylic face may match the approved color, and the LED layout may produce even illumination. Yet when the installer places the mounting template against the wall, the fixing holes may land on glass joints, steel columns, concealed electrical routes, hollow wall sections, or areas where drilling is not permitted.

That is why mounting holes are not a minor workshop detail. They form part of the connection between the manufactured sign and the actual building.

Channel letter mounting holes must be confirmed before production because their number, diameter, position, spacing, fastener type, wire-exit relationship, and template coordinates affect the letter backs, mounting hardware, wall penetrations, electrical routing, alignment, waterproofing, and installation time. Once the backs are fabricated and the letters are assembled, changing the hole layout may require drilling, welding, refinishing, rewiring, or remaking components.

Consider a set of letters manufactured for a finished stone storefront. The sign arrives on schedule, but several studs line up with panel joints and the wire exits do not match the prepared electrical points. The letters themselves are not defective. The wall is not defective either. The failure happened earlier, when two individually reasonable plans were never coordinated. The rest of this article explains how that gap can be closed before metal is cut.

What Are Channel Letter Mounting Holes?

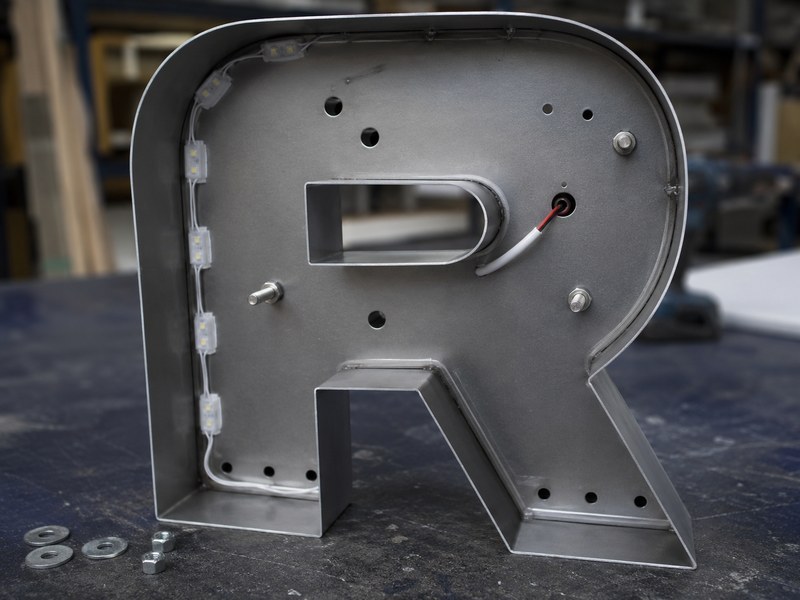

Rear view of a channel letter showing mounting holes, threaded studs, wire exits, and drainage openings

Channel letter mounting holes are the prepared fixing points used to connect individual letters, a raceway, a backboard, or a support frame to the installation surface. Their location must match the approved mounting method, letter structure, wall conditions, fasteners, wire exits, and installation template. They are not general-purpose openings and should never be confused with cable exits, drainage holes, or maintenance access points.

A finished channel letter normally contains more than the visible acrylic face and metal return. Behind the face are the LED modules, internal wiring, connectors, back panel, fixing points, cable exit, and sometimes drainage or service openings. Each part competes for limited space, especially inside narrow strokes, small letters, and complex logo shapes.

For an installer, the mounting holes answer a practical question: Where can the sign be fixed without damaging the product, blocking the wiring, weakening the back panel, or drilling into an unsuitable part of the wall?

The position may look like a small detail on a drawing, but every hole becomes a real coordinate on the storefront. A word containing eight individually mounted letters may require multiple fixing points and cable exits. Even when only two mounting points and one cable exit are prepared for each letter, the template already carries 24 separate positions. One incorrect coordinate can affect the alignment of an entire word.

What Do Mounting Holes Secure?

Mounting holes connect the manufactured sign to its support system. Depending on the installation method, they may secure an individual letter directly to the wall, fasten a letter to a raceway, connect a backboard to the façade, or hold a bracket used for stand-off mounting.

The fixing point does more than prevent the letter from falling. It helps control:

Letter position
Baseline alignment
Distance from the wall
Resistance to movement
Weight distribution
Spacing between characters
Access for wiring and maintenance
Stability during wind, vibration, cleaning, or normal building movement

The load path changes with the mounting method.

Mounting Method	What Is Fixed	Where the Main Holes Are Prepared	Main Coordination Risk
Direct mount	Each letter or logo part	On each letter back	Numerous wall coordinates must match accurately
Stud mount	Letter attached with threaded studs	Stud positions are prepared on the letter back	Stud length, spacing and wall clearance must match
Raceway mount	One metal raceway carrying multiple letters	Mainly on the raceway back	Raceway weight, power access and wall support
Backboard mount	Letters mounted on a shared panel	Mainly on the backboard	Panel support, flatness and visible size
Stand-off mount	Letter held away from the wall	On the letter back or mounting brackets	Projection distance and spacer consistency
Frame mount	Sign attached to an engineered frame	On the frame or brackets	Frame-to-building connection and installation sequence

A direct-mounted letter transfers its load through its own fixing points. A raceway-mounted system first transfers the letters’ weight into the raceway and then transfers the complete assembly into the building. The same hole pattern cannot be used for both systems.

Letter shape also matters. A wide “M” may provide several usable fixing areas, while a narrow “I” offers much less room. A circular “O” distributes weight differently from a long horizontal logo bar. The fixing layout should follow the real geometry rather than copy one standard pattern across every character.

How Are Mounting Holes Different from Wire Exits?

A mounting hole is used for mechanical attachment. A wire exit allows the low-voltage cable to leave the letter and connect to the power system. They often appear on the same rear drawing, but they perform completely different jobs.

Confusing the two can cause immediate installation problems. A screw inserted through a cable exit may crush or cut the wire. A cable routed through a fixing point may prevent the fastener from sitting flat. A large unsealed opening may also allow moisture to enter an exterior wall.

The main openings found on or around a channel letter should be identified separately.

Opening or Feature	Purpose	What Must Be Confirmed
Mounting hole	Receives a fixing component	Diameter, quantity, position and edge distance
Threaded stud	Projects from the back for stud mounting	Length, thread, spacing and template position
Wire exit	Routes low-voltage cable from the letter	Position, direction, cable length and protection
Drainage hole	Allows collected moisture to leave	Orientation and lowest practical location
Service opening	Provides access to internal parts	Clearance, cover and maintenance method
Raceway entry	Routes wiring into the raceway	Power location, cable grouping and sealing
Template mark	Transfers coordinates to the wall	Scale, label, centerline and orientation

The wire exit also needs to match the electrical plan. Important questions include:

Will the cable enter directly into the wall?
Will it run into a raceway or backboard?
Is the power supply inside the building or inside a raceway?
Does each letter have an individual cable exit?
Are several letters connected into one circuit group?
How much cable length is needed behind the sign?
Is the cable exit accessible after installation?
How will the building penetration be sealed?

A wire exit should not sit underneath a stud, spacer, bracket, LED module, or internal connector. It should also avoid sharp metal edges that can damage cable insulation.

For an outdoor sign, the direction matters as much as the position. A poorly planned upward-facing opening may be more exposed to water. A cable stretched tightly across the rear of the letter may pull on an internal connection. A cable hidden behind a fixing plate may become impossible to inspect without removing the sign.

Mounting and wiring should therefore be reviewed on the same rear elevation or section drawing.

Which Fasteners Use Mounting Holes?

Channel letters may be prepared for threaded studs, screws, bolts, nuts, washers, brackets, plates, spacers, or other project-specific hardware. The factory prepares the sign-side fixing interface, while the local installer selects the building-side anchor according to the actual wall.

The difference is important.

A manufacturer can confirm:

Hole diameter
Hole center position
Stud diameter and thread
Stud projection length
Bracket dimensions
Spacer thickness
Raceway or backboard fixing positions
Template coordinates
Included sign-side hardware

The installer or local project team must confirm:

Wall finish
Structure behind the finish
Anchor type
Required embedment
Drilling method
Structural backing
Waterproofing around wall penetrations
Local safety requirements
Installation equipment
Local engineering or permit requirements

A screw suitable for timber is not automatically suitable for concrete. An anchor that works in solid masonry may not work in hollow block. Thin aluminum composite cladding may look rigid from the front but may not provide a reliable load-bearing point without structural backing.

Installation Surface	Information Needed Before Production	Typical Concern
Concrete	Thickness, reinforcement restrictions and usable drilling area	Anchor depth and concealed reinforcement
Brick	Brick condition, mortar joints and cavity construction	Brittle material or weak joints
Stone cladding	Panel thickness, joints and support structure	Cracking and inaccessible backing
Metal panel	Panel type, thickness and frame positions	Thin skin may not carry the sign alone
Glass	Approved brackets, frames or surrounding structure	Direct drilling may not be permitted
Timber	Stud or backing locations	Fixing must reach suitable support
Interior drywall	Studs, plywood backing or support rails	Board alone may not carry the load
Composite façade	Panel layout and subframe information	Thermal movement and concealed cavities

There is no universal rule stating that every letter needs the same number of holes. Hole quantity must be considered together with letter weight, shape, size, mounting height, support method, installation environment, and local structural requirements.

A production drawing should therefore avoid vague notes such as “standard holes” or “normal installation.” Those phrases do not tell the workshop what to make or the installer what to expect.

A useful mounting specification identifies the actual interface:

Two threaded studs at approved coordinates
Three prepared fixing holes on a backboard
Raceway fixing slots shown from the centerline
Stand-off spacers with a confirmed projection
Separate cable exits for each letter
Local wall anchors supplied by the installer

Precise wording reduces substitutions and assumptions at both the factory and installation site.

Are All Channel Letter Holes the Same?

No. Channel letter holes vary by purpose, size, shape, mounting method, internal construction, and installation surface. Even letters in the same word may need different layouts.

A narrow letter may have limited space between its LED modules and return walls. A large logo may need its fixing points distributed over a wider area. A halo-lit letter requires controlled stand-off space behind the sign, while a flush-mounted front-lit letter may sit much closer to the wall. A raceway-mounted set may use relatively few building penetrations, but the raceway itself requires a stronger, coordinated fixing pattern.

Several product details can change the available hole positions:

Product Detail	Effect on Hole Layout
Narrow stroke	Reduces space for studs, wiring and tools
Small letter height	Limits clearance between components
Large letter width	May require wider load distribution
Deep return	Changes stud length and installation access
Halo lighting	Requires consistent stand-off distance
Internal reinforcement	May block otherwise convenient positions
LED module placement	Mounting hardware cannot damage or cover modules
Cable grouping	Wire exits must remain clear of fasteners
Drainage design	Lower openings must not be blocked
Removable back or face	Fixings must not prevent maintenance access
Segmented logo	Each section requires clear alignment references
Raceway construction	Wall holes move from individual letters to the raceway

A common mistake is to use one hole pattern for every character because the installation appears simpler on paper. In practice, the pattern may place a fixing point too close to the edge of a narrow letter or directly behind an LED module.

Another mistake is to copy the fixing layout from an earlier project without checking whether the new storefront uses the same letter size, return depth, wall material, wire route, or mounting system. A repeat logo does not always mean a repeat installation.

For chain-store projects, a standard mounting arrangement is useful only when the site conditions are genuinely repeatable. The following information should be compared for every location:

Sign size
Letter spacing
Wall construction
Structural backing
Power-entry location
No-drill areas
Mounting height
Raceway or direct-mount requirement
Local landlord rules
Installation access

Where store conditions differ, the brand appearance can remain consistent while the rear fixing arrangement changes.

Before production, the engineering and QC teams should compare five items:

Check	What Should Match
Shop drawing	Approved hole and wire-exit coordinates
Production file	Actual cutting, drilling or stud positions
Finished letter back	Manufactured holes, studs and cable exits

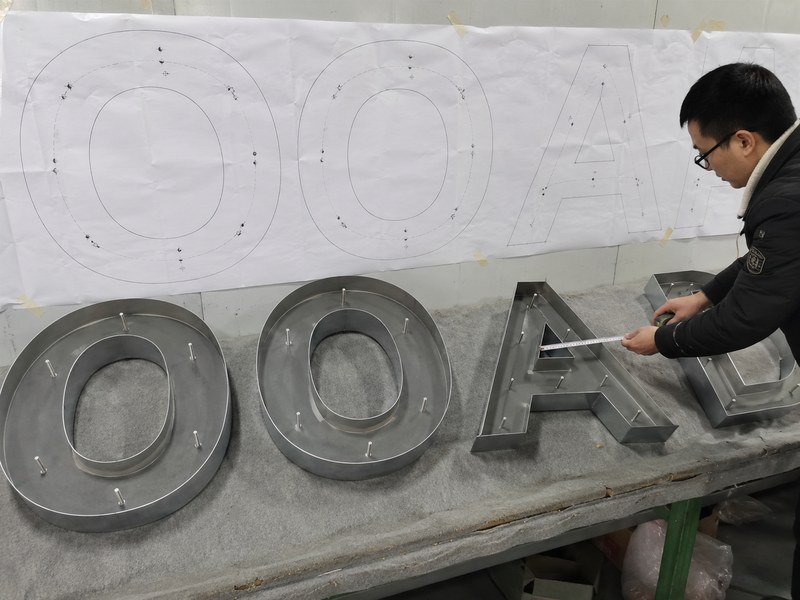

Full-size template	The same coordinates at 1:1 scale

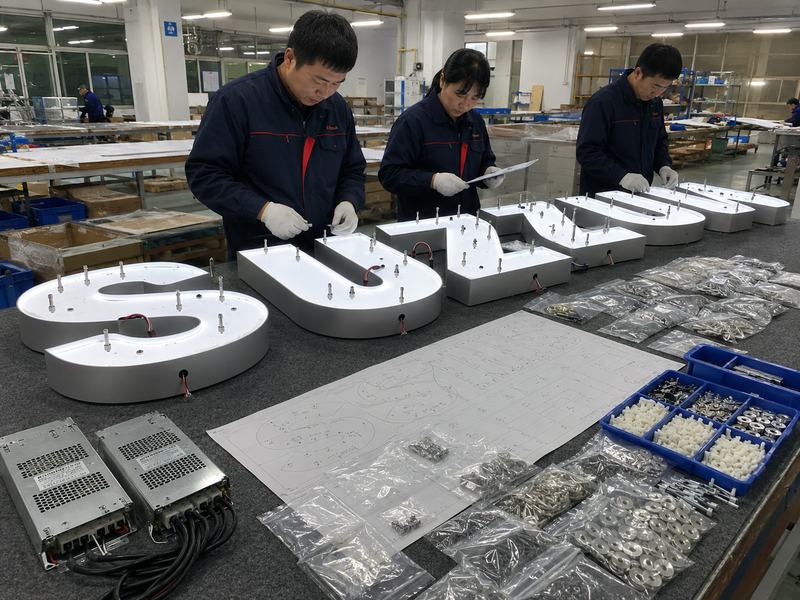

Accessory package	Correct studs, spacers, brackets and labels

A hole can be correctly drilled but still create a project problem when the template shows a different position. A template can be accurate but useless when the finished letter uses a revised hole pattern. The drawing, product, template, and installation accessories must all follow the same approved version.

At iduoduo, channel letter engineering includes the mounting structure, installation holes, wire exits, backboards, raceways, templates, waterproofing details, and packing requirements. Production inspection also covers installation holes, wiring, accessories, and packaging. The practical goal is straightforward: the sign should arrive with a clear and usable installation interface, not leave the installer to discover the mounting plan after opening the boxes.

Why Must Hole Positions Be Confirmed Early?

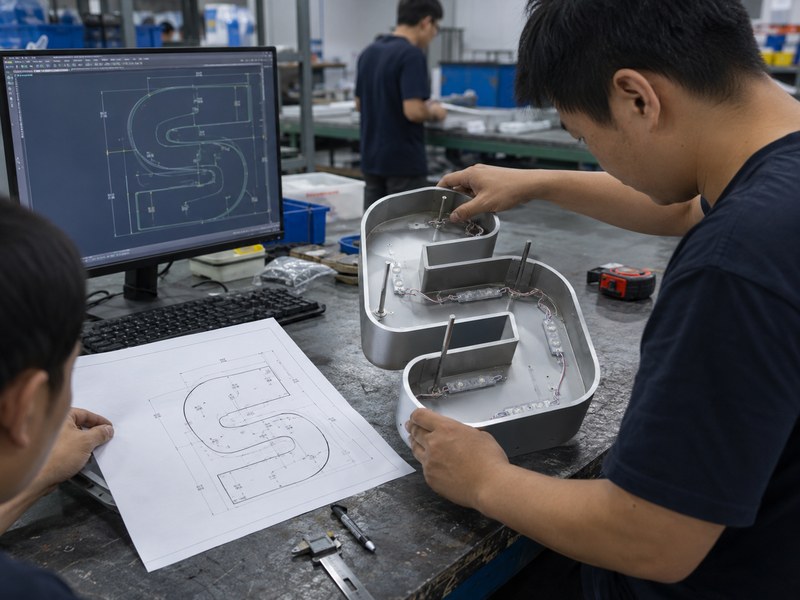

Engineer checking channel letter mounting hole positions before LED installation and final assembly

Mounting-hole positions must be approved before production because they affect the channel letter backs, studs, LED layout, wiring, installation template, wall penetrations, letter alignment, and fastening method. Once cutting, welding, painting, assembly, and wiring are complete, moving one hole may require several parts to be modified or remade. Early approval keeps the sign, template, accessories, and site plan working from the same coordinates.

A finished storefront sign may contain far more installation coordinates than expected. Consider a simple set of ten individually mounted letters. When every letter uses two studs and one wire exit, the installation package already contains:

20 stud positions
10 wire-exit positions
10 letter outlines
One baseline
One overall centerline
Nine letter-spacing relationships

The installer is not working with ten letters alone. The installer is working with at least 30 rear-interface coordinates that must agree with the full-size template and the prepared wall.

An error in one position may be manageable. Several mismatched positions can stop the installation completely.

How Do Hole Positions Affect Letter Construction?

A mounting hole appears on the rear of a channel letter, but its position is decided by everything inside the letter. The back panel may contain LED modules, wires, connectors, reinforcement pieces, seams, drainage paths, and removable fasteners. A fixing point cannot be placed wherever there is visible space on the drawing.

The engineering team must check whether the proposed hole position provides enough room for:

Drilling or welding
A threaded stud or fixing screw
A nut, washer, bracket, or spacer
Installation tools
Internal LED modules
Cable routing
Connector access
Drainage
Maintenance
Suitable distance from a cut edge

A wide letter such as “M” may offer several practical fixing areas. A narrow “I” may provide only a small usable zone between the LED modules and metal returns. A round “O” may need fixing points distributed around its shape, while a long logo bar may need support across a wider span.

The same mounting pattern should not be copied across every character merely to make the drawing look uniform.

Letter Condition	Mounting Concern	Possible Engineering Response
Narrow vertical stroke	Limited room for studs and wiring	Reduce hardware size, adjust stud position, or use a support panel
Wide horizontal element	Uneven support over a long span	Distribute fixing points across the width
Small letter height	Little clearance around LEDs	Coordinate holes before LED placement
Heavy metal construction	Higher load at each fixing point	Increase or redistribute fixing points
Halo-lit letter	Equal wall distance required	Coordinate studs with consistent spacers
Complex logo shape	Irregular weight distribution	Use shape-specific fixing positions
Segmented sign	Sections must align after assembly	Add section references and shared datums
Raceway-mounted set	Letters are not fixed directly to the wall	Move the main wall fixings to the raceway

A stud welded to the wrong area may block an LED module. Moving the LED is not always a simple solution because the change may create a dark area on the face. A new fixing hole may also cross a cable route, weaken a narrow part of the back, or prevent a removable panel from opening.

Hole positions should therefore be reviewed together with the LED layout and wiring drawing. Mounting, lighting, and electrical work share the same internal space.

The order of decisions matters:

Confirm the sign type and mounting method.
Confirm the usable fixing areas on the wall.
Prepare the product-side hole or stud layout.
Coordinate wire exits and internal wiring.
Arrange LED modules around the approved interface.
Generate the production file and full-size template.
Check the finished product against the same coordinates.

Starting with the LED layout and adding mounting holes later can force the engineering team to move components after the internal structure has already been planned.

Why Can’t Holes Be Decided During Installation?

The building holes are drilled during installation, but the product-side fixing points should already be complete. An installer can transfer approved coordinates to the wall. An installer should not need to redesign the backs of finished channel letters while standing on a lift.

Field modification creates several practical risks:

Metal filings may enter the letter.
Drilling may damage nearby LED modules.
A drill bit may cut or pinch internal wires.
Fresh metal around a new hole may lack coating or corrosion protection.
A new opening may be difficult to seal.
An unused factory hole may remain visible or allow moisture to enter.
The revised position may not match the installation template.
A stud may be installed at an angle.
The letter may sit unevenly against the wall.
Factory QC records may no longer represent the modified product.

A finished letter may already have passed appearance checks, wiring inspection, lighting inspection, mounting-hole inspection, and packing preparation. Opening the product at the installation site removes part of the control established during production.

The problem becomes more serious on large projects. A single local installer may be able to improvise a solution for one letter. A chain-store program cannot rely on different crews making different decisions at each location.

For example, Store A may receive two studs per letter, Store B may receive three field-drilled holes, and Store C may use an improvised rail. The front appearance may initially look similar, but maintenance, replacement, waterproofing, and repeat production become inconsistent.

Late field decisions also create unclear responsibility. When a letter later moves, leaks, or develops a wiring problem, the project team must determine whether the cause came from:

Factory construction
A field-drilled modification
The selected wall anchor
The wall condition
Incorrect template use
Poor sealing
An electrical route changed during installation

A controlled mounting layout creates a clearer boundary. The factory prepares the sign-side interface according to the approved drawing. Local professionals verify the building, anchors, drilling conditions, structural requirements, waterproofing, permits, and final installation.

What Happens When the Hole Layout Is Wrong?

A wrong hole layout does not always mean the holes are badly drilled. The holes may be clean and accurately manufactured but still be wrong for the wall, the template, the electrical route, or the approved sign position.

Several mismatch types are common.

Mismatch	What Happens on Site	Likely Response
Product holes differ from template	Wall marks do not align with the letters	Stop work and compare drawing versions
Studs land on panel joints	Planned anchors cannot be installed	Revise fixing positions or add a support system
Fixing points miss structural backing	Wall surface cannot provide reliable support	Add rails, backing, brackets, or structural access
Mounting hole overlaps wire exit	Fixing hardware blocks or damages the cable	Reroute wiring or modify the back
Holes fall inside a no-drill zone	Drilling risks glass, services, or waterproofing	Redesign the mounting interface
Too few usable fixing points	Letter may move or sit unevenly	Add engineered support
Incorrect stand-off positions	Halo distance varies around the letter	Correct studs, spacers, or brackets
Wrong orientation on template	Entire pattern may be transferred incorrectly	Reprint or reposition the template
Template printed at the wrong scale	Every wall coordinate becomes incorrect	Stop drilling and verify the reference dimension
Old drawing used for production	Product follows a superseded layout	Assess remake or controlled modification

The first action should not be “drill another hole.” The team should identify where the mismatch started.

A practical checking order is:

Confirm the project and store number.
Confirm the letter or logo-part number.
Check the drawing revision.
Check the template scale.
Compare the template with the actual letter back.
Compare the approved site layout with the wall.
Confirm whether the problem is product-side or building-side.
Record any modification before work continues.

Suppose a mounting template shows the correct overall word width, but three stud positions do not match the finished letters. The likely issue is not the storefront measurement. The product and template may have been generated from different drawing versions.

Suppose the template and products match perfectly, but half the holes land on a glass joint. The factory geometry may be accurate, yet the site restrictions were incomplete before production.

Both situations stop installation, but the corrective action is different. Accurate diagnosis prevents unnecessary product modification.

An incorrect layout can also damage a finished façade. Unused penetrations may require filling, sealing, painting, stone repair, panel replacement, or landlord approval. Exterior holes may become water-entry points when they are not closed with a system suitable for the wall construction.

The cost therefore extends beyond the letters.

Affected Area	Possible Consequence
Sign product	Rework, refinishing, rewiring, or remanufacturing
Installation crew	Extra labor, repeated measurement, or second visit
Access equipment	Additional lift, scaffold, or access booking
Electrical work	Cable relocation or new connection points
Façade	Additional drilling, sealing, repair, or replacement
Schedule	Missed installation window or opening delay
Documentation	Revised drawings, templates, labels, and packing records
Responsibility	Disputes between factory, installer, contractor, and site team

The safest and usually least expensive correction happens before cutting begins.

Do Incorrect Holes Affect Alignment and Spacing?

Yes. Channel letter installation is controlled by coordinates, not by visual judgment alone. Every character must follow the approved baseline, centerline, height, rotation, and spacing. The mounting holes determine where each letter finally sits.

When a stud or hole is misplaced, an installer may try to compensate by enlarging the wall hole, tilting the fastener, forcing the letter sideways, or tightening one side more than the other. The letter may appear acceptable from ground level but still sit under tension.

Possible results include:

Uneven letter spacing
A broken baseline
Letters leaning left or right
Unequal gaps behind halo-lit letters
Visible rotation in round characters
Back panels bending during tightening
Shadow or halo patterns that do not align
Cables stretched toward incorrect wall openings
Studs entering the wall at an angle

A full-size mounting template provides one coordinate system for the complete sign. The template should include enough information to prevent each letter from being positioned as an isolated item.

Useful references include:

Overall sign width
Overall sign height
Horizontal centerline
Vertical centerline
Letter baseline
Individual letter outlines
Letter or component numbers
Mounting-hole centers
Wire-exit centers
Template joining marks
Orientation arrows
One or more scale-check dimensions

Consider a ten-letter sign using two mounting studs per letter. The installer must transfer 20 stud centers while keeping all ten letter outlines aligned. Checking only the first and last letters does not verify the eight letters between them.

Alignment Check	What Should Be Verified
Overall position	Sign matches the approved location on the elevation
Centerline	Full sign is centered to the correct architectural reference
Baseline	All letters sit on the approved horizontal level
Letter rotation	Vertical and round letters are not tilted
Spacing	Gaps match the approved artwork
Projection	Stand-off or halo distance remains consistent
Template joints	Multi-sheet sections join without shifting
Wire positions	Cables reach prepared building entries without tension

Halo-lit letters need particular care. A stud or spacer error can change the distance between the letter and the wall. Even when the metal letters remain level, inconsistent projection can produce an uneven halo. The visible problem may look like an LED issue even though the real cause is mechanical spacing.

Alignment errors are difficult to hide because people read the word as a single graphic. A small deviation in one letter can attract attention more quickly than a minor surface imperfection.

How Can Late Changes Increase Project Costs?

A mounting-hole revision becomes more expensive as the project moves forward. Early in engineering, the change may involve editing a drawing and updating the template file. After production begins, the same change may affect metalwork, coating, lighting, wiring, QC, packing, and installation.

Project Stage	Work Affected by a Hole Change
Before engineering approval	Drawing and mounting review
After cutting	New back panels or additional machining
After stud welding	Stud removal, grinding, and rewelding
After surface finishing	Coating repair or full refinishing
After LED installation	Module relocation and lighting recheck
After wiring	Cable rerouting and connector inspection
After assembly	Product reopening and reassembly
After QC	Repeat dimensional and mounting inspection
After template printing	New template generation and printing
After packing	Reopening cartons and checking accessories
After shipping	Local modification, replacement parts, or remanufacturing
During installation	Crew delay, equipment extension, and façade repair

A late change often travels through several records as well. The following items may need revision:

Shop drawing
Rear mounting drawing
Production cutting file
Stud-welding file
LED layout
Wiring layout
Full-size template
QC checklist
Accessory list
Product label
Packing list
Installation instructions
Repeat-order archive

A revision becomes especially risky when only one file is updated. For example, the shop drawing may show the new stud layout while the template still uses the old coordinates. Production may then manufacture the correct letters and ship the wrong template.

Version control needs one approved release for all mounting-related files.

The site cost can be higher than the factory rework cost. Installation may involve:

A scheduled lift or scaffold
A licensed electrician
A storefront contractor
A mall or landlord work window
Traffic or pedestrian control
Night work
Travel between cities
A fixed opening date
Limited access behind the wall

When the sign cannot be installed during the booked window, the crew may need to return. Access equipment may need to be hired again. Wall repairs may require another trade. An opening date may remain fixed even when the sign schedule slips.

No universal rework cost can be quoted because labor rates, access conditions, façade materials, and locations vary widely. The cost structure is still predictable: every later stage adds more work already completed and more parties already scheduled.

Early confirmation should therefore act as a production gate. Before fabrication begins, the project file should answer the following questions:

Production Gate	Required Confirmation
Mounting method	Direct mount, stud mount, raceway, backboard, stand-off, or frame
Wall information	Finish, support structure, cavities, joints, and restrictions
Fixing layout	Quantity, diameter, position, and reference coordinates
Stud details	Diameter, thread, length, spacing, and projection
Wire exits	Position, direction, cable length, and connection route
No-drill zones	Glass, joints, services, membranes, or restricted areas
Template	Scale, orientation, joining method, labels, and verification dimension
Accessories	Included hardware, spacers, brackets, and local-supply items
Responsibility	Factory-side preparation and site-side anchoring duties
Approval	Final drawing revision and named approval status

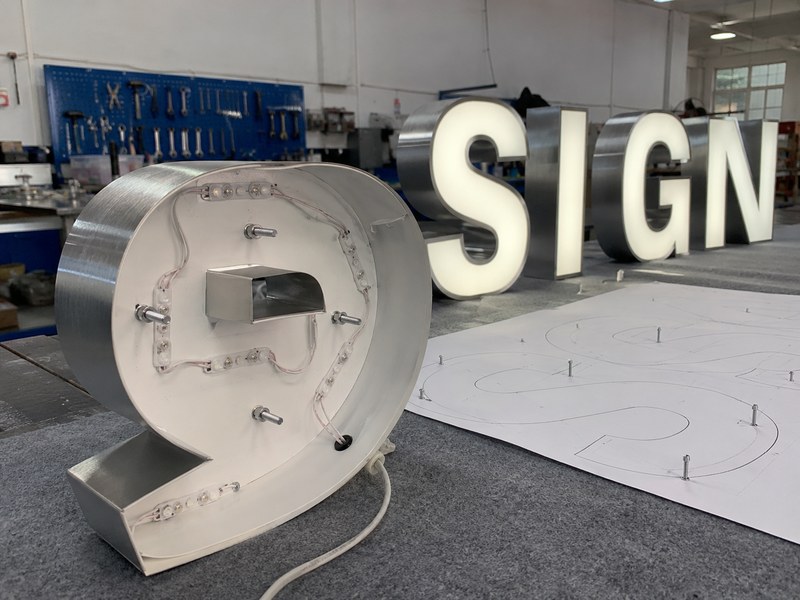

At iduoduo, installation-hole positions form part of the engineering review rather than an afterthought added during packing. The approved information is used to prepare the shop drawing, mounting layout, wire exits, template, production files, accessories, and QC checks.

The factory can prepare a clear product-side installation interface. Local installers, contractors, electricians, and structural professionals still need to verify final site measurements, wall conditions, anchors, structural requirements, waterproofing, high-level work, electrical connection, permits, and acceptance.

The practical rule is simple: confirm the wall before fixing the product design, and confirm the product design before starting production. A few minutes spent checking mounting coordinates on a drawing can prevent an entire installation team from solving the same problem several weeks later on a finished storefront.

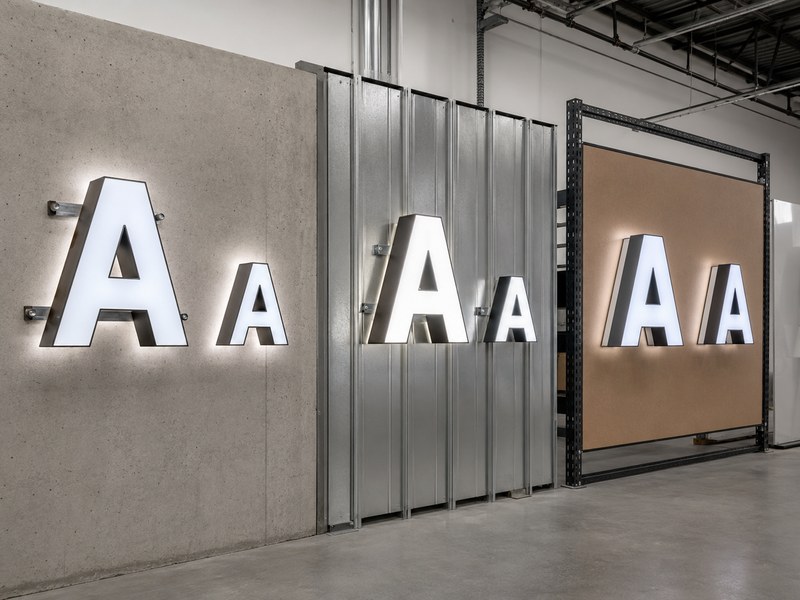

Which Conditions Change the Hole Layout?

The mounting-hole layout changes with the wall construction, mounting method, letter size, sign weight, internal wiring, power location, stand-off distance, drilling restrictions, and maintenance access. A hole pattern suitable for solid concrete may be unusable on glass, thin cladding, EIFS, or a hollow partition. The layout must be developed from the actual sign and installation site, not copied from a previous order.

Two storefronts can use the same logo, letter height, color, and illumination while requiring completely different mounting backs. One location may have a solid concrete wall with power available behind every letter. Another may have an aluminum façade with narrow structural rails, panel joints, and only one approved electrical entry point.

The front appearance can remain identical. The installation interface cannot.

Before the rear layout is approved, the project team should answer six practical questions:

What is visible on the wall?
What structure sits behind the visible finish?
Which areas can carry the sign?
Which areas cannot be drilled?
Where will the low-voltage wires go?
How will the power supply remain accessible?

Missing one answer can change the hole quantity, stud length, template, raceway, backboard, cable route, brackets, spacers, and packaging accessories.

What Is the Wall Material?

The wall finish is only the first layer of the installation question. A photograph may show stone, timber, metal, plaster, tile, or glass, but the fixing capacity usually depends on the construction behind the finish.

A metal panel may have steel framing behind it, an open cavity, insulation, or only light-gauge support rails. A stone façade may be solid masonry, thin stone cladding, or separate panels attached to a curtain-wall system. An interior painted wall may be concrete, brick, plywood-backed drywall, or hollow plasterboard.

“Install on a stone wall” is therefore not enough information for production.

The site information should identify:

Visible wall finish
Wall thickness, when known
Structural backing
Cavity depth
Stud, rail, or framing positions
Panel and expansion joints
Waterproofing layers
Concealed services
Rear access
Permitted drilling areas
Restricted drilling areas
Existing electrical entry
Required mounting height

Different wall constructions create different hole-layout decisions.

Wall or Surface	Hole-Layout Consideration	Information Needed from Site
Solid concrete	Fixings may be distributed directly into a solid base	Usable drilling zones, reinforcement restrictions and wall thickness
Brick wall	Fixings must account for brick condition and joints	Brick type, cavity construction and mortar condition
Drywall or plasterboard	Surface board alone may not provide suitable support	Stud positions, plywood backing or support rails
Timber wall	Fixings need to meet reliable timber support	Stud direction, member positions and wall thickness
Stone cladding	Drilling may risk cracking or miss the structural base	Panel thickness, joints, fixing system and backing
Metal cladding	Thin exterior sheet may not carry the sign by itself	Rail positions, panel seams, cavity and subframe
Glass storefront	Direct drilling may be restricted or prohibited	Approved frame, mullion, bracket or surrounding structure
Curtain wall	Fixing must coordinate with the façade system	Mullions, transoms, joints, membranes and approved connection zones
EIFS	The insulation layer may compress under load	Base wall, stand-off support, penetration detail and waterproofing
Plant wall	Vegetation and backing panels are usually not the load-bearing base	Independent frame, crossbar and maintenance clearance
Exhibition wall	The wall may be temporary, light, reusable or dismantled quickly	Frame type, venue rules, anti-tip plan and removal schedule

Wall flatness also matters. A Flush Mount sign placed against an uneven surface may rock, bend, or leave visible gaps. A consistent stud or stand-off system can help control the final projection, but only when the rear distances and wall variations are known.

Halo-lit letters add another layer. Iduoduo’s project facts identify a common stand-off range of approximately 20–50 mm, with the final distance selected according to letter size, LED arrangement, wall surface, and approved lighting effect. A rough stone wall may need a different mechanical approach from a flat painted panel, even when the desired halo distance is identical.

Wall color and texture influence the light, but wall structure controls the fixings. Both need review.

A useful site photograph should include more than a close-up image of the finish. The installation team should provide:

A full storefront view
A straight elevation view
Close-ups of wall joints
A side view where possible
A marked sign position
Measurements to nearby edges
Power-entry location
Known structural locations
No-drill markings

Photos without measurements help explain the setting but cannot establish reliable hole coordinates.

The factory can prepare the product-side holes, studs, brackets, backboard, raceway, wire exits, and template. The local installer or structural professional remains responsible for confirming whether the wall can carry the sign and which building-side anchors are appropriate.

Which Mounting Method Will Be Used?

The mounting method changes where the main fixing points are located and how many building penetrations may be required. It also affects the rear structure, wiring, power-supply position, maintenance access, visual projection, and installation sequence.

The choice should be made before production files are released.

Mounting Method	Main Fixing Interface	Effect on the Hole Layout
Flush Mount	Each letter sits close to the wall	Multiple individual letter holes and wire positions may be required
Stud Mount	Threaded studs project from the product back	Layout must match stud diameter, length, wall clearance and template
Stand-Off Mount	Spacers or studs hold the sign away from the wall	Fixing positions must maintain a consistent projection
Raceway Mount	Letters are mounted on a shared metal box	Main building holes move to the raceway rather than every letter
Backboard Mount	Letters are mounted on a common panel	Main wall fixings are arranged around the backboard structure
Custom Frame Mount	A frame or rail carries the sign	Hole layout follows the frame and the building connection points

A clean front view does not reveal these differences. The same set of letters may be built for Flush Mount, Raceway Mount, or Backboard Mount, but the rear construction will be different from the first cutting stage.

Flush Mount normally requires the wall to accept several accurate fixing points and either individual wire entries or a planned shared wiring route. The wall also needs enough rear space for wiring and power arrangements where components are located behind the façade.

Stud Mount requires confirmation of:

Stud quantity
Stud diameter
Stud length
Thread specification
Welding position
Wall thickness
Stand-off distance
Adhesive use, when applicable
Installation tolerance
Template coordinates

A stud that is too short may not pass through the wall finish or spacer. A stud that is unnecessarily long can complicate handling, packaging, and installation. The final dimension depends on the actual wall build-up, not only the letter depth.

Stand-Off Mount requires every fixing point to maintain the intended wall distance. Unequal spacers can tilt a letter or change the halo. A difference that is barely noticeable mechanically may become obvious after dark because the light pattern reveals the varying gap.

Raceway Mount concentrates letters, power components, and wiring on a metal enclosure. It can reduce the number of penetrations through the building wall, but the raceway still needs a confirmed fixing layout based on its overall weight, length, service cover, power entry, and support points.

Backboard Mount places several letters on a shared panel. It is often useful for:

Interior brand walls
Completed decorative walls
Locations with limited installation access
Projects needing hidden wiring
Small and medium logo assemblies

A backboard can simplify the relationship between individual letters and the wall, but the backboard itself needs suitable fixing points. A large panel also needs attention to flatness, weight, thermal movement, visible edges, wiring space, and maintenance access.

The mounting method should not be selected only from an appearance preference. The practical decision should compare:

Project Question	Why It Changes the Decision
Can the wall accept many penetrations?	Flush mounting may require numerous holes
Is wiring accessible behind the wall?	Individual cable entries may be difficult without rear access
Must the power supply be centralized?	Raceway or accessible backboard space may be more practical
Is the wall already finished?	A backboard may reduce work on a delicate interior finish
Does the property restrict drilling?	A shared support can reduce or relocate penetrations
Is a visible raceway acceptable?	Appearance may rule out a raceway even when installation is easier
Is halo lighting required?	Stand-off distance and wall surface become part of the mounting design
Will parts require future service?	Power supplies, connectors and covers need accessible locations
Is the project repeated across stores?	A standard rear system may help, but every wall still needs checking

Choosing the mounting method after the letters are already fabricated can require a complete rear redesign. A direct-mounted letter cannot simply be placed on a raceway without checking letter fixing points, wiring exits, raceway dimensions, cable grouping, power capacity, cover access, and overall assembly weight.

Are the Letters Direct-Mounted or Raceway-Mounted?

Direct mounting and raceway mounting create two very different drilling plans.

With direct mounting, every letter becomes an individual installation item. Each character must be positioned correctly, secured to the wall, and connected to the planned wire route. A ten-letter sign can involve dozens of separate coordinates.

For example, where every letter uses two studs and one wire exit, ten letters create:

20 stud coordinates
10 wire-entry coordinates
10 letter outlines
10 product labels
One overall baseline
One overall centerline
Nine spacing relationships

The exact quantity may be higher or lower depending on letter size, shape, structure, and engineering requirements. The example shows why a full-size template becomes important. The installer is not merely placing ten objects; the installer is transferring a complete coordinate system to the building.

Direct mounting generally offers:

A clean façade
No visible shared raceway
Independent letter appearance
Strong alignment with premium storefront design

It also demands:

Accurate wall measurements
More drilling locations
More detailed wire planning
Reliable template use
Suitable wall access
Careful sealing of every exterior penetration
Clear identification of every letter

A raceway changes the work. The letters are first mounted to the metal enclosure, and the raceway becomes the main building interface. The wall may require fewer mounting penetrations and fewer wiring entry points.

A raceway commonly helps when:

The property prefers fewer wall holes
The wall has limited rear access
Wiring needs to remain centralized
Power supplies need an accessible enclosure
The sign is installed on a leased or renovated property
Installation time on the façade must be reduced

The raceway still requires complete engineering.

Raceway Item	What Must Be Confirmed
Overall length and height	Must fit the sign and available wall area
Depth	Must hold wiring and approved electrical components
Color and finish	Should coordinate with the wall or brand design
Letter positions	Must match the approved front elevation
Raceway wall fixings	Must align with usable building support
Power entry	Must match the site electrical route
Internal wiring	Must remain organized and serviceable
Access cover	Must open after installation
Drainage and sealing	Must suit the outdoor environment
Assembly weight	Must be considered during handling and anchoring
Packaging	Must protect the long enclosure and attached components

A raceway does not automatically solve every installation problem. A long raceway attached only at its ends may not have suitable support. A raceway cover positioned too close to an architectural feature may become impossible to remove. A power entry on the wrong side may force exposed conduit or additional wall work.

The decision between direct mount and raceway mount should therefore be made using wall information, visual expectations, electrical access, maintenance needs, and property rules.

The difference can be summarized simply:

Direct Mount	Raceway Mount
More individual product-to-wall coordinates	Fewer shared assembly-to-wall coordinates
Cleaner appearance without a support box	Visible enclosure behind the letters
More individual wire planning	Centralized wiring
More wall penetrations may be required	Wall penetrations can often be reduced
Template accuracy is critical	Raceway position and level are critical
Rear access can be important	Raceway can hold accessible components
Each letter is installed separately	A larger complete assembly is installed

No option is universally better. The correct choice depends on the building and project priorities.

Where Are the Studs and No-Drill Areas?

Two different types of studs may be involved: threaded studs attached to the sign and structural studs or rails inside the wall. The product-side studs need to align with usable support or approved anchoring zones on the building side.

A drawing can show a perfectly symmetrical stud layout and still fail on site when the positions meet:

Glass edges
Curtain-wall joints
Stone-panel seams
Expansion joints
Concealed water pipes
Electrical conduits
Wall framing gaps
Waterproof membranes
Decorative grooves
Existing anchors
Mechanical services
Landlord-restricted finishes

Before drilling, Iduoduo’s installation facts call for checking wiring, water pipes, wall studs, curtain-wall structure, stone joints, glass, power points, the mounting template, threaded studs, and anchoring depth.

These checks should happen before production whenever the information is available. Waiting until the installer lifts the template to the wall creates a late discovery.

A no-drill zone should be shown as an actual measured area, not mentioned only in an email. A useful mark includes:

Start and end position
Width
Height
Distance from the sign centerline
Reason for the restriction
Whether a bracket may bridge the area
Whether a raceway or backboard is allowed
Whether another structural point is available

Restricted Area	Possible Effect on the Sign Design
Vertical façade joint	Fixing points may need to move left or right
Horizontal expansion joint	Letters may need a revised baseline or support rail
Glass panel	Direct letter fixing may be impossible
Concealed pipe	Stud and wire-entry positions may require relocation
Electrical conduit	Mechanical and electrical holes need separation
Waterproof membrane	Penetration details need local approval
Weak decorative panel	A raceway, backboard or independent frame may be required
Narrow structural rail	Fixing points may need to follow the rail positions
Inaccessible cavity	Anchor type and installation sequence may change

Hole movement is not always possible within the same letter. Narrow letters may have limited internal space. Relocating a stud may conflict with LEDs or wiring. Moving a hole too close to an edge may weaken the back. The project may need a wider support plate, a backboard, a raceway, or a separate frame rather than simply shifting one point.

Threaded-stud holes must also allow practical installation tolerance. Iduoduo’s source material notes that a hole that is too tight increases installation difficulty, while an overly loose opening reduces positioning accuracy.

The relationship involves:

Stud diameter
Stud length
Wall build-up
Template accuracy
Adhesive, when specified
Stand-off distance
Anchor arrangement
Installation tolerance

No universal tolerance or hole diameter should be applied without an approved project specification. Letter size, material, hardware, wall construction, and local installation practice all affect the result.

Outdoor holes bring an additional issue: waterproofing. The installation team needs to seal:

Stud holes
Cable holes
Bracket holes
Raceway fixing holes
Backboard fixing holes
Curtain-wall penetrations
Openings through the building’s waterproof layer

An illuminated sign can remain watertight while an unsealed wall penetration allows water into the building. Product waterproofing and building waterproofing are related but separate responsibilities.

How Are Wire Routes and Power Locations Coordinated?

Mounting holes cannot be planned independently from the electrical route. Mechanical fixings, cables, connectors, power supplies, brackets, drainage, and access covers often share the same limited rear area.

The first electrical question is not only “What voltage does the sign use?” The project team must also confirm where every cable goes after it leaves the letter.

Iduoduo’s installation facts call for checking:

Product wire exits
Wall power points
Wiring inside a raceway
Space behind a backboard
Individual letter wiring
Wiring inside brackets
Low-voltage cable length
Maintenance locations
Input voltage
Power-supply quantity
Power-supply position
Indoor or outdoor placement
Switches and timers
Dimming or control method
Hardwired electrical connection
Service clearance

The low-voltage system may use 12V or 24V depending on the approved configuration. Cable length, conductor size, circuit grouping, polarity, voltage drop, connectors, weather protection, fixing, and labeling need to be coordinated.

A wire exit placed correctly on the product can still be wrong for the site. Common problems include:

Wire-Route Problem	Installation Effect
Exit lands behind a structural rail	Cable cannot enter at the planned position
Exit meets a mounting stud	Mechanical hardware blocks the cable
Exit is too far from the wall entry	Cable must be stretched or exposed
Cable is too short	Connection cannot reach the approved point
Cable is too long without planned storage	Excess wire becomes difficult to organize
Entry faces upward outdoors	Water exposure may increase
Exit sits behind a sealed bracket	Connector becomes inaccessible
Power supply has no service access	Future replacement may require sign removal
Raceway entry is on the wrong side	Visible conduit or field modification may be required
Backboard space is too shallow	Wiring and connectors may press against the wall

For exterior signs, the wire opening should consider:

Suitable hole diameter
Protective grommet
Waterproof connector where required
Compatible sealant
Cable-entry direction
Strain relief
A drip path where appropriate
Drainage around the installation area

An upward-facing wire entry can collect water more easily. A downward cable bend before entering a product or connection box can help direct water away from the opening, depending on the approved structure and site installation.

Power supplies should remain in dry, ventilated, accessible locations that do not collect water, remain under continuous direct sun, or become permanently sealed behind a finished surface. A waterproof-rated power supply should not be treated as permission to install it in standing water or an inaccessible cavity.

The power-supply location can change the mounting system.

Power Location	Hole-Layout Effect
Inside the building	Individual wire entries may be needed behind letters
Inside a raceway	Raceway depth, access cover and power entry must be planned
Behind a backboard	Rear clearance and removable access may be required
In a separate service box	Cable route between sign and box must be confirmed
In an accessible ceiling or cabinet	Cable length and pathway must reach the service location

Maintenance should be considered before sealing the wall. A connection that can only be reached by removing several letters creates unnecessary service work. A raceway cover that cannot open after installation defeats one of the main reasons for choosing a raceway.

A practical coordination drawing should show both mechanical and electrical information:

Letter outlines
Mounting-hole or stud centers
Wire-exit centers
Cable direction
Circuit or letter labels
Raceway or backboard outline
Power-supply position
Service cover
Wall power entry
No-drill zones
Centerlines
Overall verification dimensions

Mechanical and electrical drawings should not contradict each other. A mounting file revised without updating the wire-exit file can create the same site problem as an incorrectly drilled hole.

Before production, the final review should compare all conditions in one checklist.

Condition	Required Decision Before Production
Wall finish	Identify visible material
Supporting structure	Identify usable load-bearing points
Mounting method	Confirm Flush, Stud, Stand-Off, Raceway, Backboard or frame
Hole or stud layout	Confirm quantity, diameter, length and coordinates
No-drill areas	Mark joints, glass, pipes, cables and restricted surfaces
Wire exits	Confirm position, direction and cable length
Power location	Confirm accessible installation point
Low-voltage route	Confirm 12V or 24V system, grouping and pathway
Outdoor sealing	Define product-side preparation and site-side wall sealing
Template	Match the final drawing at full scale
Accessories	Confirm factory-supplied and locally supplied items
Site responsibility	Confirm anchors, structure, permits, final wiring and installation

At iduoduo, the hole layout is reviewed together with the channel letter structure, wall information, mounting system, wire exits, raceway or backboard, waterproofing, template, accessories, and production drawing. The objective is not to create one “standard” pattern for every order. The objective is to prepare a product-side installation interface that matches the approved site information.

The local installation team still needs to verify final measurements, wall capacity, structural support, anchors, drilling safety, waterproofing, electrical connection, access equipment, permits, and local code requirements.

The safest rule is straightforward: a repeated logo can reuse visual standards, material standards, colors, and lighting specifications, but the mounting-hole layout should only be reused after the new wall and electrical conditions have been checked.

Which Conditions Change the Hole Layout?

Full-size channel letter mounting template checked against the finished letters and stud positions

The front appearance can remain identical. The installation interface cannot.

Before the rear layout is approved, the project team should answer six practical questions:

What is visible on the wall?
What structure sits behind the visible finish?
Which areas can carry the sign?
Which areas cannot be drilled?
Where will the low-voltage wires go?
How will the power supply remain accessible?

Missing one answer can change the hole quantity, stud length, template, raceway, backboard, cable route, brackets, spacers, and packaging accessories.

What Is the Wall Material?

“Install on a stone wall” is therefore not enough information for production.

The site information should identify:

Visible wall finish
Wall thickness, when known
Structural backing
Cavity depth
Stud, rail, or framing positions
Panel and expansion joints
Waterproofing layers
Concealed services
Rear access
Permitted drilling areas
Restricted drilling areas
Existing electrical entry
Required mounting height

Different wall constructions create different hole-layout decisions.

Wall or Surface	Hole-Layout Consideration	Information Needed from Site
Solid concrete	Fixings may be distributed directly into a solid base	Usable drilling zones, reinforcement restrictions and wall thickness
Brick wall	Fixings must account for brick condition and joints	Brick type, cavity construction and mortar condition
Drywall or plasterboard	Surface board alone may not provide suitable support	Stud positions, plywood backing or support rails
Timber wall	Fixings need to meet reliable timber support	Stud direction, member positions and wall thickness
Stone cladding	Drilling may risk cracking or miss the structural base	Panel thickness, joints, fixing system and backing
Metal cladding	Thin exterior sheet may not carry the sign by itself	Rail positions, panel seams, cavity and subframe
Glass storefront	Direct drilling may be restricted or prohibited	Approved frame, mullion, bracket or surrounding structure
Curtain wall	Fixing must coordinate with the façade system	Mullions, transoms, joints, membranes and approved connection zones
EIFS	The insulation layer may compress under load	Base wall, stand-off support, penetration detail and waterproofing
Plant wall	Vegetation and backing panels are usually not the load-bearing base	Independent frame, crossbar and maintenance clearance
Exhibition wall	The wall may be temporary, light, reusable or dismantled quickly	Frame type, venue rules, anti-tip plan and removal schedule

Wall color and texture influence the light, but wall structure controls the fixings. Both need review.

A useful site photograph should include more than a close-up image of the finish. The installation team should provide:

A full storefront view
A straight elevation view
Close-ups of wall joints
A side view where possible
A marked sign position
Measurements to nearby edges
Power-entry location
Known structural locations
No-drill markings

Photos without measurements help explain the setting but cannot establish reliable hole coordinates.

Which Mounting Method Will Be Used?

The choice should be made before production files are released.

Mounting Method	Main Fixing Interface	Effect on the Hole Layout
Flush Mount	Each letter sits close to the wall	Multiple individual letter holes and wire positions may be required
Stud Mount	Threaded studs project from the product back	Layout must match stud diameter, length, wall clearance and template
Stand-Off Mount	Spacers or studs hold the sign away from the wall	Fixing positions must maintain a consistent projection
Raceway Mount	Letters are mounted on a shared metal box	Main building holes move to the raceway rather than every letter
Backboard Mount	Letters are mounted on a common panel	Main wall fixings are arranged around the backboard structure
Custom Frame Mount	A frame or rail carries the sign	Hole layout follows the frame and the building connection points

Stud Mount requires confirmation of:

Stud quantity
Stud diameter
Stud length
Thread specification
Welding position
Wall thickness
Stand-off distance
Adhesive use, when applicable
Installation tolerance
Template coordinates

Backboard Mount places several letters on a shared panel. It is often useful for:

Interior brand walls
Completed decorative walls
Locations with limited installation access
Projects needing hidden wiring
Small and medium logo assemblies

The mounting method should not be selected only from an appearance preference. The practical decision should compare:

Project Question	Why It Changes the Decision
Can the wall accept many penetrations?	Flush mounting may require numerous holes
Is wiring accessible behind the wall?	Individual cable entries may be difficult without rear access
Must the power supply be centralized?	Raceway or accessible backboard space may be more practical
Is the wall already finished?	A backboard may reduce work on a delicate interior finish
Does the property restrict drilling?	A shared support can reduce or relocate penetrations
Is a visible raceway acceptable?	Appearance may rule out a raceway even when installation is easier
Is halo lighting required?	Stand-off distance and wall surface become part of the mounting design
Will parts require future service?	Power supplies, connectors and covers need accessible locations
Is the project repeated across stores?	A standard rear system may help, but every wall still needs checking

Are the Letters Direct-Mounted or Raceway-Mounted?

Direct mounting and raceway mounting create two very different drilling plans.

For example, where every letter uses two studs and one wire exit, ten letters create:

20 stud coordinates
10 wire-entry coordinates
10 letter outlines
10 product labels
One overall baseline
One overall centerline
Nine spacing relationships

Direct mounting generally offers:

A clean façade
No visible shared raceway
Independent letter appearance
Strong alignment with premium storefront design

It also demands:

Accurate wall measurements
More drilling locations
More detailed wire planning
Reliable template use
Suitable wall access
Careful sealing of every exterior penetration
Clear identification of every letter

A raceway commonly helps when:

The property prefers fewer wall holes
The wall has limited rear access
Wiring needs to remain centralized
Power supplies need an accessible enclosure
The sign is installed on a leased or renovated property
Installation time on the façade must be reduced

The raceway still requires complete engineering.

Raceway Item	What Must Be Confirmed
Overall length and height	Must fit the sign and available wall area
Depth	Must hold wiring and approved electrical components
Color and finish	Should coordinate with the wall or brand design
Letter positions	Must match the approved front elevation
Raceway wall fixings	Must align with usable building support
Power entry	Must match the site electrical route
Internal wiring	Must remain organized and serviceable
Access cover	Must open after installation
Drainage and sealing	Must suit the outdoor environment
Assembly weight	Must be considered during handling and anchoring
Packaging	Must protect the long enclosure and attached components

The decision between direct mount and raceway mount should therefore be made using wall information, visual expectations, electrical access, maintenance needs, and property rules.

The difference can be summarized simply:

Direct Mount	Raceway Mount
More individual product-to-wall coordinates	Fewer shared assembly-to-wall coordinates
Cleaner appearance without a support box	Visible enclosure behind the letters
More individual wire planning	Centralized wiring
More wall penetrations may be required	Wall penetrations can often be reduced
Template accuracy is critical	Raceway position and level are critical
Rear access can be important	Raceway can hold accessible components
Each letter is installed separately	A larger complete assembly is installed

No option is universally better. The correct choice depends on the building and project priorities.

Where Are the Studs and No-Drill Areas?

A drawing can show a perfectly symmetrical stud layout and still fail on site when the positions meet:

Glass edges
Curtain-wall joints
Stone-panel seams
Expansion joints
Concealed water pipes
Electrical conduits
Wall framing gaps
Waterproof membranes
Decorative grooves
Existing anchors
Mechanical services
Landlord-restricted finishes

These checks should happen before production whenever the information is available. Waiting until the installer lifts the template to the wall creates a late discovery.

A no-drill zone should be shown as an actual measured area, not mentioned only in an email. A useful mark includes:

Start and end position
Width
Height
Distance from the sign centerline
Reason for the restriction
Whether a bracket may bridge the area
Whether a raceway or backboard is allowed
Whether another structural point is available

Restricted Area	Possible Effect on the Sign Design
Vertical façade joint	Fixing points may need to move left or right
Horizontal expansion joint	Letters may need a revised baseline or support rail
Glass panel	Direct letter fixing may be impossible
Concealed pipe	Stud and wire-entry positions may require relocation
Electrical conduit	Mechanical and electrical holes need separation
Waterproof membrane	Penetration details need local approval
Weak decorative panel	A raceway, backboard or independent frame may be required
Narrow structural rail	Fixing points may need to follow the rail positions
Inaccessible cavity	Anchor type and installation sequence may change

The relationship involves:

Stud diameter
Stud length
Wall build-up
Template accuracy
Adhesive, when specified
Stand-off distance
Anchor arrangement
Installation tolerance

Outdoor holes bring an additional issue: waterproofing. The installation team needs to seal:

Stud holes
Cable holes
Bracket holes
Raceway fixing holes
Backboard fixing holes
Curtain-wall penetrations
Openings through the building’s waterproof layer

How Are Wire Routes and Power Locations Coordinated?

The first electrical question is not only “What voltage does the sign use?” The project team must also confirm where every cable goes after it leaves the letter.

Iduoduo’s installation facts call for checking:

Product wire exits
Wall power points
Wiring inside a raceway
Space behind a backboard
Individual letter wiring
Wiring inside brackets
Low-voltage cable length
Maintenance locations
Input voltage
Power-supply quantity
Power-supply position
Indoor or outdoor placement
Switches and timers
Dimming or control method
Hardwired electrical connection
Service clearance

A wire exit placed correctly on the product can still be wrong for the site. Common problems include:

Wire-Route Problem	Installation Effect
Exit lands behind a structural rail	Cable cannot enter at the planned position
Exit meets a mounting stud	Mechanical hardware blocks the cable
Exit is too far from the wall entry	Cable must be stretched or exposed
Cable is too short	Connection cannot reach the approved point
Cable is too long without planned storage	Excess wire becomes difficult to organize
Entry faces upward outdoors	Water exposure may increase
Exit sits behind a sealed bracket	Connector becomes inaccessible
Power supply has no service access	Future replacement may require sign removal
Raceway entry is on the wrong side	Visible conduit or field modification may be required
Backboard space is too shallow	Wiring and connectors may press against the wall

For exterior signs, the wire opening should consider:

Suitable hole diameter
Protective grommet
Waterproof connector where required
Compatible sealant
Cable-entry direction
Strain relief
A drip path where appropriate
Drainage around the installation area

The power-supply location can change the mounting system.

Power Location	Hole-Layout Effect
Inside the building	Individual wire entries may be needed behind letters
Inside a raceway	Raceway depth, access cover and power entry must be planned
Behind a backboard	Rear clearance and removable access may be required
In a separate service box	Cable route between sign and box must be confirmed
In an accessible ceiling or cabinet	Cable length and pathway must reach the service location

A practical coordination drawing should show both mechanical and electrical information:

Letter outlines
Mounting-hole or stud centers
Wire-exit centers
Cable direction
Circuit or letter labels
Raceway or backboard outline
Power-supply position
Service cover
Wall power entry
No-drill zones
Centerlines
Overall verification dimensions

Mechanical and electrical drawings should not contradict each other. A mounting file revised without updating the wire-exit file can create the same site problem as an incorrectly drilled hole.

Before production, the final review should compare all conditions in one checklist.

Condition	Required Decision Before Production
Wall finish	Identify visible material
Supporting structure	Identify usable load-bearing points
Mounting method	Confirm Flush, Stud, Stand-Off, Raceway, Backboard or frame
Hole or stud layout	Confirm quantity, diameter, length and coordinates
No-drill areas	Mark joints, glass, pipes, cables and restricted surfaces
Wire exits	Confirm position, direction and cable length
Power location	Confirm accessible installation point
Low-voltage route	Confirm 12V or 24V system, grouping and pathway
Outdoor sealing	Define product-side preparation and site-side wall sealing
Template	Match the final drawing at full scale
Accessories	Confirm factory-supplied and locally supplied items
Site responsibility	Confirm anchors, structure, permits, final wiring and installation

What Should Be Checked Before Production?

Final inspection of channel letter mounting holes, studs, wire exits, templates, and installation accessories

Before channel letter production begins, the mounting system should be checked as a complete installation package—not as a few holes added to the back panel. The final review should cover hole quantity, diameter, coordinates, stud details, fastener compatibility, wire exits, wall restrictions, template scale, drawing revision, accessories, product labels, and packing requirements. Every item should match the same approved production version.

A useful pre-production check answers one practical question:

Can the finished letters be unpacked, identified, positioned, wired, fixed, and serviced without the installer redesigning the product on the wall?

For a set of ten individually mounted letters, even a basic arrangement of two studs and one wire exit per letter creates 30 rear-interface coordinates:

20 mechanical fixing positions
10 electrical exit positions

The full installation also depends on the baseline, overall centerline, letter spacing, mounting height, wall-entry points, and identification of every character. A small mismatch can affect more than one operation.

The review should compare five records:

Record	What It Controls
Approved shop drawing	Dimensions, mounting method and installation details
Production file	Actual hole, stud and wire-exit positions
Full-size template	Transfer of coordinates to the wall
QC checklist	Inspection of the manufactured result
Accessory and packing list	Hardware, labels, templates and electrical parts

When those records do not match, a correctly fabricated letter can still arrive with an unusable installation package.

Are the Hole Size and Quantity Correct?

Hole size and quantity should follow the approved mounting arrangement, product construction, fixing hardware, and local installation plan. They should not be selected only from a workshop habit such as “two holes per letter.”

Two fixing points may work for a small, light character in one installation system. A wide logo section, heavy metal letter, large raceway, or long backboard may need a different distribution. The correct quantity depends on the actual load path and the structure that receives the sign.

The factory-side check should cover:

Number of holes or studs on every character
Hole diameter
Stud diameter
Thread specification
Stud projection length
Distance between fixing points
Distance from the hole to the back-panel edge
Clearance from internal LEDs and wires
Clearance for nuts, washers, tools, or spacers
Symmetry where required
Additional support for wide or irregular shapes
Consistency with the template

The local project team still needs to confirm building-side anchoring, structural capacity, wind-load requirements, anchor embedment, drilling method, and local regulations.

A hole diameter should not be judged in isolation. The full fixing assembly may include a stud, wall opening, anchor, washer, nut, spacer, adhesive, bracket, or support rail. Each part needs enough room to be installed without creating excessive movement.

Hole Condition	Likely Installation Result
Hole too small	Stud or fixing cannot pass through cleanly
Hole excessively large	Positioning accuracy is reduced
Hole too close to an edge	Back panel may weaken or deform
Too few fixing points	Letter may move, rotate, or sit unevenly
Too many unnecessary points	More wall drilling, sealing, and installation work
Uneven distribution	Weight or tightening force may concentrate in one area
Hole behind an LED module	Lighting component may need relocation
Hole behind a connector	Wiring access may be blocked
Hole inside a narrow stroke	Installation tools may not fit

The shape of each letter should be reviewed separately. Copying the same pattern from a wide “M” to a narrow “I” may place the fixing too close to an edge. A circular “O” may need fixing points positioned to prevent rotation. A long underline or logo bar may need support distributed along its length rather than concentrated near the ends.

The mounting plan should also consider installation tolerance. An installation template transfers the approved centers to a real building surface, where drilling conditions are rarely perfect. The system needs enough workable clearance for installation without allowing the letter to float out of alignment.

There is no single hole diameter or quantity suitable for every channel letter project. Any structural figures required for a building connection should come from qualified local professionals and then be translated into clear product-side requirements before production.

A practical pre-production record can use a character-by-character schedule:

Product ID	Letter	Fixing Type	Quantity	Diameter or Thread	Stud Length	Wire Exit
CL-01	A	Threaded studs	3	Project specification	Approved length	Lower center
CL-02	B	Threaded studs	3	Project specification	Approved length	Lower right
CL-03	I	Threaded studs	2	Project specification	Approved length	Lower center
CL-04	Logo mark	Bracket and studs	Project-specific	Project specification	Approved length	Rear left

The values in the schedule must come from the approved project drawing. The table format prevents a workshop from assuming that every character uses the same arrangement.

Before production release, the following points should be answered clearly:

Does every letter have enough fixing points for the approved structure?
Does the quantity shown in the drawing match the cutting or welding file?
Can the hardware be installed without touching LEDs or cables?
Is enough material left around every hole?
Can the letter remain level when the fixings are tightened?
Does the layout allow the face, back, or service area to be opened later?
Has the local installation team accepted the proposed interface?

When one answer remains uncertain, the hole layout is not ready for production.

Do the Holes Match the Selected Fasteners?

The manufactured hole or stud pattern must match the product-side hardware, while the local installer must match that interface to suitable building-side anchors. These two sides of the fixing system should be coordinated but not confused.

The factory may prepare:

Threaded studs
Machine screws
Bolts
Nuts
Washers
Spacers
Brackets
Mounting plates
Raceway fixing points
Backboard fixing points
Hanging cables or chains
Project-specific fabricated hardware

The local installer may need to select:

Concrete anchors
Masonry anchors
Timber screws
Structural bolts
Hollow-wall fixings
Chemical anchors
Support rails
Internal backing plates
Façade-system brackets
Locally certified hardware

A screw included with the sign should not automatically be assumed suitable for every wall. Concrete, brick, timber, metal cladding, drywall, stone veneer, curtain wall, and composite façades require different approaches.

The pre-production check should identify which items are supplied by the factory and which must be selected locally.

Fixing Item	Factory or Local Supply	Required Confirmation
Letter-side threaded studs	Usually factory-prepared	Diameter, thread, length and position
Spacers	Factory-prepared when specified	Quantity and projection distance
Nuts and washers	Factory-prepared when specified	Fit with the stud and installation method
Raceway brackets	Factory-prepared	Position and assembly method
Backboard hardware	Project-dependent	Panel interface and wall connection
Building anchors	Usually locally selected	Wall material, load and local requirements
Sealant	Often locally selected	Compatibility with wall and environment
Structural backing	Site responsibility	Position, strength and accessibility

Fastener length deserves particular attention. A threaded stud must pass through the planned stand-off space and wall finish while still providing a usable connection. A stud that is too short may not reach the supporting construction. A stud that is unnecessarily long can bend, damage packaging, interfere with handling, or slow installation.

The required length may include:

Letter back thickness
Spacer or stand-off distance
Wall-finish thickness
Cavity or bracket depth
Nut and washer allowance
Required connection length
Installation tolerance

Halo-lit letters often use spacers to maintain a controlled distance from the wall. Iduoduo’s project facts describe a commonly considered stand-off range of approximately 20–50 mm, although the final distance depends on the approved letter size, LED layout, wall surface, and lighting effect. The studs, spacers, and wire exits should all suit the approved projection.

Hardware also needs practical installation clearance. A nut may technically fit the stud but remain impossible to tighten when the location is too close to a return, connector, or bracket. A fixing detail should be checked from the installer’s point of view, not only from a CAD view.

Before release, verify:

Does the fastener physically fit the prepared opening?
Does the thread match the supplied nuts?
Are the studs straight and securely attached?
Can washers and tools reach the fixing position?
Do spacers maintain a consistent wall distance?
Are exposed metal parts suitably finished or protected?
Are long studs protected during packing?
Are local anchors clearly excluded when they are not supplied?
Does the installation note avoid implying that factory hardware proves wall suitability?

The goal is not to ship the largest possible hardware package. The goal is to ship a clear, correctly matched product-side interface without encouraging unsuitable building-side substitutions.

Are Mounting Holes and Wire Exits Clearly Separated?

Mounting holes carry or position the sign. Wire exits route the low-voltage cables. Their functions, symbols, positions, and labels should remain separate from drawing approval through production, QC, packing, and installation.

The rear of a channel letter may include several opening types:

Opening	Function	Main Risk When Misidentified
Mounting hole	Mechanical fixing	Cable damage or insufficient support
Threaded stud position	Product-to-wall fixing	Incorrect drilling or template mismatch
Wire exit	Low-voltage cable routing	Fixing hardware blocks or cuts the cable
Drainage opening	Moisture release	Water remains trapped
Service opening	Internal access	Maintenance becomes impossible
Raceway entry	Cable route into enclosure	Wiring cannot reach the power section

Different symbols should be used on the drawing and template. A plain circle for every opening forces the installer to guess.

Useful drawing labels include:

MH for mounting hole
ST for threaded stud
WE for wire exit
DR for drainage
Access arrow for removable sections

The exact symbols can vary, but the meaning should be obvious and repeated in a drawing legend.

The wire-exit check should cover:

Exit position
Exit diameter
Cable direction
Cable length
Cable label
Polarity marking where needed
Circuit grouping
Protective grommet
Connector type
Clearance from studs and sharp edges
Relationship with the site power entry
Outdoor sealing preparation

A cable exit should not sit directly behind a mounting stud, bracket, spacer, or wall anchor. The installer needs room to guide the cable into the building or support enclosure without pinching it.

The internal arrangement also matters. Moving the exit at the last minute may require the wire to cross LED modules, extend through a narrow stroke, or bend around a metal edge. Longer low-voltage runs may affect cable selection and voltage-drop planning.

For an exterior installation, check the direction and sealing plan. A wire exit facing or collecting water can increase the risk around the wall penetration. The factory can prepare the product-side cable, grommet, connector, and opening. The local installer is responsible for sealing the building penetration with a method suitable for the façade.

Mechanical and electrical coordinates should be compared on the same rear layout.

Coordination Check	Required Result
Mounting stud versus wire exit	Adequate physical separation
Wire exit versus wall joint	Entry lands in an approved area
Wire exit versus internal LED	No blocked module or dark-area risk
Cable length versus power location	Cable reaches without tension
Cable route versus spacer	Cable is not pinched
Outdoor entry direction	Route supports suitable water control
Template symbols	Mechanical and electrical marks are unmistakable
Product labels	Every cable can be linked to the correct letter or circuit

Consider an illustrative eight-letter sign with two studs and one wire exit per letter. The rear layout contains at least 16 mechanical coordinates and eight electrical coordinates. When the symbols are unclear, 24 marks can easily be transferred incorrectly to the wall.

The QC team should inspect both the physical openings and the labels. A correctly located cable exit is still difficult to use when the cable is unmarked in a multi-letter shipment.

Is the Template Printed at Full Scale?

The full-size mounting template should reproduce the final approved installation coordinates at 1:1 scale. File scale, printed scale, and assembled scale must all agree.

A PDF can be created correctly and still be printed incorrectly. Common print settings such as “Fit to Page,” “Shrink Oversized Pages,” or automatic scaling may alter every coordinate. A small percentage difference becomes significant across a wide storefront sign.

For example, a scale error of only 1% changes a 3,000 mm-wide layout by 30 mm from one end to the other. The individual holes may look close, but the final letters may not follow the approved spacing or baseline.

The template should include:

Project name
Store or location code
Elevation identification
Drawing revision
Overall sign width
Overall sign height
Baseline
Horizontal centerline
Vertical centerline
Letter outlines
Letter or part numbers
Mounting-hole centers
Stud centers
Wire-exit centers
Orientation arrows
Scale statement
Verification dimensions
Section numbers for multi-sheet templates
Overlap and registration marks

A template should not rely on the statement “Print at 100%” alone. It should include at least one dimension that can be checked with a tape measure. Large templates benefit from one horizontal and one vertical verification dimension.

Template Check	What to Verify
File scale	Drawing was generated at 1:1
Print scale	No “fit” or automatic reduction was applied
Overall width	Measured print matches the stated dimension
Overall height	Measured print matches the stated dimension
Section joining	Overlap marks align without gaps or shifts
Orientation	Front, rear, top and bottom are clear
Letter identity	Template number matches the packaged letter
Hole symbols	Fixings and wire exits are different
Revision	Template matches the approved production file
Site reference	Baseline or centerline matches the elevation

Large templates are usually divided into sections for printing and shipping. Every section should show enough information to prevent reversal or incorrect assembly.

A good section layout includes:

Section 1 of 5, Section 2 of 5, and so on
Left and right joining marks
Repeated centerline where appropriate
Overlap distance
Project code
Revision code
Orientation arrow
Adjacent letter reference

Before drilling, the installer should:

Confirm the project and elevation.
Lay out every template section.
Check the section order.
Align the registration marks.
Measure the printed verification dimensions.
Mark the architectural baseline or centerline on the wall.
Position the template.
Check level and overall placement.
Compare the marks with no-drill areas and power entries.
Transfer mechanical and electrical marks separately.
Remove the template and review the wall marks.
Begin drilling only after the final site check.

A full-size template does not override the building. When a template position lands on a glass edge, façade joint, hidden service, or restricted panel, installation should pause. The mismatch must be resolved rather than hidden by shifting individual letters.

The factory QC check should also compare the template with the finished products. Checking the template against the drawing alone is not enough. The physical stud or hole positions must match it.

A useful factory check involves placing the letter backs against the template or measuring both from the same coordinates. The inspection record should confirm:

Hole count
Hole centers
Stud centers
Wire exits
Letter outline
Product number
Template revision

Has the Final Drawing Been Approved?

Production should begin from one frozen version marked clearly as approved for production. The approval should cover the mounting interface, not only the front appearance.

Iduoduo’s source document identifies controlled quality references such as the final artwork, approved shop drawing, BOM, electrical specification, mounting specification, sample approval, QC checklist, packaging specification, product code, store code, and special project requirements.

The final production package should normally confirm:

Category	Details to Approve
Identity	Project, store, elevation and product numbers
Visual layout	Logo, font, proportions, spacing and overall dimensions
Structure	Face, returns, back, depth and reinforcement
Lighting	Type, color, CCT and LED arrangement
Electrical	Voltage, power supply, circuits, wire exits and controls
Mounting	Method, holes, studs, spacers, raceway or backboard
Site interface	Wall information, power entry and no-drill zones
Template	Scale, segmentation and identification
Accessories	Factory-supplied and locally supplied items
Packing	Product separation, hardware packing and carton labels
Quantity	Number of letters, sets, stores and spare parts
Destination	Country, voltage, plug and shipment requirements

A rendering approval does not automatically approve mounting holes. A drawing showing the logo color and letter height may still lack rear views, stud details, wire exits, and sections.

The approval package should make the production status obvious. Possible version terms include:

V1, V2, V3
Revision A, Revision B
Final
Approved for Production

Whatever system is used, one production version must be identifiable. Old drawings should be withdrawn or marked as superseded.

The revision record should state:

What changed
When it changed
Who requested the change
Who approved it
Whether price changed
Whether production time changed
Whether materials already purchased are affected
Whether packaging is affected

Mounting-related changes can affect more records than expected.

Changed Detail	Related Files to Update
Hole position	Rear drawing, production file, template and QC checklist
Stud length	Section, BOM, hardware list and packing method
Wire exit	Rear drawing, wiring file, template and cable labels
Mounting method	Product structure, BOM, section and installation notes
Raceway	Elevation, fabrication file, electrical layout and packaging
Backboard	Cutting file, fixing layout, wiring space and packing
Letter spacing	Front elevation, coordinates and template
Site location	Elevation drawing, centerlines and template
Power entry	Wiring layout, cable length and service access

The QC team should confirm the current drawing revision before inspecting products. A product can pass inspection against an old file and still be wrong for the approved project.

Production should not be released when critical mounting items remain marked “TBC,” “To Be Confirmed,” or “By Others” without further explanation. Some site work will always remain the installer’s responsibility, but the factory still needs enough information to manufacture its side of the interface.

Before release, the project team should be able to answer:

Which drawing is approved?
Who approved it?
Is the mounting method final?
Are the hole or stud coordinates final?
Are the wire exits final?
Is the wall information sufficient?
Does the installer accept the proposed layout?
Is the template based on the same revision?
Does the BOM contain the correct hardware?
Have old files been removed from production use?

One approved production package is safer than a series of instructions scattered across email, WhatsApp, drawings, and voice messages.

Are Mounting Accessories Included and Labeled?

Correct hole positions do not help when the required studs, spacers, brackets, template, power components, or instructions are missing from the shipment. Accessories should be treated as part of the finished installation package.

Depending on the approved project, the accessory list may include:

Threaded studs
Screws
Nuts
Washers
Spacers
Brackets
Wall plugs
Mounting plates
Hanging chains
Steel cables
Raceway hardware
Backboard hardware
Full-size template
Power supplies
Controllers
Dimmers
Plugs
Connection cables
Spare connectors
Spare hardware
Installation instructions

Not every item should be supplied for every project. In particular, local wall anchors may need to be selected by the installer after checking the building. The packing list should state clearly when an item is not included.

Accessories should be:

Counted
Checked against the BOM
Separated by product or store
Packed away from delicate faces and returns
Fixed inside the carton
Protected from movement
Labeled with the project number
Labeled with the product or letter number
Matched to the template
Shown on the packing list

Iduoduo’s documented packaging process calls for power supplies, controllers, and installation hardware to be placed in separate, fixed, identified sections so they do not strike the faces or letter bodies during transport.

Accessory Packing Risk	Preventive Action
Loose studs scratch painted letters	Pack in sealed, padded hardware bags
Power supply strikes acrylic face	Use a separate fixed compartment
Hardware from different stores is mixed	Label every bag by store and product code
Template is missing	Add it to the final packing checklist
Long studs puncture packaging	Protect exposed ends and restrain movement
Controller is paired with the wrong set	Match product and circuit labels
Local anchors are assumed to be included	State supply responsibility in writing
Spare parts cannot be identified	Label type, quantity and intended product

Multi-store projects need a clearer system. The same brand may use similar letters at several locations, while mounting layouts, voltages, wire lengths, or accessories differ.

A practical label can include:

Project code
Store code
Elevation
Product number
Letter or logo-part number
Accessory name
Quantity
Drawing revision
Carton number

For example:

“Store 014 – Main Elevation – Letter C – Stud and Spacer Kit – Qty. 3 – Rev. B”

That label is far more useful than a plain bag marked “screws.”

Before the carton is closed, the packing team and QC team should check:

Final Packing Check	Required Result
Product count	Matches the approved order
Product labels	Match the drawing and template
Stud and hole hardware	Correct type and quantity
Spacers	Correct projection and quantity
Brackets	Correct product and orientation
Power supplies	Correct voltage and circuit grouping
Controllers	Correct function and labeling
Cable sets	Correct length and identification
Template	Included, protected and correctly revised
Instructions	Match the mounting system
Spare parts	Listed and labeled
Carton identification	Matches the packing list and destination

Photographs of the accessory kits and completed packing can provide a useful release record. They do not replace counting, but they help the receiving team understand what was shipped.

At Iduoduo, mounting holes, wire exits, templates, hardware, power components, product numbers, and packing are checked as connected project details. The sign-side interface is manufactured according to the approved production files, while the local professional team remains responsible for final site measurement, building structure, anchors, wall-hole waterproofing, high-level work, final electrical connection, permits, and installation acceptance.

The final pre-production rule is straightforward: the approved drawing, production file, finished letter, full-size template, hardware kit, product labels, and packing list must all follow the same mounting plan. When one item tells a different story, production should pause before the difference reaches the storefront.

How Can Iduoduo Support an Installation-Ready Channel Letter Project?

A productive quotation starts with the information that affects manufacturing and installation. Send iduoduo your vector logo or shop drawing, overall size, letter height, return depth, lighting type, wall photographs, wall material, preferred mounting method, available fixing zones, power location, wire-exit requirements, destination, quantity, and required delivery date.

Founded in 2007, iduoduo operates five production bases with more than 500 employees, 18 production lines, 20+ engineers, and 30+ QC personnel. The team can review channel letter structure, mounting holes, stud patterns, raceways, backboards, wire exits, full-size templates, electrical components, installation accessories, packaging, and repeat-production files. Illuminated signs receive 100% lighting inspection and 72-hour pre-shipment testing, supported by a three-year warranty under the approved project terms.

For an accurate discussion, include the current drawing version and identify which installation details have already been confirmed by the local installer or contractor. Iduoduo can then review the product-side interface, highlight missing information, and prepare a quotation based on the actual sign structure rather than a visual estimate alone.

What Are Channel Letter Mounting Holes?

What Do Mounting Holes Secure?

How Are Mounting Holes Different from Wire Exits?

Which Fasteners Use Mounting Holes?

Are All Channel Letter Holes the Same?

Why Must Hole Positions Be Confirmed Early?

How Do Hole Positions Affect Letter Construction?

Why Can’t Holes Be Decided During Installation?

What Happens When the Hole Layout Is Wrong?

Do Incorrect Holes Affect Alignment and Spacing?

How Can Late Changes Increase Project Costs?

Which Conditions Change the Hole Layout?

What Is the Wall Material?

Which Mounting Method Will Be Used?

Are the Letters Direct-Mounted or Raceway-Mounted?

Where Are the Studs and No-Drill Areas?

How Are Wire Routes and Power Locations Coordinated?

Which Conditions Change the Hole Layout?

What Is the Wall Material?

Which Mounting Method Will Be Used?

Are the Letters Direct-Mounted or Raceway-Mounted?

Where Are the Studs and No-Drill Areas?

How Are Wire Routes and Power Locations Coordinated?

What Should Be Checked Before Production?

Are the Hole Size and Quantity Correct?

Do the Holes Match the Selected Fasteners?

Are Mounting Holes and Wire Exits Clearly Separated?

Is the Template Printed at Full Scale?

Has the Final Drawing Been Approved?

Are Mounting Accessories Included and Labeled?

How Can Iduoduo Support an Installation-Ready Channel Letter Project?

Similar Posts

Iduoduo Tech

Illuminated Signs

Non-illuminated Signs

Resources & Company

Iduoduo Tech
