How to Specify Waterproofing Requirements for Custom Signs

A sign can survive a showroom test and still fail after the first season outdoors. The reason is usually not that “waterproofing was forgotten.” More often, the requirement was never defined clearly enough. A drawing may say “outdoor use” or “waterproof,” while the factory, installer, electrical contractor, and project manager each interpret those words differently. One team focuses on the LED module, another on the power supply, while the actual leak path is a cable entry, access cover, mounting hole, or wall penetration.

To specify waterproofing requirements for a custom sign, define the exposure environment first, then set the required ingress-protection level, identify every component and opening inside the waterproofing boundary, specify sealing and drainage, confirm power-supply and wire-exit locations, and separate factory waterproofing from site waterproofing. Verification should match the final configuration, not one isolated IP-rated component.

A useful specification therefore starts with the real installation: Is the sign under an awning or fully exposed? Can wind-driven rain reach the rear? Will maintenance crews use a hose? Is the site coastal, humid, freezing, or unusually hot? Once those questions are answered, an IP number becomes one part of an engineering decision instead of a marketing label. The most expensive waterproofing mistake often begins with the shortest note on the drawing: “Outdoor, waterproof.”

What Does Waterproof Mean for Signs?

Waterproofing for signs means controlling rain, spray, condensation, and water paths across the complete sign—not only using waterproof LEDs. A proper specification should cover enclosure joints, connectors, wire exits, power supplies, drainage, mounting holes, installation direction, and wall penetrations. IP ratings define ingress protection, but they do not replace UV, corrosion, weather, or site-installation requirements.

What Does an IP Rating Actually Tell You?

An IP rating describes how well an enclosure resists solid-particle and water ingress under defined test conditions. For outdoor signs, it is useful because it gives the engineering team a measurable protection target instead of a vague instruction such as “waterproof.”

The rating still needs to be connected to the actual sign structure.

For Iduoduo projects, the common waterproofing options are:

IP Level	Typical Sign Application	Main Limitation
IP65	Standard outdoor rain and water-spray exposure	Not intended for immersion
IP67	Heavy rain, high humidity, more demanding outdoor exposure	Not intended for permanent underwater use
IP68	Special immersion-related projects	Must be reviewed and defined for the project

Iduoduo normally uses IP65 for standard outdoor projects and can strengthen the configuration to IP67 for higher rainfall, humidity, or longer exposure. IP68 is available on request rather than supplied as a default specification.

The IP number does not tell you whether the sign can handle every outdoor condition.

It does not directly define:

• UV resistance;
• salt corrosion;
• wind load;
• freeze-thaw exposure;
• coating life;
• wall waterproofing;
• installation quality;
• long-term material aging.

For example, an IP67 electrical system installed inside a poorly coated steel cabinet can still develop corrosion. An IP65 channel letter can still cause building leakage if the installer leaves the wire penetration unsealed.

A useful RFQ should therefore combine the IP requirement with actual site conditions.

Instead of writing:

“Outdoor sign, IP65.”

Write:

“Fully exposed storefront channel letters, direct rain, standard urban environment, IP65 configuration, rear wire exits, bottom drainage, outdoor power supply, no pressure washing, wall penetrations sealed on site.”

The second version gives the factory enough information to engineer the sign rather than guess.

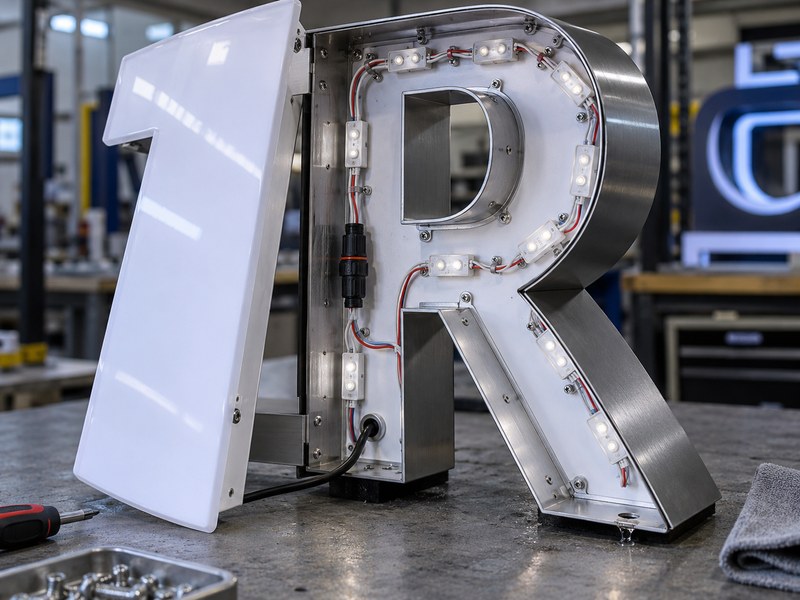

Is a Component IP Rating Enough for the Whole Sign?

No. An IP67 LED module or IP67 power supply does not automatically make the complete sign IP67.

A finished illuminated sign may contain more than ten potential water-entry locations, including:

• acrylic face;
• panel joint;
• letter return;
• cabinet seam;
• weld;
• screw hole;
• backplate;
• connector;
• wire exit;
• service cover;
• mounting hole;
• wall penetration.

Iduoduo’s outdoor engineering reference specifically states that a sign using IP67 LEDs or an IP67 power supply does not automatically become an IP67 finished assembly. The weakest protection point can affect the whole system.

A typical failure can happen in a simple sequence:

Rain reaches the top of a channel letter.

Water passes through a screw or seam.

The internal LED remains protected.

The drain hole is blocked by sealant or sits above the lowest point.

Water collects inside the letter.

A connector or wire joint remains in standing water.

The electrical connection fails even though the LED module itself is waterproof.

The important question is therefore not:

“Are the LEDs IP67?”

The better question is:

“What does the IP rating apply to?”

Before approving production, confirm the following:

Area	What Should Be Confirmed
LED	Indoor or outdoor version
Connector	Protection level and sealing method
Wire exit	Location, direction and sealing
Power supply	Rating and mounting position
Face	Joint and retention method
Cabinet	Seam and access-cover treatment
Backplate	Water path and mounting
Drainage	Position and clear discharge path
Mounting holes	Factory-made or field-made
Wall penetration	Who completes final sealing

For outdoor LED neon, the same rule applies. Waterproof neon flex alone is not enough. Iduoduo also considers connectors, cable exits, power supplies, backing, mounting, sealing, drainage, UV exposure, and installation waterproofing.

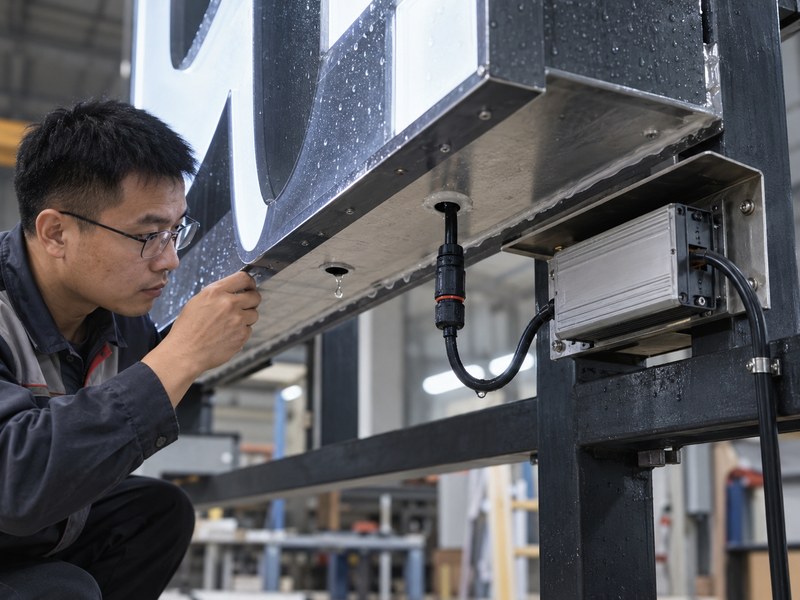

How Do Water and Moisture Enter an Outdoor Sign?

Water does not always enter through the most obvious opening.

Outdoor signs can take in moisture through joints, screw holes, cable entries, access covers, mounting hardware, or wall penetrations. Moisture can also form inside the enclosure through condensation even when direct rain never crosses the outer seal.

Iduoduo identifies common ingress locations including panel joints, cabinet seams, welds, screw holes, wire exits, service covers, brackets, backing plates, electrical terminals, connectors, wall openings, raceway covers, and light-box face edges.

For practical review, divide the sign into four water-control zones:

Zone	Typical Risk
Top and face	Direct rain and wind-driven water
Side joints	Capillary entry and panel movement
Rear	Wire exits, brackets and wall openings
Bottom	Standing water and blocked drainage

The bottom of the sign is especially important.

Outdoor enclosures should not always be treated as completely sealed boxes. Temperature changes, internal air, material expansion, and humidity can produce water vapor or condensation.

Iduoduo’s engineering guidance therefore combines sealing with drainage. Drain holes may be positioned at the bottom or lowest practical point and must remain open after manufacturing and installation.

A drain can fail even when it was designed correctly.

Common reasons include:

• silicone covering the opening;
• LED wires blocking the hole;
• the sign being mounted too tightly against the wall;
• packaging foam remaining inside;
• dirt or insects blocking the path;
• the sign being installed in the wrong orientation.

Installation direction matters because the lowest point changes when a sign is rotated.

A blade sign or light box designed to drain from one edge may trap water if installed upside down. Top, bottom, front, and bracket orientation should therefore be clear on production and installation drawings.

Is Waterproof the Same as Weatherproof?

No. Waterproofing deals mainly with water entry and moisture management. Weatherproofing also involves UV, heat, cold, corrosion, wind, material expansion, pollution, and maintenance.

Two signs with the same IP rating can have very different outdoor service conditions.

Consider three examples:

Installation	Main Exposure
Covered retail storefront	Heat, UV, humidity, occasional rain
Open roadside storefront	Rain, wind, dust, temperature changes
Seafront restaurant	Rain, humidity, salt, wind, corrosion

The seafront project does not automatically need only a higher IP number. It may also need changes in metal grade, coating, fasteners, connectors, electrical protection, and cleaning schedule.

Iduoduo’s coastal engineering guidance can include 316 stainless steel, suitable aluminum, outdoor coatings, corrosion-resistant fasteners, protected connectors, waterproof power supplies, isolation between dissimilar metals, and periodic cleaning where the environment requires it.

Temperature also changes the problem.

High temperatures can accelerate aging of LEDs, power supplies, adhesives, sealants, and plastics.

Low temperatures can reduce wire flexibility and affect plastics and sealing materials.

Freeze-thaw cycles can enlarge small openings after water enters a joint and repeatedly freezes.

Large metal and acrylic sections also expand at different rates. If every panel is rigidly bonded, temperature movement can create cracking, distortion, or seal failure. Iduoduo therefore treats expansion gaps, joints, screw holes, framing, adhesives, and temperature range as part of outdoor engineering.

A waterproof specification should consequently answer two separate questions:

“Can water enter the sign?”

and

“Can the sign tolerate the full outdoor environment where it will operate?”

Both questions matter.

Which Conditions Should Be Specified Before Production?

The factory should know the real installation environment before waterproofing is finalized. Country, city, rain exposure, temperature, humidity, wall type, power location, wire exit, mounting method, and required IP level can all change the construction.

A useful outdoor-sign RFQ should include:

Project Input	Example
Location	Miami, Florida
Exposure	Fully outdoor
Direct rain	Yes
Installation height	5.5 m
Wall	Aluminum composite cladding
Minimum temperature	Project-specific
Maximum temperature	Project-specific
Coastal environment	Yes / No
Humidity	Normal / High
Direct sunlight	Partial / Long exposure
IP requirement	IP65 / IP67 / Project review
Power position	Indoors / Raceway / External box
Wire exit	Rear / Side / Bottom
Mounting	Flush / Raceway / Backboard / Bracket
Cleaning	Hand cleaning / Hose / Other
Operating hours	8 / 12 / 24 hours per day

Iduoduo’s outdoor-project information list includes country and city, indoor/semi-outdoor/outdoor use, direct rain, installation height, wall type, minimum and maximum temperature, coastal exposure, humidity, long-term sunlight, IP requirement, voltage, power-supply position, mounting method, operating time, and local project requirements.

Some environments should never be treated as ordinary outdoor conditions without additional review:

• permanent underwater use;
• pool or fountain installations;
• pressure washing;
• extreme high temperature;
• extreme cold;
• high salt exposure;
• hurricane or typhoon zones;
• chemical environments;
• marine environments;
• strong vibration.

Iduoduo treats extreme heat, extreme cold, long-term underwater use, high salt, chemicals, high-pressure washing, hurricane or typhoon exposure, high humidity around pools, and marine environments as conditions requiring separate evaluation.

A good waterproofing specification therefore does not start with “IP65 or IP67?”

It starts with:

“Where will the sign be installed, and what will actually reach it?”

Once those facts are clear, the IP level, electrical protection, sealing, drainage, materials, and installation details can be specified with far less guesswork.

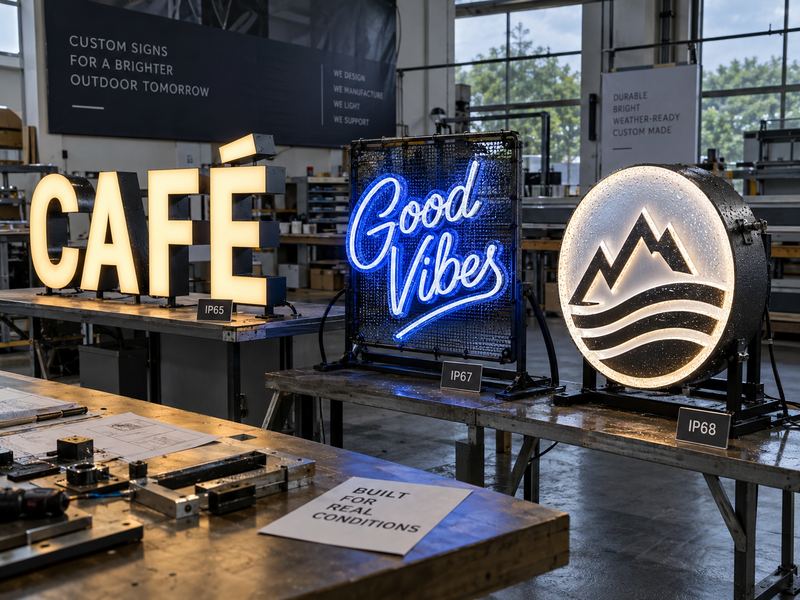

Which IP Rating Do You Need?

Choose the IP rating from the actual exposure, not from the idea that a higher number is always safer. For Iduoduo sign projects, IP65 is commonly used for standard outdoor exposure, IP67 can be selected for heavy rain or high humidity, and IP68 is available on request for separately defined conditions. The rating must still match LEDs, connectors, power supplies, cable entries, sealing, drainage, and installation.

What Is IP65 Suitable For?

IP65 is a practical starting point for many outdoor sign projects exposed to normal rain, dust, and routine exterior conditions. For Iduoduo projects, IP65 is generally used as a standard outdoor configuration rather than an all-weather promise. The finished sign still needs the correct electrical parts, enclosure details, drainage, wire exits, and site sealing.

Typical applications may include:

• storefront channel letters;
• exterior LED neon signs;
• illuminated logo signs;
• blade signs;
• cabinet signs;
• light boxes;
• raceway-mounted letter sets;
• signs installed under partial cover but still exposed to moisture.

A useful way to judge IP65 suitability is to look at the water source.

Site Condition	Is IP65 a Reasonable Starting Point?	Additional Review
Normal exterior rain	Often yes	Drainage and wire exits
Storefront under canopy	Often yes	Wind-driven rain and humidity
Occasional splash	Often yes	Splash direction and connectors
Heavy tropical rain	Review carefully	IP67 may be more suitable
Constant high humidity	Review carefully	Condensation and IP67
Close-range pressure washing	Do not assume	Separate washdown requirement
Temporary immersion	No	Review IP67 condition
Long-term underwater use	No	Separate IP68 project review

The mistake is treating IP65 as a complete outdoor specification.

An IP65 project still needs answers to several practical questions:

• Where does the cable leave the sign?
• Is the cable exit facing upward, downward, or through the rear?
• Where is the power supply?
• Can water collect around the connector?
• Does the cabinet have a drainage path?
• Can the drain be blocked after mounting?
• Are wall penetrations protected by the local installer?
• Will maintenance staff use a hose or pressure washer?

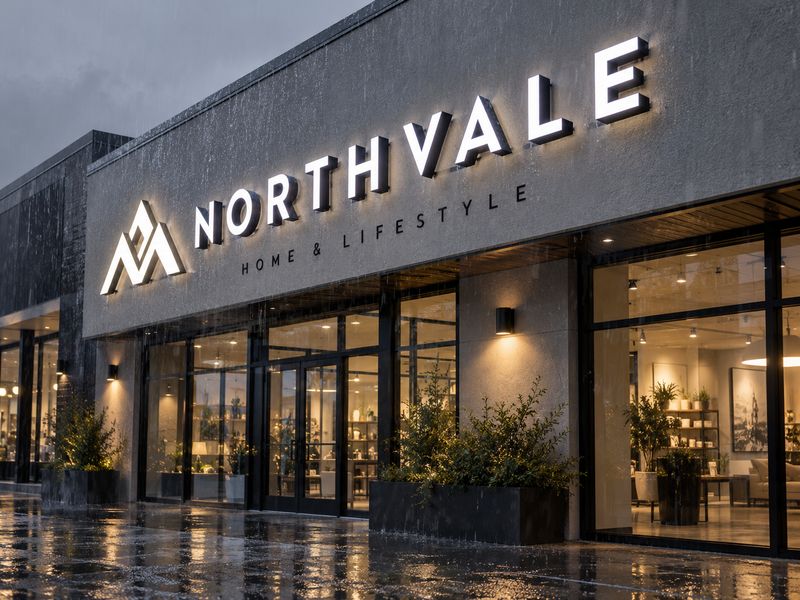

For example, consider a front-lit channel-letter set mounted on an exterior retail facade. The letters receive ordinary rain and are not located near a pool, fountain, or sea. An IP65 project configuration may be appropriate.

However, an IP65 LED alone is not enough. The project may also require:

• outdoor LED modules;
• protected connectors;
• sealed rear wire exits;
• suitable power-supply placement;
• bottom drainage;
• defined letter orientation;
• sealed wall penetrations after installation.

A stronger RFQ would say:

“Exterior front-lit channel letters, fully exposed to normal rainfall, IP65 project configuration, rear wire exits, outdoor electrical components, bottom drainage, no pressure washing, local installer responsible for wall-penetration sealing.”

That instruction is much more useful than simply writing “IP65 outdoor.”

IP65 also should not be used as shorthand for UV resistance, corrosion resistance, wind resistance, or long service life. Iduoduo’s outdoor engineering reference clearly separates IP protection from UV exposure, corrosion, wind load, material aging, and site installation quality.

When Is IP67 Necessary?

IP67 becomes more relevant when the sign will face stronger rainfall, higher humidity, longer moisture exposure, or a project specification requiring greater water-ingress protection.

Within Iduoduo’s approved engineering framework, IP67 may be selected for:

• high-humidity locations;
• heavy rainfall;
• more demanding exterior installations;
• projects requiring stronger electrical-component protection.

An IP67 configuration may require matching outdoor LEDs, connectors, wiring, power supplies, seals, and enclosure construction.

The important point is that IP67 should not be chosen only because “67 is higher than 65.”

The exposure needs to justify it.

A practical comparison looks like:

Condition	IP65	IP67
Standard exterior storefront	Often suitable	Possible but may be unnecessary
Heavy seasonal rainfall	Review	Often more appropriate
Tropical high humidity	Review	Often more appropriate
Semi-enclosed humid space	Review	May be appropriate
Coastal exterior	Water protection only	May help, but corrosion also needs review
Temporary immersion condition	Not suitable	Can be relevant
Continuous immersion	Not suitable	Not sufficient

One important boundary needs to stay clear:

IP67 does not mean permanent underwater use.

Iduoduo’s reference explicitly states that IP67 should not be treated as approval for long-term submersion.

That matters because rain exposure and immersion create very different pressure and water-path conditions.

A sign under heavy rain usually experiences water moving across surfaces and joints. A submerged sign has water pressure acting continuously around the enclosure, cable entries, connectors, and seals.

High humidity introduces another problem: condensation.

Consider a sign installed in a tropical outdoor corridor. Rain may rarely hit the sign directly, yet warm humid air can enter the enclosure during the day and condense on cooler metal at night.

In a case like that, simply upgrading the LED to IP67 may not solve the problem.

The project also needs:

• controlled drainage;
• protected electrical connections;
• suitable power-supply position;
• corrosion-resistant materials;
• condensation management;
• access for inspection.

So IP67 should be viewed as one part of a higher-protection construction rather than a single upgraded component.

When Should IP68 Be Considered?

IP68 should be considered only when the project has special water exposure that cannot be treated as normal outdoor rain or temporary immersion.

Iduoduo uses the wording:

IP68 available on request.

That wording is deliberate. IP68 is not the default for every outdoor sign. It must be raised during quotation and engineering review because the exact condition changes the product design.

Before an IP68 solution is considered, the project should define:

• sign type;
• whether the complete sign or only selected components need higher protection;
• water depth;
• expected immersion duration;
• cable-entry method;
• connector type;
• power-supply location;
• maintenance method;
• test requirement;
• installation direction.

The difference between several common environments is substantial:

Environment	Appropriate Interpretation
Normal outdoor rain	Usually not an IP68 application
Strong tropical rain	Review IP65/IP67 first
Poolside splash	High humidity and splash review
Fountain splash	Separate water-exposure review
Temporary immersion	May lead to IP67 review
Long-term submersion	Separate IP68 engineering
Underwater installation	Project-specific IP68 review
High-pressure cleaning	Separate washdown condition

Long-term immersion, swimming-pool environments, underwater use, and ordinary exterior rain are not interchangeable conditions. Iduoduo’s reference requires those environments to be defined separately.

There is also a practical trade-off.

More aggressive sealing can change:

• cabinet construction;
• cable-entry design;
• connector selection;
• service-cover design;
• drainage strategy;
• heat management;
• maintenance access;
• production cost;
• testing requirements;
• production time.

A specification that simply says “make everything IP68” can therefore create unnecessary cost or even make future repair more difficult.

A better instruction might be:

“Logo sign located adjacent to a decorative water feature with repeated direct splash but no permanent immersion. Please review whether IP67 is sufficient or whether a project-specific IP68 component configuration is required.”

That gives the engineering team a real condition to evaluate.

How Does Water Exposure Change the Rating?

The rating should follow how water actually contacts the sign.

The most useful questions are:

• Is the sign protected by a roof?
• Can wind push rain behind it?
• Can water hit the rear of the product?
• Can water collect at the bottom?
• Is the site highly humid?
• Will the sign be cleaned using a hose?
• Is high-pressure washing expected?
• Can the product be temporarily submerged?
• Is permanent immersion possible?

Those questions often matter more than the word “outdoor.”

A practical exposure scale can be used during an RFQ:

Exposure Level	Example	Typical Direction
Level 1	Covered outdoor storefront	Review IP65
Level 2	Normal direct rain	IP65 often suitable
Level 3	Heavy rain / high humidity	Review IP67
Level 4	Repeated splash / severe moisture	Detailed IP67 review
Level 5	Temporary immersion	IP67 condition review
Level 6	Continuous immersion	Project-specific IP68 review

The levels above are a project-planning tool rather than an official IP classification. Their purpose is to force the installation environment to be described before a rating is chosen.

Pressure washing deserves special attention.

Iduoduo’s engineering reference states that an ordinary outdoor waterproof sign should not automatically be assumed to withstand close-range high-pressure cleaning. Water can be forced through:

• joints;
• access covers;
• cable entries;
• drainage openings;
• panel edges.

For a restaurant sign, service-station sign, or exterior sign close to areas cleaned frequently, the maintenance method should therefore be specified before production.

Another common issue is wind-driven rain.

A horizontal or vertical rainfall assumption may look fine on a simple drawing, but strong wind can drive water behind letters, raceways, backboards, and cabinet covers.

The sign orientation also changes drainage.

For example, a double-sided blade sign needs a clearly defined:

• top;
• bottom;
• left and right;
• bracket orientation;
• drainage direction.

If the sign is installed upside down, a correctly designed drain may become useless. Iduoduo therefore treats mounting orientation as part of waterproofing rather than a cosmetic installation detail.

A practical RFQ should describe water exposure in plain language:

“Fully exposed to direct rain.”

“Under canopy but exposed to wind-driven rain.”

“High-humidity tropical environment.”

“Frequent hose cleaning.”

“No pressure washing.”

“Located beside a pool but not submerged.”

Those statements can prevent more mistakes than an unexplained IP number.

Do Coastal Conditions Need Extra Protection?

Yes. Coastal locations normally require corrosion and material review in addition to the chosen IP rating.

Salt-laden air can affect:

• metal panels;
• welds;
• fasteners;
• electrical terminals;
• connectors;
• brackets;
• damaged coating edges.

Iduoduo’s outdoor engineering reference notes that coastal installations may require 316 stainless steel, suitable aluminum, outdoor powder coating or paint, corrosion-resistant fasteners, sealed connectors, protected power supplies, isolation between dissimilar metals, and regular cleaning.

A common specification mistake looks like:

“Outdoor coastal sign, IP67.”

The IP67 requirement addresses water ingress, but it does not automatically solve salt corrosion.

A more complete coastal specification would include:

Item	Coastal Requirement to Review
IP level	IP65 or IP67 according to water exposure
Metal	316 stainless steel or suitable aluminum where required
Fasteners	Corrosion-resistant material
Welds	Surface restoration and protection
Coating	Outdoor-grade finish
Connectors	Sealed and corrosion-conscious
Power supply	Protected from moisture and salt exposure
Mixed metals	Isolation where necessary
Drainage	No long-term saltwater accumulation
Maintenance	Periodic cleaning and inspection

316 stainless steel can be particularly useful for coastal, high-humidity, salt-spray, pool, and some corrosive environments. However, using 316 for the main letter body does not automatically protect every screw, weld, bracket, connector, or adjoining material.

Dissimilar metals also need attention.

Aluminum, stainless steel, carbon steel, copper, and brass can react differently when they are in direct contact in wet or salty environments. Suitable fasteners, isolation washers, coatings, sealing, and drainage can reduce galvanic-corrosion risk.

So for a coastal sign, do not ask only:

“Should it be IP65 or IP67?”

Ask:

• How close is the site to the sea?
• Is salt spray direct or airborne?
• Is rain frequent?
• Is humidity consistently high?
• Which metal will be used?
• Which fasteners will be exposed?
• Are connectors protected?
• Where can saltwater collect?
• How will the sign be cleaned?

A specification such as:

“Exterior channel letters in a coastal city, fully exposed to rain and high humidity. Review IP67 project configuration, corrosion-resistant metal and fasteners, sealed connectors, protected power supply, outdoor coating, drainage, and isolation of dissimilar metals.”

gives the factory enough information to build a coherent outdoor system.

The most useful rule for selecting an IP rating is therefore simple:

Choose the rating after describing the water exposure, not before.

IP65, IP67, and IP68 are not three quality grades for the same environment. They respond to different water conditions. The correct choice also needs to work with the sign structure, electrical system, materials, drainage, corrosion protection, installation direction, and local site conditions.

How Should a Sign Be Waterproofed?

A sign should be waterproofed as a complete system, not by adding sealant around visible joints. Effective protection combines suitable outdoor electrical parts, controlled cable entries, sealed seams, protected power supplies, drainage, condensation management, correct mounting orientation, and properly sealed site penetrations. The goal is to keep water away from sensitive parts while giving unavoidable moisture a safe path to leave the enclosure.

Which Parts Need Water Protection?

Every opening, joint, electrical connection, and low point can become a water path.

For outdoor channel letters, cabinet signs, blade signs, LED neon signs, and light boxes, waterproofing normally needs to cover more than the visible face. Iduoduo’s engineering reference lists LEDs, power supplies, connectors, wiring, panels, letter returns, backplates, brackets, fasteners, welds, coatings, cable exits, seals, drainage, wall holes, and field installation as part of the outdoor protection system.

A practical inspection starts by dividing the sign into five areas:

Area	Typical Risk
Face and top	Direct rain and wind-driven water
Side joints	Panel gaps, seams and thermal movement
Rear	Cable exits, brackets and wall penetrations
Electrical zone	Connectors, wiring and power supplies
Bottom	Standing water and blocked drainage

The face often receives the most attention, but the rear and bottom are frequently more critical.

Common ingress locations include:

• face-panel joints;
• letter-return seams;
• welds;
• screw holes;
• backplate joints;
• cable exits;
• service covers;
• mounting brackets;
• connectors;
• power terminals;
• raceway covers;
• light-box edges;
• wall penetrations.

Iduoduo’s outdoor engineering reference identifies all of those areas as possible water-entry points.

A channel letter provides a useful example.

A front-lit letter may have an acrylic face, aluminum or stainless return, backplate, LED modules, connectors, low-voltage wiring, rear cable exit, drain holes, mounting studs, and a wall penetration.

If only the acrylic face is sealed, water can still enter through:

• a screw penetration;
• an unfinished seam;
• the rear wire hole;
• a service joint;
• a wall opening.

The waterproofing review therefore needs to follow the complete path from the exterior surface to the building.

For LED neon signs, the same logic applies. Waterproof neon flex does not protect an exposed connector or an upward-facing cable exit. Outdoor LED neon construction also needs to consider the backboard, fixing method, sealing, drainage, UV exposure, and site electrical sealing.

A useful production rule is:

Every component touching water should be rated for the environment, and every opening should have a planned sealing or drainage function.

How Should Cable Entries and Connectors Be Sealed?

Cable entries should be designed before production because the wire hole is one of the most common routes for water to reach the inside of a sign.

A proper cable entry may require:

• a correctly sized opening;
• a grommet;
• a waterproof cable gland;
• compatible sealant;
• strain relief;
• downward-facing cable direction;
• a drip loop;
• protected connector location.

Iduoduo’s outdoor engineering reference specifically covers hole diameter, grommets, waterproof fittings, sealant, drip paths, exit direction, and pull protection.

Cable direction matters.

An upward-facing cable entry can collect water around the opening. A cable entering from the side or bottom can reduce the risk, especially when combined with a drip loop.

A drip loop is simple but effective. The cable drops below the entry point before turning upward toward the sign or junction box. Water running along the cable reaches the low point and drips away instead of continuing toward the opening.

Connector location matters just as much as connector rating.

A waterproof connector should not sit at the bottom of a cabinet where water can collect. Even when the connector has suitable ingress protection, long-term exposure to standing water, salt, heat, and mechanical tension can shorten its service life.

Connector selection should consider:

Requirement	What to Confirm
Voltage	Matches the circuit
Current	Suitable for electrical load
Wire size	Compatible with connector
IP requirement	Matches project exposure
Outdoor temperature	Within component range
UV exposure	Suitable for exposed use
Position	Away from low water points
Maintenance	Accessible without damaging seals

Iduoduo’s engineering reference also states that external connectors should be protected from long-term standing water and mechanical pulling.

For a flush-mounted channel-letter project, a rear cable exit may be preferred because the cable can pass directly into the wall. However, the wall penetration must still be sealed on site.

For raceway-mounted letters, wiring may remain inside the raceway, reducing the number of wall penetrations. The raceway itself then becomes part of the waterproofing system and requires correct cover sealing, cable entry, drainage, and mounting.

For glass or stone walls, wire routes often require more careful planning because field drilling can be difficult or restricted.

The most useful approach is to approve the wire-exit location together with the mounting drawing, rather than leaving the electrician to improvise after delivery.

How Should Power Supplies Be Protected?

Power supplies should be protected from both water and heat.

A waterproof-rated power supply is useful, but the rating alone does not make any installation location acceptable. Iduoduo’s engineering reference states that outdoor power-supply planning should consider the unit’s own protection, enclosure, mounting direction, ventilation, terminals, cable entries, drainage, sunlight, and service access.

The power supply should not be placed:

• directly on a cabinet floor where water can collect;
• under an uncontrolled drain path;
• inside a sealed hot compartment with no heat management;
• where maintenance requires dismantling the whole sign;
• in an exposed location without suitable protection.

A useful power-supply review can use the following table:

Item	Practical Check
Protection level	Suitable for installation environment
Mounting height	Above likely standing-water level
Orientation	Water does not collect at cable entries
Heat	Adequate ventilation or heat dissipation
Sun exposure	Avoid unnecessary direct heating
Cable entries	Sealed and strain-relieved
Drainage	No trapped water around enclosure
Service access	Replaceable without major dismantling
Electrical route	Complies with project requirements

Power location also affects voltage drop.

If the power supply is placed far from the sign, longer low-voltage cable runs may reduce voltage at the far end. Iduoduo’s engineering reference notes that long wire runs can produce brightness loss, color change, flicker, and power-loading problems, which may require larger wire, shorter runs, additional feeds, or a different power layout.

So waterproofing and electrical design cannot be separated completely.

A protected indoor power-supply location may simplify waterproofing but increase cable length. A closer outdoor power supply may reduce voltage drop but require stronger weather protection.

The best location balances:

• water exposure;
• heat;
• service access;
• wiring distance;
• local electrical rules.

For projects in the United States, Europe, Australia, the Middle East, or other markets, input voltage and local electrical requirements should also be confirmed before production.

Why Are Drainage Holes Important?

Drainage holes are often necessary because a sign cannot always be kept completely dry inside.

Outdoor enclosures experience temperature changes throughout the day. Warm air can hold moisture, and when the temperature falls, condensation can form on metal or plastic surfaces. Small amounts of water may also enter through service joints over time.

If the enclosure has no drainage path, moisture can remain inside.

Iduoduo’s outdoor engineering guidance states that waterproofing should combine sealing with drainage rather than aiming only for complete closure.

Drain holes should normally be located at the lowest practical point.

They need to remain open after:

• fabrication;
• LED installation;
• sealing;
• packing;
• transport;
• final mounting.

Common drain-blocking problems include:

• silicone covering the hole;
• wires passing directly over the opening;
• foam or packing residue left inside;
• the wall closing the outlet;
• insects or dirt blocking the path;
• incorrect installation orientation.

Iduoduo’s reference specifically notes that drains can fail if blocked by sealant, wiring, wall contact, packing material, or debris.

The direction of the sign matters too.

For a blade sign or double-sided light box, the factory should know:

• which edge is the top;
• which edge is the bottom;
• where the bracket sits;
• which face points outward;
• where water should leave.

If the installer rotates the product, the designed low point may no longer be the low point.

That is why installation drawings should mark orientation clearly.

Drainage also affects maintenance.

A drain hole can become blocked after months outdoors by dust, insects, leaves, oil, or building sealant. Iduoduo’s outdoor maintenance guidance recommends keeping drainage paths clear during periodic inspection.

A practical inspection interval depends on the environment. A sign in a clean covered retail corridor may need less frequent drainage checks than one beside a road, restaurant exhaust, or coastal promenade.

A waterproof sign is not necessarily one with no openings. In many cases, a sign with well-controlled drainage is more reliable than a completely sealed cabinet that traps condensation.

How Should Condensation and Site Waterproofing Be Managed?

Condensation and site waterproofing are two separate issues, and both need to be addressed.

Condensation occurs when humid air cools inside the enclosure. Water droplets can form even when external rain never enters.

Iduoduo identifies several common condensation causes:

• day-night temperature changes;
• high humidity;
• trapped air;
• cooling metal surfaces;
• moisture from the wall;
• power-supply heat.

Condensation control may require:

• drainage;
• ventilation where appropriate;
• protected electrical parts;
• sensible power-supply placement;
• controlled sealing;
• avoiding water traps;
• keeping connectors above low points.

The goal is not to guarantee that moisture can never form. The goal is to prevent moisture from remaining around vulnerable electrical or structural areas.

High-humidity environments deserve extra attention.

Examples include:

• pool surroundings;
• spa areas;
• tropical climates;
• coastal locations;
• cold-storage transition areas;
• semi-enclosed exterior corridors.

In those environments, Iduoduo may strengthen LEDs, connectors, power protection, metal corrosion protection, adhesives, drainage, and condensation control.

Site waterproofing creates another boundary.

A factory can waterproof the sign body, but it cannot control every hole drilled into the building.

Iduoduo’s approved responsibility boundary separates factory work from field work.

Factory Side	Local Installation Side
Product enclosure	Wall penetrations
LED configuration	Building waterproofing
Connectors	Junction boxes
Wire exits	High-voltage field connection
Drainage	Bracket anchoring
Power matching	Service-cover reinstallation
Manufacturing	Field sealing
Factory testing	Final orientation
Installation interface	Final site inspection

Wall penetrations are especially important.

Field installation may require:

• wire holes;
• stud holes;
• bracket holes;
• raceway fixing holes;
• backboard holes;
• curtain-wall penetrations.

If those openings are not sealed correctly, water can enter the building even when the sign enclosure itself remains dry. Iduoduo’s engineering reference specifically warns that an unsealed wall opening can cause building leakage without any failure in the sign body.

For that reason, a complete waterproofing specification should state who is responsible for each interface.

A useful installation note might read:

“Factory to provide outdoor electrical components, protected cable exits, sealed sign construction, and designed drainage. Local installer to seal all wall penetrations, junction boxes, anchor points, and field electrical connections after mounting.”

A complete waterproofing check before shipment and installation should cover:

Checkpoint	What to Verify
Enclosure	No uncontrolled gaps
Face and joints	Correct sealing and movement allowance
Wire exits	Direction and sealing
Connectors	Protected and correctly positioned
Power supply	Suitable location and access
Drain holes	Open and correctly positioned
Orientation	Top and bottom marked
Mounting holes	Match approved drawing
Wall interface	Site responsibility defined
Service access	Can be reopened and resealed
Final inspection	No blocked drains or exposed connections

Iduoduo can also perform project-specific outdoor checks including connector inspection, sealing inspection, waterproof-structure inspection, drainage inspection, power-supply inspection, orientation review, and agreed spray or third-party testing where specified.

The strongest waterproofing approach is not “use more silicone.”

It is to control the full path of water:

Where can water reach the sign?
Where can it enter?
What component does it reach next?
Where can it drain?
What changes during installation?
Who seals the building interface?

When those questions are answered before production, waterproofing becomes an engineering specification rather than a last-minute repair.

How Do You Verify Waterproofing?

Waterproofing should be verified against the approved sign configuration, not one isolated IP-rated component. A proper check should cover LEDs, connectors, wire exits, power supplies, enclosure joints, service covers, drainage, installation direction, and agreed water tests. Test records should show what was inspected, how it was tested, and whether the final assembly passed after testing.

What Should the Manufacturer Verify Before Shipment?

The manufacturer should verify the complete waterproofing path rather than checking only visible sealant.

For an illuminated outdoor sign, the inspection should start from the outside surface and follow every location where water could reach the electrical system.

A practical pre-shipment review should cover:

Check Area	What Should Be Verified
Face and panel	Joints, edges, movement allowance
Cabinet or letter return	Seams, welds, screw points
Backplate	Joints, fasteners, mounting interface
LED	Correct outdoor specification
Connectors	Fit, sealing, position
Wire exits	Direction, gland, grommet, seal
Power supply	Protection, position, ventilation
Service cover	Closure and resealing
Drainage	Open flow path and lowest-point location
Mounting orientation	Correct top, bottom and bracket direction
Mounting holes	Match approved drawing
Surface finish	Coating condition around edges and welds

Iduoduo’s outdoor inspection framework can include connector checks, sealing checks, waterproof-structure checks, drainage checks, power-supply checks, mounting-direction checks, and project-agreed spray or third-party testing.

Inspection should happen after final assembly.

Checking a waterproof connector before installation is useful, but the same connector may later be pulled too tightly, positioned at the lowest point of the cabinet, or left where water can collect.

The finished sign should therefore be inspected in the same orientation intended for installation whenever practical.

A double-sided blade sign is a good example. Drainage may work correctly only when the sign is installed with the approved top and bottom orientation. If the product is rotated during installation, the original drainage route can become ineffective.

Factory inspection should also confirm that:

• drain holes are not blocked by silicone;
• LED wires are not covering drains;
• connectors are not sitting in low water-collection areas;
• service covers close correctly;
• wire exits point in the approved direction;
• seals have not been damaged during final assembly;
• mounting holes have not cut through protected surfaces without proper treatment.

Waterproofing inspection should be treated as part of final assembly control, not as a quick visual check before packing.

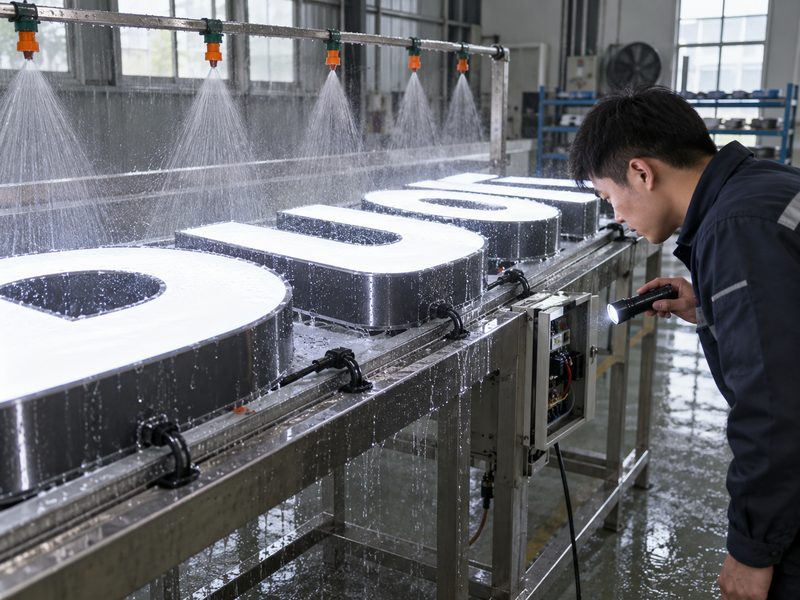

How Should Waterproofing Tests Be Performed?

The test method should match the water exposure defined in the project specification.

A storefront sign exposed to ordinary rain does not need to be evaluated in exactly the same way as a sign near a fountain, a high-humidity pool area, or a project with temporary immersion requirements.

The project should first define:

• normal exterior rain;
• wind-driven rain;
• splash exposure;
• hose cleaning;
• stronger water jets;
• temporary immersion;
• continuous immersion.

Then the appropriate test can be agreed.

A practical test plan may look like:

Project Condition	Possible Verification
Standard outdoor rain	Sealing and drainage inspection
Direct exposed rain	Agreed spray test
High humidity	Condensation and drainage review
Frequent splash	Targeted water-exposure test
Temporary immersion requirement	IP-related test condition
Special underwater use	Project-specific IP68 test requirement
High-value project	Third-party test if required

Iduoduo’s reference allows project-agreed spray or third-party testing where required. It also states that factory testing cannot reproduce every local climate over years of service.

That limitation matters.

A short factory spray test can reveal:

• an open joint;
• a poorly fitted service cover;
• an unsealed wire entry;
• water pooling around a connector;
• blocked drainage;
• incorrect installation direction.

It cannot fully reproduce:

• five years of UV exposure;
• repeated freeze-thaw cycles;
• long-term salt corrosion;
• seasonal thermal expansion;
• maintenance damage;
• building movement;
• field installation errors.

A useful test should therefore be seen as one layer of evidence.

Testing should also be followed by inspection.

After a water or operating test, the sign should be checked for:

• internal moisture;
• connector condition;
• LED operation;
• power-supply condition;
• panel movement;
• drainage;
• control function;
• surface condition.

Iduoduo’s approved procedure specifically calls for reinspection of LEDs, power supplies, connectors, wiring, enclosure, panels, internal moisture, drainage, controls, surfaces, and labels after waterproofing or continuous-operation tests.

A test without a post-test inspection can miss water that entered the enclosure but did not immediately cause an electrical failure.

Does an IP-Rated Component Prove the Whole Sign Is Waterproof?

No. Component ratings and complete-sign protection must be kept separate.

A sign may contain:

• IP67 LED modules;
• an IP67 power supply;
• waterproof connectors;

and still have a weaker overall protection level because of:

• a poorly sealed face;
• an open cabinet seam;
• a service cover;
• a rear wire exit;
• a mounting hole;
• a wall penetration.

Iduoduo’s engineering reference states clearly that IP67 LEDs or IP67 power supplies do not automatically make the complete sign IP67. The lowest-protection location can influence the overall assembly.

Before accepting an IP claim, ask:

“What exactly was rated or tested?”

A clear answer should identify one of the following:

• LED component;
• power supply;
• connector;
• enclosure;
• complete sign assembly;
• specific tested configuration.

A vague answer such as “all parts are waterproof” is not enough.

For larger projects, a simple evidence table can prevent confusion:

Claimed Protection	Evidence to Request
LED IP rating	Component datasheet
Power-supply IP rating	Manufacturer specification
Connector rating	Connector datasheet
Enclosure protection	Construction or test record
Complete assembly	Agreed test record if applicable
Field installation	Installer inspection record

The distinction is especially important when sign companies or project teams need to pass documentation downstream to an architect, contractor, installer, or brand representative.

A component specification can be valid and still be unsuitable as evidence for the full sign.

What Evidence Should Be Requested Before Shipment?

Evidence should be proportional to the project risk.

For a normal storefront sign, useful evidence can include:

• completed-product photos;
• connector photos;
• cable-entry photos;
• drainage photos;
• power-supply photos;
• backplate photos;
• mounting-orientation markings;
• sealing inspection records;
• testing photos or videos.

For a larger rollout or higher-risk environment, stronger documentation may include:

• approved engineering drawing;
• component model list;
• IP-related component datasheets;
• waterproofing inspection checklist;
• agreed spray-test record;
• third-party test report where required;
• final QC record;
• packing photos showing orientation marks.

A useful documentation package can be organized as follows:

Document	Why It Matters
Approved drawing	Confirms final construction
Component list	Identifies LEDs, power supplies and connectors
Waterproofing checklist	Shows factory inspection points
Test photos/video	Shows test execution
Post-test inspection	Confirms no visible failure after testing
Drainage photo	Confirms water path
Orientation photo	Helps installer maintain designed drainage
Packing photo	Reduces installation confusion
Installation note	Defines field waterproofing responsibility

Iduoduo can provide project documentation such as production photos, test photos, test videos, and packing records depending on the order. The company also separates factory waterproofing from field installation responsibility in its approved project framework.

For illuminated signs, Iduoduo performs 100% lighting inspection and a 72-hour pre-shipment operating test. The 72-hour test is used to observe LED stability, power-supply performance, flicker, early failures, abnormal temperature, and wiring issues.

It is important not to mislabel the 72-hour operating test as a waterproof test.

The two tests answer different questions:

Test	Main Purpose
72-hour lighting test	Electrical and lighting stability
Waterproofing inspection	Seals, openings and drainage
Spray test	Water-entry behavior
Post-test inspection	Internal moisture and component condition
Third-party IP test	Formal project-specific verification

Keeping those records separate makes the evidence clearer.

How Should Waterproofing Be Checked After Installation?

Final waterproofing cannot be confirmed only at the factory because field installation changes the sign.

Installers may:

• drill new holes;
• remove service covers;
• connect field wiring;
• mount raceways;
• tighten brackets;
• seal wall penetrations;
• reposition power supplies;
• alter cable direction.

Any one of those steps can change the water path.

Iduoduo’s approved responsibility boundary states that the factory side covers the product structure, LED and connector configuration, wire exits, drainage, power matching, manufacturing, testing, and installation interfaces. The local installation team is responsible for wall penetrations, building waterproofing, junction boxes, high-voltage connections, bracket anchoring, field sealing, final orientation, and final inspection.

A post-installation waterproofing check should confirm:

Field Check	What to Inspect
Sign level	Drainage still works
Orientation	Top and bottom match drawing
Wire entry	Sealed and correctly routed
Wall holes	Fully sealed
Brackets	No water traps
Raceway	Cover and cable entries secure
Backboard	No trapped water behind panel
Drain holes	Open after installation
Service covers	Correctly refitted
Power supply	Dry, ventilated and accessible
Junction box	Properly protected
Final lighting	No electrical abnormality

Iduoduo’s outdoor installation guidance also recommends checking product level, fixing, brackets, wall holes, wire exits, connectors, power supply, drainage, sealing, lighting, controls, surface condition, and maintenance access after installation.

One of the most common mistakes happens at the wall.

A sign may pass factory waterproofing checks but water can still enter the building through:

• stud holes;
• wire penetrations;
• raceway fixing holes;
• backboard anchors;
• curtain-wall penetrations.

Iduoduo’s engineering reference specifically notes that poor field sealing can cause building water ingress even when the sign enclosure itself does not leak.

For higher-risk locations, a final installation photo set is useful.

Ask the installer to photograph:

• rear wire exits before closing;
• sealed wall penetrations;
• junction boxes;
• drain positions;
• bracket interfaces;
• completed sign orientation.

Those photos can become valuable evidence if a water-related problem appears later.

A good waterproofing verification process therefore follows four stages:

Verify the components.
Verify the assembled sign.
Verify the sign after testing.
Verify the installation.

Skipping any one of those stages leaves a gap between the stated IP requirement and the real sign operating outdoors.

What Must Be Confirmed Before Production?

Before production, confirm the installation environment, direct rain exposure, temperature range, humidity, IP target, wall type, mounting method, wire exit, power-supply location, drainage direction, and field waterproofing responsibility. These details affect enclosure design, electrical protection, sealing, corrosion control, drainage, and installation. Late changes can require new holes, different connectors, revised backplates, new power layouts, or reworked mounting hardware.

Is the Sign Indoor, Semi-Outdoor, or Fully Outdoor?

The first decision is not the IP rating. It is the exposure category.

Iduoduo separates projects into indoor, semi-outdoor, and fully outdoor conditions. Semi-outdoor locations include covered storefronts, exterior shopping corridors, canopies, and semi-open passages where humidity or occasional wind-driven rain can still reach the sign. Fully outdoor signs may face direct rain, sun, wind, temperature change, dust, snow, and salt exposure.

A protected sign should not automatically be treated as an indoor product.

For example:

Installation	Exposure Level	Main Risk
Office reception	Indoor	No direct rain
Storefront under deep canopy	Semi-outdoor	Humidity, wind-driven rain
Mall exterior corridor	Semi-outdoor	Moisture, cleaning water
Open facade	Fully outdoor	Direct rain and UV
Rooftop sign	Fully outdoor	Rain, wind, heat
Seafront facade	Fully outdoor / coastal	Rain, humidity, salt

Three details should be confirmed early:

• Is there a canopy?
• Can rain reach the rear or top of the sign?
• Is the sign exposed all day or only during certain weather directions?

A storefront photograph is useful because the same “outdoor sign” can behave very differently depending on whether it is recessed 1 meter under a canopy or mounted flush on an exposed facade.

If the sign is installed near the edge of a roof or canopy, wind-driven rain can reach areas that appear protected on a front elevation.

The safest project note is not simply:

“Outdoor.”

A more useful instruction is:

“Exterior storefront, fully exposed to direct rain from front and side, no roof protection.”

That sentence gives the engineering team enough information to begin choosing materials, drainage, connectors, and IP protection.

How Much Water Exposure Will the Sign Face?

Water exposure should be described by source, direction, frequency, and severity.

Rain is only one form of exposure.

A sign may also receive:

• wind-driven rain;
• roof runoff;
• splash from nearby paving;
• fountain spray;
• hose cleaning;
• pressure washing;
• condensation;
• temporary immersion.

A practical water-exposure table can be included in the RFQ:

Water Condition	Example	What to Confirm
Protected	Deep canopy	Humidity and occasional splash
Normal rain	Exterior storefront	IP65 often a starting point
Heavy rain	Tropical climate	Review IP67
Repeated splash	Pool or fountain area	Connector and enclosure review
Hose cleaning	Restaurant or service area	Water direction and openings
Pressure washing	Industrial cleaning	Separate requirement
Temporary immersion	Special installation	IP67 test condition review
Long-term immersion	Underwater feature	IP68 project review

Iduoduo treats high-pressure washing, permanent underwater use, extreme humidity, high salt, hurricane or typhoon exposure, and marine environments as special conditions that require separate review.

Pressure washing deserves special attention because normal exterior protection should not automatically be assumed to withstand close-range high-pressure water. Water can be forced through service covers, panel edges, cable entries, and drainage openings.

The cleaning method should therefore be included before production.

A simple note such as:

“No pressure washing; hand cleaning only.”

can prevent the factory from designing around the wrong condition.

Climate data also matters.

Useful environmental inputs include:

• minimum temperature;
• maximum temperature;
• high humidity;
• coastal location;
• prolonged direct sun;
• freeze-thaw exposure.

Iduoduo specifically requests country and city, direct rain, temperature range, coastal condition, humidity, and long-term sun exposure as part of outdoor project review.

If exact climate data is not available, the city should still be provided so the environment can be discussed accurately.

Where Will the Power Supply and Wires Be Located?

Power-supply position and wire routing should be decided before the sign structure is finalized.

The power supply may be located:

• inside the sign;
• inside a raceway;
• behind a backboard;
• inside the building;
• inside an external service box;
• in another protected service area.

Each location changes the waterproofing and electrical design.

A useful power-location review includes:

Item	What Must Be Confirmed
Input voltage	Project voltage
Power location	Indoor, raceway, cabinet, external box
Access	Can it be replaced later?
Water exposure	Can water collect nearby?
Ventilation	Is heat able to escape?
Cable length	Will voltage drop become an issue?
High-voltage boundary	Factory or local electrician
Junction box	Who supplies and installs it?

Iduoduo’s engineering reference states that power supplies should not be installed in locations where heat cannot dissipate, water can collect, or maintenance becomes difficult.

Wire exit is equally important.

The project should define whether the cable leaves from the:

• rear;
• side;
• bottom;
• raceway;
• backboard;
• site-specific opening.

An upward-facing cable exit should be avoided where possible because water can collect around the opening.

Iduoduo’s outdoor engineering guidance includes correct hole size, grommets, waterproof fittings, sealant, drip loops, exit direction, and strain relief.

A drip loop can make a major difference. The cable drops below the entry before turning upward, allowing water to fall away instead of following the cable into the sign.

For flush-mounted channel letters, rear wire exits often need to align with wall penetrations. If the exit is produced in the wrong position, installers may need to drill a new hole on site, creating another waterproofing point.

Wire exits should therefore be approved on the production drawing rather than decided during installation.

How Will the Sign Be Mounted and Drained?

Mounting method changes where holes, brackets, fasteners, wire exits, and drainage paths are located.

Common mounting arrangements include:

• flush mount;
• raceway mount;
• backboard mount;
• bracket mount;
• stand-off mount;
• hanging installation;
• blade-sign bracket.

Each arrangement creates different water paths.

For example, flush-mounted channel letters may require multiple stud holes and wire penetrations through the facade. Raceway-mounted letters may reduce the number of wall penetrations but introduce raceway cover joints and fixing holes.

Before production, confirm:

Mounting Detail	Why It Matters
Wall type	Determines anchors and sealing
Mounting holes	Must match site layout
Stud position	Affects wall penetrations
Raceway/backboard	Changes wiring and water paths
Bracket direction	Affects drainage and load
Sign orientation	Determines top and bottom
Drain location	Must remain at lowest point
Maintenance access	Service covers must remain reachable

Drainage direction should be shown on the drawing.

Iduoduo’s reference states that drain holes may be located at the bottom or lowest point and must remain open after installation. They should not be blocked by silicone, wires, walls, packing materials, dirt, or insects.

Orientation is especially important for:

• double-sided blade signs;
• light boxes;
• hanging signs;
• segmented products.

If a sign is rotated after production, the original drain point may no longer be at the bottom.

For that reason, production and installation drawings should clearly mark:

• top;
• bottom;
• front;
• rear;
• bracket direction.

The sign should also be checked after installation to confirm that drainage still works and the product sits at the intended angle. Iduoduo’s outdoor installation guidance includes level, brackets, wall holes, wire exits, connectors, power supply, drainage, sealing, lighting, and maintenance access.

Who Is Responsible for Final Site Waterproofing?

Factory waterproofing and site waterproofing should be separated before production begins.

Iduoduo’s responsibility boundary defines factory-side work as the sign structure, LED and connector configuration, wire exits, drainage, power matching, manufacturing, testing, and installation interface.

The local installation side is responsible for wall penetrations, building waterproofing, junction boxes, high-voltage connections, bracket anchoring, field sealing, final orientation, and final inspection.

A clear responsibility table avoids disputes later:

Area	Factory	Local Installer
Sign enclosure	Yes	Final inspection
LED and connectors	Yes	Connection check
Factory wire exits	Yes	Site sealing
Drainage design	Yes	Keep openings clear
Power matching	Yes	Field connection
Mounting holes	According to drawing	Final anchoring
Wall penetrations	No	Yes
Building waterproofing	No	Yes
Junction box	Project-specific	Often local
High-voltage field wiring	No	Qualified local personnel
Final sealant	Interface-specific	Yes
Final orientation	Drawing provided	Yes

Wall penetrations are one of the most important field risks.

Installation can require:

• wire holes;
• stud holes;
• bracket holes;
• raceway fixings;
• backboard fixings;
• curtain-wall penetrations.

Iduoduo’s engineering reference notes that an unsealed wall penetration can allow water into the building even when the sign enclosure itself does not leak.

Before production, the project file should therefore contain a final waterproofing checklist.

Information to Confirm	Example
Country and city	Miami, USA
Environment	Fully outdoor
Direct rain	Yes
Coastal	Yes / No
Temperature range	Project-specific
Humidity	Normal / High
IP target	IP65 / IP67 / Project review
Power location	Inside / Raceway / Indoor
Wire exit	Rear / Side / Bottom
Mounting	Flush / Raceway / Backboard
Wall type	Concrete / ACM / Brick / Glass
Drain direction	Bottom / Project-specific
Cleaning method	Hand / Hose / No pressure wash
Site sealing	Local installer
Test requirement	Standard / Spray / Third-party
Final orientation	Approved drawing

The most expensive waterproofing changes are often the ones discovered after fabrication.

A late change from rear wire exit to bottom exit may require new holes and wiring.

A late decision to use IP67 may require different connectors, power supplies, seals, or enclosure details.

A change from flush mount to raceway mount can affect wiring, drainage, mounting, and packaging.

A coastal-location update can change metal, fasteners, coating, and electrical protection.

The best time to solve those issues is before the production drawing is approved.

A strong waterproofing specification should leave the factory with no uncertainty about three points:

Where will the sign be installed?
How will water reach it?
Who is responsible for every point between the sign and the building?

Once those answers are fixed, waterproofing can be engineered into the sign instead of repaired after installation.

Request a Waterproof Custom Sign Quote

If you are planning an outdoor sign project, send Iduoduo the logo or drawing together with the sign size, quantity, installation city, indoor or outdoor condition, expected rain or humidity exposure, wall type, voltage, power-supply position, wire exit, mounting method, and any required IP rating. Clear site information makes it easier to determine whether IP65, IP67, or a project-specific protection approach is more appropriate.

Iduoduo can review the waterproofing requirement together with the sign structure, LED system, connectors, power supply, drainage, materials, mounting, and installation interface before production. The purpose of the review is to reduce uncertainty before drawings are approved and avoid late changes to holes, wiring, backplates, connectors, or mounting details.

For projects involving heavy rain, coastal exposure, high humidity, unusual temperatures, splash, or other demanding conditions, include those details in the RFQ. The engineering team can then evaluate the product around the actual installation environment rather than relying on a generic “outdoor waterproof” specification.
